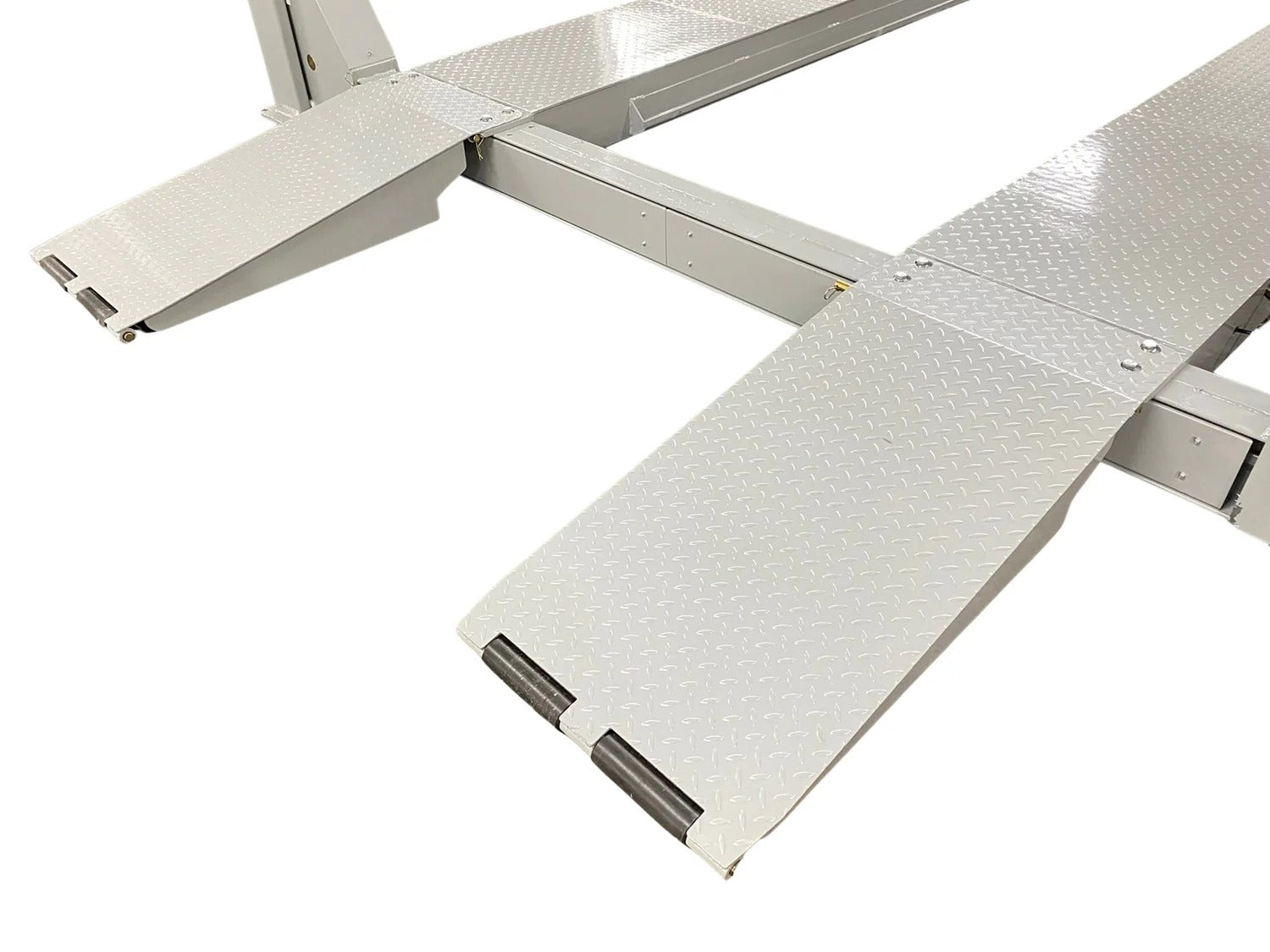

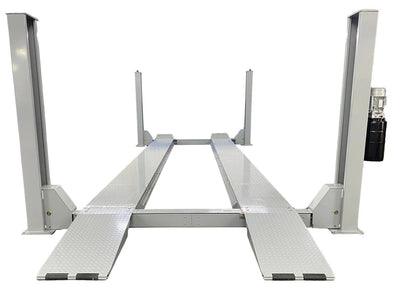

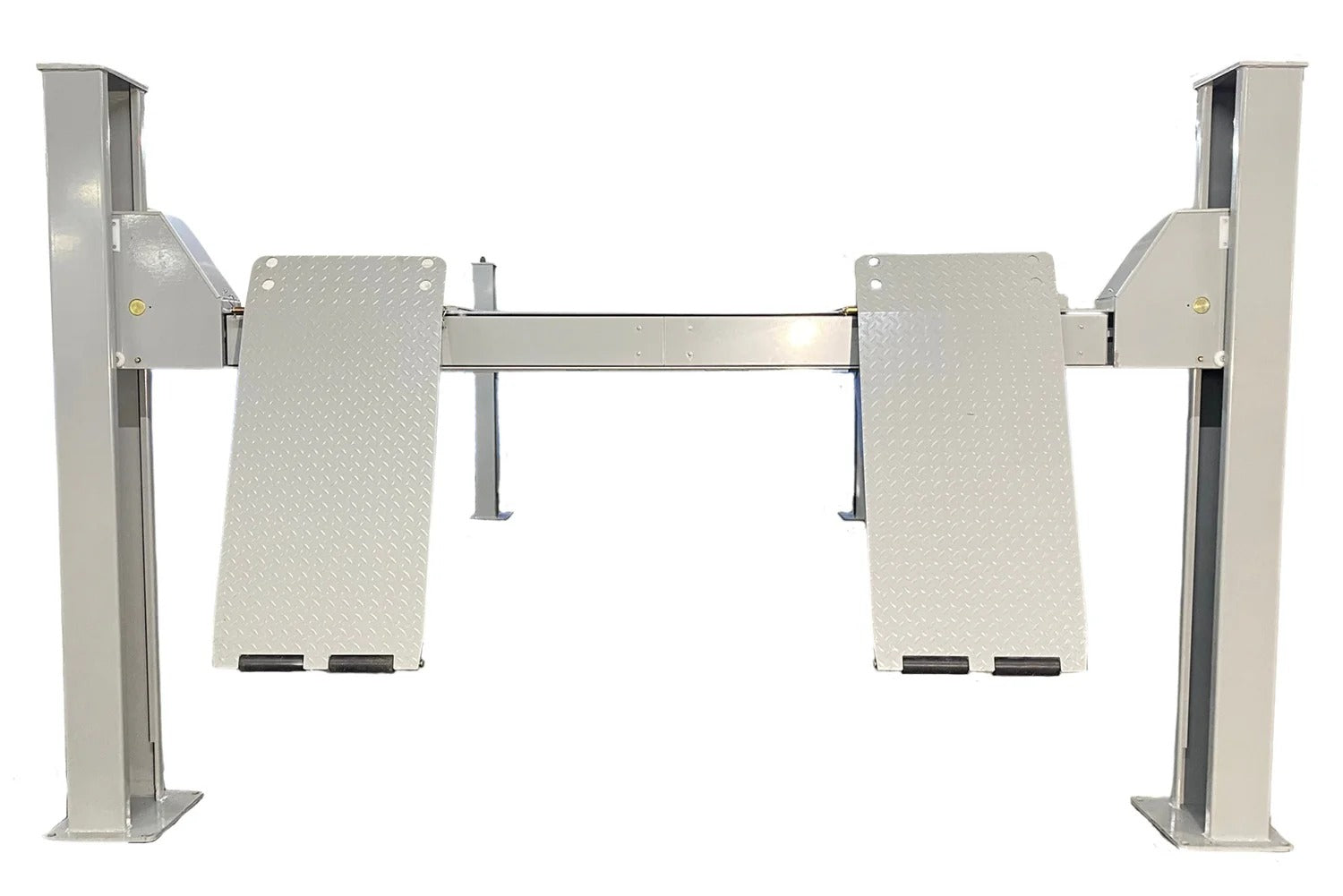

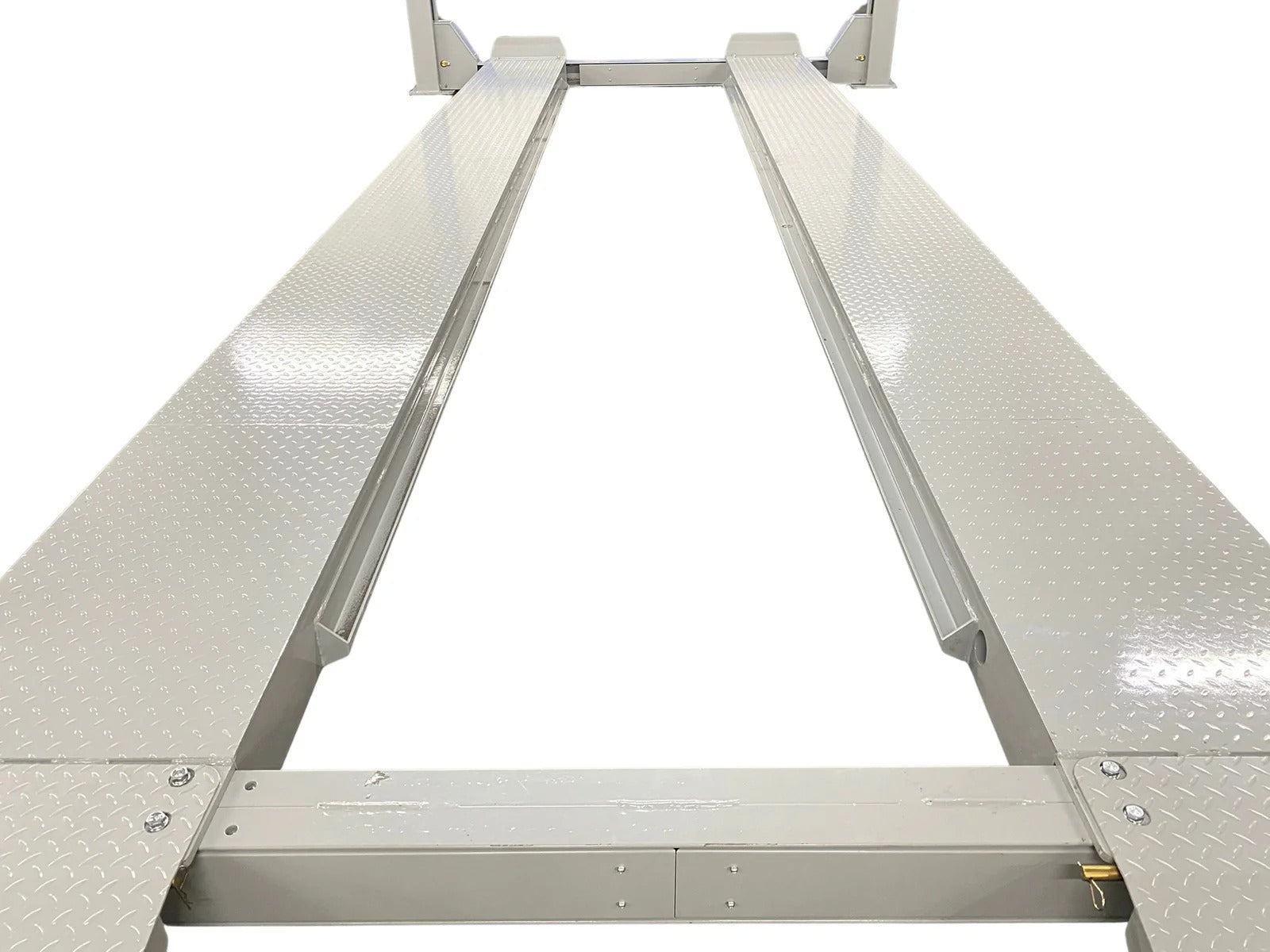

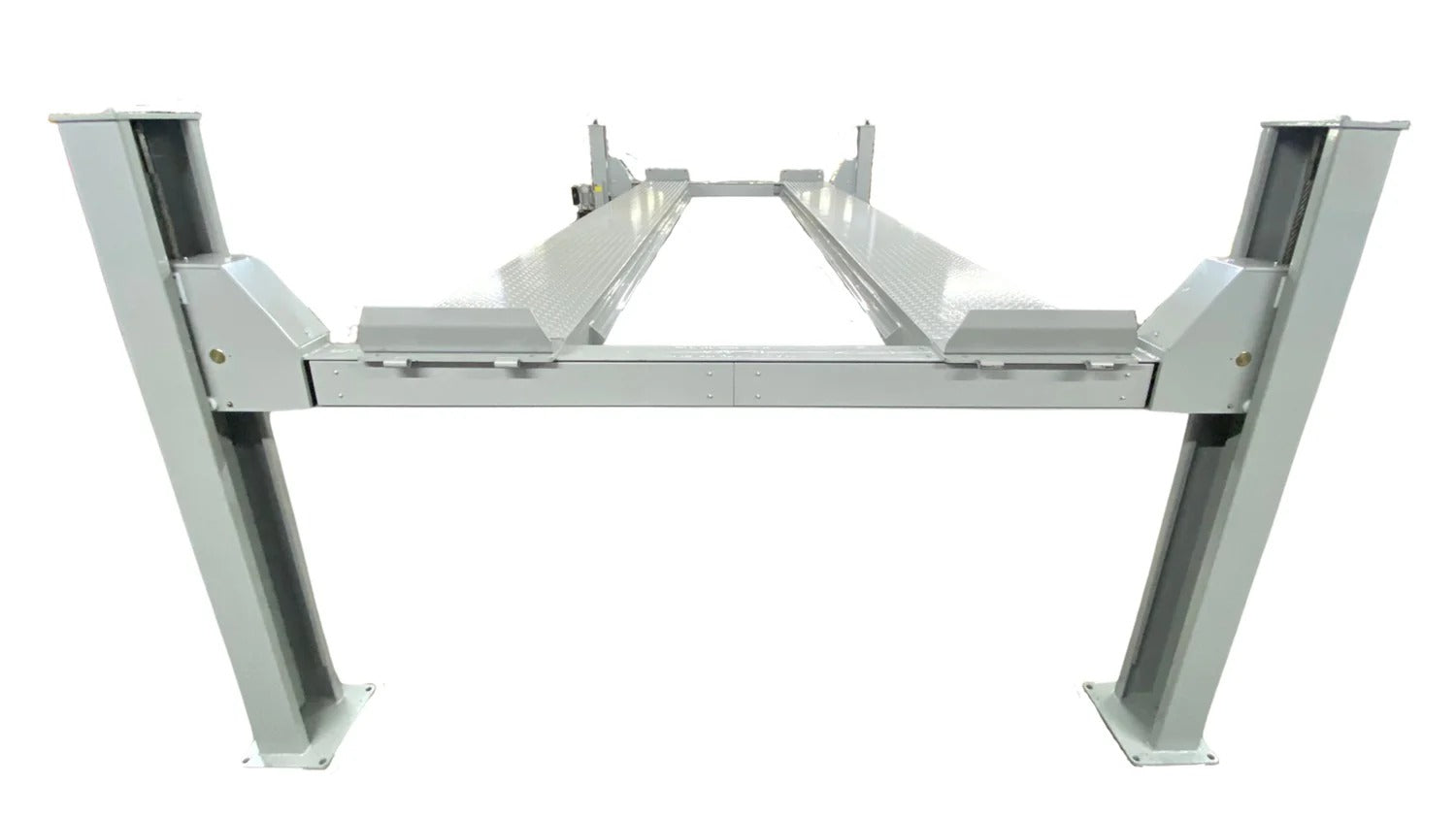

Triumph NTR-24 4-Post Truck Lift 24,000 lb Capacity
SKU: NTR-24
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Triumph NTR-24 is a heavy-duty four-post lift built for high-capacity vehicle lifting and storage. With a massive 24,000 lb capacity, it's designed to handle large trucks, commercial vehicles, and fleet applications with stability and confidence. Its long runways, wide platform spacing, and multiple locking positions make it a practical solution for shops that require reliable lifting for oversized vehicles while maintaining ease of operation.
Key Features & Benefits
- 24,000 lb lifting capacity for trucks, fleet vehicles, and heavy-duty applications
- Four-post design provides stable lifting and secure vehicle support
- Extended runway length accommodates long wheelbase vehicles
- Wide column spacing allows easier vehicle positioning
- Multiple lock positions (9) for flexible working heights
- Adjustable runway spacing to fit different vehicle widths
- Low-profile approach height for easier loading
- Designed for commercial shops and heavy-duty use

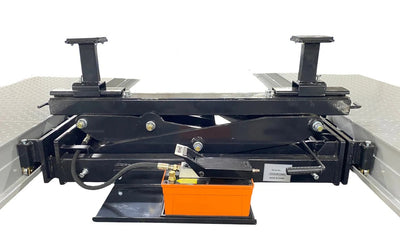

- Compatible with rolling jacks (sold separately)
Performance & Design
The NTR-24 is engineered with a reinforced four-post structure, providing excellent stability under heavy loads. Its long and wide runways make it suitable for larger vehicles, including trucks and service vehicles. The lift's multiple locking positions allow operators to work at various heights, while the adjustable runway spacing increases versatility across different vehicle types.
Installation Requirements
- Designed for commercial-grade installation
- 220V single-phase power required
- Level, reinforced concrete surface required
- Professional installation recommended
What's Included
- Four-post lift structure
- Runways and ramp system
- Power system
- Locking mechanism
Note: Rolling jack (RJ5000) not included.
Ideal Applications
- Fleet service facilities
- Commercial truck repair shops
- Heavy-duty vehicle maintenance
- Storage for large vehicles
Why Choose the NTR-24
The NTR-24 delivers extreme lifting capacity, long runway support, and strong structural stability, making it a dependable choice for shops that need to service or store large, heavy vehicles on a daily basis.
| Specifications | Details |
|---|---|
| Model | NTR-24 |
| Lift Type | Heavy-Duty Four-Post Lift |
| Lifting Capacity | 24,000 lbs |
| Maximum Lifting Height | 70.8" |
| Minimum Runway Height | 9" |
| Overall Height | 93.1" |
| Overall Length (Without Ramps) | 300" |
| Overall Length (With Ramps) | 338.9" |
| Overall Width | 150.1" |
| Runway Length | 289.9" |
| Runway Width | 24" |
| Width Between Runways | 45.3" – 49.2" |
| Width Between Columns | 131.8" |
| Number of Lock Positions | 9 |
| Electrical Requirement | 220V Single Phase |
| Shipping Weight | 6,614 lbs |
| Shipping Dimensions | 295" x 30" x 43" |
