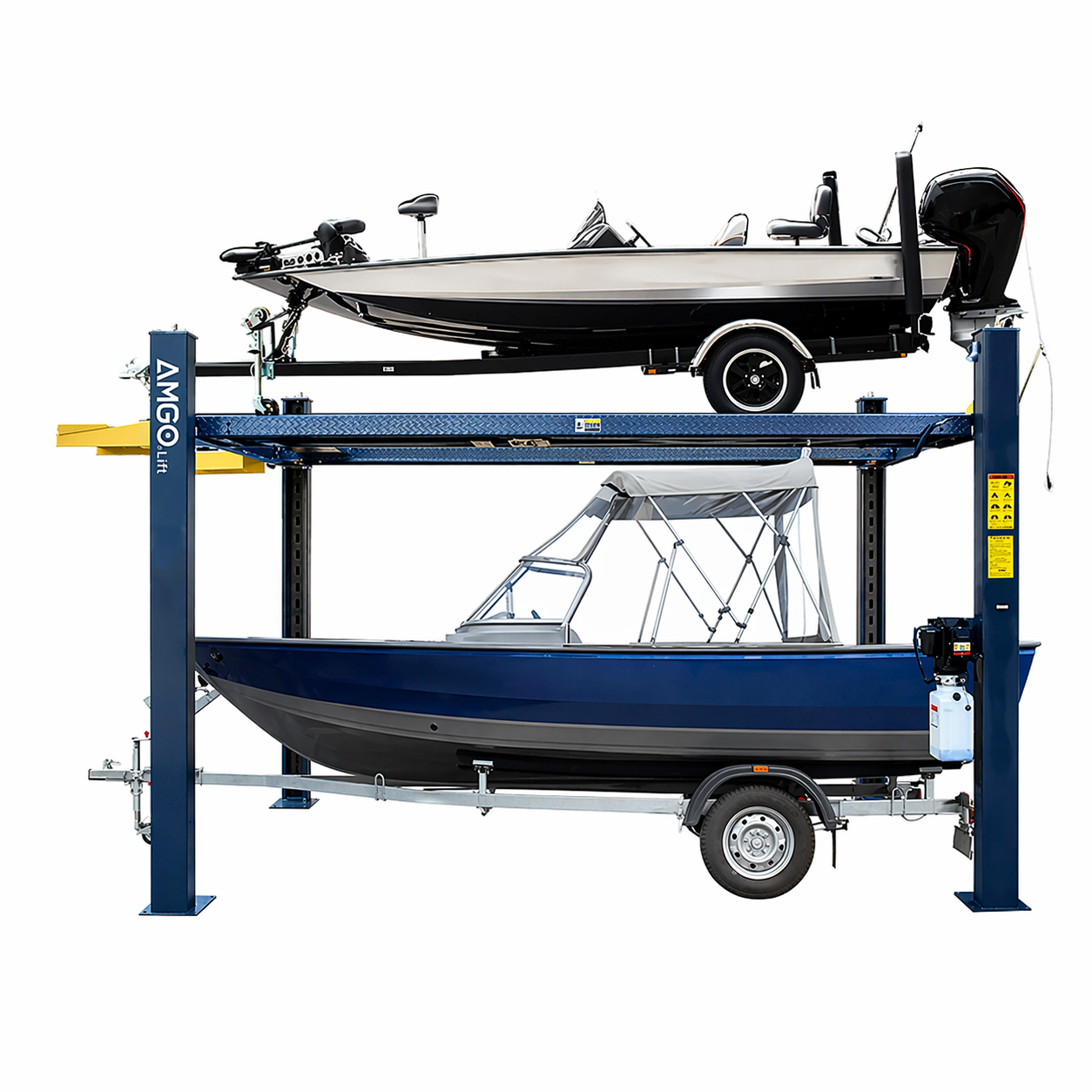

AMGO 408-HLX 4-Post Boat Storage Lift 8,000 lb Capacity
SKU: 408HLX
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The AMGO 408HLX is specifically engineered for taller boats, delivering increased vertical clearance while maintaining the same proven stability and safety found in the HPX series. With its extended height design, it's ideal for maximizing vertical storage space in garages and marine facilities.
Key Features & Benefits
- 8,000 lb lifting capacity for boats and trailer setups
- Extended height design for taller vessels
- Manual single-point lock release system (no air required)
- Dual safety system with primary locks and cable-slack protection
- Single-cylinder hydraulic system with cable synchronization
- ETL-certified power unit included
- Non-slip diamond plate platforms
- Adjustable platform width for different trailer sizes
- Foldable drive-on ramps included
- Flexible power unit mounting at any column
Performance & Design
Built around a single-cylinder hydraulic system with cable-driven lifting, the 408HLX delivers smooth, even lifting across both runways. The extended height structure provides additional overhead clearance, making it ideal for stacking taller boats without compromising safety or stability.
Its adjustable platform width (approx. 46 1/2" – 66 3/8") and large drive-through clearance (around 111") allow it to accommodate a wide range of trailers and boat sizes.
Installation Requirements
- Indoor installation recommended (outdoor requires optional motor protective cover)
- Minimum concrete thickness: 4" (100 mm)
- Concrete strength: 3,000 PSI minimum
- Flat, level surface required (no cracks or uneven flooring)
- Dedicated electrical supply (1.0 HP / 110V)
- Installation by a qualified technician strongly recommended
What's Included
- AMGO 408HLX four-post lift system
- ETL-certified hydraulic power unit
- Foldable drive-on ramps (2 units)
- Adjustable trailer platform (42 3/8" – 66 1/4" range)
- Safety lock system with ladders and release mechanism
- Hydraulic cylinder and cable system
- Installation hardware and components
Extended Height Advantage
With approximately 15 3/4" of additional height over the 408-HPX, this model is designed specifically for taller boats that require extra vertical clearance. This makes it ideal for maximizing storage space in garages where height is a limiting factor.
Manual Locking System (No Air Required)
The concealed manual single-point release system eliminates the need for an air compressor while still providing reliable and controlled lowering, simplifying installation and long-term maintenance.
Dual Safety System
Equipped with both mechanical primary safety locks and cable-slack protection, the 408HLX ensures safe operation at all times. This dual-layer system adds an extra level of security during lifting and storage.
| Specifications | Details |
|---|---|
| Model | 408HLX |
| Lift Type | Four-Post Boat Storage Lift (Extended Height) |
| Lifting Capacity | 8,000 lbs |
| Lifting Time | 137 seconds |
| Overall Length (Incl. Ramps) | 222 1/8" |
| Overall Length (Without Ramps) | 188 9/16" |
| Overall Width | 131 7/8" |
| Width Between Posts | 122 3/16" |
| Width Between Runways | 46 1/2" – 66 3/8" |
| Outside Edge of Runways | 83 7/8" – 103 3/4" |
| Max Lifting Height | 104 11/16" |
| Max Locking Height | 101 15/16" |
| Max Height Under Runway | 99 15/16" |
| Max Lock Height Under Runway | 97 3/16" |
| Drive-Thru Clearance | 111" |
| Overall Height | 113" |
| Minimum Height | 5 11/16" |
| Motor | 1.0 HP, 110V |
| Shipping | Free freight shipping — continental U.S. |
| Processing Time | 1–2 business days (in-stock items) |
| Estimated Delivery | 5–10 business days |
