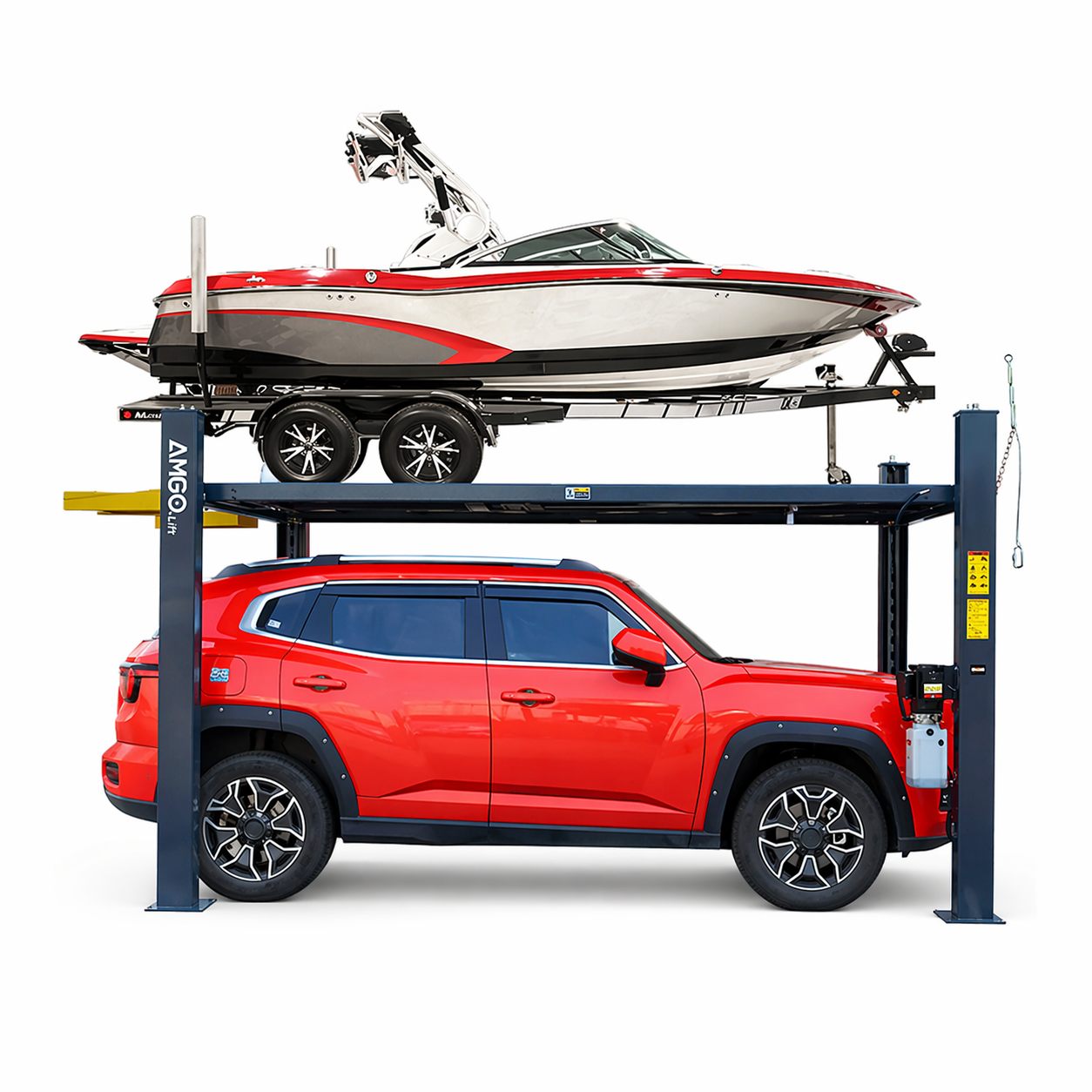

AMGO 408-HPX 4-Post Boat Storage Lift 8,000 lb Capacity
SKU: 408-HPX
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The AMGO 408-HPX is the standard configuration in AMGO's boat storage lift lineup, designed for reliable, space-efficient storage of recreational boats and trailers. It combines a straightforward design with strong safety systems and flexible setup options, making it a solid baseline model compared to the extended-length and extended-height versions.
Key Features & Benefits
- 8,000 lb lifting capacity for boats and trailer setups
- Manual single-point lock release (no air compressor required)
- Dual safety system with primary locks and cable-slack protection
- Single-cylinder hydraulic system with cable synchronization
- Non-slip diamond plate runways for secure loading
- Two adjustable width settings to fit different trailers
- Over 110" drive-through clearance for easy access
- Foldable drive-on ramps included
- ETL-certified power unit included
- Power unit can be mounted on any column
Core Design & Operation
This lift uses a single-cylinder and cable-driven system for smooth, even lifting, a manual safety release for controlled lowering, and mechanical primary locks with cable-slack safety backup for redundancy. This setup keeps things simple, reliable, and lower maintenance compared to air-lock systems.
Adjustability & Fitment
- Runway spacing: Narrow ~46 1/2", Wide ~66 3/8"
- Drive-through clearance: ~111"
- Designed to accommodate a wide range of boat trailers and widths
What's Included
- 408-HPX four-post lift system
- Hydraulic power unit (1.0 HP / 110V)
- Foldable drive-on ramps (2 units)
- Adjustable trailer platform
- Safety lock ladder system
- Cable and pulley system
- Installation hardware
Installation Requirements
- Minimum concrete thickness: 4" (100 mm)
- Minimum concrete strength: 3,000 PSI
- Primarily indoor use (outdoor requires optional motor cover)
- Power: 110V single phase (1.0 HP motor) — must be installed by a qualified electrician
- Flat, level concrete surface only (no asphalt)
| Specifications | Details |
|---|---|
| Model | 408-HPX |
| Lift Type | Four-Post Boat Storage Lift |
| Lifting Capacity | 8,000 lbs |
| Width Between Runways | ~46 1/2" – 66 3/8" |
| Drive-Thru Clearance | ~111" |
| Motor | 1.0 HP, 110V |
| Shipping | Free freight shipping — continental U.S. |
| Processing Time | 1–2 business days (in-stock items) |
| Estimated Delivery | 5–10 business days |
