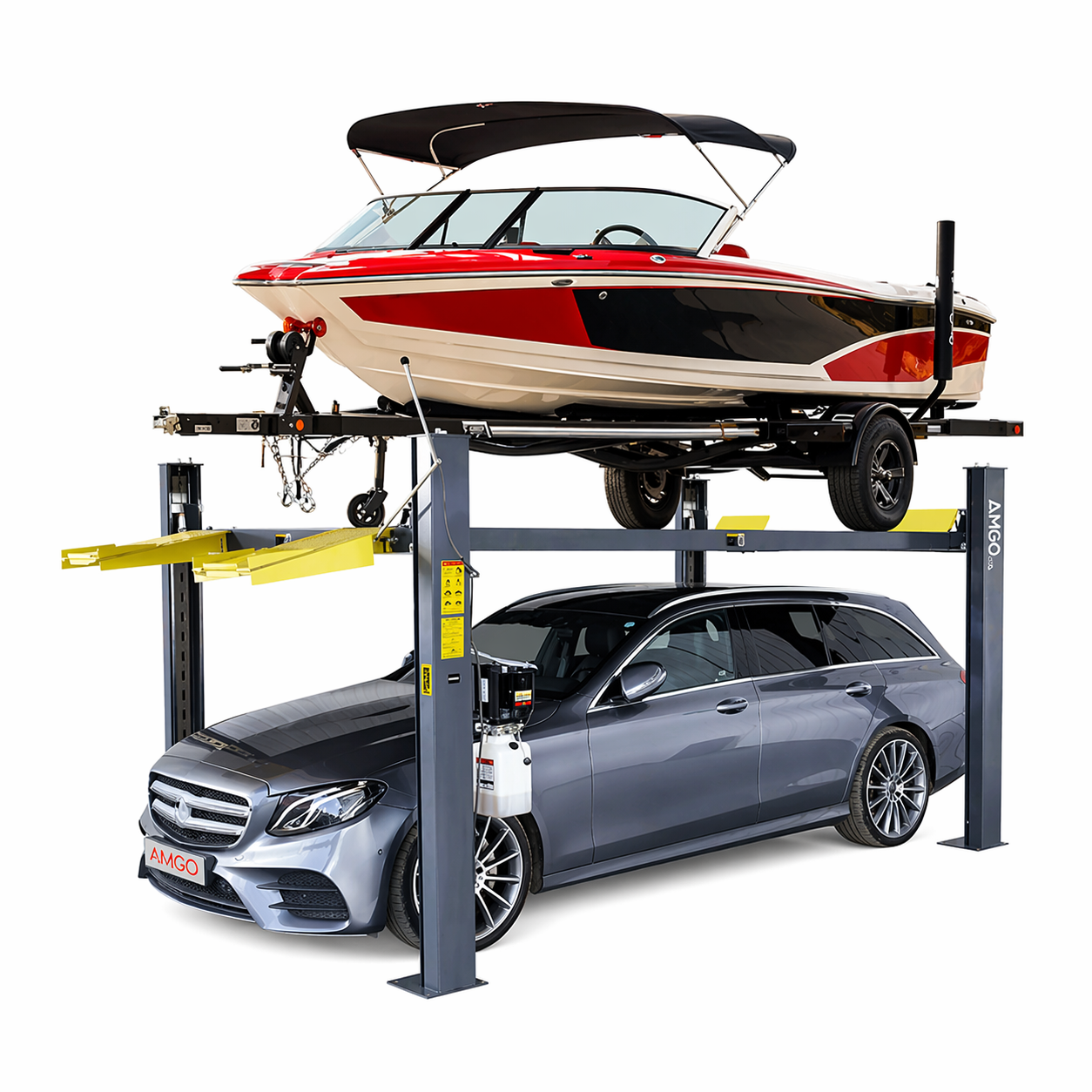

AMGO 409-HPX 4-Post Boat Storage Lift 9,000 lb Capacity
SKU: 409-HPX
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The AMGO 409-HPX is a heavy-duty four-post boat storage lift designed for extended length and higher capacity applications. Built with a longer frame than the 408-HPX, this model is ideal for storing larger, heavier boats while maintaining stability, safety, and ease of use.
Engineered with a single-cylinder hydraulic system and cable-driven lifting design, the 409-HPX delivers smooth operation, dependable lifting performance, and long-term durability for marine storage environments.
Key Features & Benefits
- 9,000 lb lifting capacity for heavier boats and trailers
- Extended frame design for longer vessel support
- Concealed manual single-point lock release system (no air required)
- Dual safety system with primary locks and cable-slack protection
- Single-cylinder hydraulic drive with cable transmission
- ETL-certified power unit included
- Integrated non-slip diamond plate platforms
- Adjustable platform width to accommodate various trailer sizes
- Foldable drive-on ramps included
- Power unit can be installed on multiple column positions
Extended Length Design
With additional length compared to the 408-HPX, this model is built specifically to handle longer boats more comfortably. The extended platform design improves load distribution and makes positioning larger vessels easier and more secure.
Boat & Trailer Compatibility
The adjustable trailer platform provides a wide adjustment range (42 3/8" – 66 1/4"), allowing the lift to accommodate different trailer widths and configurations. This flexibility ensures proper fitment for a variety of boat sizes and trailer setups.
Manual Locking System (No Air Required)
Unlike air-operated systems, the 409-HPX features a concealed manual single-point lock release. This simplifies installation and operation by eliminating the need for an external air supply while still maintaining safe and controlled lowering.
Dual Safety System
Safety is reinforced through a combination of mechanical primary safety locks and a cable-slack protection system. This dual-layer design ensures the lift remains secure even in the event of cable tension loss.
Heavy-Duty Construction
The lift uses a single-cylinder hydraulic system paired with aircraft-grade cables for consistent lifting performance. Non-slip diamond platforms and adjustable safety lock ladders provide durability and reliable support during operation.
Optional Accessories
- Extended aluminum drive-in ramps (Kit No. 40815)
- Trailer extended platform (+24" length, Kit No. 40818)
- Motor protective cover for outdoor installation (Kit No. 40810)
- Rubber wheel chock (P/N 40811)
- Rolling jacks
| Specifications | Details |
|---|---|
| Model | 409-HPX |
| Lift Type | Four-Post Boat Storage Lift (Extended) |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 174 seconds |
| Overall Length (Incl. Ramps) | 238 1/8" |
| Overall Length (Without Ramps) | 204 11/16" |
| Overall Width | 131 7/8" |
| Width Between Posts | 122 3/16" |
| Width Between Runways | 46 1/2" – 64 15/16" |
| Outside Edge of Runways | 86 1/2" – 104 15/16" |
| Max Lifting Height | 88 1/16" |
| Max Locking Height | 85 5/16" |
| Max Height Under Runway | 82 9/16" |
| Max Lock Height Under Runway | 79 13/16" |
| Drive-Thru Clearance | 111" |
| Overall Height | 96 5/8" |
| Minimum Height | 6 1/8" |
| Motor | 1.0 HP, 110V |
| Shipping | Free freight shipping — continental U.S. |
| Processing Time | 1–2 business days (in-stock items) |
| Estimated Delivery | 5–10 business days |
