Atlas 12ASL 12,000 lb Scissor Alignment Lift with Turntables and Slip Plates
SKU: ATEATTD-12ASL-N
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas 12ASL is a heavy-duty scissor alignment lift designed for professional shops that require precision, stability, and full alignment capability. With a 12,000 lb lifting capacity and an open center design, this lift provides easy access for undercar service while supporting a wide range of vehicles from compact cars to one-ton trucks. Built with integrated slip plates and alignment turntables, the system is ready for accurate wheel alignment right out of the box. The full-frame construction enhances stability during lifting, while the air-operated single-point lock release ensures safe and efficient operation. Designed for flexibility, the 12ASL can be installed either surface-mounted or flush-mounted depending on shop needs. Powered by a 220V single-phase system with a separate control panel, this lift delivers consistent performance in demanding environments.
Key Features & Benefits
- 12,000 lb lifting capacity for cars, trucks, and commercial vehicles
- Commercial-grade scissor alignment lift design
- Built-in slip plates and alignment turntables included

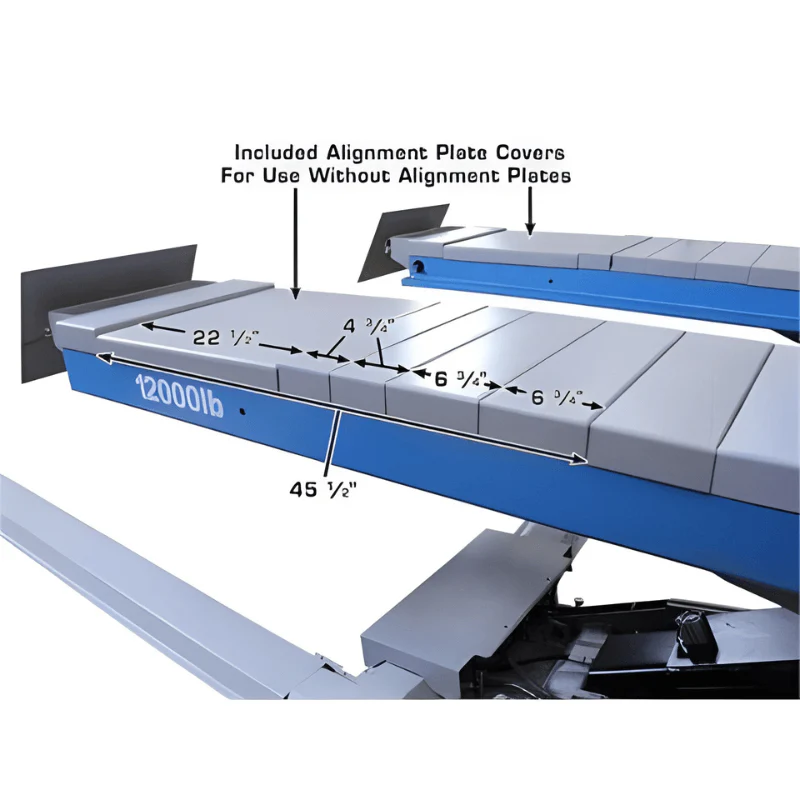

- Turntable covers included for protection and durability
- Open center design allows easy access for service and adjustments

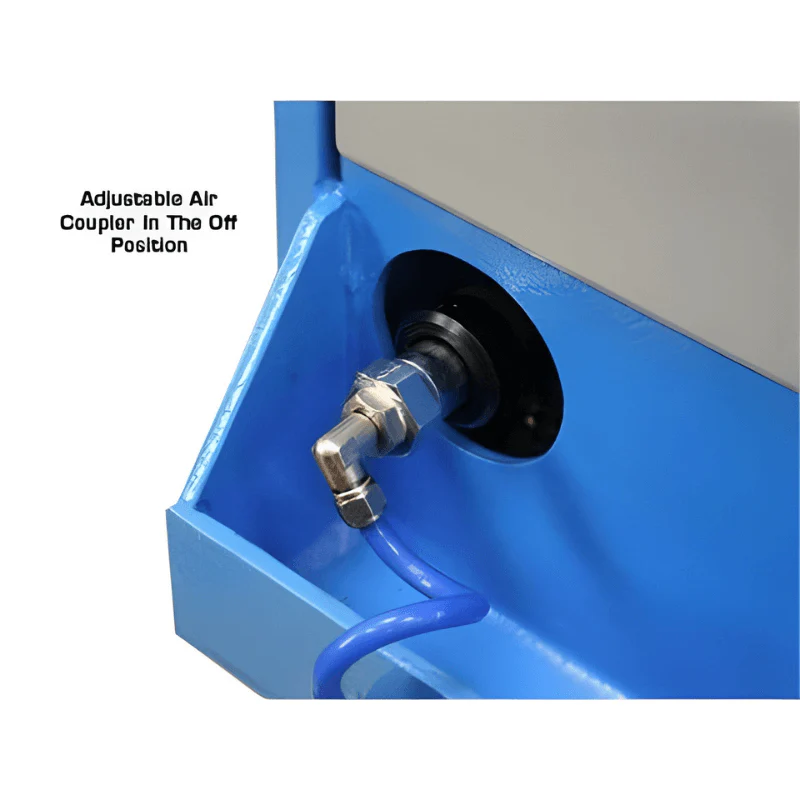

- Air-operated single-point lock release (external air required)

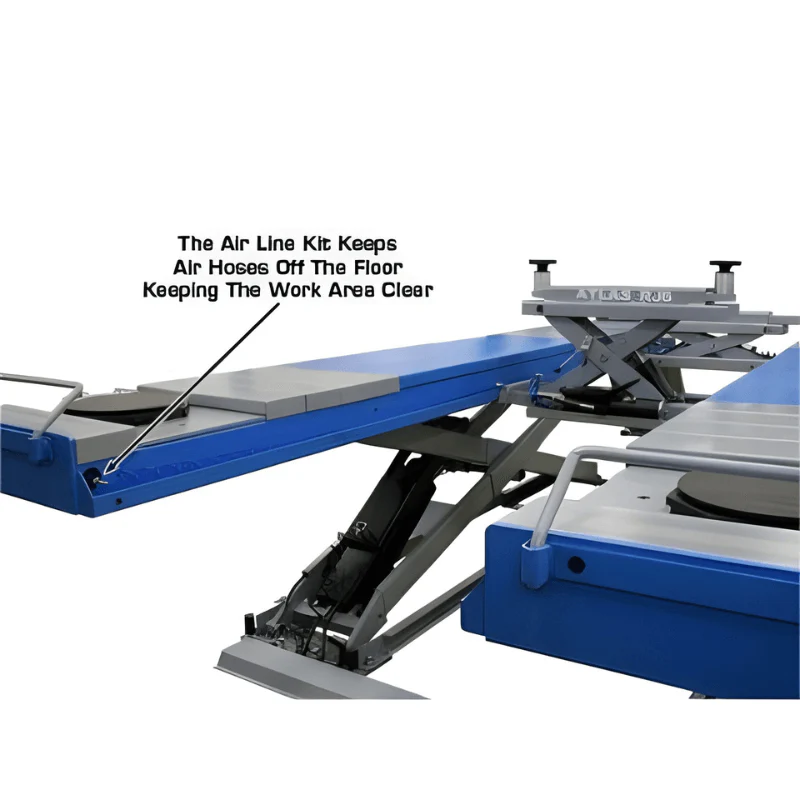

- Airline kit included for quick setup

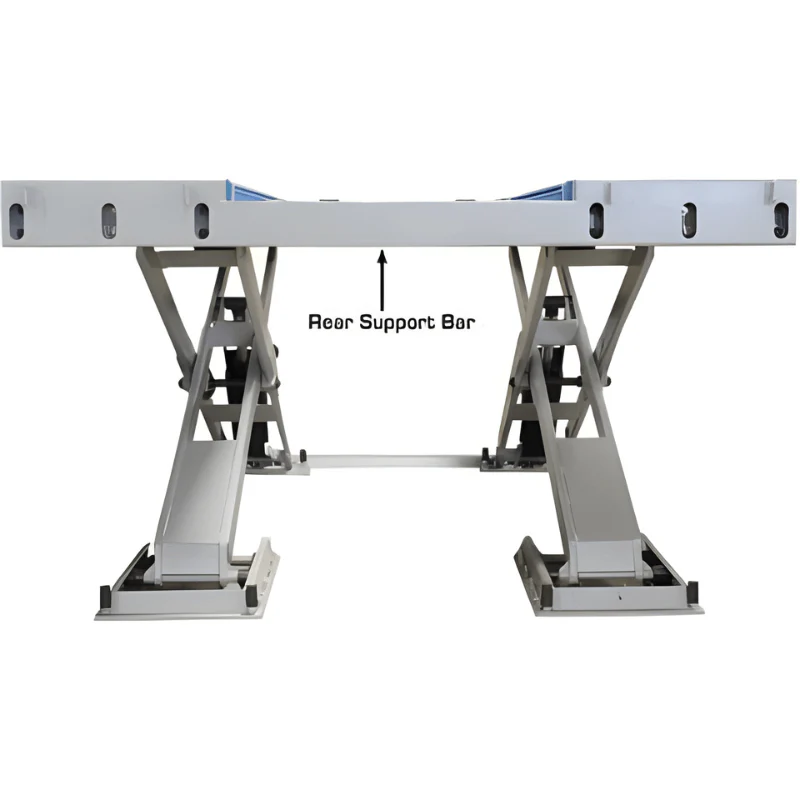

- Rear cross beam provides added structural stability
- Extra-long 72" approach ramps included
- Precise platform leveling for accurate alignment work
- Separate self-contained control panel for convenient operation
- Emergency manual pump allows safe lowering during power loss

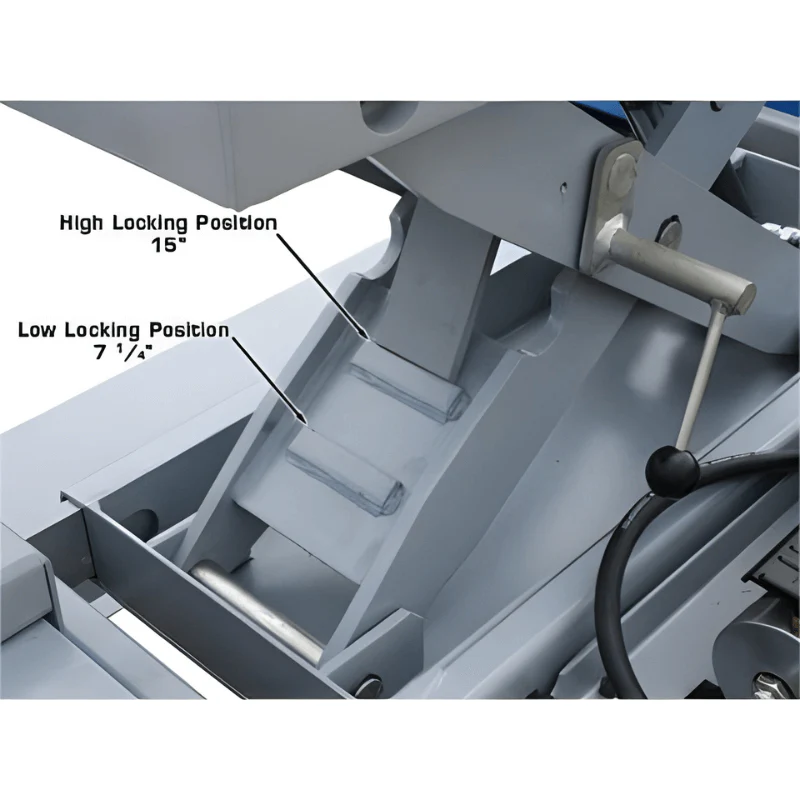

- 19 locking positions for flexible working heights
- CE certified for quality and safety standards
- Can be installed surface-mounted or flush-mounted

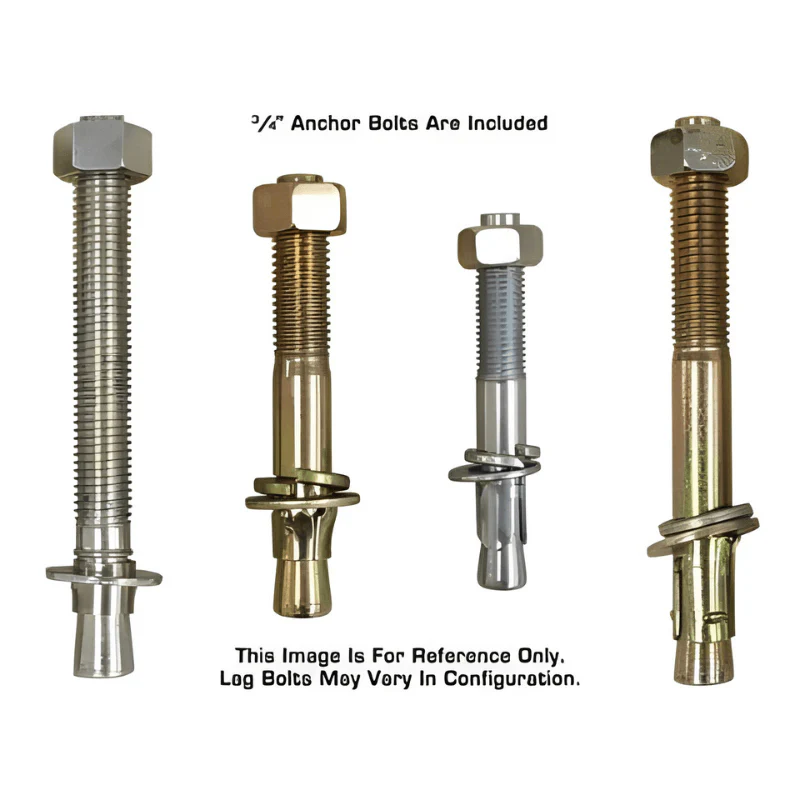

- Mounting hardware included
- Durable powder-coated finish for long-term use
- 220V single-phase electric operation (30 amp breaker required)
- 2-year structural and 1-year hydraulic parts-only warranty
Performance & Design Highlights
The 12ASL is engineered for shops that demand both strength and precision in alignment work. Its full-frame construction provides maximum stability when lifting heavier vehicles, while the integrated alignment components eliminate the need for additional equipment. The air-actuated locking system automatically engages and disengages during operation, enhancing safety and ease of use. The lift also features a safety lowering limit system to ensure controlled descent. With its high lifting height and flexible installation options, the 12ASL is well-suited for a wide range of shop layouts and service needs.
| Specifications | Details |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Height | 84 1/4" |
| Lowered Height | 11 1/2" |
| Overall Width | 86 3/8" |
| Overall Length w/ Ramps | 250" |
| Overall Length (No Ramps) | 197" |
| Approach Ramp Length | 72" |
| 4-Wheel Alignment Wheelbase | 90" – 168" |
| 2-Wheel Alignment Wheelbase | 86" – 172" |
| Runway Width | 23 3/4" |
| Width Between Runways | 39 1/4" |
| Width Between Rails | 34 3/8" |
| Air Requirement | 90–120 PSI |
| Voltage | 220V Single Phase |
| Oil Requirement | 3–5 Gallons (AW32 or AW46) |
| Concrete Requirement | 6" Minimum, 3000 PSI |
| Structural Warranty | 2 Years |
| Hydraulic Parts Warranty | 1 Year |

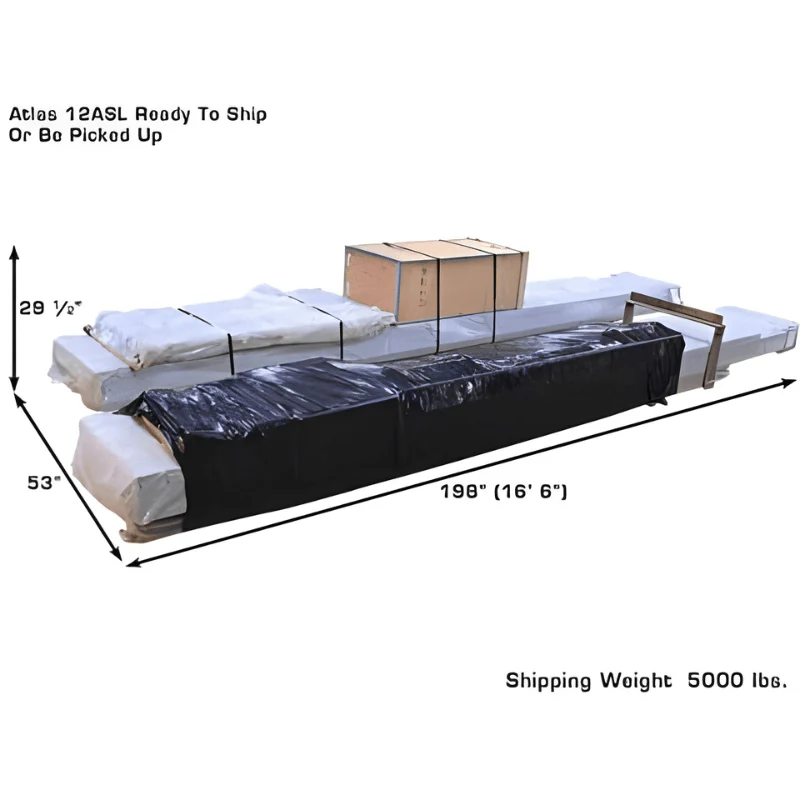

| Shipping Weight | 5,000 lbs |
