Atlas ALI Certified 74,000 lb Battery-Powered Mobile Column Lift System
SKU: ATEML-4034BC
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

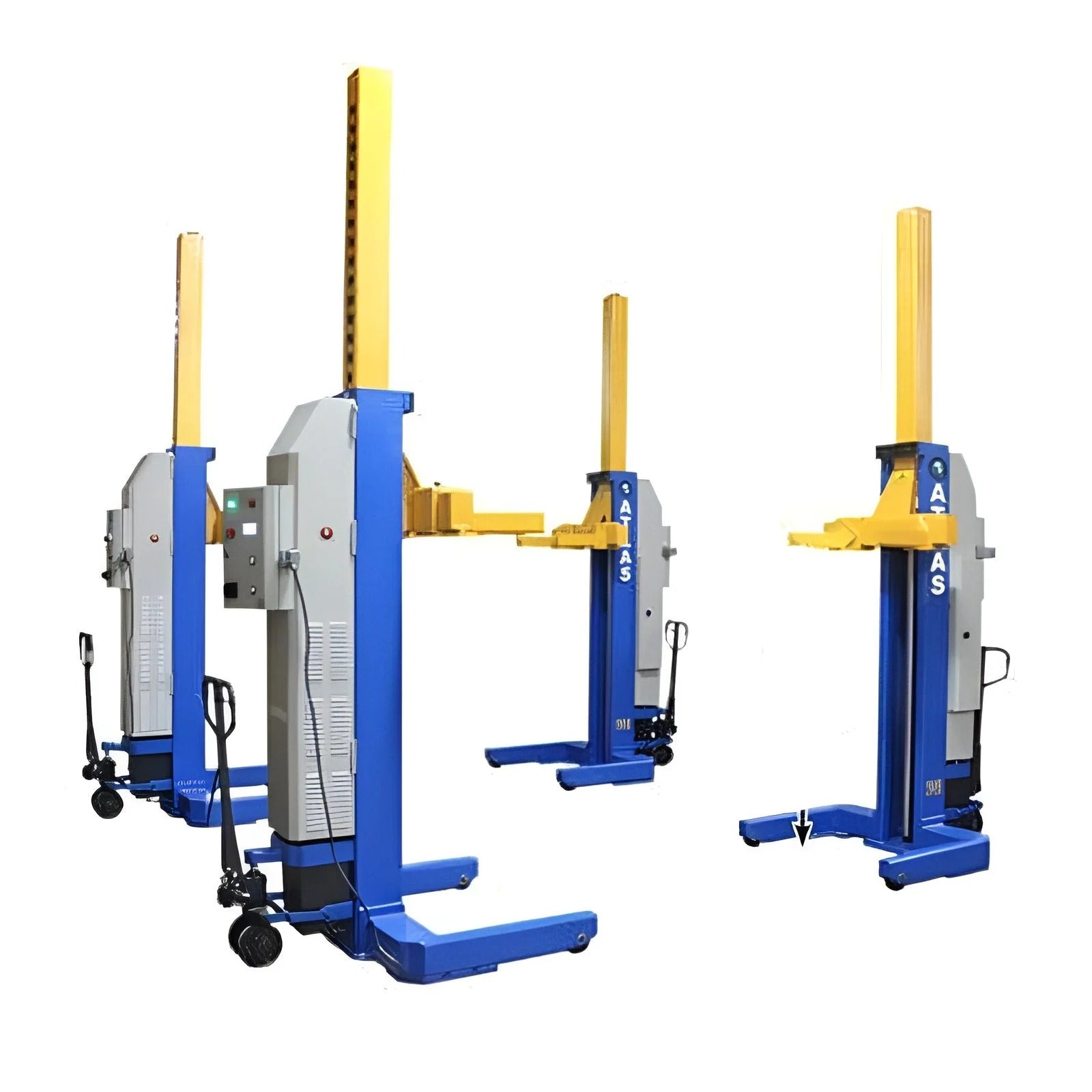

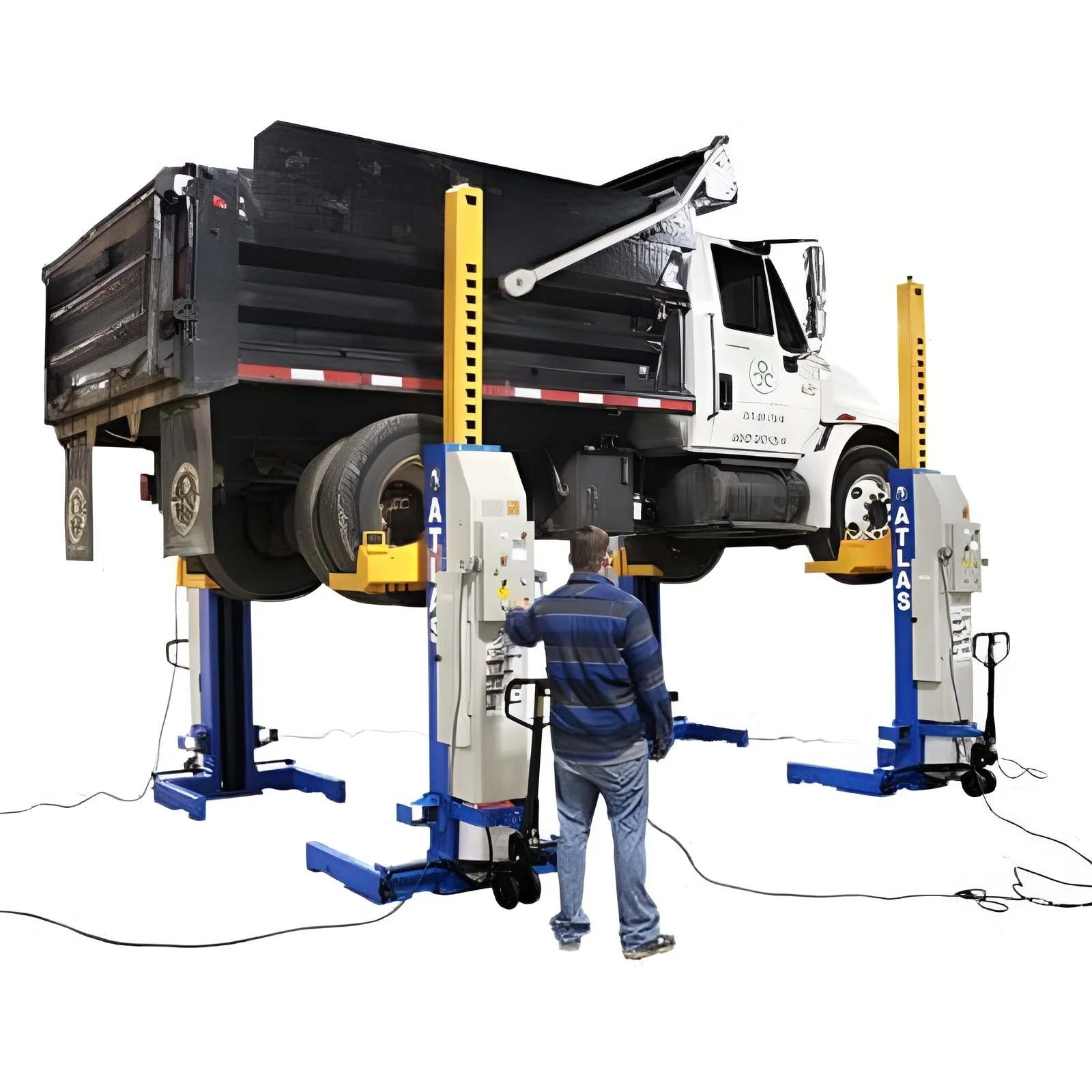

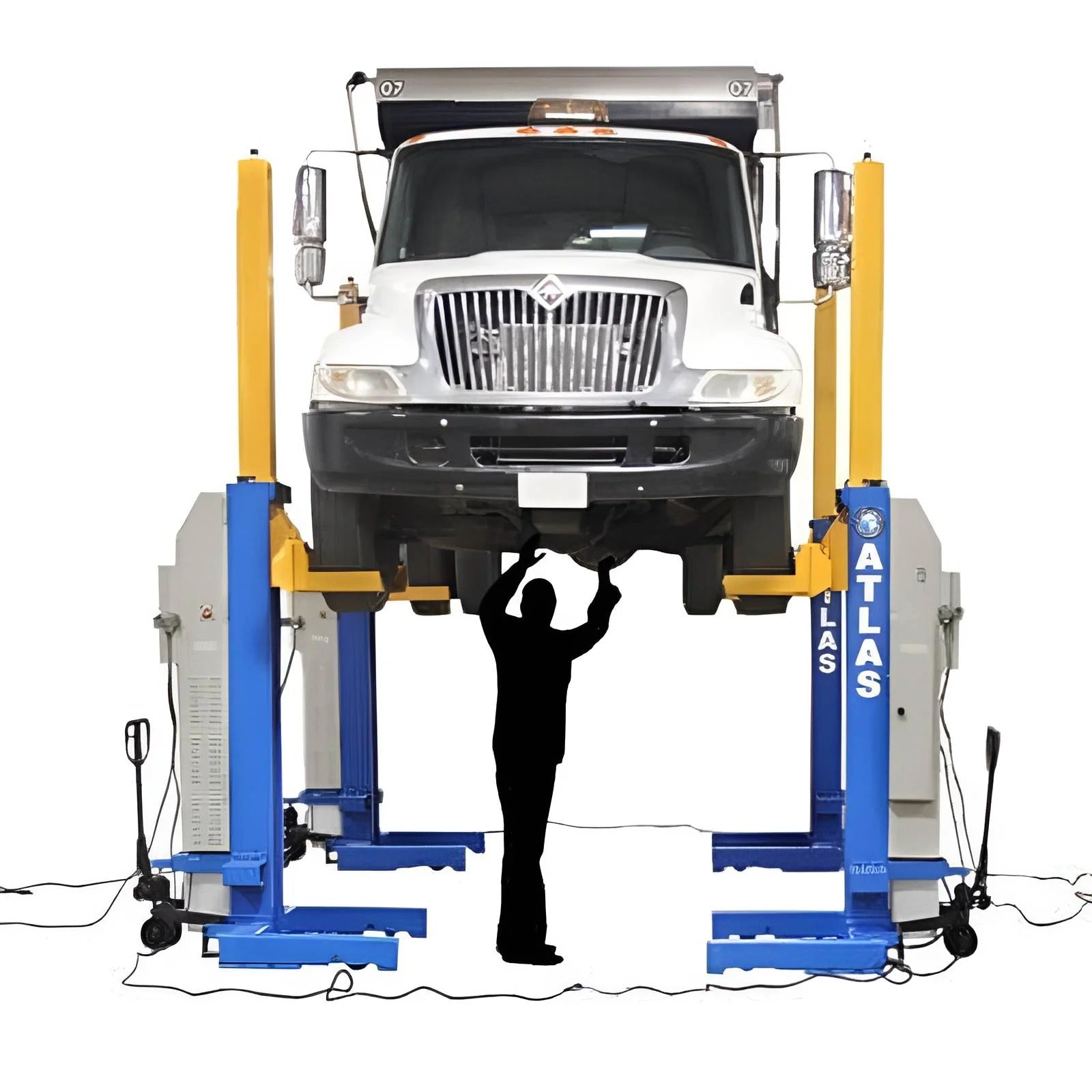

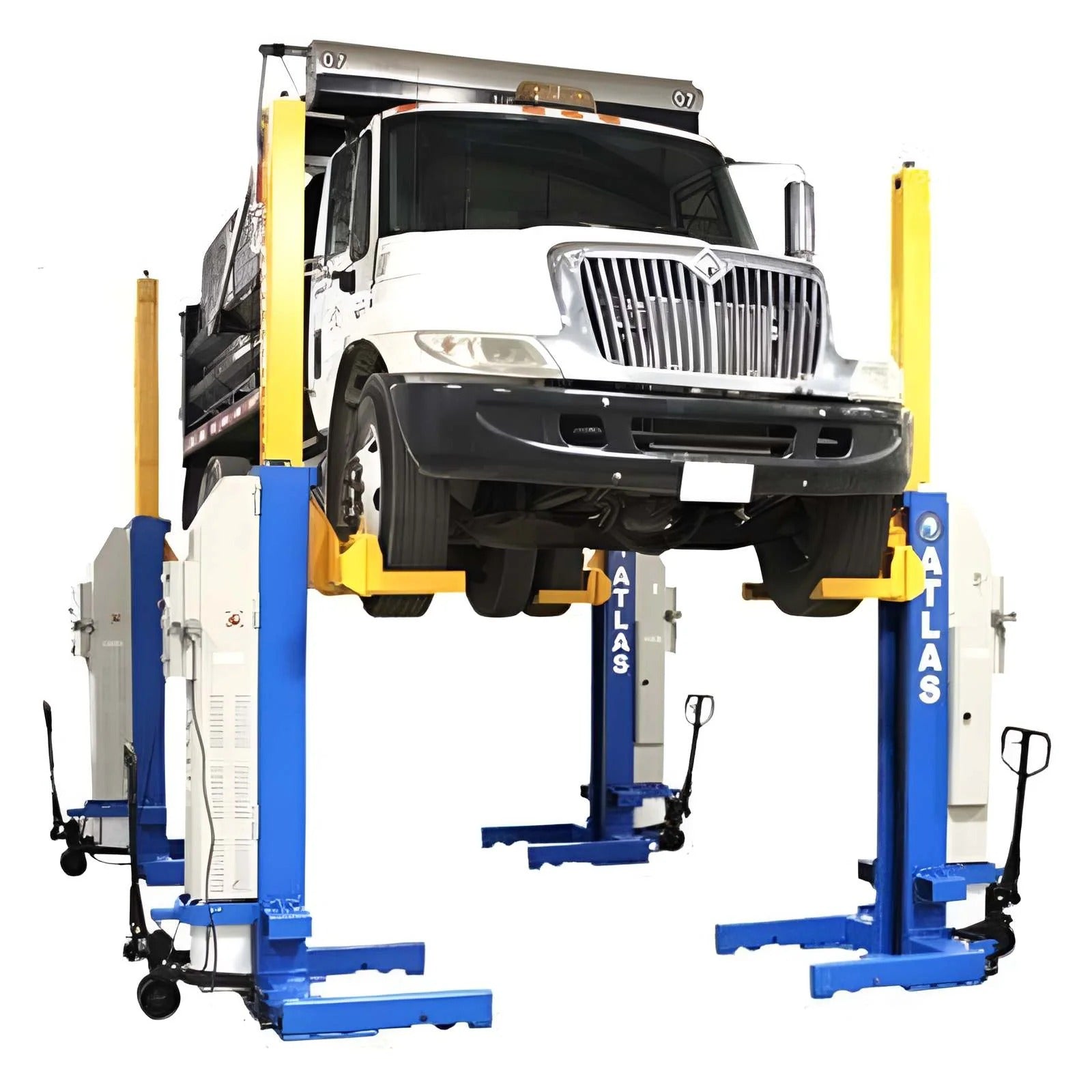

The Atlas ALI Certified Battery Powered Mobile Column Lift System (74,000 lb Capacity) is a heavy-duty, commercial-grade lifting solution designed for trucks, buses, and fleet vehicles that require powerful lifting performance with maximum flexibility. This system is ideal for shops with limited bay space, offering the ability to lift large vehicles without the need for permanent lift installations.
Each column is powered by a 24V DC motor with dual rechargeable batteries, allowing for fully wireless operation while maintaining synchronized lifting across all columns. This gives technicians the freedom to position the system exactly where it's needed, whether indoors or outdoors on a properly rated concrete surface.
Key Features
- ALI Certified for verified safety and performance
- 74,000 lb Total Capacity (Expandable to 111,000 lbs or 148,000 lbs)
- 18,500 lb Capacity Per Column
- Battery Powered System with 24V DC motors and dual batteries per column
- Simultaneous Column Operation with electronic synchronization
- LCD Display on each column showing exact lifting height
- Dual Safety System – hydraulic flow control and mechanical locks
- Portable Design for indoor or outdoor use on proper concrete surfaces
- Adjustable Forks accommodate tire diameters from 19" to 44"
- Emergency Stop Button on every column
- Includes four column connecting cables
Built for Maximum Capacity & Expandability
This ALI certified system delivers a total lifting capacity of 74,000 lbs using four columns, with each column rated at 18,500 lbs. The system is expandable, allowing you to increase capacity to 111,000 lbs with six columns or up to 148,000 lbs with eight columns, making it a scalable solution as your shop's needs grow.
An advanced electronic synchronization system ensures all columns lift evenly, while integrated LCD screens display real-time lifting height for precise control. Dual safety systems, including hydraulic flow control and mechanical locks, provide dependable and secure operation.
Designed for Flexibility & Fleet Service
The Atlas mobile column lift system is engineered for maximum versatility. Each column features a built-in pallet jack system for easy mobility and can be stored when not in use, helping maximize available shop space. The battery-powered design eliminates the need for constant power connections, making it ideal for both indoor bays and outdoor service areas.
This system is well-suited for fleet maintenance facilities, truck repair shops, and service centers that require a reliable, mobile lifting solution for heavy vehicles.
| Specifications | Details |
|---|---|
| Capacity per Column | 18,500 lbs |
| Total System Capacity | 74,000 lbs |
| Motor | 2.2 kW 24V DC (Two Batteries per Column) |
| Max Lifting Height | 67" (5' 7") |
| Overall Height | 145" (12' 1") |
| Resting Height | 88 1/2" (7' 4 1/2") |
| Width | 43 1/2" |
| Length | 55 1/2" |
| Column Width | 13 1/4" |
| Max Tire Diameter | 44" |
| Min Tire Diameter | 19" |
| Weight per Column | 1,700 lbs |
| Shipping Weight (System) | 6,800 lbs |
| Warranty | 2-Year Limited Warranty |
