Atlas ALI Certified 99,000 lb Battery-Powered Mobile Column Lift System
SKU: ATEML-6045BC
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

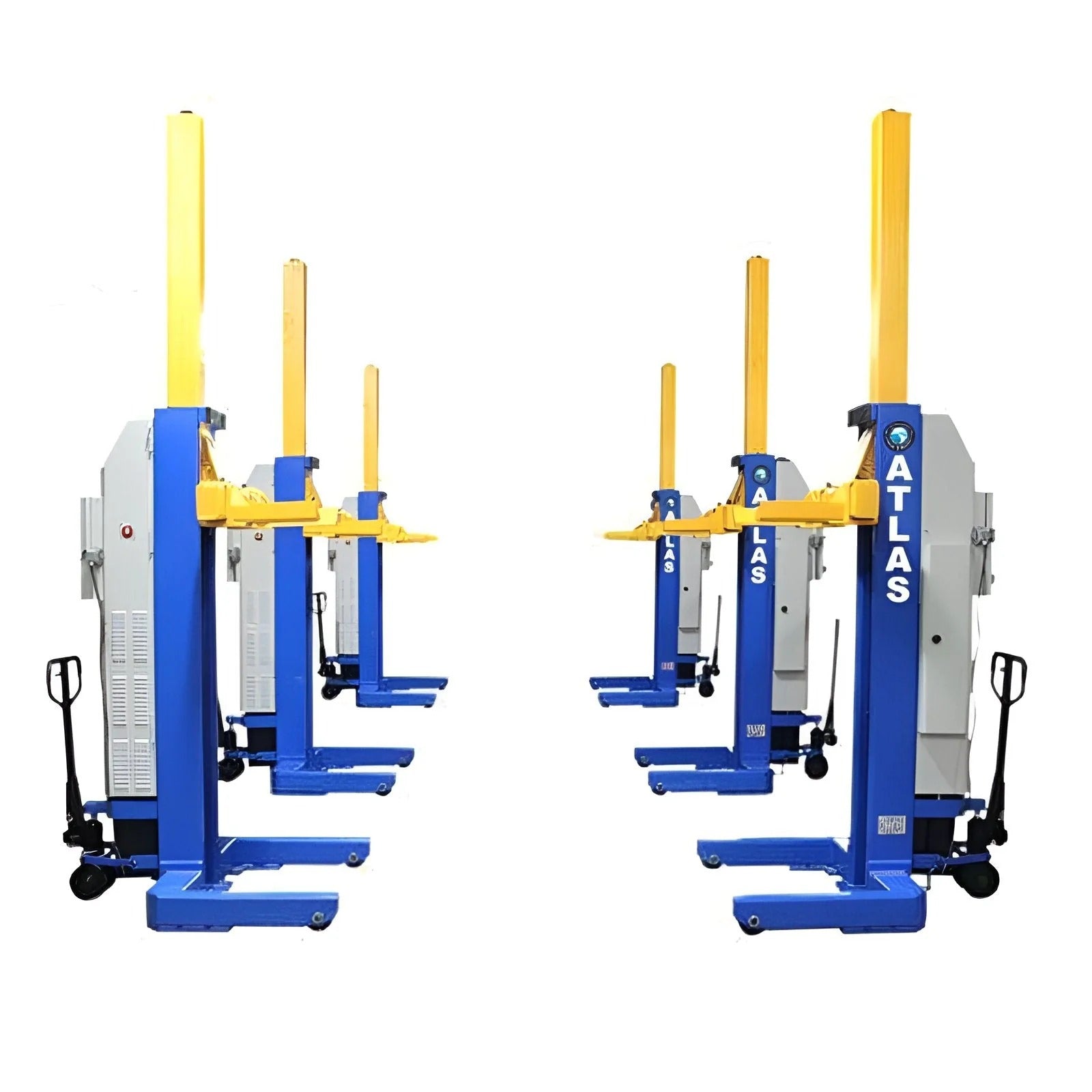

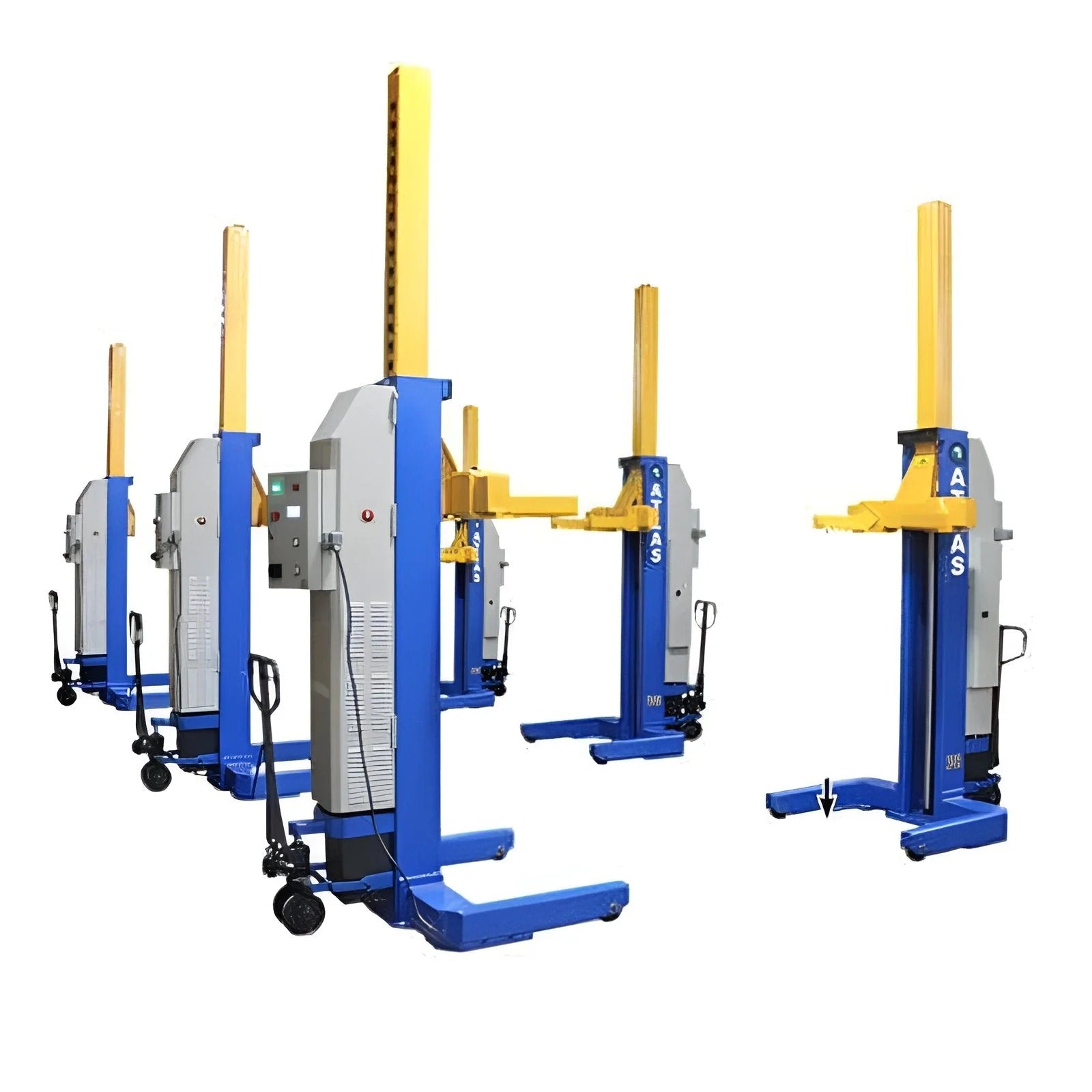

The Atlas ALI Certified Battery Powered Mobile Column Lift System (99,000 lb Capacity) is a heavy-duty, commercial-grade lifting solution designed for trucks, buses, and fleet vehicles that require powerful lifting performance with maximum flexibility. Built for shops with limited bay space or high workflow demands, this system allows you to lift large vehicles safely without being tied to a fixed installation.
Each column is powered by a 24V DC motor with dual rechargeable batteries, allowing for completely wireless operation while maintaining synchronized lifting across all columns. This gives technicians the freedom to position the lift exactly where it's needed, whether inside the shop or outdoors on a properly rated concrete surface.
Built for Maximum Capacity & Safety
This ALI certified system delivers a total lifting capacity of up to 99,000 lbs, making it ideal for servicing heavy-duty commercial vehicles. The advanced electronic synchronization system ensures all columns lift evenly, while built-in LCD screens display real-time lifting height for precise control.
Safety is reinforced with dual protection systems, including hydraulic flow control and mechanical locking mechanisms. Each column is also equipped with an emergency stop button, giving operators full control and confidence during operation.
Key Features
- ALI Certified for proven safety and performance
- 99,000 lb Total Capacity
- Battery Powered System with 24V DC motors and dual batteries per column
- Simultaneous Column Operation with electronic synchronization
- LCD Display on each column showing exact lifting height
- Dual Safety System – hydraulic flow control and mechanical locks
- Portable Design for indoor or outdoor use on proper concrete surfaces

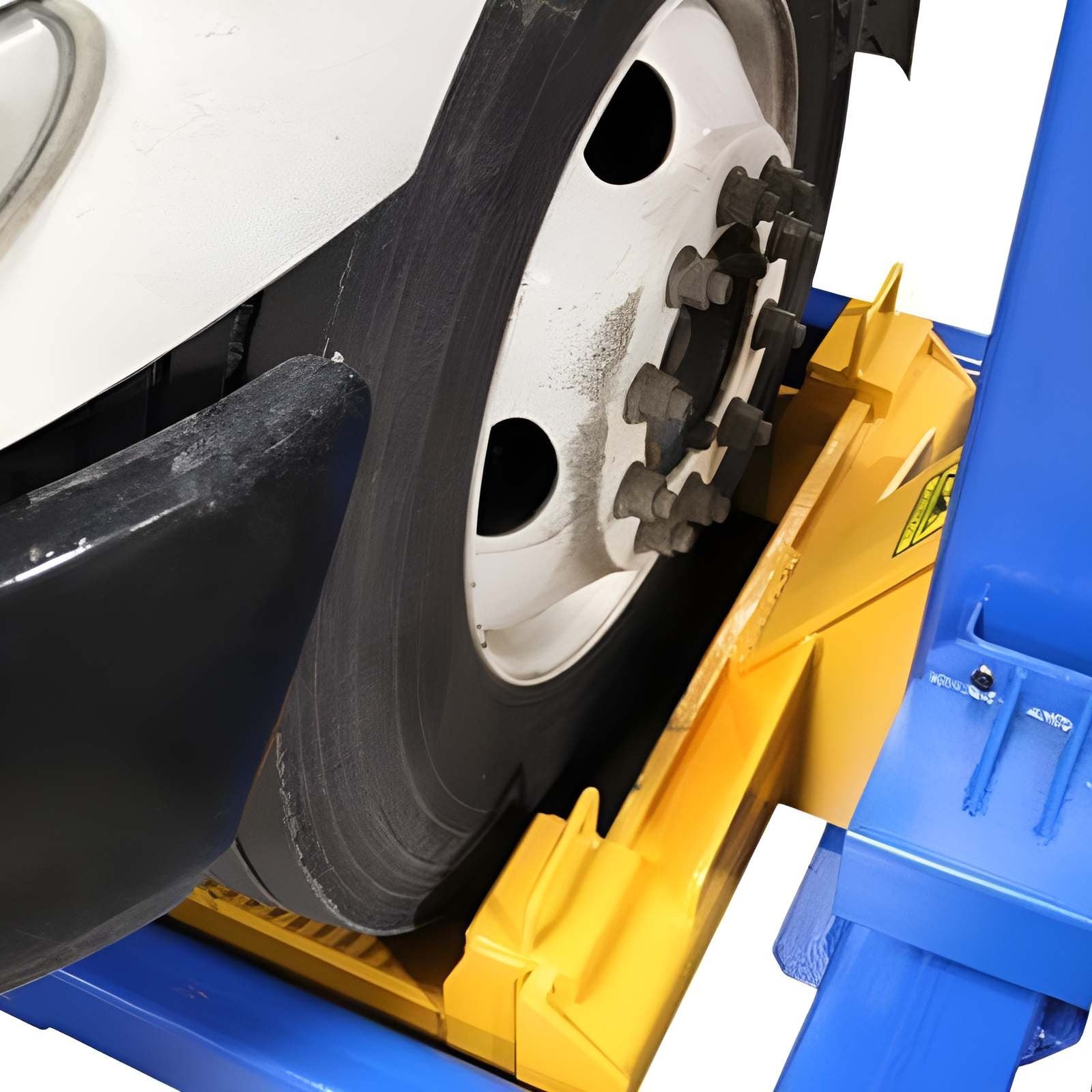

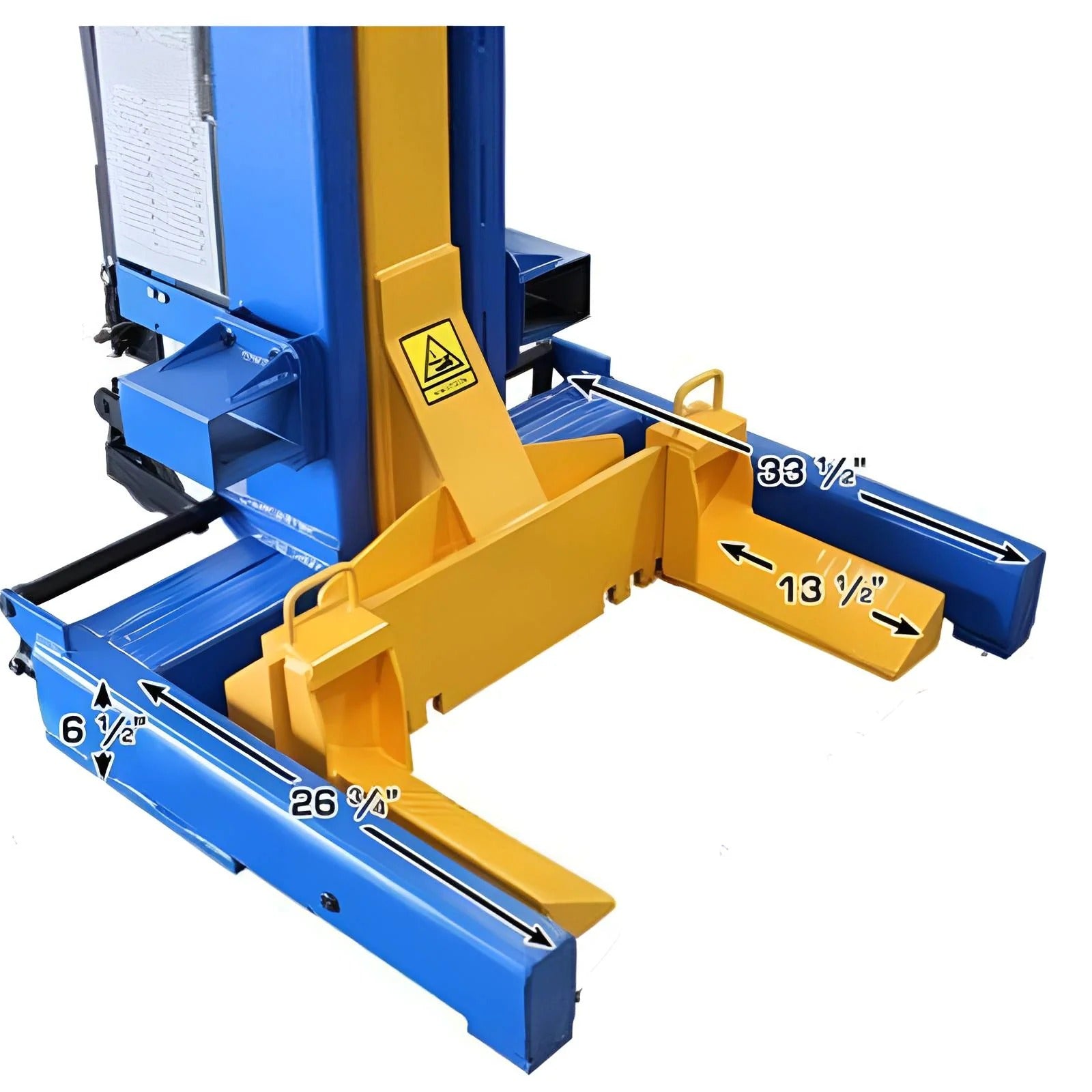

- Adjustable Forks accommodate tire diameters from 19" to 44"
- Emergency Stop Button on every column
- Includes connecting cables for synchronized operation
Designed for Flexibility & Fleet Service
The Atlas mobile column lift system is engineered for maximum versatility. Each column can be easily moved using the built-in pallet jack system and stored when not in use, freeing up valuable shop space. The battery-powered design eliminates the need for constant power connection, making it ideal for both indoor bays and outdoor service areas.
This system is perfect for fleet maintenance facilities, truck repair shops, and service centers that need a reliable and mobile lifting solution for large vehicles.
| Specifications | Details |
|---|---|
| Capacity per Column | 16,500 lbs |
| Total System Capacity | 99,000 lbs |
| Motor | 2.2 kW 24V DC (Two Batteries per Column) |
| Max Lifting Height | 67" (5' 7") |
| Overall Height | 145" (12' 1") |
| Resting Height | 88 1/2" (7' 4 1/2") |
| Width | 43 1/2" |
| Length | 55 1/2" |

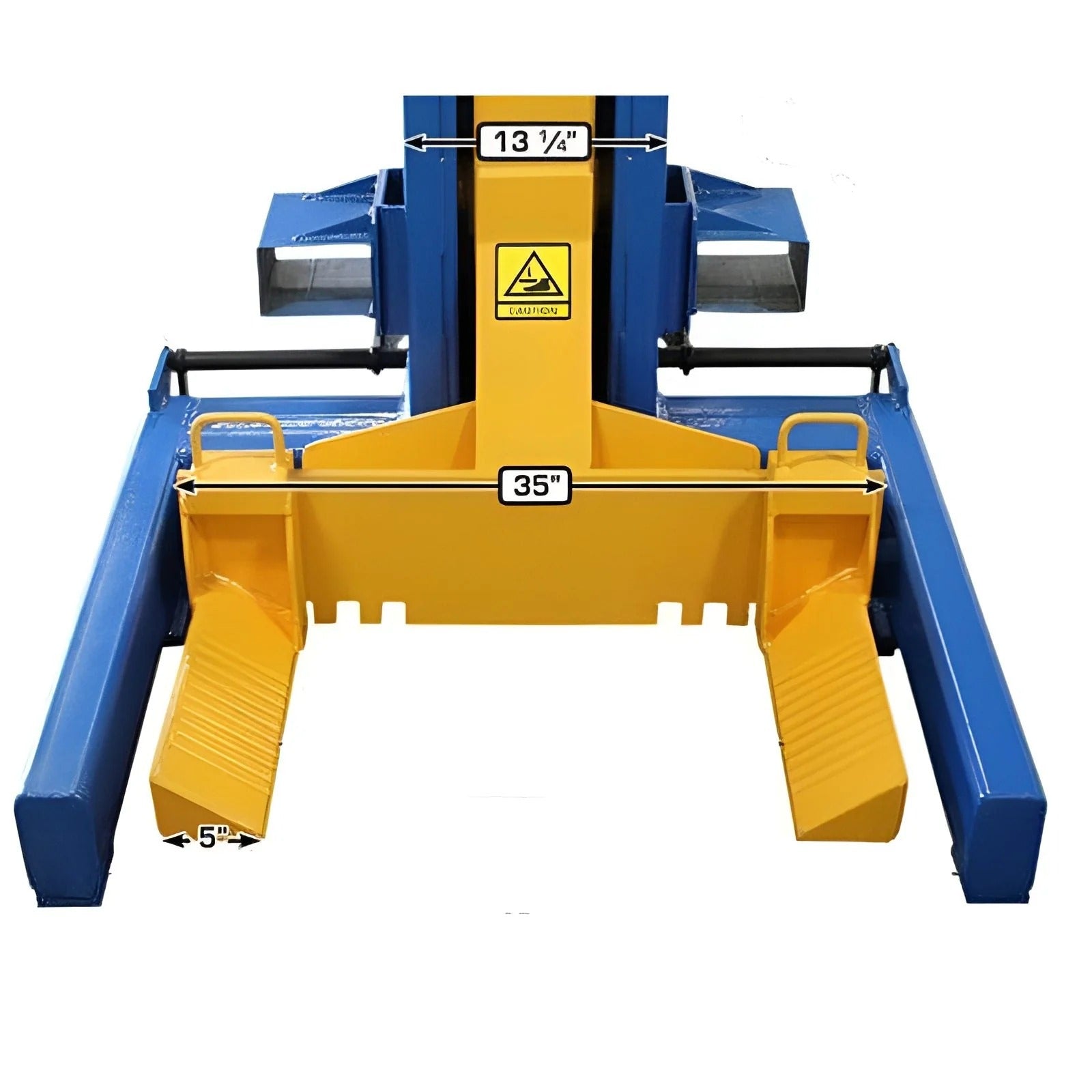

| Column Width | 13 1/4" |
| Max Tire Diameter | 44" |
| Min Tire Diameter | 19" |
| Weight per Column | 1,600 lbs |
| Shipping Weight (System) | 9,600 lbs |
| Warranty | 2-Year Limited Warranty |
