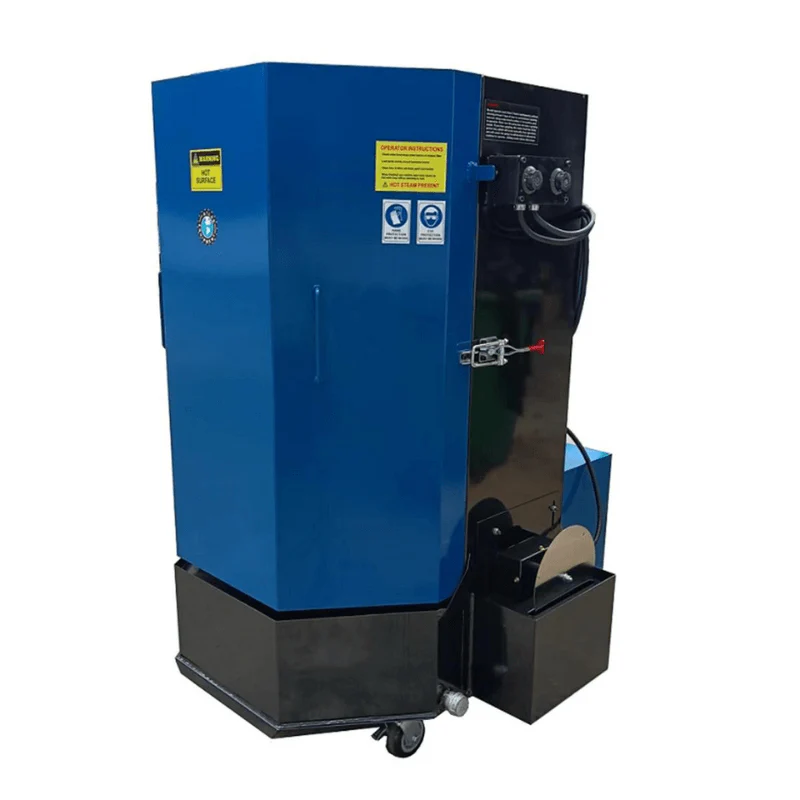

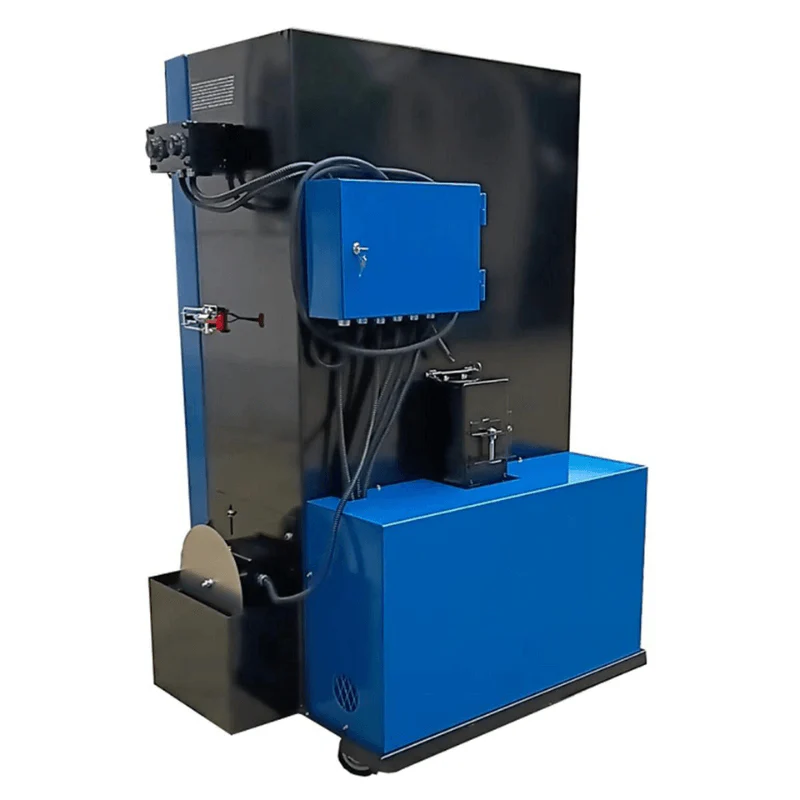

Atlas Commercial Parts Spray Wash Cabinet System
SKU: ATEHT-STW-500
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas 500 Spray Wash Cabinet is a heavy-duty commercial parts washer designed for automotive shops that need efficient, reliable cleaning for engines, components, and heavily soiled parts. With a 1,000 lb capacity turntable and 50-gallon tank, this unit delivers strong cleaning performance in a slightly more compact footprint than the larger models.
Equipped with 19 high-pressure spray nozzles and a powerful 43 GPM pump, the system effectively removes grease, oil, and contaminants using hot water and biodegradable detergents—eliminating the need for harsh chemicals. The built-in heating element raises temperatures up to 175°F for improved cleaning results.

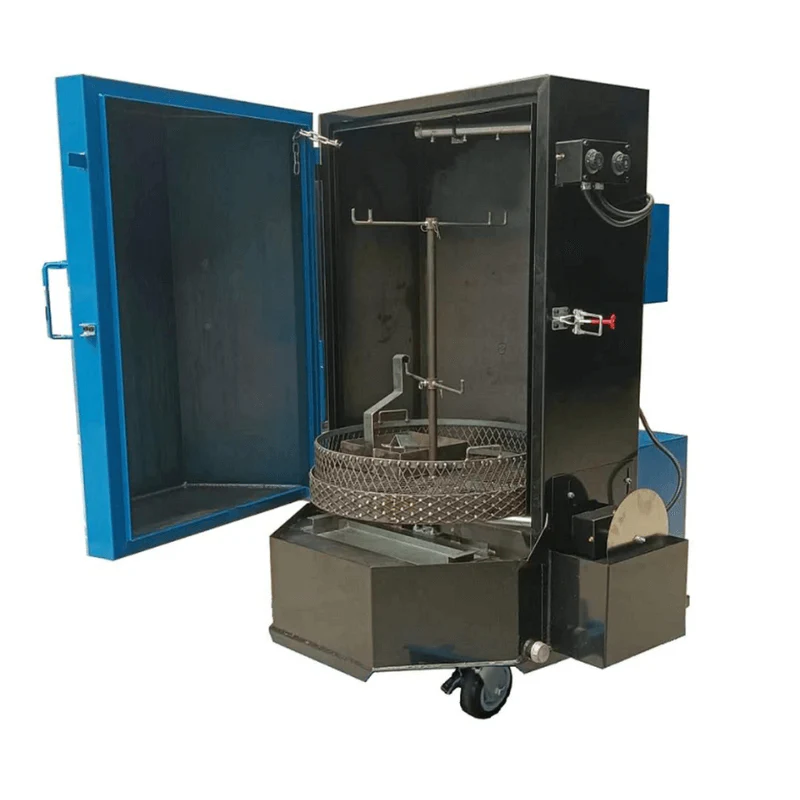

The cabinet features a full-opening octagonal door for easy loading, along with cut-away sides that allow engine cranes to position heavy parts directly onto the turntable. A 60-minute timer enables unattended operation, while the oil skimmer helps extend the life of the cleaning solution.
Built from heavy-duty steel with a durable powder-coated finish, the Atlas 500 is designed for long-term reliability in demanding shop environments.
Features and Benefits
• 50-gallon tank capacity
• Heavy-duty steel construction
• Powder-coated exterior for durability
• 1,000 lb capacity rotating turntable
• Heating element (135°F – 175°F)
• 60-minute timer with automatic shut-off
• 19 adjustable steel spray nozzles
• 43 GPM pump for high-pressure cleaning
• Oil skimmer included
• Tree rack and parts basket included
• Full-opening door for easy loading
• Compatible with engine crane loading
• Environmentally friendly (uses water and detergents)
• Freight prepaid
• 1-year limited parts warranty
| Specifications | Details |
|---|---|
| Tank Capacity | 50 Gallons |
| Inside Height | 42" |
| Inside Width | 32" |
| Turntable Diameter | 30" |

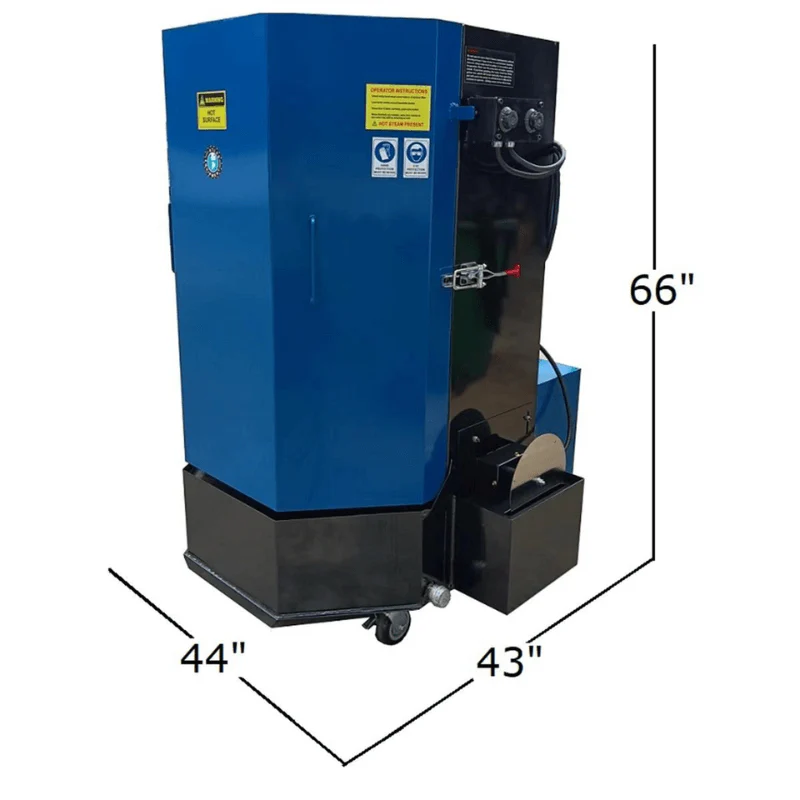

| Overall Dimensions | 44 3/8" L x 44 1/8" W x 66 3/4" H |
| Turntable Load Capacity | 1,000 lb. |
| Cycle Time | 60 min. std. |
| Pump Output | 28 PSI @ 43 GPM |
| Power Supply | 220V / Single Phase (30 Amp Breaker Required) |
| Motor | 2 HP |
| Shipping Weight | 750 lbs. |
