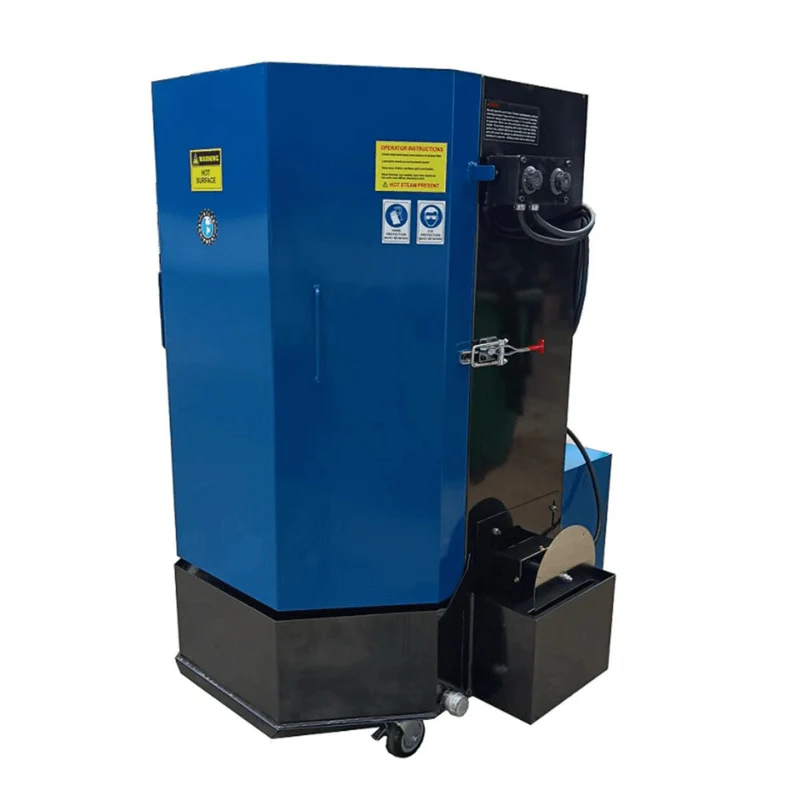

Atlas Extra Large Parts Spray Wash Cabinet System
SKU: ATEHT-STW-750
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas 750 Spray Wash Cabinet is a heavy-duty industrial parts washer designed for automotive shops that need to clean large, greasy components quickly and efficiently. With an extra-large cleaning chamber and a 1,000 lb capacity turntable, this unit is ideal for engines, transmissions, and other oversized parts.
Built for performance and durability, the cabinet features a powerful 43 GPM pump and multiple high-pressure spray nozzles that thoroughly clean parts using hot water and biodegradable detergents—eliminating the need for harsh solvents. The integrated heating element raises water temperatures up to 175°F, improving cleaning effectiveness.
The full-opening octagonal door exposes over half of the turntable, making loading and unloading easier—especially when using an engine crane. A built-in oil skimmer extends the life of the cleaning solution, while the 60-minute timer allows for unattended operation.
Constructed from heavy-duty steel with a durable powder-coated finish, the Atlas 750 is built to handle demanding shop environments while delivering consistent, reliable cleaning performance.
Features and Benefits
• Extra large cleaning capacity for oversized parts
• 50-gallon tank capacity
• Heavy-duty steel construction
• Powder-coated exterior for durability
• 1,000 lb capacity rotating turntable
• Heating element (135°F – 175°F)
• 60-minute timer with automatic shut-off
• High-pressure spray system with multiple adjustable nozzles
• 43 GPM pump for powerful cleaning
• Oil skimmer included to extend solution life
• Tree rack and parts basket included
• Full-opening door for easy loading
• Environmentally friendly (uses water and biodegradable detergents)
• Freight prepaid
| Specifications | Details |
|---|---|
| Tank Capacity | 50 Gallons |
| Inside Height | 54" |
| Inside Width | 32" |
| Turntable Diameter | 30" |

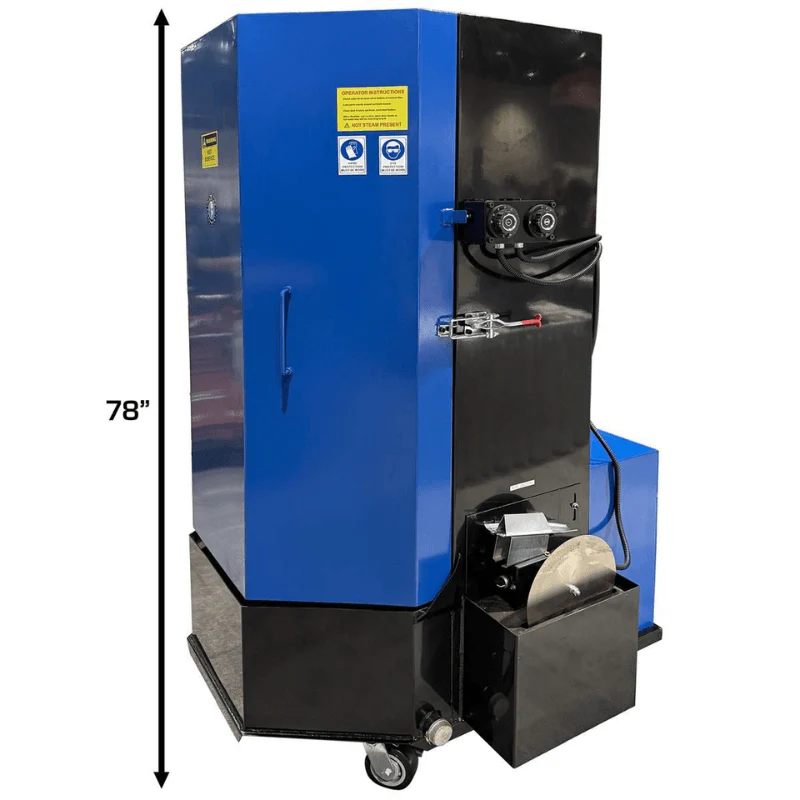

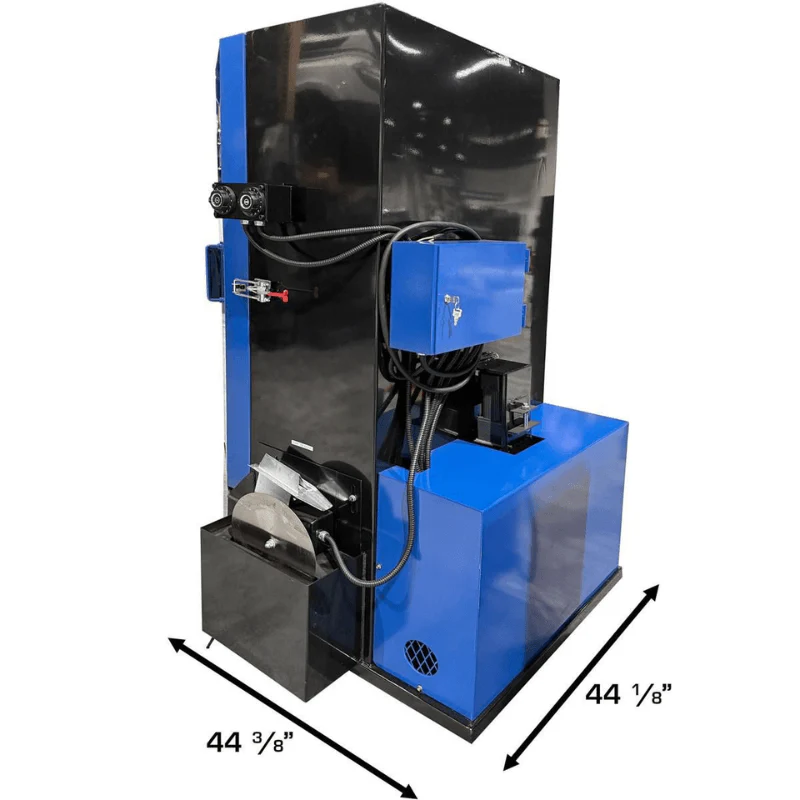

| Overall Dimensions | 44 3/8" L x 44 1/8" W x 78" H |
| Turntable Load Capacity | 1,000 lb. |
| Cycle Time | 60 min. std. |
| Pump Output | 28 PSI @ 43 GPM |
| Power Supply | 220V / Single Phase (30 Amp Breaker Required) |
| Motor | 3 HP |
| Shipping Weight | 800 lbs. |
| Warranty | 1-Year Limited Parts Warranty |
