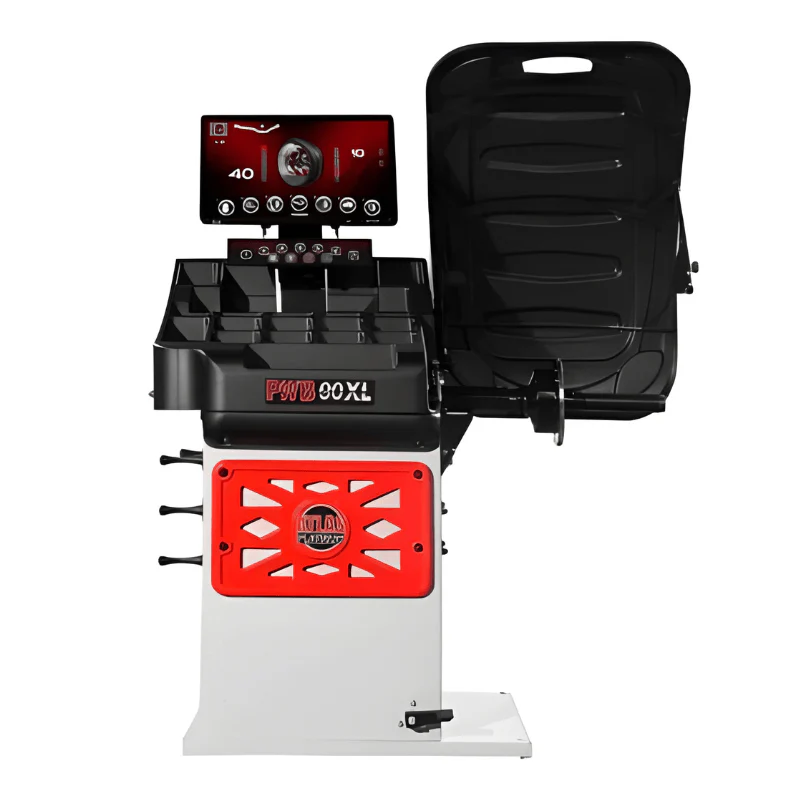

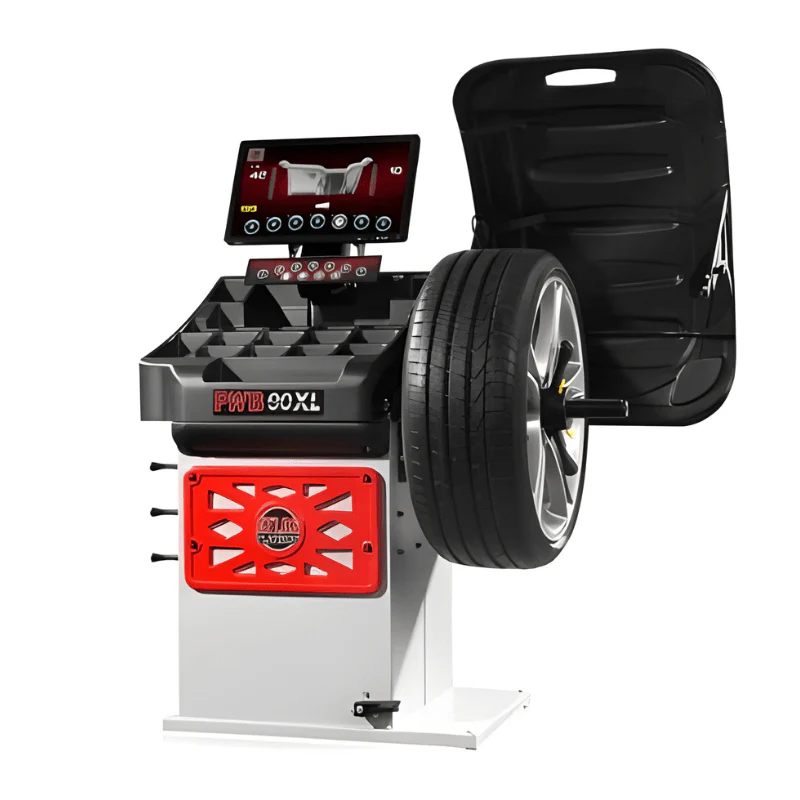

Atlas Platinum PWB90XL 3D Video Wheel Balancer with Laser Line
SKU: ATEAP-PWB90XL
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas Platinum PWB90XL is a high-end 3D video wheel balancer designed for shops that demand maximum precision, speed, and automation. With advanced video technology, touchless measurement, and laser-guided weight placement, this system delivers consistent, first-time accurate balancing results across a wide range of wheels.
Fully Automatic 3D Data Entry with Touchless Measurement
The PWB90XL features a super automatic 3D system that captures all necessary wheel dimensions with minimal input. Offset and diameter are measured with a gauge, while rim width is captured using touchless sonar technology—eliminating manual measurement and reducing setup time.
Key Features & Benefits
- Premium 3D video motorized spin balancer
- Fully automatic 3D data entry (including touchless rim width measurement)
- High-resolution video monitor display for improved visibility
- Laser line system for precise weight placement guidance
- LED work light for clear visibility inside the wheel
- Static and dynamic balancing modes
- Optimatch system for improved balance correction
- FES (split-weight) function for hidden weight placement
- OPF (opposite position) function for easier access
- Advanced ALU programs for alloy and specialty wheels
- NWN (No Wheel Needed) system for faster operation
- Self-diagnosing and self-calibrating system
- USB port for firmware updates
- High stability for precise imbalance detection
- Displays in grams or ounces, and mm or inches
- No anchor-down installation required
- Includes quick-release nut, 4 centering cones, pliers, and measuring calipers
- 2 Year Parts Warranty
Designed for High-Volume & Precision Shops
The PWB90XL is ideal for tire shops and service centers that handle a high volume of vehicles and require advanced balancing technology. Its automation reduces operator input while increasing speed and consistency.
Reliable & Easy to Maintain
With built-in self-diagnostics and a modular design, the PWB90XL allows for easy troubleshooting and maintenance. Firmware updates can be performed via USB, helping keep the system up to date.
Premium Performance You Can Trust
Combining advanced 3D measurement, laser-guided accuracy, and high-quality components, the Atlas Platinum PWB90XL delivers top-tier performance for shops looking to operate at the highest level.
| Specifications | Details |
|---|---|
| Max Tire Diameter | 43" |
| Rim Sizes (Cars & Light Trucks) | 10" – 30" |
| Rim Width | 1 1/2" – 20" |
| Shaft Size | 40mm |
| Max. Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Data Entry | Super Automatic 3D |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110V |
| Shipping Weight | 290 lbs. |
