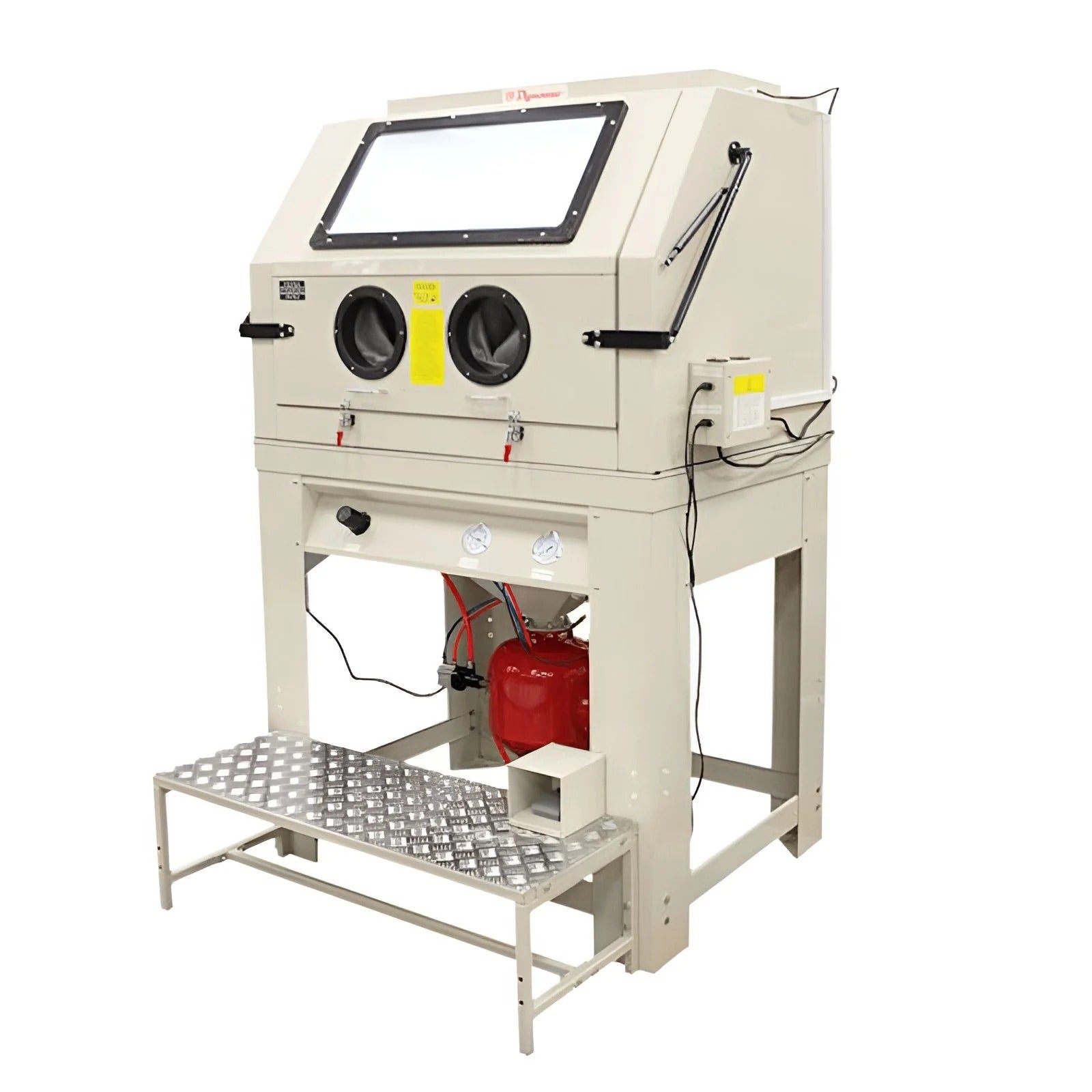

Atlas PSBC990 Extra Large Pressurized Sandblast Cabinet with Vacuum System and LED Lighting
SKU: ATEHTPSBC990
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas PSBC990 is a high-performance pressurized sandblast cabinet designed for faster and more aggressive surface preparation in automotive, fabrication, and industrial applications. Unlike standard siphon-fed cabinets, this unit uses a direct pressure system that delivers a higher velocity stream, allowing users to complete blasting jobs significantly faster while improving effectiveness on heavy rust, thick coatings, and hard-to-reach areas. The adjustable pressure control also makes it suitable for more delicate parts when needed. With a spacious work area, integrated LED lighting, and a powerful vacuum dust collection system, the PSBC990 provides excellent visibility, efficiency, and control during operation.
Key Features & Benefits
- Extra-large media blasting cabinet for larger parts
- Pressurized system for faster and more powerful blasting performance
- Direct pressure feed for improved efficiency and deeper cleaning

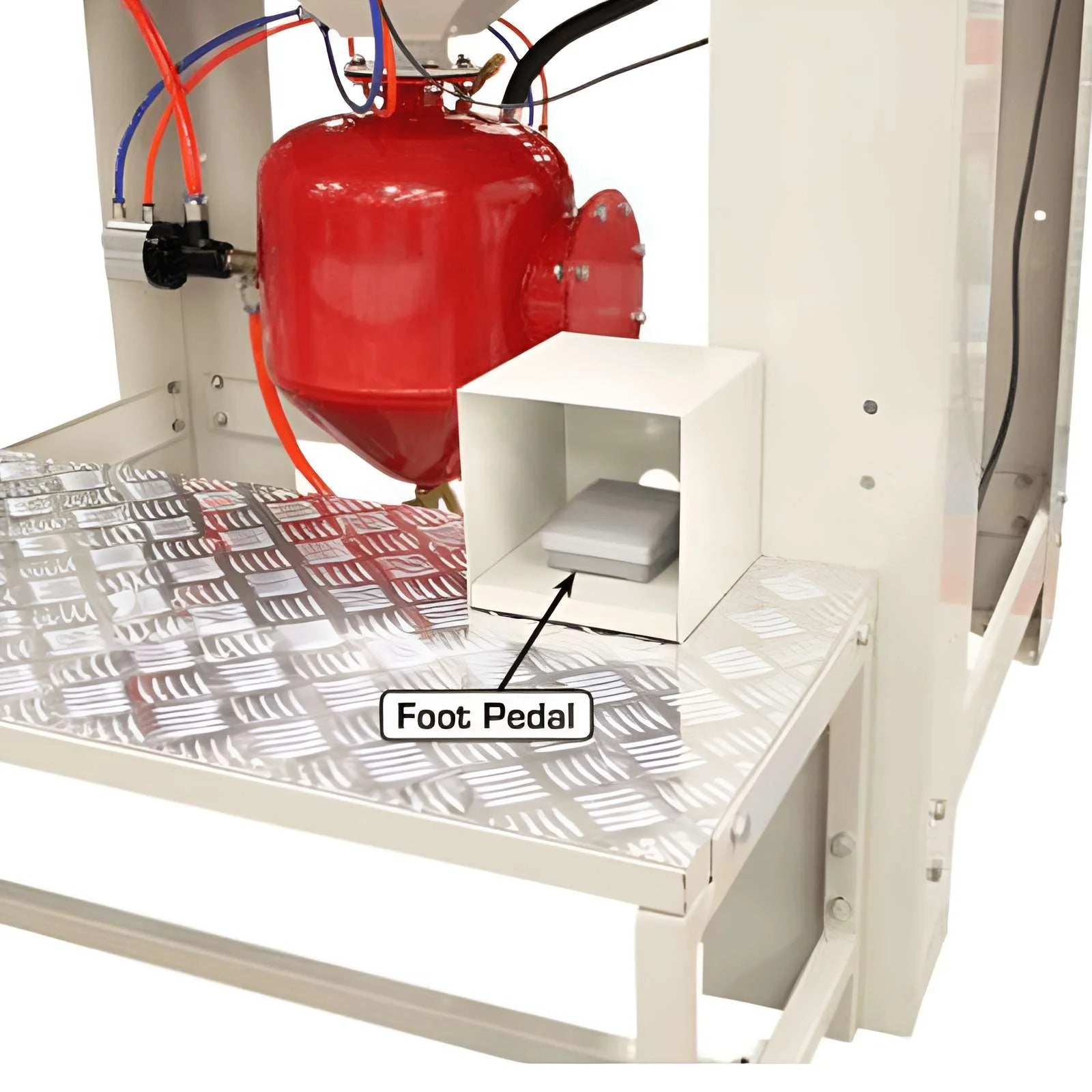

- Foot-operated control valve for hands-free operation

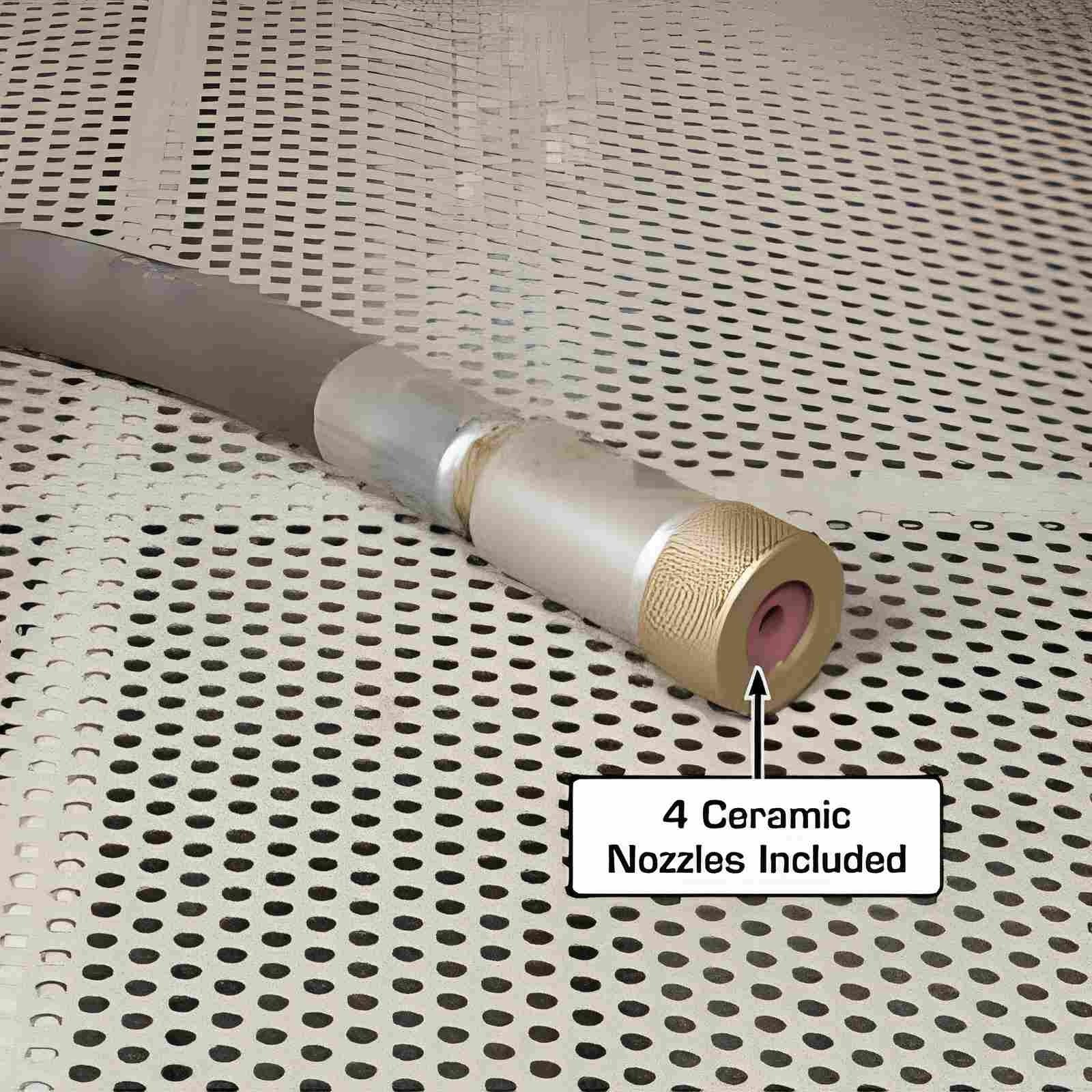

- Heavy-duty blasting gun with replaceable ceramic nozzles

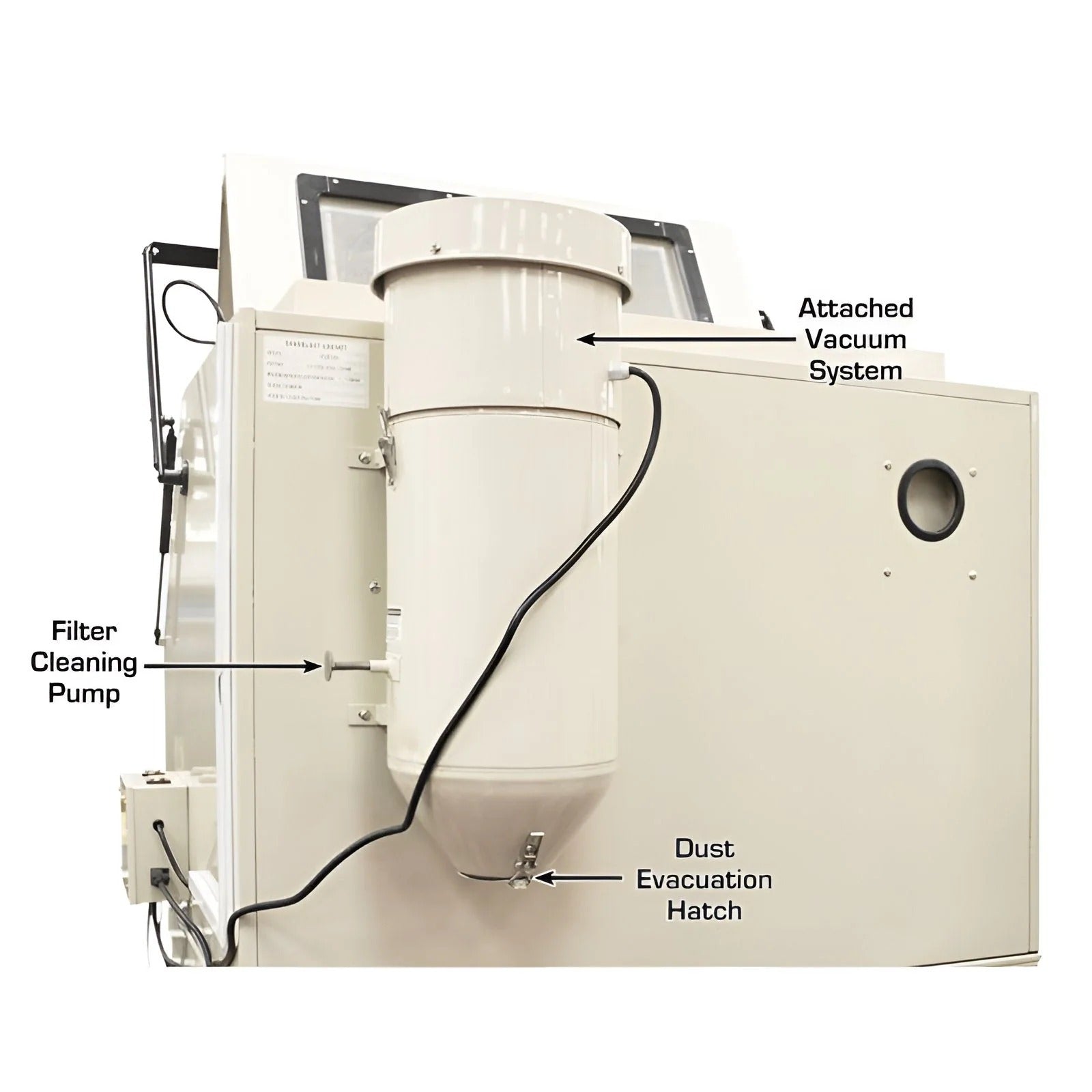

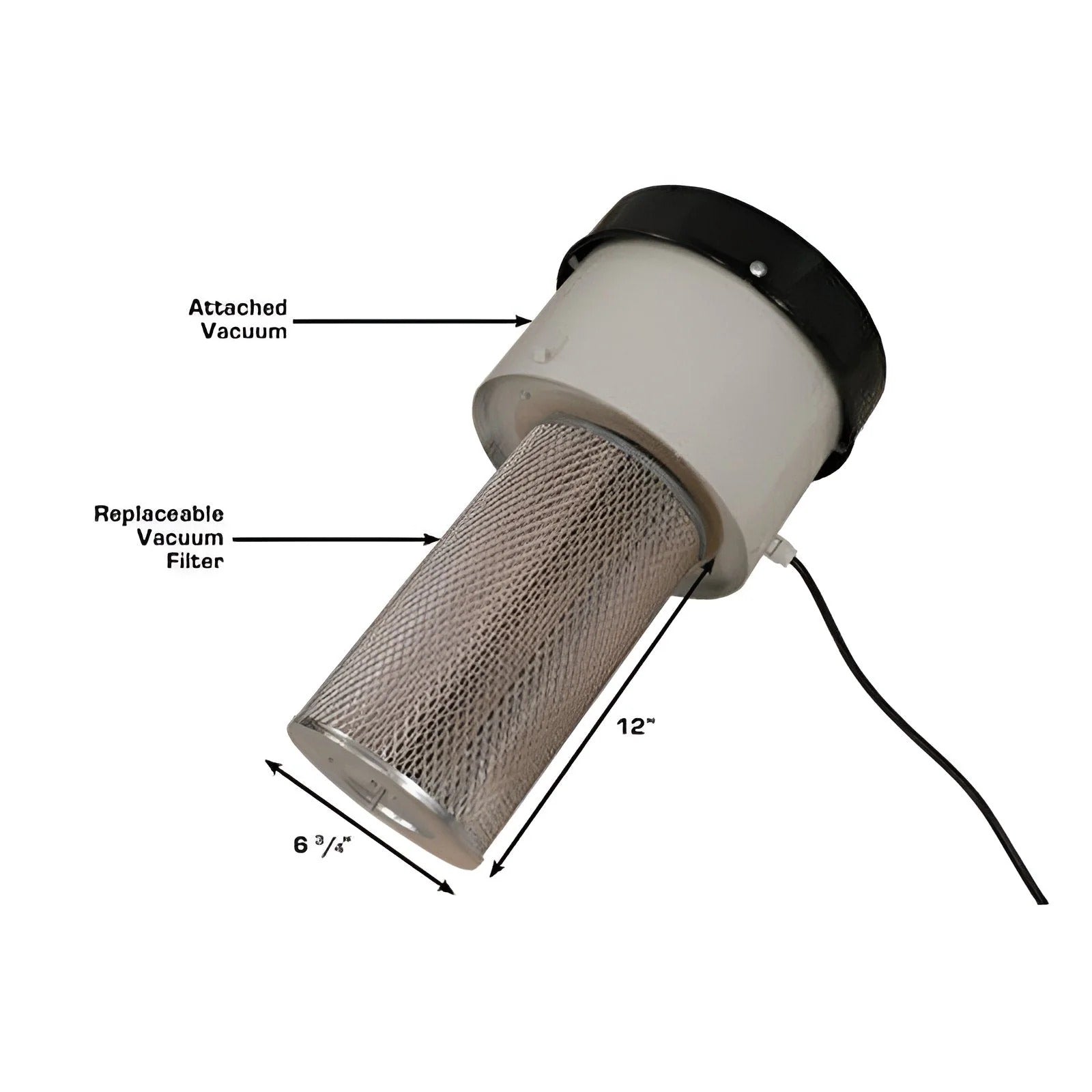

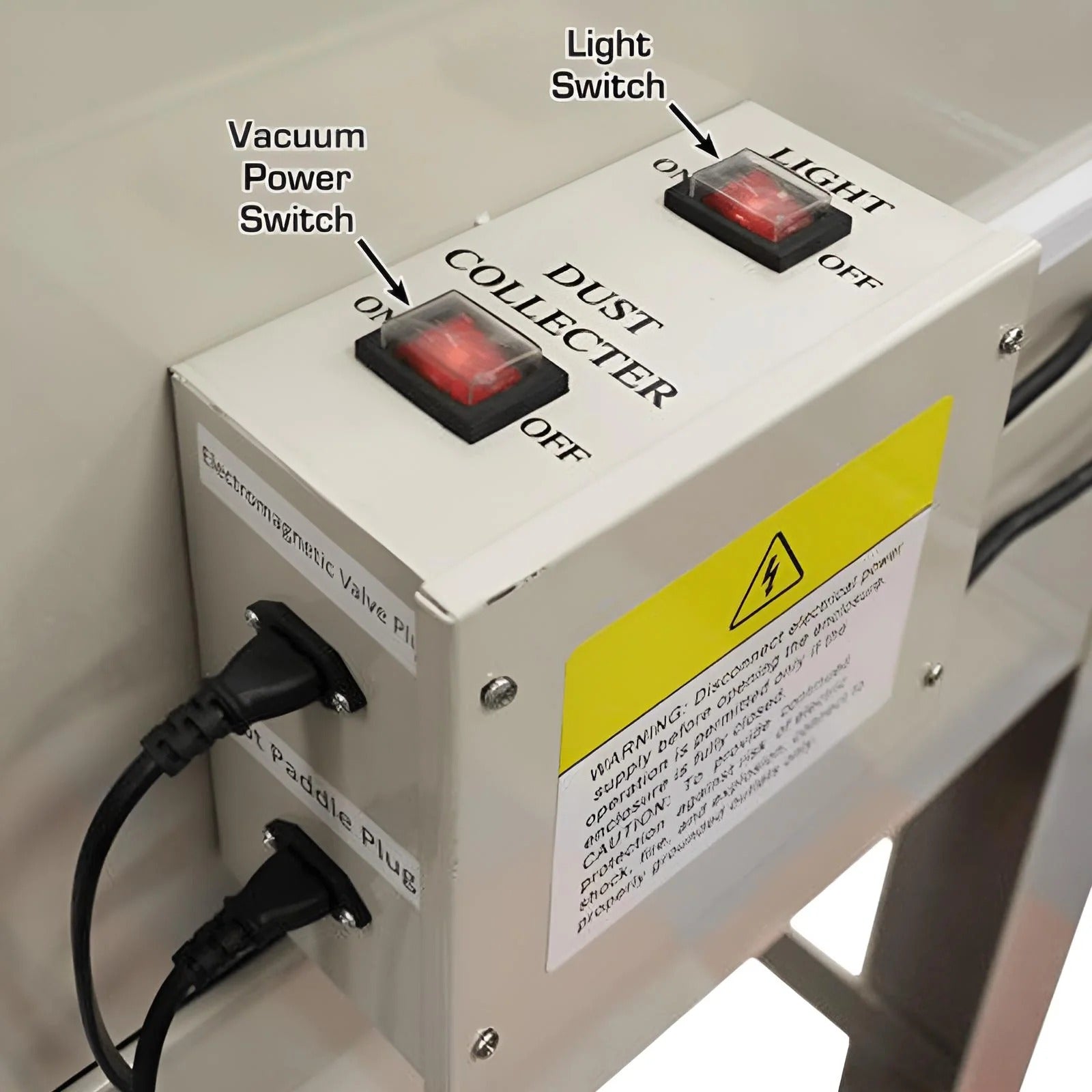

- Self-contained vacuum dust collection system with cartridge filter
- Bottom gate clean-out for easy media removal and maintenance

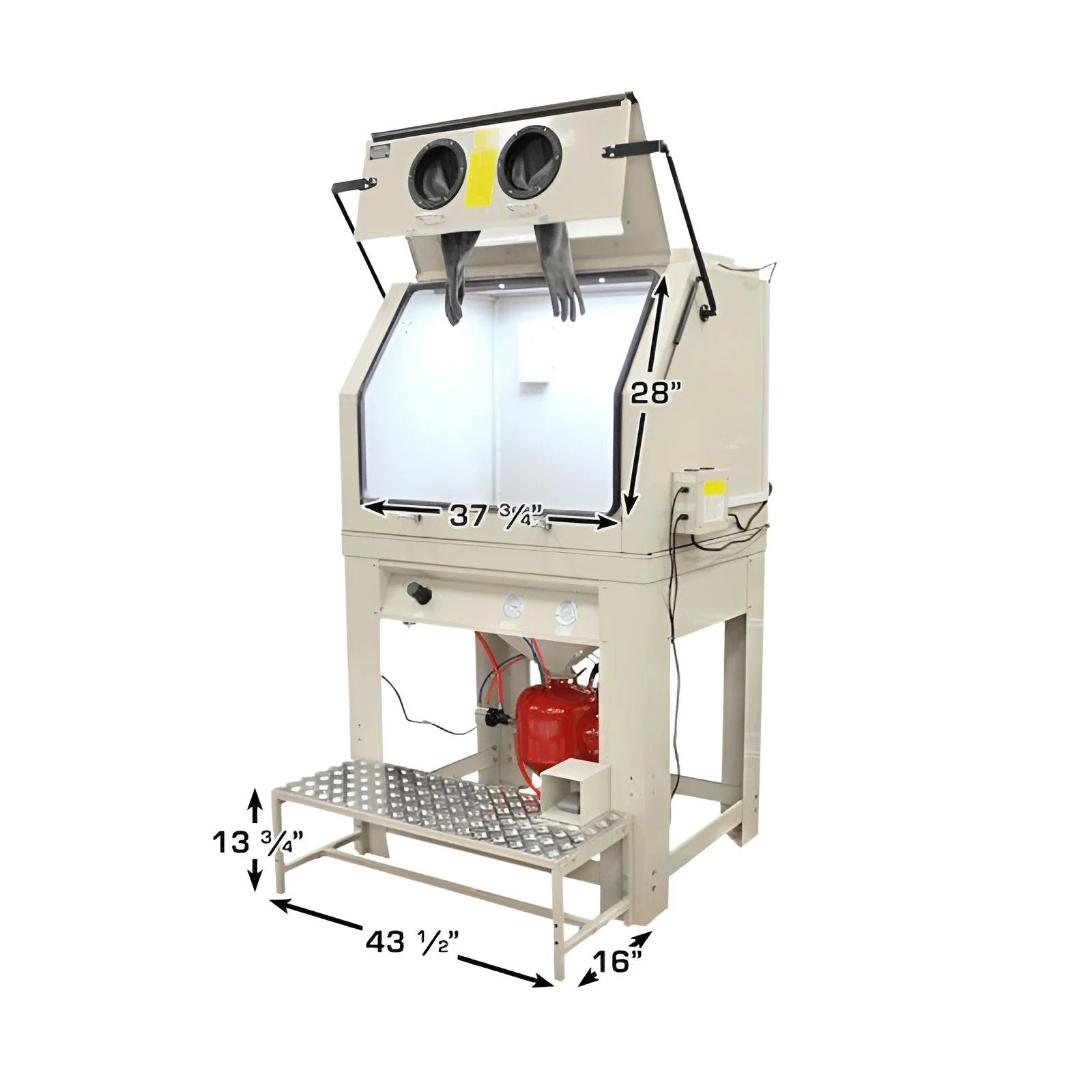

- Extra-large front/top loading door for easy access

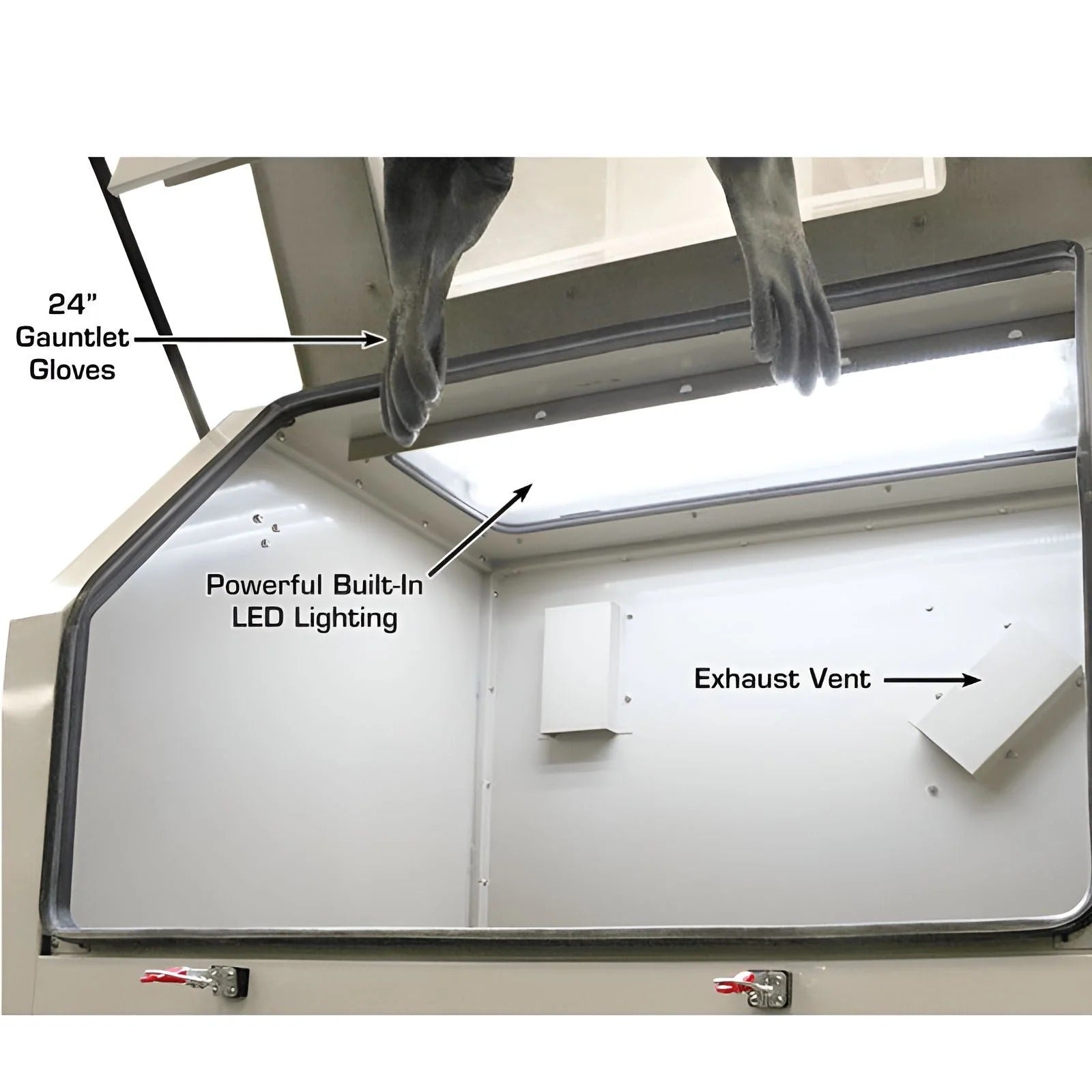

- Built-in LED lighting for improved visibility
- Standing bench included for easier operation and access
- Extra nozzles and protective components included
- Designed for use with glass bead media (not included)
- 110V power for easy installation
- Replacement parts and wear items readily available
- Freight prepaid for this unit
Performance & Design Highlights

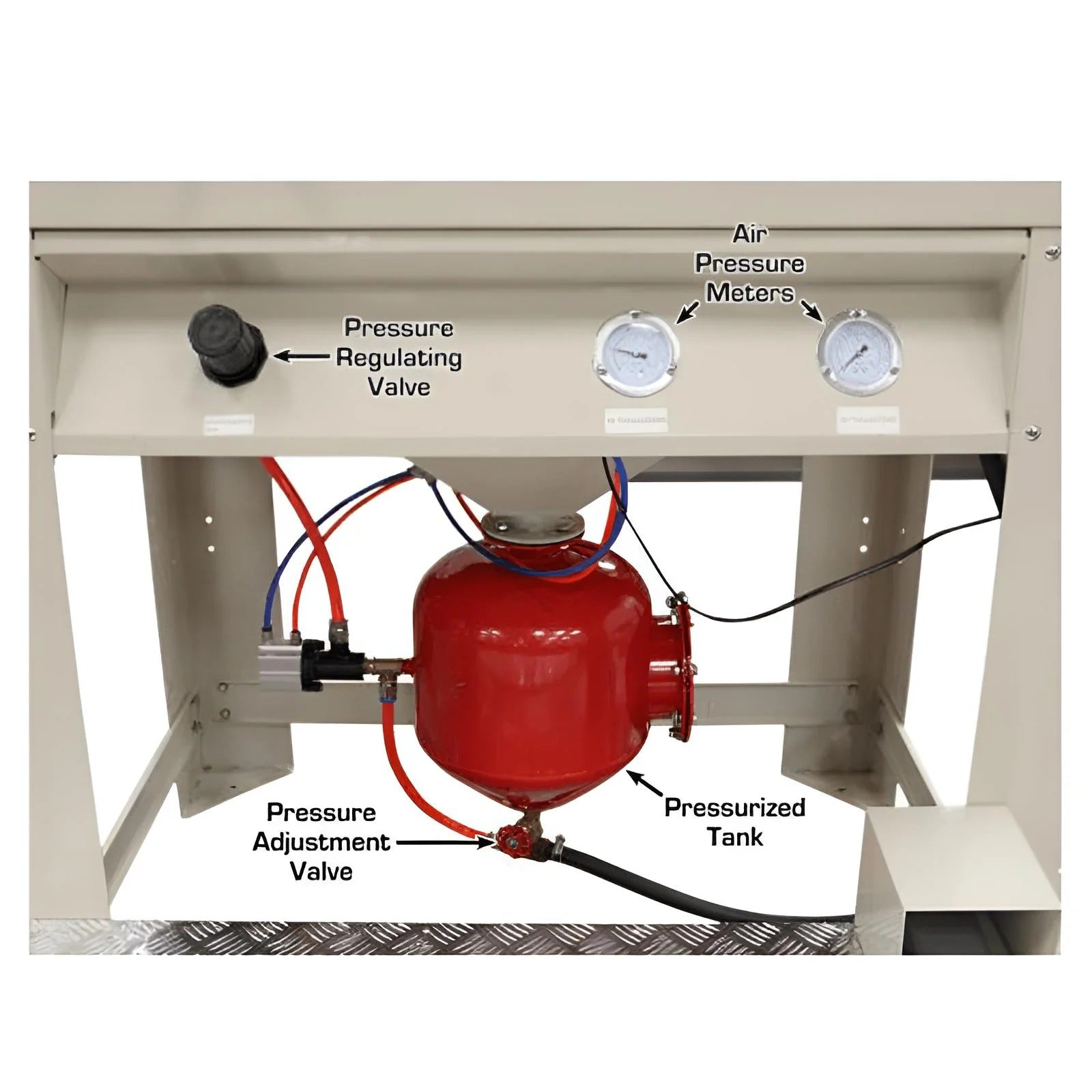

The PSBC990 is engineered for users who need increased blasting speed and performance compared to traditional cabinets. Its pressurized system delivers a more forceful stream of media, allowing for faster removal of rust, scale, and coatings. The adjustable pressure valve provides flexibility, enabling users to switch between aggressive blasting and more controlled cleaning for sensitive components. The integrated vacuum system removes floating dust and spent media, keeping the work area clean and visible. With its large interior space, strong lighting, and ergonomic design, this cabinet is built for both productivity and ease of use.
| Specifications | Details |
|---|---|

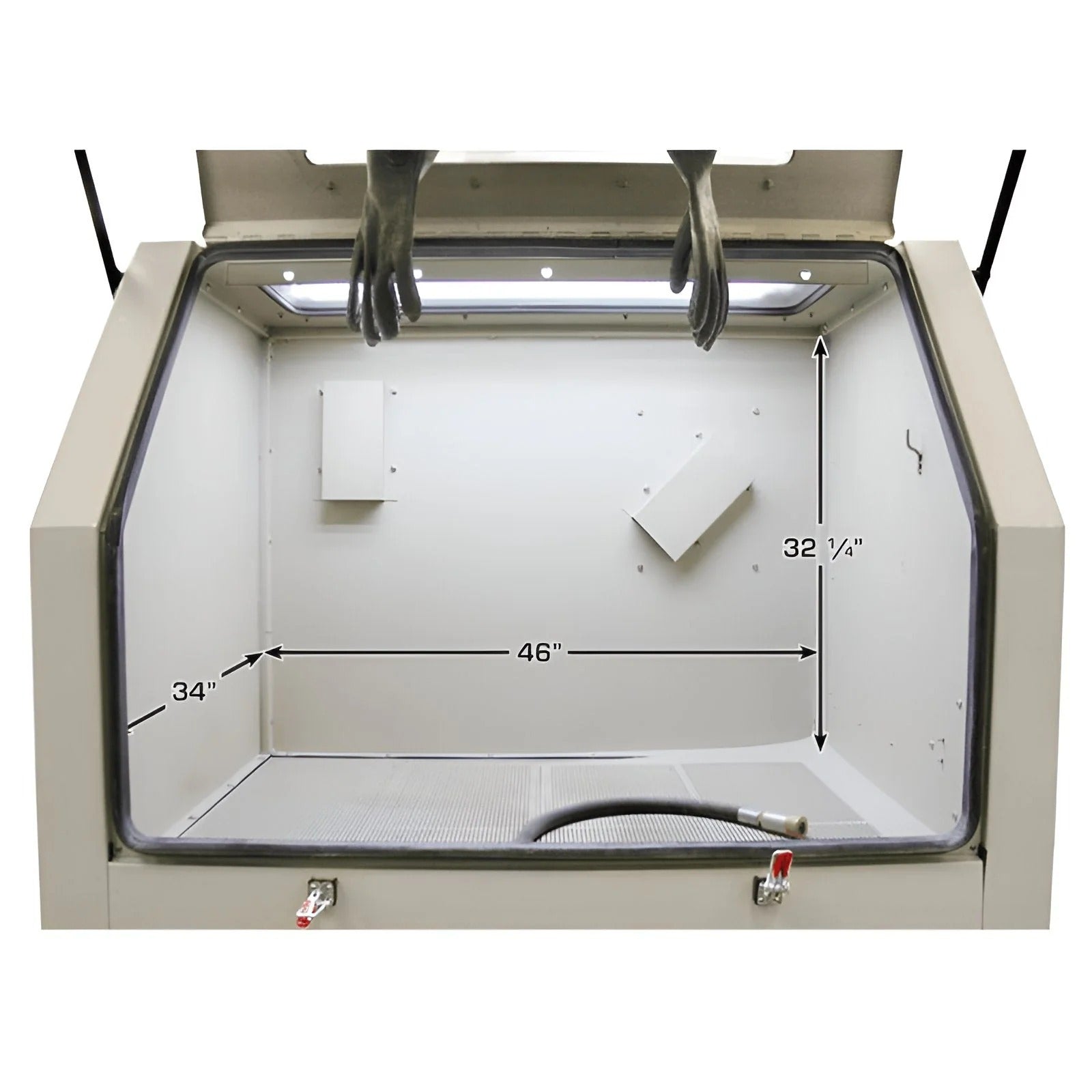

| Work Area | 46" W x 34" D x 33 1/2" H |

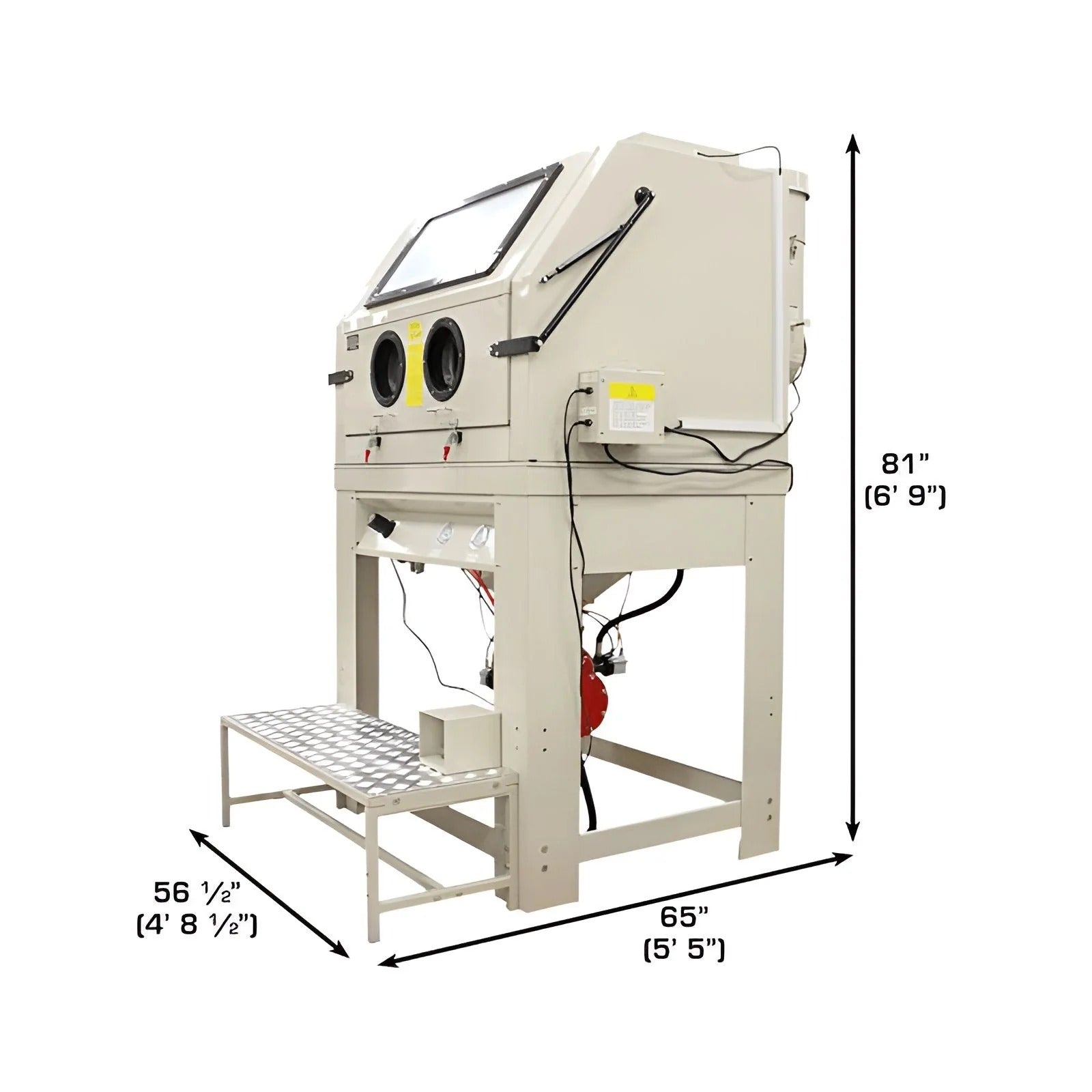

| Overall Dimensions | 56 1/2" W x 65" D x 81" H |
| Window Size | 12 3/4" x 27 1/4" |
| Gloves | 24" Gauntlet |
| Interior Weight Capacity | 220 lbs |
| Blasting Gun | NE490 Foot Pedal Gun |
| Vacuum System | Self-Contained |
| Power Requirement | 110V |
| Air Requirement | 24 CFM @ 125 PSI |
| Shipping Weight | 600 lbs |
