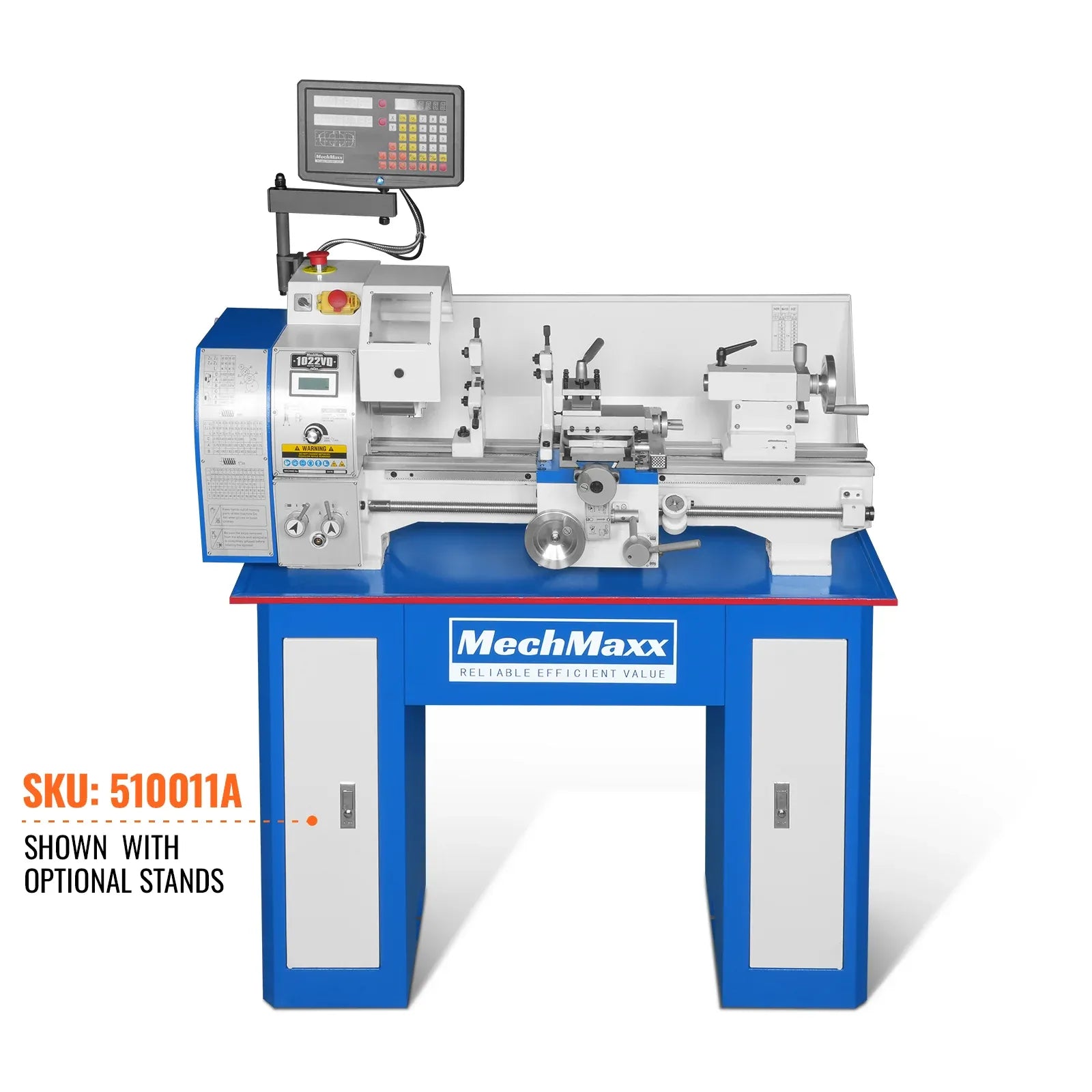

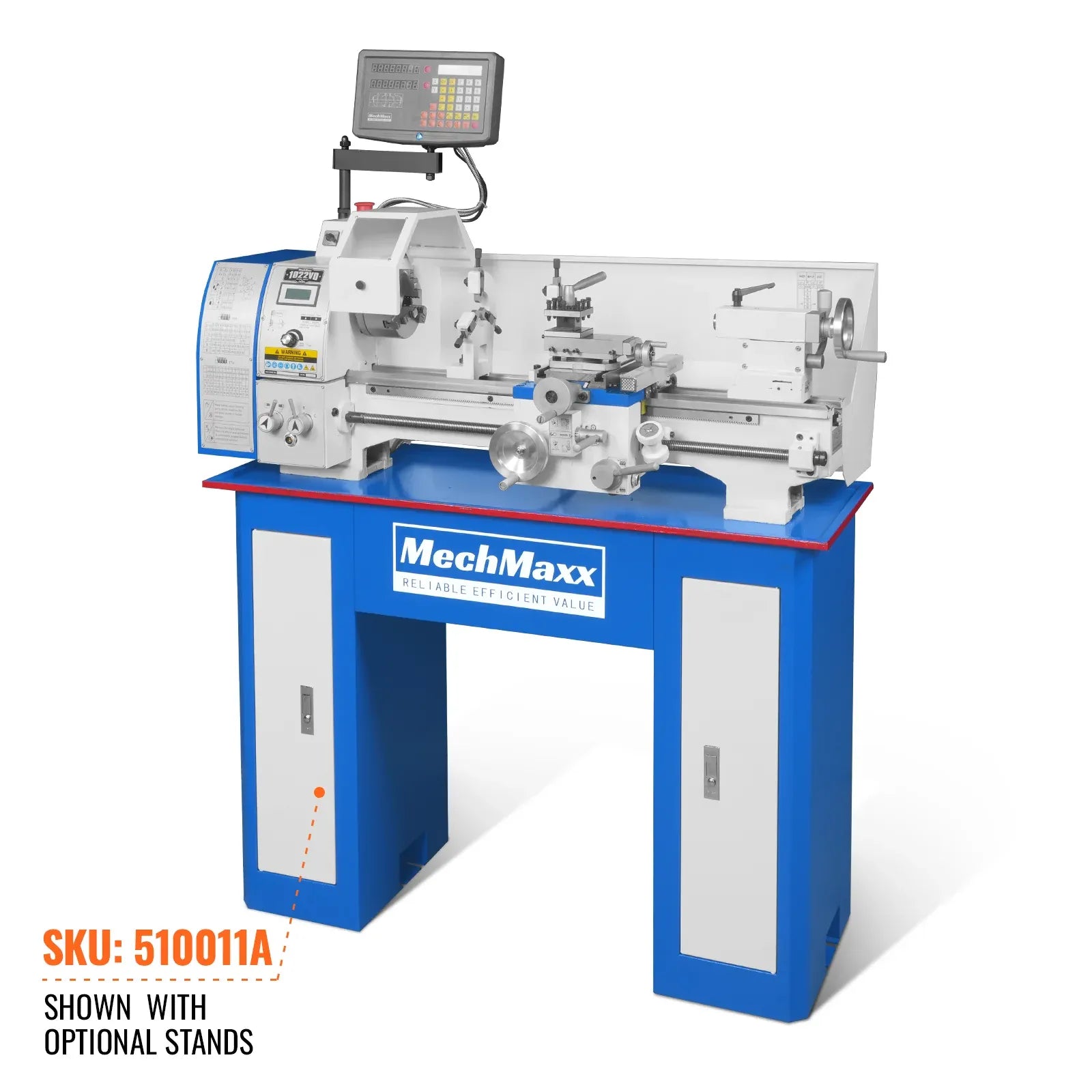

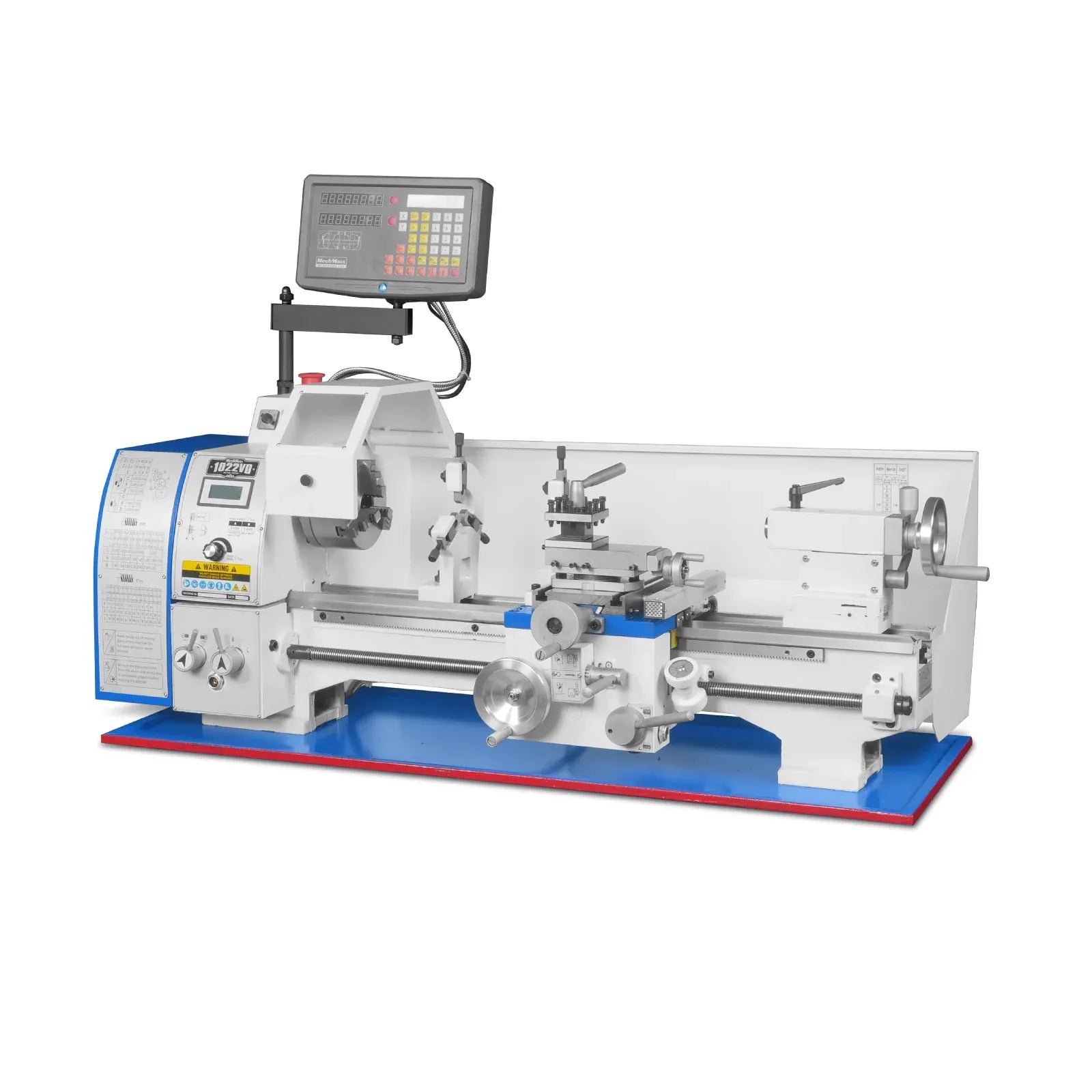

MechMaxx 10x22 Industrial Metal Lathe Machine with DRO, Model 1022VD
SKU: 500015
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Key Features & Benefits
- Large 1-1/2" (38 mm) spindle bore accommodates larger workpieces than most machines in its class
- MT#5 spindle taper supports a broad selection of tooling for increased flexibility

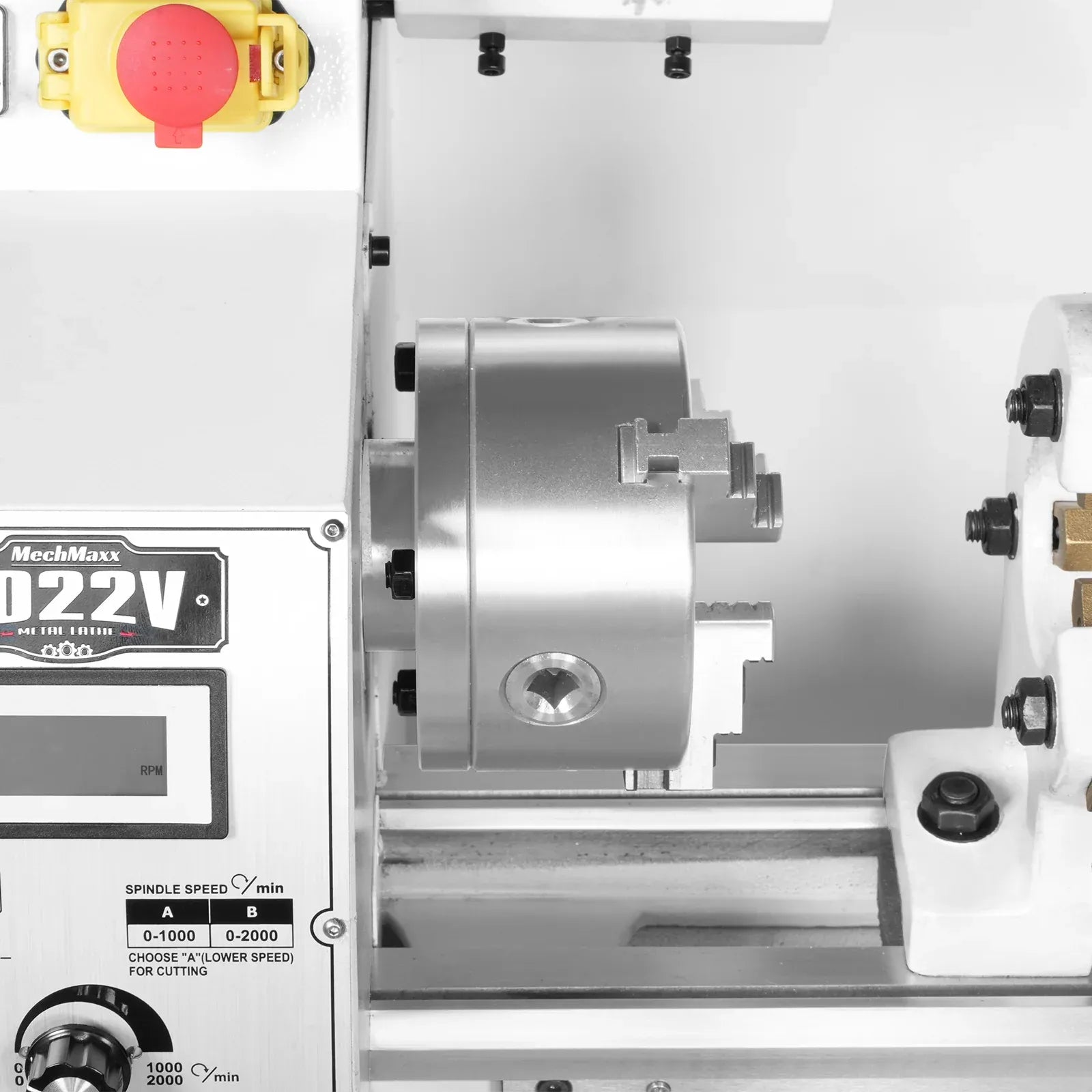

- Variable-speed spindle (0–2000 RPM) with 1.5 HP motor for precise control across materials and cutting operations
- Premium quench-hardened cast iron construction for long-term durability, rigidity, and vibration reduction
- 9-7/8" swing over bed and 21-5/8" distance between centers for small to medium workpieces
- Smooth cross slide and compound slide travel for precise facing, internal cutting, and bevel cutting

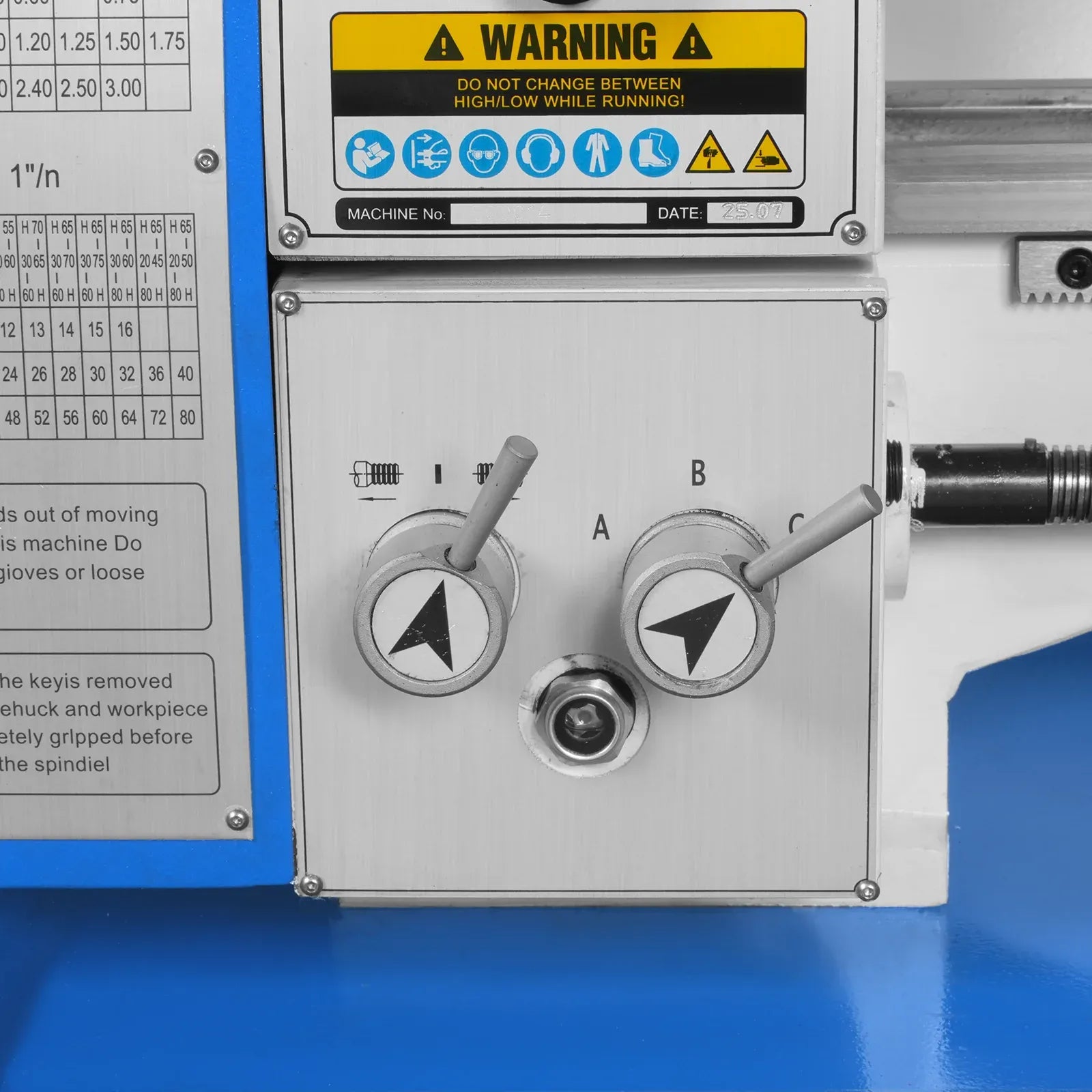

- Built-in thread dial indicator for easier, more accurate and repeatable thread cutting

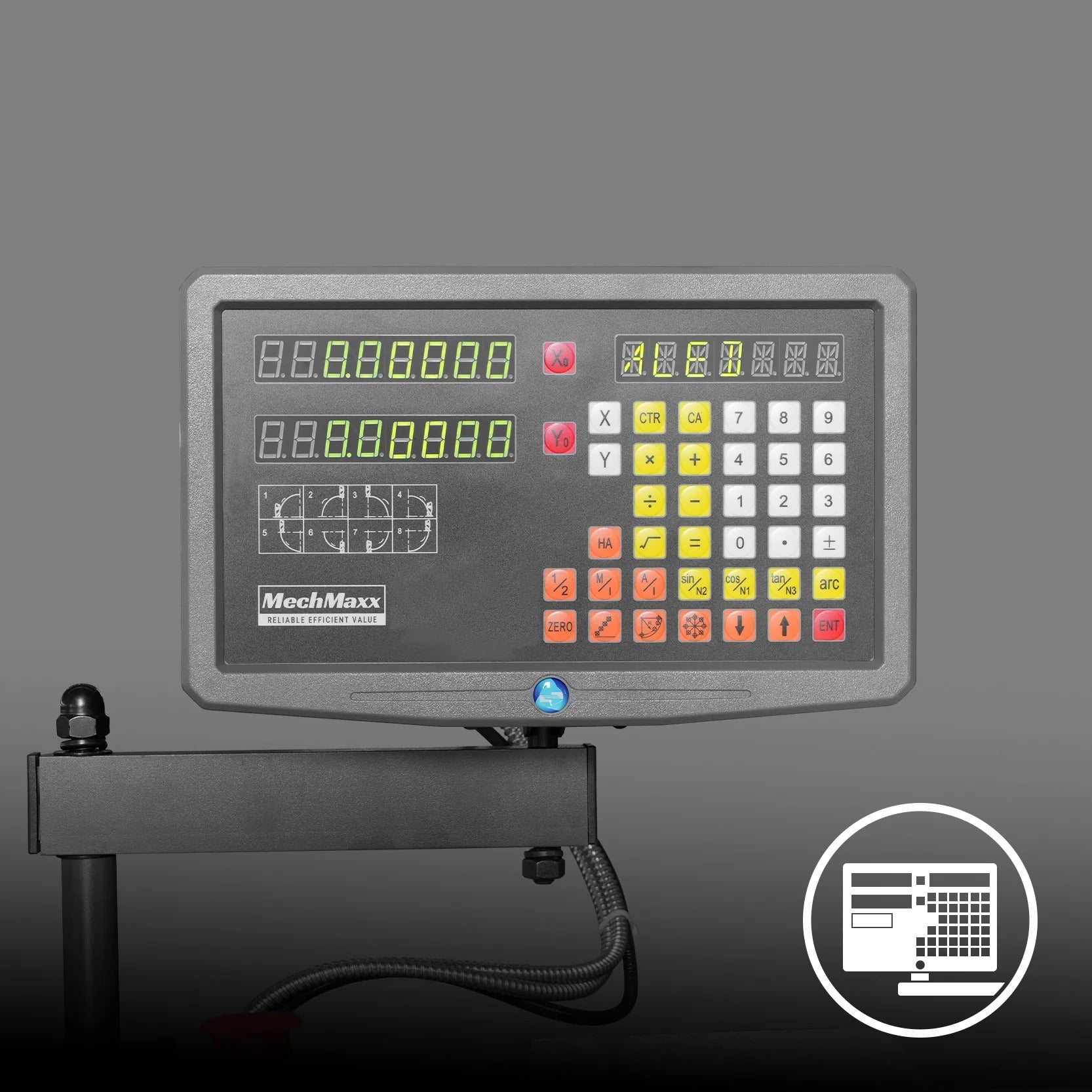

- Integrated Digital Readout (DRO) for real-time measurements, faster setups, and easier adjustments
| Specifications | Details |
|---|---|
| Motor | 1.5 HP, 110V, Single-Phase, 10A |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 21-5/8" (550 mm) |
| Bed Width | 5-3/8" (135 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |
| Tailstock Quill Travel | 3" (75 mm) |
| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Carriage Travel | 19-5/8" (500 mm) |
| Spindle Speeds | 0–2000 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20 mm (8 TPI) |

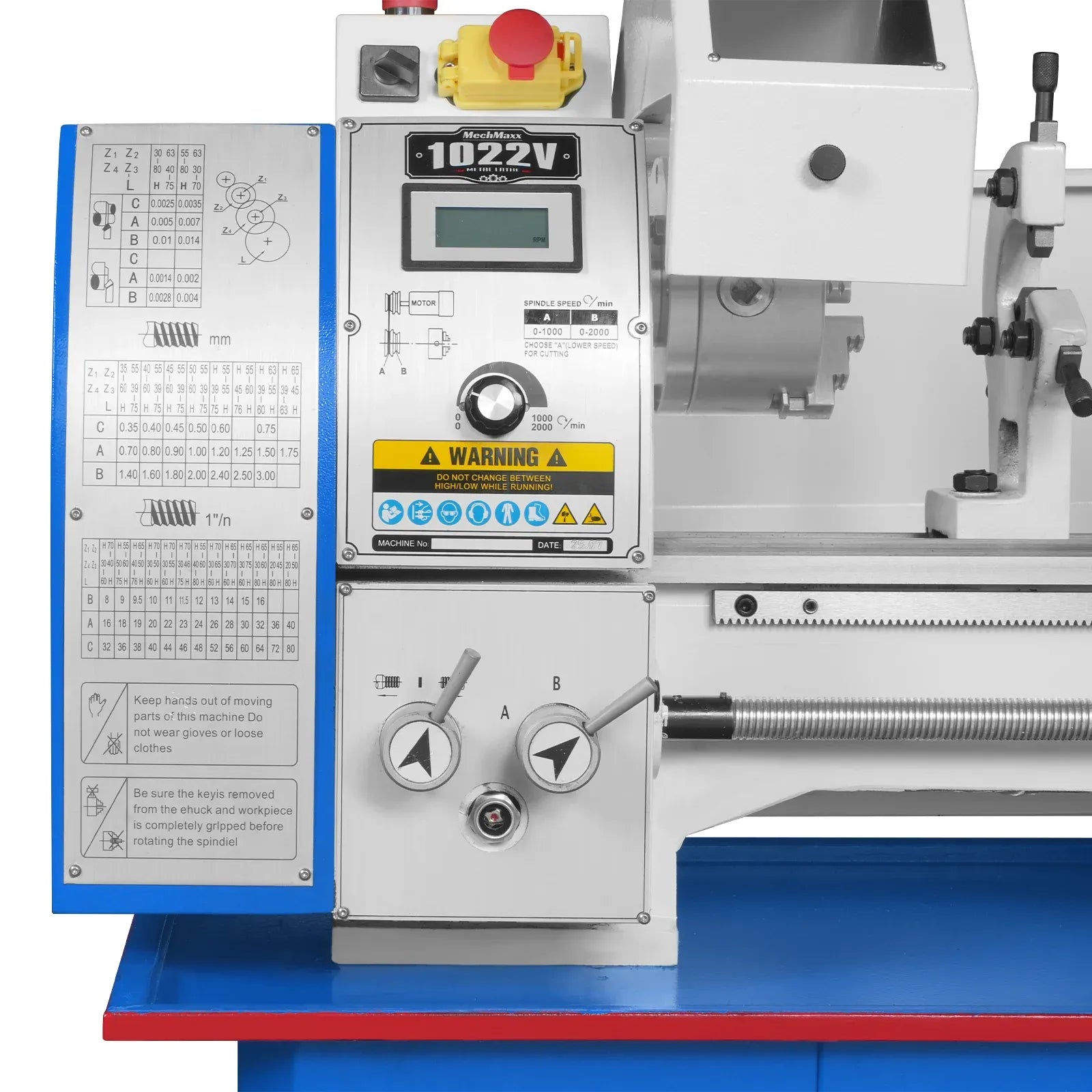

| Threading Capacity – Inch | 8–80 TPI (37 Kinds) |
| Threading Capacity – Metric | 0.35 – 3.0 mm (21 Kinds) |
| Maximum Tool Bit Size | 15/32" (12 mm) |
| Thread Dial Indicator | Yes |
| Coolant System | Optional |
| Overall Dimensions | 44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm) |
| Shipping Weight (N.W. / G.W.) | 308 / 352 lbs (140 / 160 kg) |
