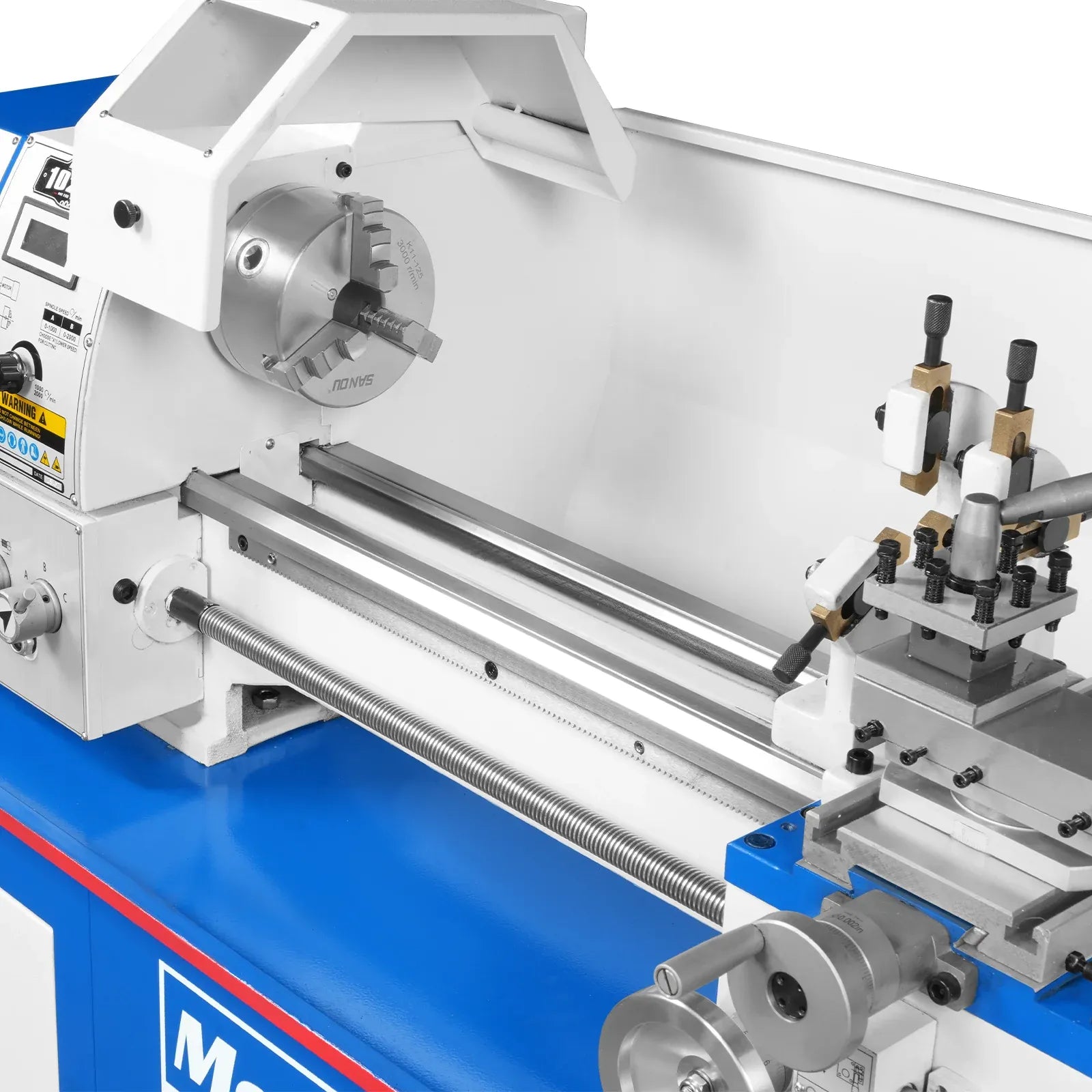

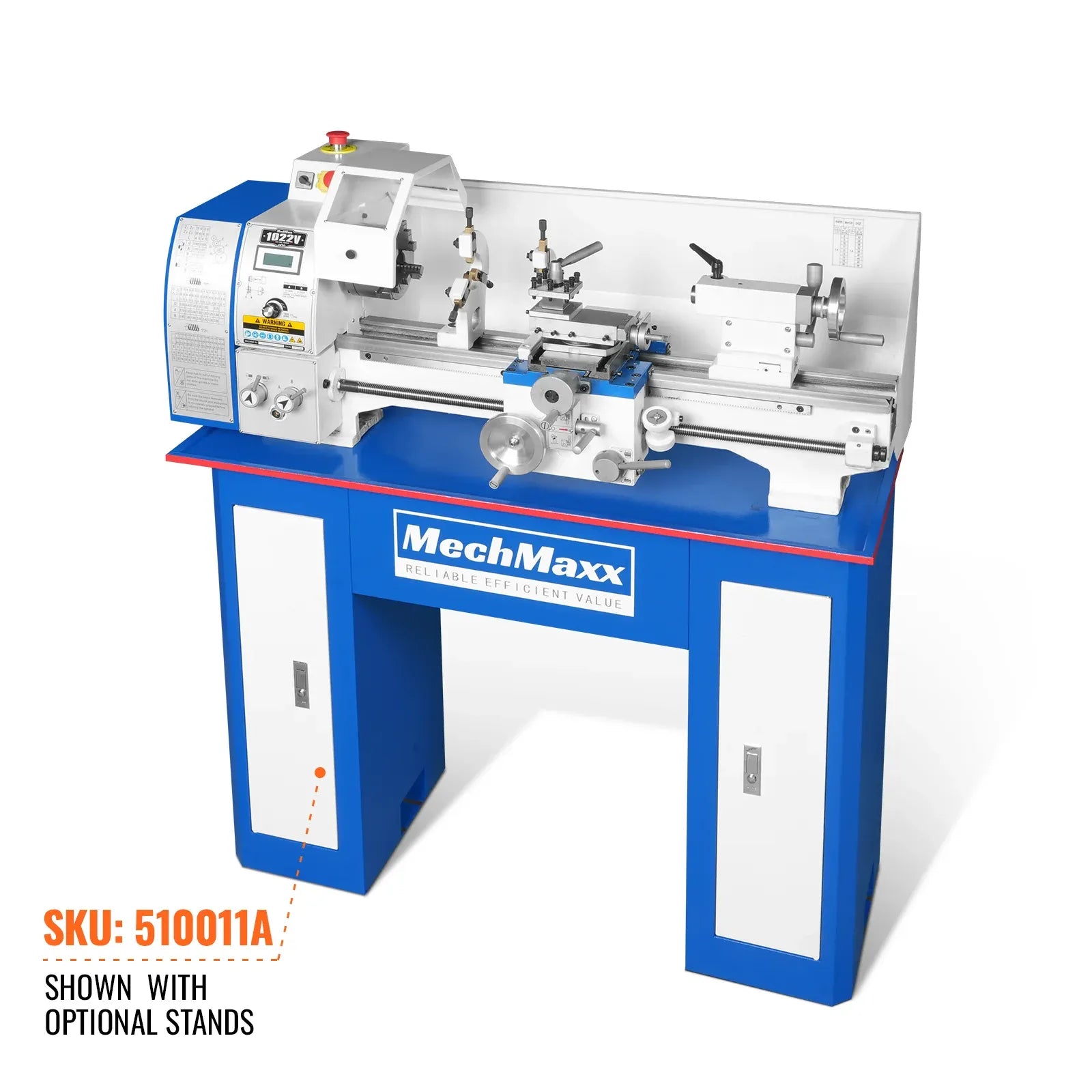

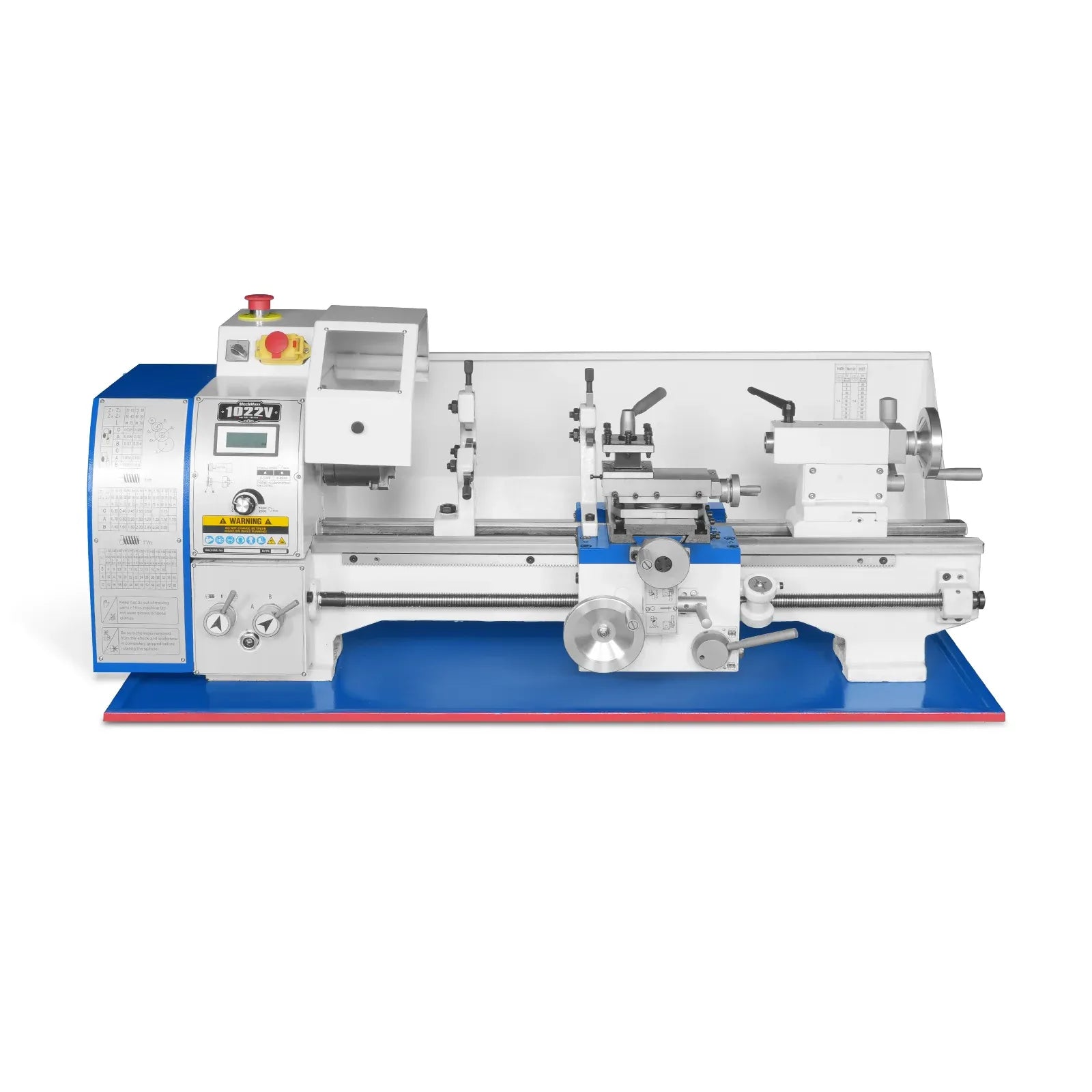

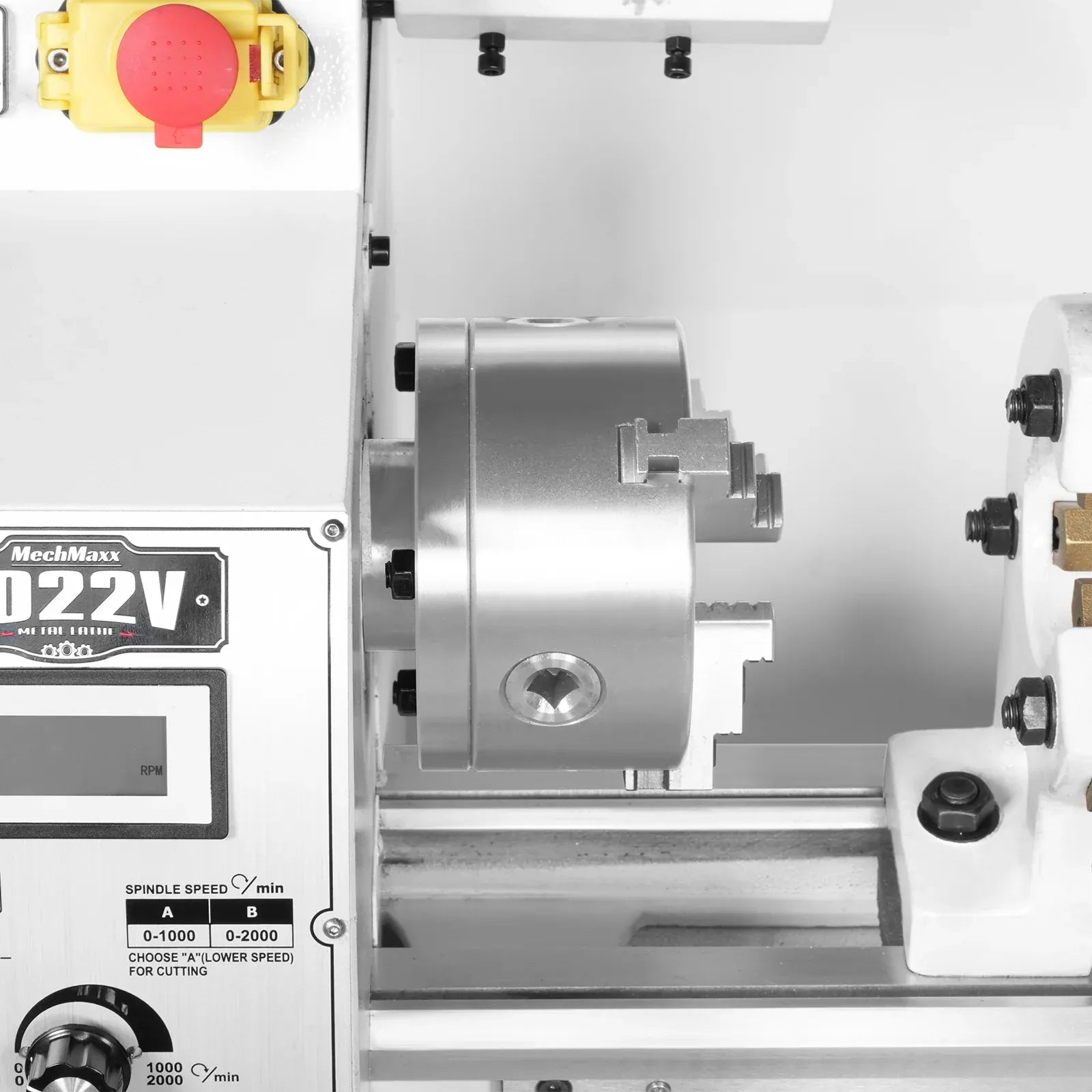

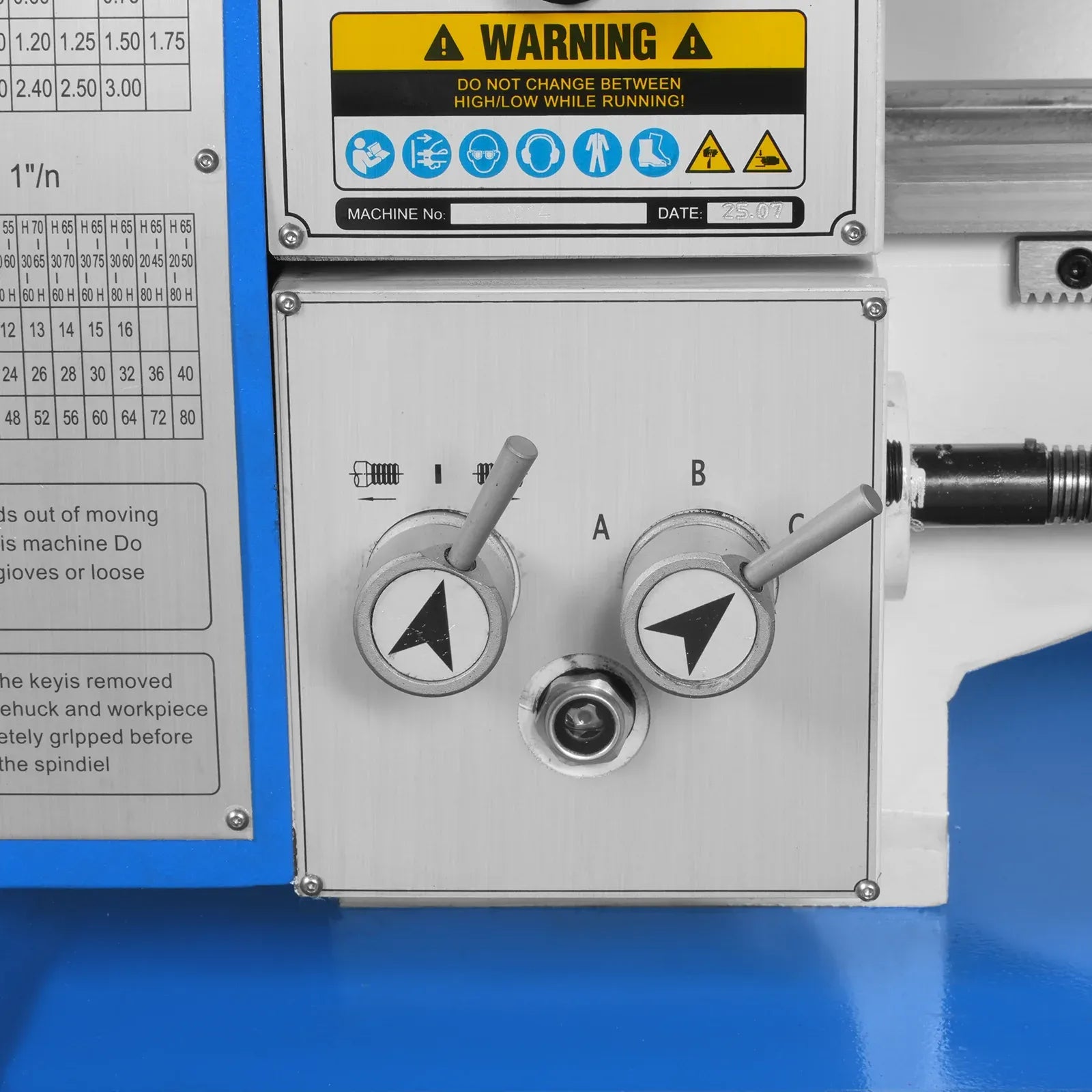

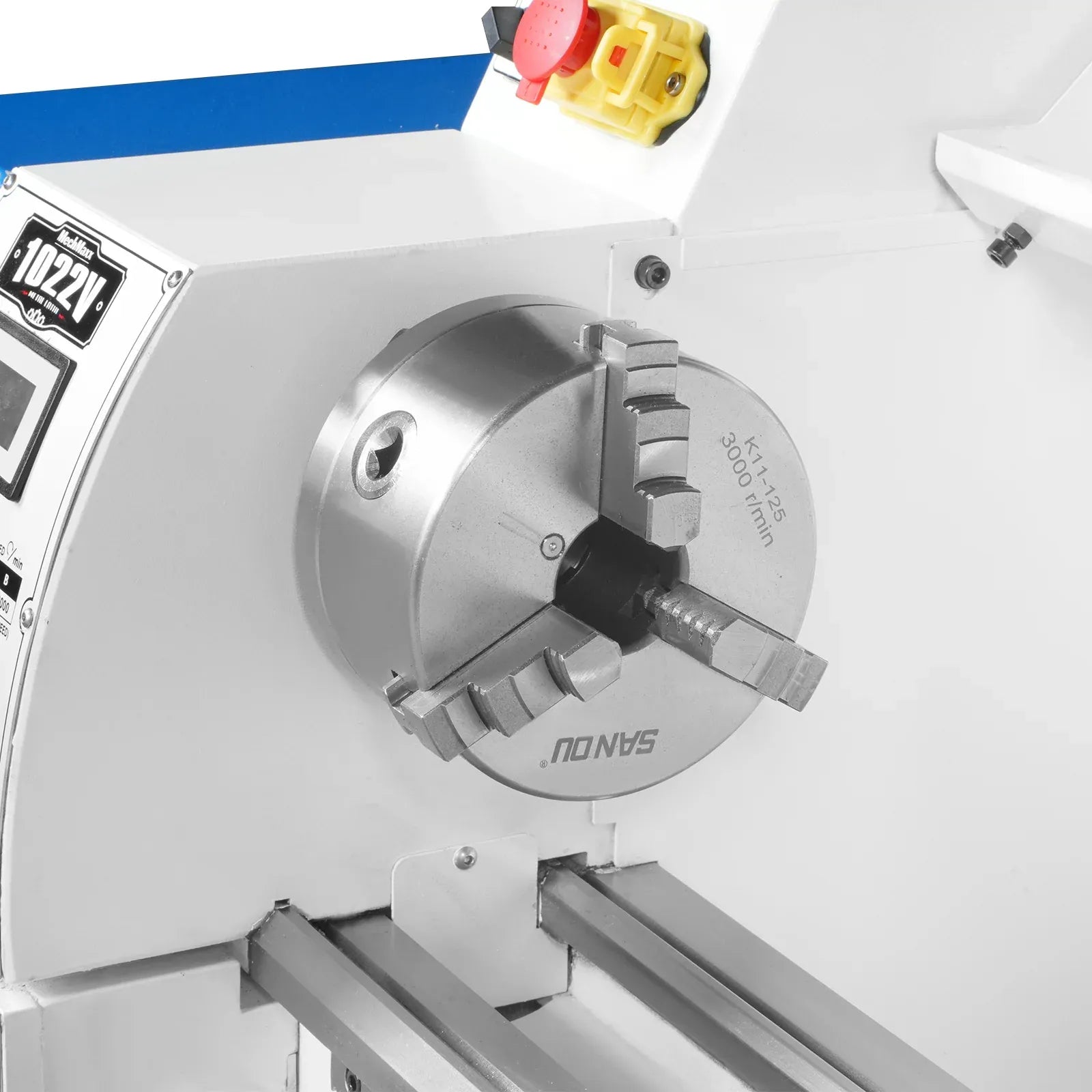

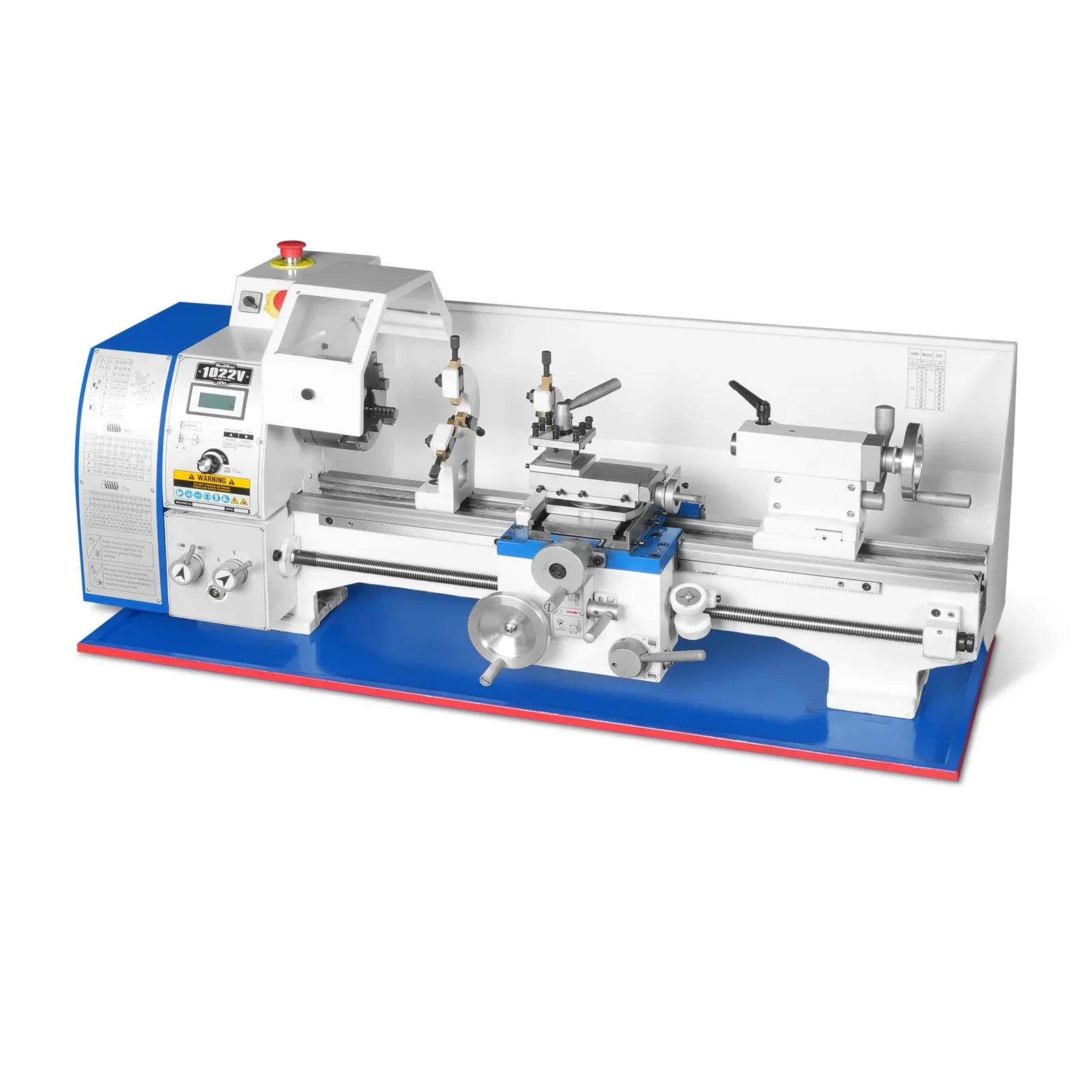

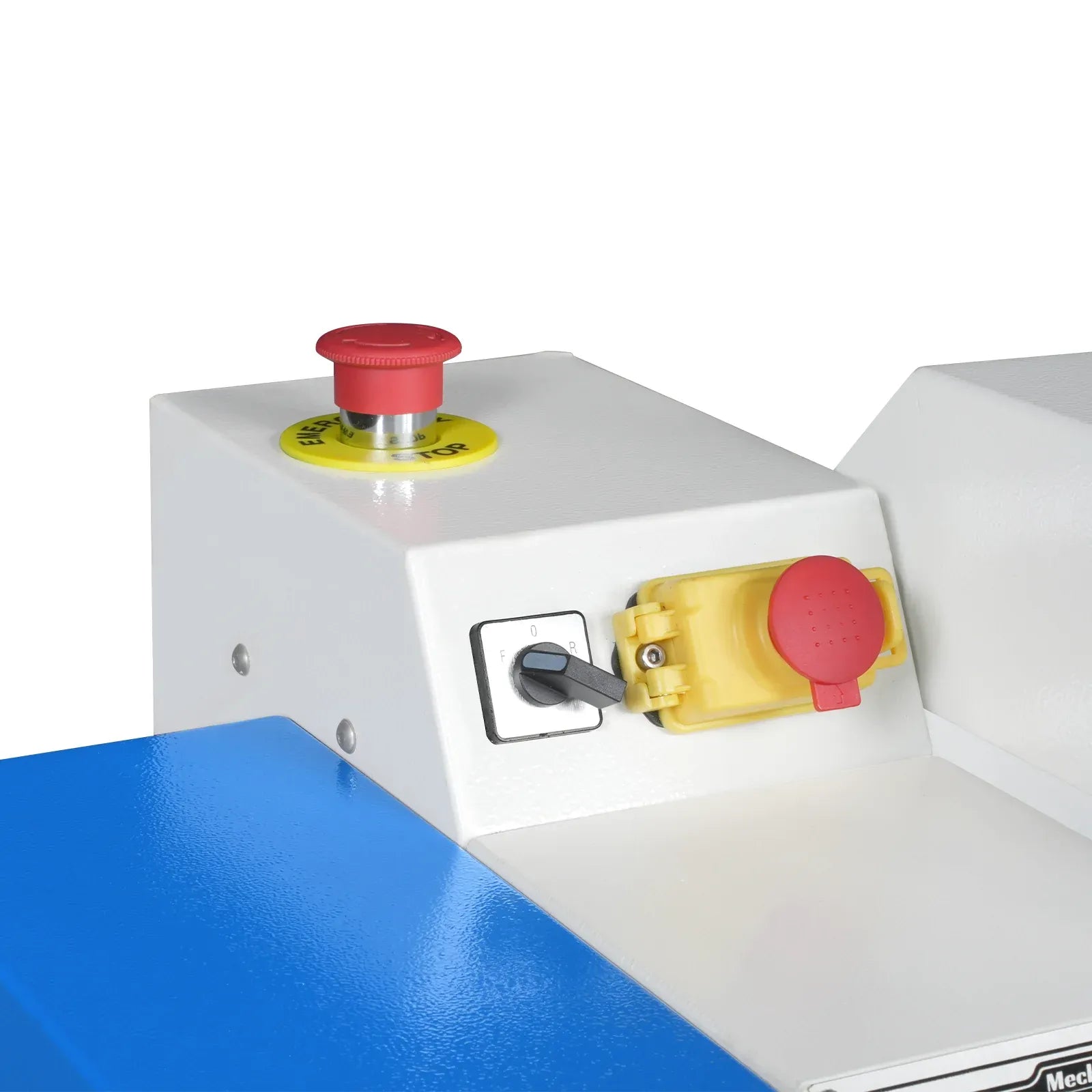

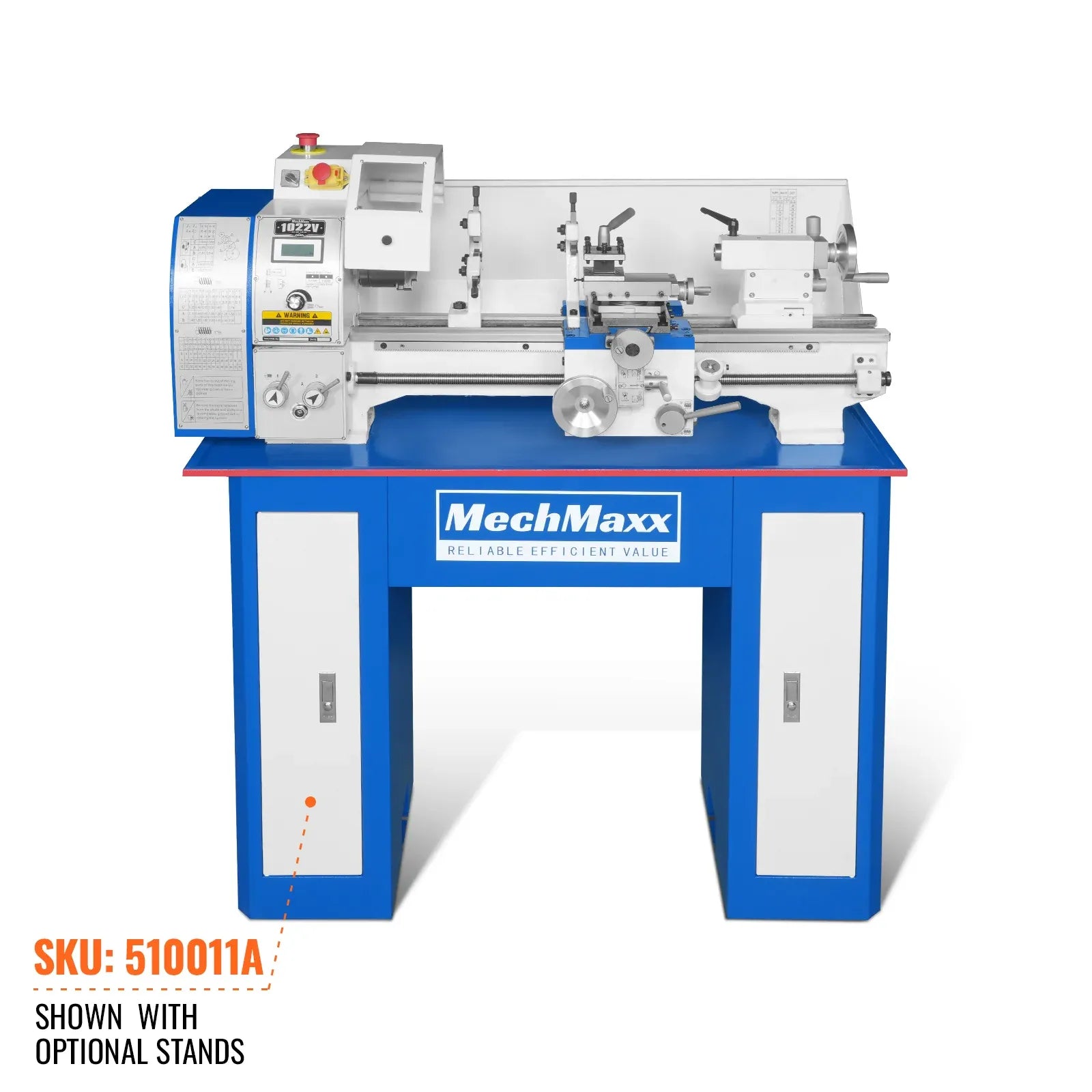

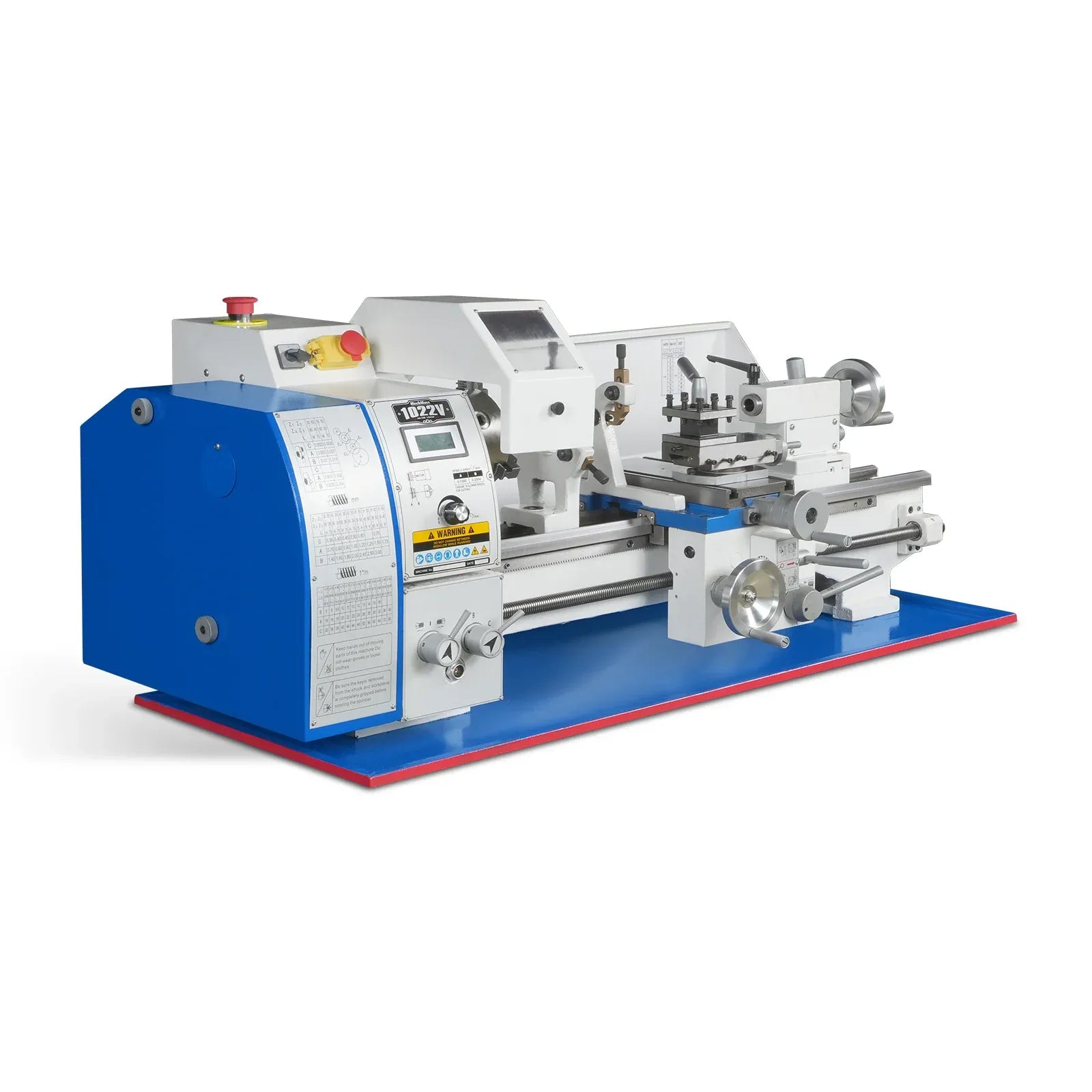

MechMaxx 10x22 Industrial Metal Lathe Machine with Variable Speed, Model 1022V
SKU: 500014
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Key Features & Benefits
- Large 1-1/2" (38 mm) spindle bore accommodates larger workpieces than many standard machines in its class
- MT#5 spindle taper supports numerous tooling options for enhanced adaptability
- Variable-speed spindle from 0–2000 RPM for precise speed adjustments across different materials and cutting operations
- 1.5 HP motor delivers smooth, consistent performance for standard and demanding machining tasks
- Premium quench-hardened cast iron construction for durability, rigidity, and long-term reliability
- Heavier bed design reduces vibration and maintains greater machining accuracy
- 9-7/8" (250 mm) swing over bed and 21-5/8" (550 mm) distance between centers for small to medium workpieces
- Smooth cross slide and compound slide movement for precise facing, internal cutting, and bevel cutting
- Built-in thread dial indicator for accurate, repeatable thread cutting with improved efficiency
| Specifications | Details |
|---|---|
| Motor | 1.5 HP, 110V, Single-Phase, 10A |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 21-5/8" (550 mm) |
| Bed Width | 5-3/8" (135 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |
| Tailstock Quill Travel | 3" (75 mm) |
| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Carriage Travel | 19-5/8" (500 mm) |

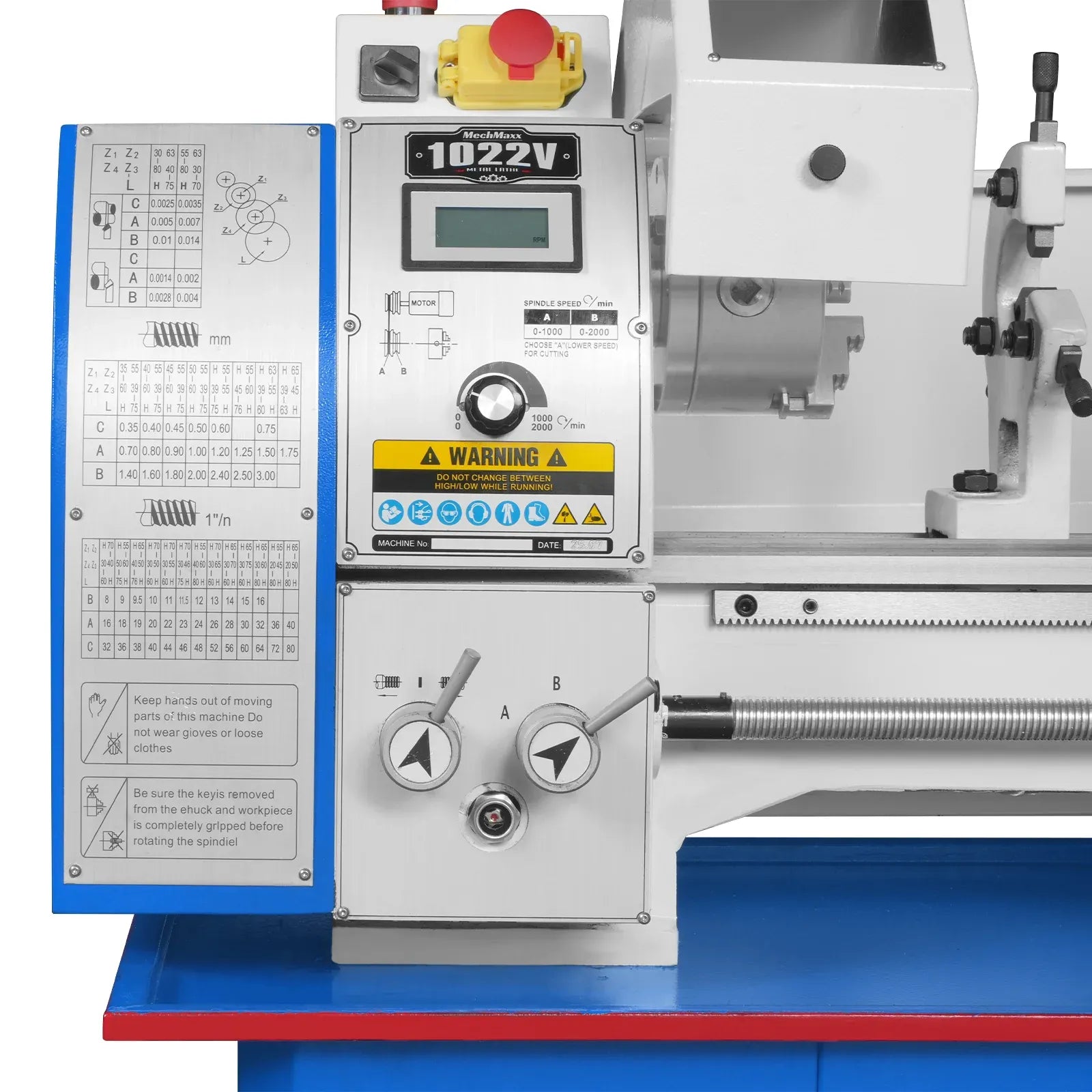

| Spindle Speeds | 0–2000 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20 mm (8 TPI) |
| Threading Capacity – Inch | 8–80 TPI (37 Kinds) |
| Threading Capacity – Metric | 0.35 – 3.0 mm (21 Kinds) |
| Maximum Tool Bit Size | 15/32" (12 mm) |
| Thread Dial Indicator | Yes |
| Coolant System | Optional |
| Overall Dimensions | 44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm) |
| Approximate Shipping Weight | 308/352 lbs (140/160 kg) |
