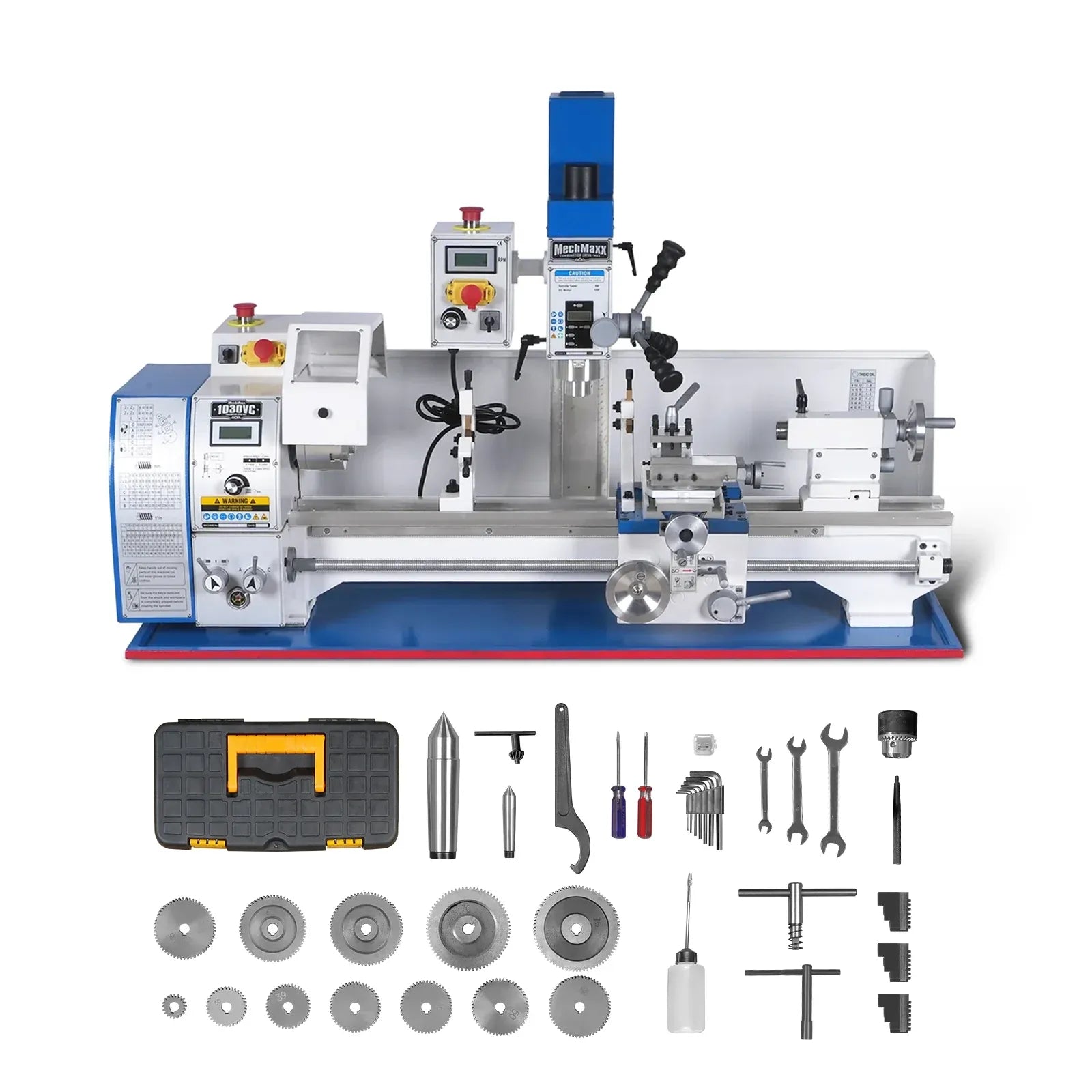

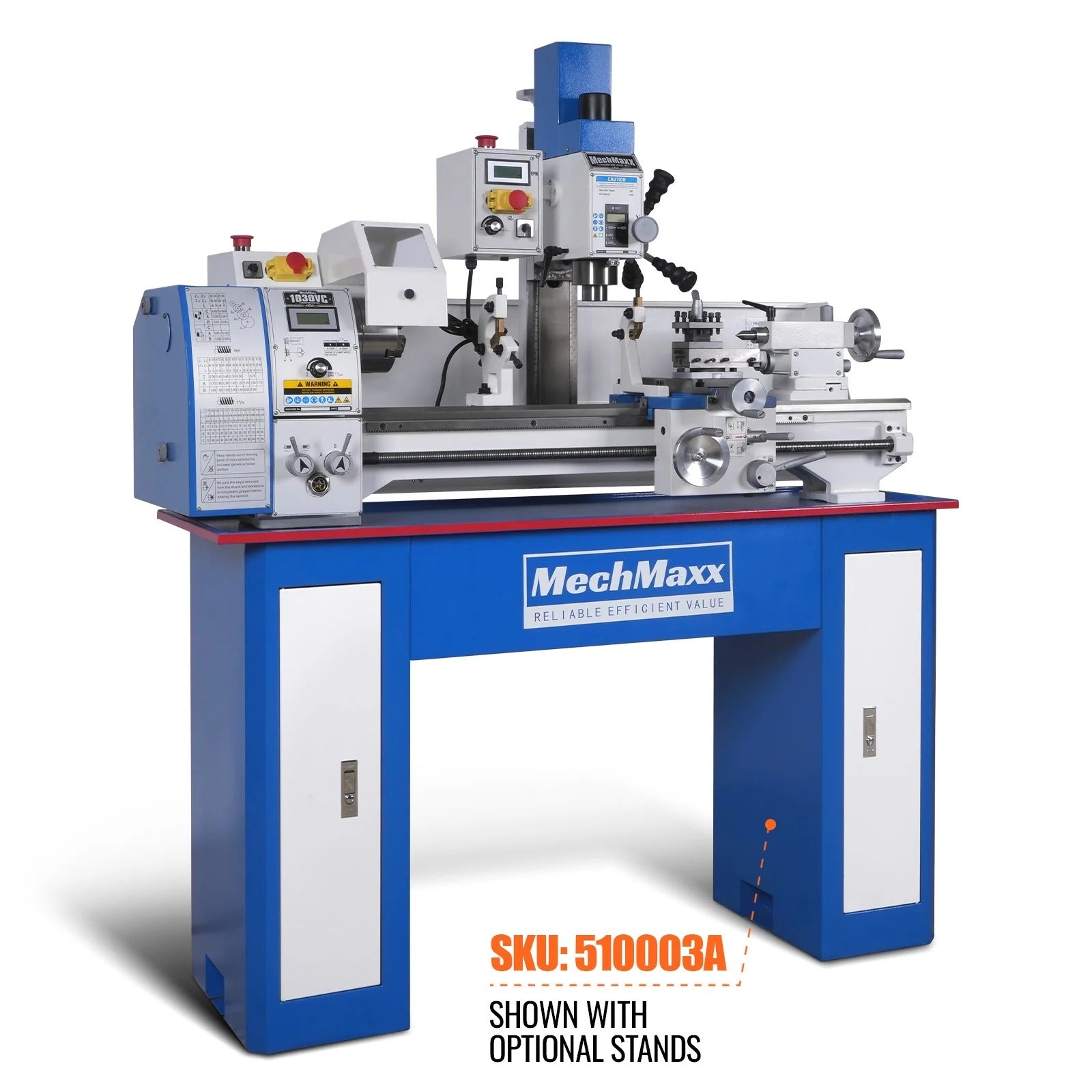

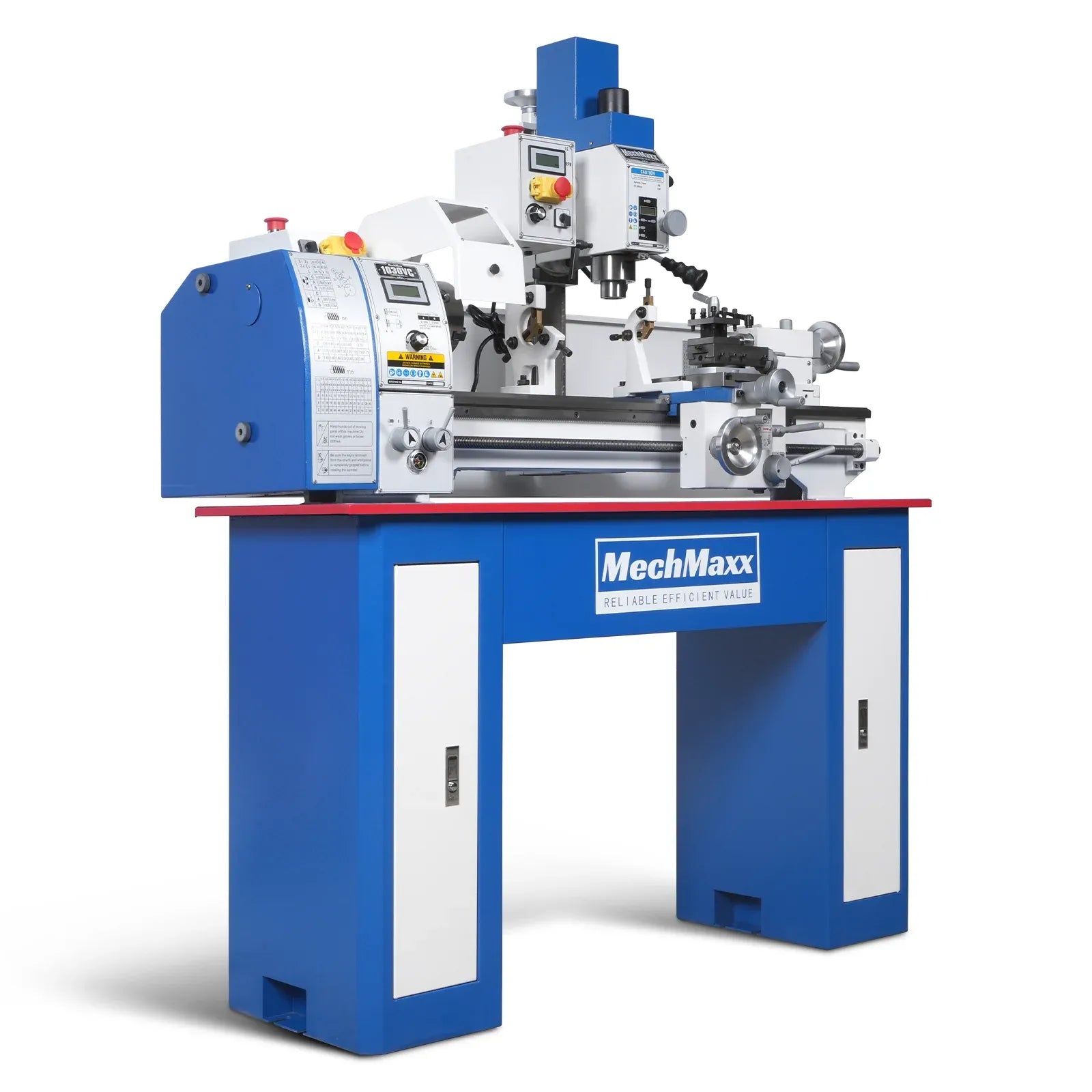

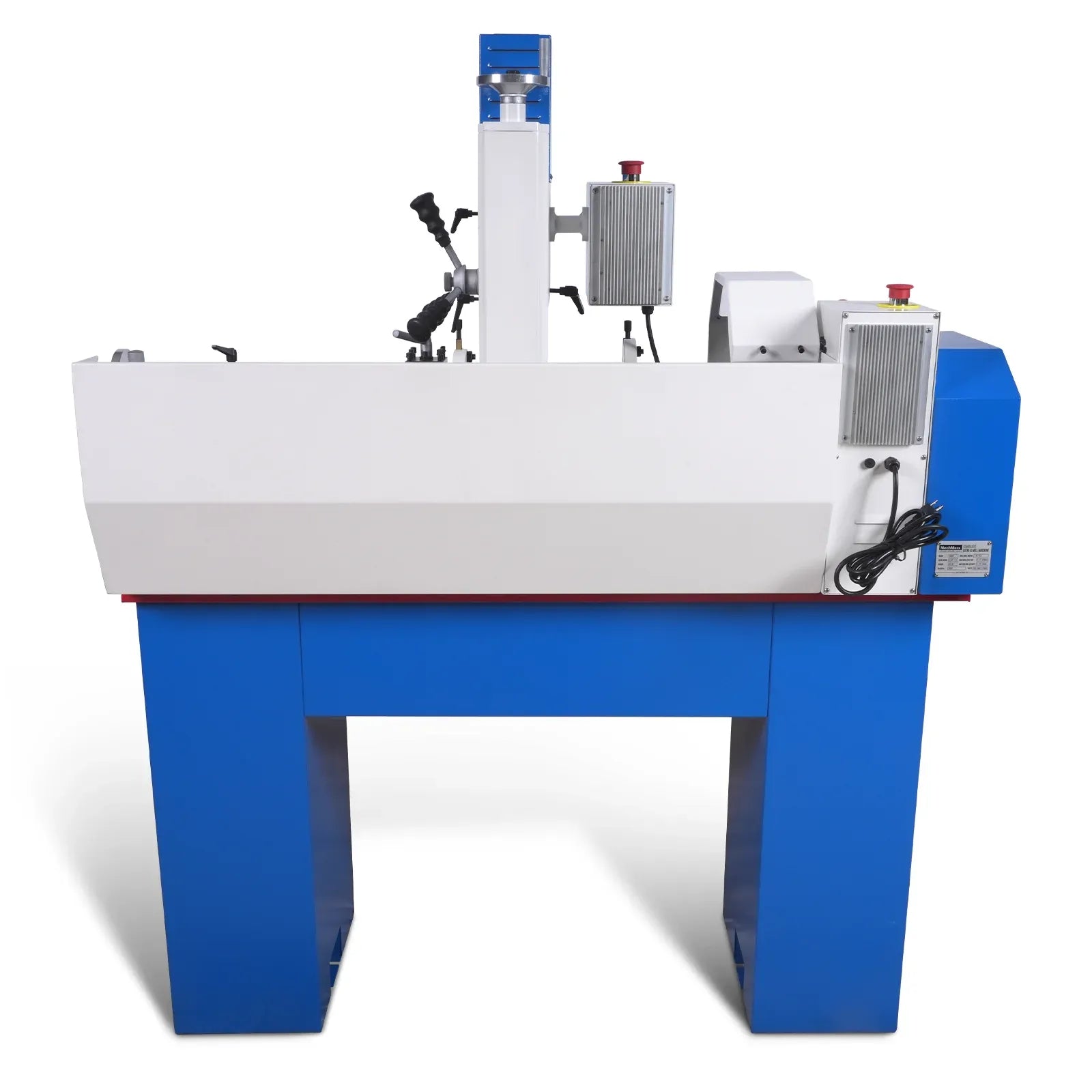

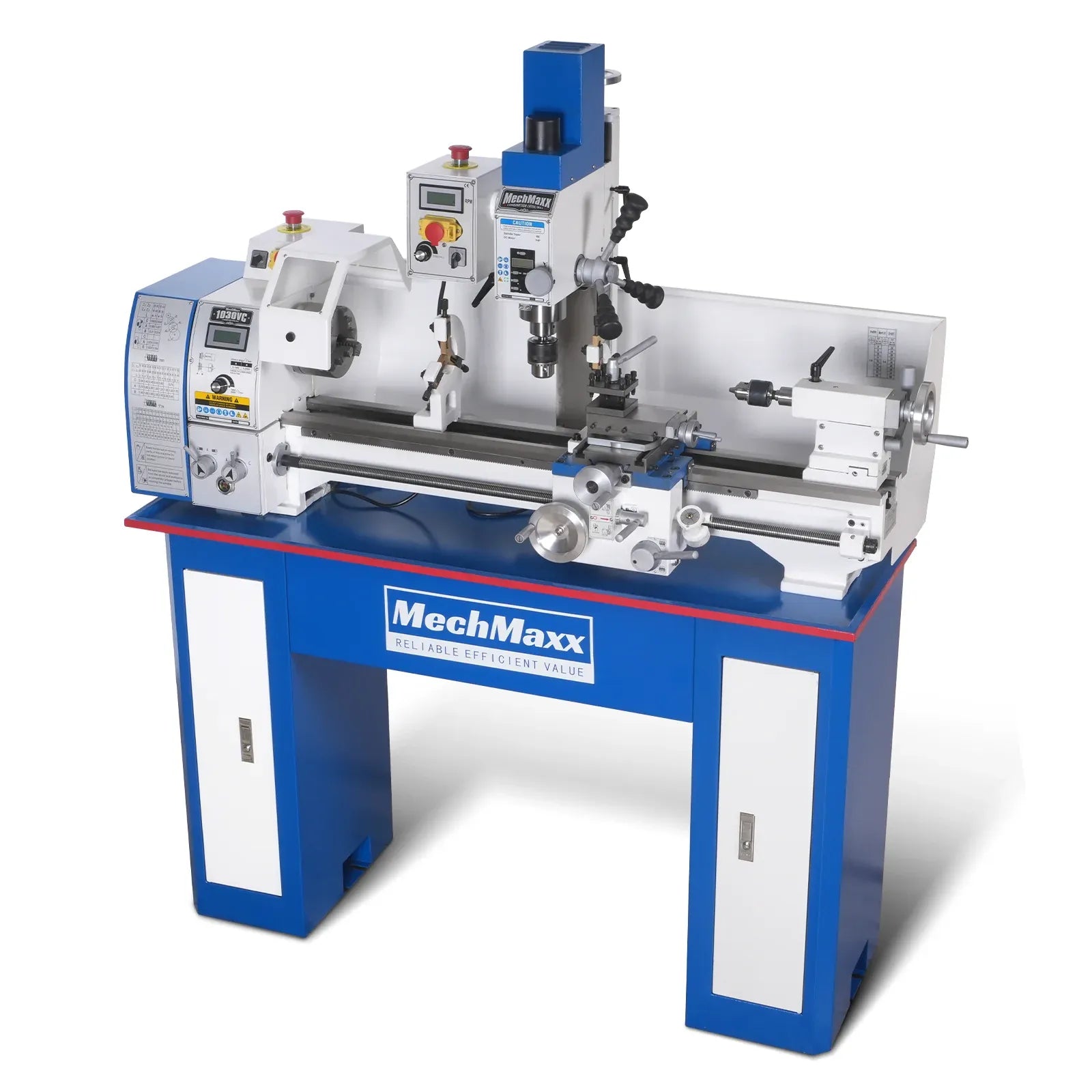

MechMaxx 10x30 Combination Lathe Milling Drilling Machine, Model 1030VC
SKU: 500101
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Key Features & Benefits
- Compact All-in-One Platform – Combines lathe, mill, and drill functionality in a single space-saving machine ideal for hobbyists, fabrication shops, and light industrial applications.

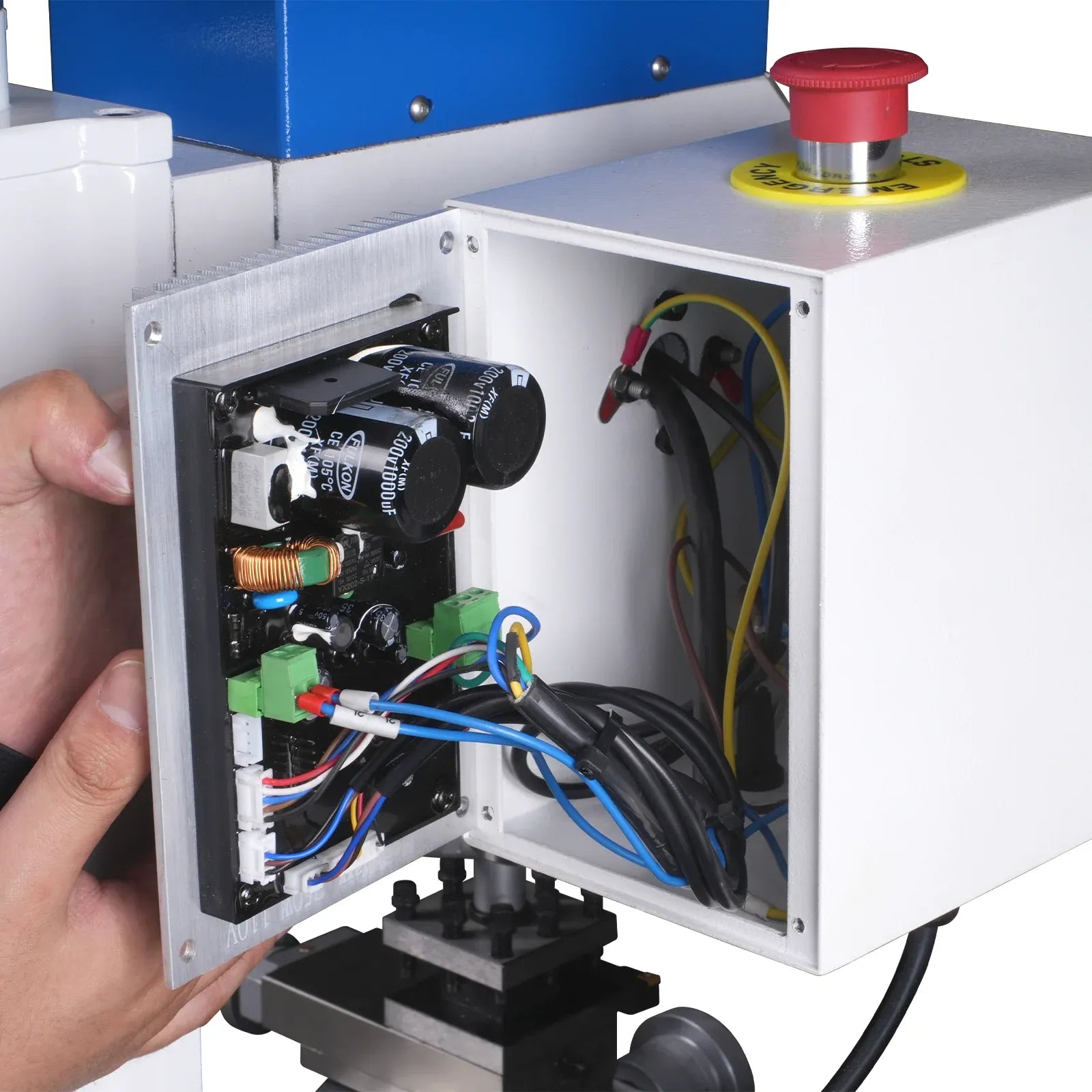

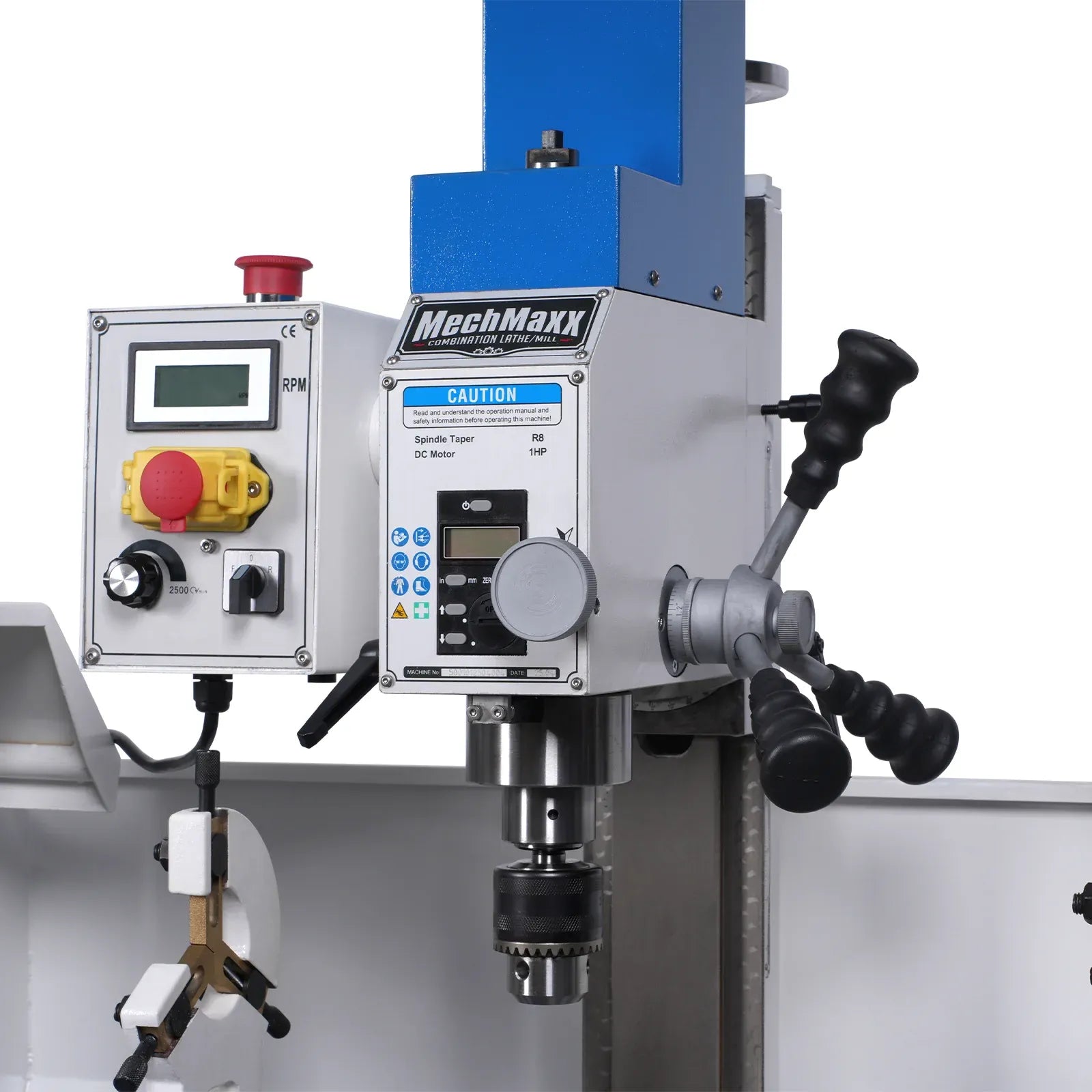

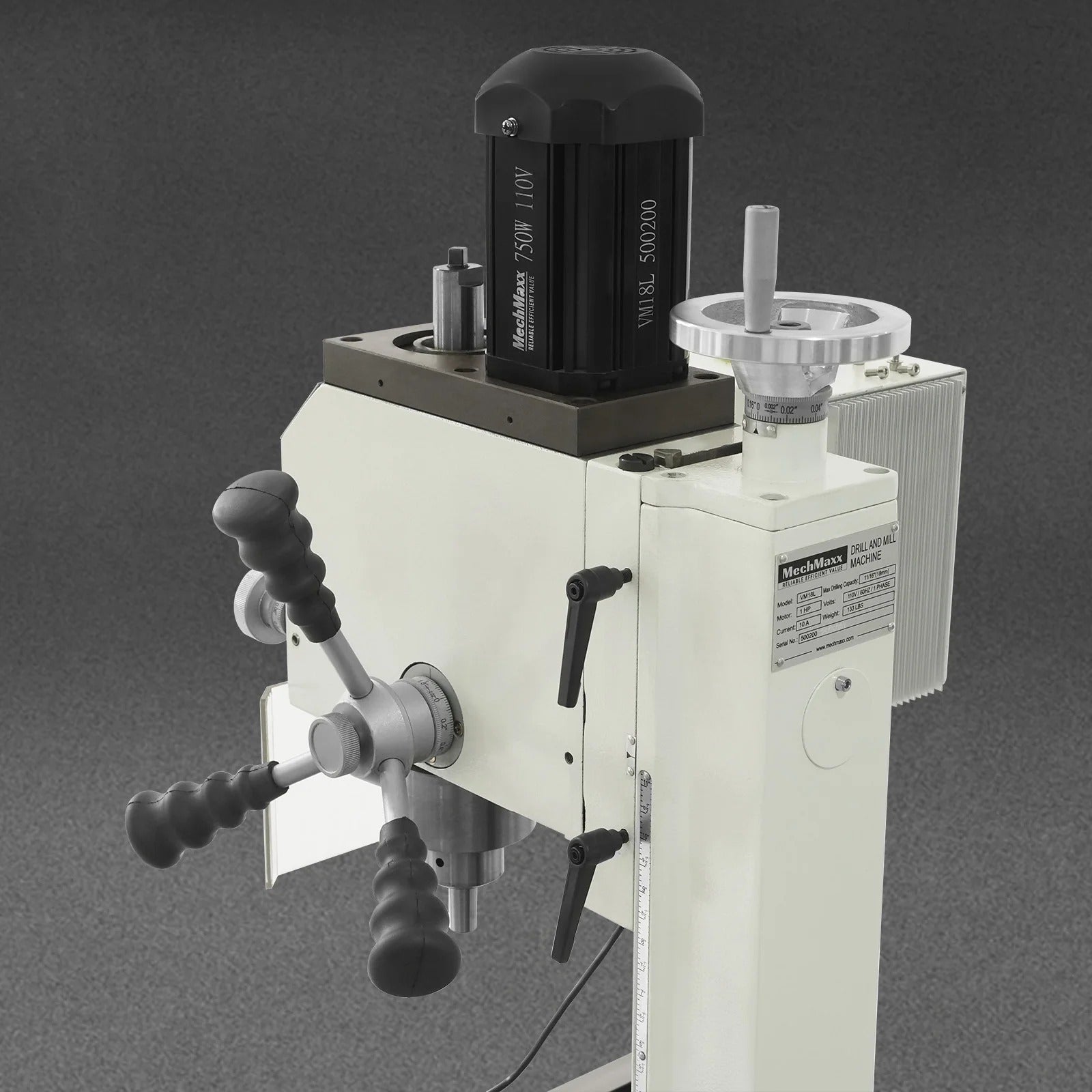

- Dual Brushless Motors – 1.5 HP lathe motor and 1 HP brushless milling motor deliver smooth, reliable performance across a wide range of operations.

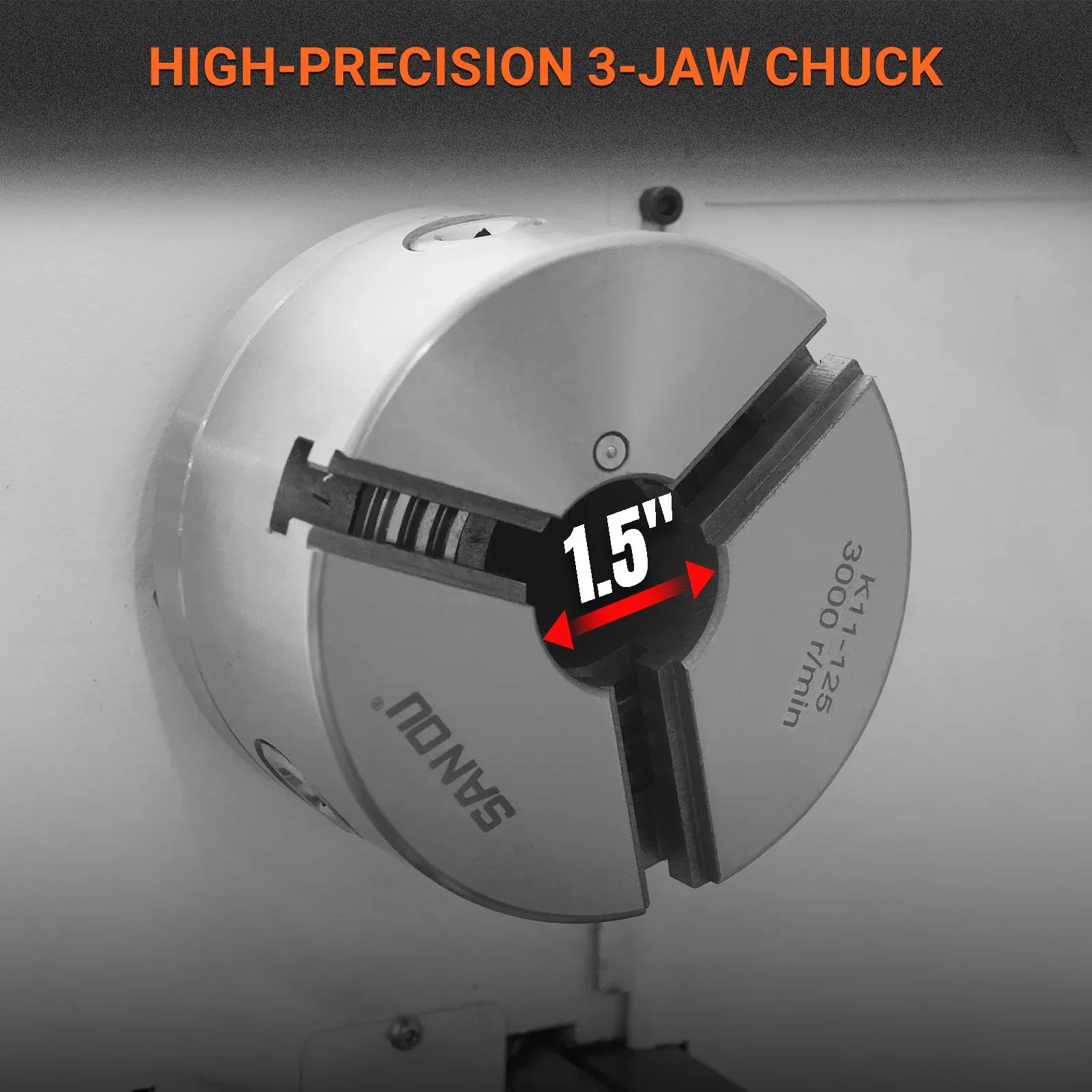

- Large 1-1/2" Spindle Bore – Allows larger diameter materials to pass through the headstock for increased machining versatility.

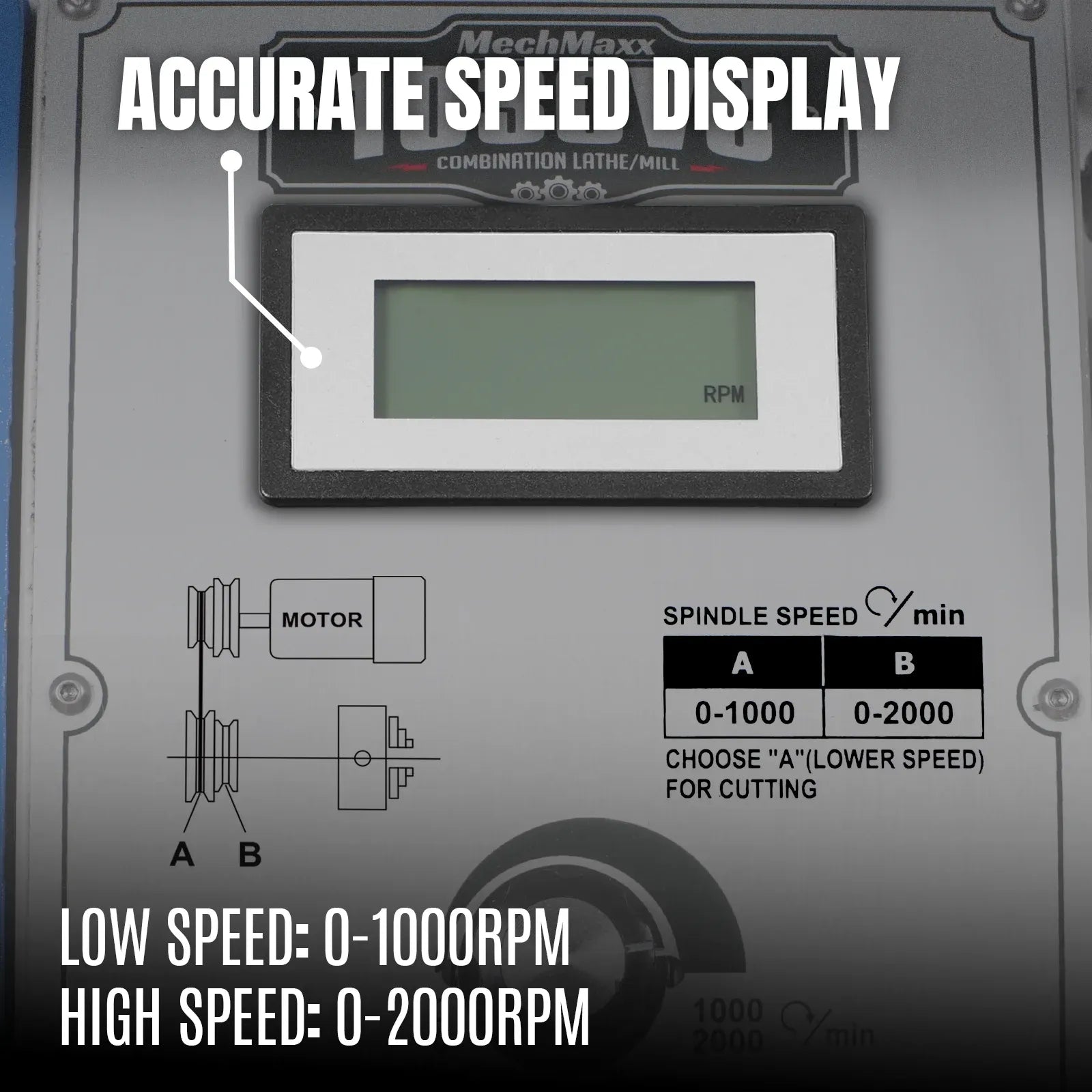

- Variable Speed Control – 0–2000 RPM on the lathe and 0–2500 RPM on the milling head provide precise speed adjustment for steel, aluminum, brass, plastics, and more.

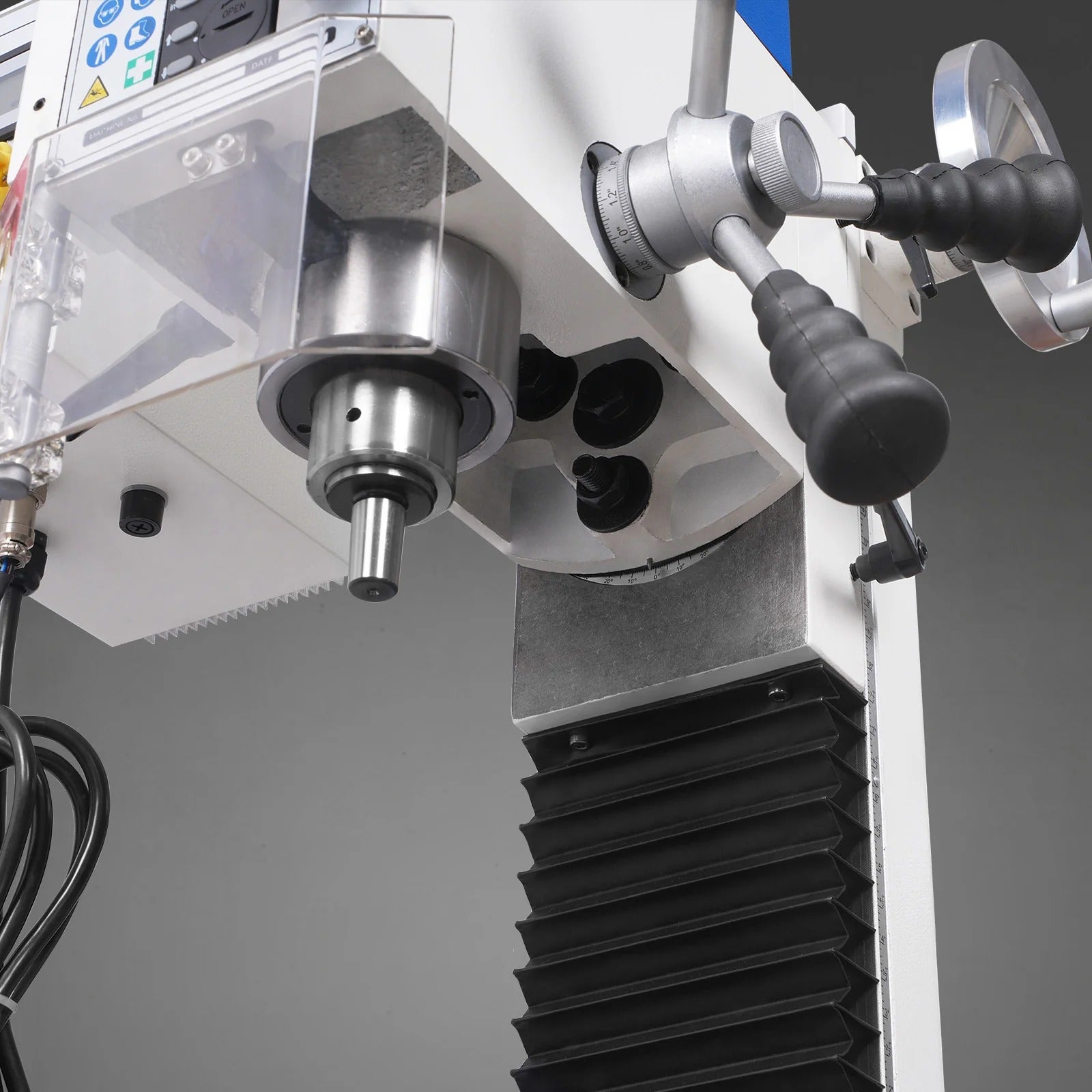

- R8 Spindle Taper & ±90° Tilting Mill Head – Excellent tooling compatibility and flexibility for angled drilling and milling operations.

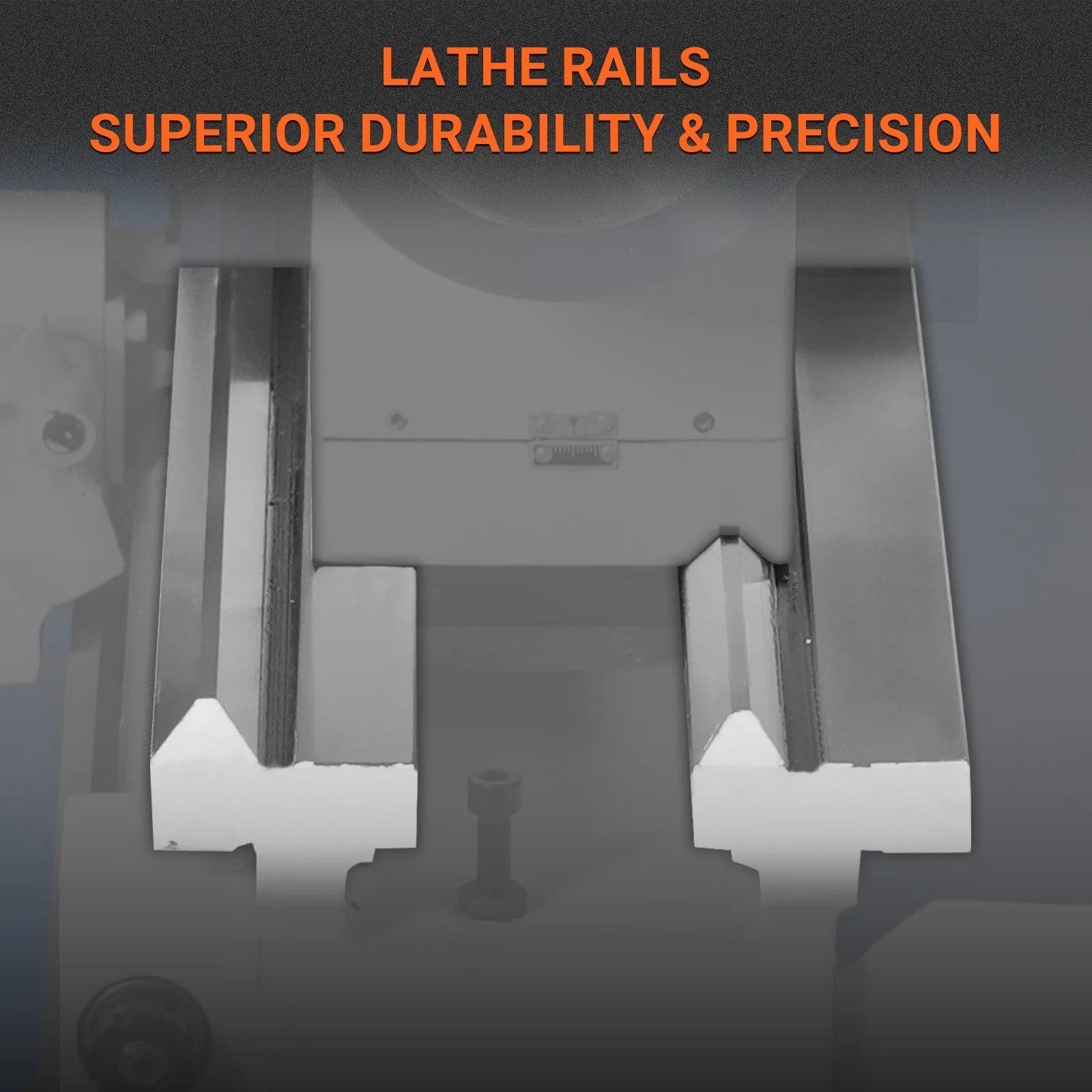

- Precision-Ground Bed & Dovetail Column – Improves rigidity, reduces vibration, and maintains machining accuracy during operation.

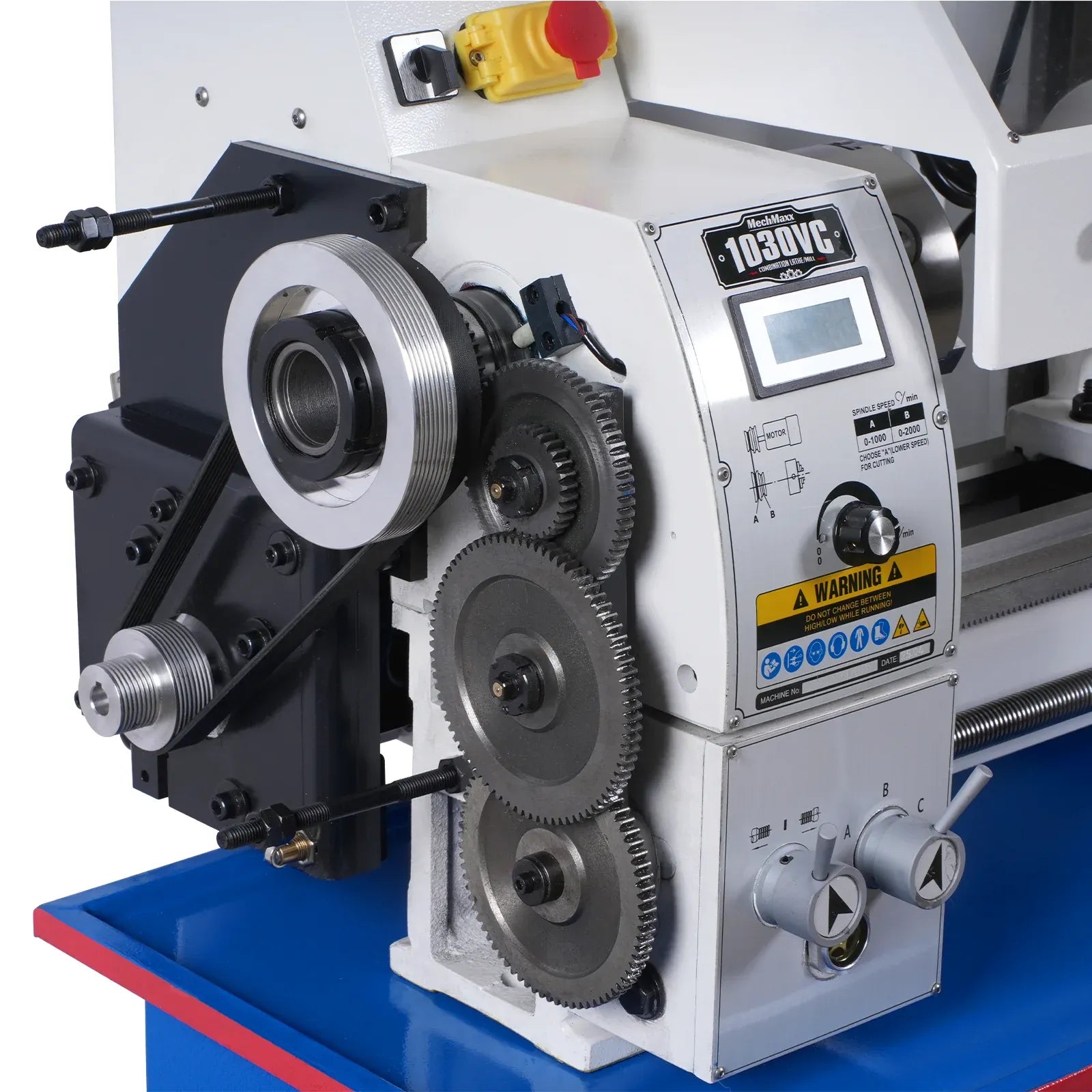

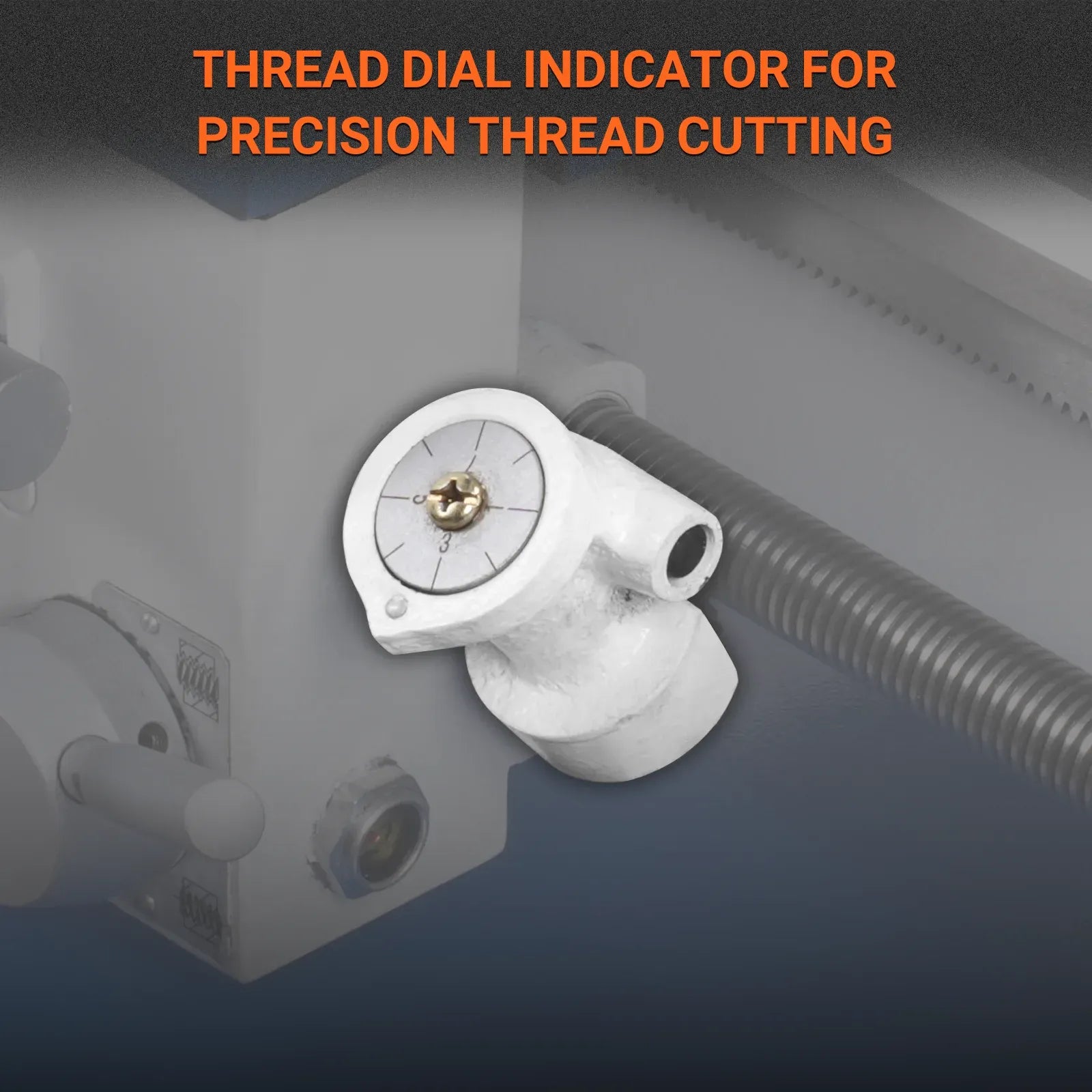

- Inch & Metric Threading – Supports 8–80 TPI inch threading and 0.35–3.0 mm metric threading for versatile thread-cutting capability.
- Compact Footprint – Delivers full turning, threading, milling, drilling, and facing capability without requiring a large workshop footprint.
Safety
- Always operate the machine according to the user manual and all safety labels provided.
- Wear proper eye and hearing protection during operation.
- Ensure the machine is securely installed on a stable surface before use.
- Disconnect power before performing maintenance or tooling changes.
Electrical Requirements
- Voltage: 110V Single-Phase
- Lathe Motor: 1.5 HP
- Mill Motor: 1 HP Brushless
| Specifications | Details |
|---|---|
| Lathe Motor Power | 1.5 HP, 110V, Single-Phase, 10A |
| Mill Motor Power | 1 HP (750W) |
| Swing Over Bed | 9-7/8" (250 mm) |

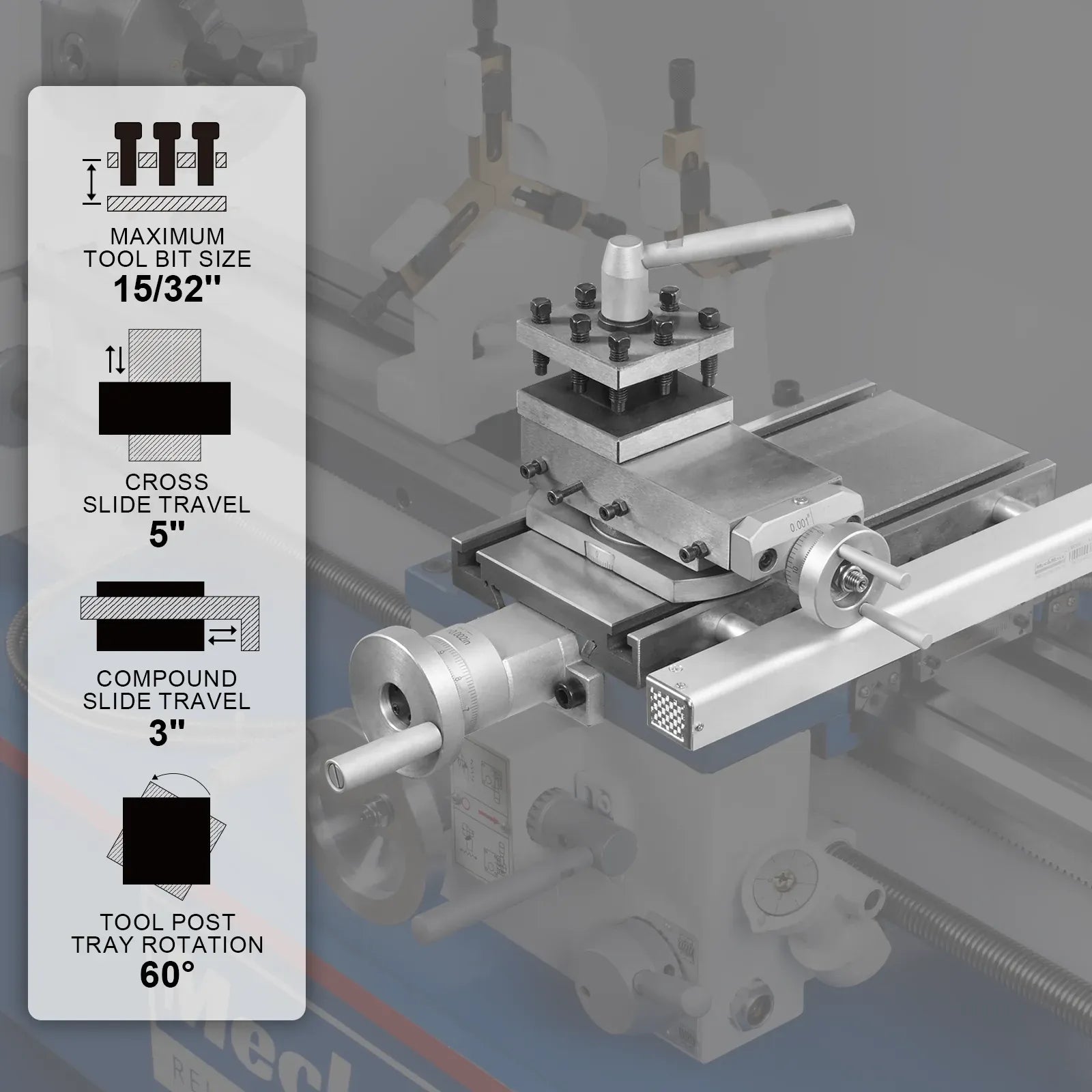

| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Taper | MT#5 |

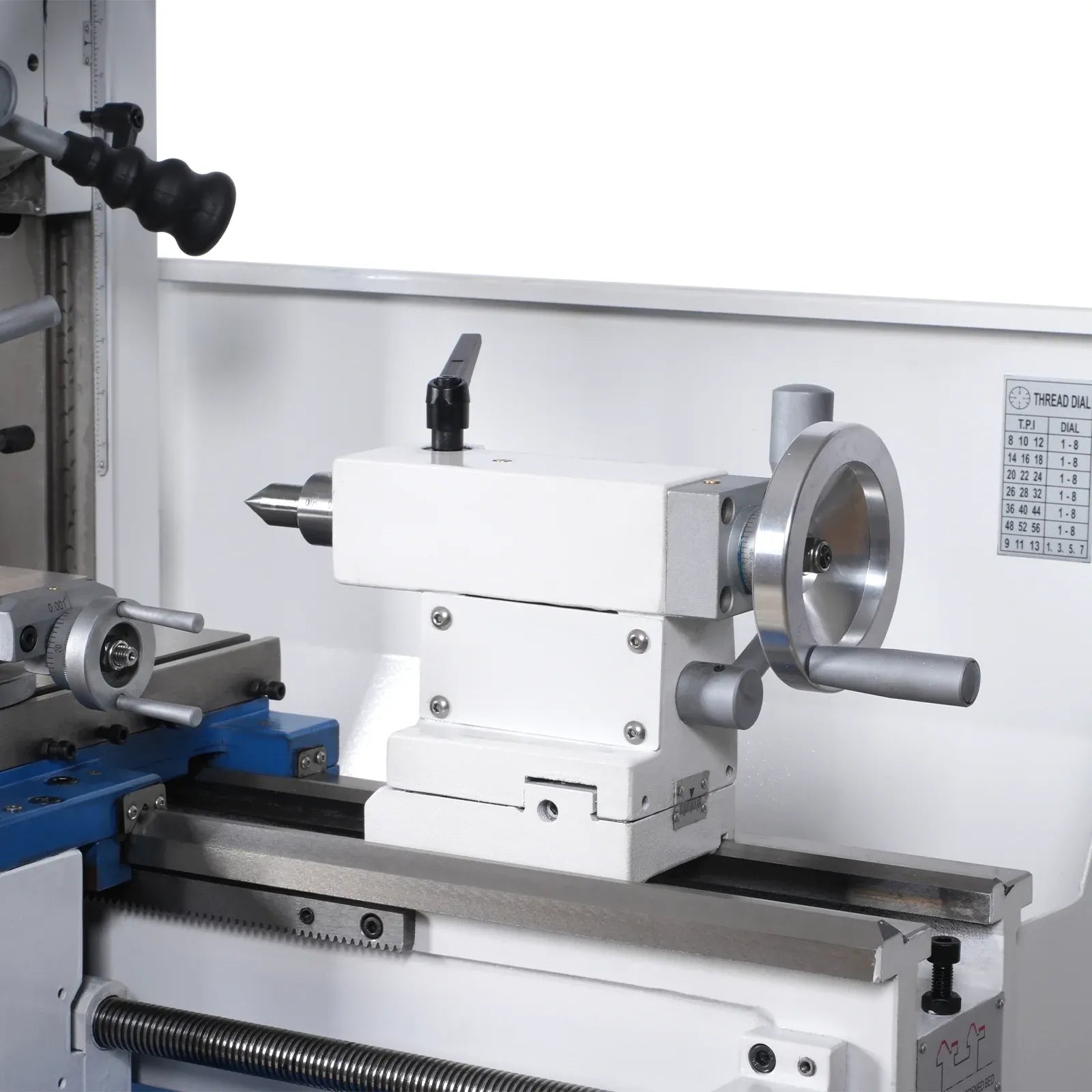

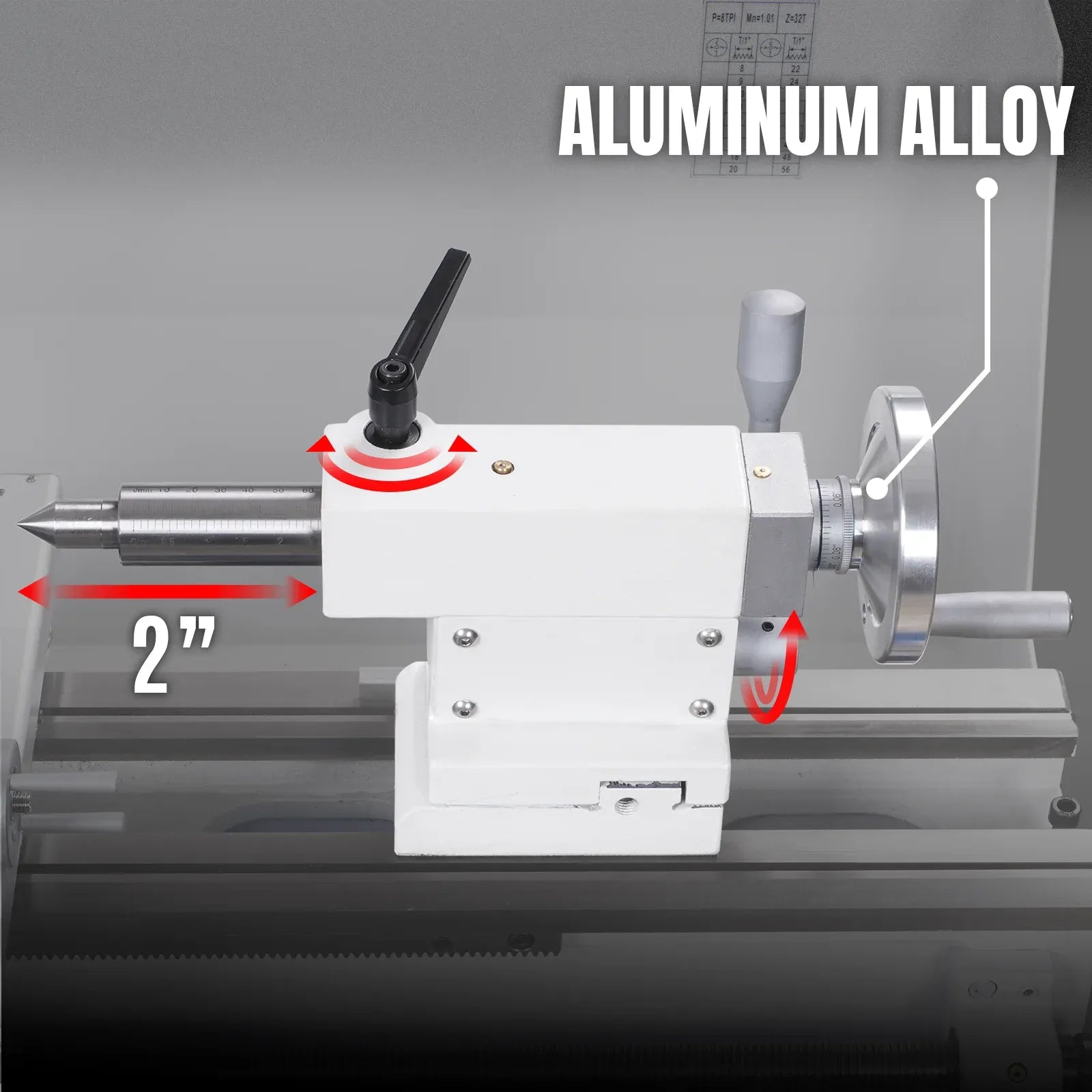

| Tailstock Taper | MT#2 |
| Lathe Spindle Speed Range | 0–2000 RPM |
| Mill Spindle Speed Range | 0–2500 RPM |
| Threading Capacity – Inch | 8–80 TPI |
| Threading Capacity – Metric | 0.35–3.0 mm |

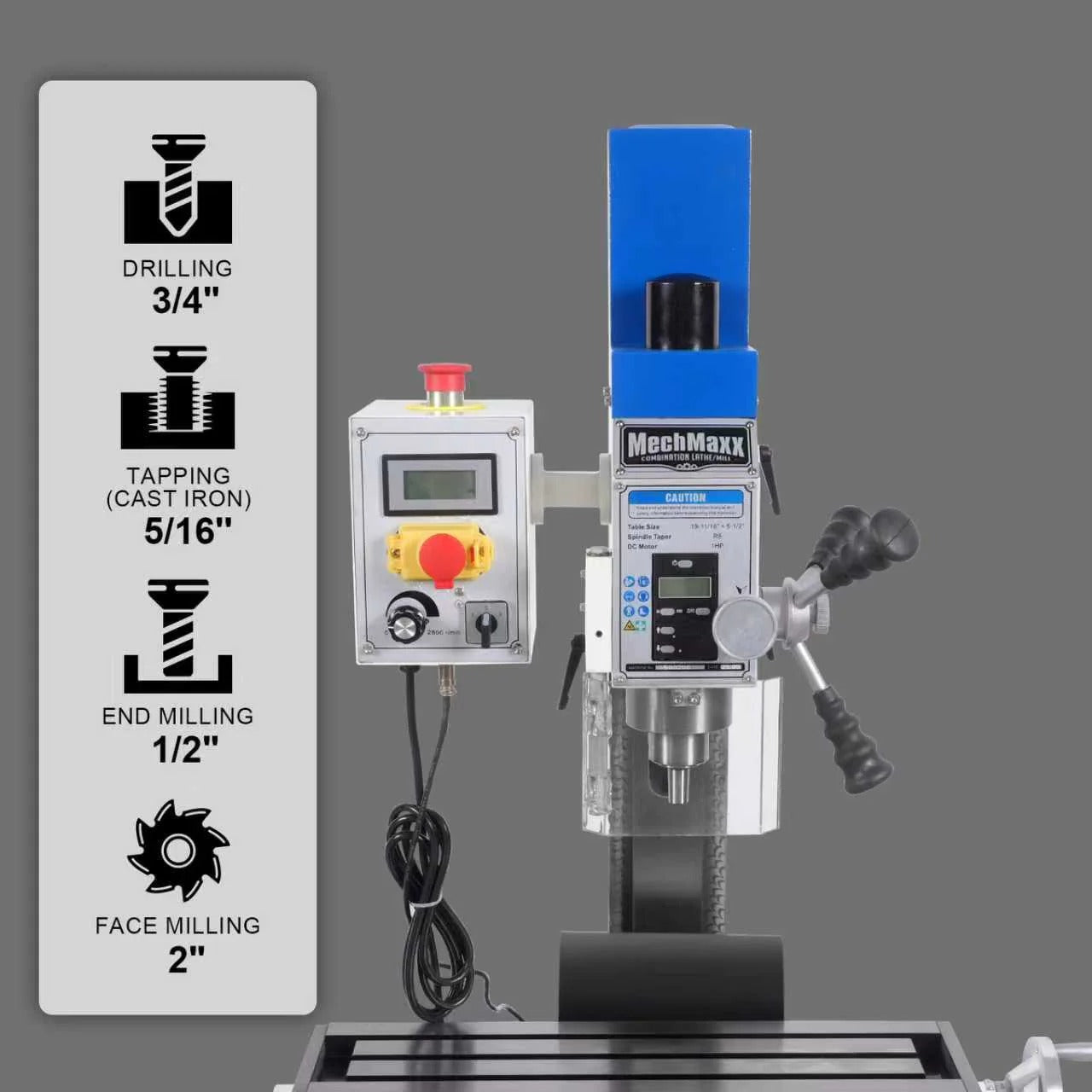

| Drilling Capacity | 5/8" (16 mm) |
| End Milling Capacity | 1/2" (12 mm) |
| Face Milling Capacity | 2" (50 mm) |
| Vertical Travel (Z-Axis) | 10-7/8" (275 mm) |
| Head Tilt Angle | ±90° |
| Column Type | Dovetail Slot |
| Drive Type | Belt Drive Brushless |
| Overall Dimensions | 52" × 26" × 38-1/4" |
| Net / Gross Weight | 440 / 517 lbs |
| Shipping Dimensions | 56" × 27" × 39" |
