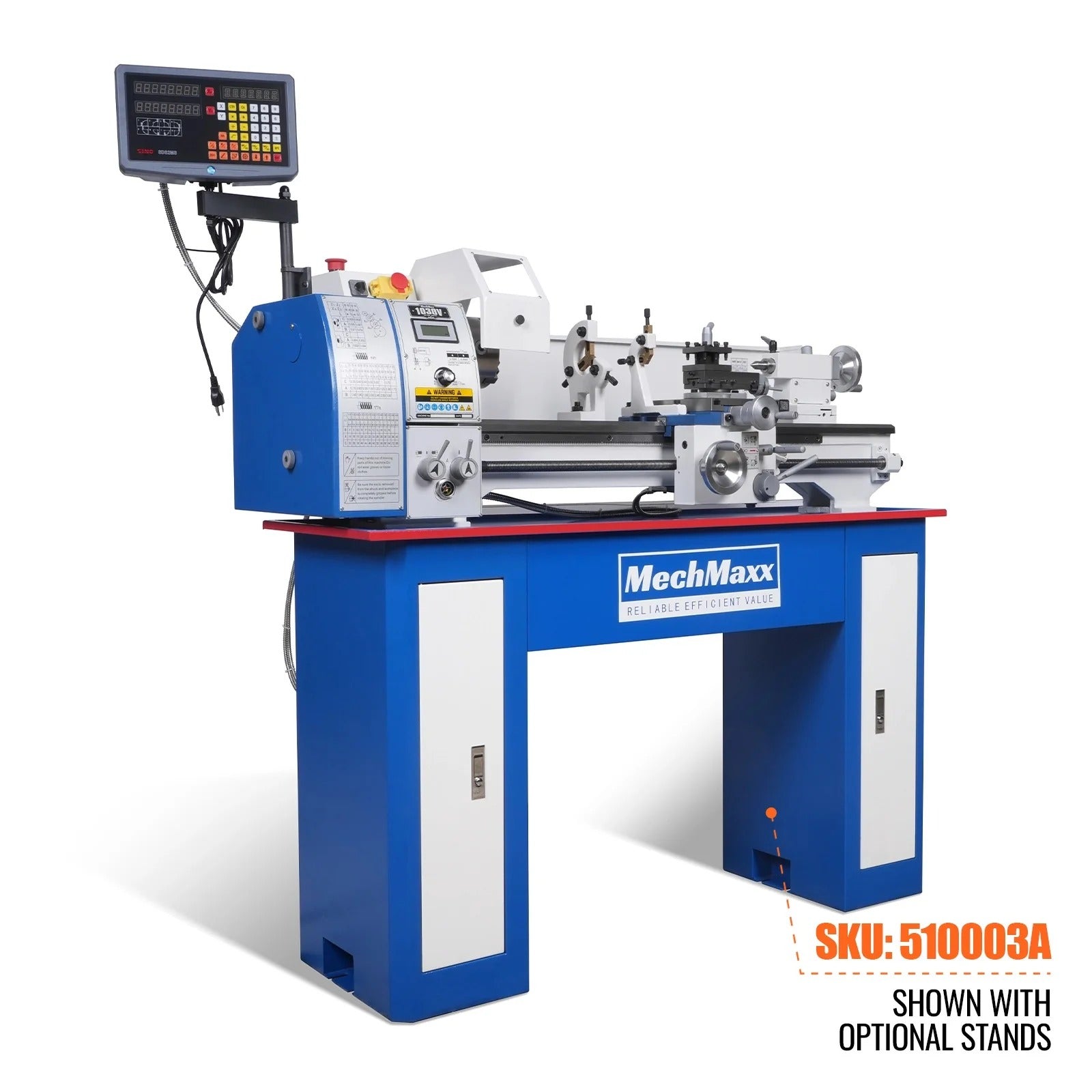

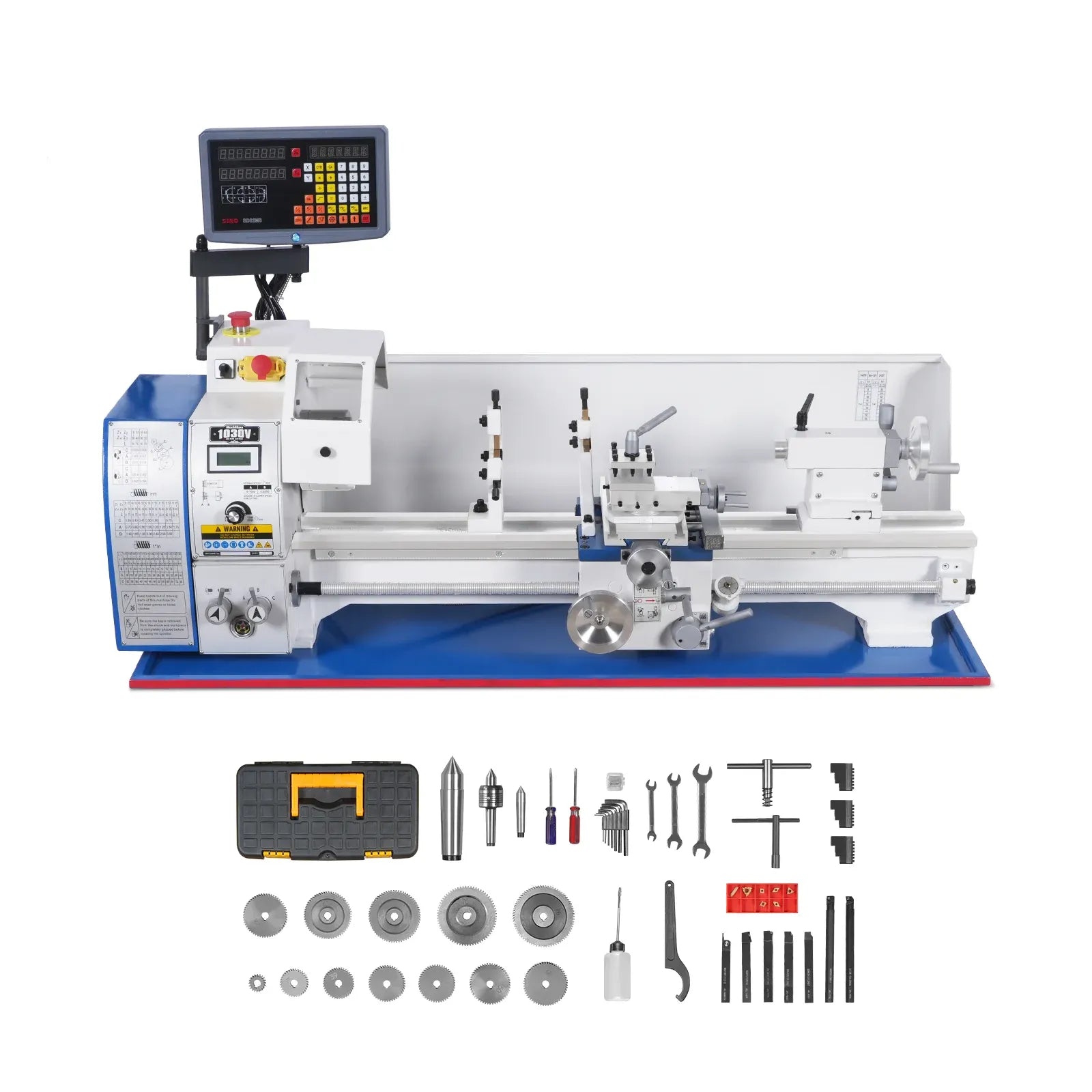

MechMaxx 10x30 Metal Lathe Machine with DRO, Model 1030VD
SKU: 500006
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

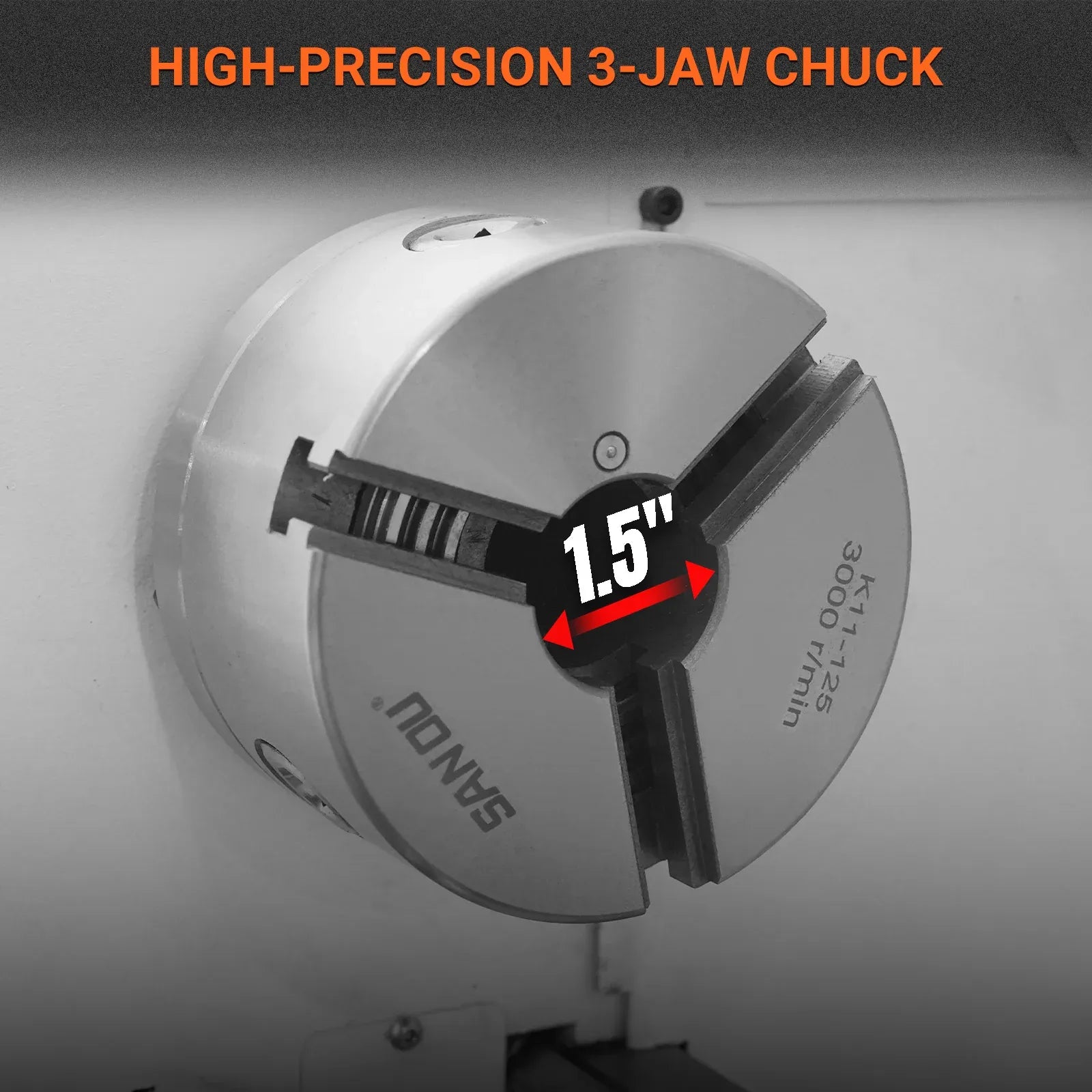

Large Spindle Bore for Greater Versatility
Featuring a generous 1-1/2" (38 mm) spindle bore, this lathe can handle larger workpieces than many machines in its class, giving you added flexibility for a wider range of machining applications. The MT#5 spindle taper also supports a broad selection of tooling options for increased adaptability.

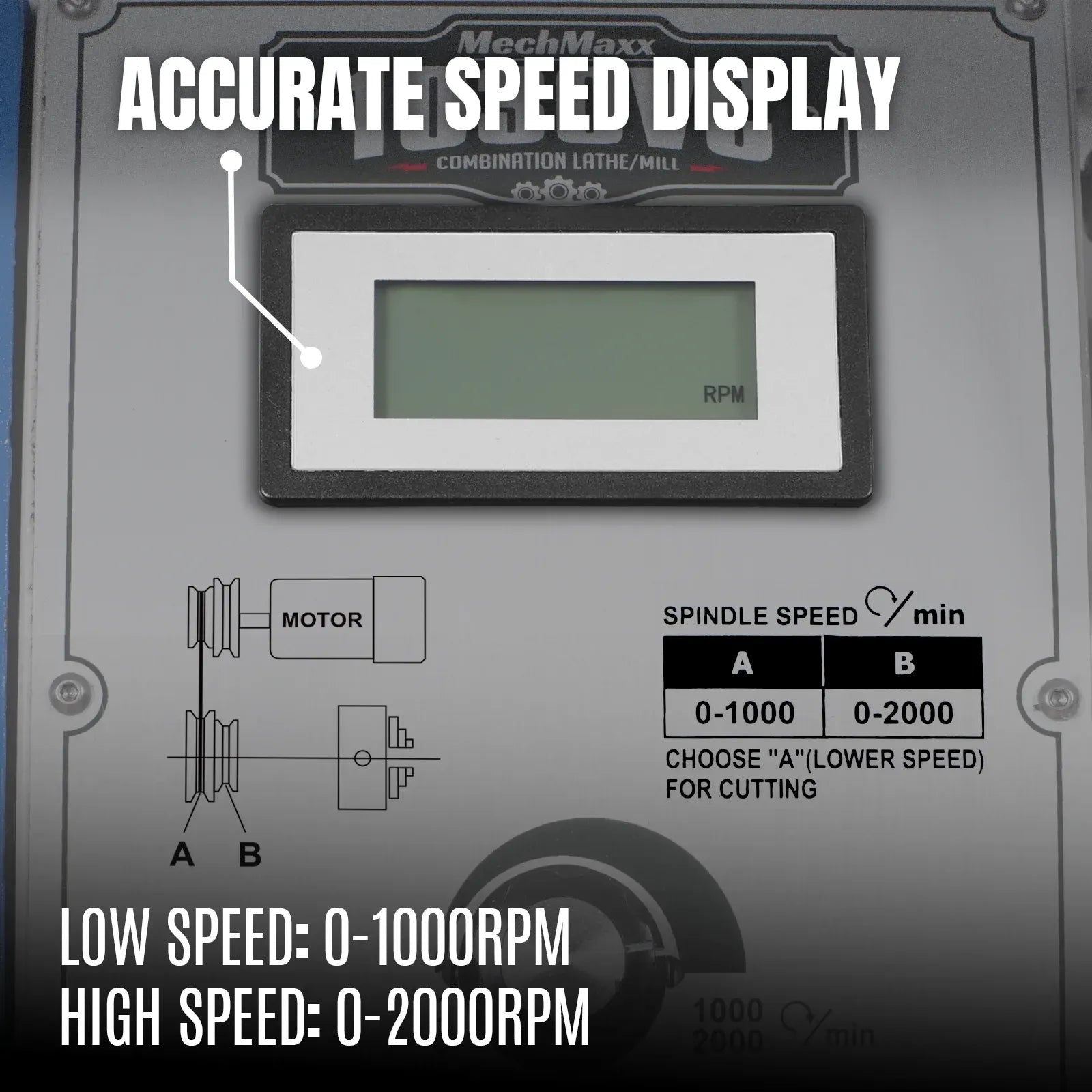

Powerful Variable-Speed Performance
The variable-speed spindle ranges from 0–2000 RPM, allowing precise speed control for different materials and cutting operations. Powered by a robust 1.5 HP motor, the machine delivers smooth, reliable performance for both light-duty and more demanding machining tasks.

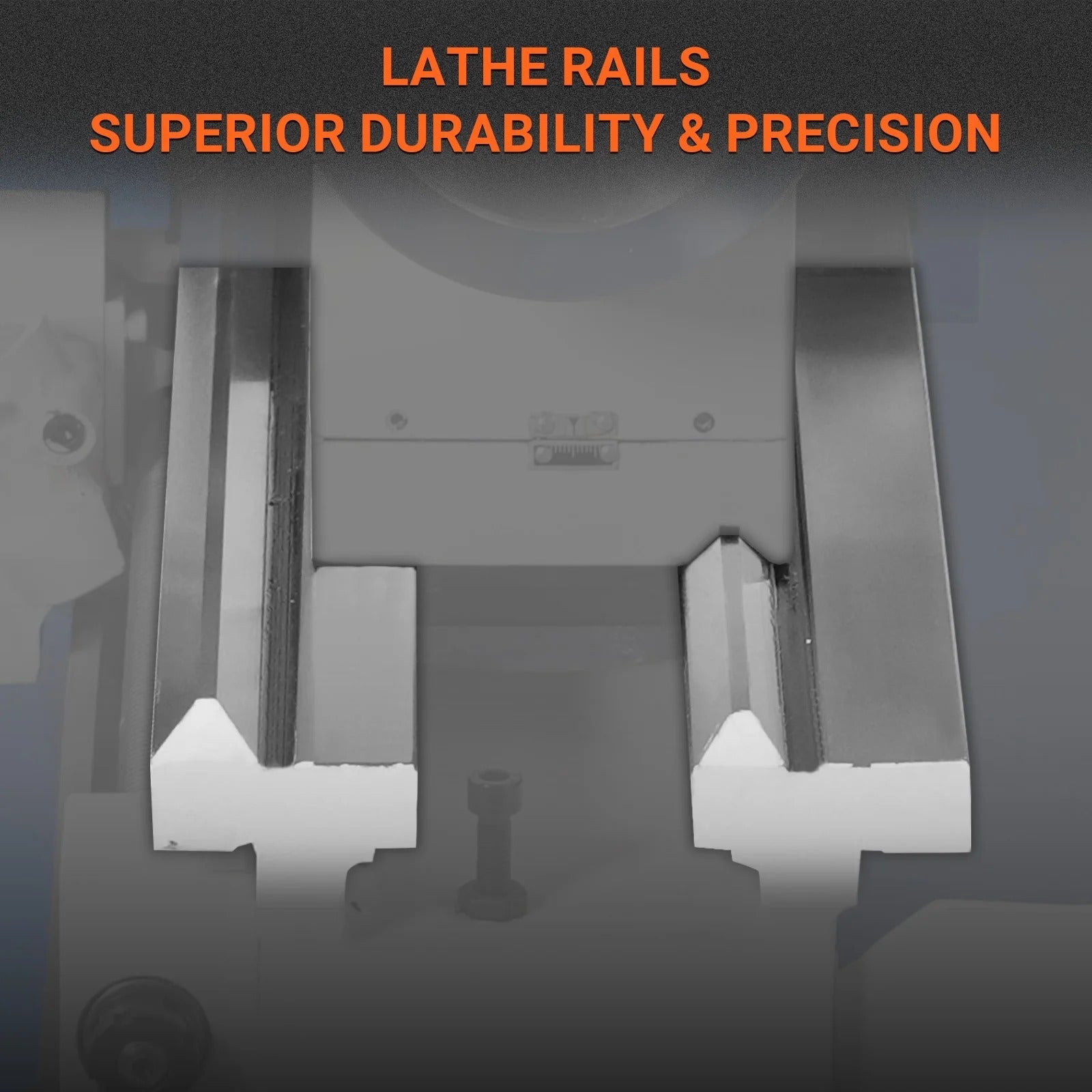

Heavy-Duty Cast Iron Construction
Built from premium quench-hardened cast iron, the lathe offers excellent rigidity and durability. Its heavier bed design improves overall stability, helping reduce vibration and maintain machining accuracy during operation.

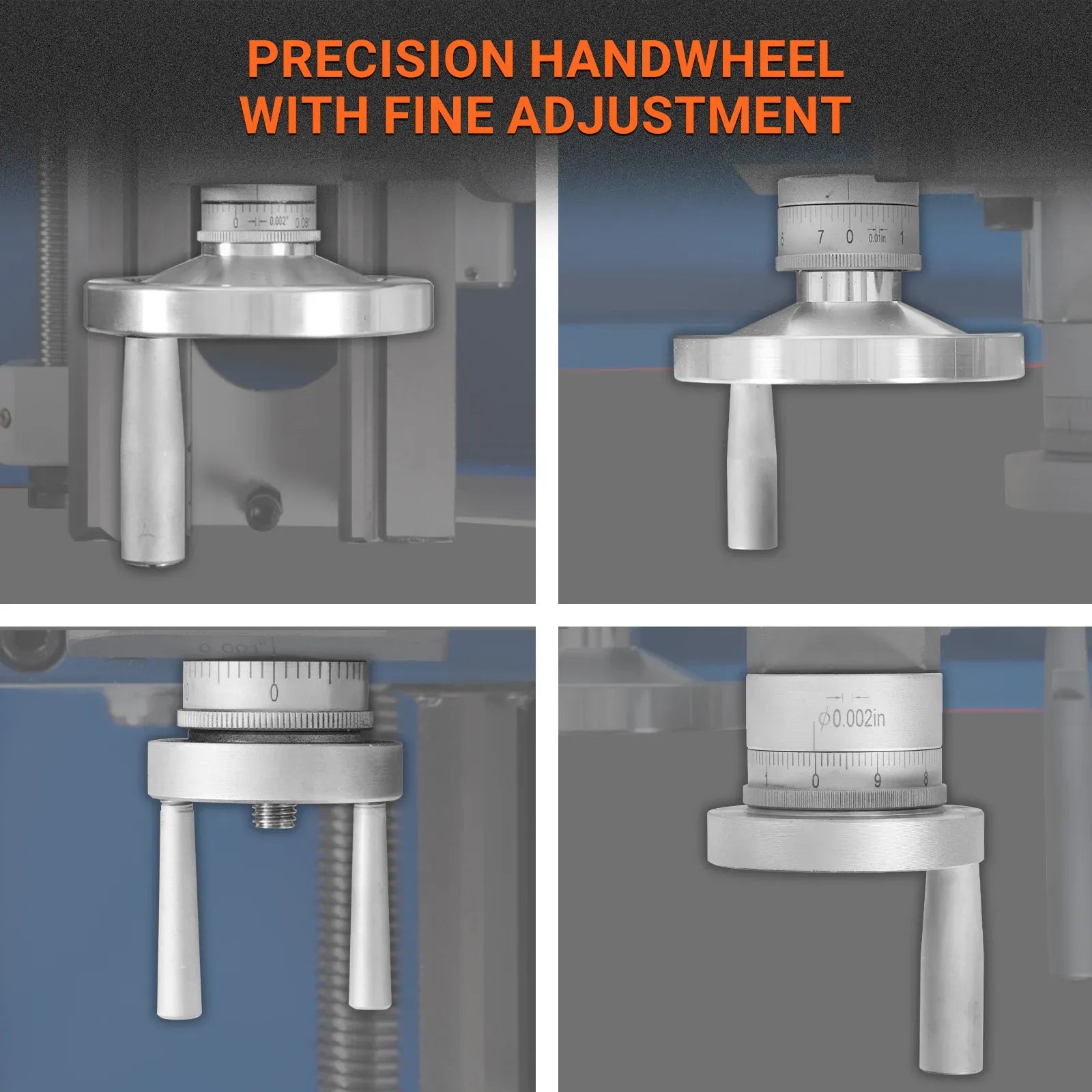

Precision Machining Capability

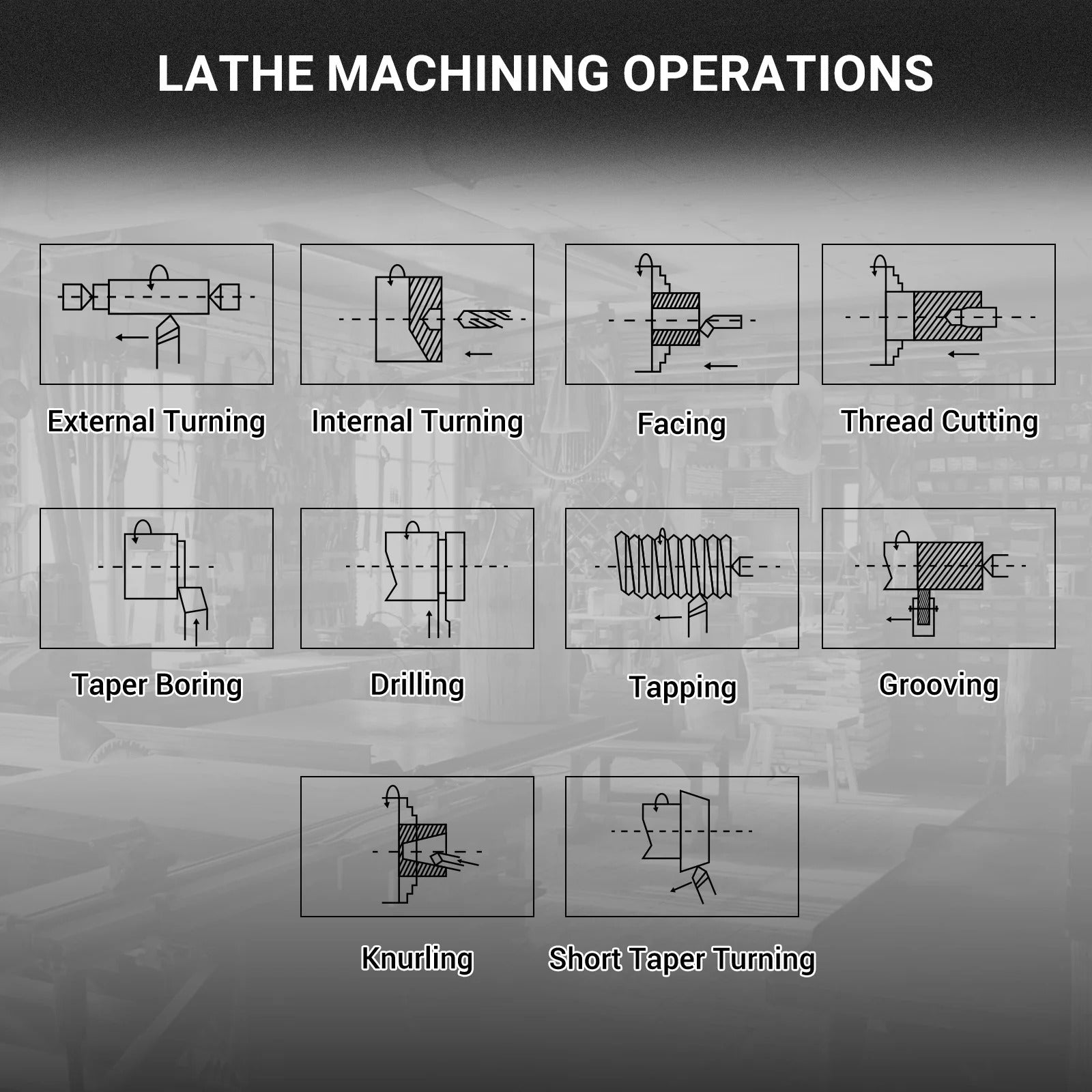

With a 9-7/8" (250 mm) swing over bed and 29-1/2" (750 mm) distance between centers, this lathe is well-suited for a variety of small to medium-sized projects. Smooth cross slide and compound slide travel allow accurate internal cutting, facing, and beveling operations.

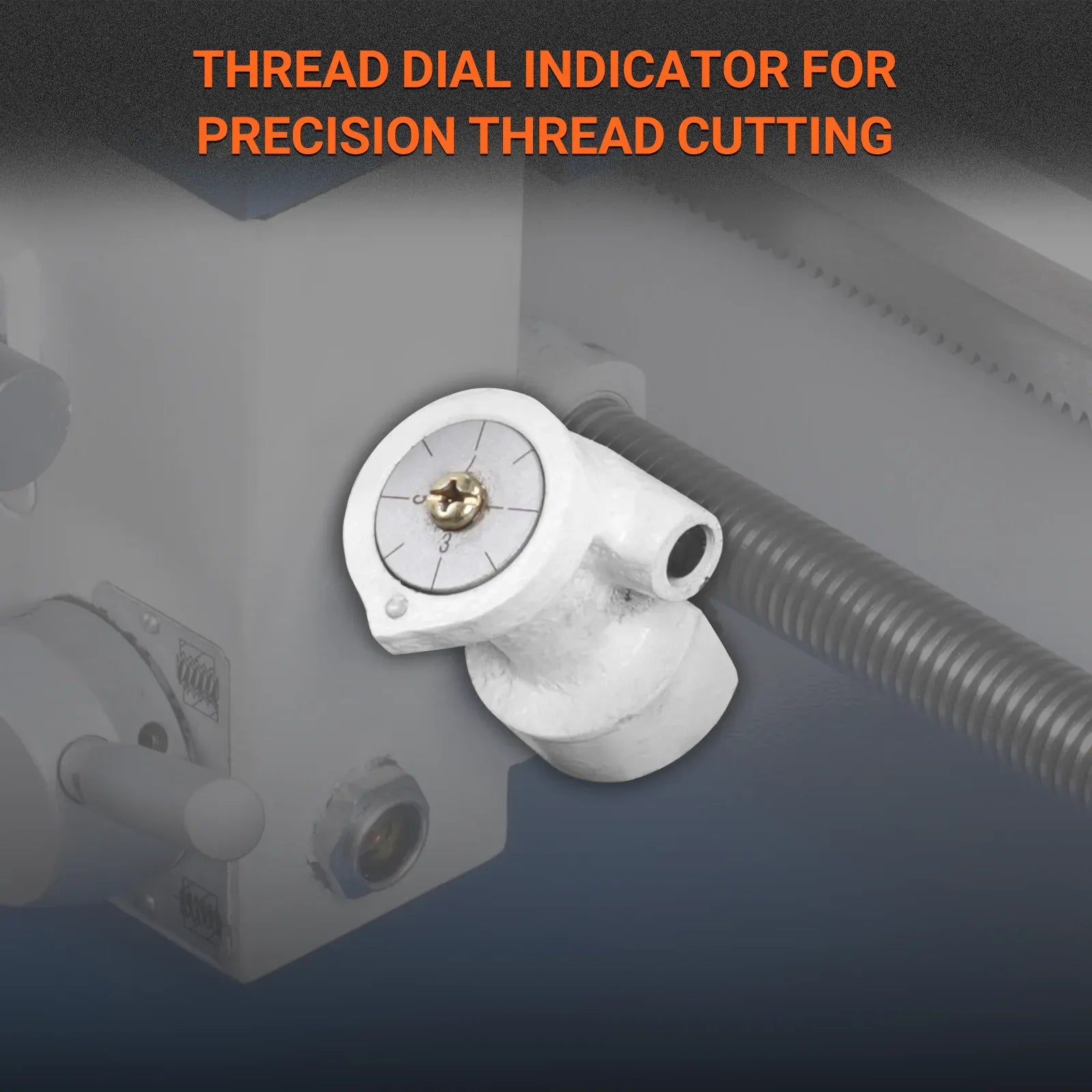

Simplified Thread Cutting
A built-in thread dial indicator helps make threading operations easier and more precise, supporting accurate and repeatable thread cutting.

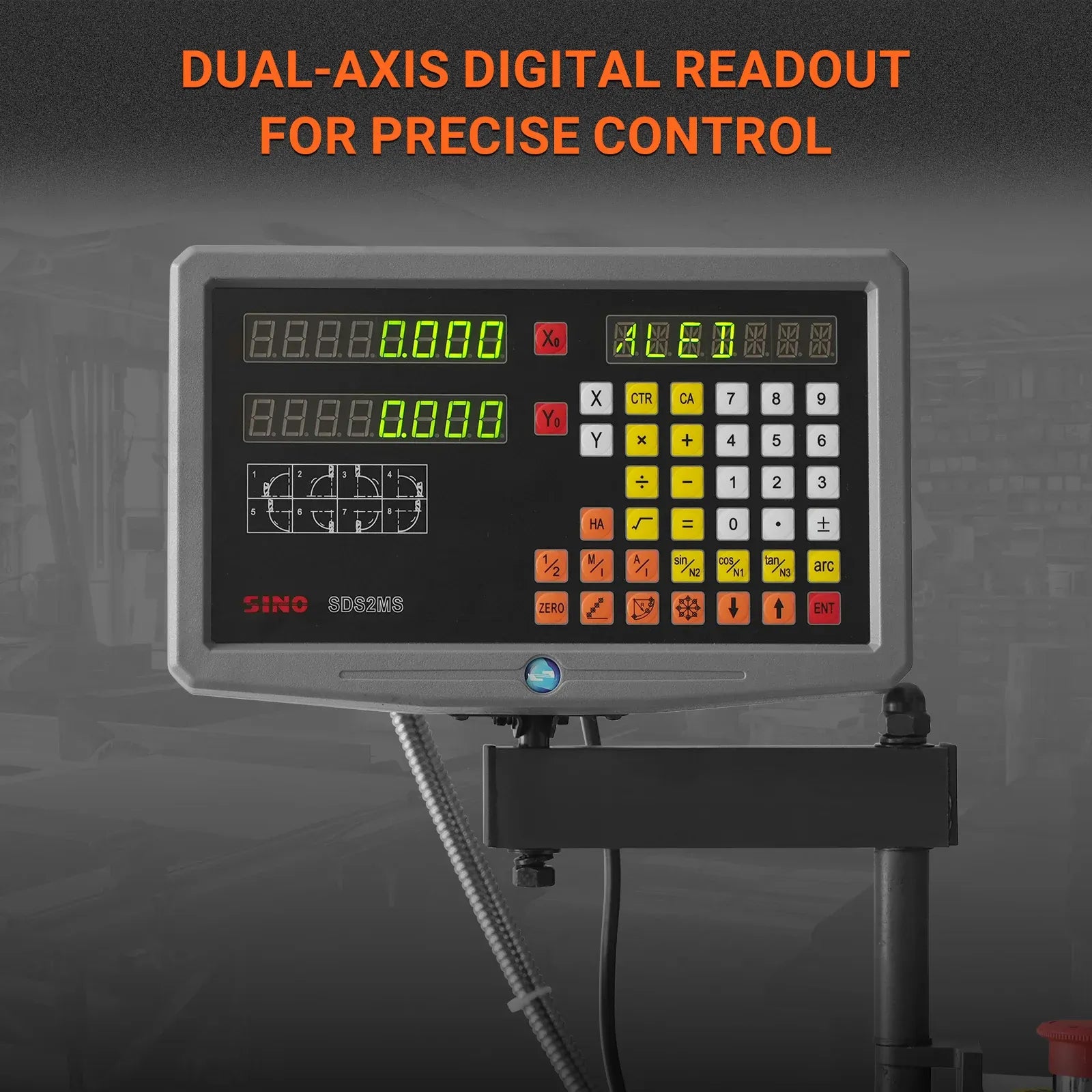

Digital Readout for Improved Accuracy
The integrated DRO (Digital Readout) system provides real-time positioning feedback for faster setup times, more precise adjustments, and improved machining accuracy across all axes.
| Specifications | Details |
|---|---|
| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60HZ |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |
| Bed Width | 5-1/2" (140 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |

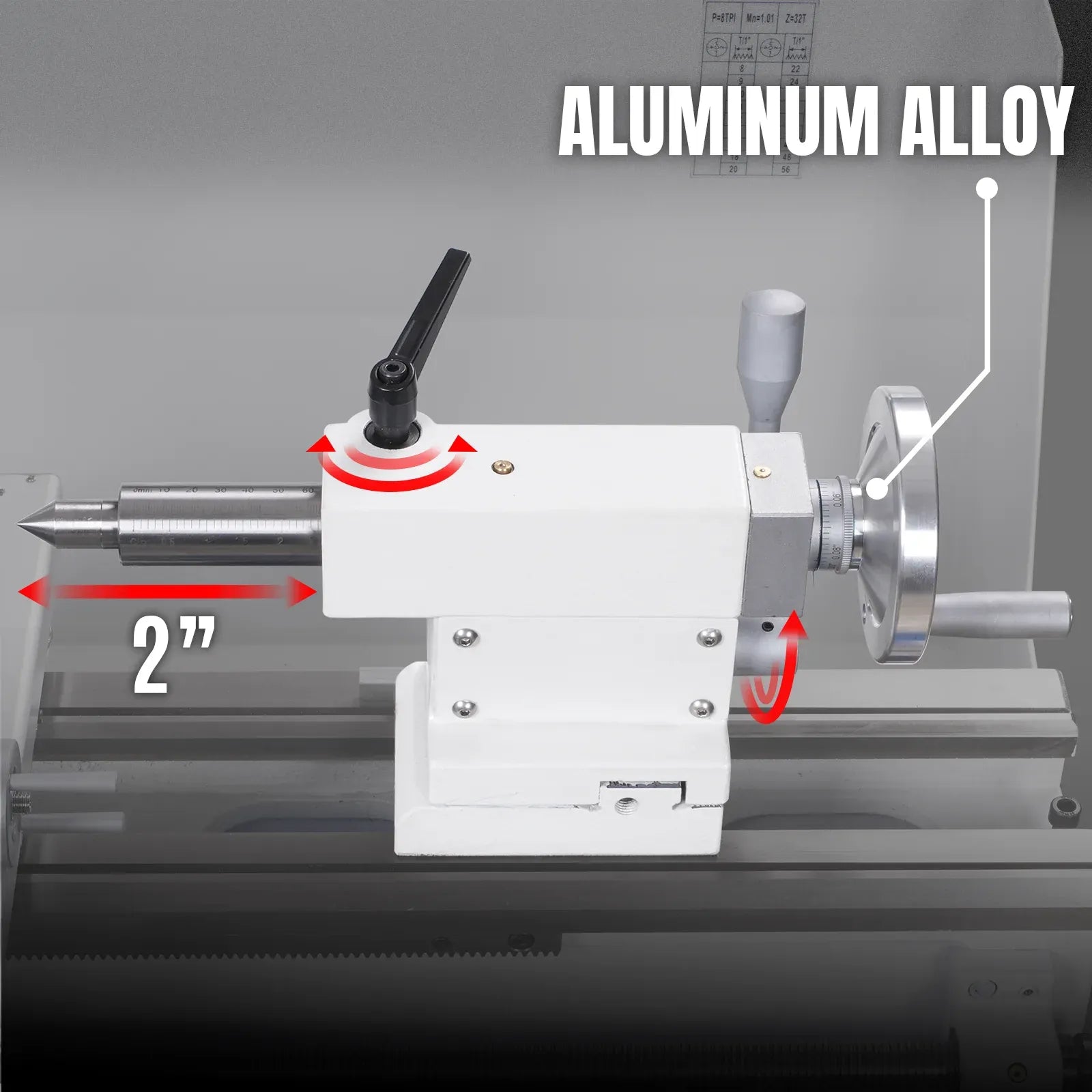

| Tailstock Taper | MT#2 |
| Tailstock Quill Travel | 3" (75 mm) |

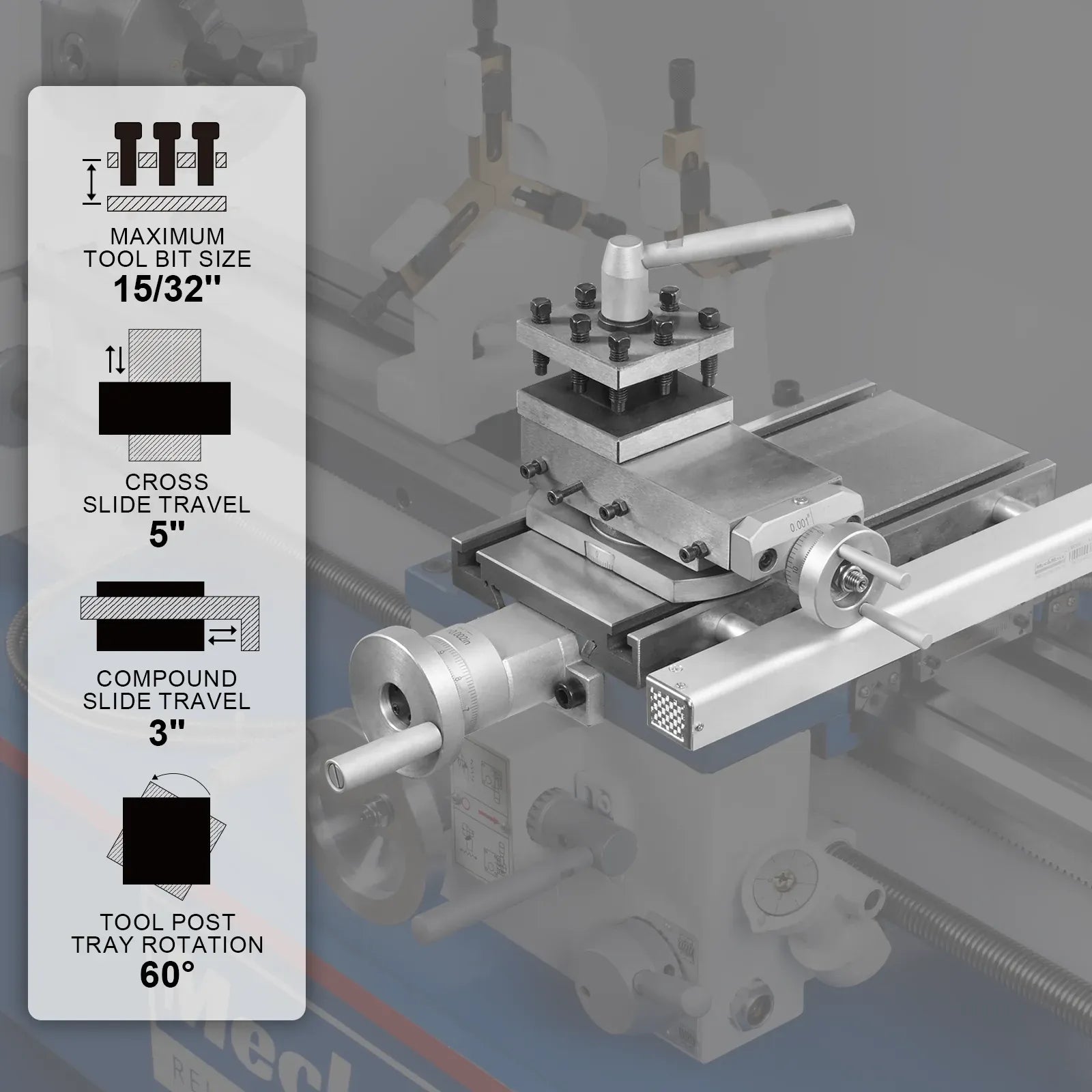

| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Carriage Travel | 27-1/2" (700 mm) |
| Spindle Speeds | 0–2000 RPM |
| Speed Ranges | Variable |

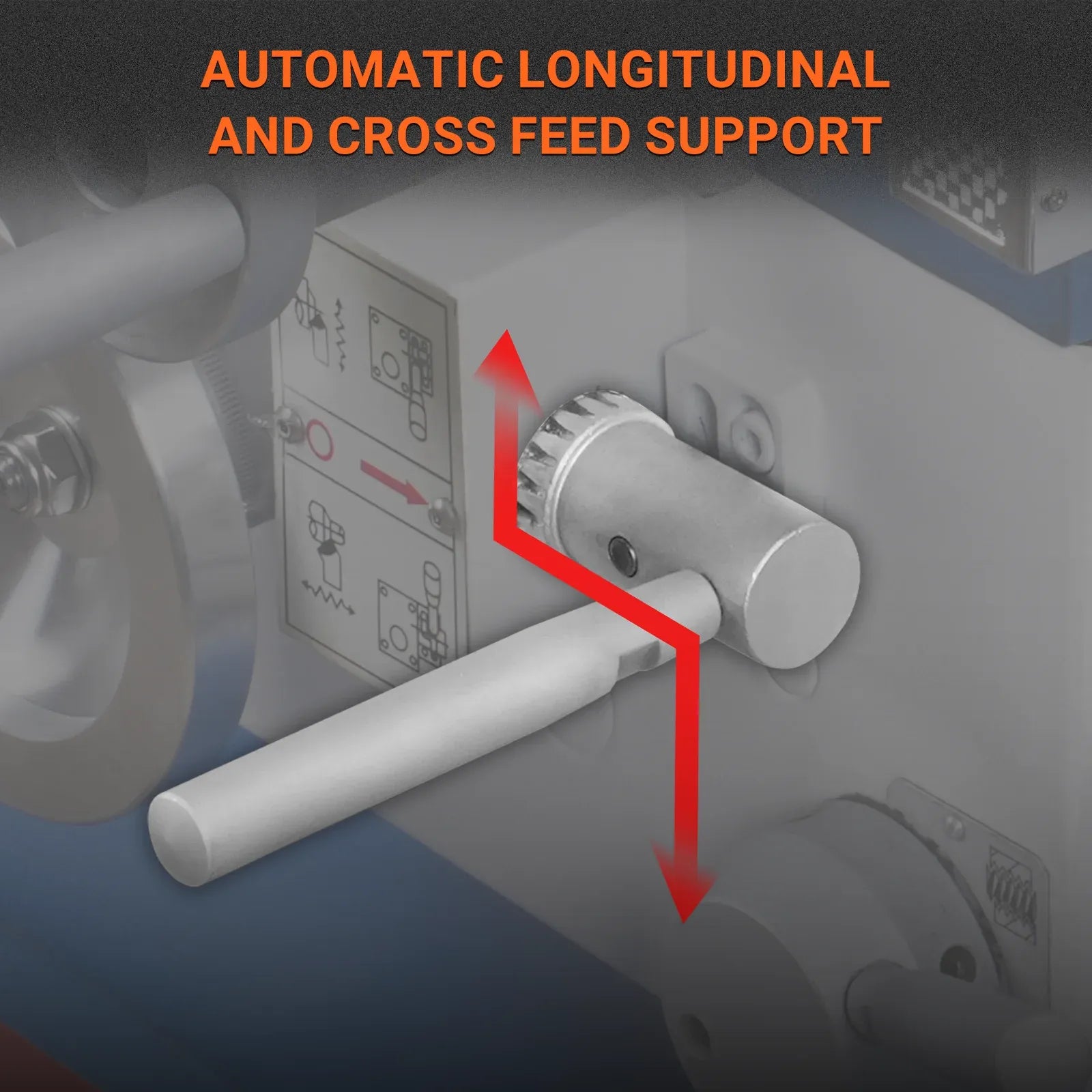

| Longitudinal Feeds | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20 mm (8 TPI) |
| Inch Threading Capacity | 8–80 TPI (37 Kinds) |
| Metric Threading Capacity | 0.35 – 3.0 mm (21 Kinds) |
| Maximum Tool Bit Size | 15/32" (12 mm) |
| Thread Dial Indicator | Yes |
| Overall Dimensions | 52.0" × 25.0" × 19.0" (1320 × 635 × 480 mm) |
| Approximate Shipping Weight | 399 lbs (181 kg) |
