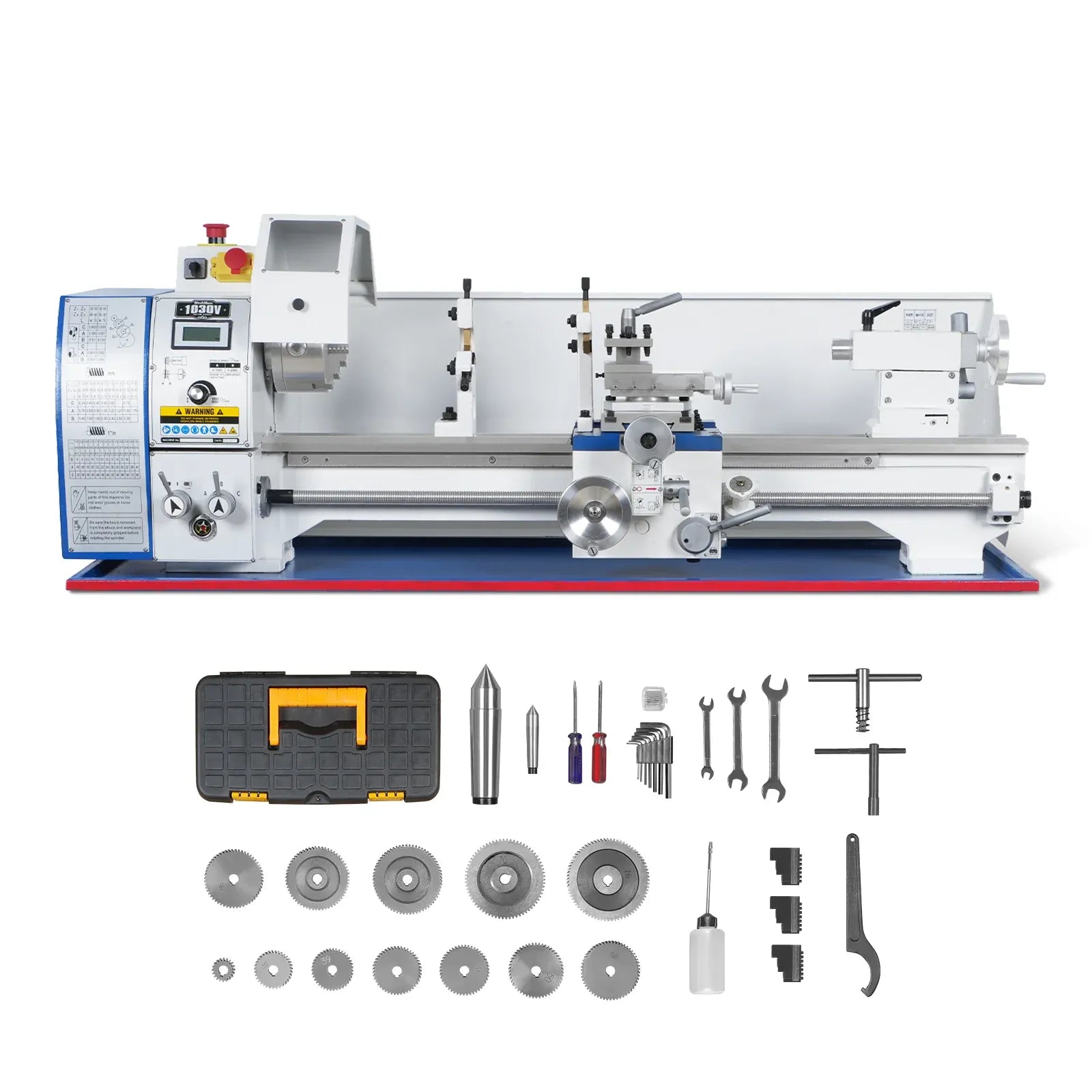

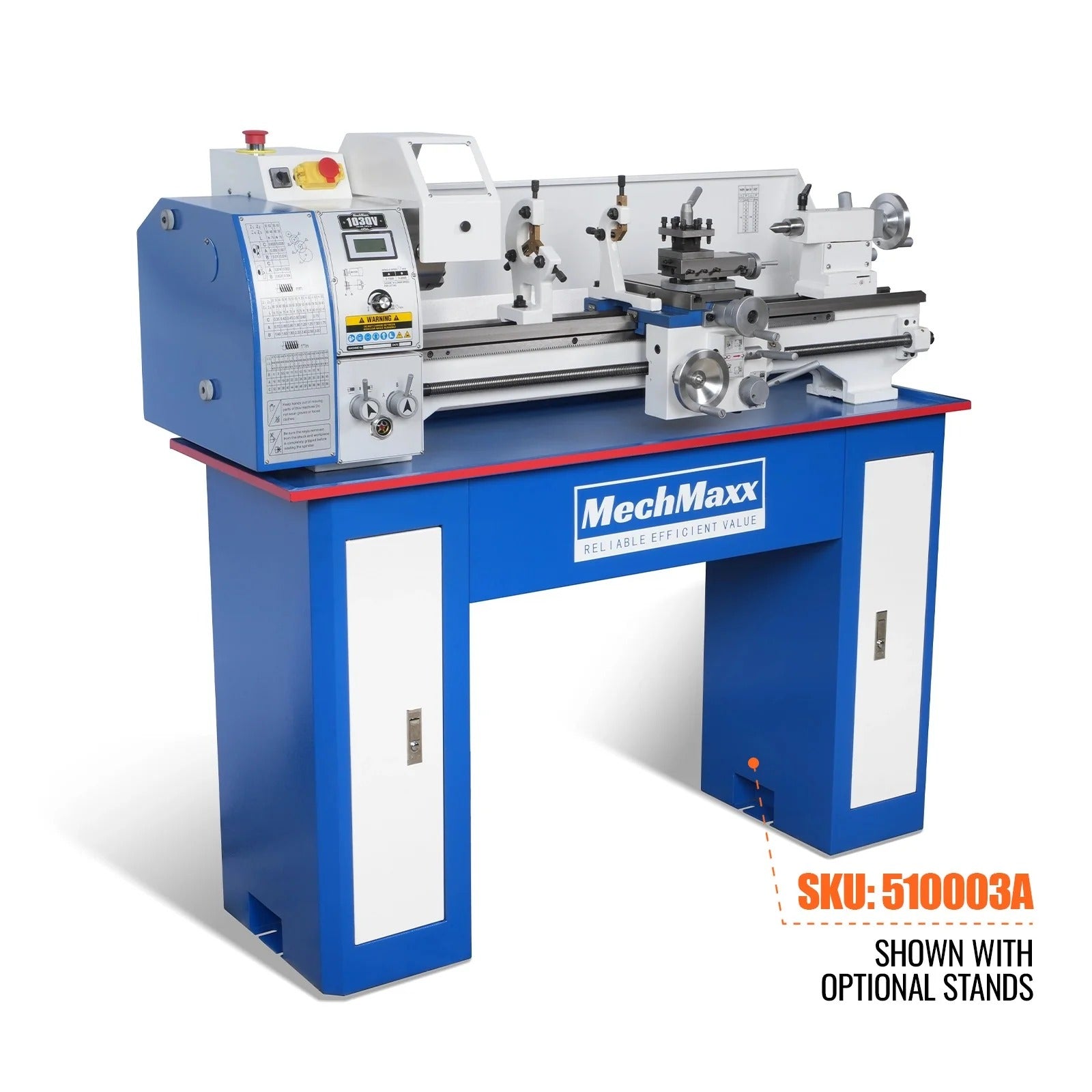

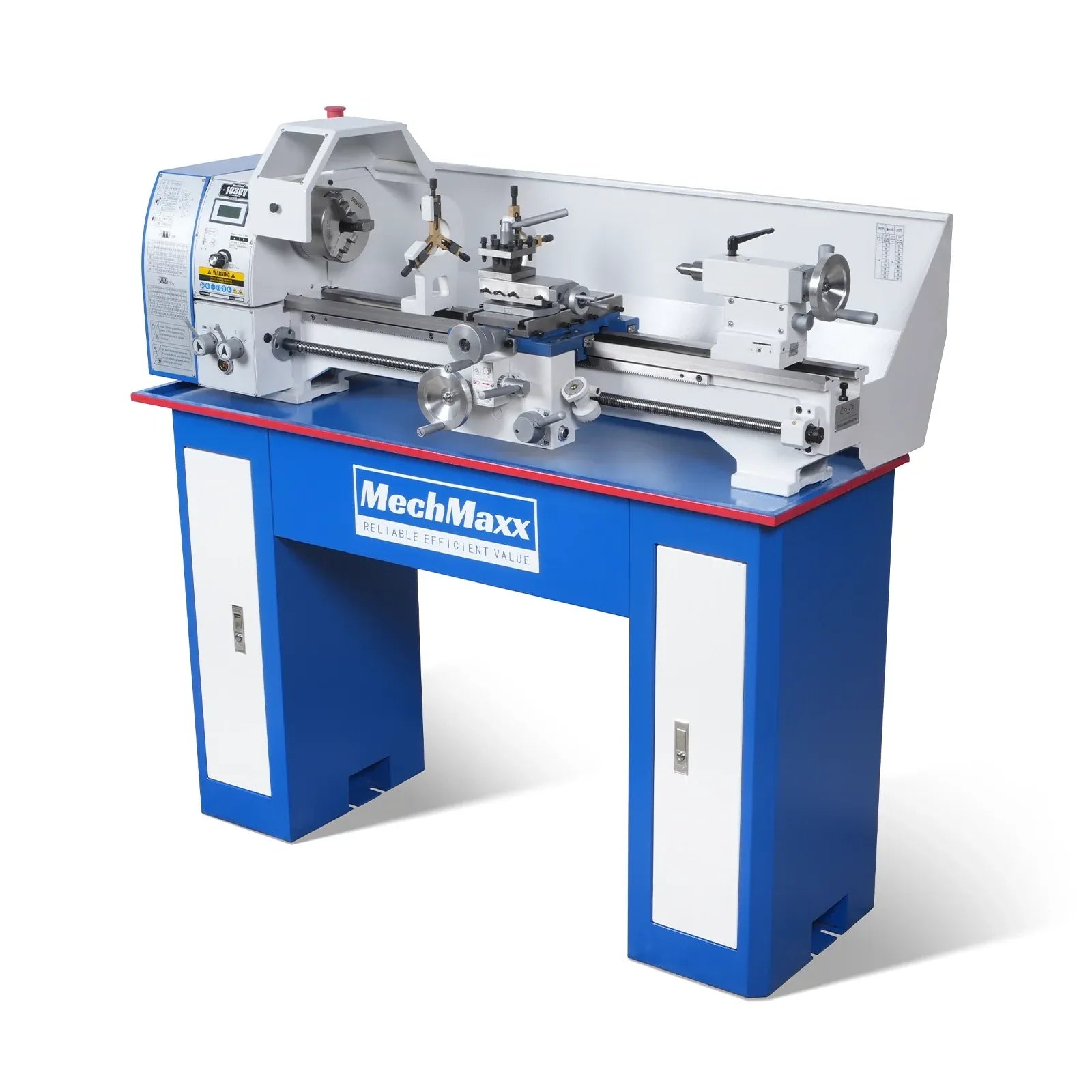

MechMaxx 10x30 Metal Lathe Machine with Variable Speed, Model 1030V
SKU: 500005
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Larger Spindle Bore for Greater Flexibility

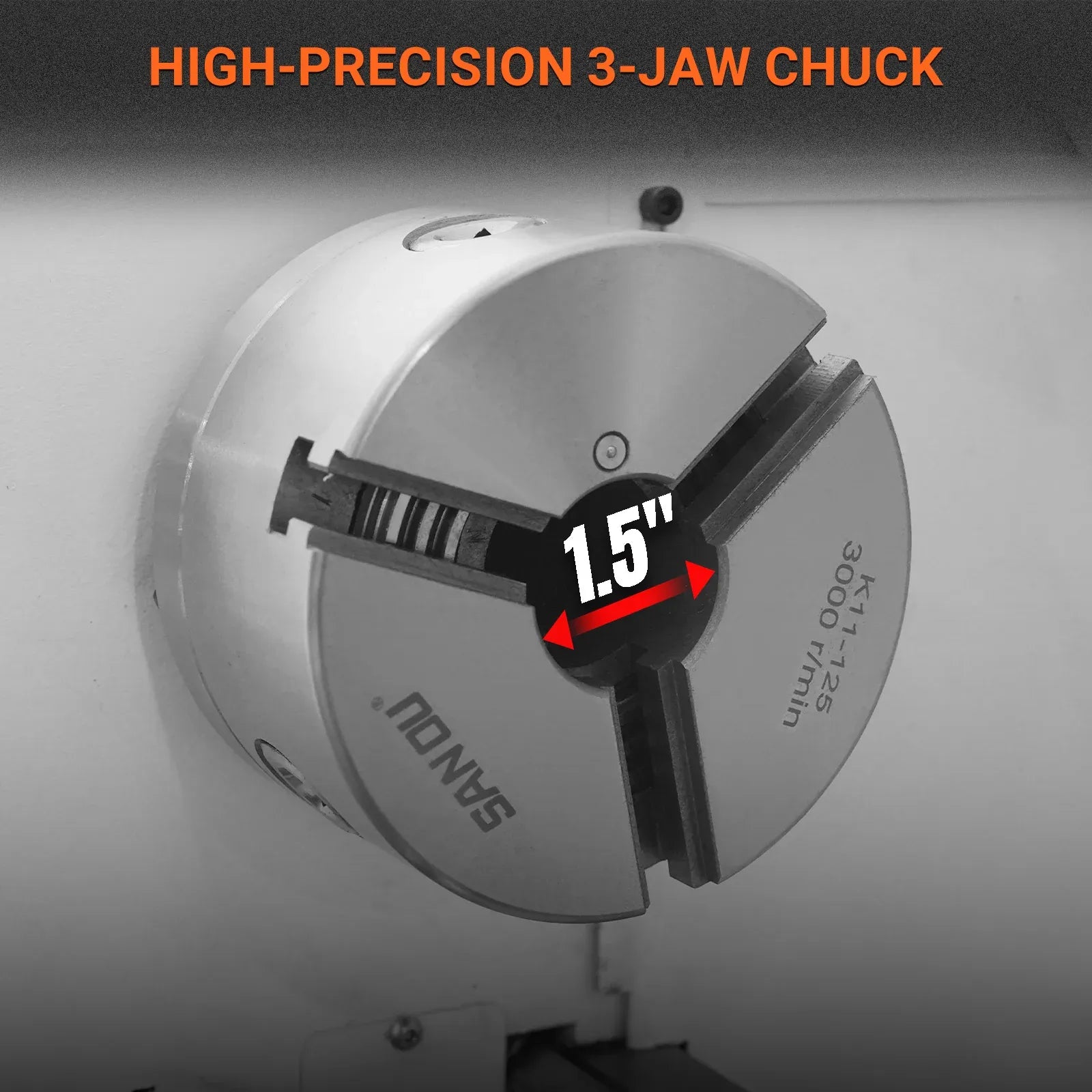

Equipped with a 1-1/2" (38 mm) spindle bore, this lathe is capable of handling larger workpieces than many comparable machines, making it ideal for a wider range of machining applications. The MT#5 spindle taper supports numerous tooling options for added versatility and convenience.

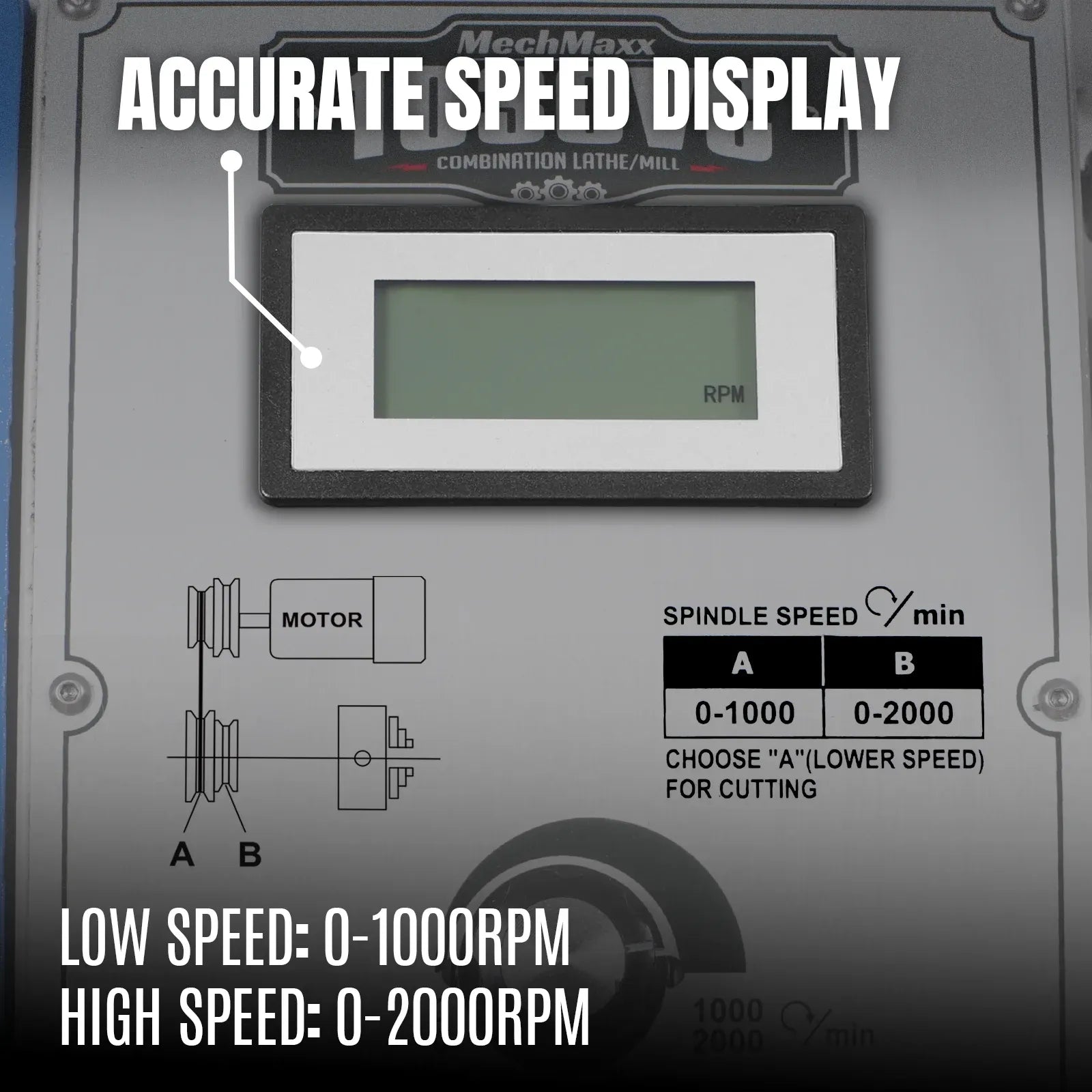

Powerful Variable-Speed Performance
The variable-speed spindle operates from 0–2000 RPM, allowing precise speed adjustments for different materials and cutting tasks. Powered by a reliable 1.5 HP motor, the lathe delivers smooth, consistent performance for both standard and demanding machining operations.
Heavy-Duty Cast Iron Construction

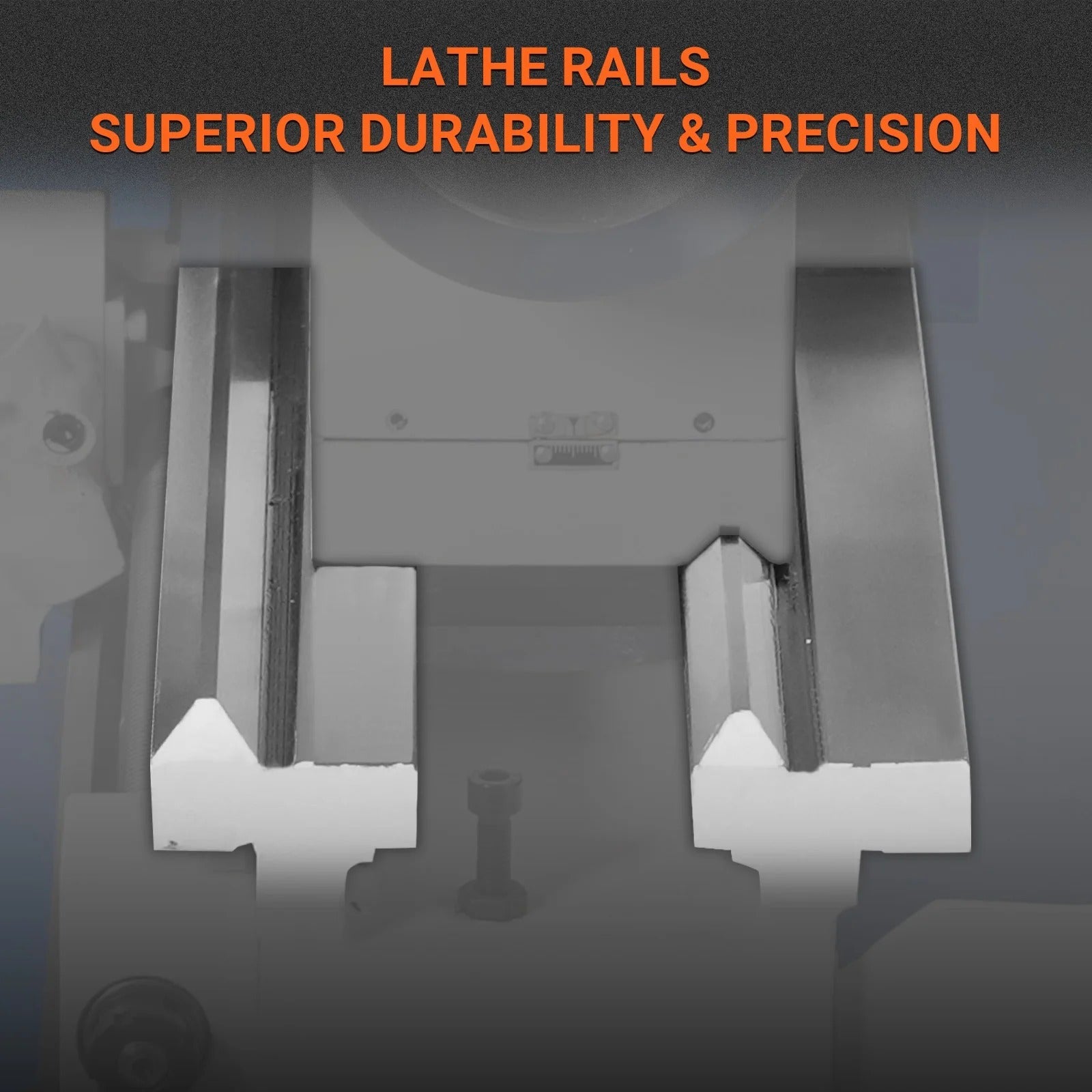

Constructed from premium quench-hardened cast iron, this machine is designed for durability, rigidity, and long-term performance. Its heavier bed design improves stability, minimizes vibration, and helps maintain machining accuracy during operation.
Precision Machining Capabilities

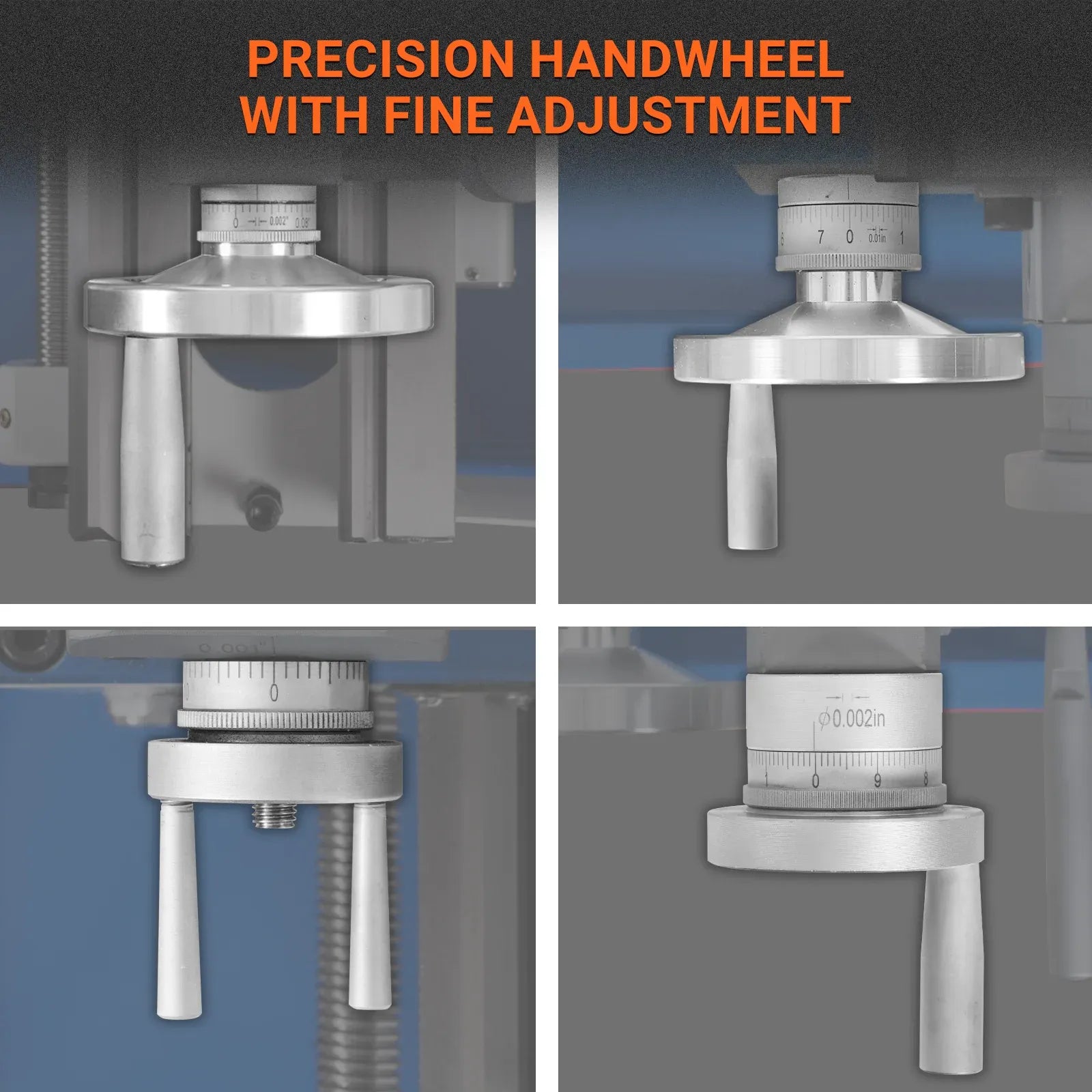

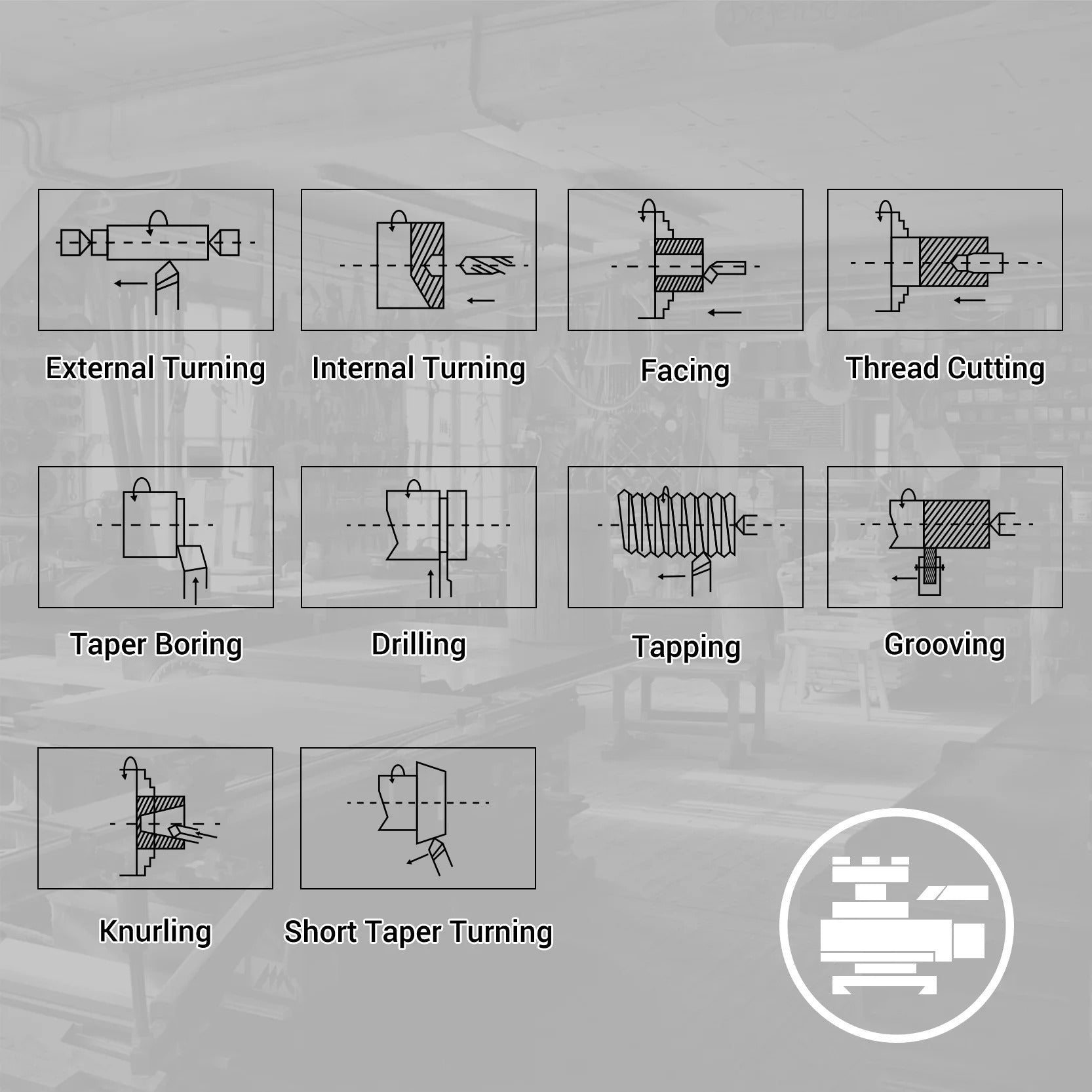

With a 9-7/8" (250 mm) swing over bed and 29-1/2" (750 mm) distance between centers, this lathe is ideal for small to medium-sized projects. Smooth cross slide and compound slide travel provide excellent control for facing, internal cutting, and bevel cutting applications.
Simplified Thread Cutting

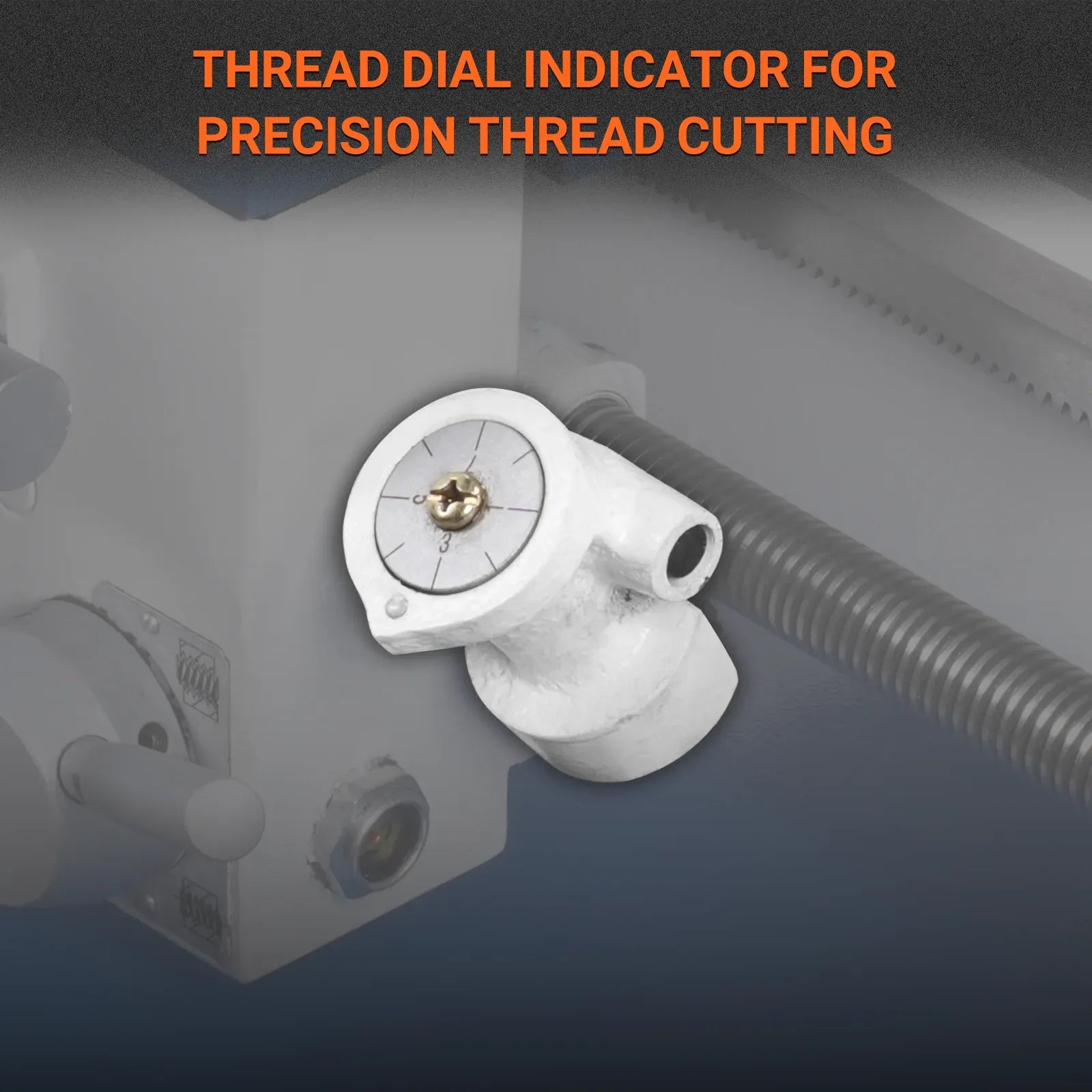

A built-in thread dial indicator helps simplify threading operations, allowing for precise and repeatable thread cutting with improved efficiency.
| Specifications | Details |
|---|---|
| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60HZ |
| Swing Over Bed | 9-7/8" (250 mm) |
| Swing Over Cross Slide | 5-1/2" (140 mm) |
| Swing Over Saddle | 5" (127 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |
| Bed Width | 5-1/2" (140 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |

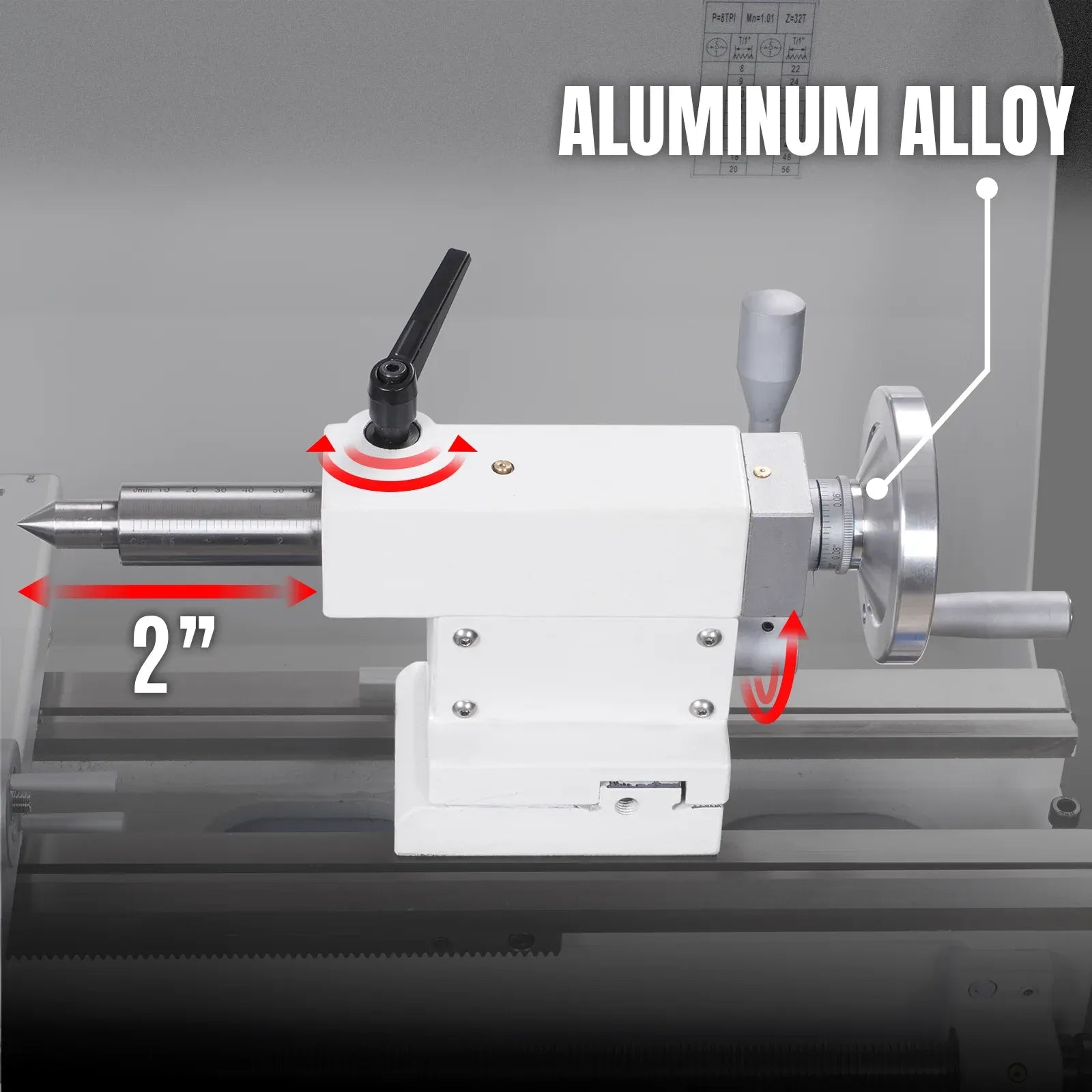

| Tailstock Taper | MT#2 |
| Tailstock Quill Travel | 3" (75 mm) |

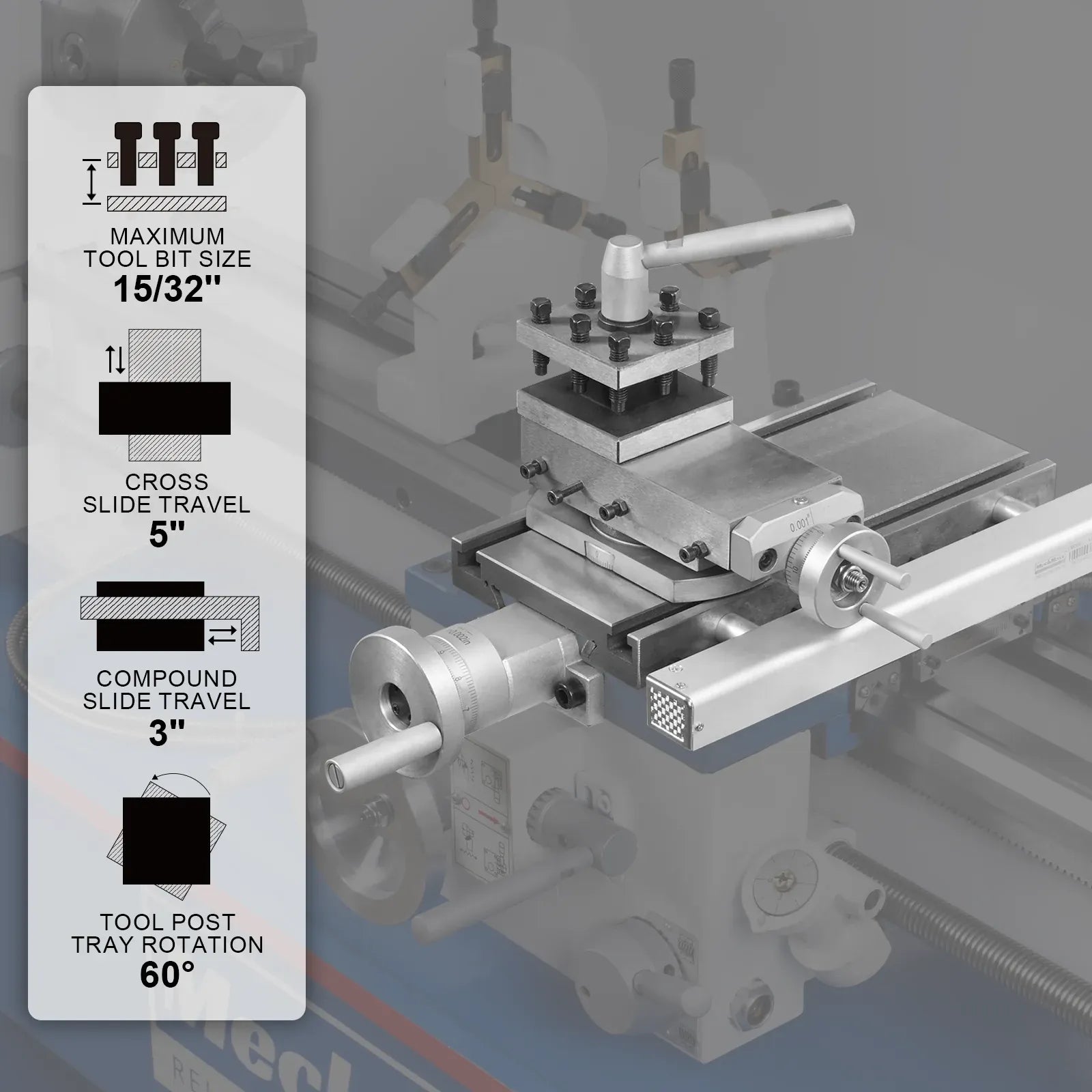

| Cross Slide Travel | 5" (127 mm) |
| Compound Slide Travel | 3" (75 mm) |
| Carriage Travel | 27-1/2" (700 mm) |
| Spindle Speeds | 0–2000 RPM |
| Speed Ranges | Variable |

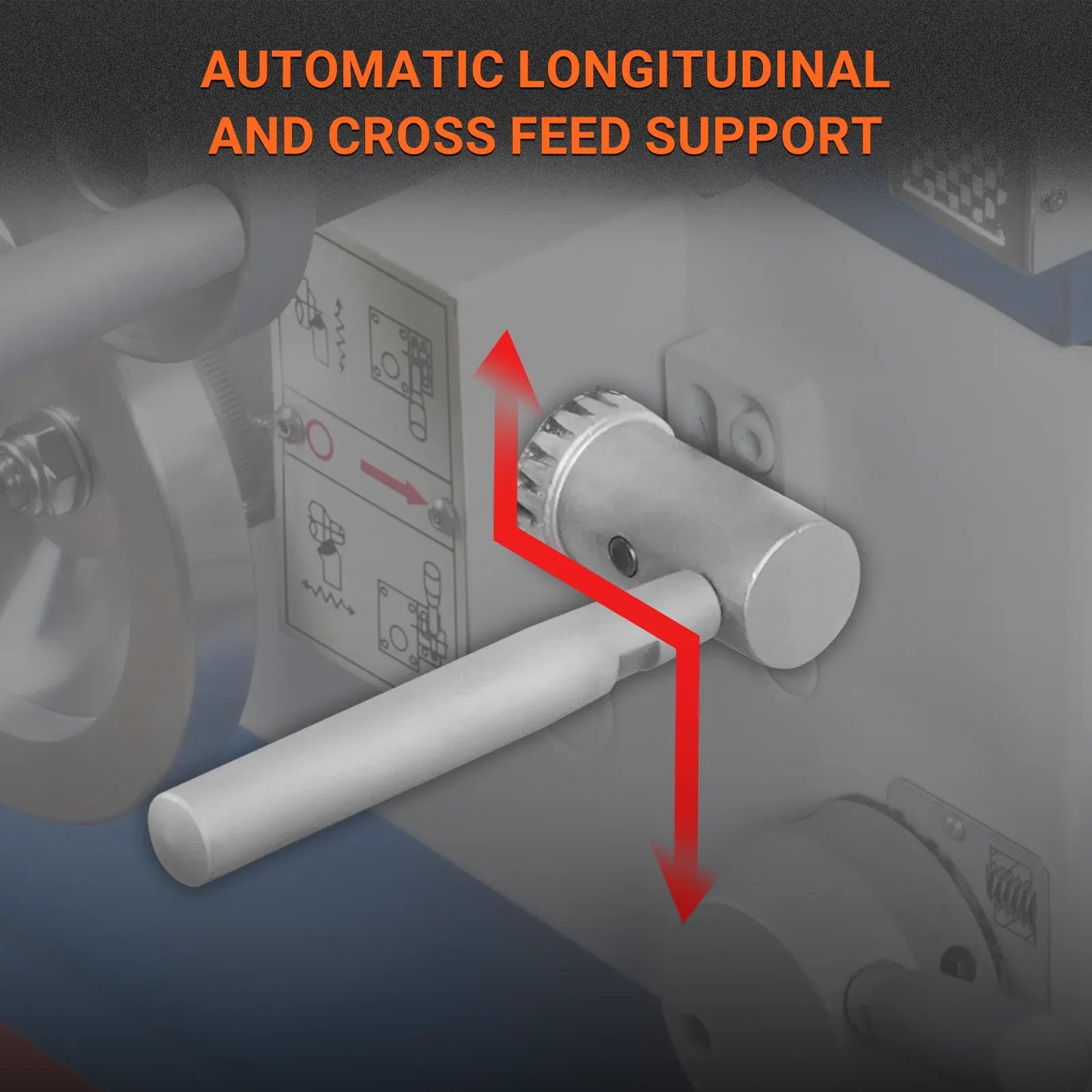

| Longitudinal Feeds | 0.0025 – 0.014 in./rev. |
| Transverse Feed Rate | 0.0014 – 0.004 in./rev. |
| Leadscrew Size & Pitch | 20 mm (8 TPI) |
| Threading Capacity – Inch | 8–80 TPI (37 Kinds) |
| Threading Capacity – Metric | 0.35 – 3.0 mm (21 Kinds) |
| Maximum Tool Bit Size | 15/32" (12 mm) |
| Thread Dial Indicator | Yes |
| Overall Dimensions | 52.0" × 25.0" × 19.0" (1320 × 635 × 480 mm) |
| Approximate Shipping Weight | 399 lbs (181 kg) |
