MechMaxx 1100 lb Tracked Dumper with 10HP 302cc Gas Engine, Hydraulic Tipping and Front Shovel, Model D50HTFL
SKU: 100900 | Model: D50HTFL
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

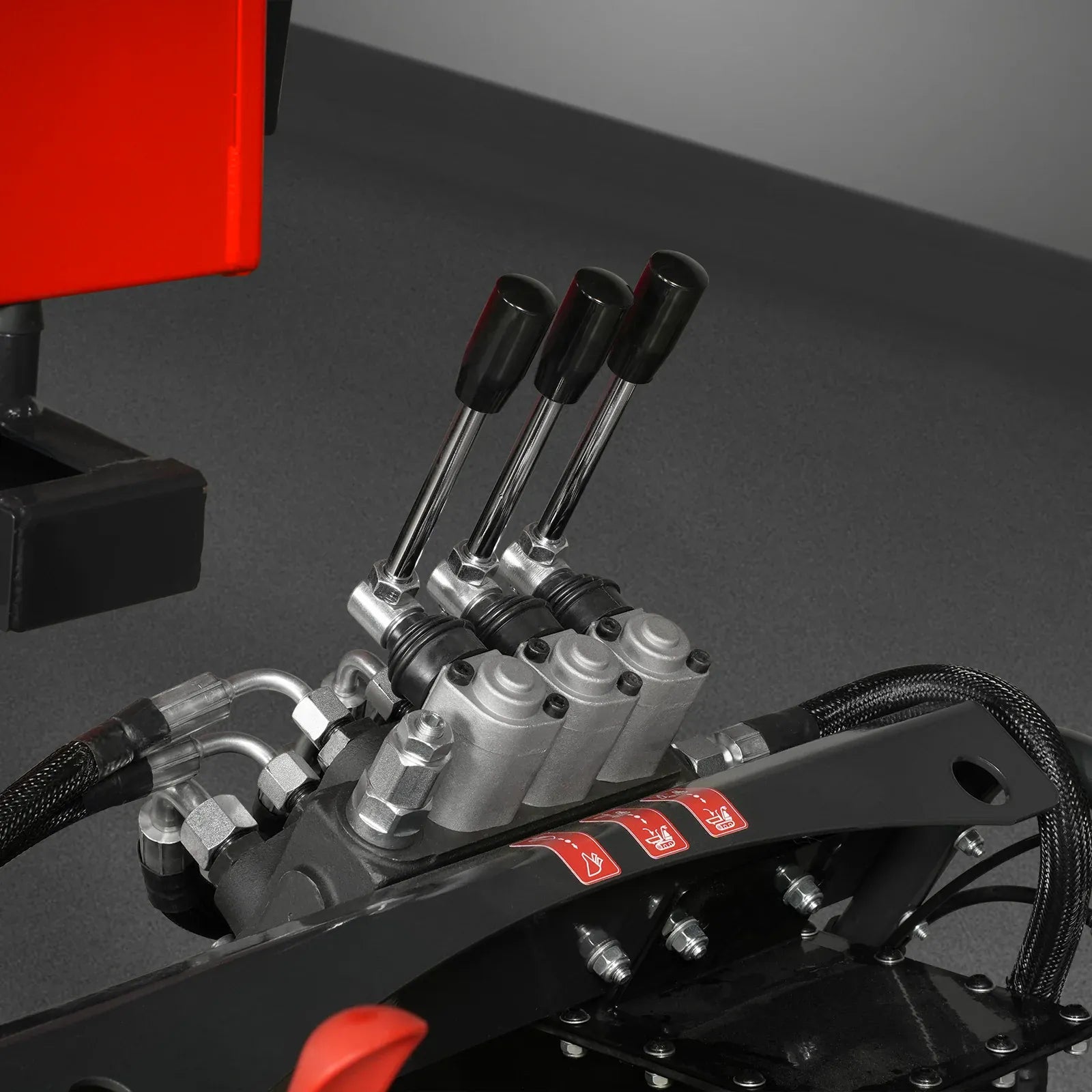

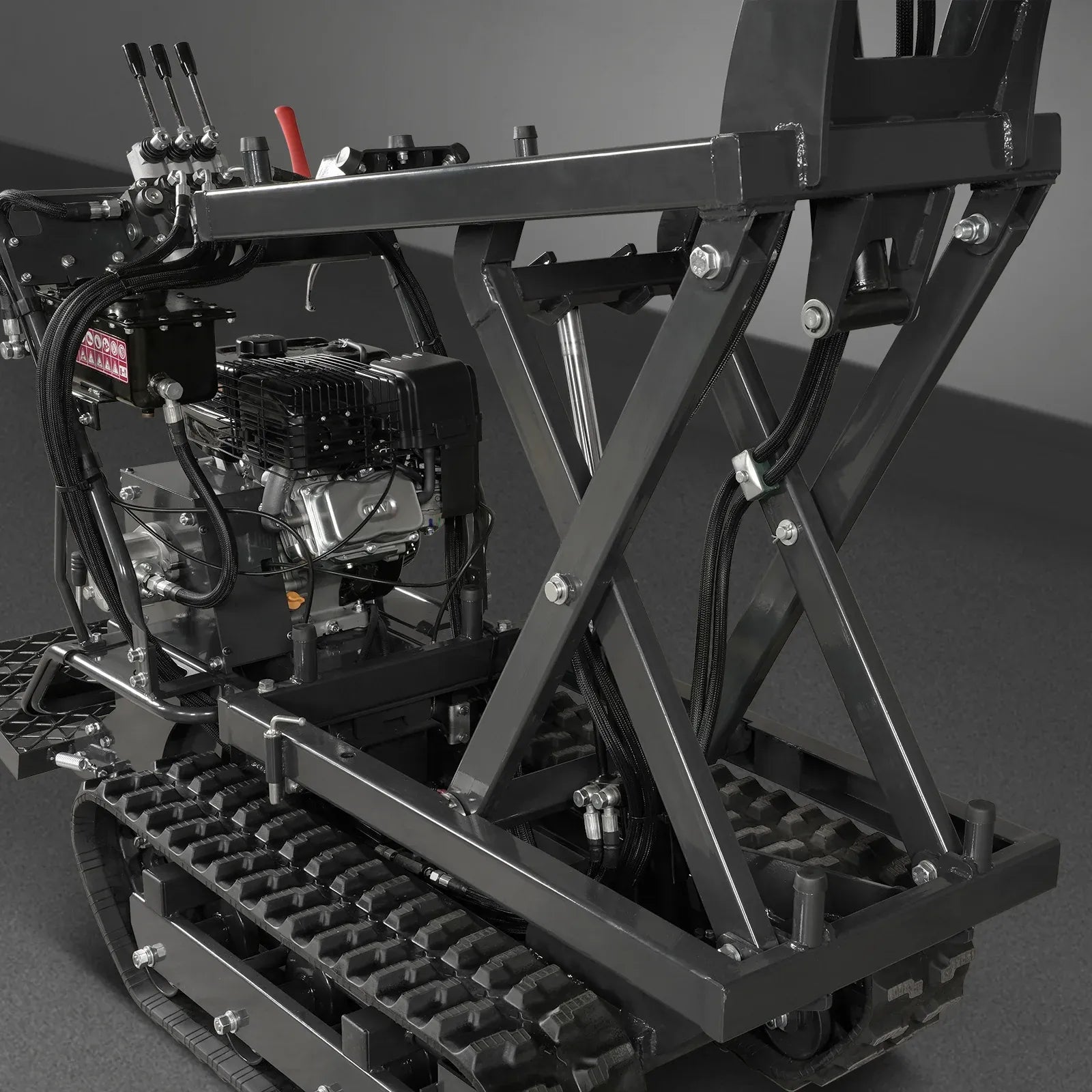

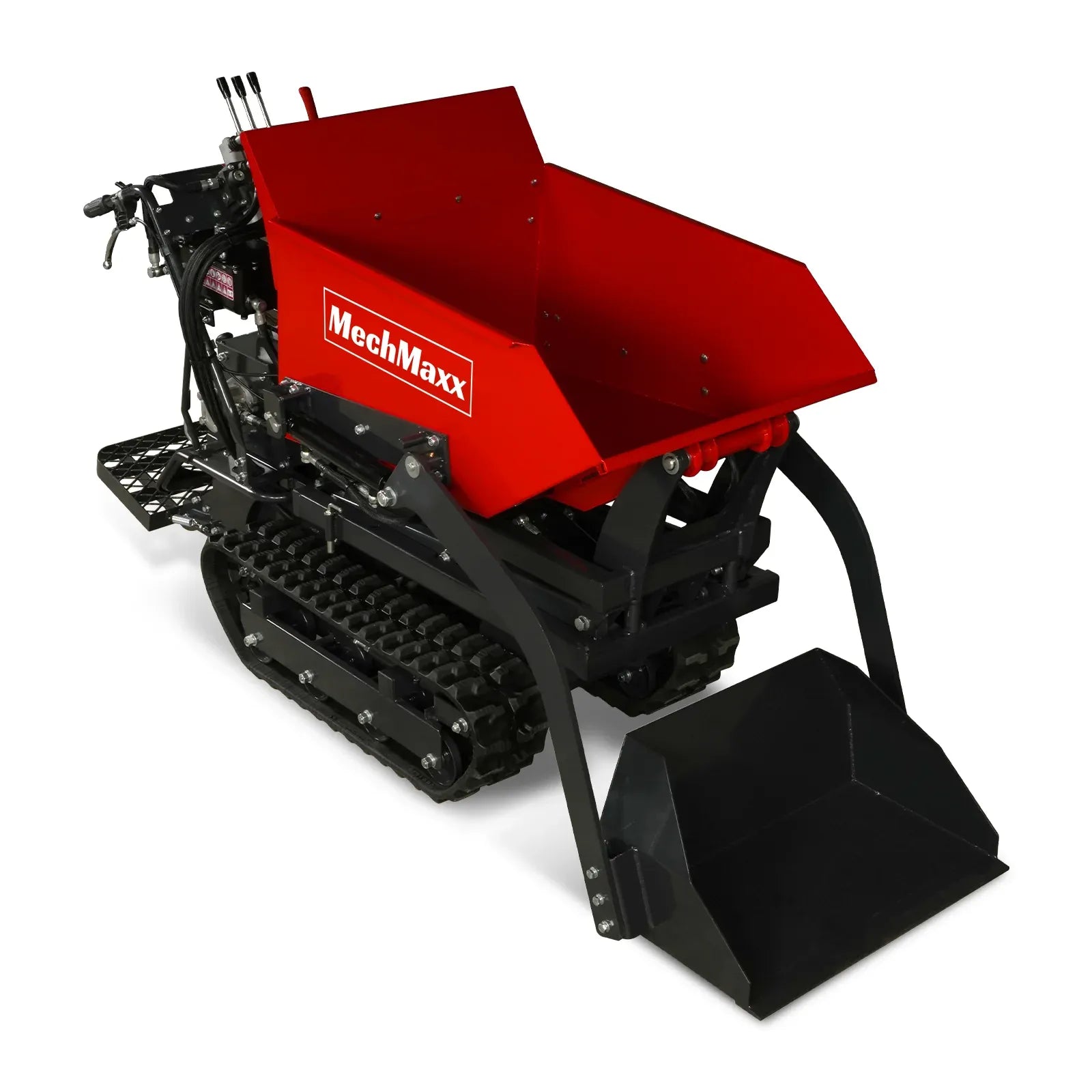

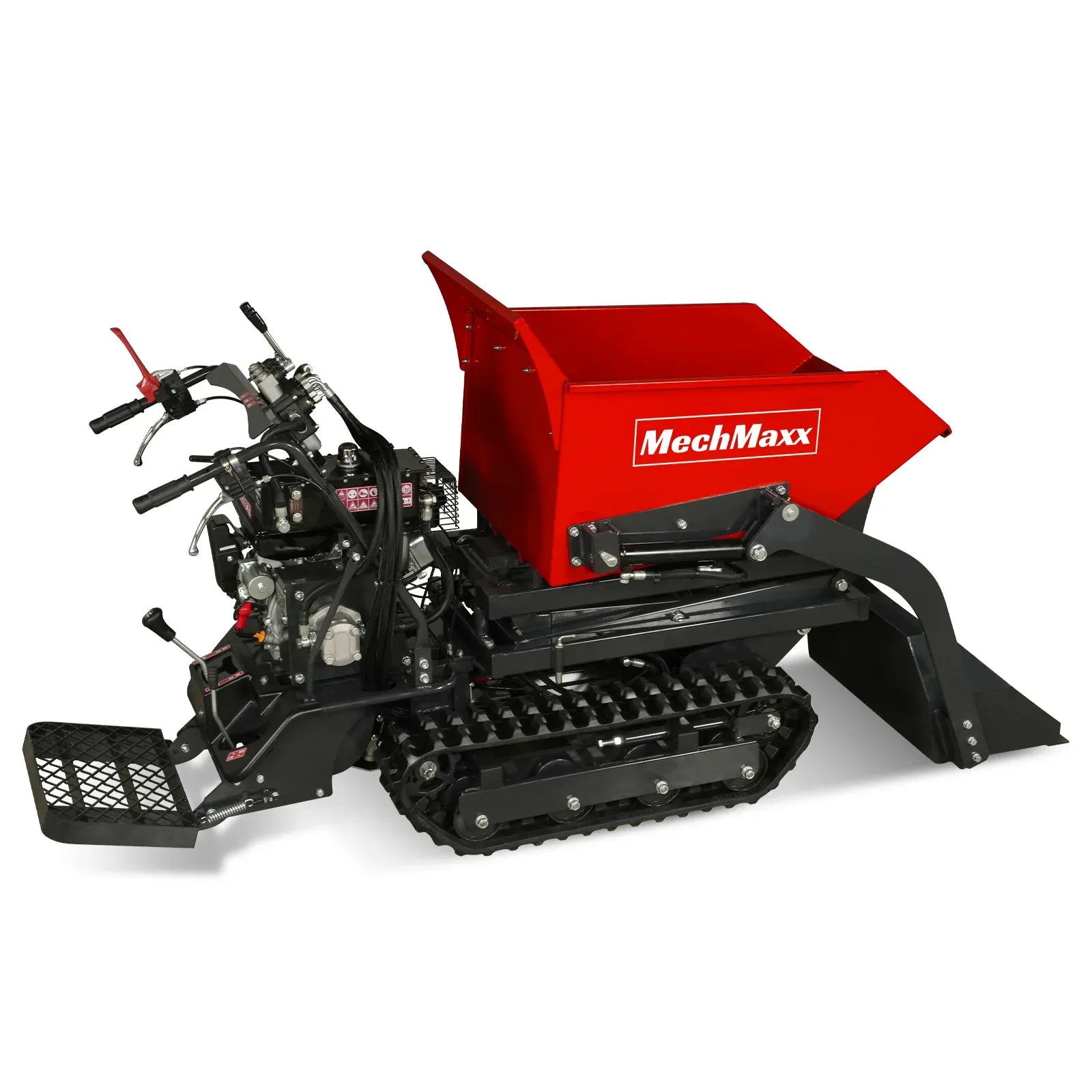

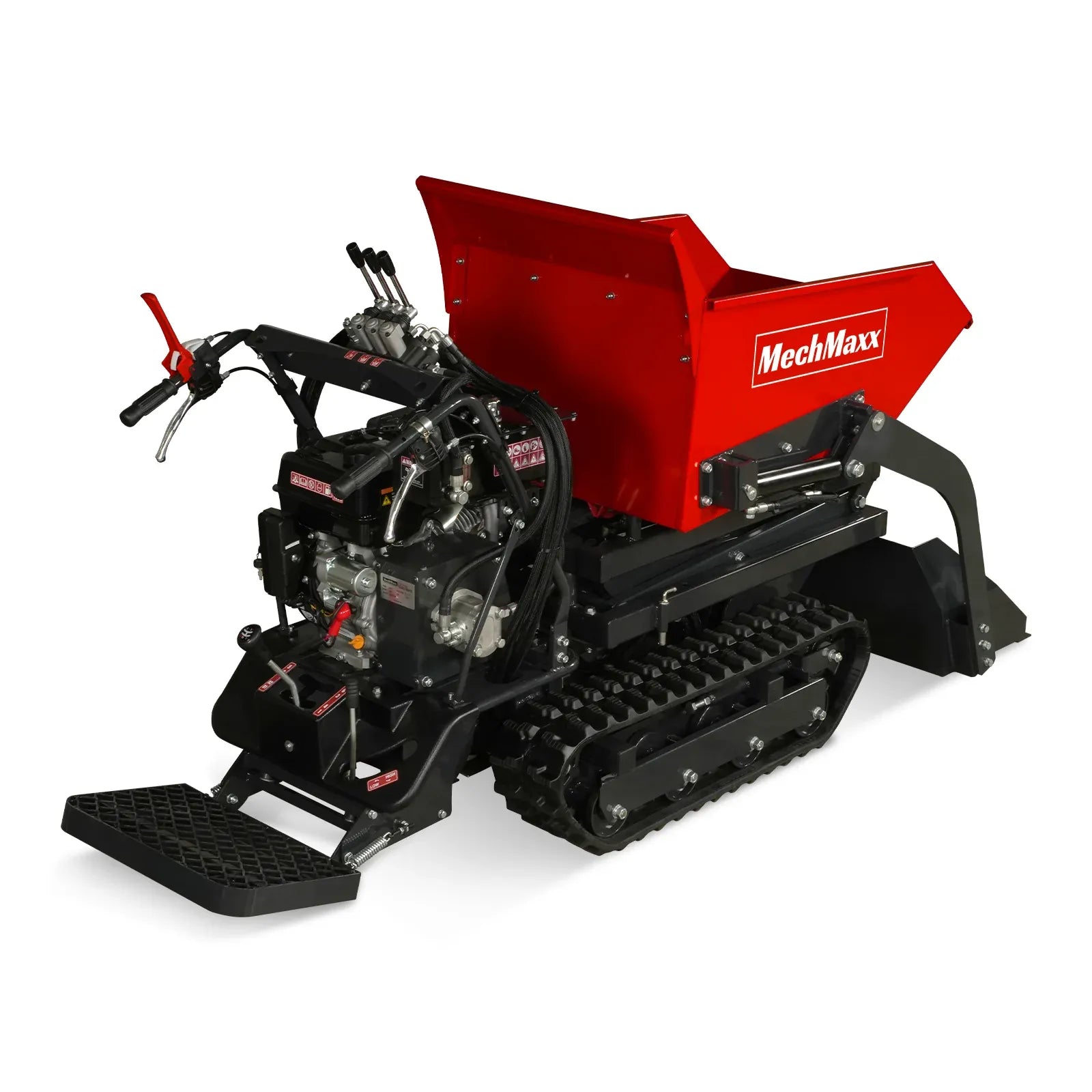

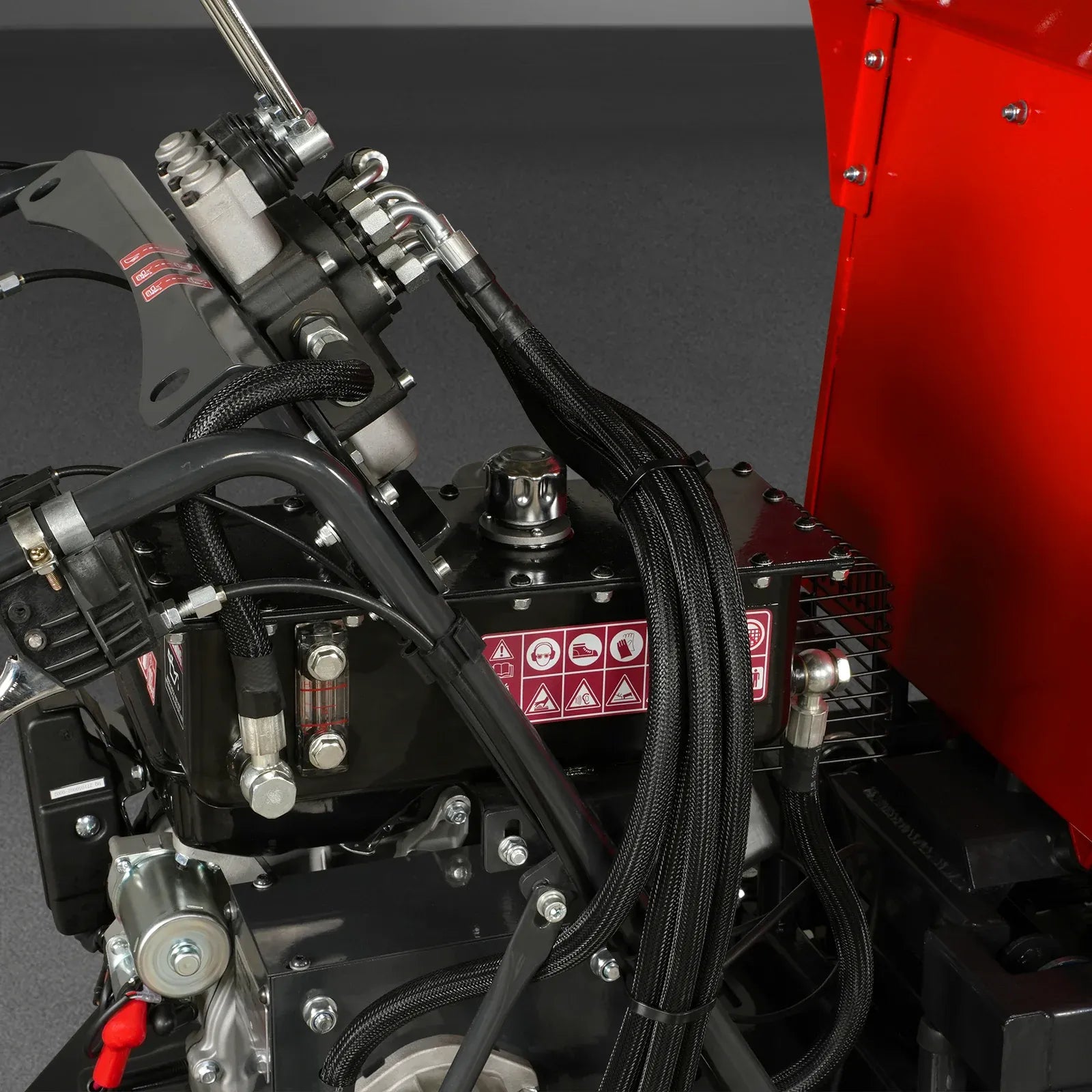

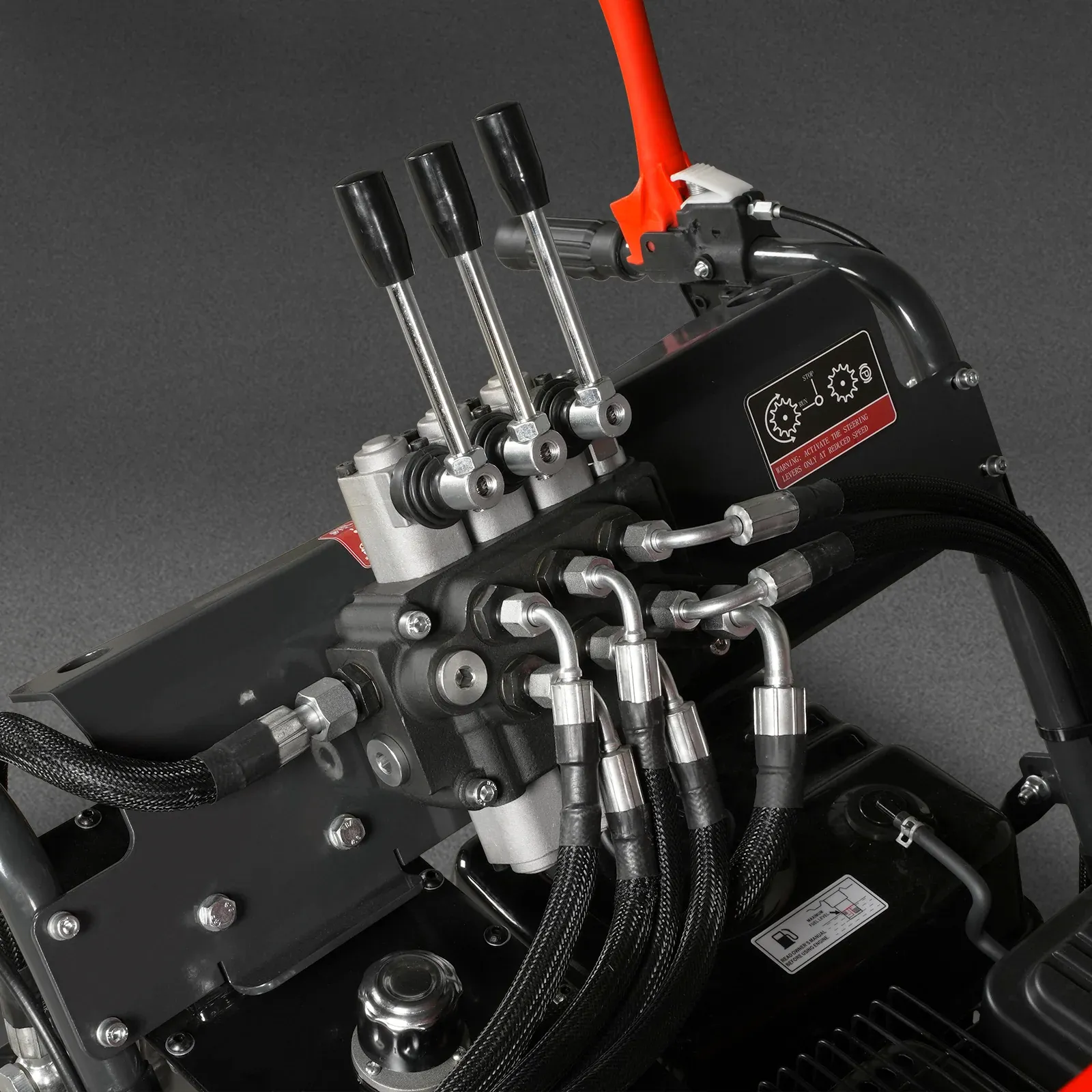

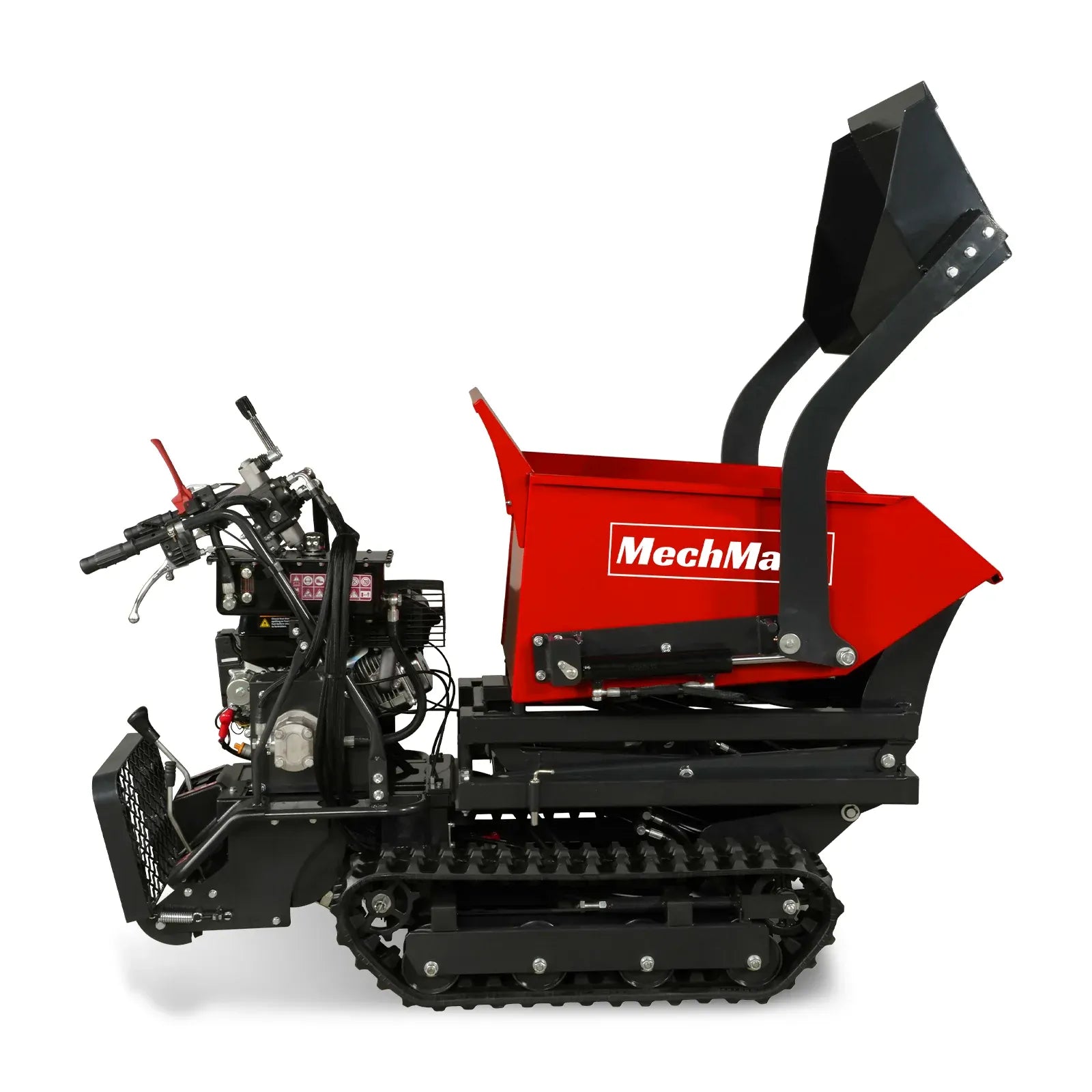

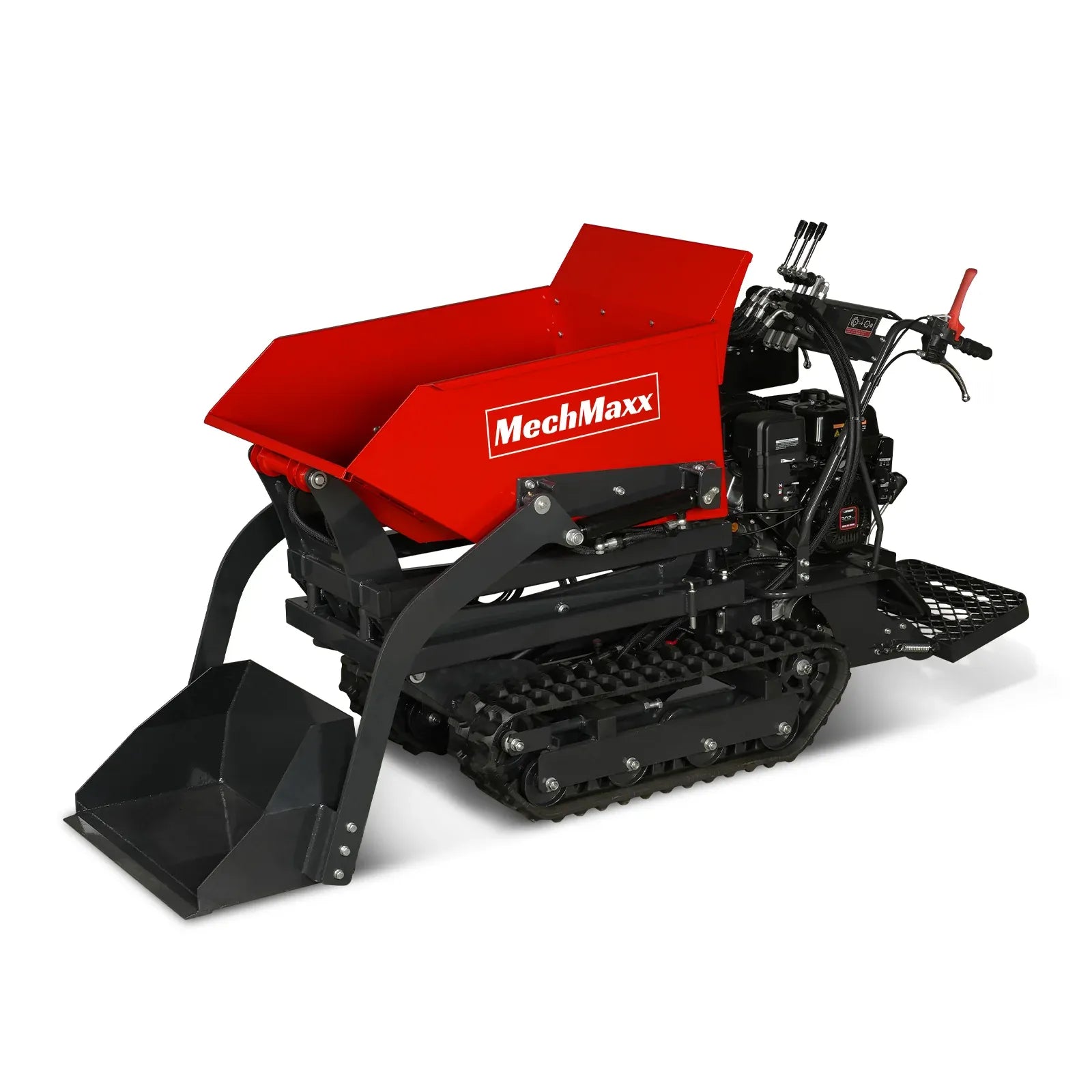

The MechMaxx hydraulic tracked dumper is built with heavy-duty steel construction and a powerful hydraulic system, delivering strong lifting and dumping performance for demanding job site conditions. Equipped with a self-loading shovel and high-tipping bucket, it allows for efficient material handling without the need for additional machinery.

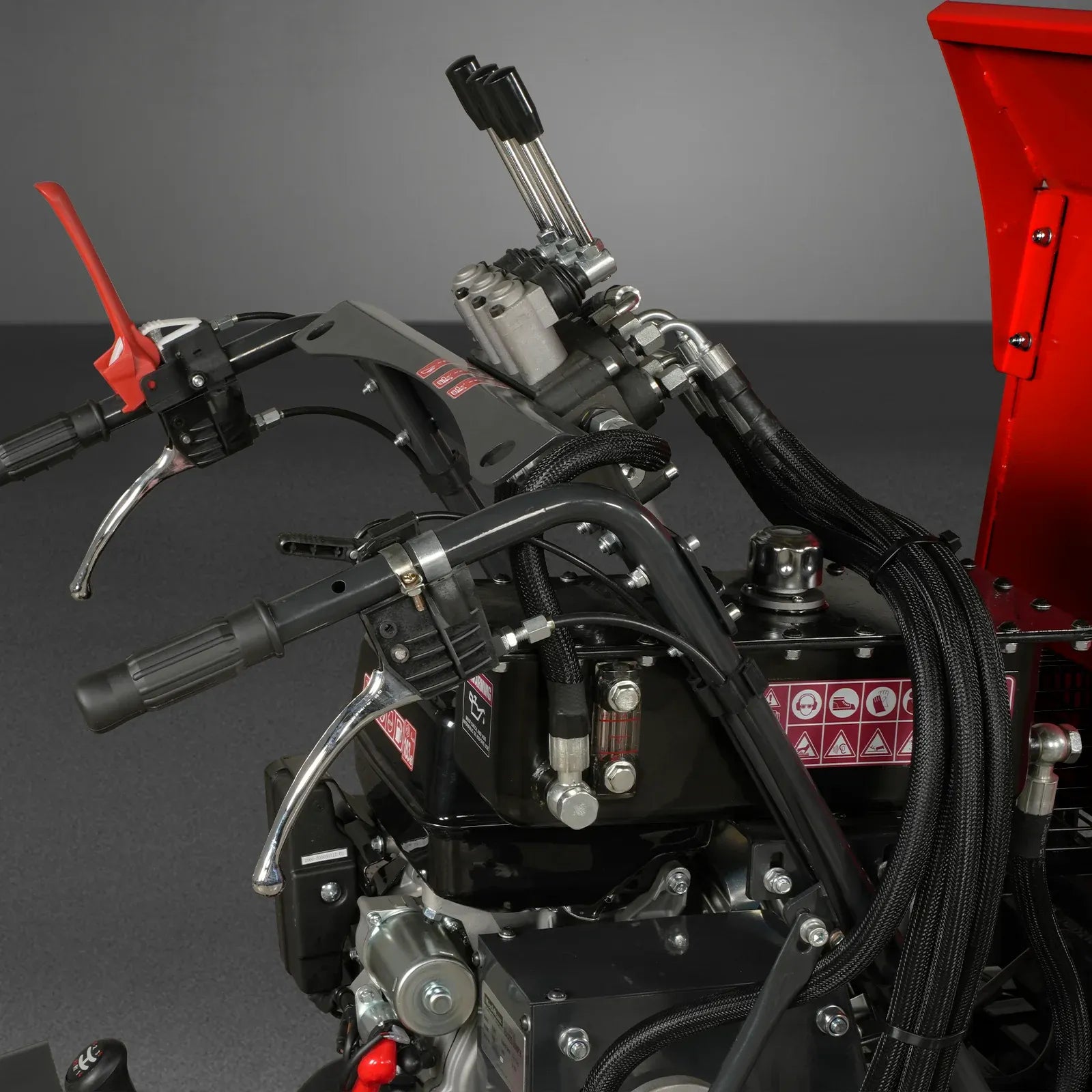

Designed for versatility, this unit features a transmission system with 6 forward and 2 reverse gears, offering improved control and performance compared to friction-driven alternatives.

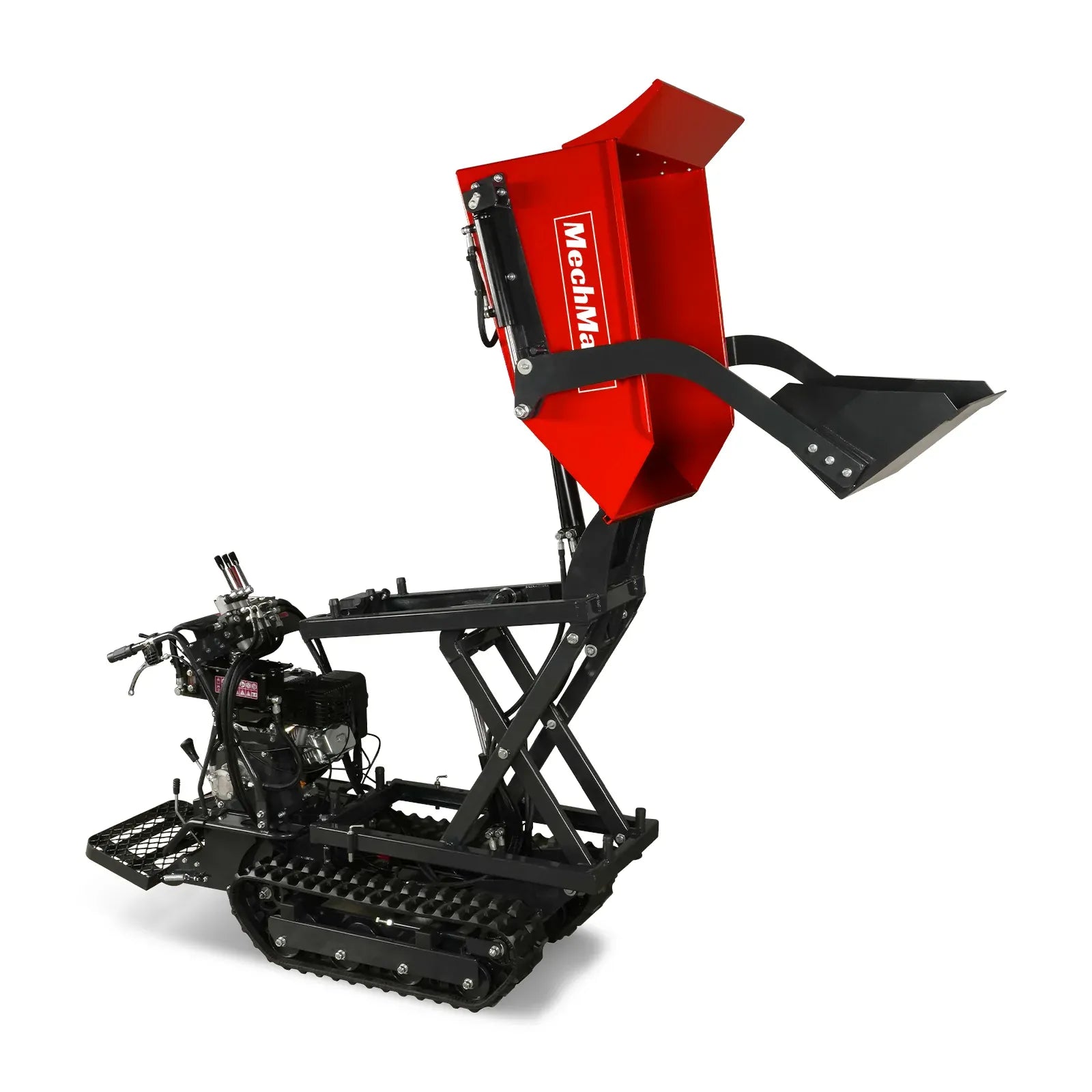

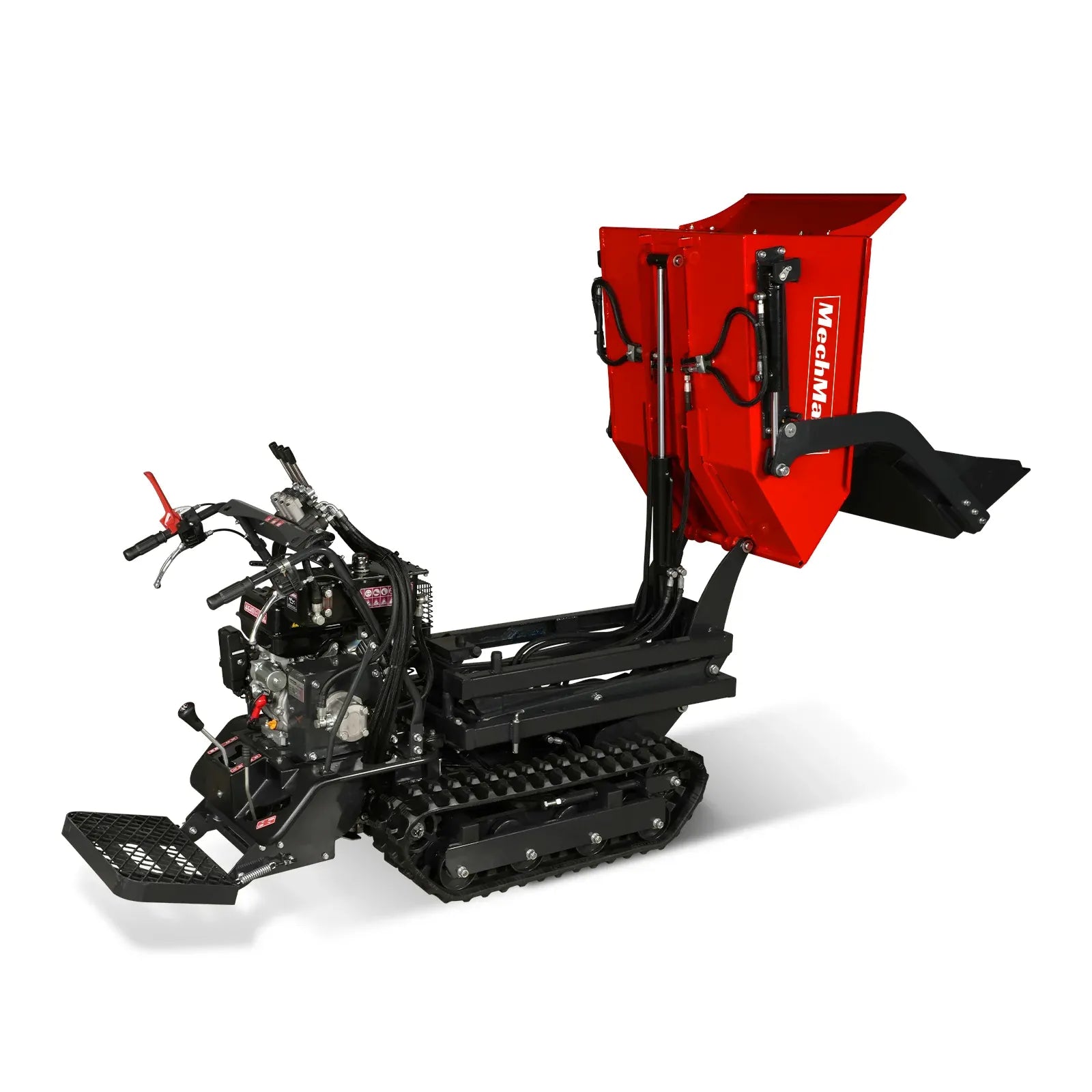

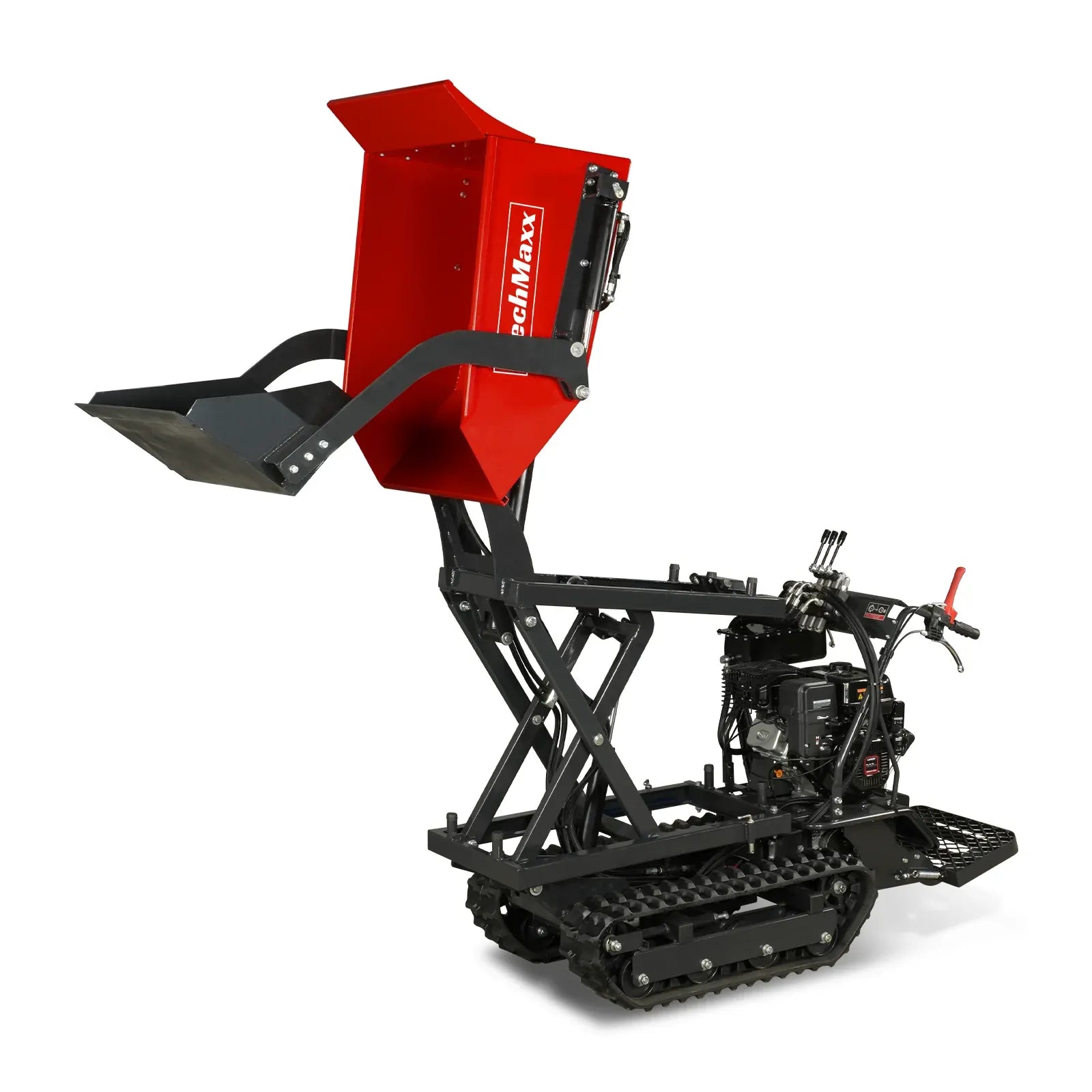

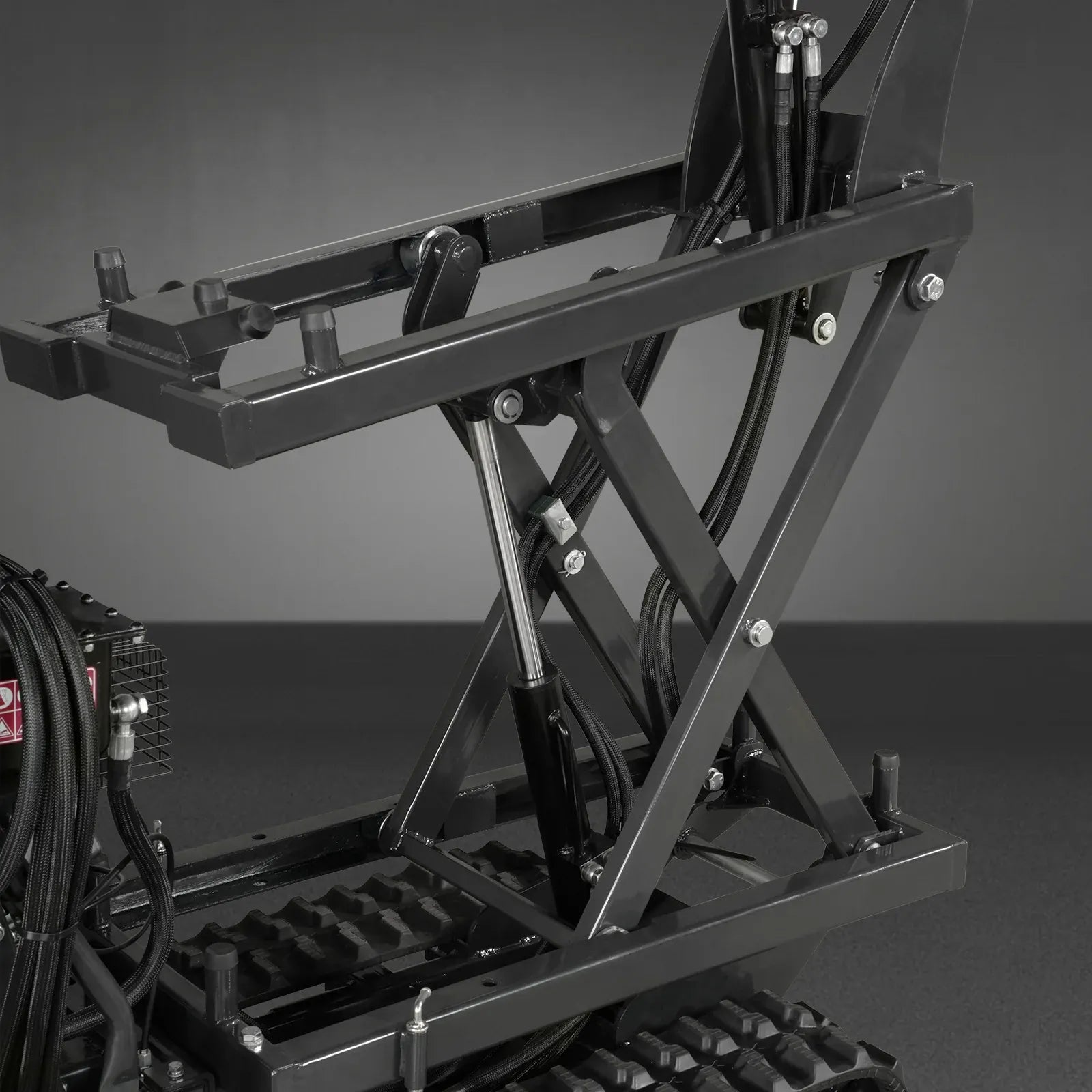

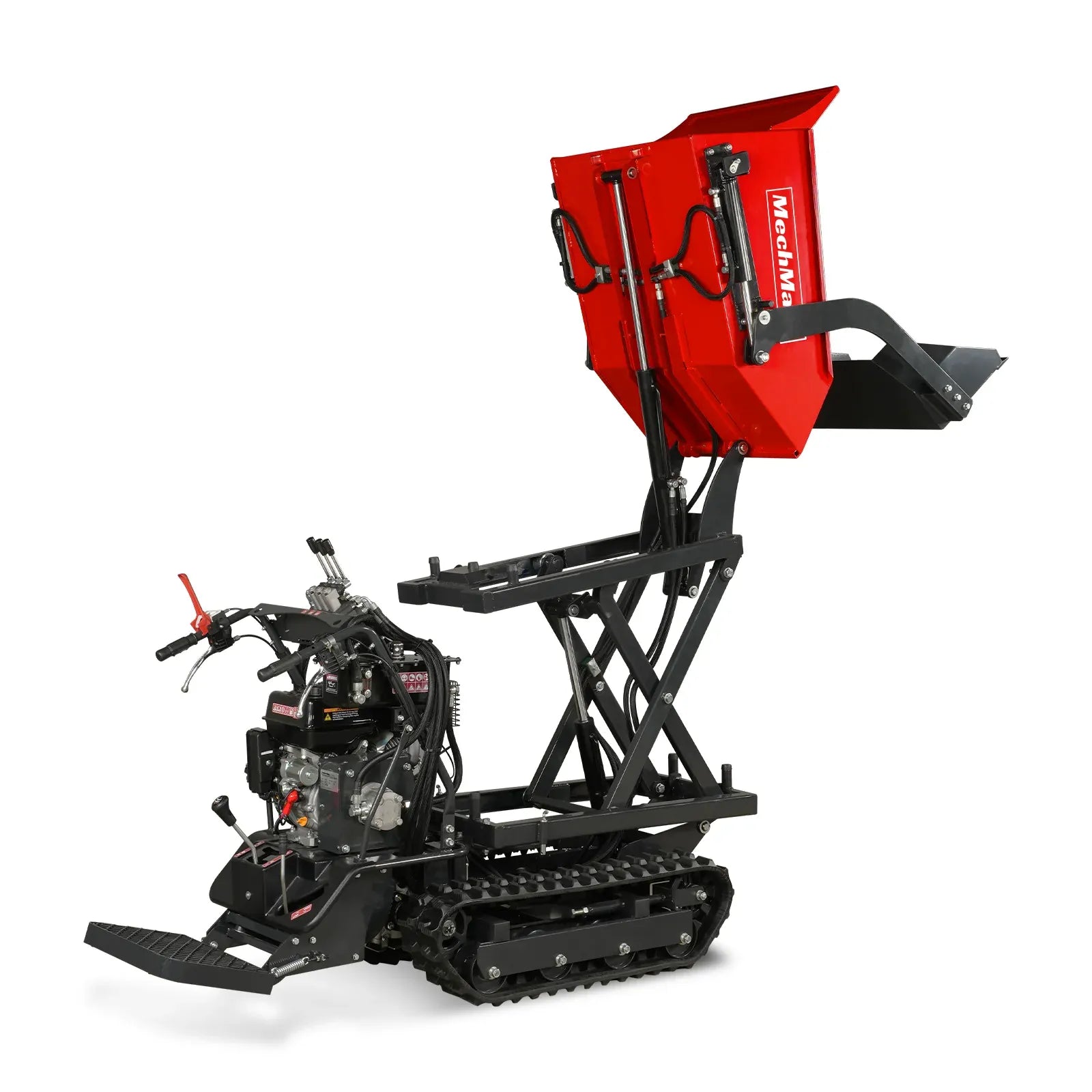

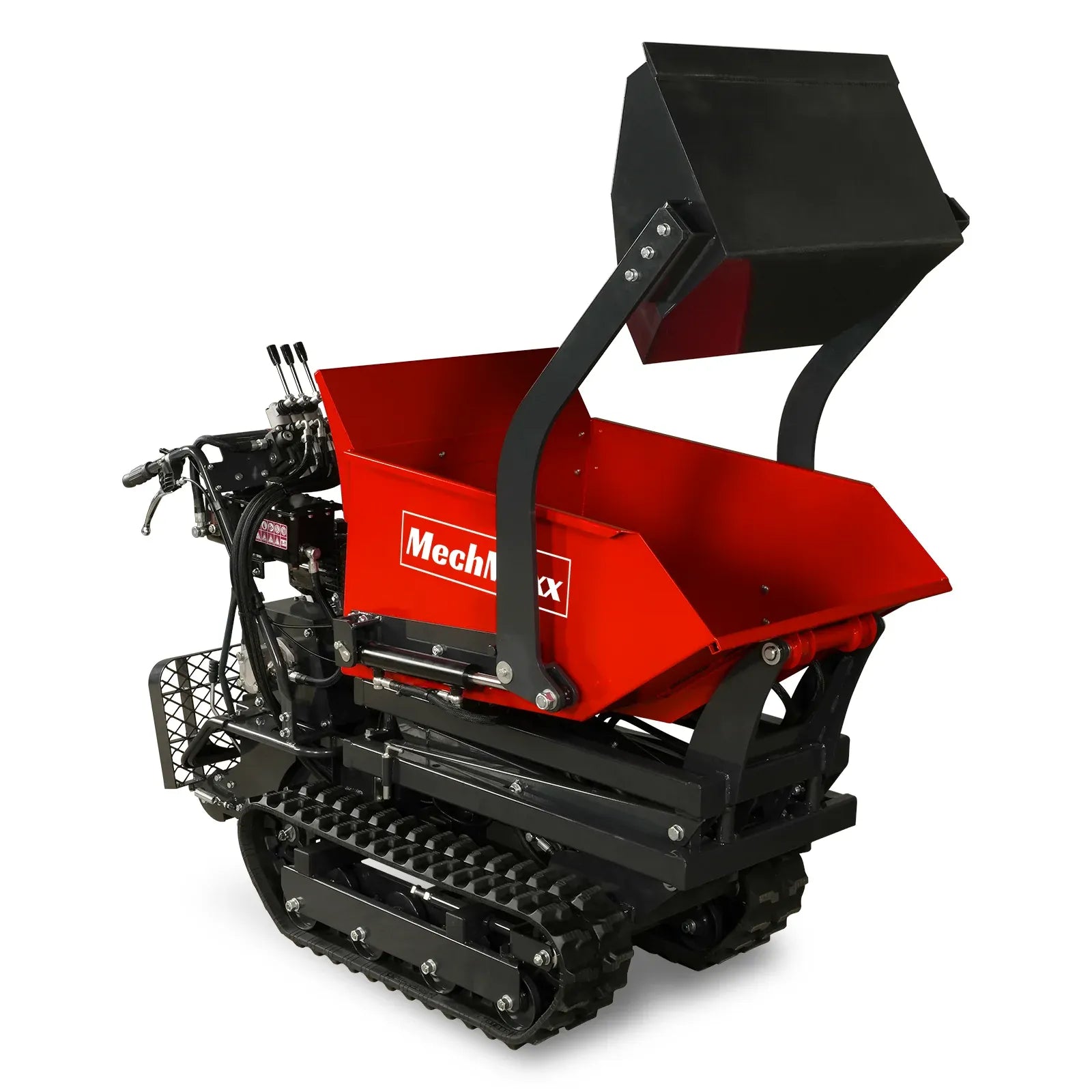

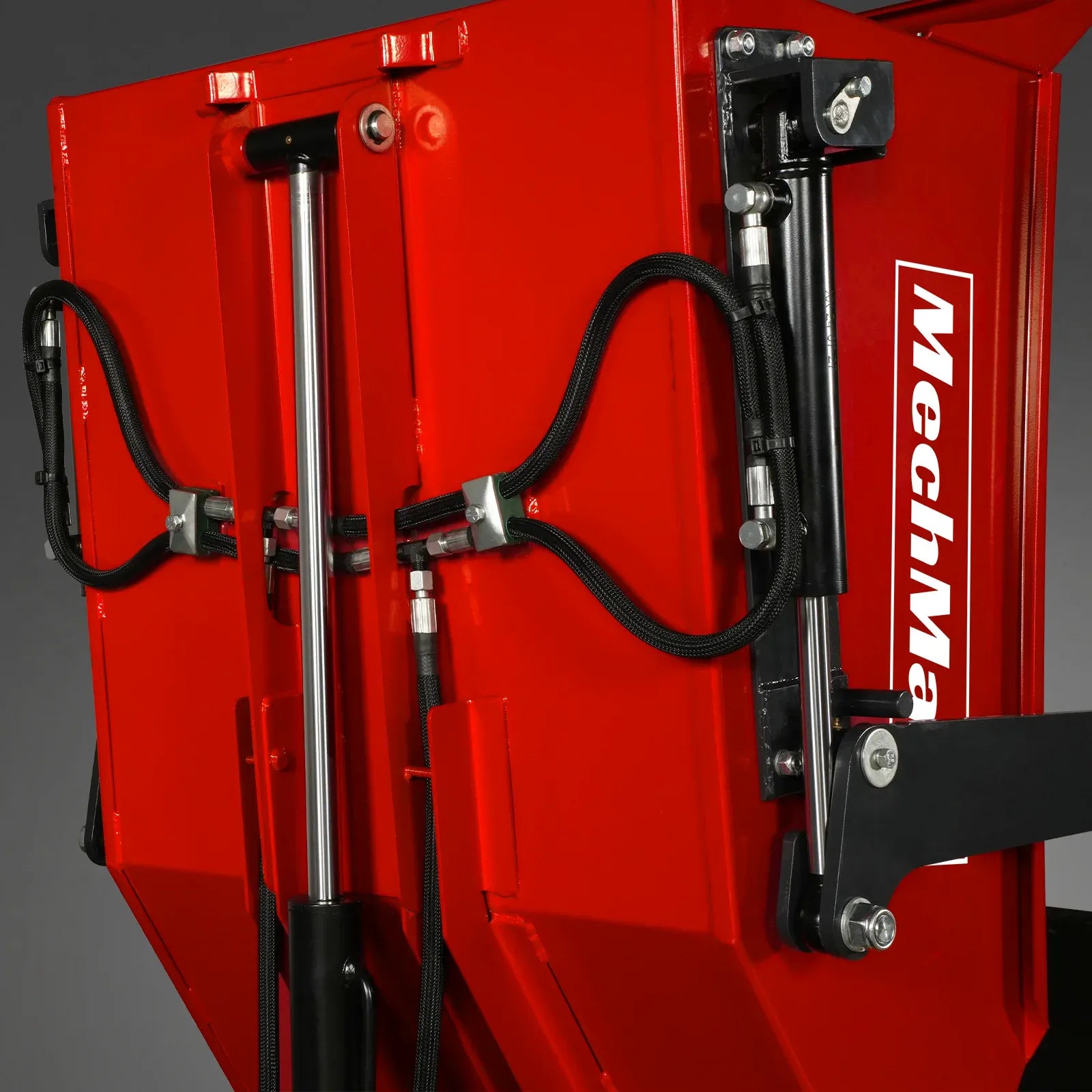

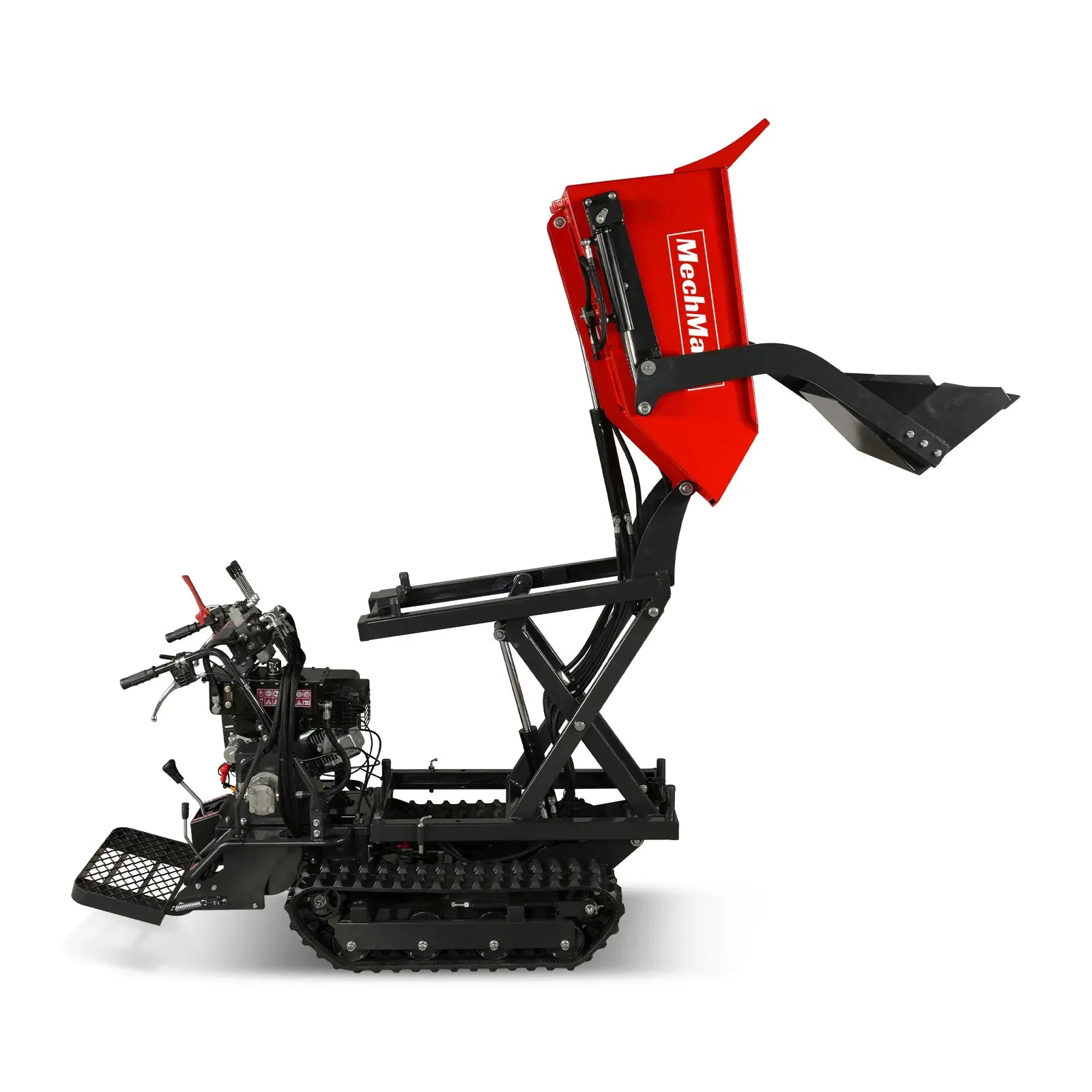

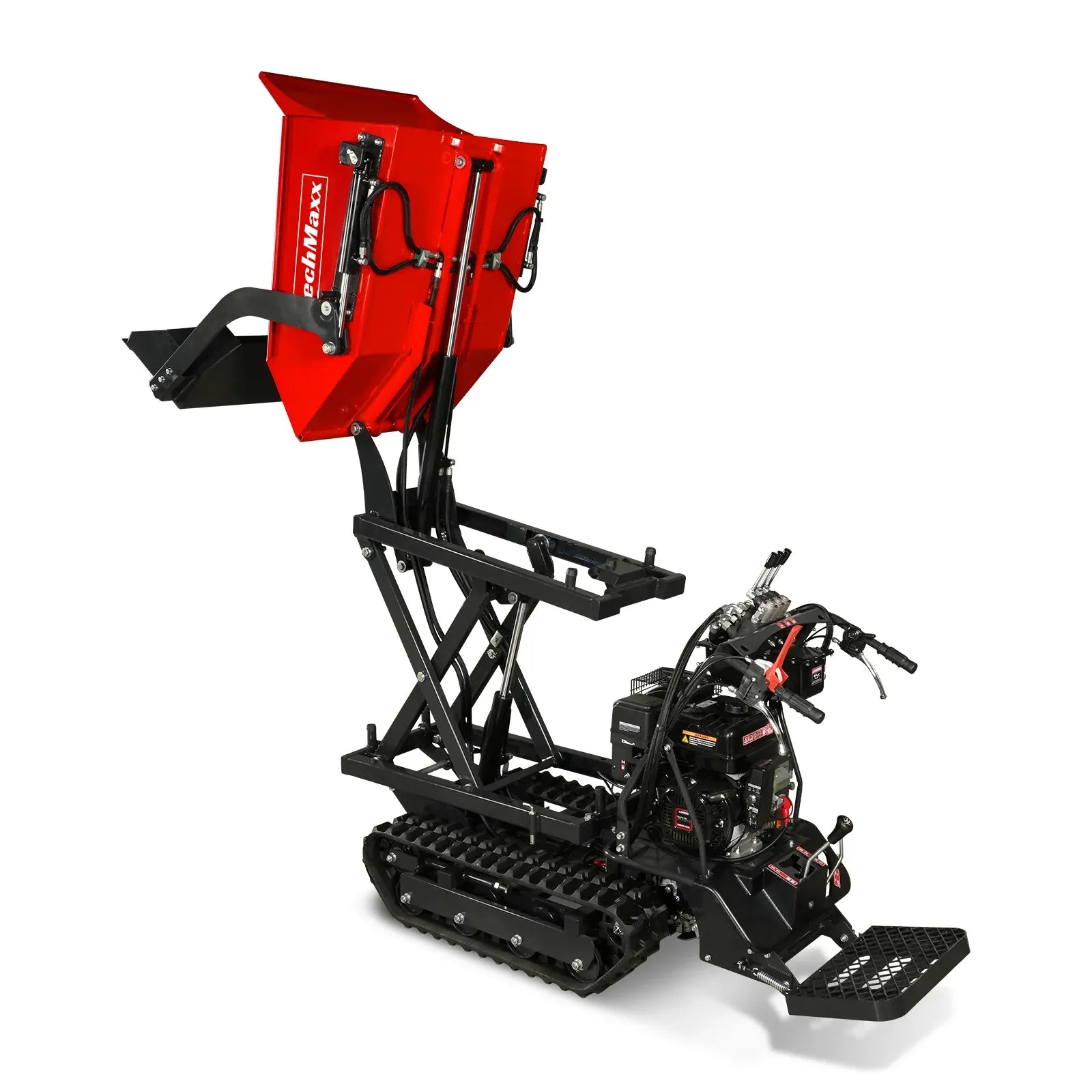

The hydraulic self-loading and high-tip functions allow the machine to independently load, transport, and dump materials, helping reduce labor time and improve overall efficiency on site.

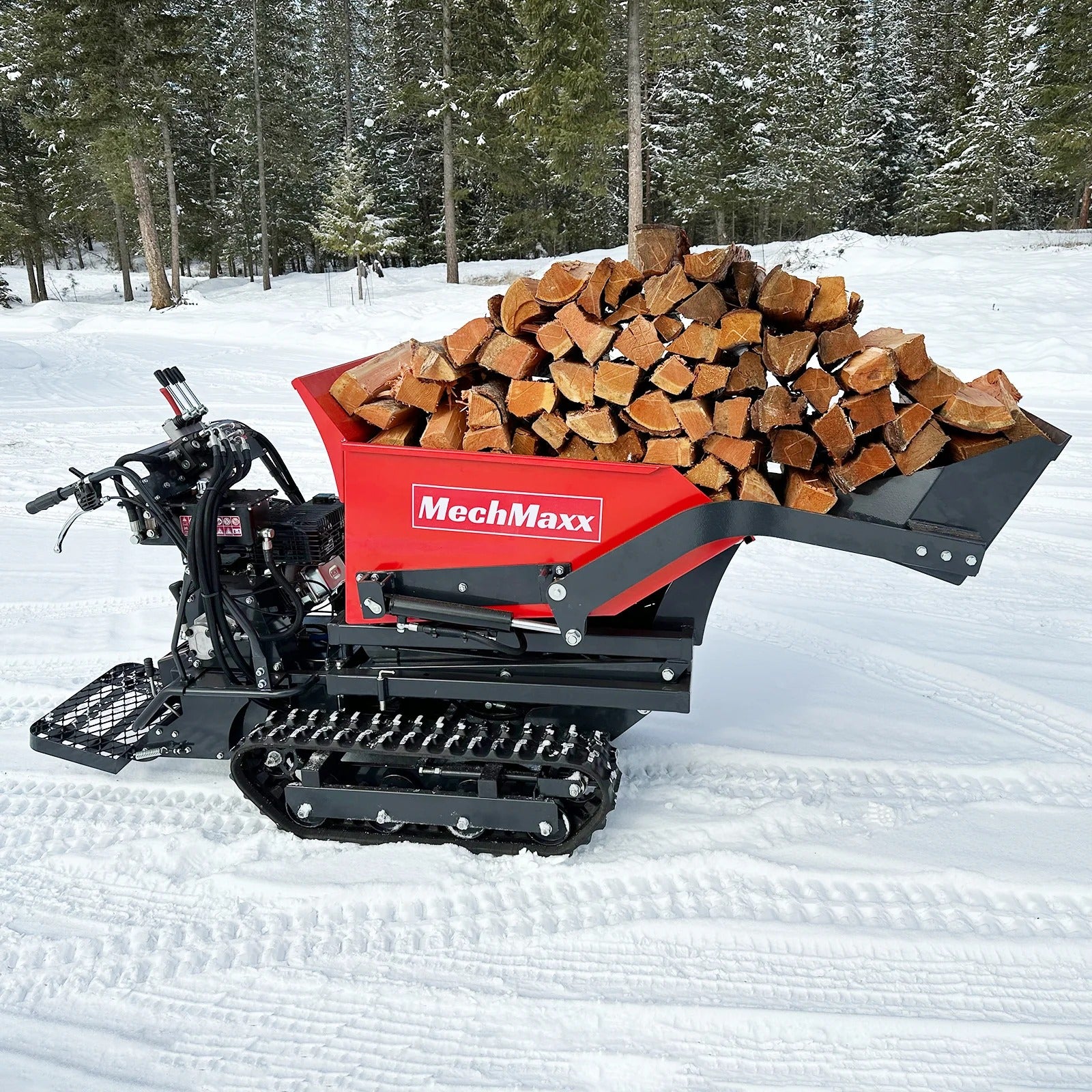

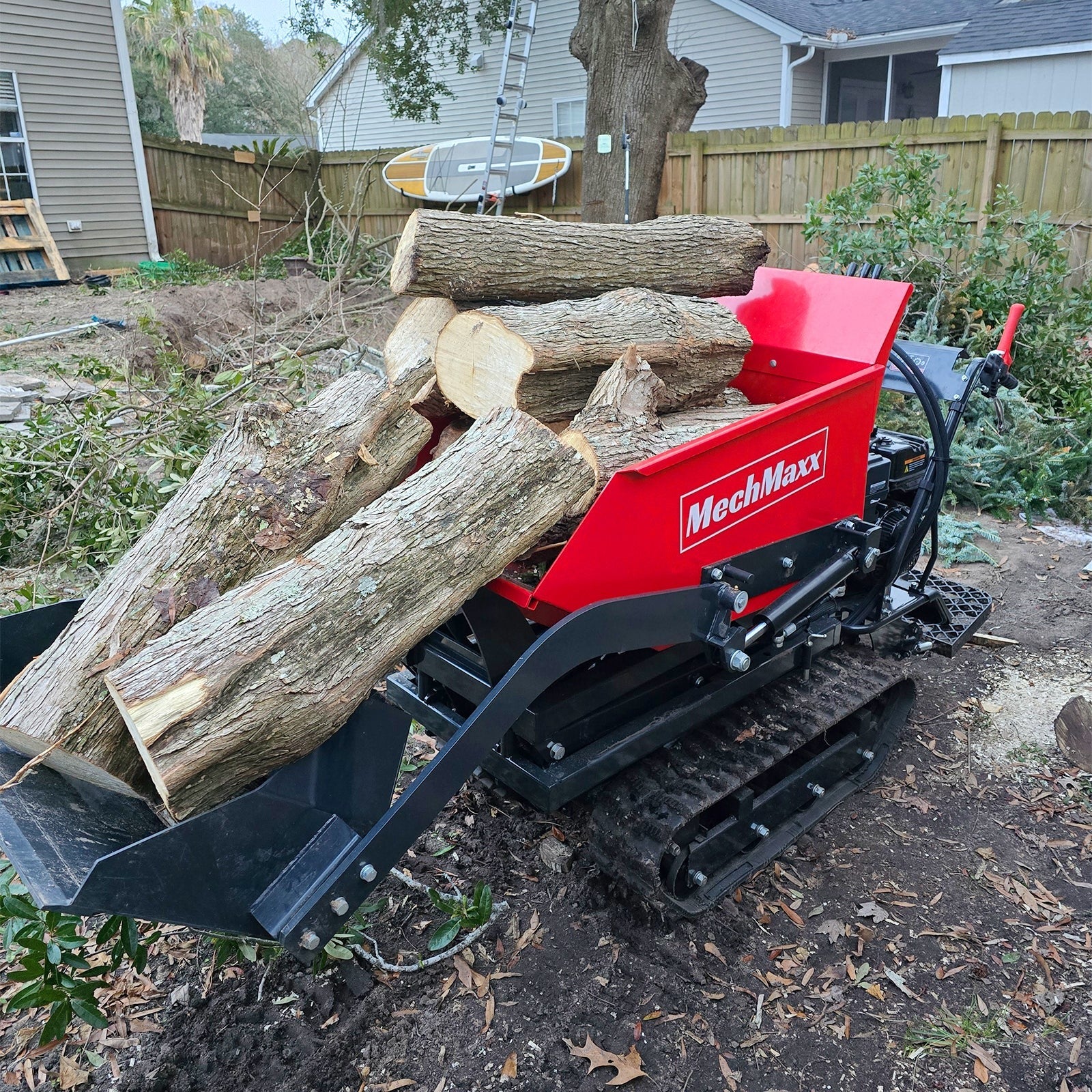

The durable steel bucket provides a capacity of 1100 lbs and 10 cubic feet, making it suitable for transporting a wide range of materials. Its tracked drive system, combined with approximately 4.3 inches of ground clearance, allows it to operate effectively on smooth, slippery, or muddy terrain.
With a compact and narrow design, this dumper is ideal for navigating tight or hard-to-reach areas. A tight turning radius further enhances maneuverability in confined spaces.

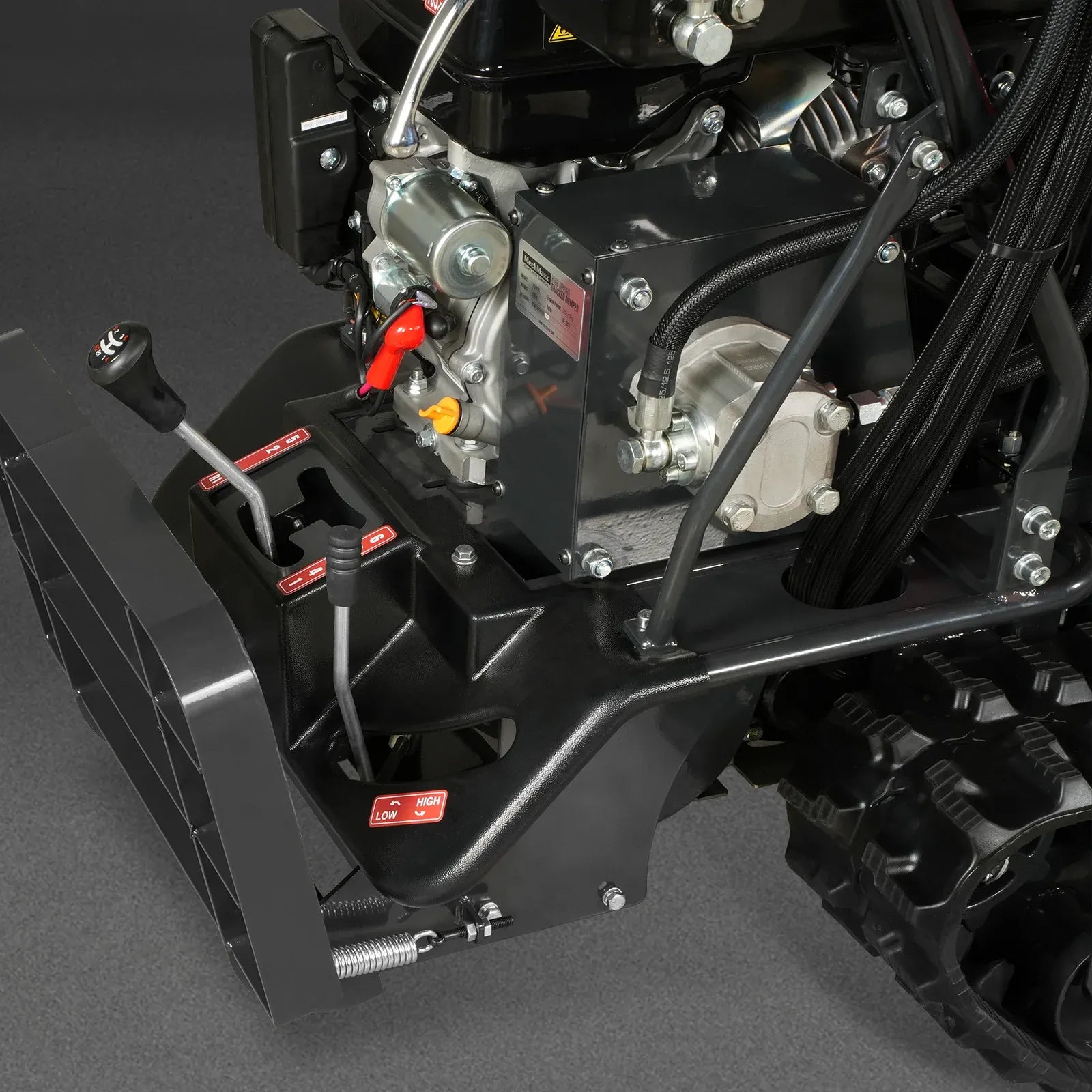

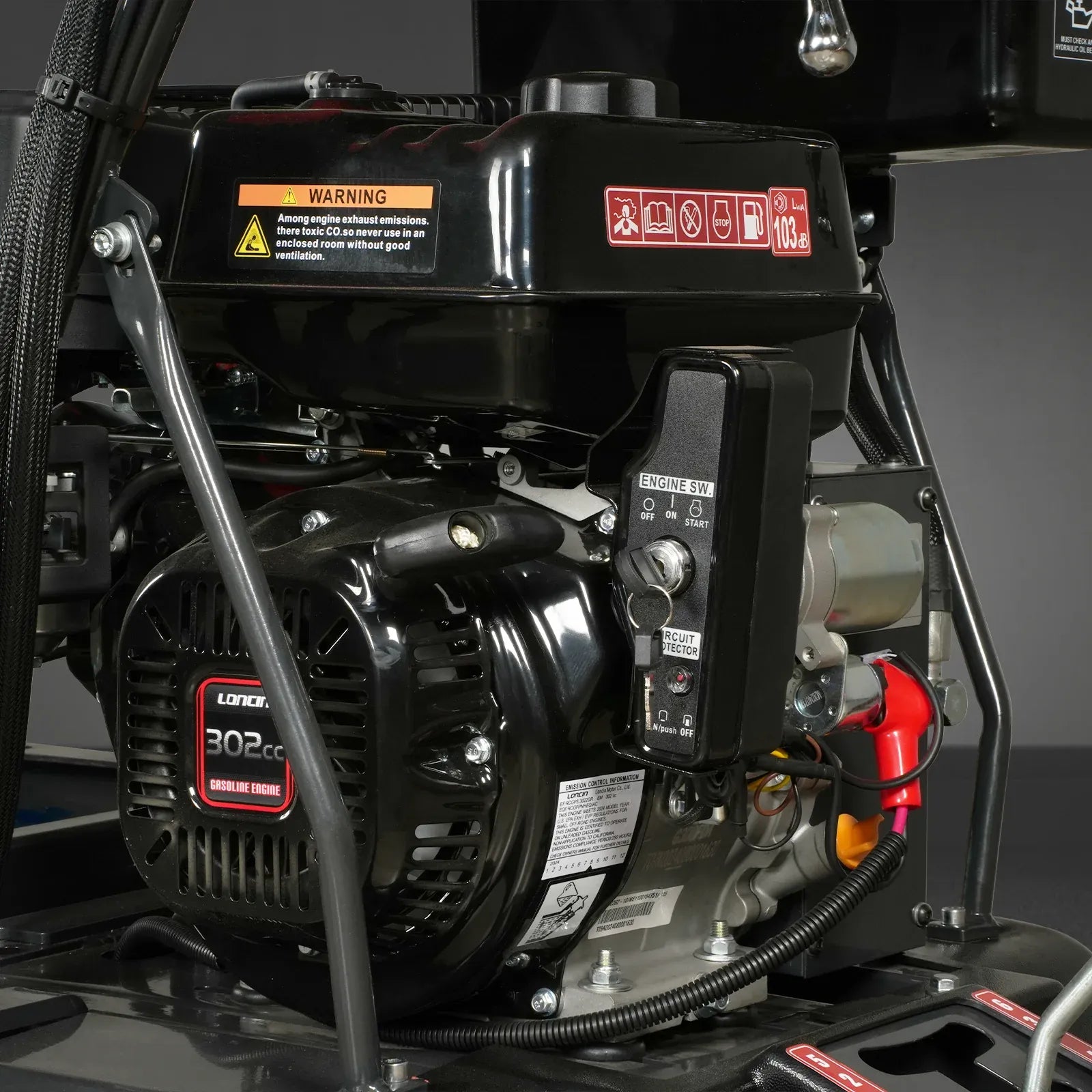

Powered by a 10HP, 302cc single-cylinder, 4-stroke, air-cooled OHV gasoline engine with electric start, the machine delivers reliable performance for a variety of applications.
Fuel & Fluid Requirements:
- Gasoline: Clean, fresh, unleaded gasoline
- Engine Oil: 10W-30
- Hydraulic Oil: AW 46 Hydraulic Oil
Important Notes:
- This machine is shipped without engine oil or fuel. Please add both before starting and refer to the engine manual for proper setup.
- Hydraulic oil is not included. Ensure the system is properly filled before operation.
| Specifications | Details |
|---|---|
| Engine | LONCIN G300FD Gasoline Engine |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Engine Displacement | 302 cc |
| Horsepower | 10 HP |
| Start | Electric Start (Battery Included) |
| Fuel Tank Capacity | 1.59 gal (6L) |
| Engine Oil Capacity | 0.25 gal (0.95L) |
| Hydraulic Oil Capacity | 0.79 gal (3L) |
| Transmission | Transaxle (6 Forward / 2 Reverse Speeds) |
| Forward Speed | 0–4.47 mph |
| Reverse Speed | 0–1.49 mph |
| Max. Gradeability | 30% |
| Loading Capacity | 1100 lbs |
| Bucket Capacity | 10 cu.ft. |
| Shovel Capacity | 1.8 cu.ft. |

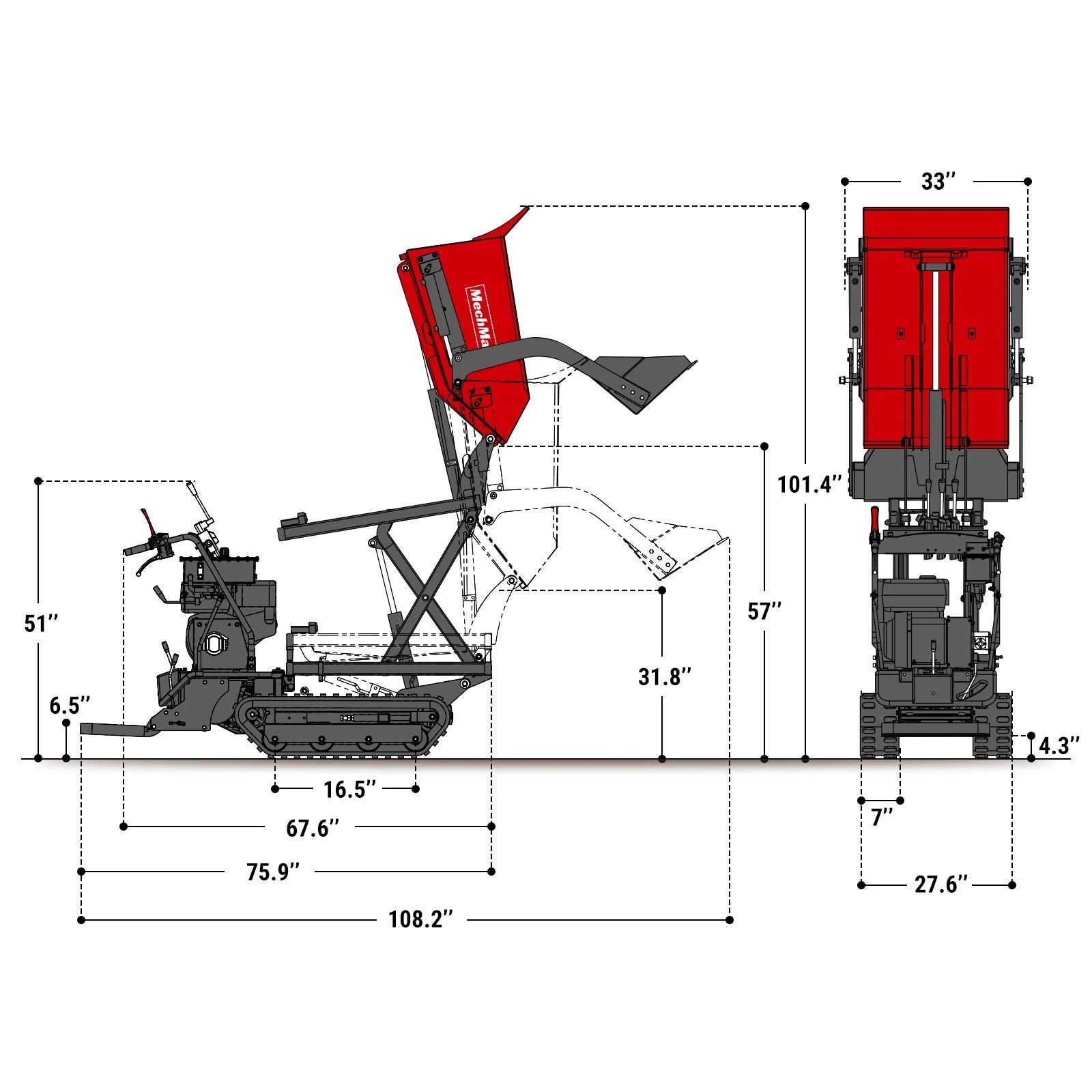

| Overall Width | 33 in |
| Max. Dumping Height | 57 in |
| Bucket Size | 39.9 x 27.5 x 17.7 in |
| Track Width | 7 in |
| Ground Clearance | 4.3 in |
| Working Pressure | 16 MPa |
| Track Roller | 8 pcs |
| Track Size | 180W x 60P x 38L |
| Package Method | Iron Frame |
| Packing Size | 75.5 x 30 x 51 in |
| Weight (N.W. / G.W.) | 930 / 1012 lbs |
