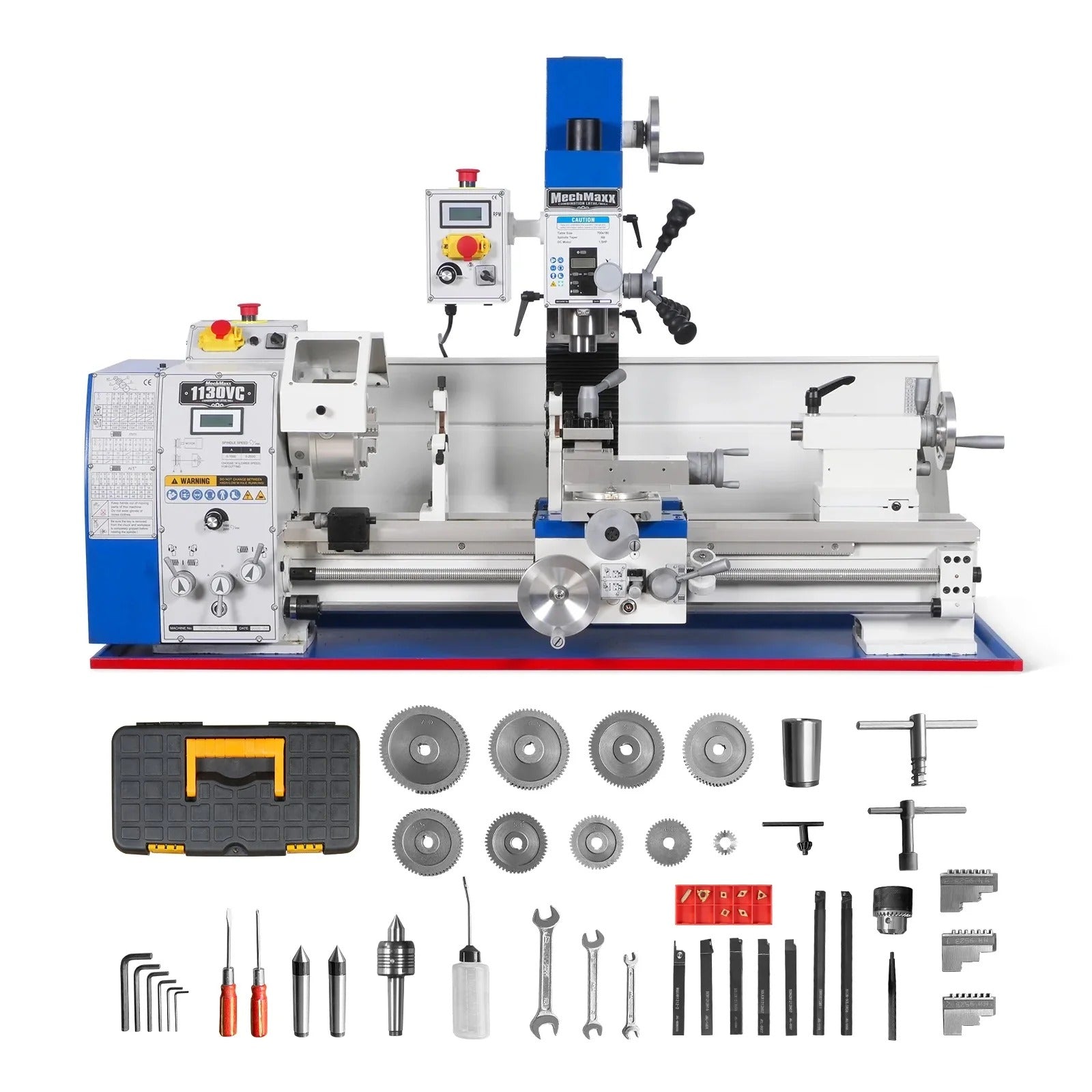

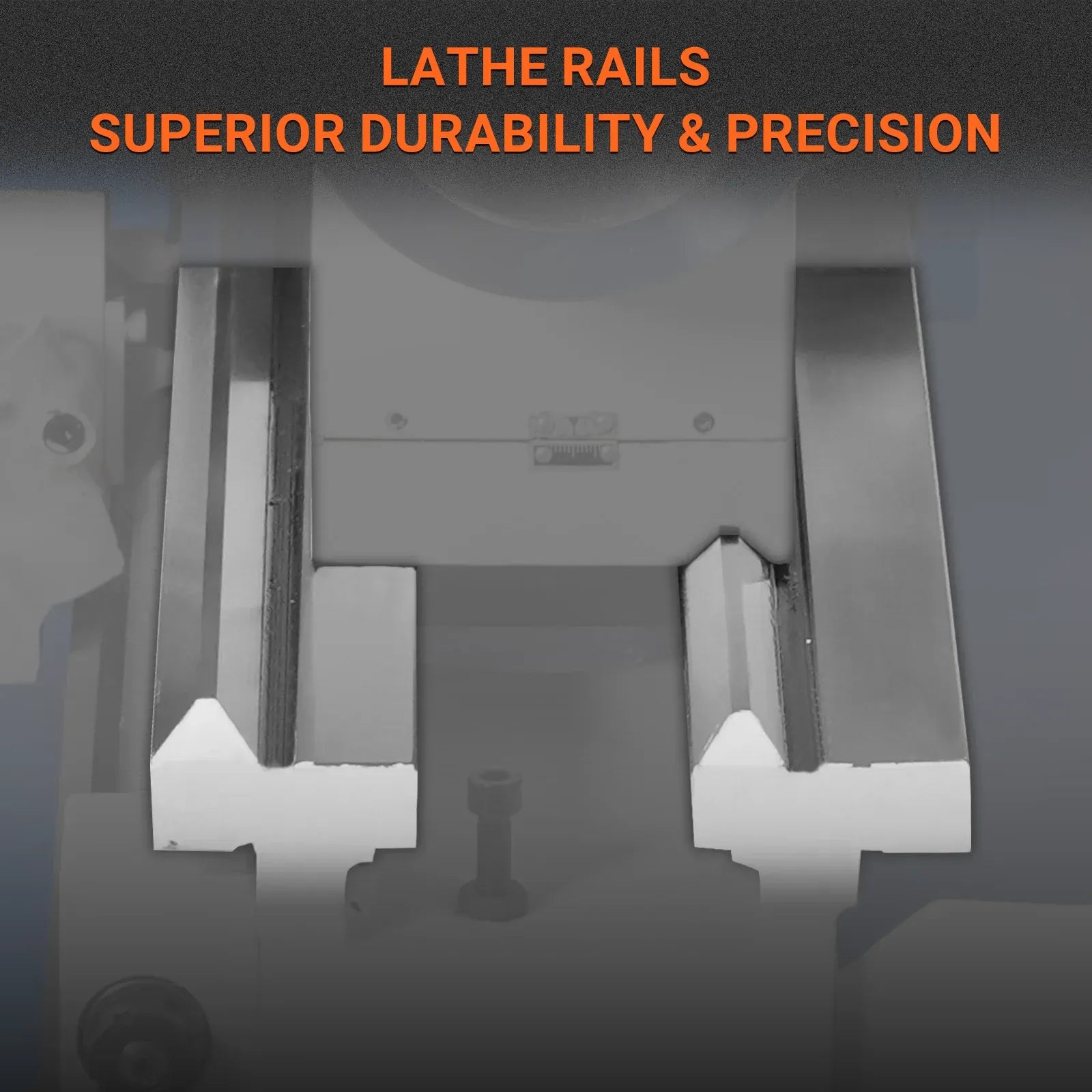

MechMaxx 11x30 Combination Lathe Milling Drilling Machine, Model 1130VC
SKU: 500102
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Key Features & Benefits
- Powerful 2 HP Lathe Motor – Runs on 110V single-phase power with a 20A requirement, delivering strong performance for turning, threading, and general machining applications.
- Large Turning Capacity – 11-2/5" swing over bed and 29-1/2" distance between centers allow machining of a wide variety of workpiece sizes.

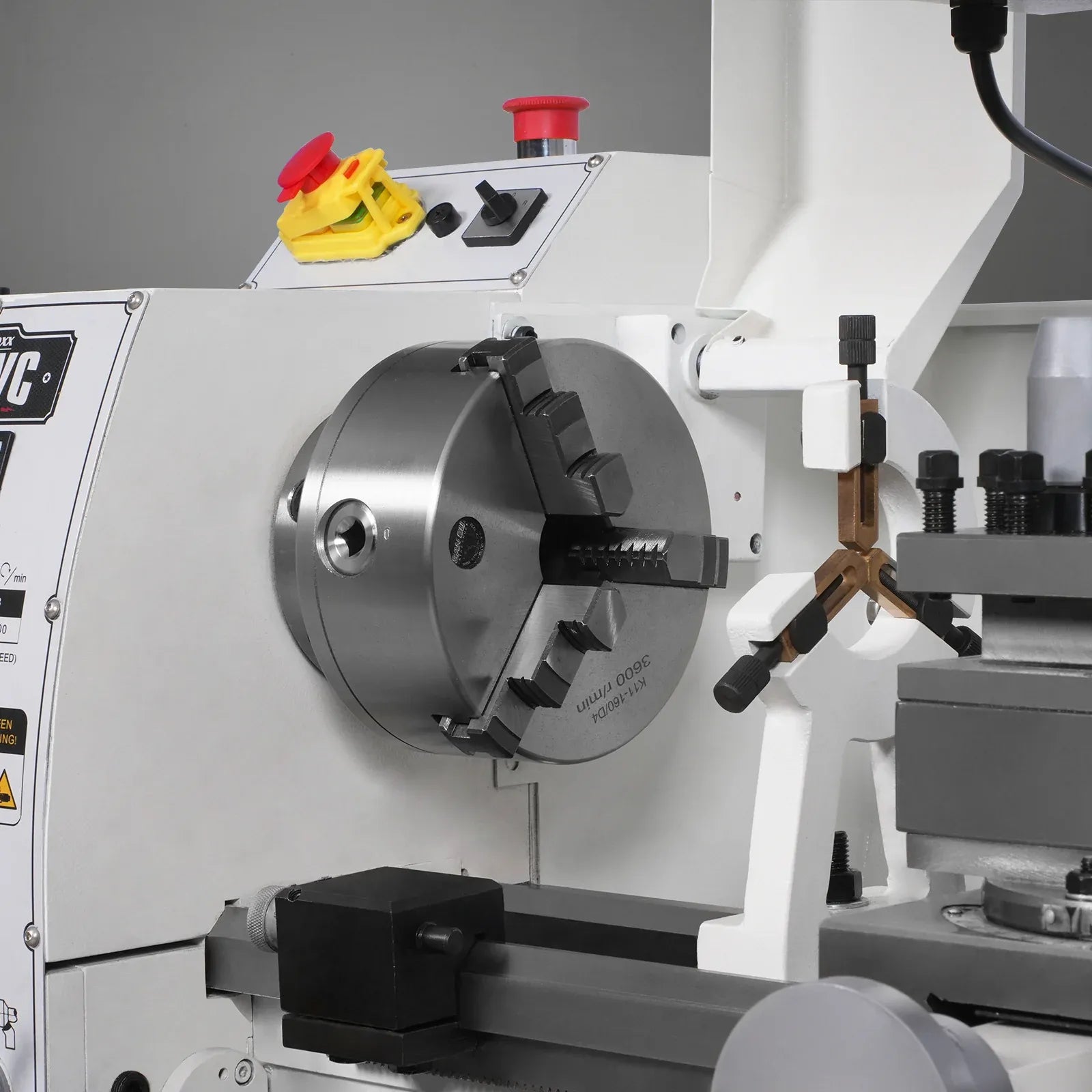

- 1-1/2" Spindle Bore with D1-4 Camlock Mount – Supports larger stock material and provides secure chuck mounting for improved rigidity and accuracy.

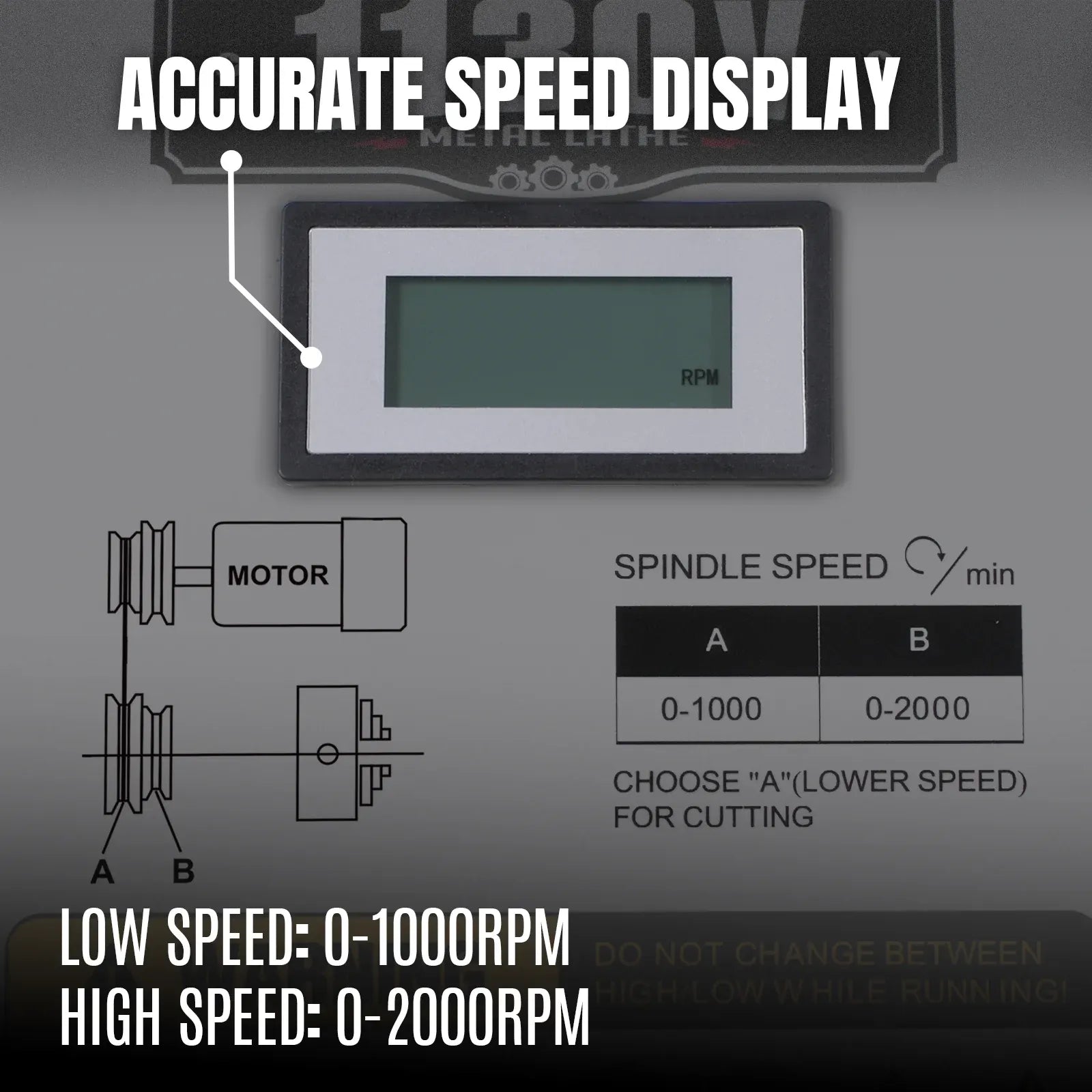

- Variable Speed Spindle Control – Adjustable 0–2000 RPM spindle speed gives excellent flexibility for precision turning across different materials.

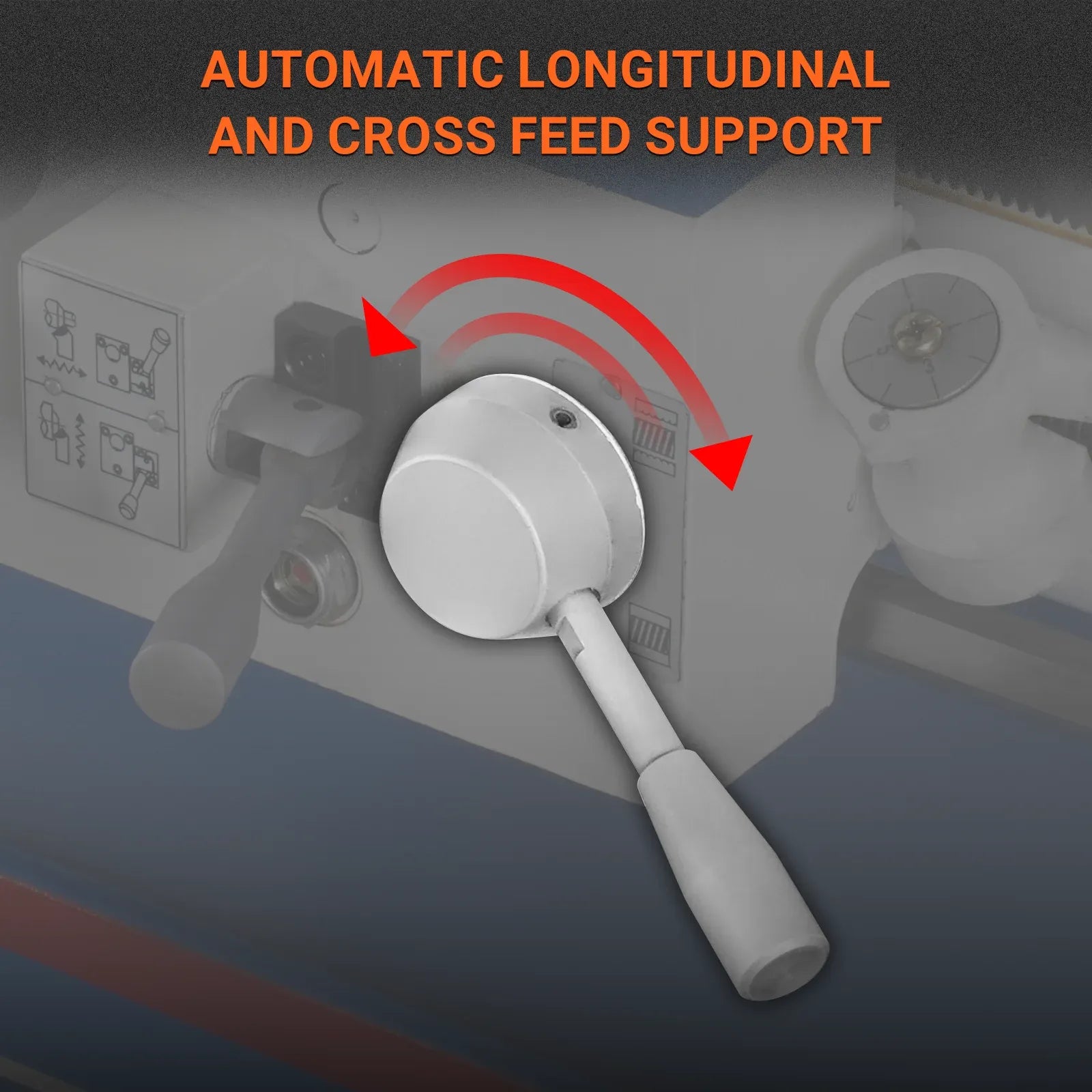

- Precision Feed & Threading Capability – Longitudinal and transverse feed rates provide smooth cutting performance while supporting both inch and metric threading.

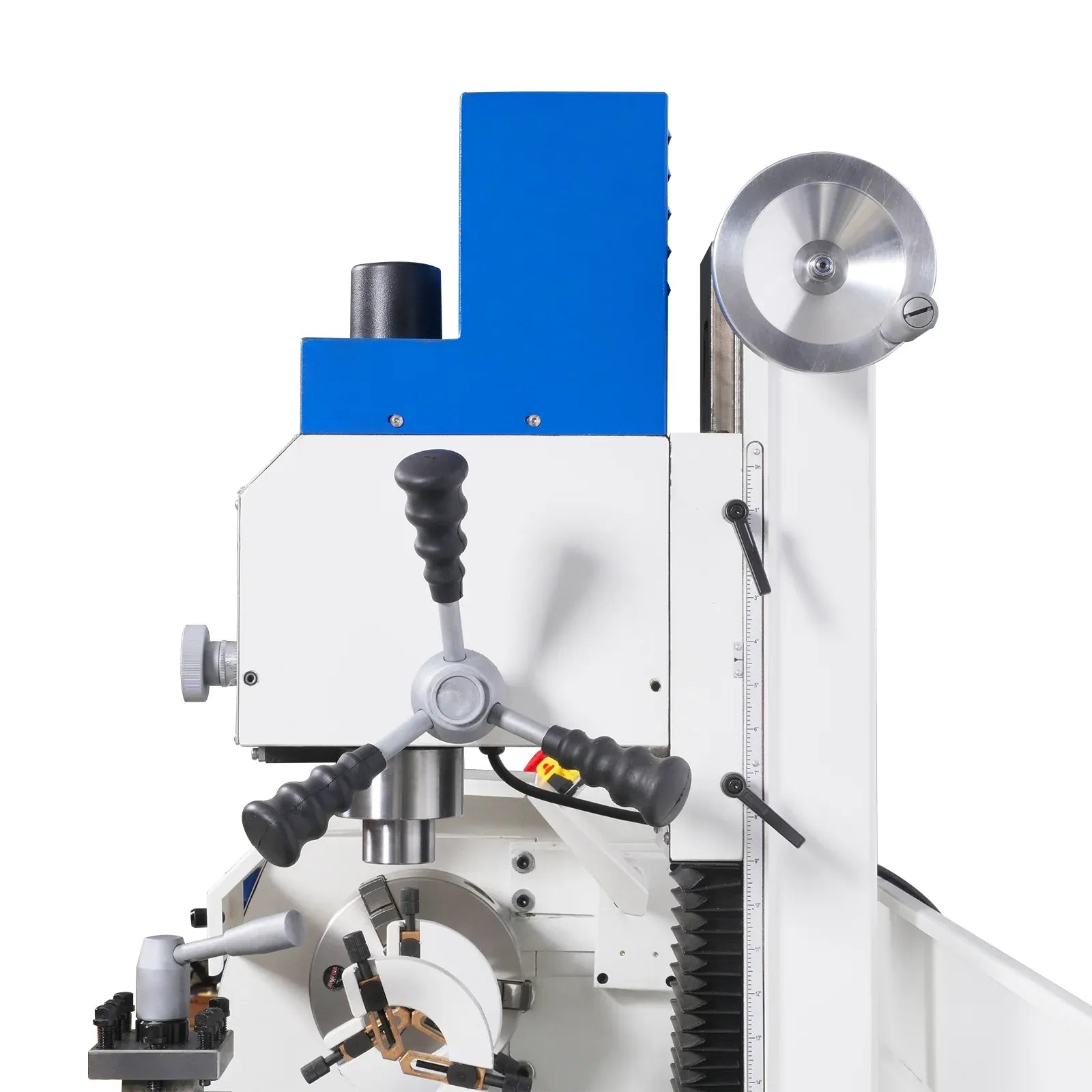

- Integrated Mill/Drill Head – Equipped with a powerful 1.5 HP brushless milling motor and variable 0–2500 RPM spindle speed for drilling, milling, and facing operations.
- R8 Milling Spindle – Industry-standard R8 taper ensures compatibility with a wide range of tooling and accessories.
- Tilting Mill Head – ±90° adjustable head allows angled drilling and milling for increased machining versatility.
- Generous Vertical Milling Travel – 14-1/2" vertical travel and 2" quill stroke provide excellent clearance for larger workpieces and tooling setups.
- Compact Combination Machine Design – Combines lathe, drill, and milling functionality into one space-saving machine ideal for garages, hobby shops, and fabrication environments.
Lathe Specifications
| Specifications | Details |
|---|---|
| Motor Power (Lathe) | 2 HP, 110V, Single-Phase, 20A |
| Swing Over Bed | 11-2/5" (290 mm) |
| Swing Over Cross Slide | 7-1/4" (185 mm) |
| Swing Over Saddle | 5-3/4" (147 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |
| Bed Width | 7" (180 mm) |

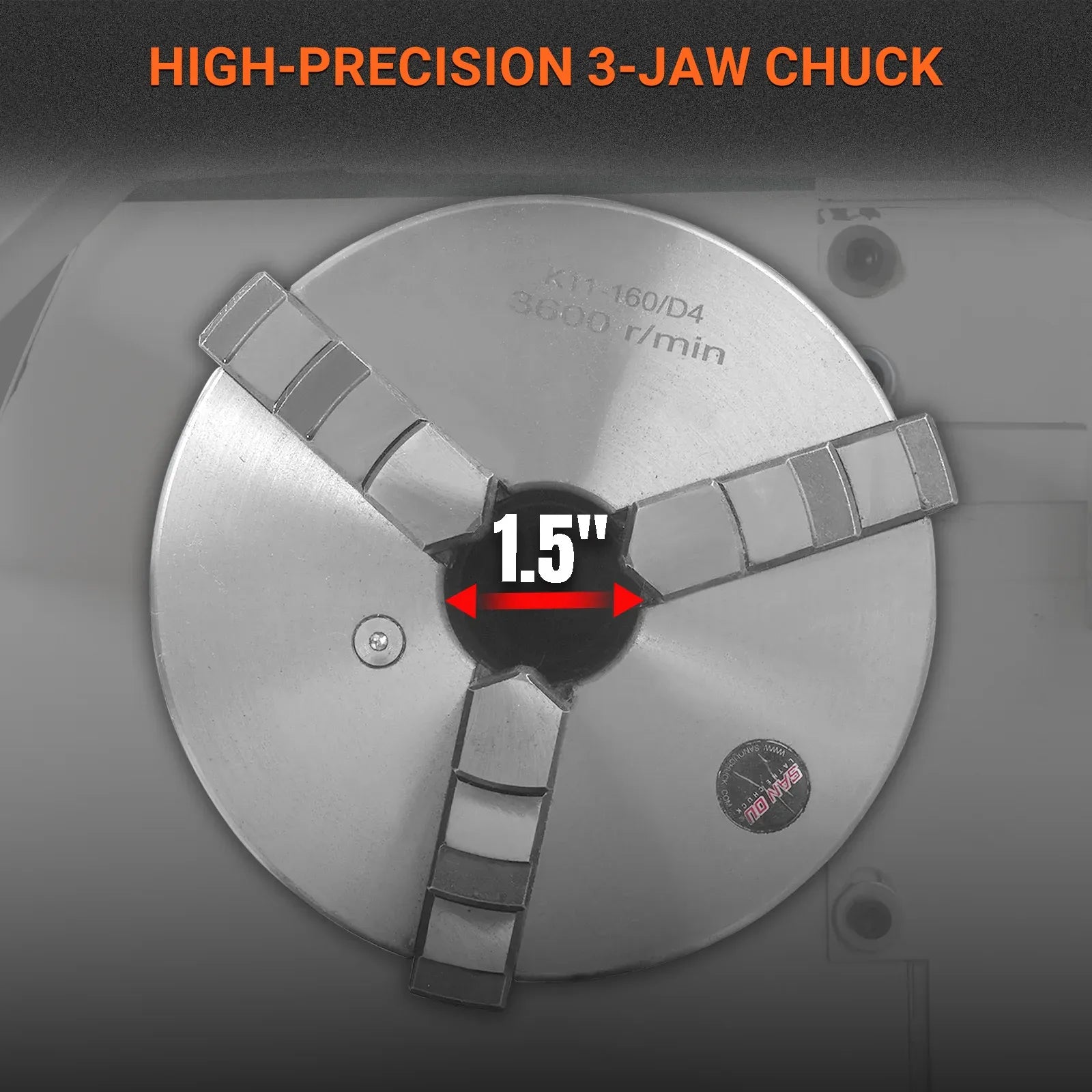

| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | D1-4 |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#3 |

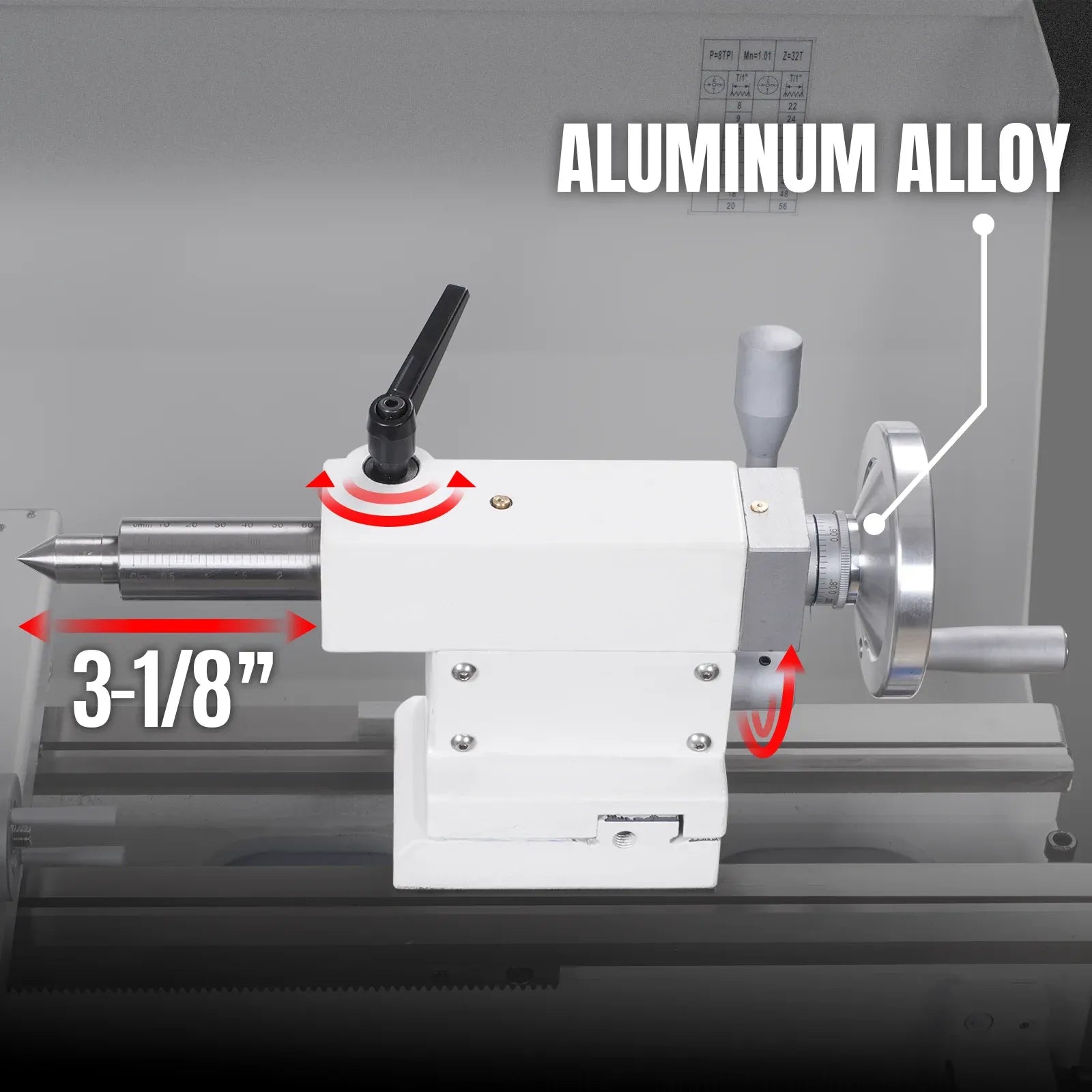

| Tailstock Quill Travel | 3-1/8" (85 mm) |

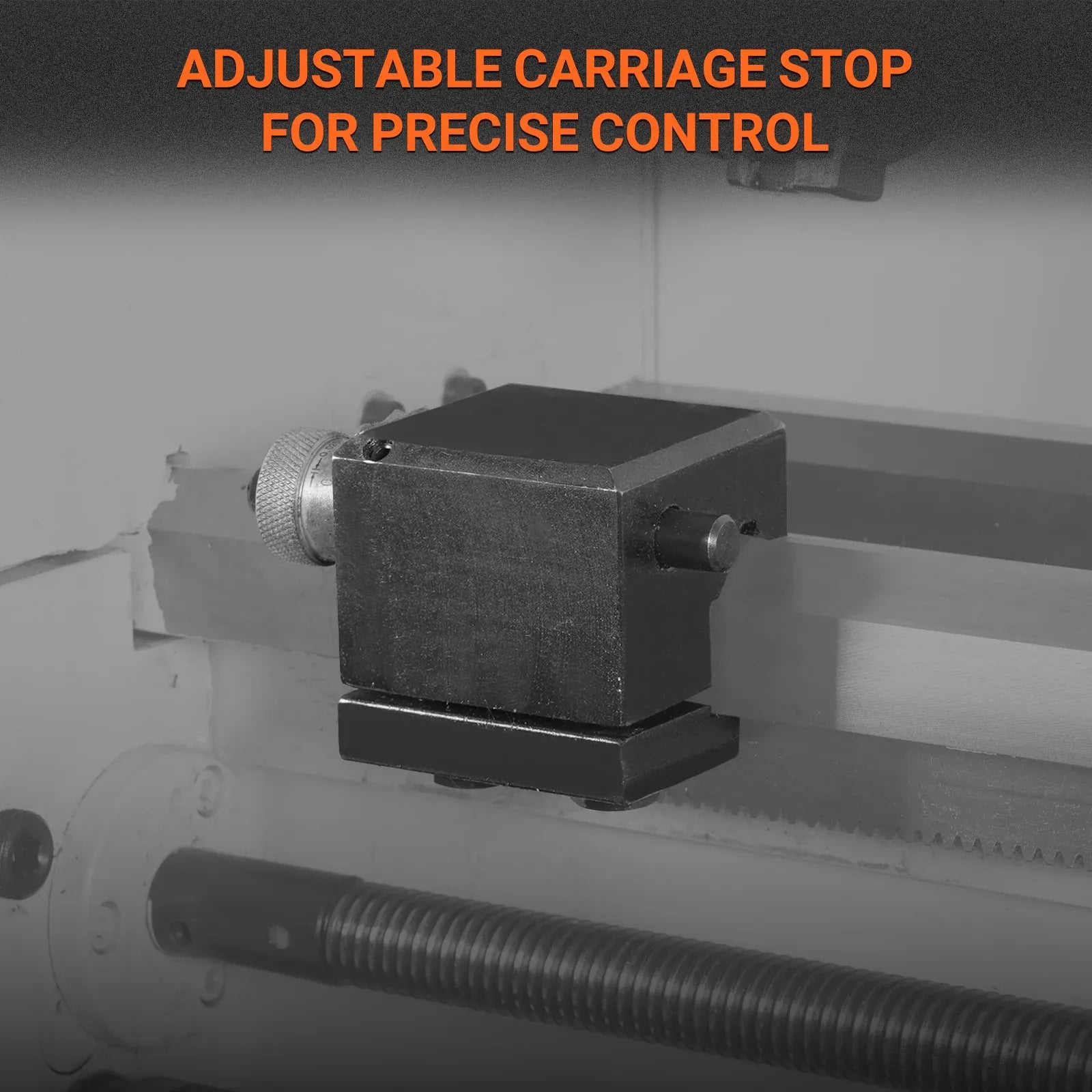

| Carriage Travel | 27-1/2" (700 mm) |

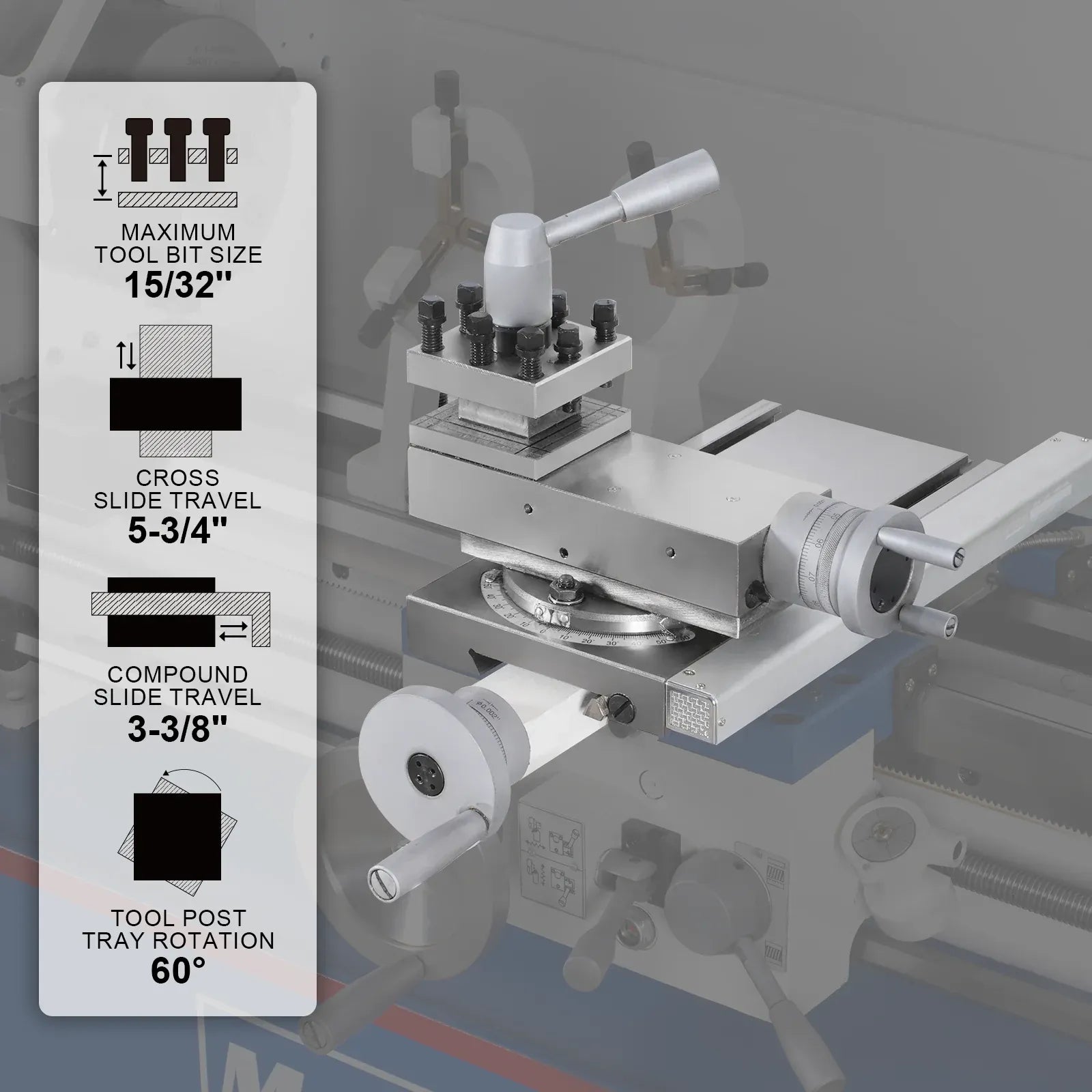

| Cross Slide Travel | 5-3/4" (147 mm) |
| Compound Slide Travel | 3-3/8" |
| Spindle Speed Range | 0–2000 RPM |
| Speed Control | Variable |
| Longitudinal Feed Rate | 0.017–0.25 mm/rev (0.0007–0.0098 in./rev.) |
| Transverse Feed Rate | 0.07–0.53 mm/rev (0.0027–0.02 in./rev.) |
| Leadscrew Size & Pitch | 20 mm (8 TPI) |
| Threading Capacity – Inch | 8–56 TPI |
| Threading Capacity – Metric | 0.4–3.5 mm |

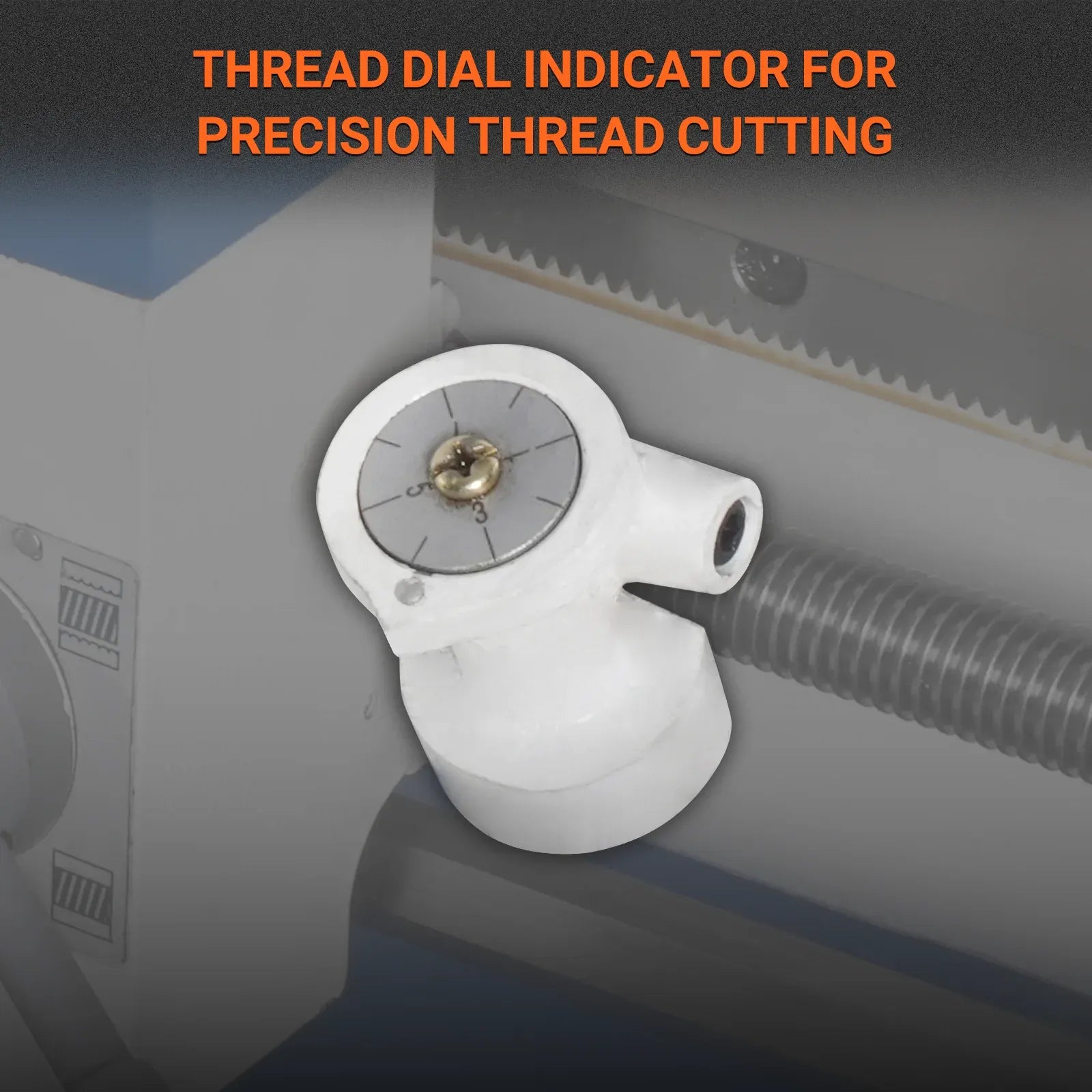

| Thread Dial Indicator | Yes |
| Tool Post Type | 4-Way |
| Maximum Tool Bit Size | 15/32" (12 mm) |

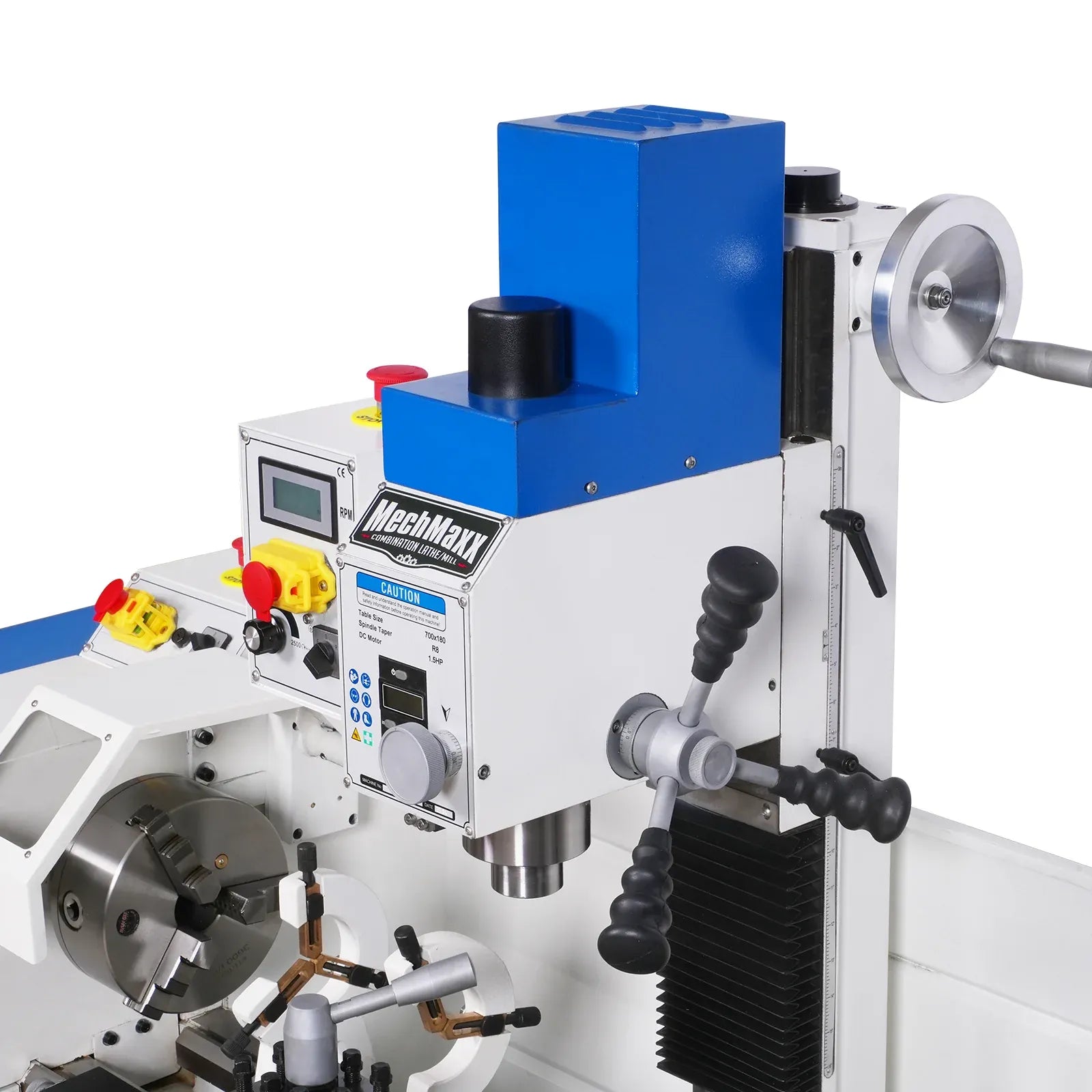

Mill / Drill Head Specifications
| Specifications | Details |
|---|---|
| Motor Power (Mill Head) | 1.5 HP (1100W) |
| Spindle Taper | R8 |
| Spindle Speed Range | 0–2500 RPM |

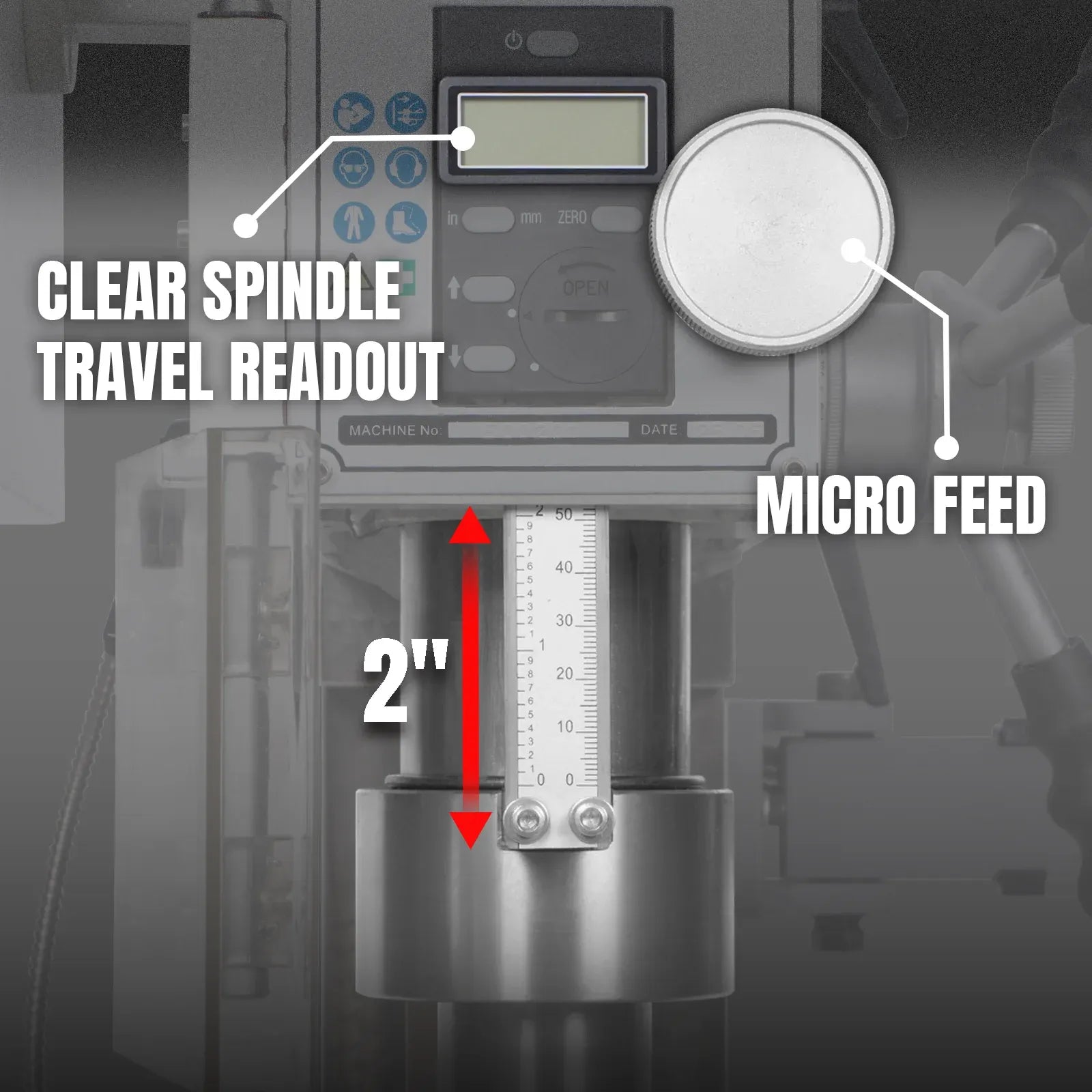

| Spindle Travel (Quill Stroke) | 2" (50 mm) |
| Quill Diameter | Ø60 mm |
| Drawbar Thread Size | 7/16"-20 |

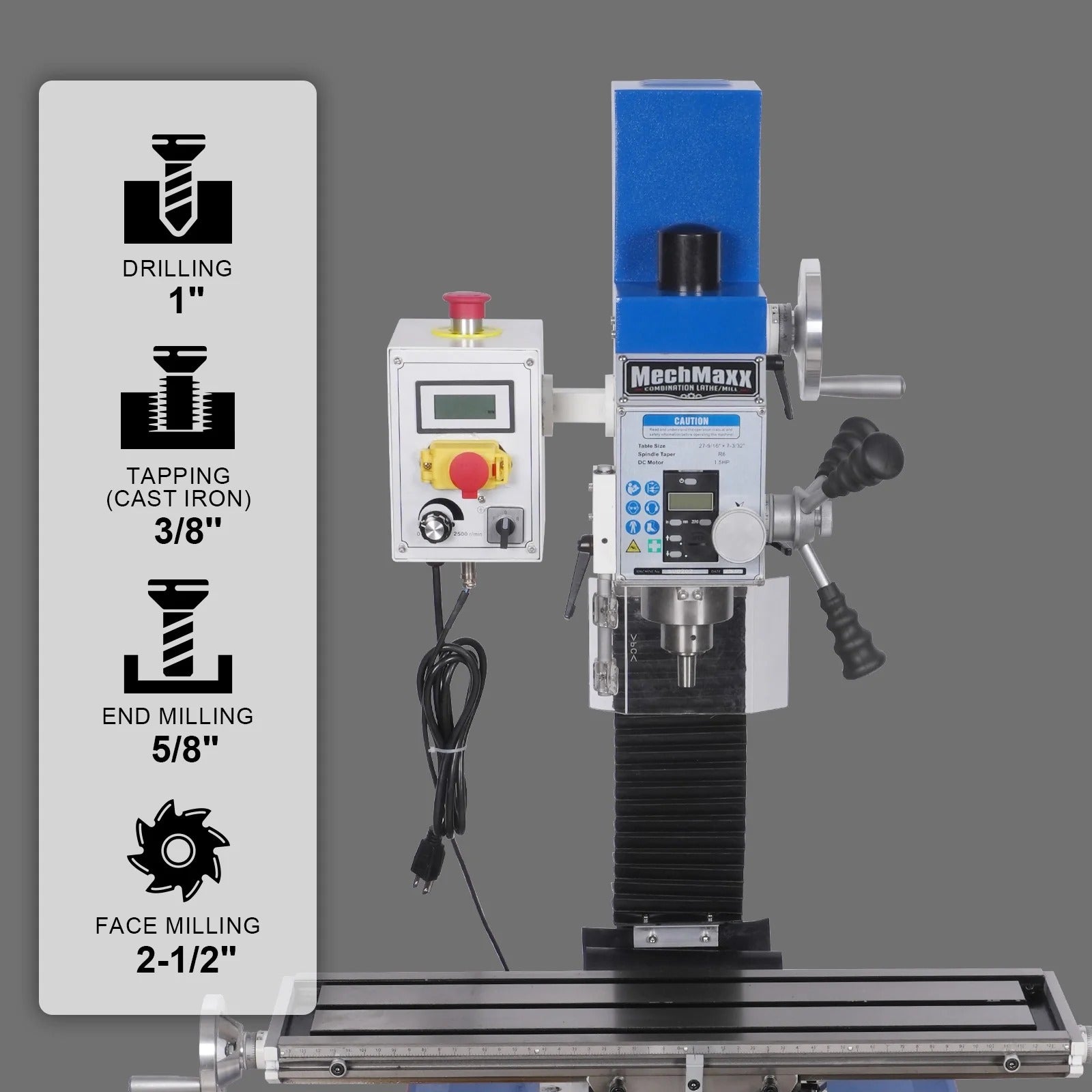

| Drilling Capacity | 1" (25 mm) |
| End Milling Capacity | 5/8" (16 mm) |
| Face Milling Capacity | 2-1/2" (63 mm) |
| Vertical Travel (Z-Axis) | 14-1/2" (370 mm) |
| Head Tilt Angle | ±90° |
| Distance: Spindle to Table | 14-1/2" (370 mm) |
| Distance: Spindle to Column | 7-1/2" (190 mm) |
| Column Type | Dovetail Slot |
| Drive Type | Belt Drive Brushless |
Machine Dimensions & Electrical
| Specifications | Details |
|---|---|
| Electrical Requirements | 110V, 1 Phase |

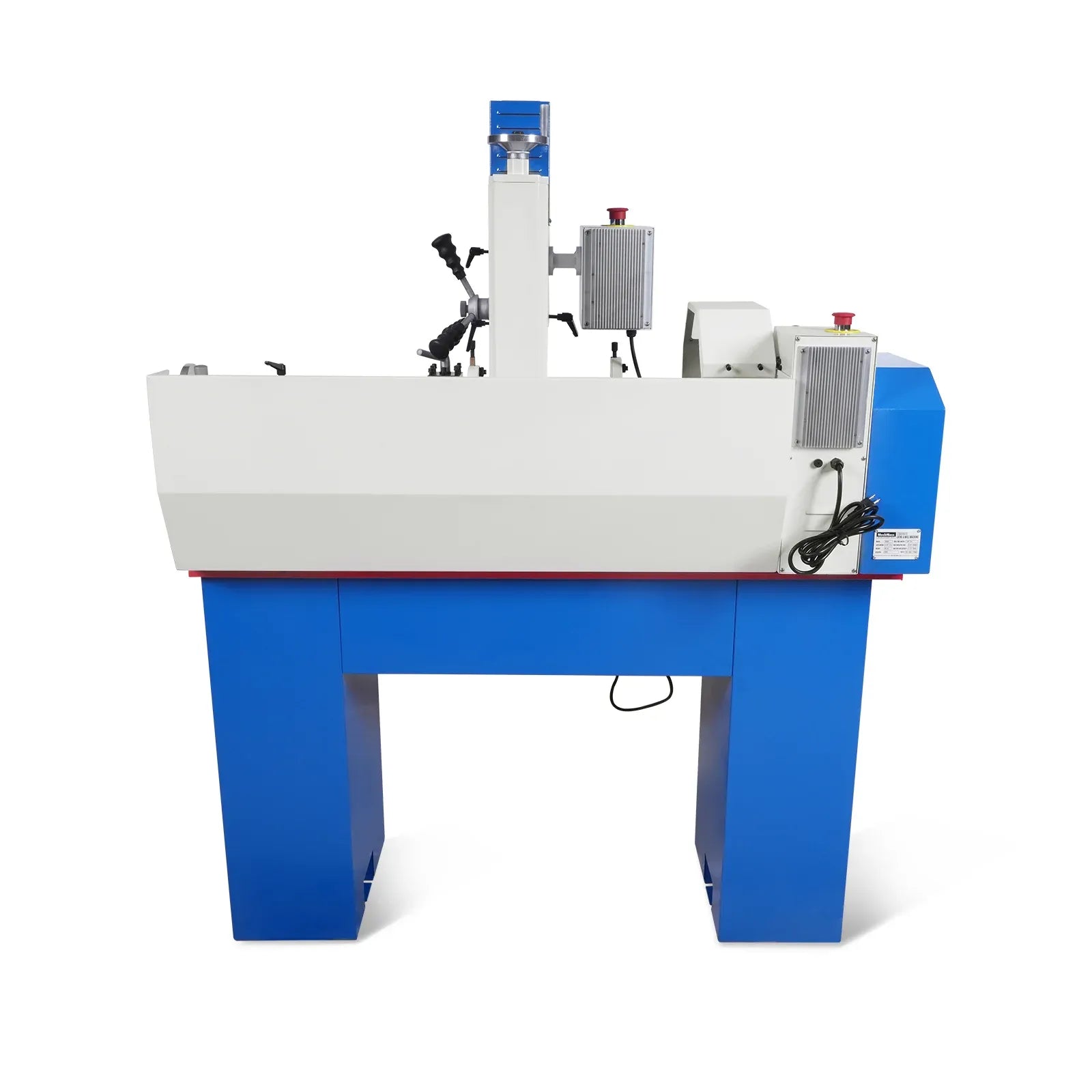

| Overall Dimensions | 55" × 29" × 42" (1400 × 720 × 1050 mm) |
| Net / Gross Weight | 638 / 726 lbs (290 / 330 kg) |
| Shipping Dimensions | 59" × 30" × 42" (1500 × 750 × 1050 mm) |
