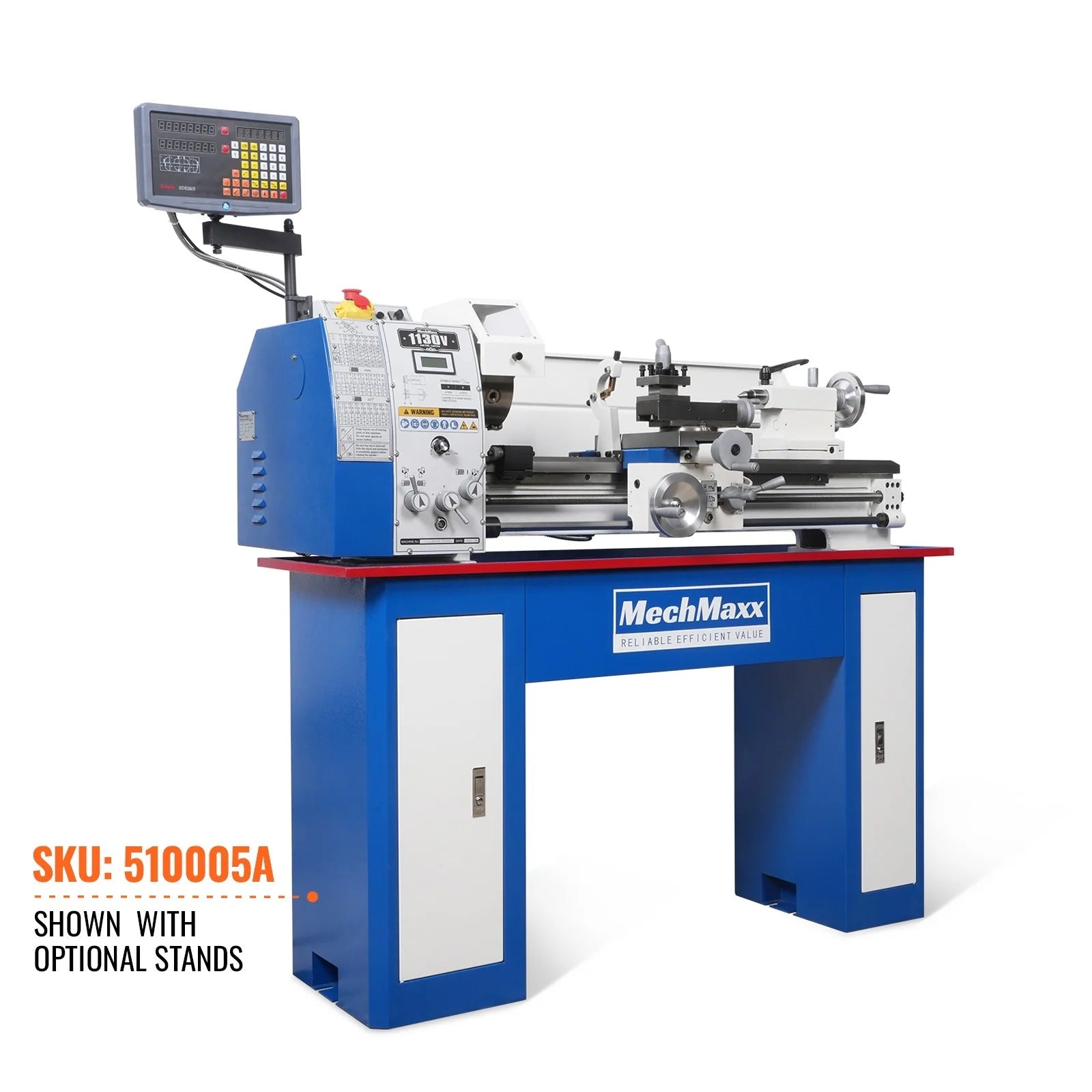

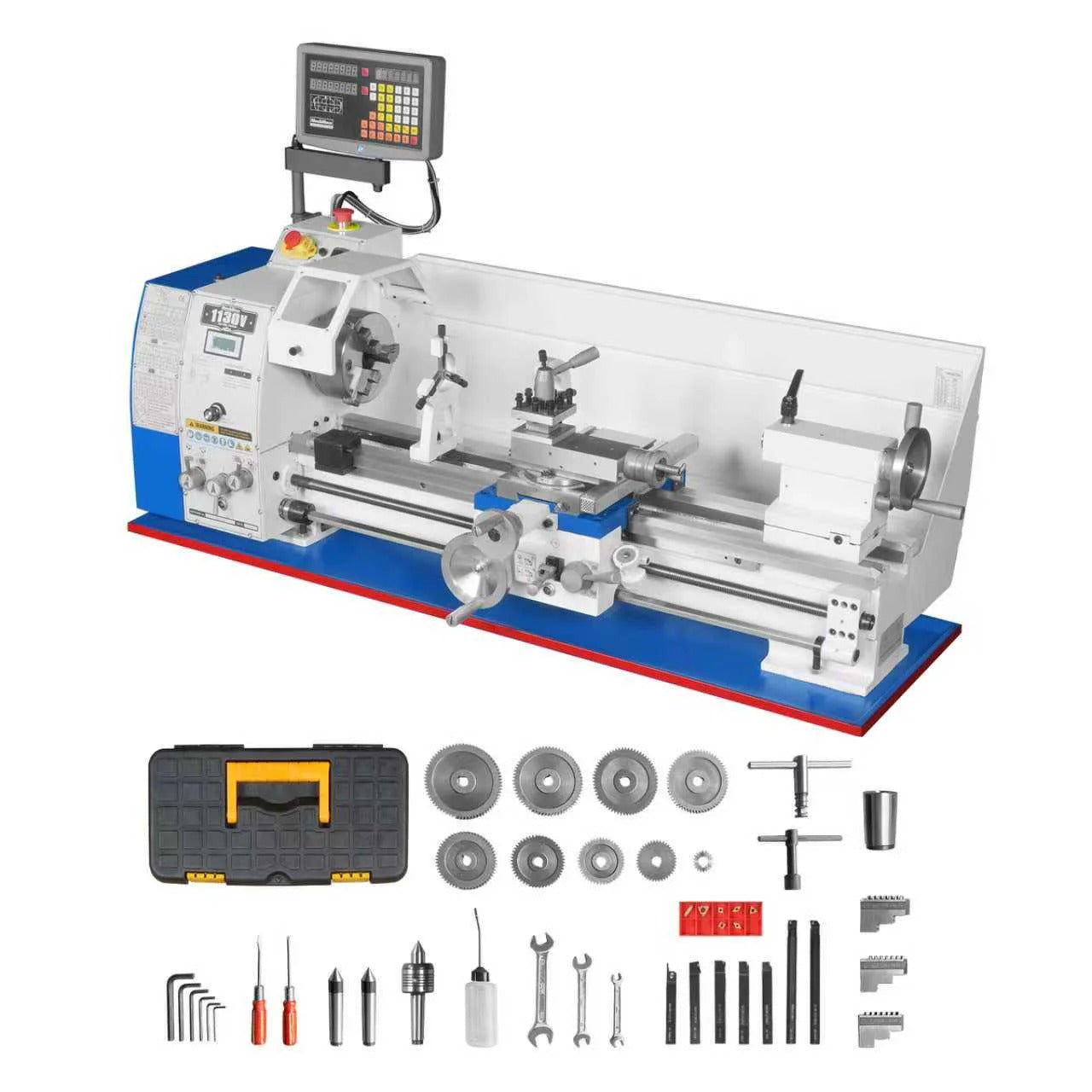

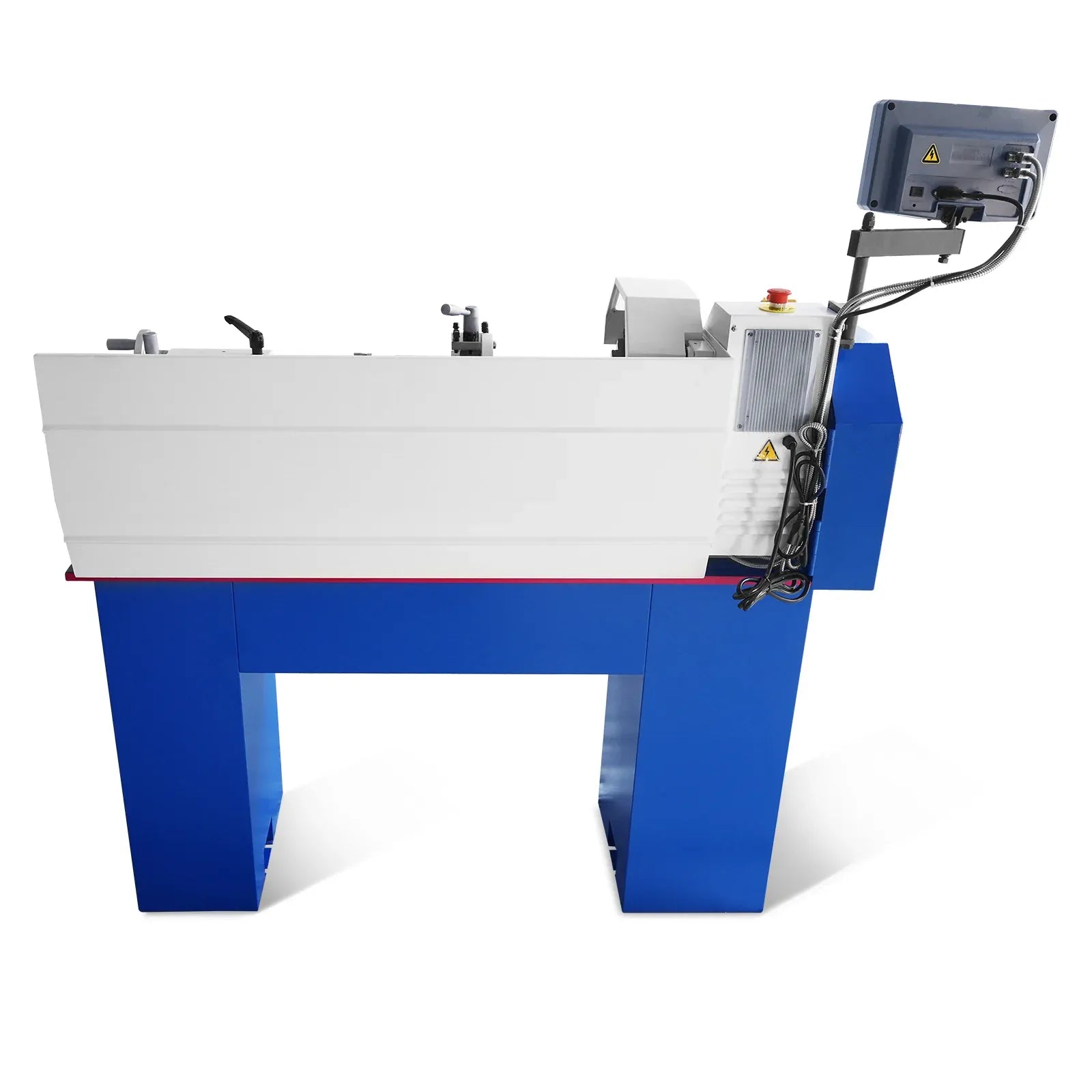

MechMaxx 11x30 Industrial Metal Lathe Machine with DRO, Model 1130VD
SKU: 500008
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Key Features & Benefits
- 2 HP Variable-Speed Motor – 110V single-phase power with 0–2000 RPM spindle speed for precise control across steel, aluminum, brass, plastics, and more.
- Heavy-Duty One-Piece Spindle – Increased rigidity, reduced vibration, and improved machining accuracy over traditional two-piece spindle designs.

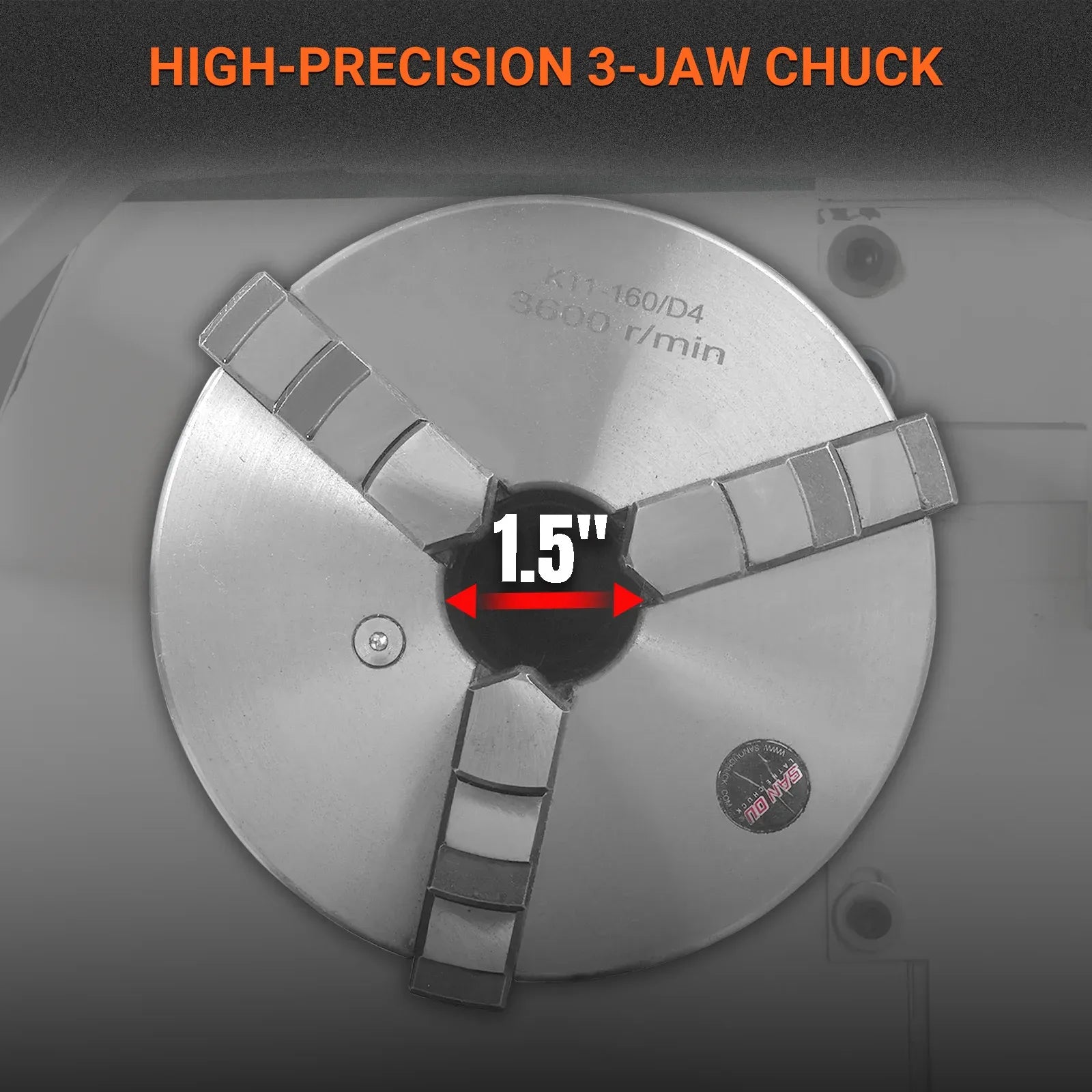

- Large 1-1/2" Spindle Bore – MT#5 taper and 38 mm bore allow larger stock to pass through the headstock, ideal for gunsmithing, fabrication, and general machine shop work.
- Digital Readout (DRO) System – Real-time accurate positioning reduces setup time and improves repeatability during machining operations.

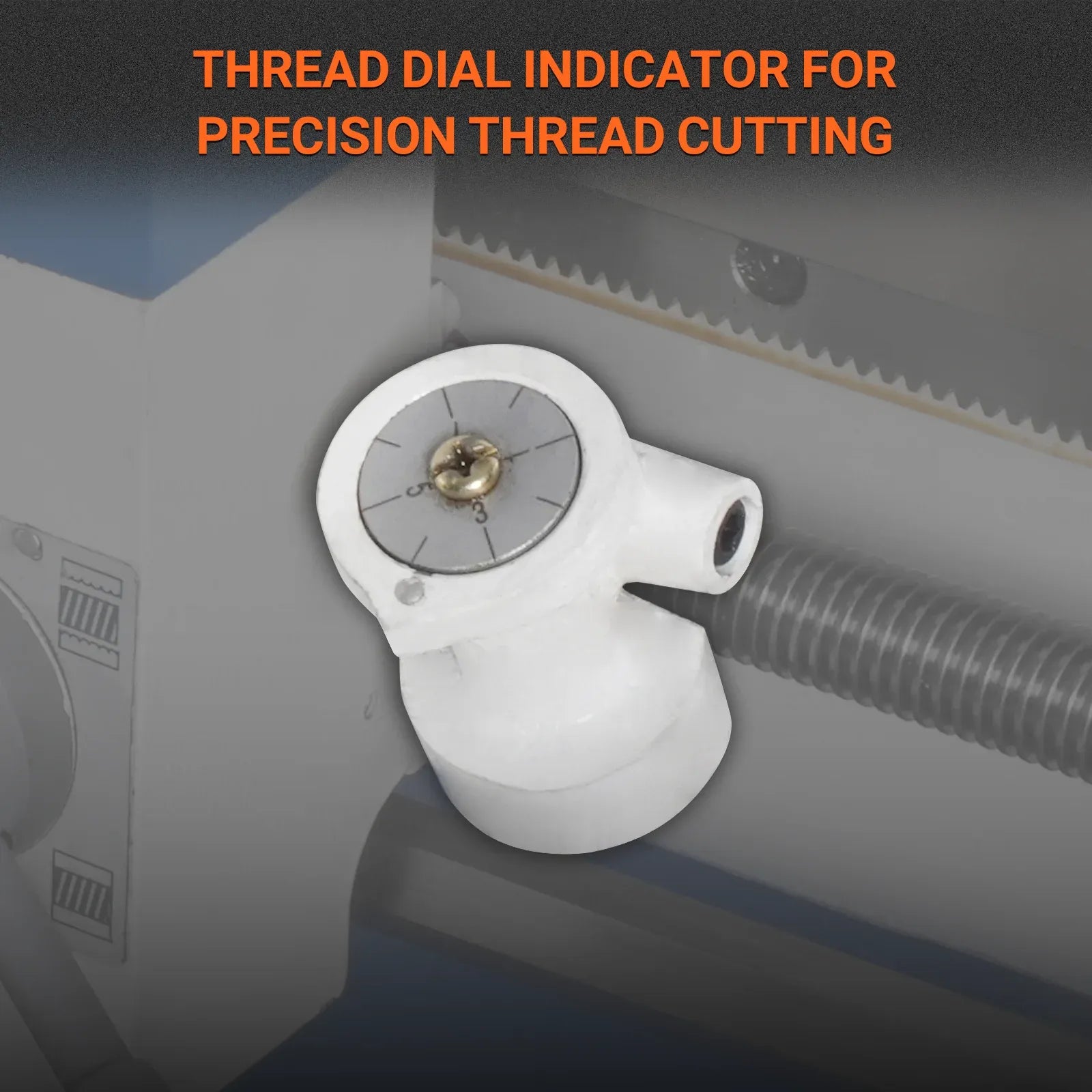

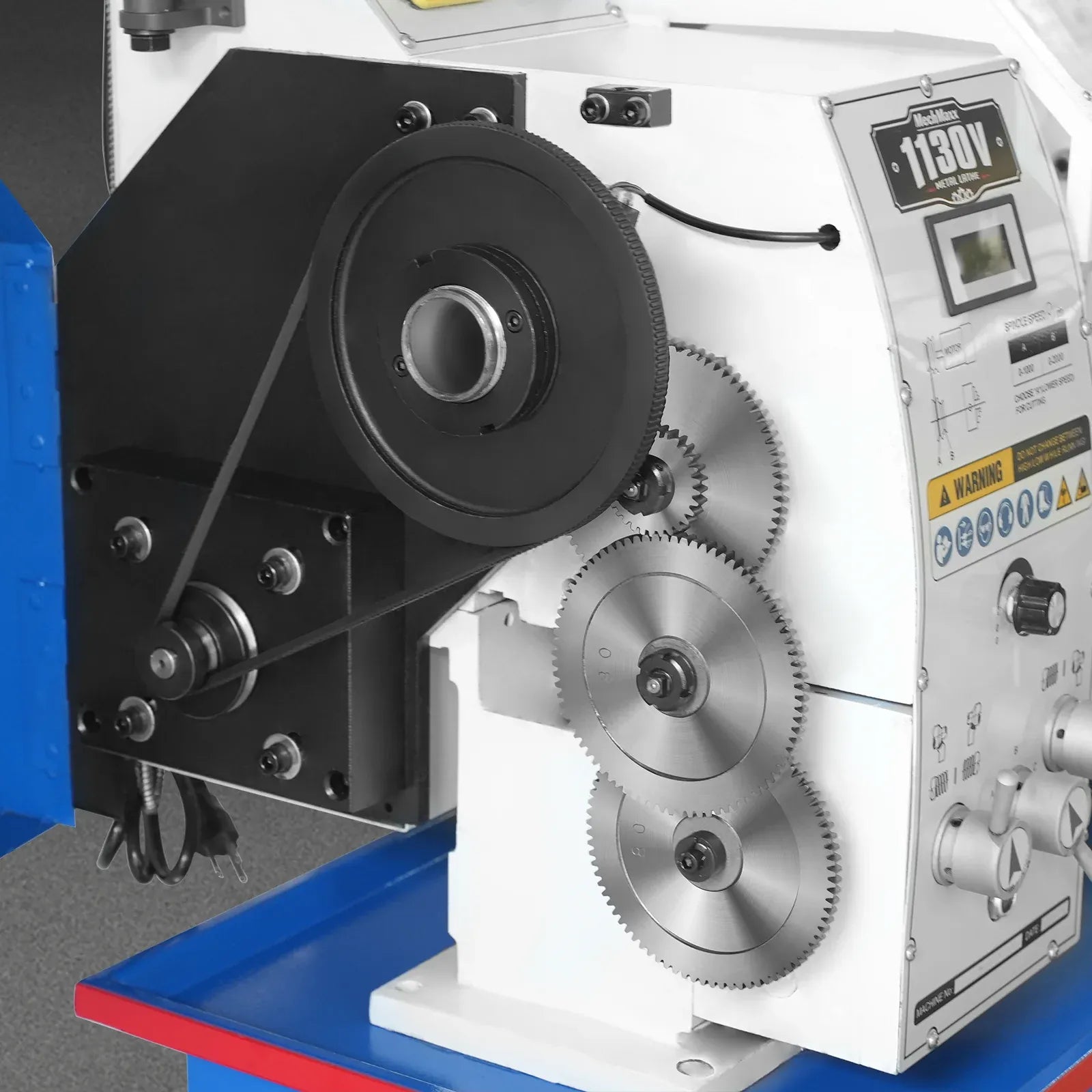

- Inch & Metric Threading – 8–56 TPI (21 kinds) and 0.4–3.5 mm (12 kinds) metric pitches with a built-in thread dial indicator for consistent, repeatable threading passes.
- D1-4 Camlock Spindle Mount – Secure chuck mounting for improved rigidity and quick tooling changes.

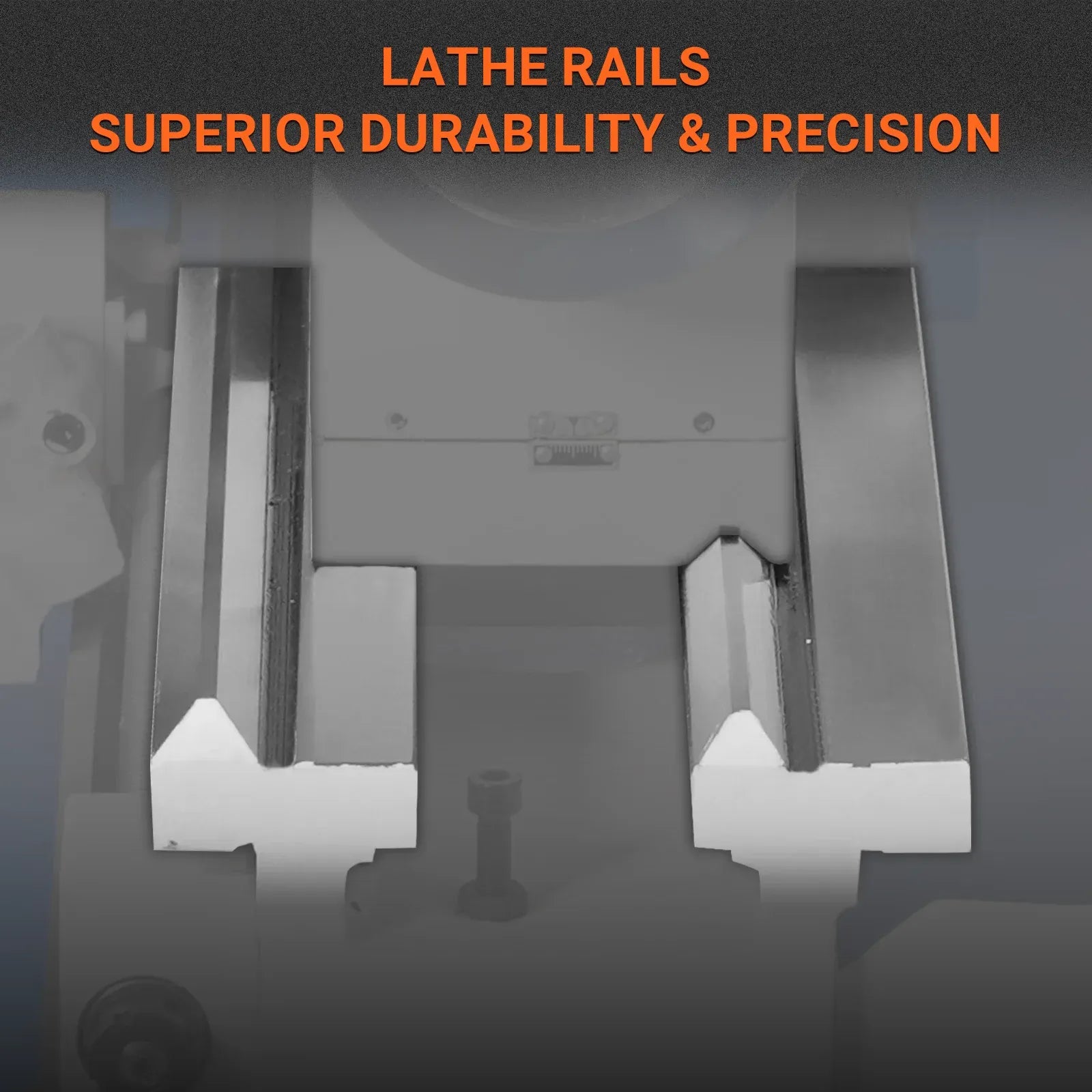

- Wide 7" Bed & Durable Cast Construction – Excellent stability and cutting performance in a compact footprint suitable for professional shops and home workshops.
Safety
- Always operate the machine in accordance with the user manual and all warning labels provided.
Electrical Requirements
- Voltage: 110V Single-Phase
- Frequency: 60 Hz
- Motor: 2 HP, 20A
| Specifications | Details |
|---|---|
| Motor | 2 HP, 110V, Single-Phase, 20A, 60 Hz |
| Swing Over Bed | 11-2/5" (290 mm) |
| Swing Over Cross Slide | 7-1/4" (185 mm) |
| Swing Over Saddle | 5-3/4" (147 mm) |
| Distance Between Centers | 29-1/2" (750 mm) |
| Bed Width | 7" (180 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | D1-4 |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#3 |

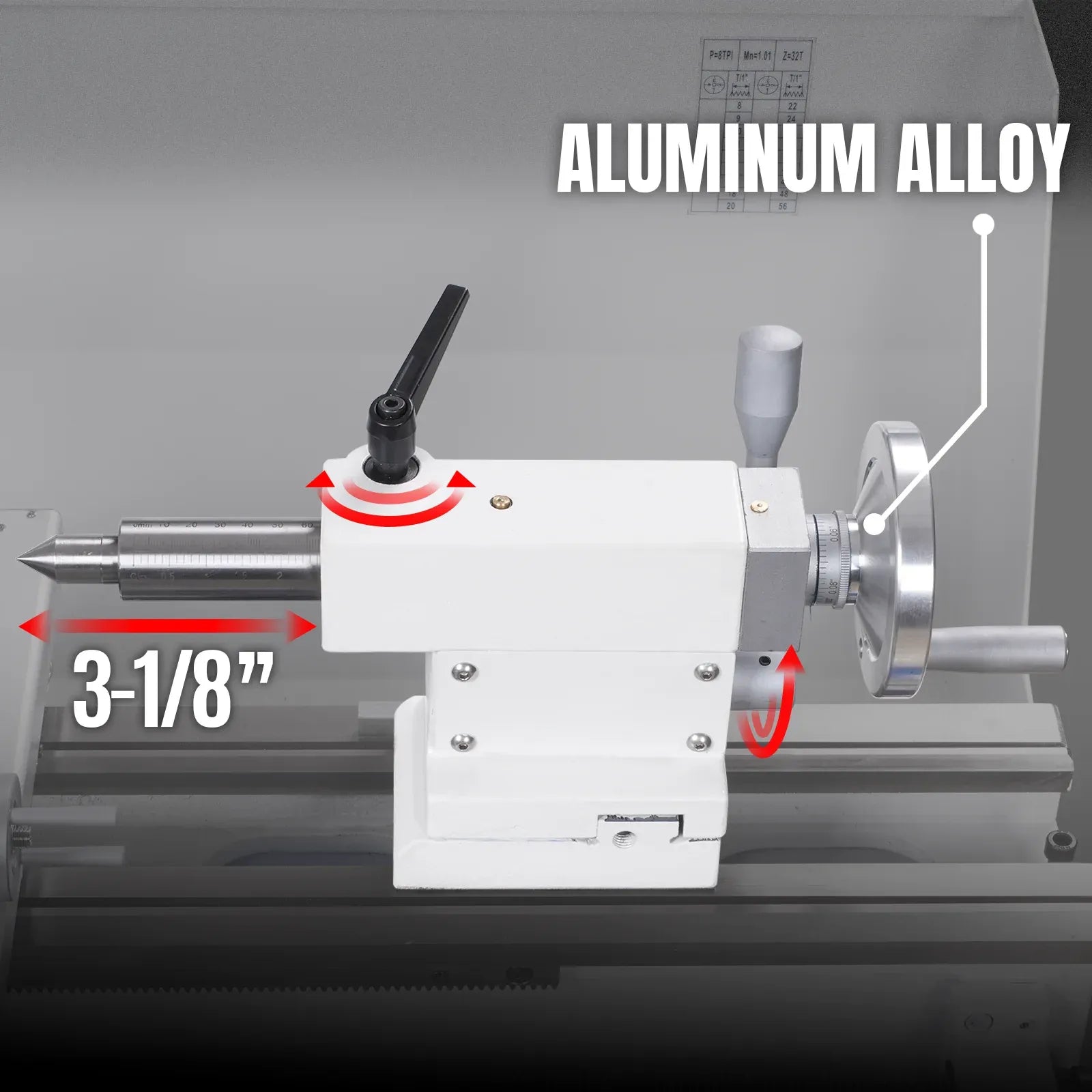

| Tailstock Quill Travel | 3-1/8" (85 mm) |

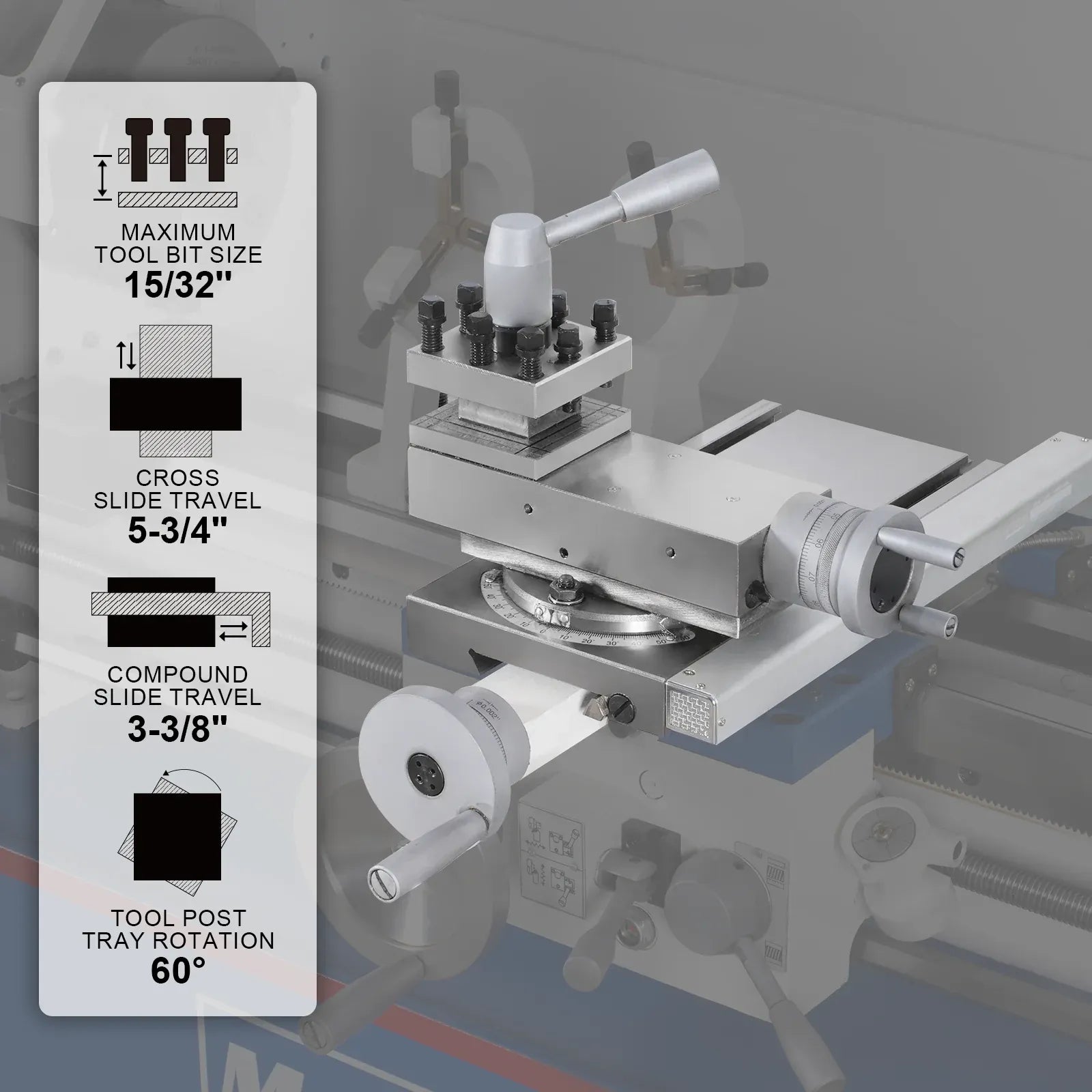

| Cross Slide Travel | 5-3/4" (147 mm) |
| Compound Slide Travel | 3-3/8" (86 mm) |
| Carriage Travel | 27-1/2" (700 mm) |

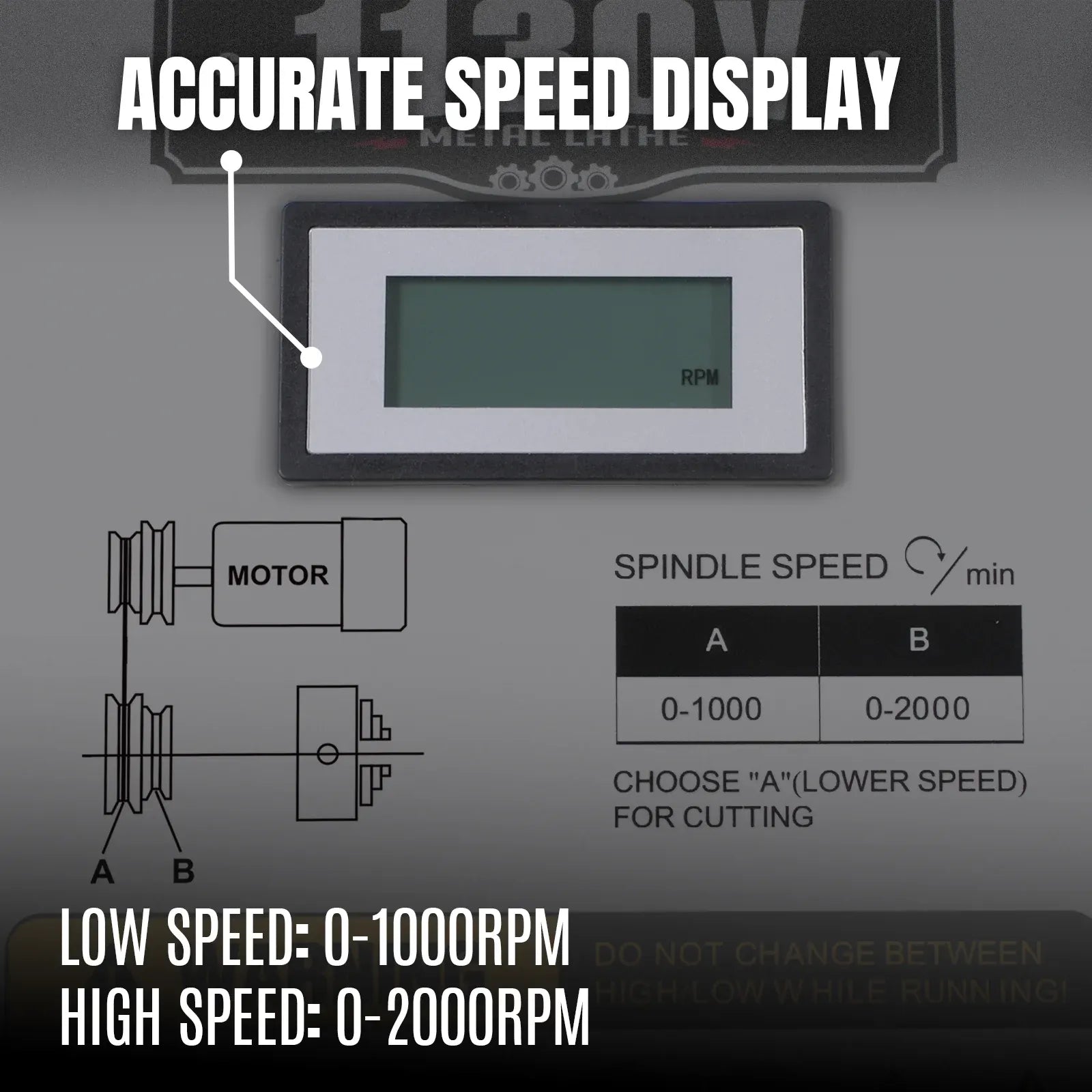

| Spindle Speed Range | 0–2000 RPM |
| Speed Control | Variable |

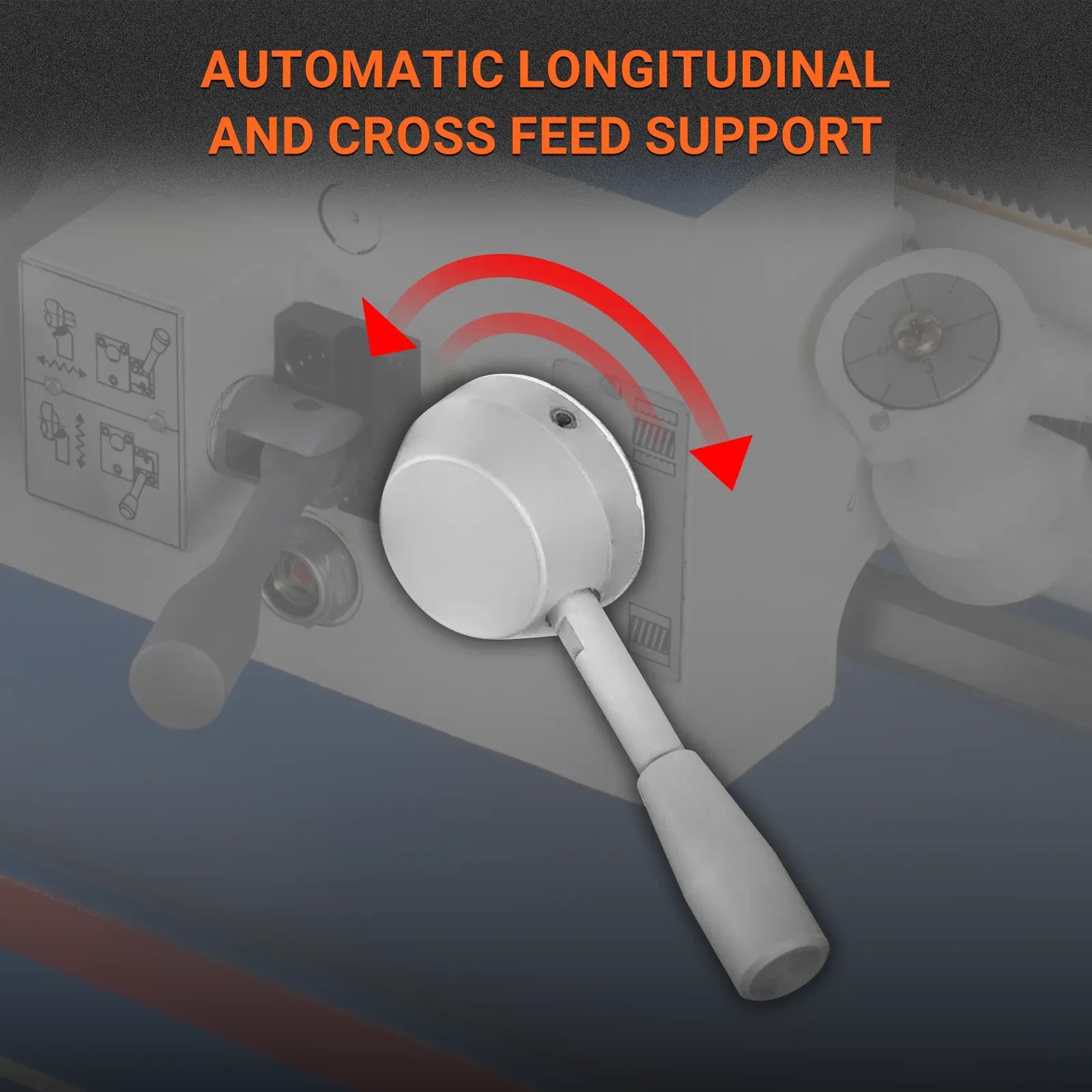

| Longitudinal Feed Rate | 0.017–0.25 mm/rev (0.0007–0.0098 in./rev.) |
| Transverse Feed Rate | 0.07–0.53 mm/rev (0.0027–0.02 in./rev.) |
| Leadscrew Size & Pitch | 20 mm (8 TPI) |
| Threading Capacity – Inch | 8–56 TPI (21 kinds) |
| Threading Capacity – Metric | 0.4–3.5 mm (12 kinds) |
| Maximum Tool Bit Size | 15/32" (12 mm) |
| Thread Dial Indicator | Yes |
| Overall Dimensions | 59" × 31" × 30" (1400 × 750 × 740 mm) |
| Net / Gross Weight | 517 / 572 lbs (235 / 260 kg) |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Certain specifications are based on engineering calculations and are not actual measurements. Specifications are provided for comparison purposes only and are subject to change without notice. Individual machine specifications may vary based on manufacturing tolerances, operating conditions, and other factors.
