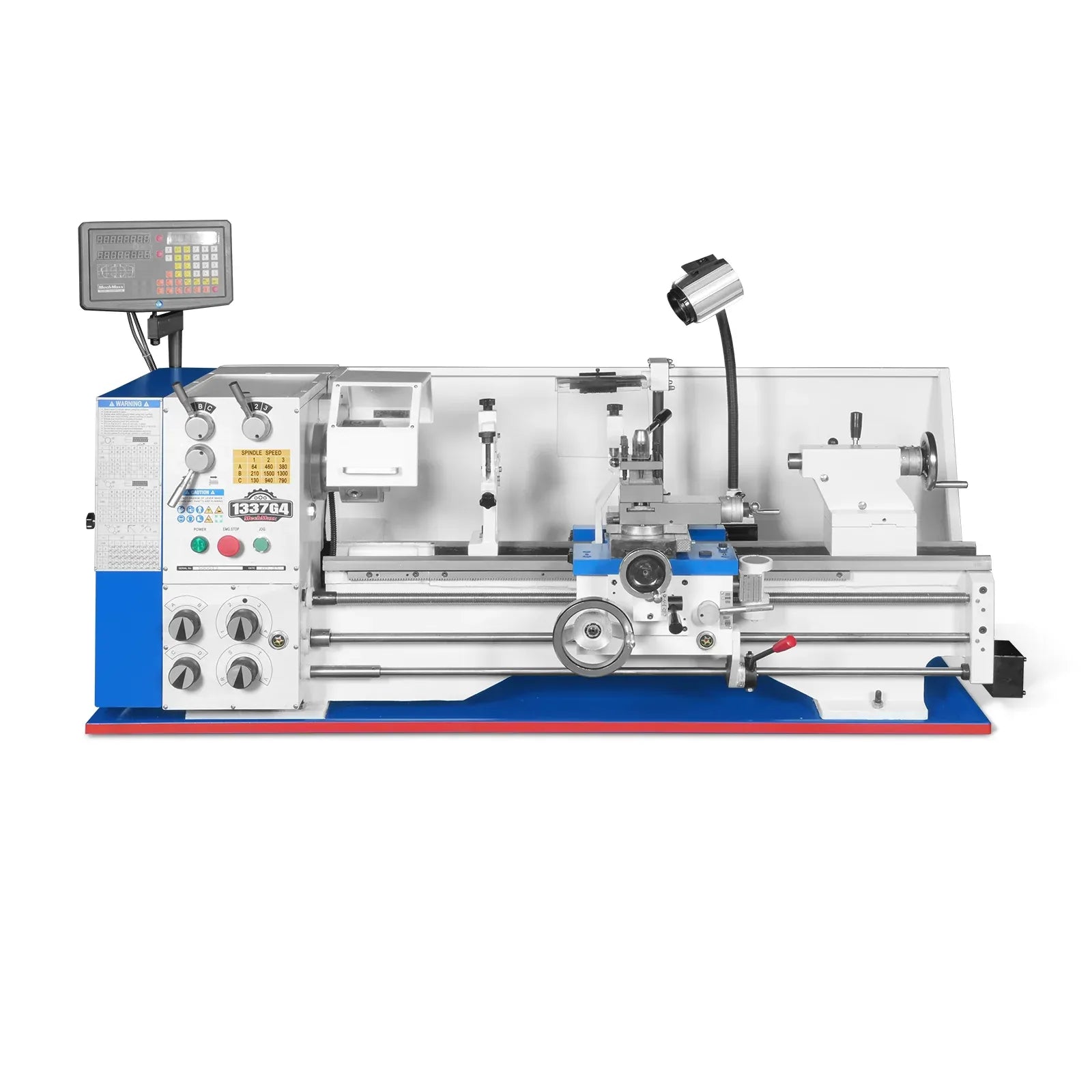

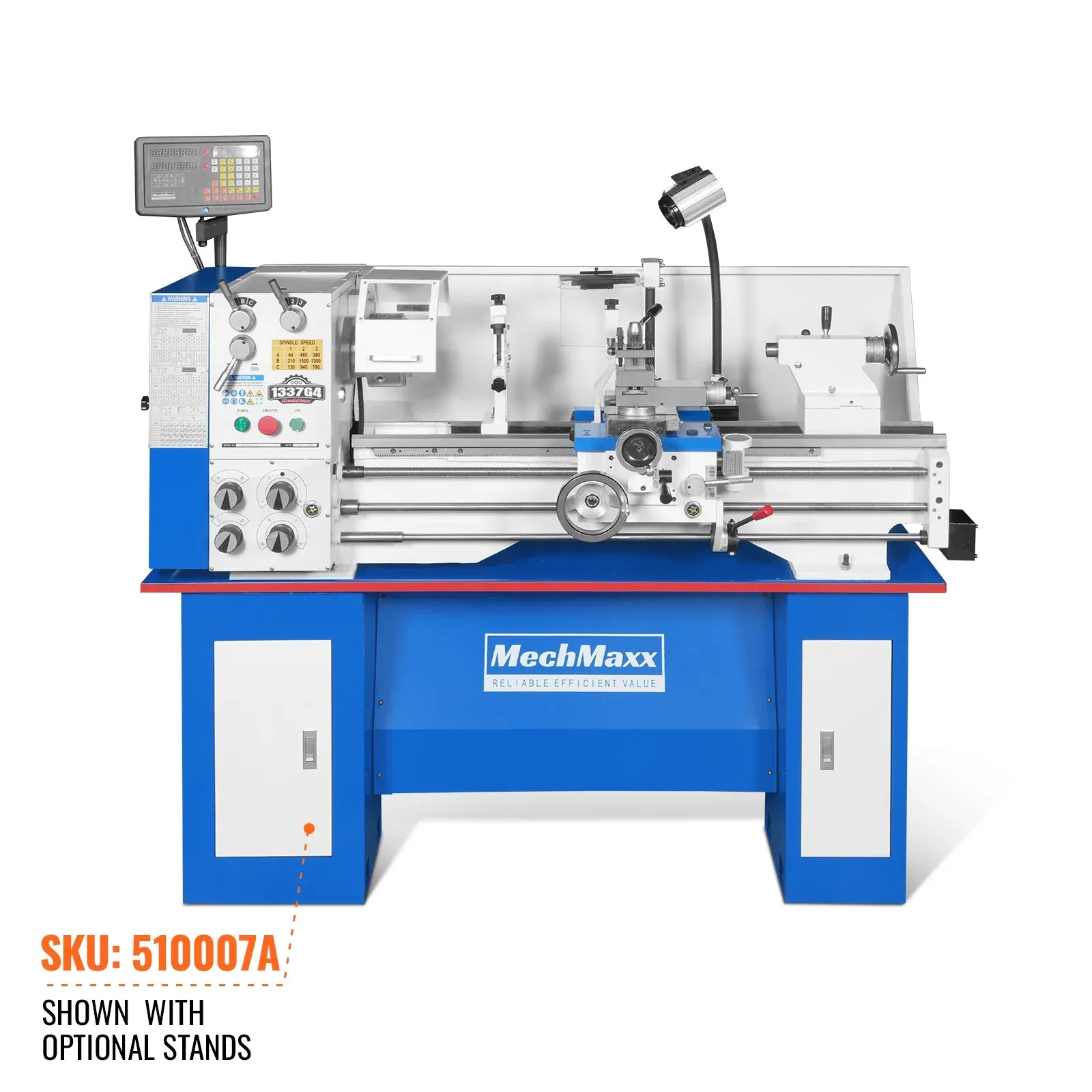

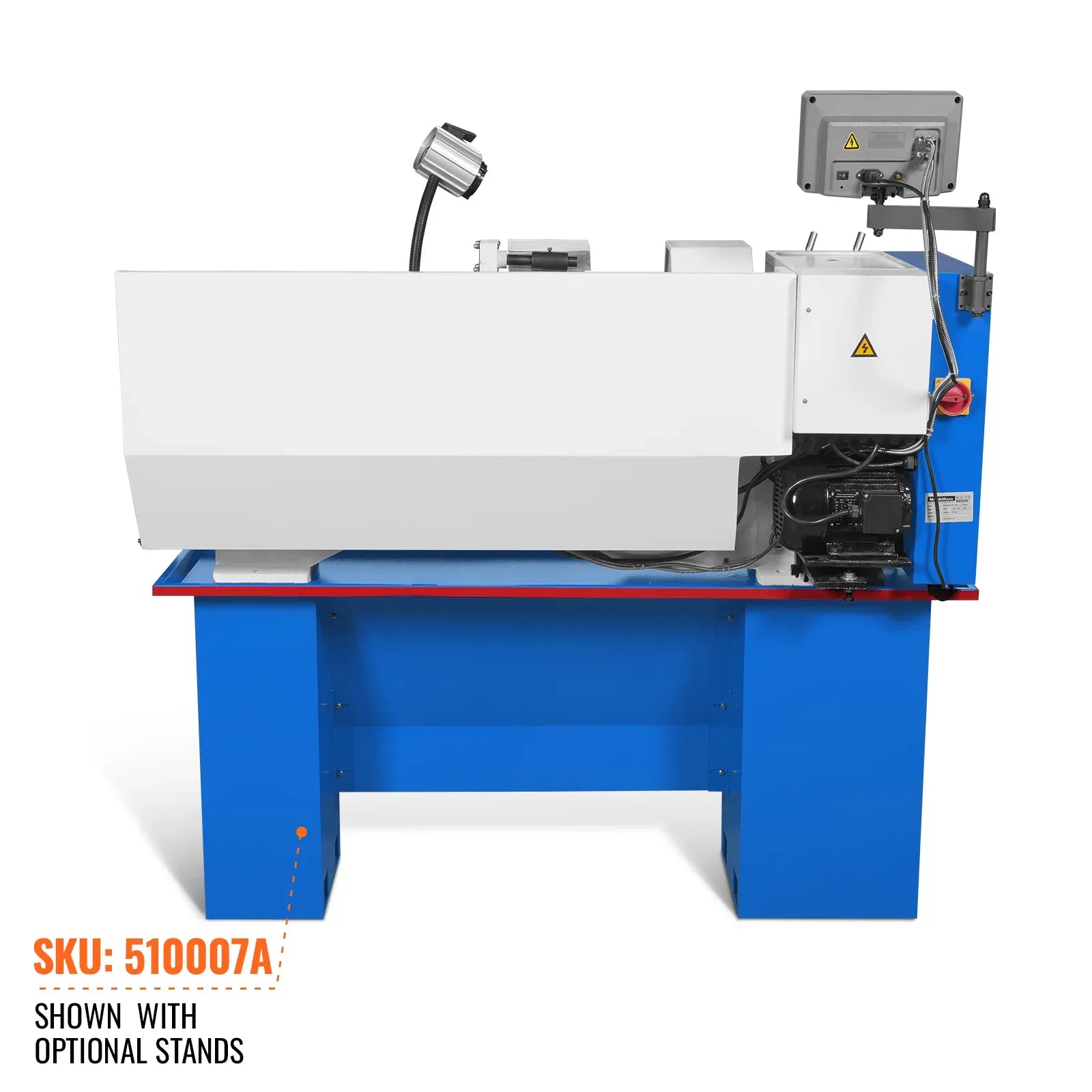

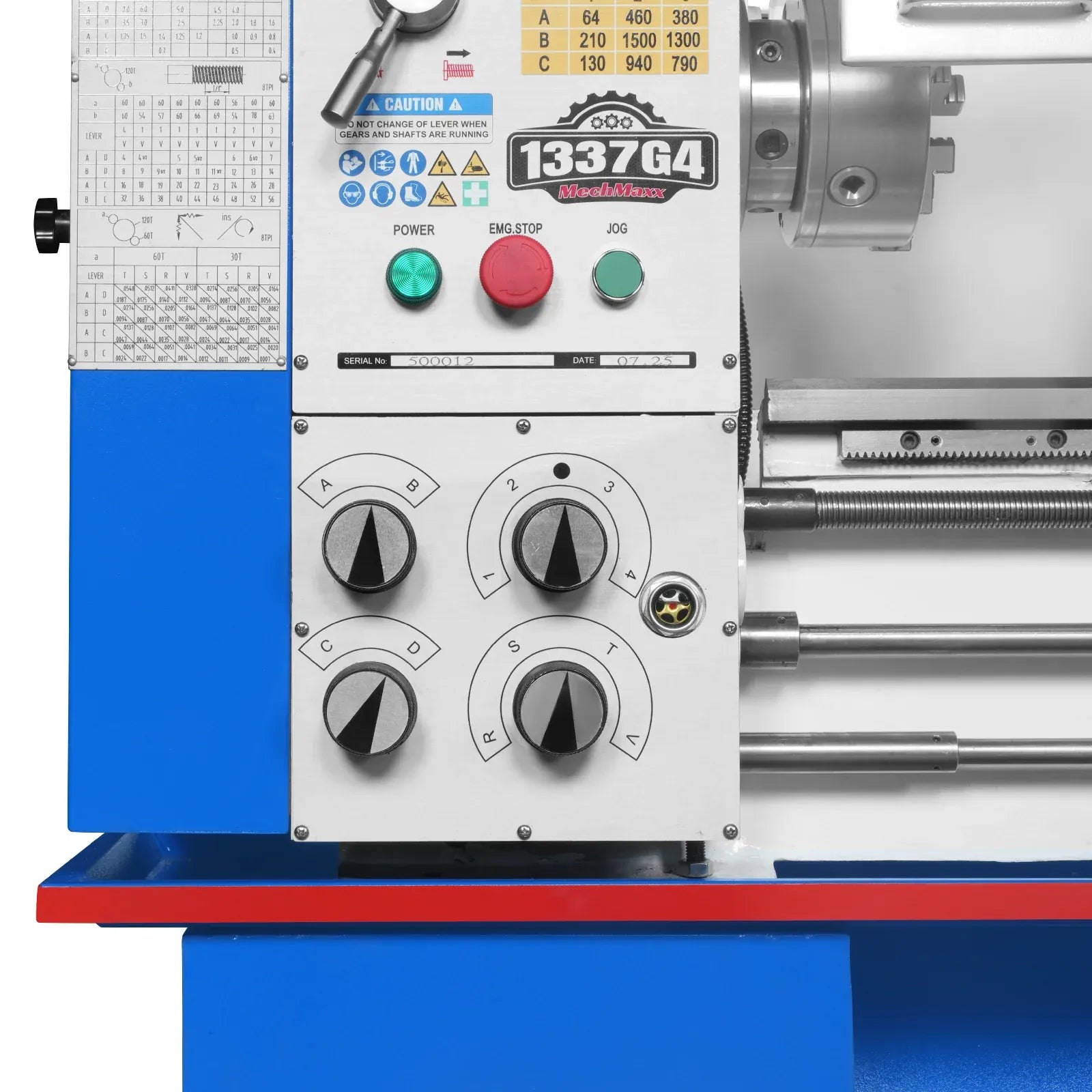

MechMaxx 13x37 Heavy Duty Metal Lathe Machine, Model 1337G4
SKU: 500012
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The 13" x 37" Heavy-Duty Metal Lathe with 4-Axis Slide is a precision-engineered machine designed for detailed machining, fabrication, and industrial metalworking applications. Built for versatility and control, this lathe combines a multi-directional 4-axis slide system with durable construction, making it ideal for complex cuts and high-accuracy operations.
With a powerful 1.5HP motor and a rigid, heavy-duty frame, this lathe delivers consistent performance for both light and heavy-duty tasks. Its compact footprint paired with extended carriage travel makes it a strong option for workshops that require precision without sacrificing capacity.
Built for Precision & Multi-Axis Control

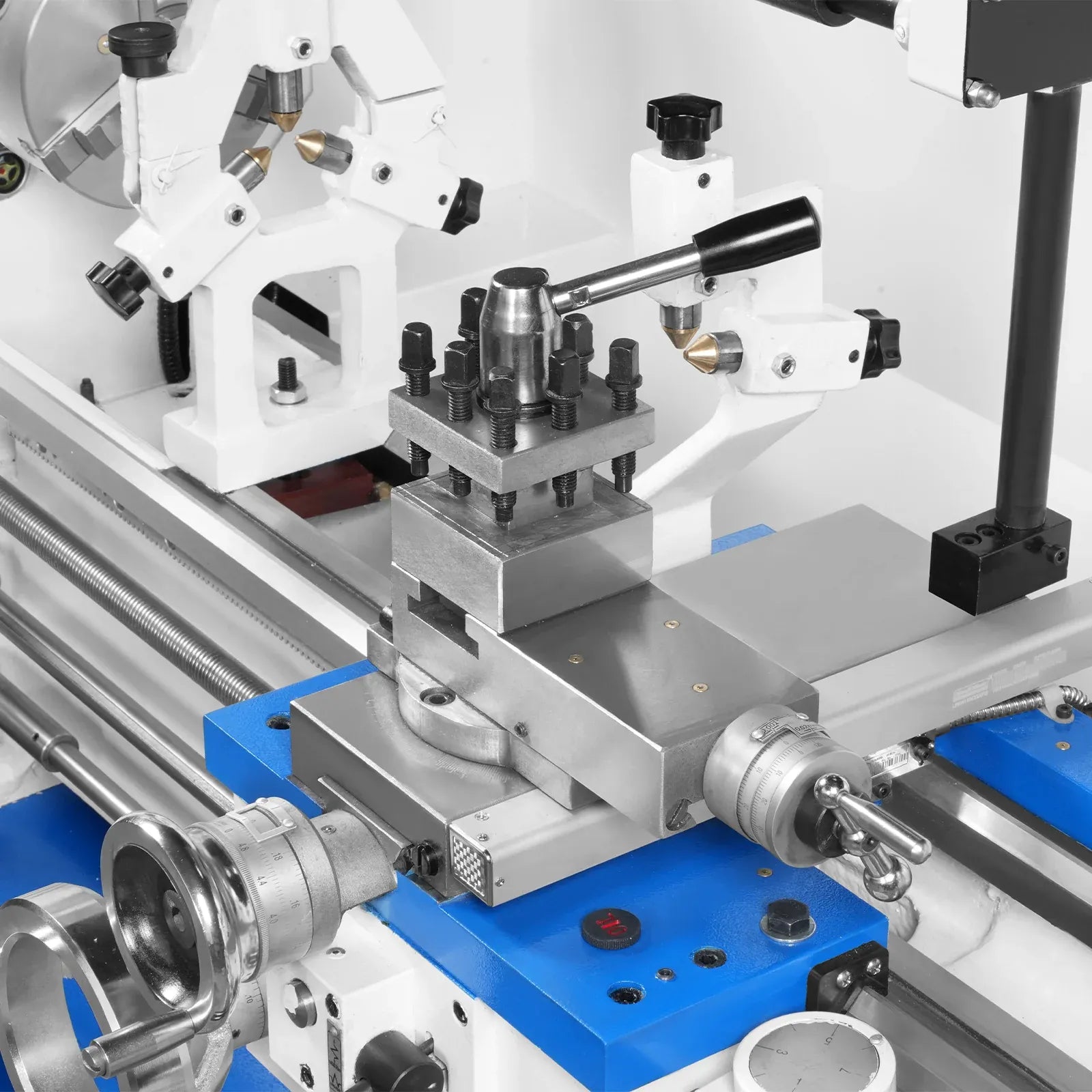

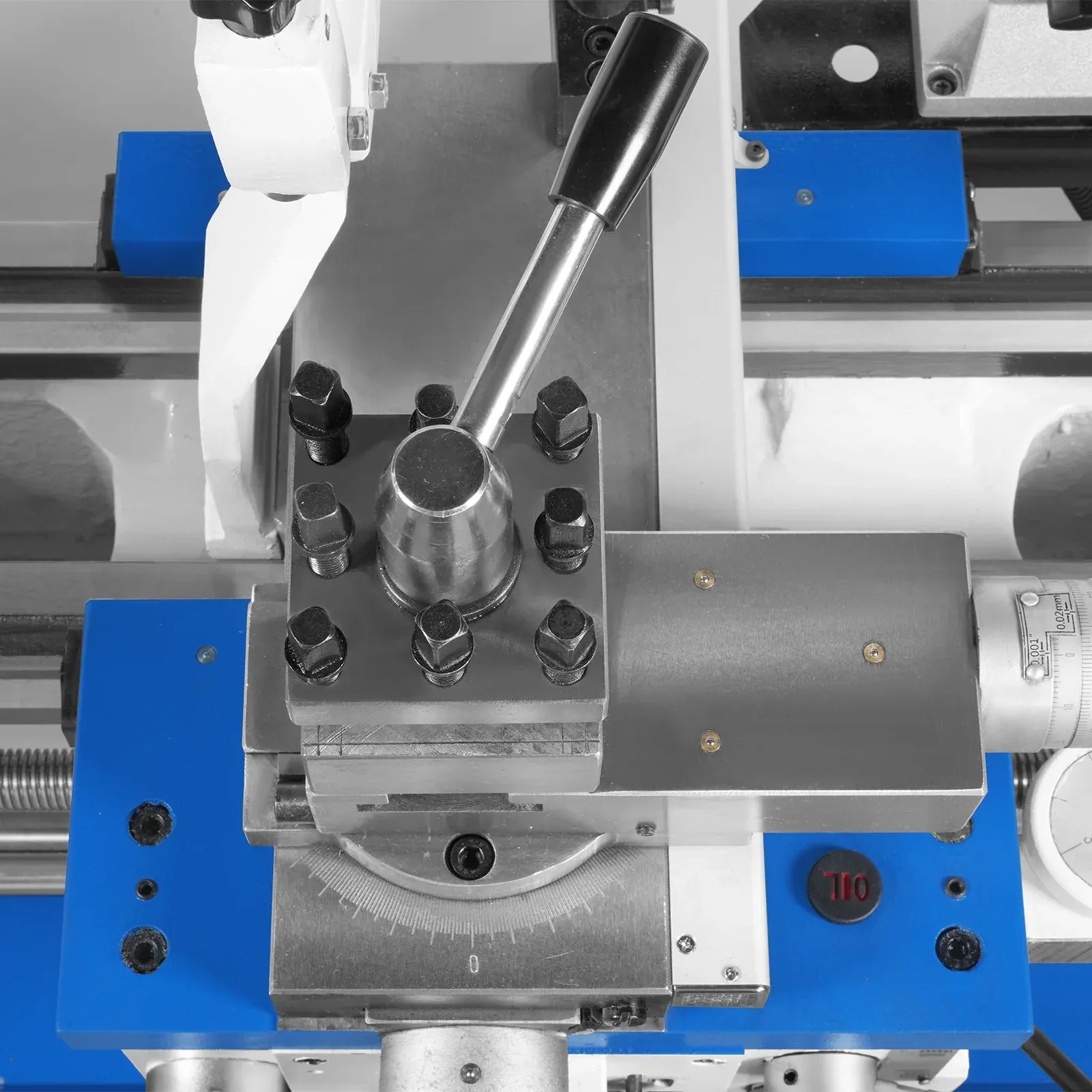

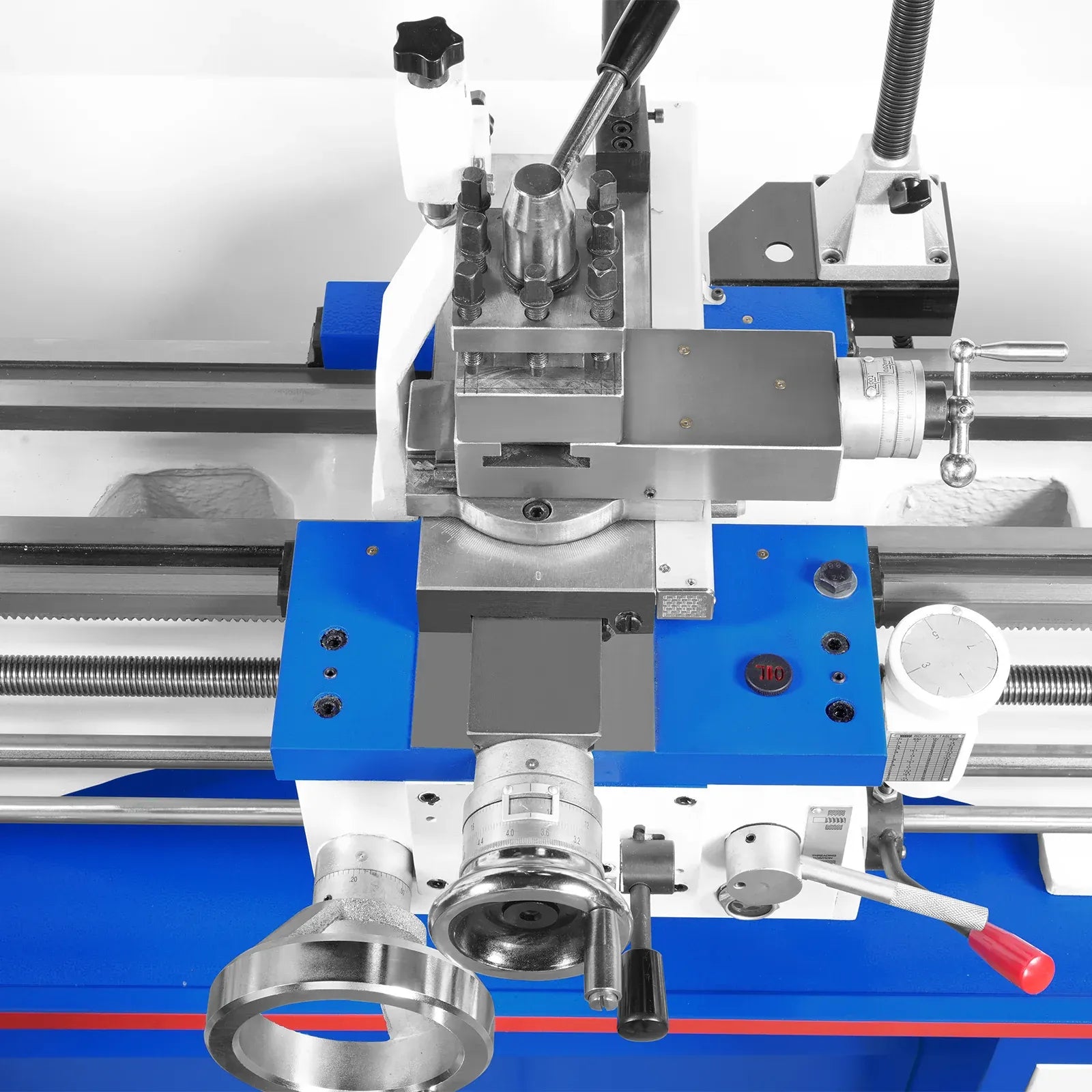

The integrated 4-axis slide design allows for enhanced positioning and flexibility, enabling operators to perform more intricate machining operations with greater control. Combined with smooth cross slide and compound movements, this setup ensures precise material removal and fine adjustments during operation.

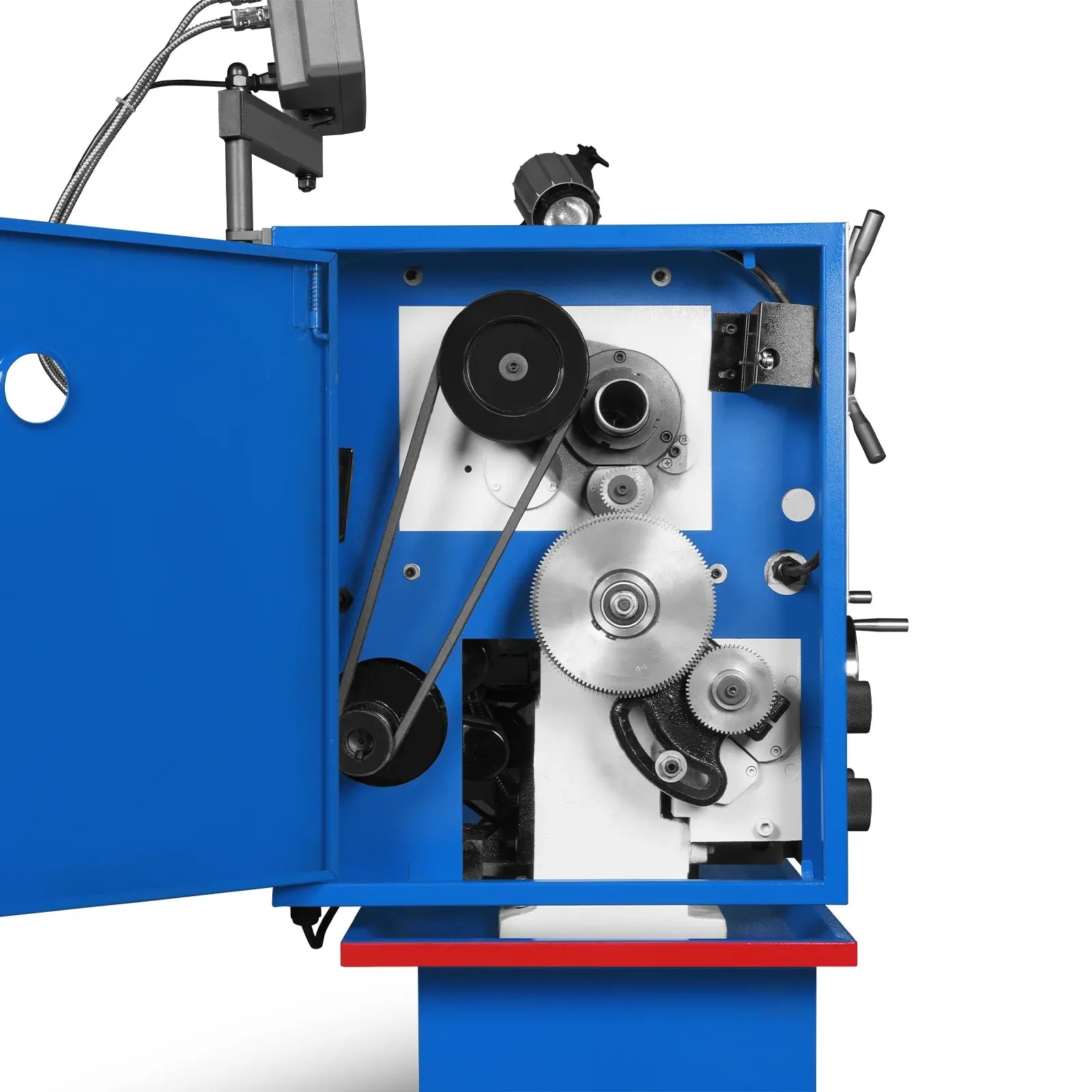

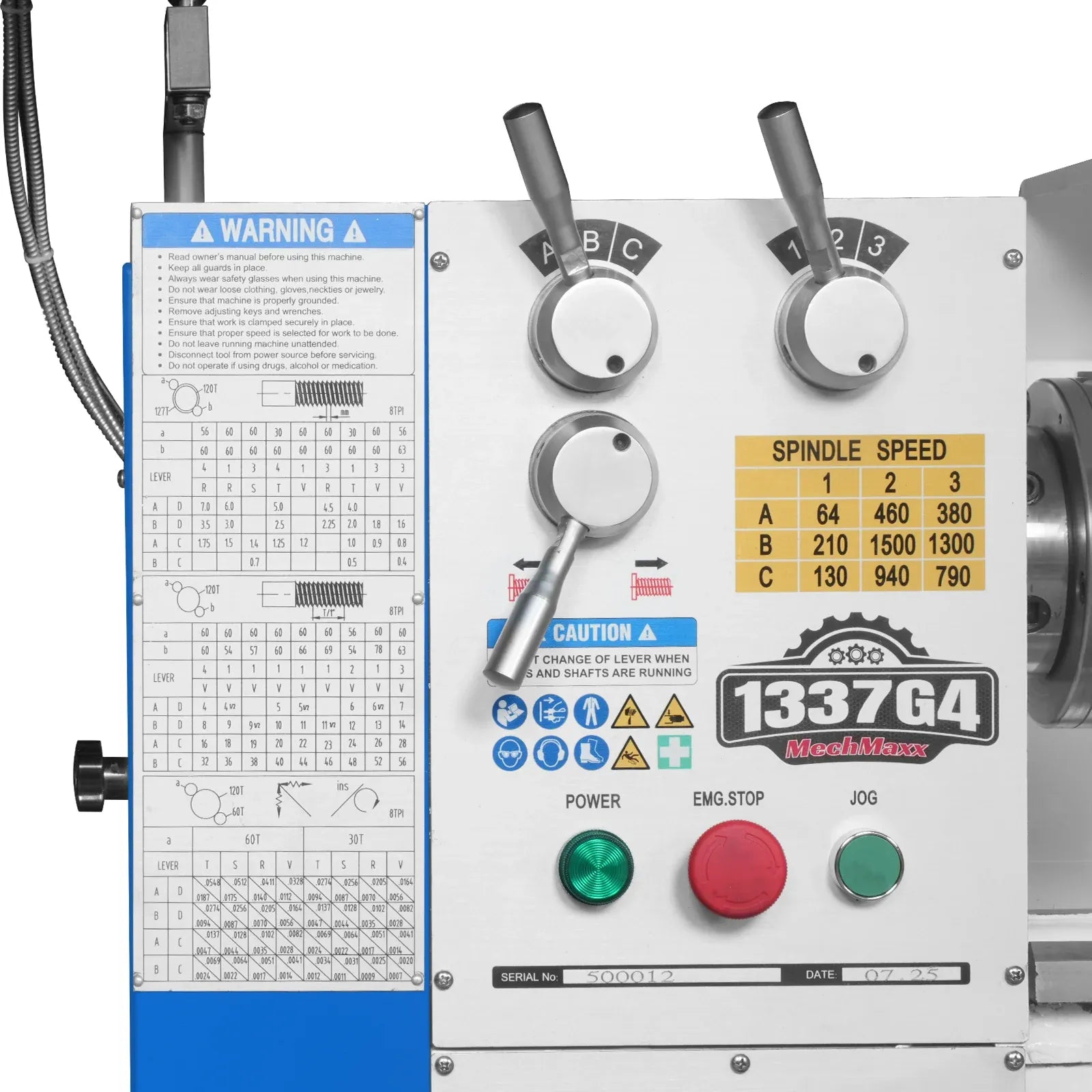

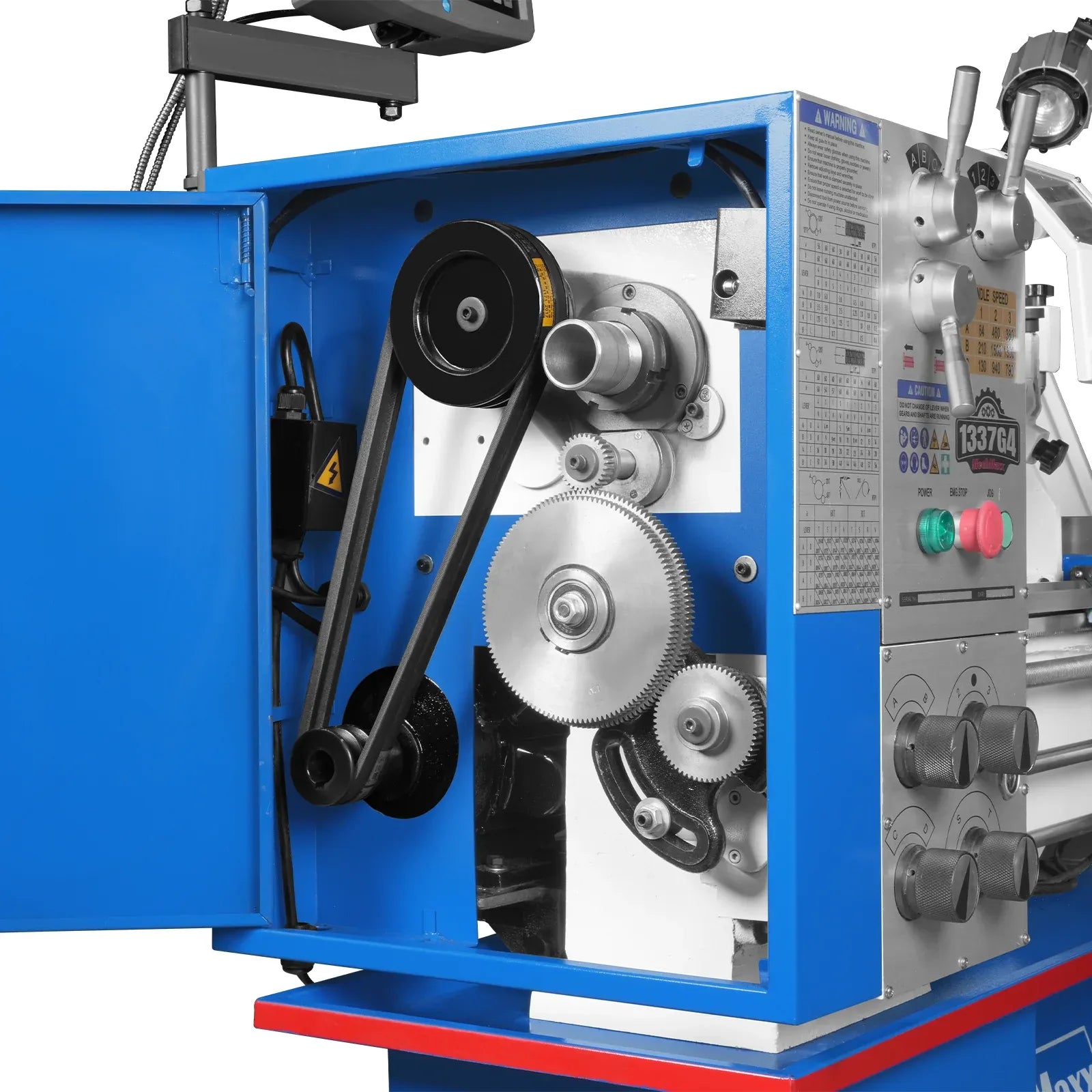

A 9-speed gearbox ranging from 64–1500 RPM allows users to match spindle speed to the material and application, improving surface finish and tool life.
Key Features & Benefits
- 4-Axis Slide Design for enhanced versatility and precision control
- 1.5 HP Motor (220V Single Phase) for reliable machining performance
- 9-Speed Range (64–1500 RPM) for flexible operation across materials

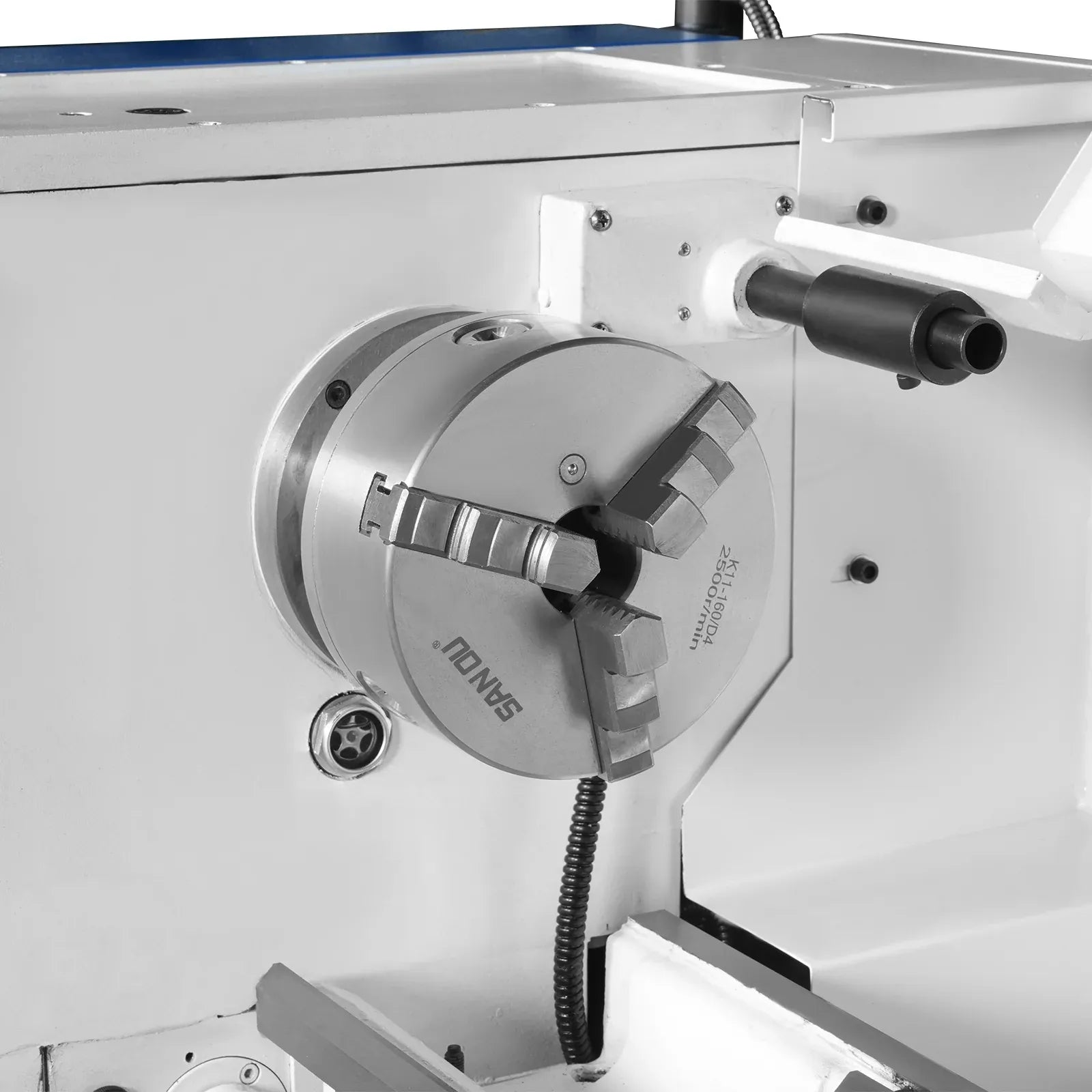

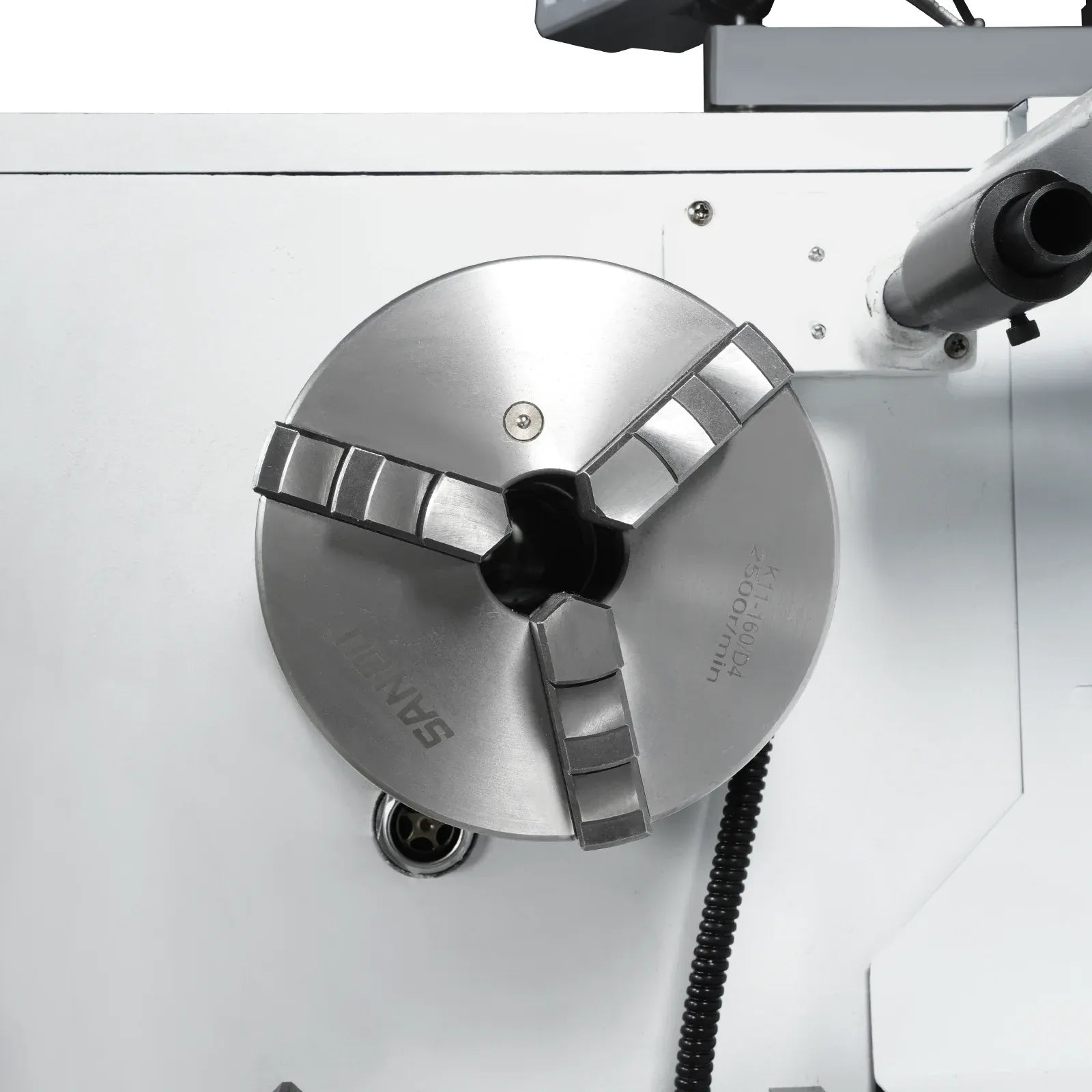

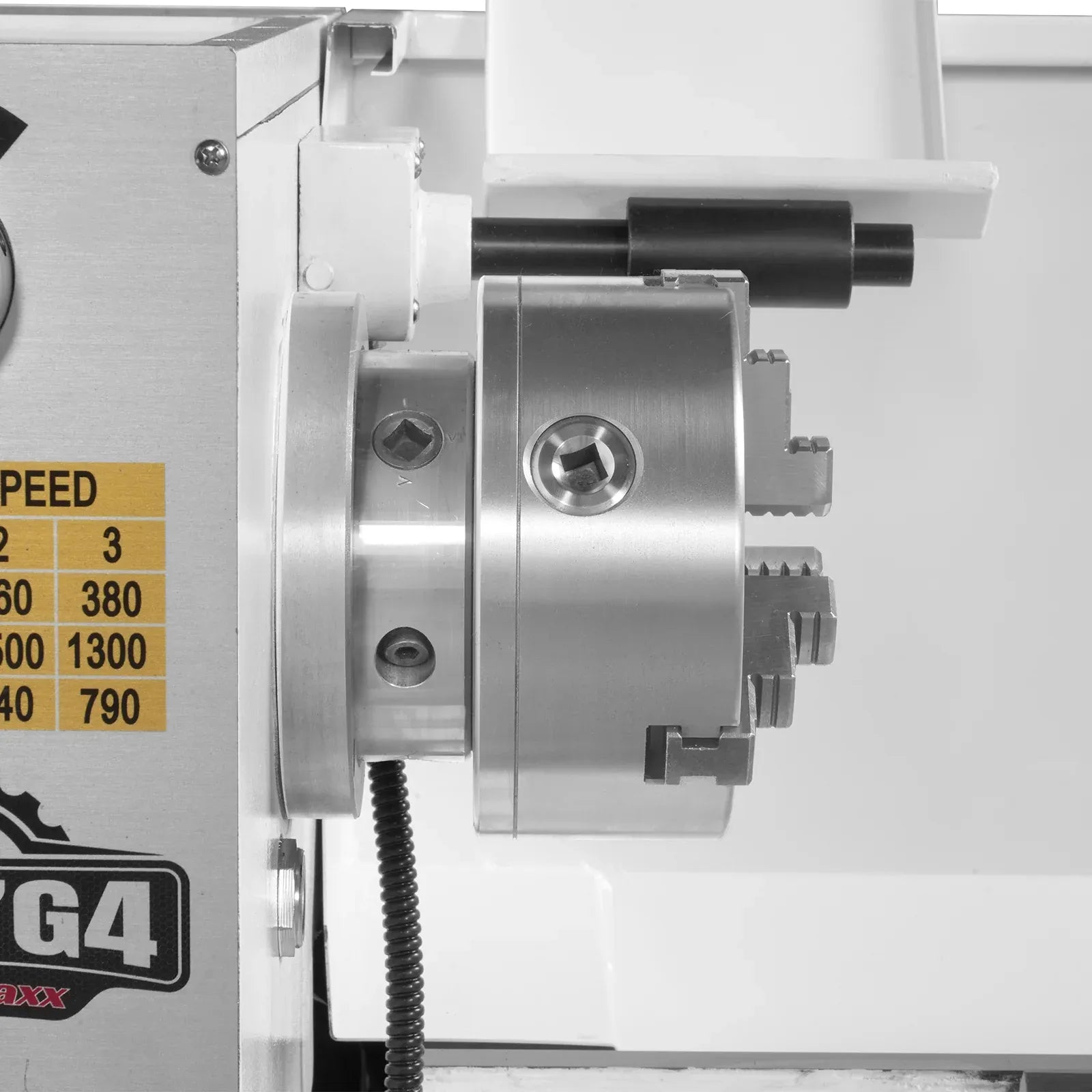

- D1-4 Cam-Lock Spindle for secure and accurate workholding
- 1.57" Spindle Bore for handling larger stock
- Supports inch (4–56 TPI) and metric (0.4–7 mm) threading

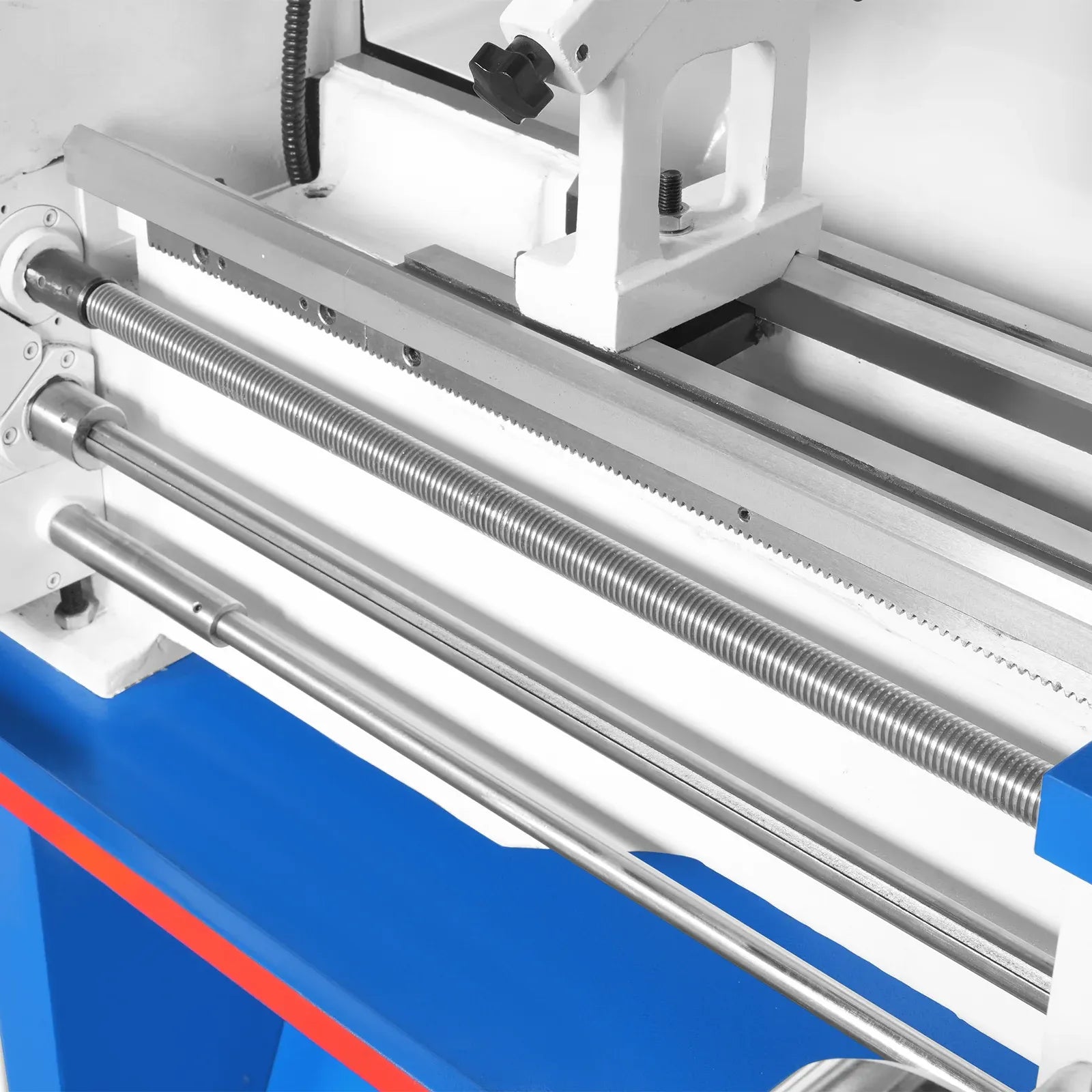

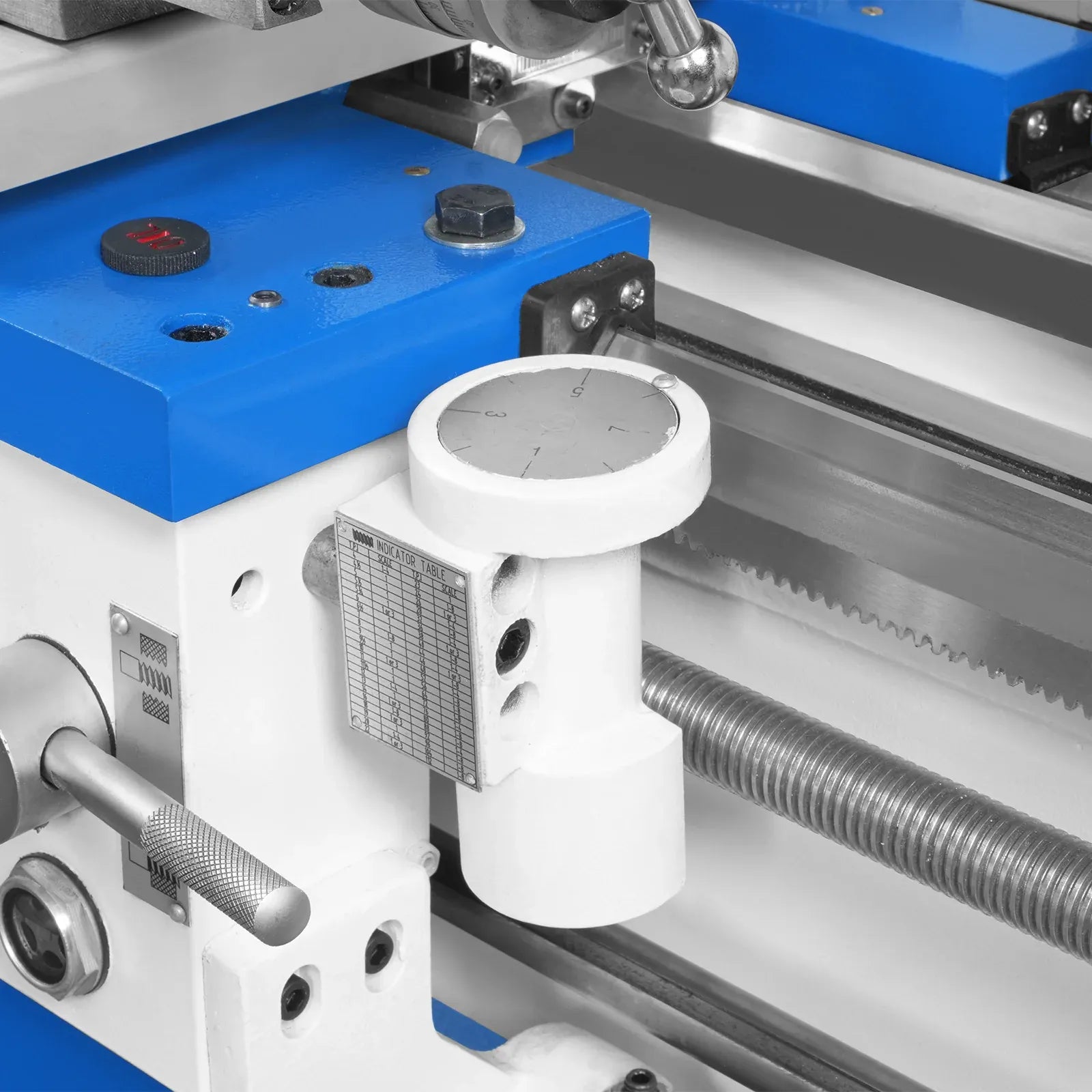

- Precision leadscrew for accurate thread cutting

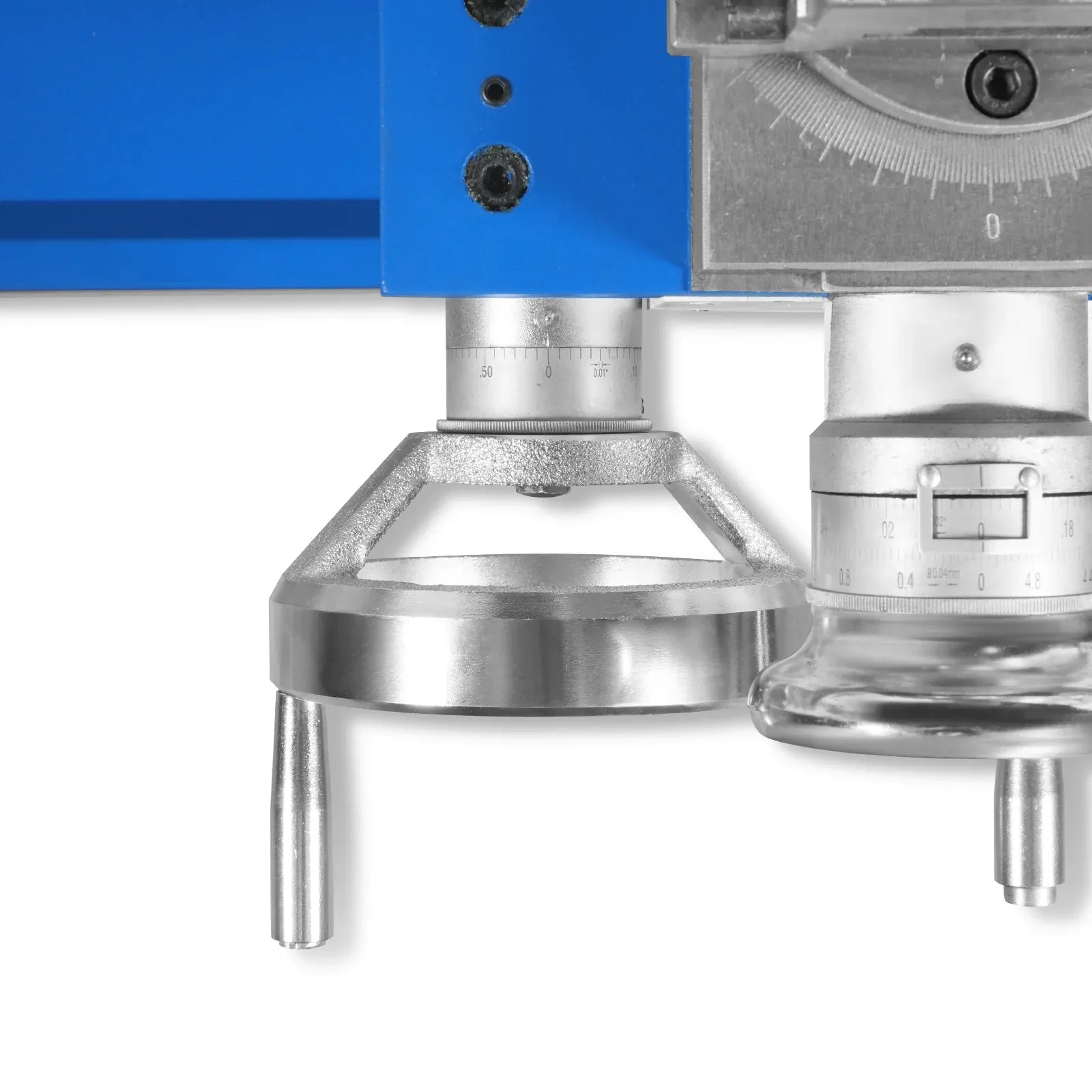

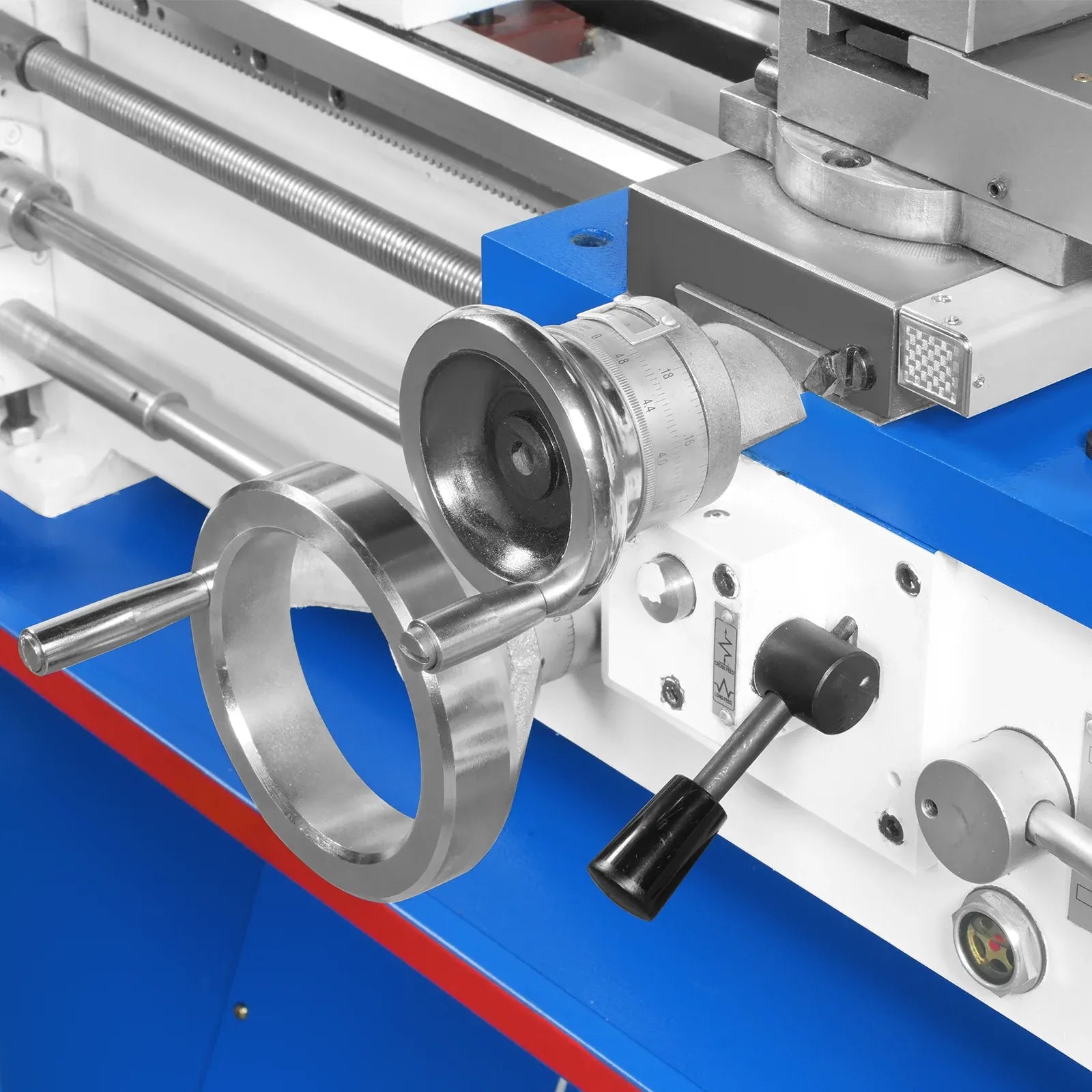

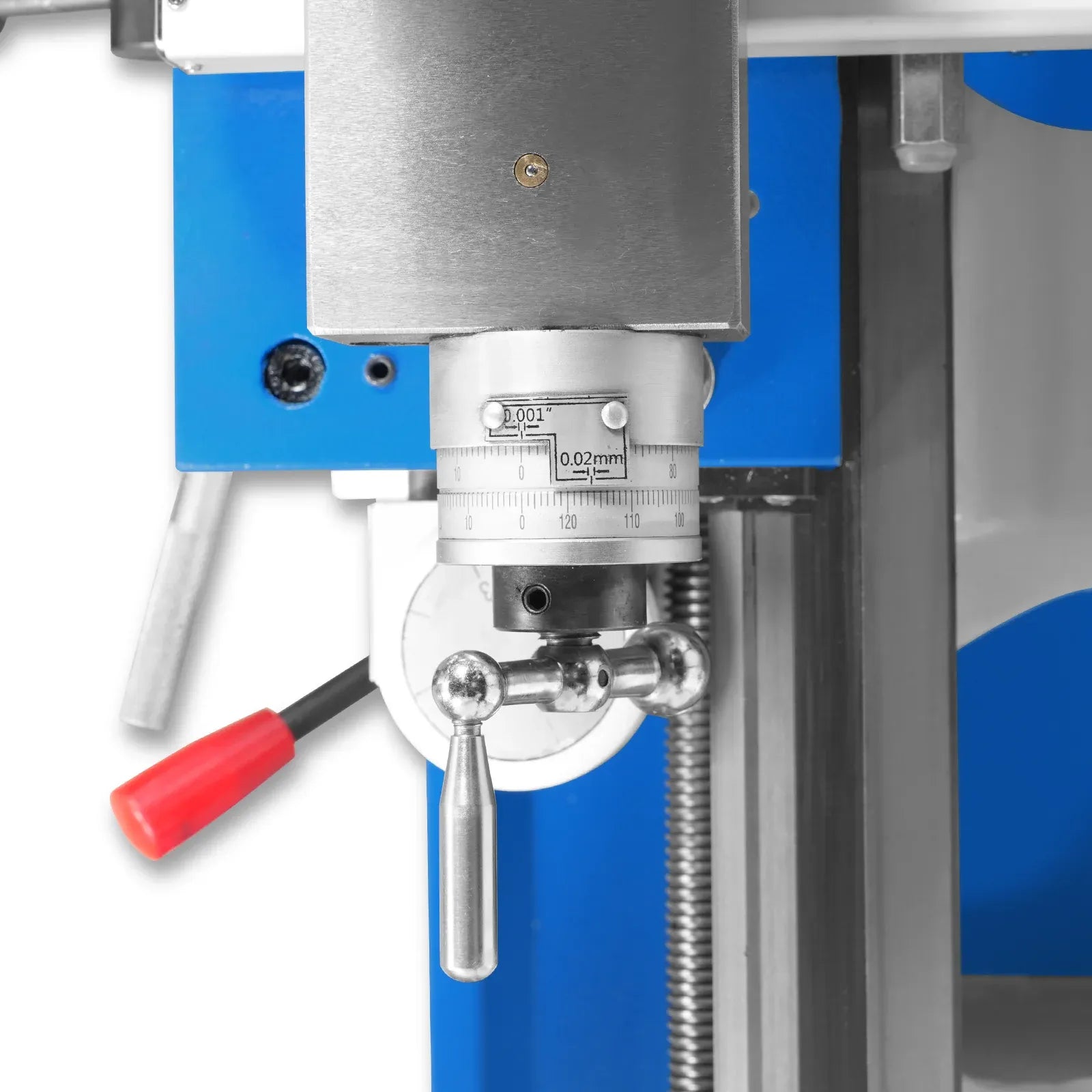

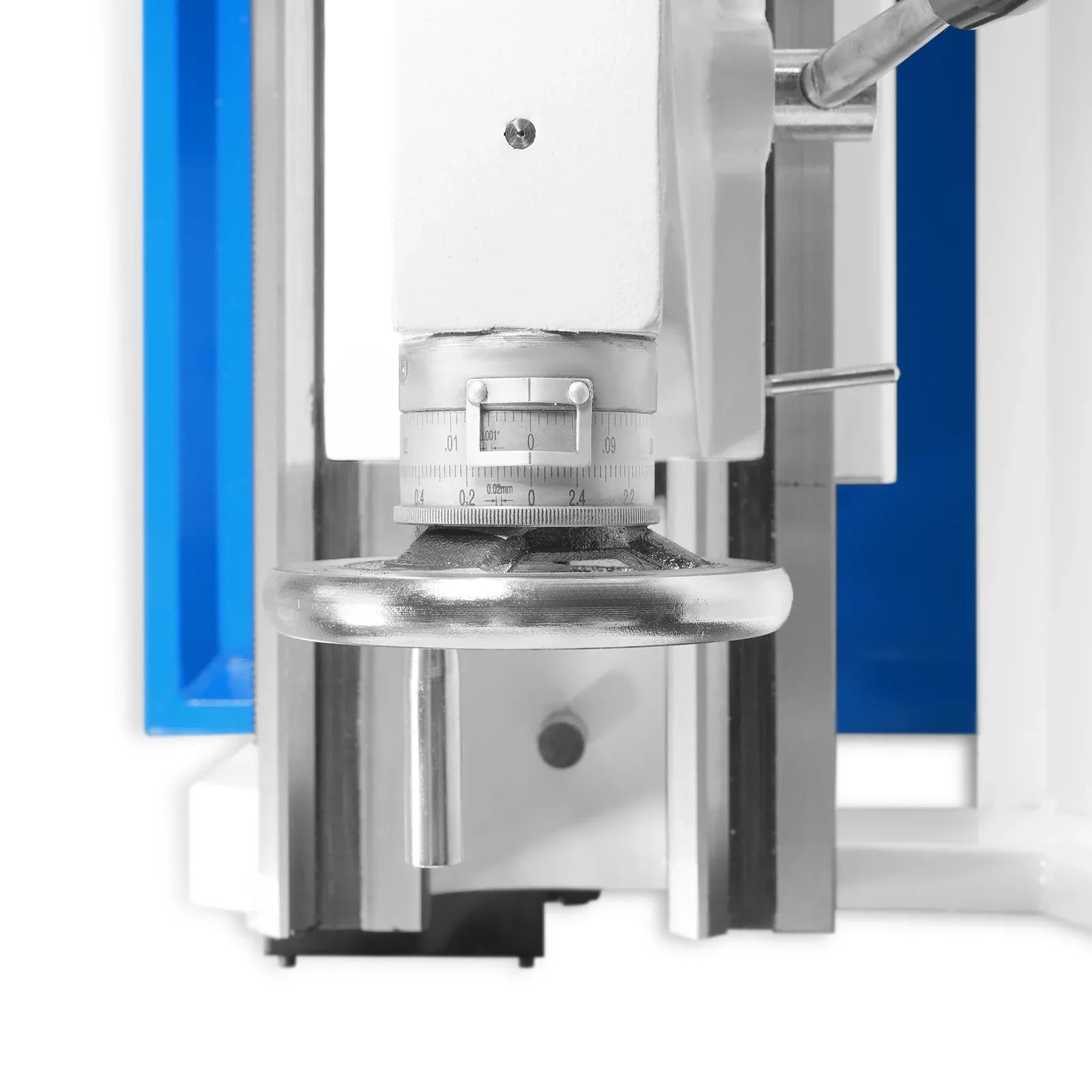

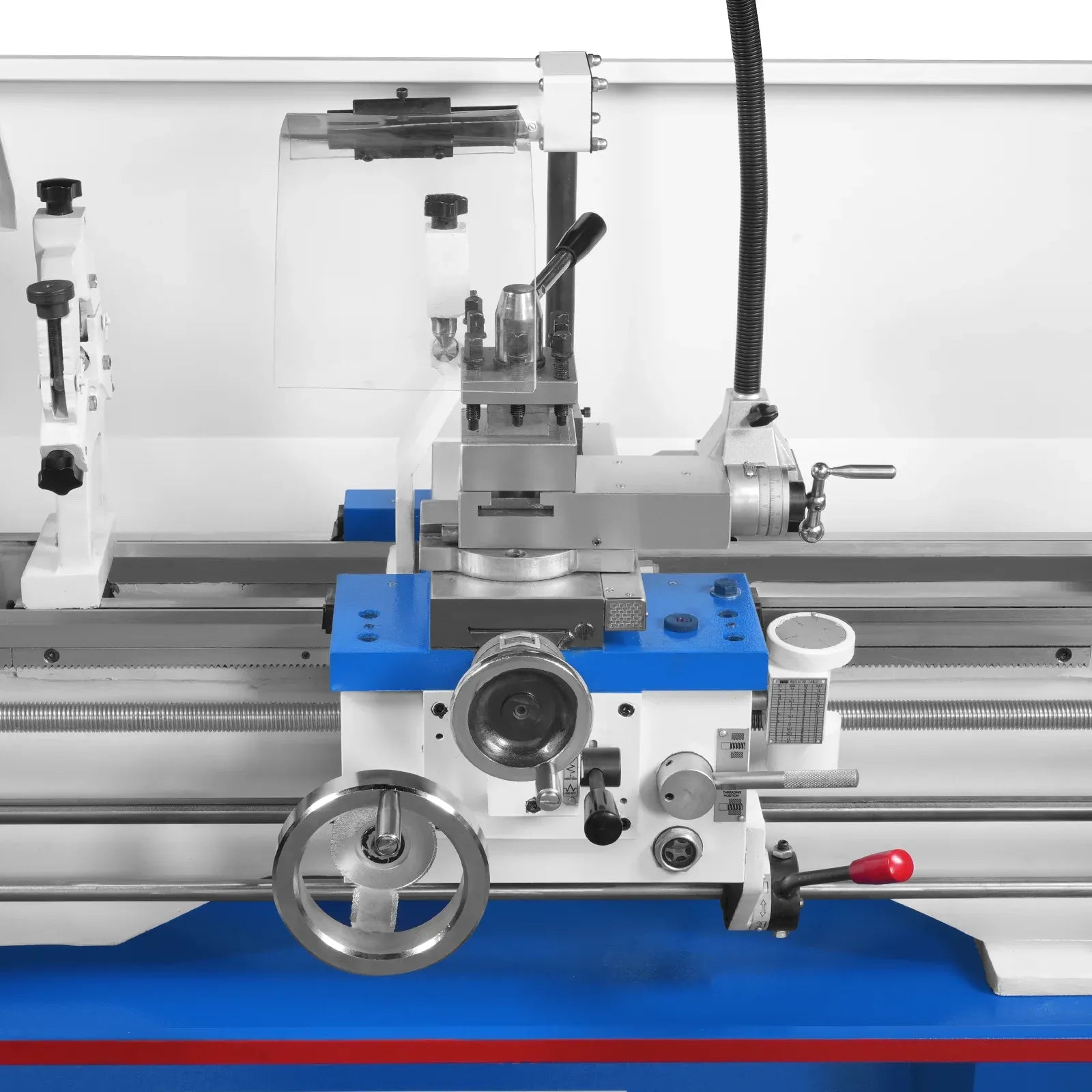

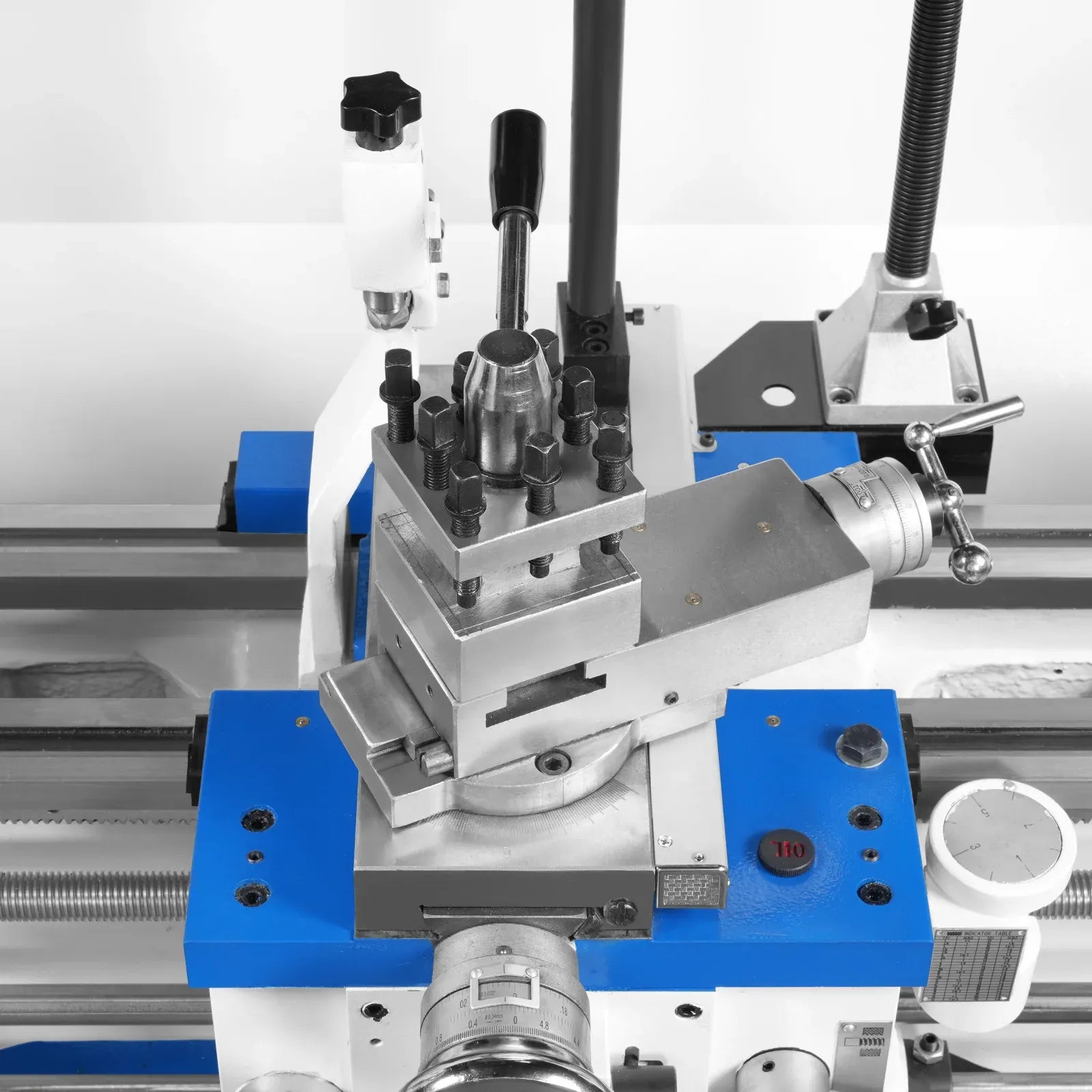

- Smooth cross and compound slide travel for fine adjustments

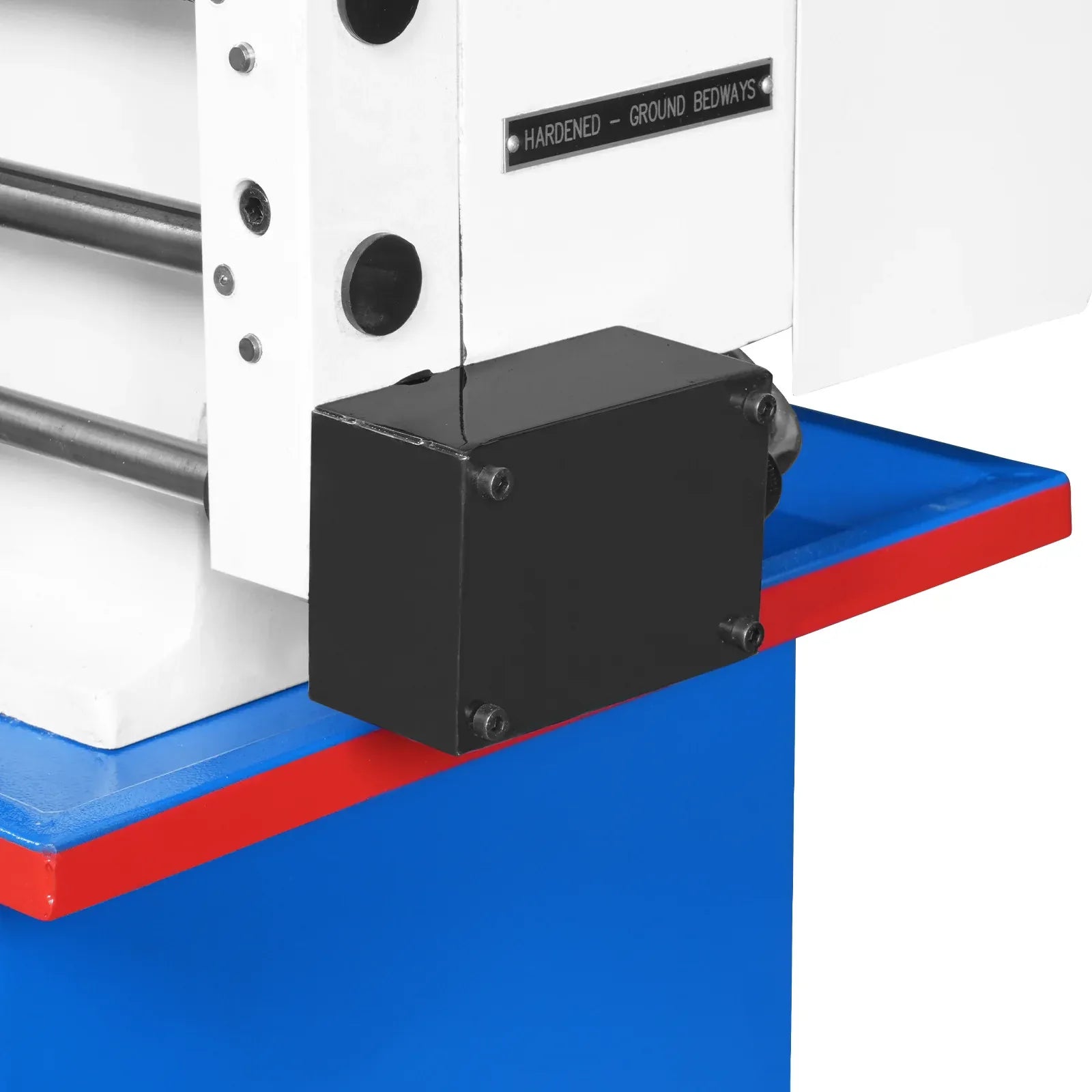

- Heavy-duty cast construction for long-term durability
Designed for Versatile Machining
This lathe is built to handle a wide range of machining tasks, from precision threading to general turning. Its threading capabilities and stable construction make it suitable for fabrication shops, maintenance work, and detailed machining applications.
| Specifications | Details |
|---|---|
| Model | 1337G4 |
| Motor | 1.5 HP (1100W), 220V, 60Hz, Single Phase |
| Swing Over Bed | 13" (330 mm) |
| Swing Over Cross Slide | 8.46" (215 mm) |
| Swing Over Gap | 19.09" (485 mm) |
| Distance Between Centers | 37" (940 mm) |

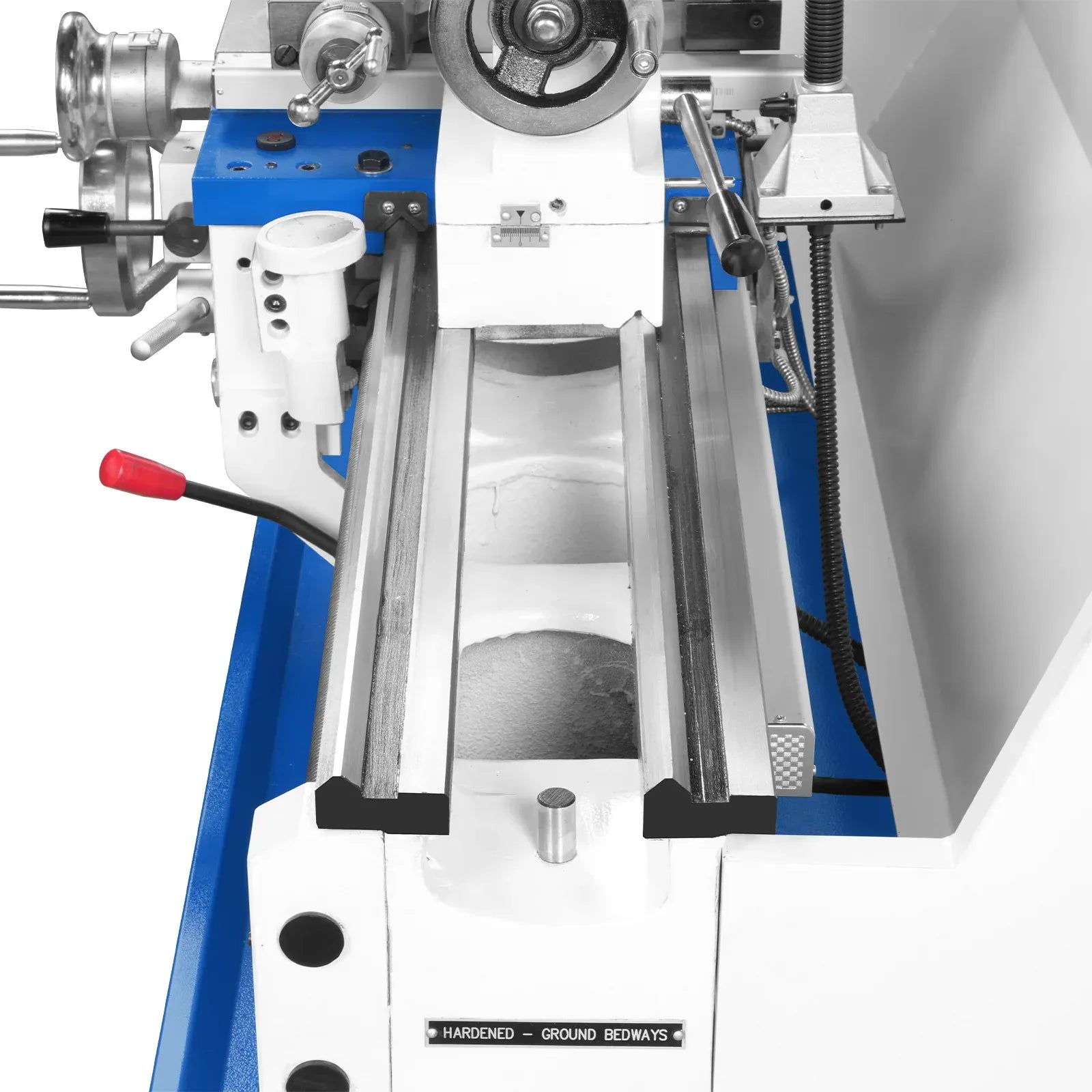

| Bed Width | 7.12" (181 mm) |
| Spindle Bore | 1.57" (40 mm) |
| Spindle Mount | D1-4 Cam-Lock |
| Spindle Taper | MT5 |

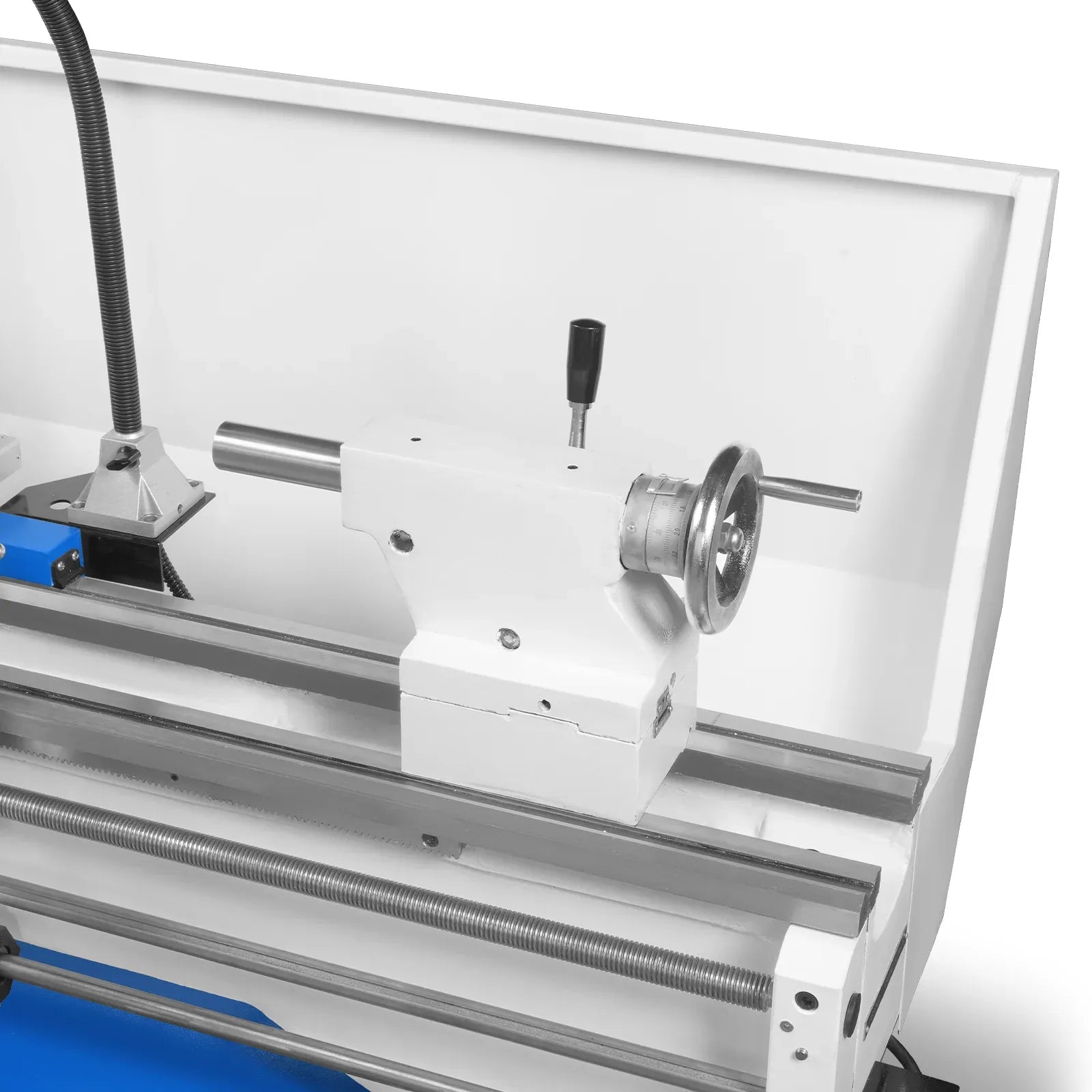

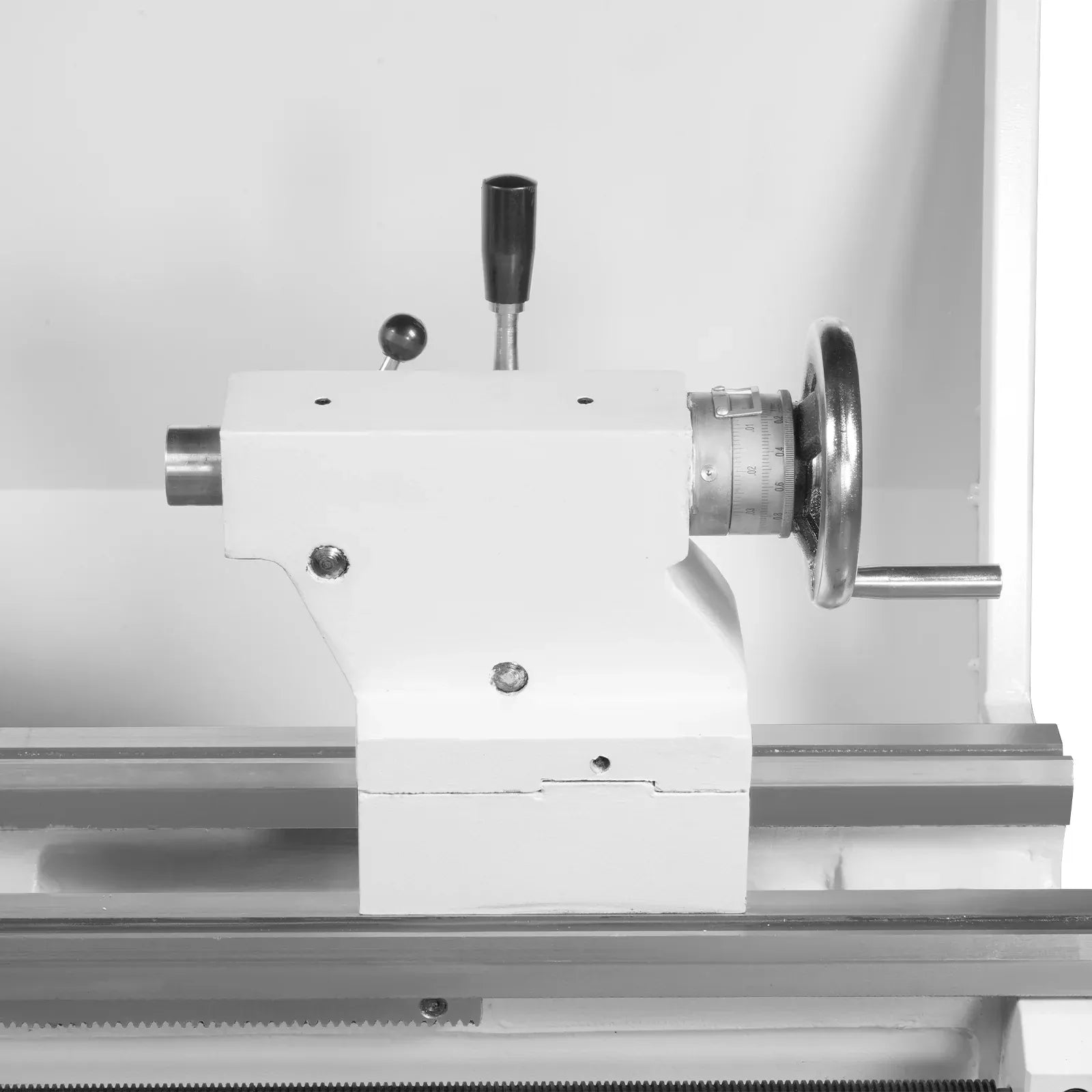

| Tailstock Taper | MT3 |

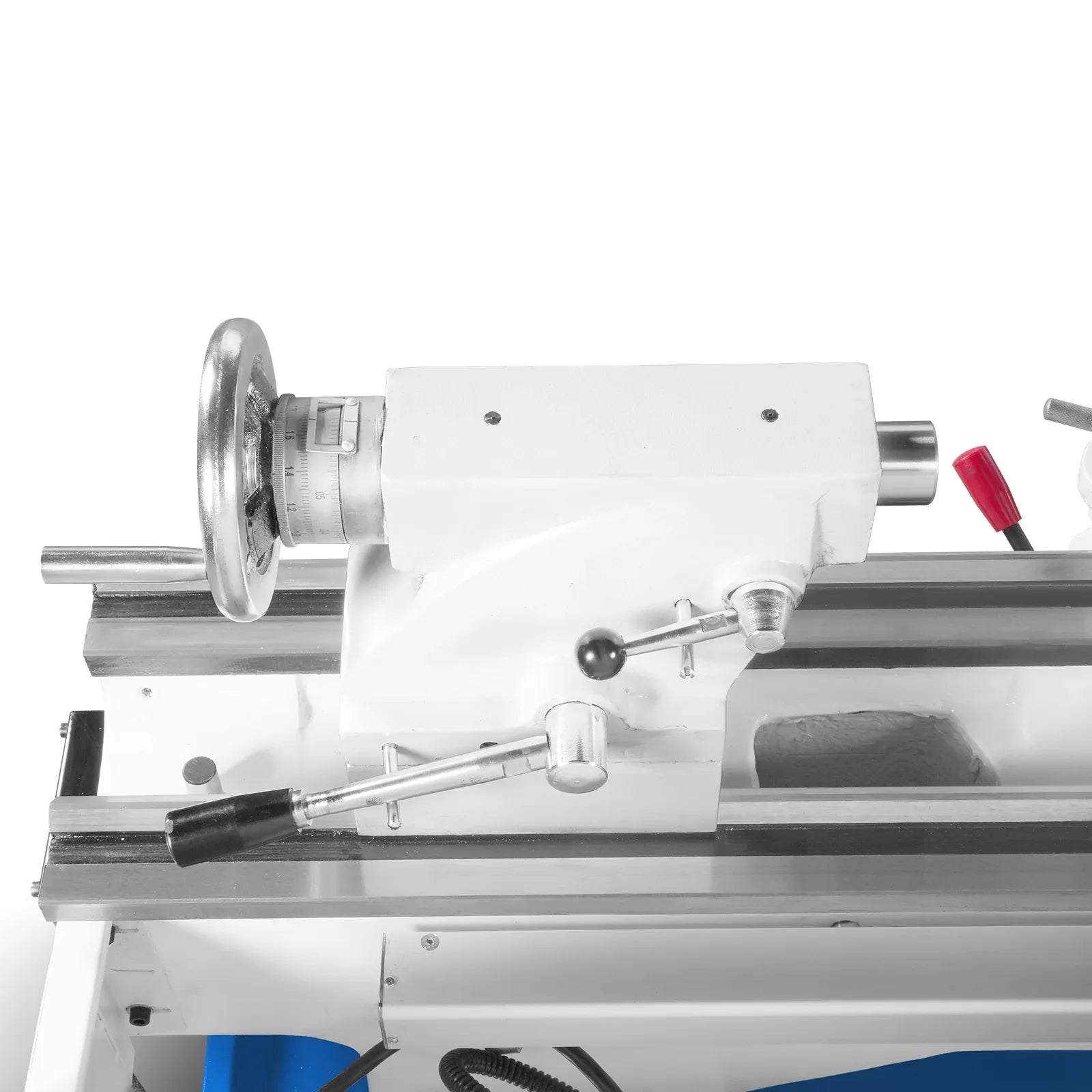

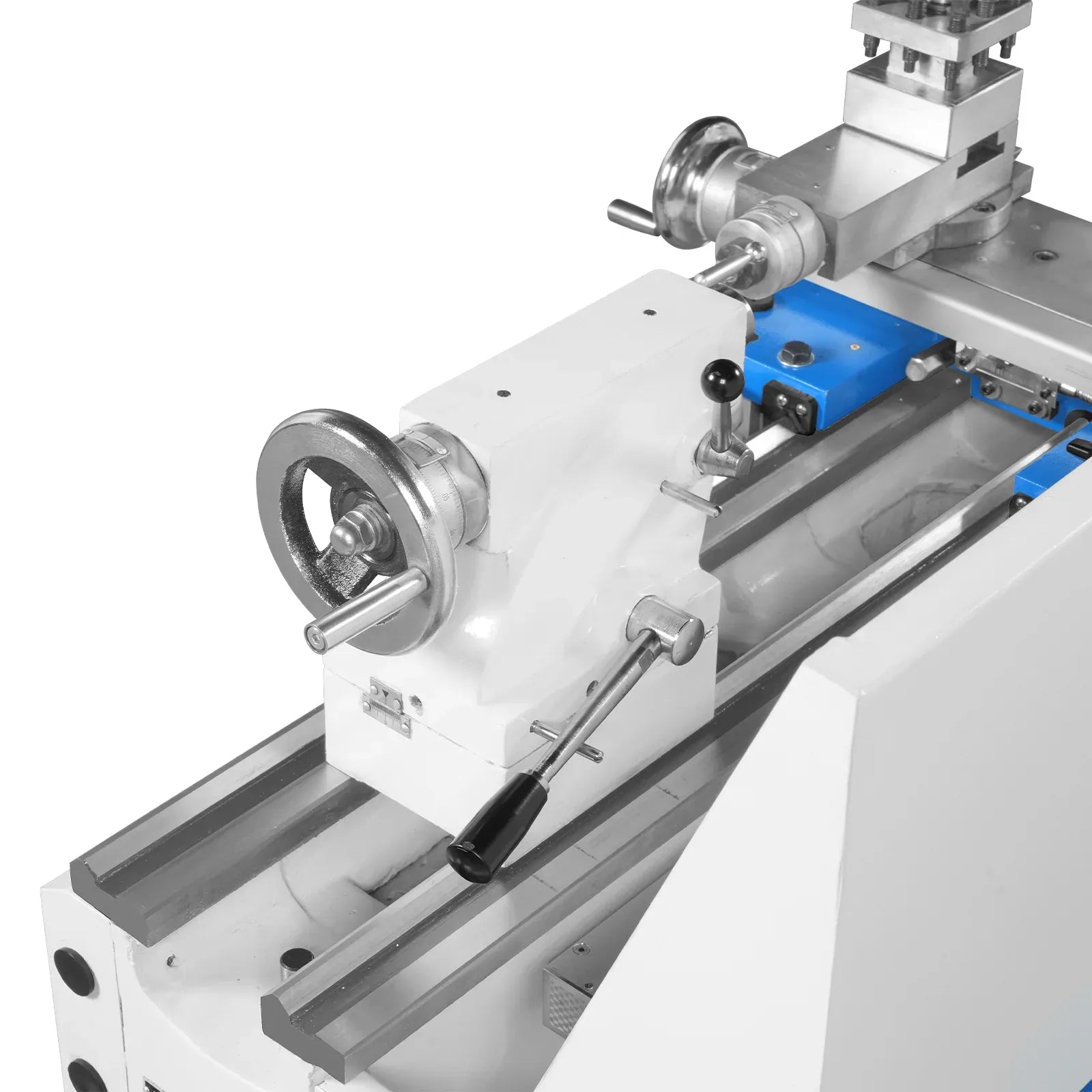

| Tailstock Quill Travel | 3.93" (100 mm) |
| Cross Slide Travel | 5.9" (150 mm) |
| Compound Slide Travel | 3.54" (90 mm) |
| Carriage Travel | 33.46" (850 mm) |
| Spindle Speeds | 64–1500 RPM |
| Speed Ranges | 9 |
| Longitudinal Feed | 0.002" – 0.0548" per rev |
| Cross Feed | 0.00055" – 0.015" per rev |
| Leadscrew | 22 mm / 7/8", 8 TPI |
| Inch Threads | 4 – 56 TPI (34 types) |
| Metric Threads | 0.4 – 7 mm (26 types) |
| Max Tool Size | 14 x 14 mm |
| Coolant System | Not Included |
| Shipping Dimensions | 70" x 29.5" x 29.9" |
| Shipping Weight | 1,320.8 lbs |
