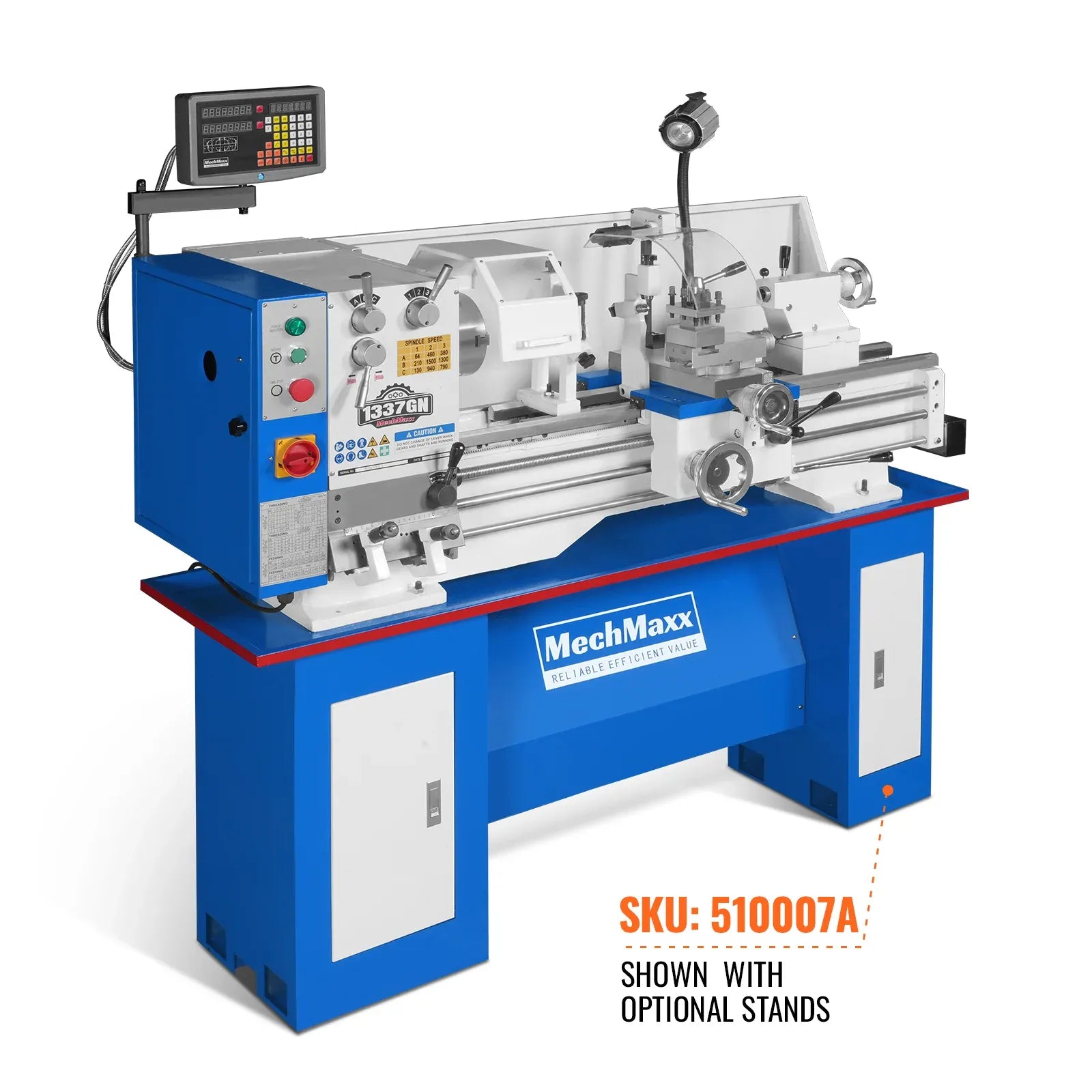

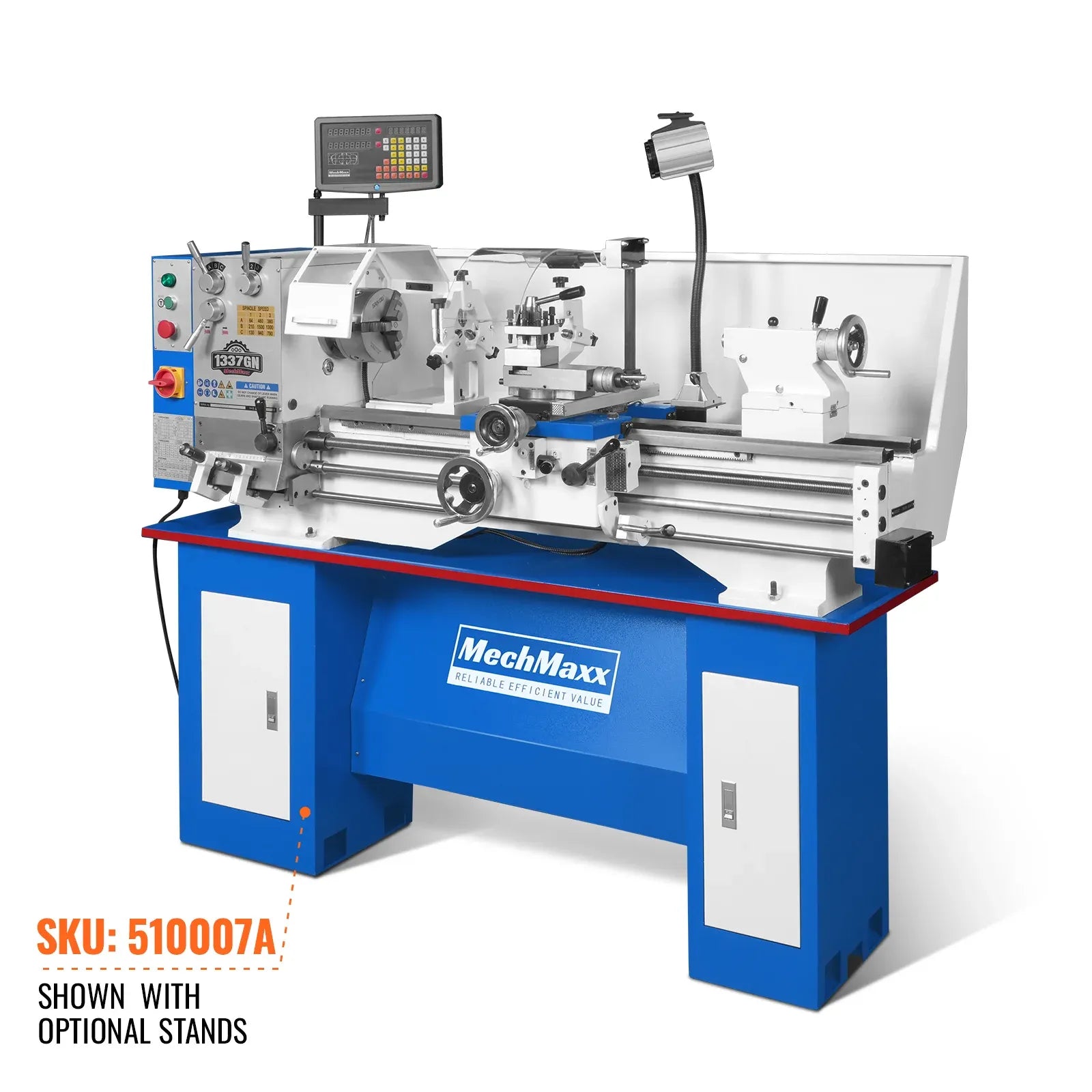

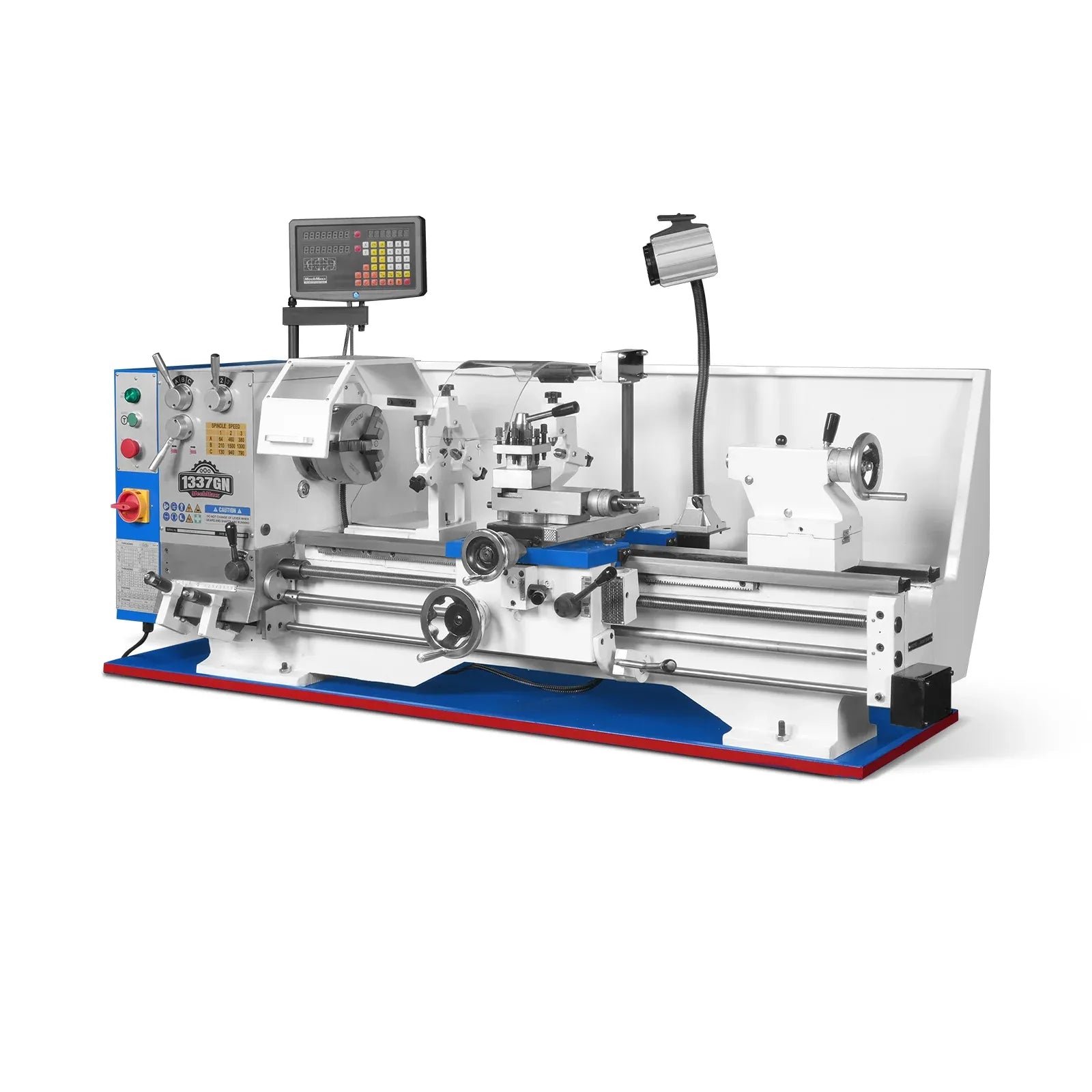

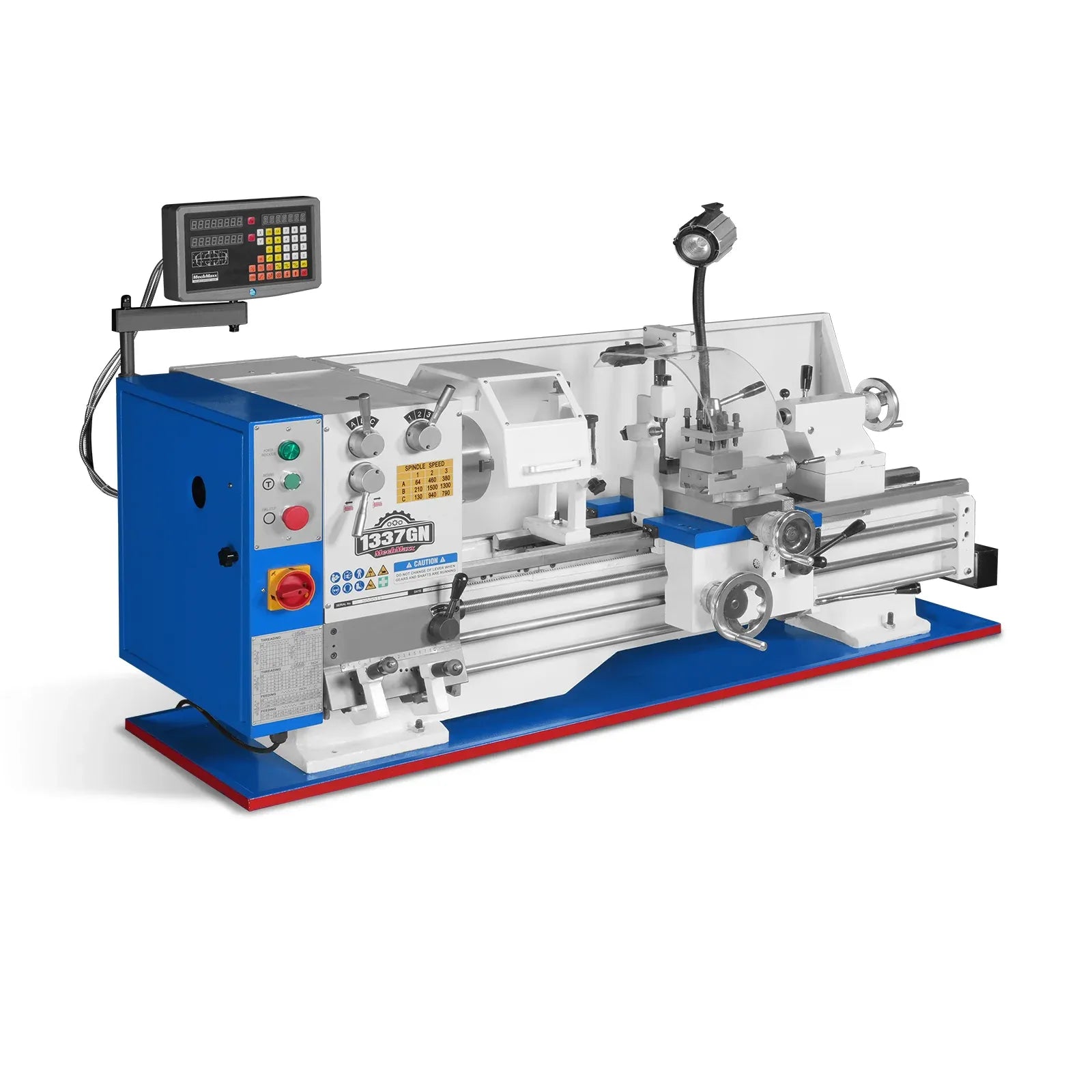

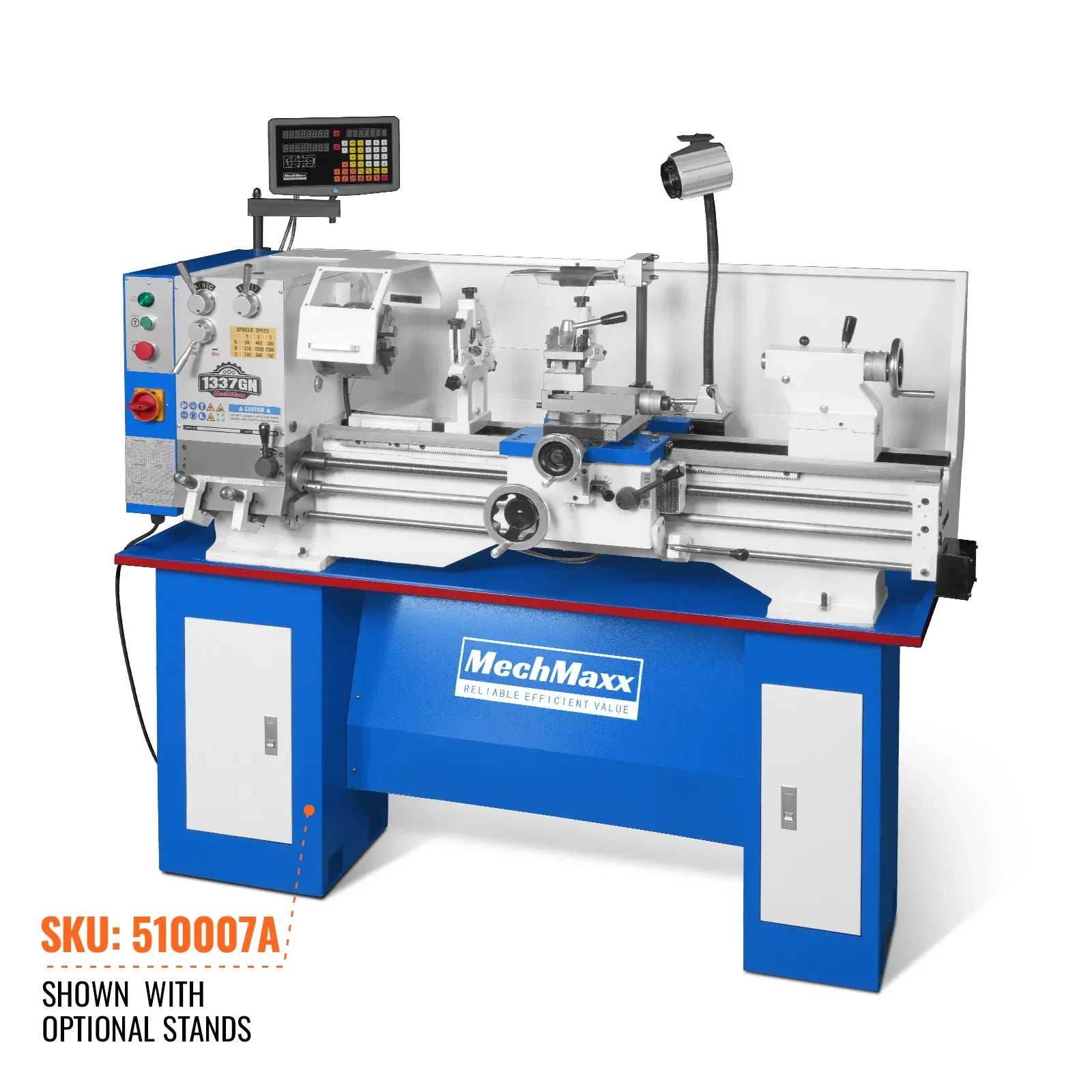

MechMaxx 13x37 Industrial Metal Lathe with Norton Gearbox, Model 1337GN
SKU: 500011
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The 13" x 37" Heavy-Duty Metal Lathe with Full Norton Gearbox is a precision-engineered machine designed for accurate threading, turning, and general machining applications. Built for both professional shops and advanced workshop users, this lathe combines durability, control, and versatility to handle a wide range of metalworking tasks.

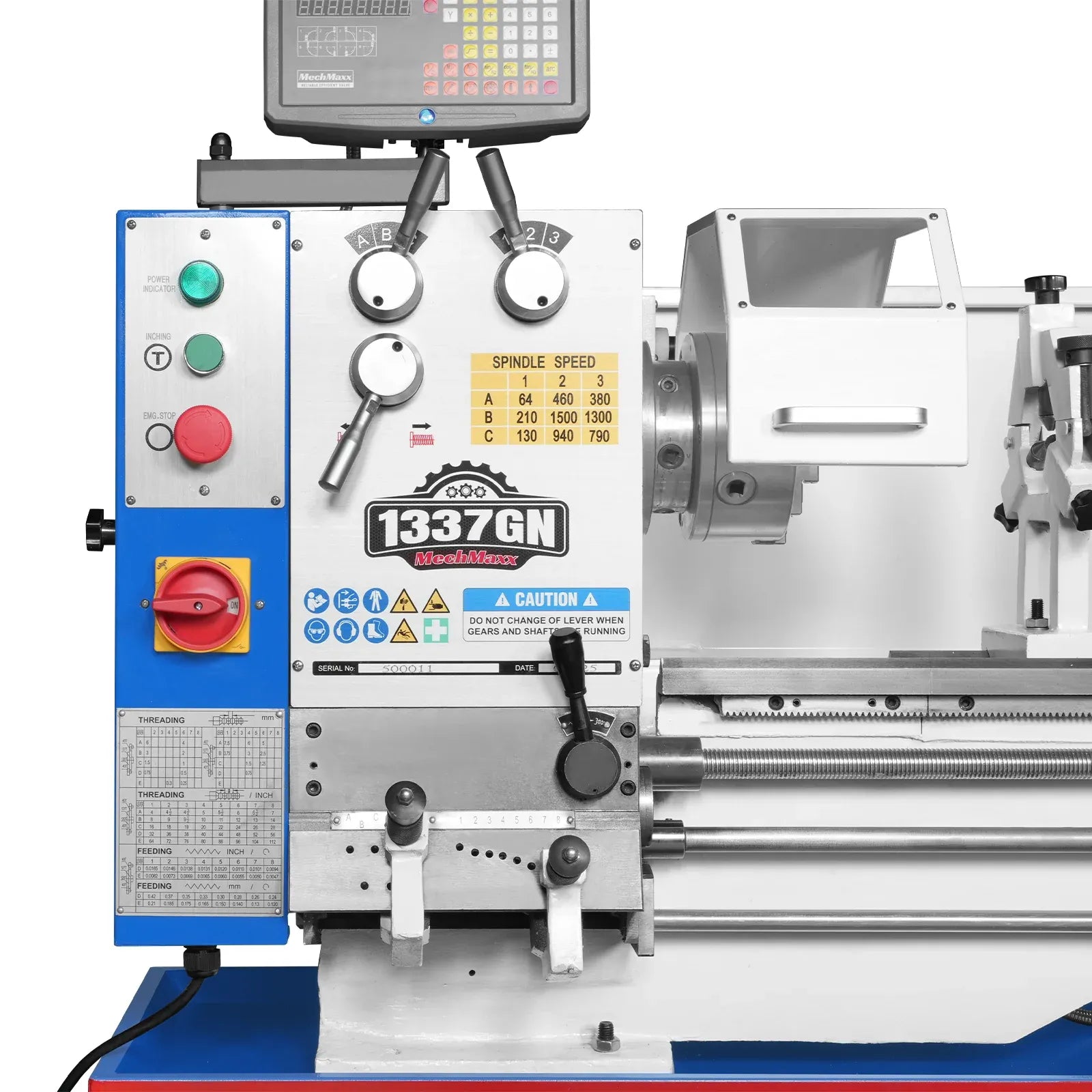

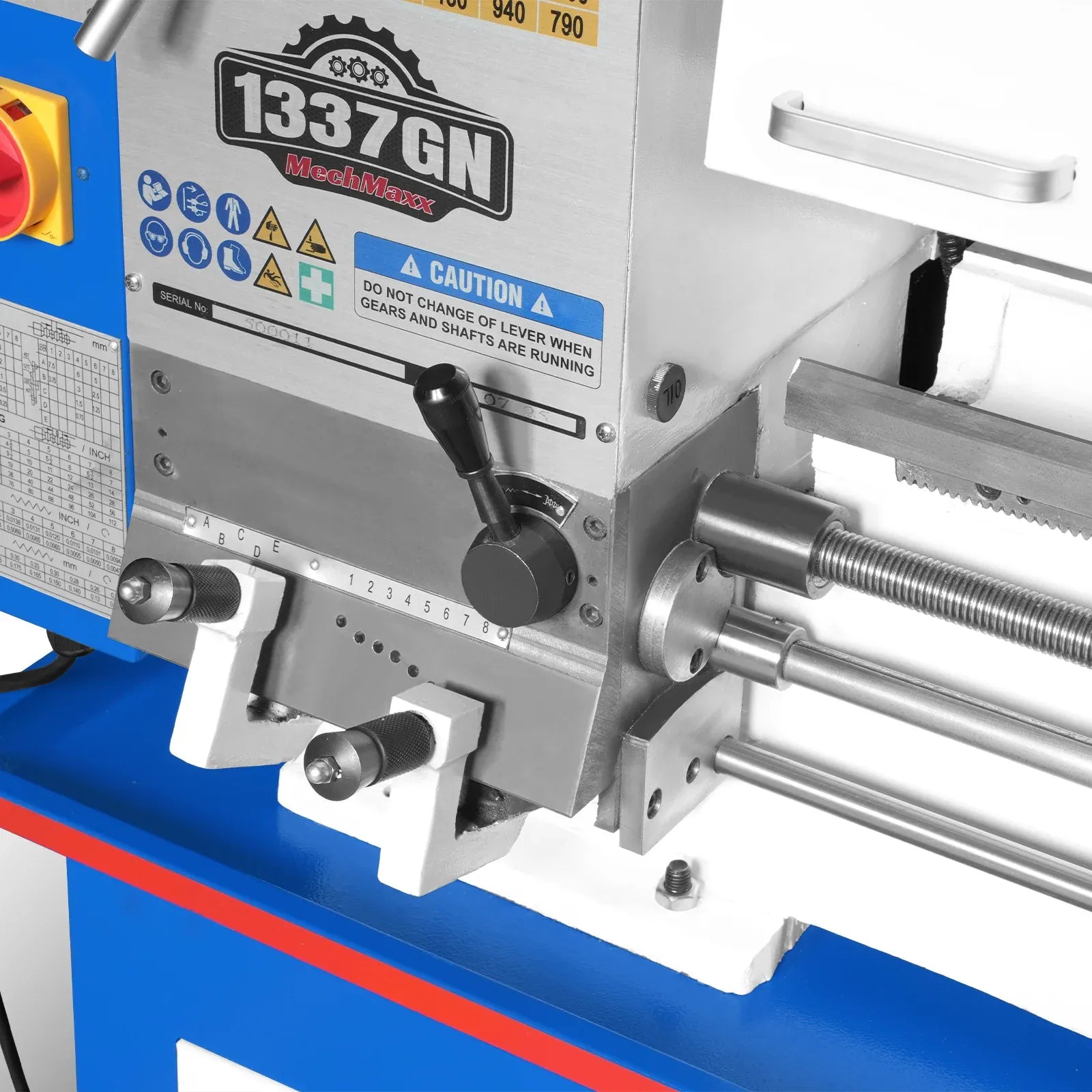

Equipped with a full Norton gearbox, this lathe allows for quick and precise adjustments to feed rates and threading without the need for manual gear changes. This improves efficiency, reduces setup time, and ensures smooth, consistent finishes across different operations.
Key Features & Benefits
- Full Norton Gearbox for fast, precise feed and threading adjustments
- 1.5 HP Motor (220V Single Phase) for reliable performance
- 13" Swing Over Bed and 37" Between Centers for versatile work capacity
- 9-Speed Range (64–1500 RPM) for flexible machining
- 1.57" Spindle Bore for handling larger materials
- D1-4 Cam-Lock Spindle for secure workholding
- Supports inch (4–112 TPI) and metric (0.25–7.5 mm) threading
- Precision-ground bedway for smooth and accurate operation
- Heavy-duty construction for long-term durability
Built for Precision & Control
Powered by a 1.5HP motor, this lathe delivers reliable performance for light to medium-duty machining. The wide speed range from 64 to 1500 RPM allows operators to match spindle speed to material type, improving cutting accuracy and surface finish.

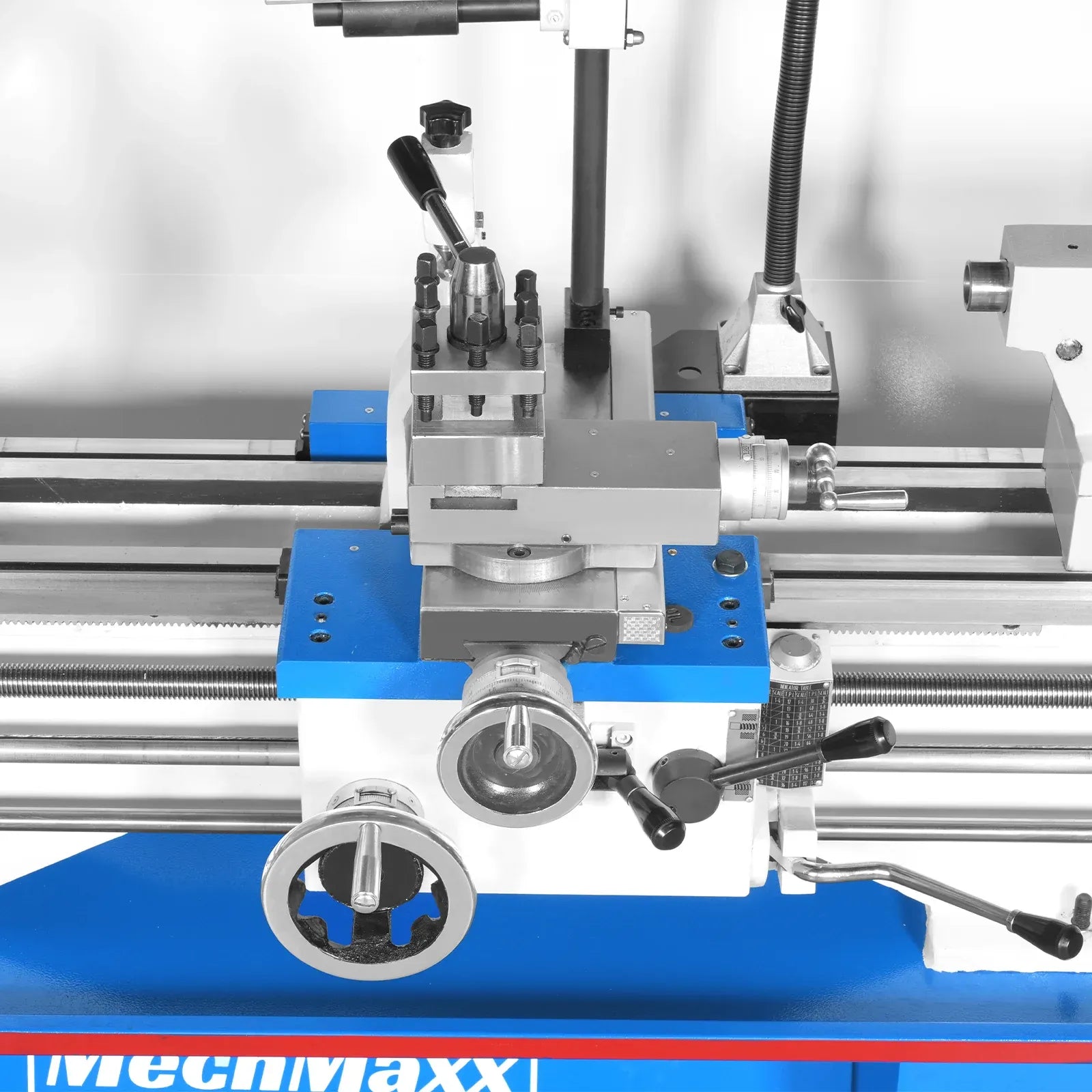

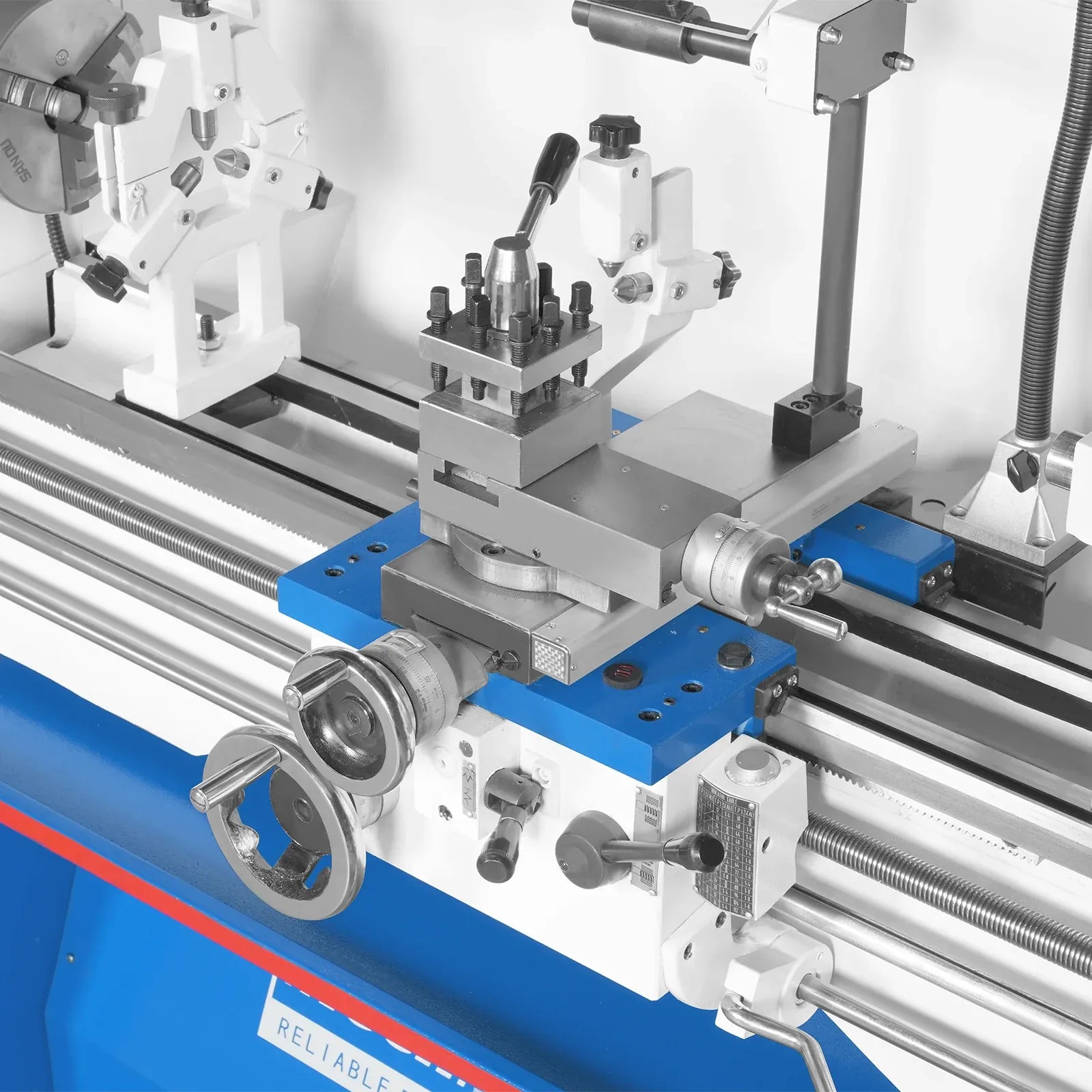

The machine's rigid construction, including an induction-hardened bedway and solid frame, ensures long-term durability and stability during operation. Smooth cross slide and compound movements allow for fine adjustments, making it ideal for detailed work.
Designed for Versatile Machining
This lathe is built to handle a wide variety of machining tasks, including threading, turning, and shaping. Its large working capacity and broad threading range make it suitable for fabrication shops, maintenance work, and general machining applications.
| Specifications | Details |
|---|---|
| Motor | 1.5 HP (1100W), 220V, 60Hz, Single Phase |
| Swing Over Bed | 13" (330 mm) |
| Swing Over Cross Slide | 8.46" (215 mm) |
| Swing Over Gap | 19.09" (485 mm) |
| Distance Between Centers | 37" (940 mm) |
| Bed Width | 7.12" (181 mm) |
| Spindle Bore | 1.57" (40 mm) |
| Spindle Mount | D1-4 Cam-Lock |
| Spindle Taper | MT5 |
| Tailstock Taper | MT3 |

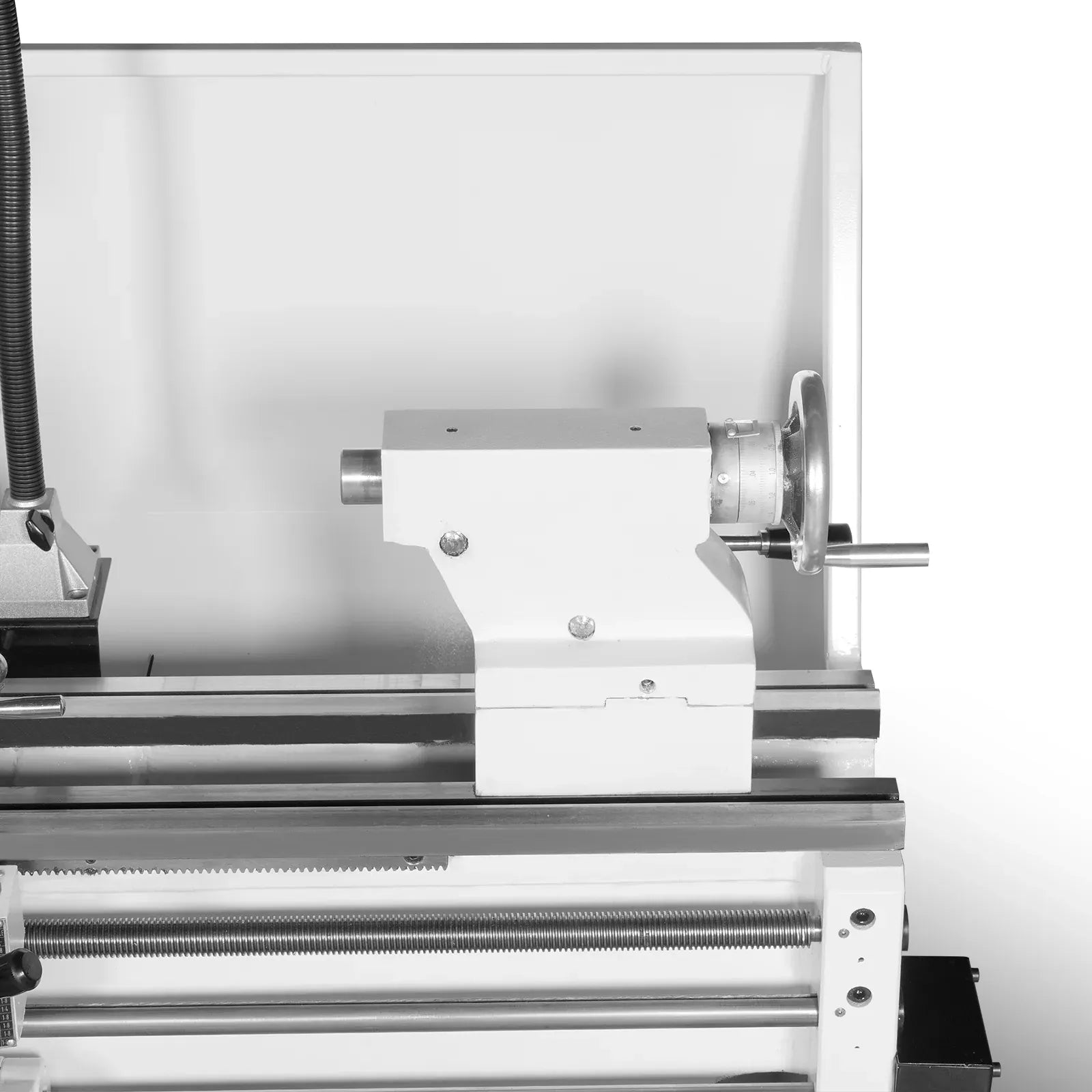

| Tailstock Quill Travel | 3.93" (100 mm) |
| Cross Slide Travel | 5.9" (150 mm) |
| Compound Slide Travel | 3.54" (90 mm) |
| Carriage Travel | 33.46" (850 mm) |
| Spindle Speeds | 64–1500 RPM |
| Speed Ranges | 9 |
| Longitudinal Feed | 0.0047" – 0.0165" per rev |
| Cross Feed | 0.0047" – 0.0165" per rev |

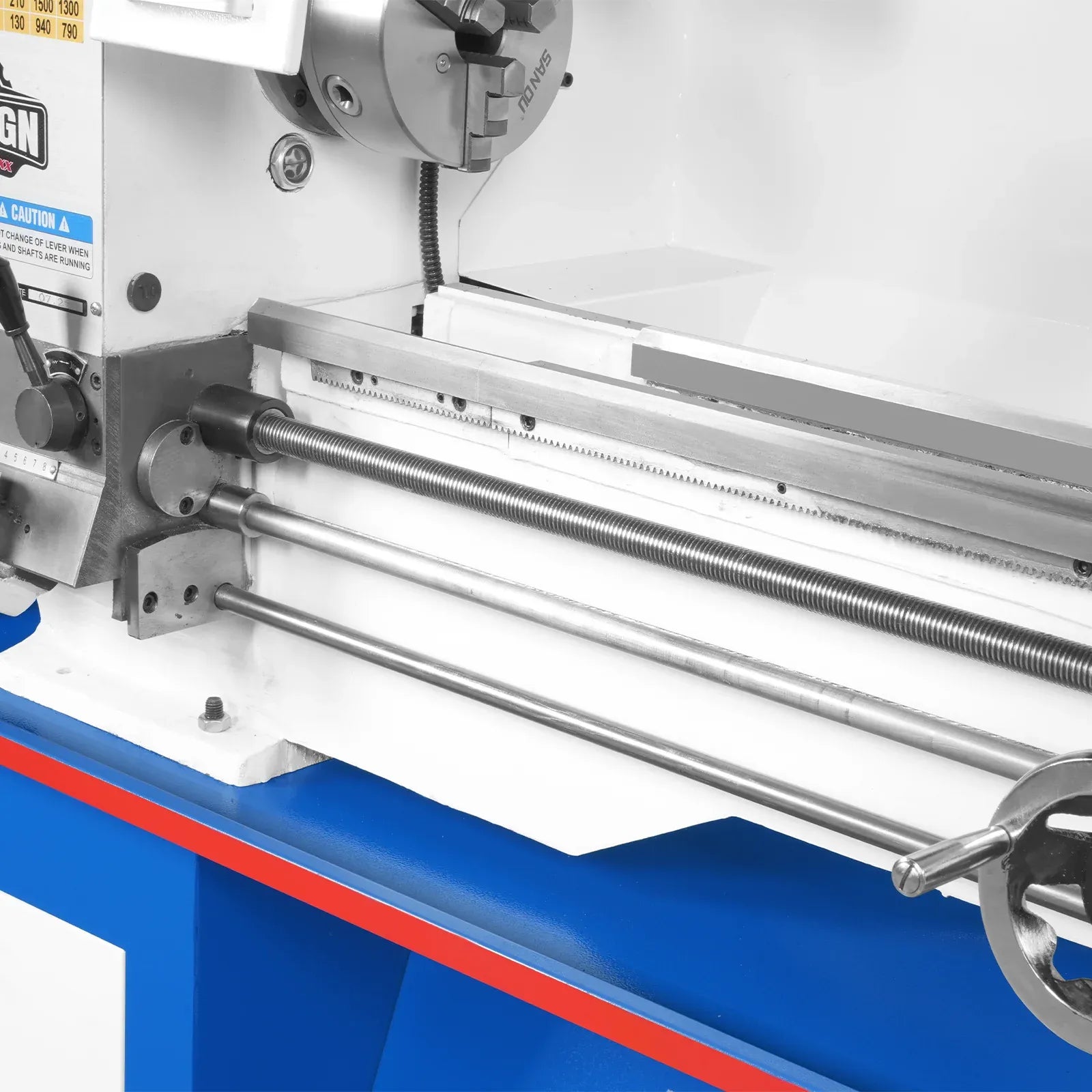

| Leadscrew | 22 mm / 7/8", 8 TPI |
| Inch Threads | 4 – 112 TPI (40 types) |
| Metric Threads | 0.25 – 7.5 mm (15 types) |
| Max Tool Size | 14 x 14 mm |
| Coolant System | Not Included |
