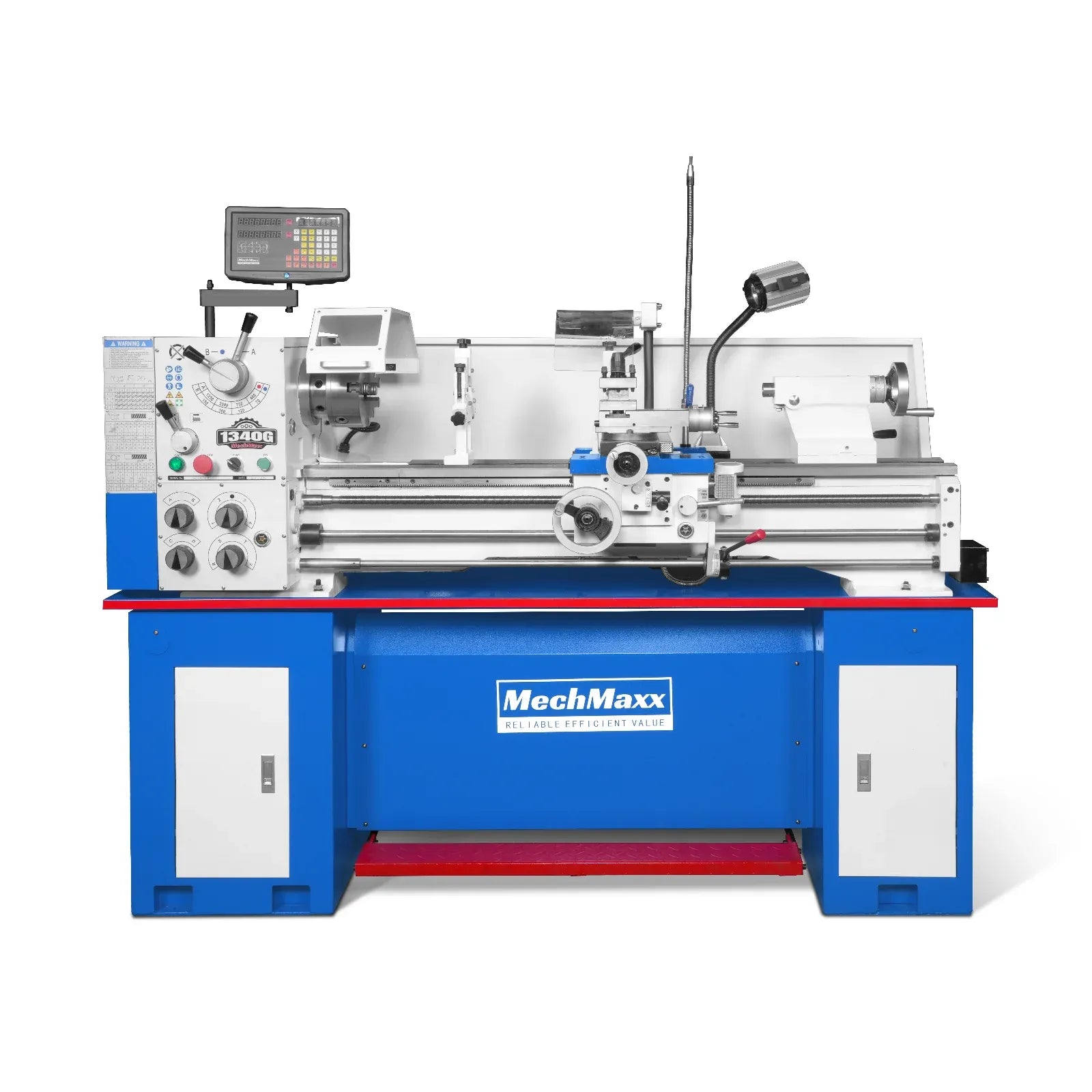

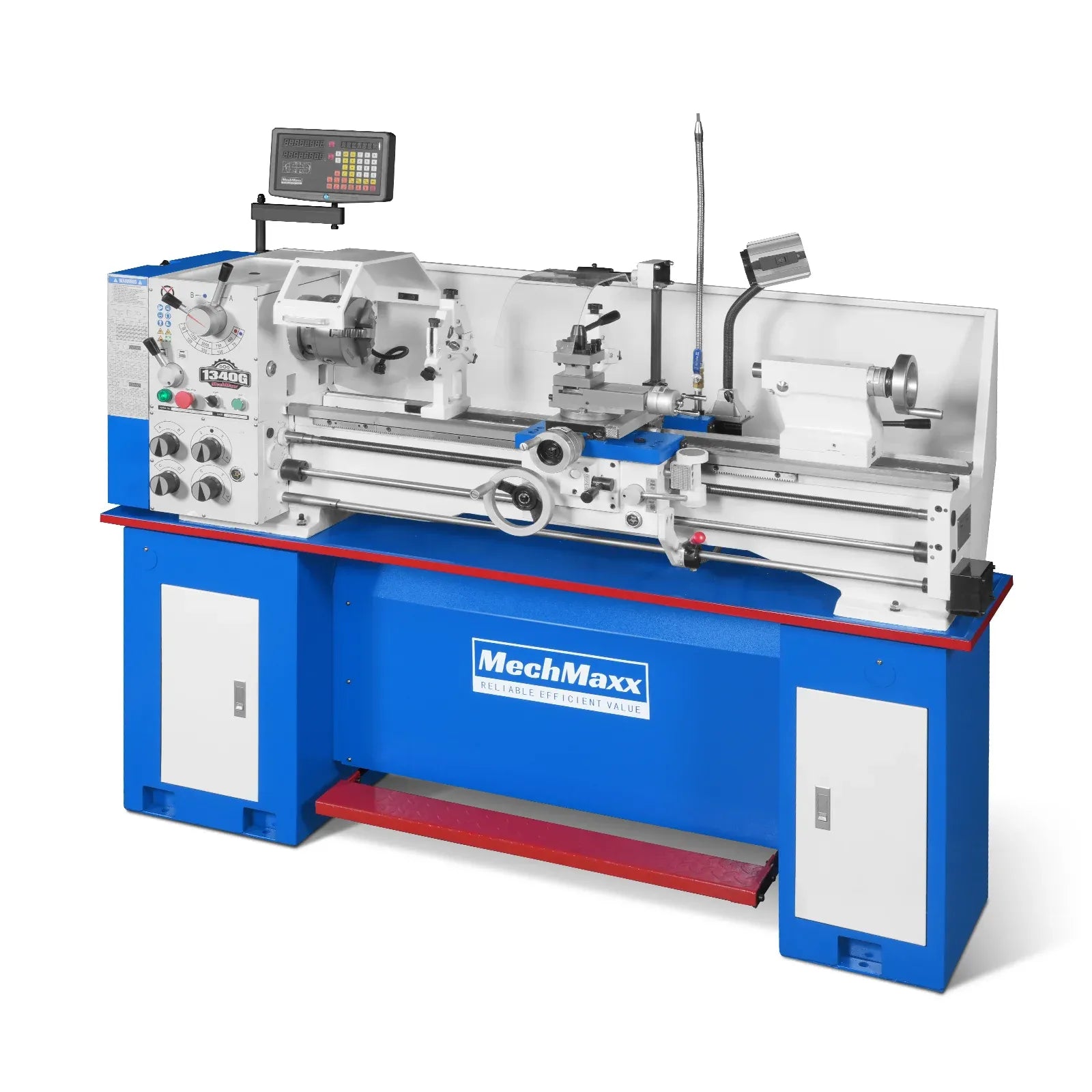

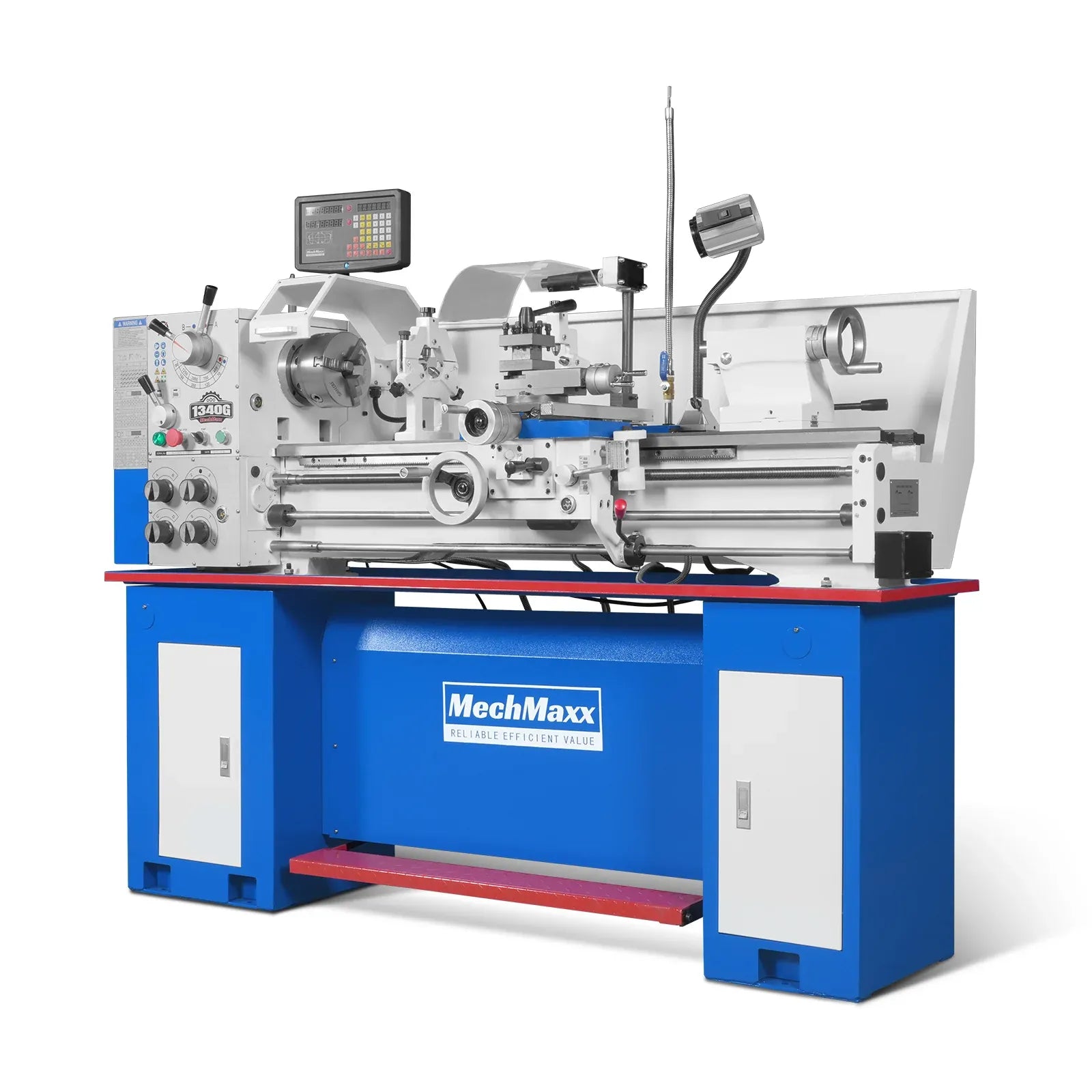

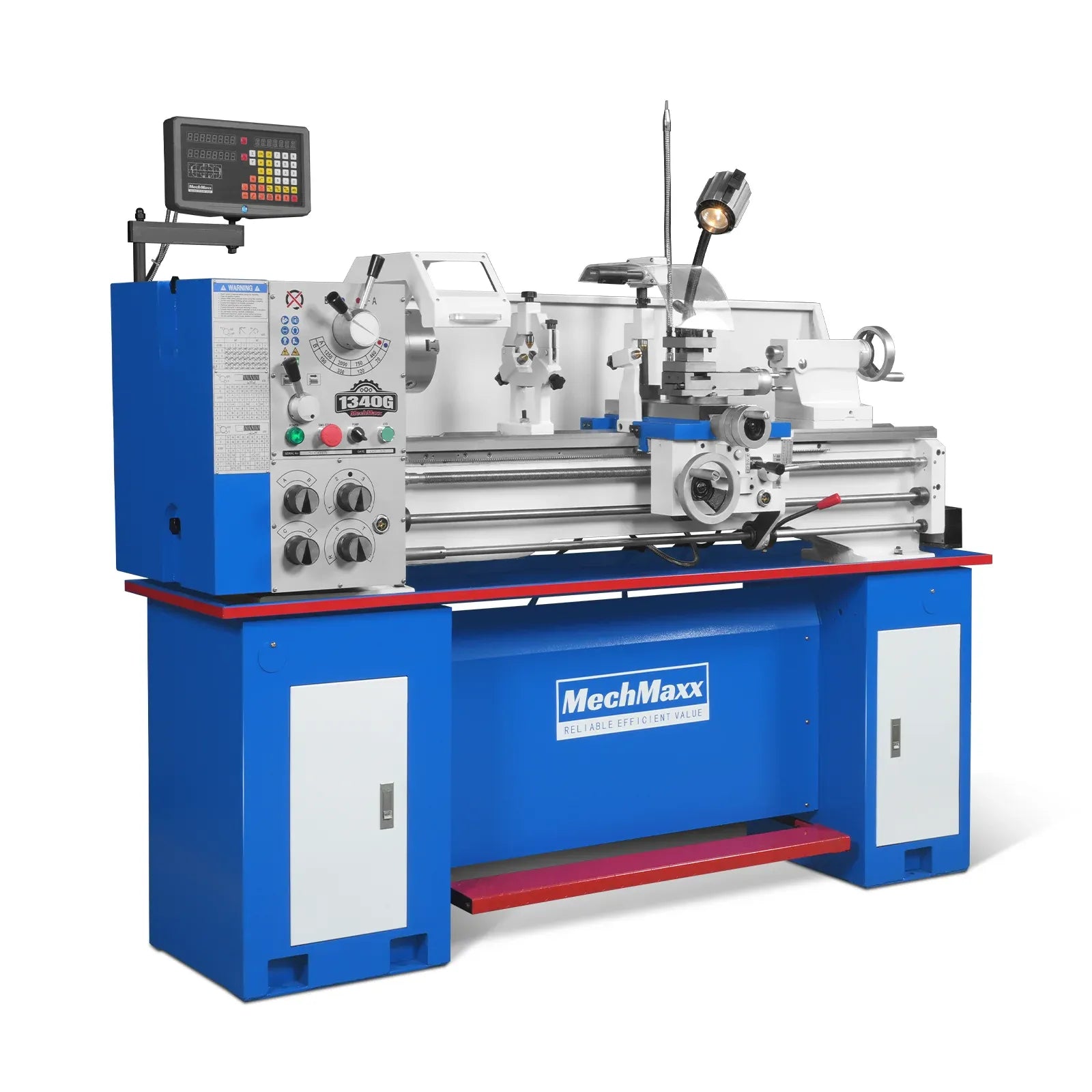

MechMaxx 13x40 Industrial Heavy Duty Metal Lathe, Model 1340G
SKU: 500013
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The 13" x 40" Heavy-Duty Metal Lathe with 2HP Motor and Coolant System is a powerful, industrial-grade machine designed for demanding machining, threading, and fabrication work. Built for professionals who need strength, precision, and versatility, this lathe delivers consistent performance across a wide range of materials and applications.
Equipped with a robust 2HP motor and a rigid, vibration-resistant frame, this lathe is capable of handling heavier workloads while maintaining accuracy. Its extended carriage travel and wide threading capabilities make it ideal for both detailed precision work and longer, high-volume machining tasks.
Built for Power & Precision

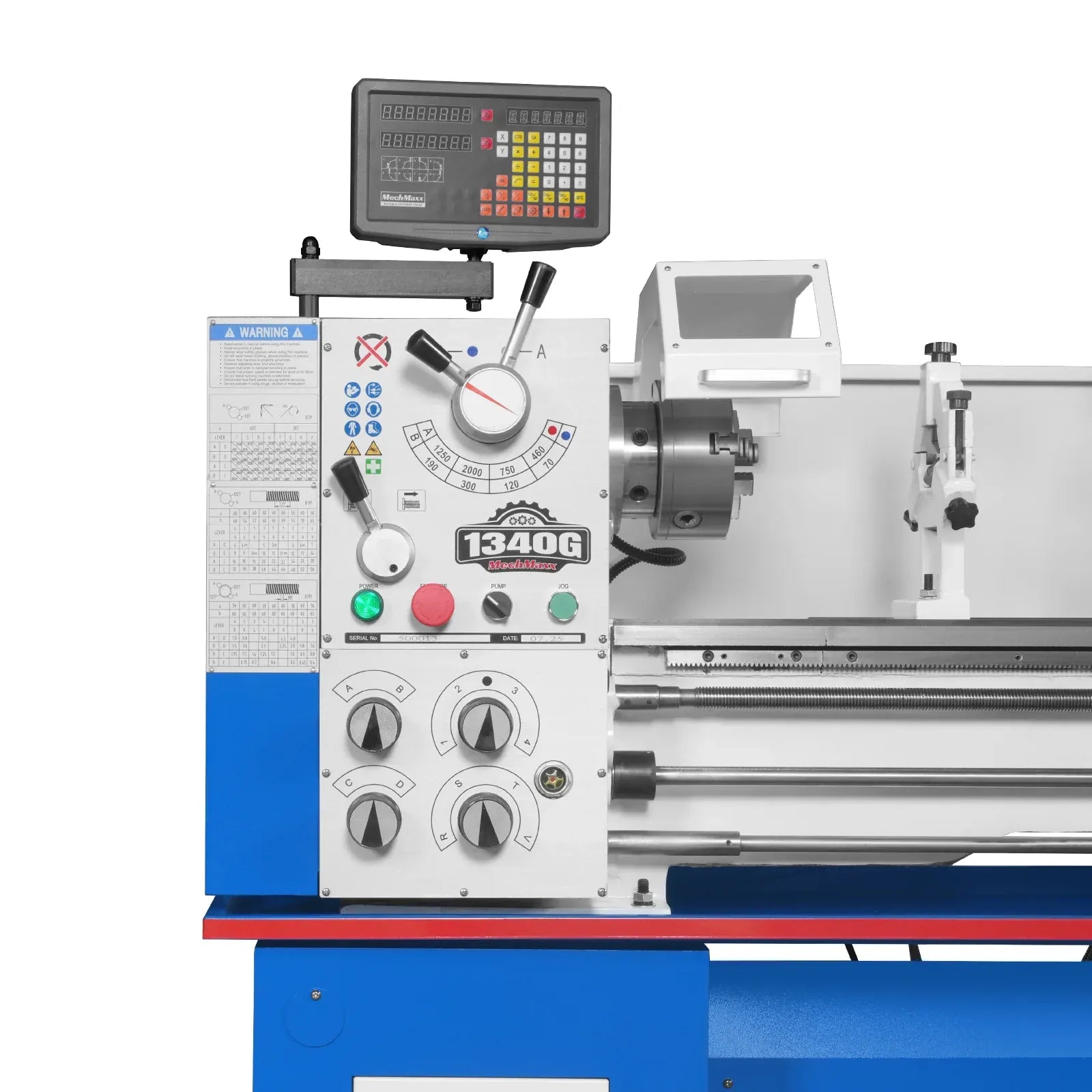

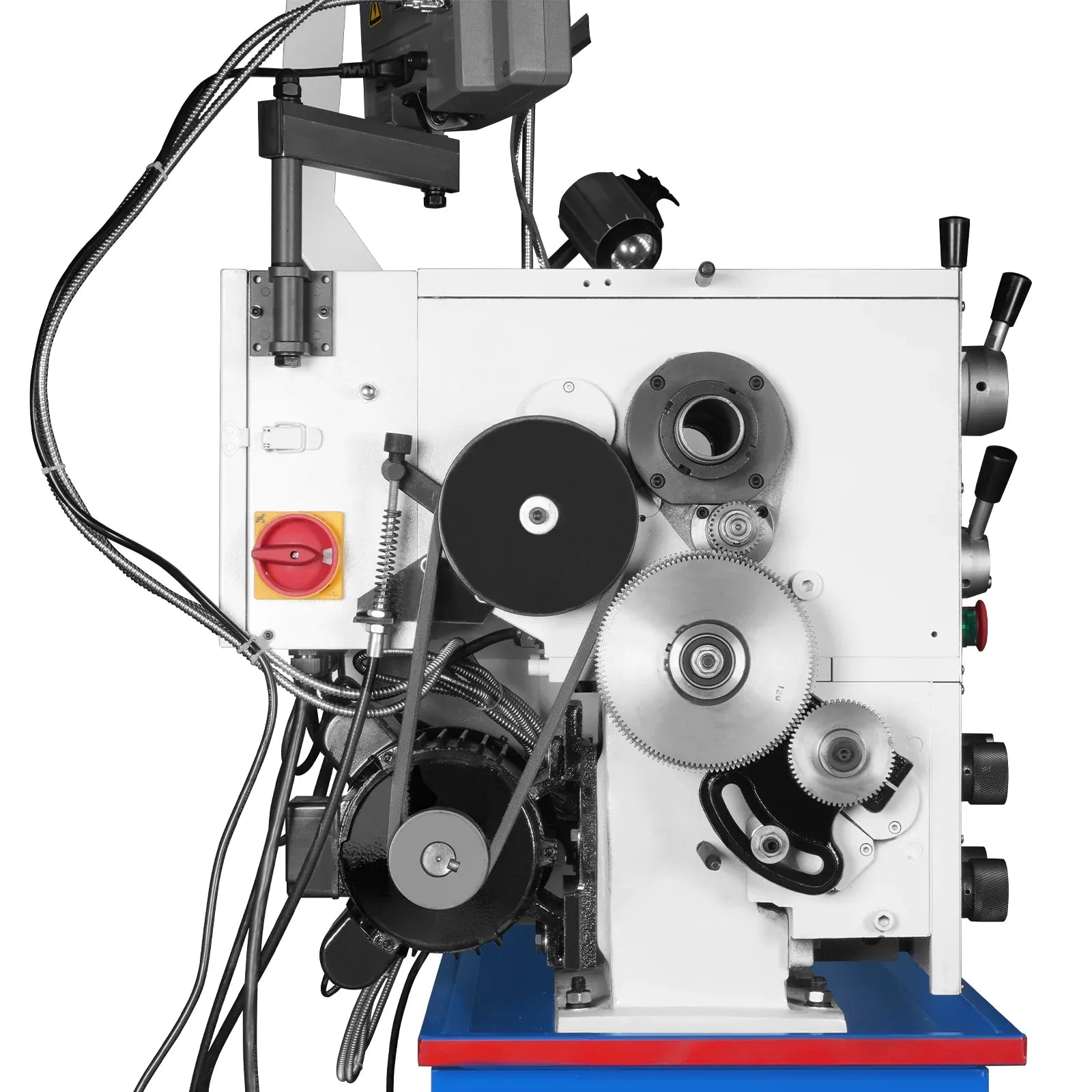

The lathe features an 8-speed gearbox with a wide spindle speed range from 70 to 2000 RPM, allowing operators to fine-tune cutting speeds for different materials and operations. The D1-4 cam-lock spindle system ensures secure workholding, while the 1.57" spindle bore accommodates larger stock for increased versatility.
An integrated coolant system helps manage heat during extended use, improving tool life and ensuring consistent cutting performance. Combined with precise feed controls and smooth slide movements, this lathe delivers clean, accurate results.
Key Features & Benefits
- 2 HP Motor (220V Single Phase) for heavy-duty performance
- 8-Speed Range (70–2000 RPM) for flexible machining control
- D1-4 Cam-Lock Spindle for secure and accurate workholding

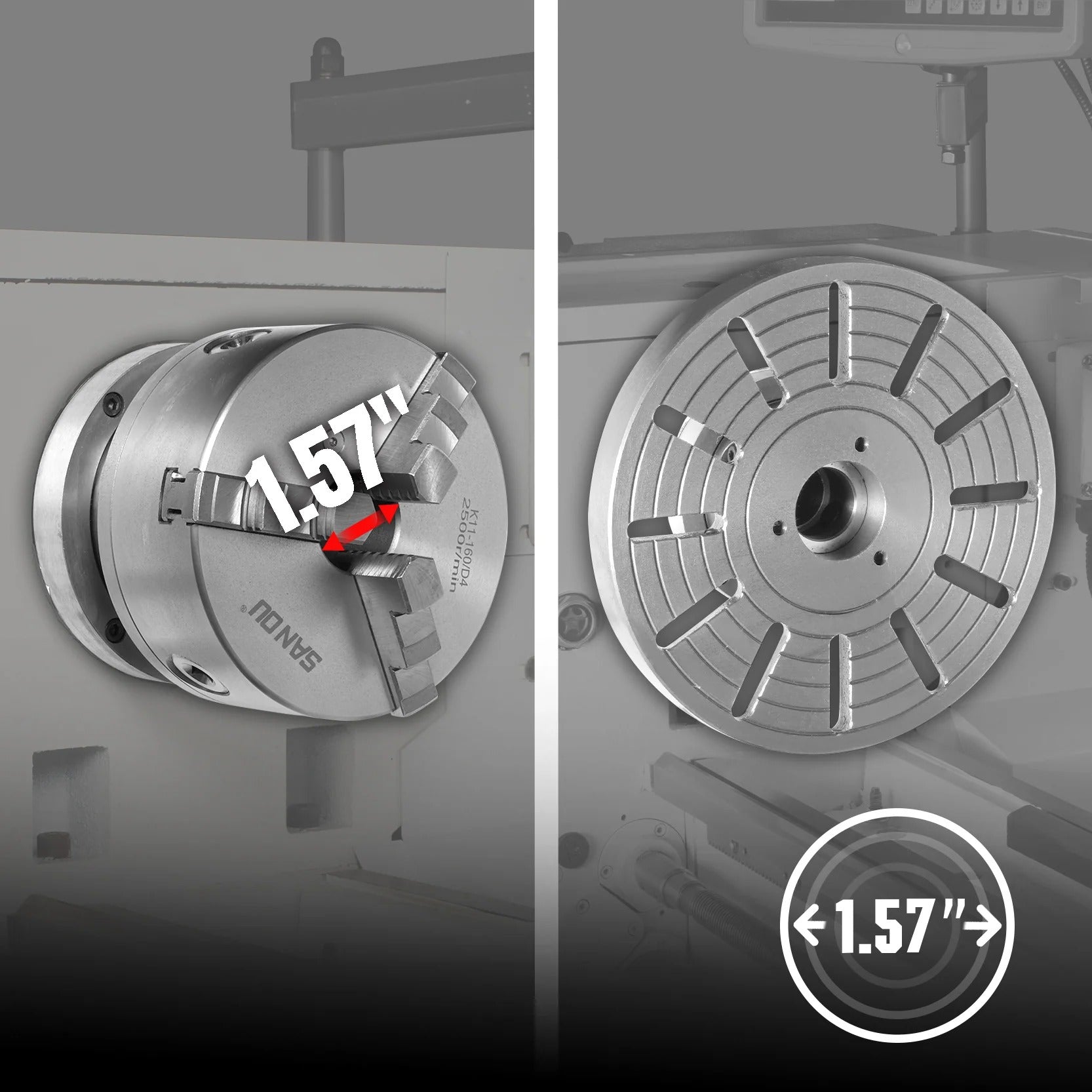

- 1.57" Spindle Bore for handling larger materials

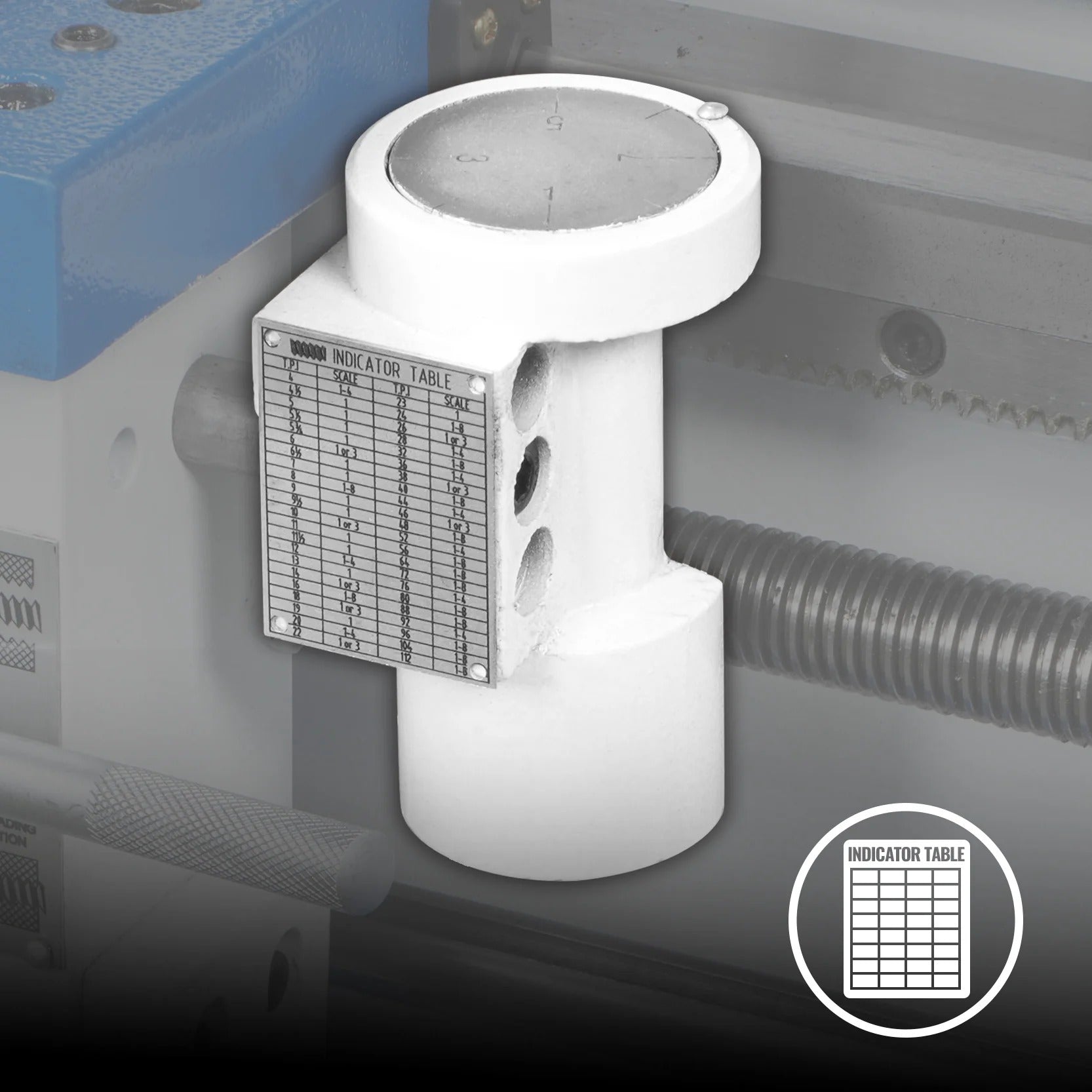

- Supports inch, metric, module, and diametral threading
- Built-in coolant system for extended operation and tool protection

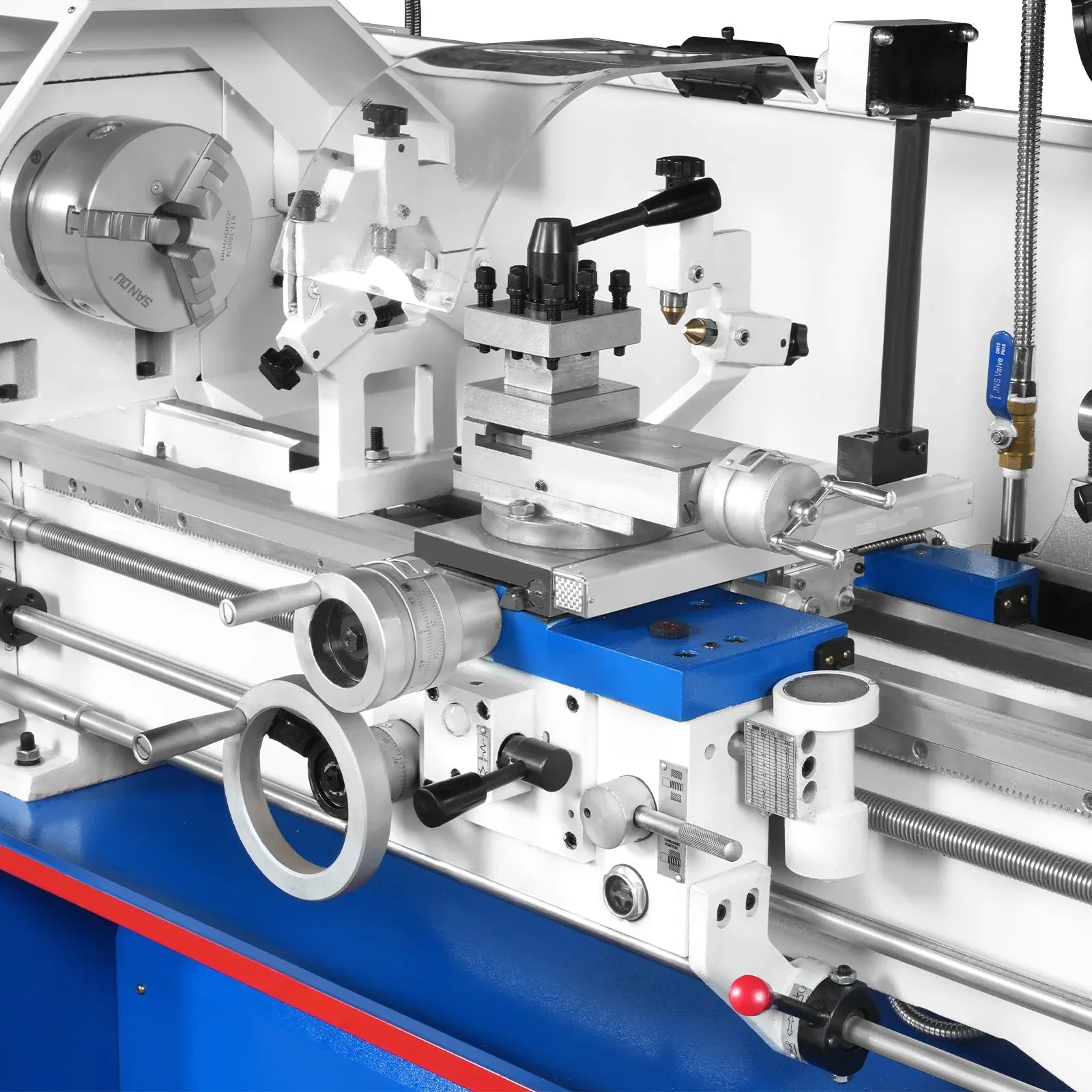

- Extended carriage travel for longer workpieces

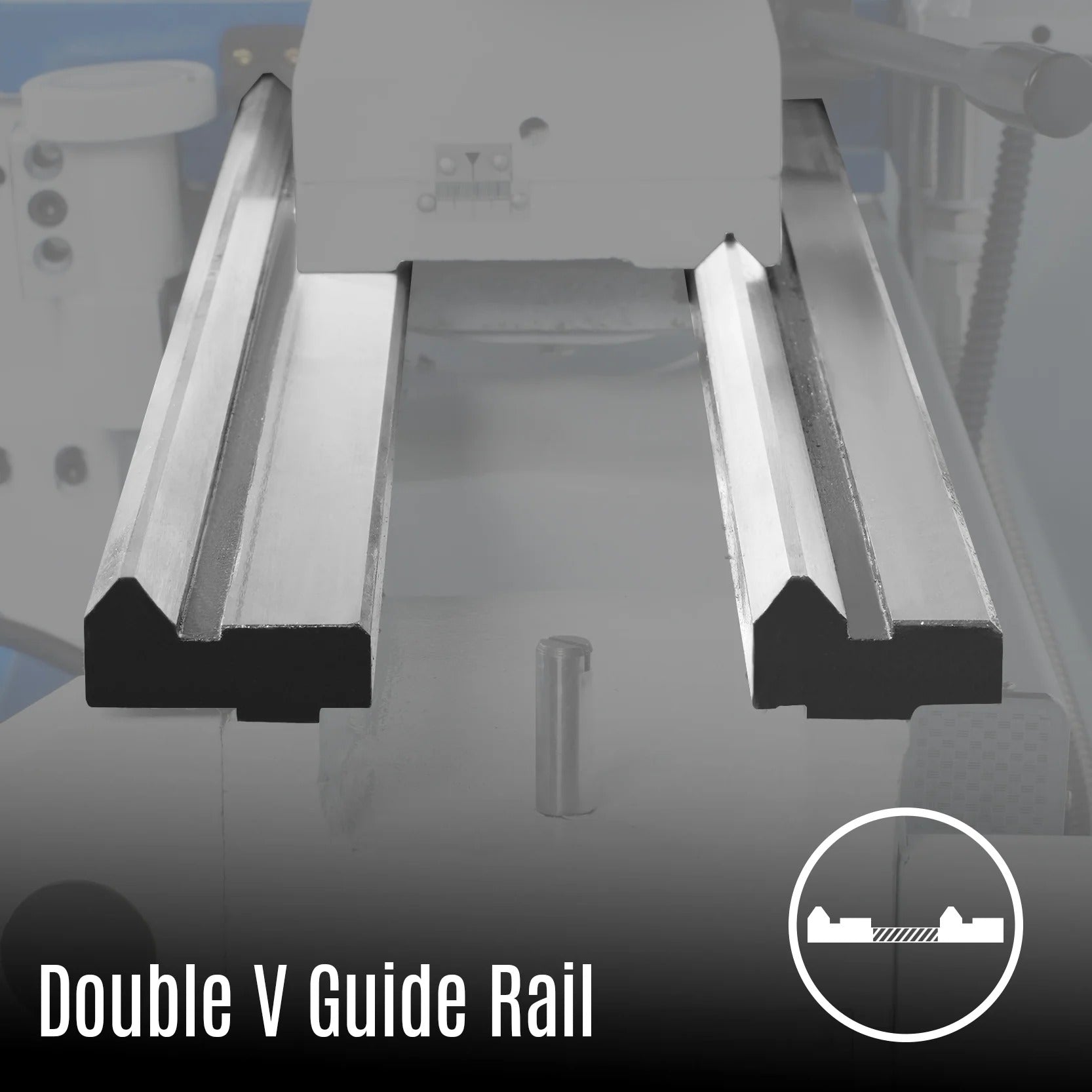

- Heavy-duty construction with wide bed for reduced vibration

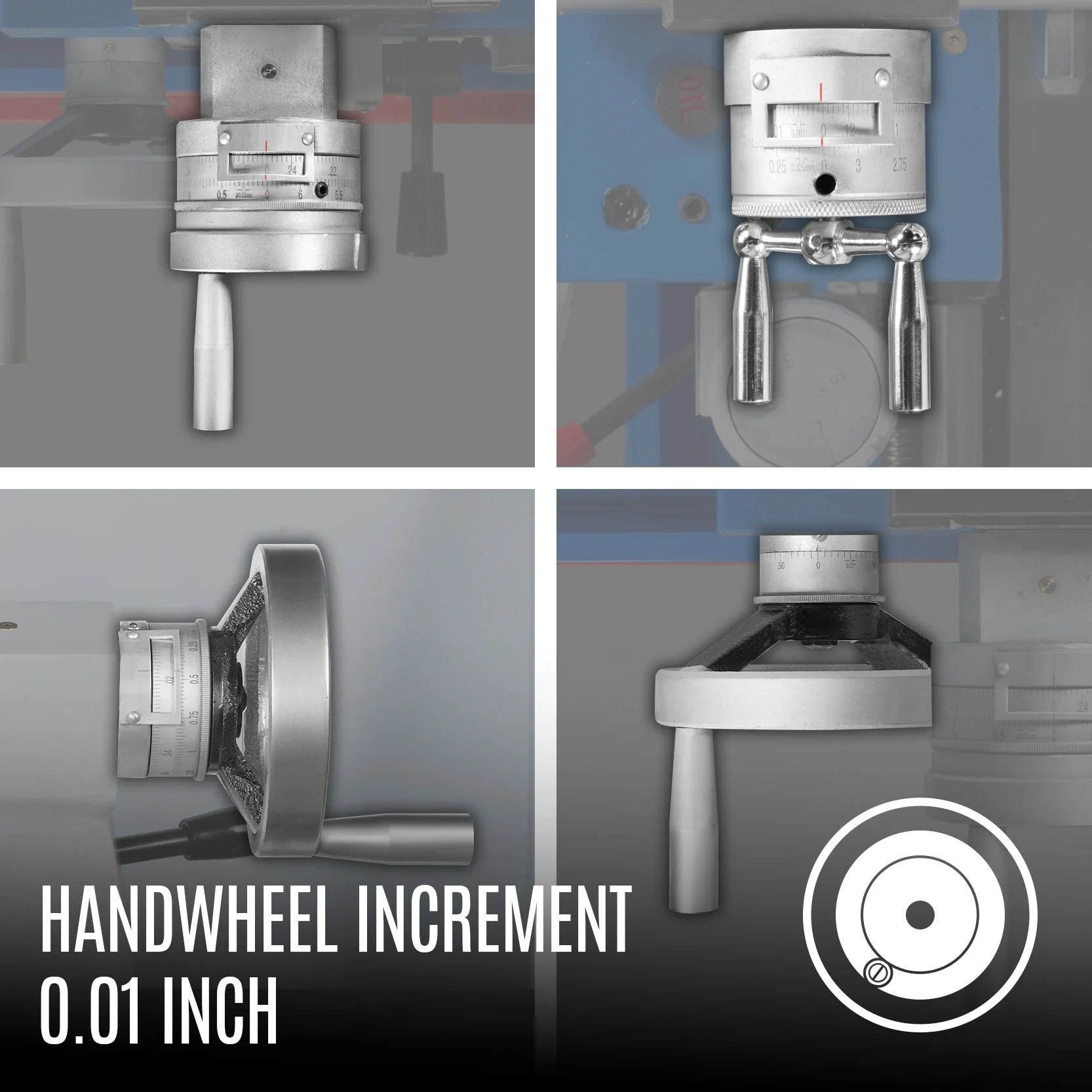

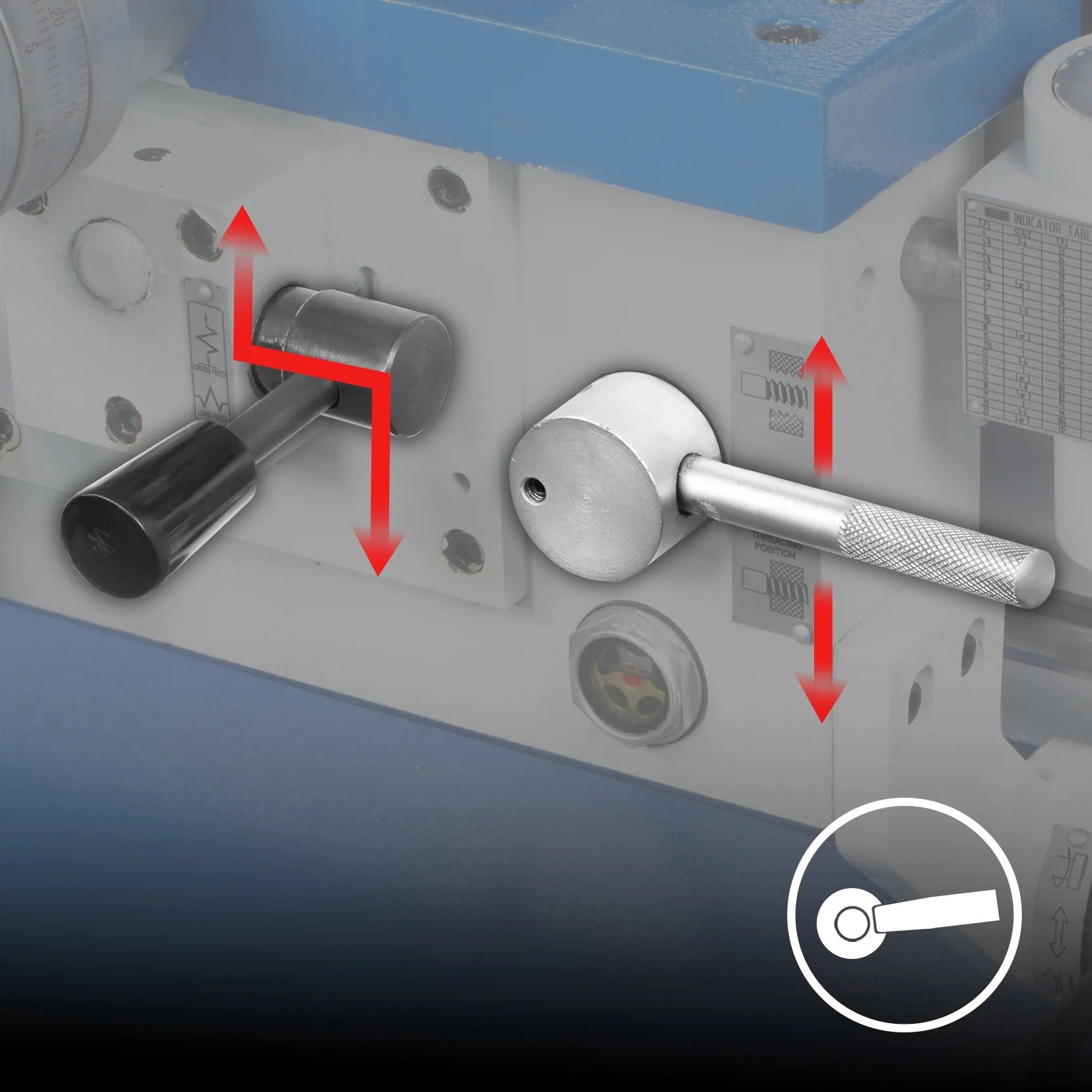

- Precision feed rates for smooth and consistent cutting

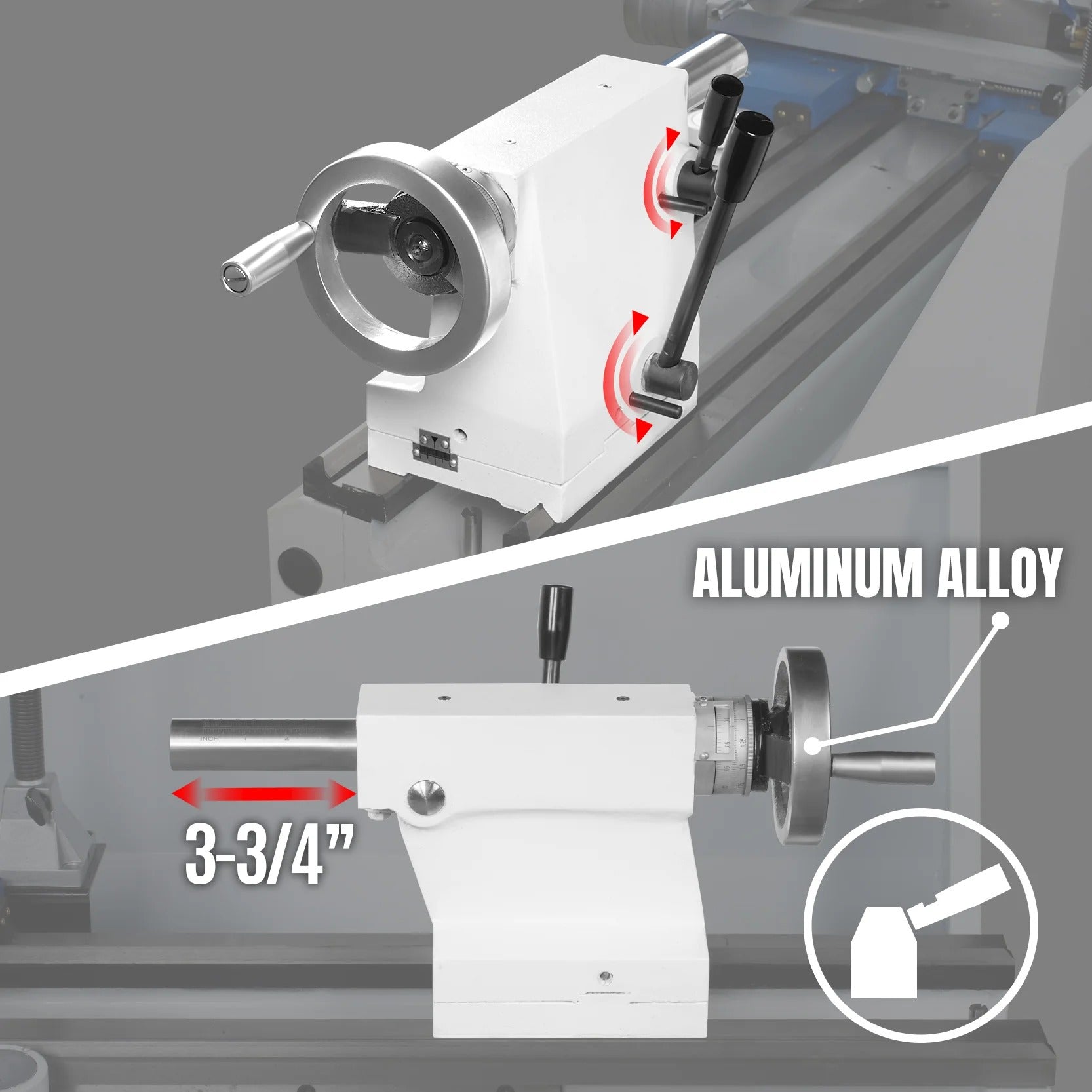

- User-friendly tailstock with quick-locking adjustment
Designed for Industrial & Shop Use
This lathe is engineered for shops that require reliable, high-performance machining equipment. Its combination of power, precision, and durability makes it suitable for fabrication, maintenance, and production environments.
| Specifications | Details |
|---|---|
| Model | 1340G |
| Motor | 2 HP (1500W), 220V, 60Hz, Single Phase |
| Swing Over Bed | 13" (330 mm) |
| Swing Over Cross Slide | 7.67" (195 mm) |
| Swing Over Gap | 18.7" (476 mm) |
| Distance Between Centers | 39.37" (1000 mm) |
| Bed Width | 7.37" (187 mm) |
| Spindle Bore | 1.57" (40 mm) |
| Spindle Mount | D1-4 Cam-Lock |
| Spindle Taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 3.74" (95 mm) |

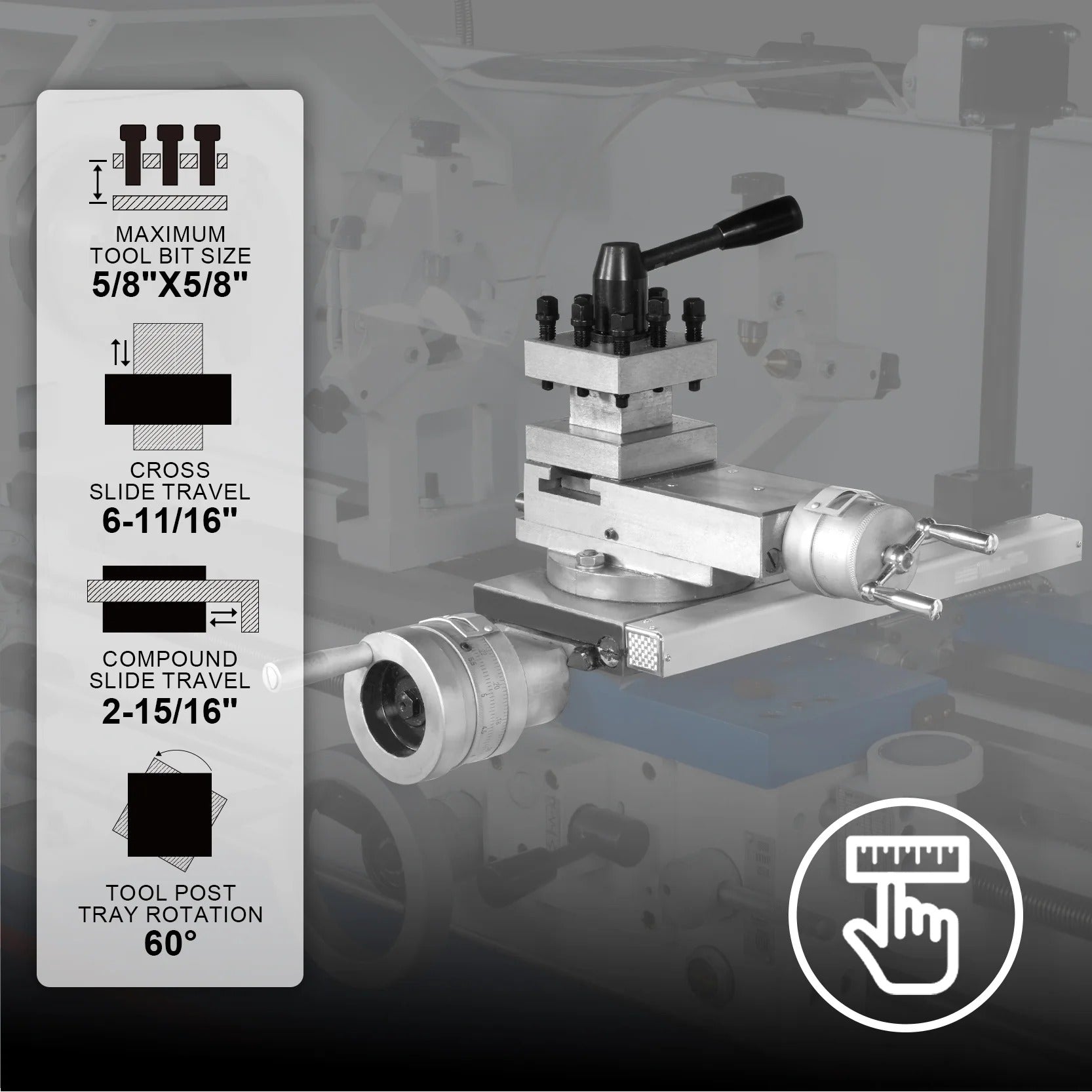

| Cross Slide Travel | 6.69" (170 mm) |
| Compound Slide Travel | 2.91" (74 mm) |
| Carriage Travel | 39.37" (1000 mm) |
| Spindle Speeds | 70–2000 RPM |
| Speed Ranges | 8 |
| Longitudinal Feed | 0.002" – 0.0548" per rev |
| Cross Feed | 0.00055" – 0.015" per rev |
| Leadscrew | 22 mm / 7/8", 8 TPI |
| Inch Threads | 4 – 56 TPI (34 types) |
| Metric Threads | 0.4 – 7 mm (26 types) |
| Module Threads | 0.35 – 5 M.P (16 types) |
| Diametral Threads | 6 – 104 D.P (36 types) |
| Max Tool Size | 16 x 16 mm |
| Coolant System | Included |
| Shipping Dimensions | 75.6" x 29.52" x 59" |
| Shipping Weight | 1,416.8 lbs |
