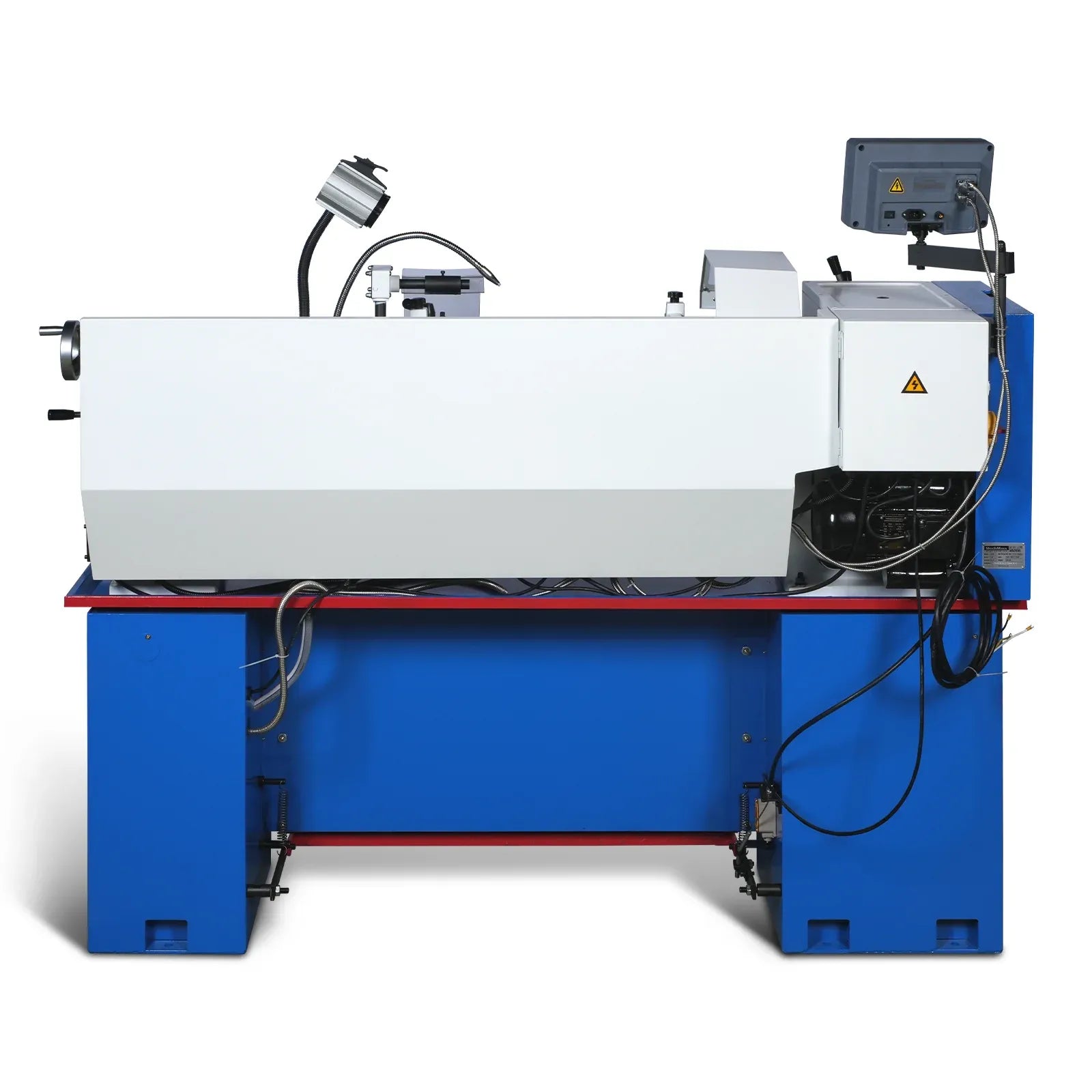

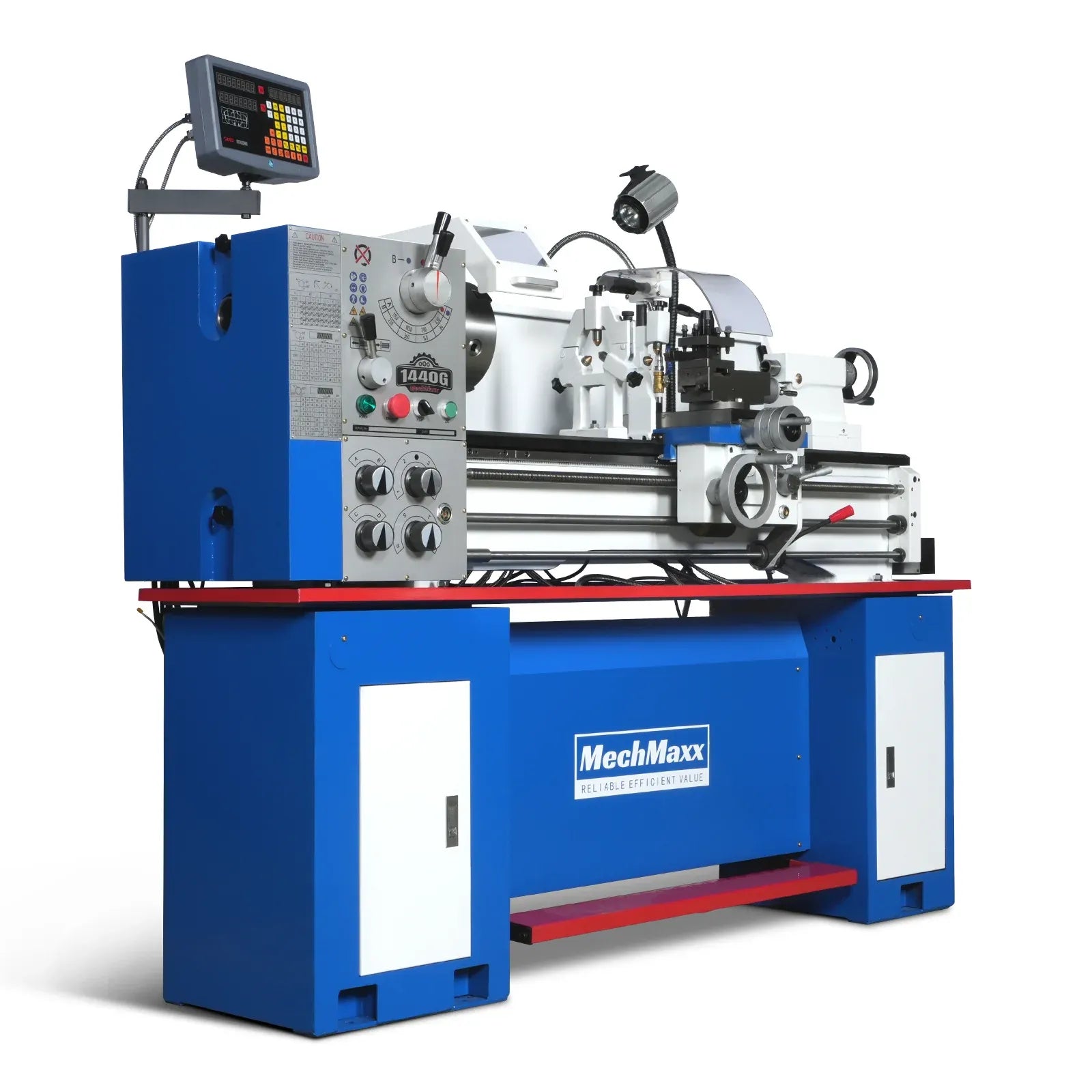

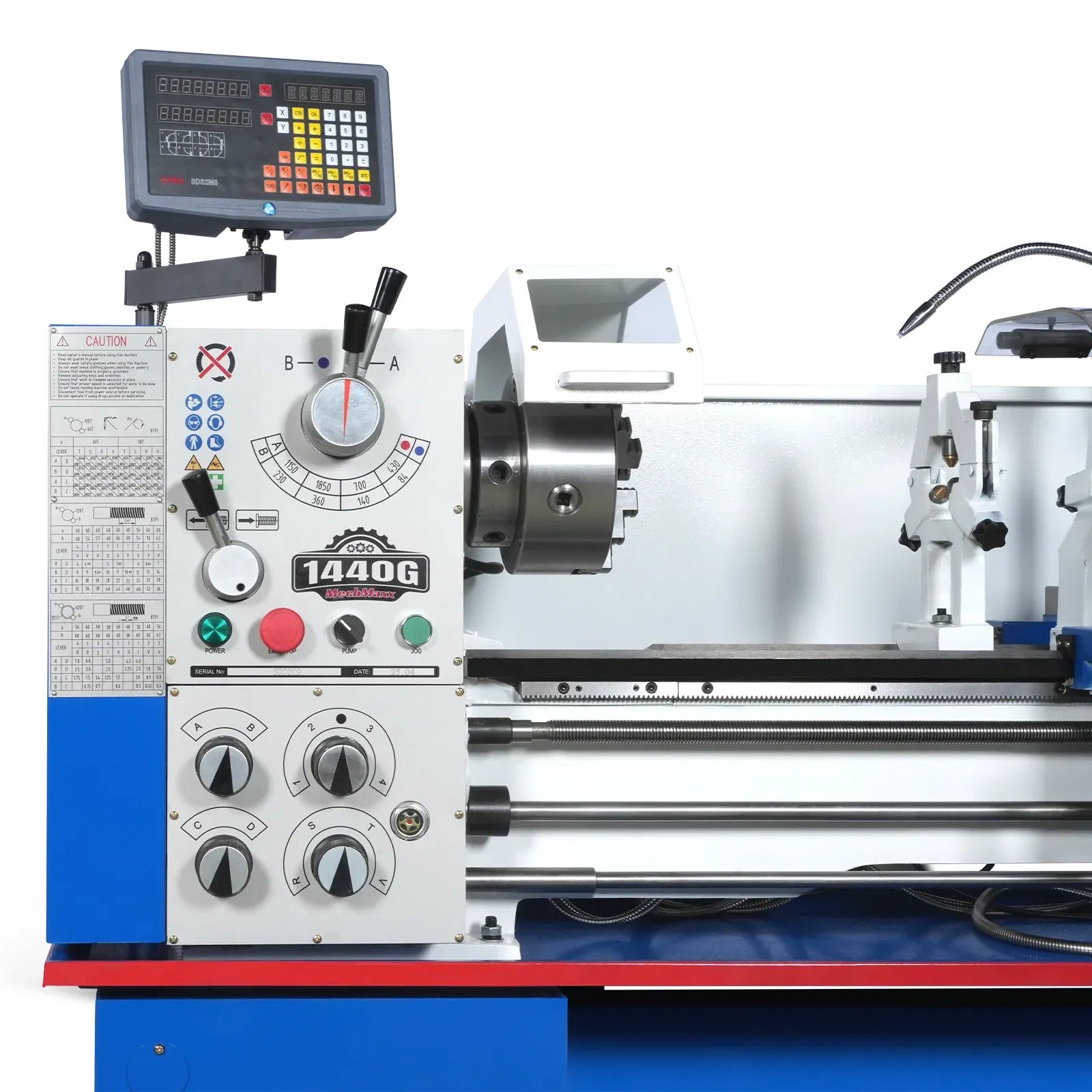

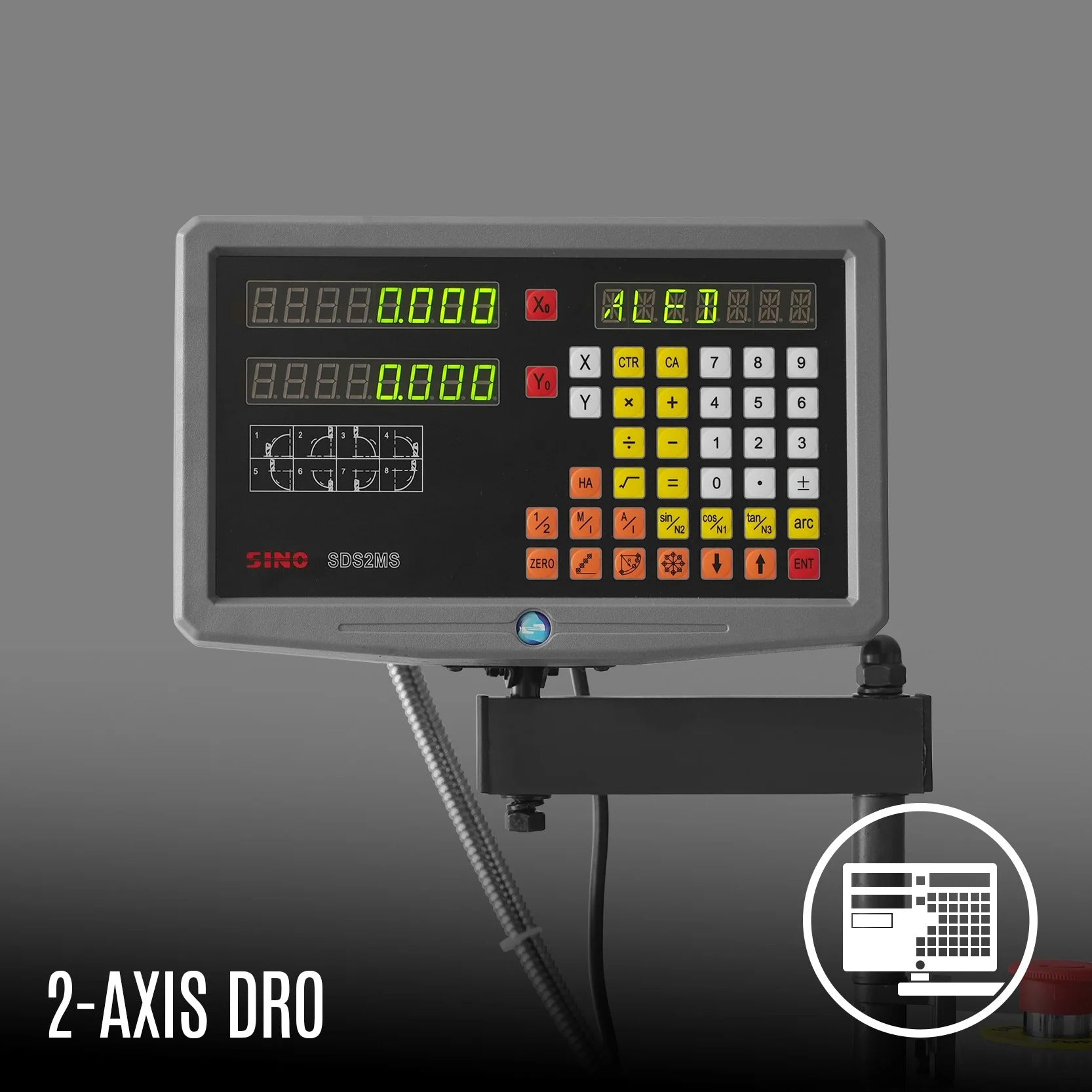

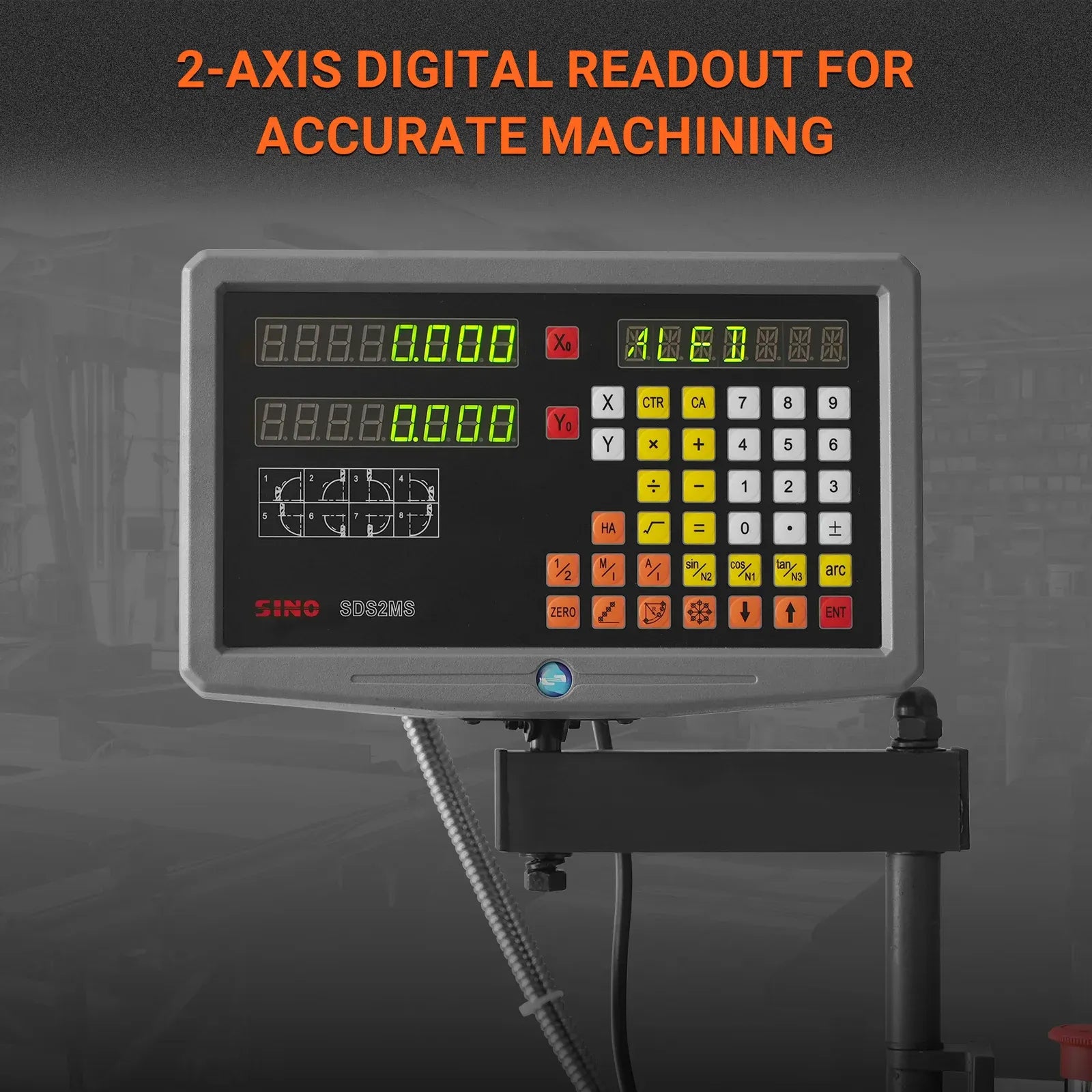

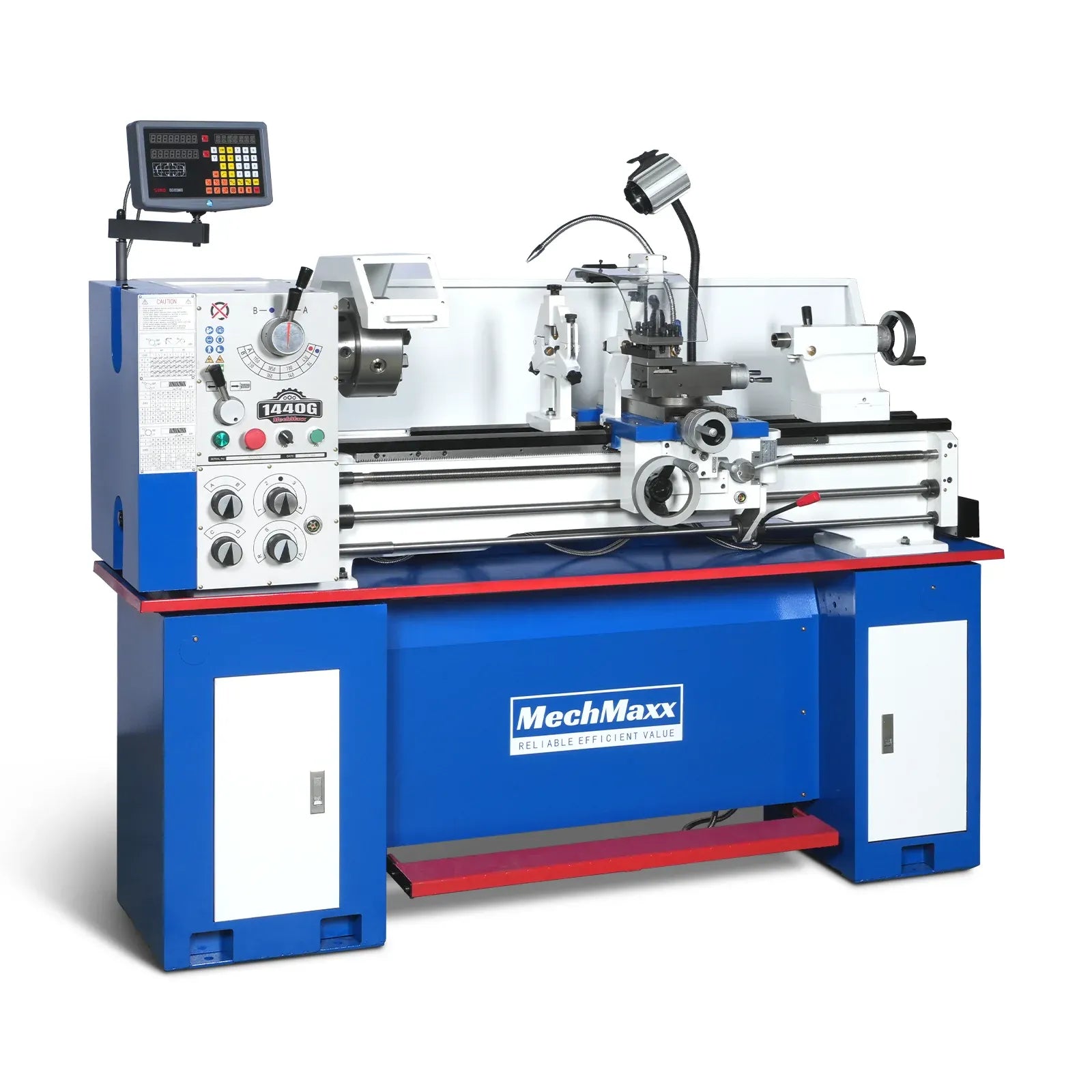

MechMaxx 14x40 Industrial Metal Lathe Machine with DRO, Model 1440G
SKU: 500009
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The 14" x 40" Heavy-Duty Metal Lathe (Model 1440G) is a powerful, industrial-grade machine built for precision machining, threading, and fabrication work. Designed for professional shops and serious operators, this lathe combines a robust 2HP motor with a rigid, vibration-resistant frame to deliver consistent performance across both light and heavy-duty applications.
With its large working capacity and advanced threading capabilities, the 1440G is ideal for handling longer workpieces and a wide range of materials while maintaining accuracy and control.
Equipped with an 8-speed gearbox and spindle speeds ranging from 84 to 1850 RPM, this lathe allows operators to fine-tune cutting speeds for optimal results. The large 2" spindle bore and D1-5 cam-lock spindle mount provide secure workholding and smooth operation, even when handling heavier or irregular stock.
Precision slide movements and controlled feed rates ensure accurate material removal, while the integrated coolant system helps reduce heat during extended use, improving tool life and surface finish.
Key Features & Benefits
- 2 HP Motor (220V Single Phase) for strong, reliable performance
- 14" Swing Over Bed for larger workpieces

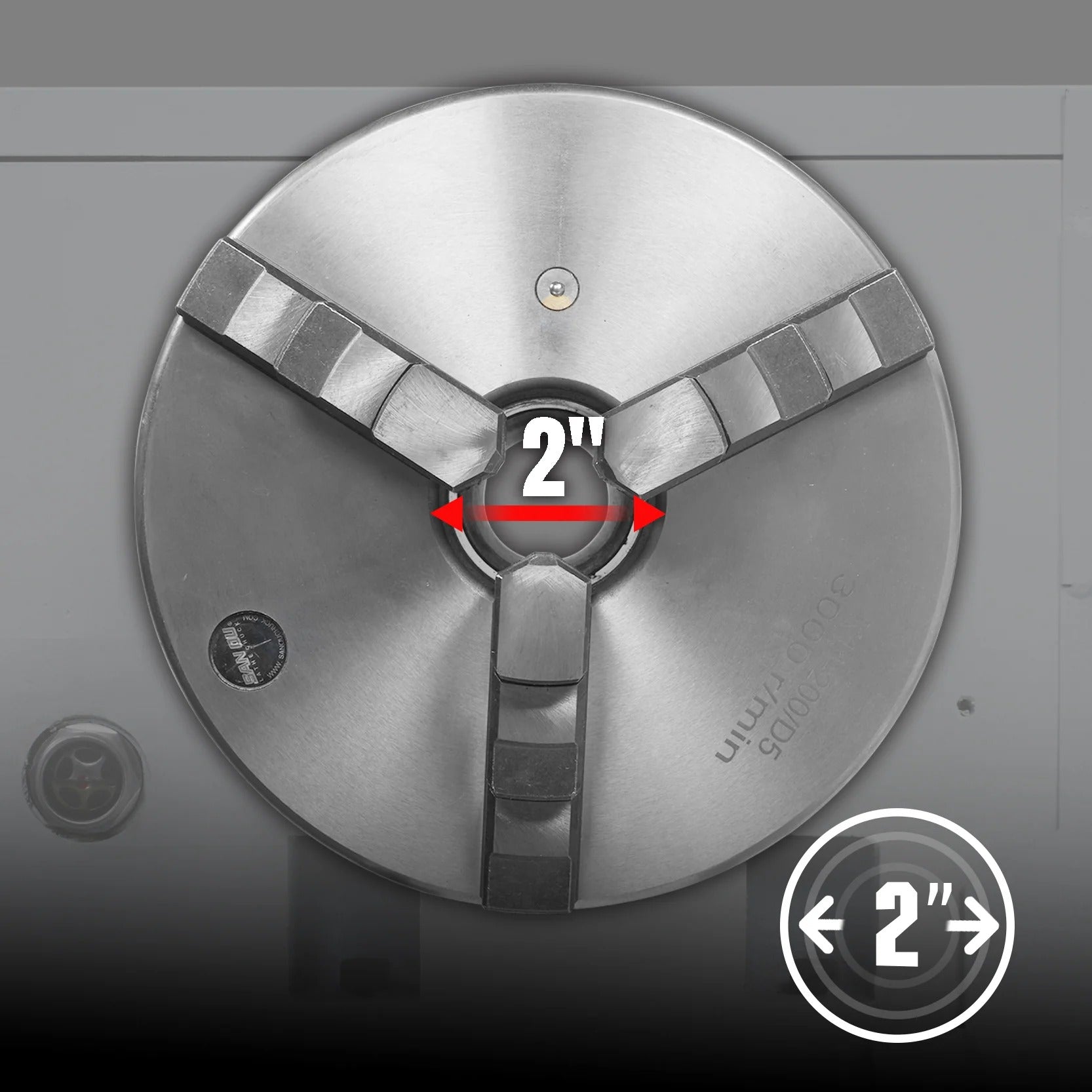

- 2" Spindle Bore for increased material capacity
- D1-5 Cam-Lock Spindle for secure clamping
- 8-Speed Range (84–1850 RPM) for flexible machining control
- Supports inch, metric, module, and diametral threading

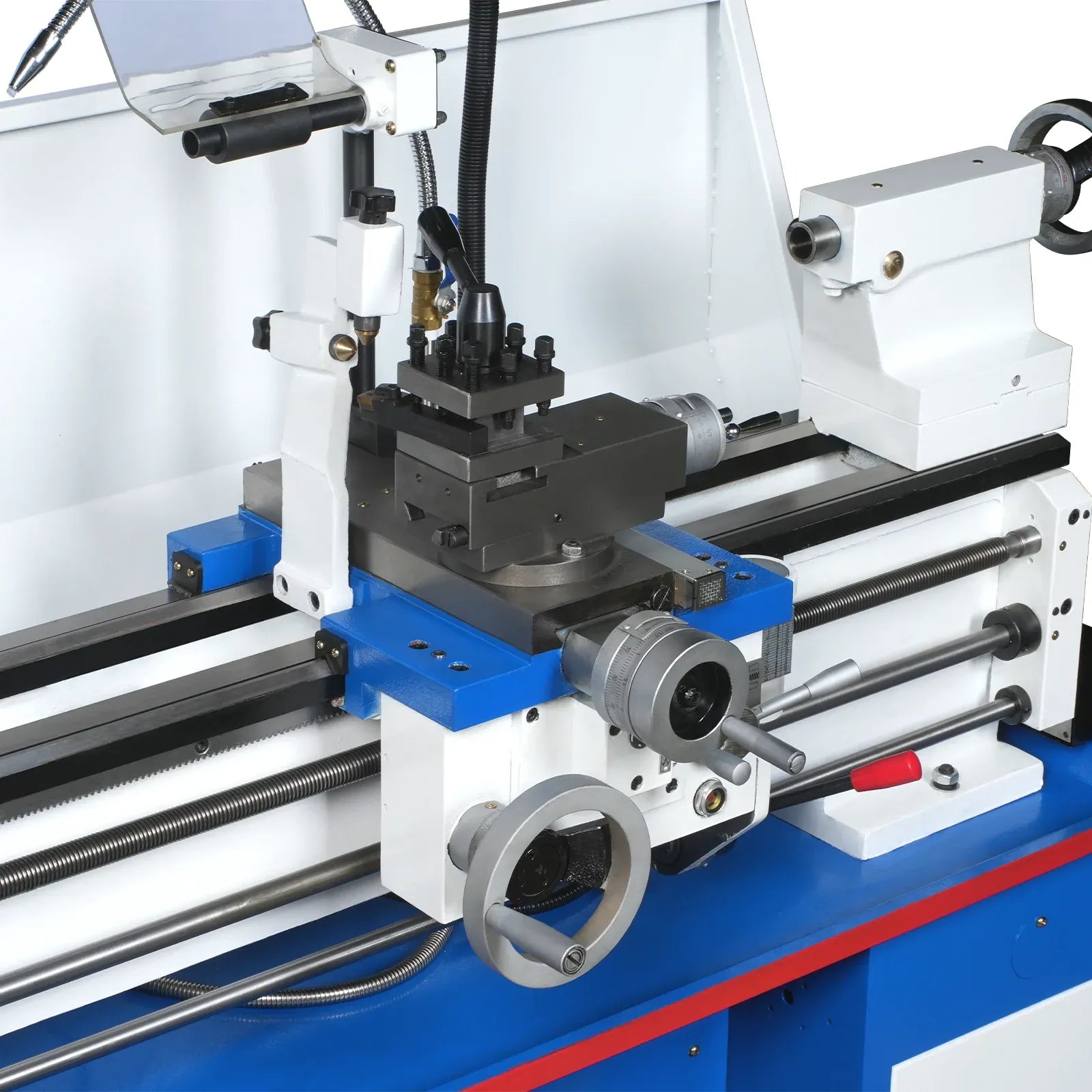

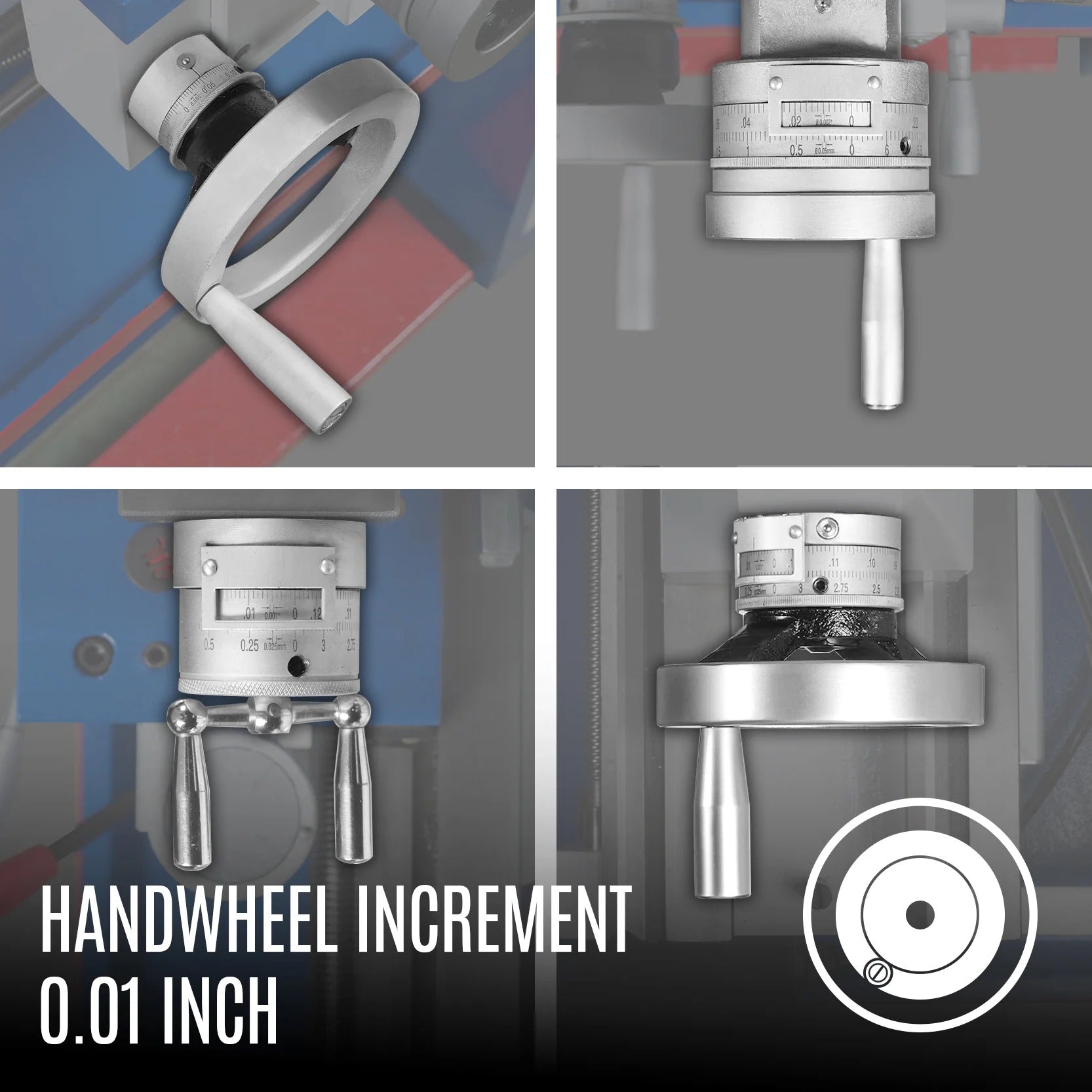

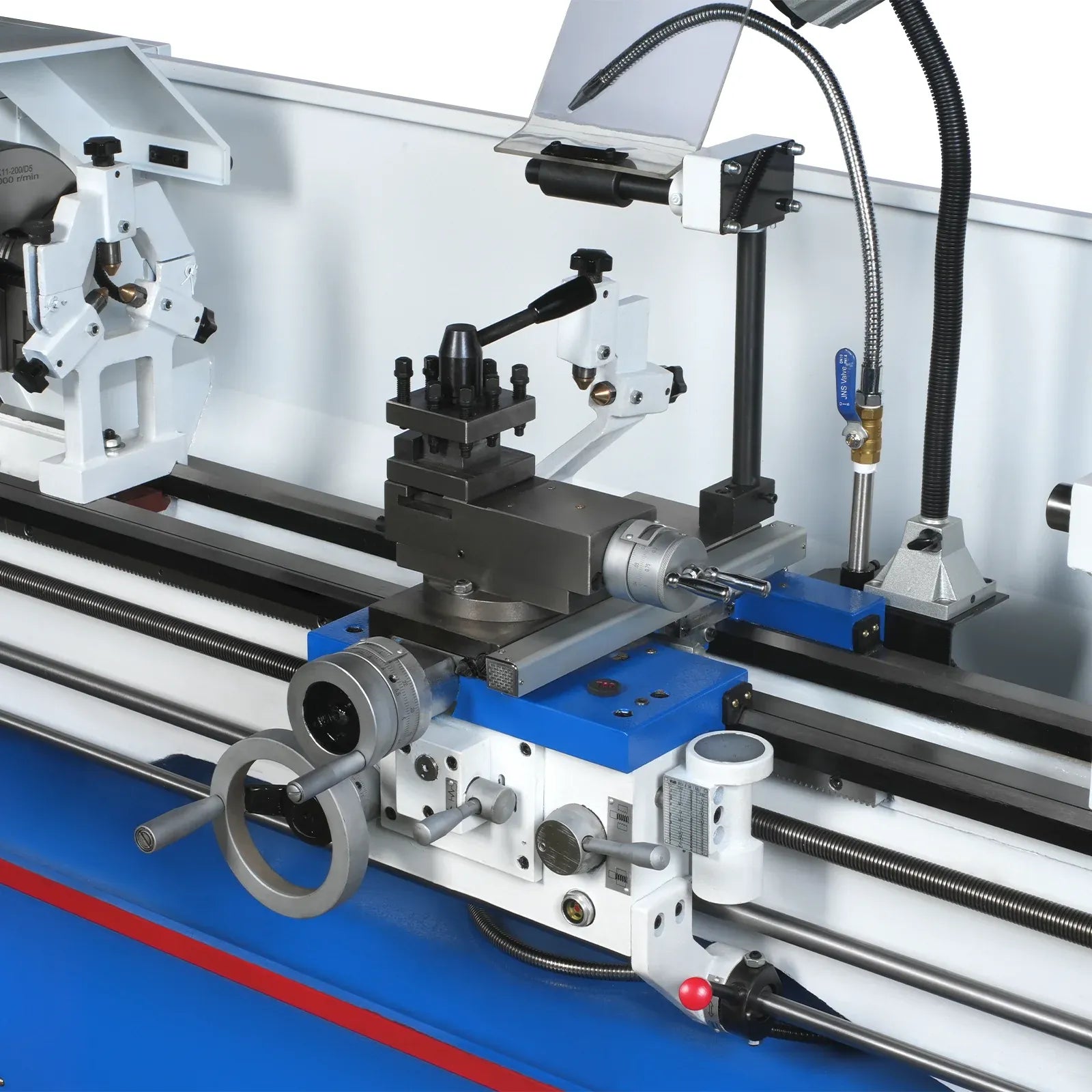

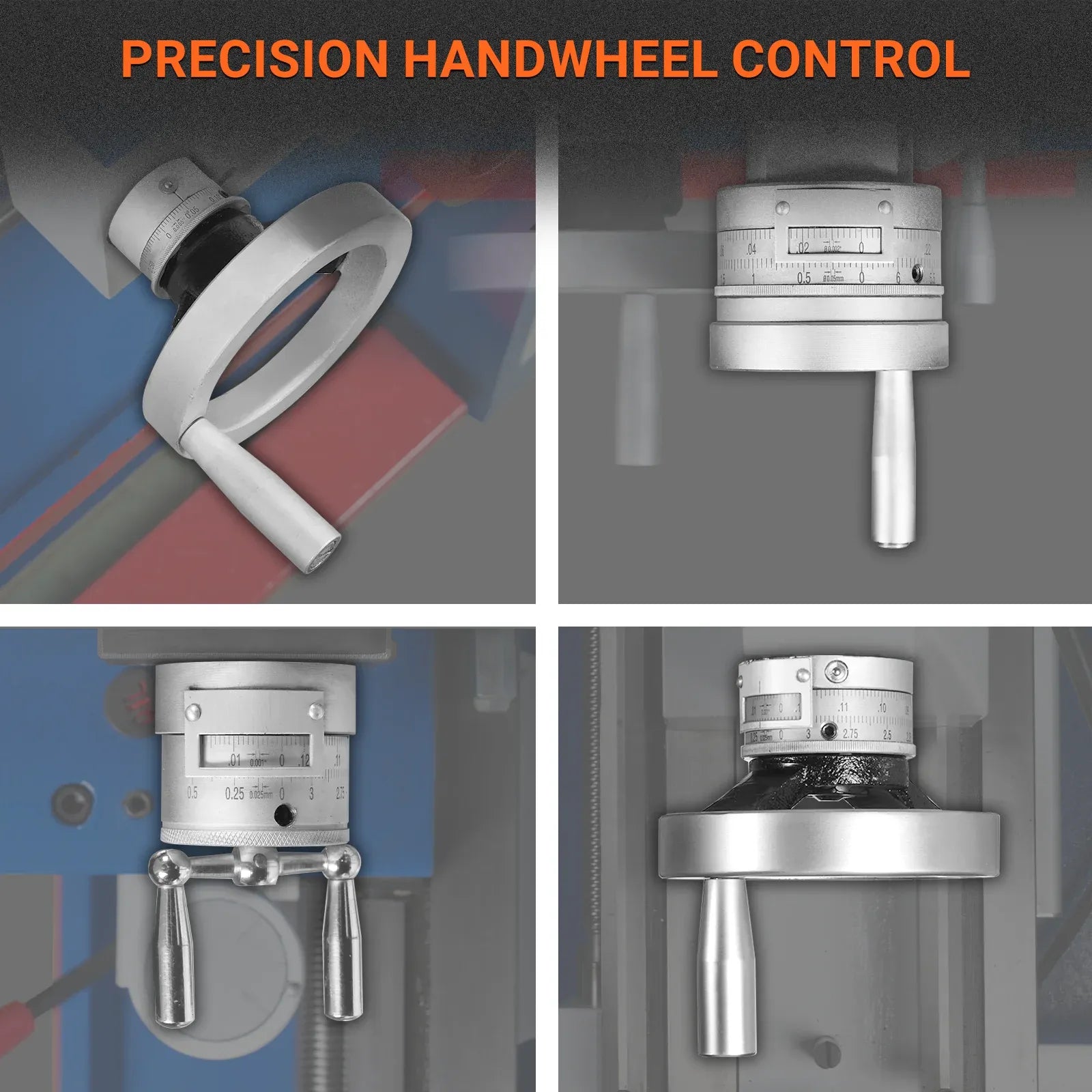

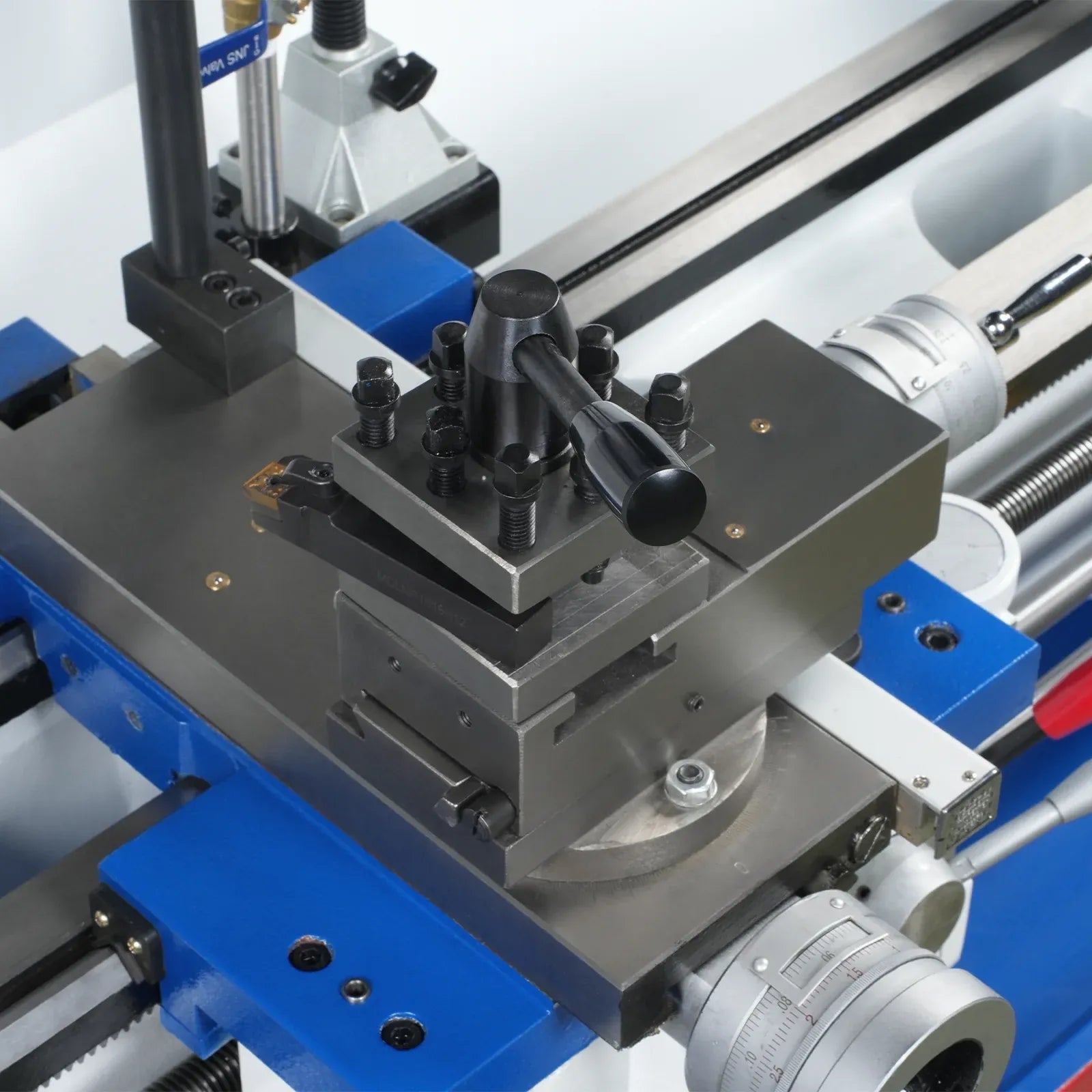

- Precision cross and compound slide travel for fine adjustments

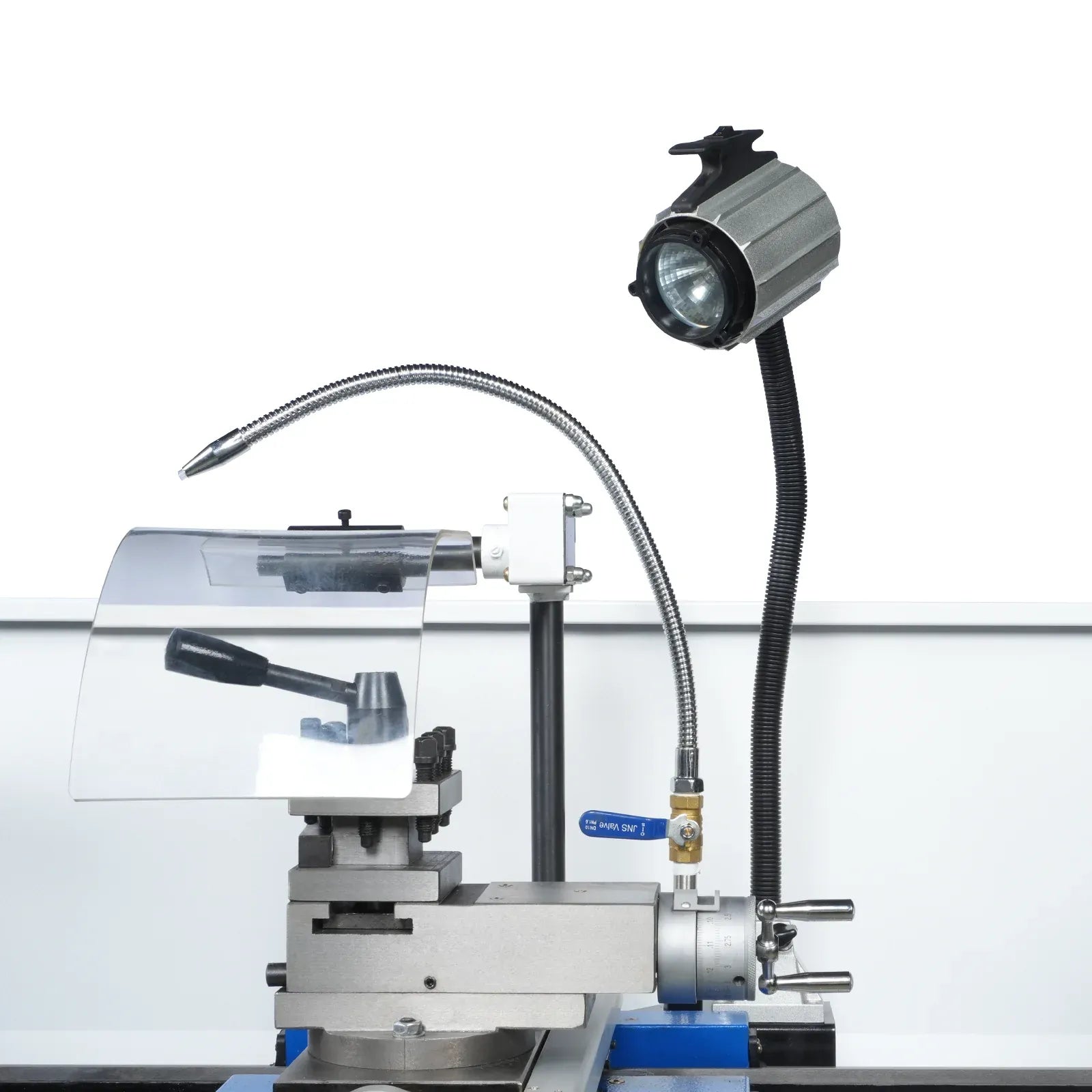

- Integrated coolant system for extended operation
- Heavy-duty construction for long-term durability and stability
Designed for Versatile Machining
The 1440G is built to handle a wide range of machining tasks, from detailed threading to heavy-duty turning. Its combination of power, capacity, and precision makes it a strong fit for fabrication shops, machine shops, and industrial environments.
| Specifications | Details |
|---|---|
| Motor | 2 HP (1500W), 220V, 60Hz, Single Phase |
| Swing Over Bed | 14" (355 mm) |
| Swing Over Cross Slide | 8-5/8" (220 mm) |
| Swing Over Gap | 19-5/8" (500 mm) |
| Distance Between Centers | 39-3/8" (1000 mm) |

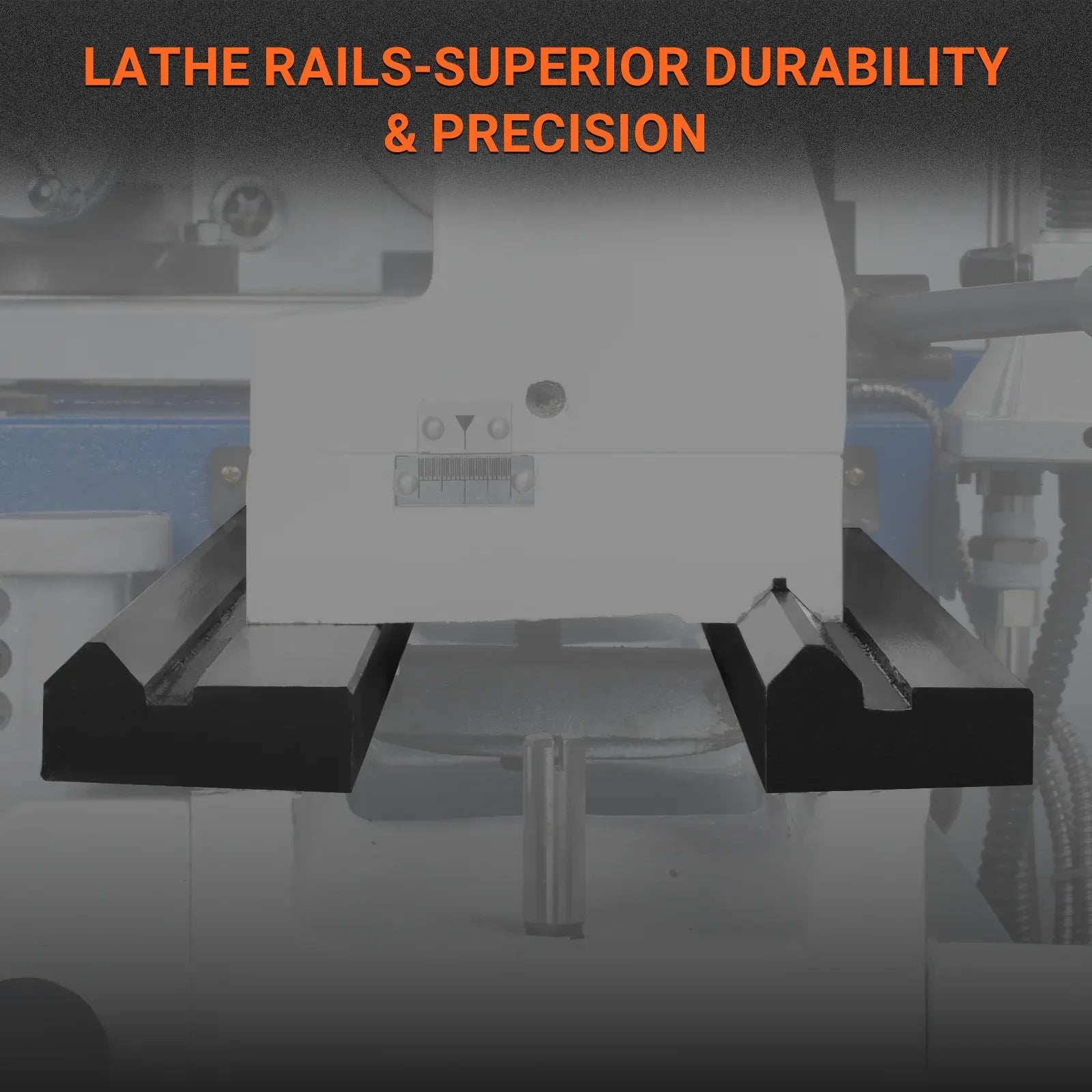

| Bed Width | 7-7/16" (187 mm) |
| Spindle Bore | 2" (51 mm) |
| Spindle Mount | D1-5 Cam-Lock |
| Spindle Taper | MT6 |
| Tailstock Taper | MT3 |

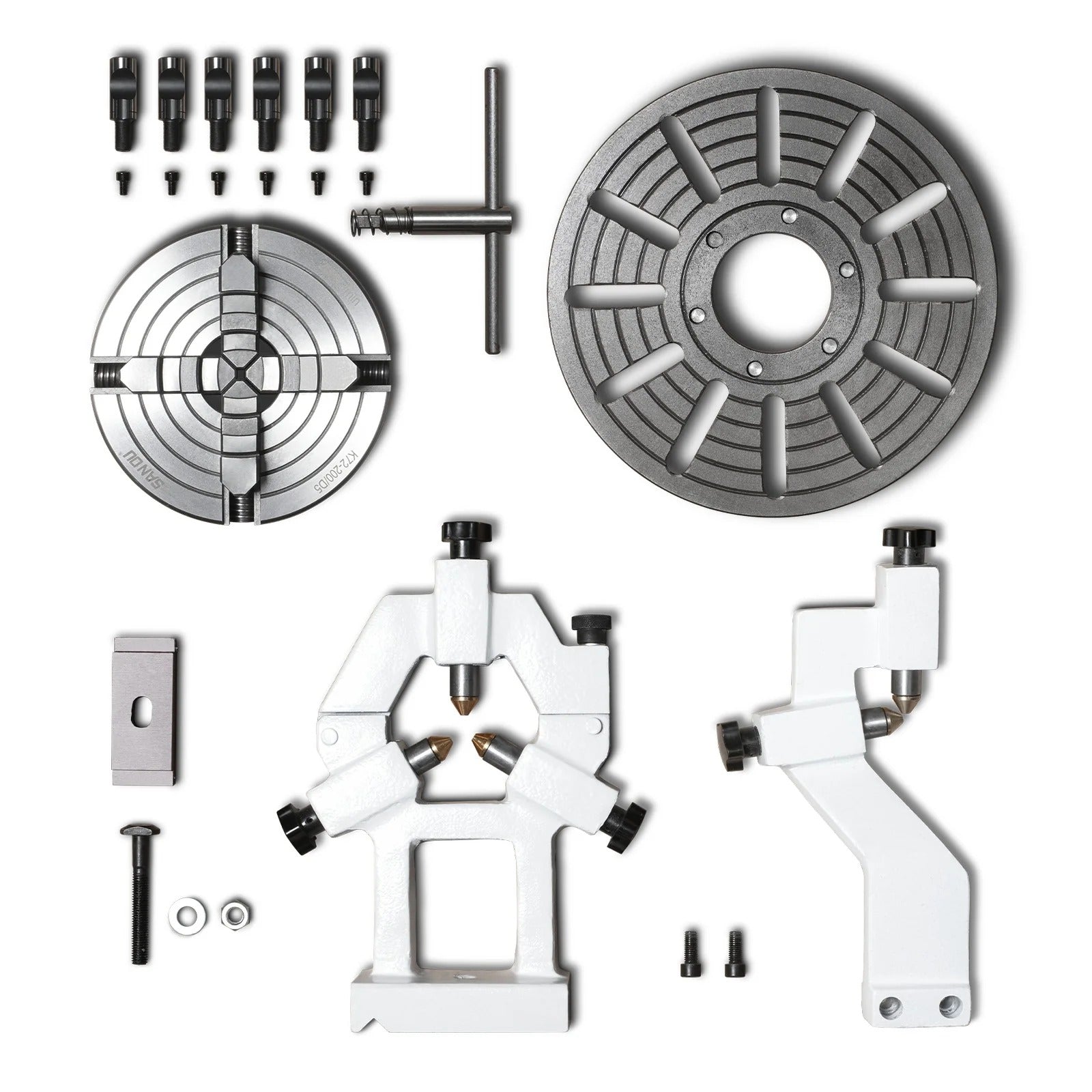

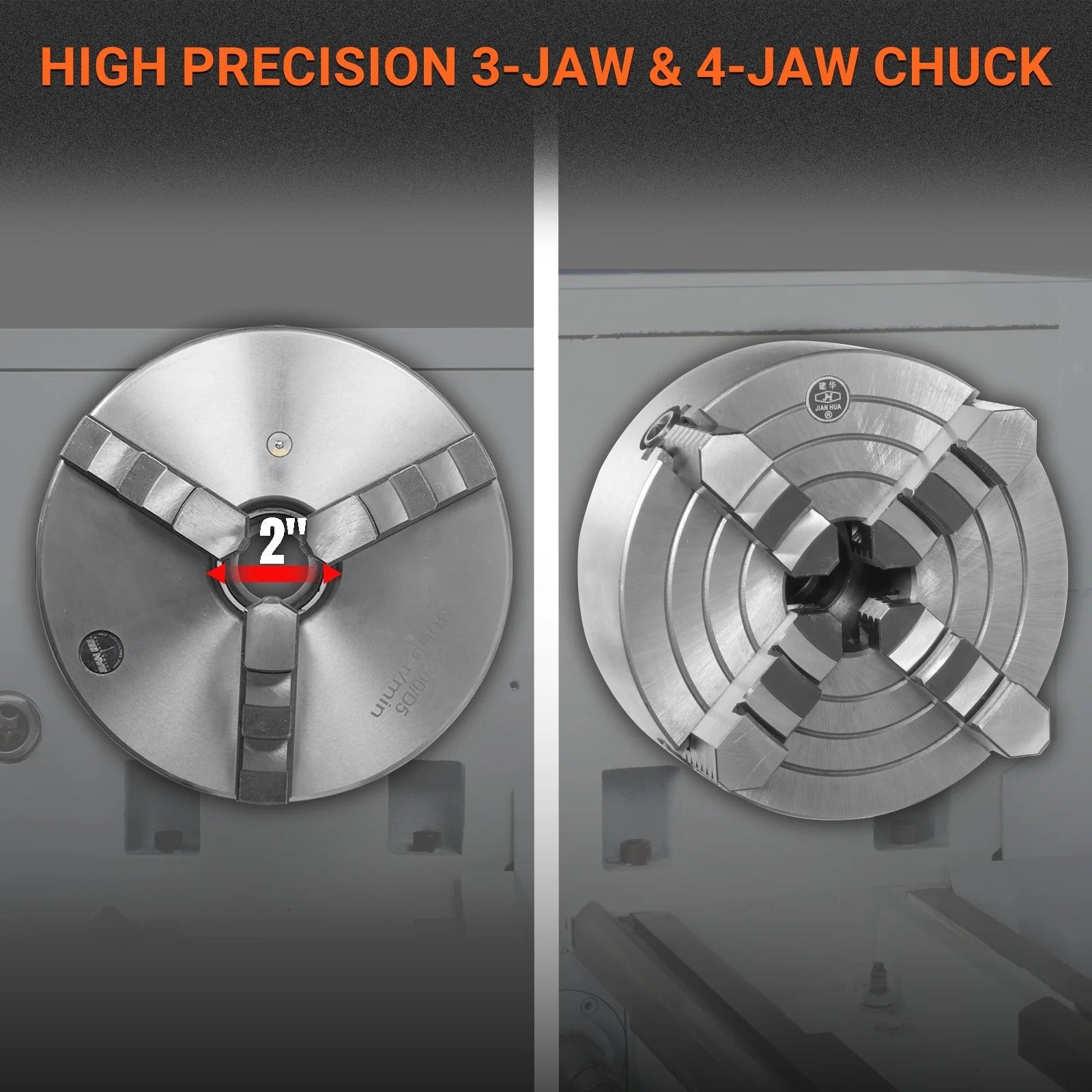

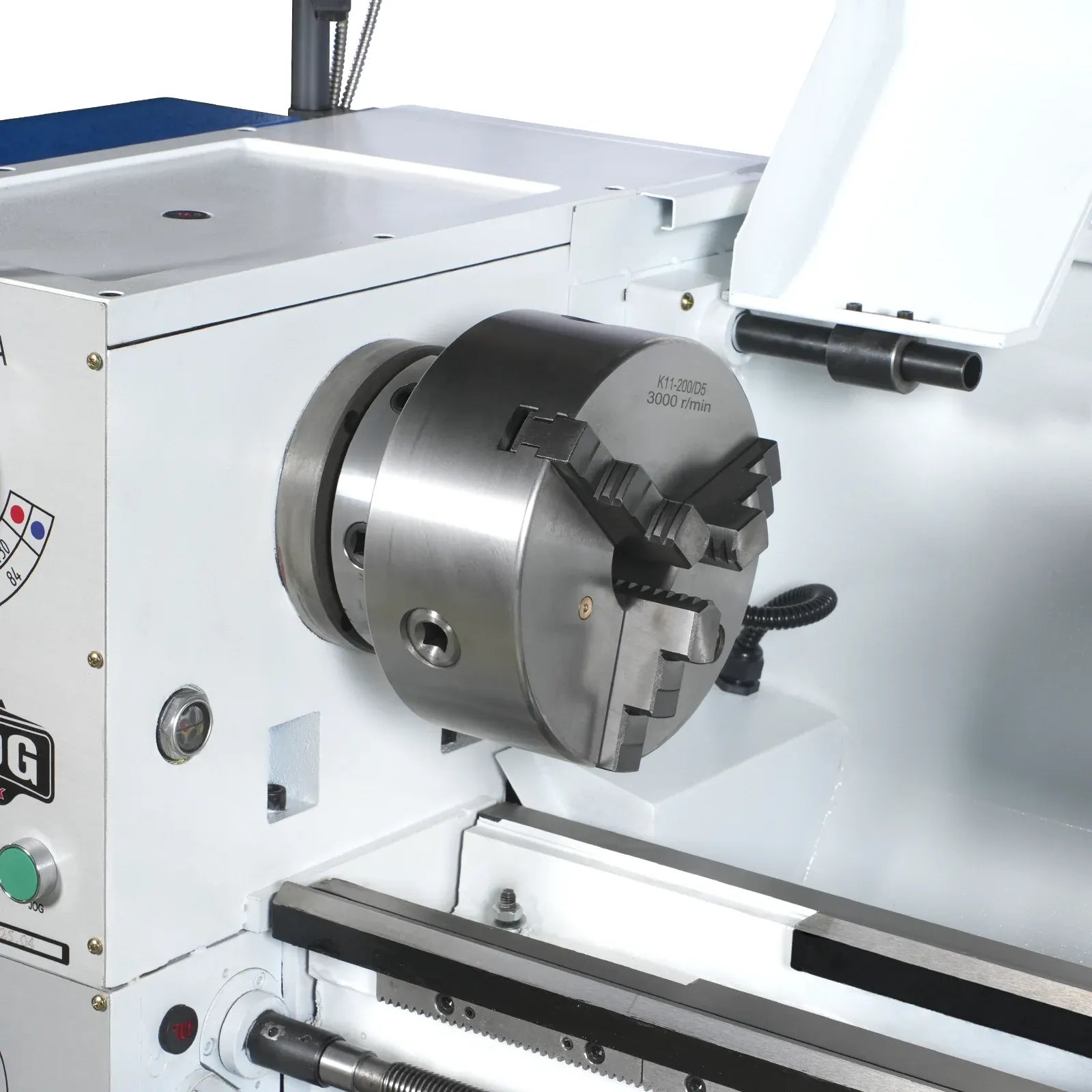

| Chuck Sizes | 6" 3-Jaw and 8" 4-Jaw |

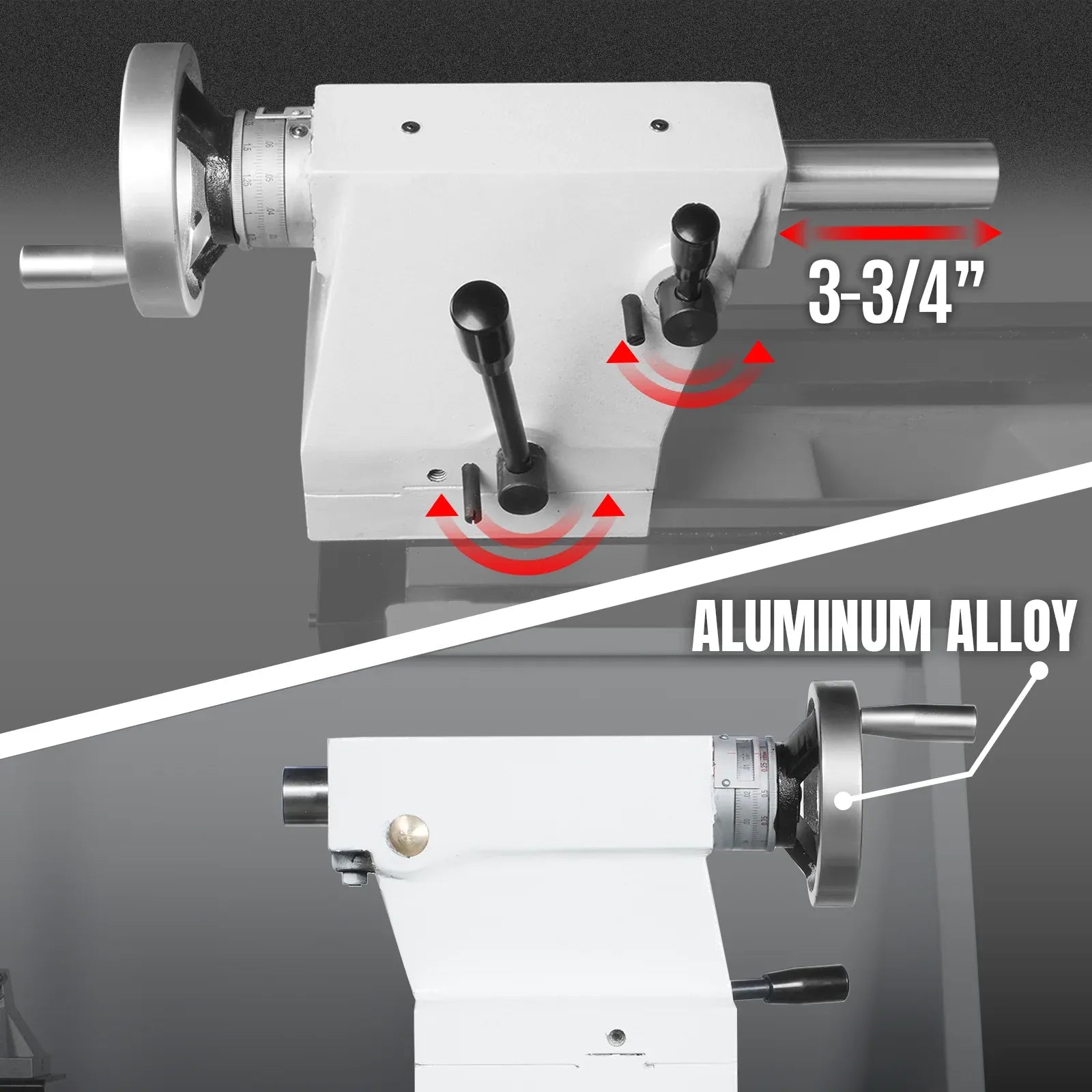

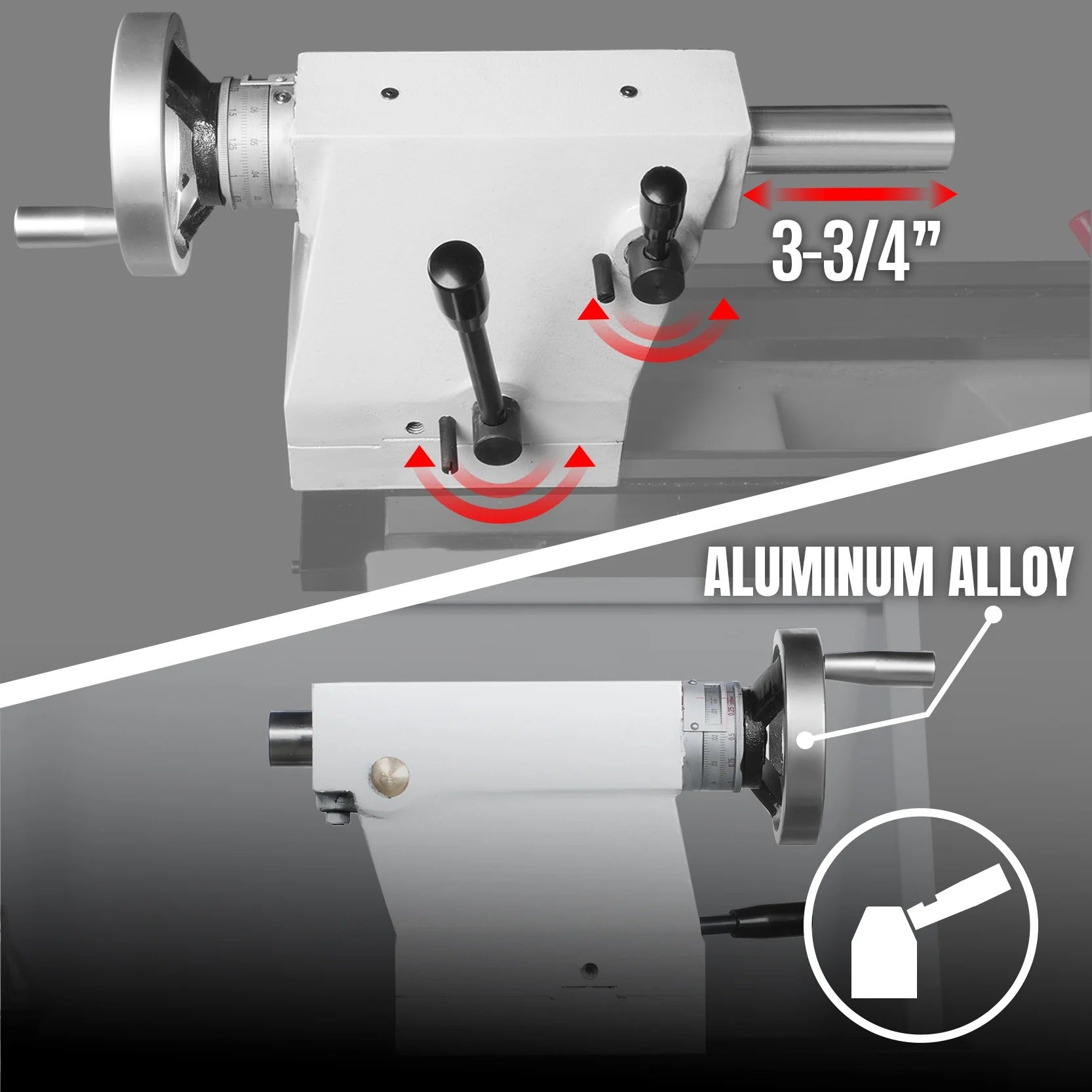

| Tailstock Quill Travel | 3-3/4" (95 mm) |

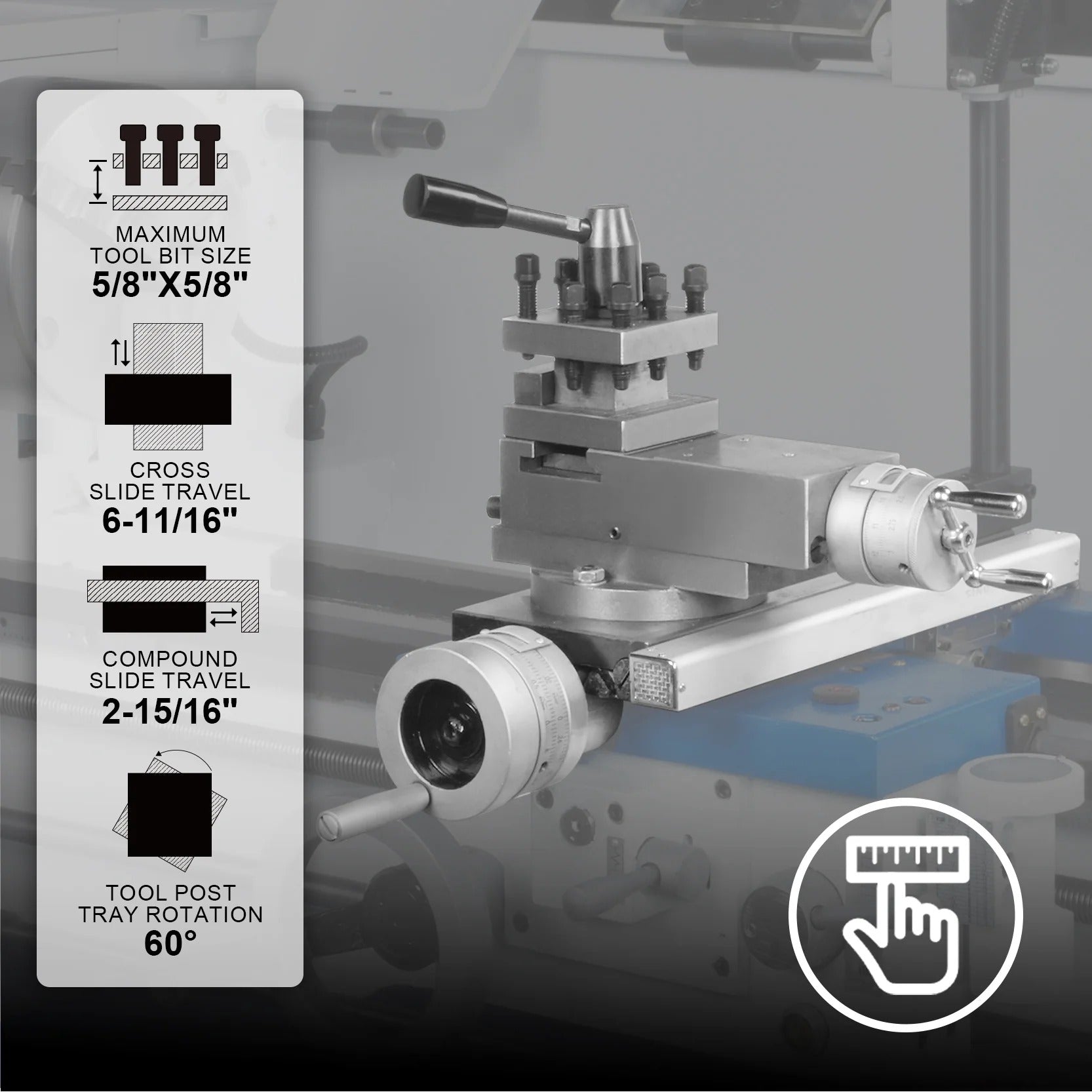

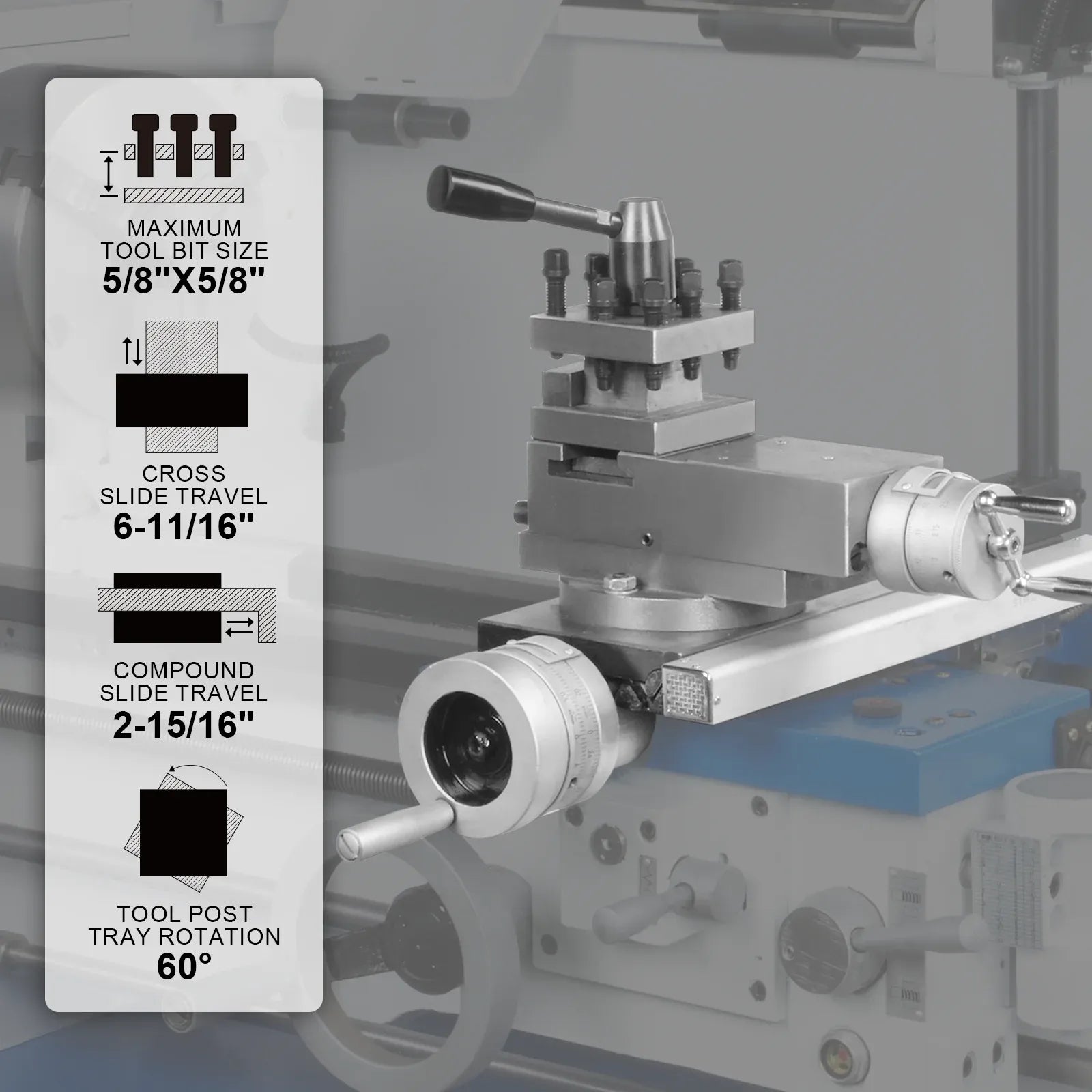

| Cross Slide Travel | 6-11/16" (170 mm) |
| Compound Slide Travel | 2-15/16" (74 mm) |
| Carriage Travel | 40" (1000 mm) |
| Spindle Speeds | 84 – 1850 RPM |
| Speed Ranges | 8 |

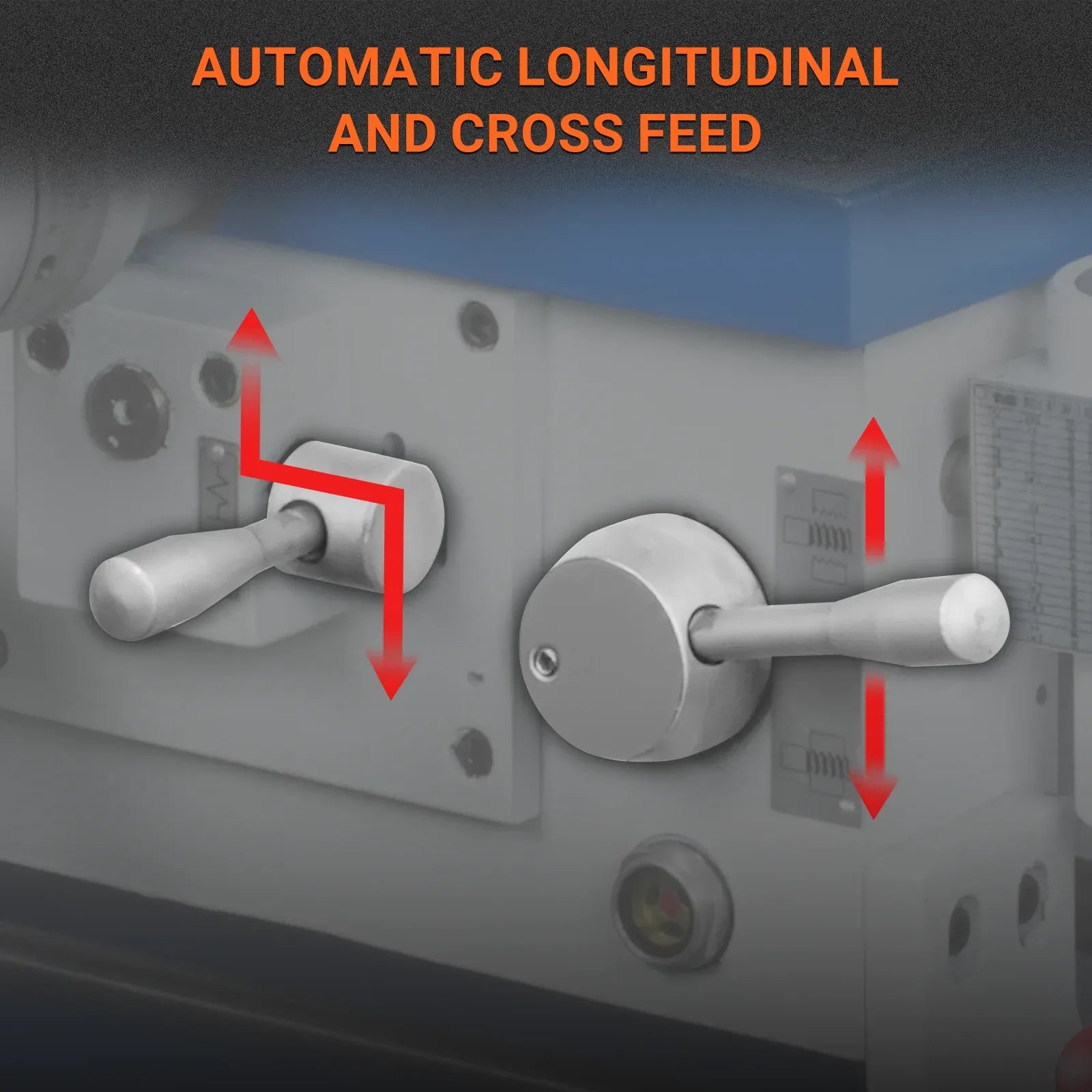

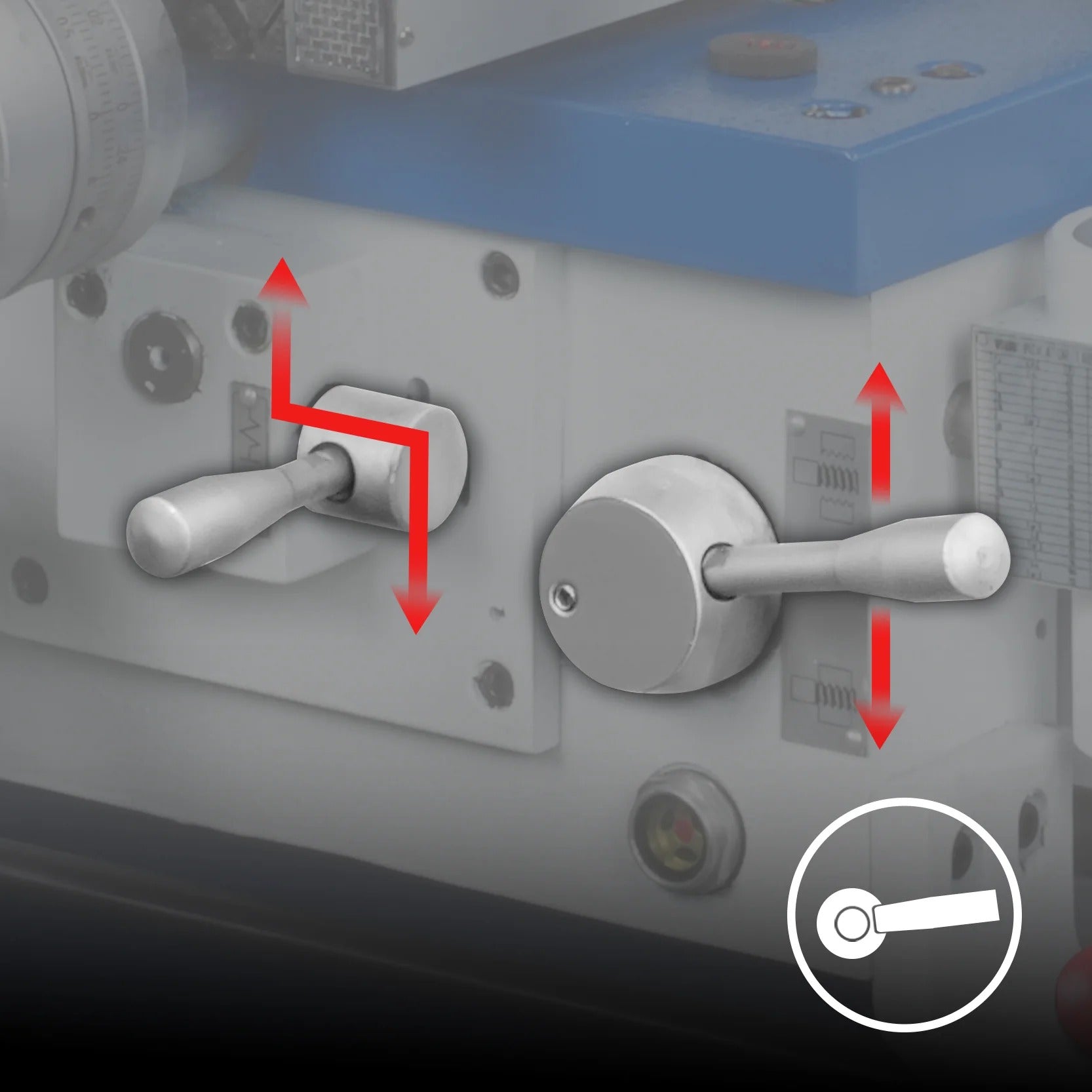

| Longitudinal Feed | 0.002" – 0.0548" per rev |
| Cross Feed | 0.00055" – 0.015" per rev |
| Leadscrew | 7/8" (22 mm), 8 TPI |
| Inch Threads | 4 – 56 TPI (34 types) |
| Metric Threads | 0.4 – 7 mm (26 types) |
| Module Threads | 0.35 – 5 M.P (16 types) |
| Diametral Threads | 6 – 104 D.P (36 types) |
| Max Tool Size | 5/8" x 5/8" (16 x 16 mm) |

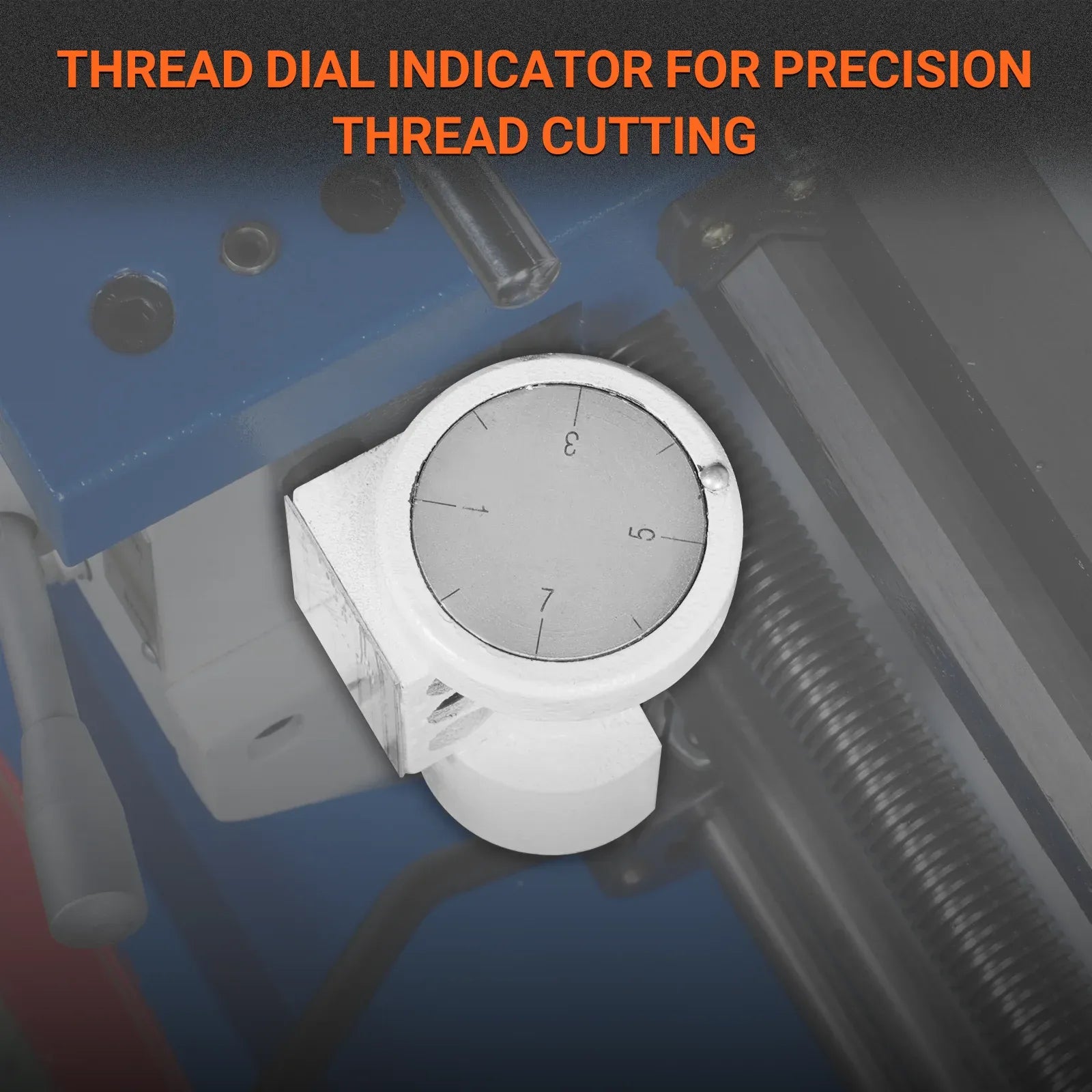

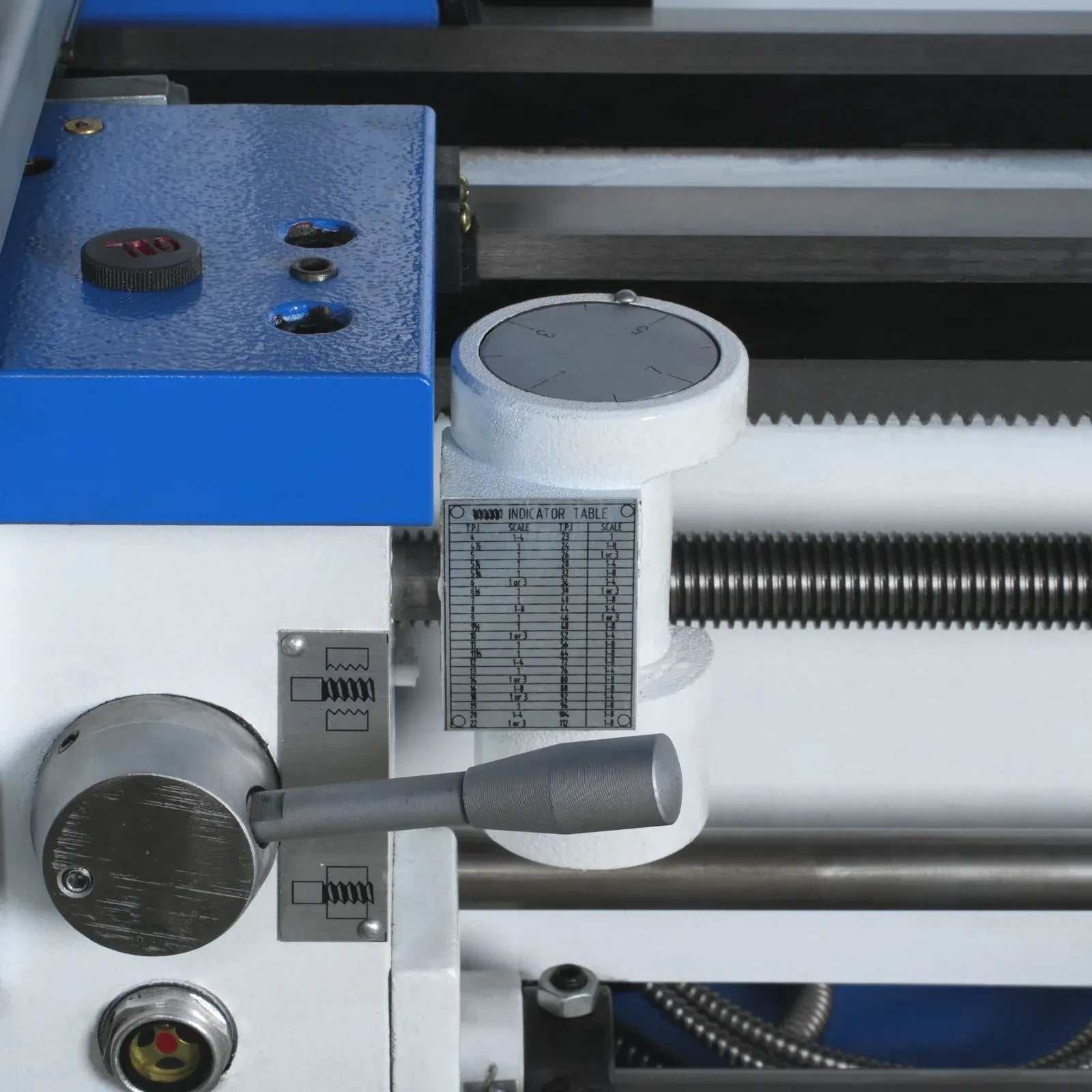

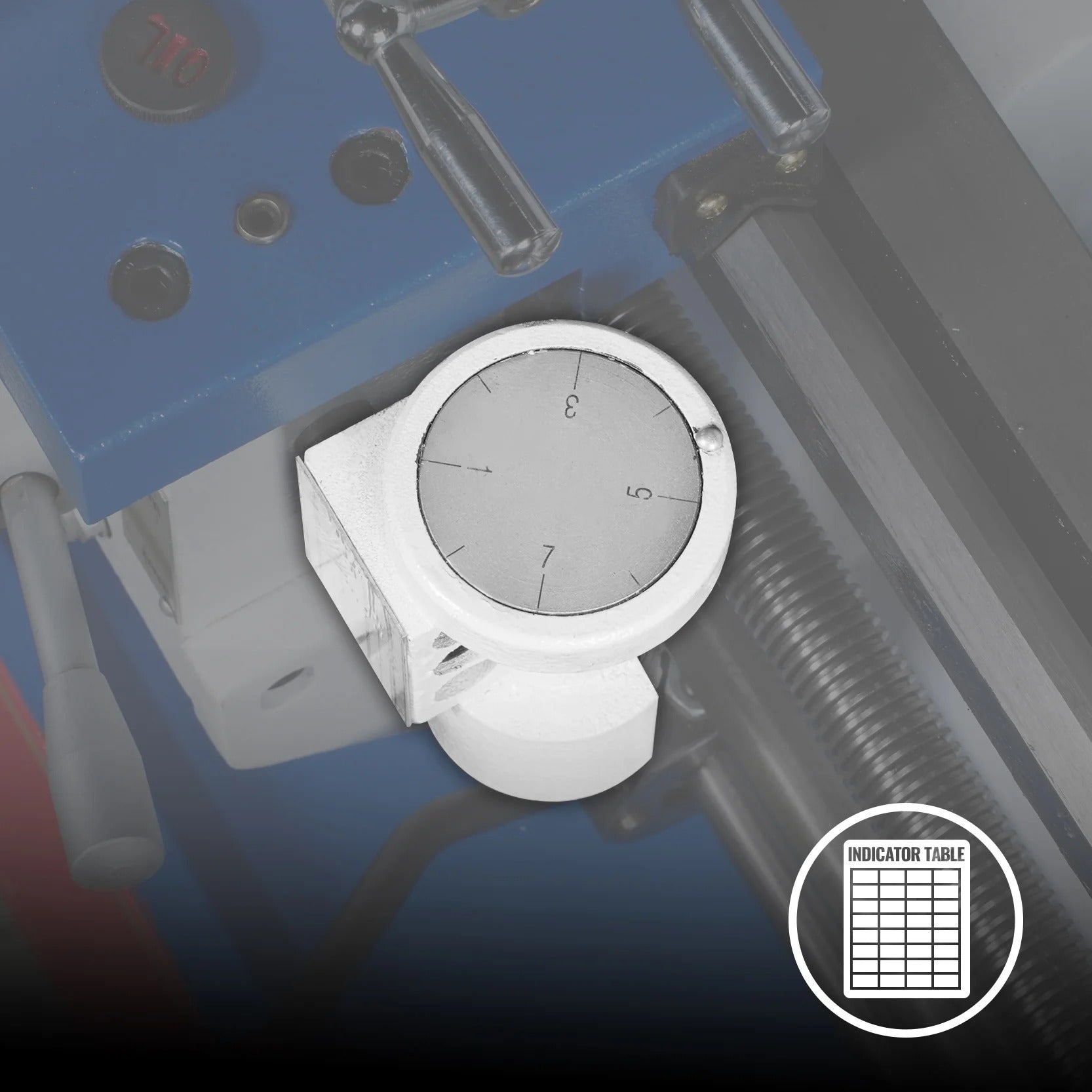

| Thread Dial Indicator | Included |
| Coolant System | Included |
| Overall Dimensions | 76" x 30" x 59" |
| Shipping Weight | Approx. 1,378 – 1,486 lbs |
