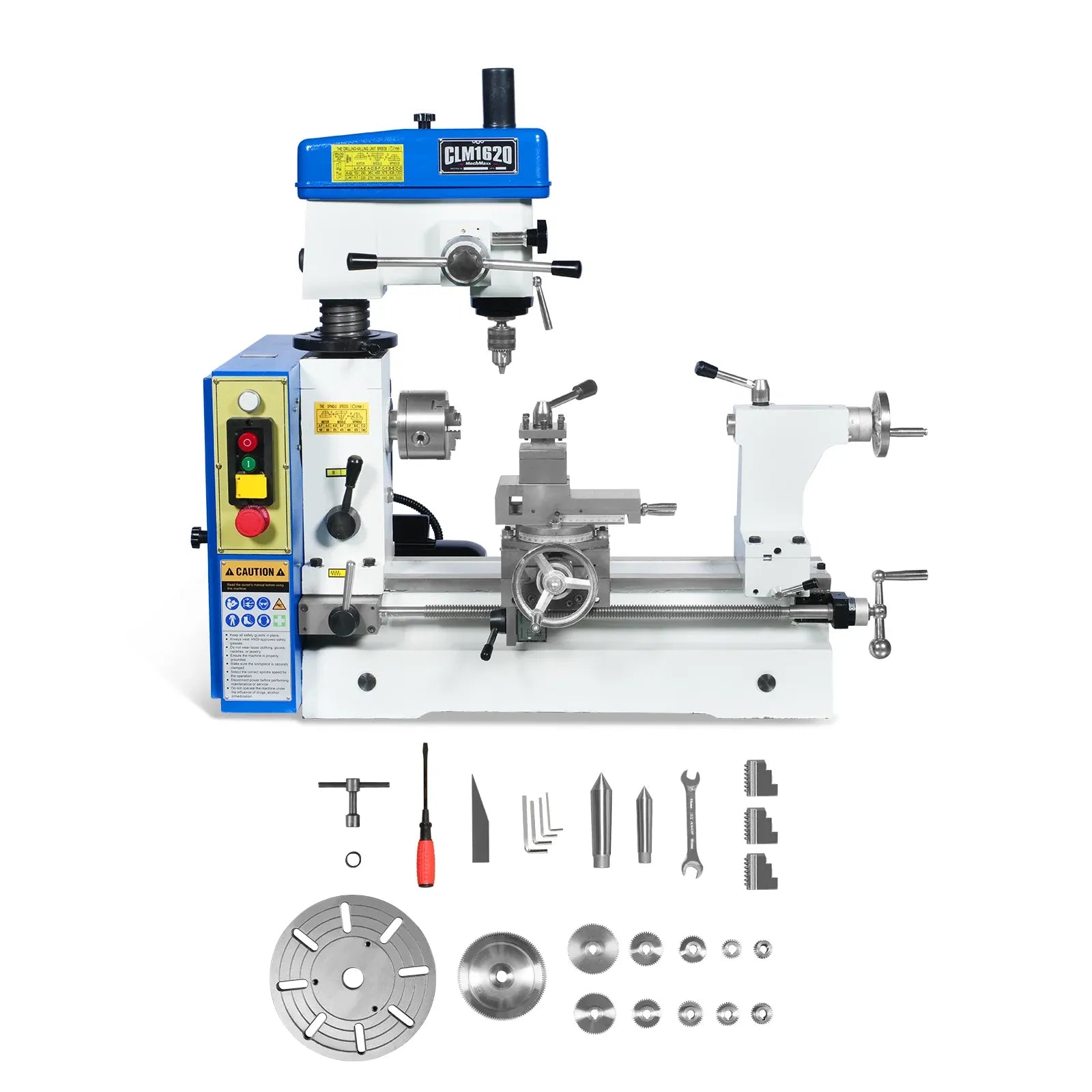

MechMaxx 16x20 Multi-Function Lathe Milling Machine Head, Model CLM1620
SKU: 500103
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

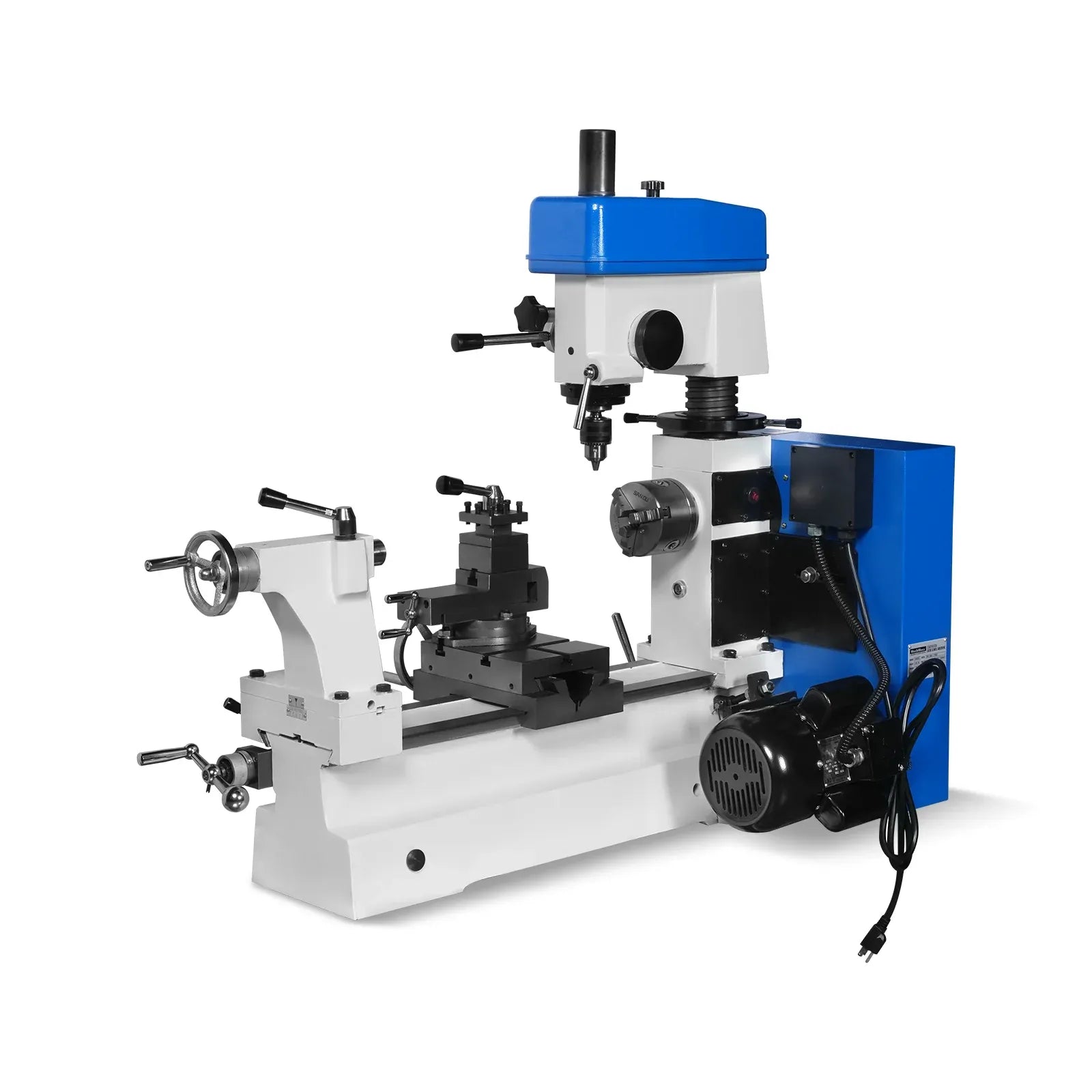

The 16" x 15-3/4" Compact Combination Metal Lathe & Milling Machine is a versatile, space-saving solution designed for workshops that need both turning and milling capabilities in a single machine. Ideal for smaller shops, garages, and hobbyists, this unit delivers reliable performance while maximizing functionality in a compact footprint.

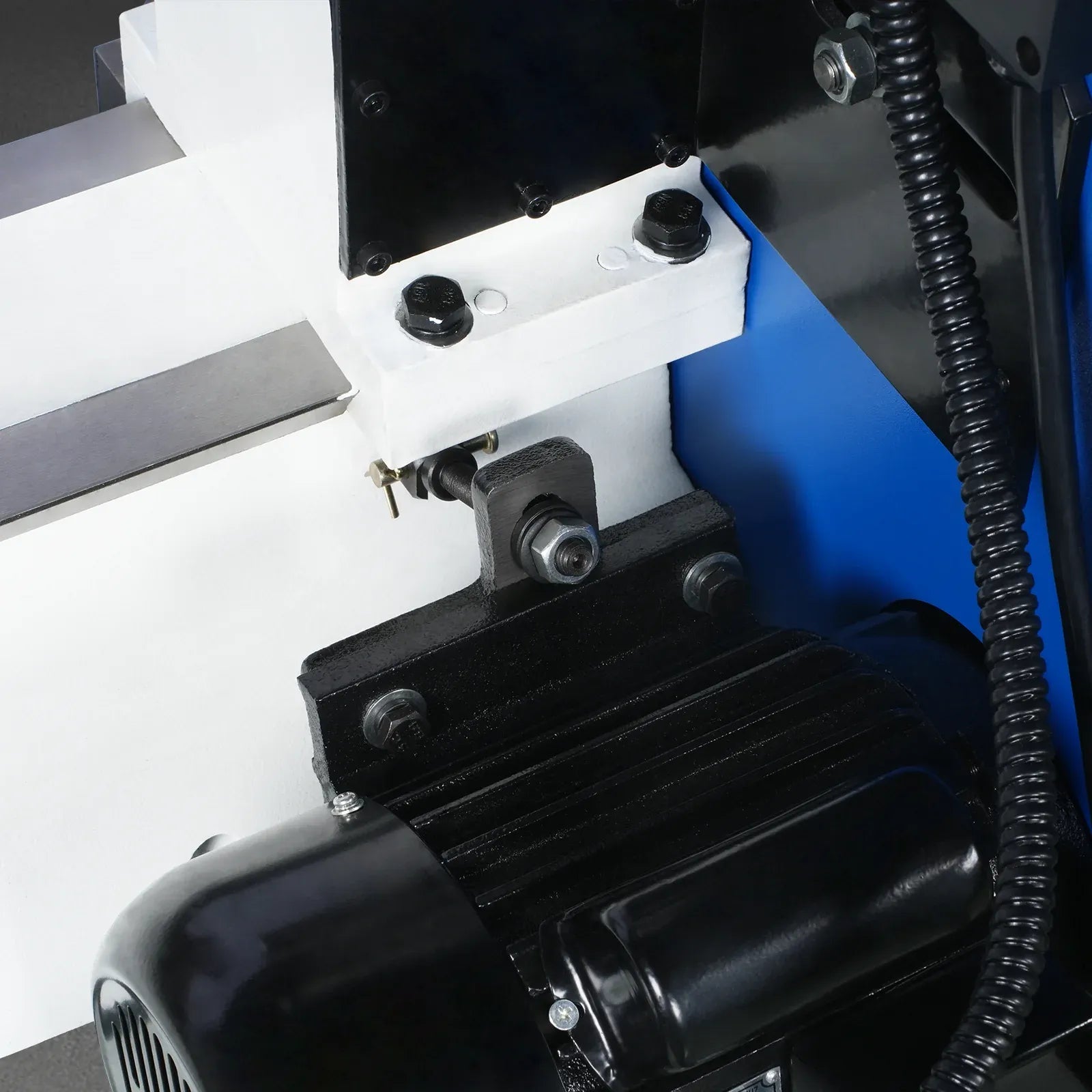

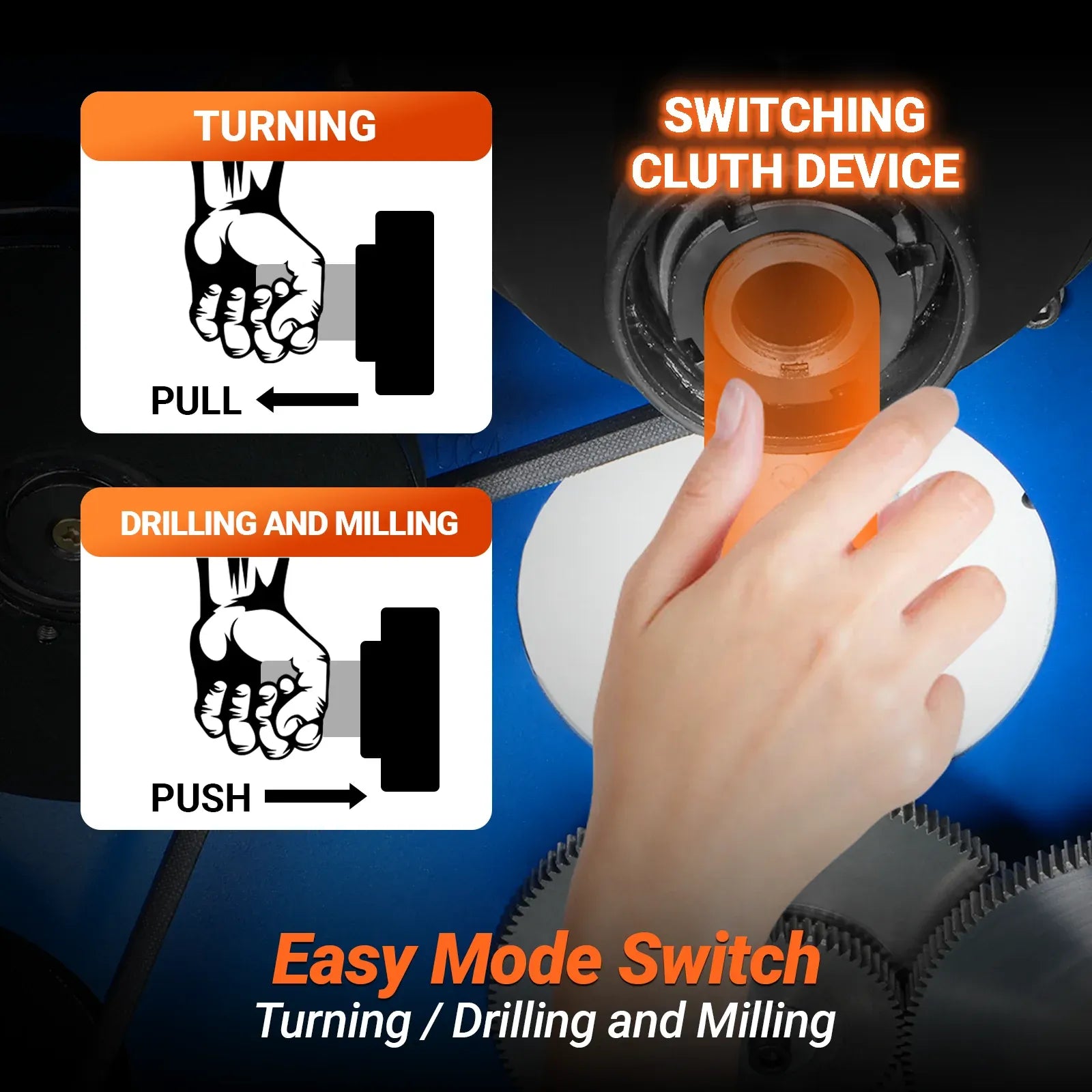

Powered by a 750W motor, this machine provides sufficient power for a wide range of light to medium-duty machining tasks. Its integrated design allows the milling head to be powered directly by the lathe motor, simplifying operation while maintaining efficiency.
The lathe offers a generous swing over bed, allowing you to work with larger workpieces, while the 7-speed spindle provides controlled speeds for different materials and operations. Threading capabilities in both inch and metric formats give users flexibility for a variety of applications. The milling head features a 14-step speed range and a 360° swiveling head, allowing for multi-directional machining — ideal for drilling, end milling, and face milling tasks.
Key Features & Benefits
- Combination Lathe & Milling Machine for multi-purpose use
- 750W Motor for reliable turning and milling performance
- 16" Swing Over Bed for handling larger workpieces

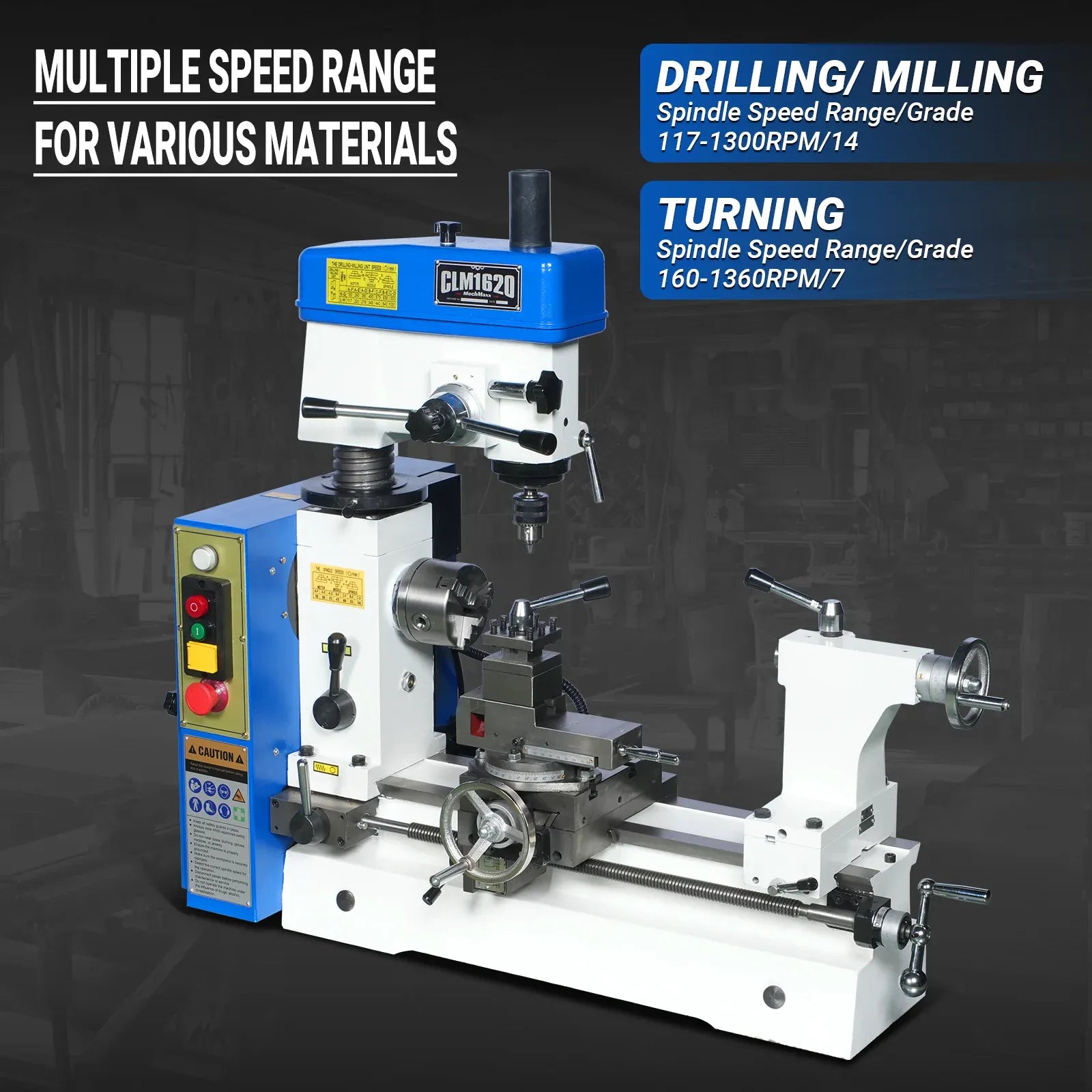

- 7-Speed Lathe (160–1360 RPM) for controlled turning
- 14-Speed Milling Head (117–1300 RPM) for flexible machining operations
- Supports inch (8–120 TPI) and metric (0.2–3 mm) threading
- 360° Swiveling Milling Head for multi-angle machining
- Compact design ideal for small workshops and garages
- Capable of drilling, end milling, and face milling
| Specifications | Details |
|---|---|

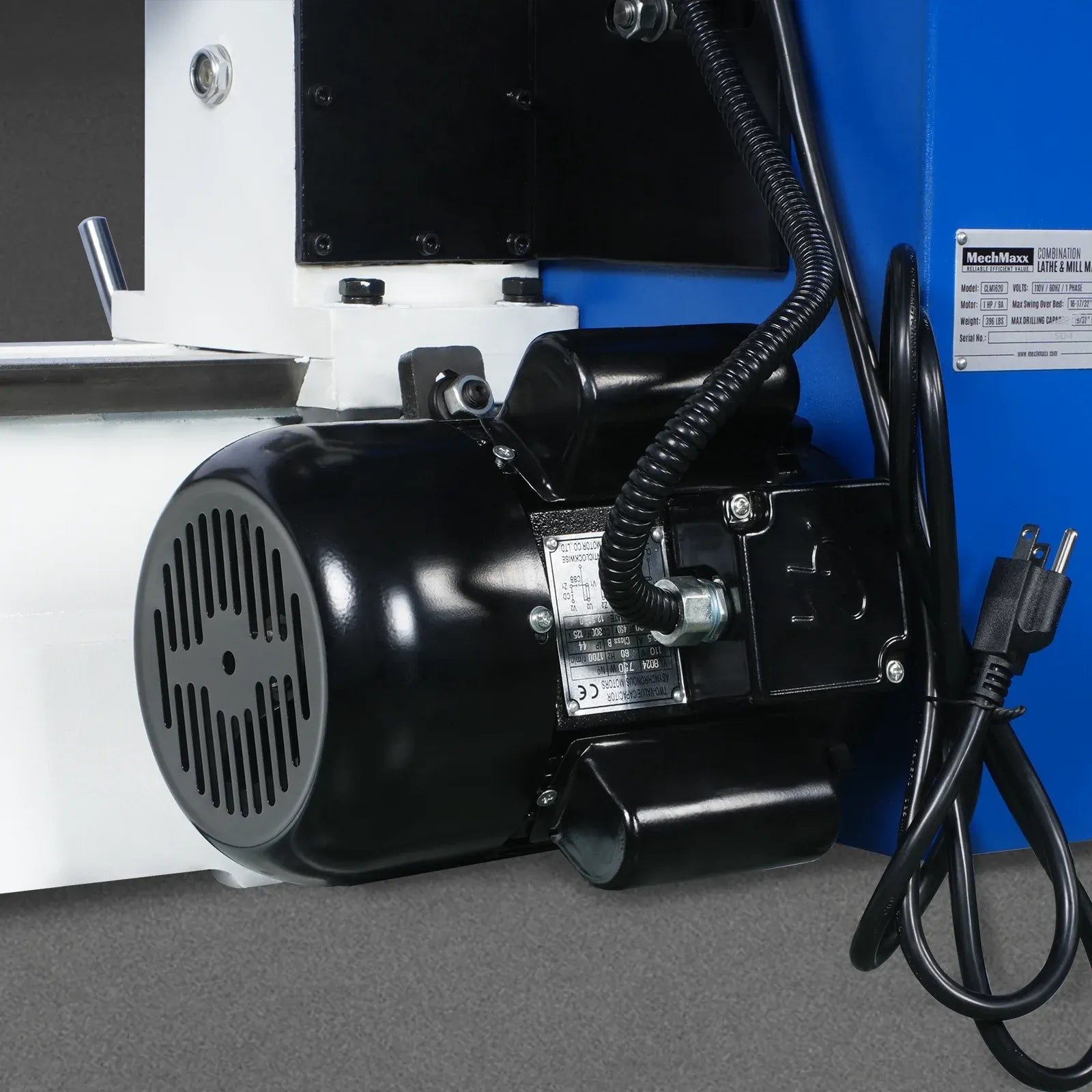

| Motor Power | 750W, 110V, Single Phase |
| Swing Over Bed | 16-8/15" (420 mm) |
| Swing Over Cross Slide | 11-1/2" |
| Distance Between Centers | 15-3/4" (400 mm) |
| Bed Width | 5-5/16" |
| Spindle Bore | 11/14" (20 mm) |
| Spindle Mount | Flange Mount |
| Spindle Taper (Lathe) | MT3 |

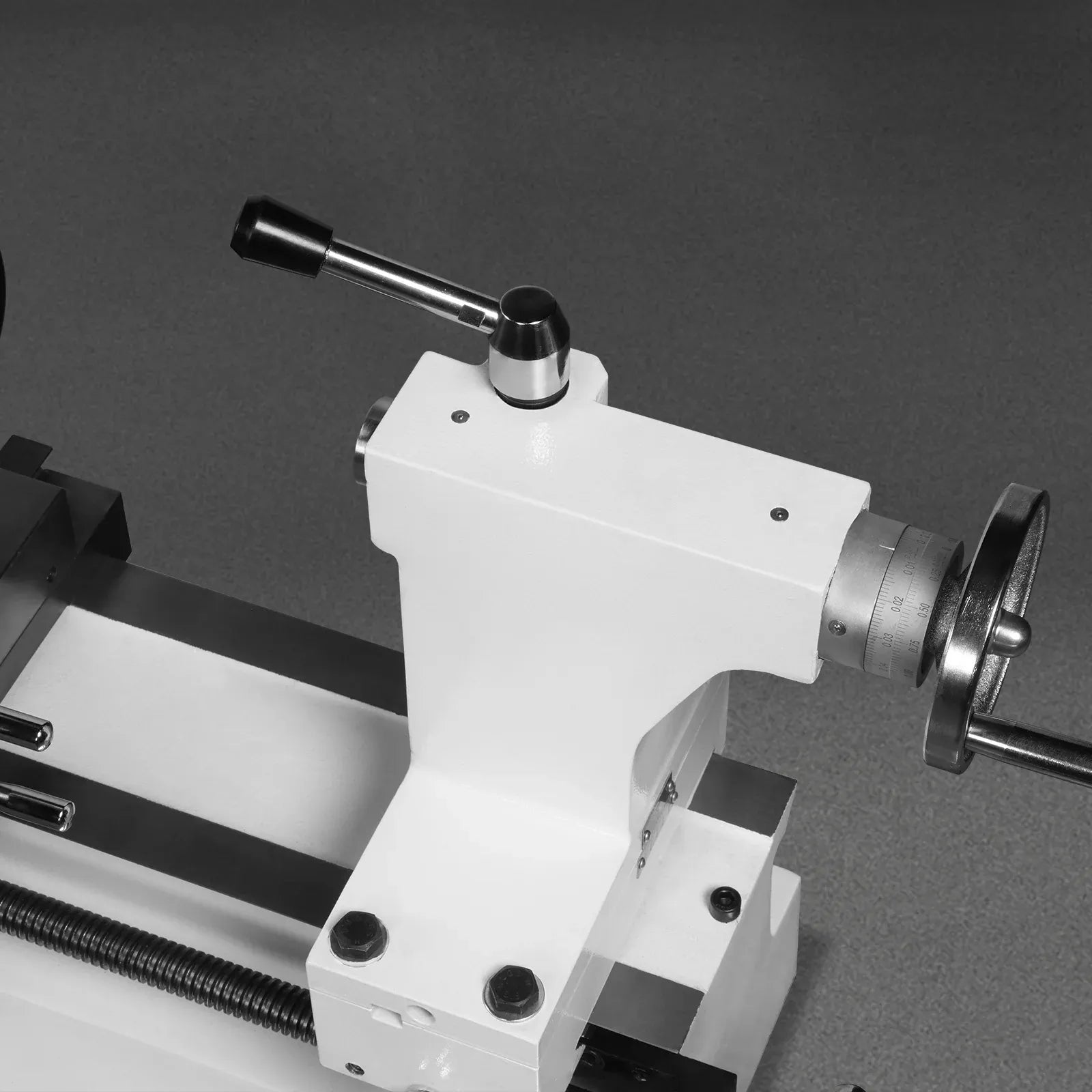

| Tailstock Taper | MT3 |
| Tailstock Travel | 2-3/4" |
| Carriage Travel | 15" |
| Cross Slide Travel | 4-8/11" |
| Compound Slide Travel | 3" |
| Spindle Speed Range (Lathe) | 160–1360 RPM |
| Speed Ranges (Lathe) | 7 |
| Longitudinal Feed | 0.002" – 0.007" per rev |
| Threading (Inch) | 8 – 120 TPI |
| Threading (Metric) | 0.2 – 3 mm |
| Thread Dial Indicator | Not Included |
| Max Tool Size | 1/2" x 1/2" |
| Mill Motor Power | Powered by Lathe Motor |
| Spindle Taper (Mill) | MT3 |
| Spindle Speeds (Mill) | 117 – 1300 RPM (14 Speeds) |

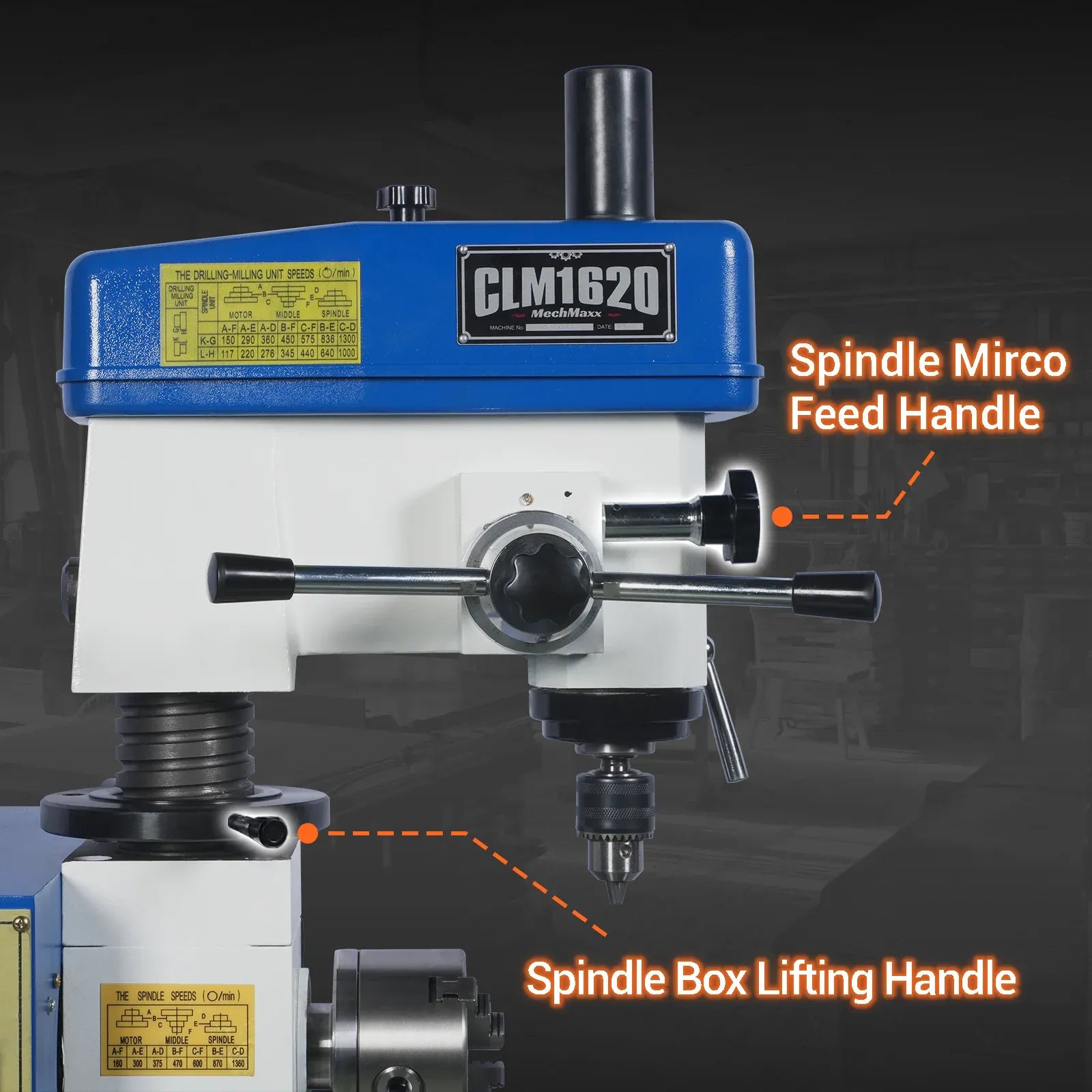

| Spindle Travel | 3-11/32" |
| Drill Capacity | 19/32" |
| End Mill Capacity | 25/32" |
| Face Mill Capacity | 2-1/2" |
| Vertical Travel (Z-Axis) | 3-5/32" |
| Head Rotation | 360° Swivel |

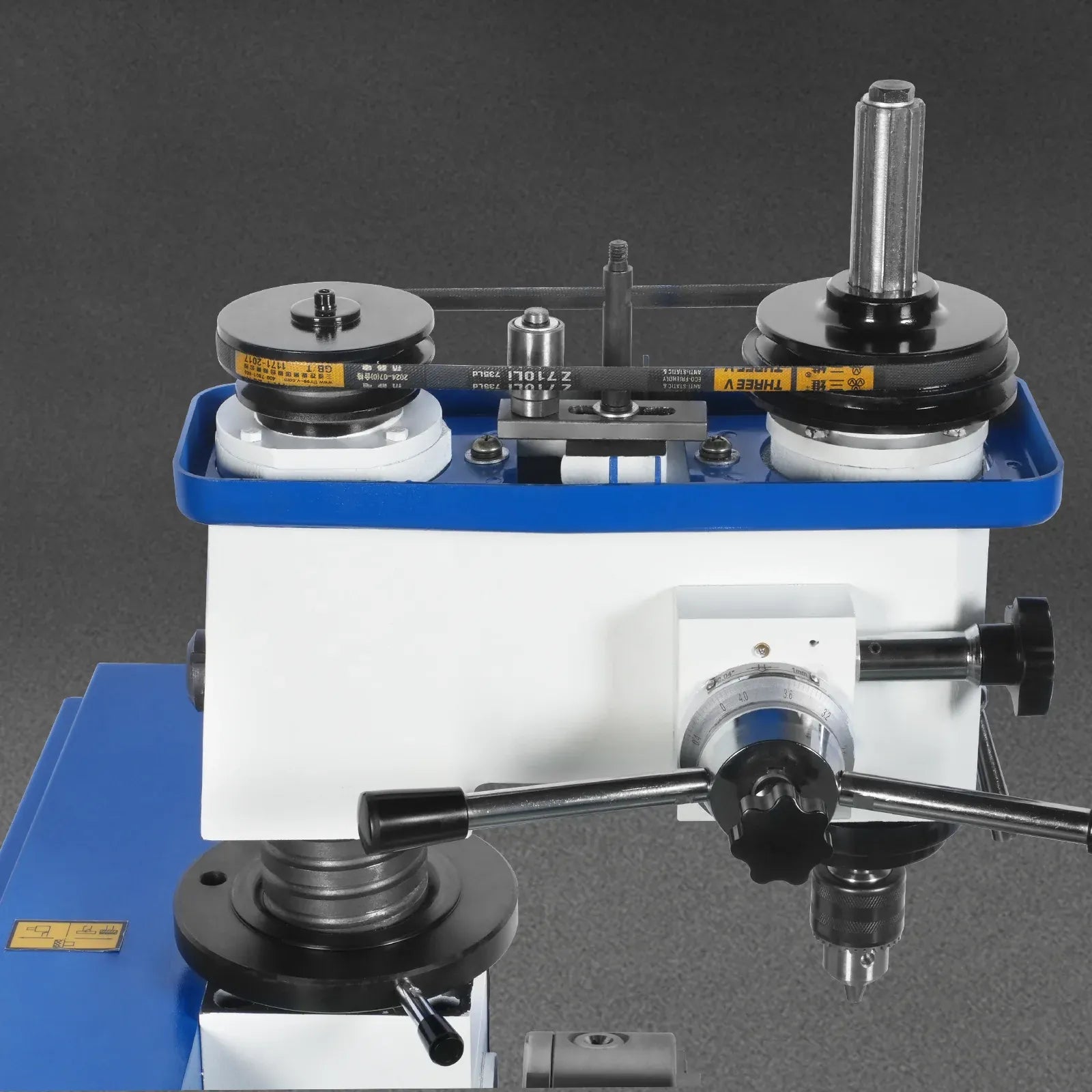

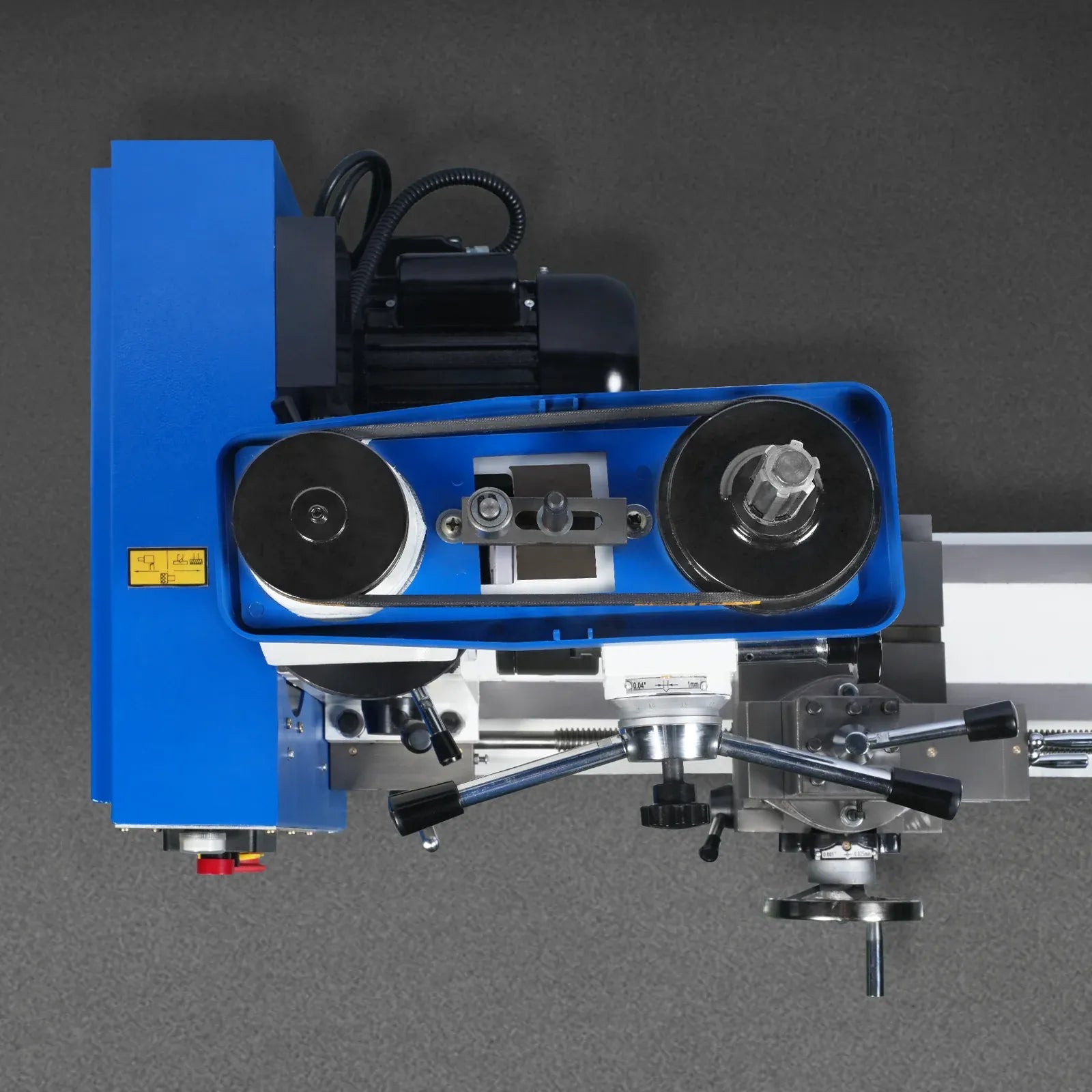

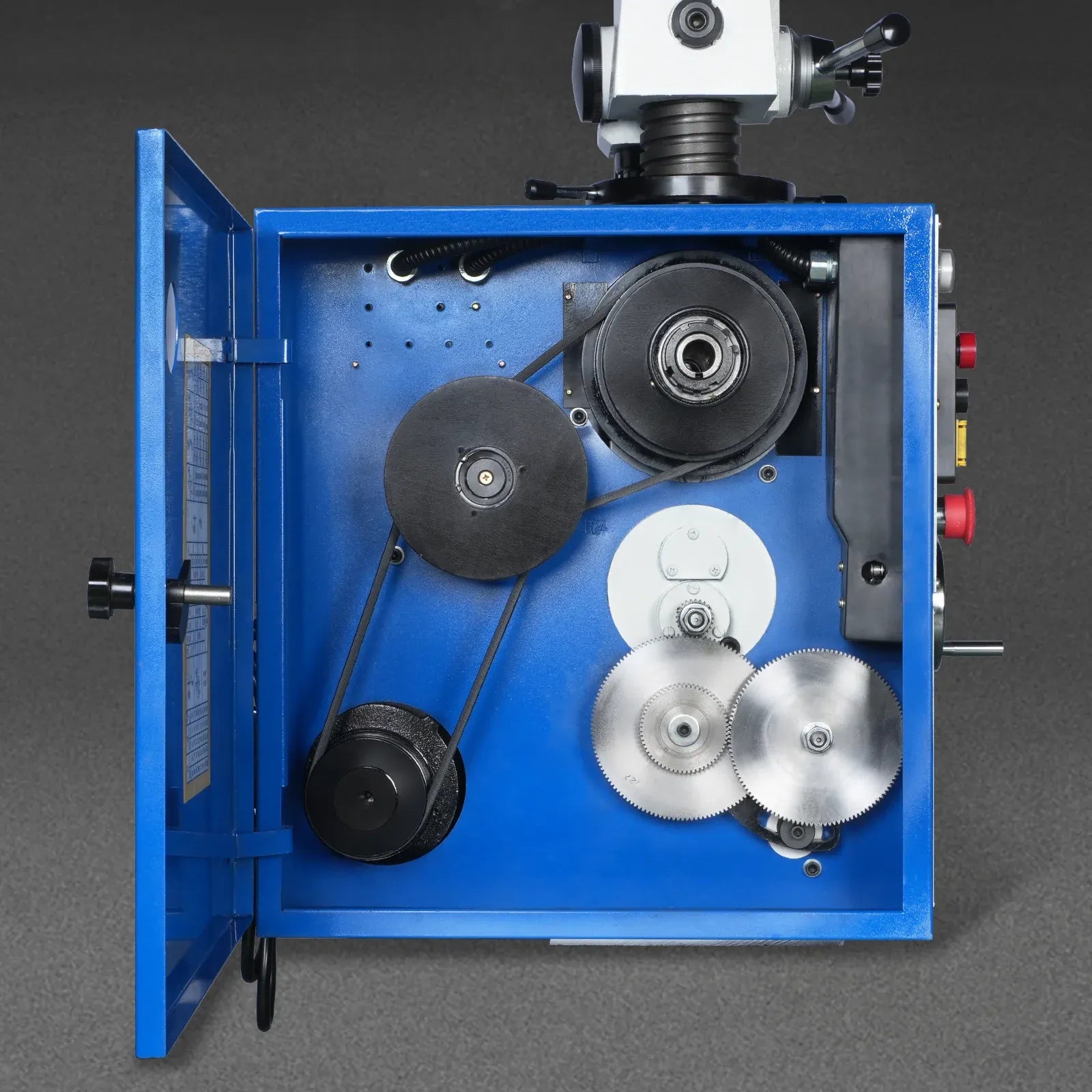

| Drive Type | Belt-Driven |
| Overall Dimensions | 41" x 23" x 43" |
| Net Weight | 408 lbs |
| Gross Weight | 463 lbs |
