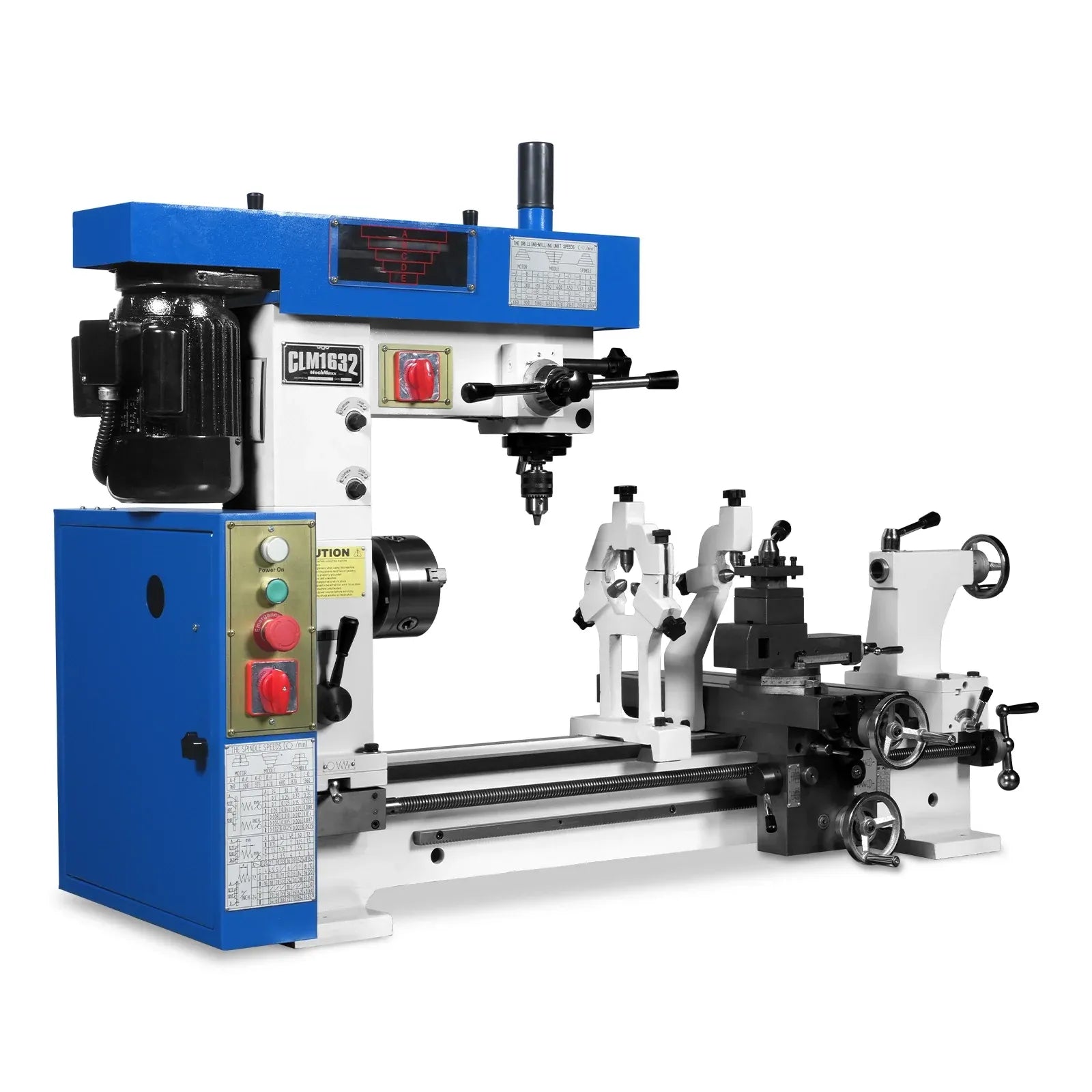

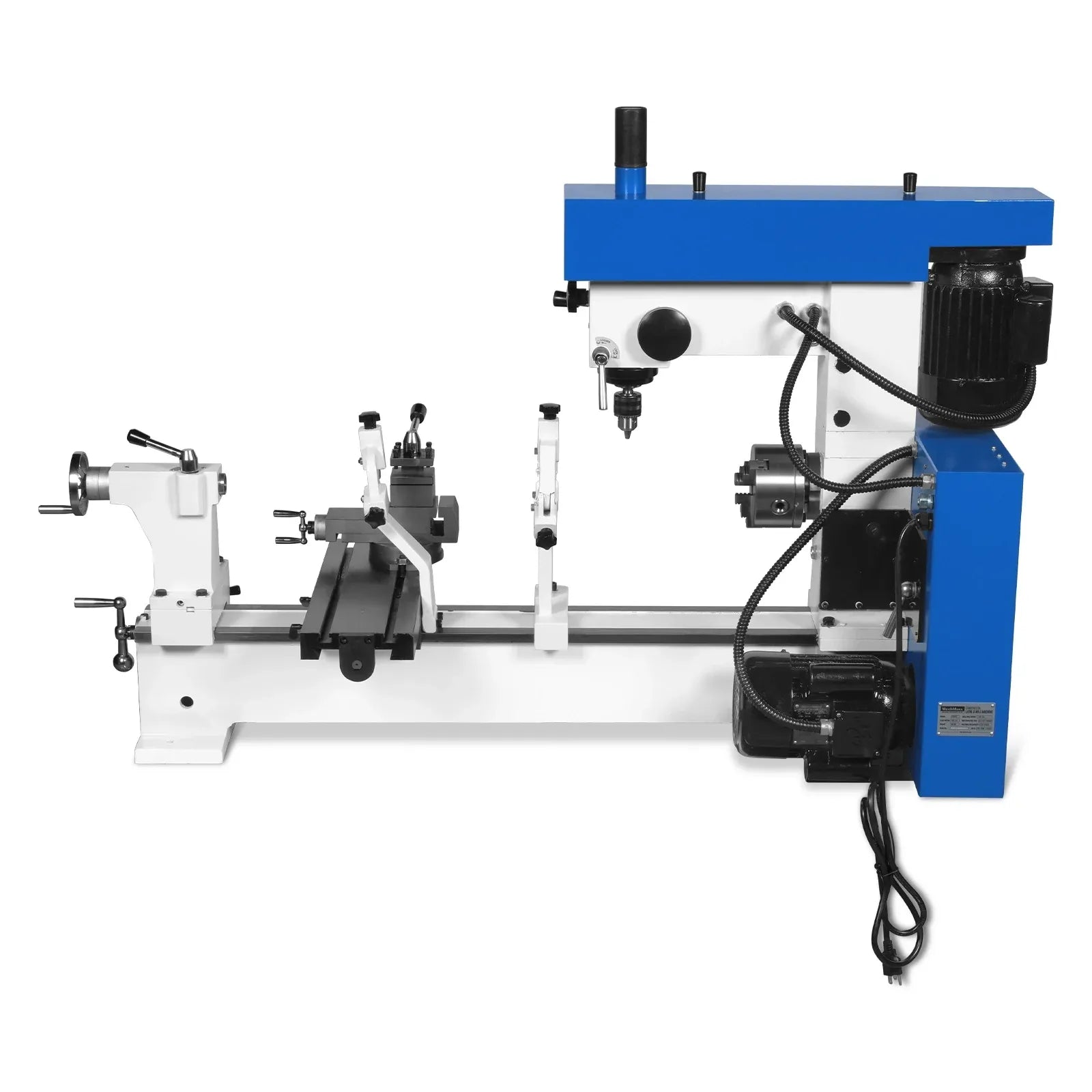

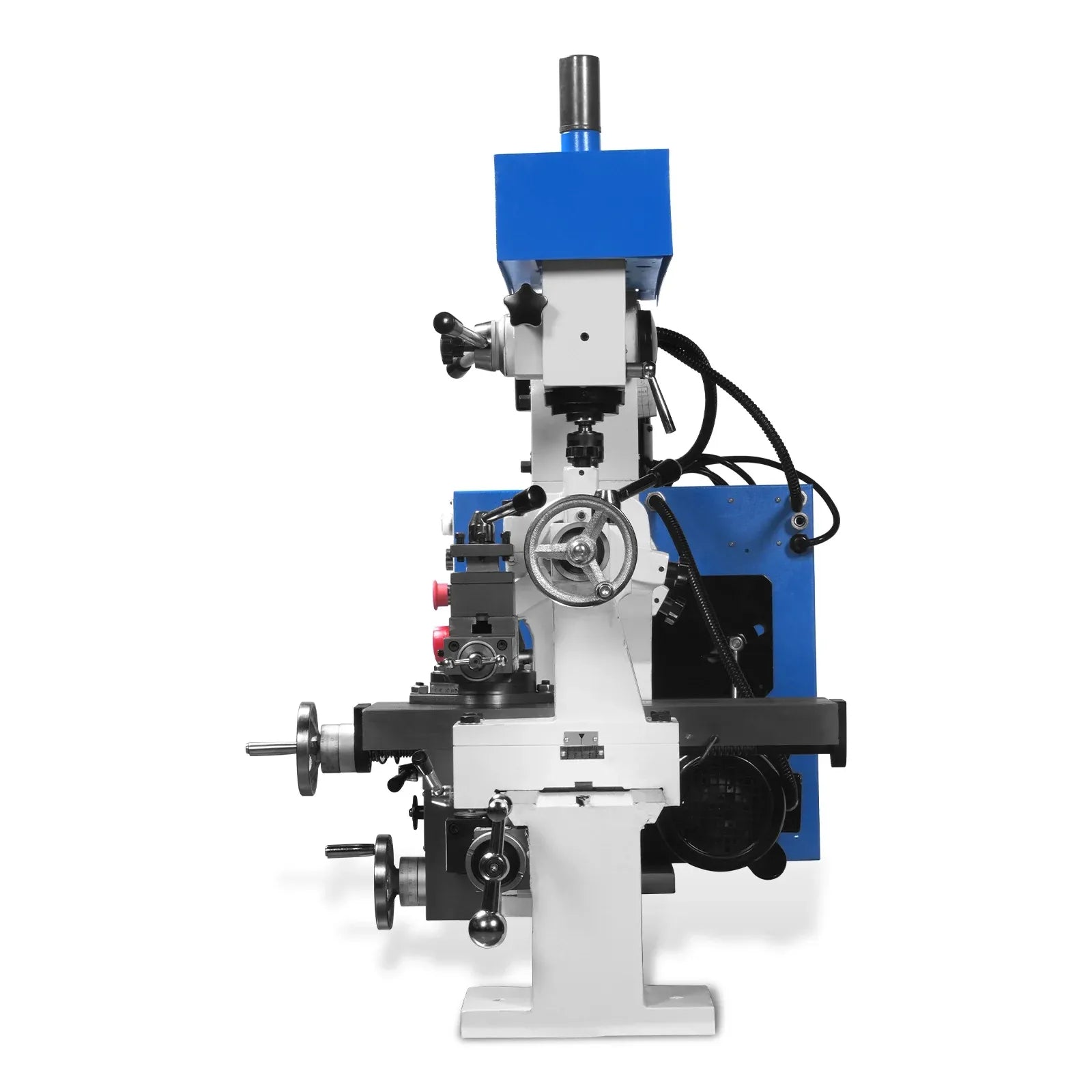

MechMaxx 16x32 Multi-Function Lathe Milling Machine Head, Model CLM1632
SKU: 500105
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

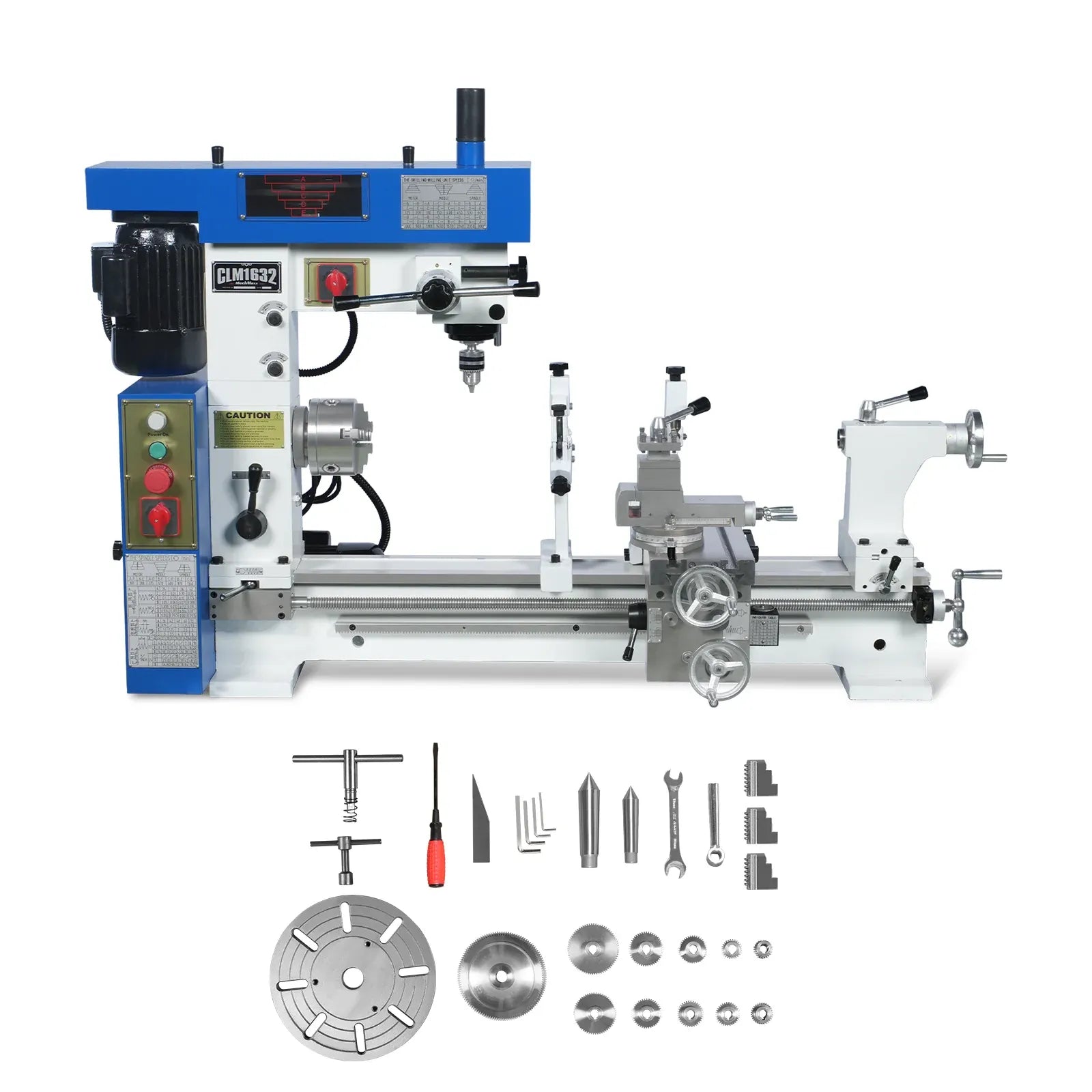

The 16" x 31.5" Combination Metal Lathe & Milling Machine is a versatile, space-saving solution designed for workshops that need both turning and milling capabilities in one machine. Built for flexibility and precision, this unit combines a capable metal lathe with a fully functional milling head, making it ideal for fabrication, maintenance work, and general machining applications.
With dual 750W motors powering both the lathe and milling head, this machine delivers reliable performance for a wide range of tasks, from threading and turning to drilling and milling. Its compact footprint makes it especially well-suited for smaller shops without sacrificing functionality.

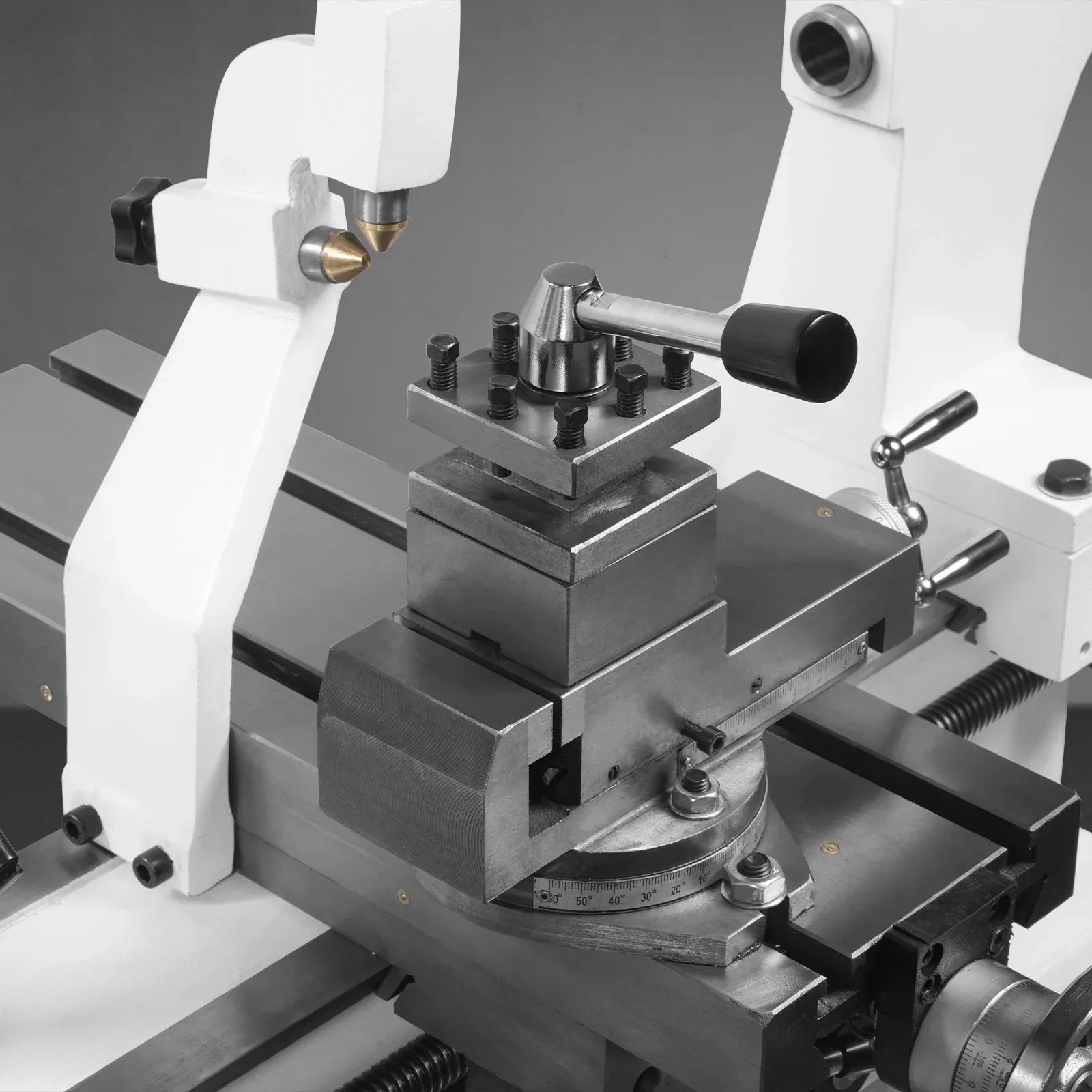

Lathe
| Specifications | Details |
|---|---|
| Motor Power | 750W, 110V, Single Phase |
| Swing Over Bed | 16-8/15" (420 mm) |
| Swing Over Cross Slide | 11-1/2" |
| Distance Between Centers | 31-1/2" (800 mm) |
| Bed Width | 5-5/16" |
| Spindle Bore | 1-1/10" (28 mm) |
| Spindle Mount | Flange Mount |
| Spindle Taper | MT4 |
| Tailstock Taper | MT3 |
| Tailstock Travel | 2-3/4" |
| Carriage Travel | 29-1/8" |
| Cross Slide Travel | 7-7/8" |
| Compound Slide Travel | 3" |
| Spindle Speed Range | 160–1360 RPM |
| Speed Ranges | 7 |
| Longitudinal Feed | 0.002" – 0.014" |
| Cross Feed | 0.002" – 0.014" |
| Threading (Inch) | 4 – 120 TPI |
| Threading (Metric) | 0.2 – 6 mm |
| Max Tool Size | 1/2" x 1/2" |
Lathe Key Features
- 750W motor for reliable turning performance
- 16" swing over bed for larger workpieces
- 7-speed spindle system (160–1360 RPM) for controlled turning
- Supports inch (4–120 TPI) and metric (0.2–6 mm) threading
- Extended 29-1/8" carriage travel for longer workpieces
- MT4 spindle taper and MT3 tailstock taper

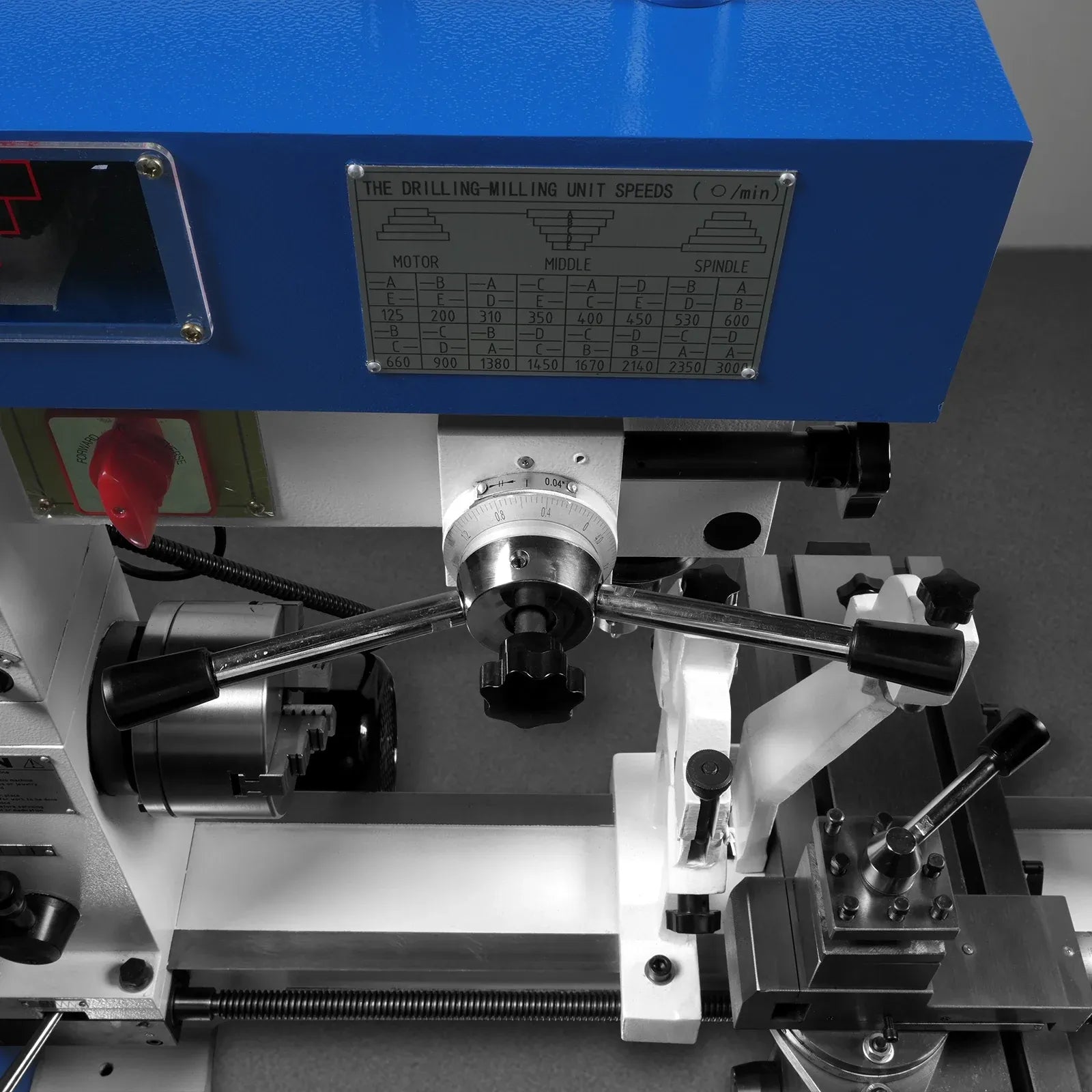

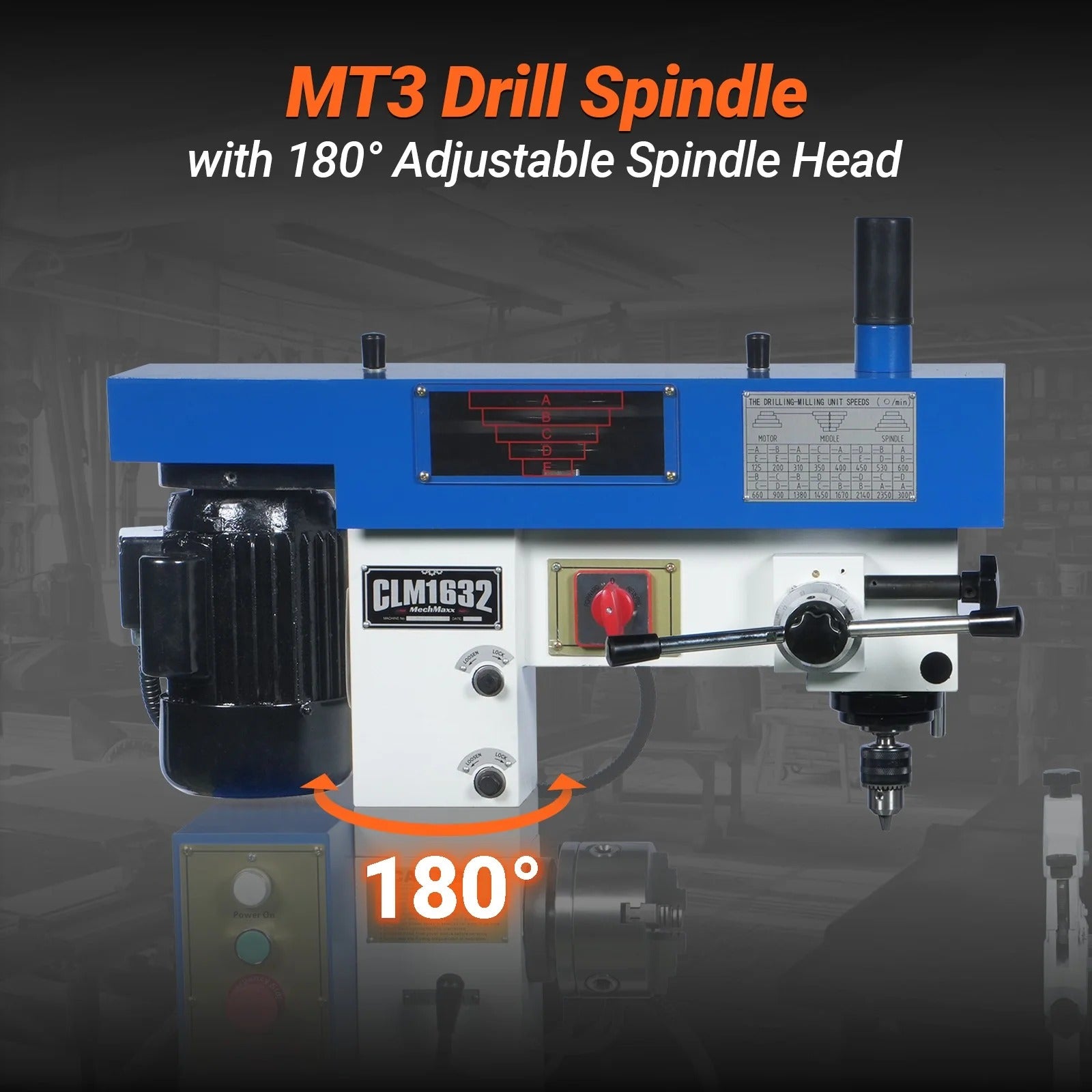

Drill / Mill Head
| Specifications | Details |
|---|---|
| Motor Power | 750W |
| Spindle Taper | MT3 |
| Spindle Speeds | 120 – 3000 RPM (16 Speeds) |
| Spindle Travel | 4-5/16" |
| Drill Capacity | 7/8" |
| End Mill Capacity | 1-1/8" |
| Face Mill Capacity | 3-5/32" |
| Head Rotation | 360° Swivel |

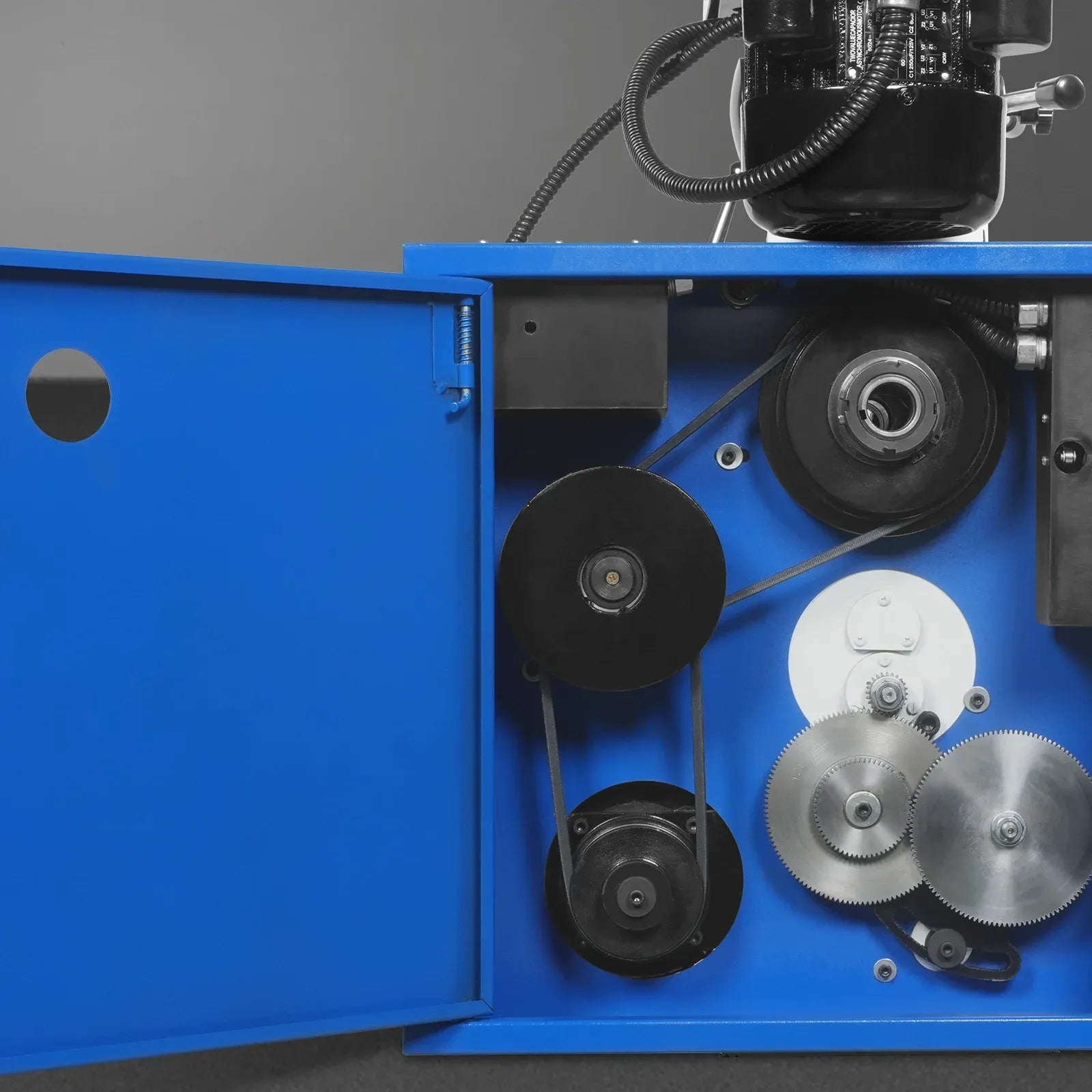

| Drive Type | Belt-Driven |
| Overall Dimensions | 57" x 23" x 45" |
| Net Weight | 595 lbs |
| Gross Weight | 653 lbs |
Drill / Mill Key Features
- 750W motor for reliable milling performance
- 16-speed milling head (120–3000 RPM) for versatile machining
- 360° swiveling headstock for multi-angle machining
- Capable of drilling, end milling, and face milling
- MT3 spindle taper; belt-driven for smooth power transfer
- Compact design ideal for small to mid-sized workshops
