MechMaxx 20 Ton Log Splitter Processor with Conveyor and HONDA GX390 Engine, 24" x 15" Capacity with 18" Chainsaw, Model HLS20
SKU: 150244 | Model: HLS20
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

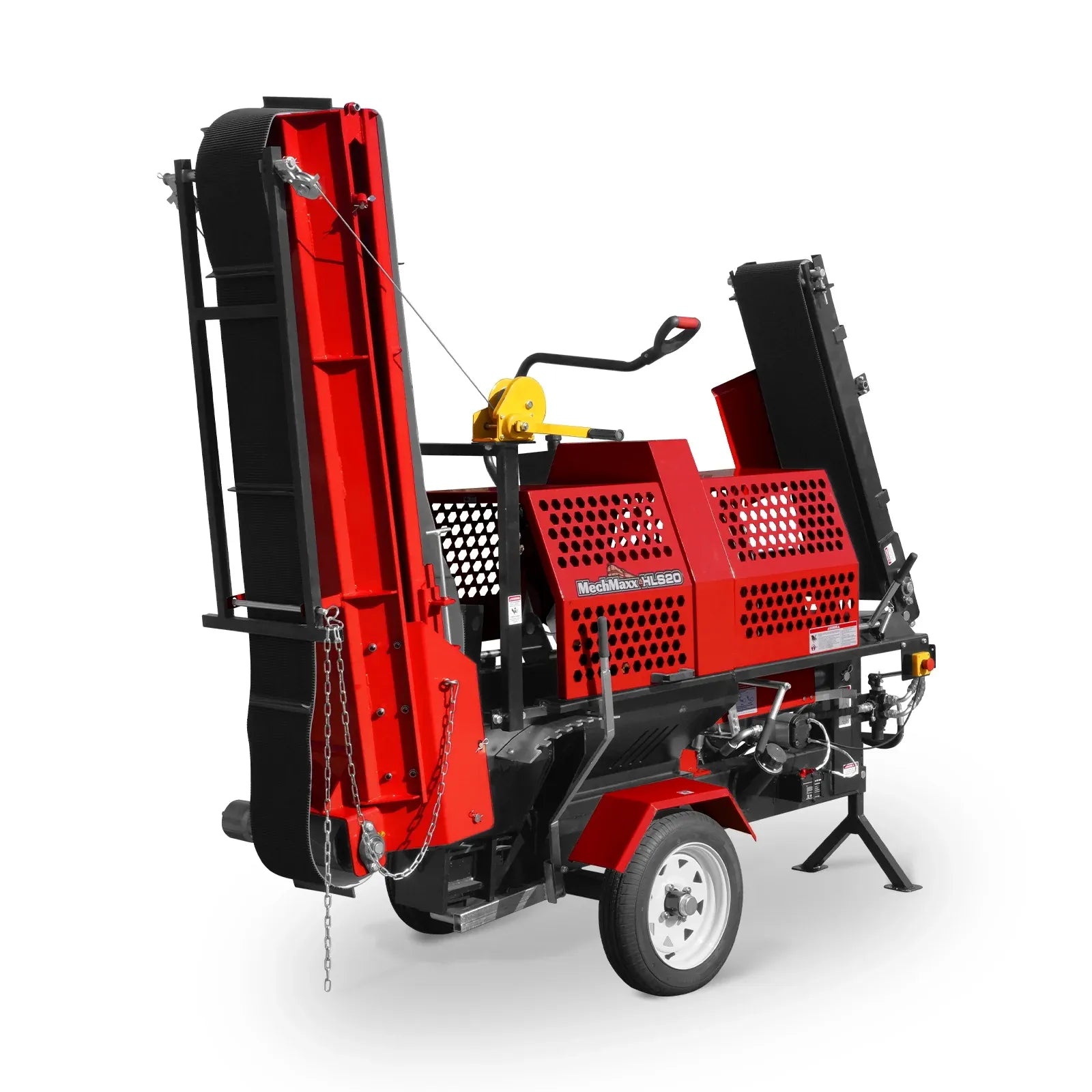

The MechMaxx HLS20 firewood processor is a high-efficiency, all-in-one solution designed for cutting, splitting, and conveying firewood in a single streamlined system. Built for both homeowners and light commercial use, it delivers consistent performance while reducing manual labor and processing time.
Constructed with a heavy-duty steel frame and a powerful hydraulic system, the HLS20 handles a wide range of wood types, including hardwoods and softwoods. Its integrated design allows operators to cut logs, split them, and move finished firewood efficiently without switching between multiple machines.
Key Features & Benefits

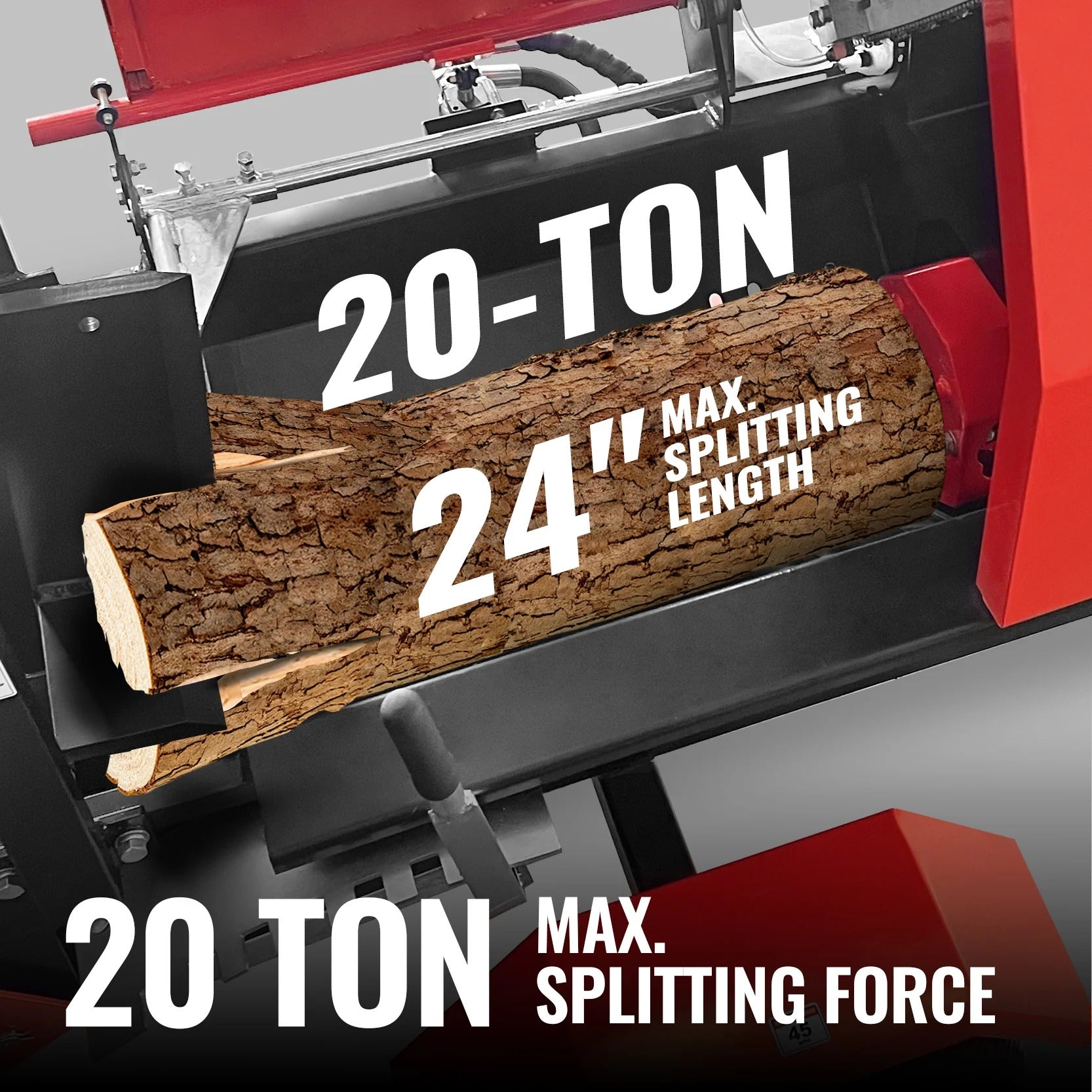

- 20-Ton Splitting Force – high-powered hydraulic system delivers consistent force to split dense hardwoods with ease

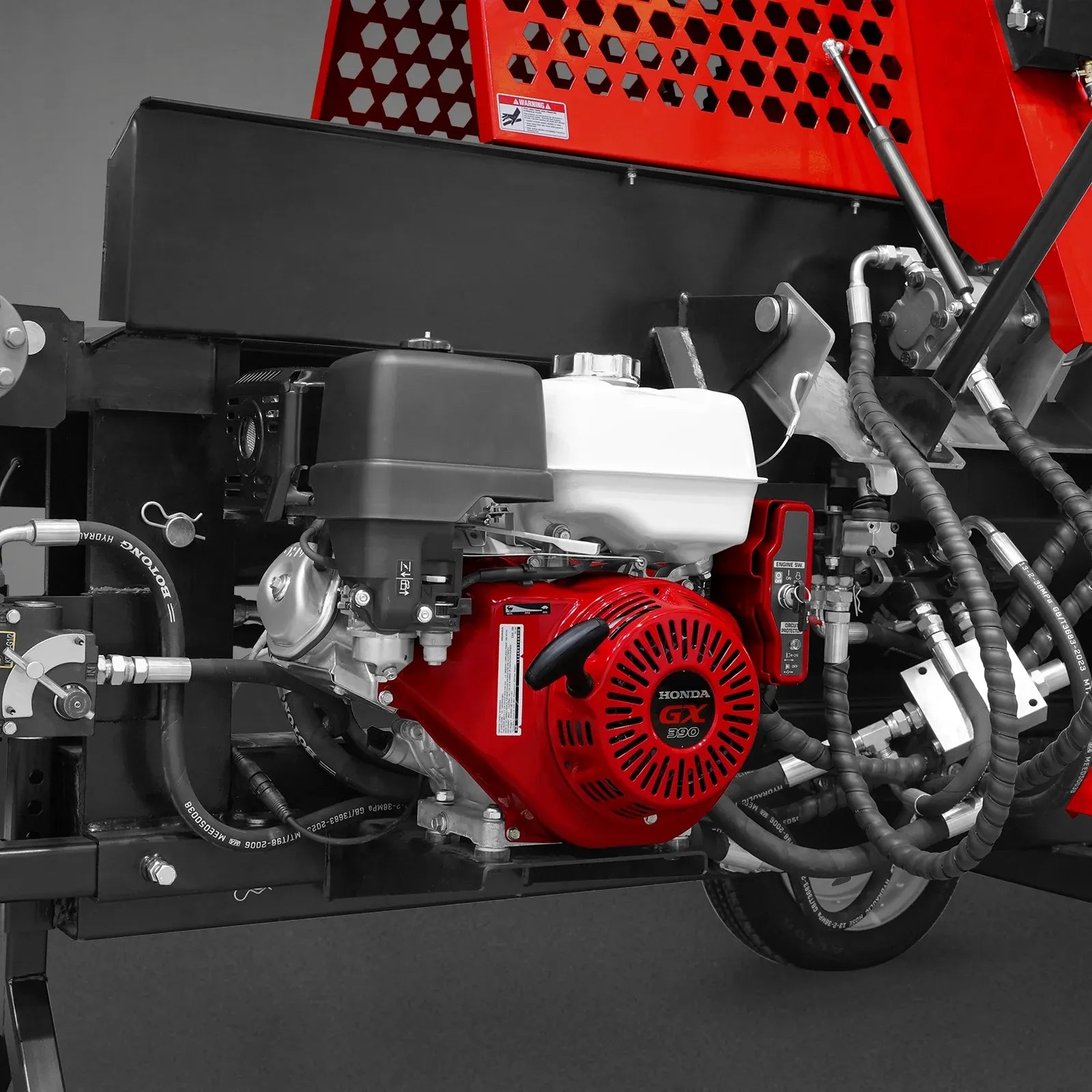

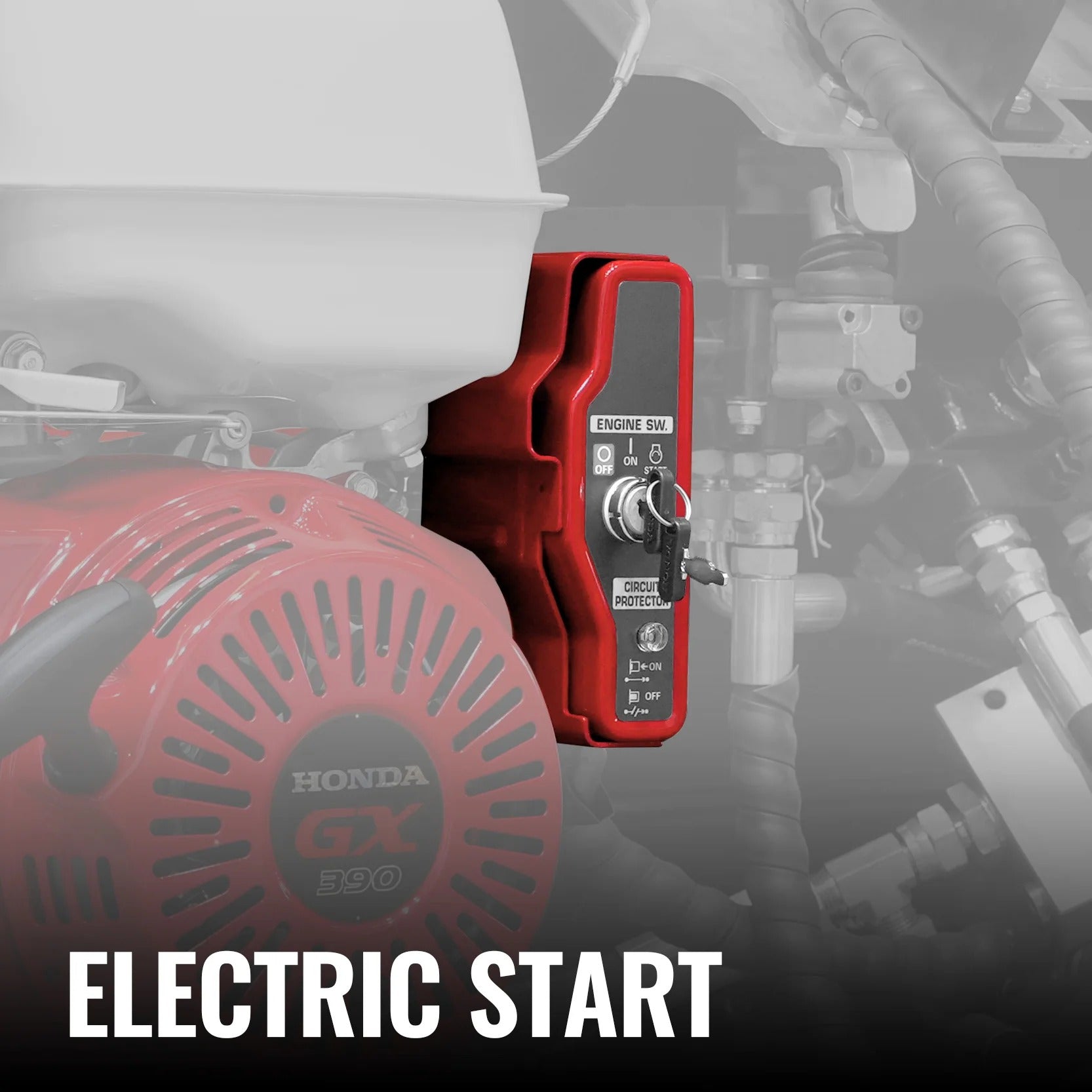

- Honda GX390 Engine (11.7HP, Electric Start) – legendary Honda reliability with low vibration, low noise, and long service life

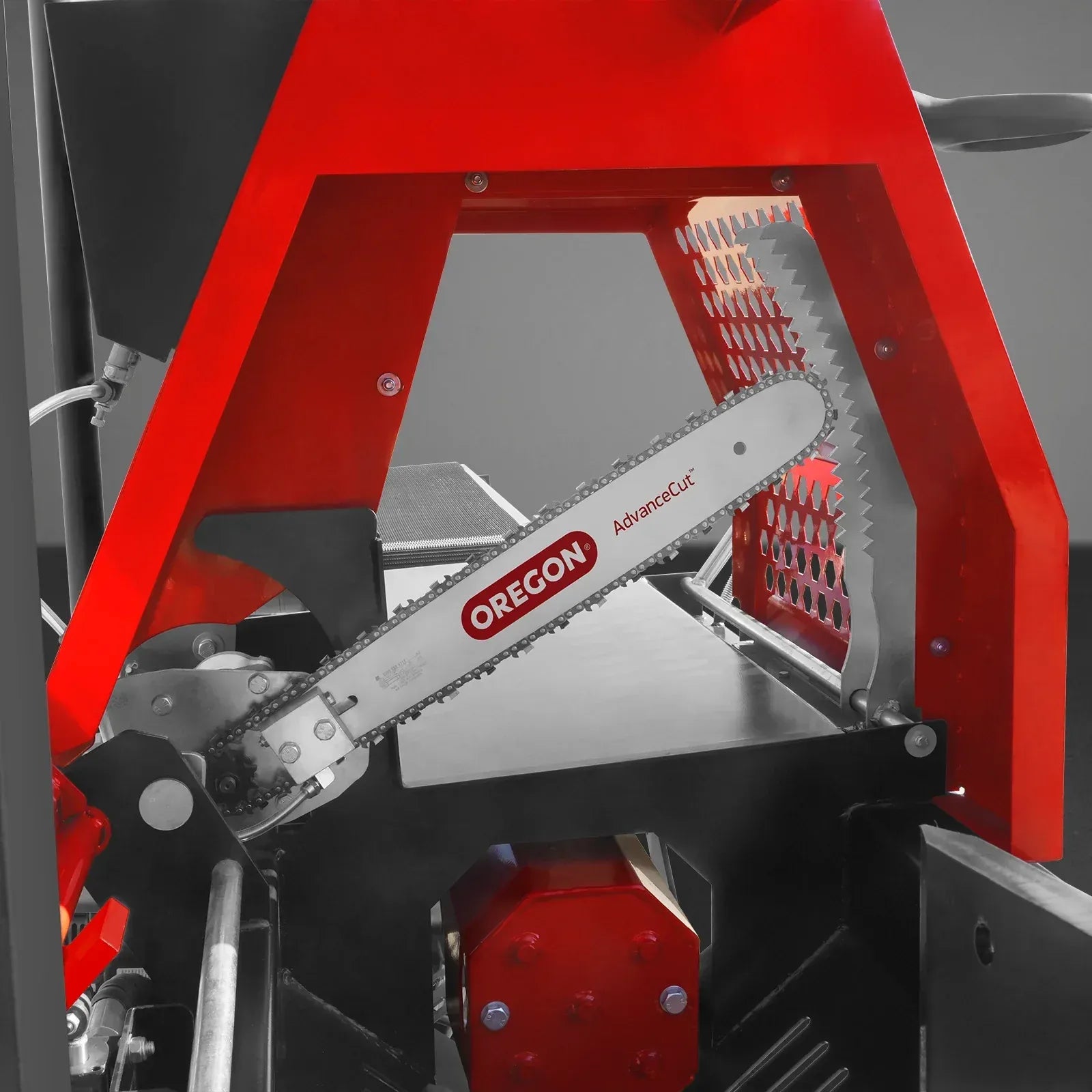

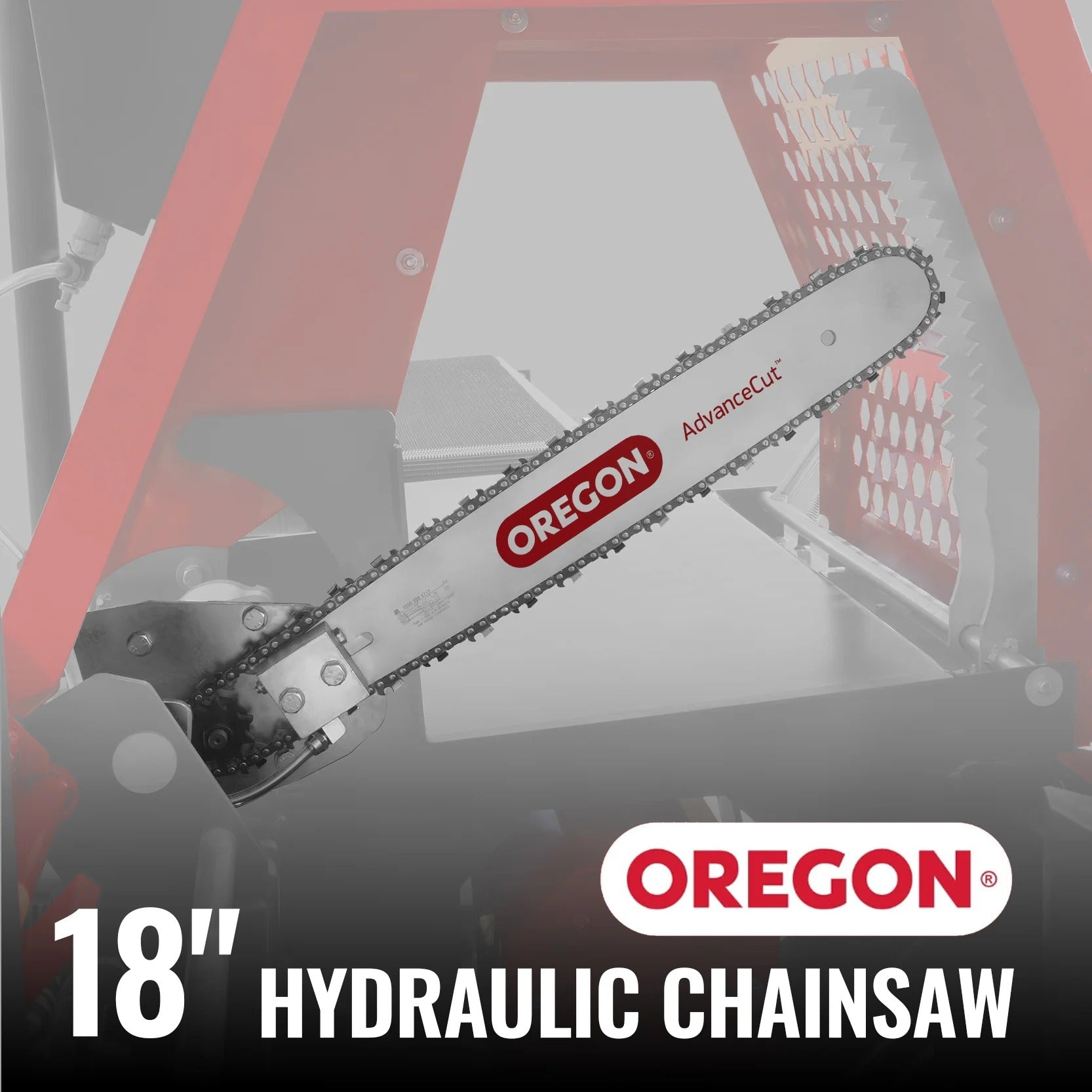

- 18" Hydraulic Chainsaw System – provides fast, smooth cutting performance for efficient log processing

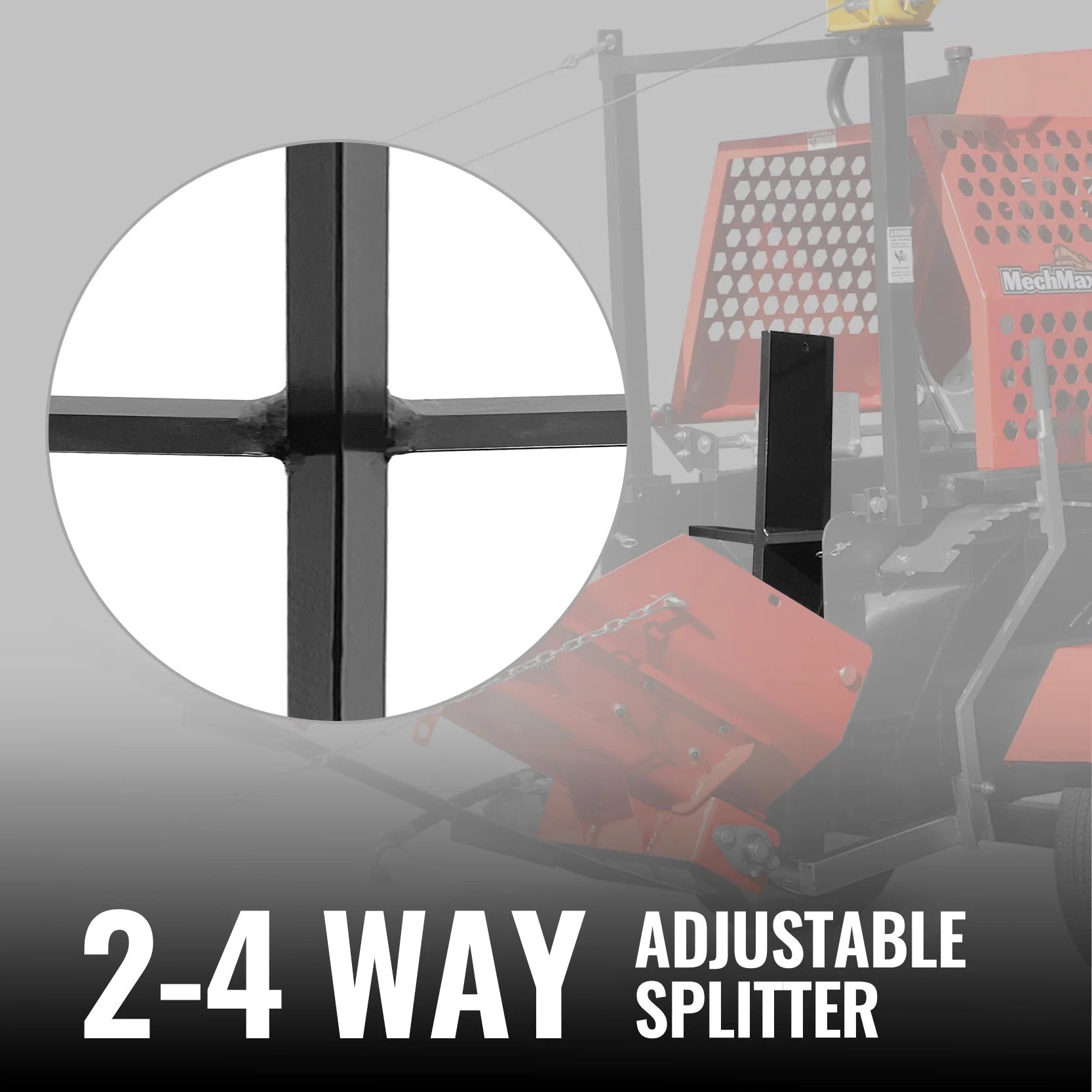

- 2-Way to 4-Way Adjustable Wedge – flexible splitting options to match log size and increase output efficiency

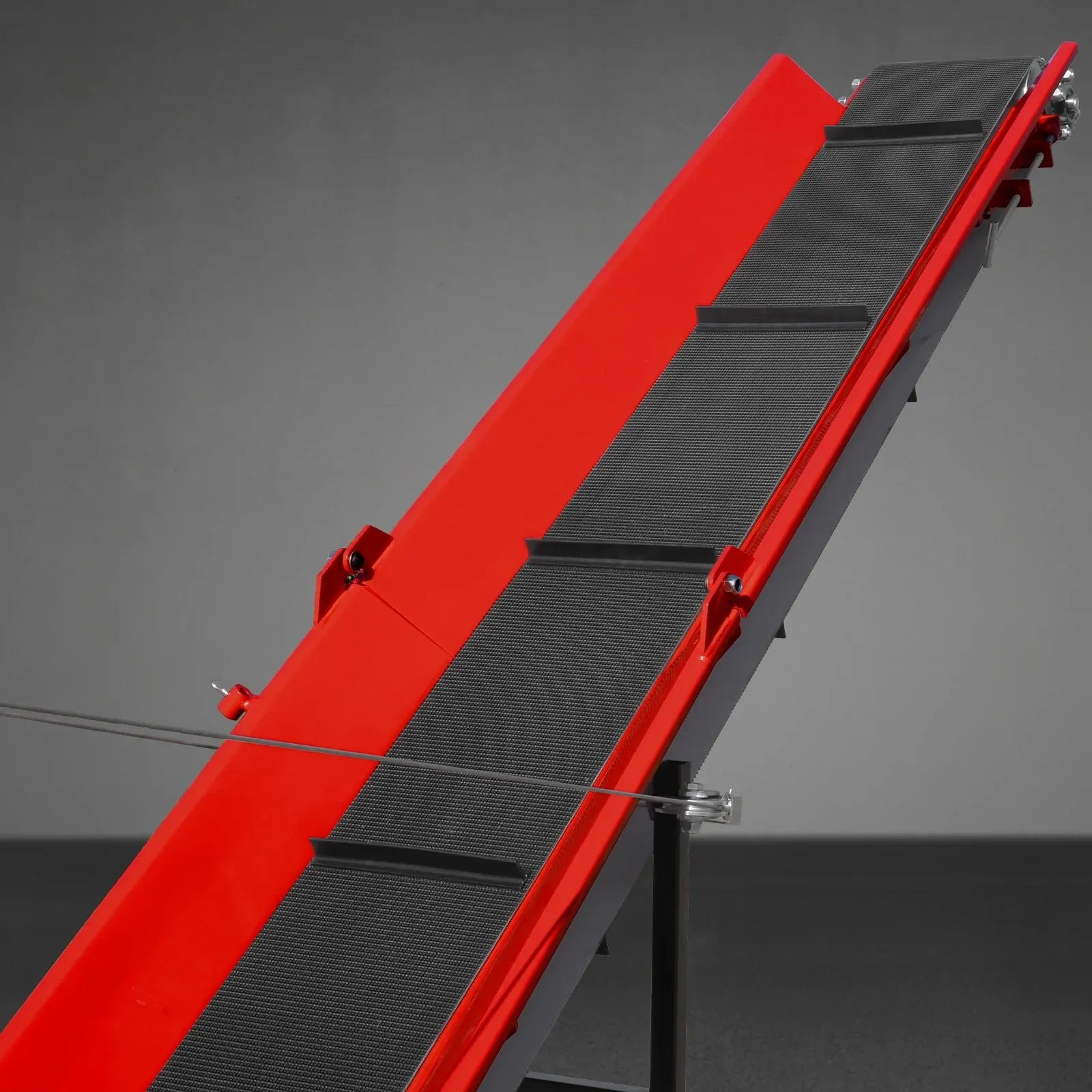

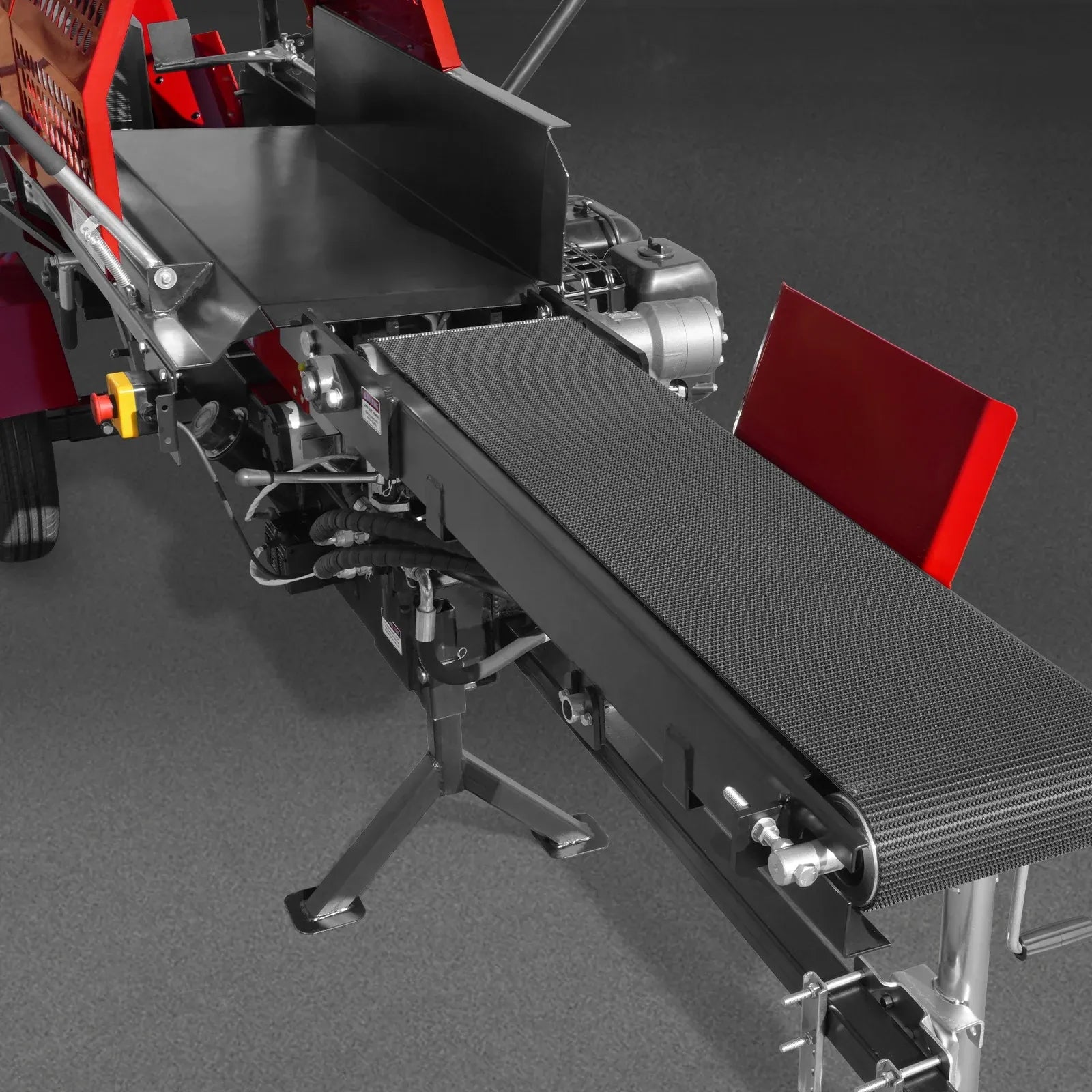

- Integrated Conveyor System – automatically transports processed firewood away from the machine for continuous workflow

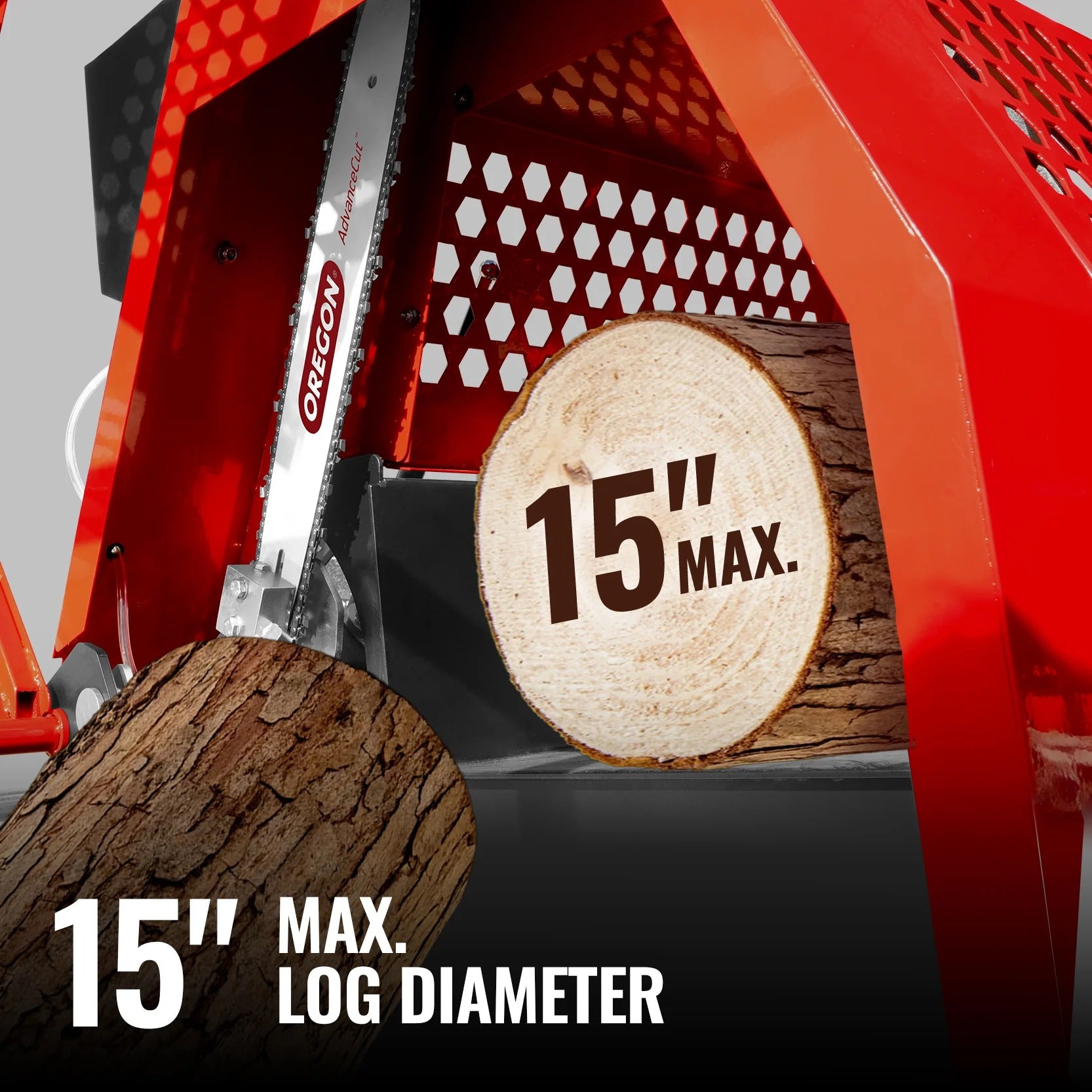

- Max log diameter: 15 inches (38 cm); max log length: 24 inches (60 cm); minimum log length: 6.5 inches
- Continuous feed, cut, and split operation
- Hydraulic Chainsaw Cutting Arm – delivers controlled, consistent cuts with smooth operation
- Adjustable Log Length Stop – ensures uniform firewood sizing for consistent results
- High-Efficiency Splitting Wedge – produces clean, uniform splits with minimal effort
- Heavy-Duty Steel Construction – designed for long-term use in demanding environments

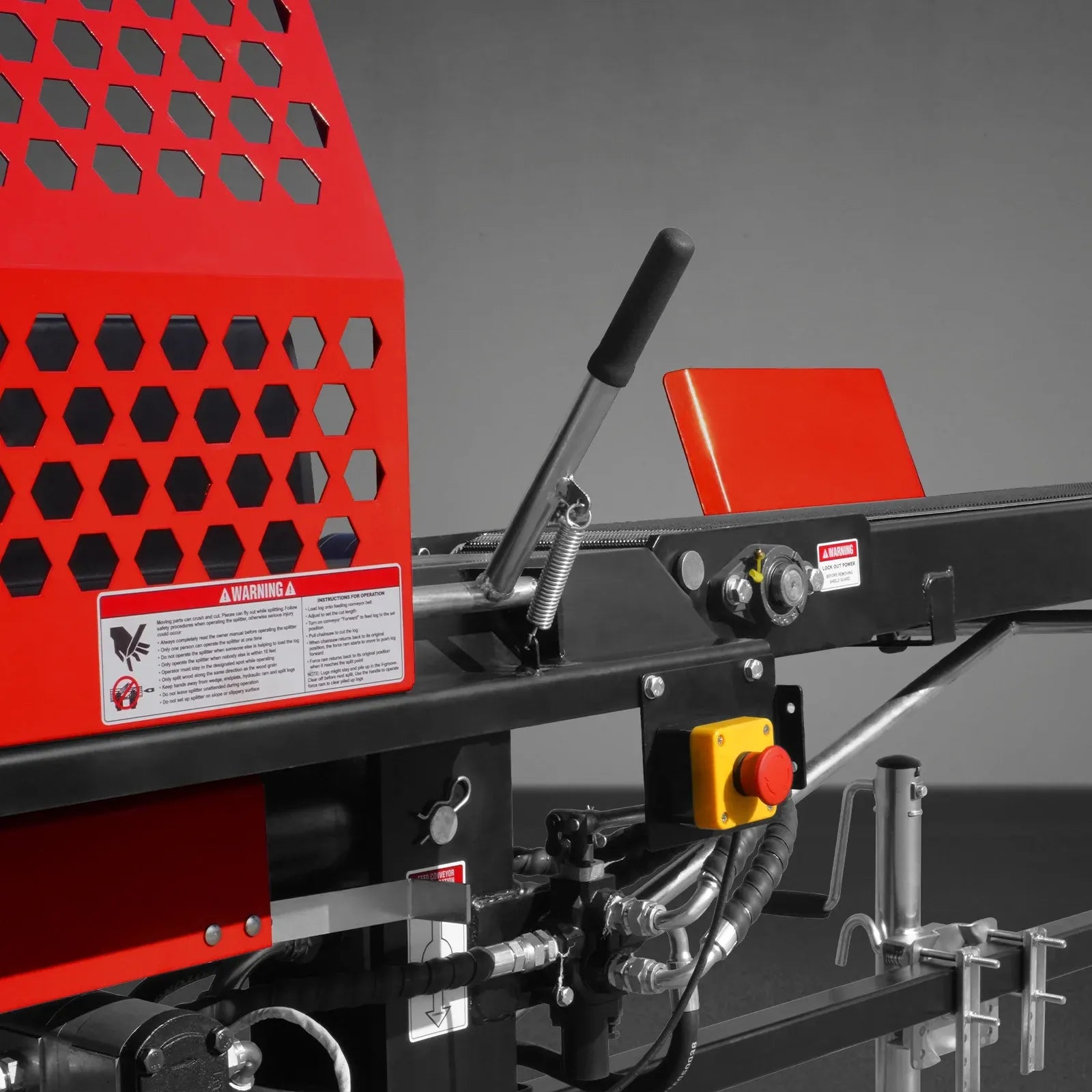

- Safety Guards & Operator Controls – built-in protections for safe and controlled operation
- Trailer-Mounted Design – easily transport between job sites

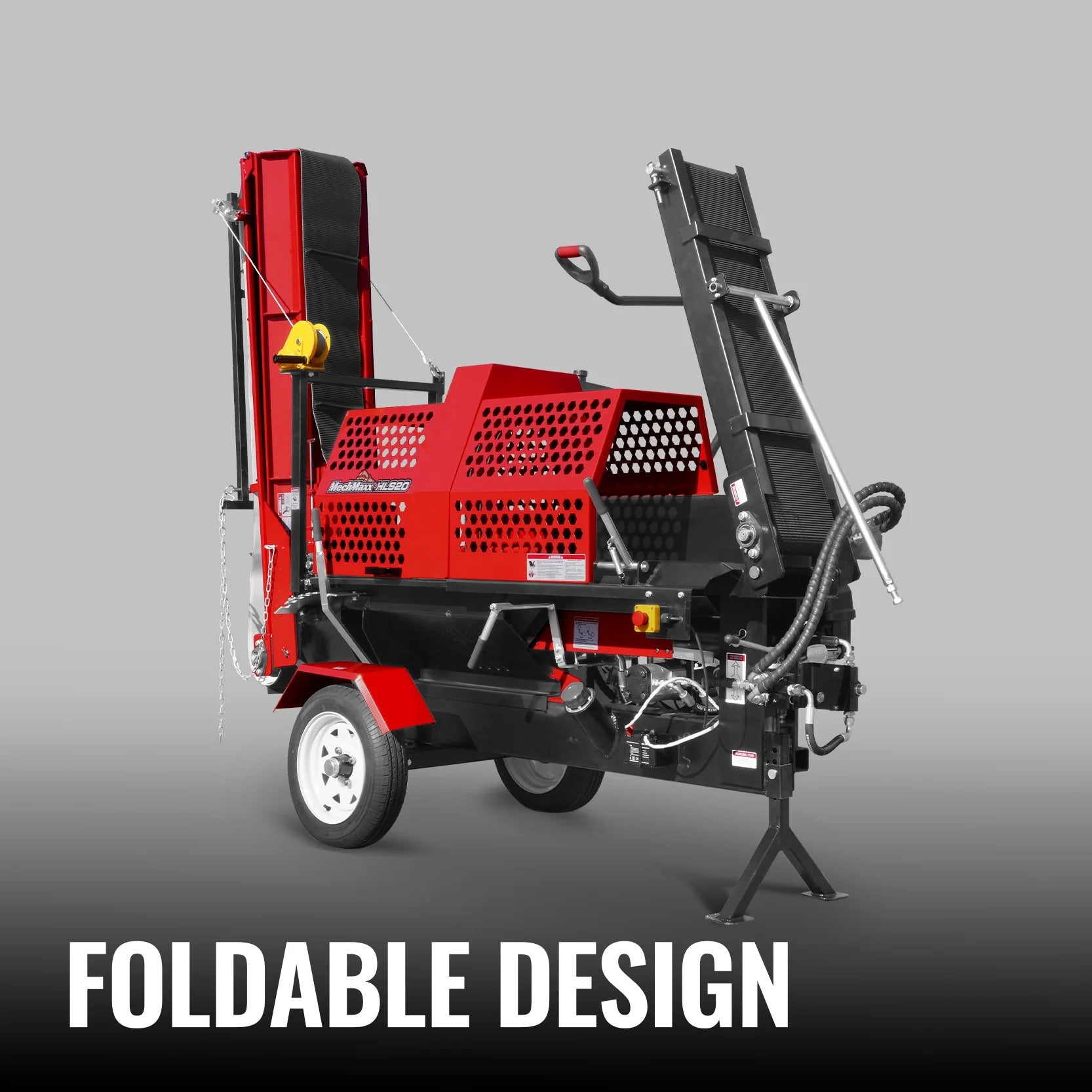

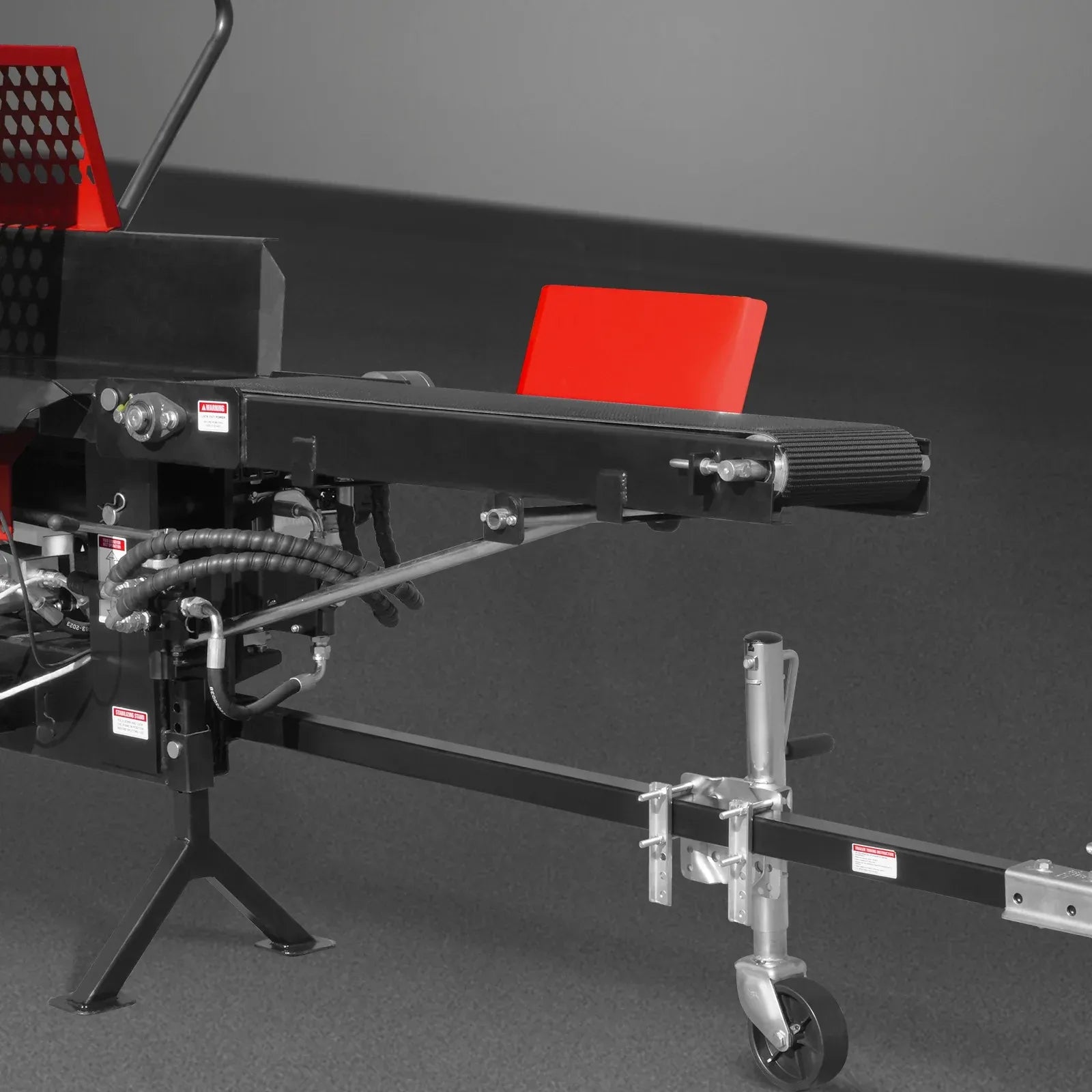

- Foldable Conveyor System – simplifies storage and reduces overall footprint
- Compact Transport Position – optimized for movement without sacrificing capability
| Specifications | Details |
|---|---|
| Model | HLS20 |
| Engine | Honda GX390 |
| Engine Power | 11.7 HP |
| Displacement | 389 cc |
| Starting System | Electric Start |
| Splitting Force | 20 Ton |
| Max Log Diameter | 15 in |
| Max Log Length | 24 in |
| Min Log Length | 6.5 in |
| Chainsaw Bar Length | 18 in |

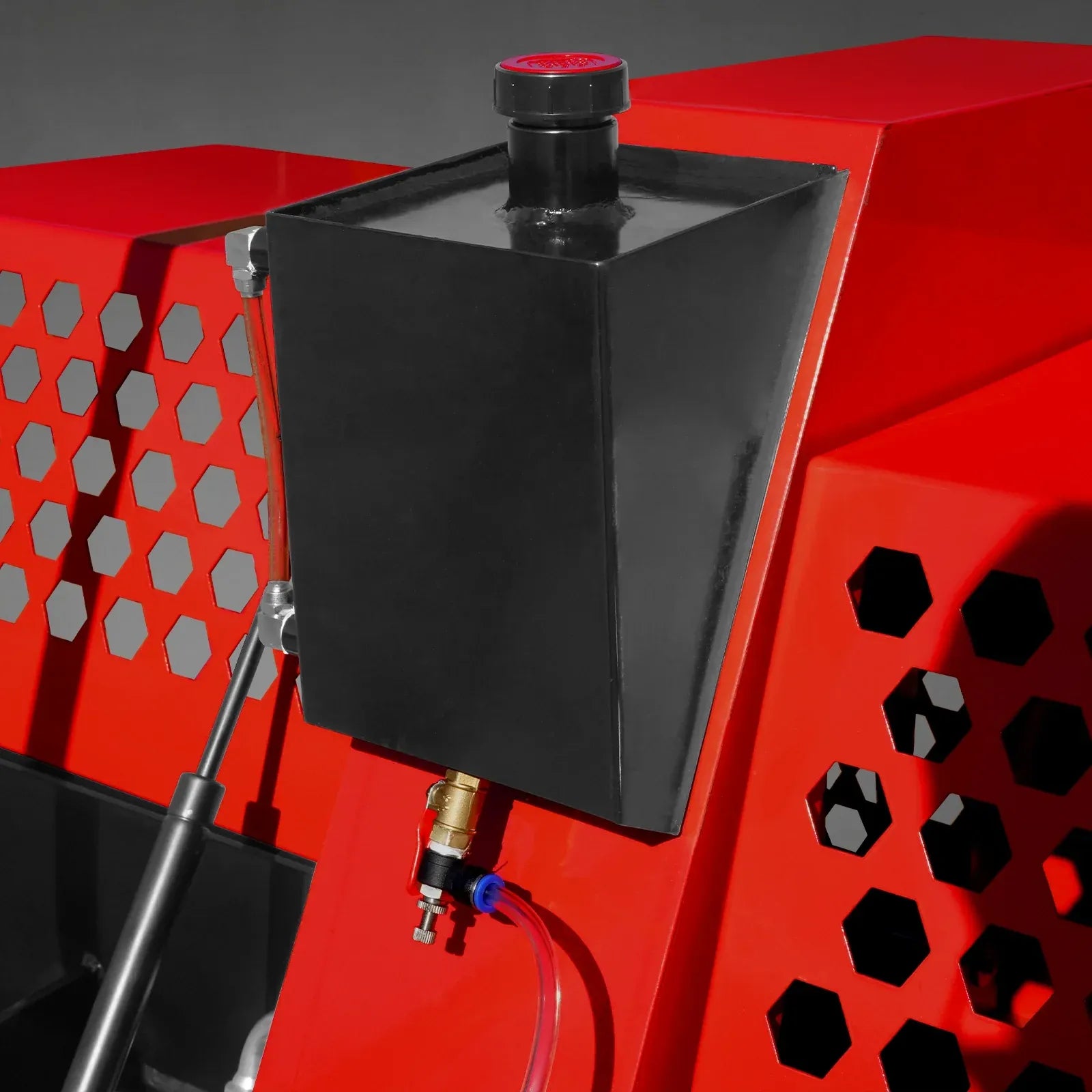

| Hydraulic Tank Capacity | 26 L |
| Input Conveyor | 41" × 10" |
| Output Conveyor | 126" × 10" |
| Weight | ~1,246 lbs |
| Transport Dimensions | 251 × 136 × 262 cm |
