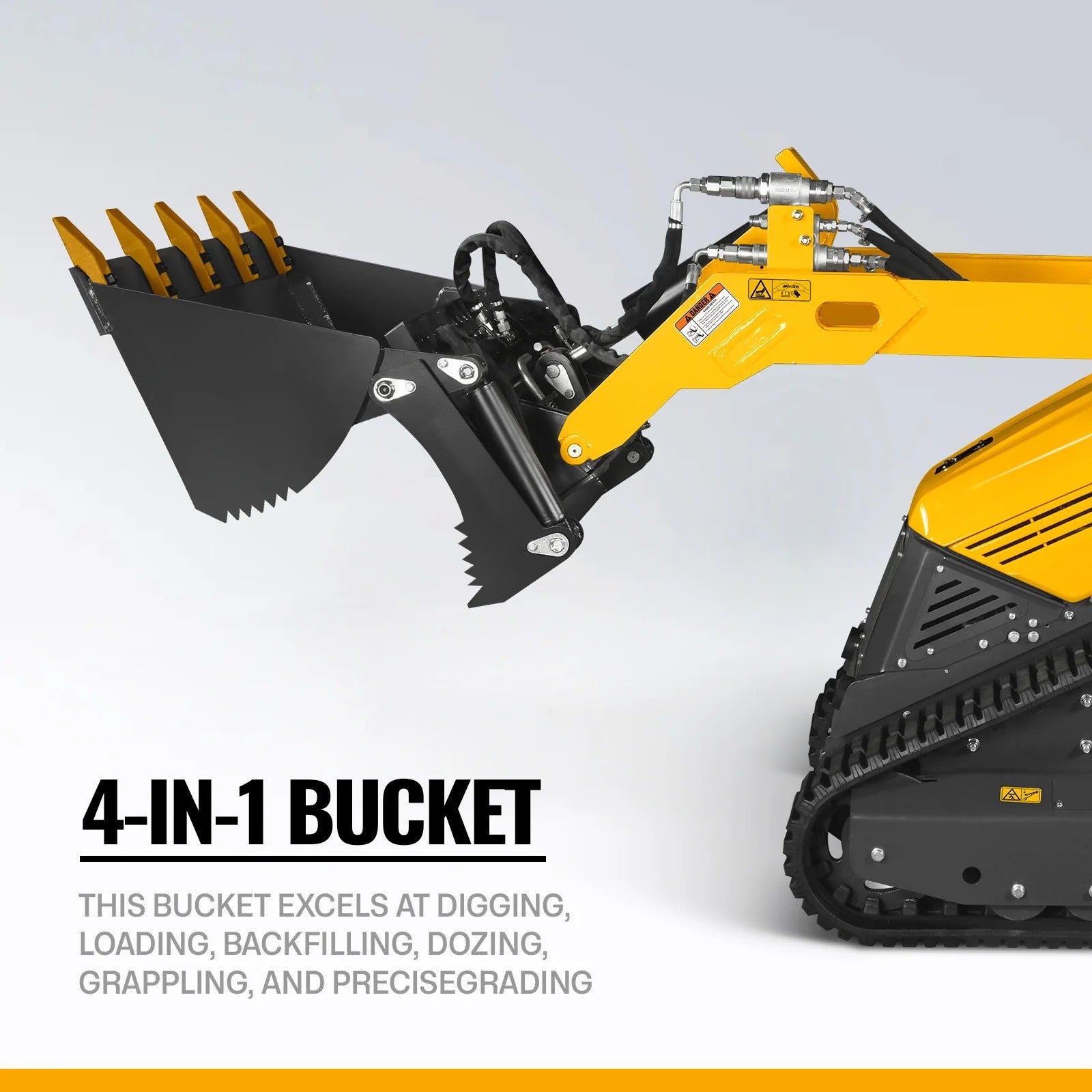

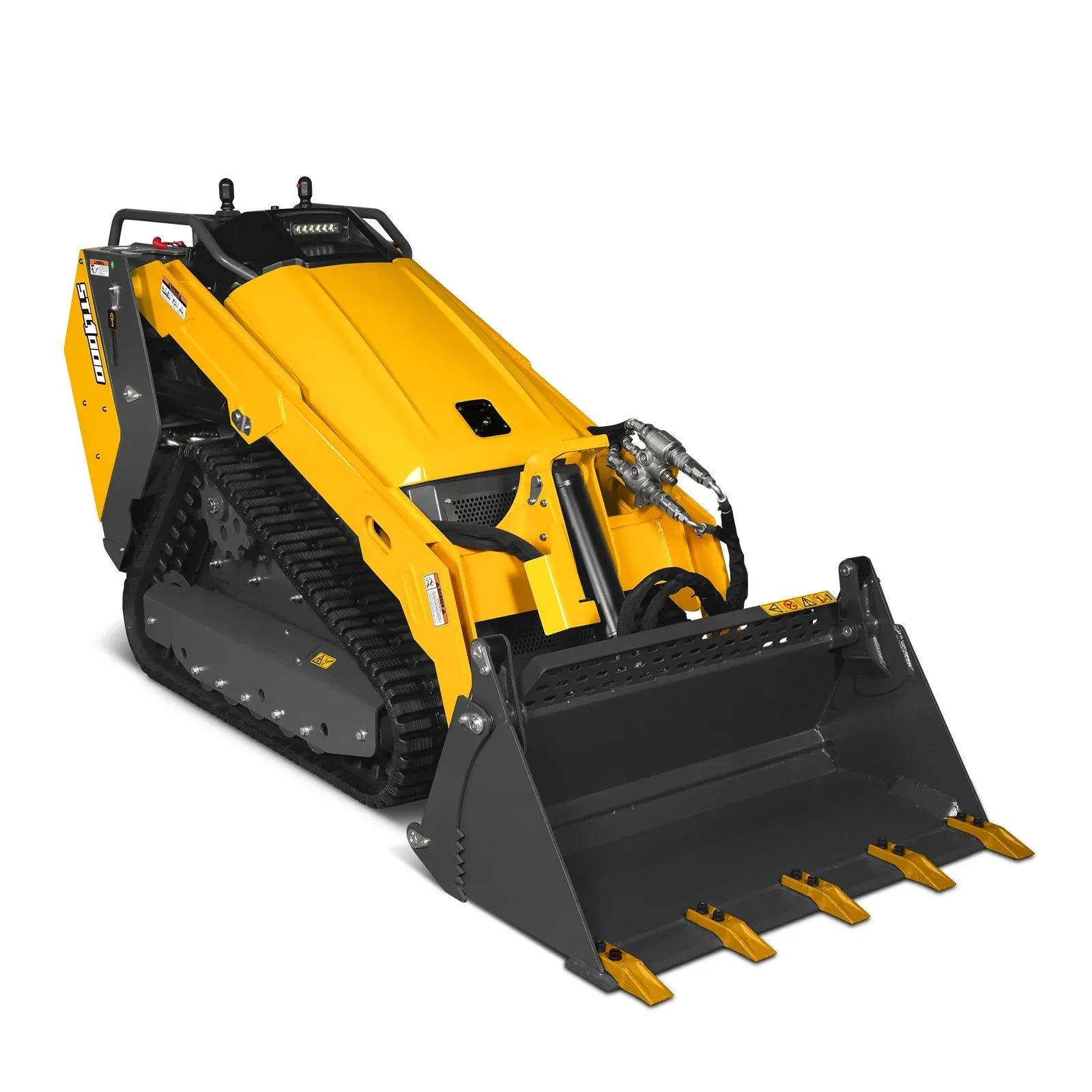

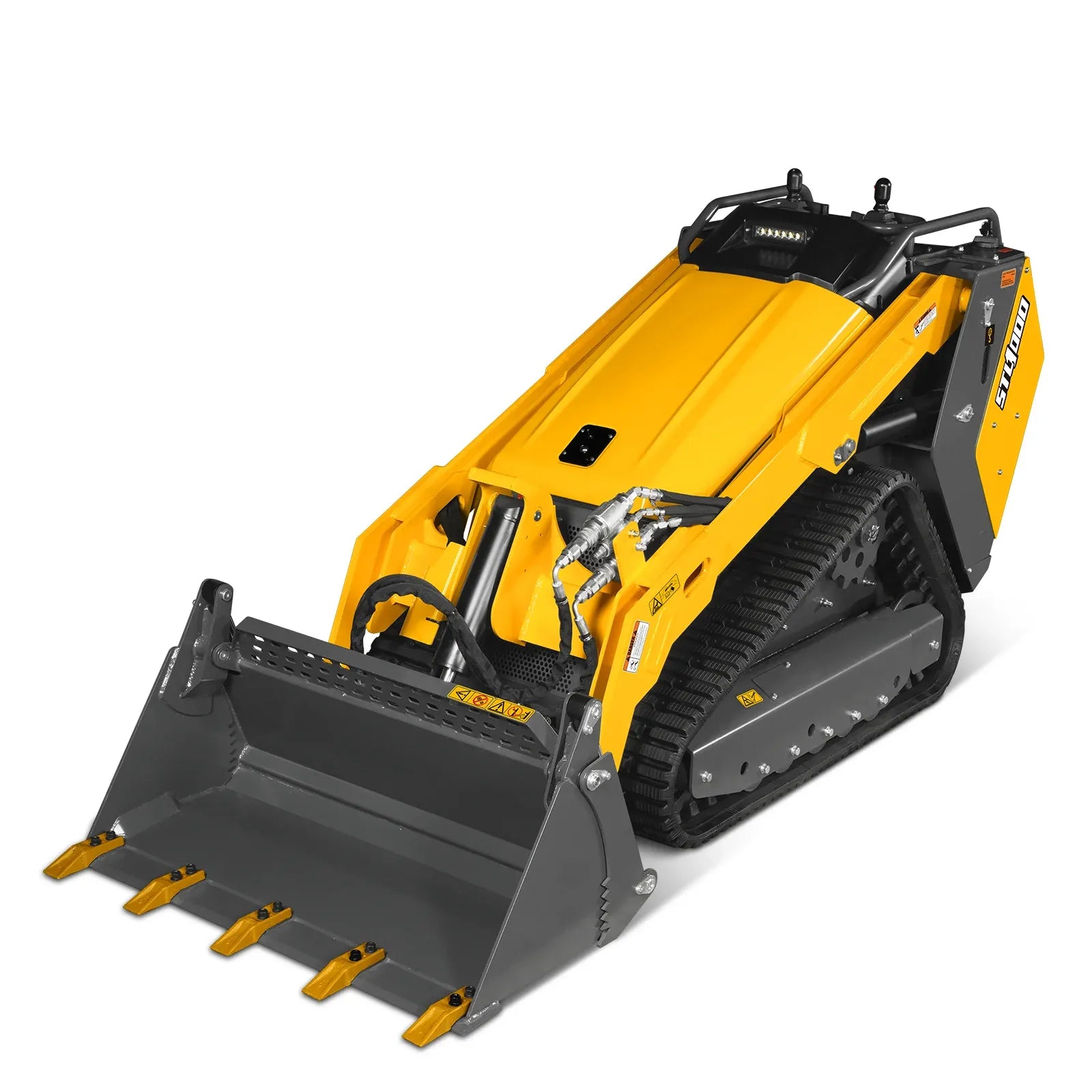

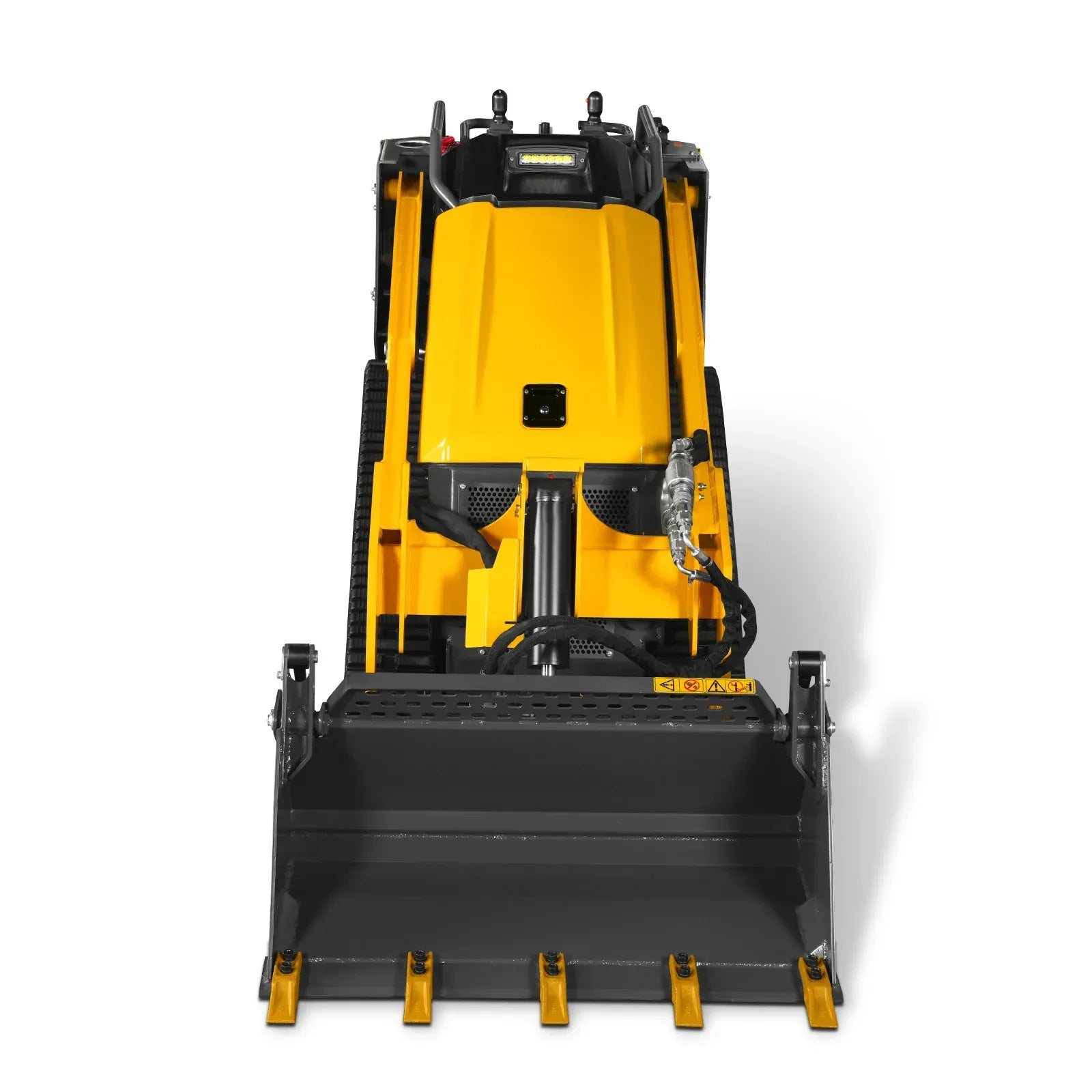

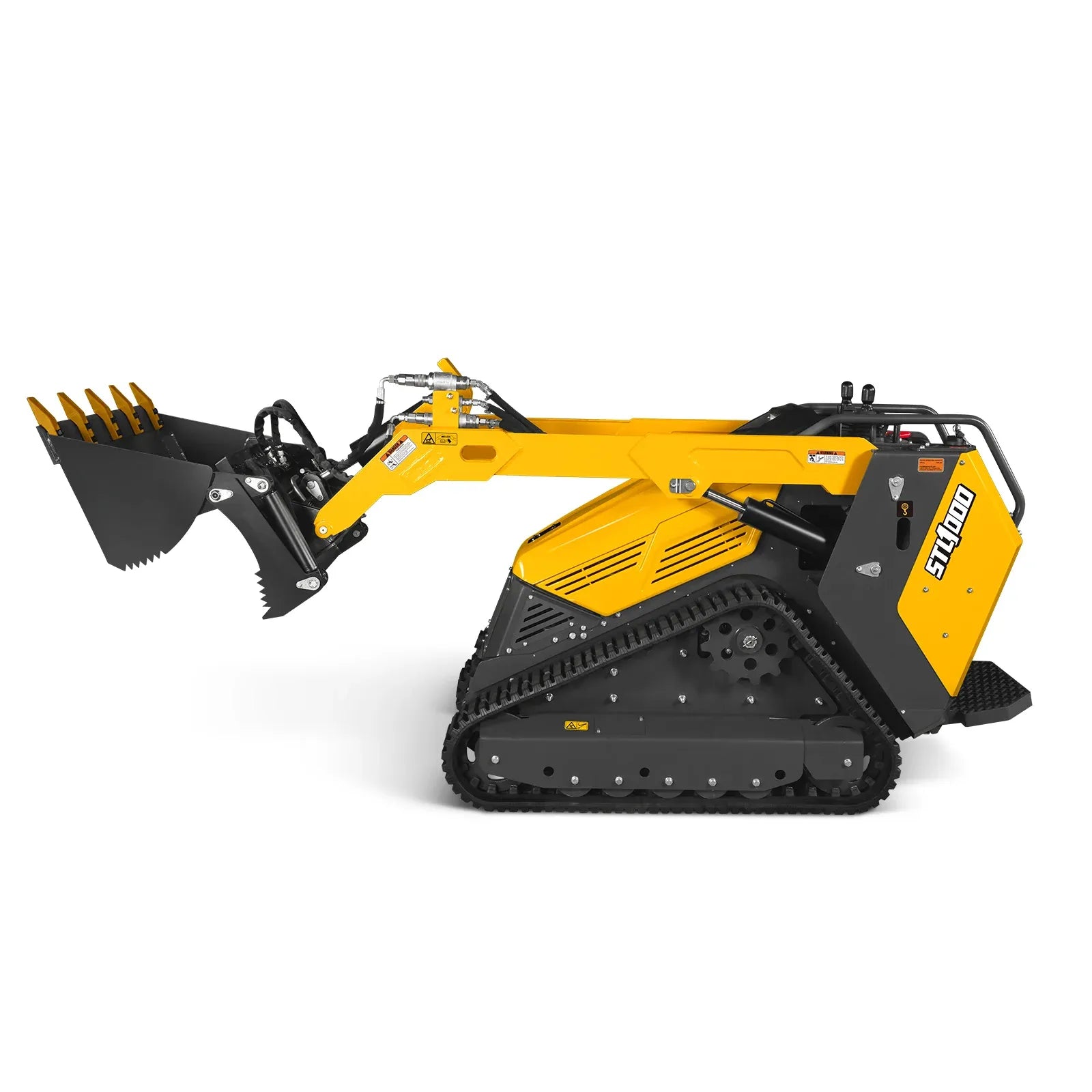

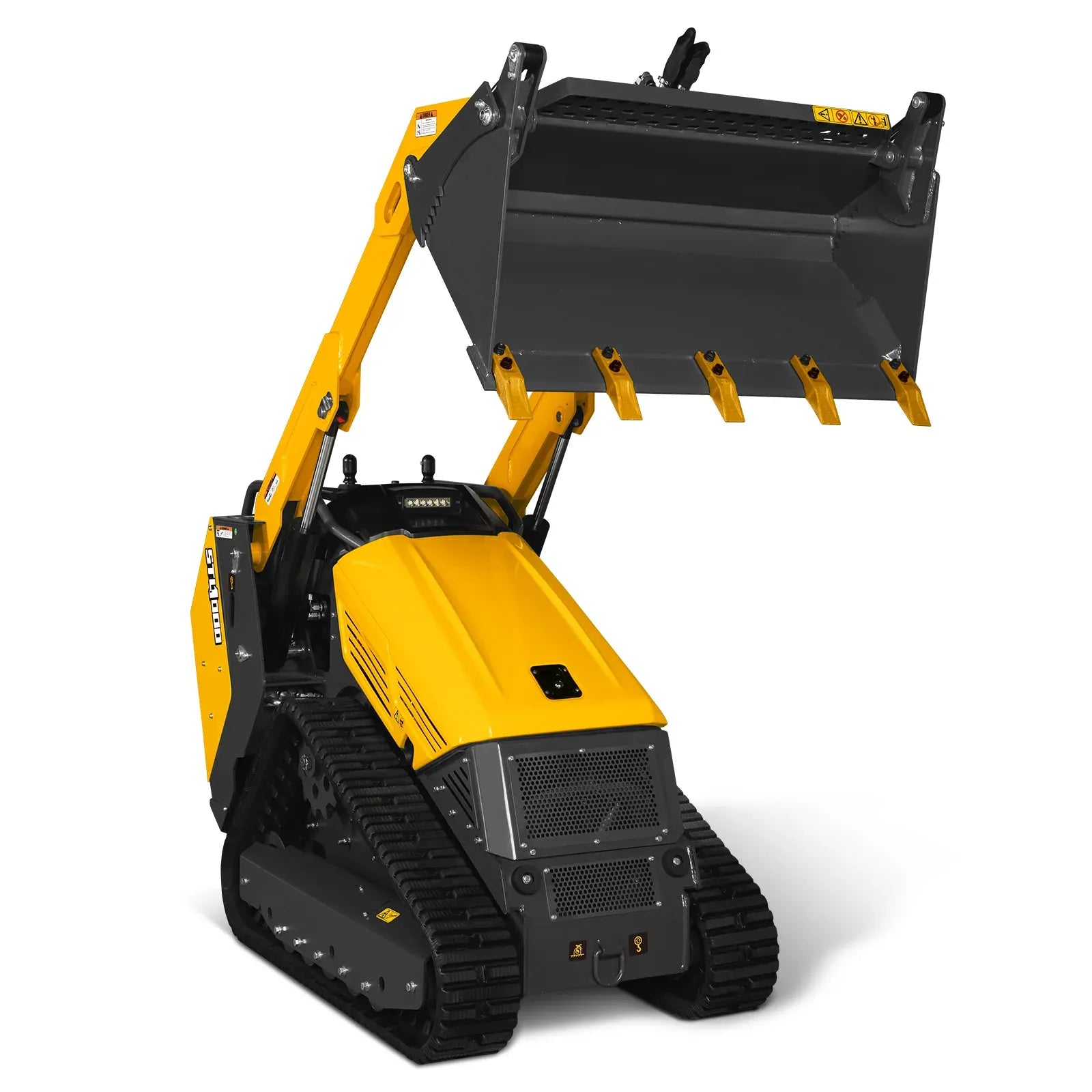

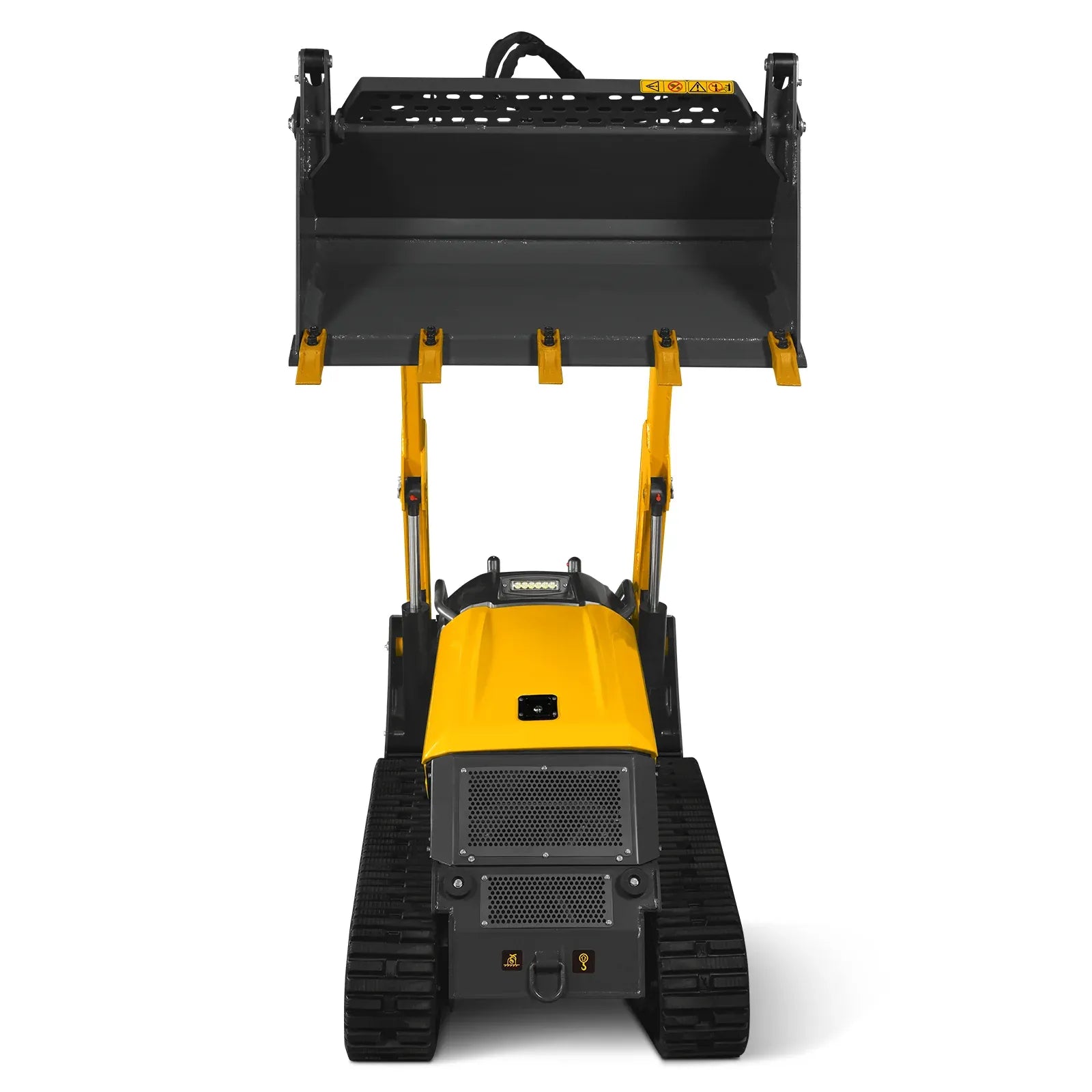

MechMaxx 25HP KUBOTA D1105 Diesel Stand-On Mini Skid Steer Track Loader with 4-in-1 Bucket, Model STL1000
SKU: 101000 | Model: STL1000
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

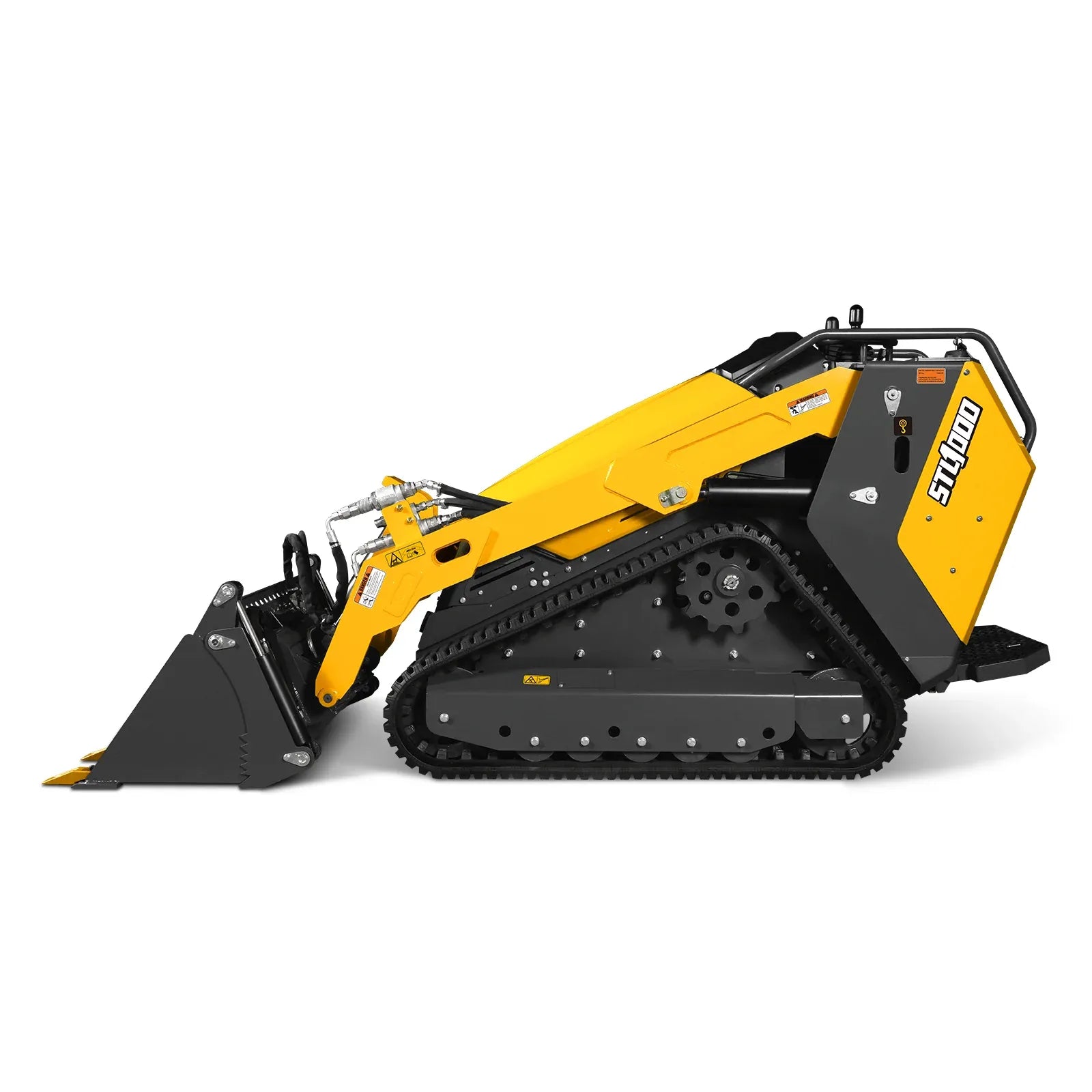

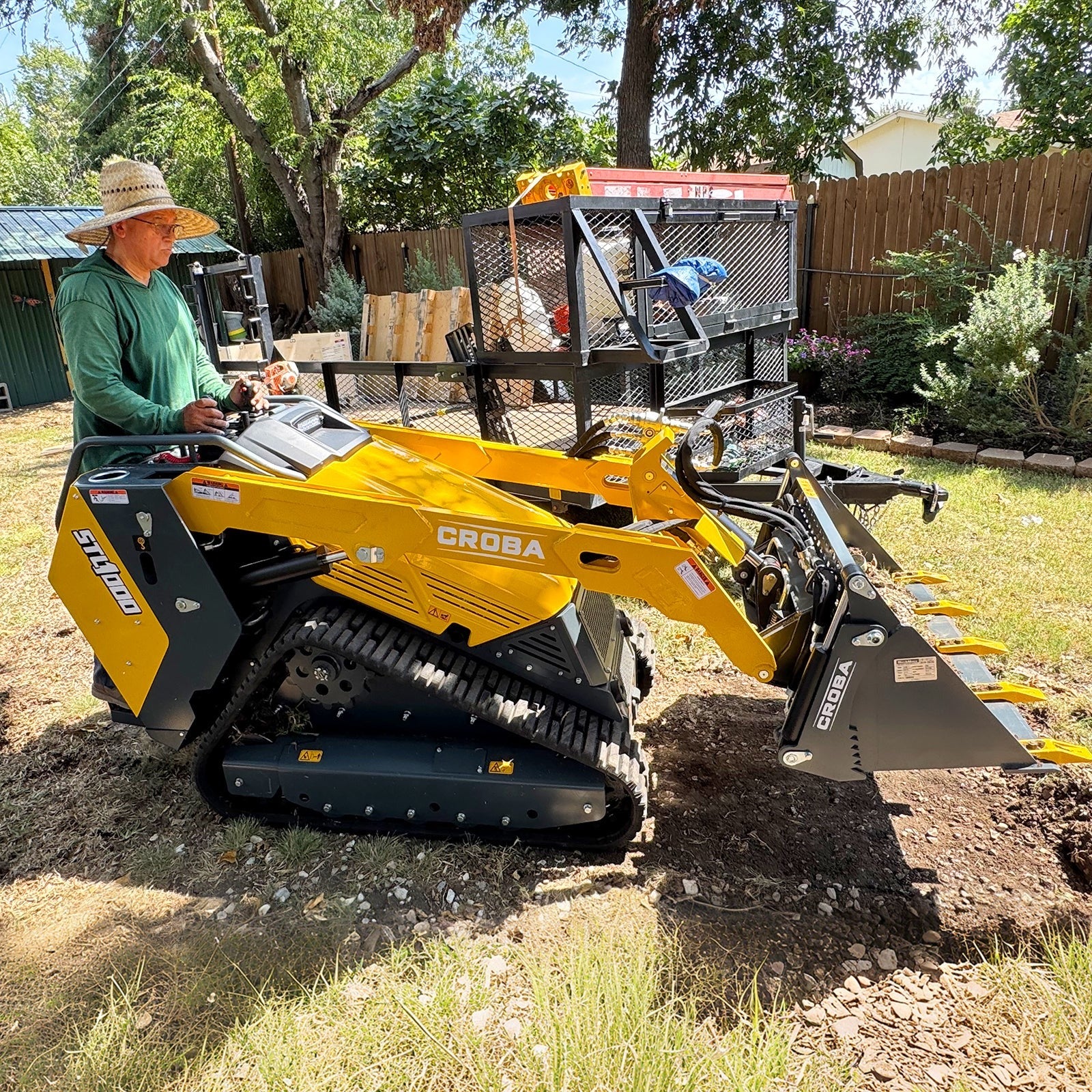

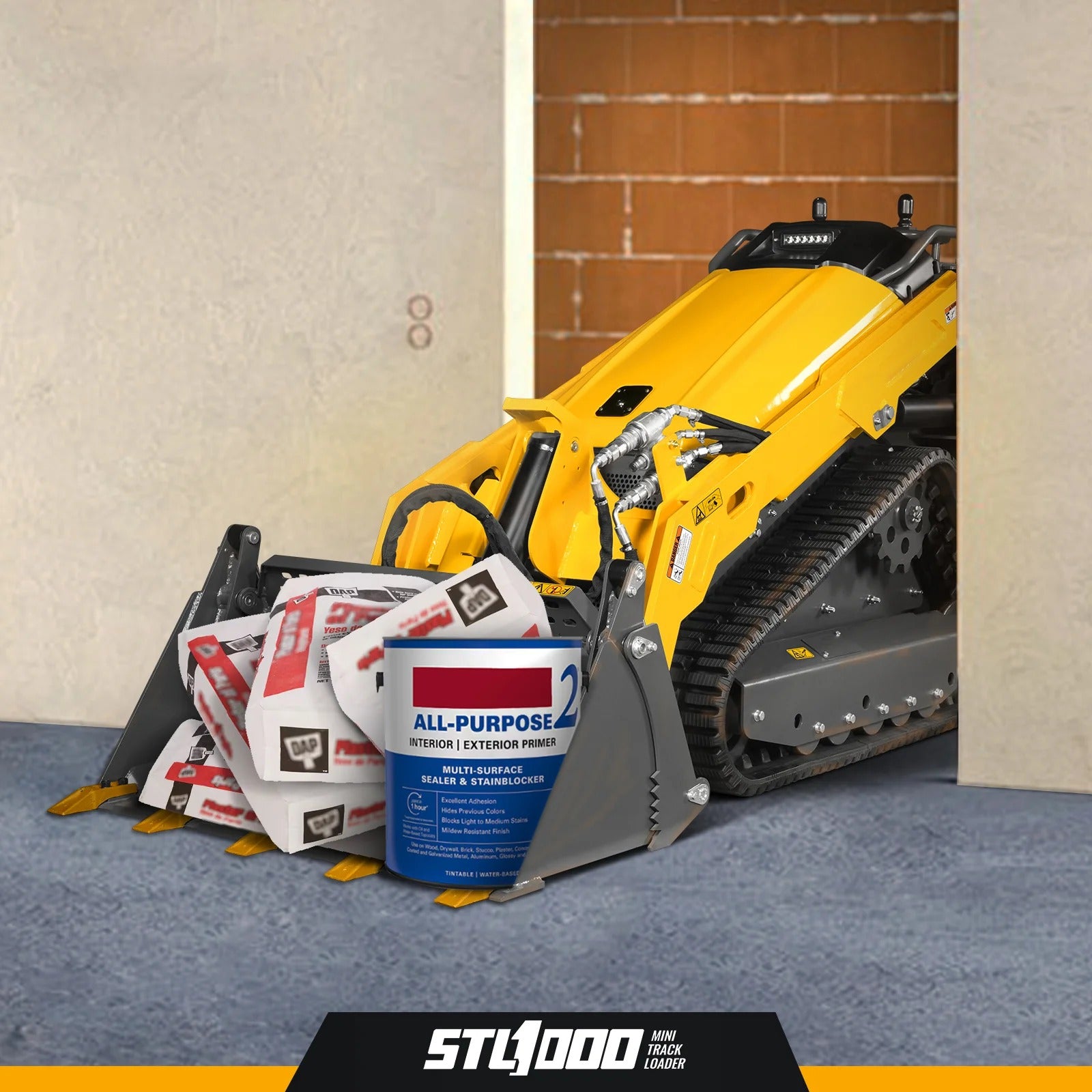

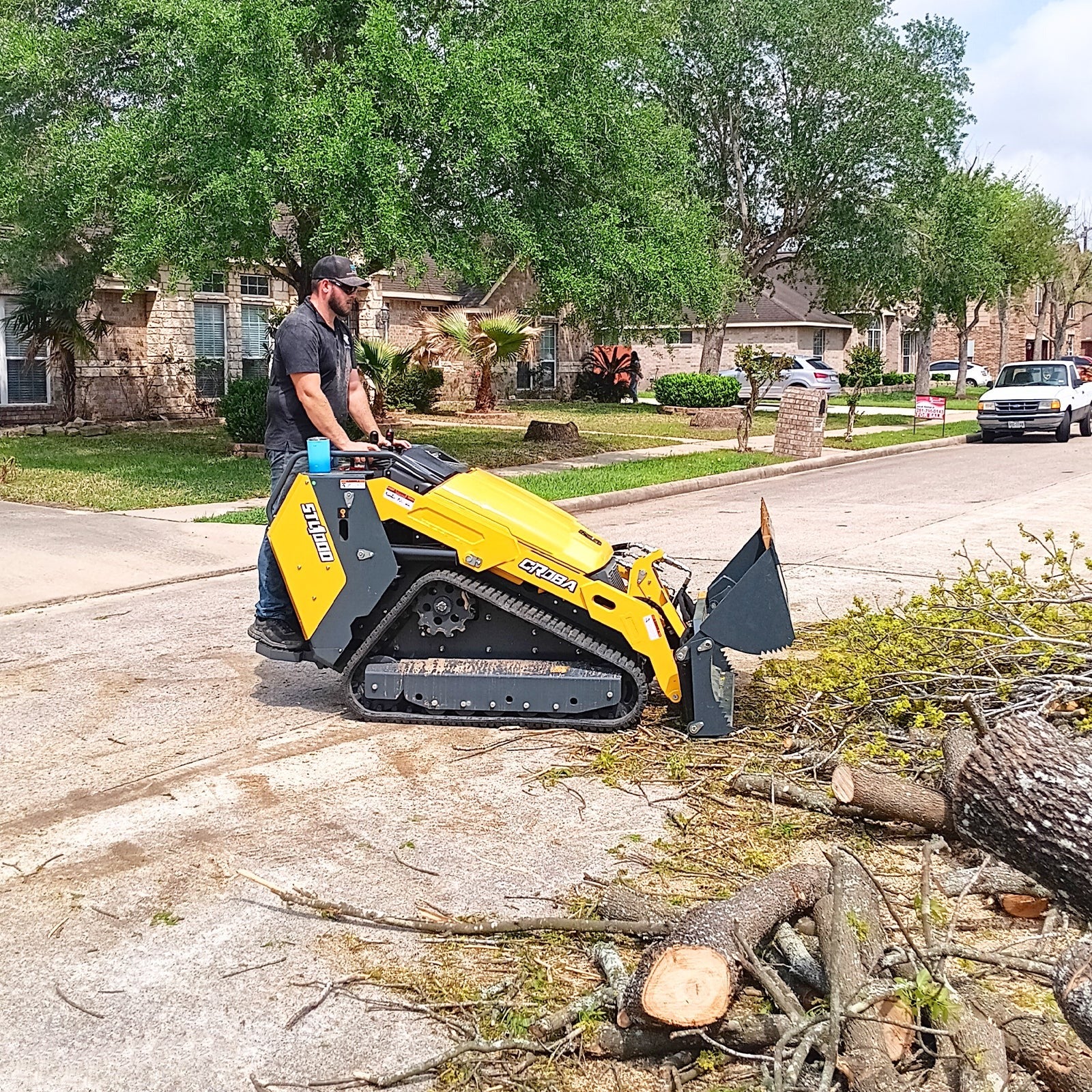

The CROBA STL1000 is a compact and versatile stand-on loader designed for use across construction, landscaping, and agricultural applications. Its narrow design allows it to pass easily through gates, doorways, and other tight spaces, making it ideal for confined job sites.

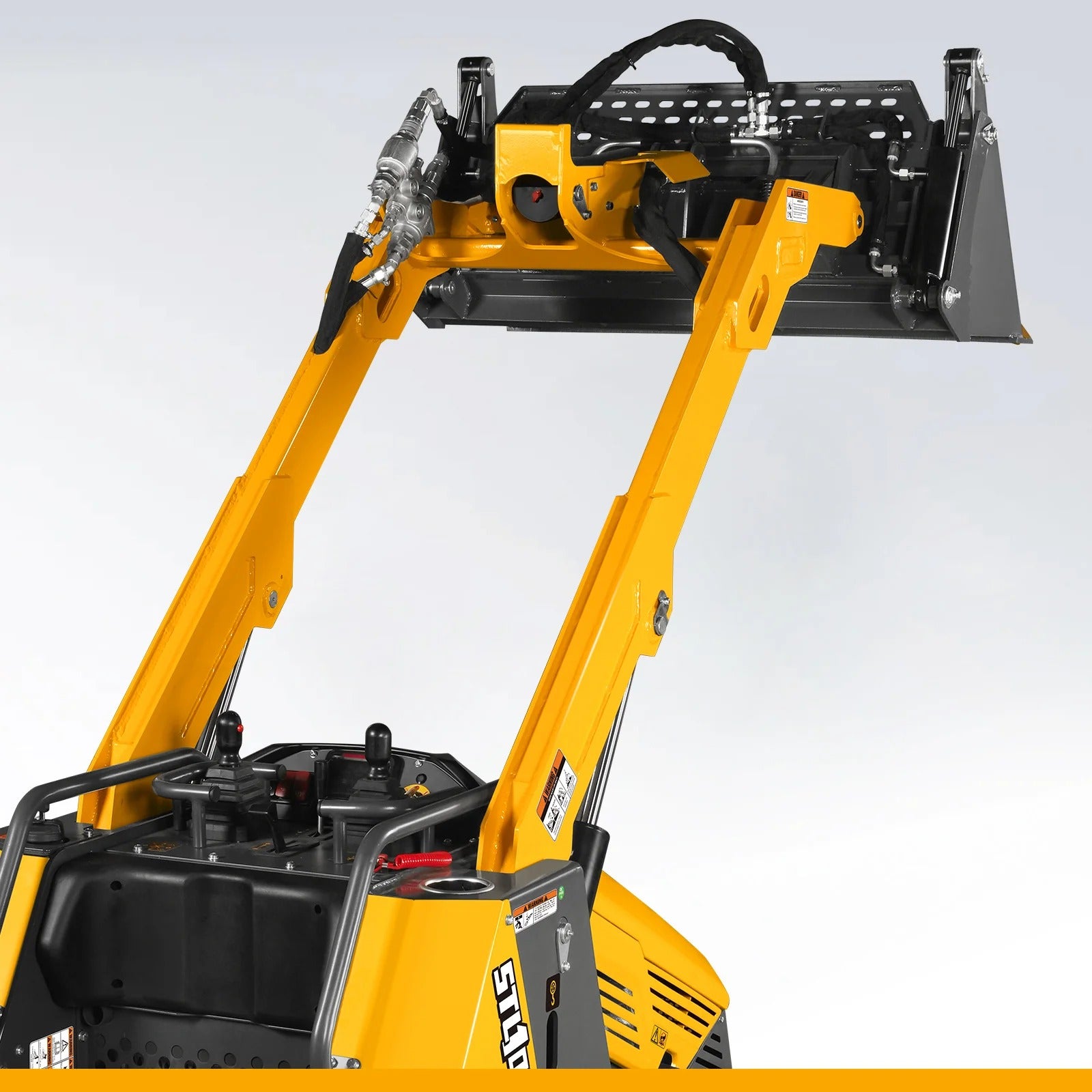

Despite its compact size, the STL1000 delivers strong performance with a 1,000 lb operating capacity, high breakout force, and an impressive lift height, allowing it to handle demanding tasks efficiently.

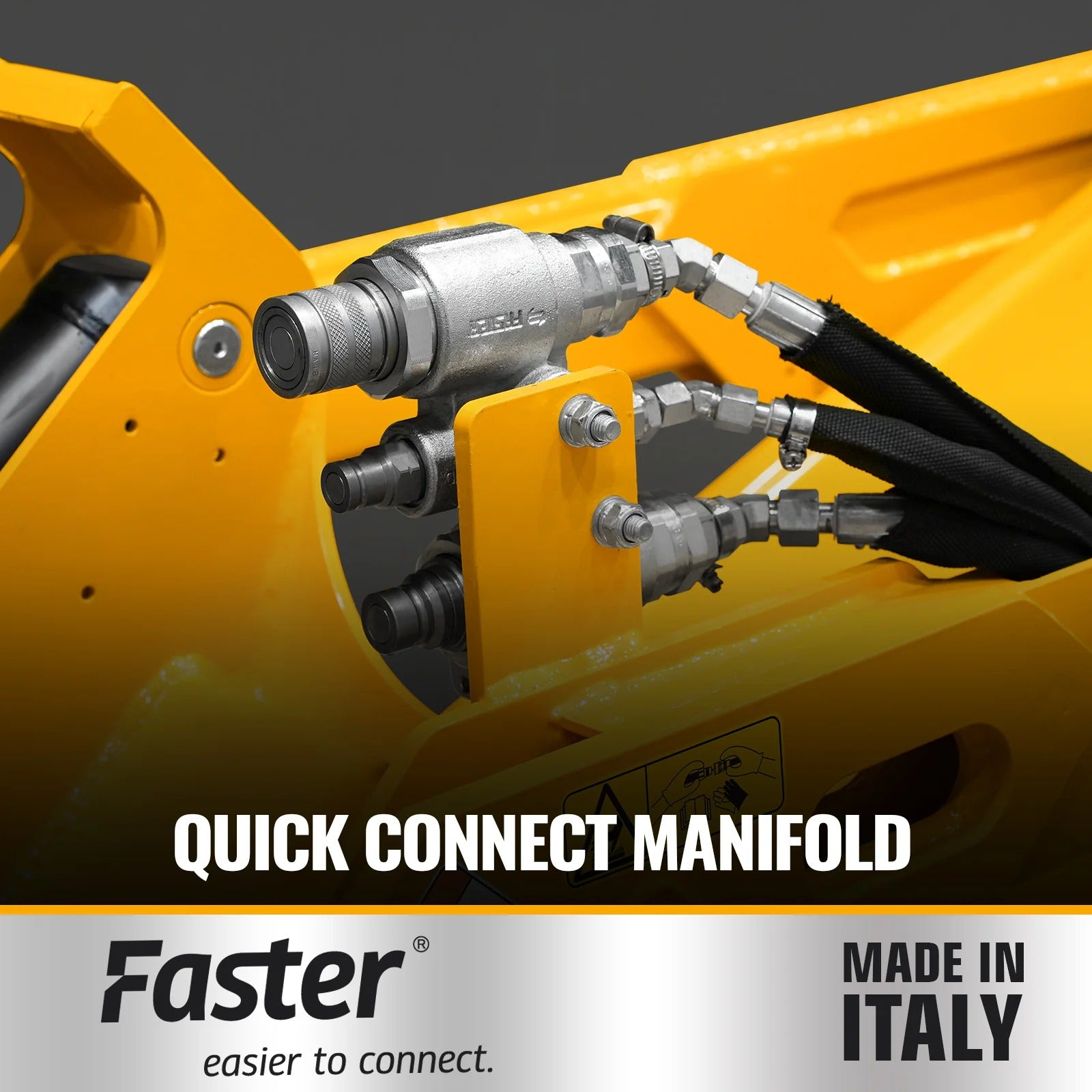

This machine is compatible with a wide range of attachments, including buckets, augers, trenchers, and pallet forks, providing flexibility for various job requirements.

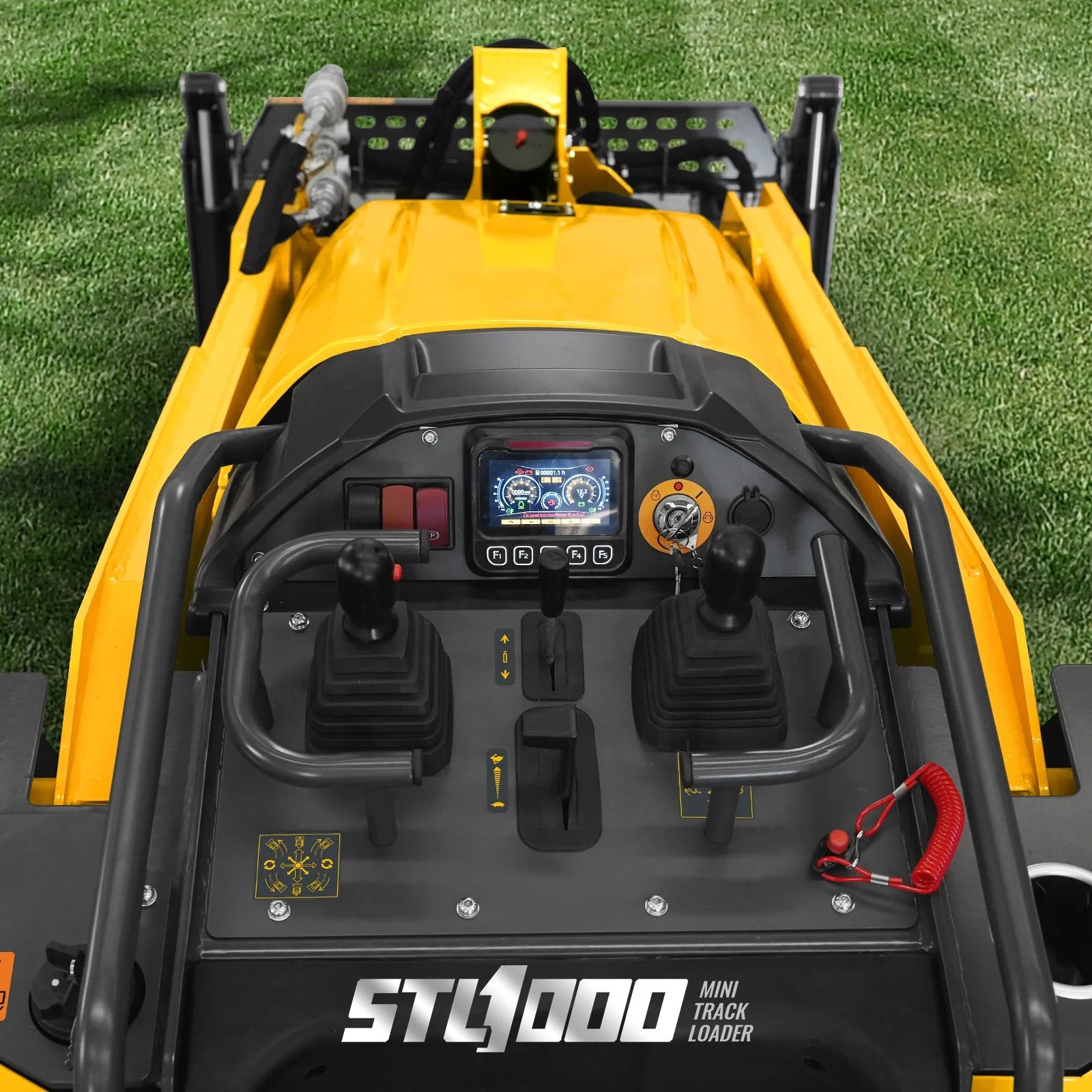

Designed with user-friendly controls, it offers simple and intuitive operation suitable for operators of different experience levels.
Constructed with heavy-duty materials, the STL1000 is built to withstand tough working conditions while maintaining durability and reliability. It is also engineered to optimize fuel efficiency while delivering consistent performance.
Important Notes:

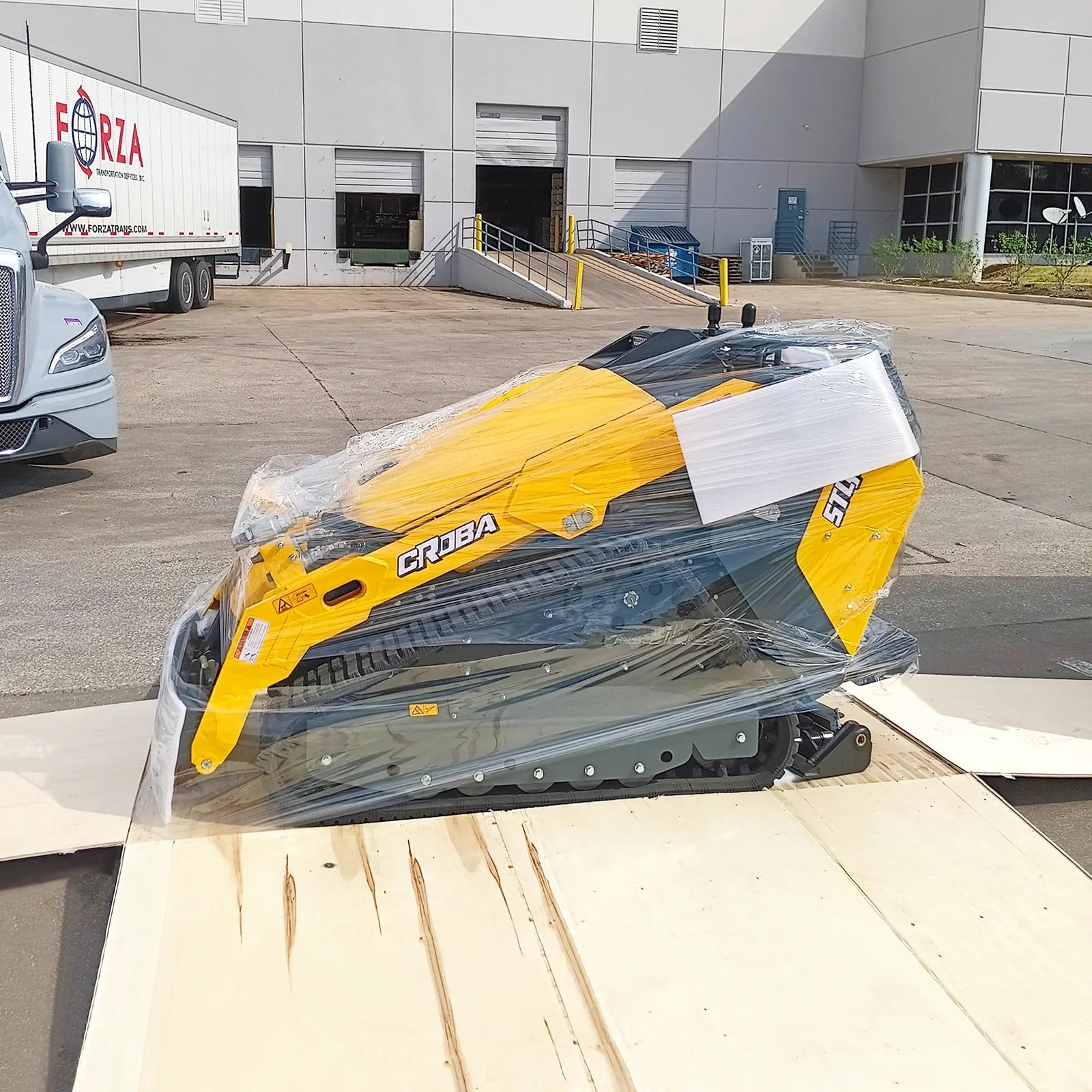

- Due to its size, this product exceeds standard lift gate capacity. A forklift or unloading platform will be required upon delivery.

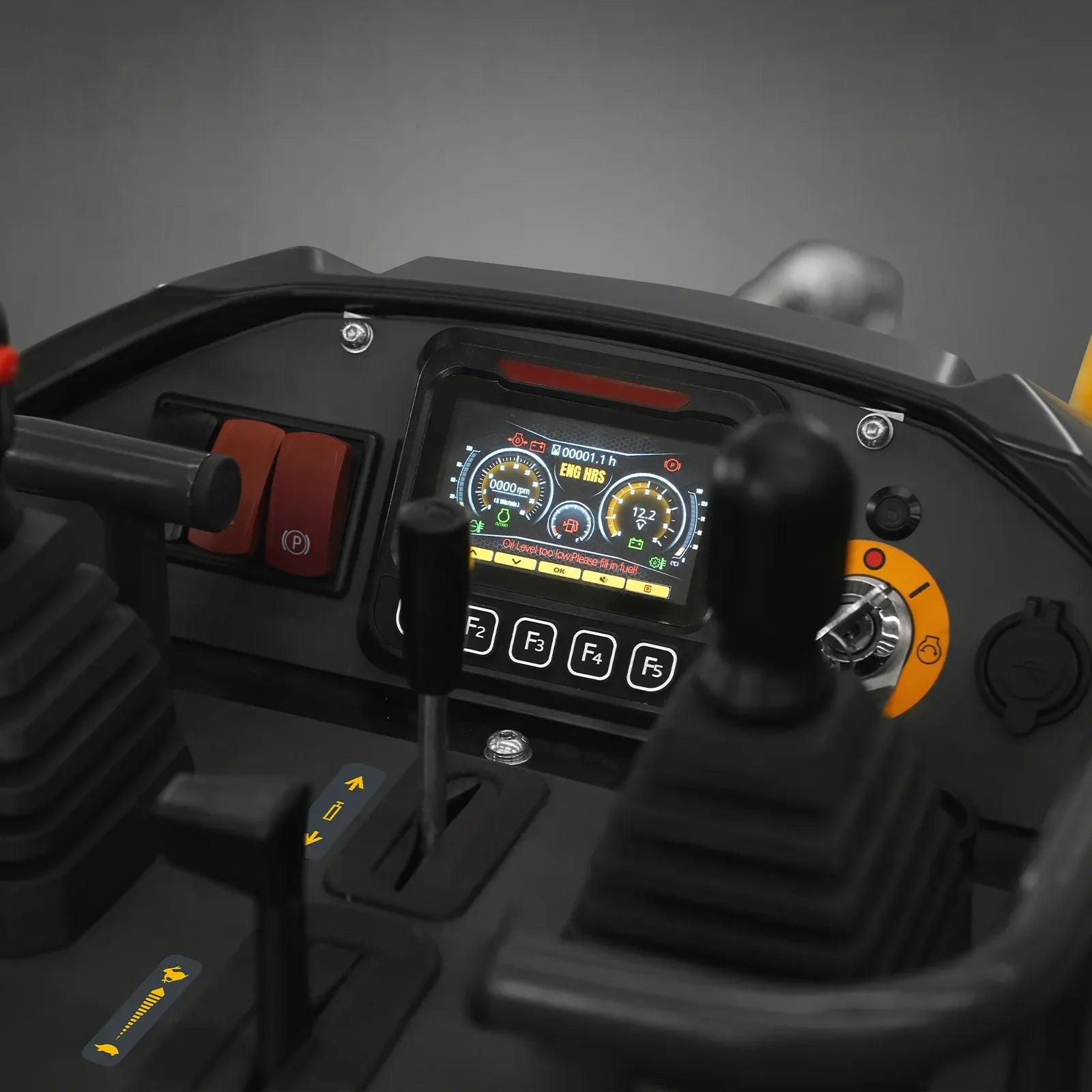

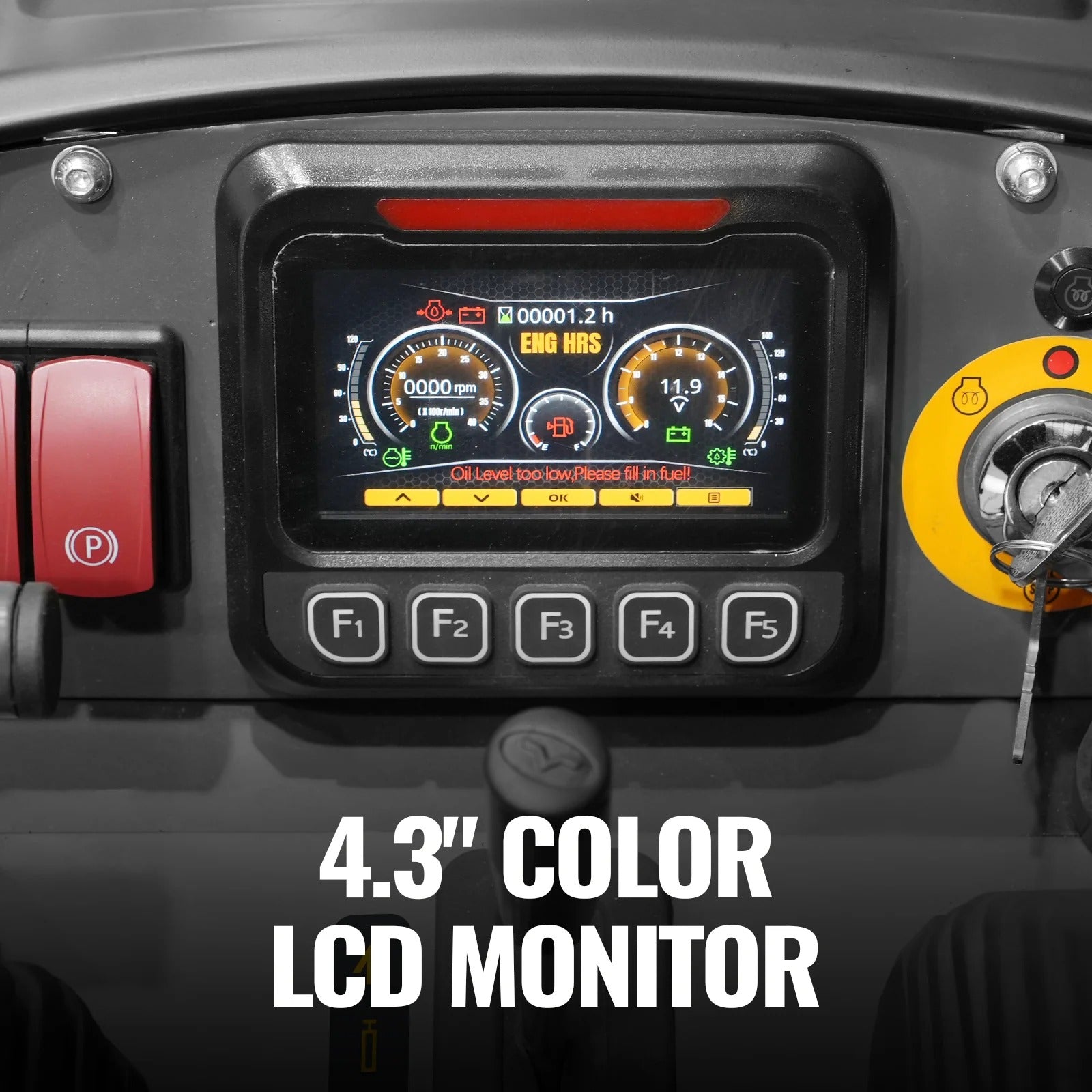

- The LCD monitor is equipped with a waterproof cover. Do not remove the cover, as doing so may compromise the seal and lead to potential water damage.
| Specifications | Details |
|---|---|

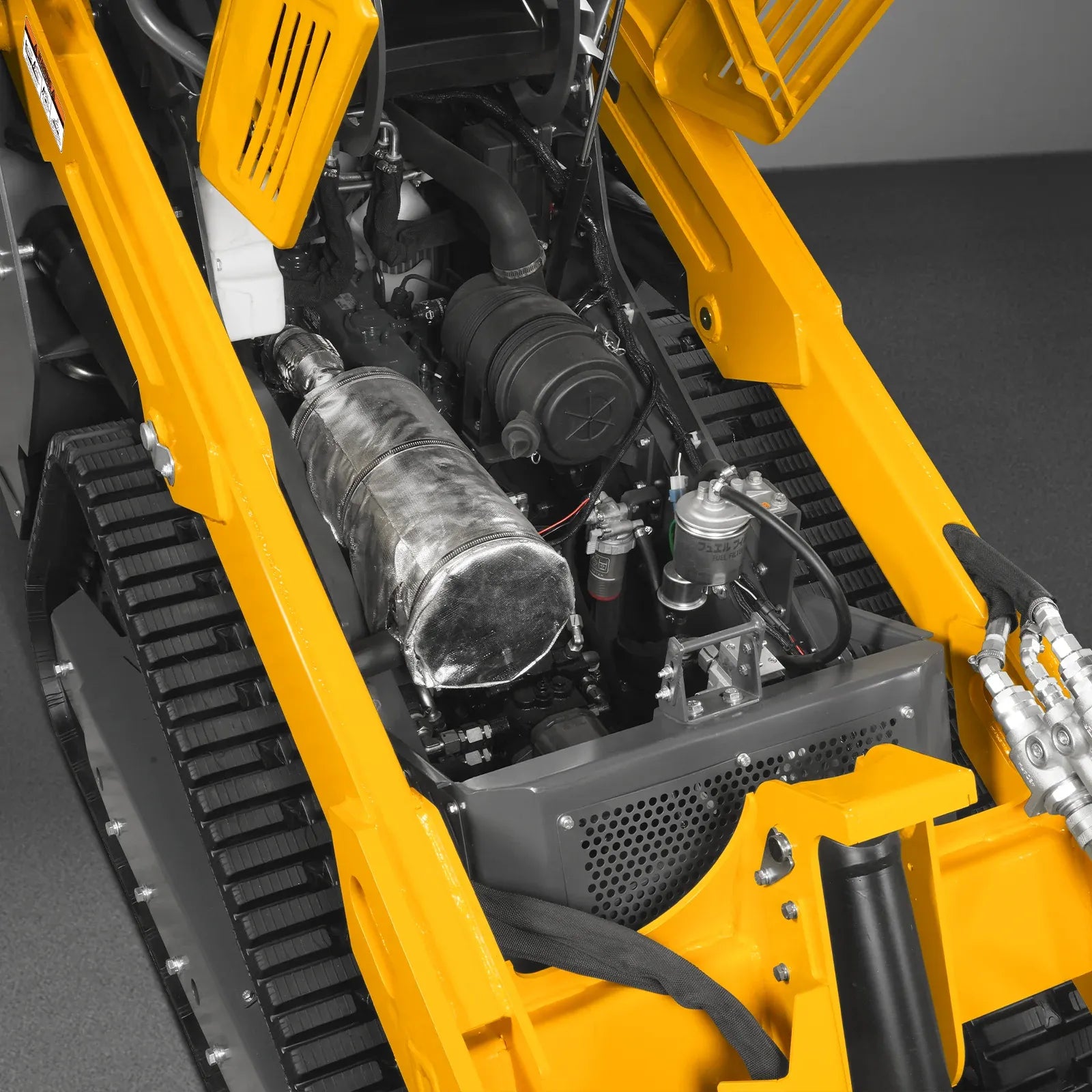

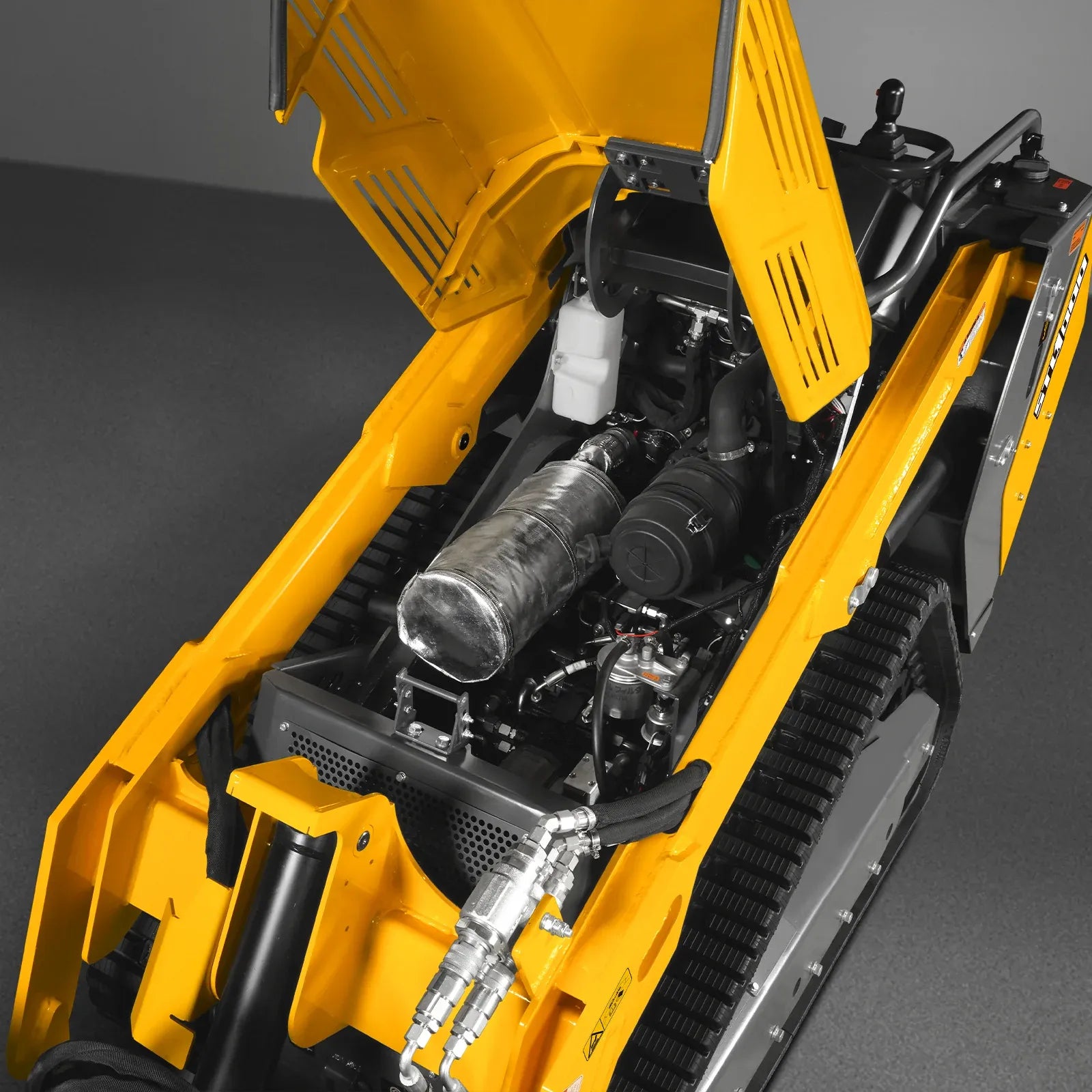

| Engine Model | KUBOTA D1105-E4B-CWL-1 |
| Engine Type | Vertical, Water-Cooled, 4-Cycle Diesel |
| Total Displacement | 68 cu.in. |
| Number of Cylinders | 3 |
| Brake Horse Power (Net) | 18.2 kW @ 3000 RPM |
| Rated Speed | 3000 RPM |
| Max Torque | 70.4 Nm @ 2200 RPM |
| Low Idle Speed | 850 – 950 RPM |

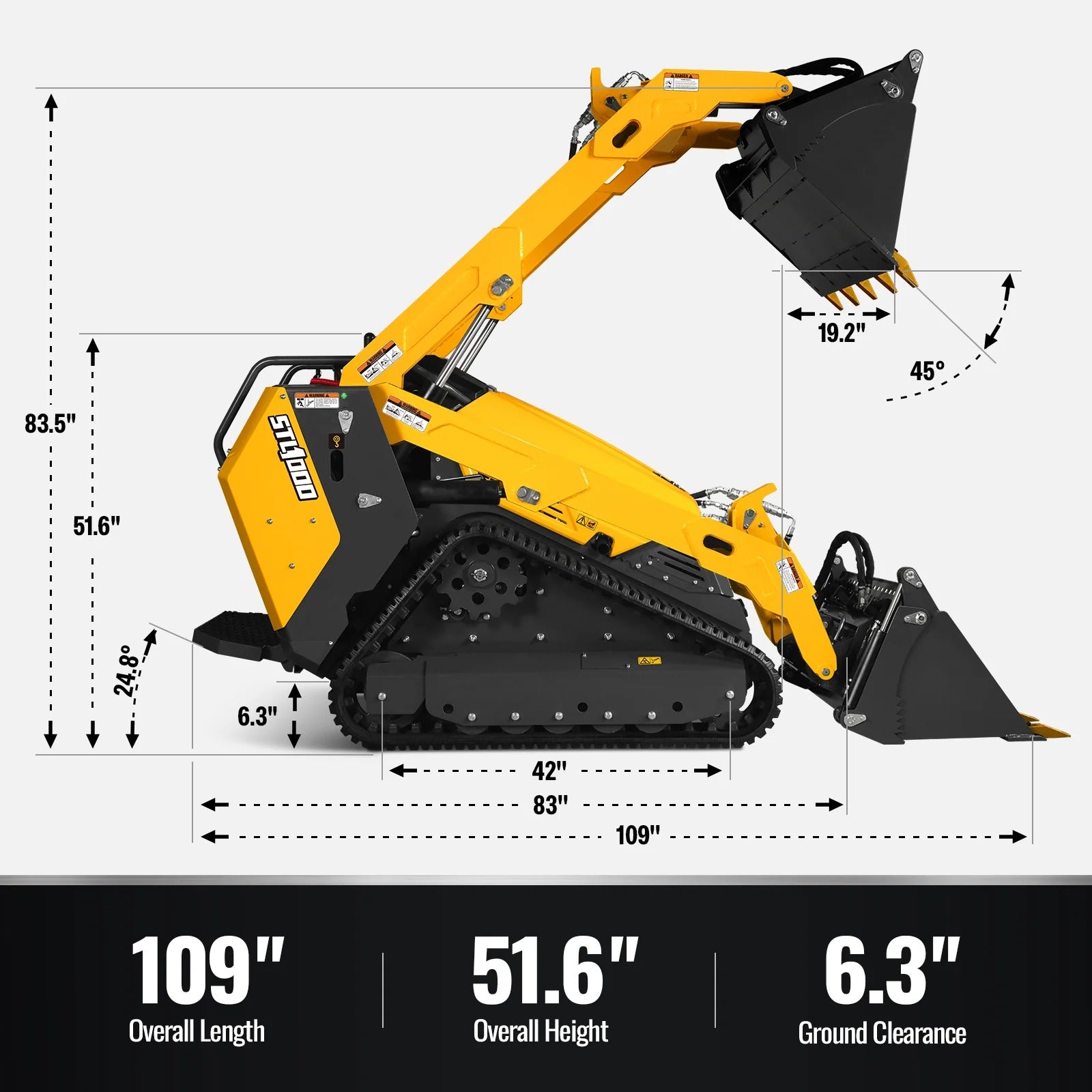

| Overall Length (With Bucket) | 109 in |
| Overall Length (Without Bucket) | 83 in |
| Overall Height | 51.6 in |

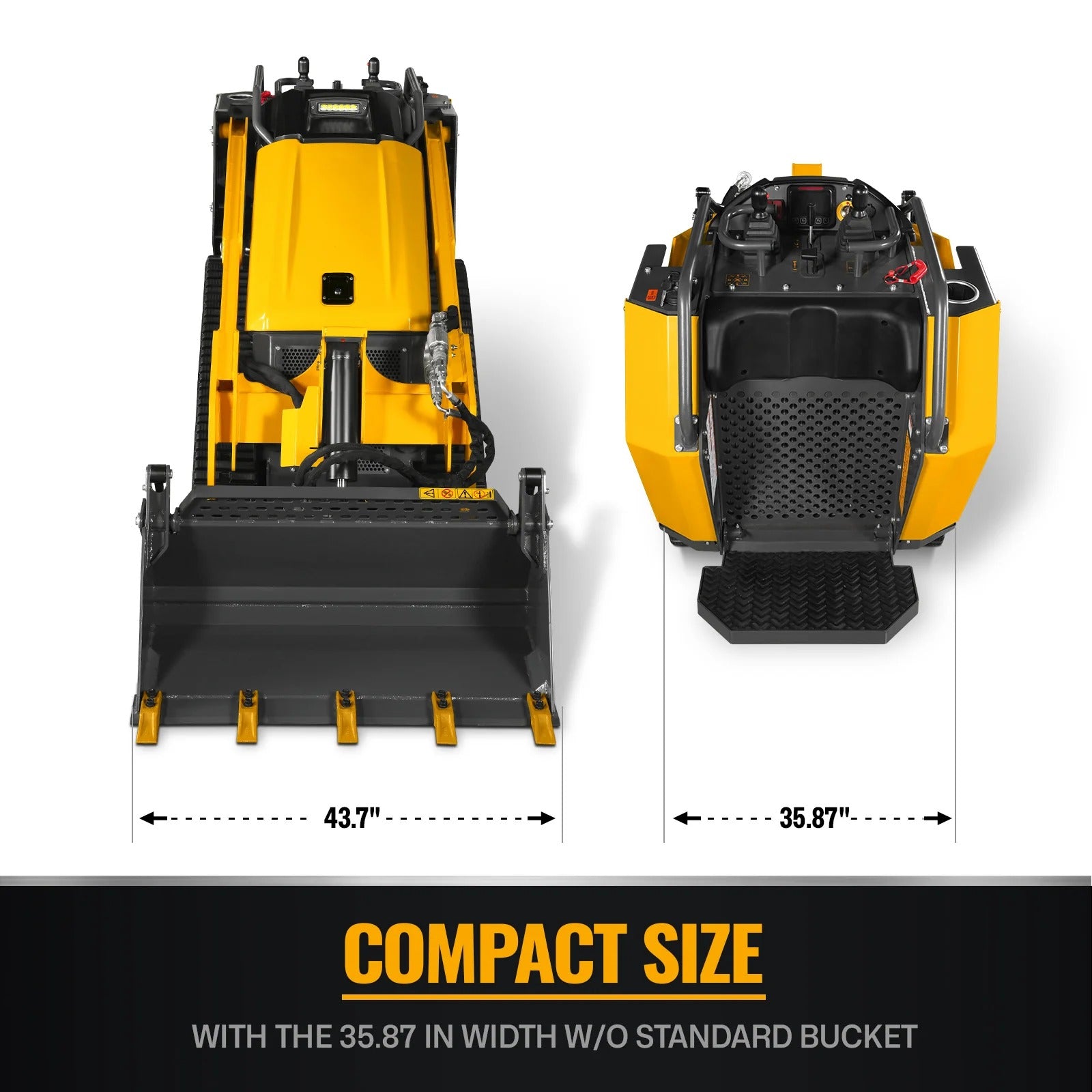

| Overall Width (With Bucket) | 43.7 in |
| Overall Width (Without Bucket) | 35.87 in |
| Weight (With Bucket, No Operator) | 3206 lbs |
| Weight (Without Bucket) | 2895 lbs |
| Wheelbase | 42 in |

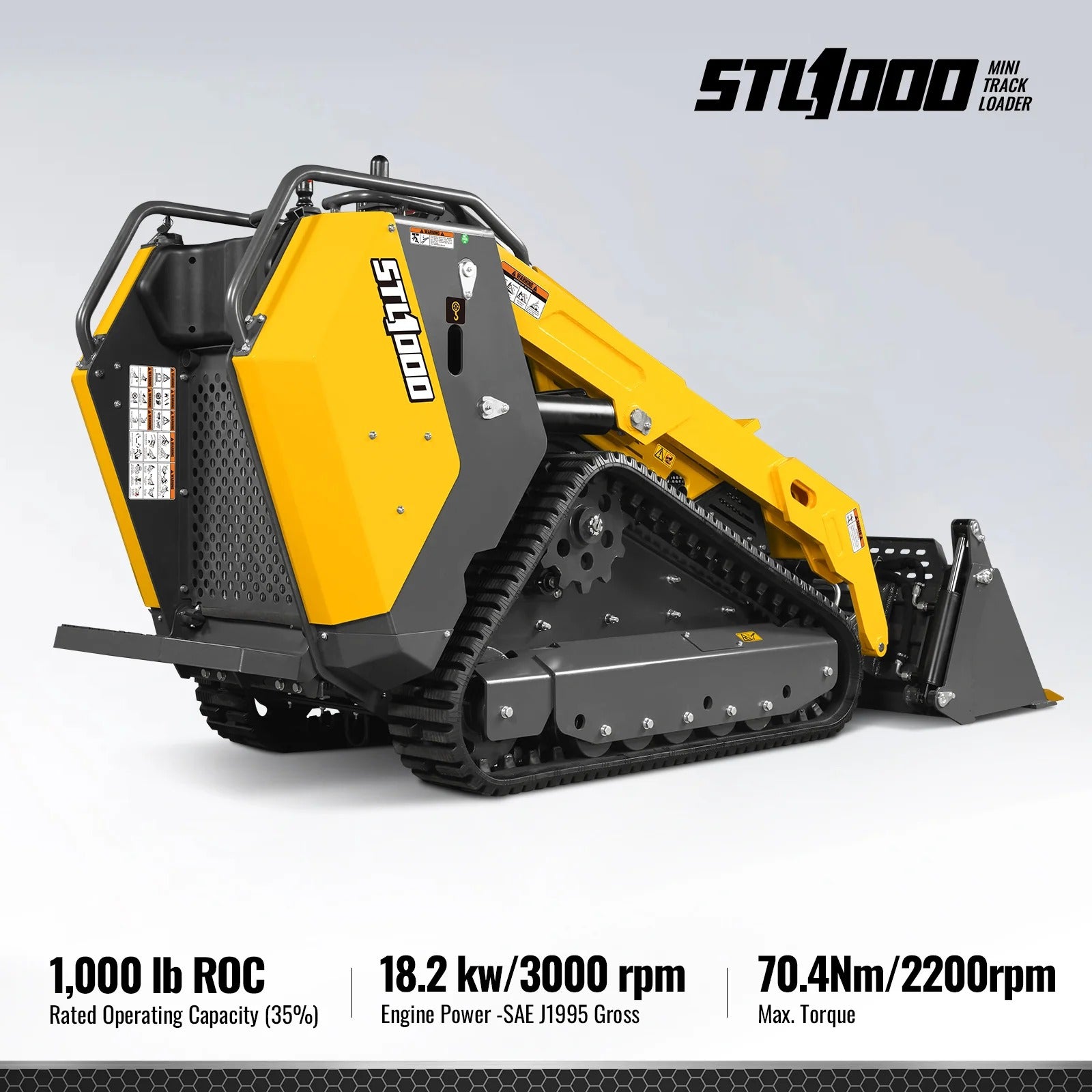

| Rated Operating Capacity (35%) | 1,000 lbs |
| Tipping Load | 2,857 lbs |

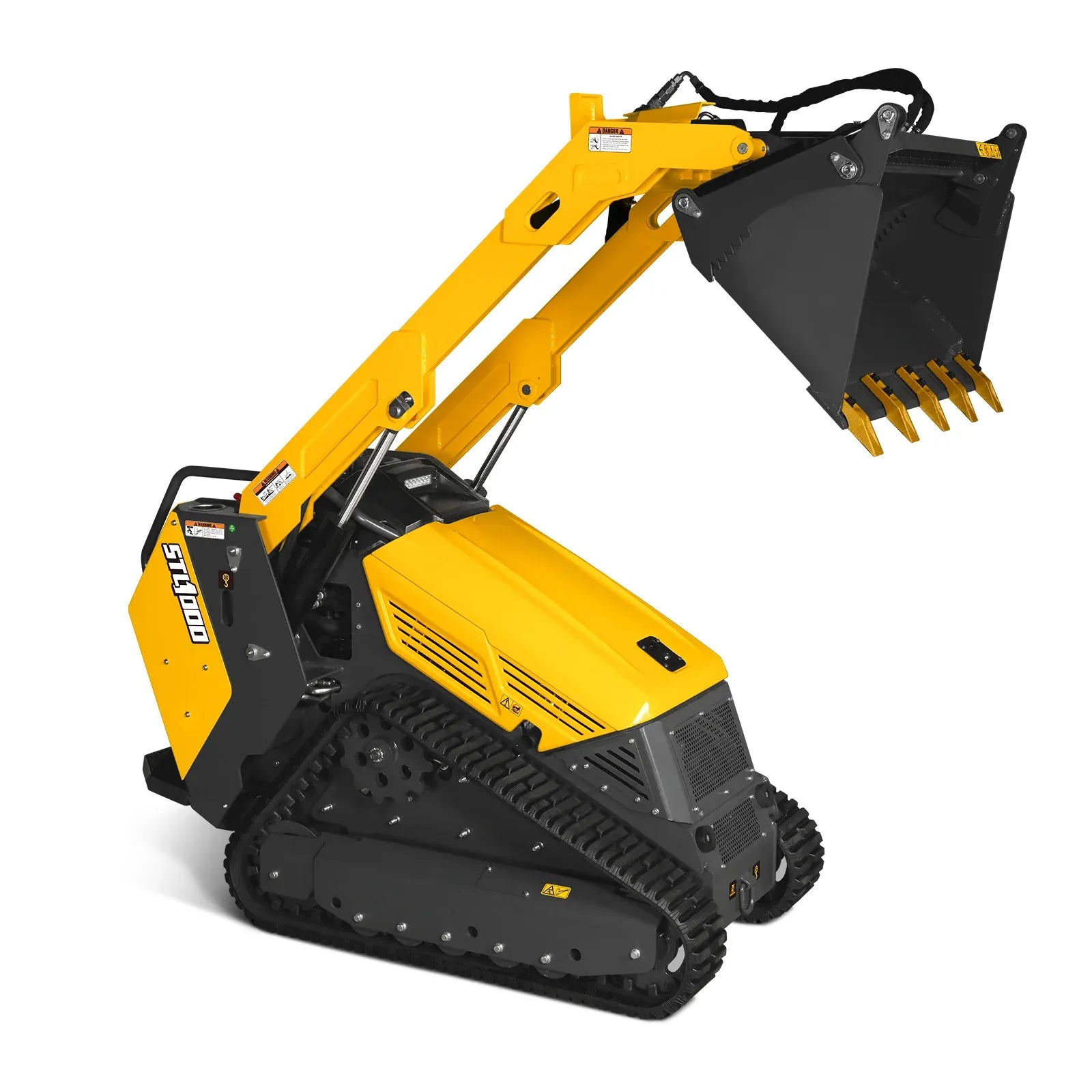

| Hinge Pin Height at Max Lift | 83.5 in |
| Reach at Max Lift (45° Dump) | 19.2 in |
| Bucket Capacity | 6.53 cu.ft. |
| Track Width | 7.87 in |
| Ground Clearance | 6.30 in |
| Angle of Departure | 24.8° |

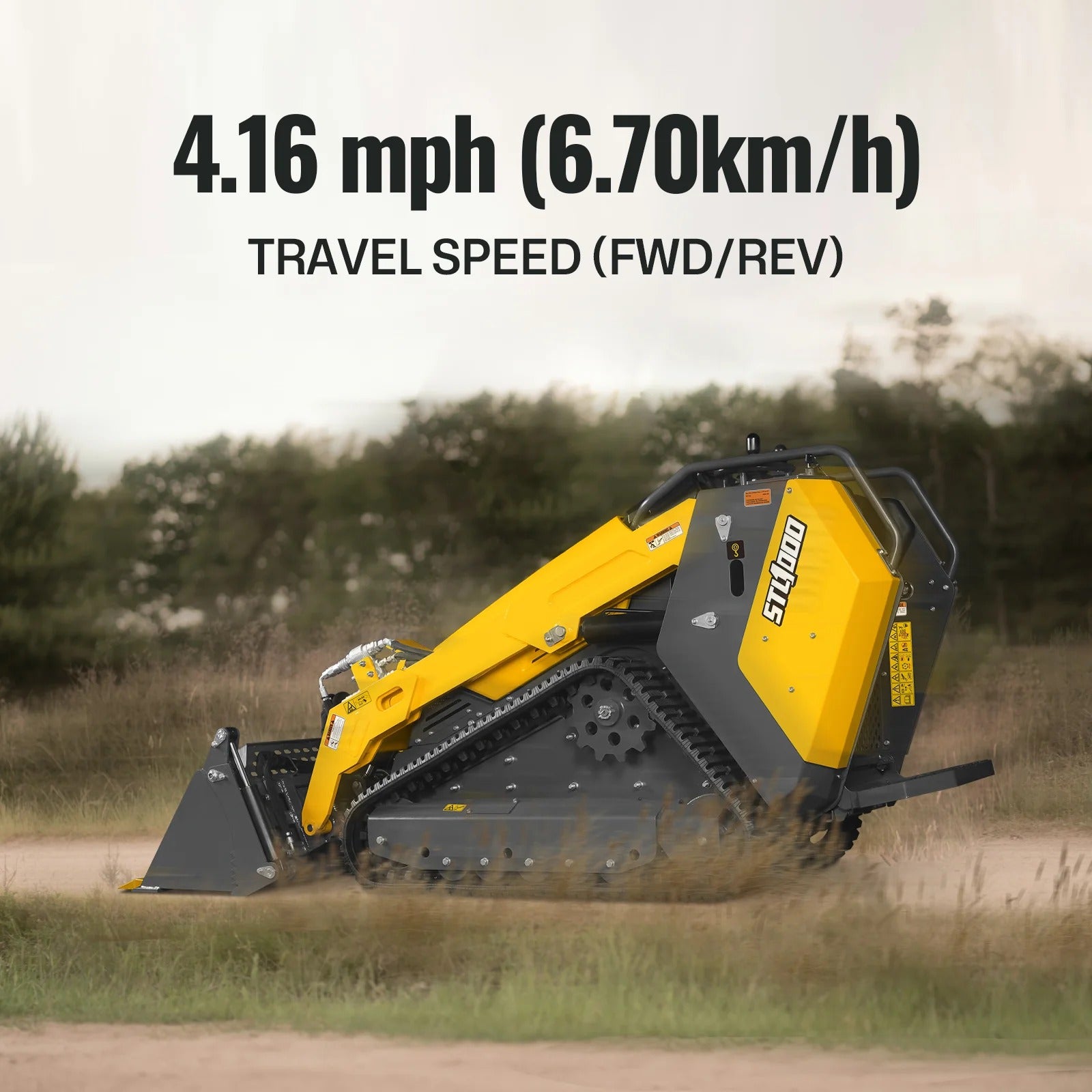

| Travel Speed (Fwd/Rev) | 4.16 mph (6.70 km/h) |
| Ground Pressure (With Operator) | 4.12 psi (28.4 kPa) |

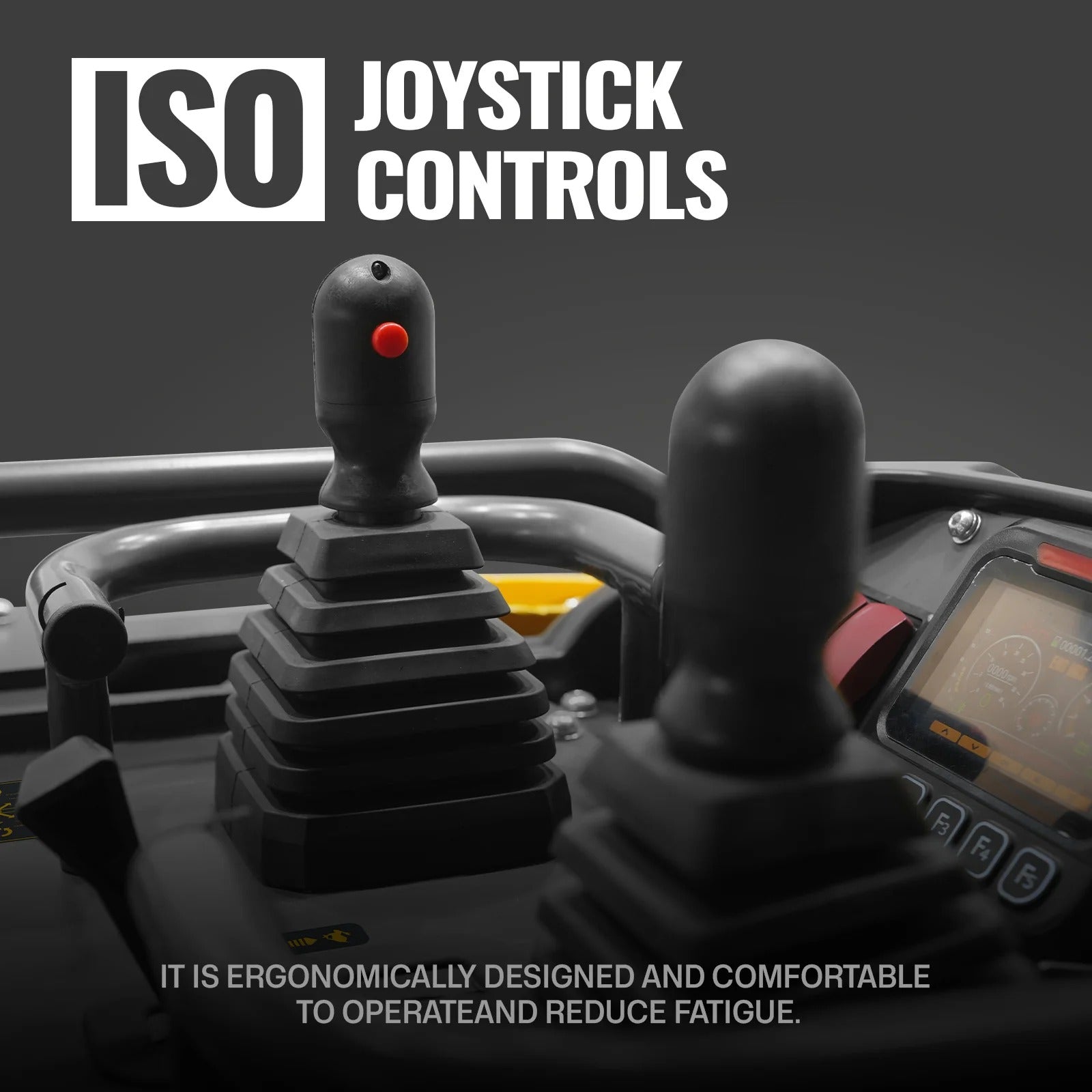

| Steering & Drive | Dual-Axis, Pilot-Operated Joystick |
| Lift & Tilt | Dual-Axis, Manual-Operated Joystick |
| Transmission | Hydrostatic Track Drive System |
| Attachment Control | One Lever with Dual Direction Detent |

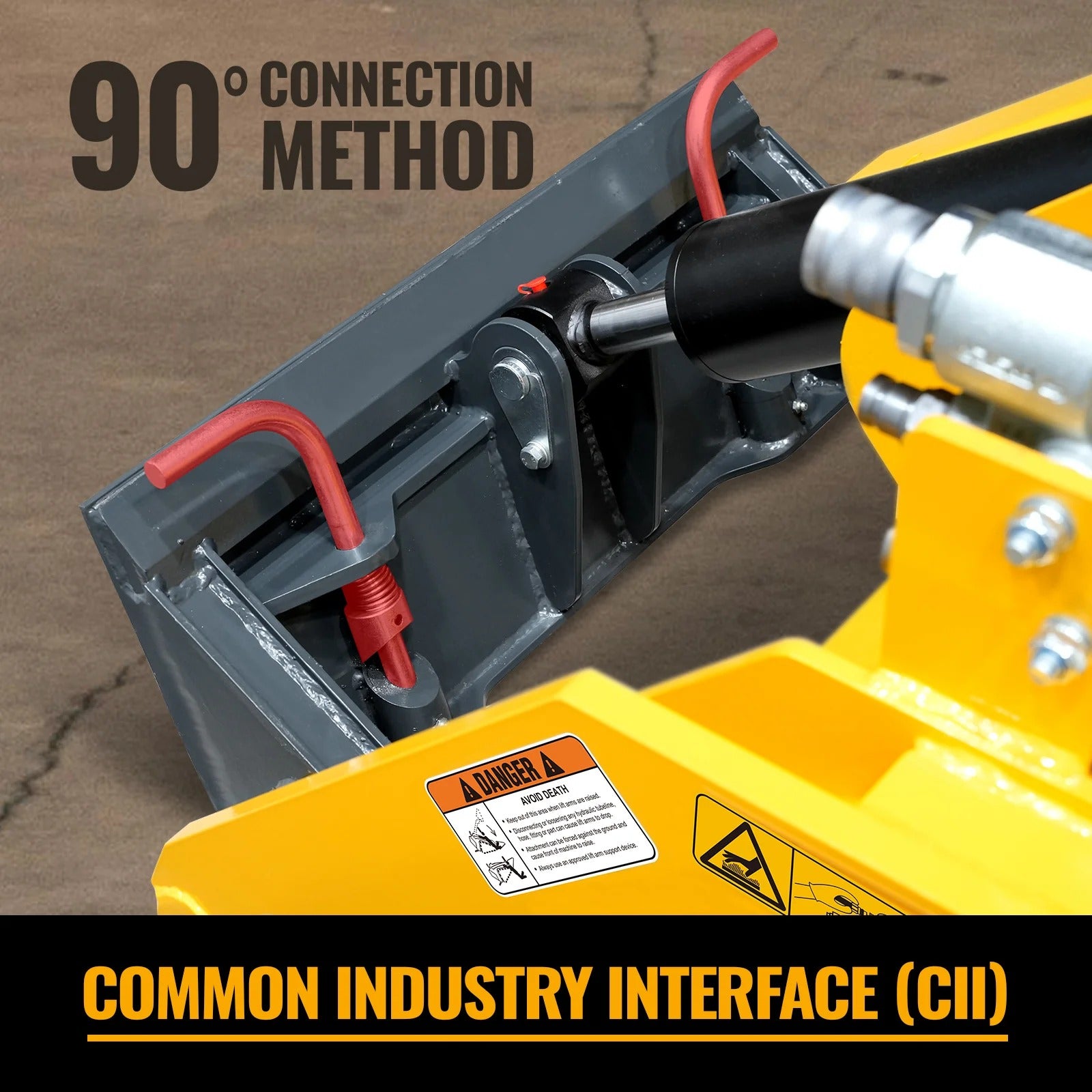

| Attachment Mounting System | CII (Common Industry Interface) |

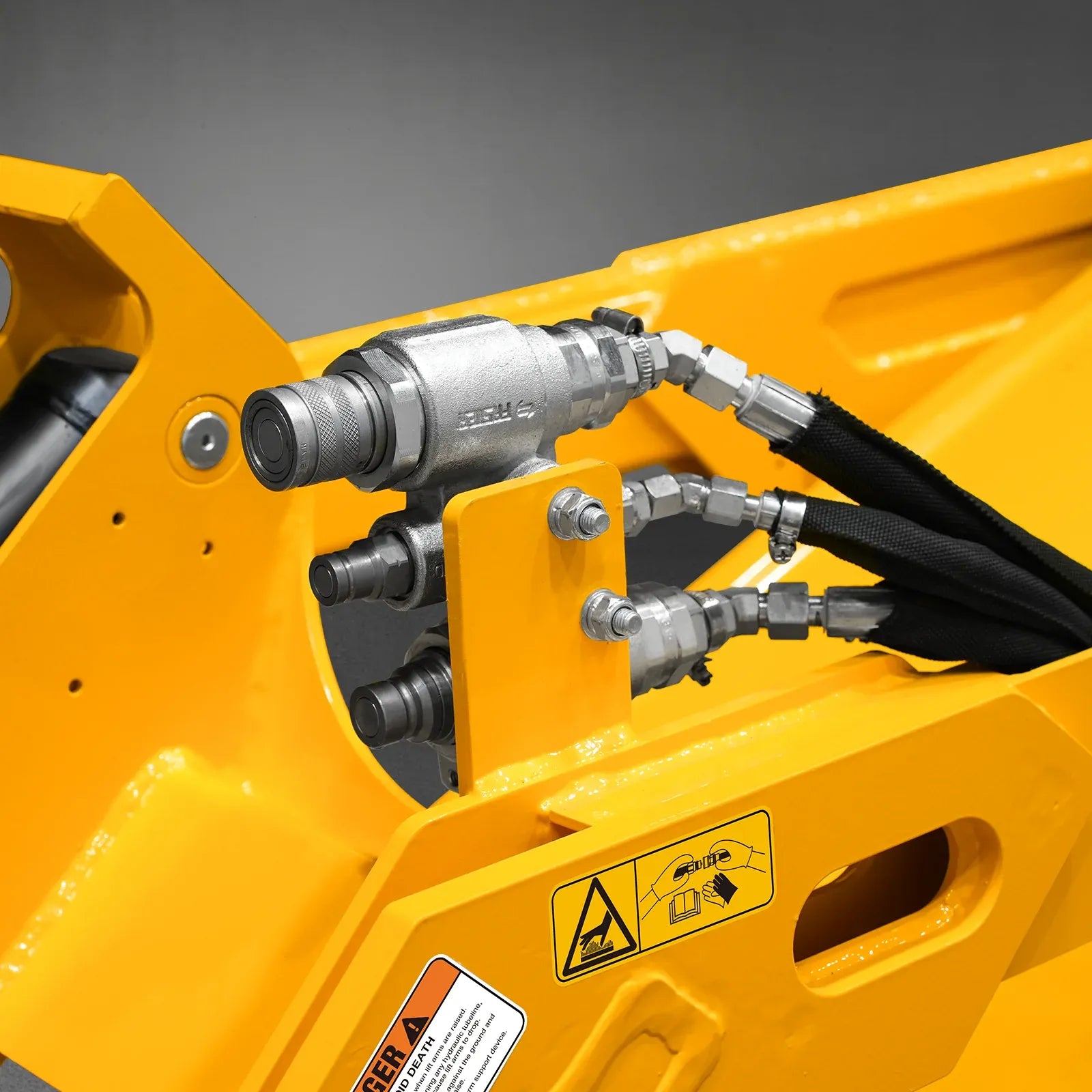

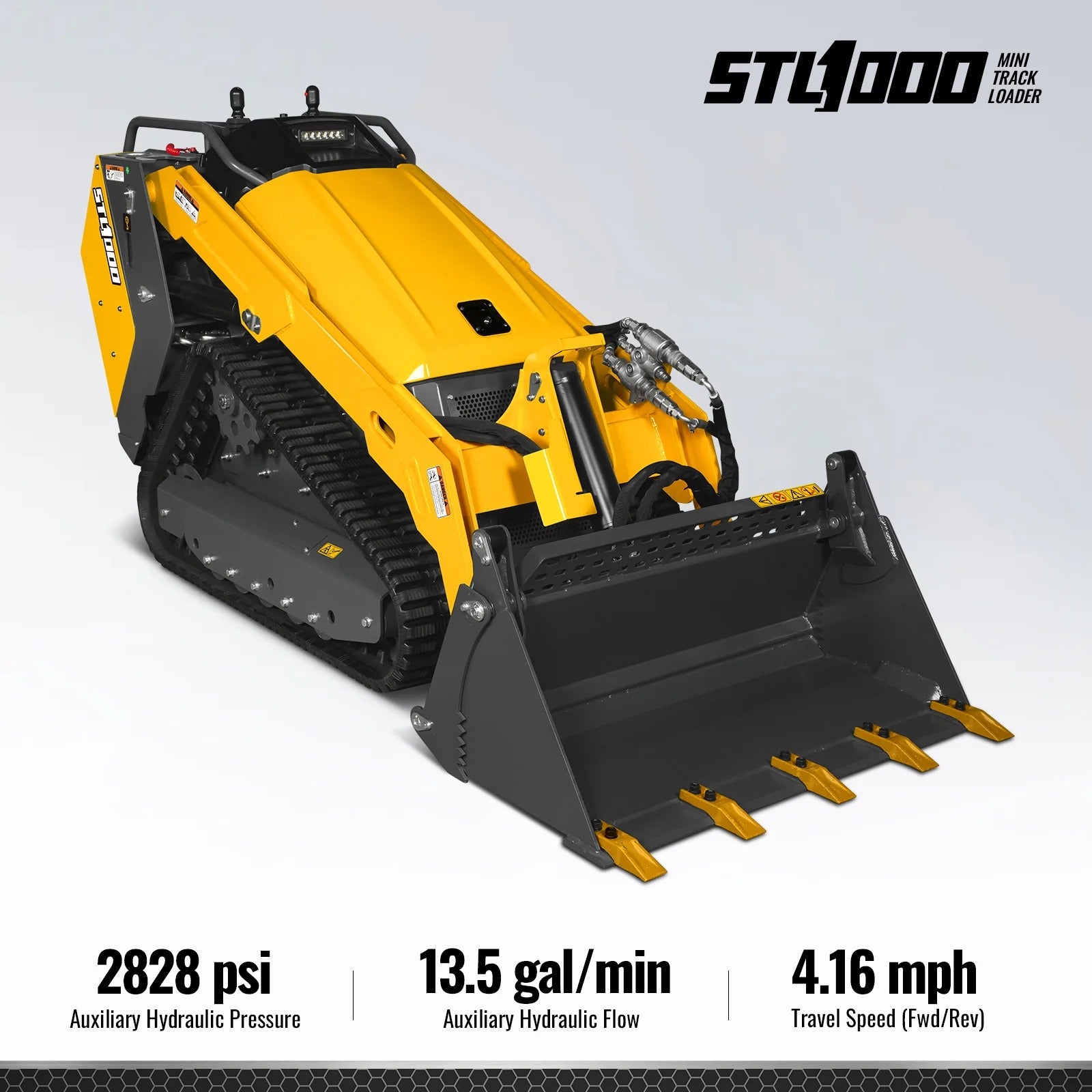

| Auxiliary Hydraulic Flow | 13.5 gal/min |
| Auxiliary Hydraulic Pressure | 2828 psi (19.5 MPa) |
| Fuel Tank Capacity | 8.32 gal |
| Hydraulic System Capacity | 5.54 gal |
| Battery Capacity | 12V, 55Ah |
| Package Method | Wood Case |
| Packing Size | 87 × 38 × 59 in |
| Shipping Weight | 3087 lbs |
| Warranty (Machine) | 1 Year |
| Warranty (Engine) | 2-Year or 2,000-Hour (Whichever Comes First) |
