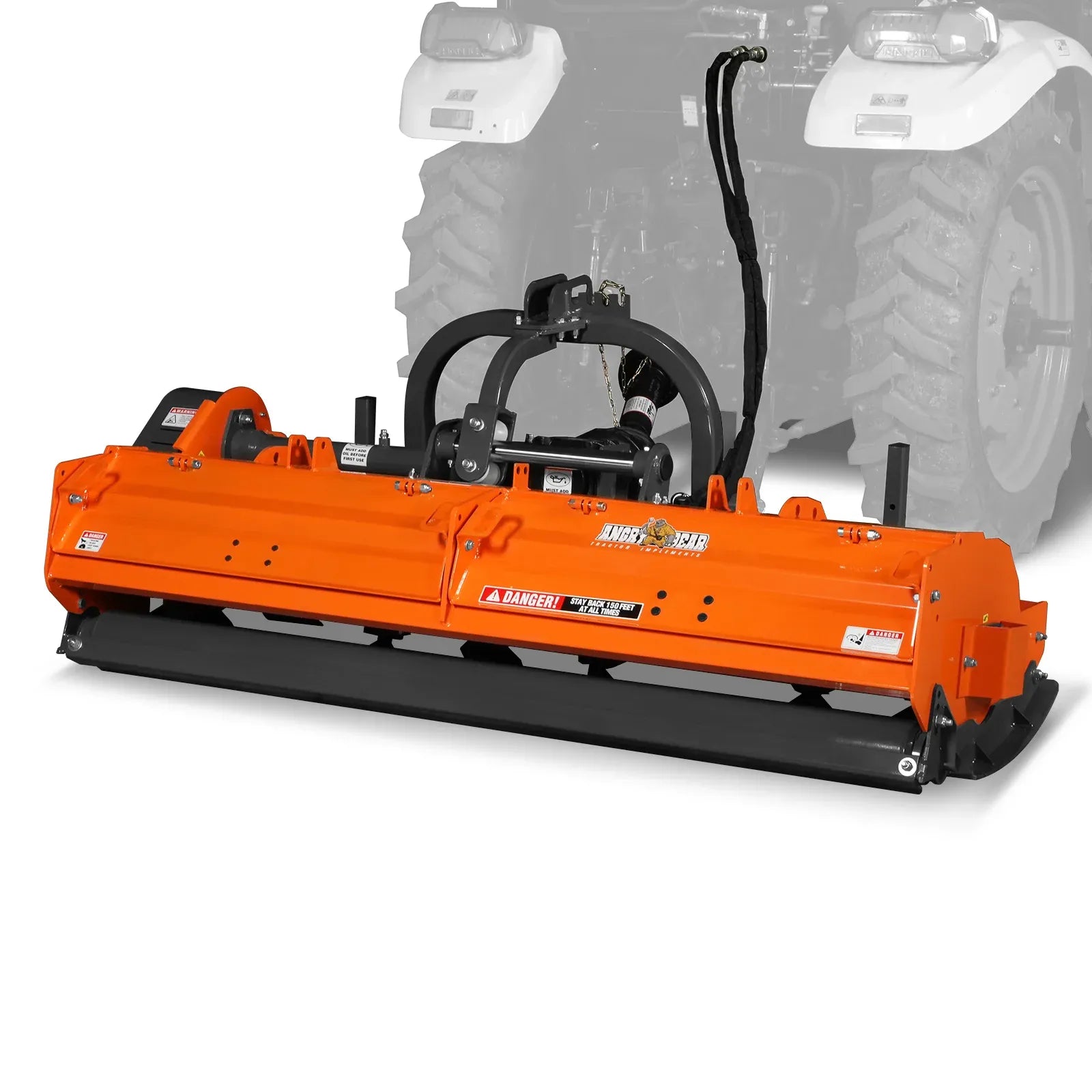

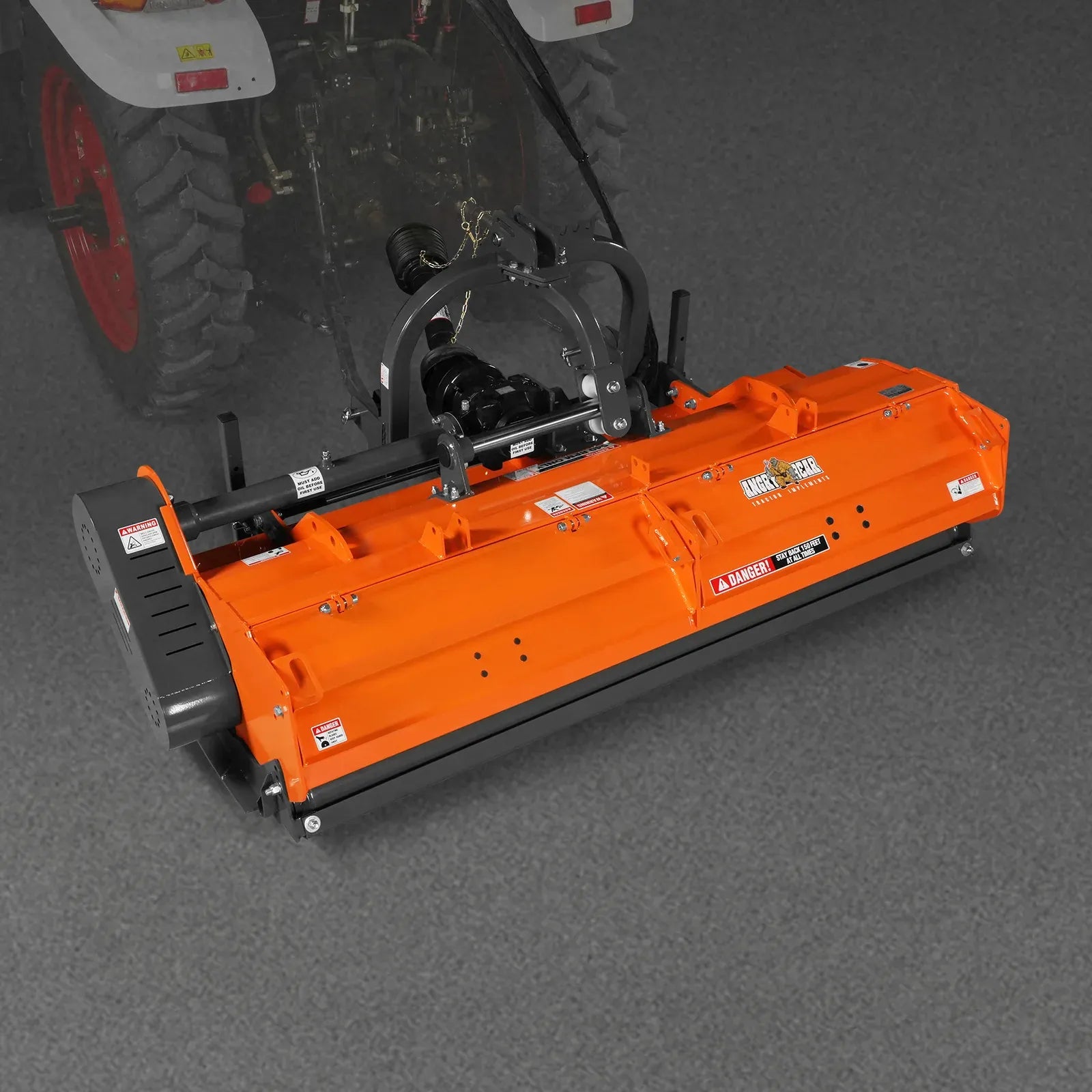

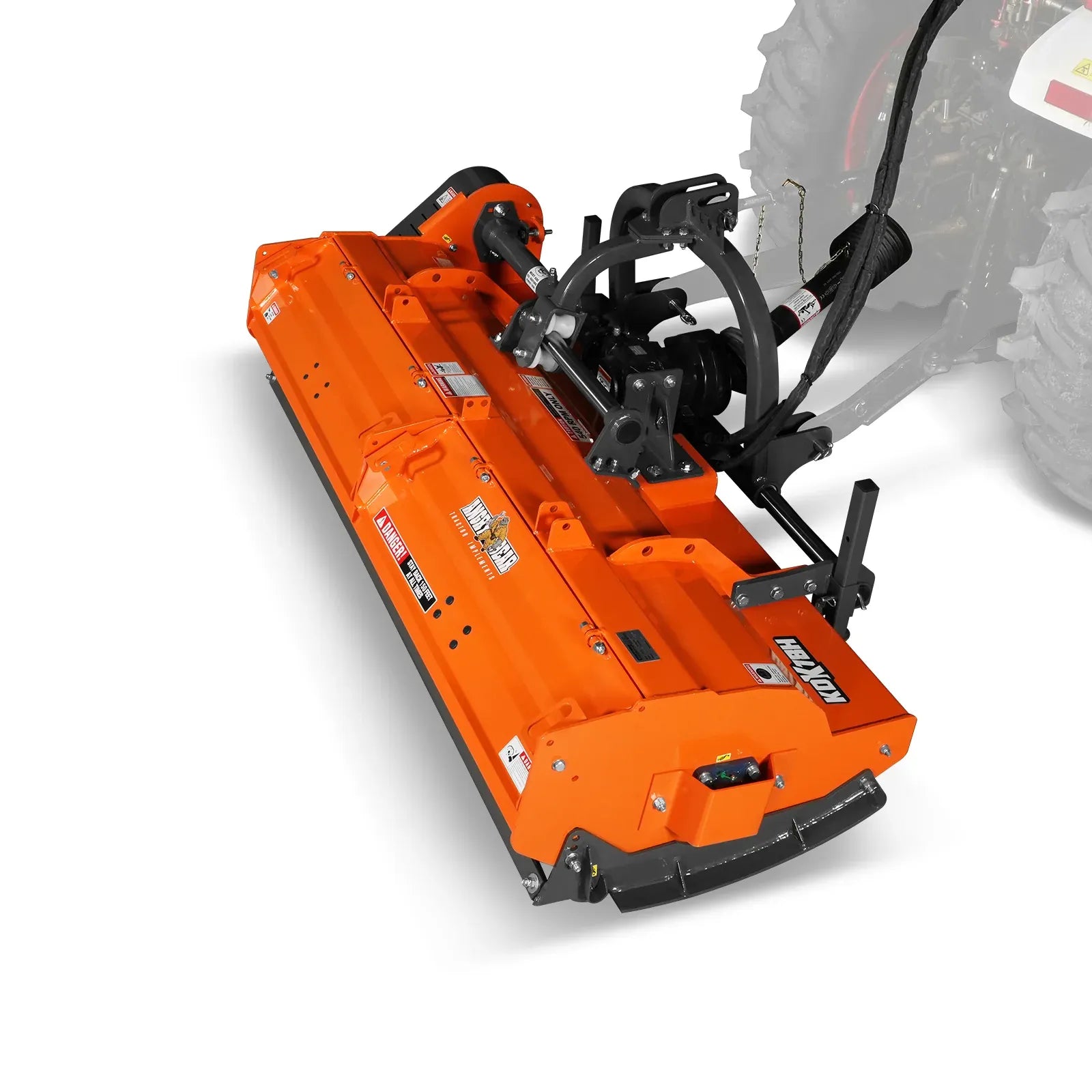

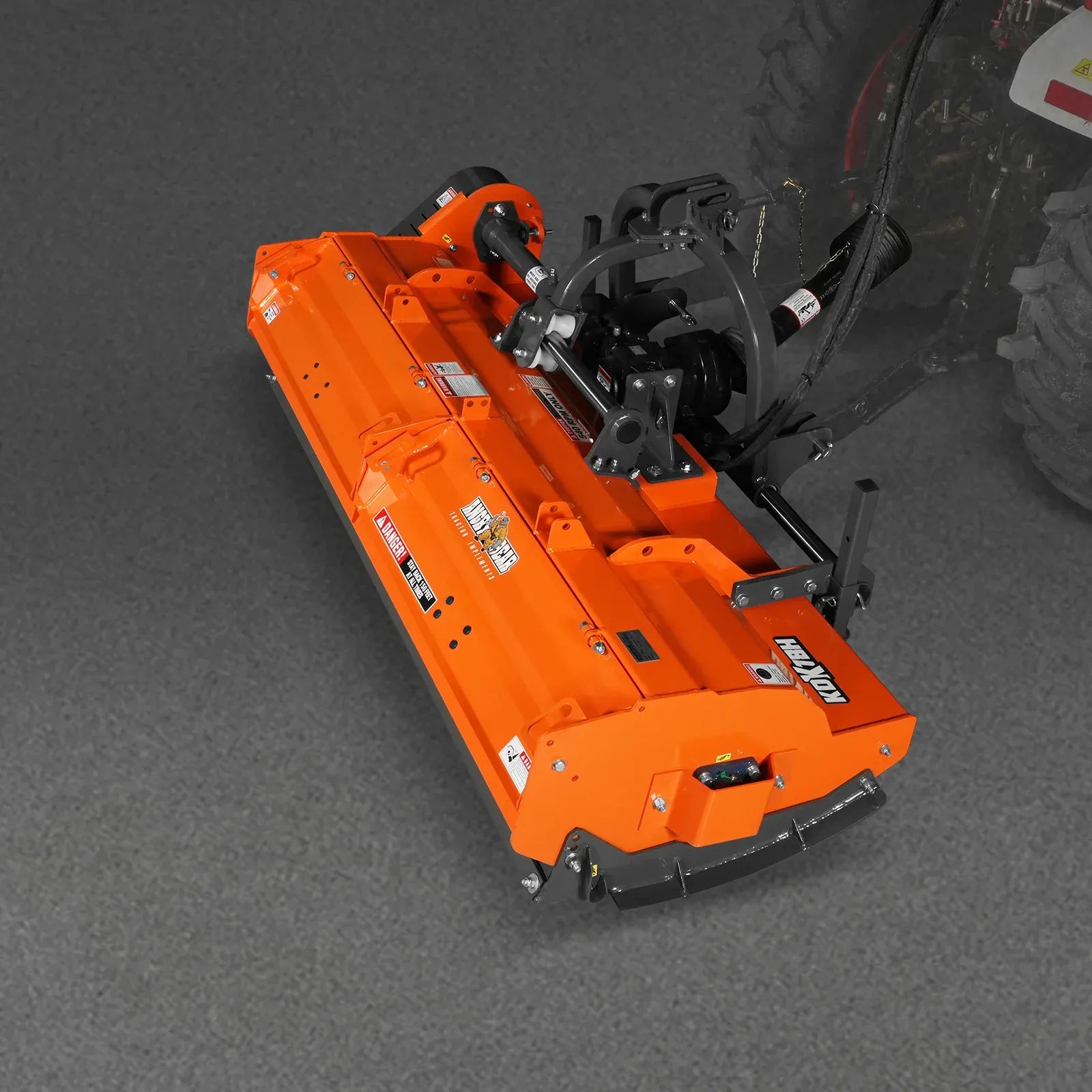

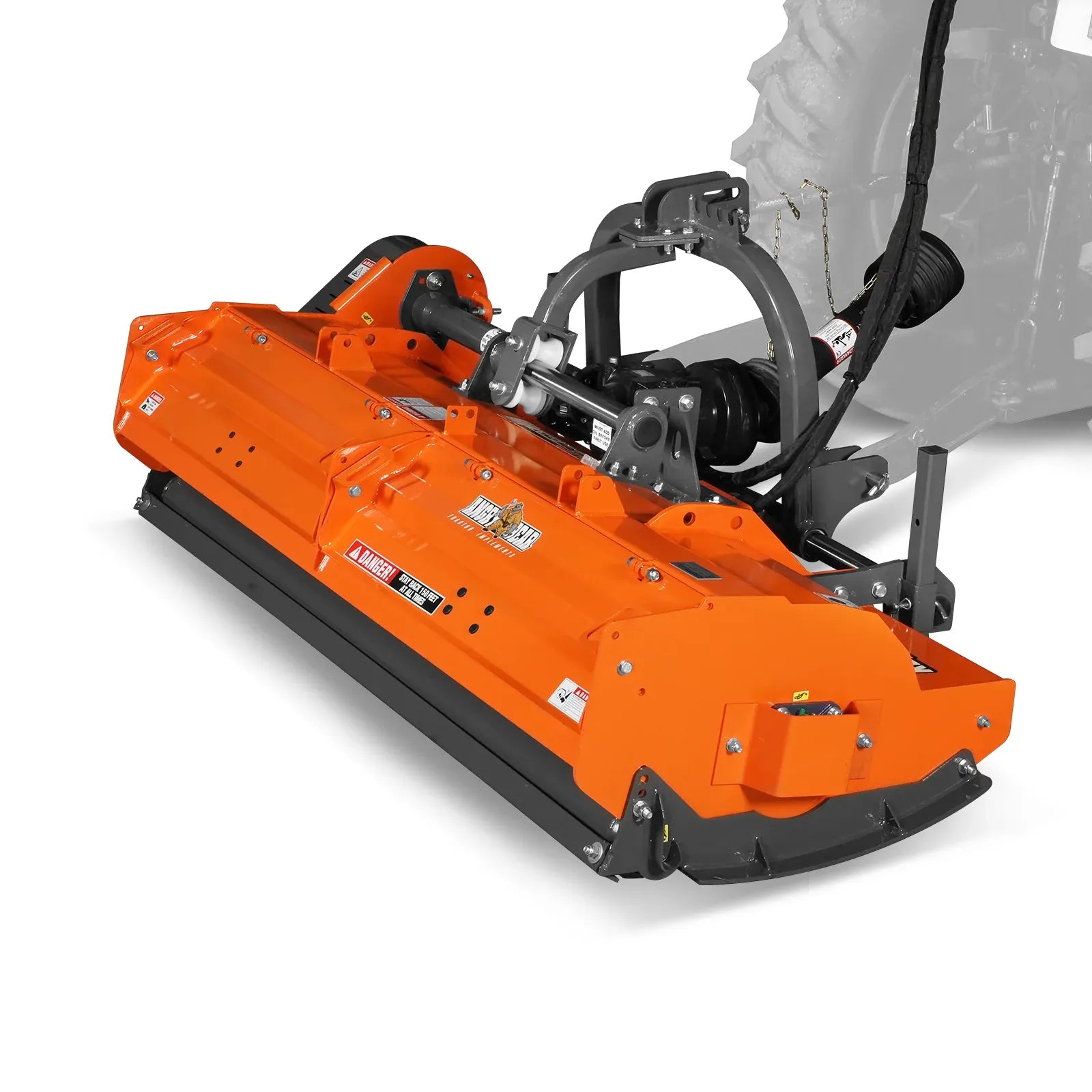

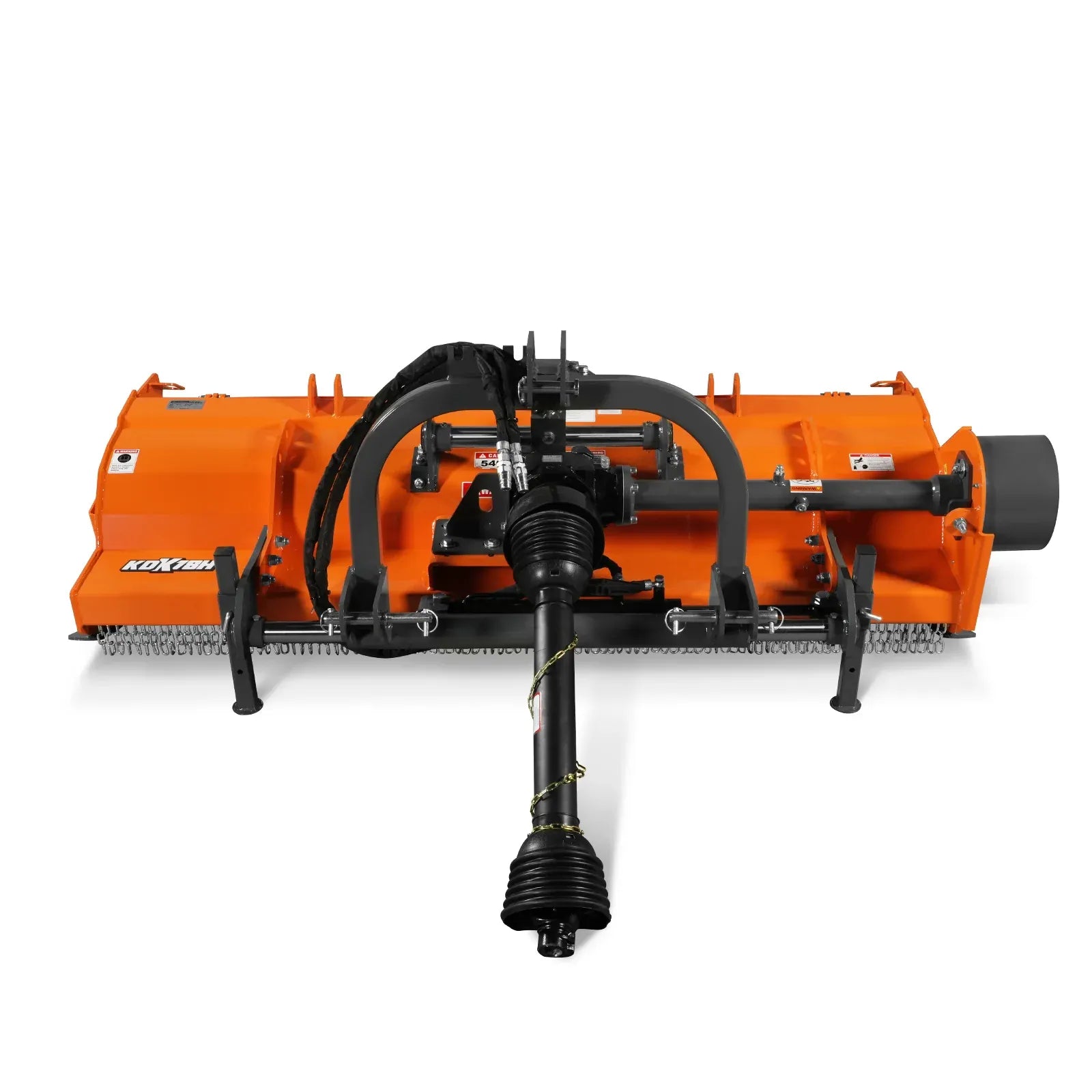

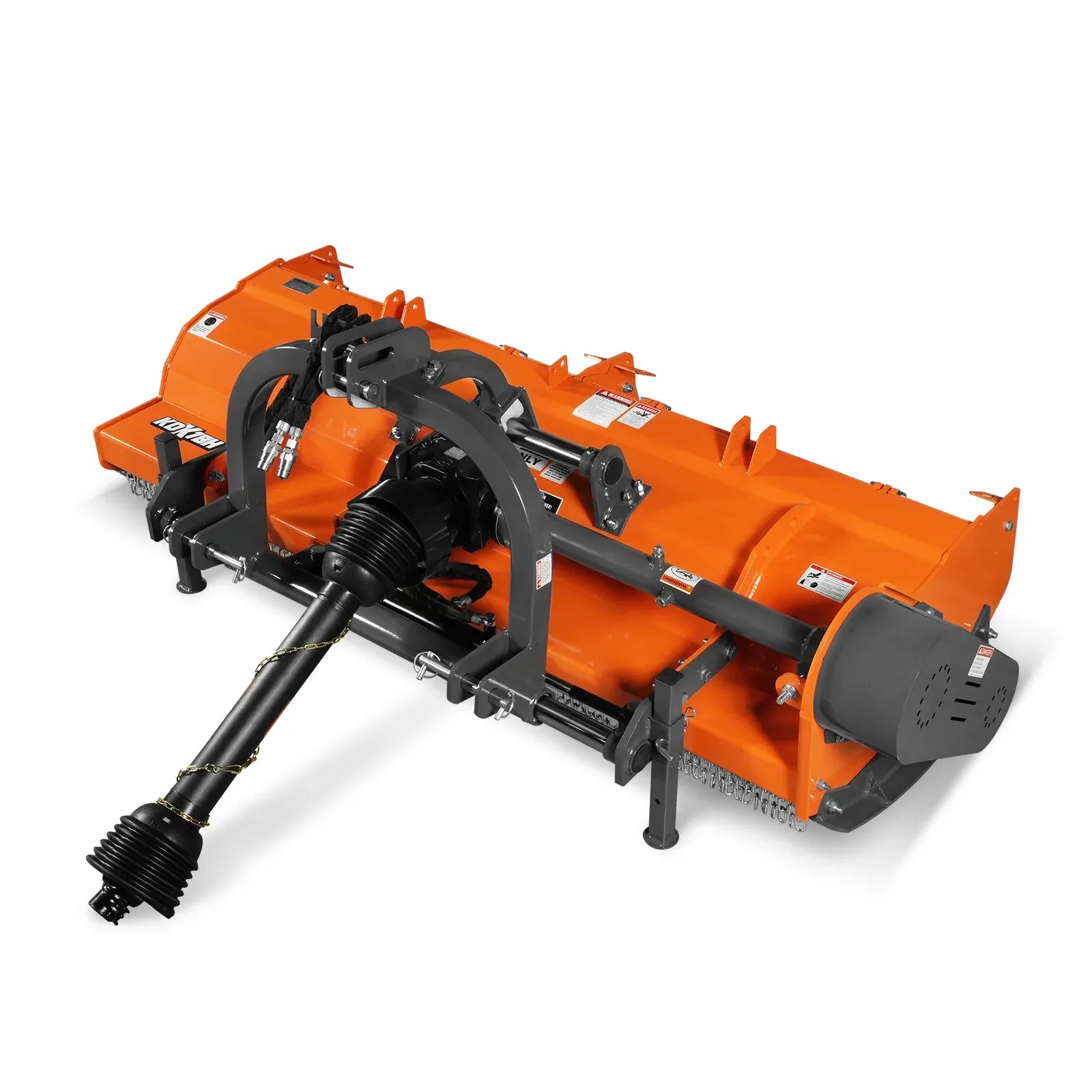

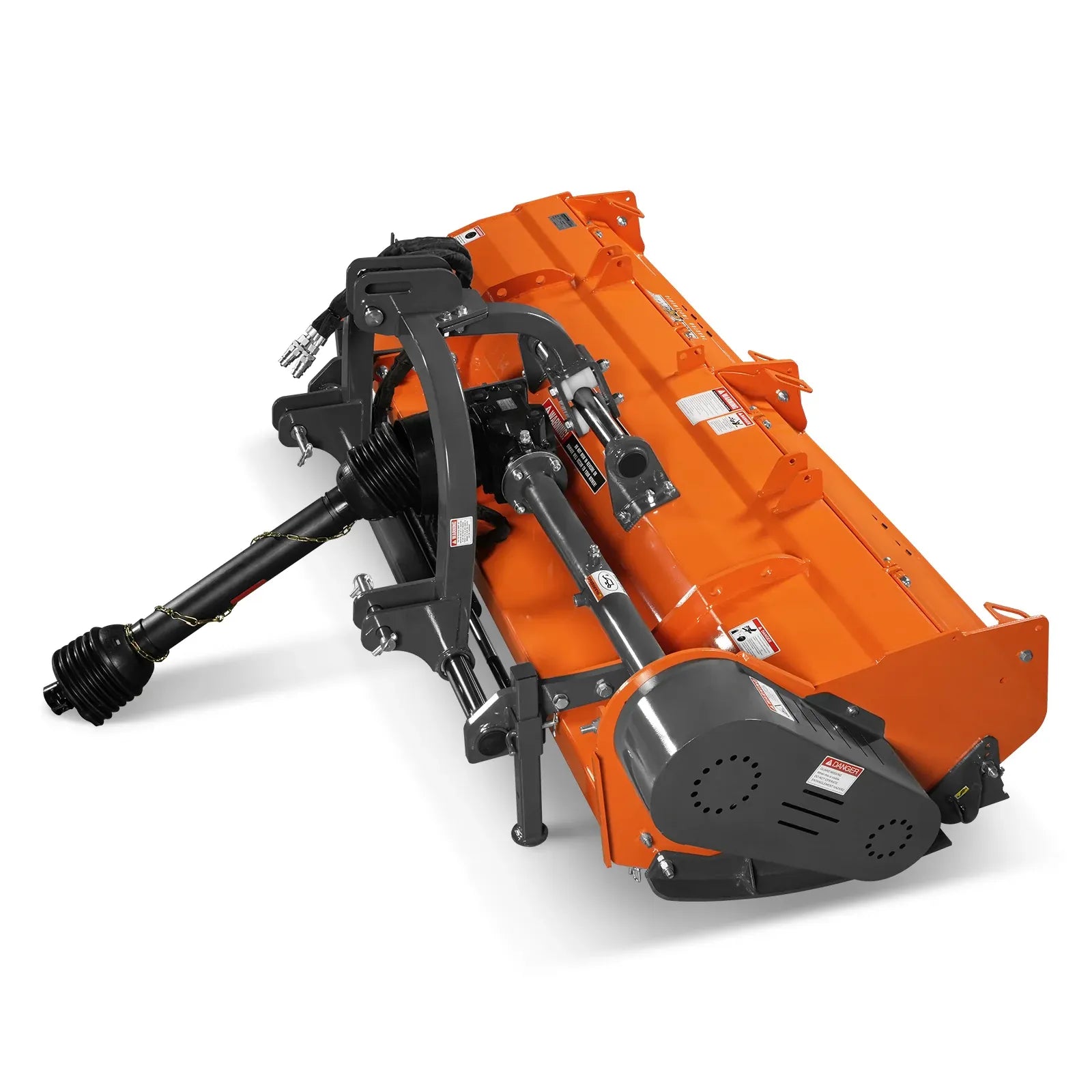

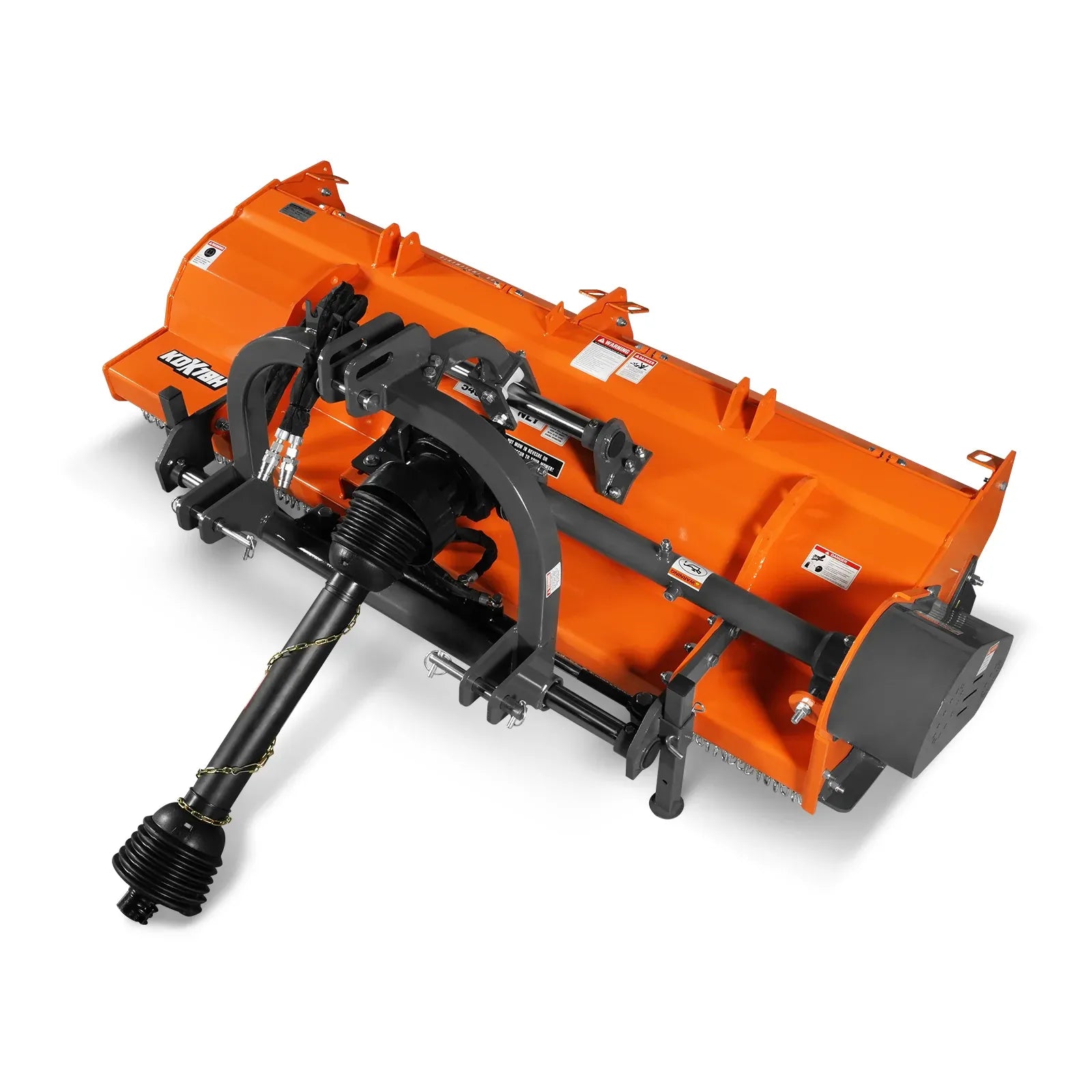

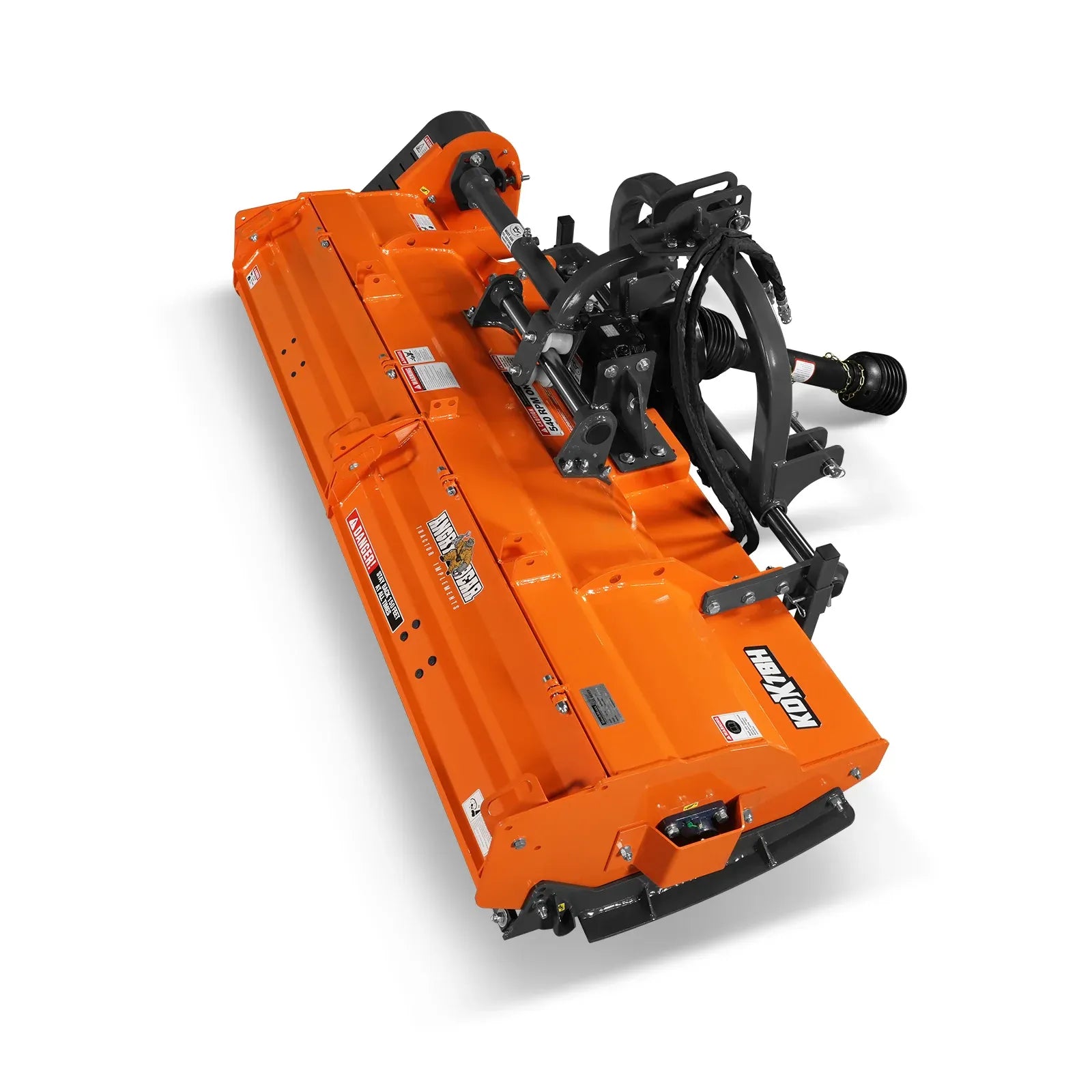

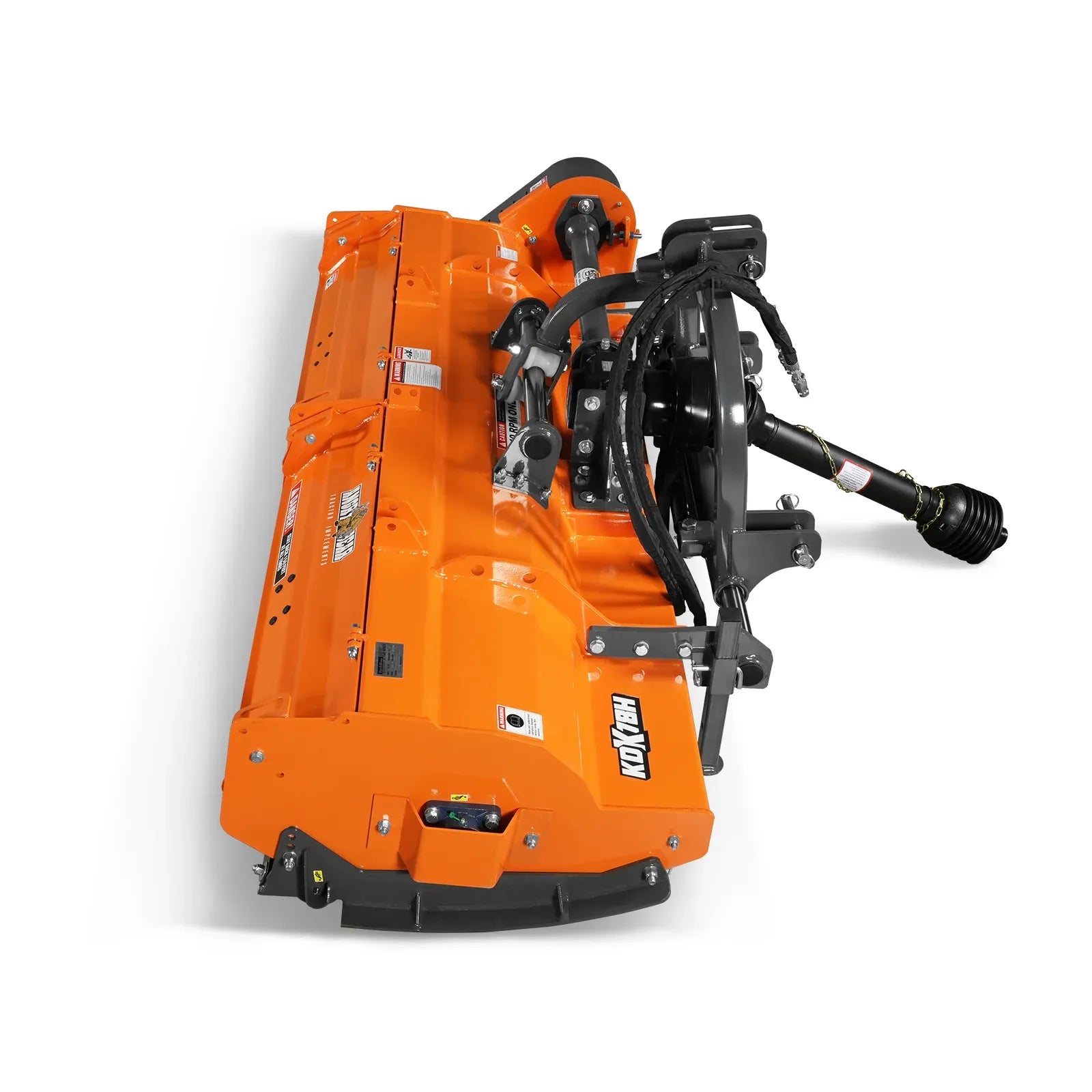

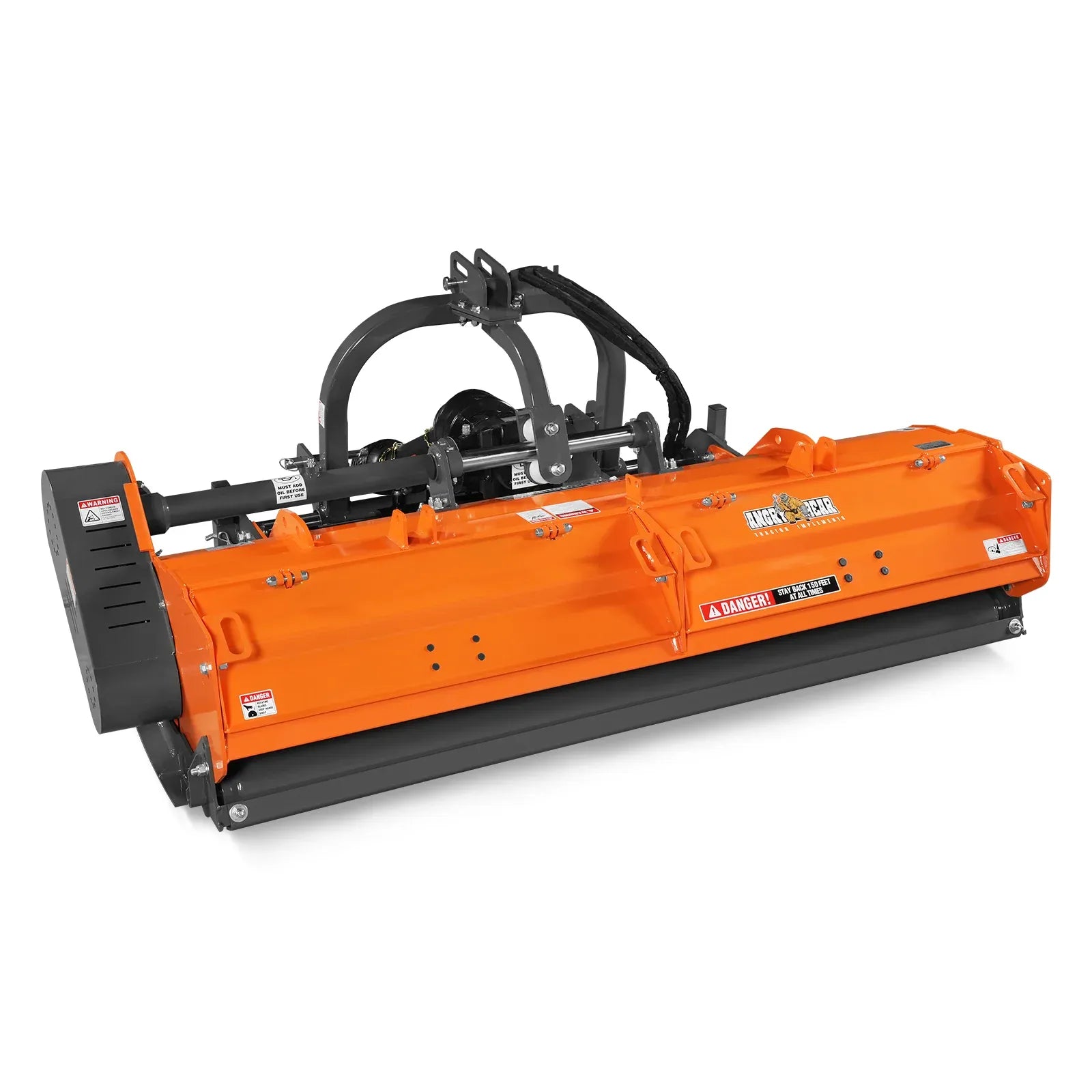

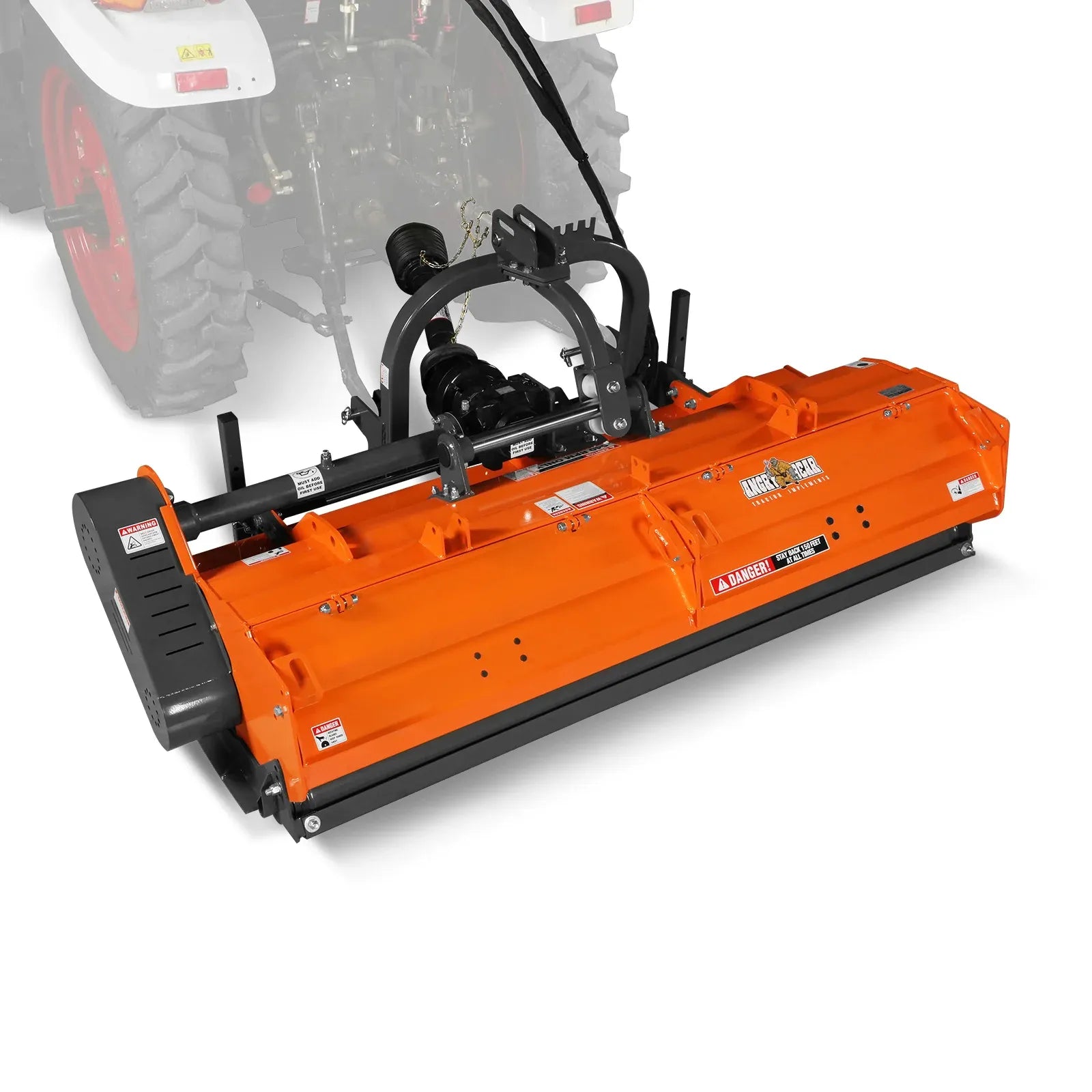

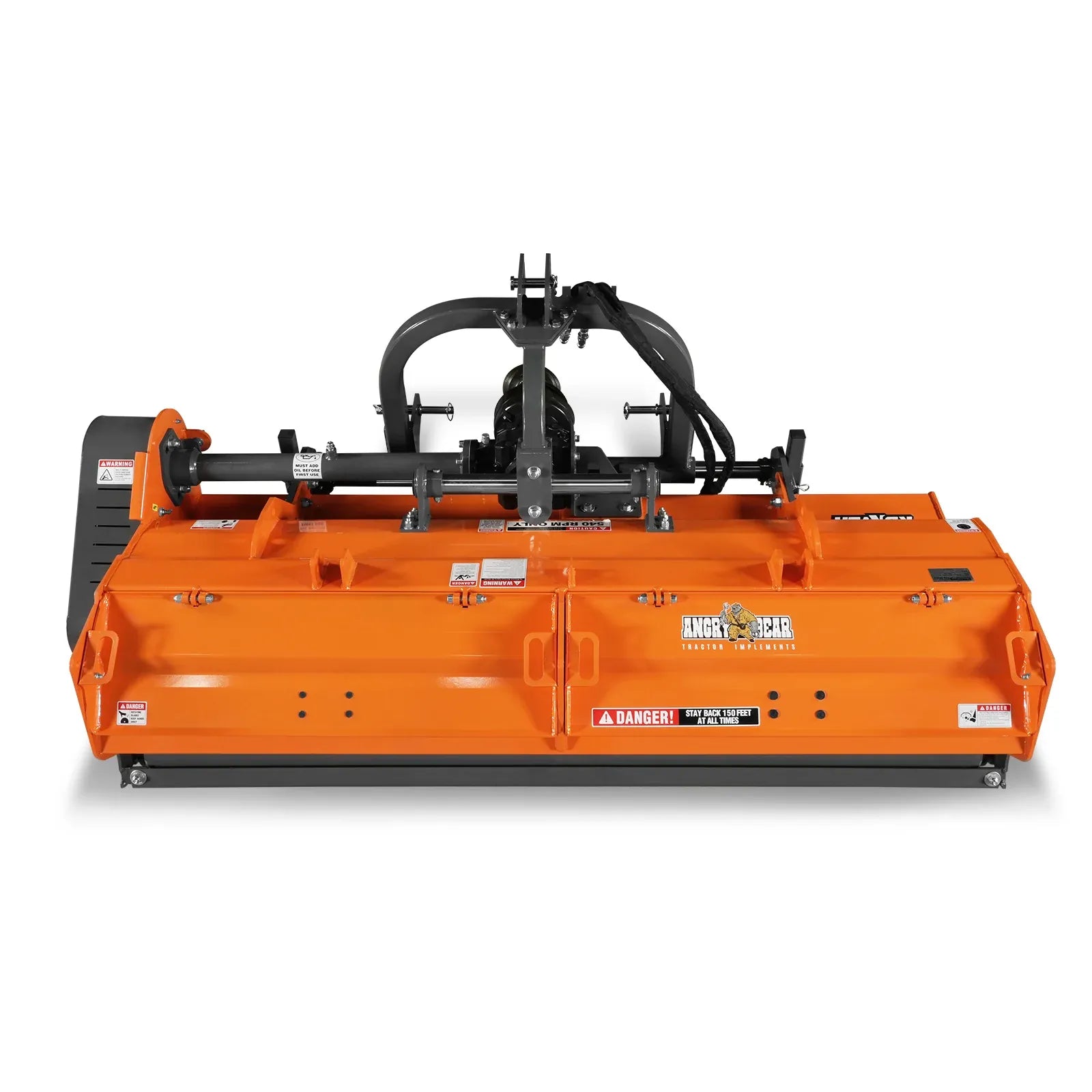

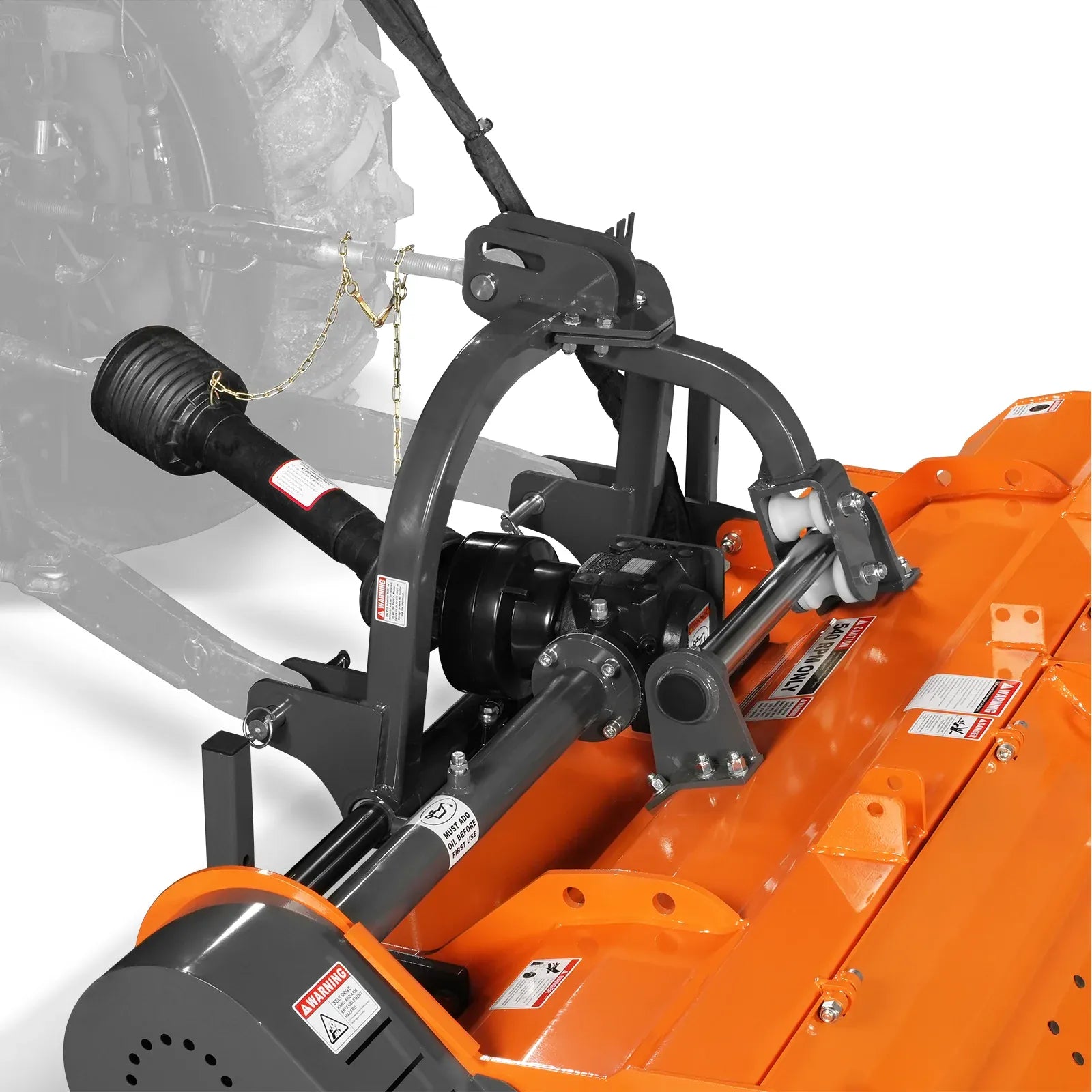

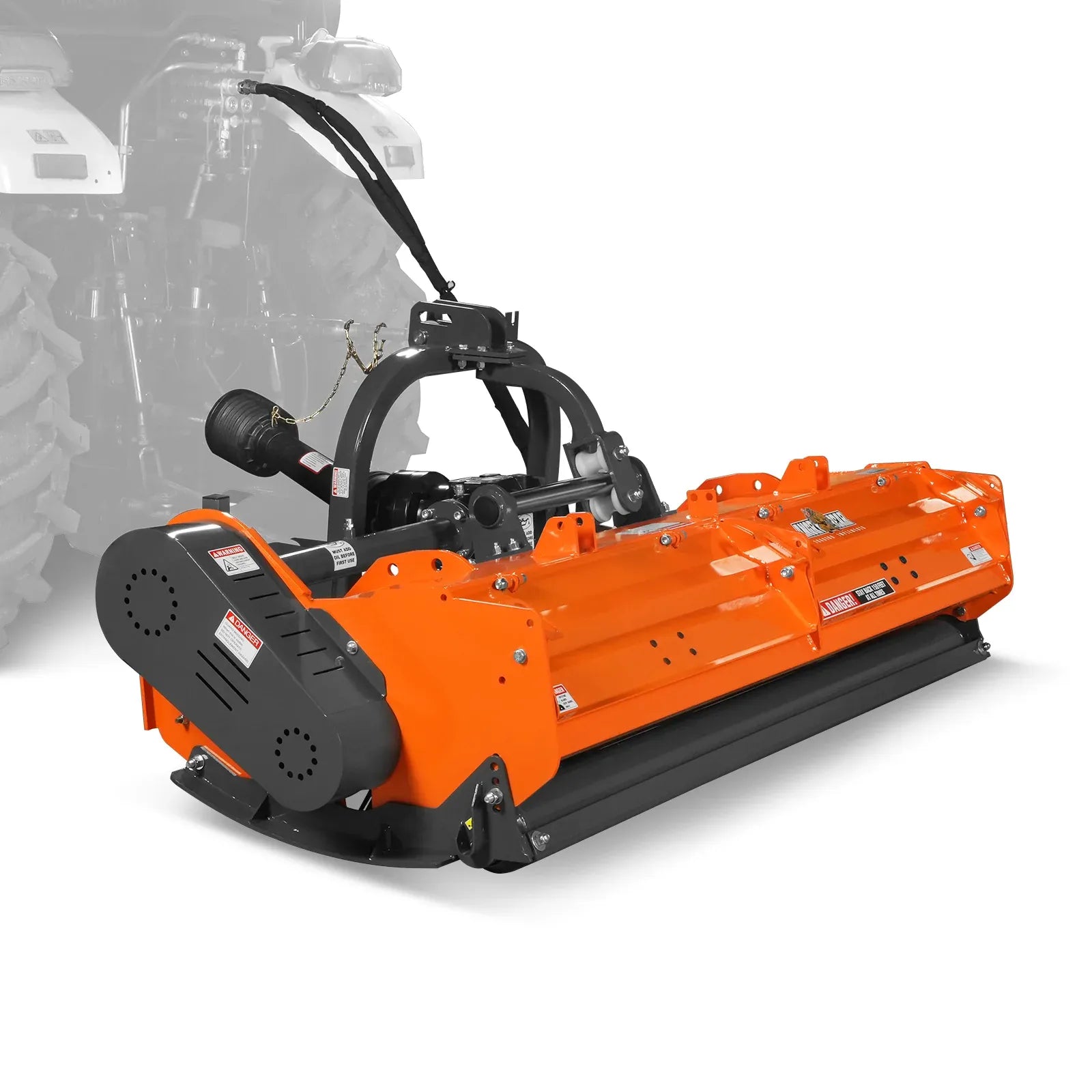

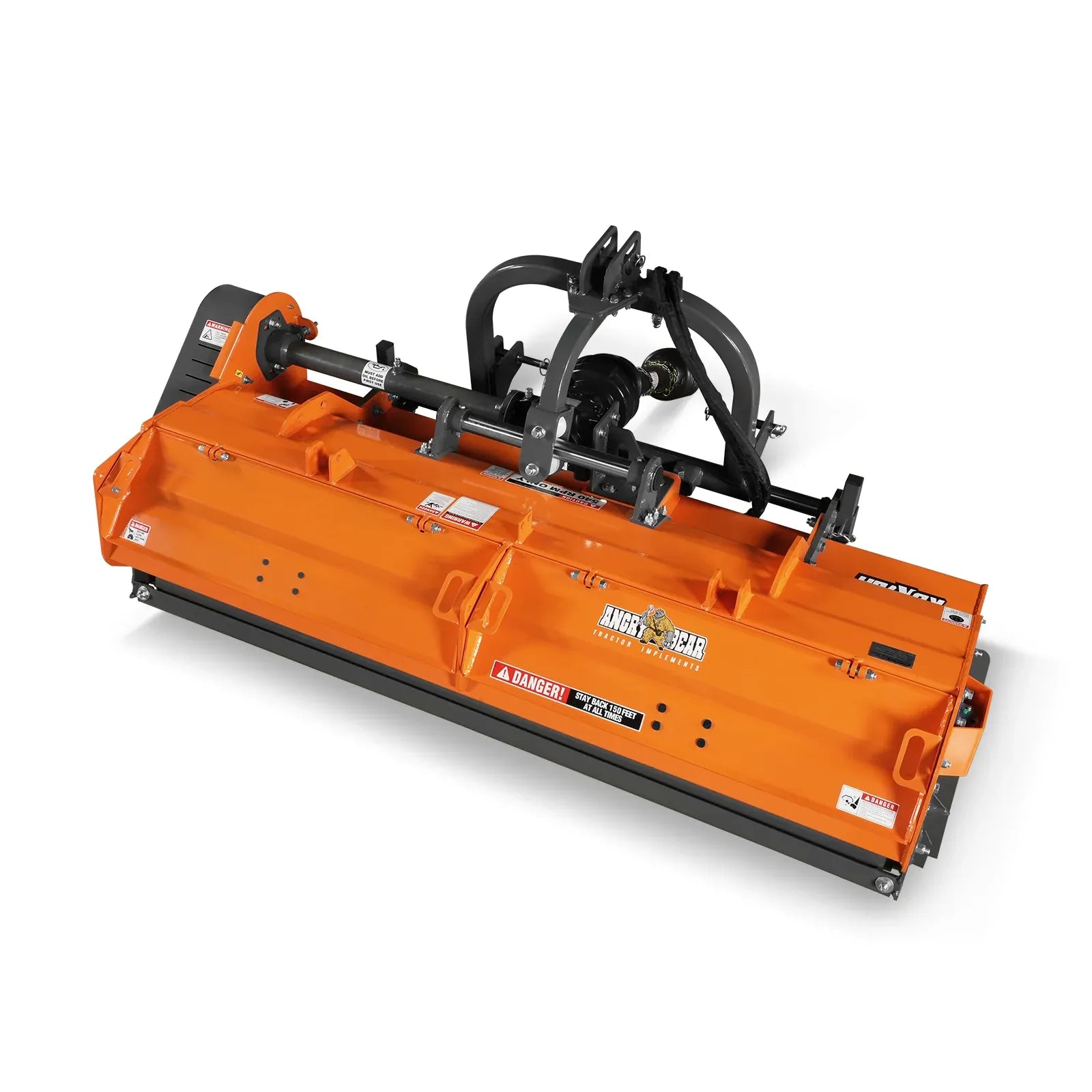

MechMaxx 78" Heavy Duty PTO Flail Mower with Hydraulic Side Shift, 3-Point Hitch, 50–85HP, Model KDK78H
SKU: 150207 | Model: KDK78H
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The MechMaxx KDK78H flail mower is designed for high-output mowing where durability, reach, and efficiency are critical. With a wide 78-inch cutting path and hydraulic side offset capability, this mower is ideal for large fields, roadside maintenance, fence lines, and perimeter work.
Built for 50–85 HP tractors, the KDK78H combines a reinforced steel frame, premium drivetrain components, and advanced belt system to deliver consistent performance across demanding terrain and dense vegetation.
Key Features & Benefits
- 78" Working Width – maximizes coverage for faster mowing on large properties and commercial applications

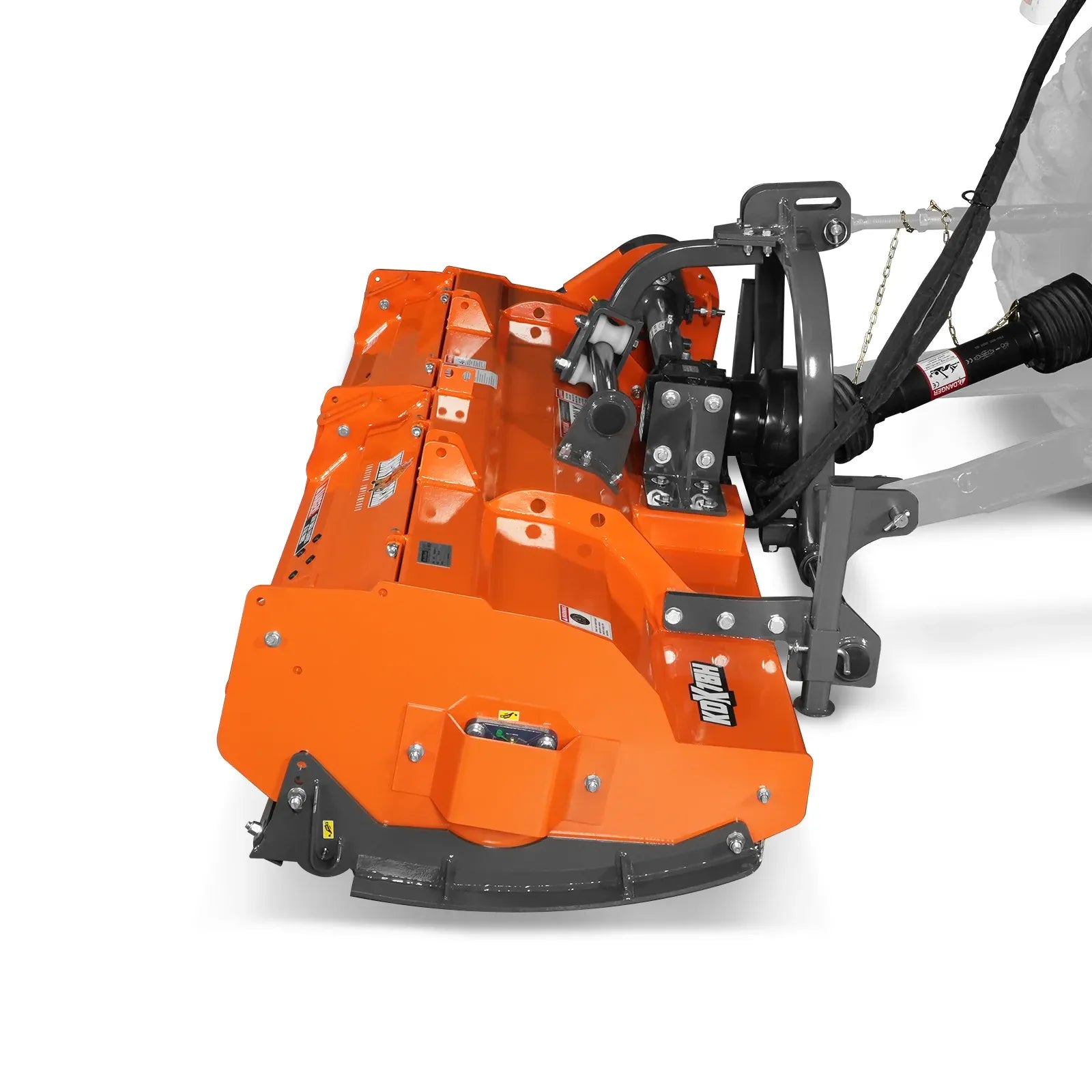

- Hydraulic Side Offset (Up to 13.4") – shift the mower left or right to reach beyond tractor width for edge trimming and obstacle clearance

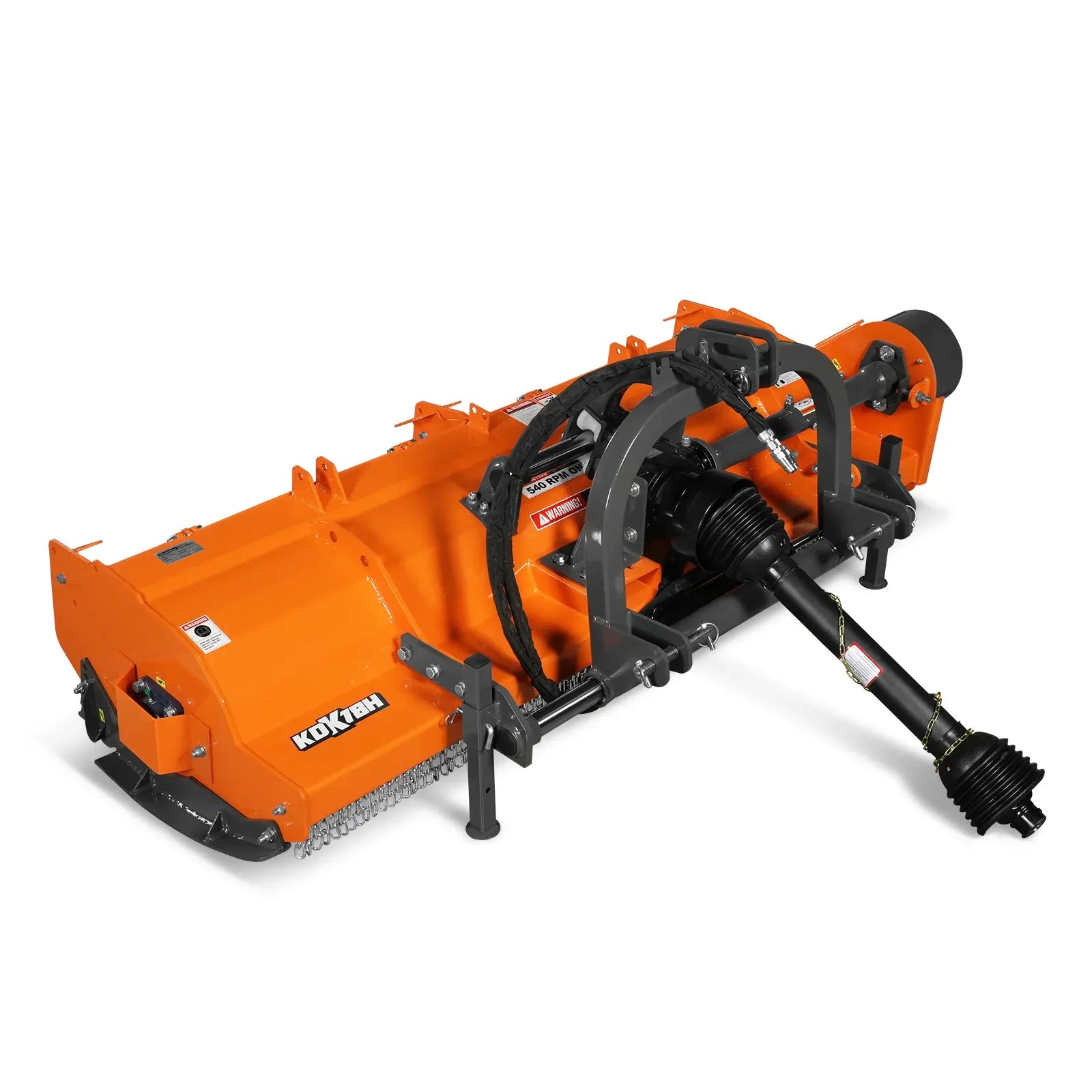

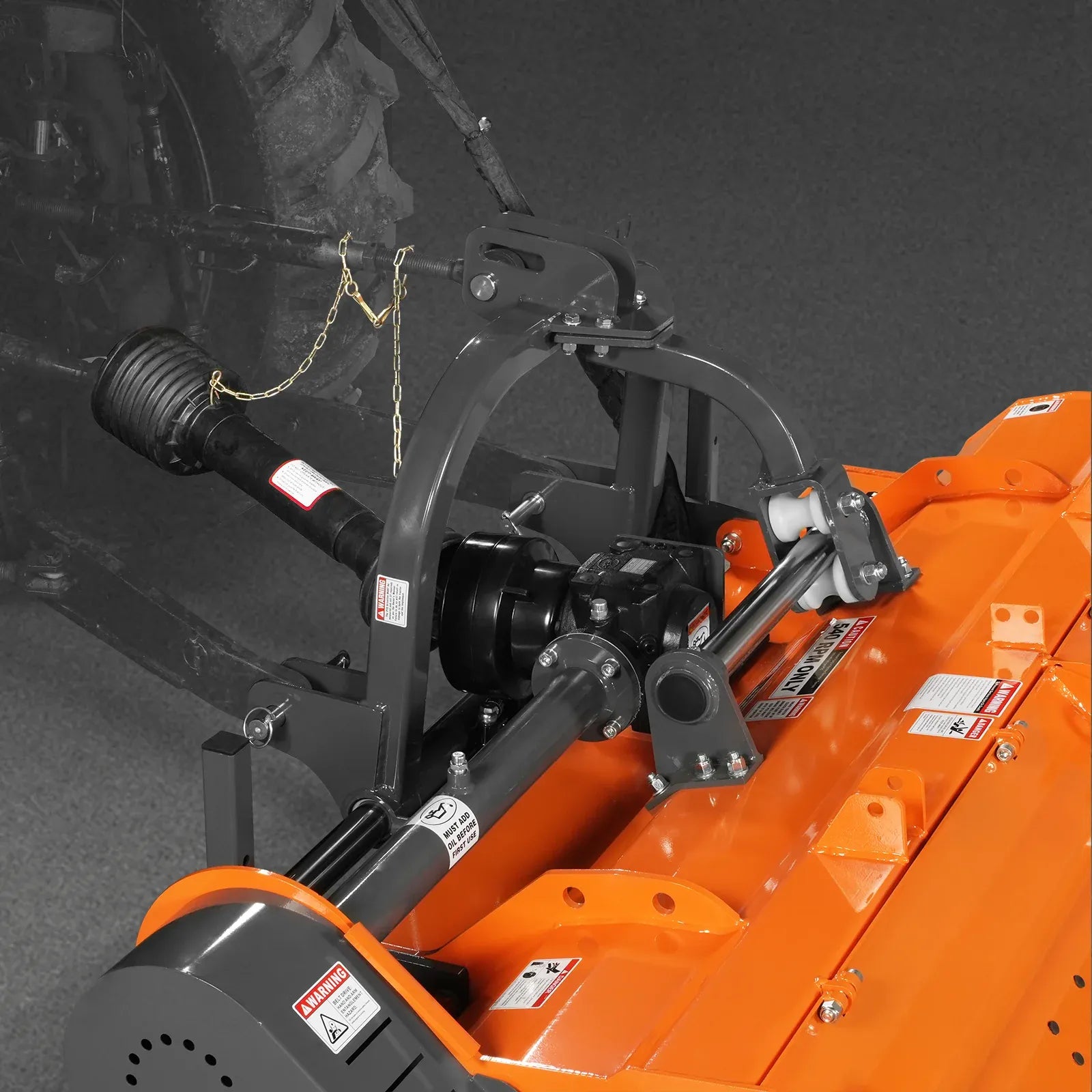

- Heavy-Duty PTO System (1-3/8" Z6, 540 RPM) – ensures universal compatibility and reliable power transfer
- Spring-Loaded Automatic Belt Tensioner – maintains consistent belt tension to improve efficiency and extend component life
- Category 2, 3-Point Hitch – provides a rigid, stable connection for higher horsepower tractors
- Designed for tractors in the 50–85 HP range
- Handles thick grass, weeds, and overgrown vegetation
- Ideal for large acreage, roadside work, and heavy-duty land maintenance
- Produces a cleaner, mulched finish compared to rotary cutters
- Italian CMR Gearbox – efficient power transmission with reduced wear and long service life
- SKF External Rotor Bearings – high-quality bearings designed for heavy loads and smooth operation
- Heavy-Duty Steel Frame – built to handle continuous use in demanding environments

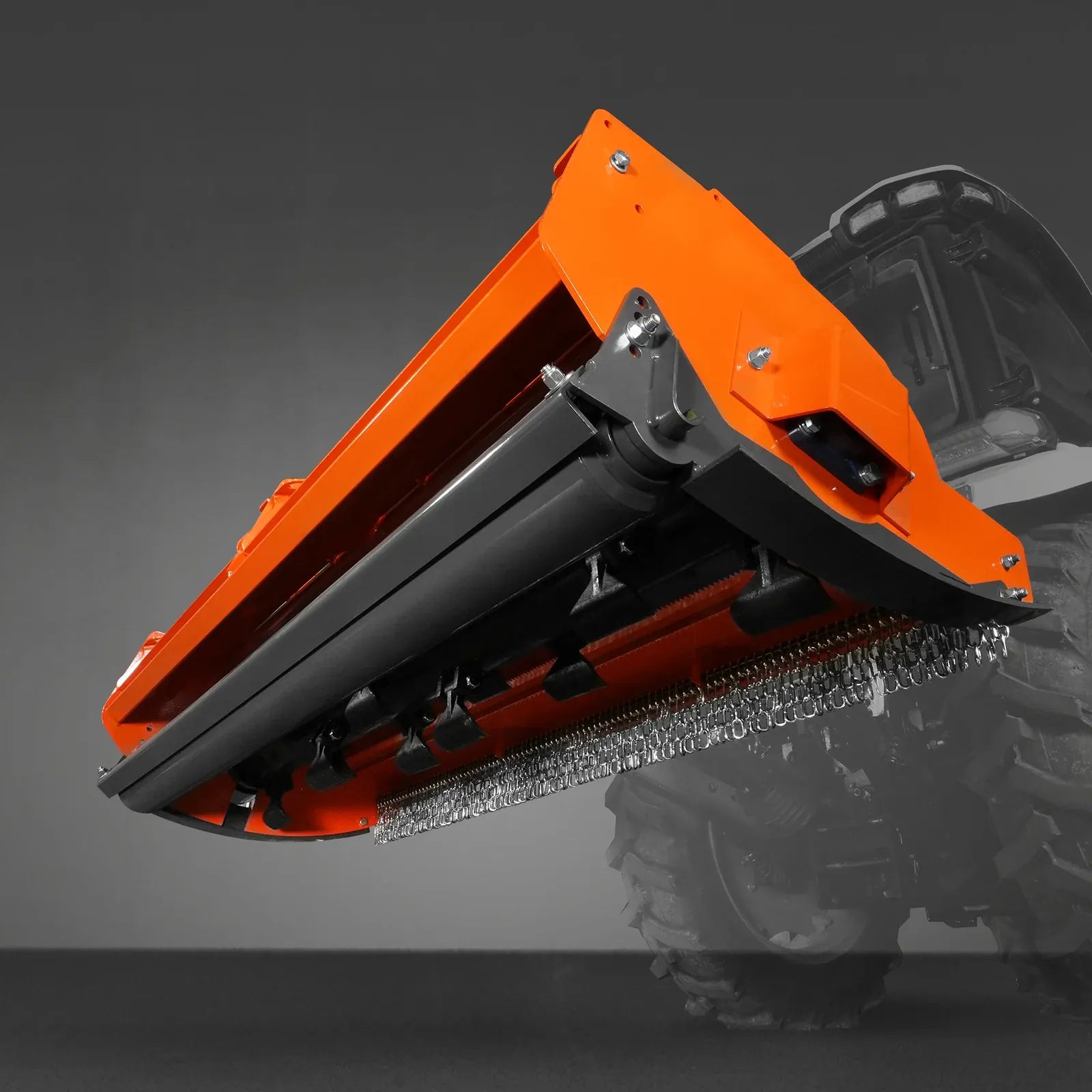

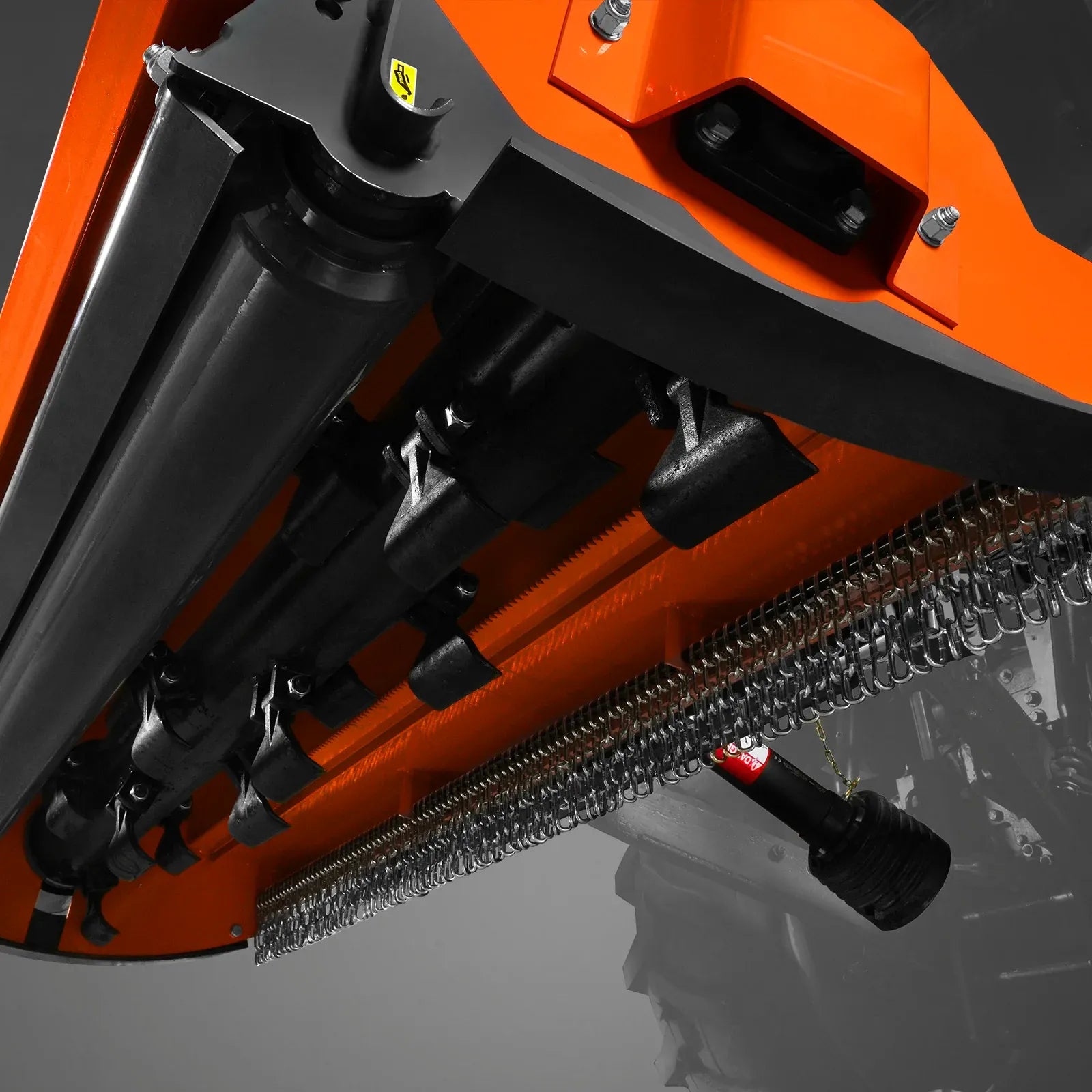

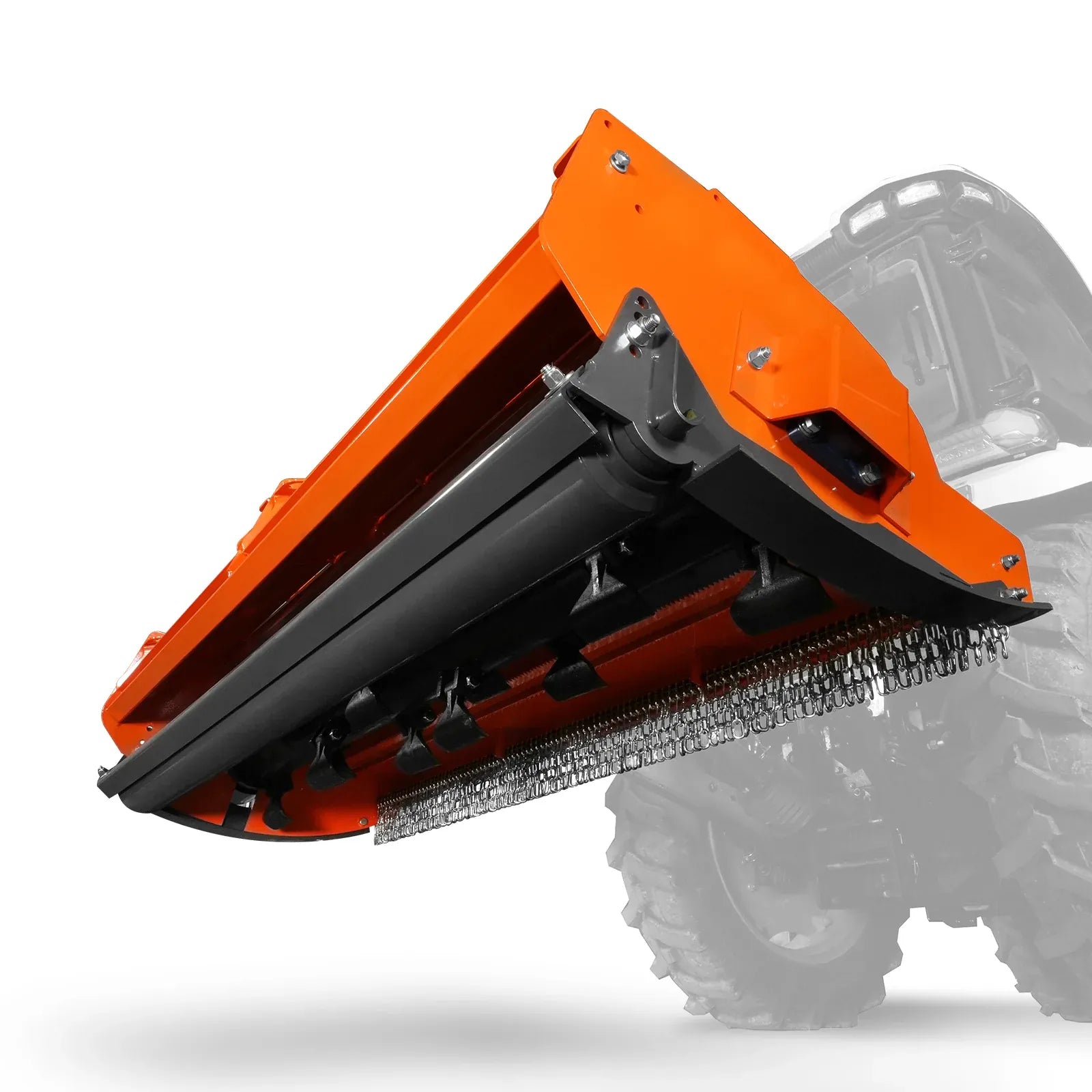

- Adjustable Rear Roller with Scraper – provides precise cutting height control and improved debris management
- Height-Adjustable Side Skids – protects ground surfaces and improves stability on uneven terrain

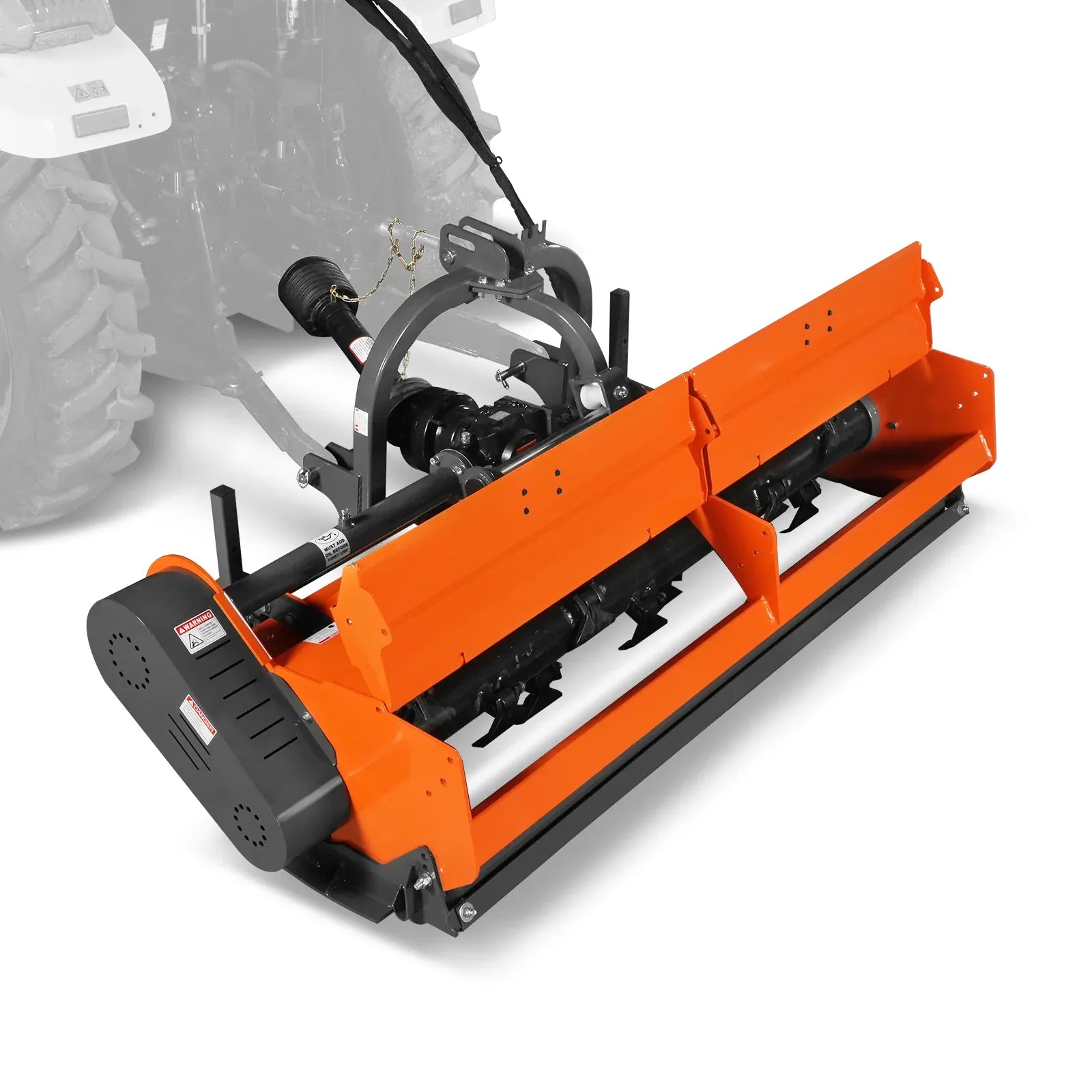

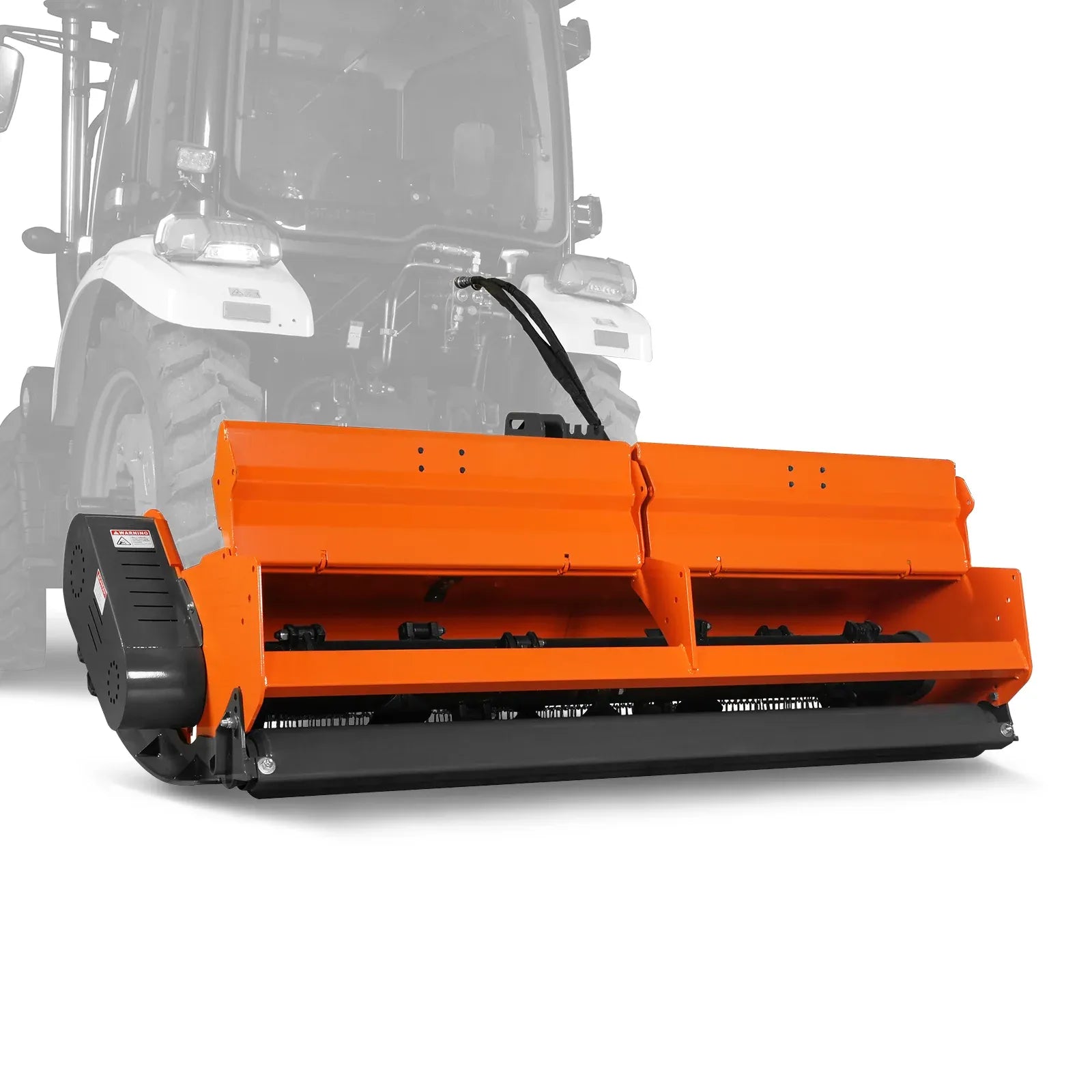

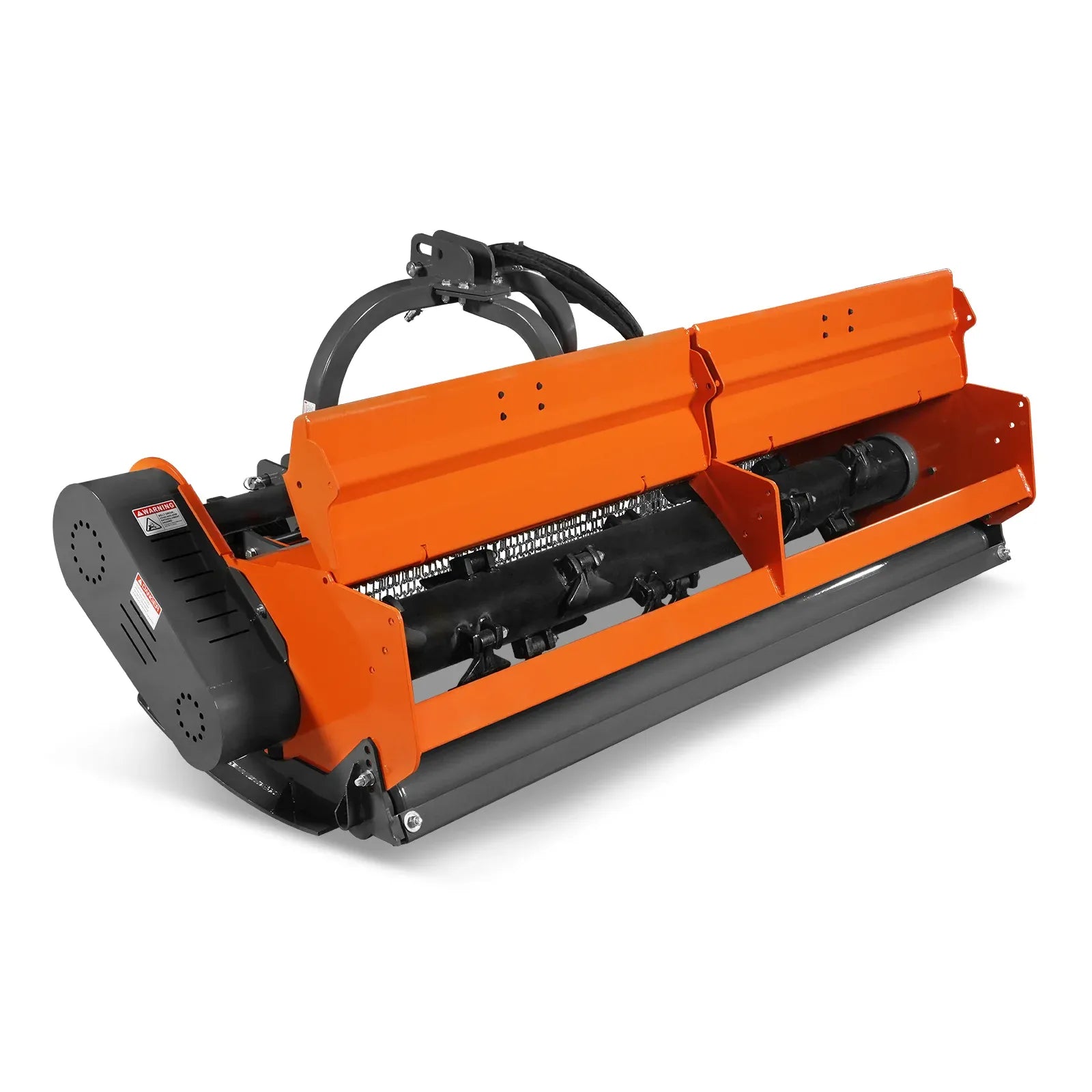

- Openable Rear Cover – allows quick access for blade maintenance and clearing debris
| Specifications | Details |
|---|---|
| Model | KDK78H |
| Tractor Requirement | 50–85 HP |
| Working Width | 78 in |
| Hitch Type | Category 2 |
| PTO Speed | 540 RPM |
| PTO Shaft | 1-3/8" Z6 |
| Side Offset | Up to 13.4 in |

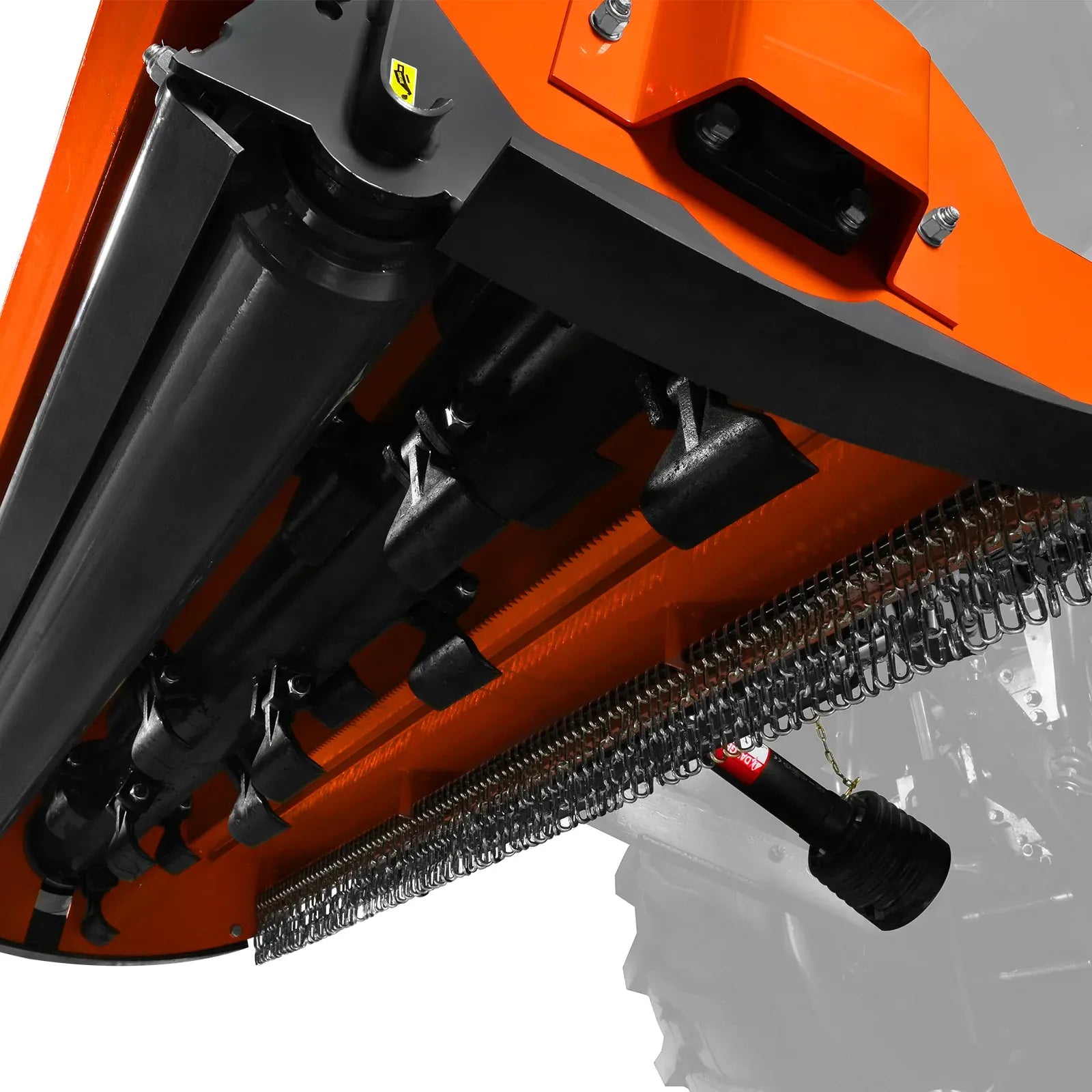

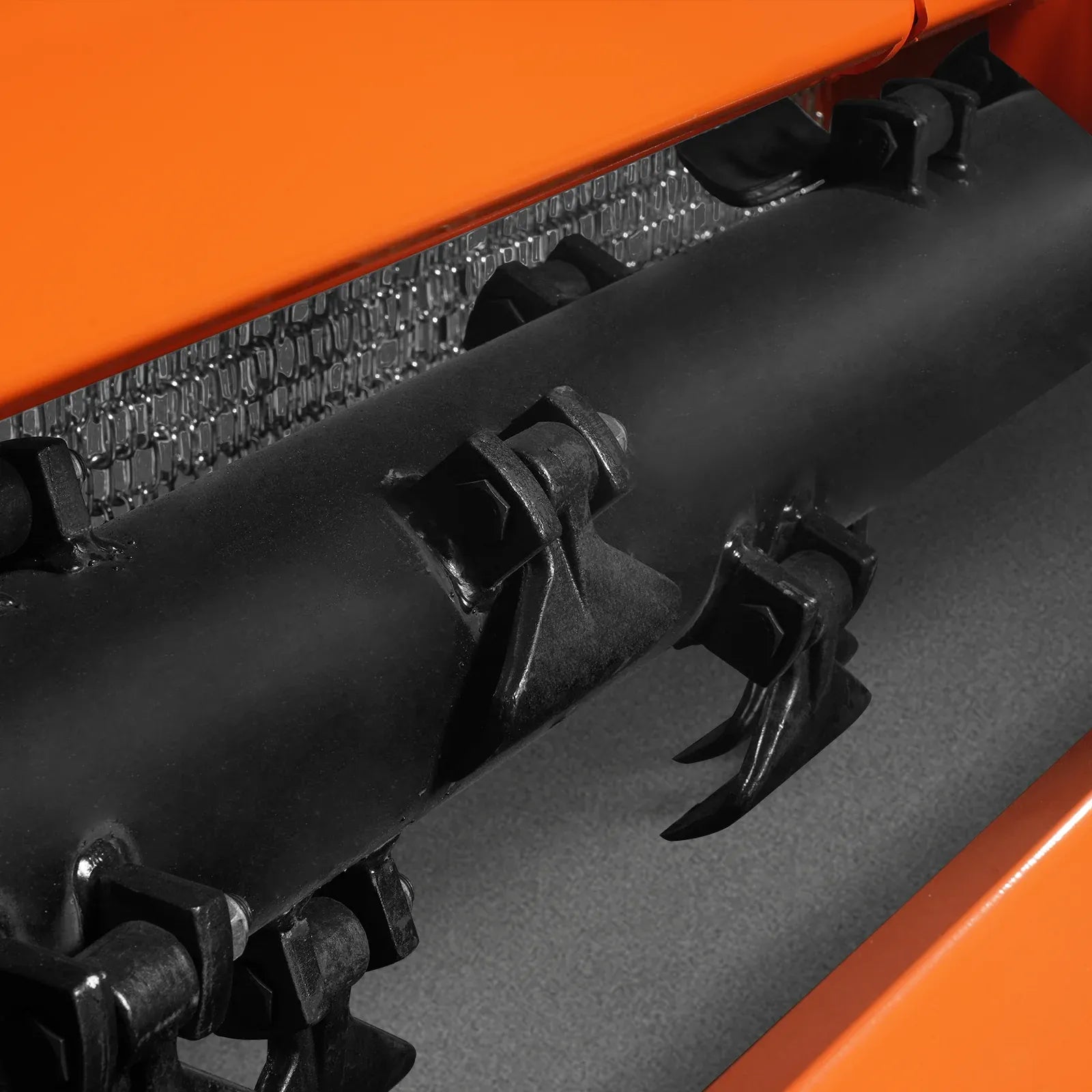

| Flail Type | Hammer |
| Number of Flails | 18 |
| Drive Type | Belt Drive |
| Gearbox | Italian CMR |
| Bearings | SKF External Bearings |
| Structure Weight | ~1,160 lbs |
