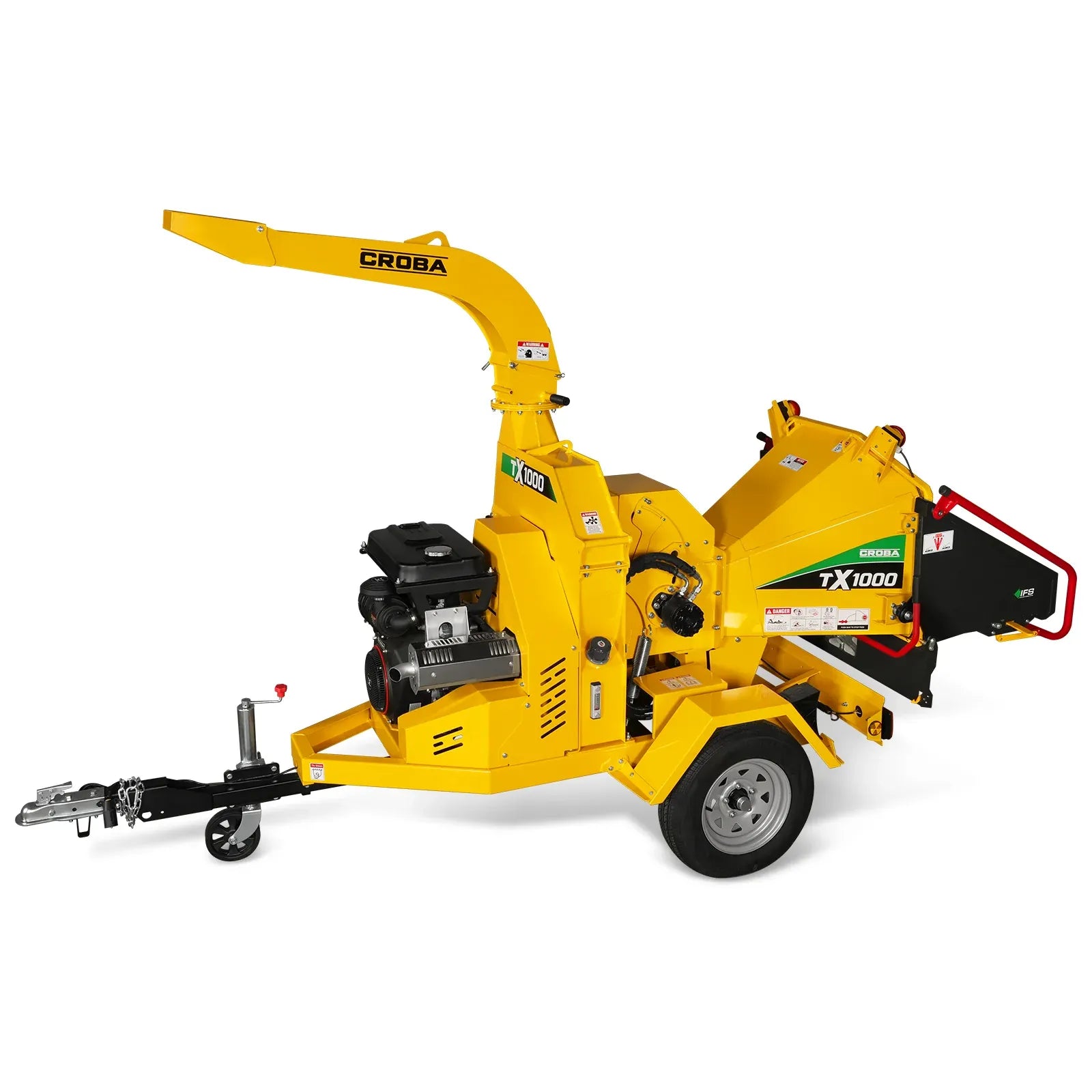

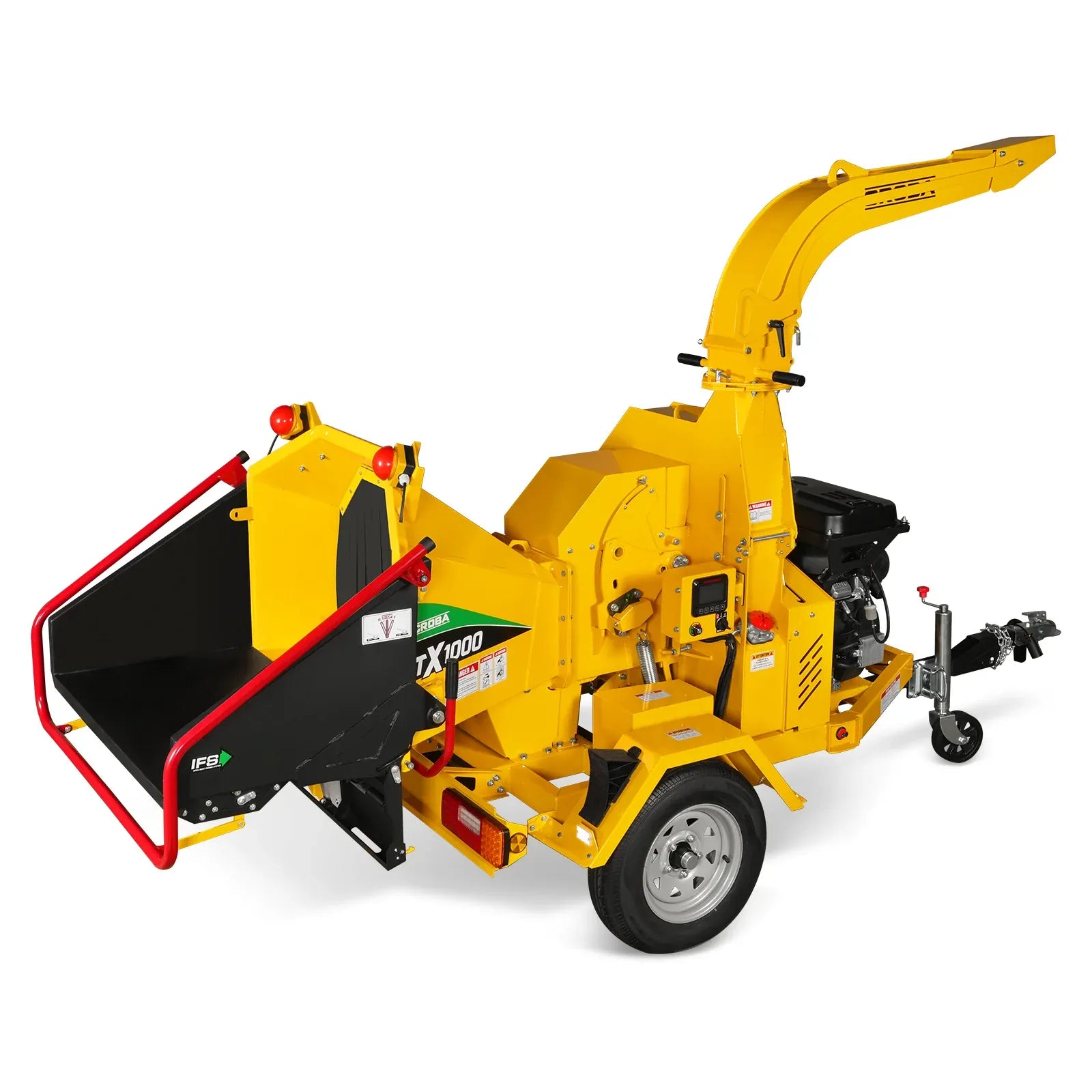

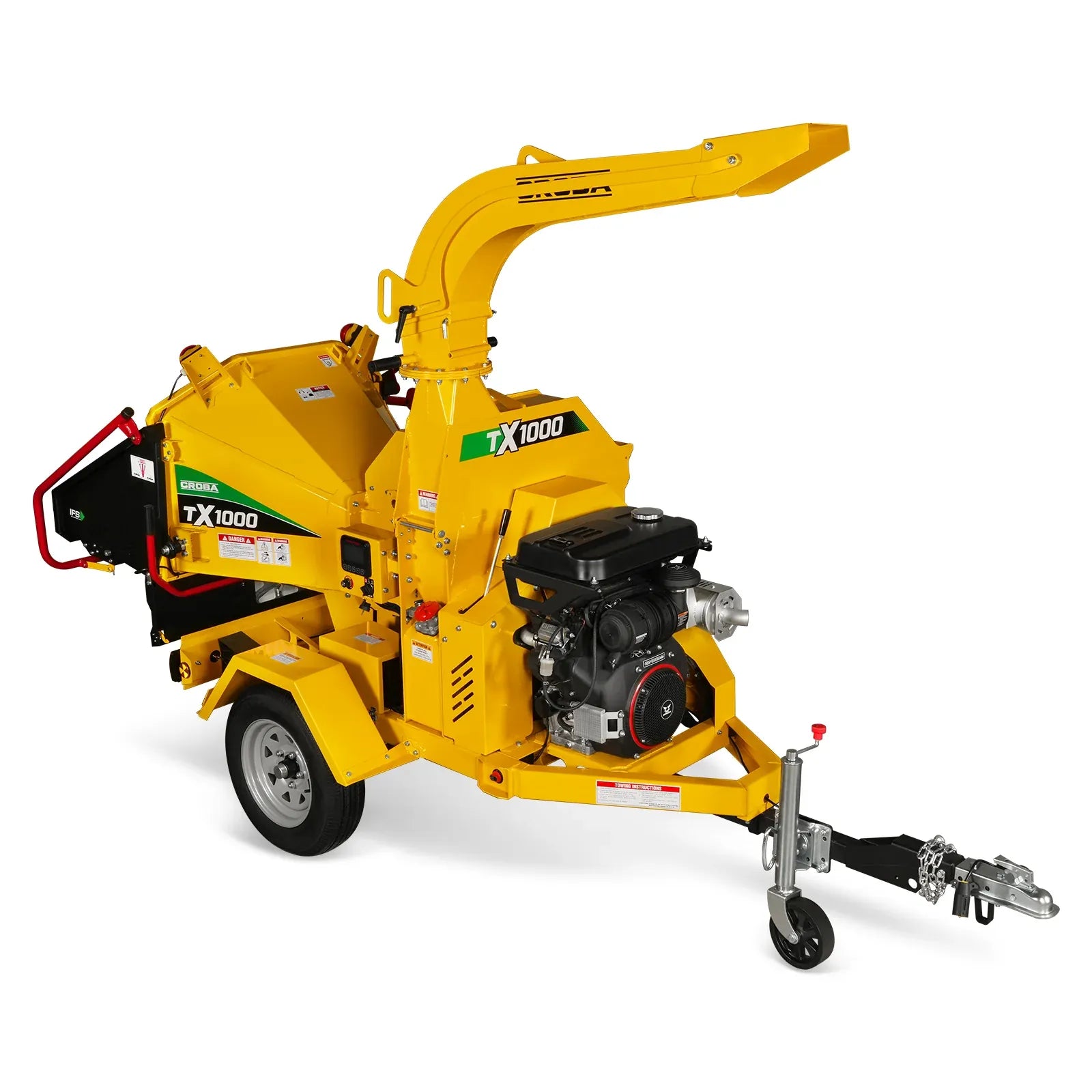

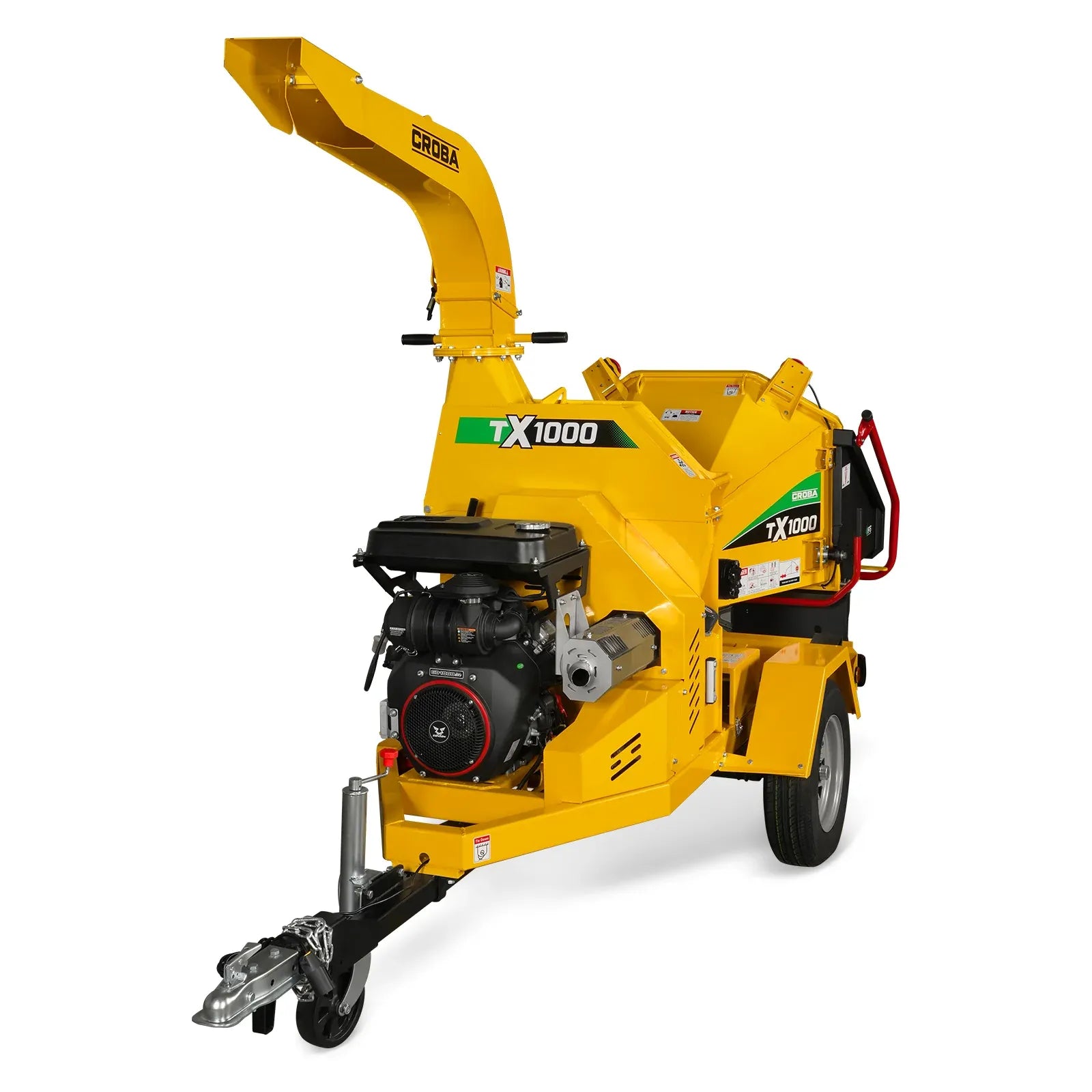

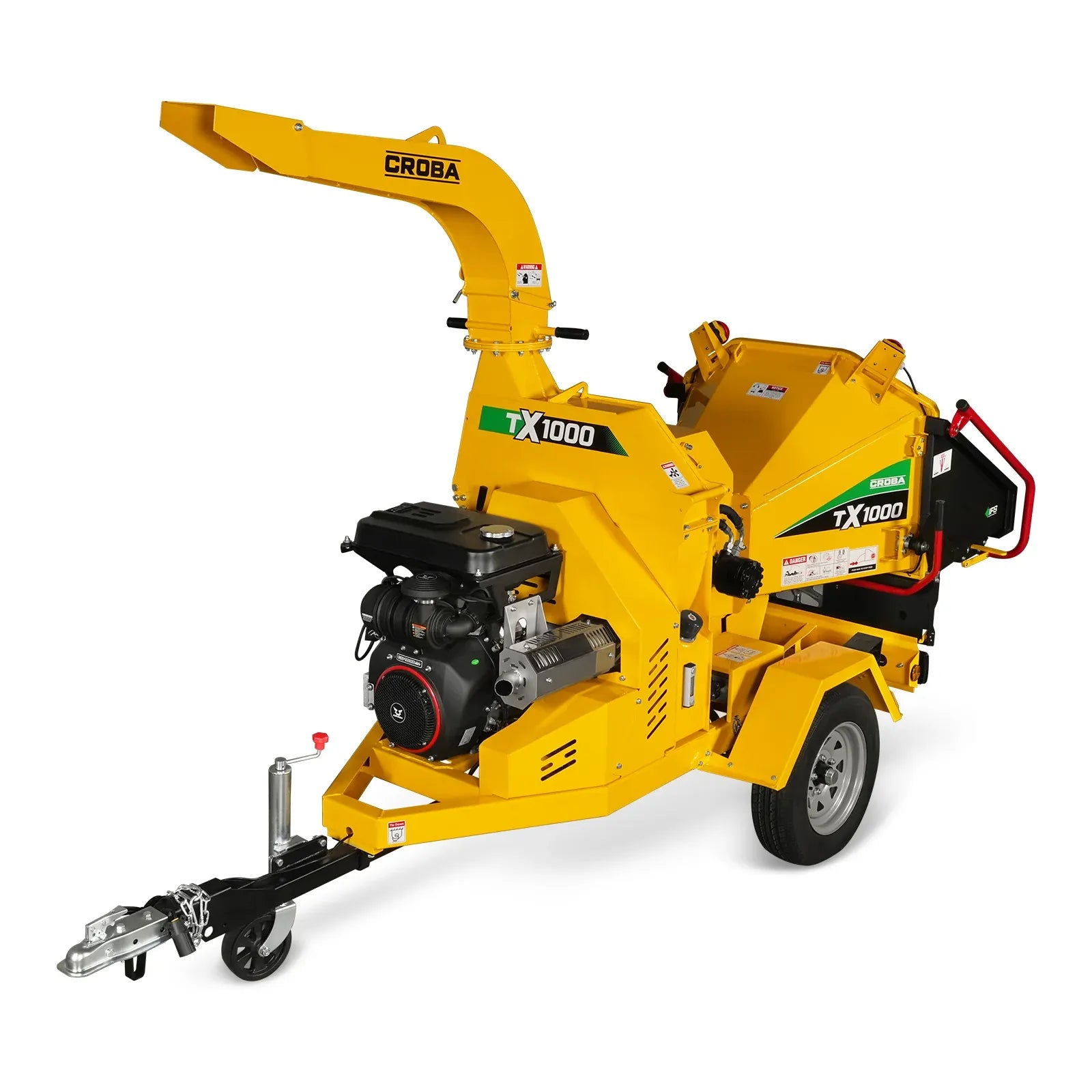

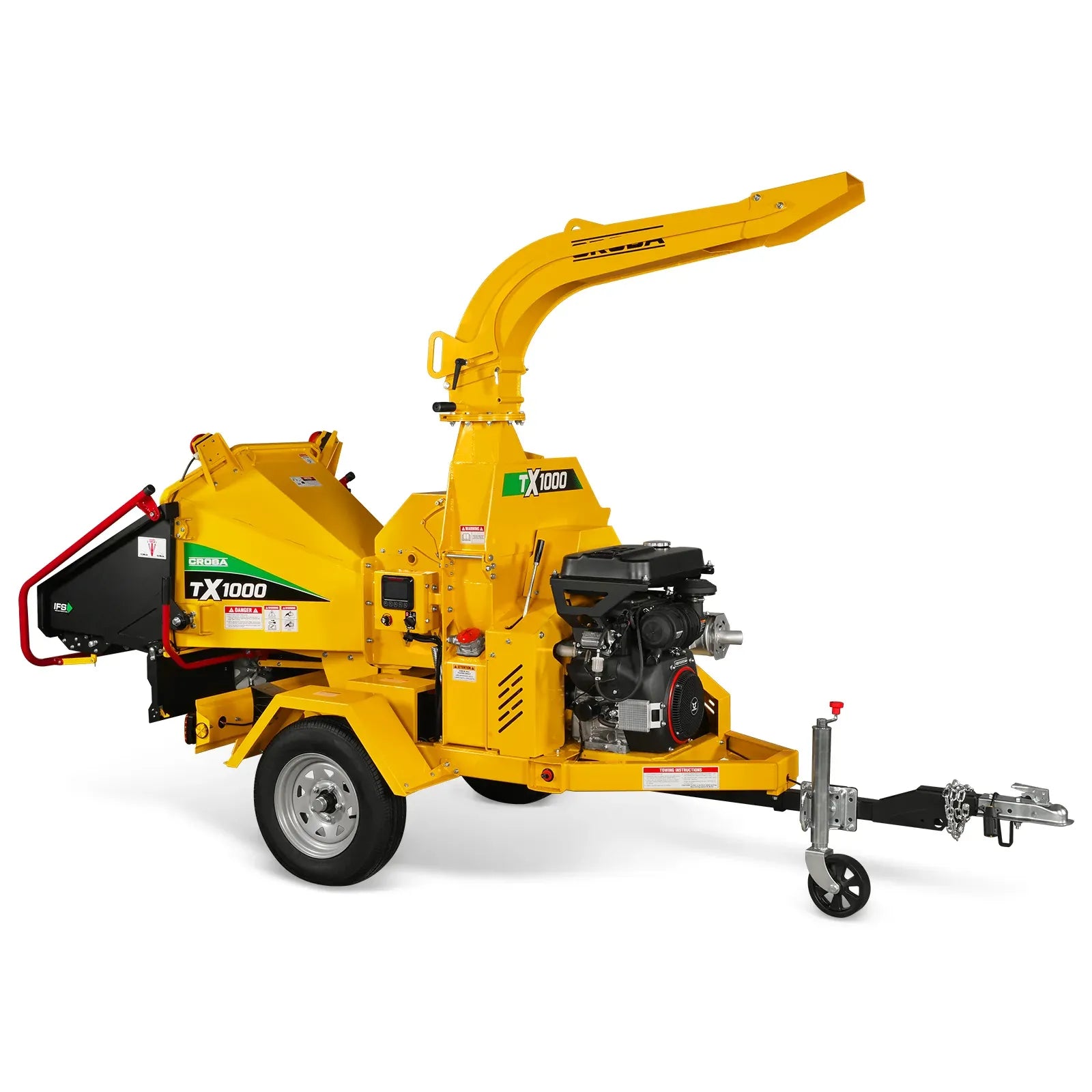

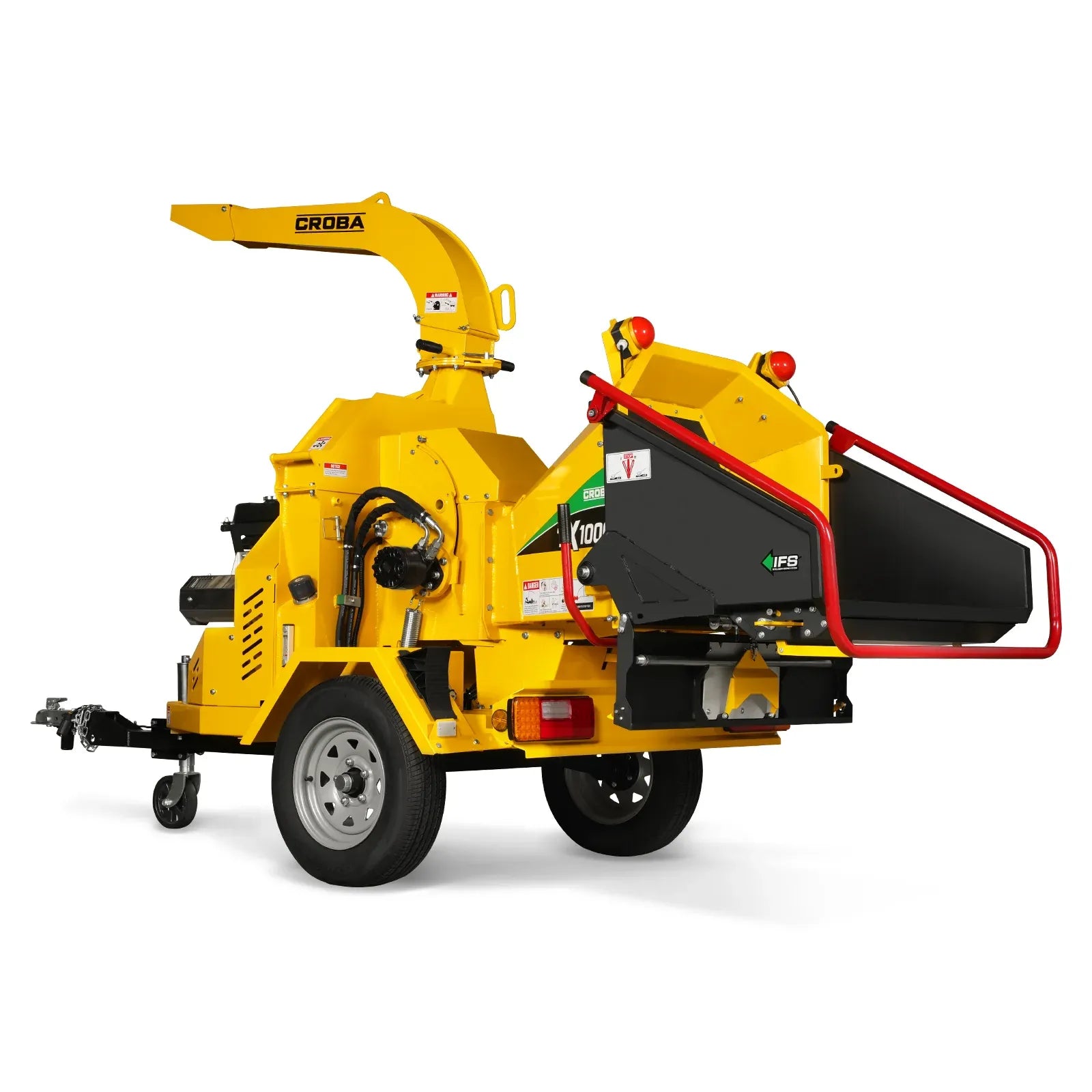

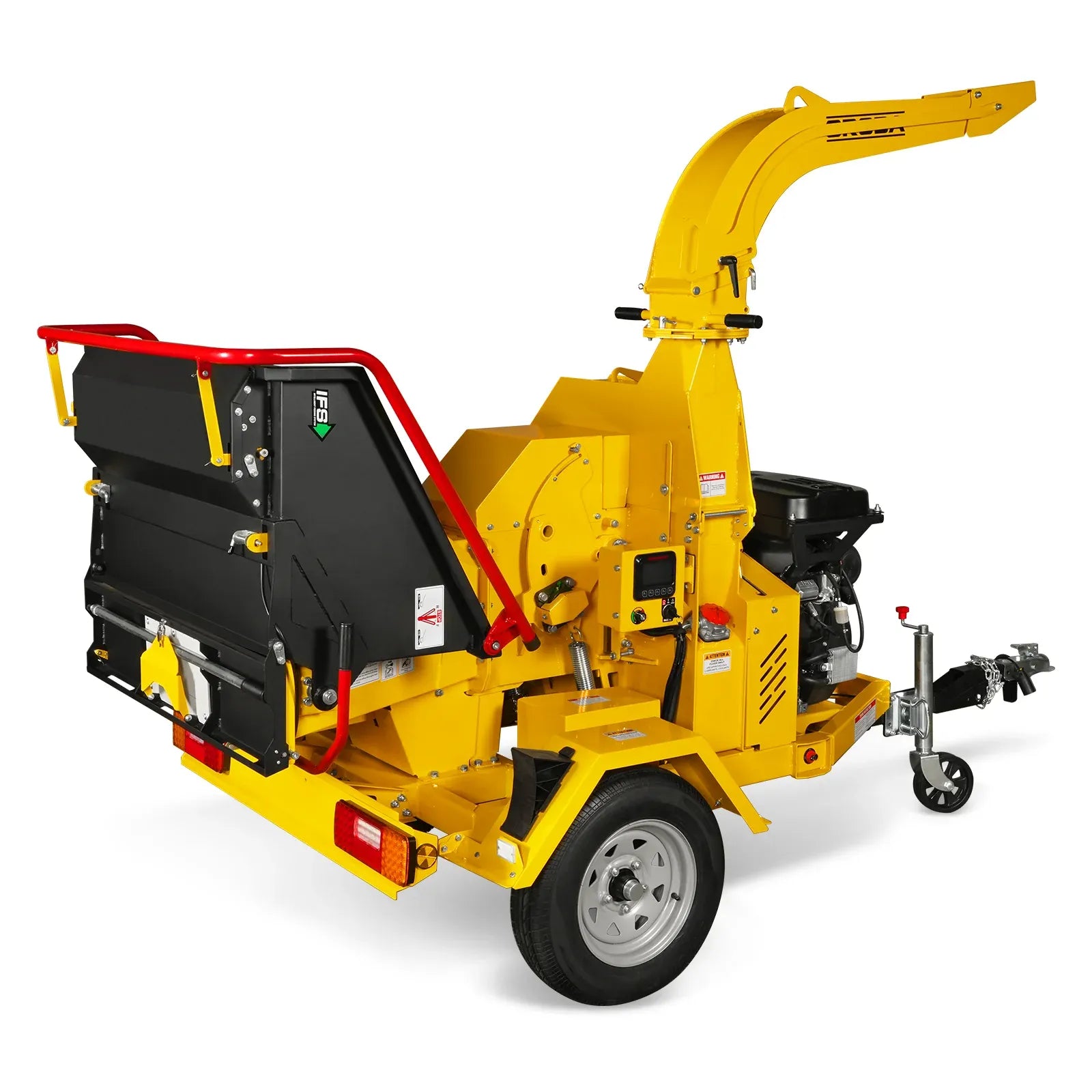

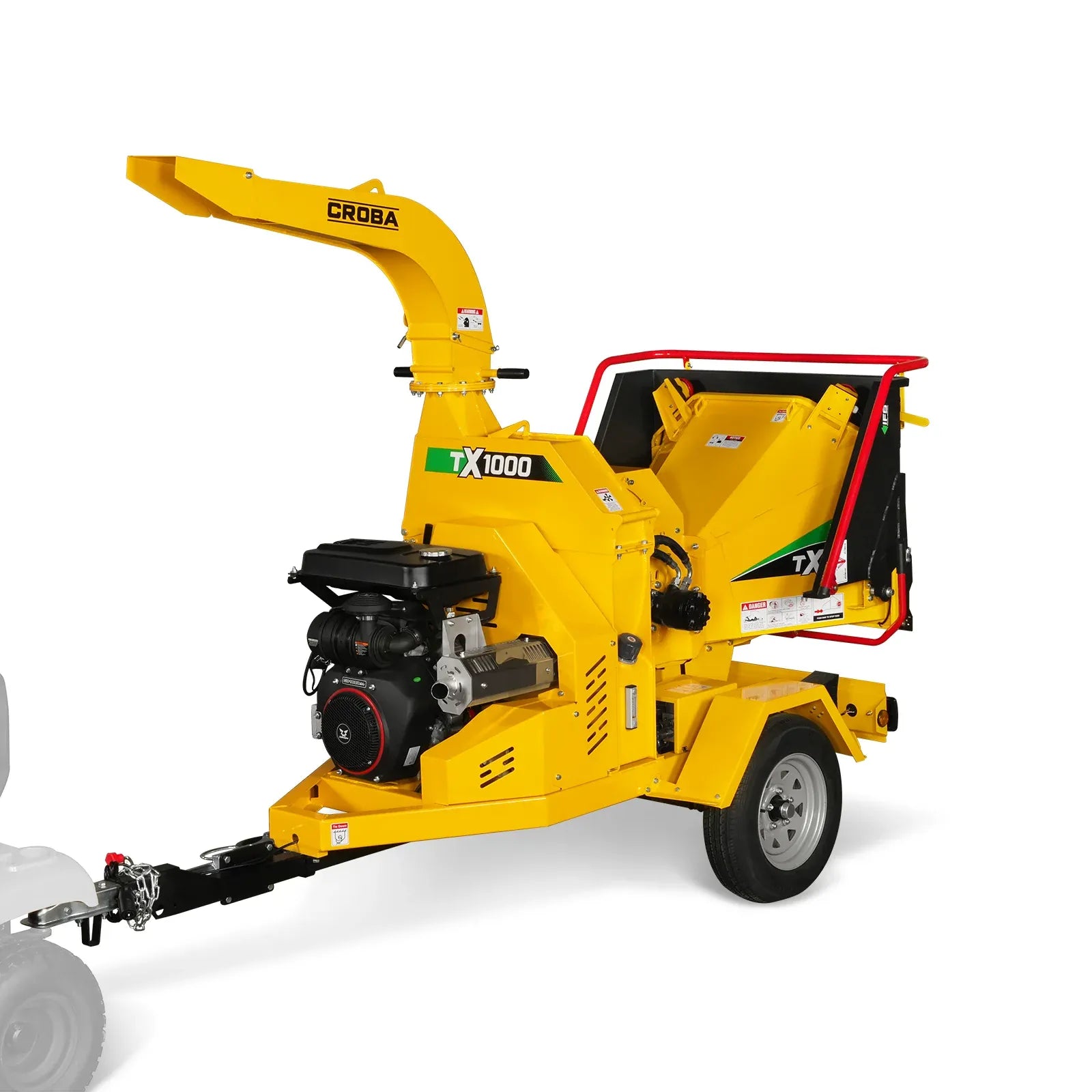

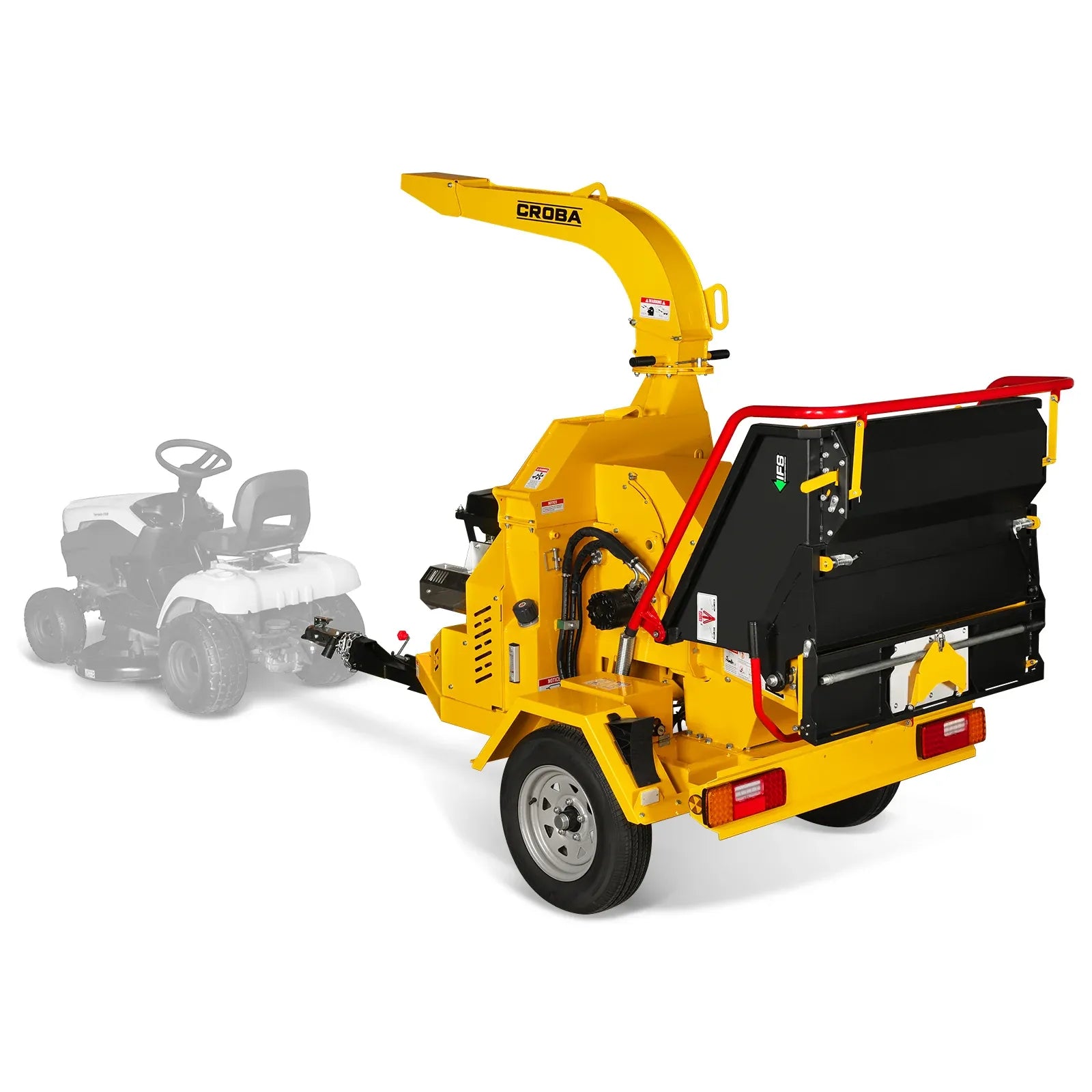

MechMaxx 8" 35HP 1000cc ZONSEN Commercial Hydraulic Wood Chipper, Model TX1000
SKU: 110701 | Model: TX1000
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with

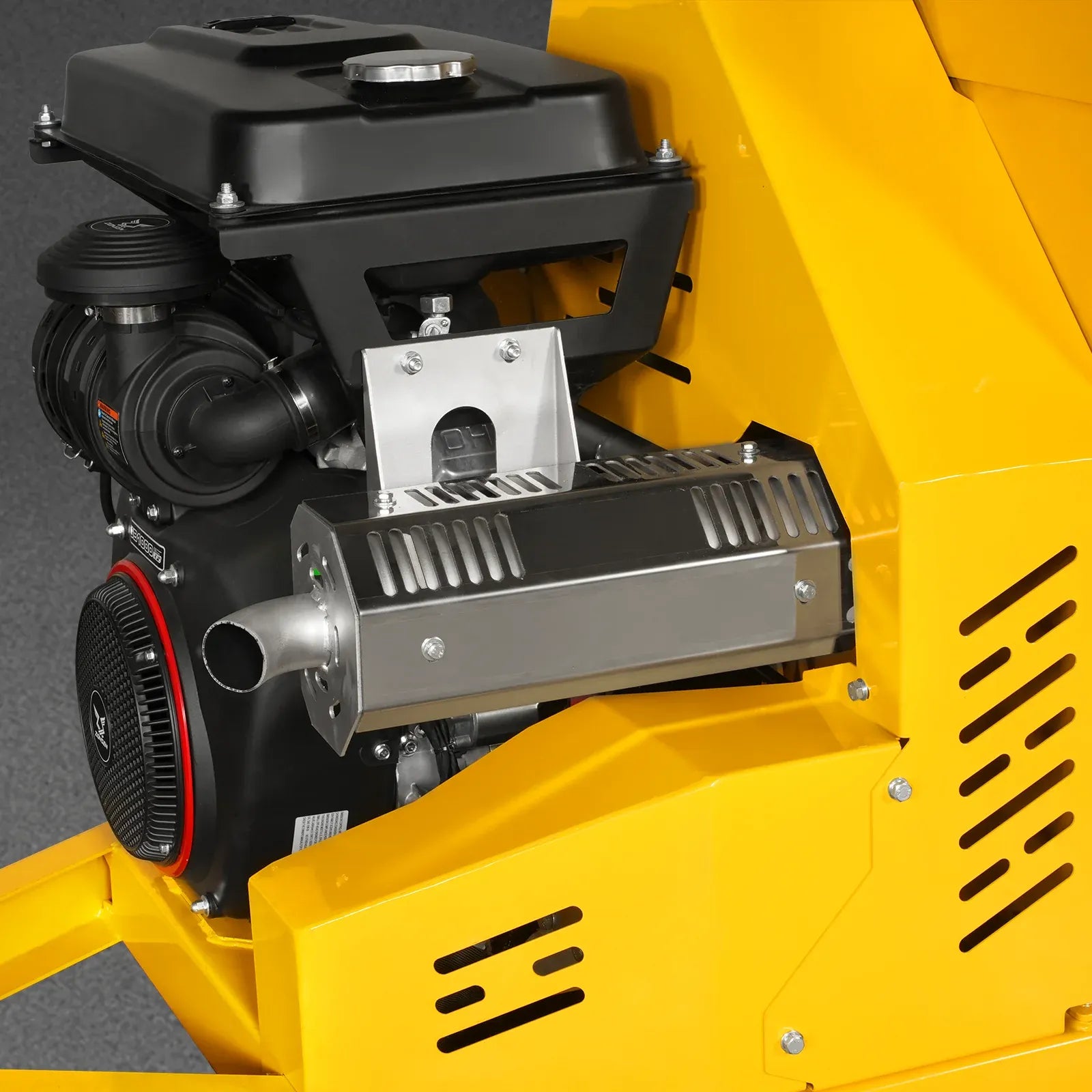

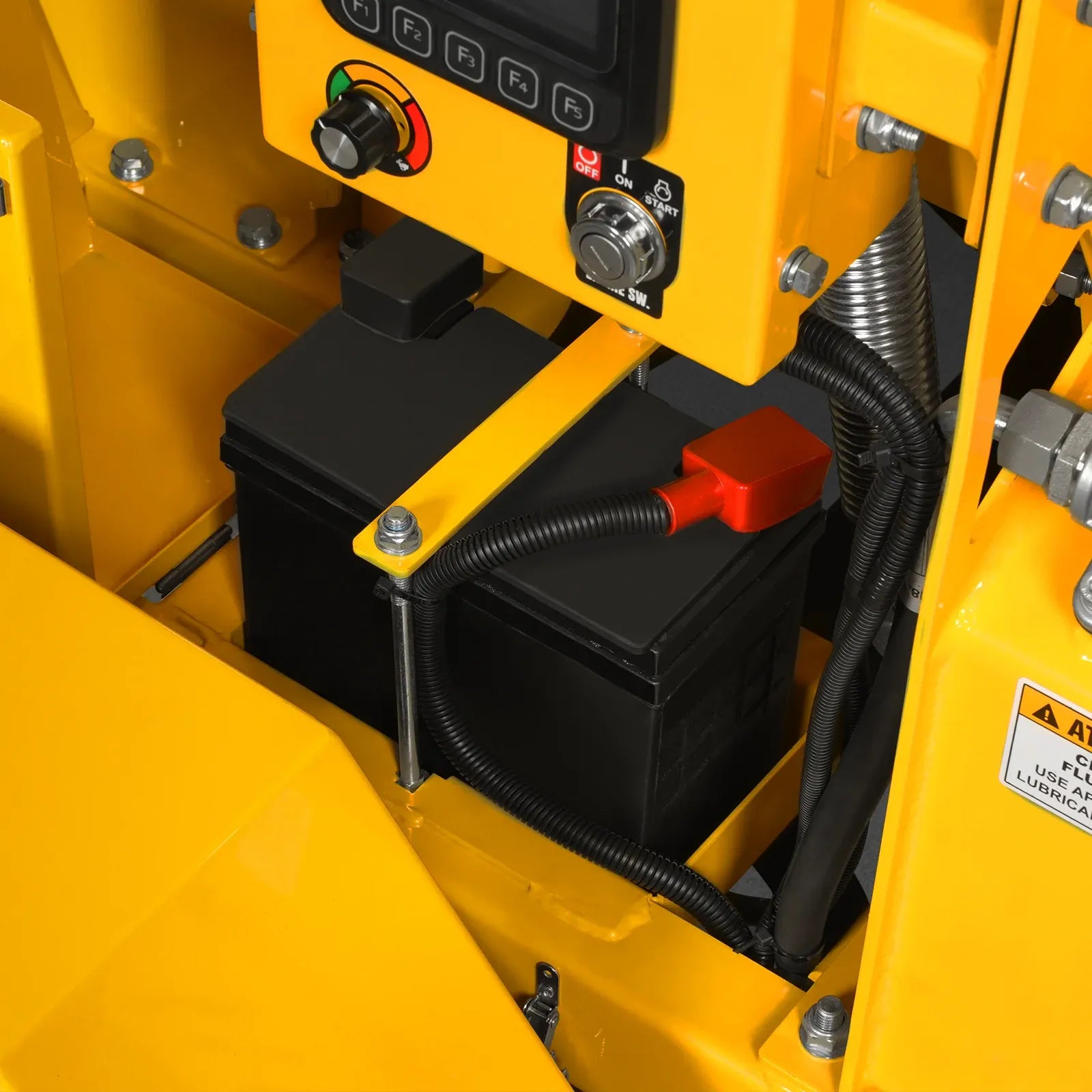

The TX1000 wood chipper is powered by a reliable 35HP gasoline engine and features an electric start system, supported by a 12V 48Ah battery for consistent performance.

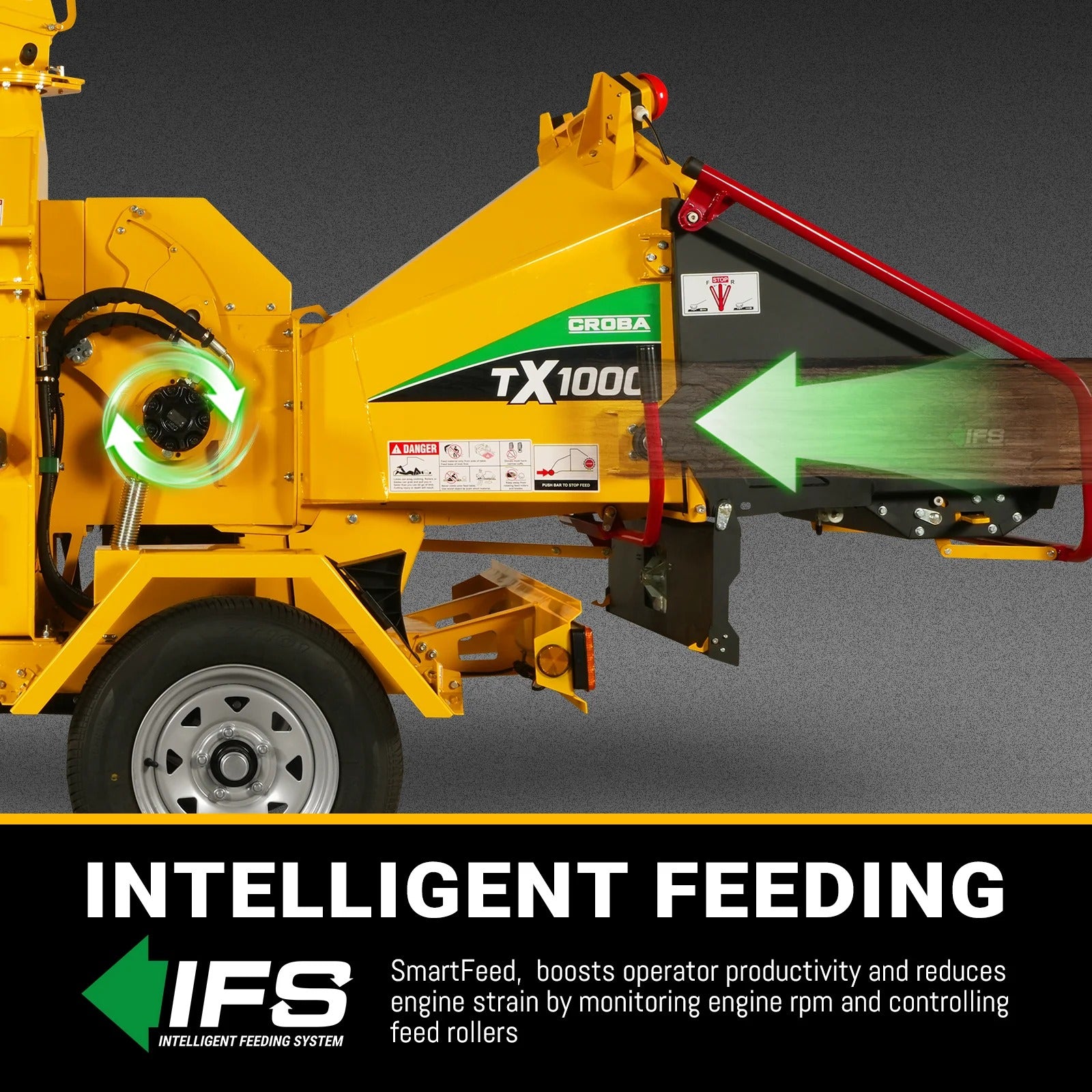

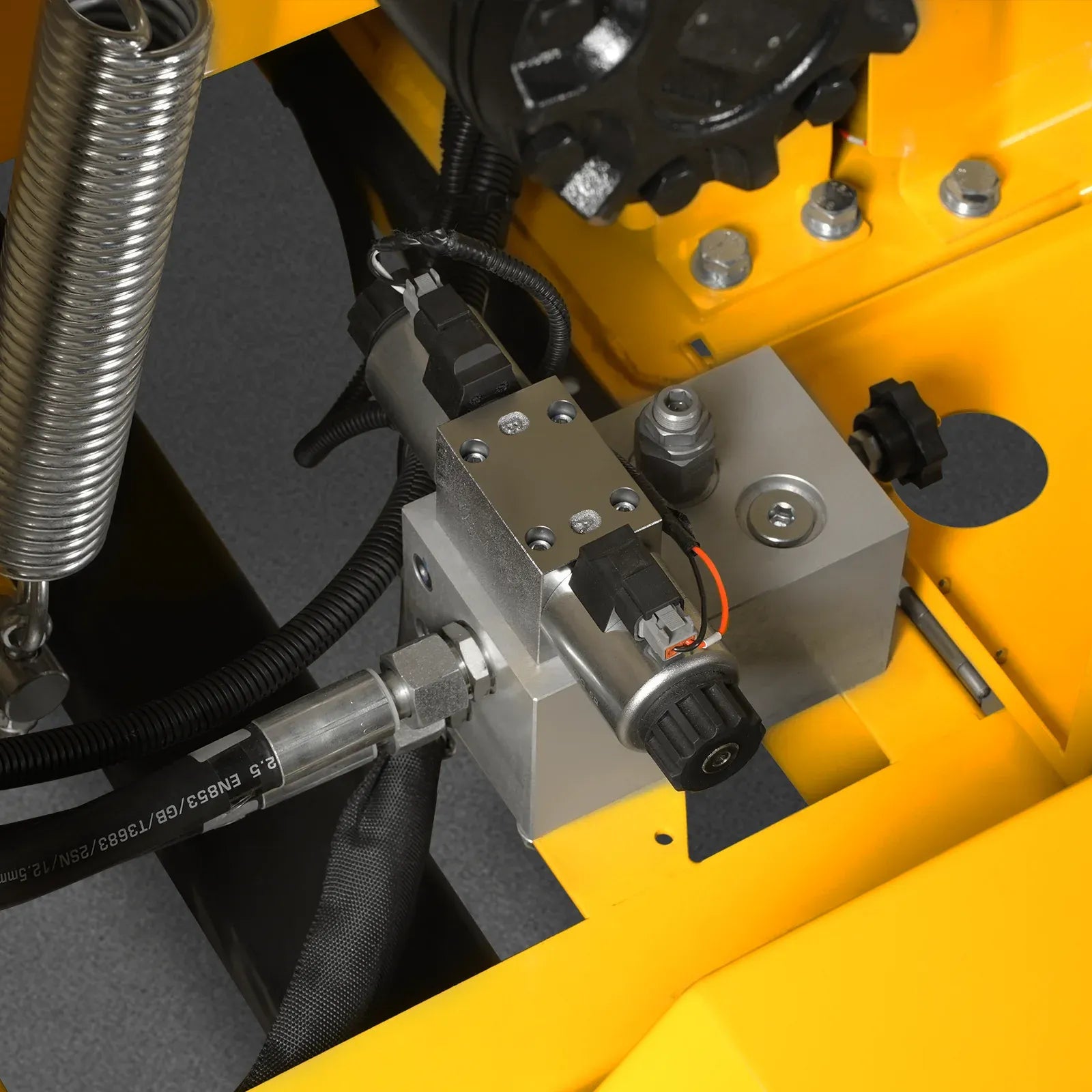

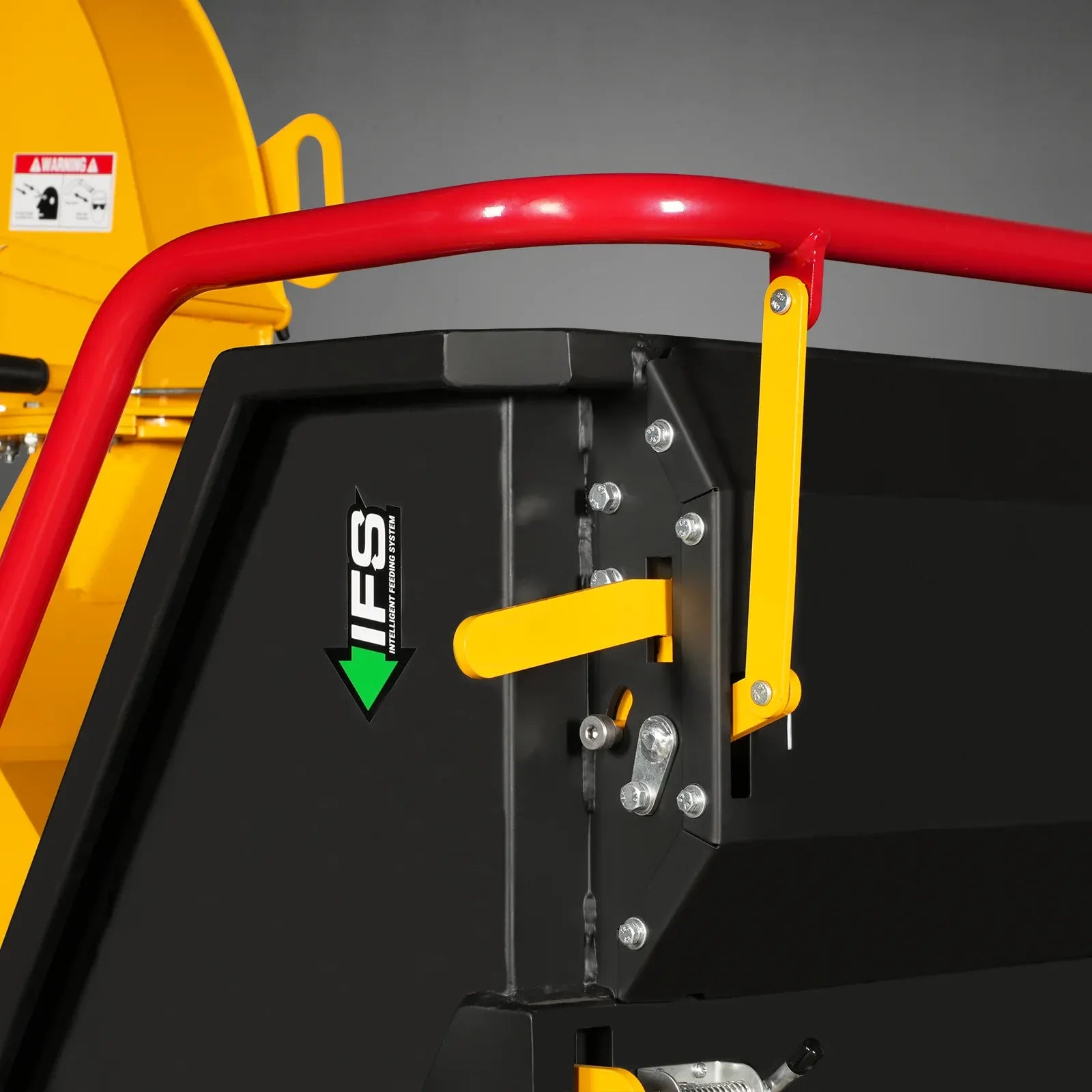

Equipped with an intelligent feeding system, the machine continuously monitors engine RPM and automatically adjusts the feed rollers. This helps improve overall efficiency while minimizing unnecessary strain on the engine during operation.
Built for demanding jobs, the TX1000 features a heavy-duty feed roller (Ø12 × 11 in) capable of processing branches up to 8 inches in diameter with strong, consistent performance.

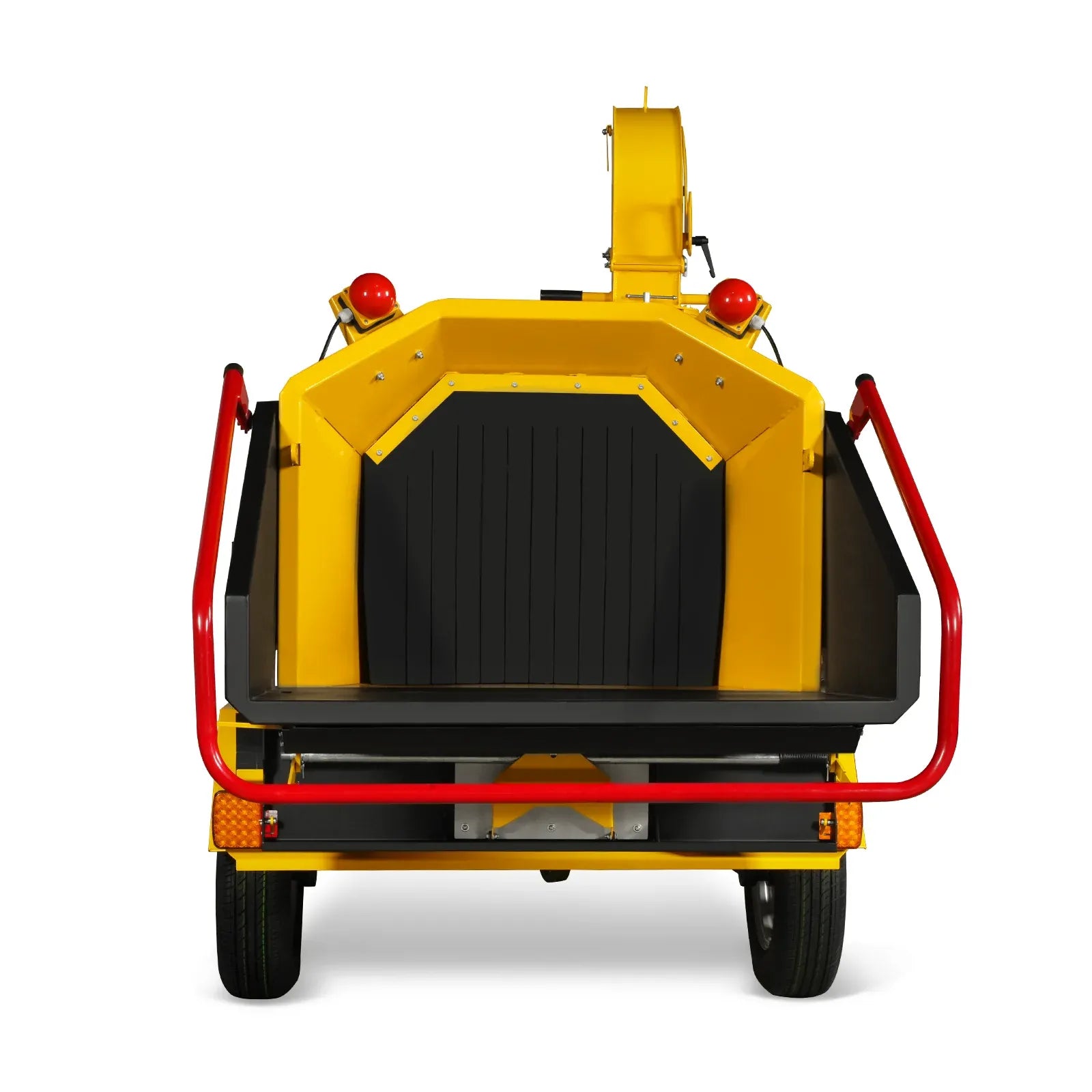

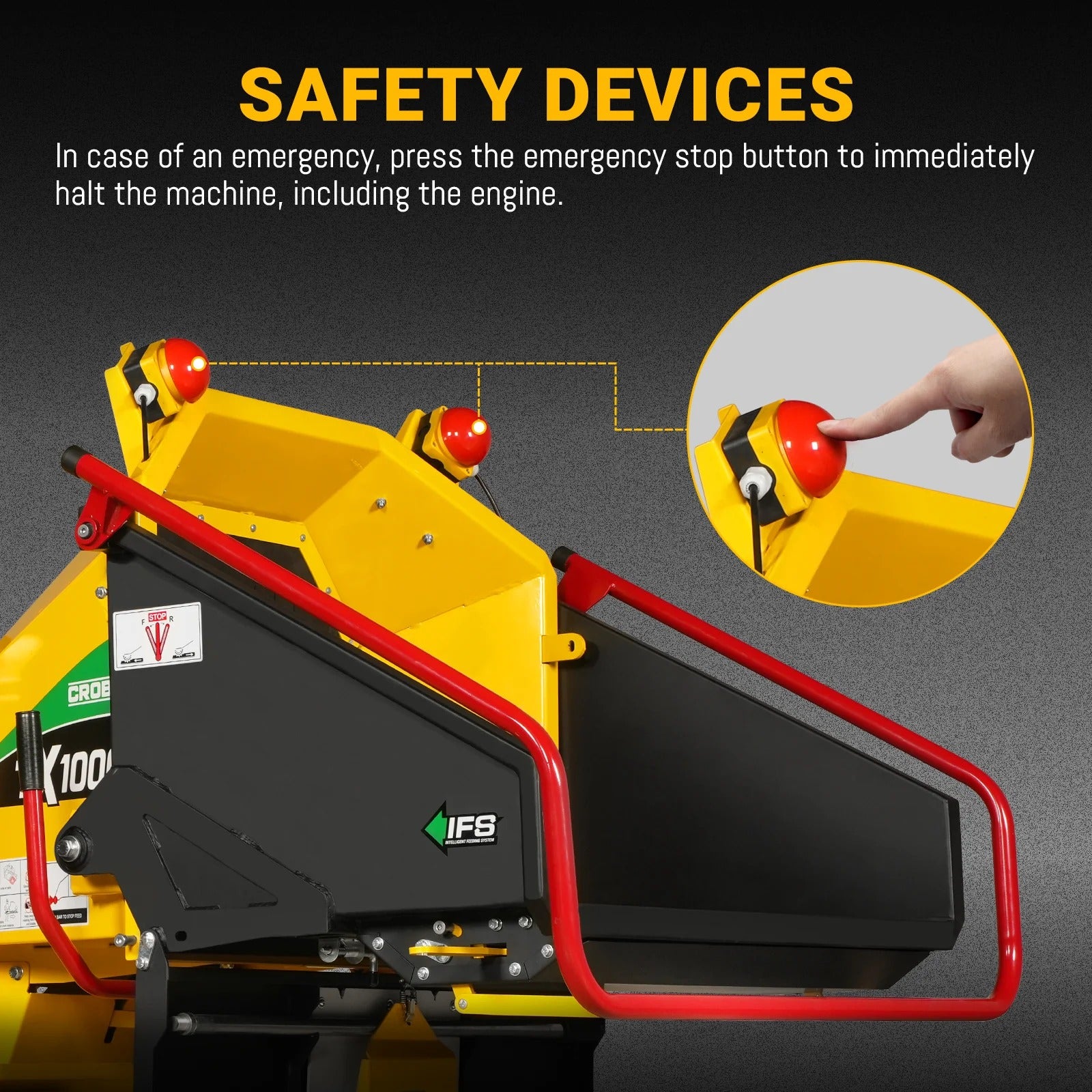

For enhanced safety, the unit includes two emergency stop buttons positioned above the feeding chute, allowing the operator to quickly shut down the machine—including the engine—when needed.

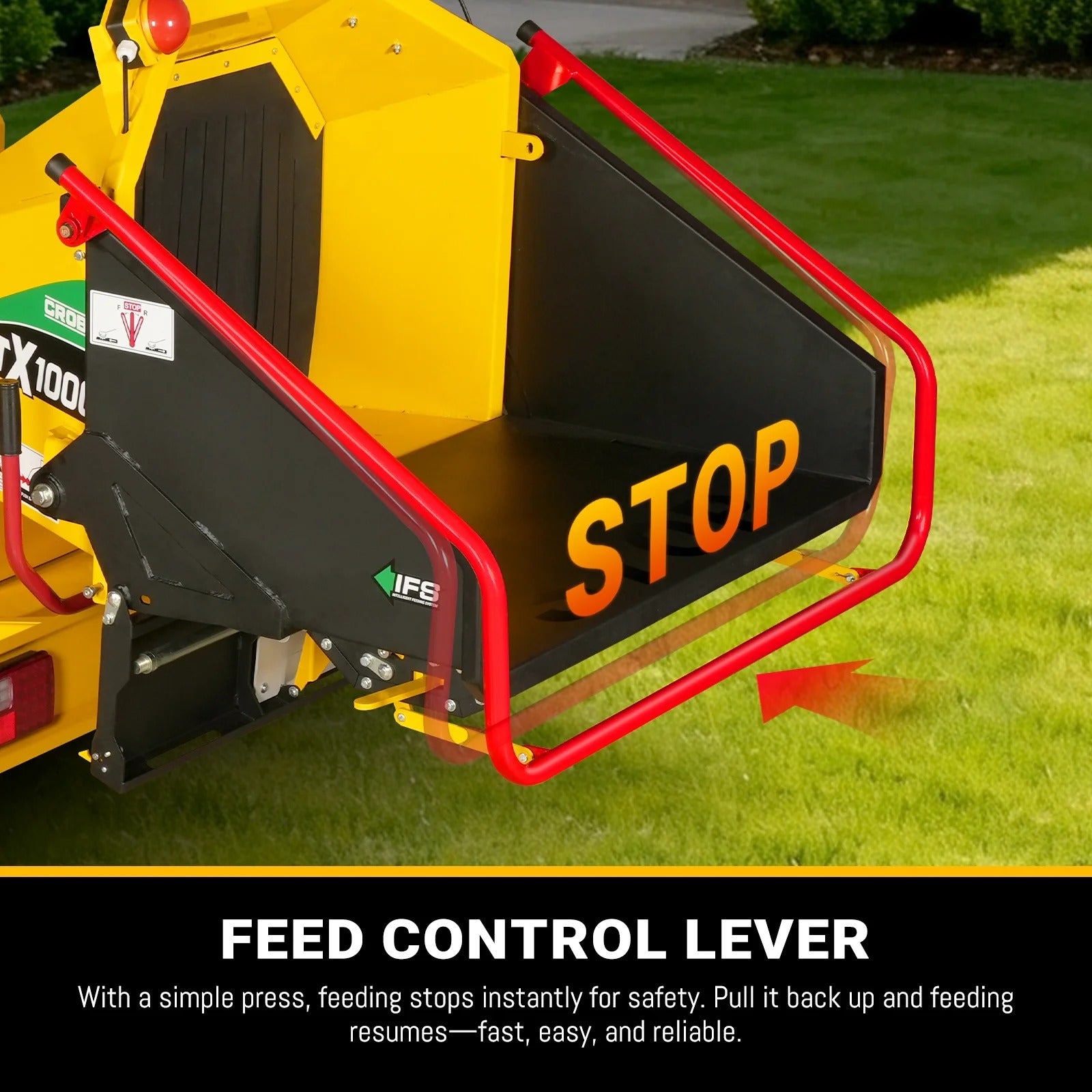

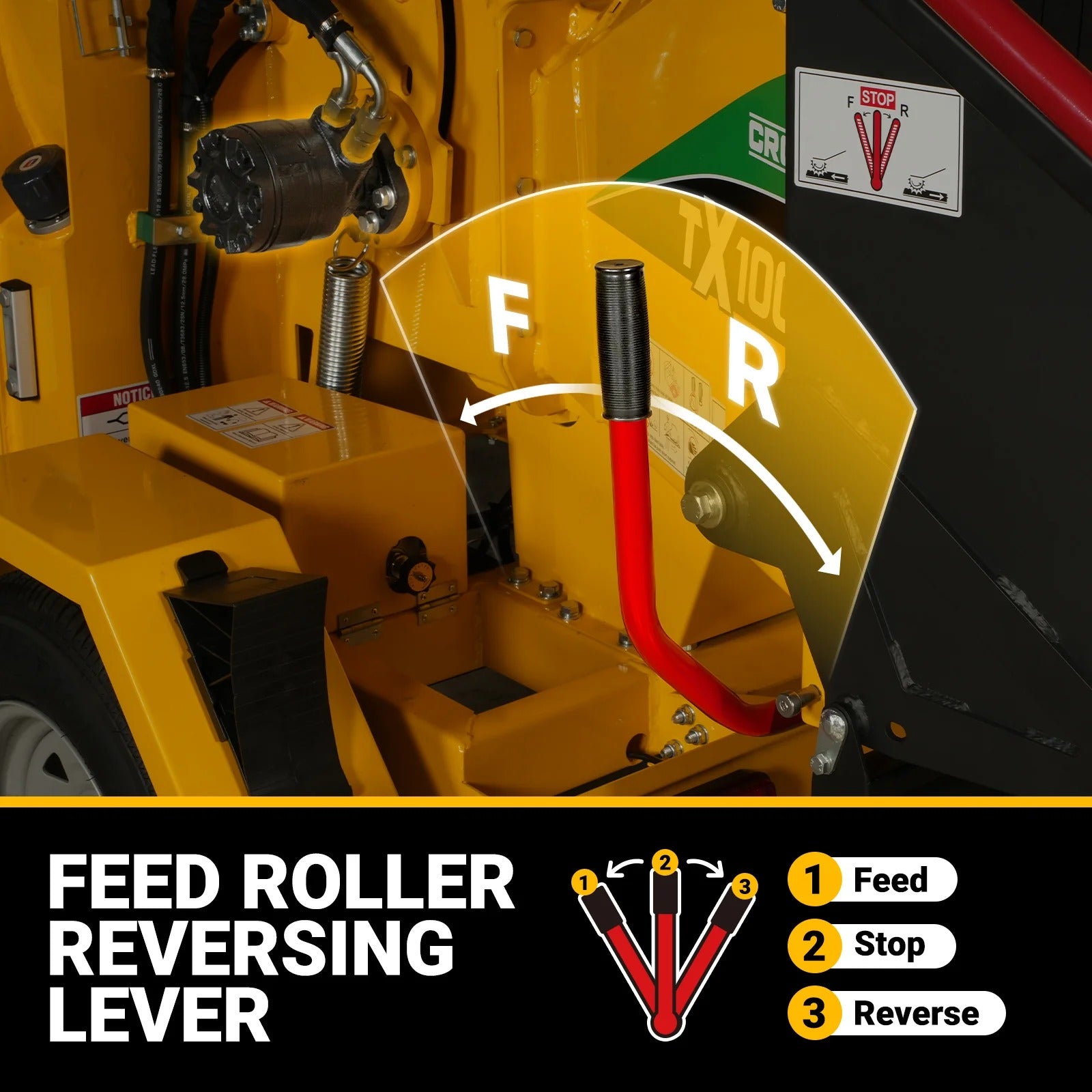

To reduce downtime and maintain smooth workflow, the chipper is designed with a quick-reverse feed roller system. This allows operators to easily change feed direction to clear jams. Feeding can be stopped instantly with a push and resumed smoothly by pulling the handle.

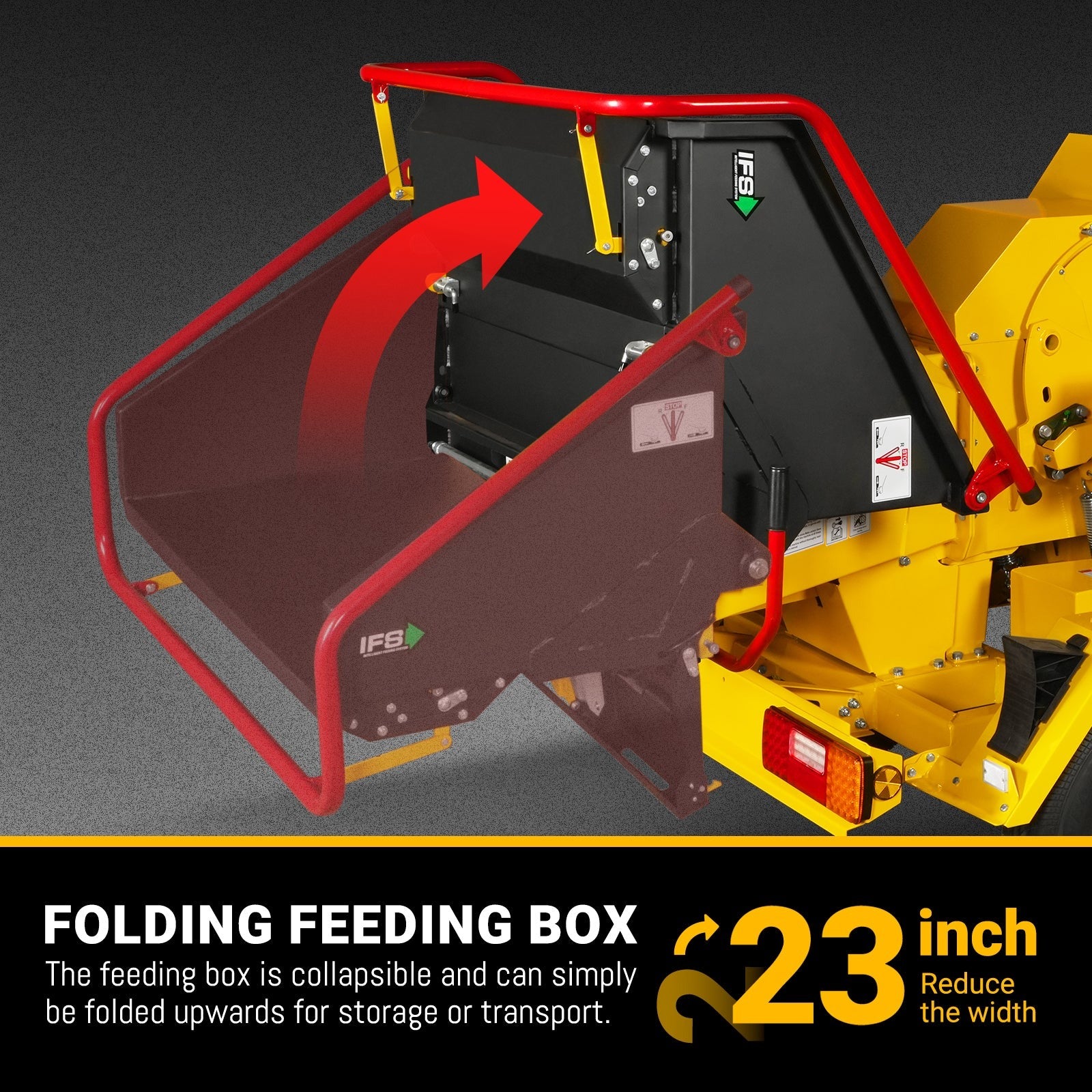

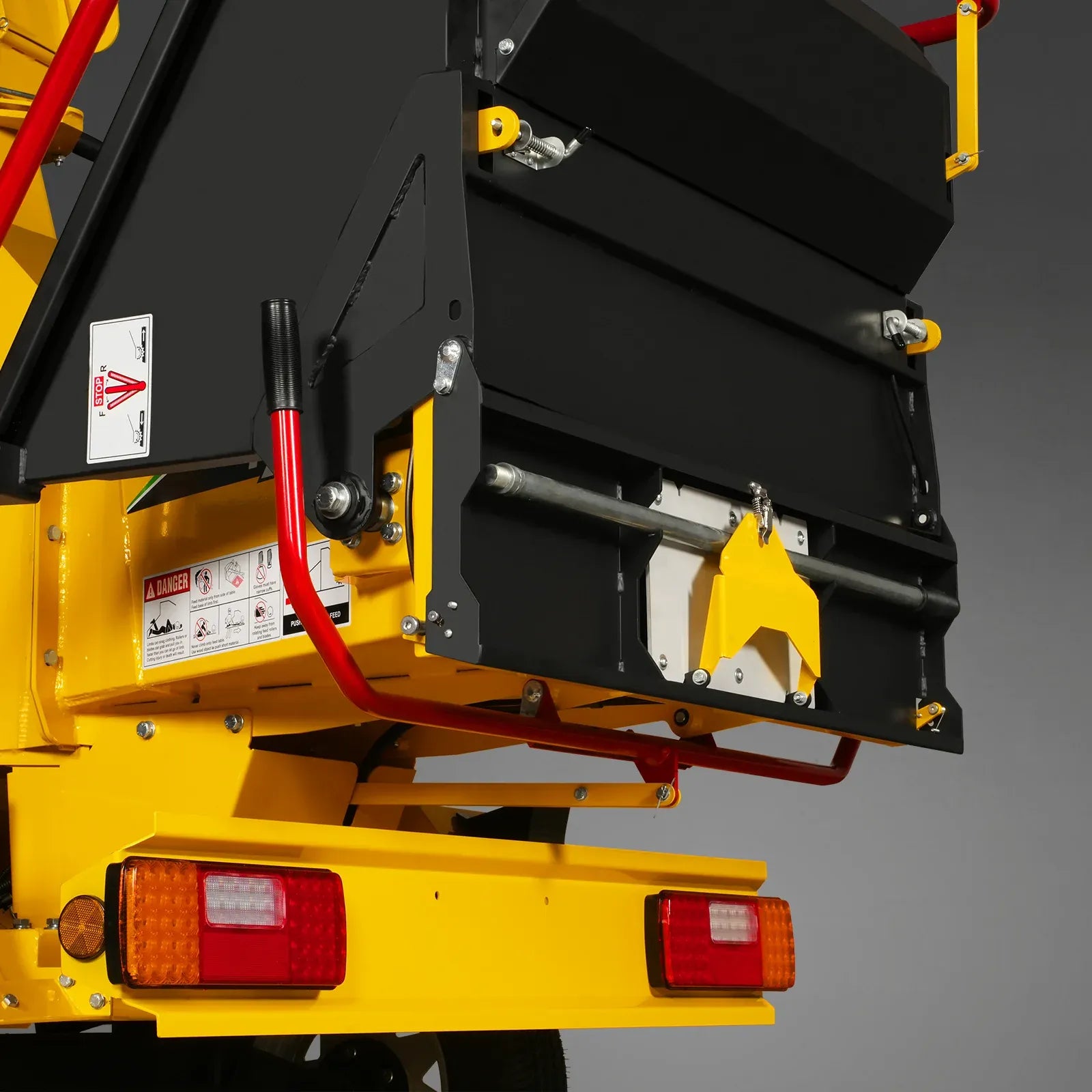

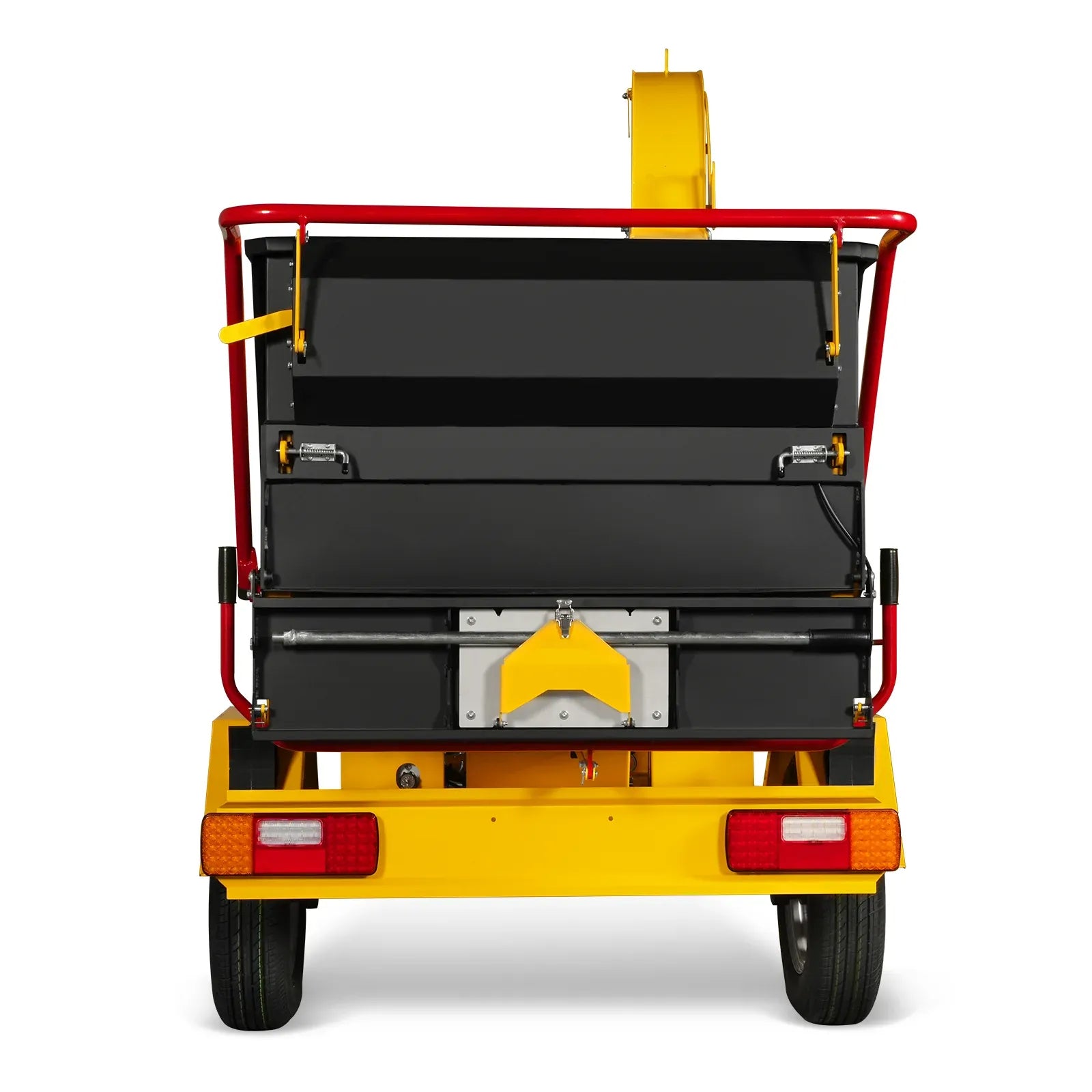

The feed box is designed with convenience in mind, featuring a foldable structure that can be easily lifted upward when not in use for compact storage.
Engineered for high performance, the TX1000 is well-suited for professional applications as well as rental and leasing operations.
Fuel Requirements:
- Gasoline: Clean, fresh, unleaded gasoline
- Oil: 10W-30
| Specifications | Details |
|---|---|
| Engine Brand Model | Zonsen GB1000EI |
| Engine Power | 35 HP |
| Torque | 74 Nm |
| Fuel Tank Capacity | 18 L |
| Max Fuel Consumption | 2.38 gal/h |
| Fuel Type | Gasoline (92#) |
| Air Cleaner | Double Filtration |
| Oil Filter | Screw Mounting |
| Recommended Oil | SAE 10W-30 |
| Oil Volume (with Filter) | 2.5 L |
| Max Continuous Working Angle | 20° |
| Cooling Medium | Forced Cooling |
| Alternator | 25A / 300W |
| Clutch Type | Manual Clutch |
| Engine Shaft Diameter | 1.125 in |
| Tensioner | Spring Automatic Tensioning |
| Belt | 2SB1505LE |
| Overall Length (Feed Table Up) | 135 in |
| Overall Length (Feed Table Down) | 155 in |
| Overall Width | 55 in |
| Overall Height (Chute Up) | 79 in |
| Overall Height (Chute Down) | 92 in |
| Overall Weight | 1874 lbs |
| Tongue Weight | 198 lbs |
| Feed Roller Orientation | Horizontal |
| Feed Roller Quantity | 1 |
| Feed Roller Clamp Load | 344 lbs |
| Number of Knives | 4 |
| Feed Roller Motors | 1 |
| Feed Roller Mechanism | Spring + Feeding Roller Weight |
| Feed Roller Size | Ø12 × 11 in |
| Distance (Roller to Blade Housing) | 5 in |
| Feed Roller Assembly Weight | 123 lbs |
| Feed Speed | 54 ft/min |
| Infeed Table Height | 22 in |
| Infeed Table Length | 24 in |
| Infeed Table Width | 41 in |
| Infeed Throat Size | 12 × 8 in |
| Distance (Roller to Table End) | 61 in |
| Distance (Table to Ground) | 30 in |
| Bottom Feed Stop Bar | Standard |
| Stop Bar Function | Feed Roller Stops – Reset Required |
| Stop Bar Diameter | 1.2 in |
| Stop Bar Thickness | 0.07 in |
| Stop Bar Reset | Manual |
| Feed Control Bar | 3-Position (Forward / Stop / Reverse) |
| Control Bar Diameter | 1 in |
| Control Bar Thickness | 0.07 in |
| Emergency Stop Button | Stops Engine (Manual Reset) |
| Chipping Capacity | 8 in |
| Blade Housing Width | 7 in |

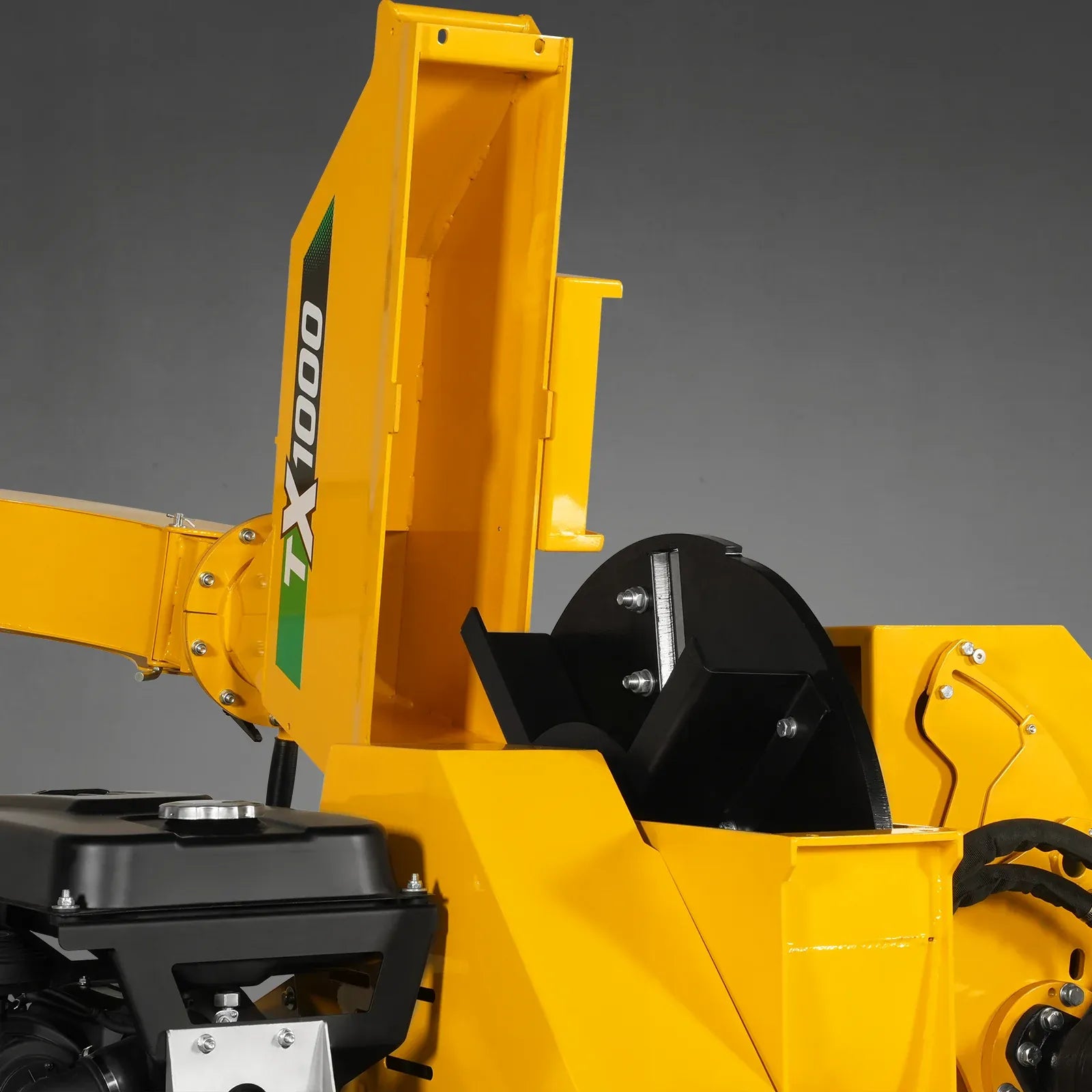

| Cutting Disc Size | 30 × 0.7 in |
| Disc Speed | 1800 RPM |
| Disc Weight (with Shaft) | 225 lbs |
| Blade Size | 4 × 1 × 0.5 in |
| Blade Edges | 2 |
| Blade Bolts | 3 |
| Vertical Anvil Size | 3.5 × 7.8 × 0.5 in |
| Horizontal Anvil Size | 3.7 × 11.6 × 0.4 in |
| Blade Material | A8 Steel |
| Anvil Material | Cr12 |
| Blade Holder Replaceable | No |
| Fan Blades | 4 |
| Fan Blade Fixing | Bolt |
| Air Flow | 3249 CFM |
| Bearings | 2 (SKF, Spherical Type) |
| Bearing Hole Diameter | 2 in |
| Dynamic Capacity | 23.2 kN |
| Static Capacity | 27 kN |
| Belt Type | Combined Belt |
| Discharge Chute Height | 97 in |
| Flange Thickness | 0.2 in |
| Side Wall Thickness | 0.07 in |

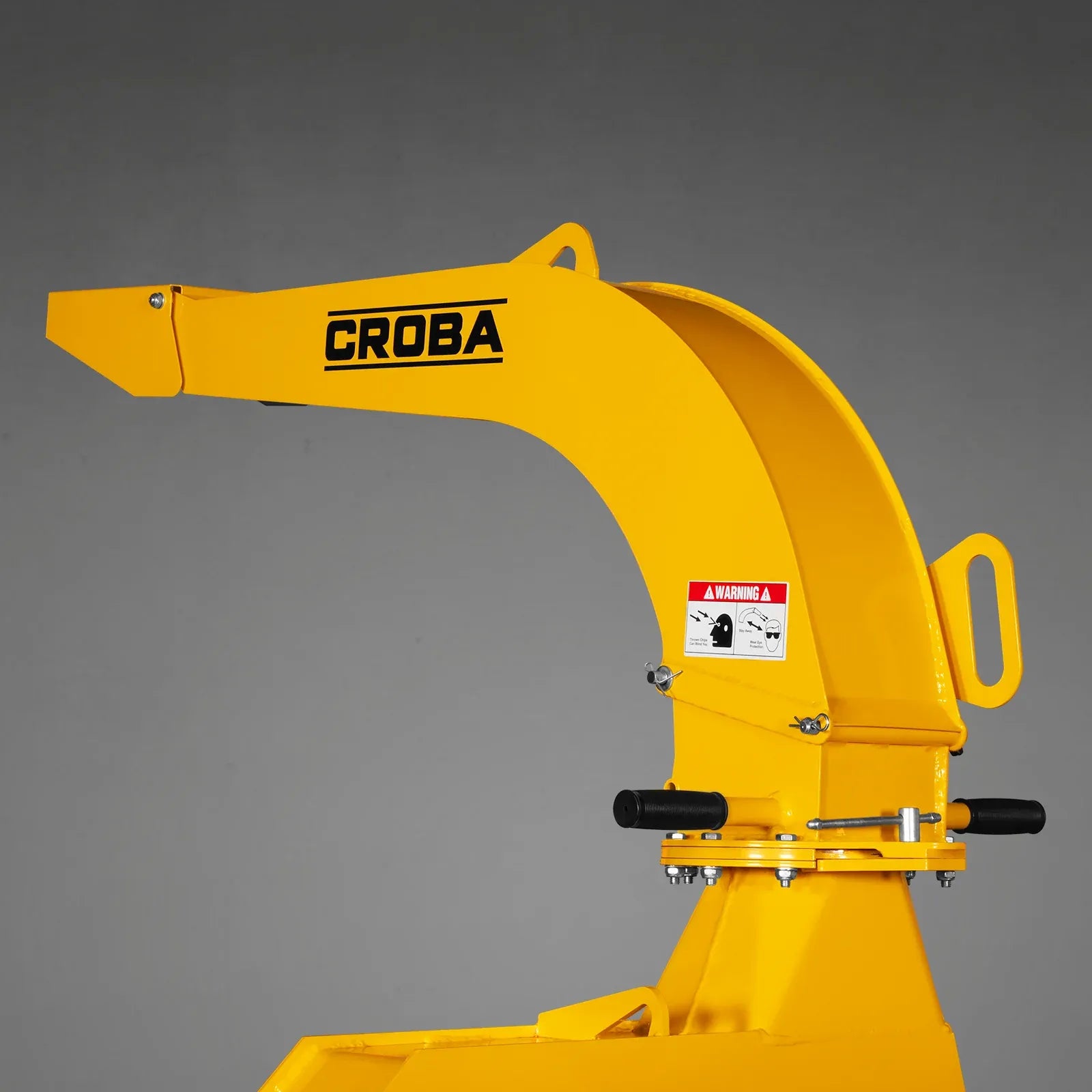

| Chute Rotation | 360° (Manual with Lock) |
| Rotation Lock | Dual Handle Bolt Lock |
| Hydraulic Tank Capacity | 7.4 gal |
| Hydraulic Oil Type | HM46 |
| Hydraulic System | Open Center |
| Filtration | Return Oil Filtration (10 µm) |
| Pump Flow | 4.2 gal |
| Max Hydraulic Pressure | 2102 psi |
| System Voltage | 12V |
| Battery | 12V 48Ah |

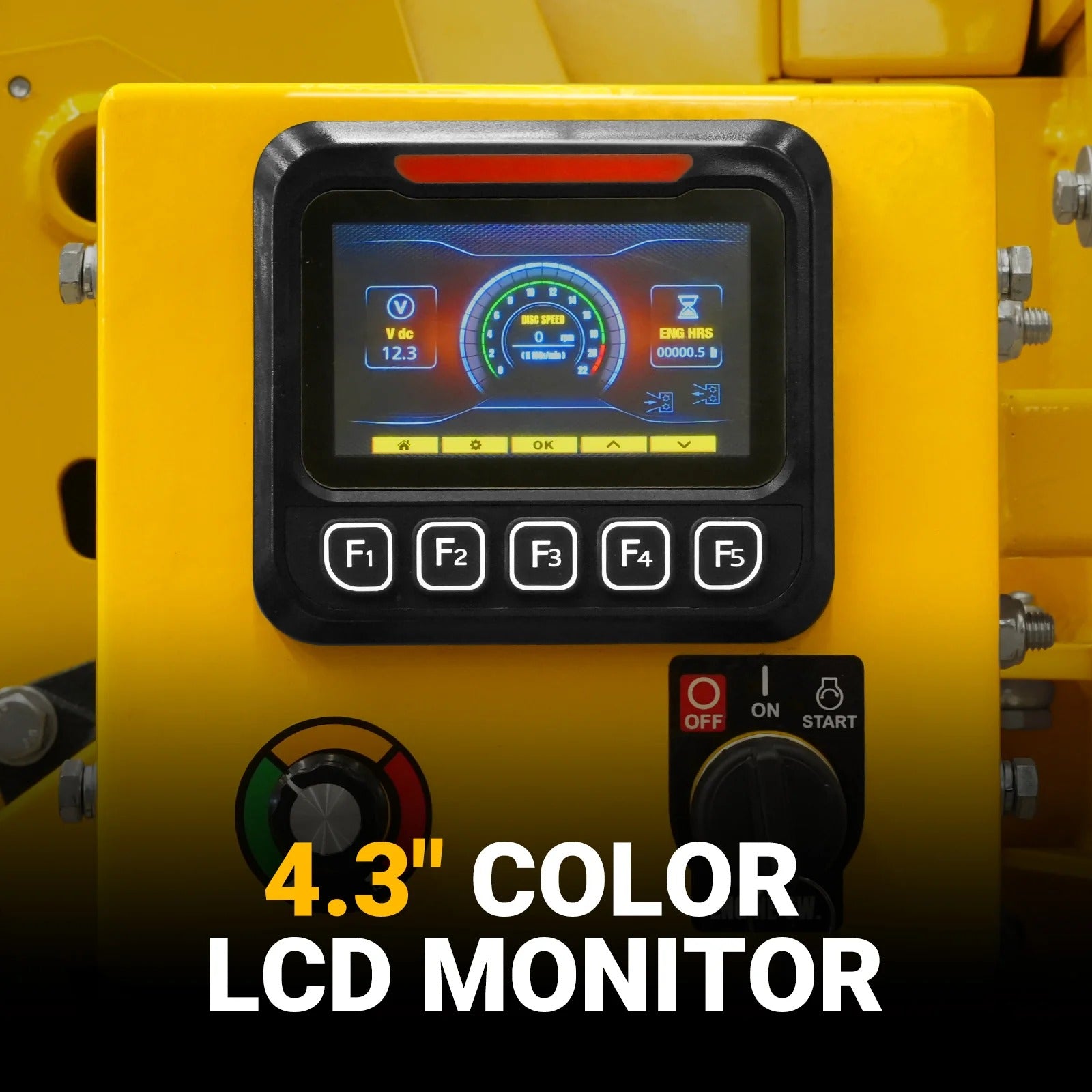

| Display Screen | 4.3 in |
| Controller Functions | Timer, Auto Control, Status & Speed Display |
| Shutdown System | Engine |
| Trailer Lights | Vehicle Power Supply |

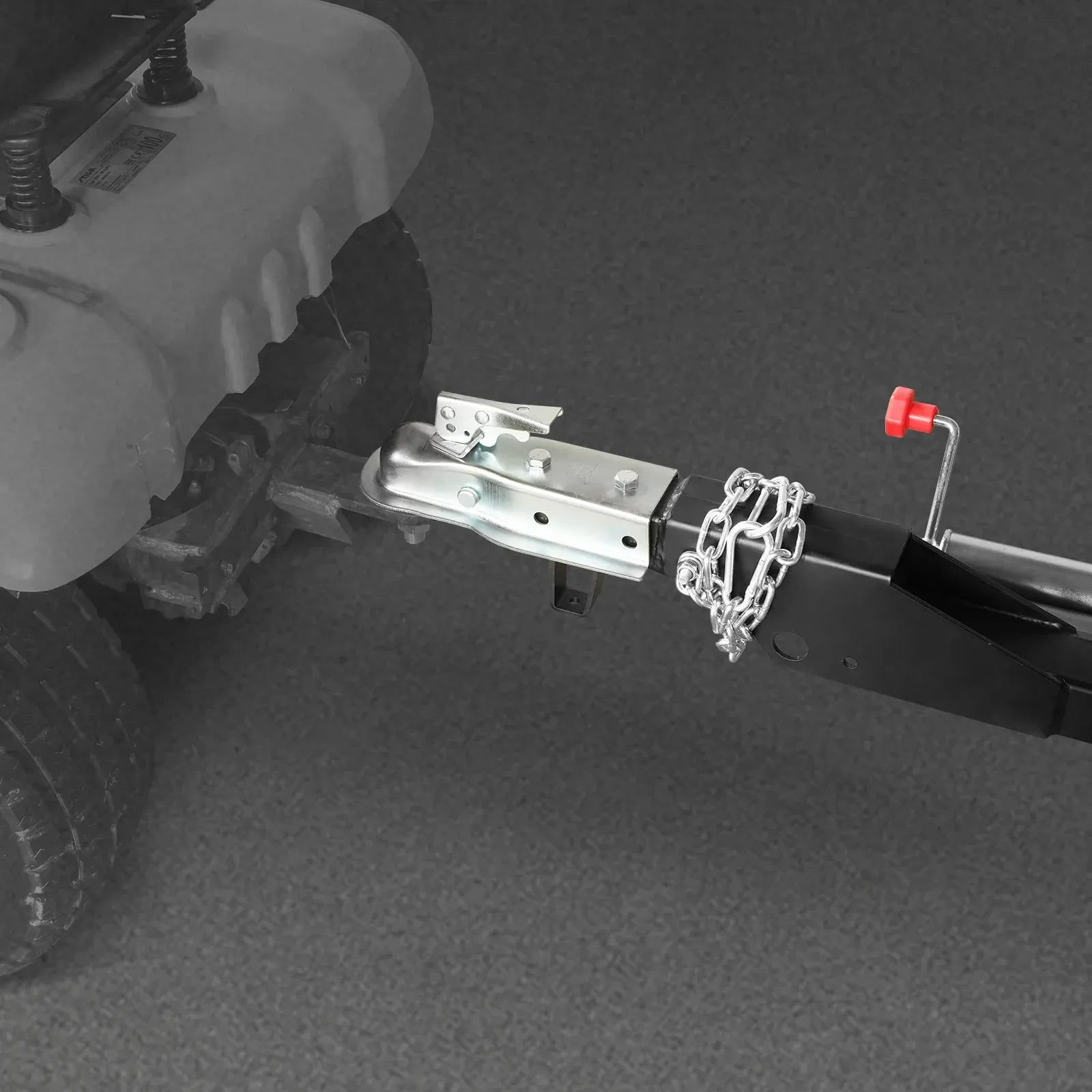

| Tow Ball Size | 2" Coupler Hitch |
| Hook Type | Ball Coupler |
| Axle Capacity | 2756 lbs (Torsion Shaft) |
| Mud Guard | Bolt Fixing |
| Torque Shaft Type | Solid Torque Shaft |
| Tire Size | Ø594 × 165 R13 |
