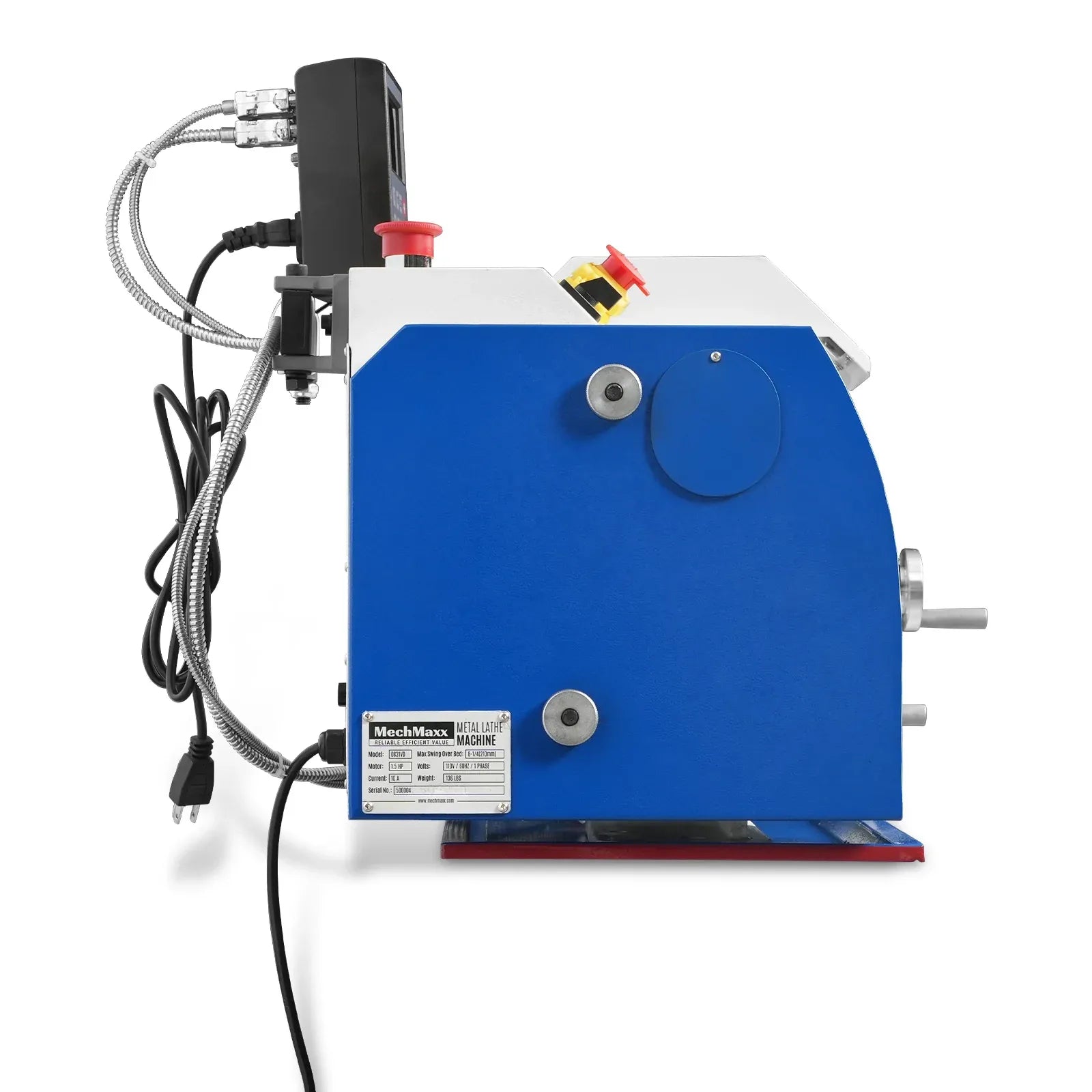

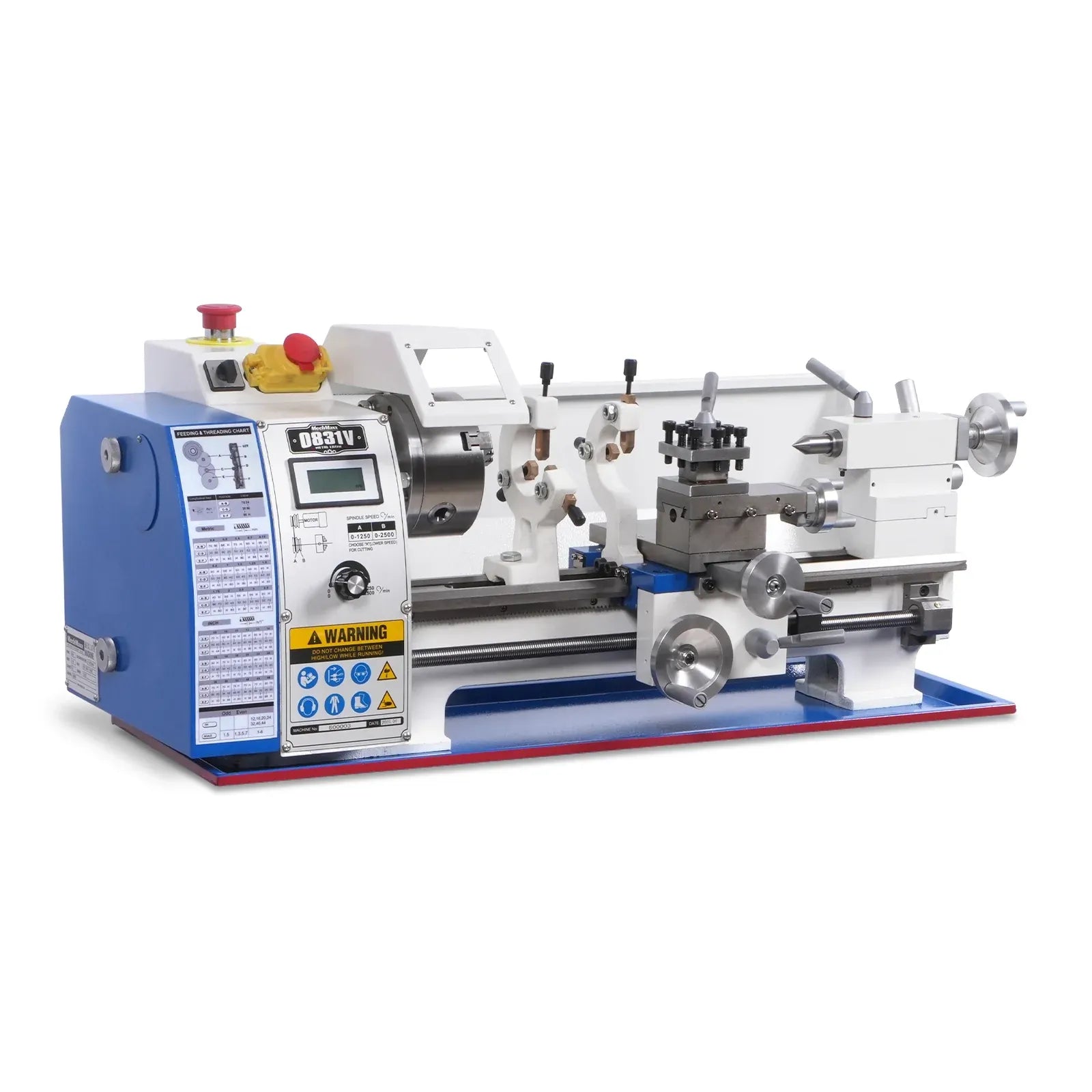

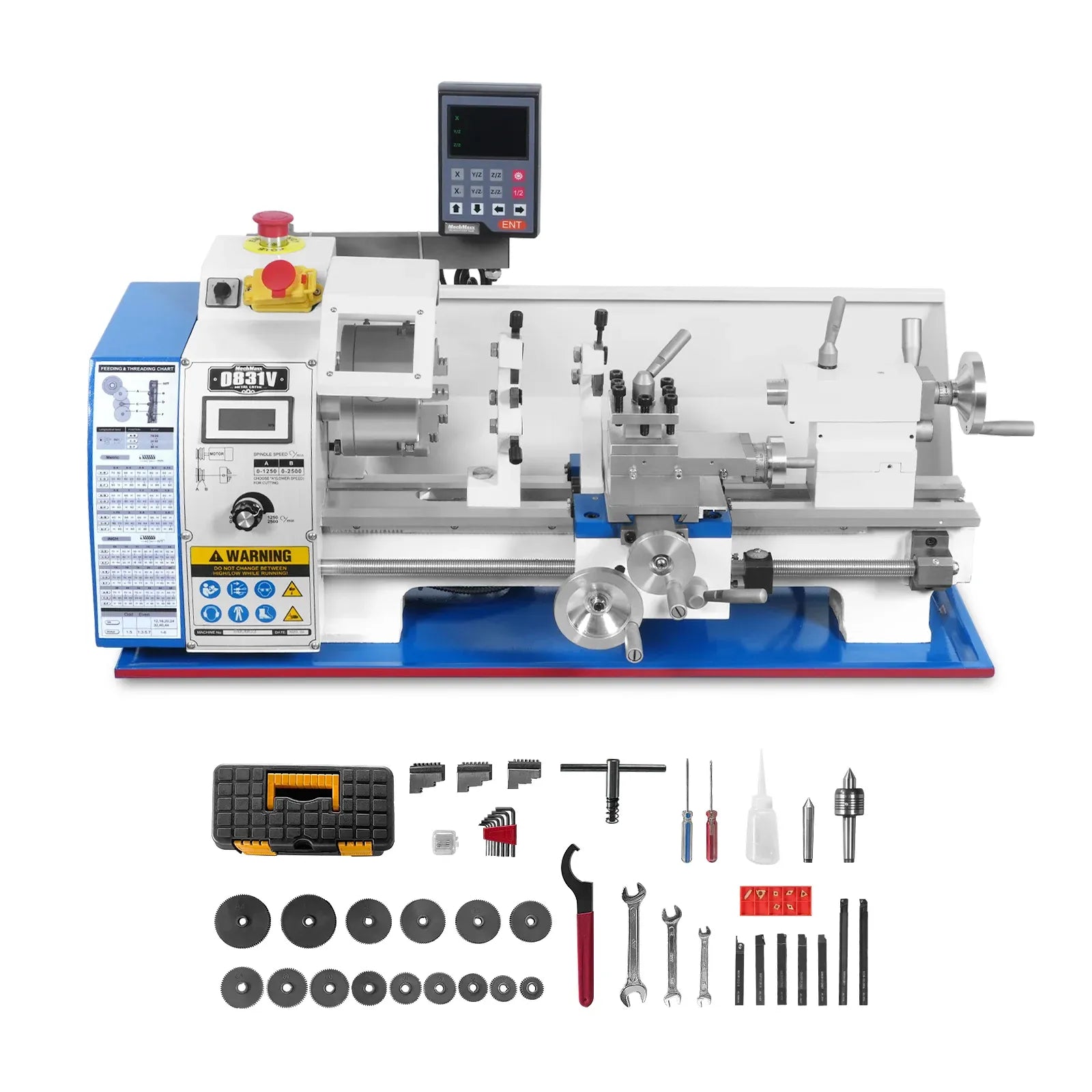

MechMaxx 8x16 Mini Metal Lathe Machine with DRO, Model 0831VD
SKU: 500004
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Key Features & Benefits
- 1.5 HP, 110V single-phase motor delivers reliable, consistent power for light-duty to demanding cutting operations

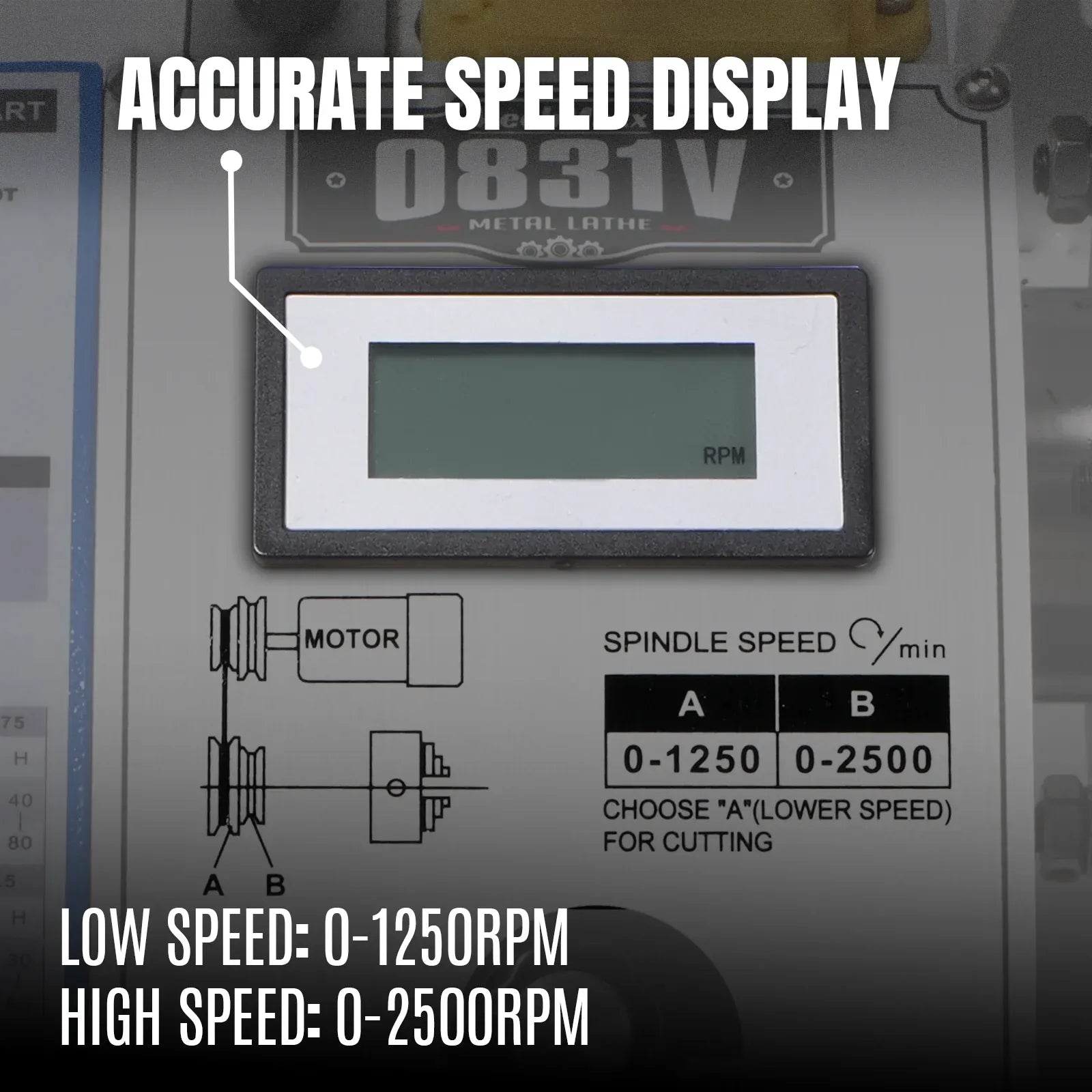

- Variable-speed spindle (0–2500 RPM) allows precise speed adjustments to match different materials and machining requirements

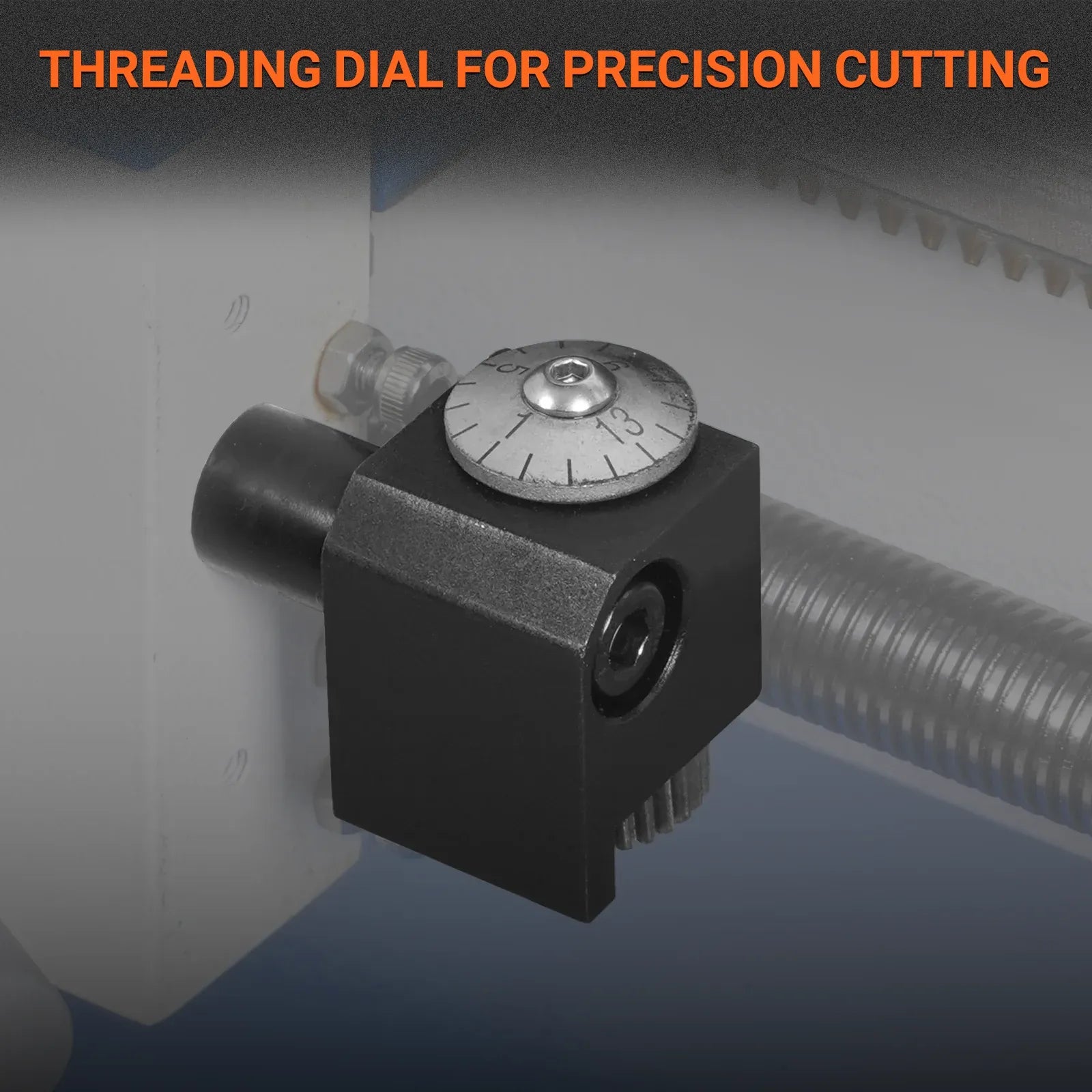

- Supports both metric and inch threading with a built-in thread dial indicator for accurate, repeatable thread cutting
- Heavy-duty one-piece spindle construction with MT#5 taper for enhanced durability and broad accessory compatibility
- 8-1/4" swing over bed and 15-3/4" distance between centers — ideal for small to medium-sized projects

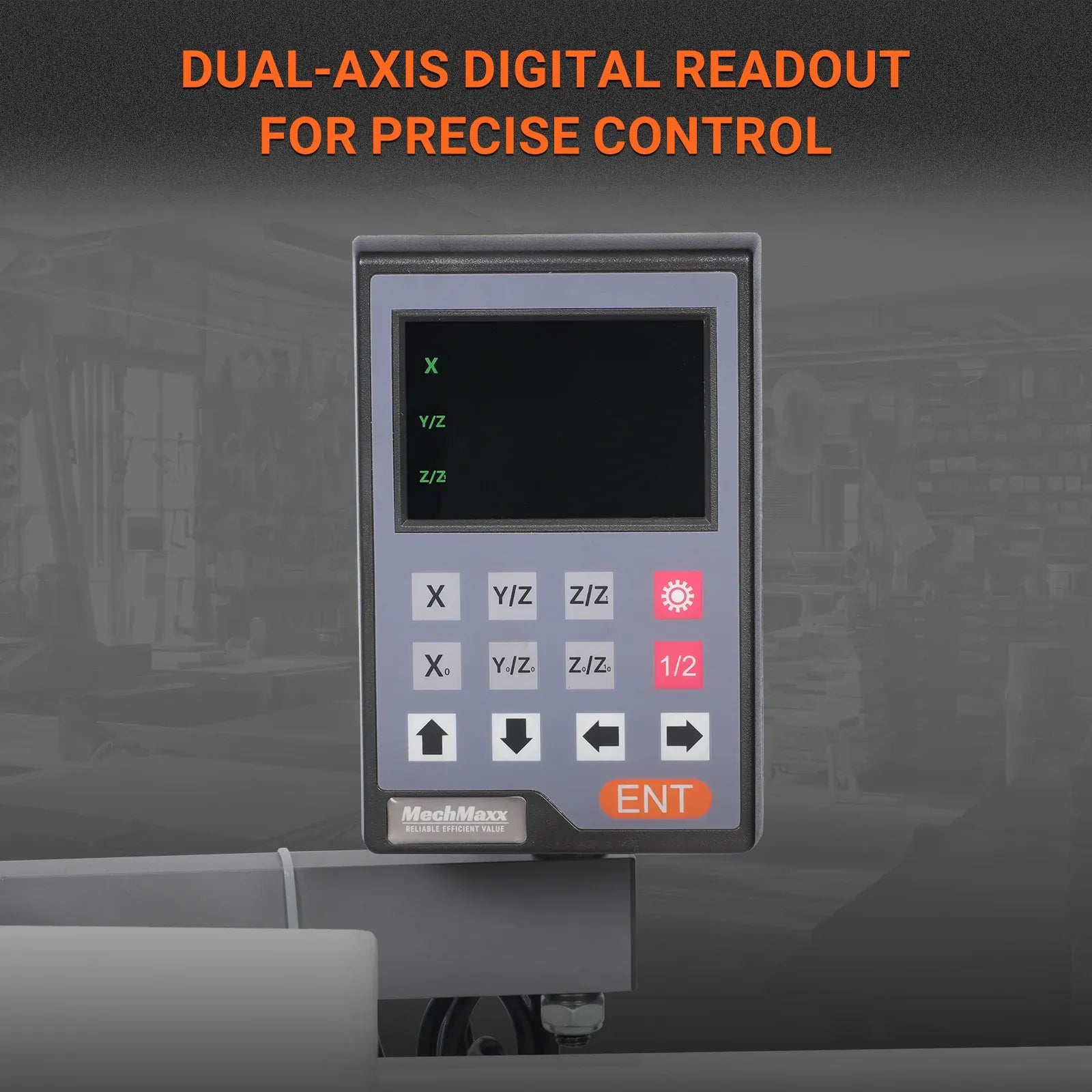

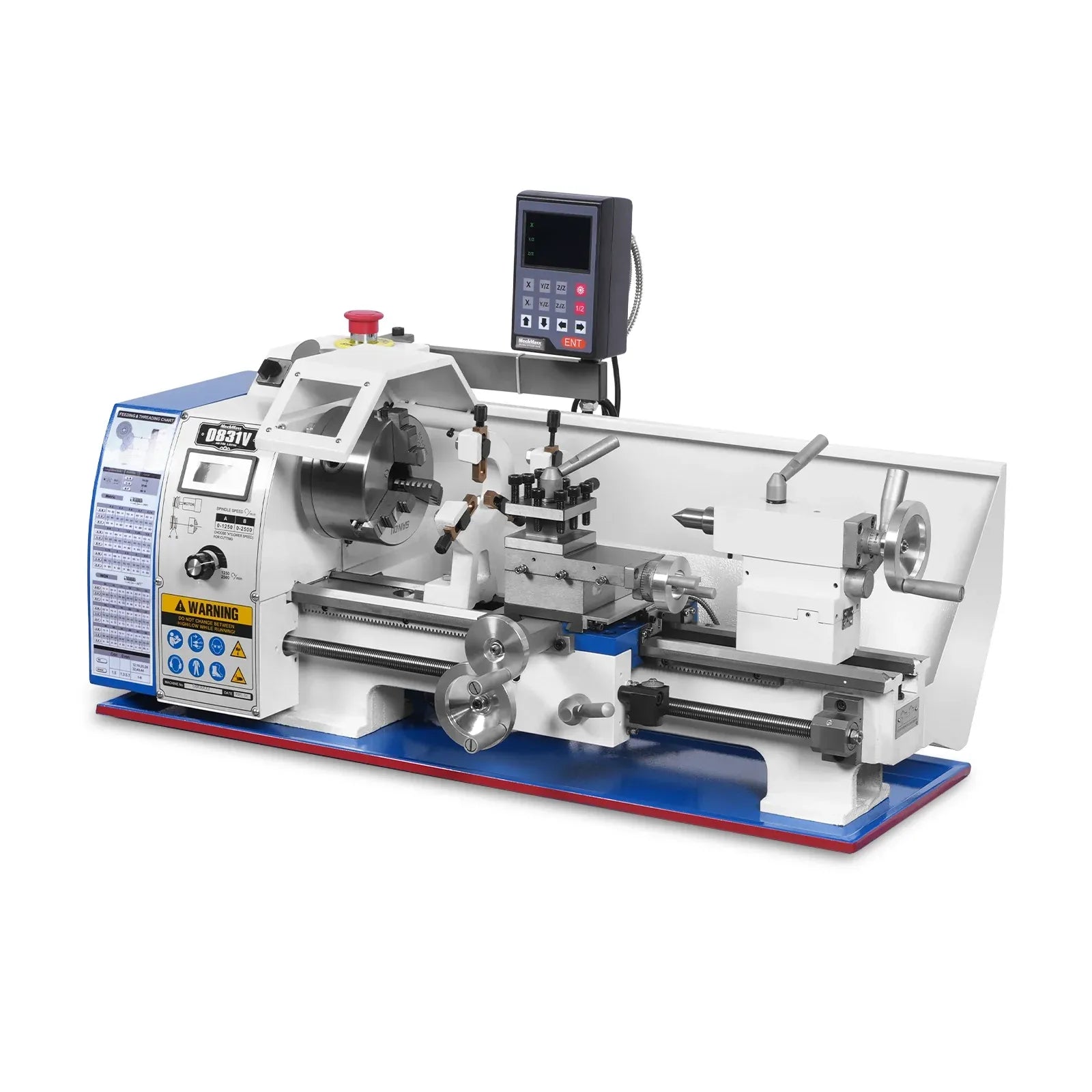

- Integrated Digital Readout (DRO) system provides real-time measurements for improved precision and faster setups
- Compact footprint fits home garages, repair shops, and light industrial workspaces
| Specifications | Details |
|---|---|
| Motor | 1.5 HP, 110V, Single-Phase, 10A, 60Hz |
| Swing Over Bed | 8-1/4" (210 mm) |
| Swing Over Cross Slide | 4-5/8" (117 mm) |
| Swing Over Saddle | 3-1/2" (90 mm) |
| Distance Between Centers | 15-3/4" (400 mm) |

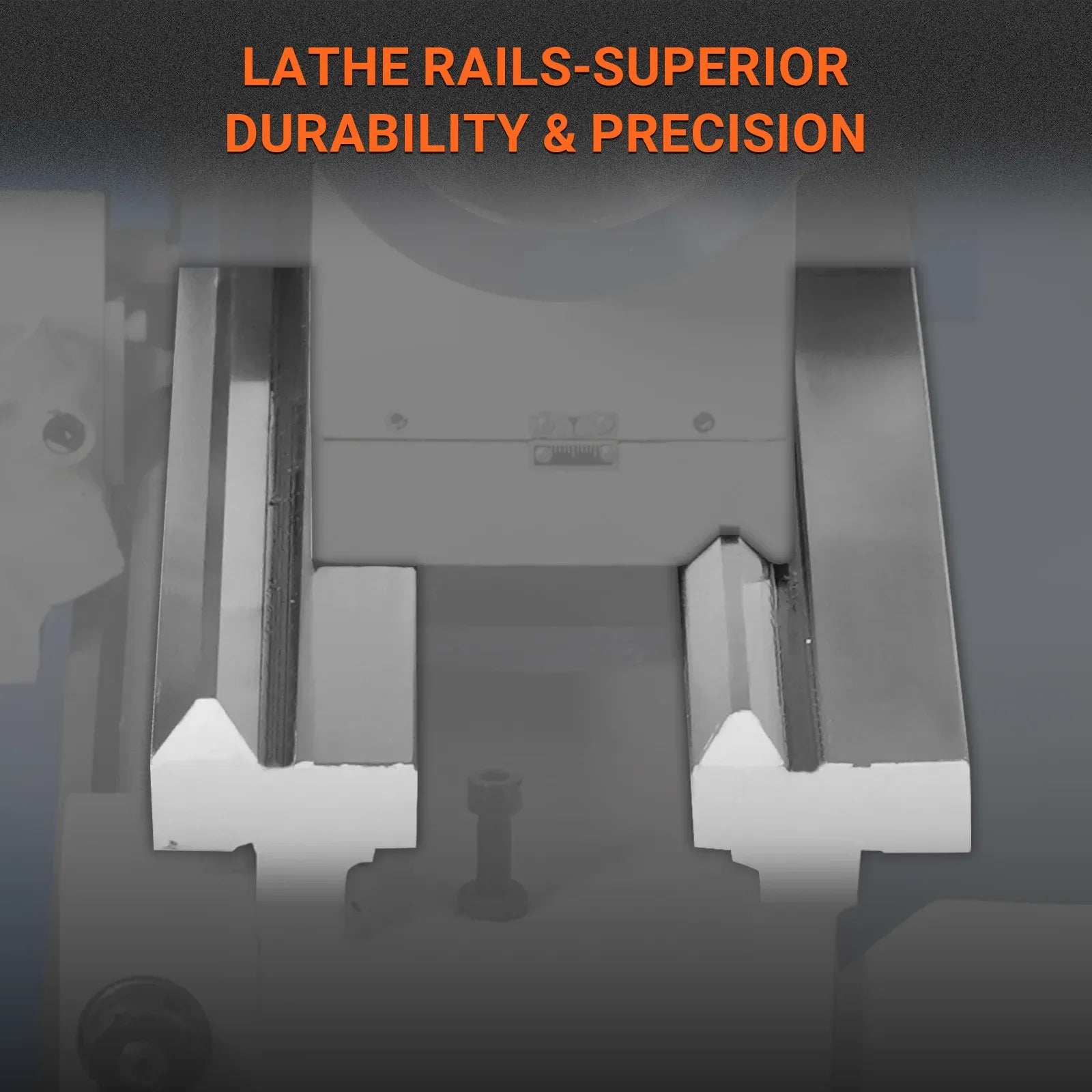

| Bed Width | 4" (100 mm) |
| Spindle Bore | 1-1/2" (38 mm) |
| Spindle Mount | Intrinsic Back Plate |
| Spindle Type | One-Piece Spindle |
| Spindle Taper | MT#5 |
| Tailstock Taper | MT#2 |

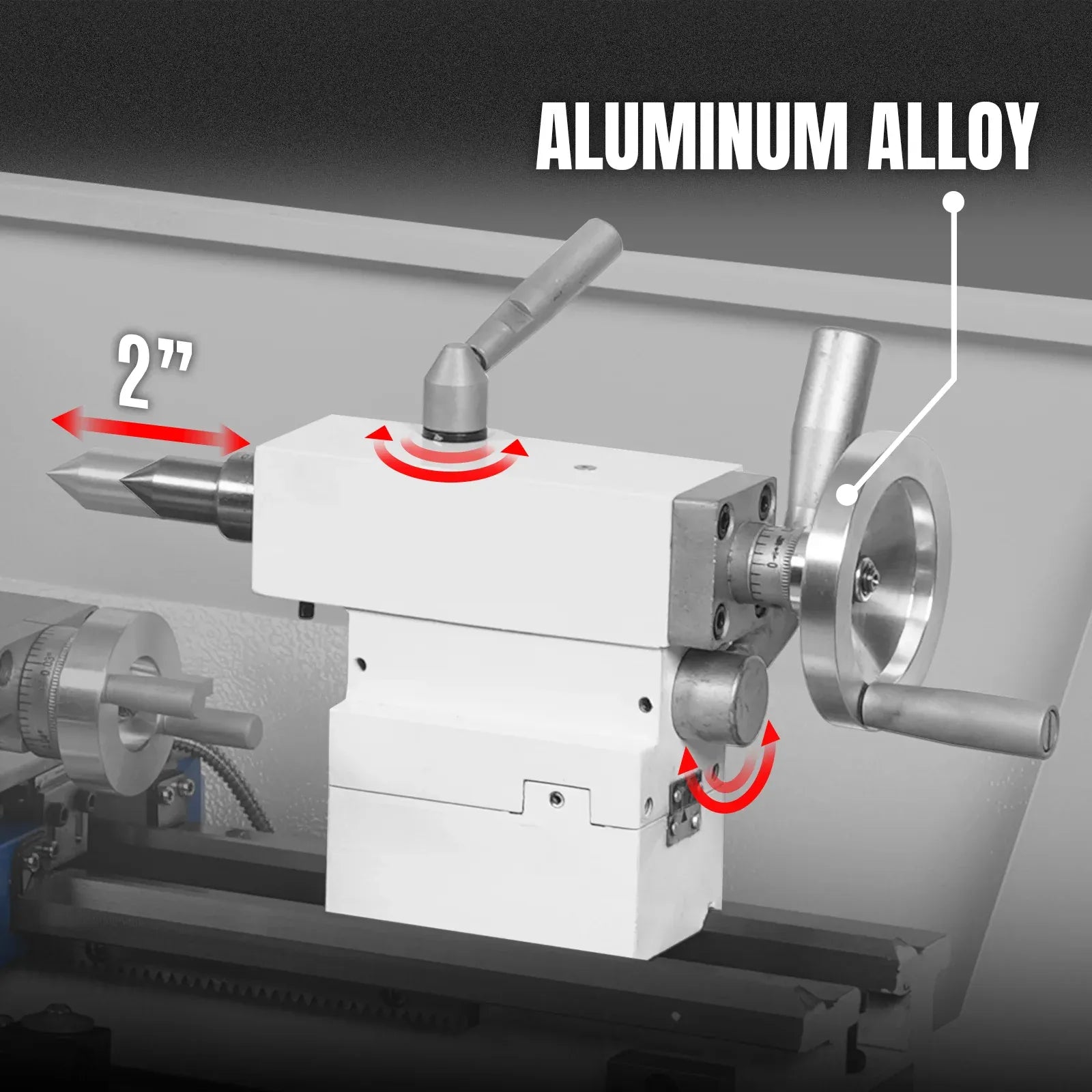

| Tailstock Quill Travel | 2" (50 mm) |

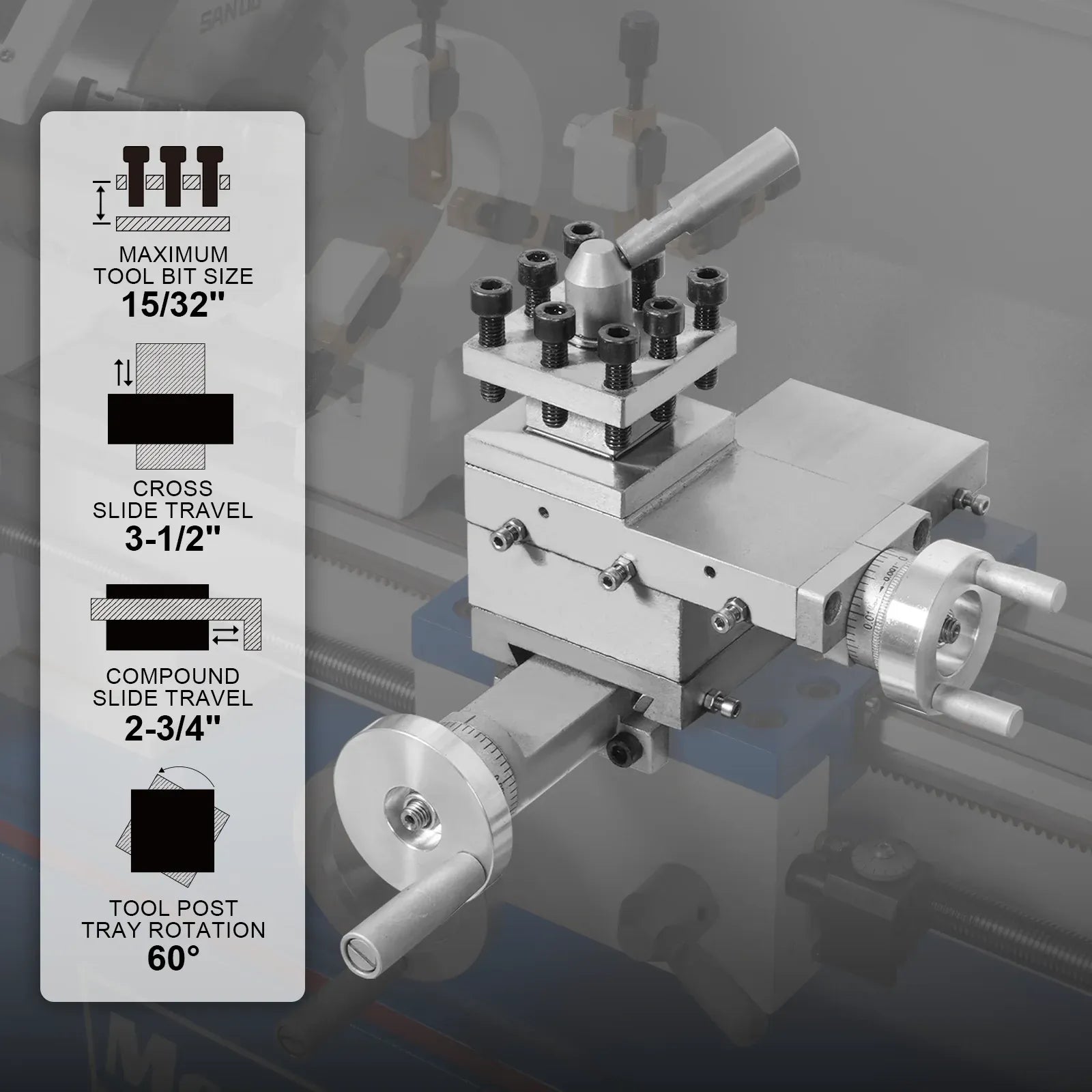

| Cross Slide Travel | 3-1/2" (90 mm) |
| Compound Slide Travel | 2-3/4" (70 mm) |
| Carriage Travel | 14-5/16" (350 mm) |
| Spindle Speeds | 0–2500 RPM |
| Number of Speed Ranges | Variable |
| Longitudinal Feeds | 0.0037 – 0.0068 in./rev. |
| Transverse Feed Rate | — |
| Leadscrew Size & Pitch | 16 mm (12 TPI) |
| Threading Capacity – Inch | 8–48 TPI (18 Kinds) |
| Threading Capacity – Metric | 0.4–3.5 mm (15 Kinds) |
| Maximum Tool Bit Size | 15/32" (12 mm) |
| Thread Dial Indicator | Yes |
| Overall Dimensions | 36" W × 19" D × 20" H (914 × 480 × 490 mm) |
| Approximate Shipping Weight | 190 lbs (75 kg) |
