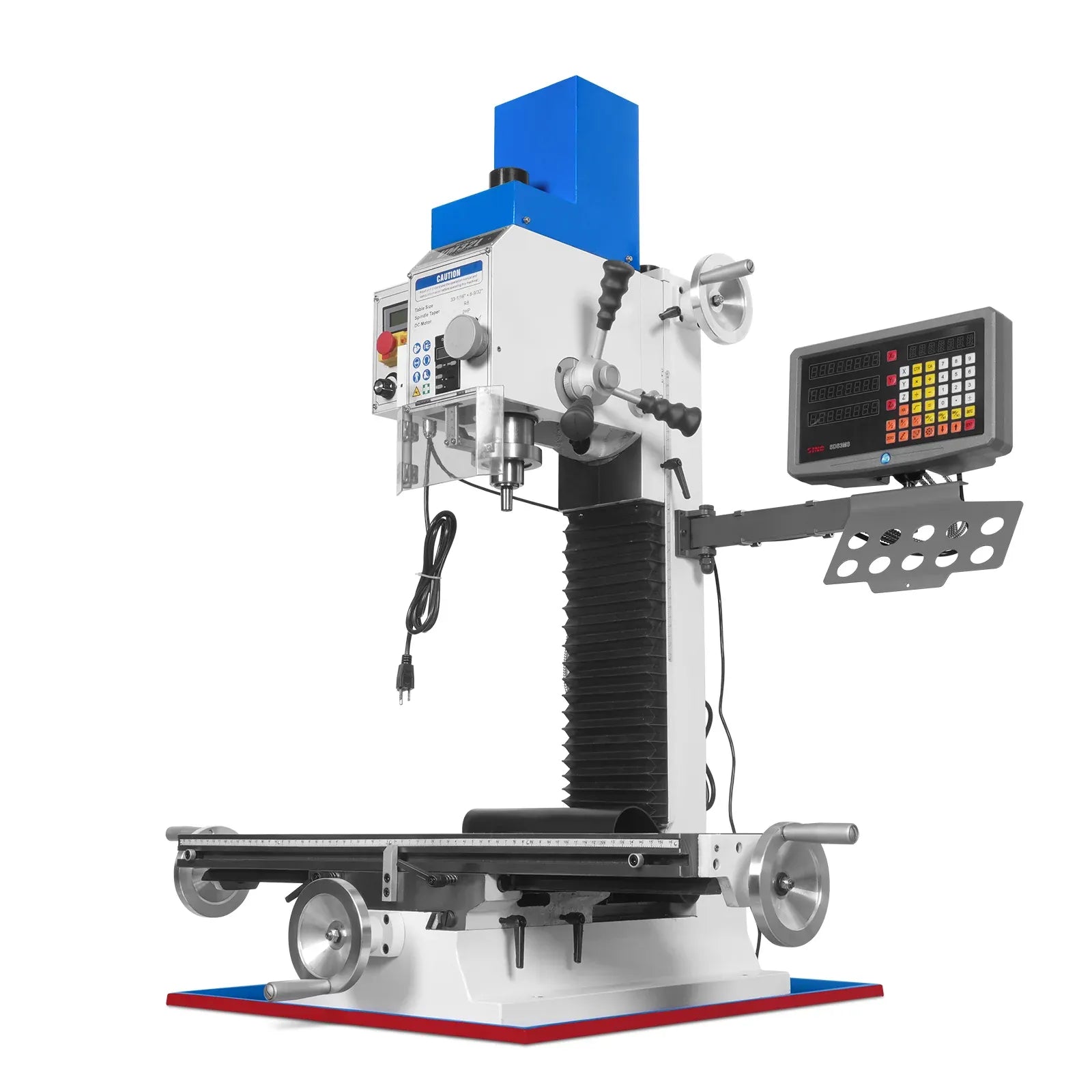

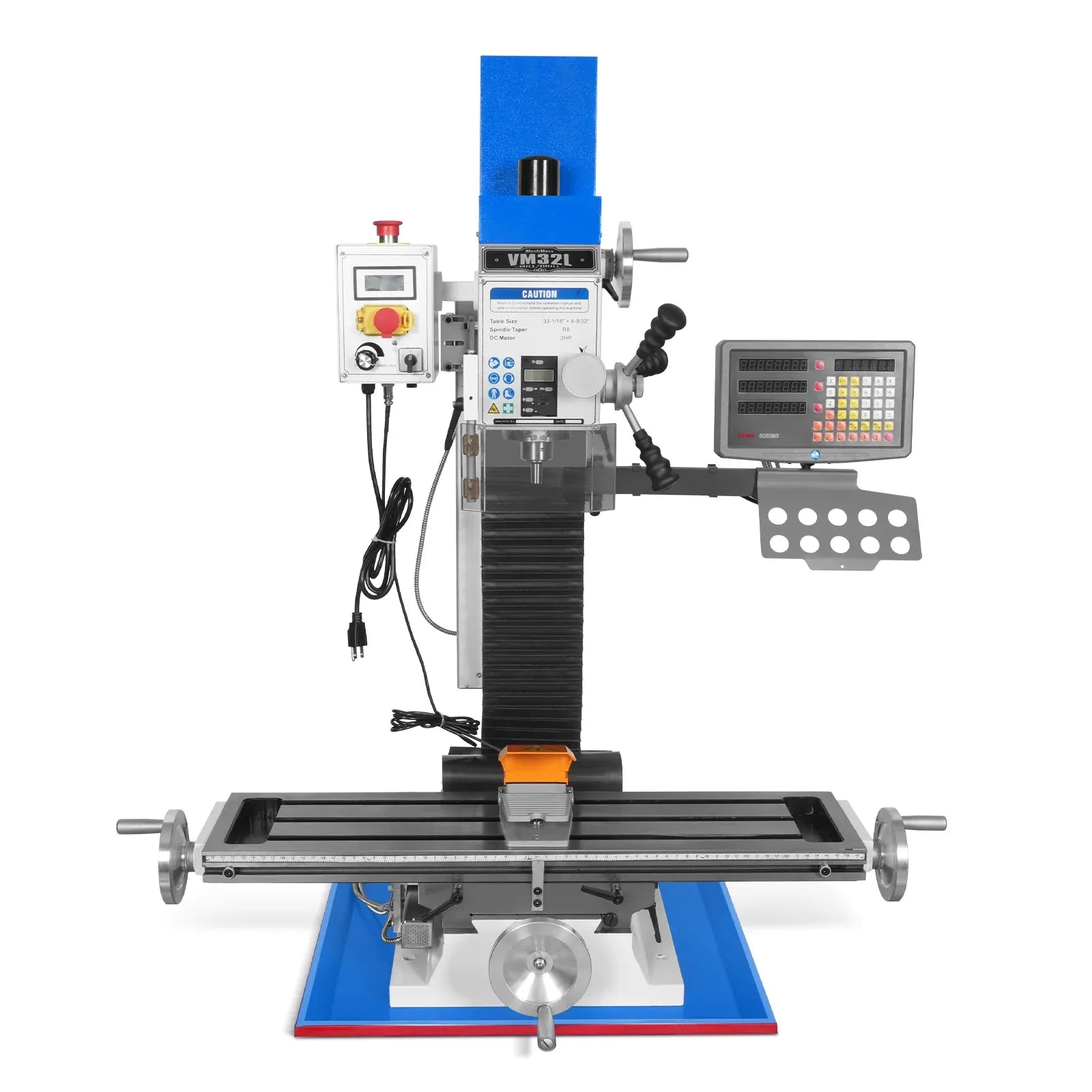

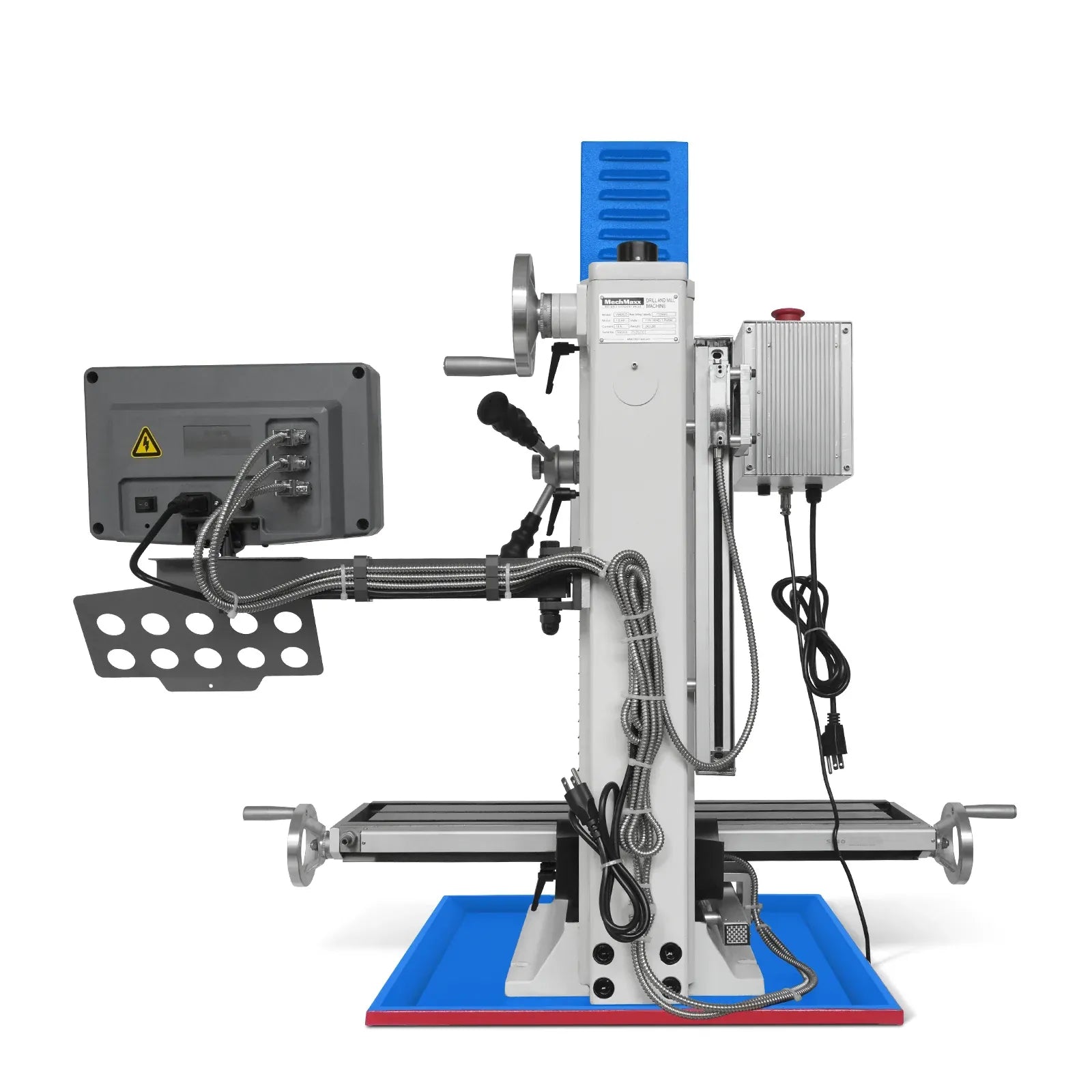

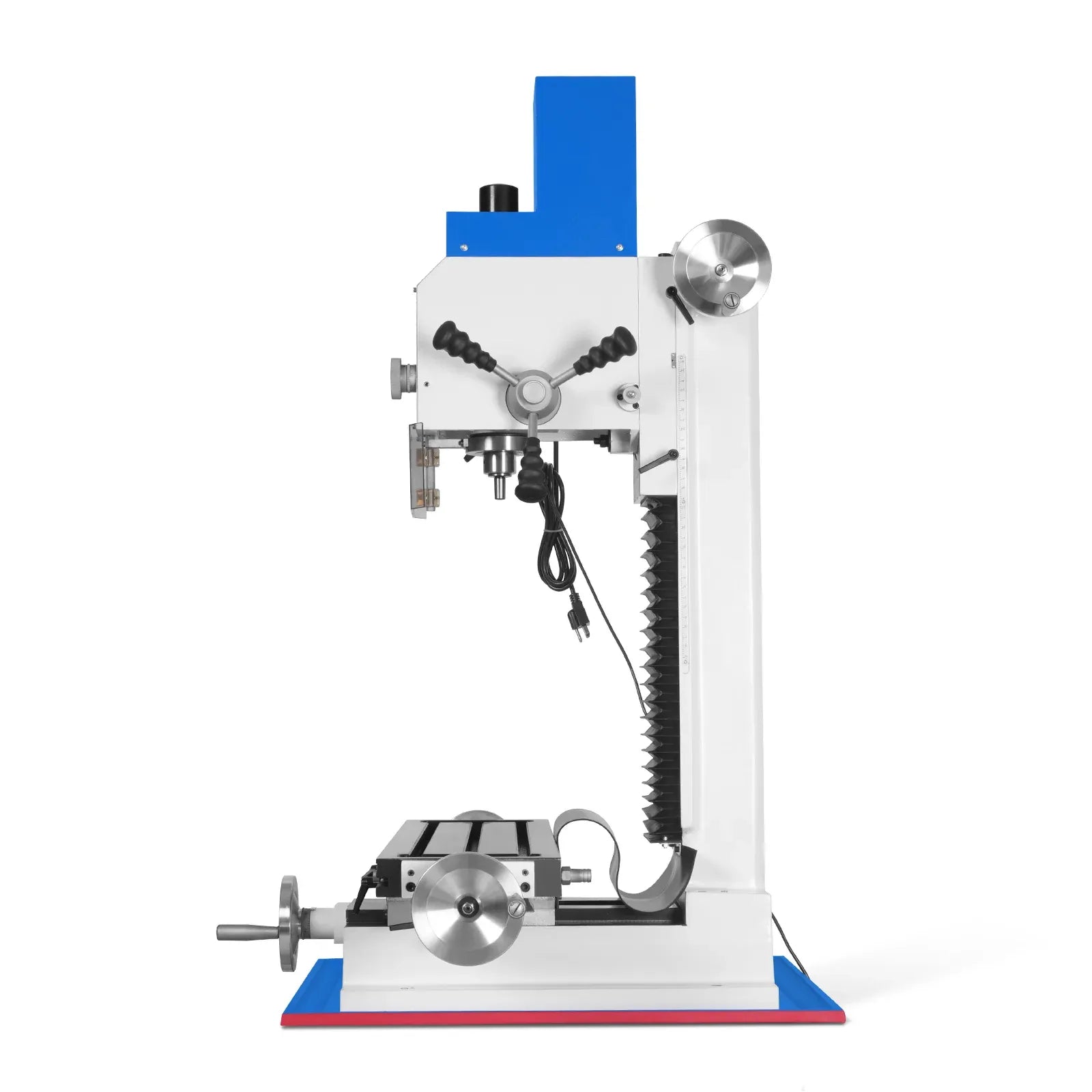

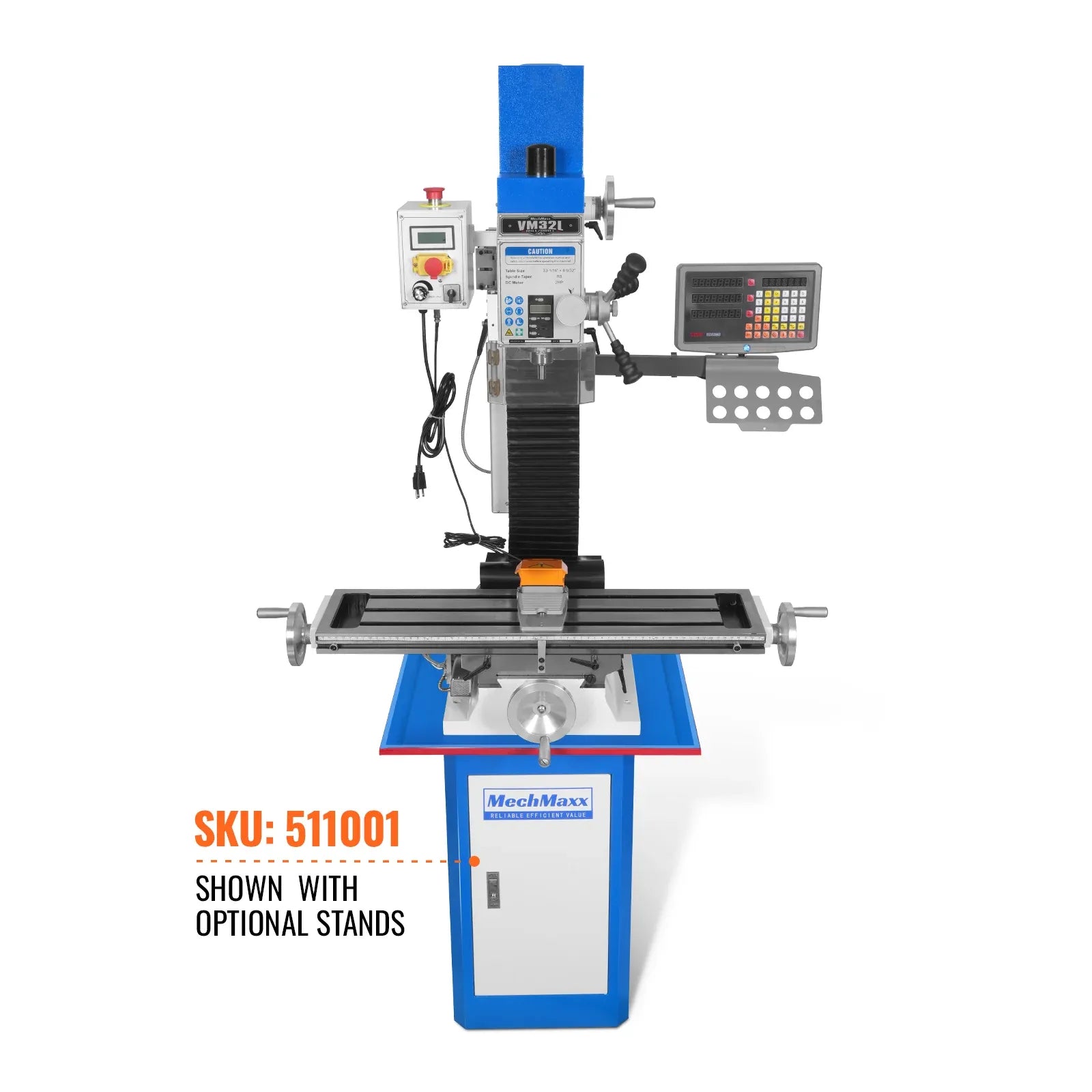

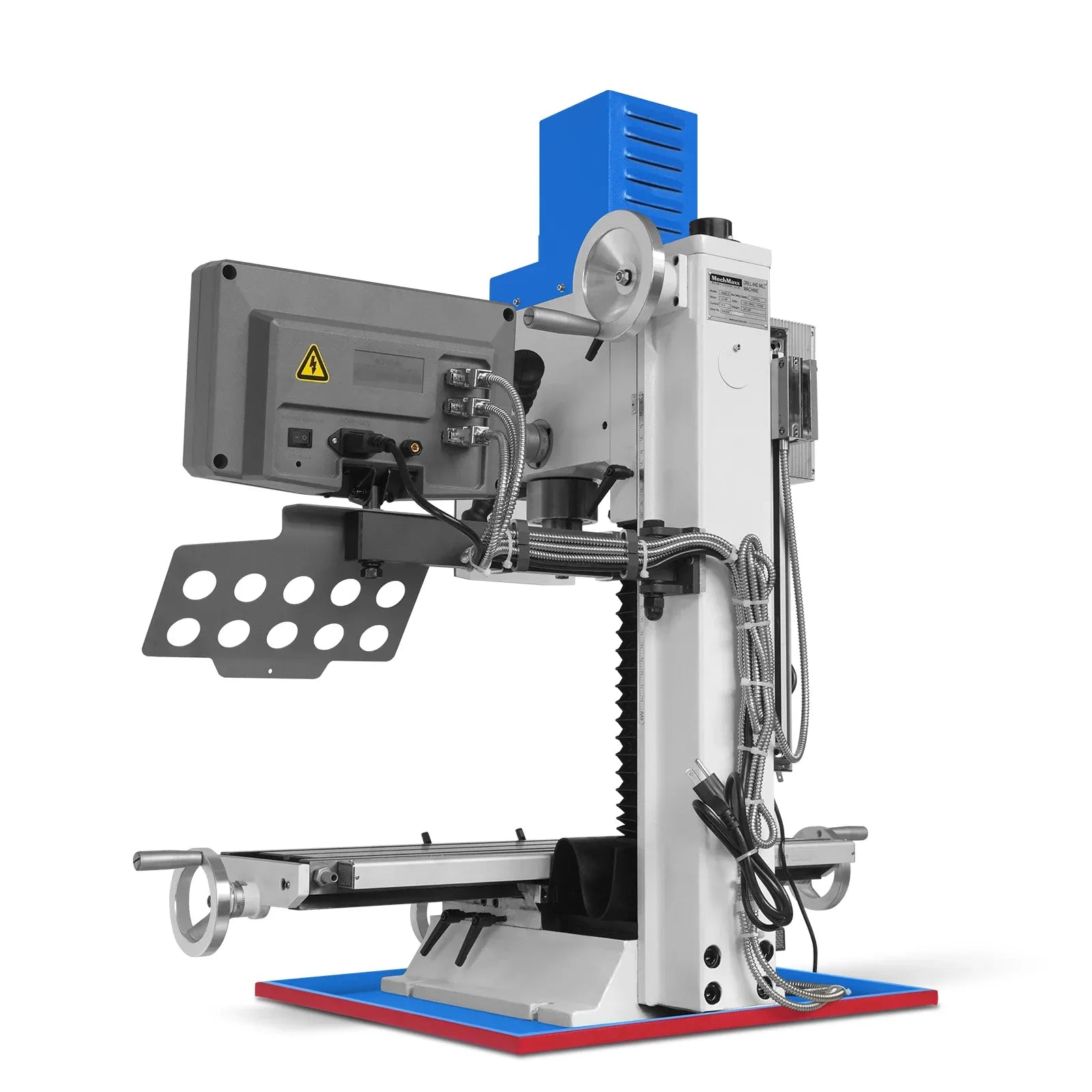

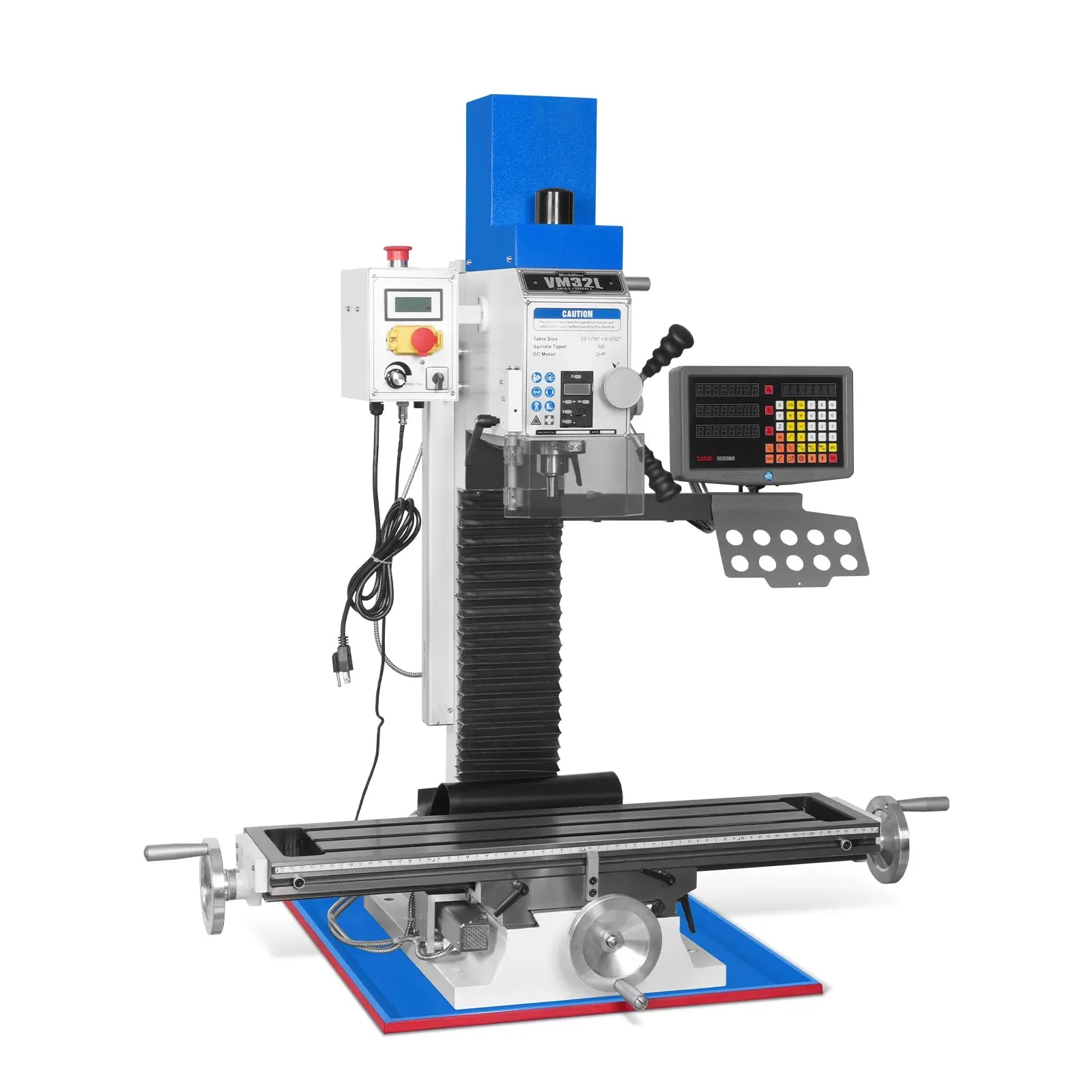

MechMaxx 8x33 Industrial Benchtop Mill Drill Machine with DRO, Model VM32LD
SKU: 500205
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Key Features & Benefits

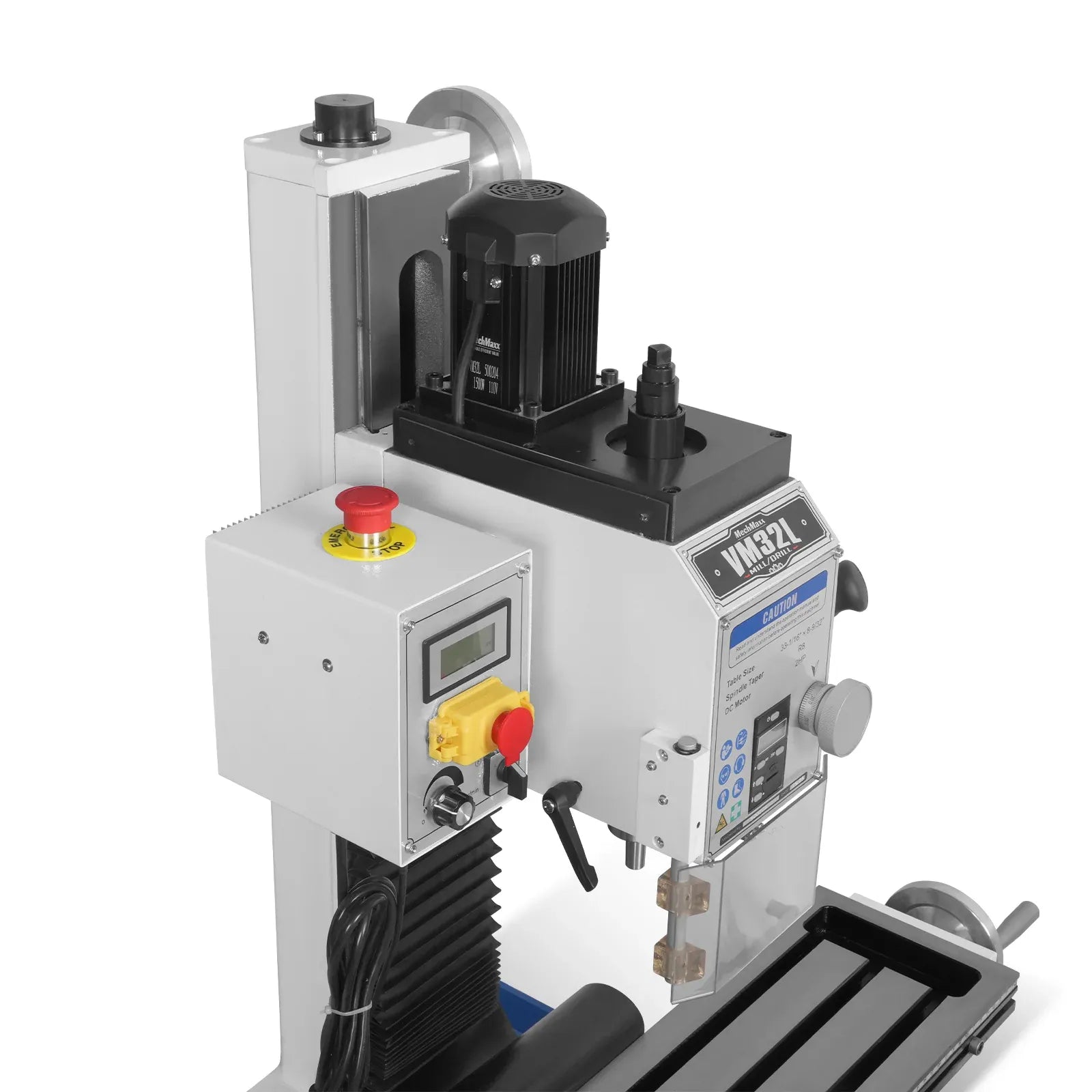

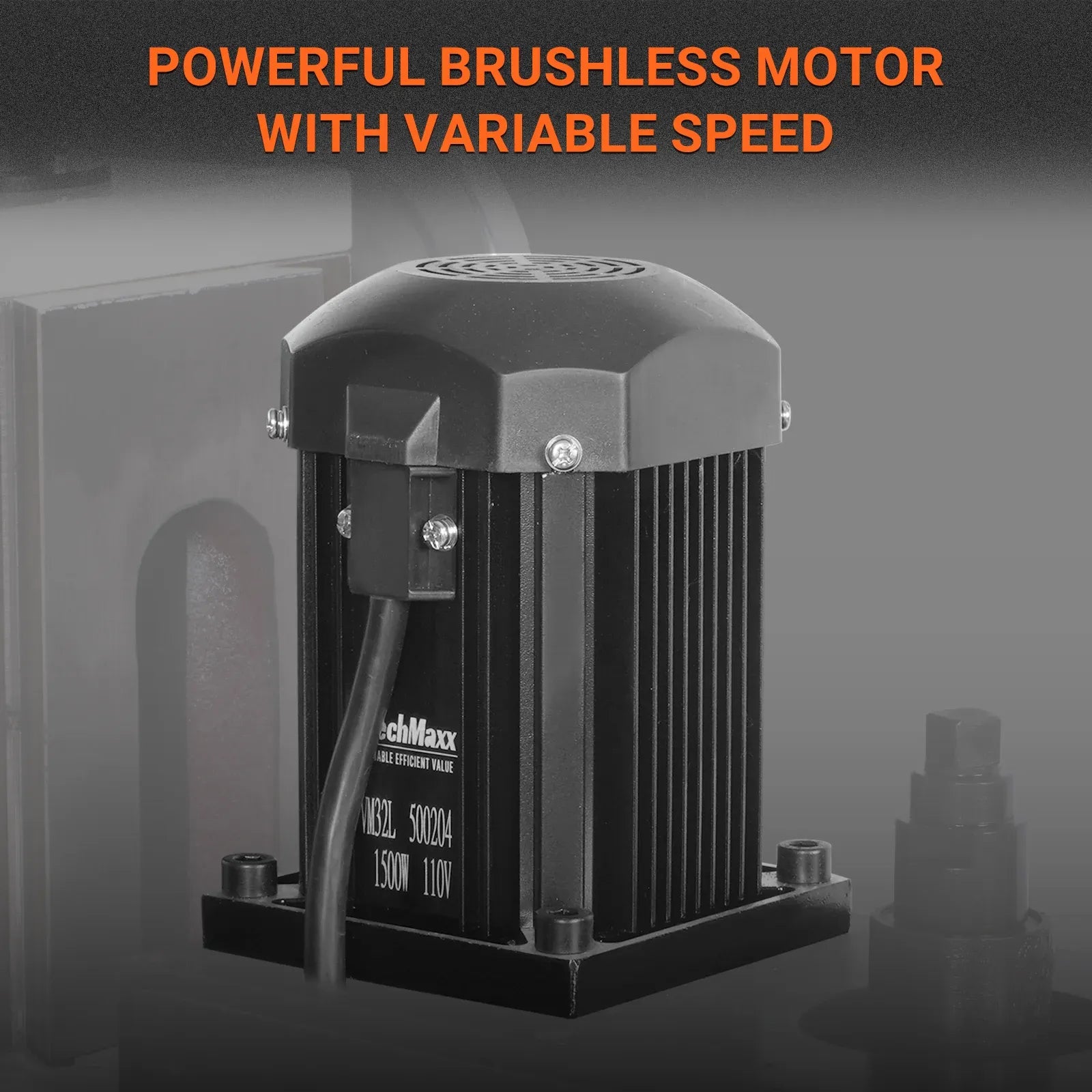

- 2 HP brushless motor delivers smooth, reliable power with quieter operation, improved efficiency, and reduced maintenance

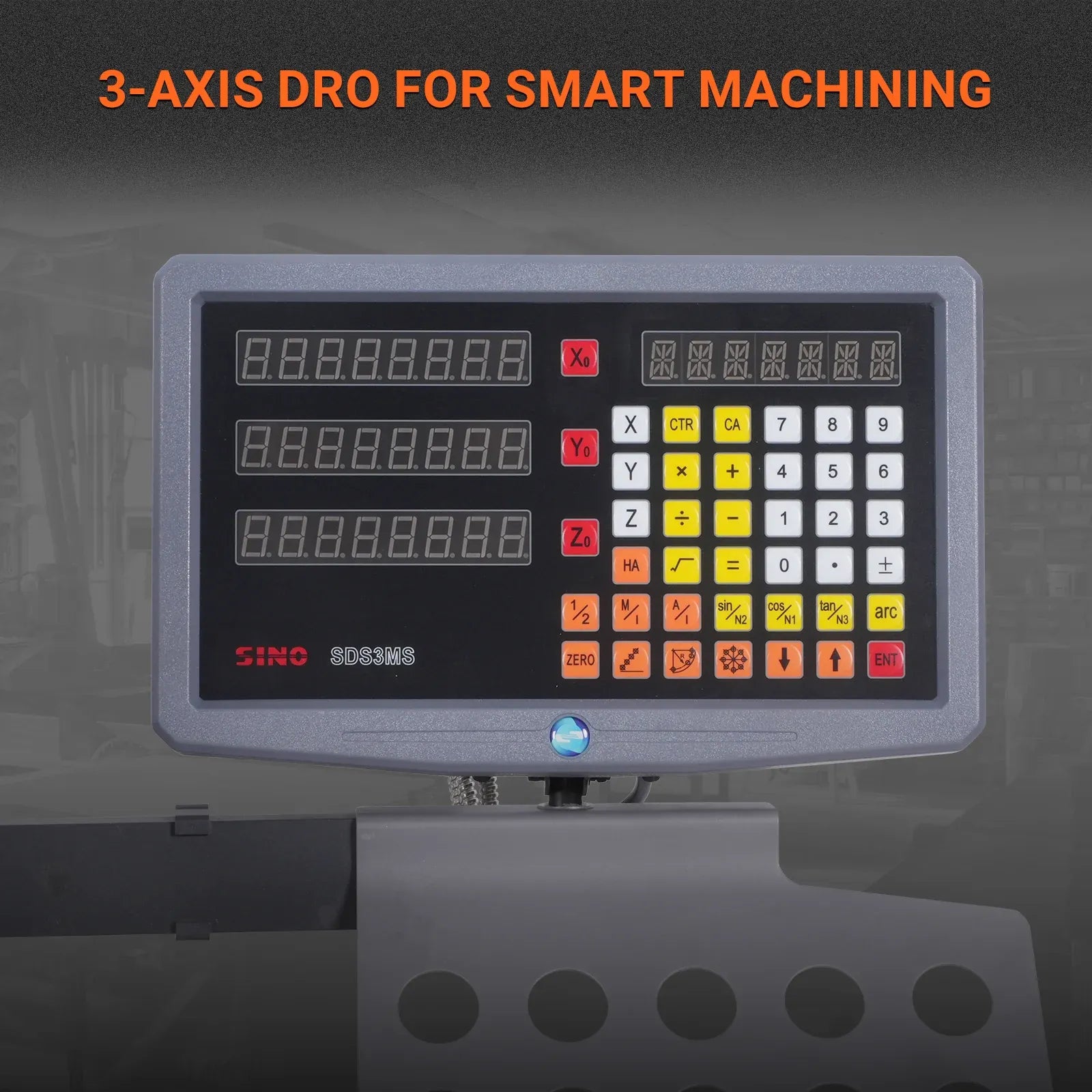

- Integrated 3-axis Digital Readout (DRO) system with optical scales for real-time X, Y, and Z axis measurements in inch or metric
- R8 spindle taper supports a wide range of tooling for drilling, end milling, and face milling applications

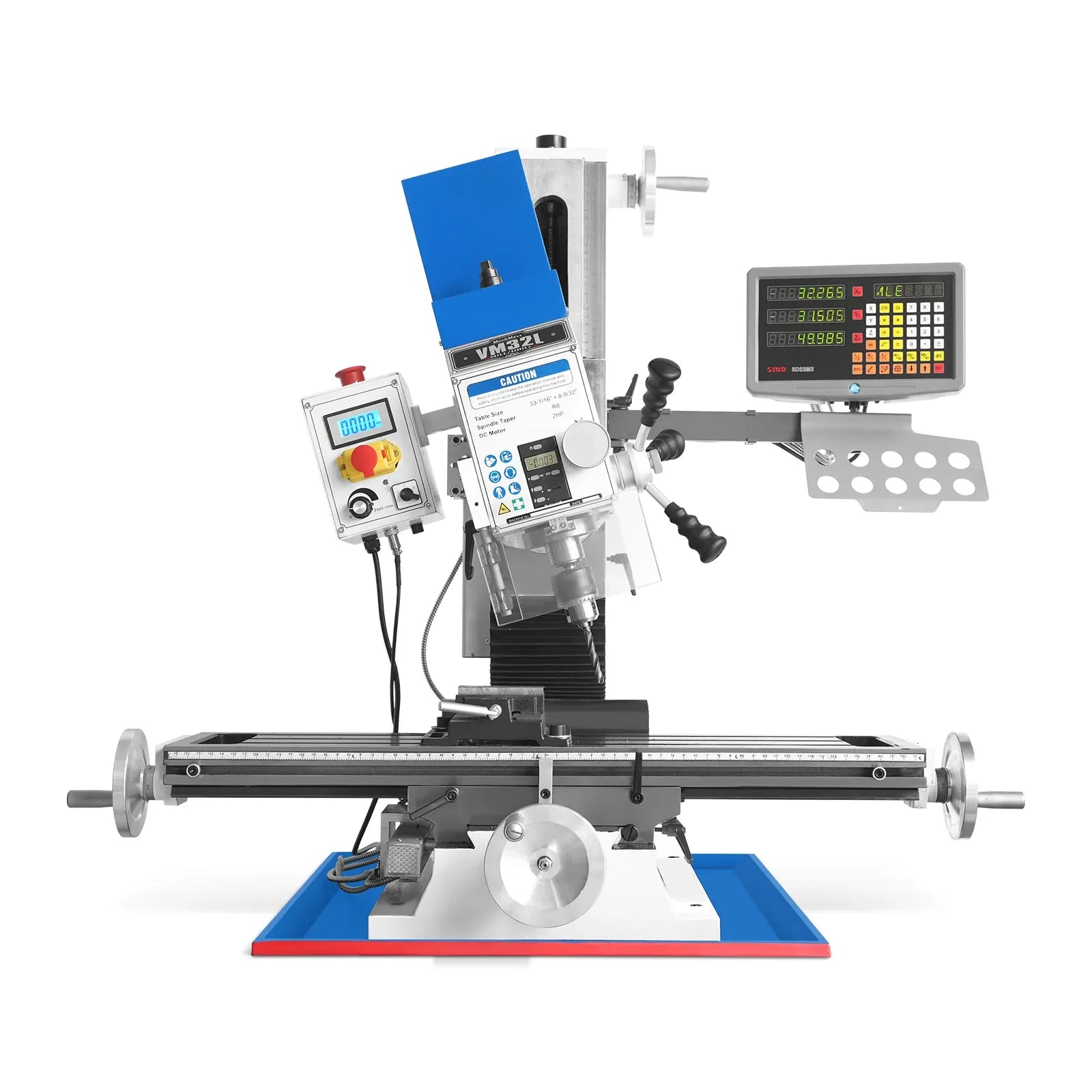

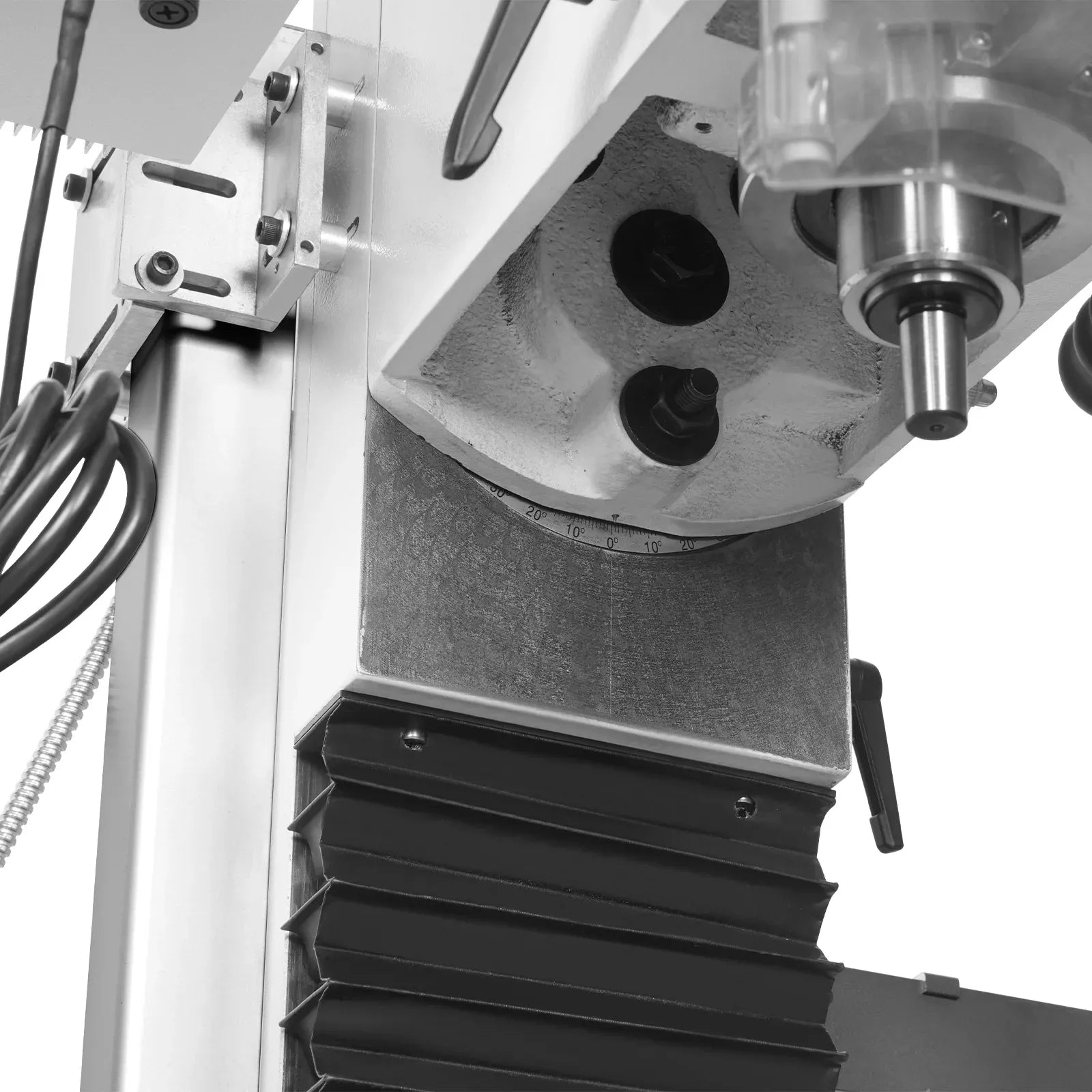

- Head tilts ±90° for precise angled cuts and complex machining operations

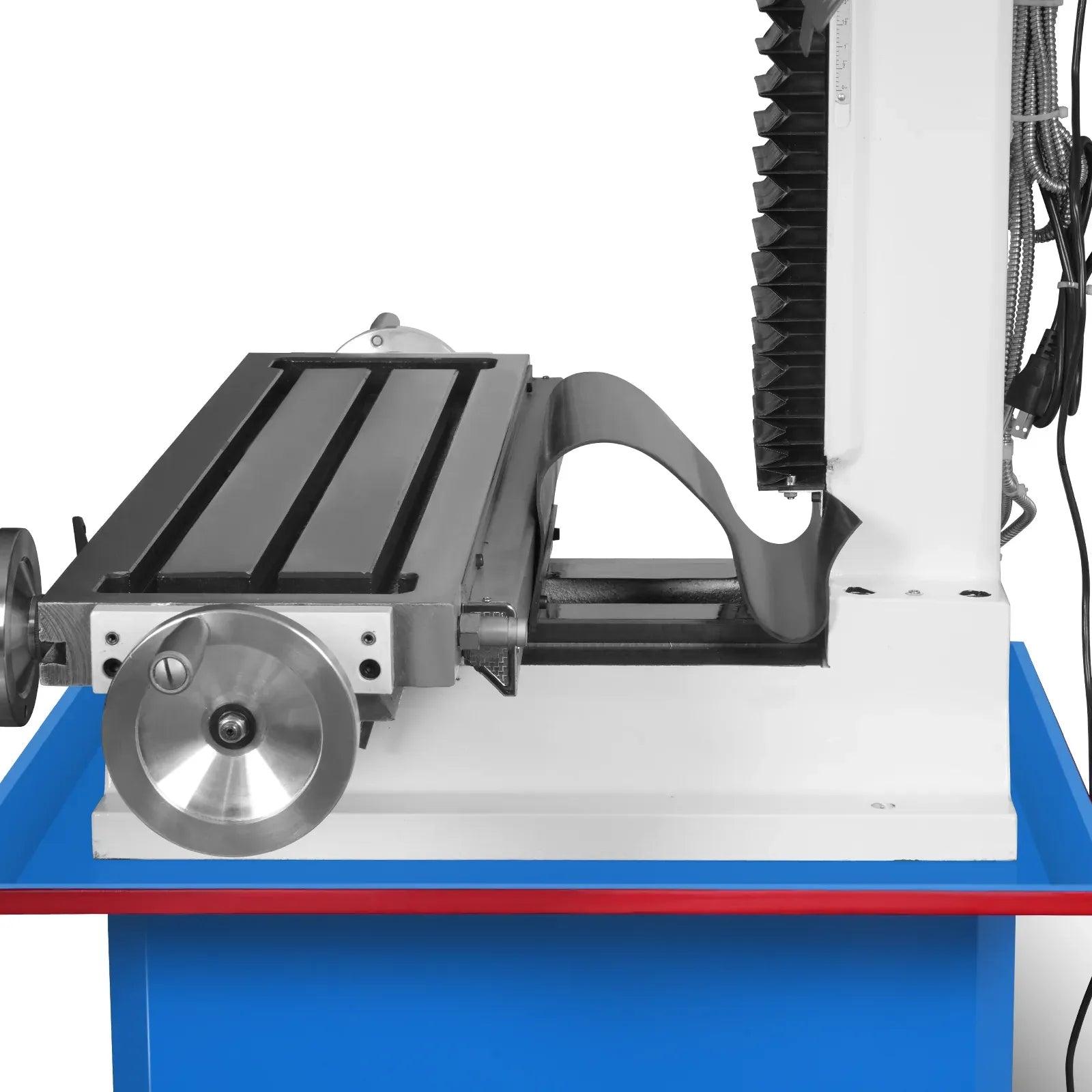

- 8-1/4" × 33" table with extended axis travel accommodates larger workpieces

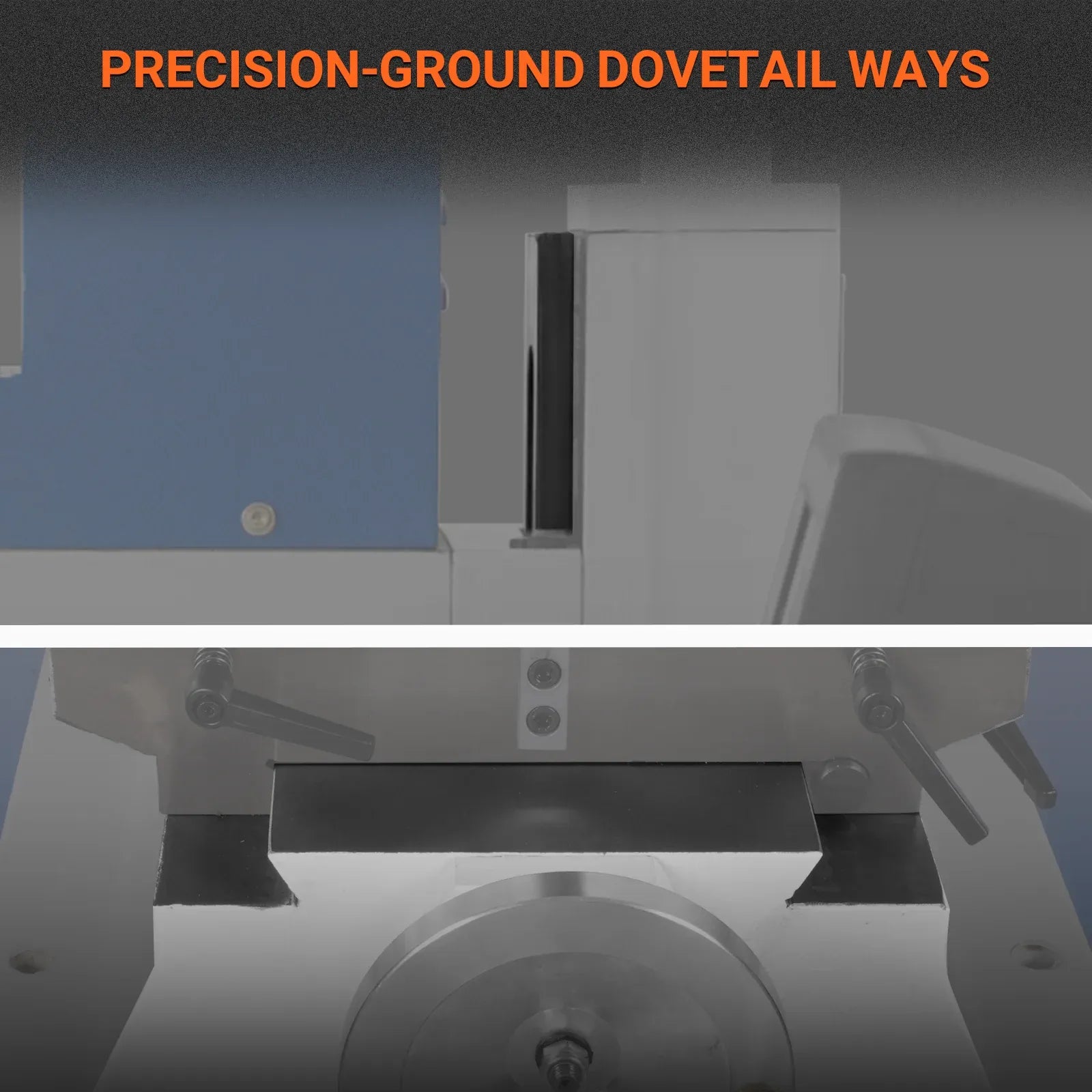

- Square column with dovetail slide construction provides excellent stability and reduced vibration

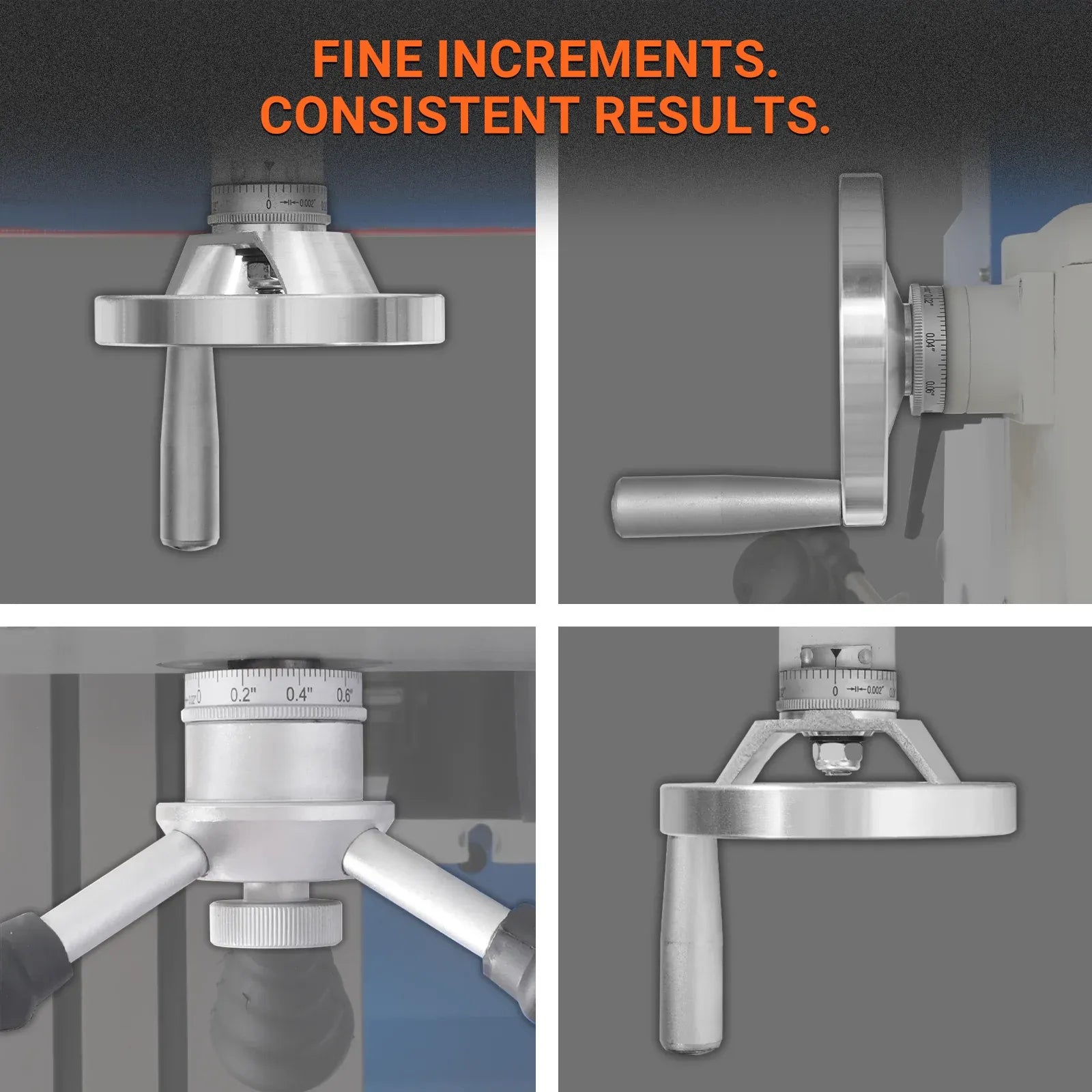

- Micrometer dials graduated in inches; leadscrew advances 0.02" per revolution for consistent feed control
- Optical DRO scales offer superior resistance to dust, interference, and shop contaminants vs. magnetic scale systems
| Specifications | Details |
|---|---|
| Spindle Taper | R8 |

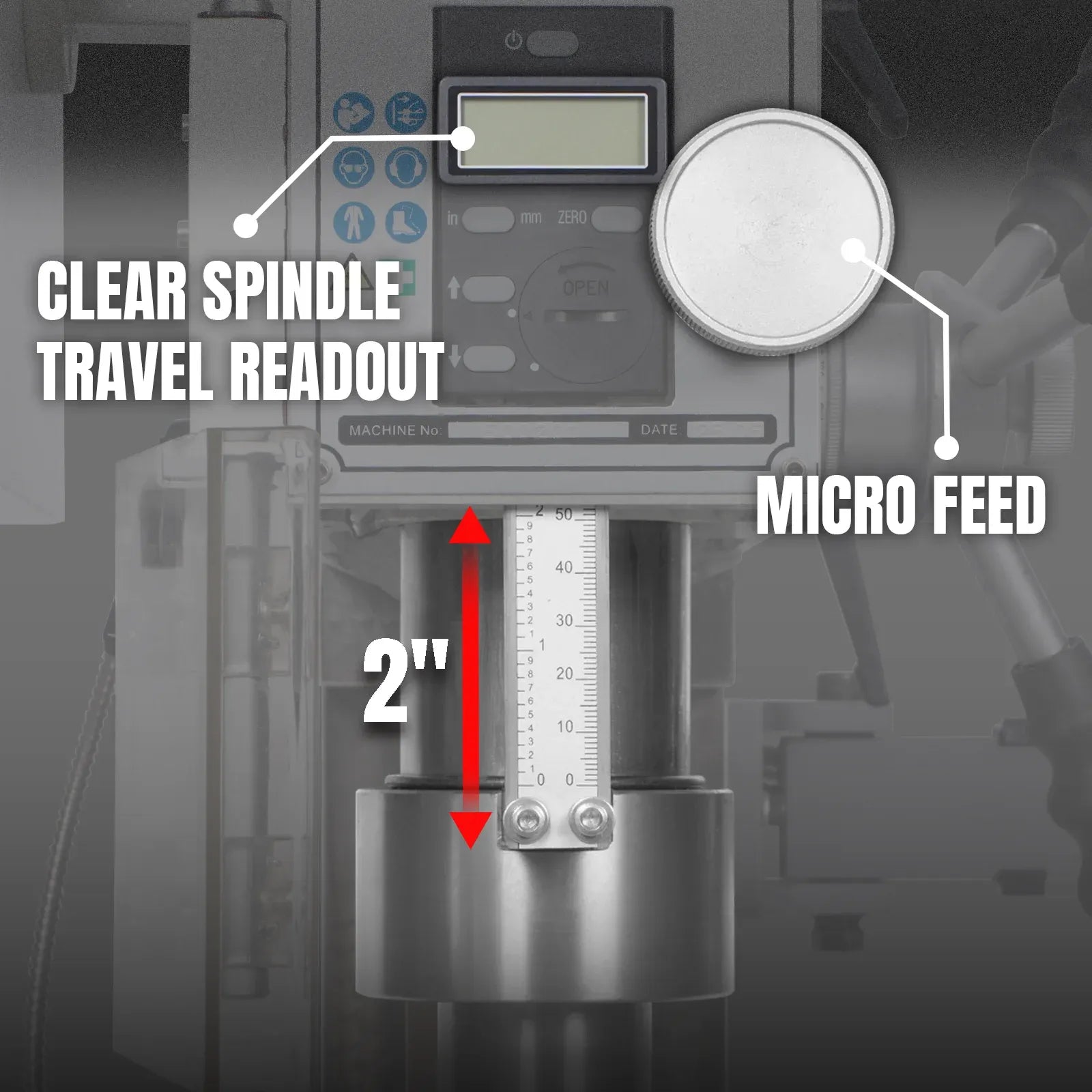

| Spindle Travel | 2" (50 mm) |
| Quill Diameter | Ø2-3/4" (70 mm) |
| Spindle Speed Range | 0–2500 RPM |
| Number of Speed Steps | Variable |
| Drawbar Thread Size | 7/16"-20 |
| Head Tilt Angle | ±90° |
| Spindle to Table Distance | 18-1/2" (470 mm) |
| Spindle to Column Distance | 8-1/4" (210 mm) |

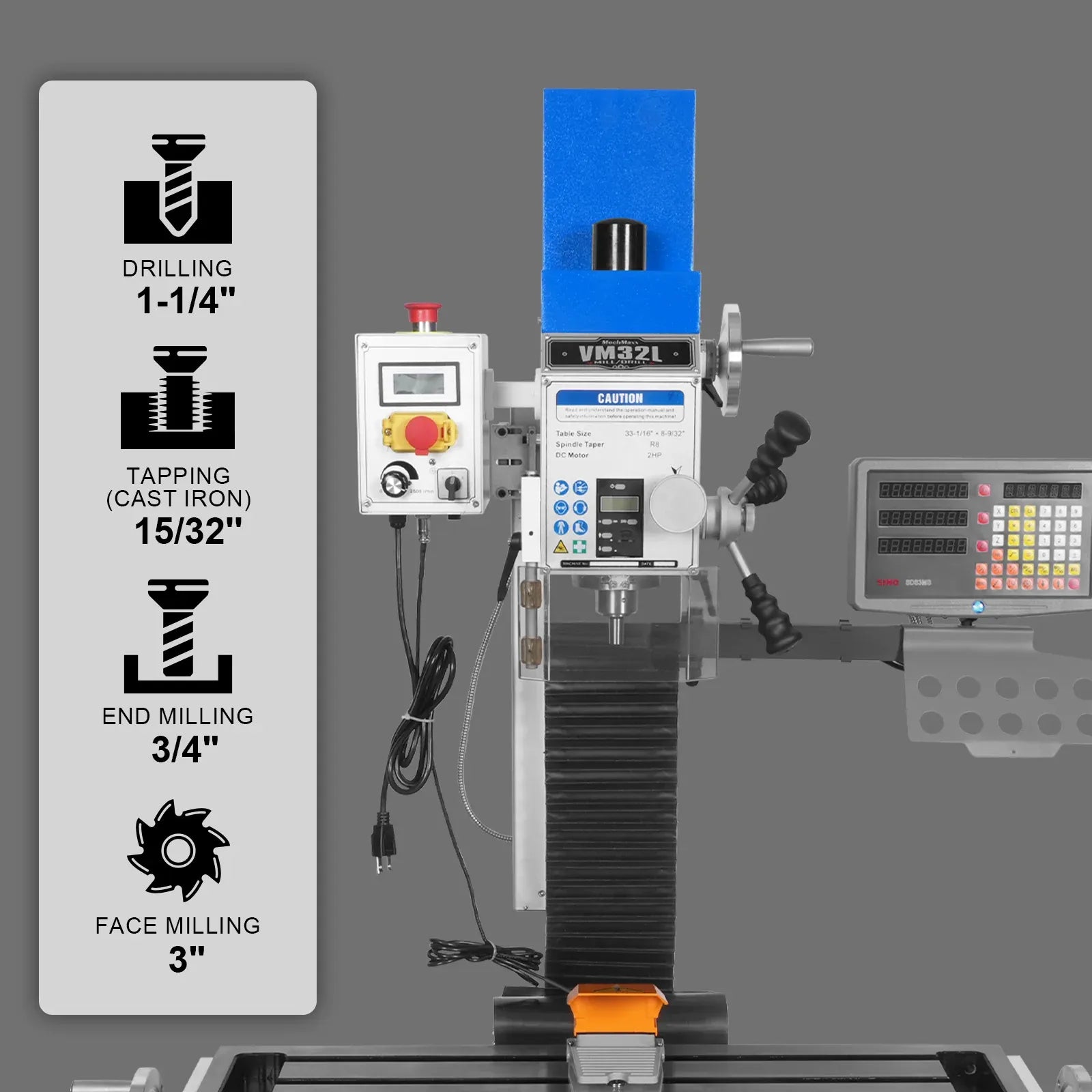

| Drilling Capacity | 1-1/4" (32 mm) |
| End Milling Capacity | 3/4" (20 mm) |
| Face Milling Capacity | 3" (76 mm) |
| Table Size | 8-1/4" × 33" (210 × 840 mm) |
| T-Slot Size / No. / Centers | 3 × 9/16" (14 mm) |

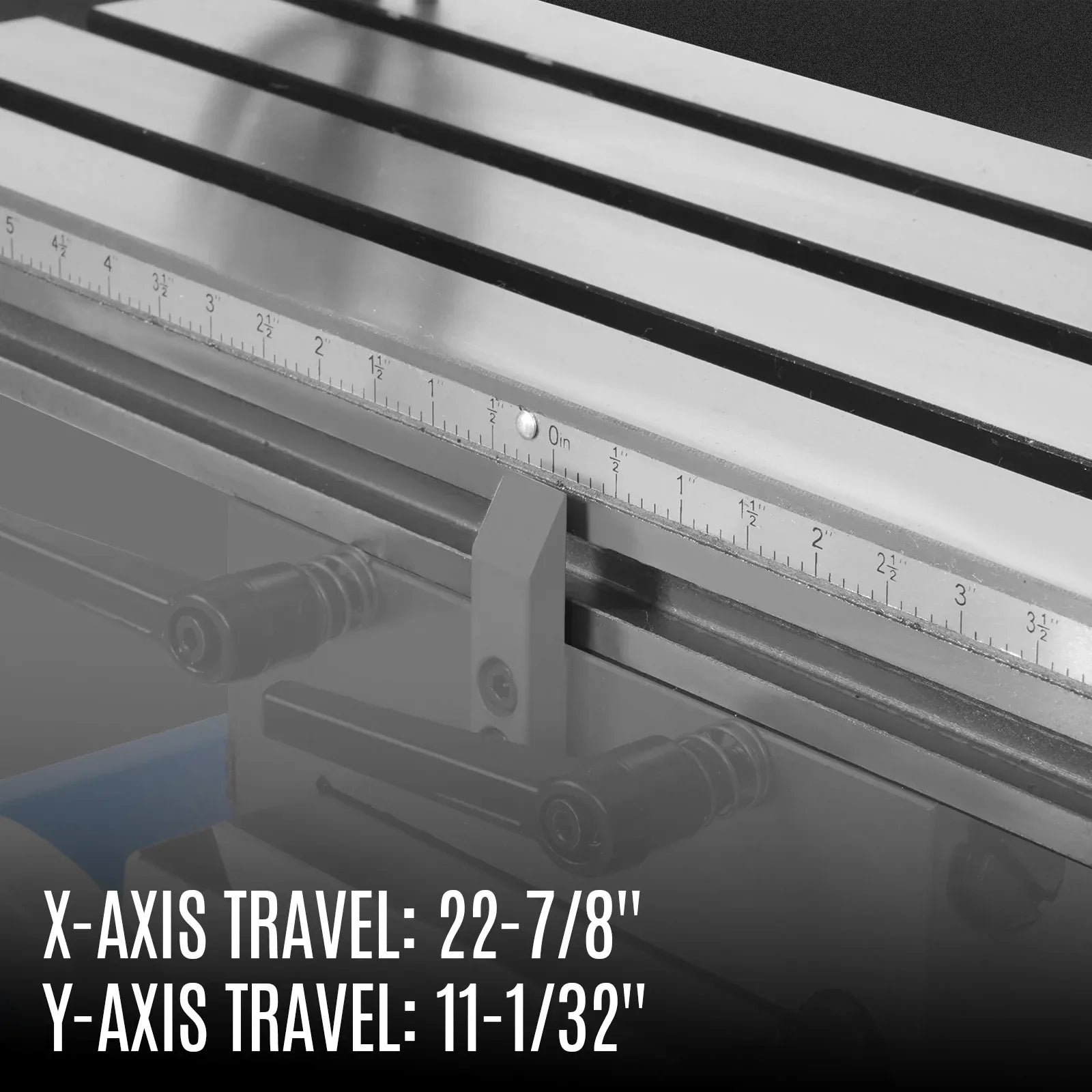

| X-Axis Travel | 22-7/8" (580 mm) |
| Y-Axis Travel | 11-1/32" (280 mm) |
| Z-Axis Travel | 18-1/2" (470 mm) |
| Column Type | Square Column, Dovetail Slide |
| Drive Type | Belt |
| Motor Power | 2 HP, 110V, Single-Phase Brushless |
| Motor Type | DC Brushless |
| Net / Gross Weight | 462 / 528 lbs (210 / 240 kg) |
| Overall Dimensions | 45" × 28" × 47" (1130 × 710 × 1190 mm) |
| Base Size | 21" × 15" (535 × 380 mm) |
| Shipping Dimensions | 44" × 29" × 46" (1100 × 730 × 1160 mm) |
