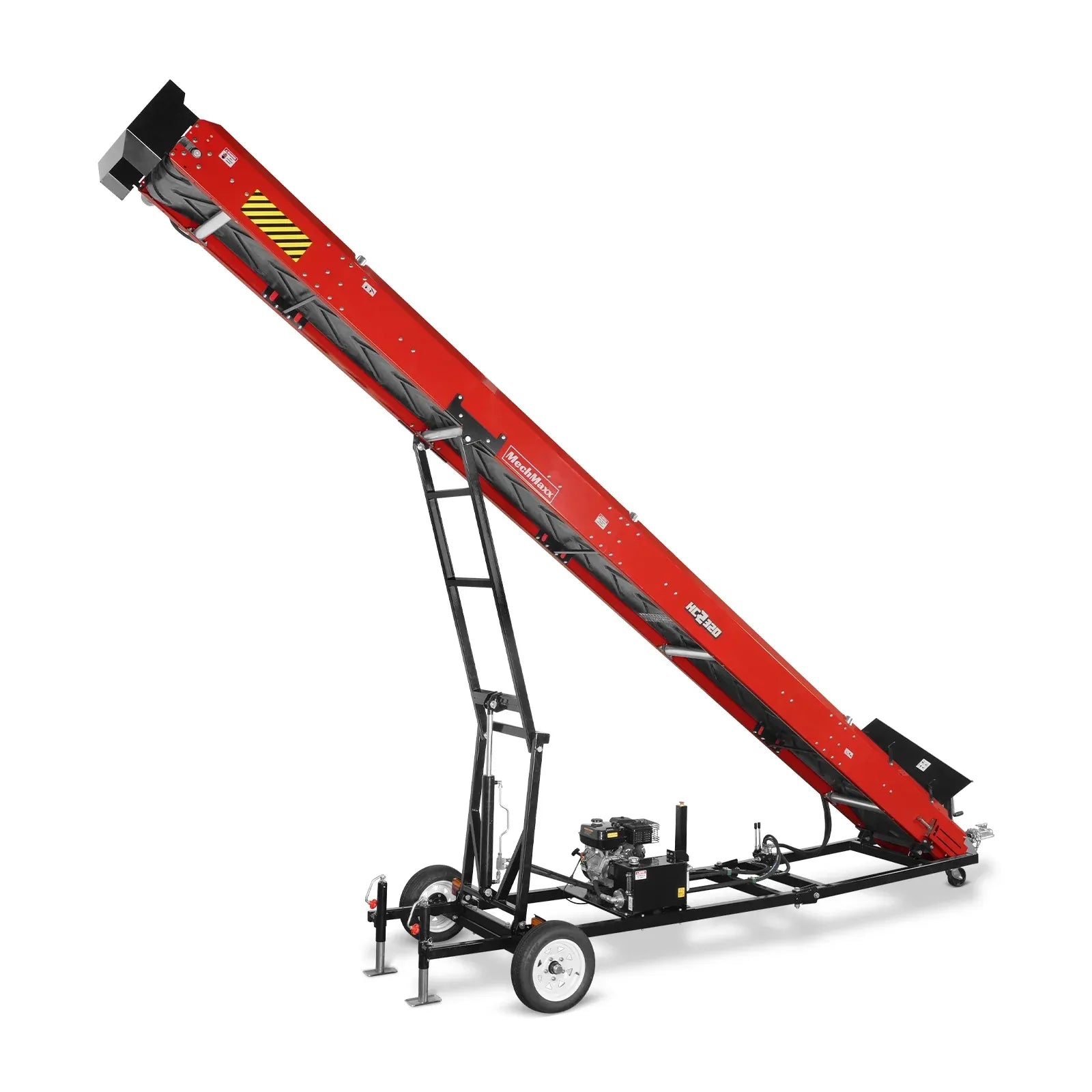

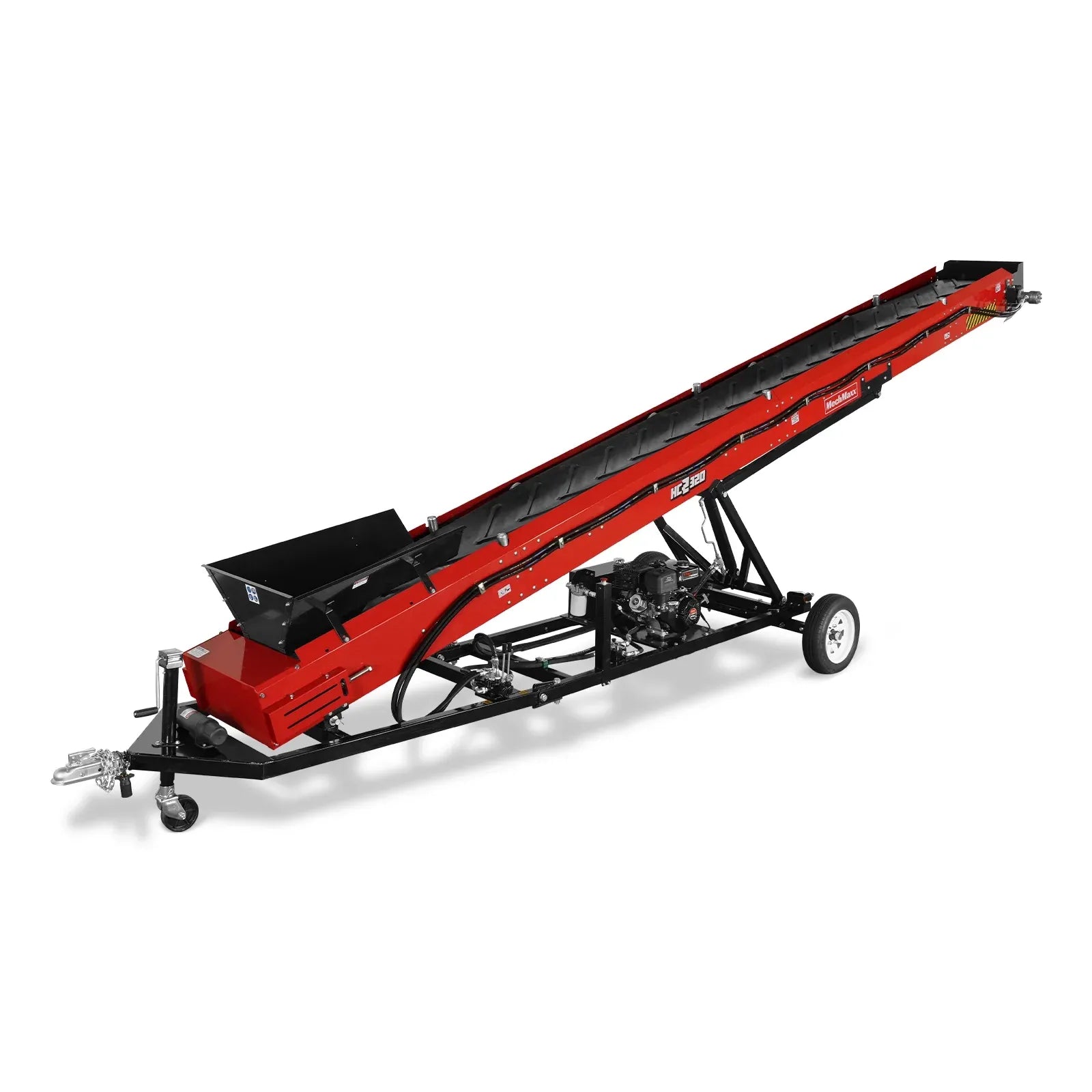

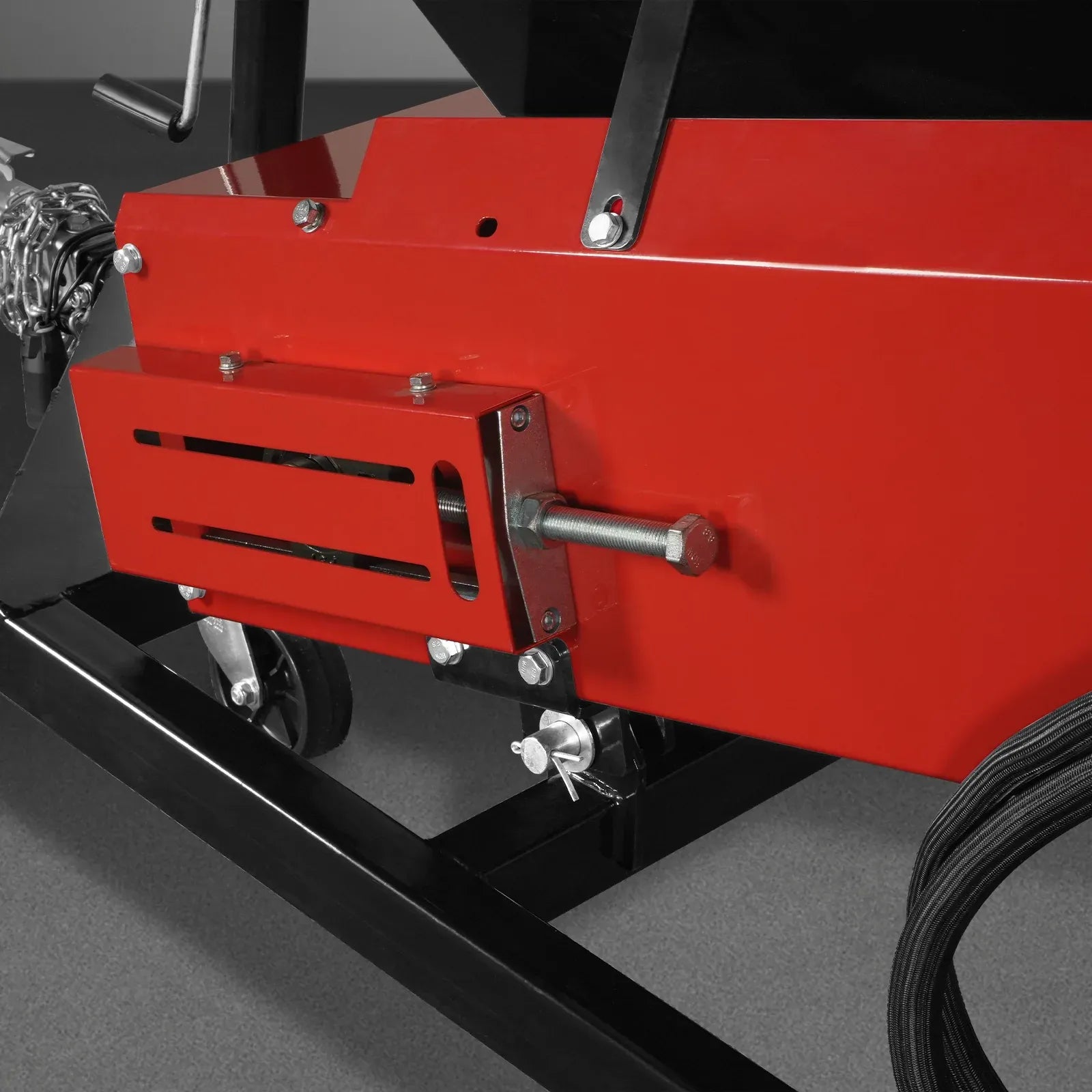

MechMaxx Heavy Duty Conveyor with 9HP 270cc Engine, 180" Max Lift Height, 276" Length, Model HC2320
SKU: 150302
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
Built for serious material handling, the HC2320 firewood conveyor delivers powerful, efficient, and safe performance for moving firewood, logs, and bulk materials. With a heavy-duty hydraulic system and extended reach, this unit is designed to reduce manual labor and increase productivity across demanding job sites.
Key Features & Benefits
- High-Efficiency Material Handling – move and elevate firewood, logs, and bulk materials quickly with minimal effort

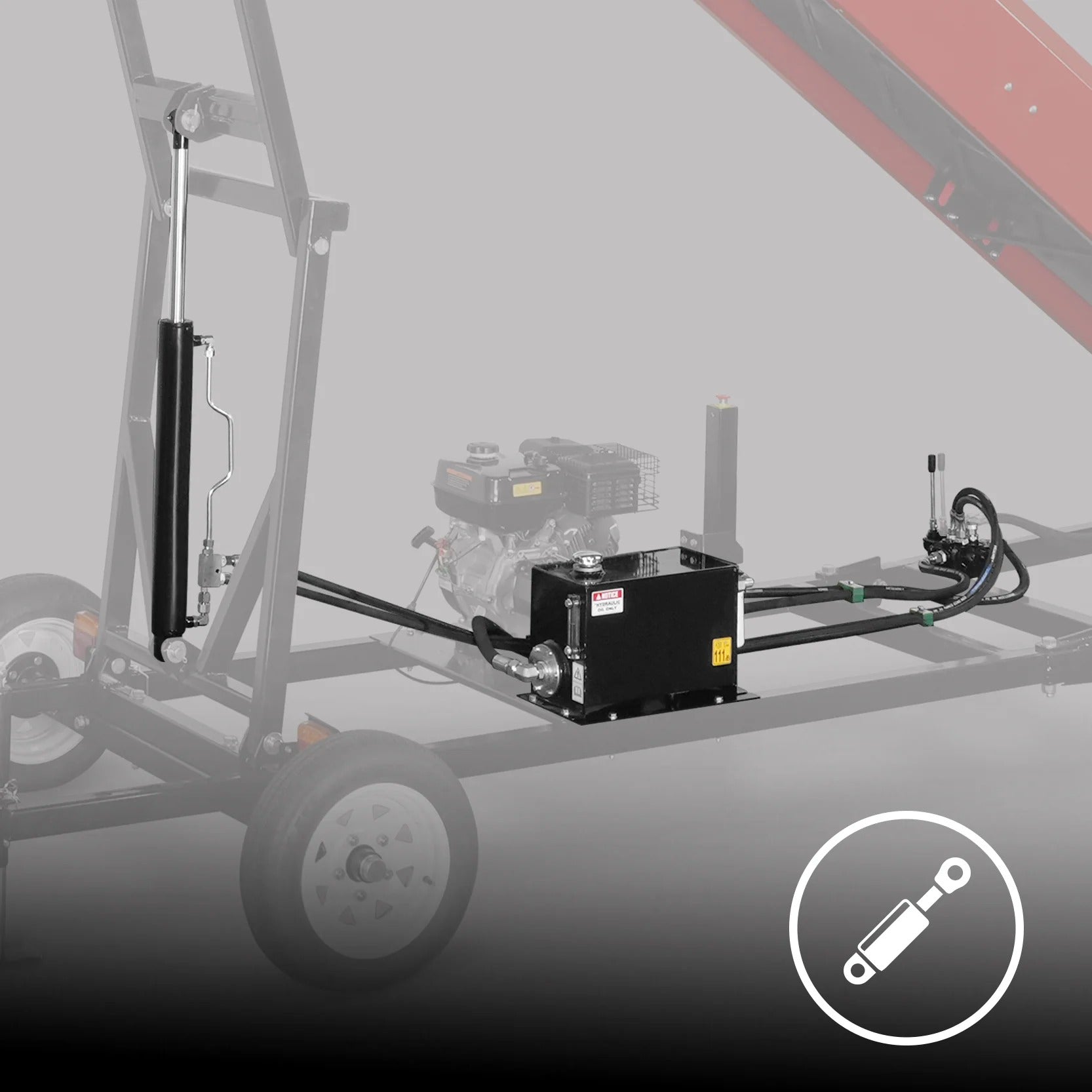

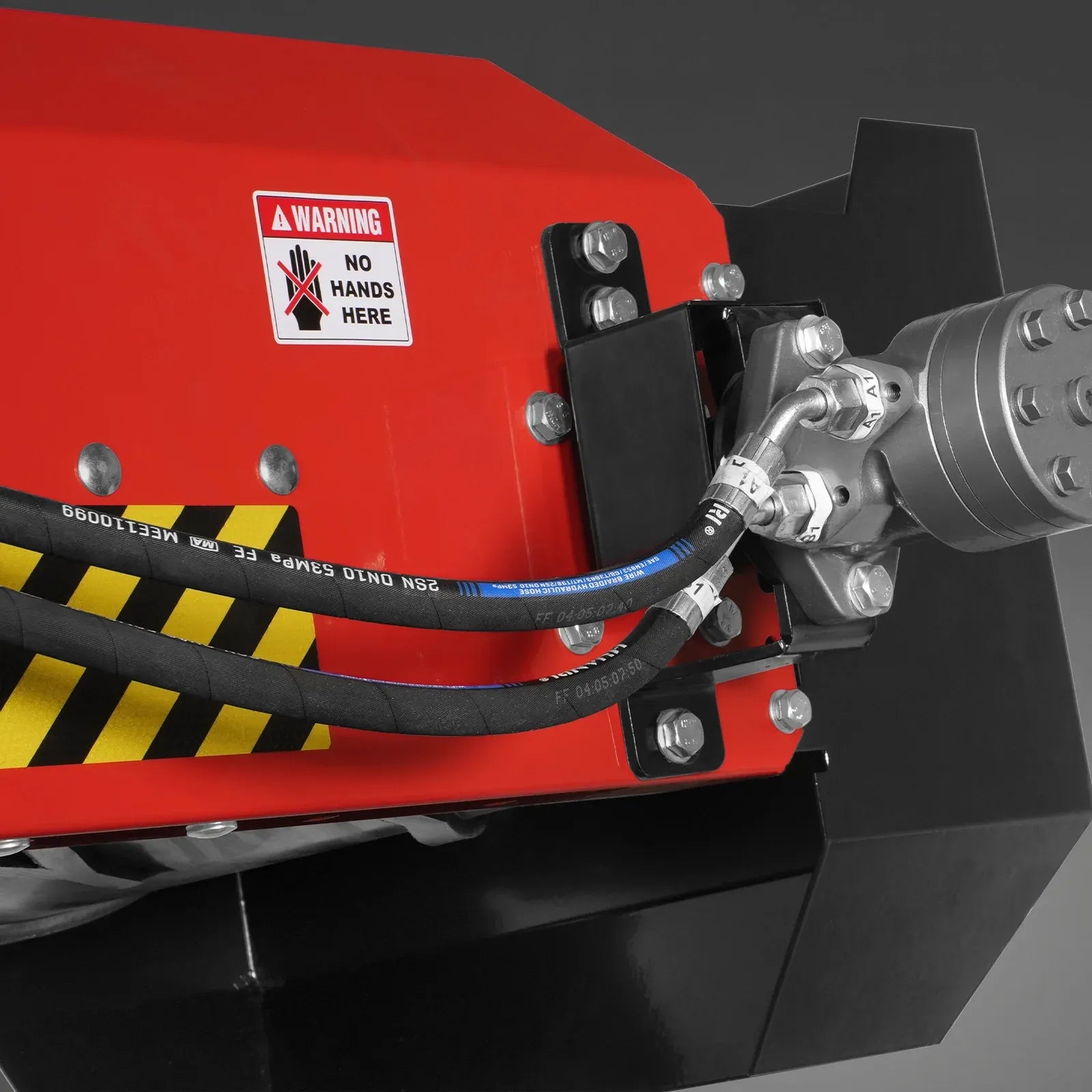

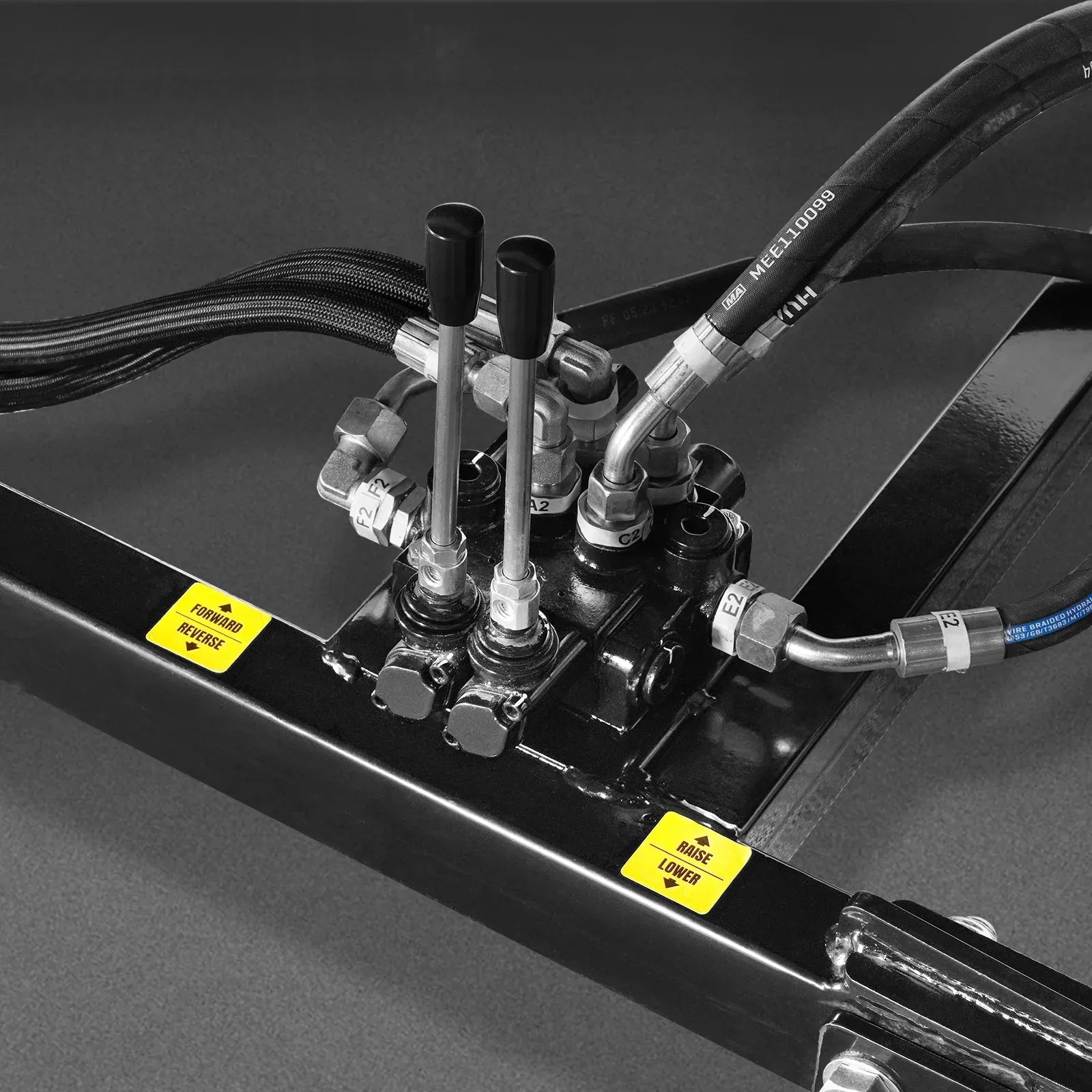

- Hydraulic Drive System – smooth, consistent operation powered by a hydraulic motor for reliable performance

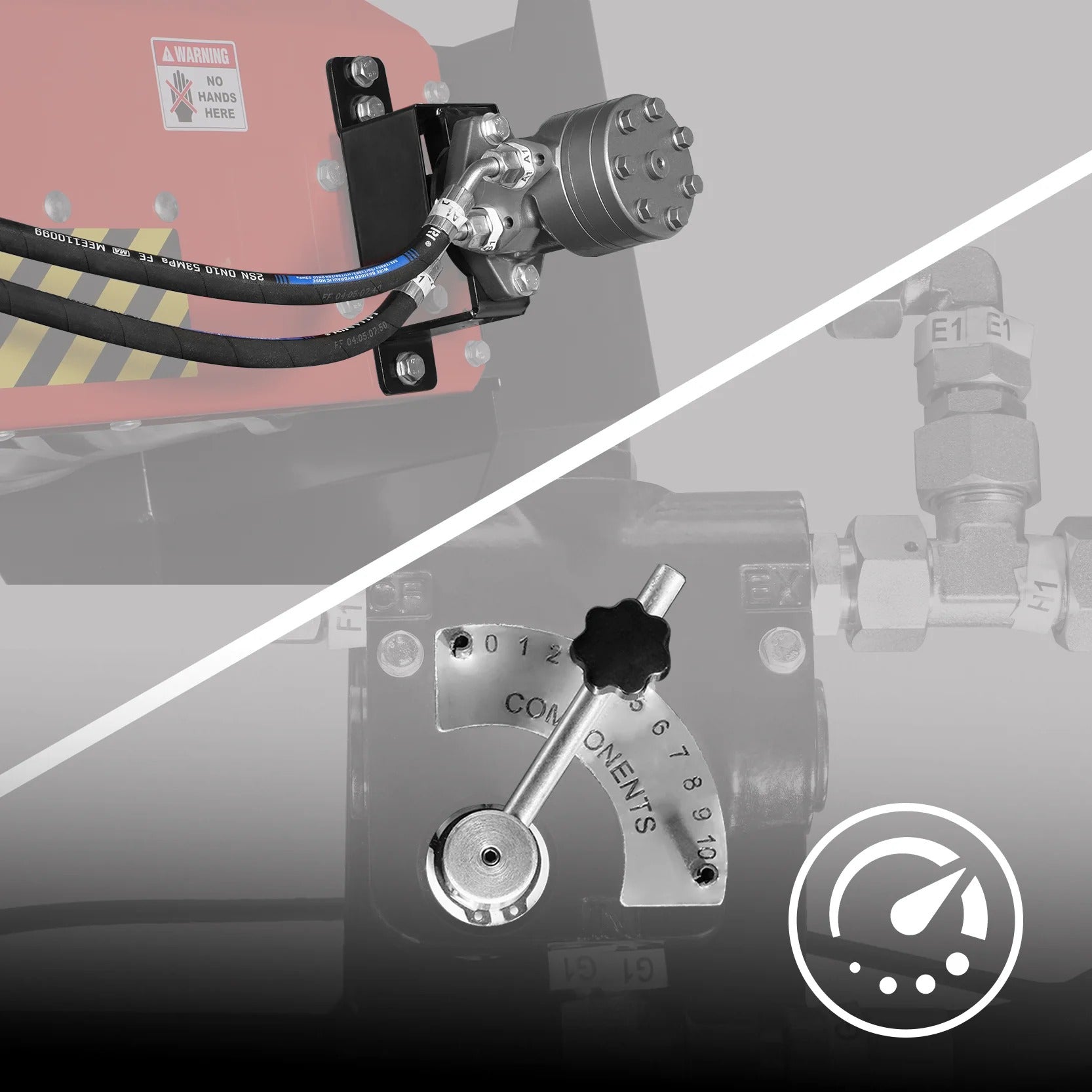

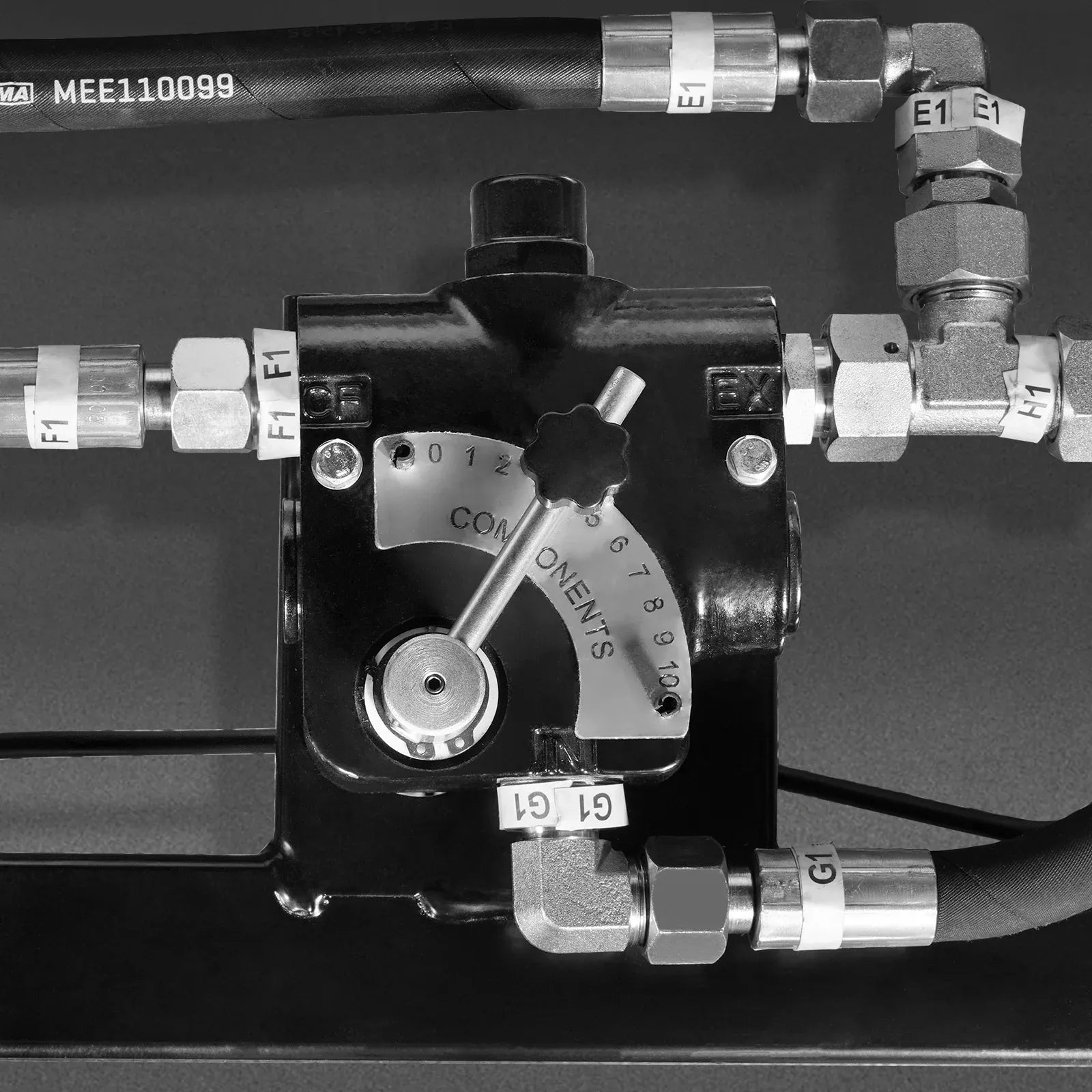

- Variable Speed Control – adjust belt speed using engine throttle and control valve (0–10 scale) for better workflow control
- Extended Reach Conveyor – long conveyor design allows efficient loading into trucks, trailers, or elevated storage

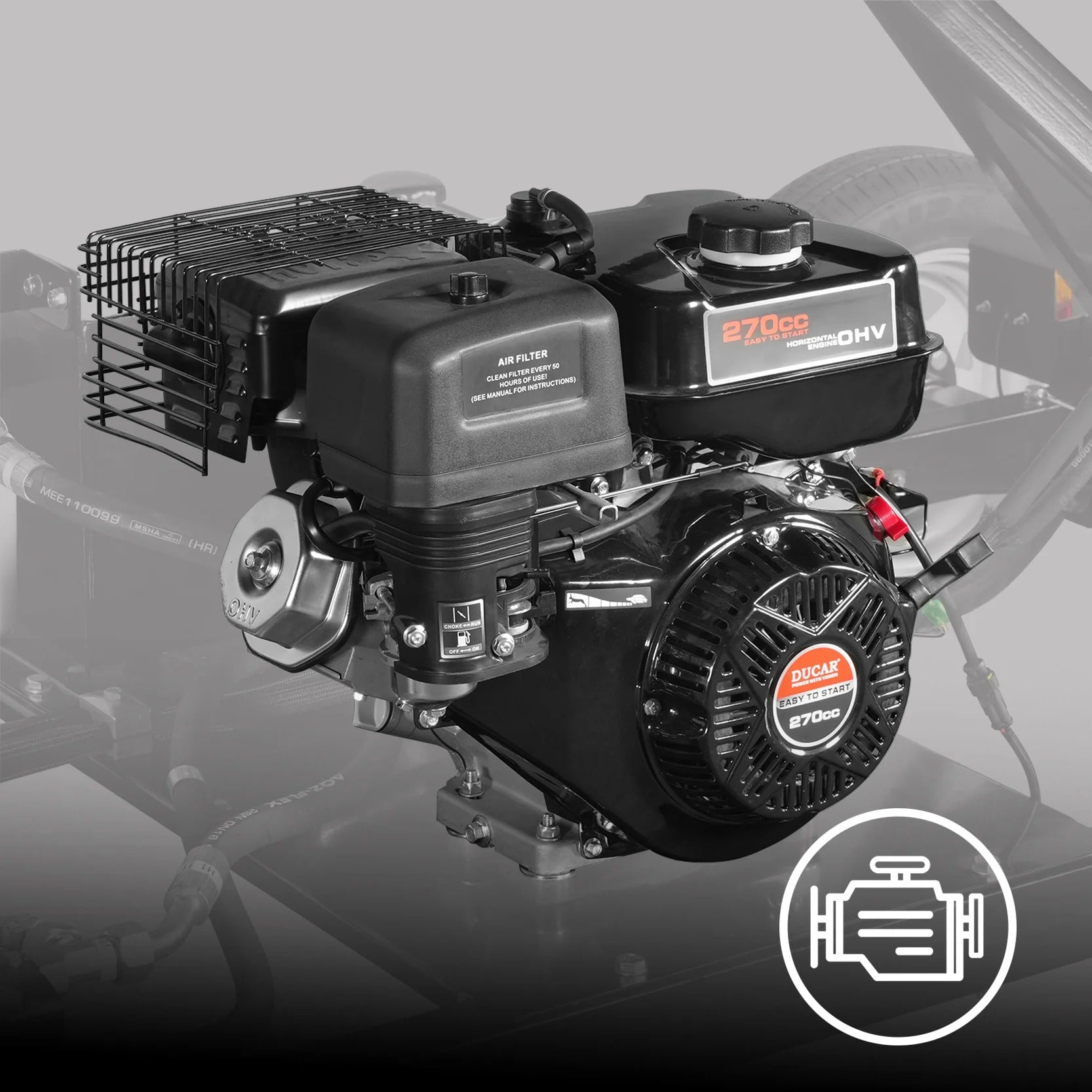

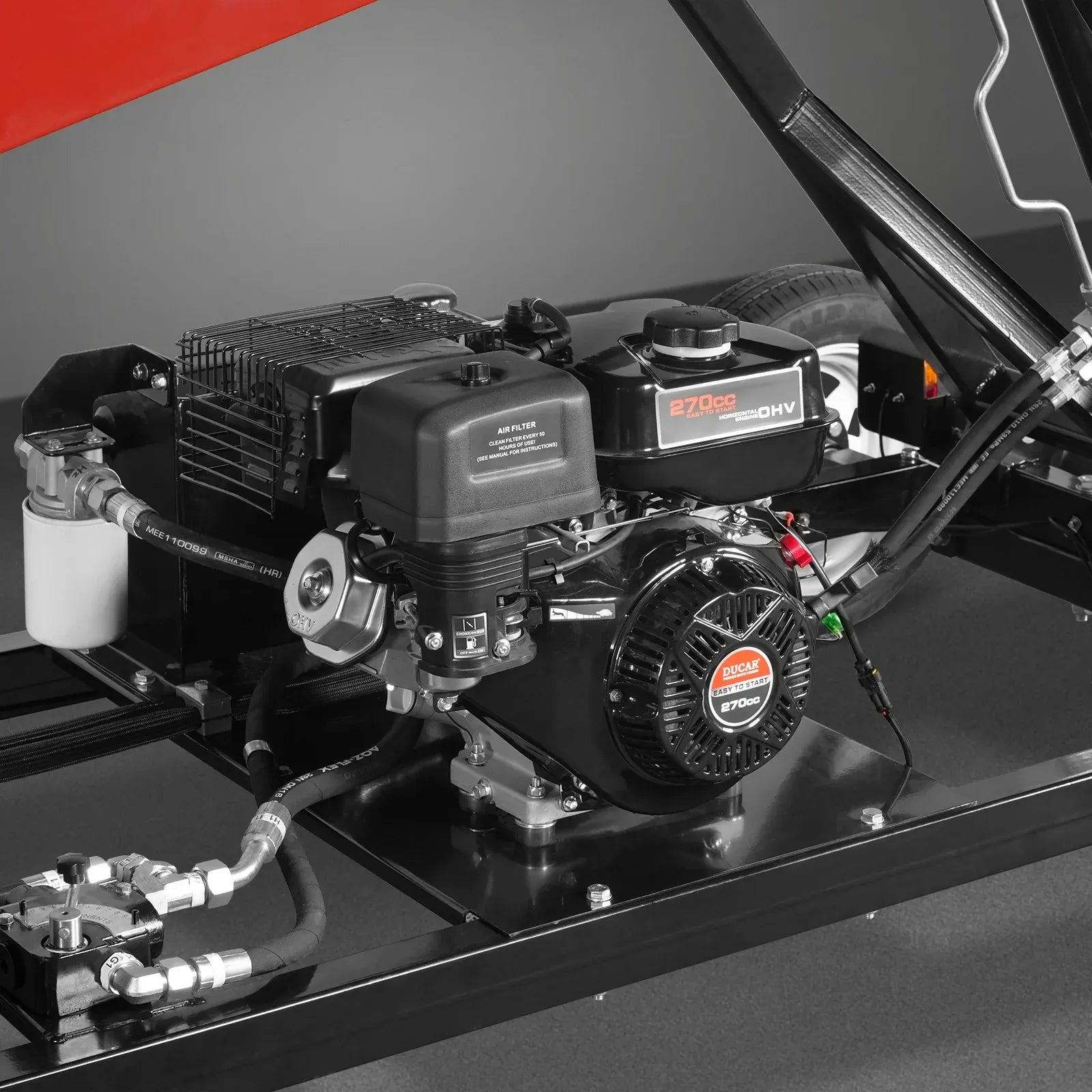

- DUCAR DH270 9HP engine – 270cc, air-cooled 4-stroke design, built for reliable operation in remote or off-grid locations

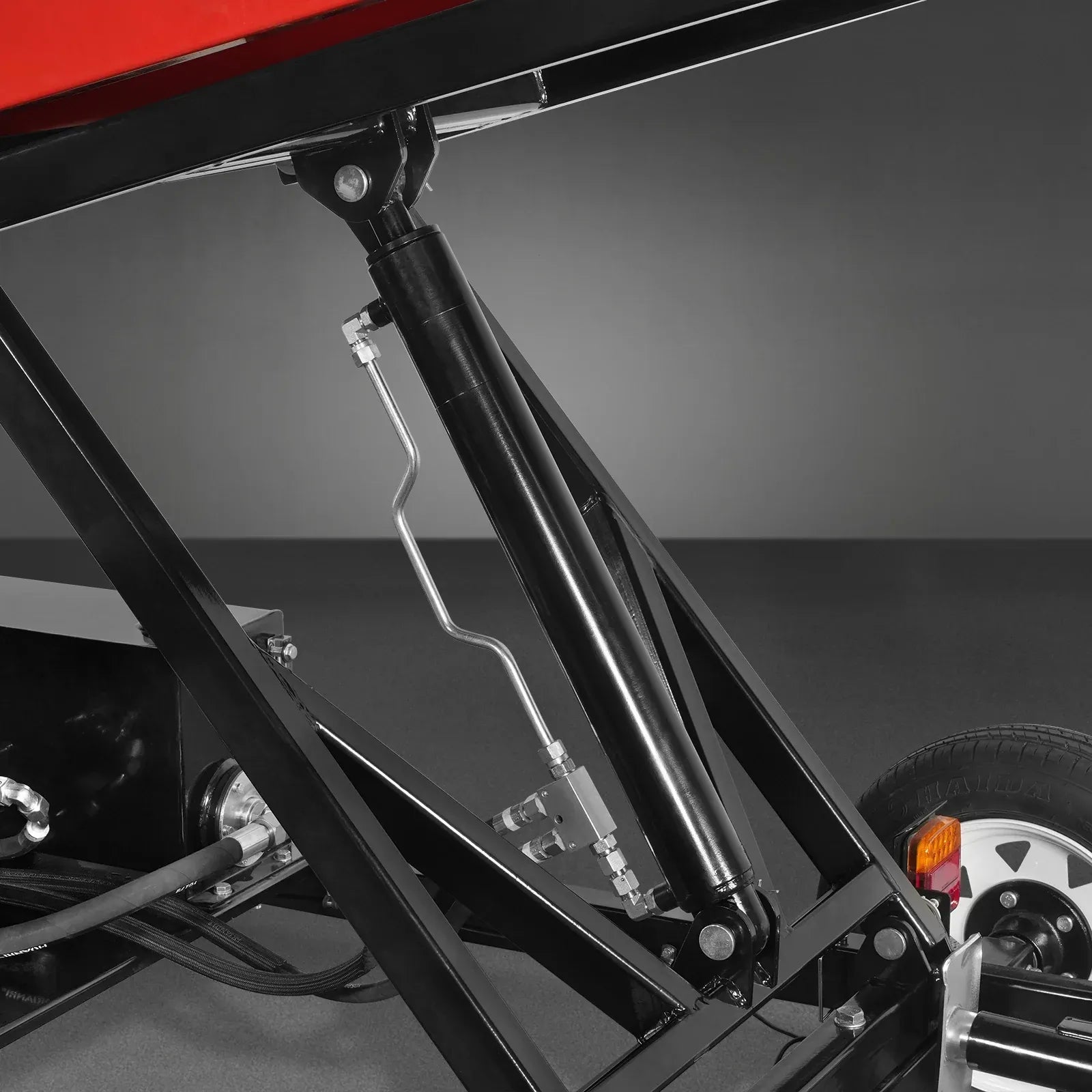

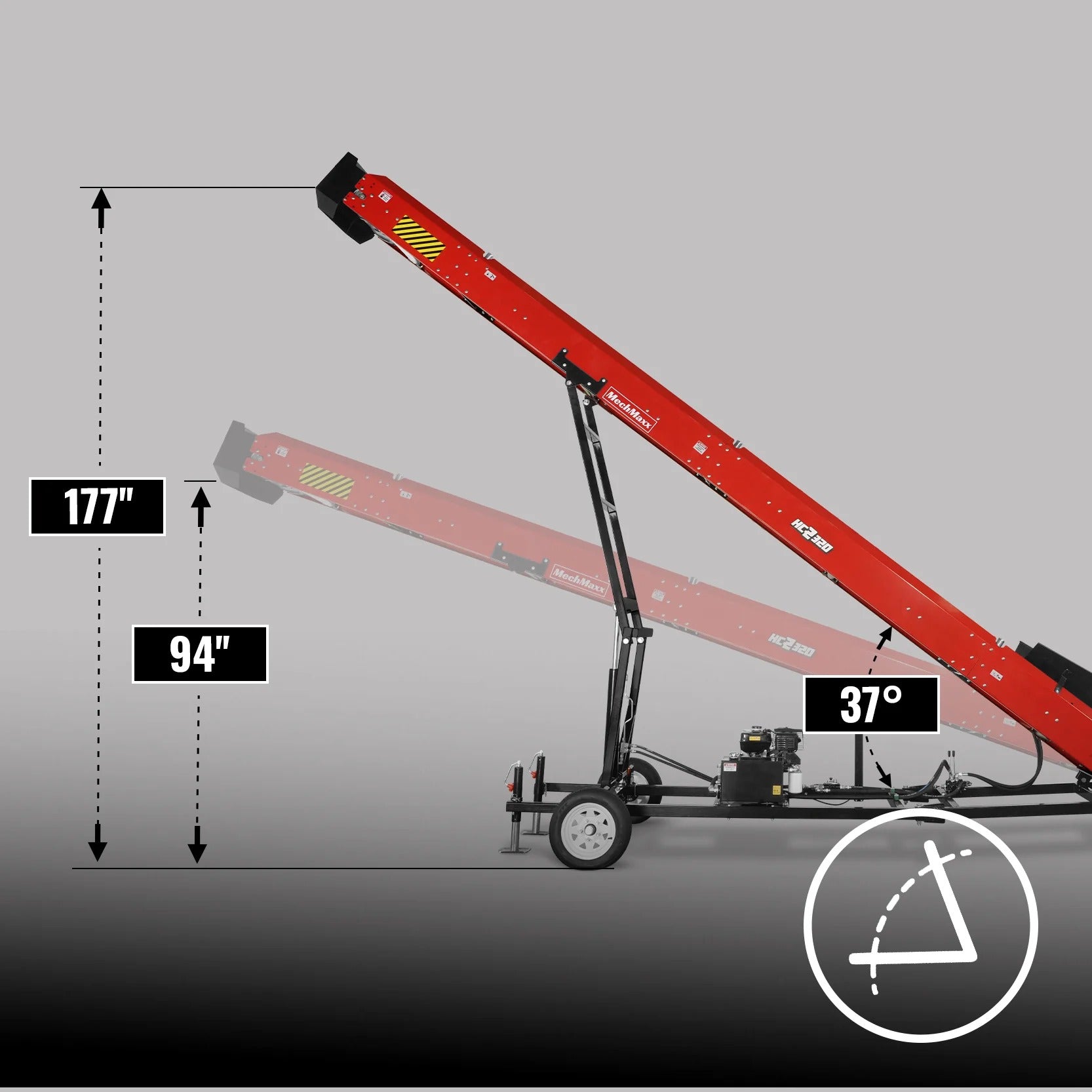

- Hydraulic lift cylinders – smooth height adjustment from 94" to 177"; adjustable working angle up to 37°
- Max load capacity: 440 lbs (lower position) / 353 lbs (highest position) – maintains stability and performance across full range

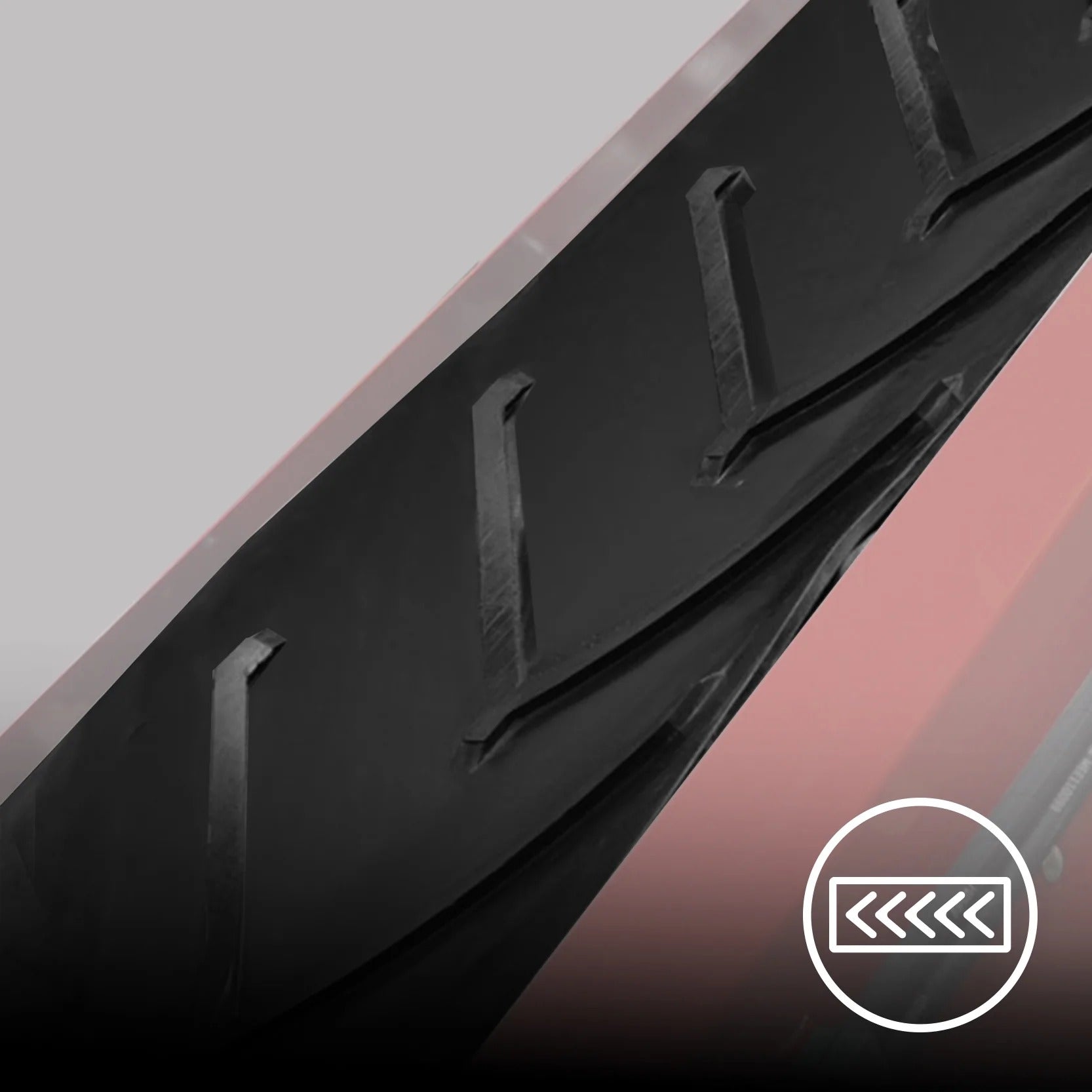

- Reinforced conveyor belt – extra-strong for durability and long-term continuous operation with low maintenance

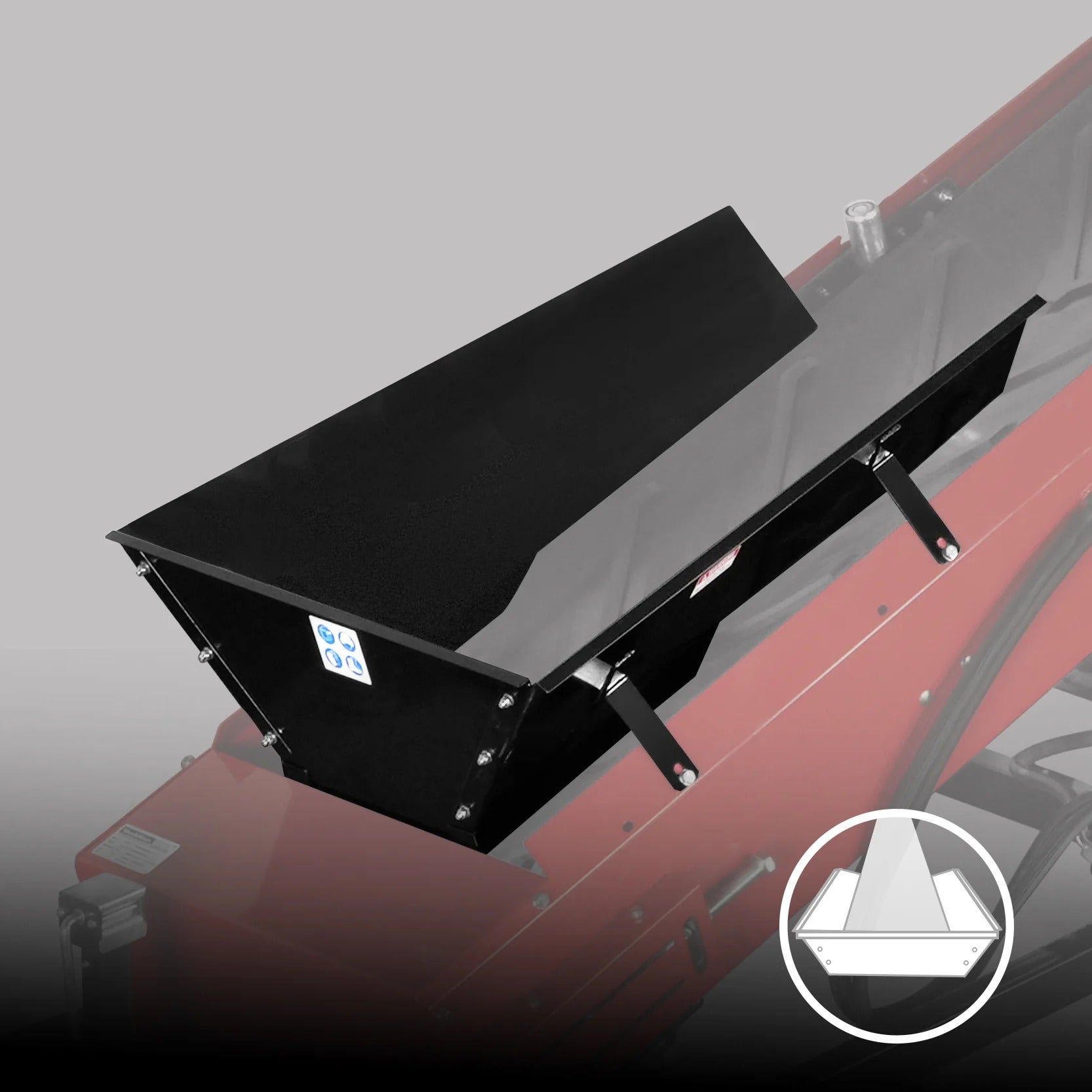

- Modular hopper design – funnel-style for direct loading with buckets; bolted for easy removal, upgrades, or maintenance

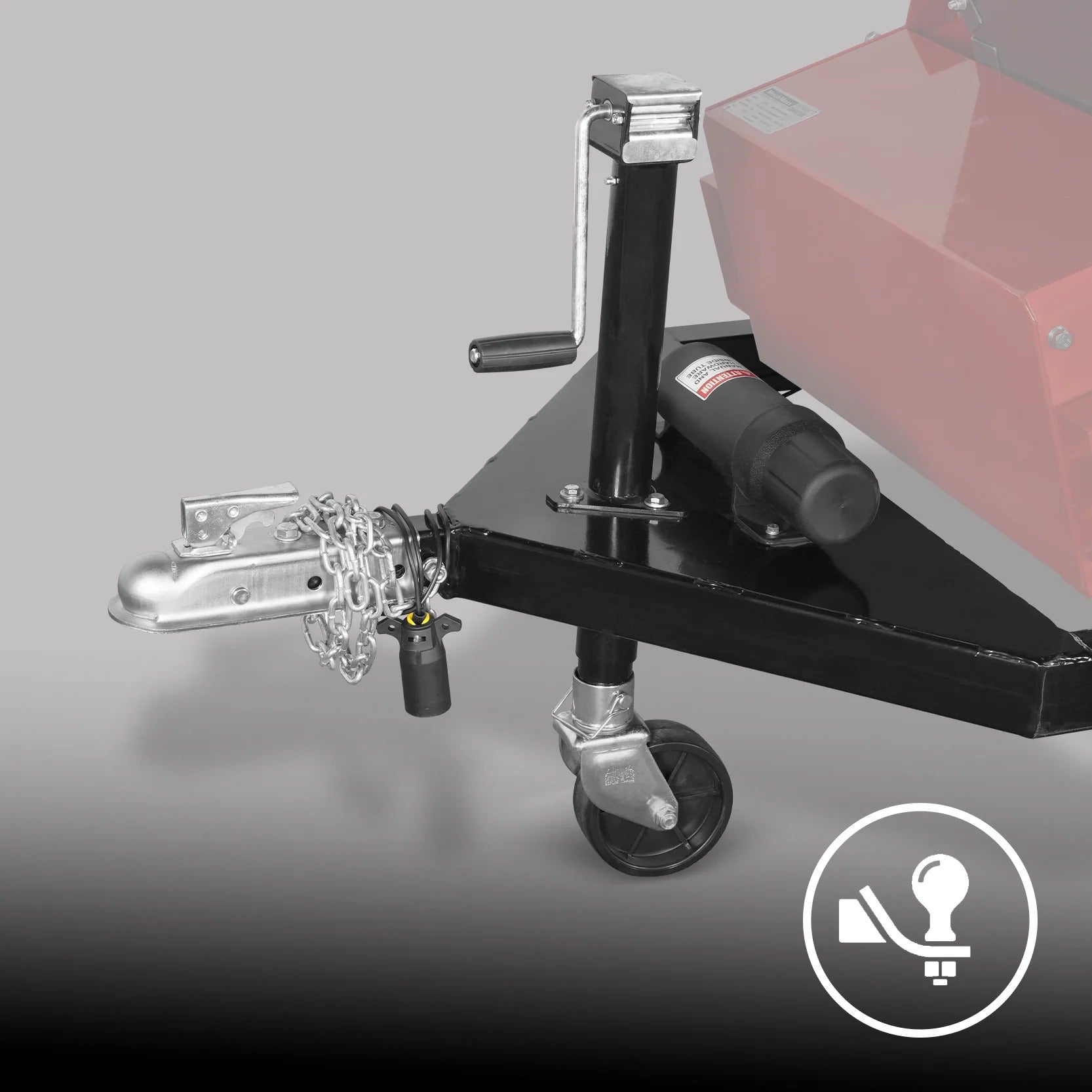

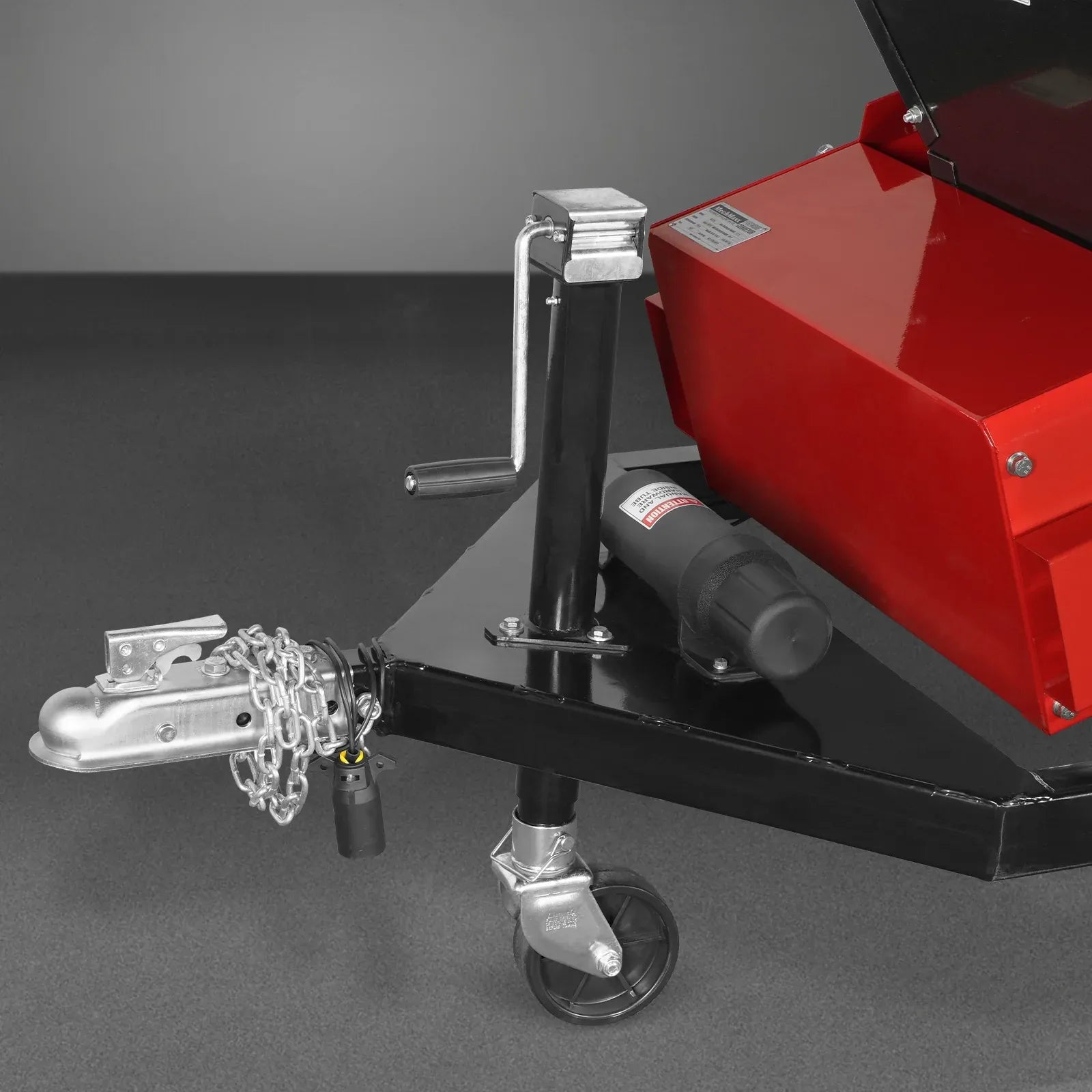

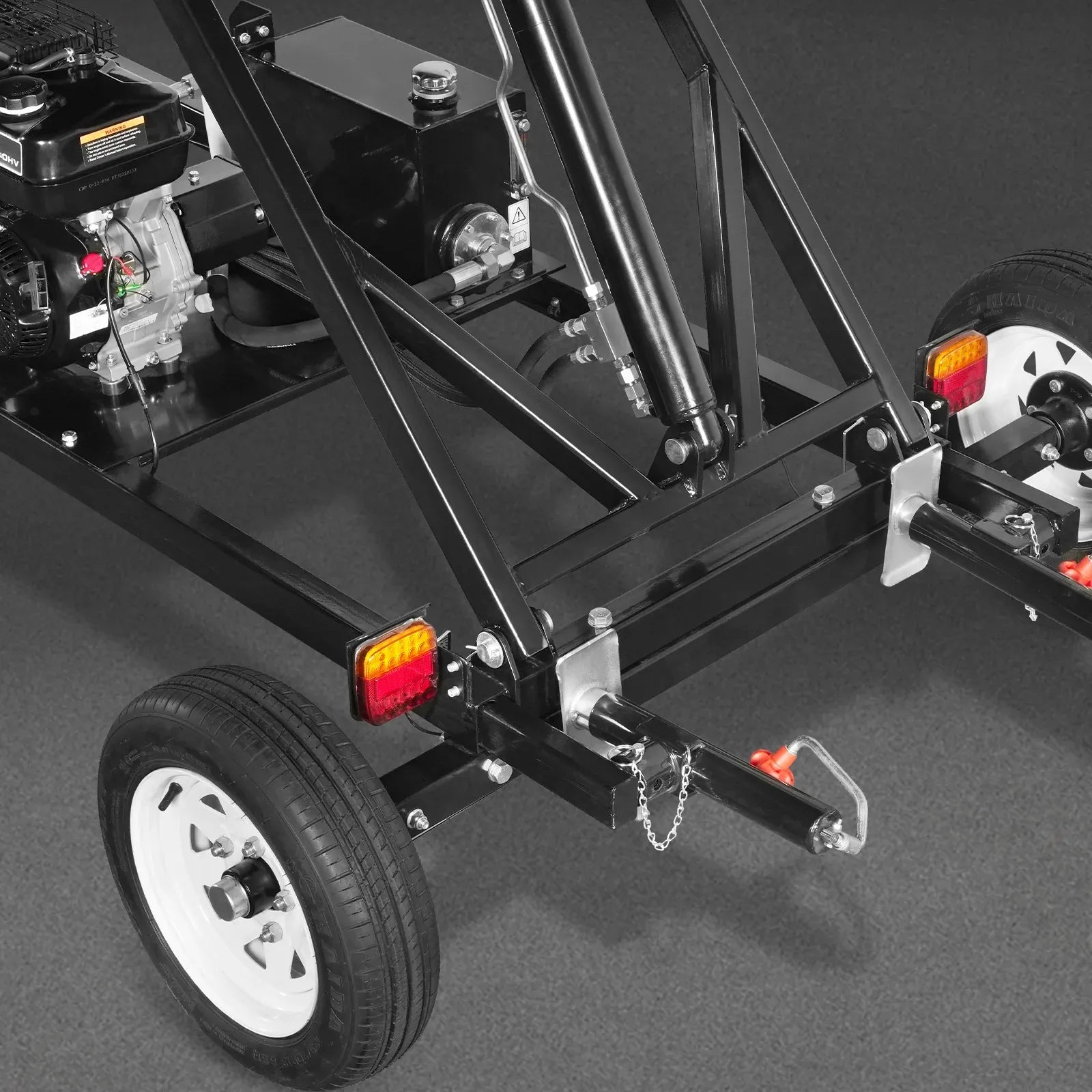

- Trailer-ready mobility – 2" hitch coupler, adjustable jockey wheel, towable up to 45 MPH

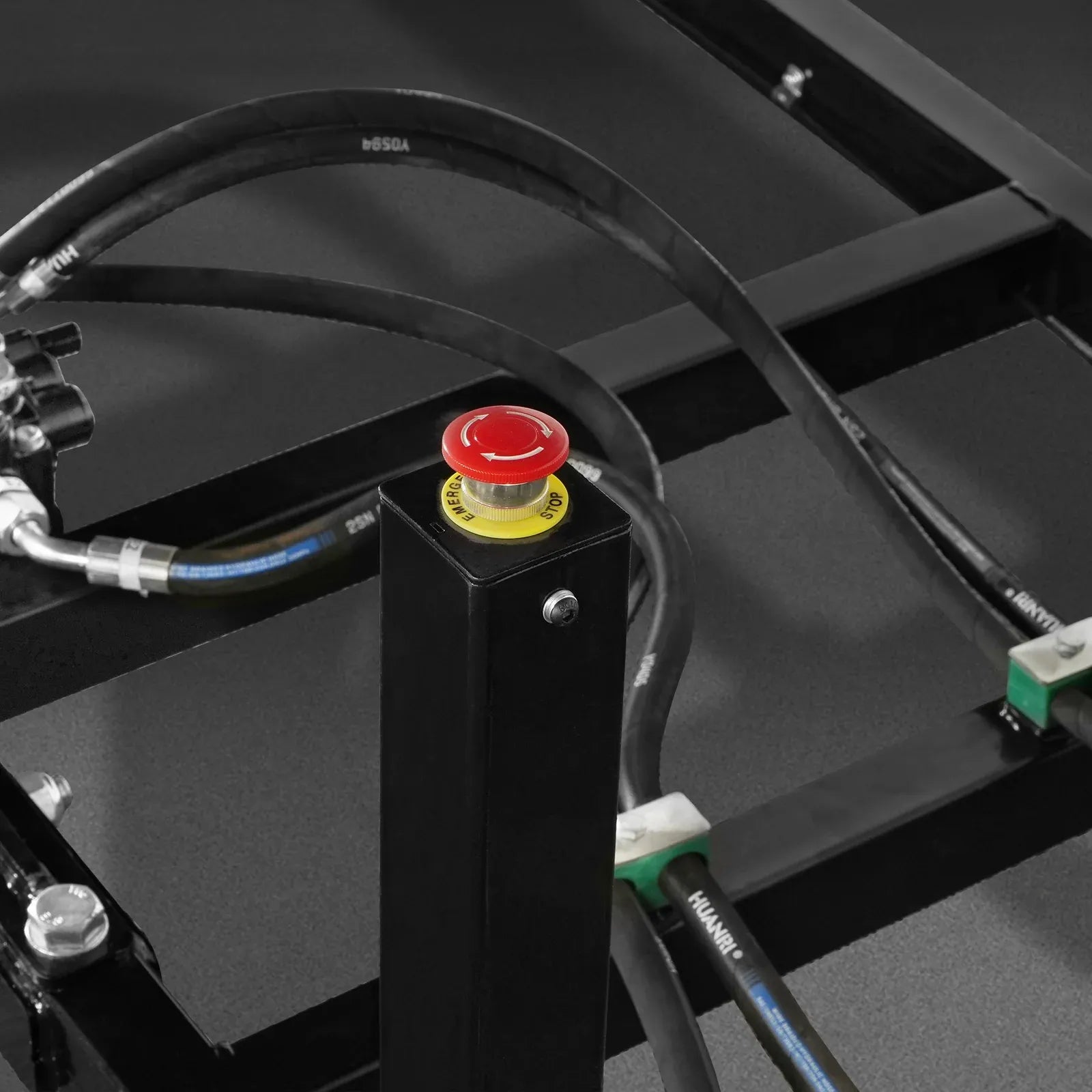

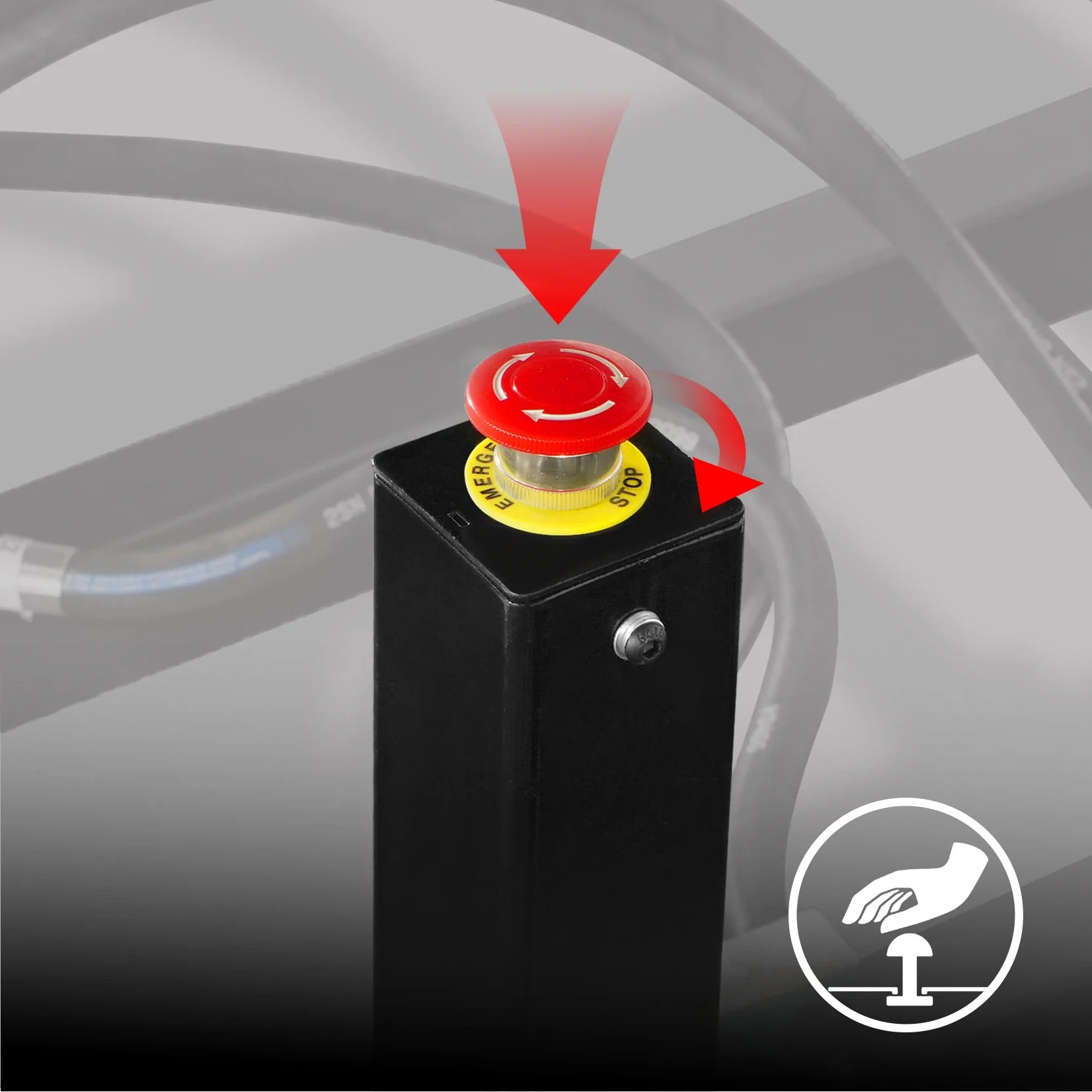

- Emergency stop button – quick shutdown capability

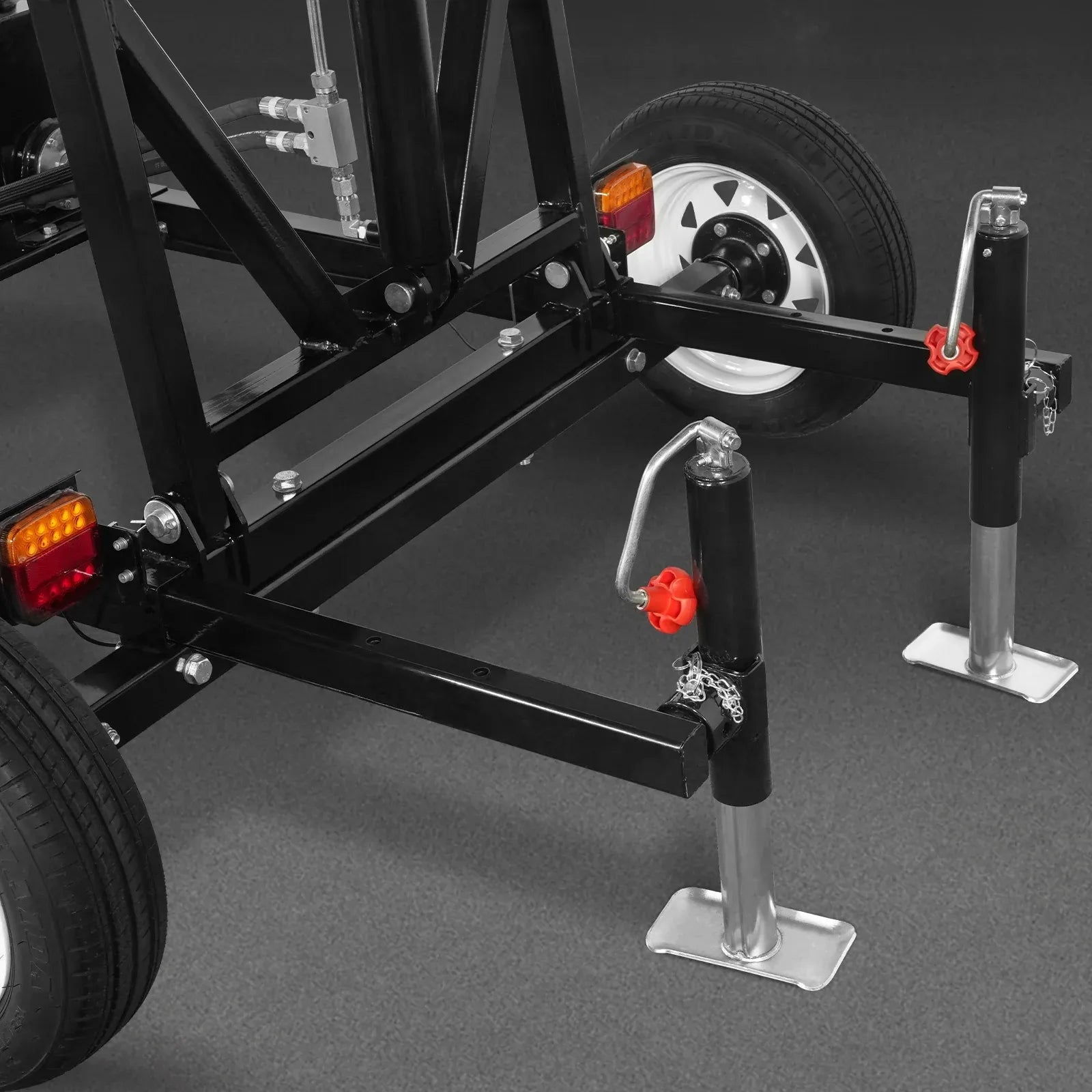

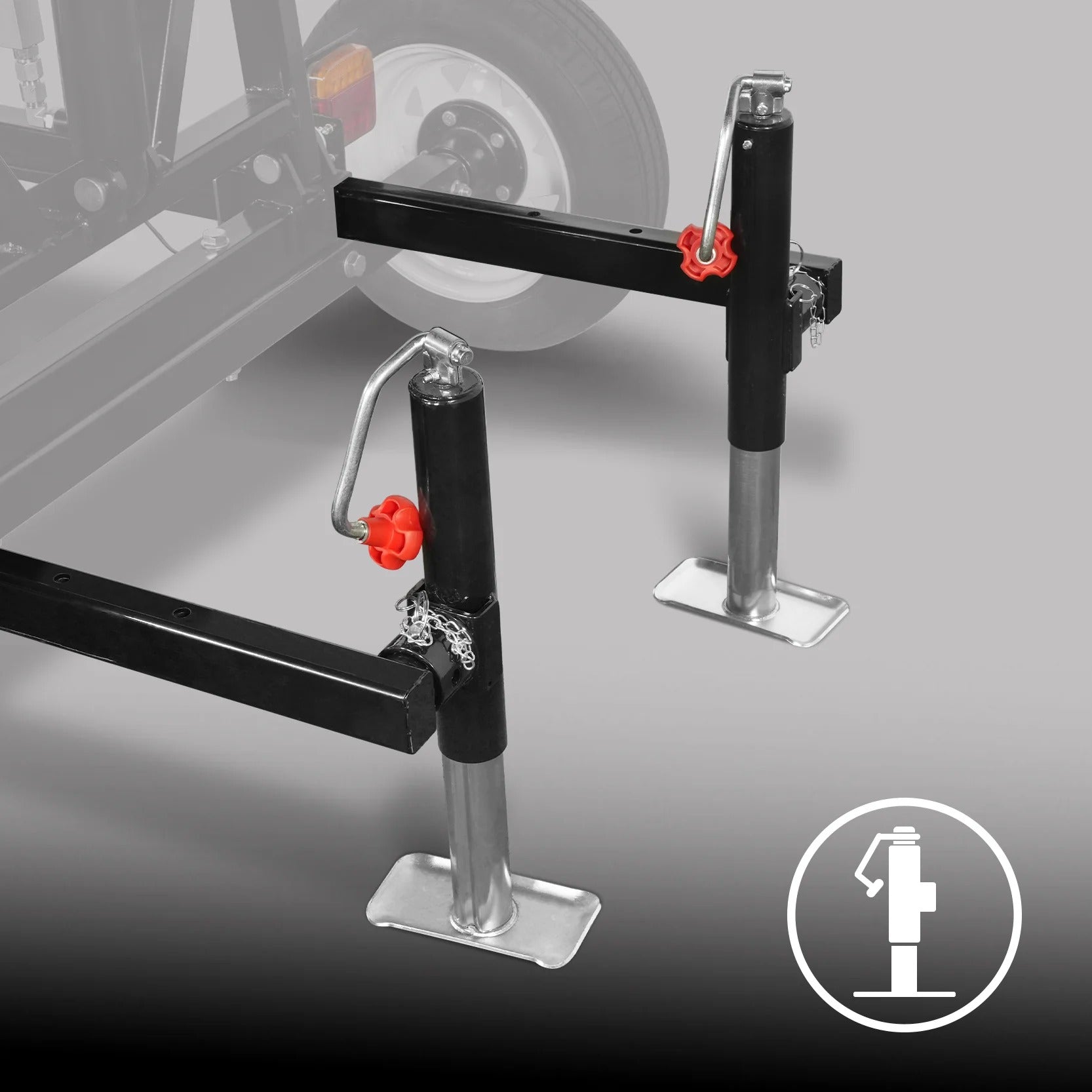

- Rear support stand for added stability during operation
- Designed strictly for material transport – not for riders
| Specifications | Details |
|---|---|
| Model | HC2320 |
| Engine | DUCAR DH270 |
| Engine Power | 9 HP |
| Displacement | 270cc |

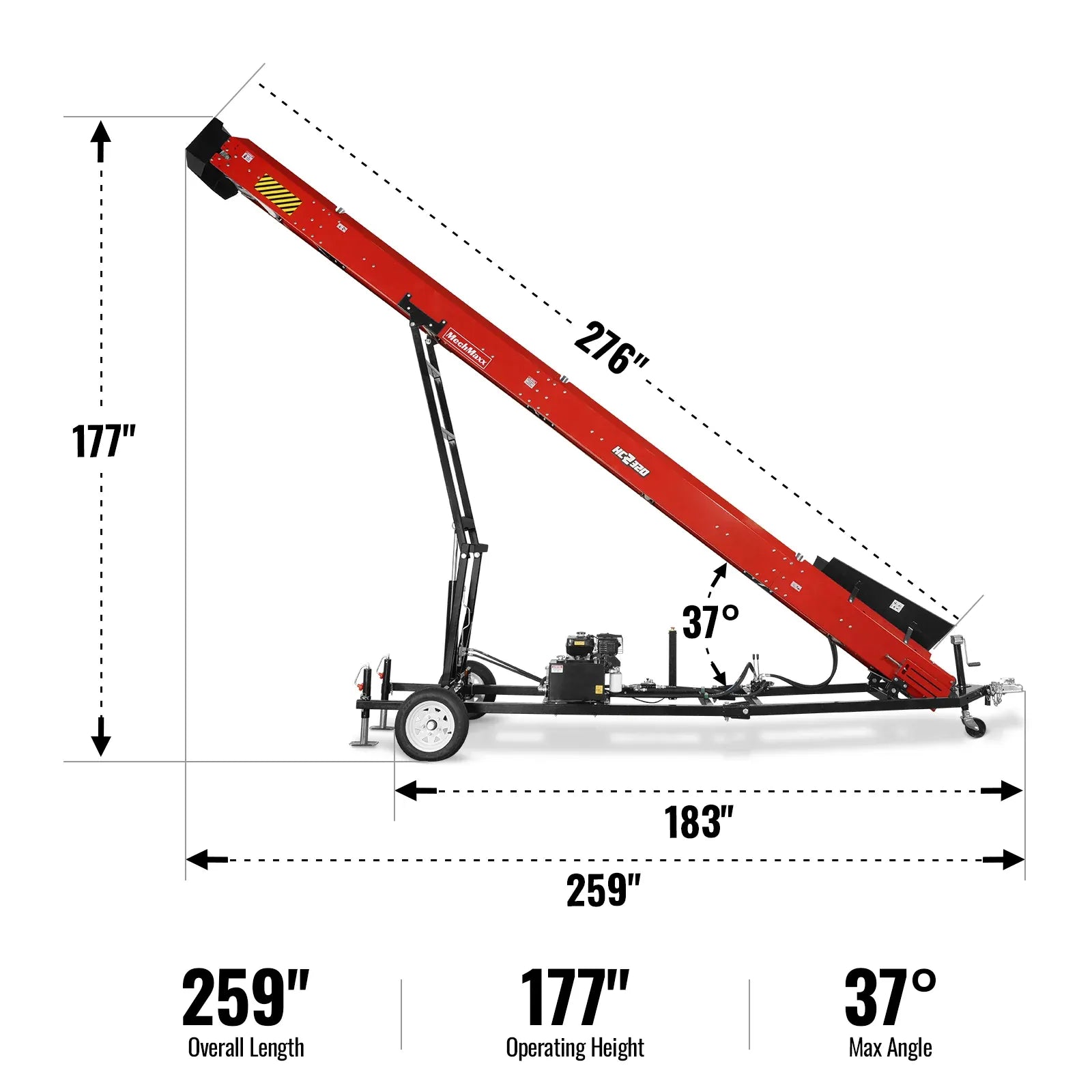

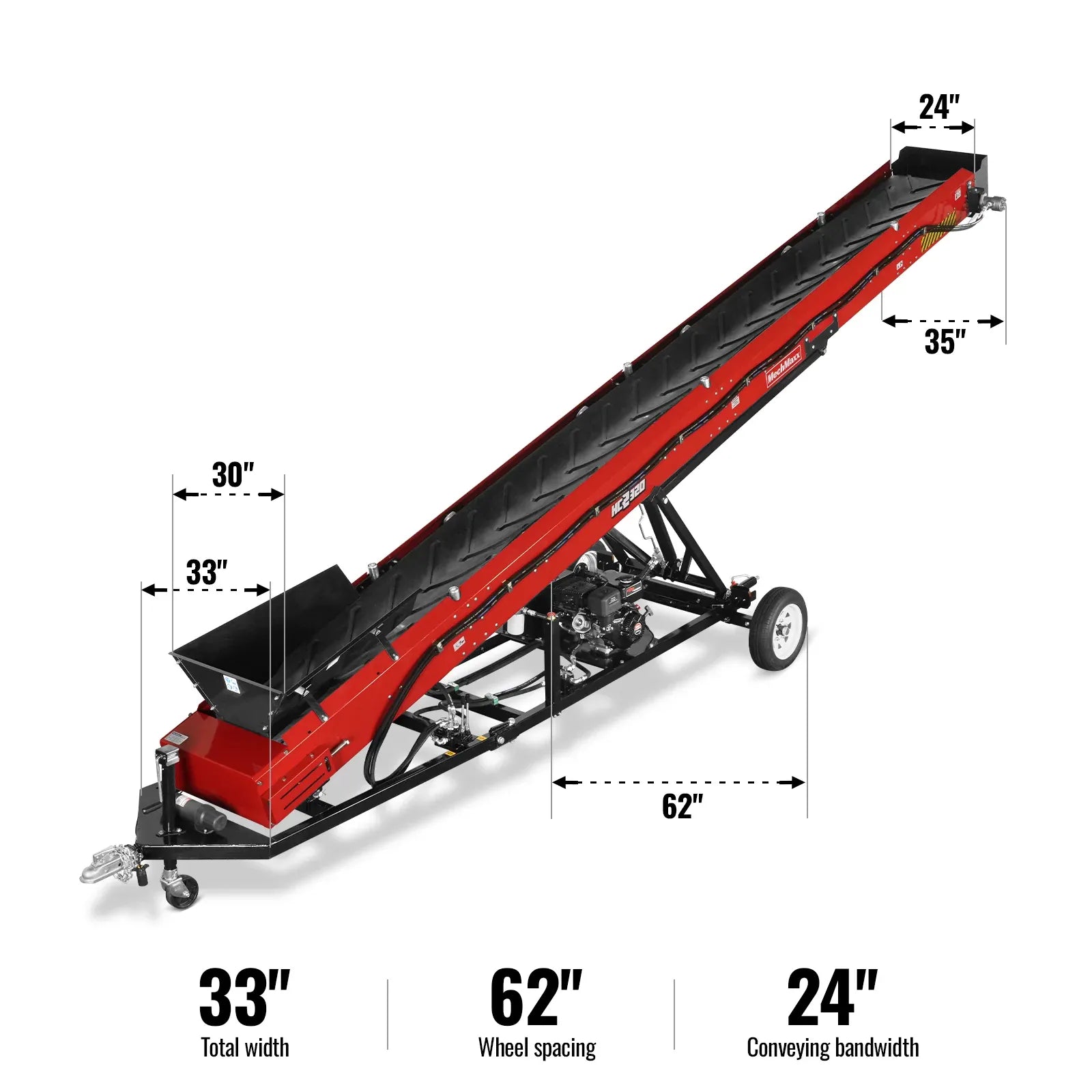

| Conveyor Length | 275.5 in |
| Belt Width | 24.5 in |
| Min Height | 94.4 in |
| Max Height | 177 in |
| Max Angle | 37° |
| Drive System | Hydraulic |
| Hydraulic Pump | 5.7 GPM |
| Hydraulic Fluid | AW-46 |

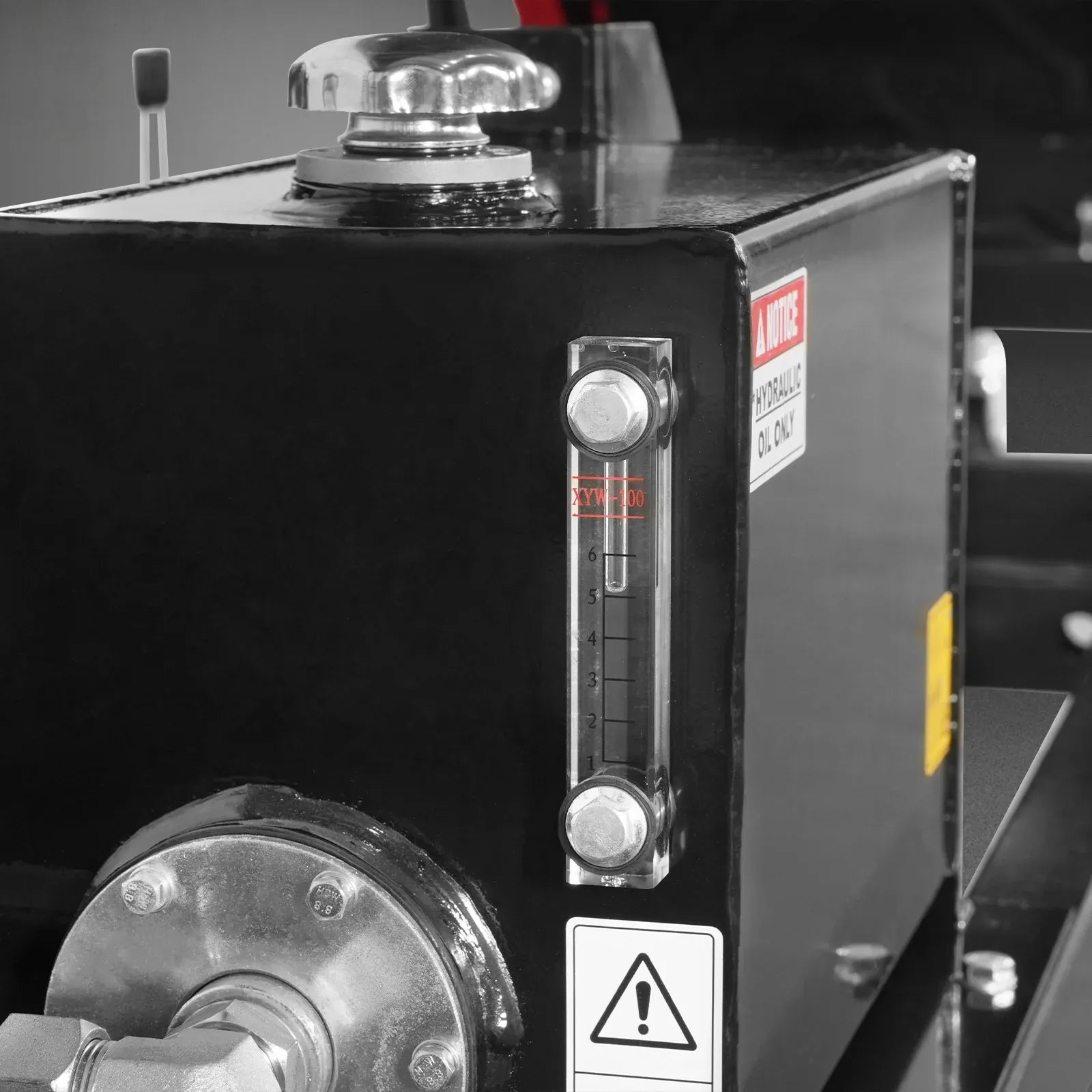

| Tank Capacity | 4.2 gal |
| Max Load (Low) | 440 lbs |
| Max Load (High) | 353 lbs |
| Towing | 2" Coupler |
| Max Tow Speed | 45 MPH |
| Weight | 1565 lbs |
