Atlas Platinum PVL14 14,000 lb ALI Certified Alignment Lift Complete Combo Package
SKU: ATEAP-PVL14-COMBO2
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Pairs well with
The Atlas Platinum PVL14 Complete Alignment Combo is a commercial-grade lifting solution built for high-demand shops that require precision, durability, and versatility. This package combines the ALI Certified PVL14 open-front alignment lift with a heavy-duty rolling bridge jack system, allowing technicians to perform alignments, suspension work, and full-service repairs from a single workstation.
With a 14,000 lb lifting capacity and extended runway design, this system is capable of handling a wide range of vehicles, including cars, SUVs, trucks, and commercial units. The open-front configuration improves access underneath the vehicle, while built-in alignment components support accurate and consistent results.
This complete setup goes beyond a standard 4-post lift by including a rolling bridge jack system that allows the wheels to be lifted off the runways. This makes it possible to perform brake, suspension, and tire work without relocating the vehicle, improving workflow and reducing downtime in busy shop environments.
The Atlas Platinum PVL14 Complete Alignment Combo is designed to maximize productivity by combining alignment capability and wheel-free service into one system. This eliminates the need for multiple lifts and allows technicians to complete more work in less time while maintaining precision and safety.
Features and Benefits
- 14,000 lb lifting capacity for multiple vehicle types
- ALI certified for safety and performance standards
- Open-front design for better undercar access
- Extra-long runways for extended wheelbase vehicles
- Built-in slip plates and turntables for alignment work
- Rolling bridge jack allows wheels to be raised off runways for full service capability
- Ideal for brake, suspension, and tire work

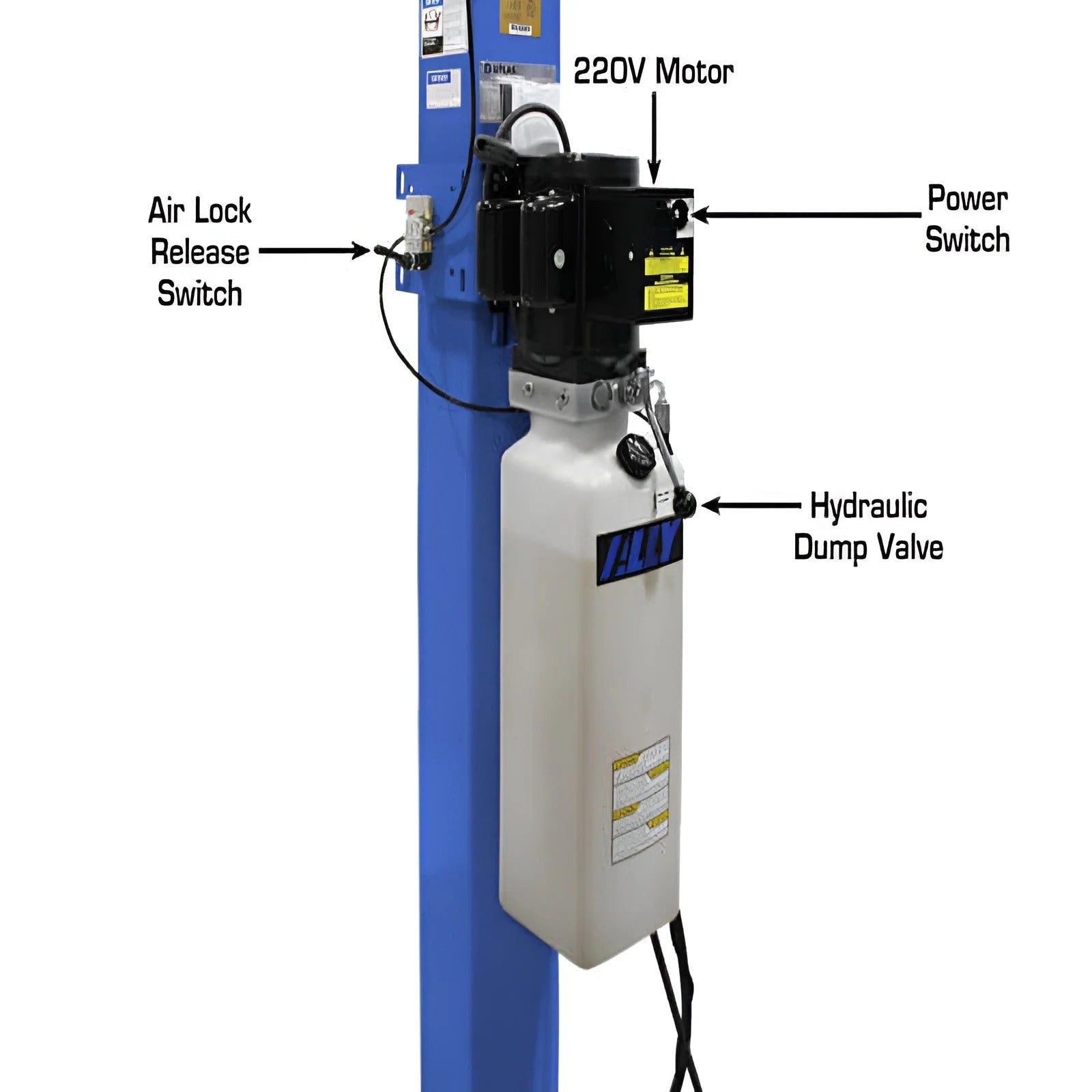

- Air/hydraulic rolling jack operation (external air supply required)

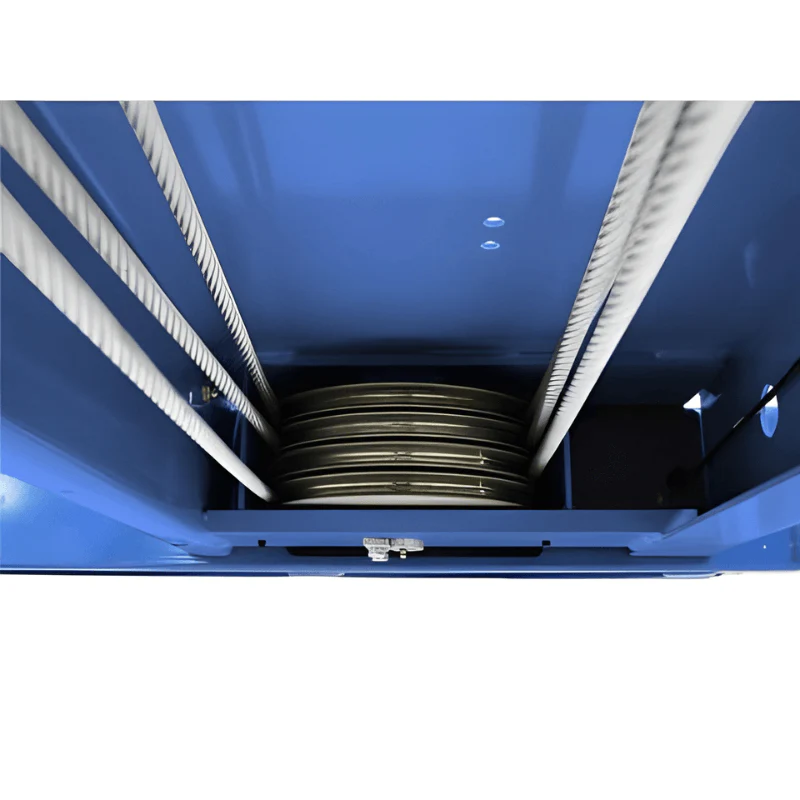

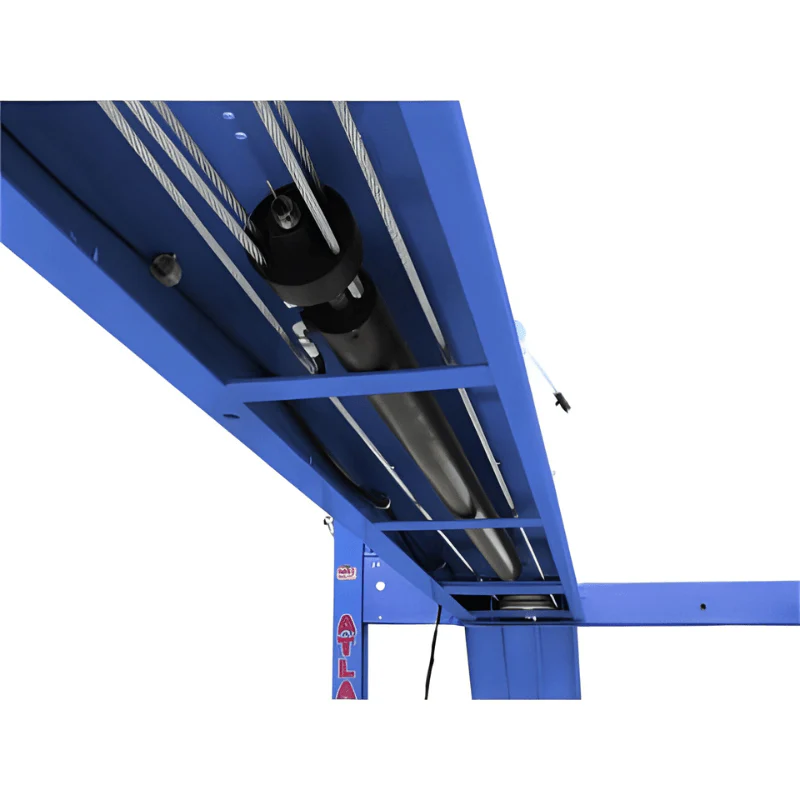

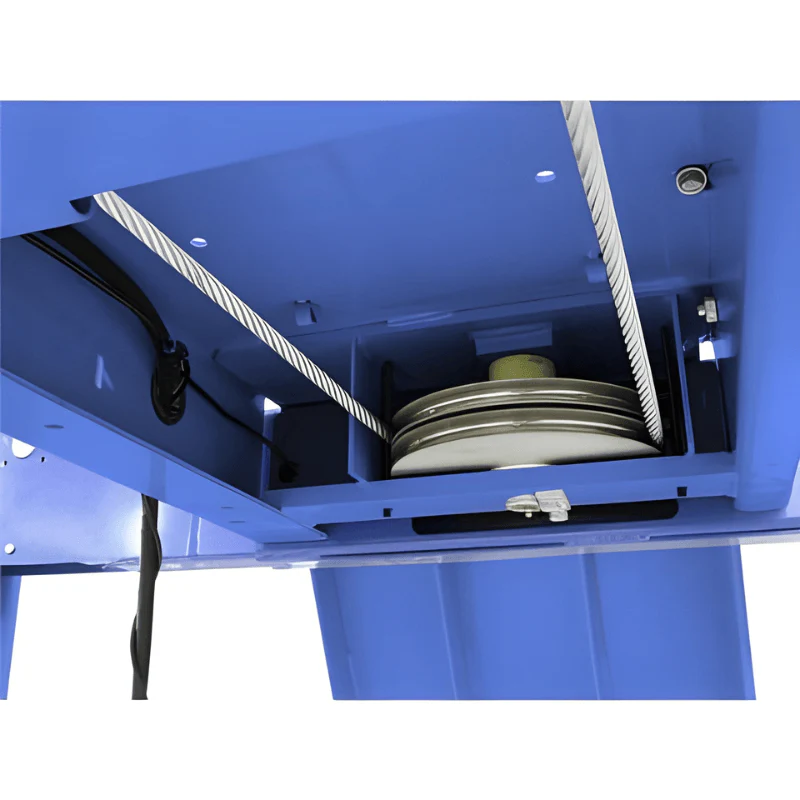

- High-strength cable lifting system with hydraulic operation

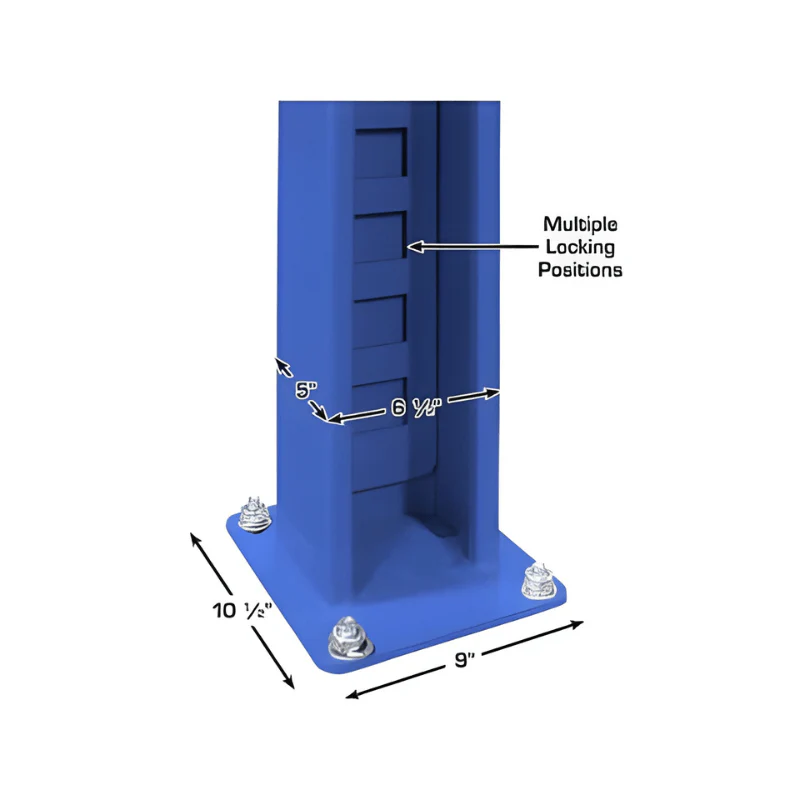

- Adjustable lock ladder design with multiple height positions
- Double lock safety system for secure operation
- Air-operated single-point lock release (external air required)
- Durable powder-coated finish
- 220V single-phase electrical requirement
- Designed for frequent use in commercial shop environments

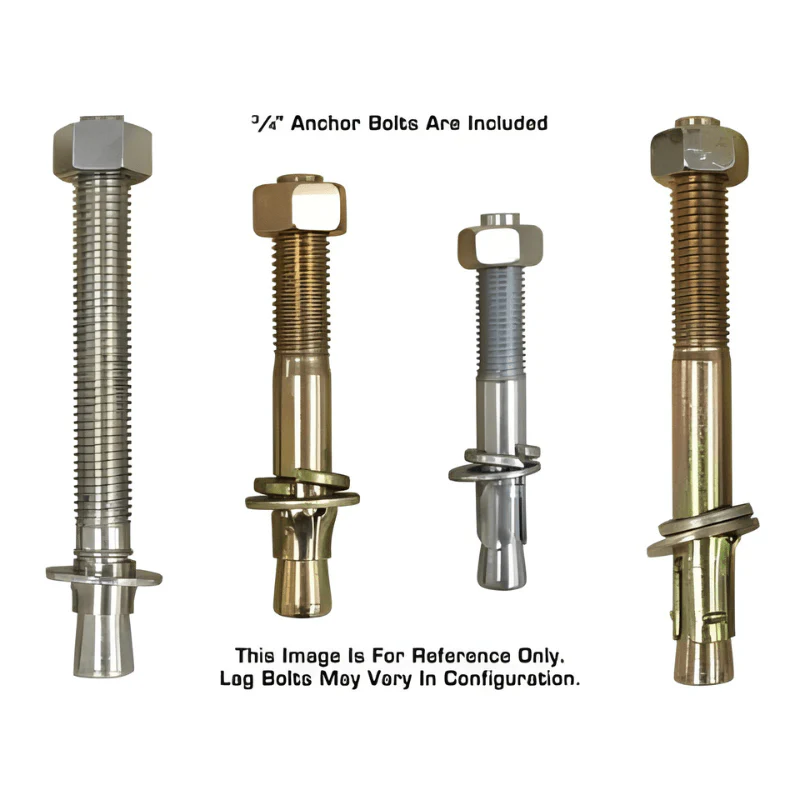

- Includes: PVL14 alignment lift, rolling bridge jack, slip plates, turntables, approach ramps, and mounting hardware
- Minimum 4.25" concrete thickness with 3,000 PSI rating required

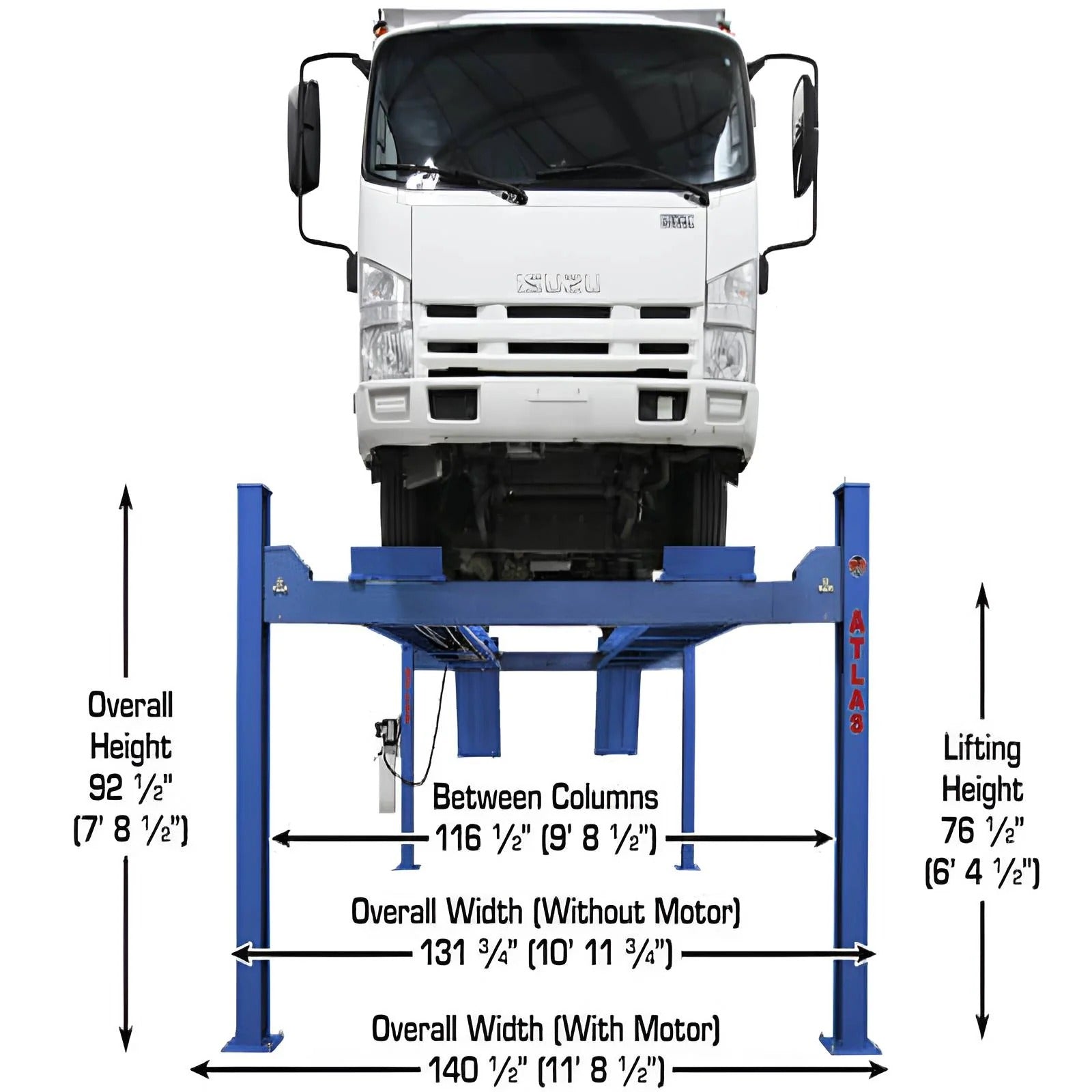

| Specifications | Details |
|---|---|
| Capacity | 14,000 lb |
| Lifting Height | 76 1/2" (6’ 4 1/2") |
| Overall Width Of Columns (Without Motor) | 131 3/4" (10’ 11 3/4") |
| Overall Width Of Columns (With Motor) | 140 1/2" (11’ 8 1/2") |

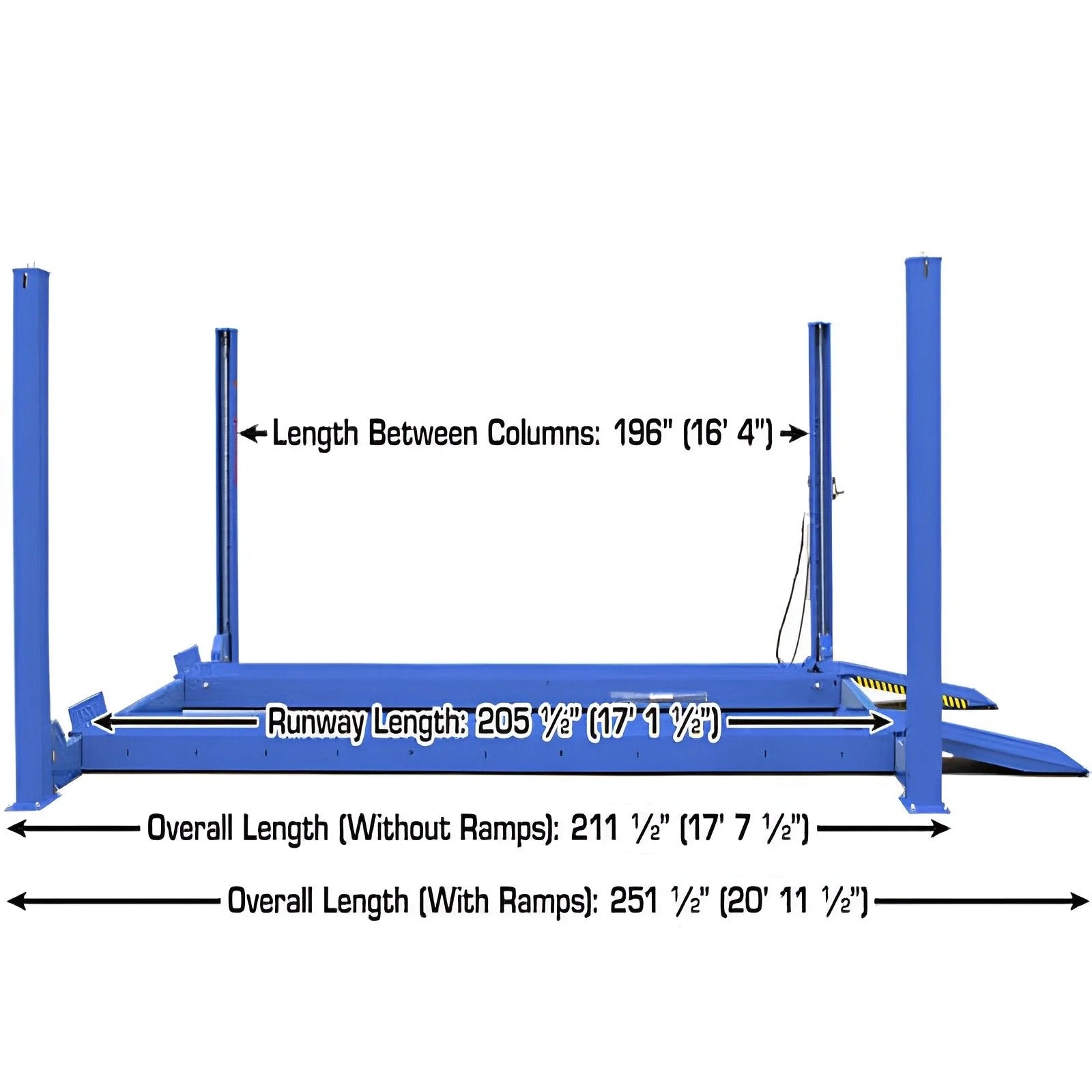

| Overall Length With Approach Ramp | 251 1/2" (20’ 11 1/2") |

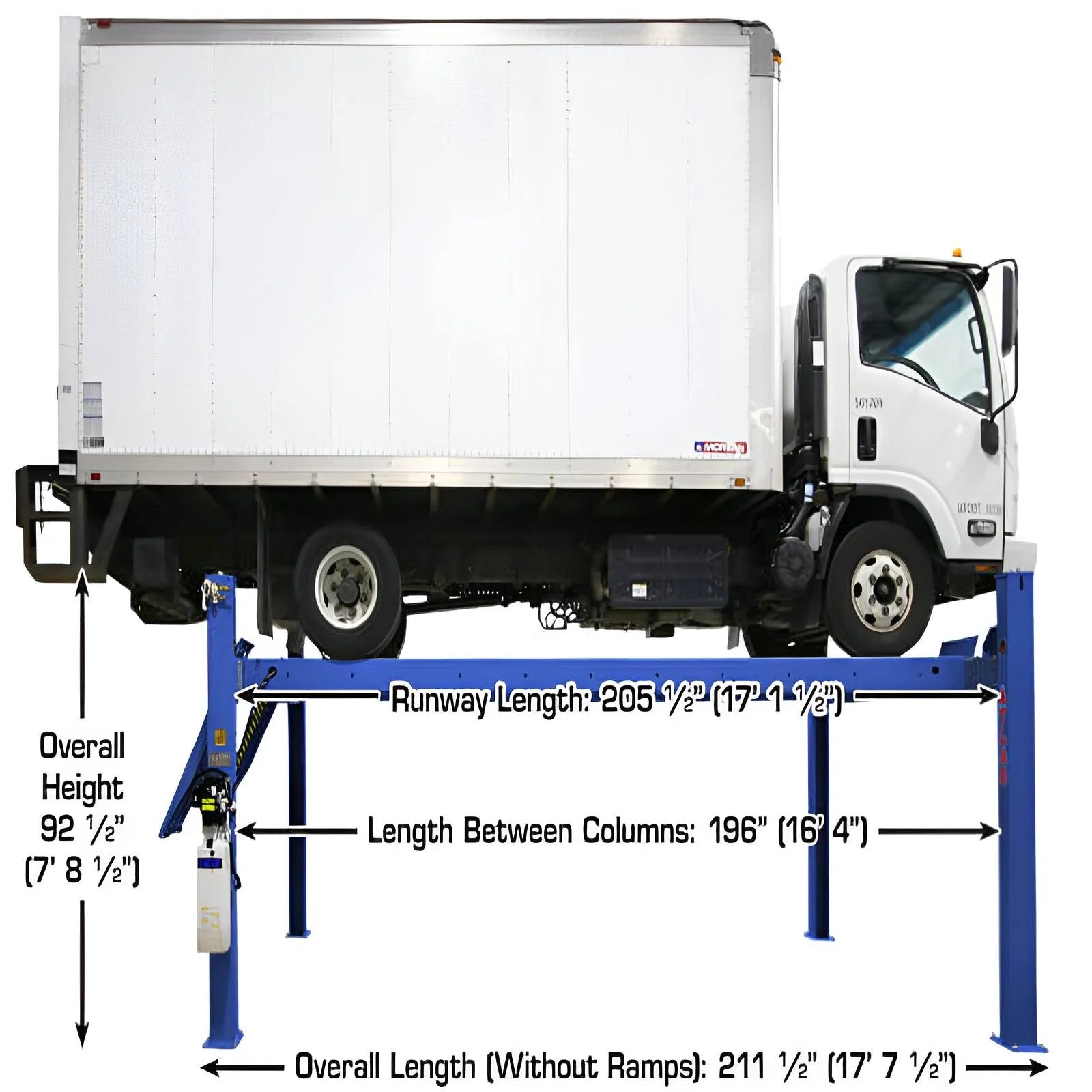

| Length Between Columns | 196" (16’ 4") |
| Runway Length | 205 1/2" (17’ 1 1/2") |

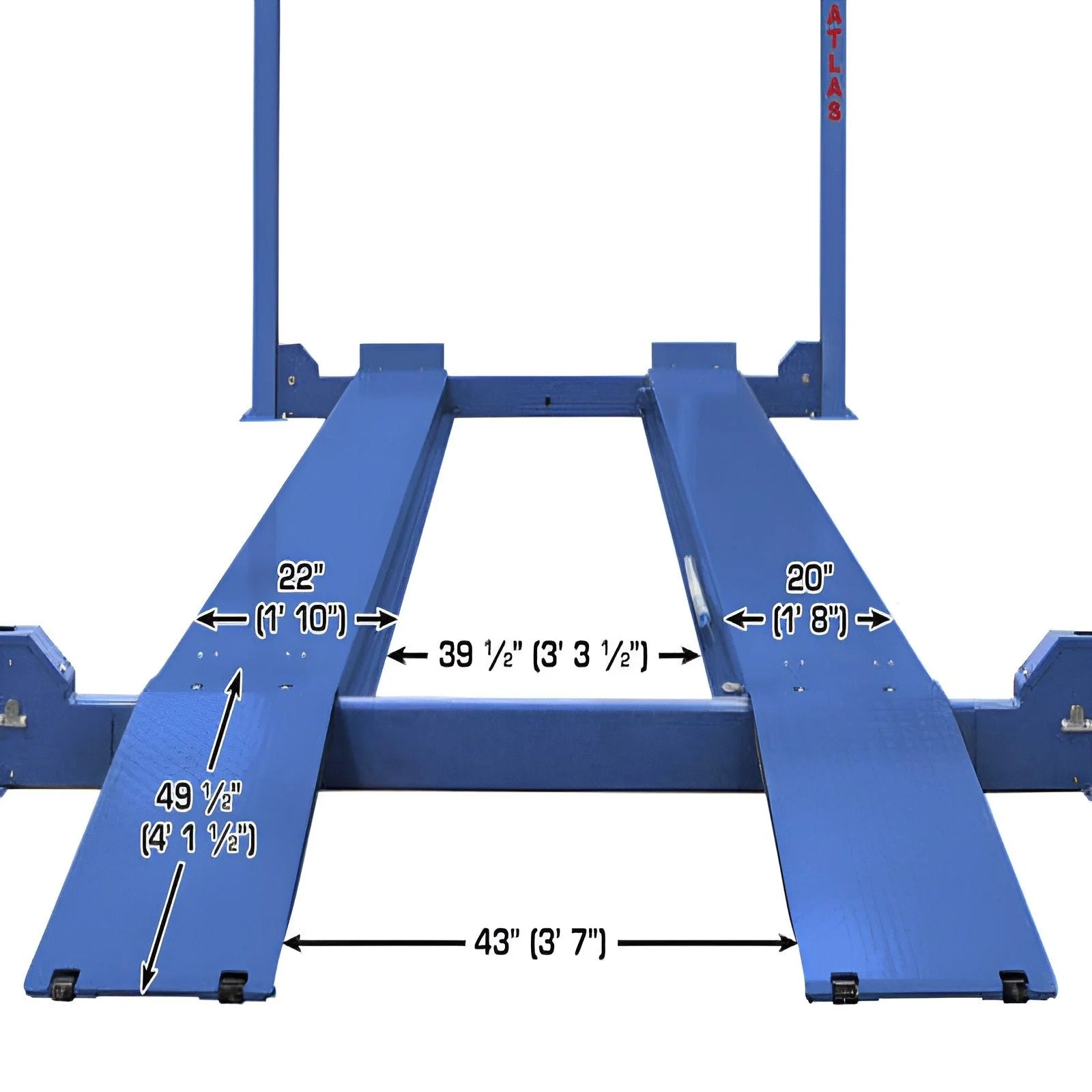

| Runway Width | 20" |
| Thickness Of Runway | 7" |
| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |

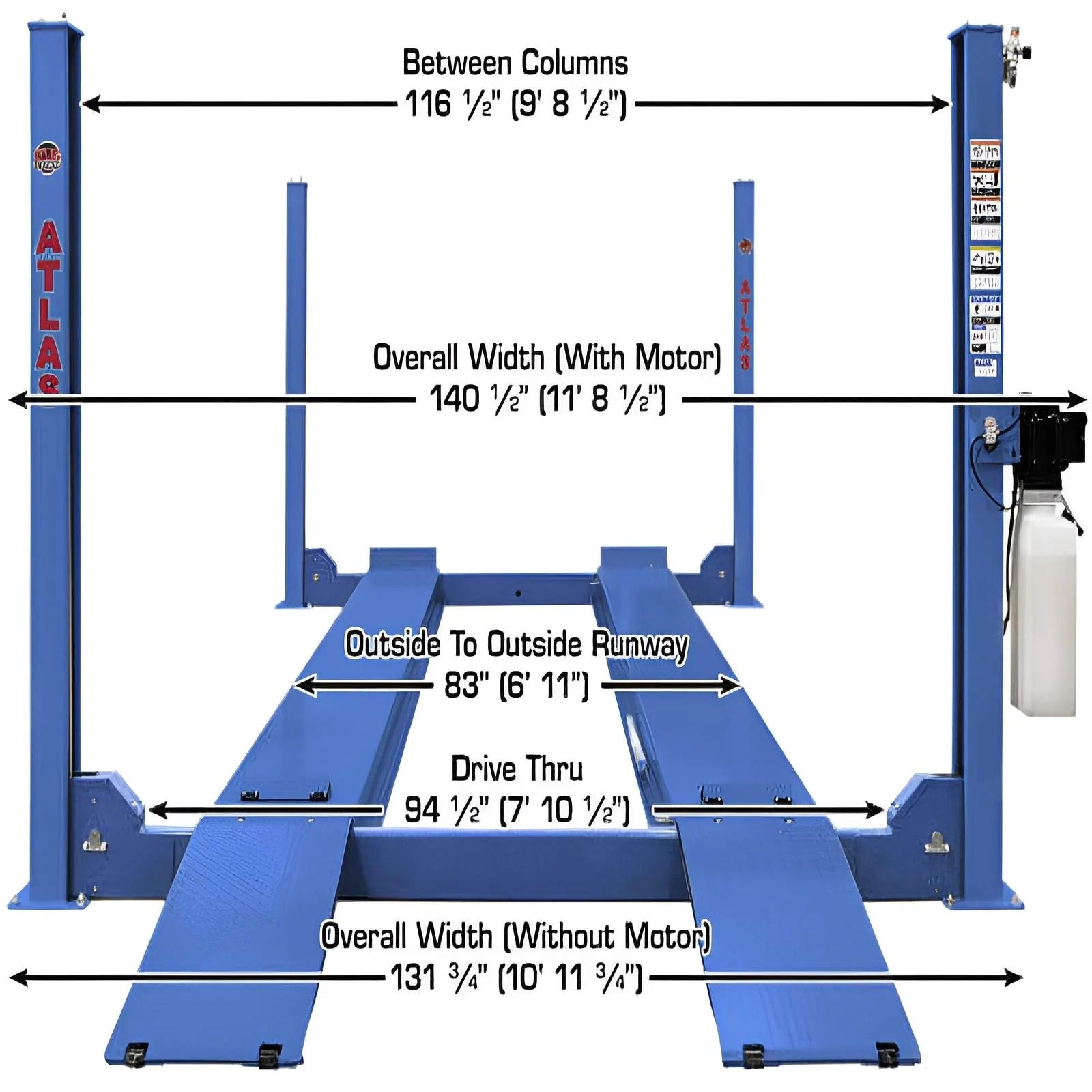

| Outside Runway To Outside Runway | 83 1/8" (6’ 11 1/8") |

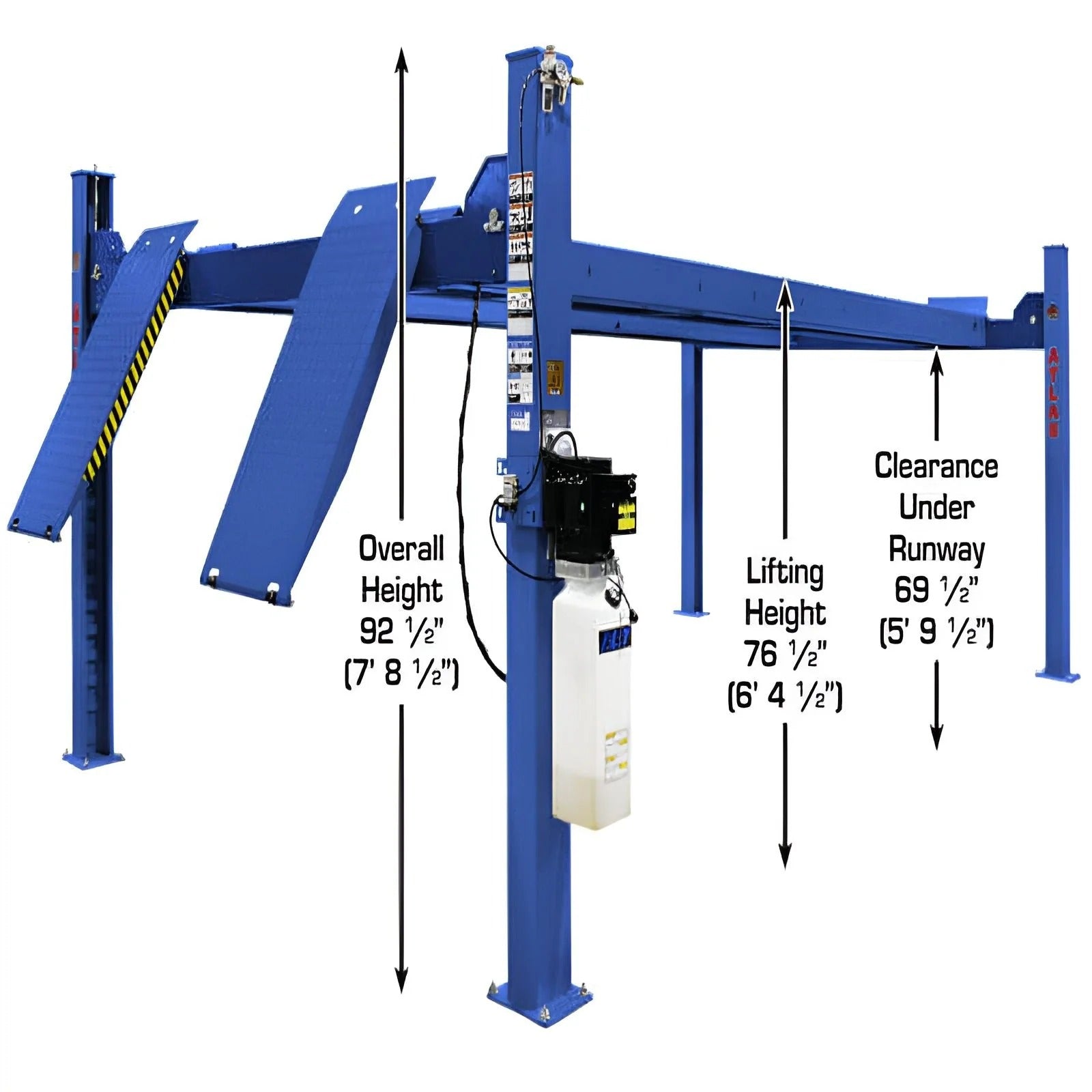

| Clearance Under Runways | 69 1/2" (5’ 9 1/2") |
| Clearance Between Columns | 116 3/8" (9’ 8 3/8") |
| Height Of Columns | 92 1/2" (7’ 8 1/2") |
| Maximum Wheel Base | 195" (16’ 3") |
| Drive Thru | 94 1/2" (7’ 10 1/2") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |

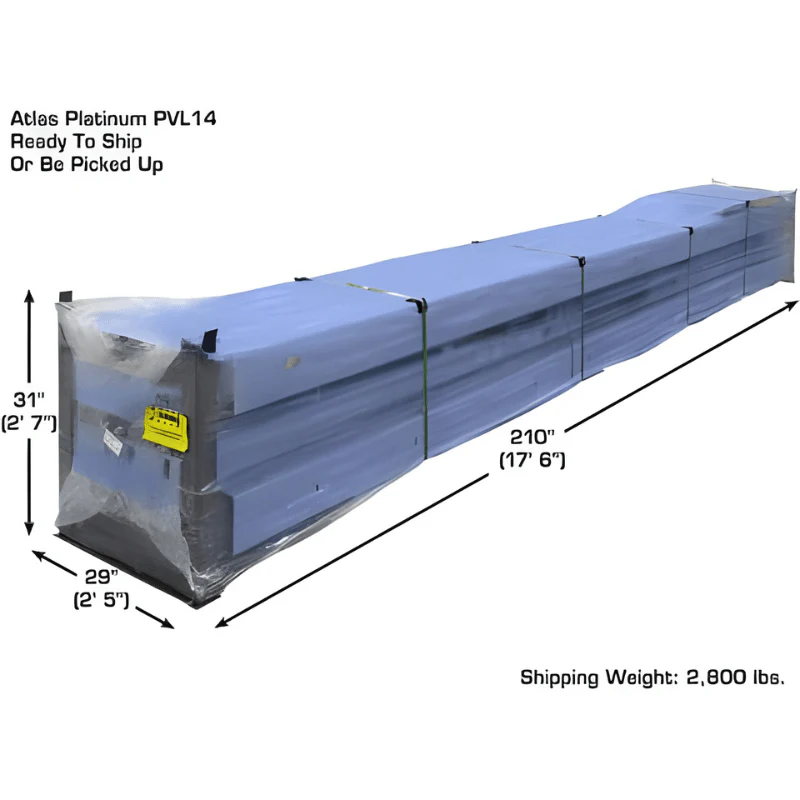

| Pallet Size | 210" Long x 31" Tall x 29" Wide |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI rating |
| Shipping Weight | 2,800 lbs |
