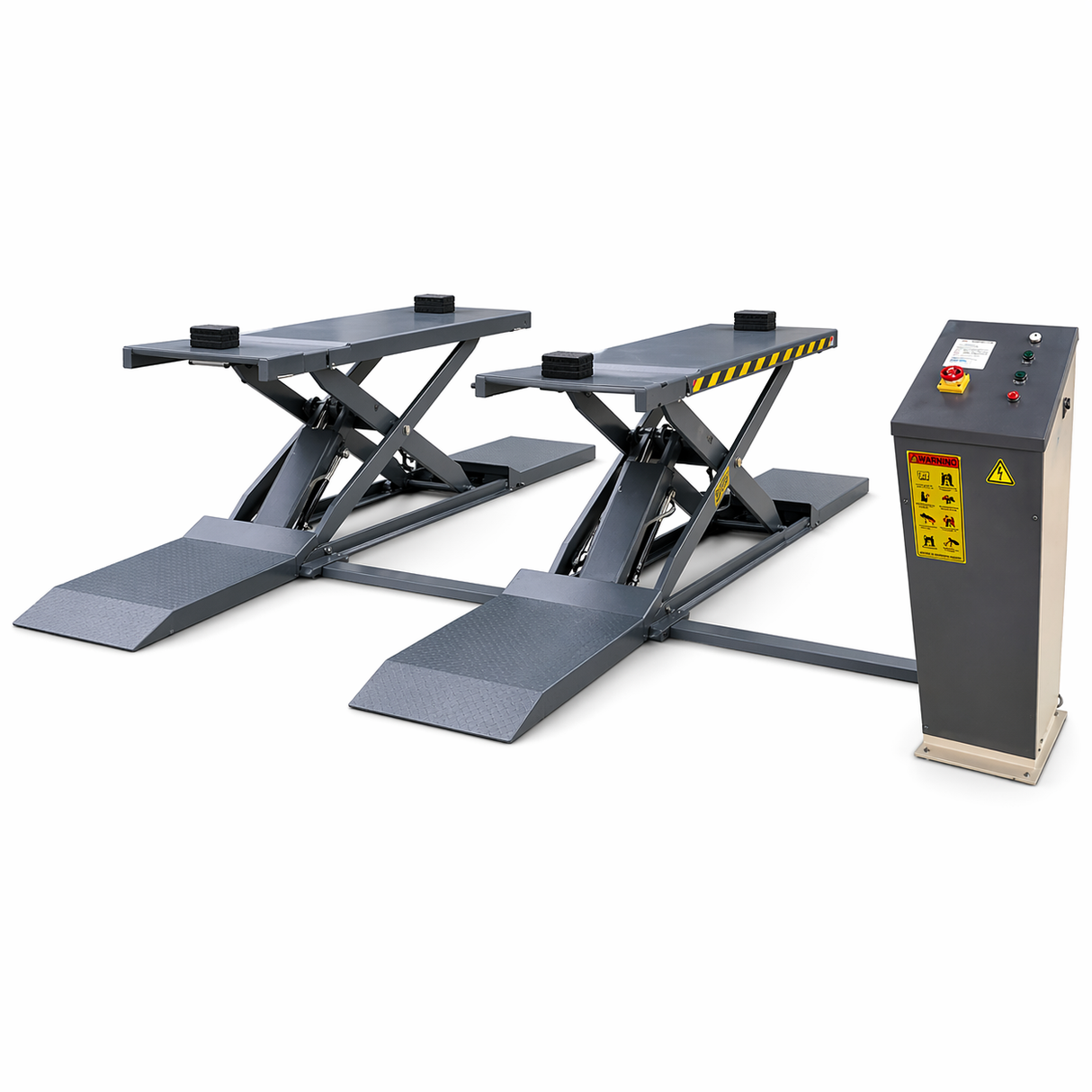

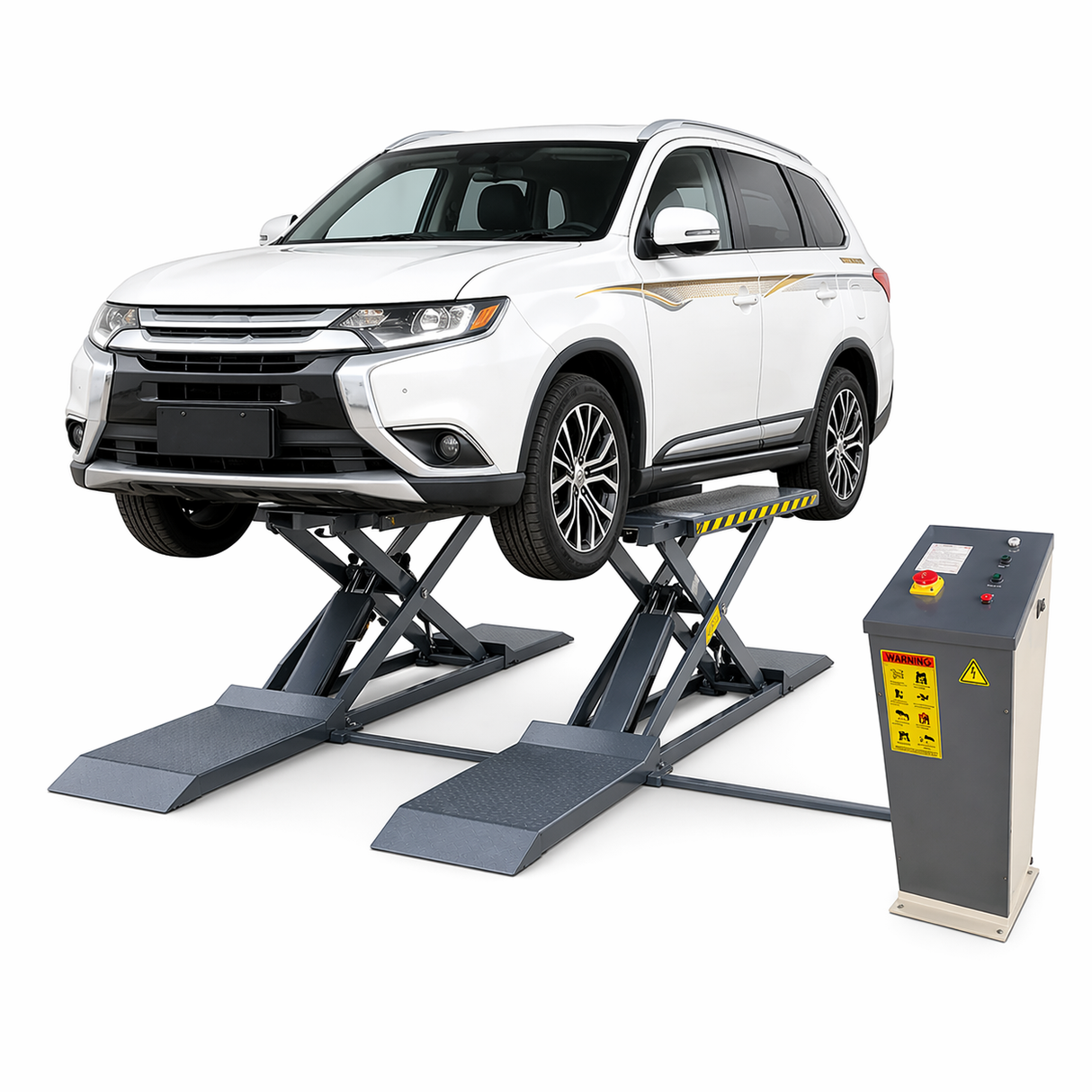

AMGO MRL09 Mid-Rise Scissor Lift

The AMGO MRL09 Mid-Rise Scissor Lift is a high-capacity, low-profile solution built for fast service work and maximum vehicle compatibility. With a 9,000 lb lifting capacity and an innovative two-stage runway design, it allows easy drive-on access from either side — making it ideal for low-clearance vehicles and high-volume shops.

Key Features & Benefits

• 9,000 lb lifting capacity for cars, SUVs, and light-duty trucks
• Ultra low-profile design (2 3/8" minimum height) for low-clearance vehicles
• Dual two-stage drive-on ramps allow entry from both sides
• Dual-cylinder hydraulic synchronization system for smooth, even lifting
• Integrated hydraulic locking system for added safety
• No external air supply required (fully hydraulic operation)
• Extendable platforms accommodate a wide range of wheelbases
• Heavy-duty scissor structure built with thickened steel
• ETL-certified power unit included
• Includes two types of rubber lifting pads

Why This Lift Stands Out

The MRL09 is built for versatility and efficiency. Its dual-entry ramp design and ultra-low profile make it one of the easiest lifts to use with lowered vehicles, while the extendable platforms allow it to handle a wide range of wheelbases — from compact cars to longer vehicles. It's an excellent choice for shops that need speed, flexibility, and reliability in daily operations.

Installation & Usage Notes

• Indoor use only
• Requires professional installation and proper electrical setup
• Concrete must be minimum 4" thick, 3,000 PSI
• Ensure vehicle is centered between platforms before lifting

What's Included

• AMGO MRL09 Mid-Rise Scissor Lift
• Dual hydraulic cylinder system
• Control cabinet with power unit
• Dual-stage drive-on ramps
• Rubber lifting pads (2 sizes)
• Hydraulic hoses and fittings
• Installation hardware and manual

Documents

• Manual
