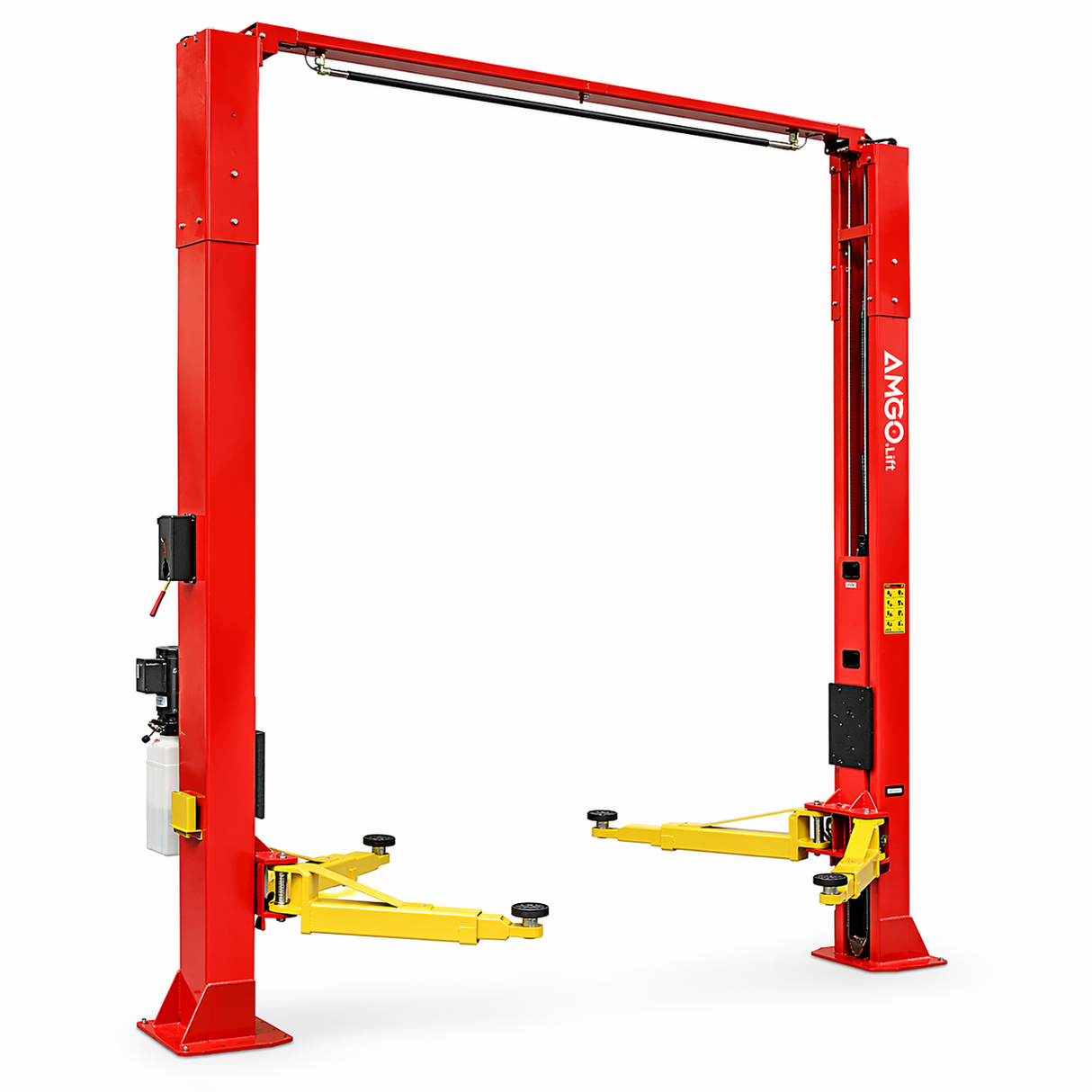

AMGO OHX-10H Extra-Tall 2-Post Car Lift 10,000 lb Adjustable Width
The AMGO OHX-10H is a clear-floor two-post lift engineered for maximum working space and overhead clearance, making it ideal for professional shops and serious home garages. With a direct-drive hydraulic system, dual cylinders, and adjustable height settings, this lift delivers smooth operation, reduced maintenance, and excellent under-vehicle access. Designed to handle up to 10,000 lbs, the OHX-10H supports a wide range of vehicles while providing open floor access and superior lifting height for comfortable service work.
Key Features & Benefits
- 10,000 lb lifting capacity for cars, SUVs, and light trucks
- Clear-floor design for unobstructed workspace and easier movement
- Dual hydraulic direct-drive cylinders for smooth, reliable lifting
- Single-point safety lock release unlocks both columns from one side
- Dual safety lock system for added protection
- Overhead shut-off safety bar prevents vehicle damage
- Adjustable height settings for different ceiling requirements
- Symmetric/asymmetric arm configuration for better door clearance
- Automatic arm restraints for secure positioning
- Self-lubricating UHMW sliders for reduced wear
- Aero sync cables for balanced lifting
- Includes rubber pads with 3" extensions
Why Choose a Clear Floor Lift?
- Open floor — no base plate obstruction
- Easier to roll jacks, transmission tools, etc.
- Better for professional workflow and clean installs
- Ideal for higher ceiling garages
Installation Requirements
- Minimum ceiling height: OHX-10 — 12 ft; OHX-10H — ~13 ft+ recommended
- Concrete thickness: Minimum 4 inches
- Concrete strength: 3,000 PSI, must be level and fully cured
- Power: 220V single phase, installed by licensed electrician
What's Included
- Dual direct-drive hydraulic cylinders
- Overhead beam with safety shut-off
- Adjustable height column system
- 4 lift arms (symmetric/asymmetric capable)
- Rubber pads and extensions
- Power unit
- Sync cables and safety system
| Specifications | Details |
|---|---|
| Model | OHX-10H |
| Lift Type | Clear-Floor Two-Post Lift (Extra Tall) |
| Lifting Capacity | 10,000 lbs |
| Lifting Time | ~63 seconds |
| Max Lifting Height (Without Adapters) | 78 3/4" – 80 5/8" |
| Max Lifting Height (With Adapters) | 81 3/4" – 83 5/8" |
| Max Lock Height | Up to ~82 19/16" |
| Overall Height | ~157" (adjustable configuration) |
| Overall Width | ~134 15/16" |
| Minimum Pad Height | 3 9/16" |
| Motor | 2.0 HP, Single Phase |
