Atlas 414 14,000 lb Heavy-Duty 4-Post Lift
The Atlas 414 14,000 lb 4-post lift is built for serious shops and professionals who need reliable lifting power for trucks, vans, and heavy vehicles. Designed with a rugged steel structure and a dependable hydraulic system, this commercial-grade lift delivers the strength, stability, and performance required for demanding daily use.
With a 14,000 lb lifting capacity, the Atlas 414 easily handles large vehicles while maintaining smooth, controlled operation. Its drive-on runway design makes loading simple, while the heavy-duty cable and hydraulic lifting system ensures consistent, balanced lifting every time.
Built for Heavy-Duty Performance
Engineered with durability in mind, this lift features a reinforced steel frame that provides exceptional rigidity without unnecessary weight. The electro-hydraulic system powers the lift efficiently, raising vehicles smoothly and lowering them safely under controlled conditions.
The four-column design offers superior stability, making it ideal for both service work and long-term vehicle storage in commercial environments.
Key Features & Benefits
- 14,000 lb Capacity
- Commercial-Grade Construction durability
- Drive-On Runways
- Hydraulic Lifting System

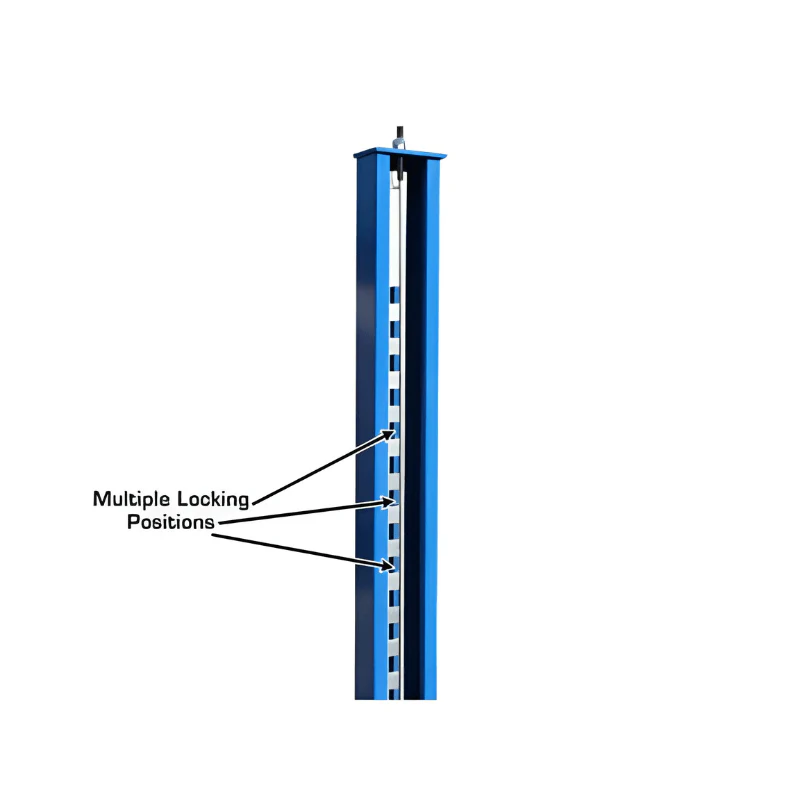

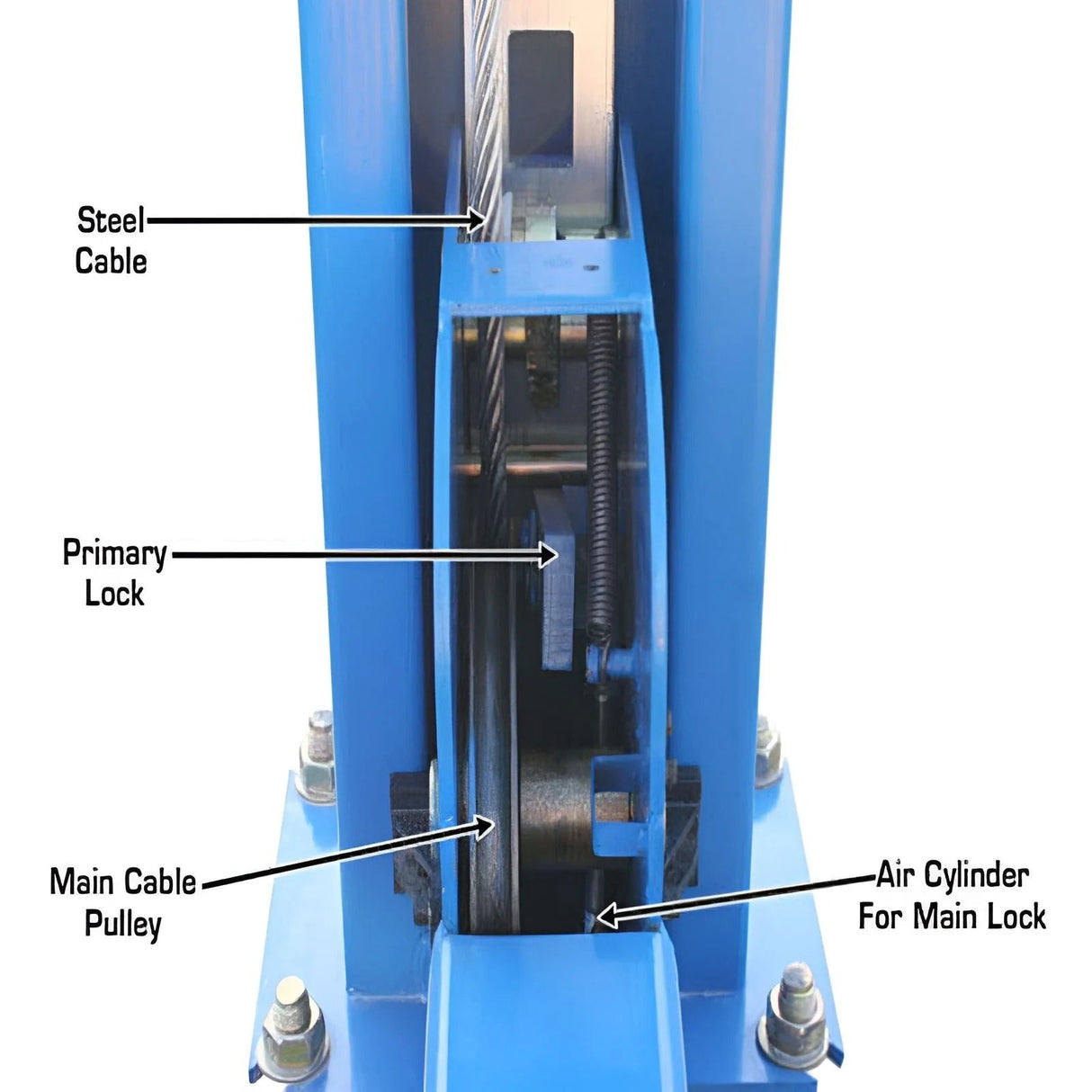

- Automatic Safety Lock System

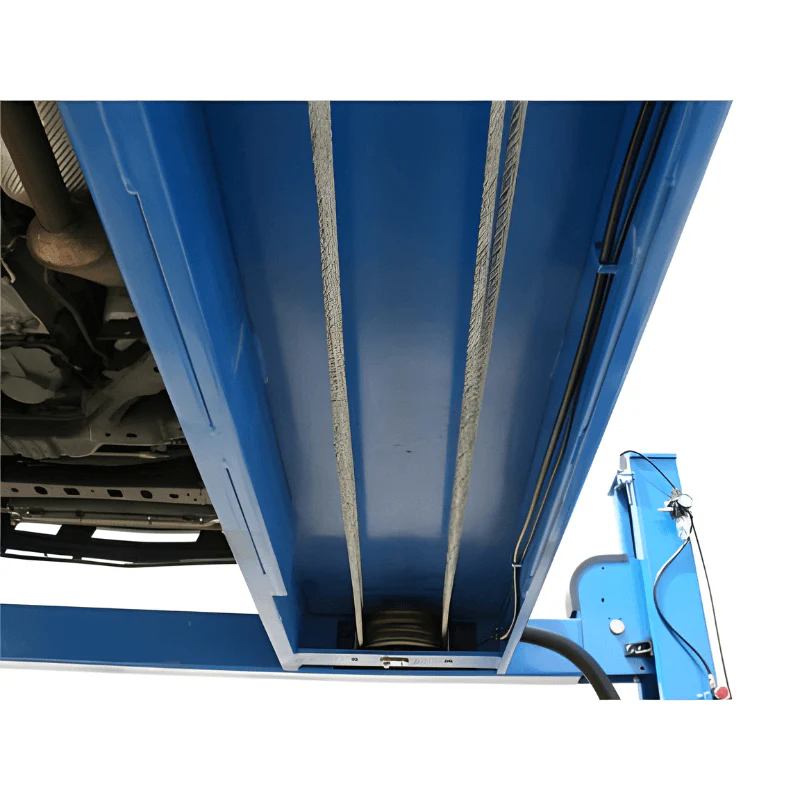

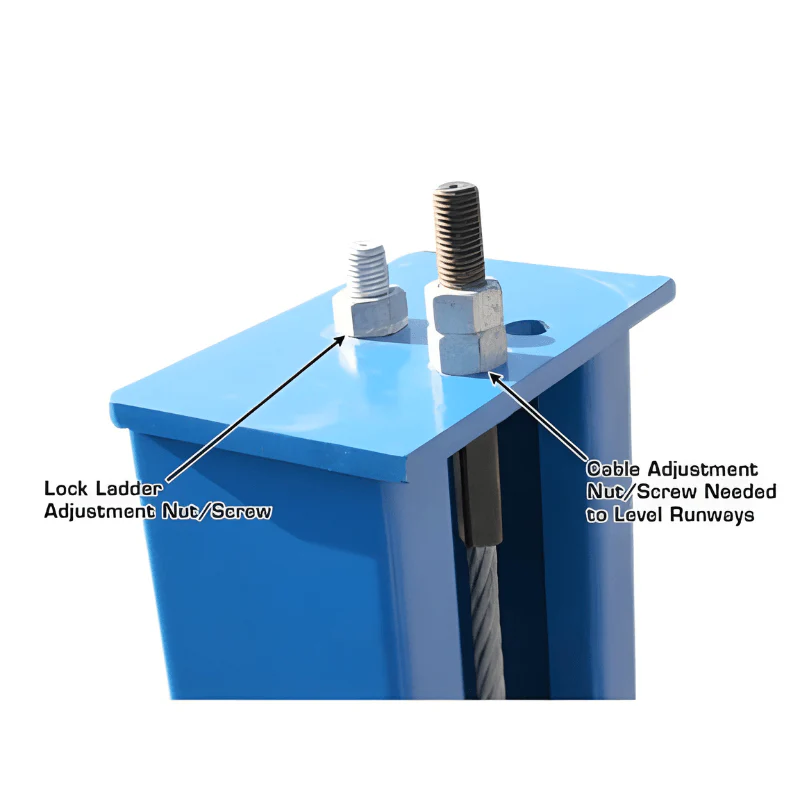

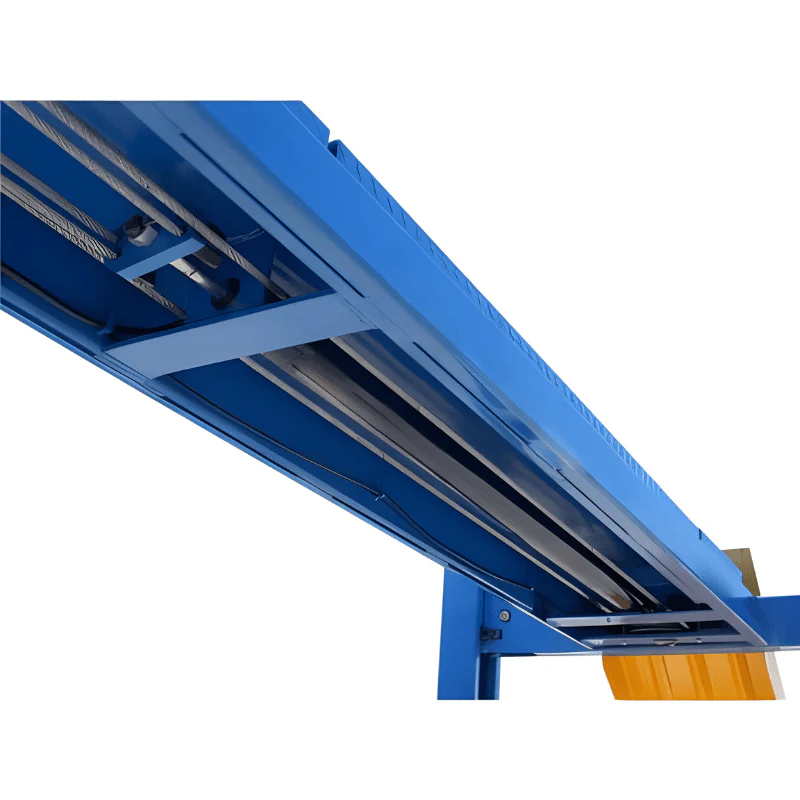

- Cable Synchronization System
- Slack Cable Safety Protection
- Simple Push-Button Operation
Ideal For
- Automotive repair shops
- Fleet maintenance facilities
- Heavy-duty service centers
- High-demand commercial garages
Its robust design and built-in safety systems make it a dependable solution for technicians who need consistent performance day in and day out.
Reliable, Safe, and Built to Last
Safety is a core part of the Atlas 414's design. The lift includes an automatic mechanical locking system that holds the vehicle securely at height, along with integrated safeguards to prevent overload and cable failure.
Whether you're servicing vehicles or maximizing shop space, this lift delivers the strength and reliability professionals expect.

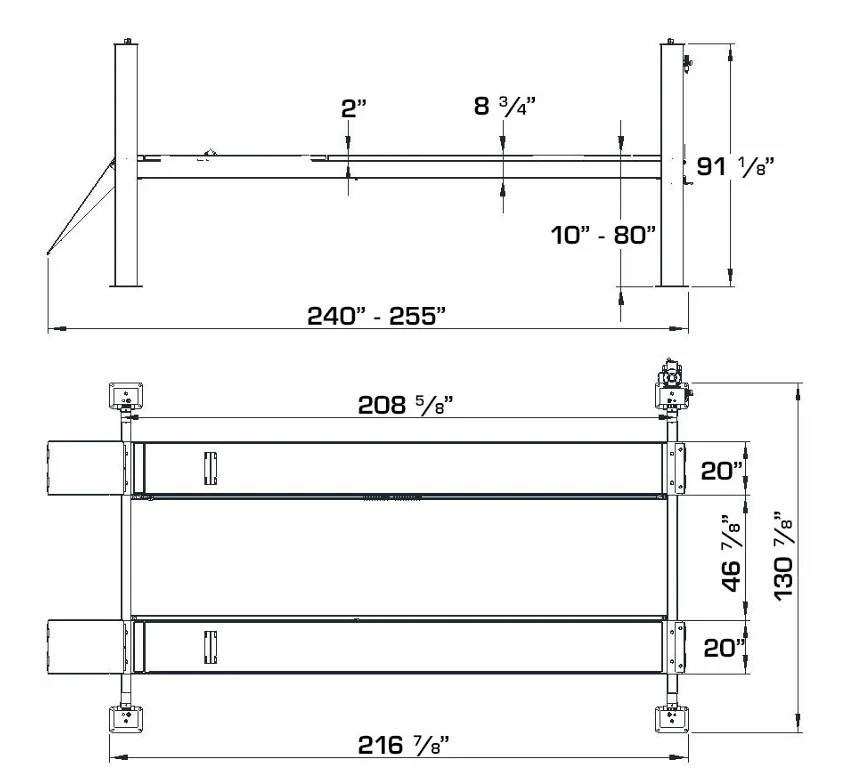

| Specifications | Details |
|---|---|
| Capacity | 14,000 lb. |

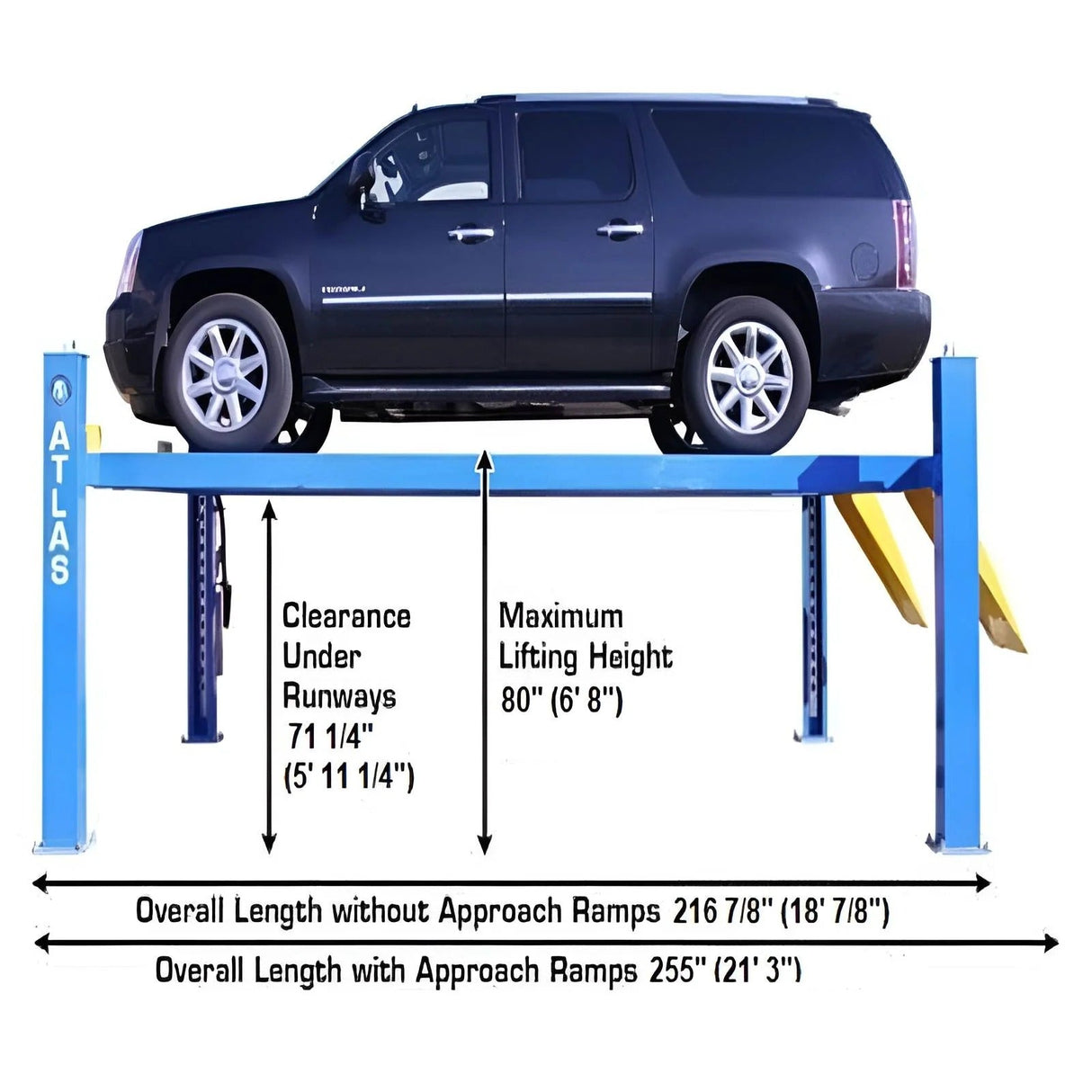

| Lifting Height | 80" (6' 8") |

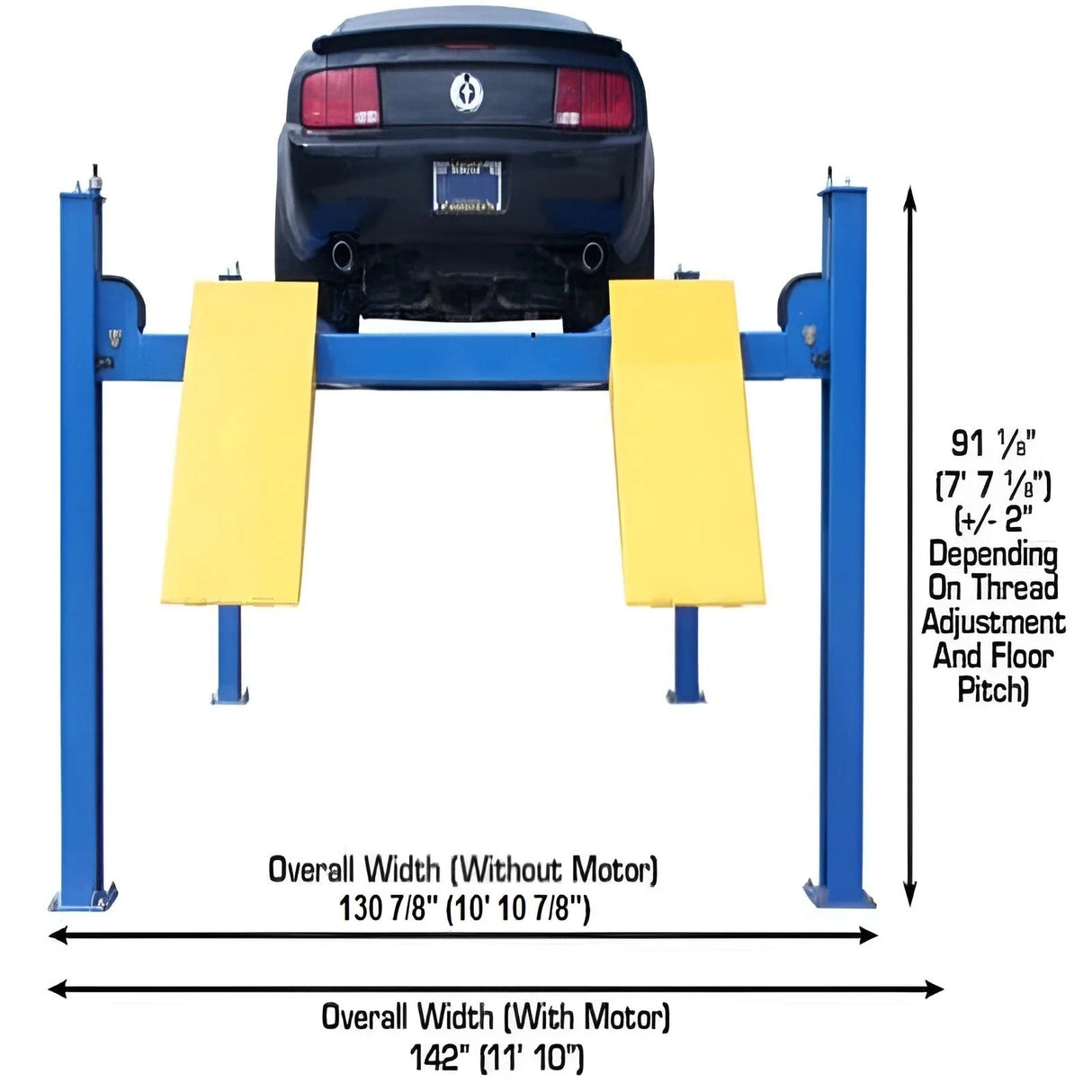

| Overall Width Of Columns (Without Motor) | 130 7/8" (10' 10 7/8") |
| Overall Width Of Columns (With Motor) | 138 7/8" (11' 6 7/8") |

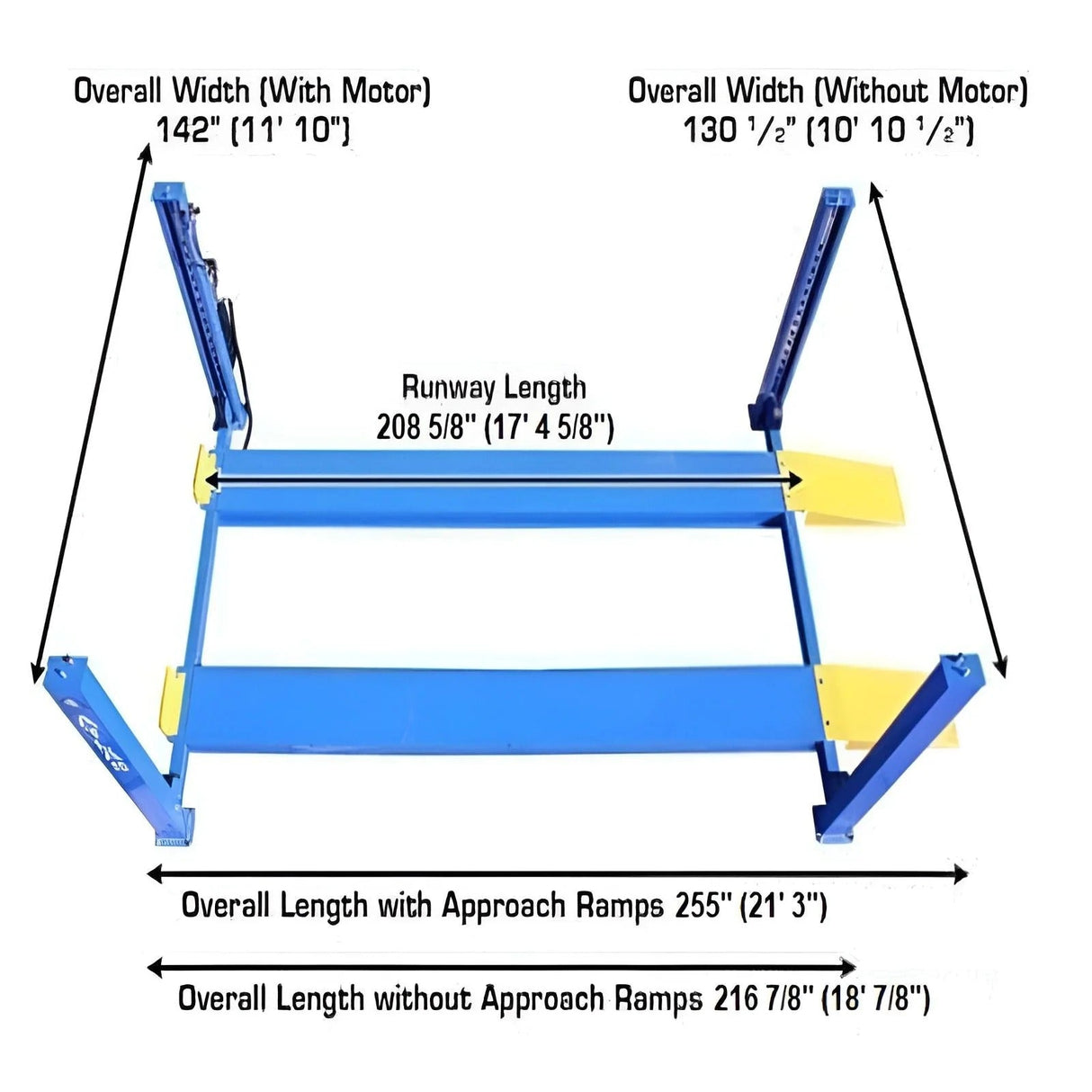

| Overall Length With Approach Ramp | 255" (21' 3") |
| Length Between Columns | 197 1/4" (16' 5 1/4") |
| Runway Length | 208 5/8" (17' 4 5/8") |

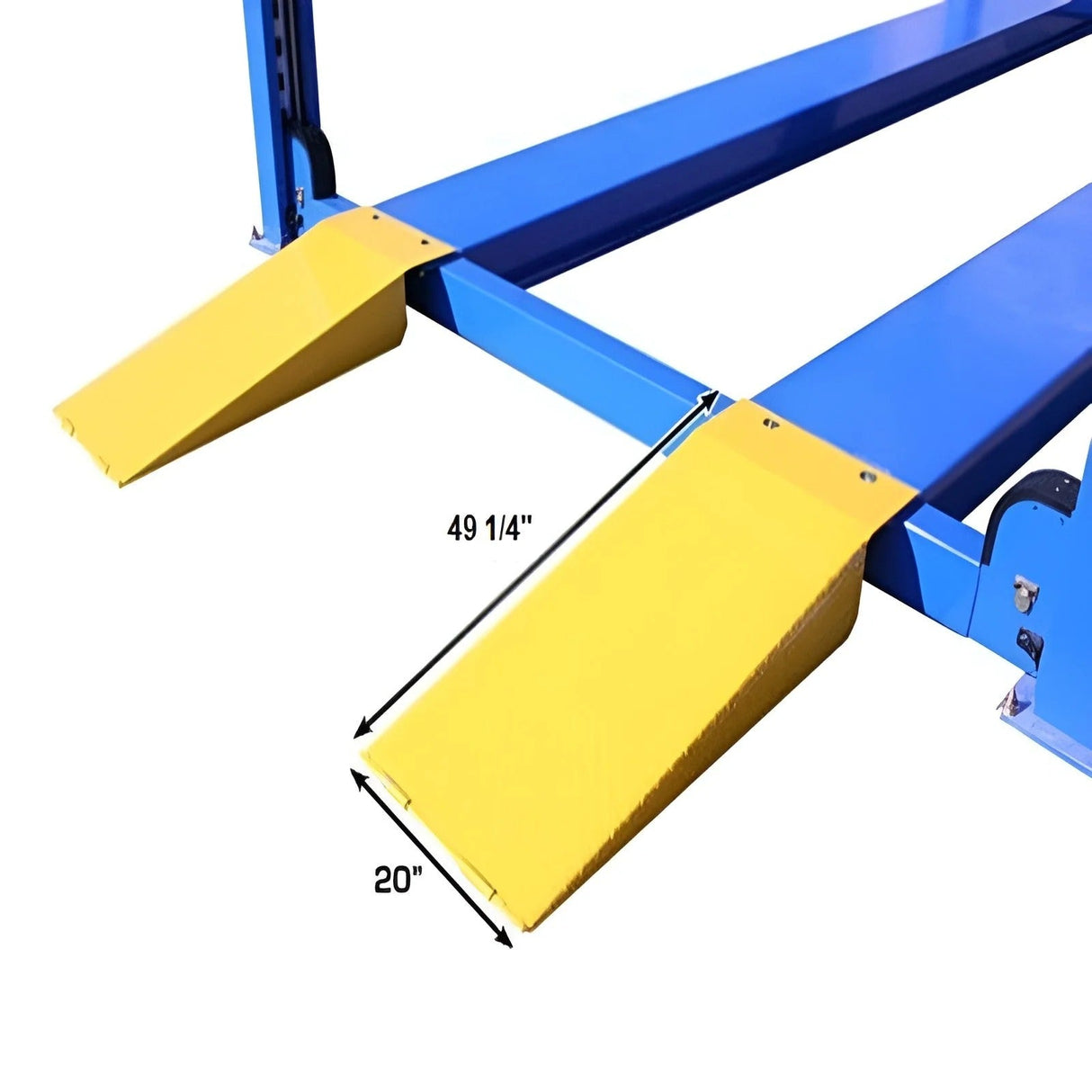

| Runway Width | 20" |
| Thickness Of Runway | 8 3/4" |

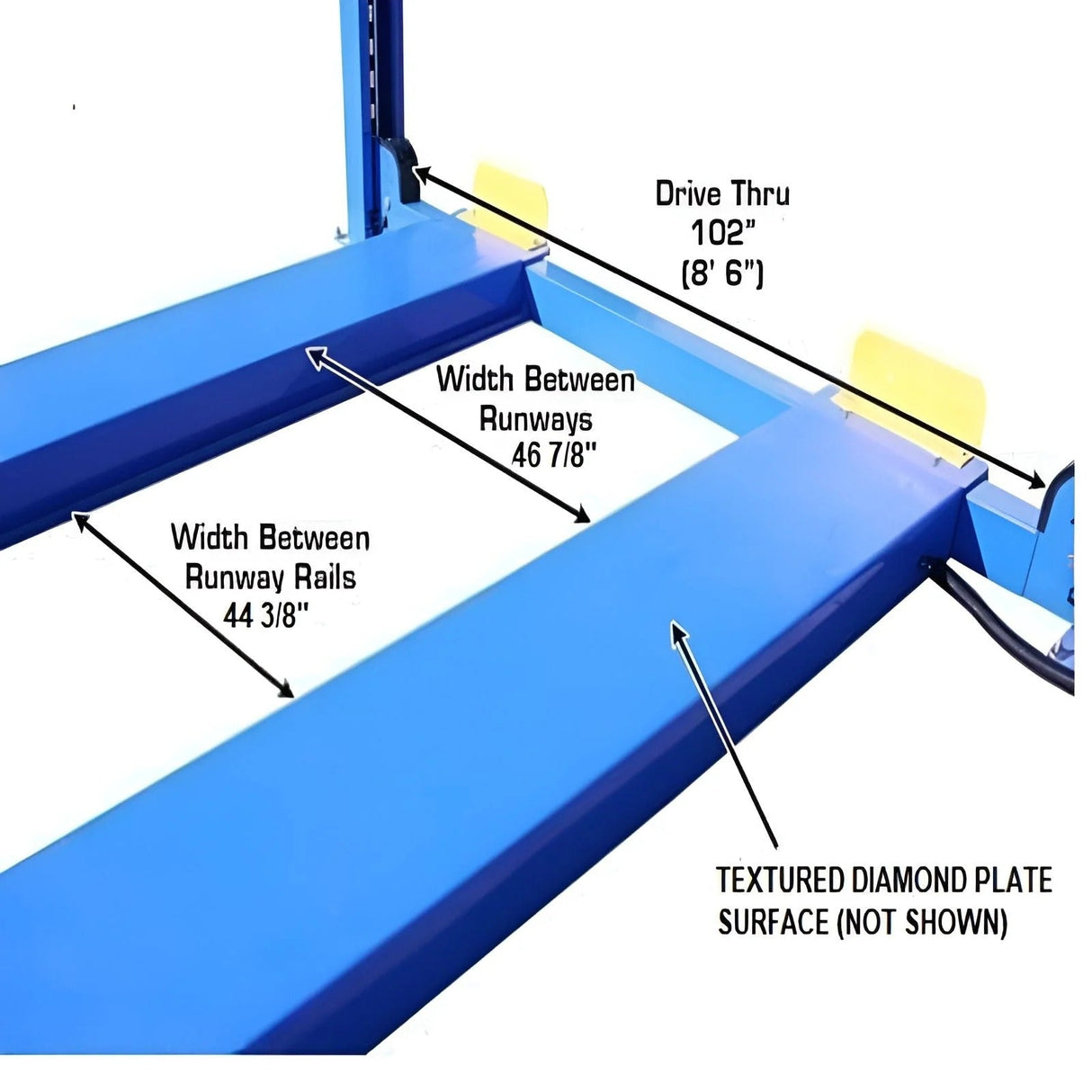

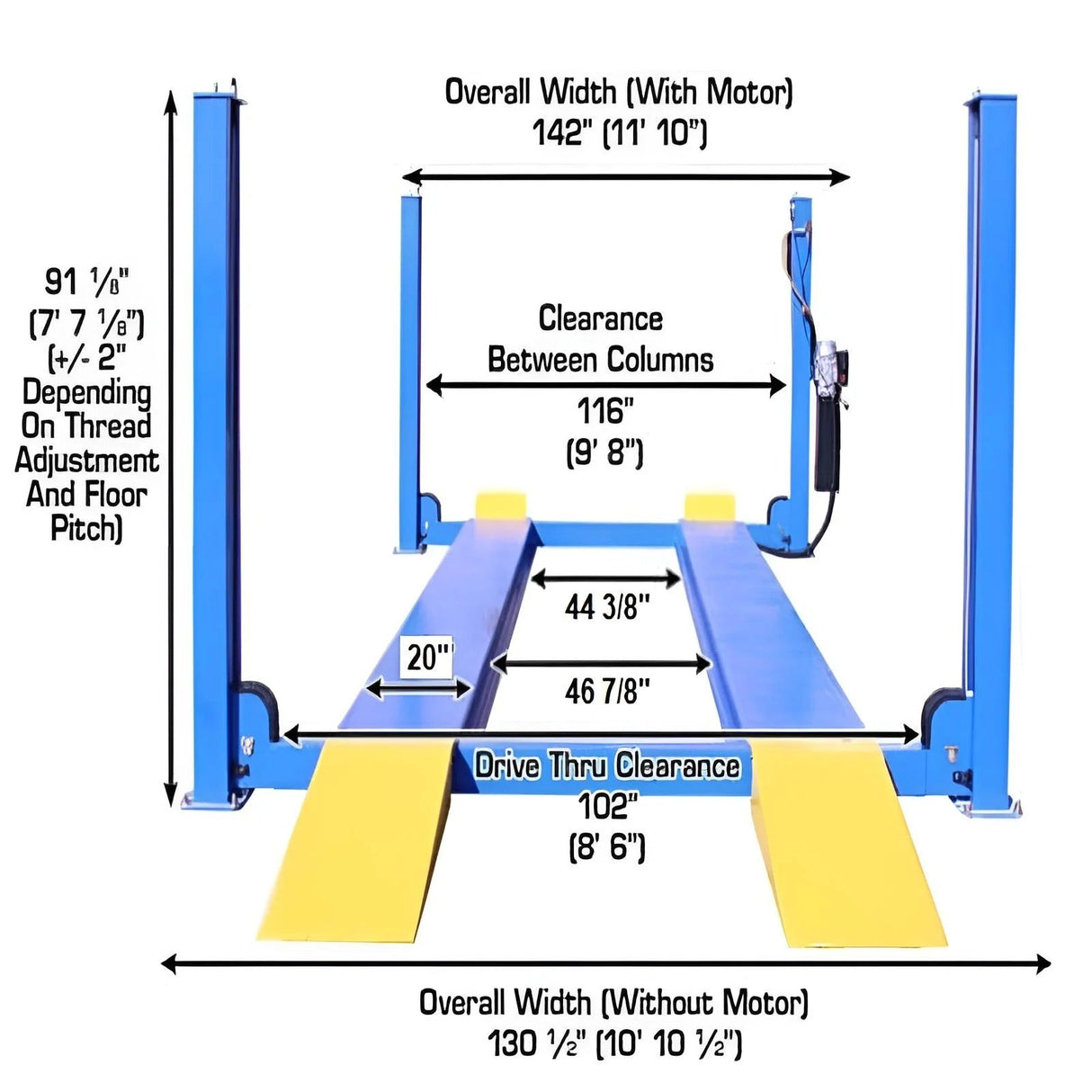

| Width Between Runways | 46 7/8" (w/ Rail 44 3/8") |
| Outside Runway To Outside Runway | 86 7/8" (7' 2 7/8") |
| Clearance Under Runways | 71 1/4" (5' 11 1/4") |
| Clearance Between Columns | 116" (9' 8") |

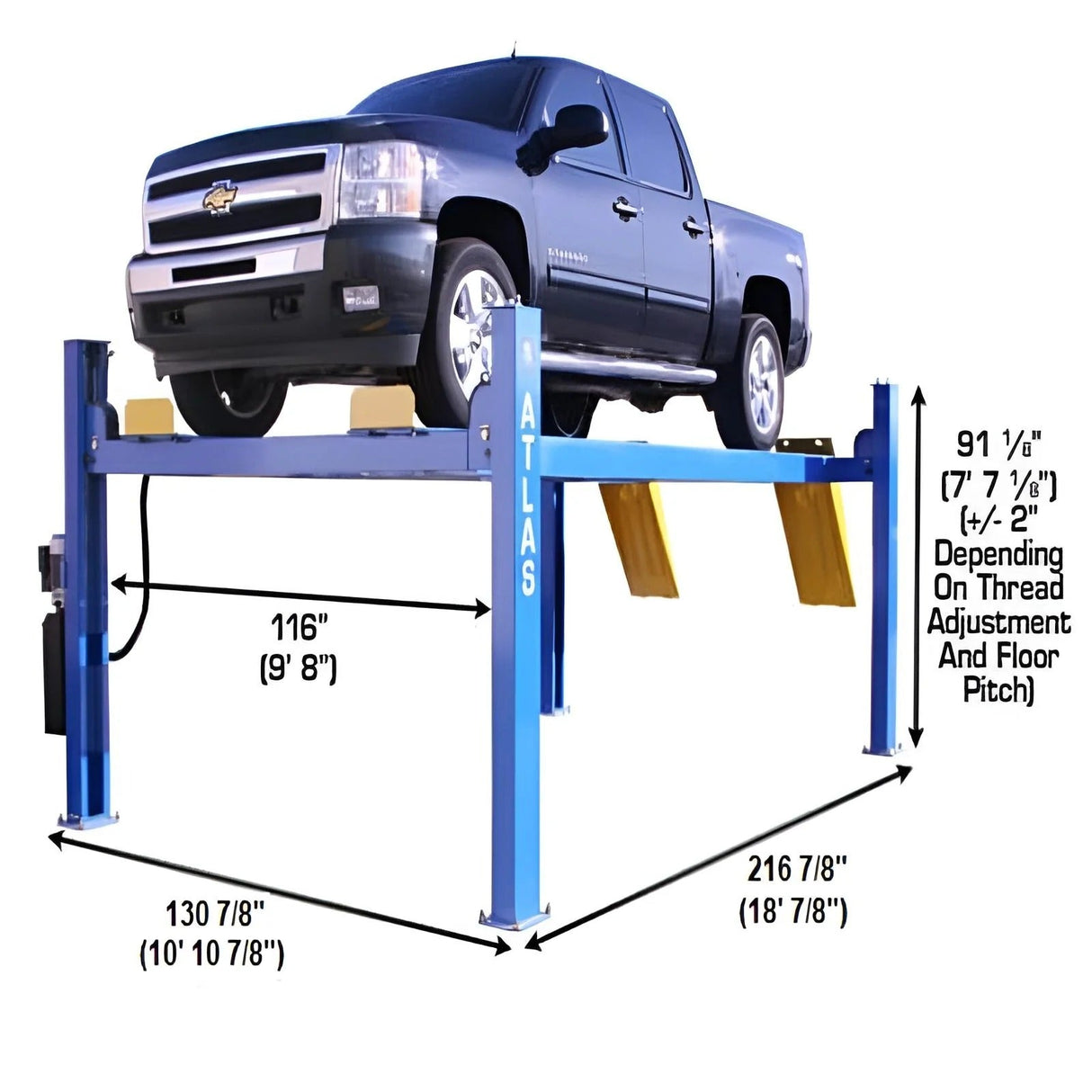

| Height Of Columns | 91 1/8" (7' 7 1/8") |
| Maximum Wheel Base | 197" (16' 5") |
| Drive Thru | 102 1/8" (8' 6 1/8") |

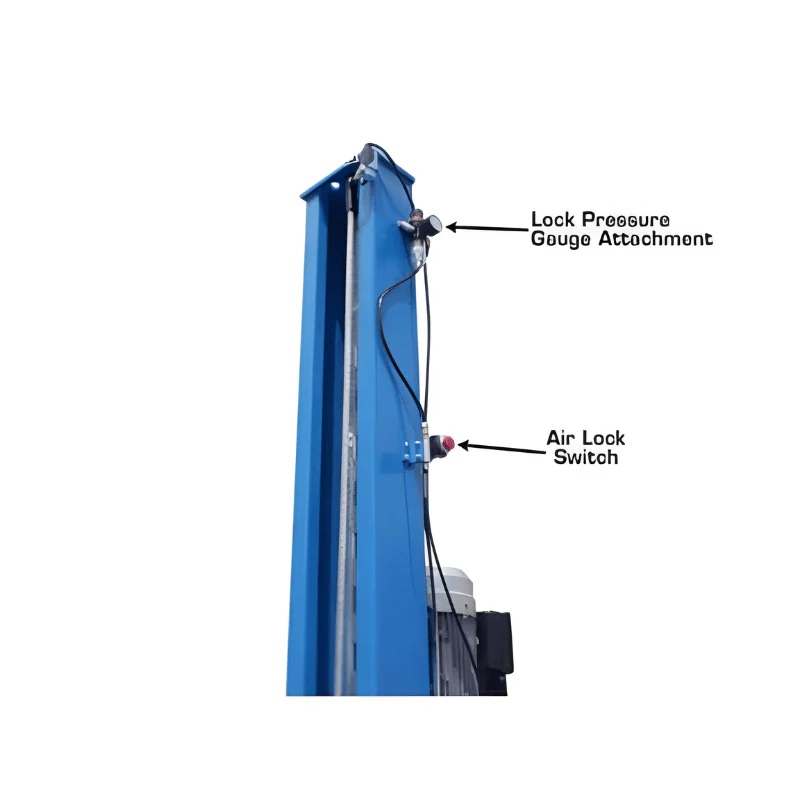

| Air Requirement | 85–115 PSI (External Air Supply Required) |

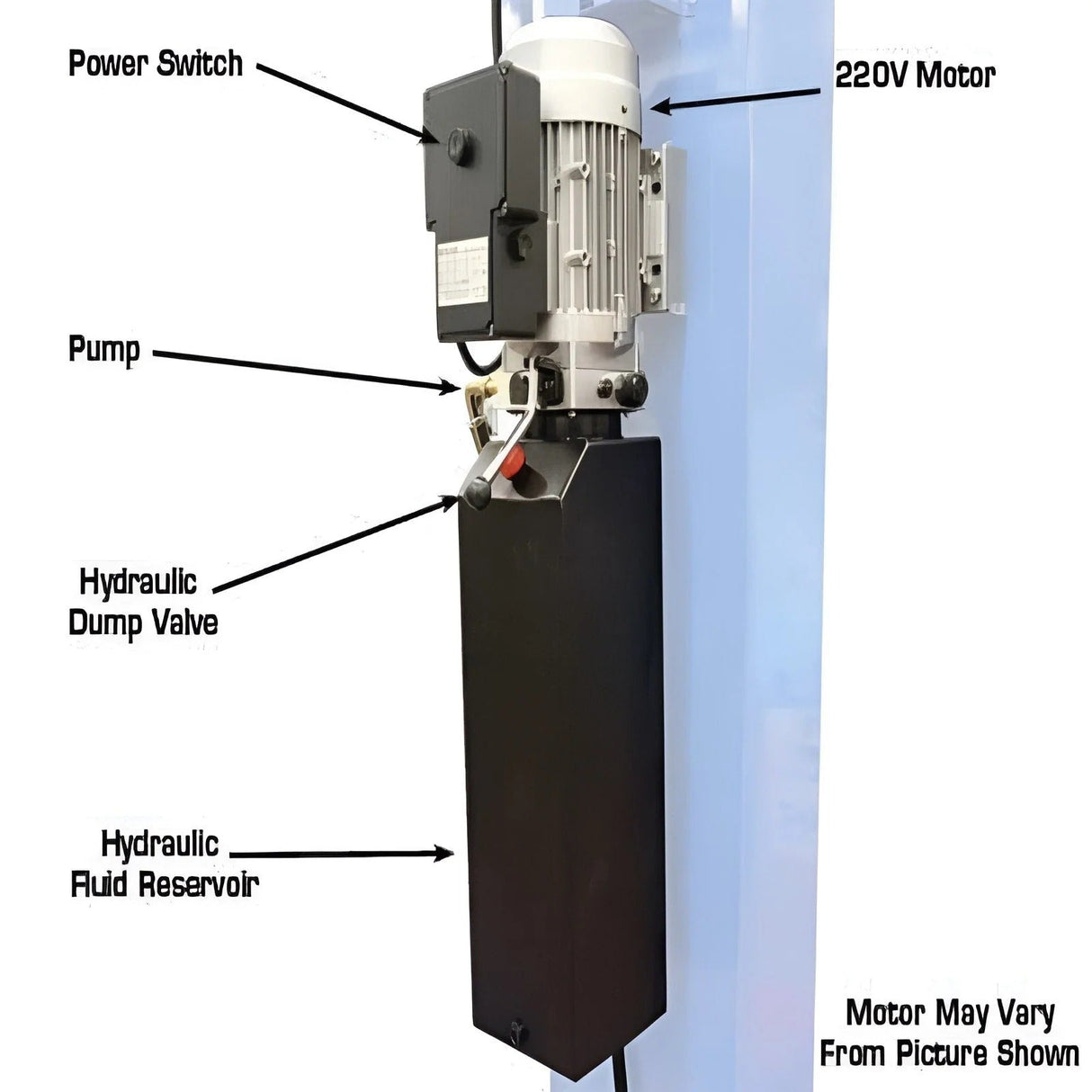

| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

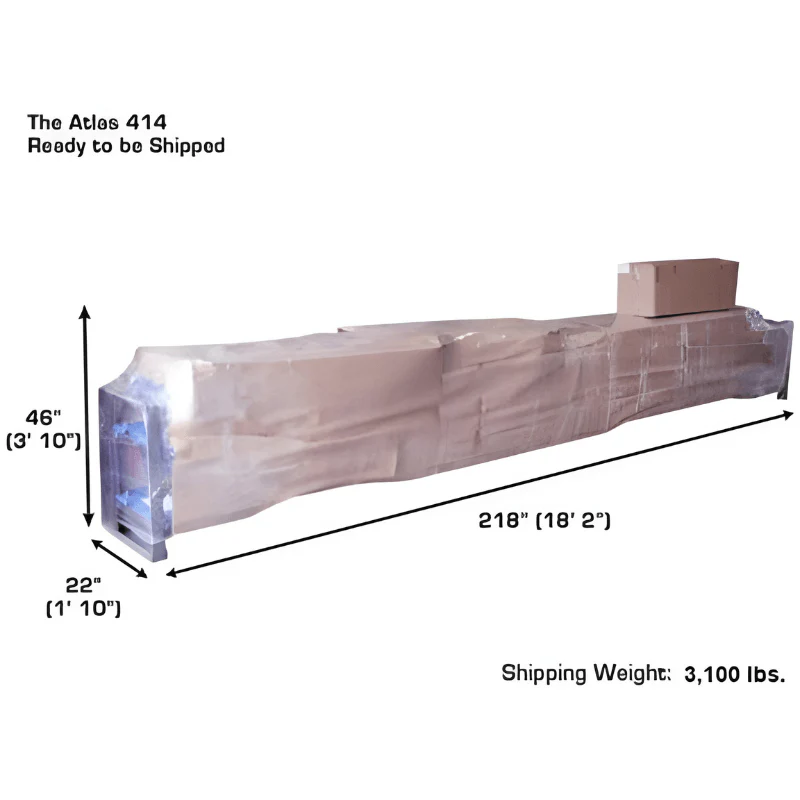

| Shipping Weight | 3,100 lbs. |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |
