Atlas 414 14,000 lb Heavy-Duty 4-Post Lift with Dual RJ8 Rolling Ja...

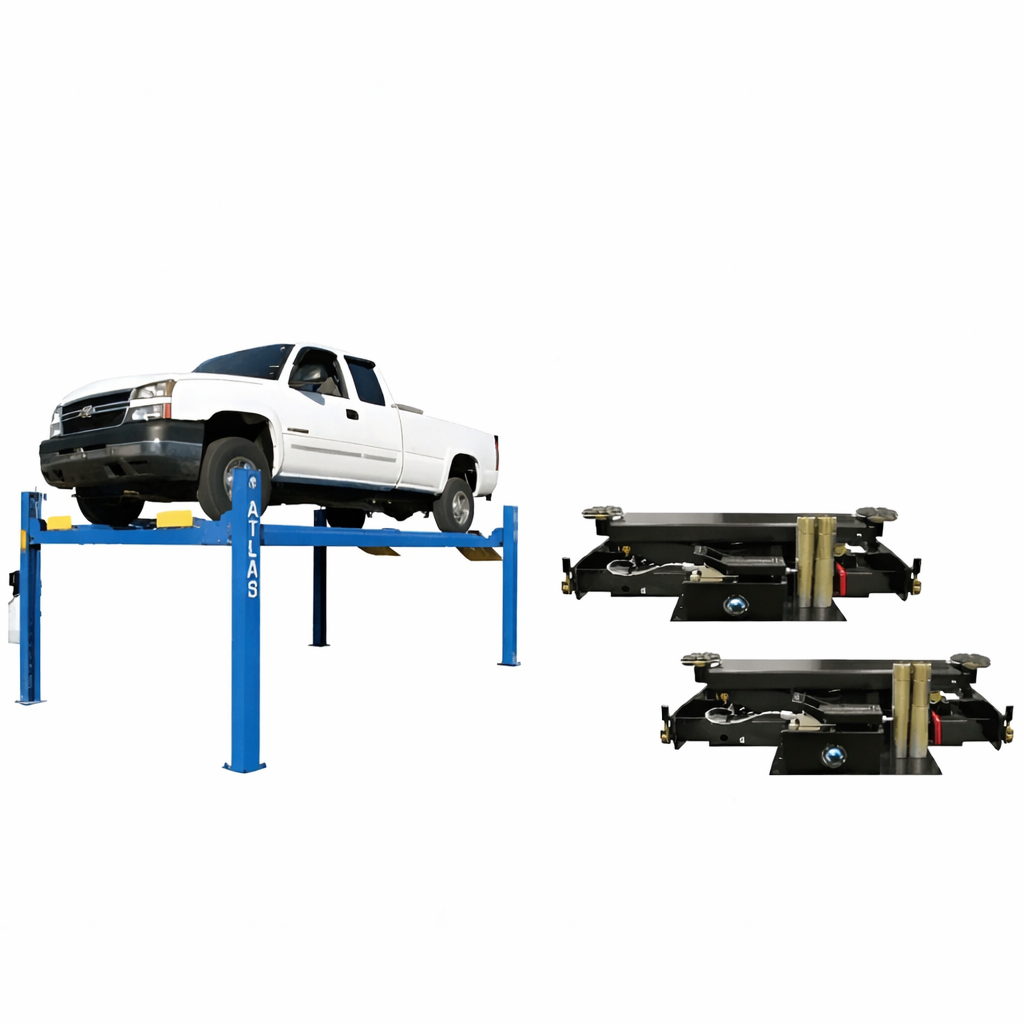

The Atlas 414 14,000 lb 4-post lift combo package is a complete commercial-grade solution designed for shops that need both lifting power and full-service capability. This package includes the heavy-duty Atlas 414 lift along with two RJ8 rolling bridge jacks, allowing you to lift vehicles and raise the wheels off the runways for brake, suspension, and tire work.
Built for durability and long-term use, the Atlas 414 features an extra-tall, extra-wide, and extra-long design, making it ideal for handling large trucks, vans, and extended wheelbase vehicles. Its rugged construction and proven lifting system ensure reliable performance in demanding shop environments.
Built for Power & Full-Service Capability

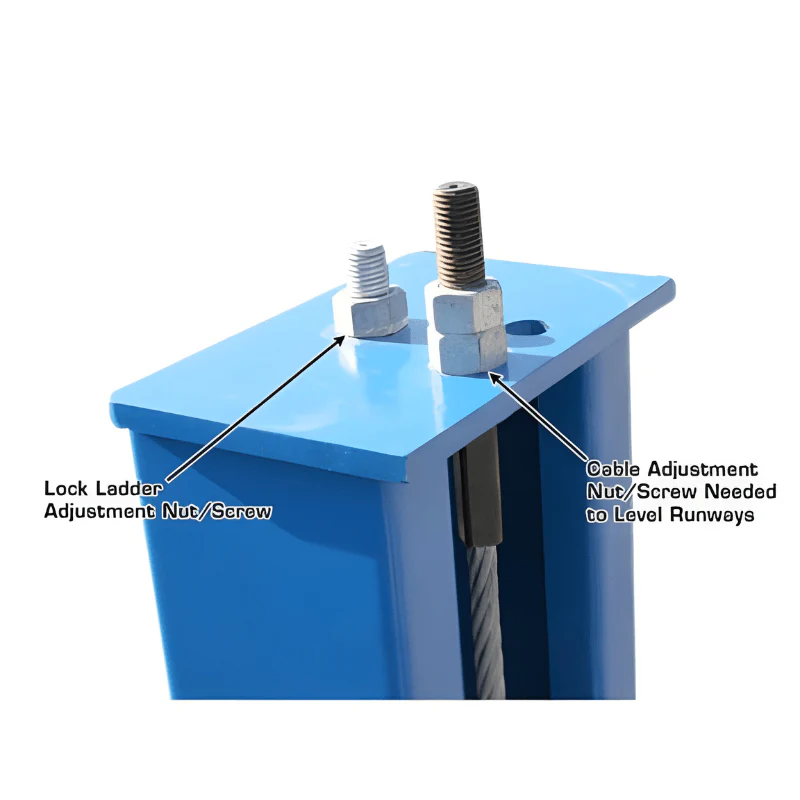

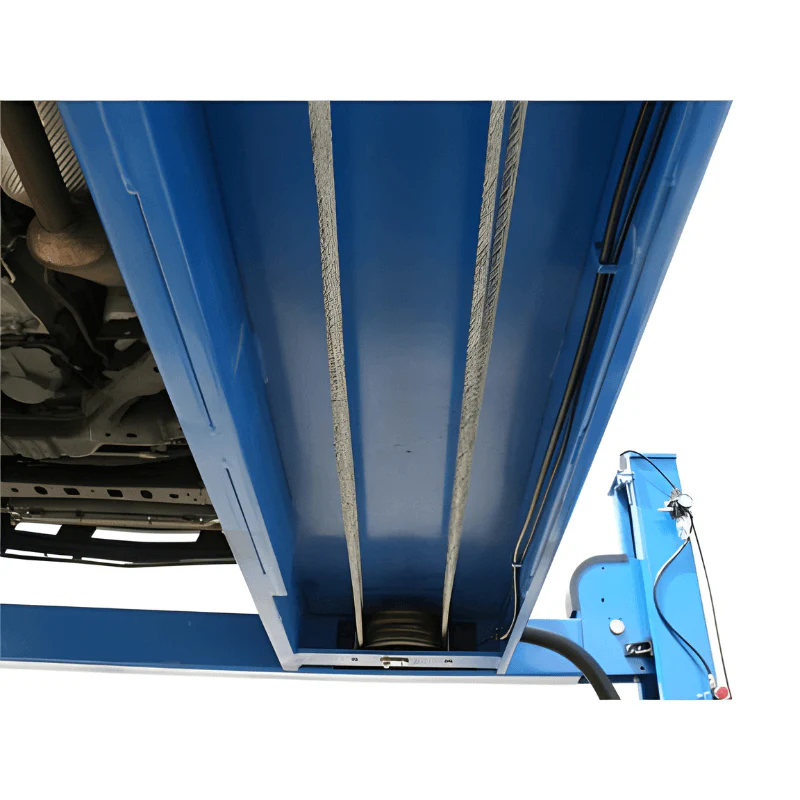

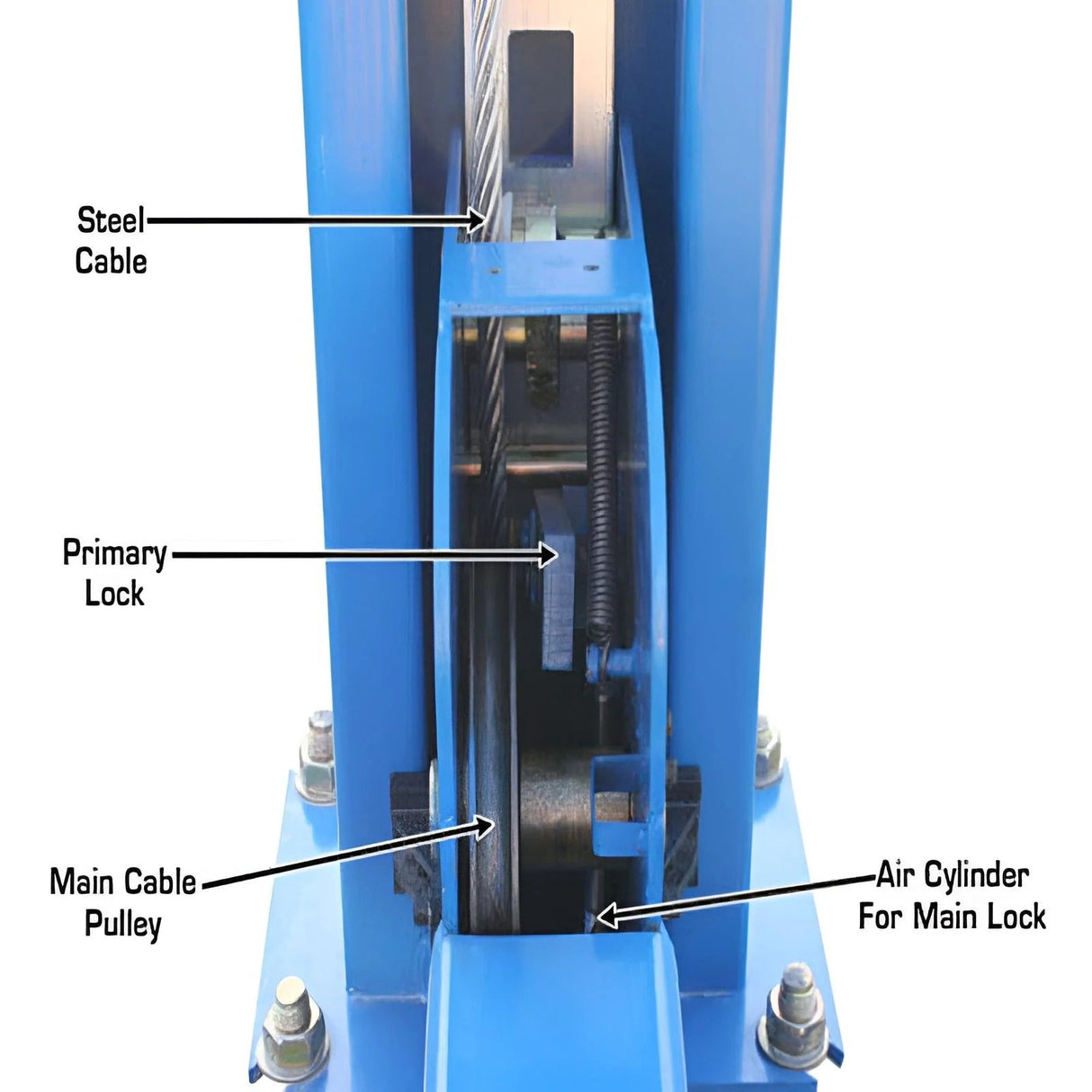

The Atlas 414 utilizes a high-strength cable system combined with an oversized hydraulic cylinder mounted beneath the runway. This design provides smoother lifting, better leveling, and reduced maintenance compared to traditional chain-driven systems.

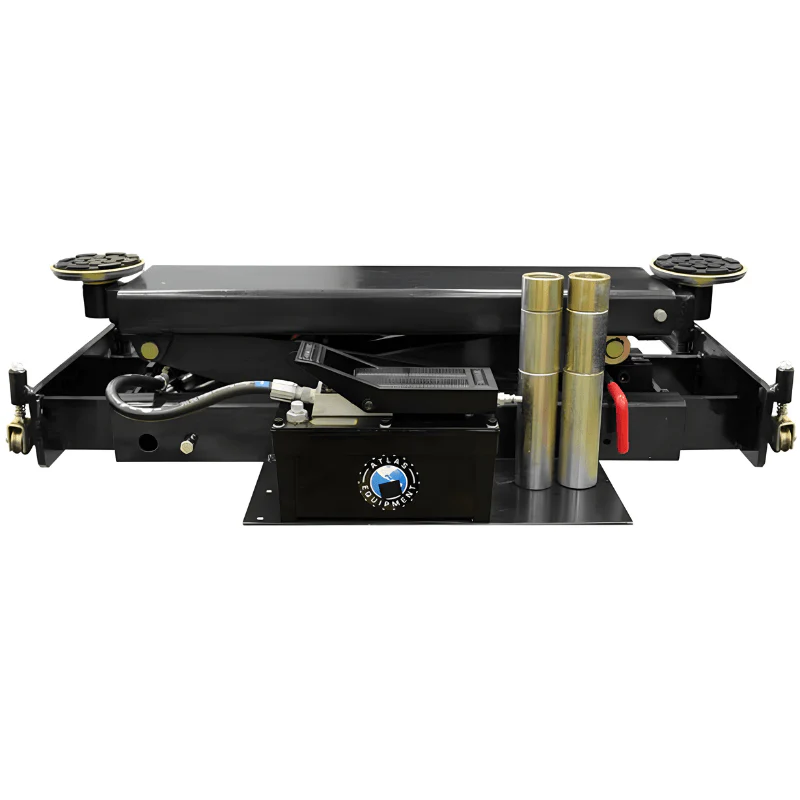

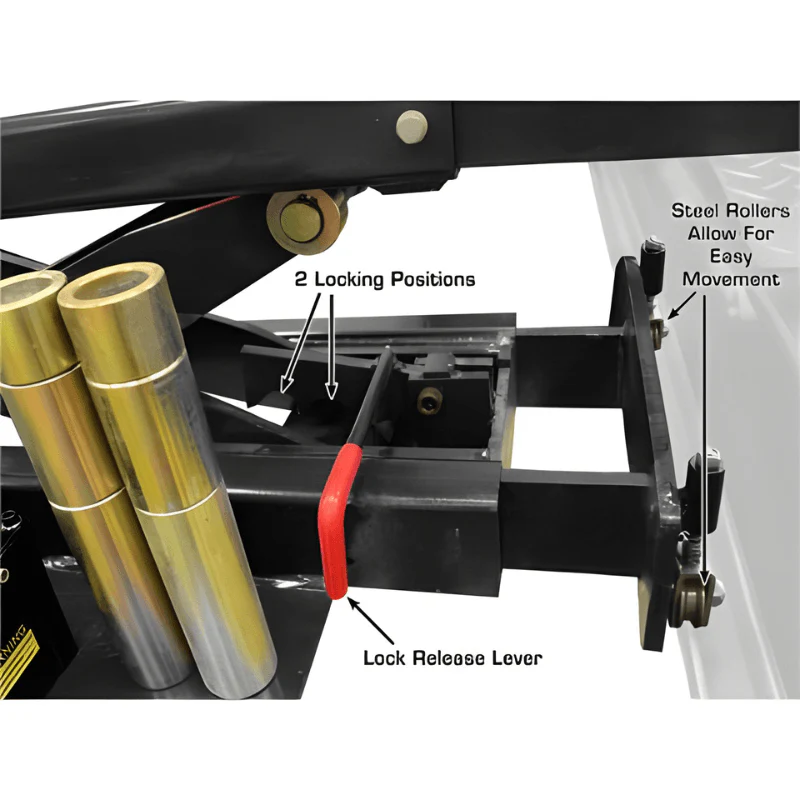

The included RJ8 rolling bridge jacks operate with an air-over-hydraulic system, making it easy to lift wheels off the runways for complete vehicle servicing. Each jack includes a truck adapter set, expanding compatibility across a wide range of vehicles.
Key Features & Benefits
- Combo Package: Includes 14,000 lb 4-post lift and two RJ8 rolling jacks
- Heavy-Duty Commercial Grade Construction
- Extra Tall, Wide & Long design for larger vehicles
- Diamond-Plated Runways for traction and durability

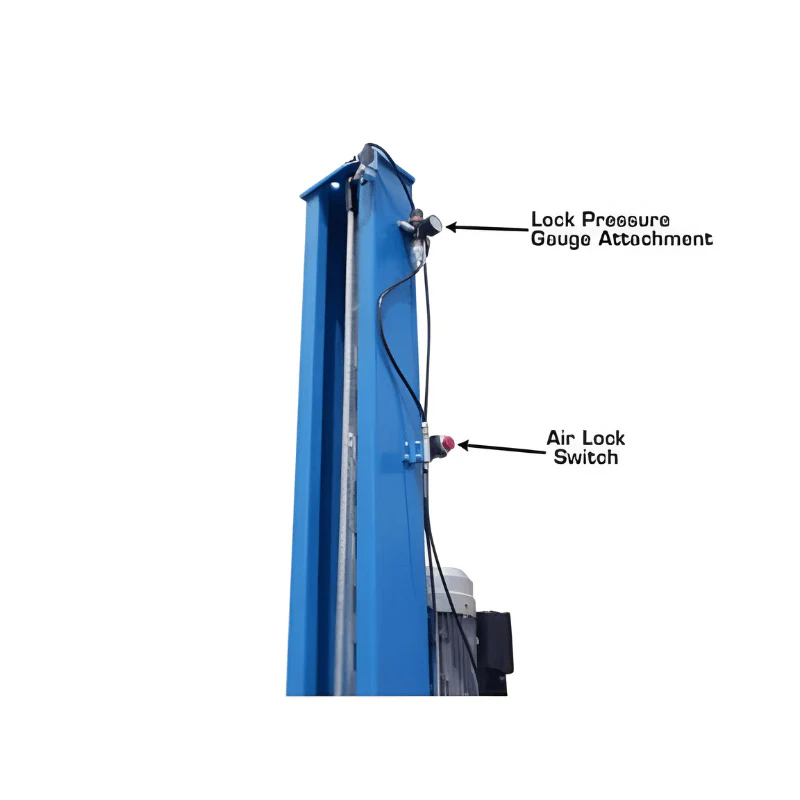

- Air-Operated Single-Point Lock Release (external air required)

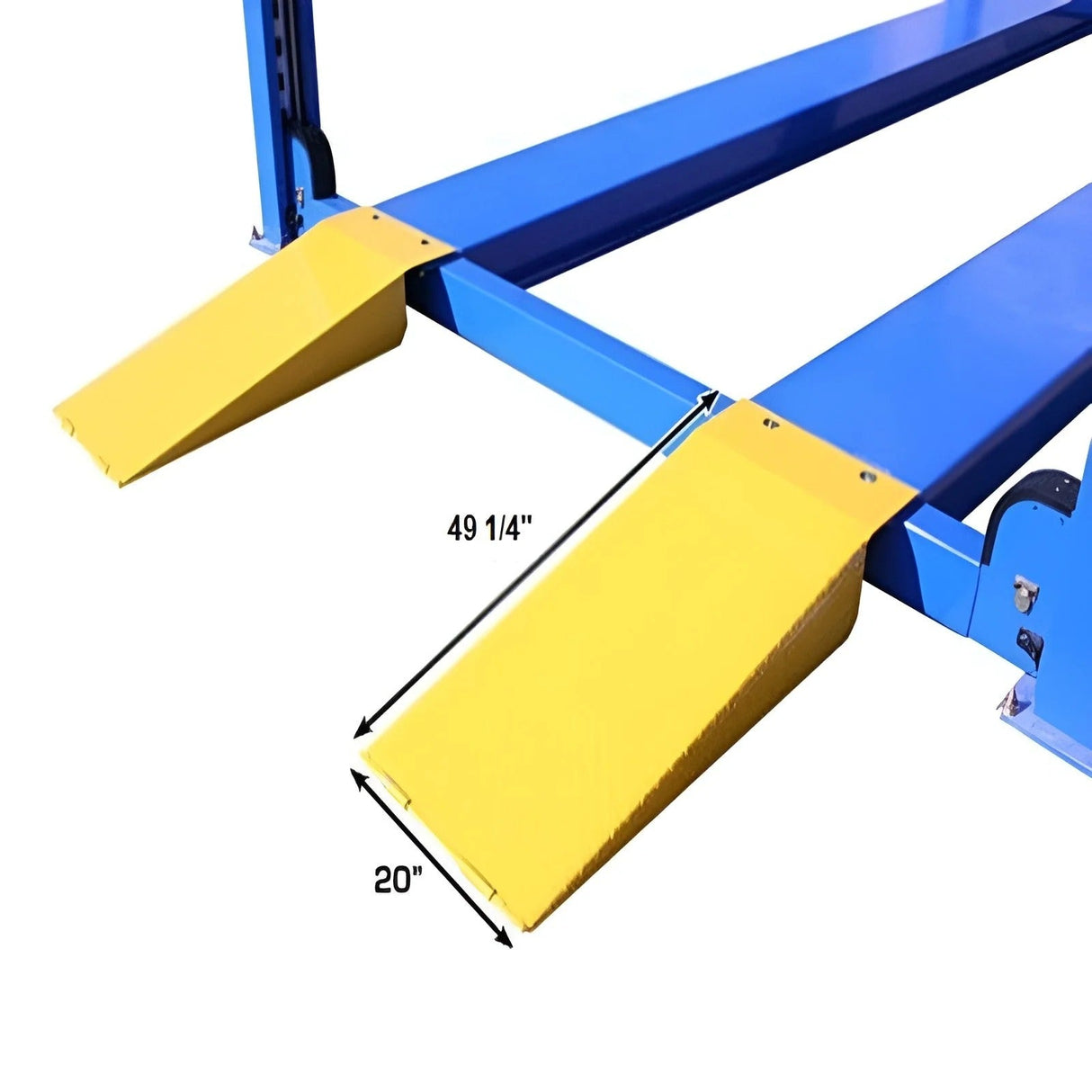

- Steel Approach Ramps Included
- Compatible with optional drive-off ramps and runway extensions
- Rolling Jacks: Air-over-hydraulic operation for wheel service
- Truck Adapter Set included for each jack
Designed for Professional Shops
This combo is ideal for automotive repair shops, fleet service centers, and high-demand garages that need both lifting capacity and the ability to perform full undercarriage work. The addition of rolling bridge jacks transforms the lift into a complete service station.
Reliable Performance You Can Count On
The Atlas 414 has been built to consistent manufacturing standards and tested to perform reliably at full capacity. Combined with the versatility of the RJ8 rolling jacks, this package delivers a complete, long-term solution for professional vehicle service.
| Specifications | Details |
|---|---|
| Capacity | 14,000 lb. |

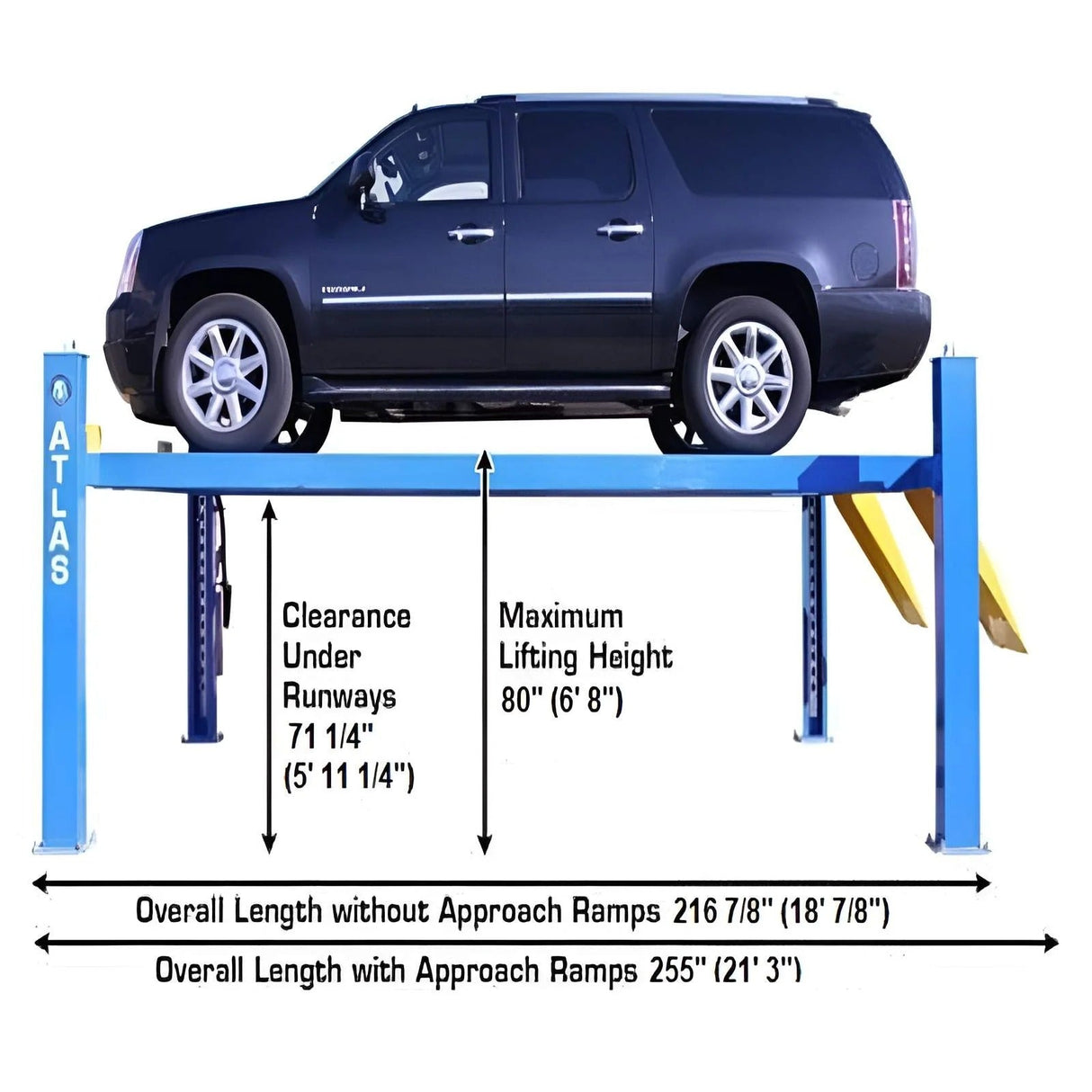

| Lifting Height | 80" (6' 8") |

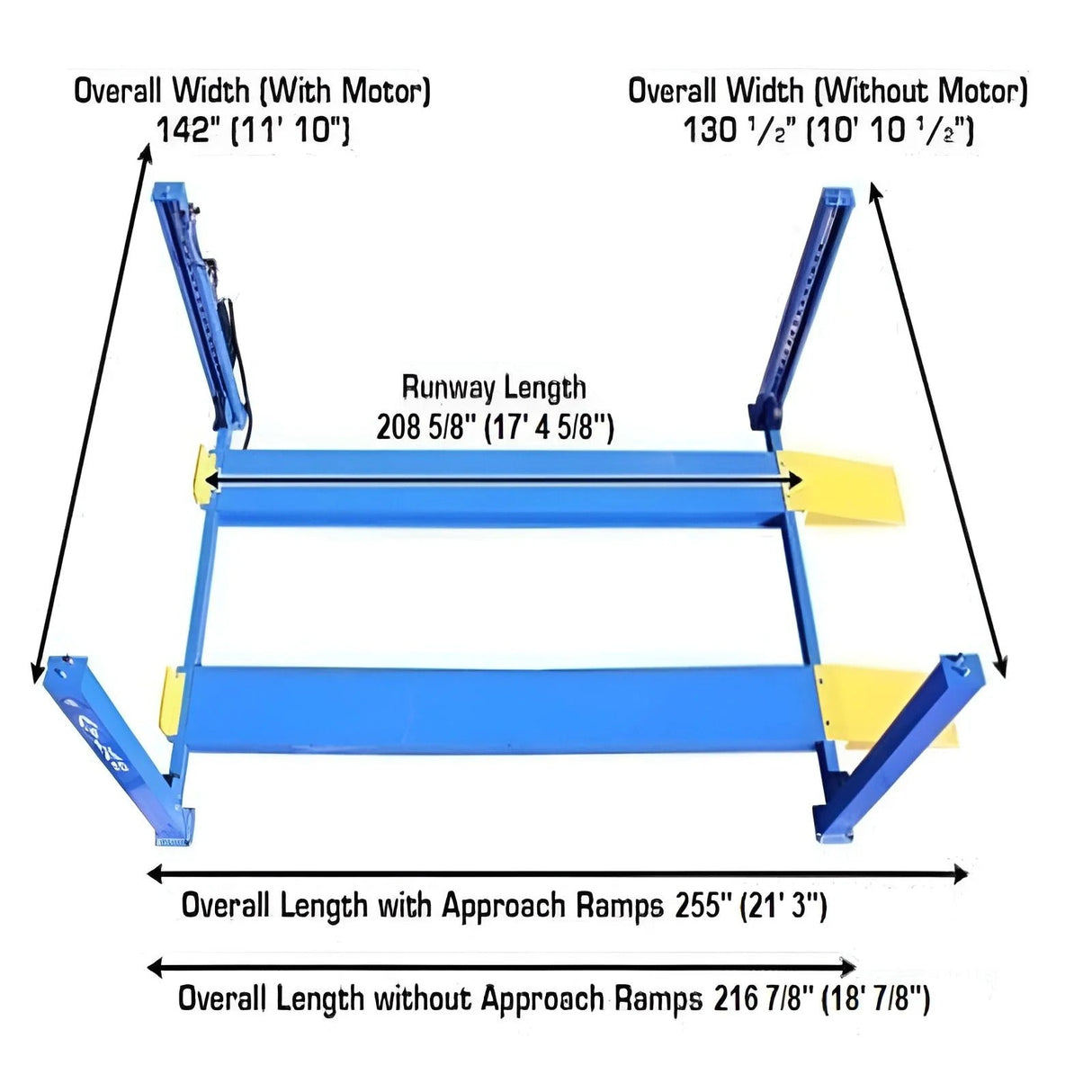

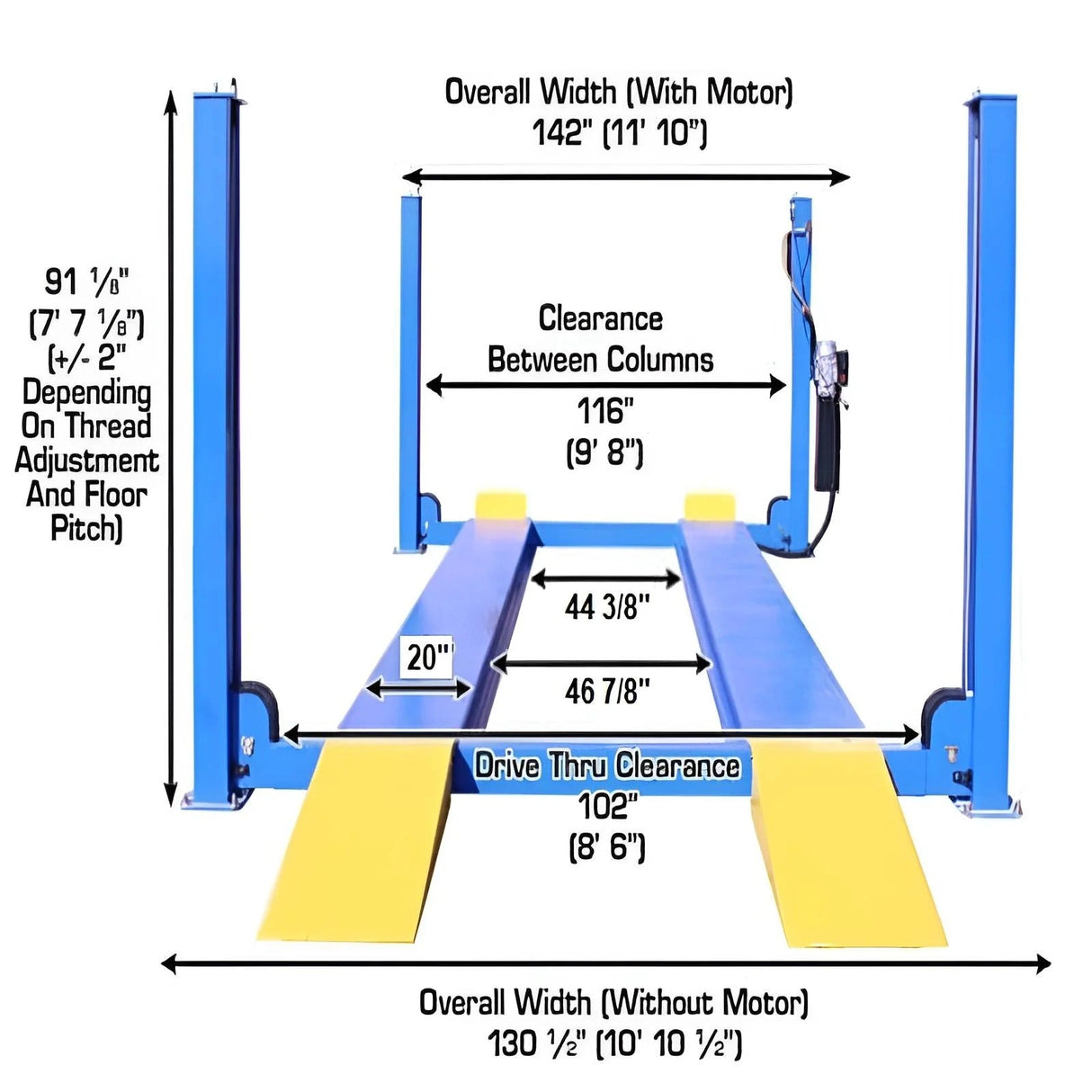

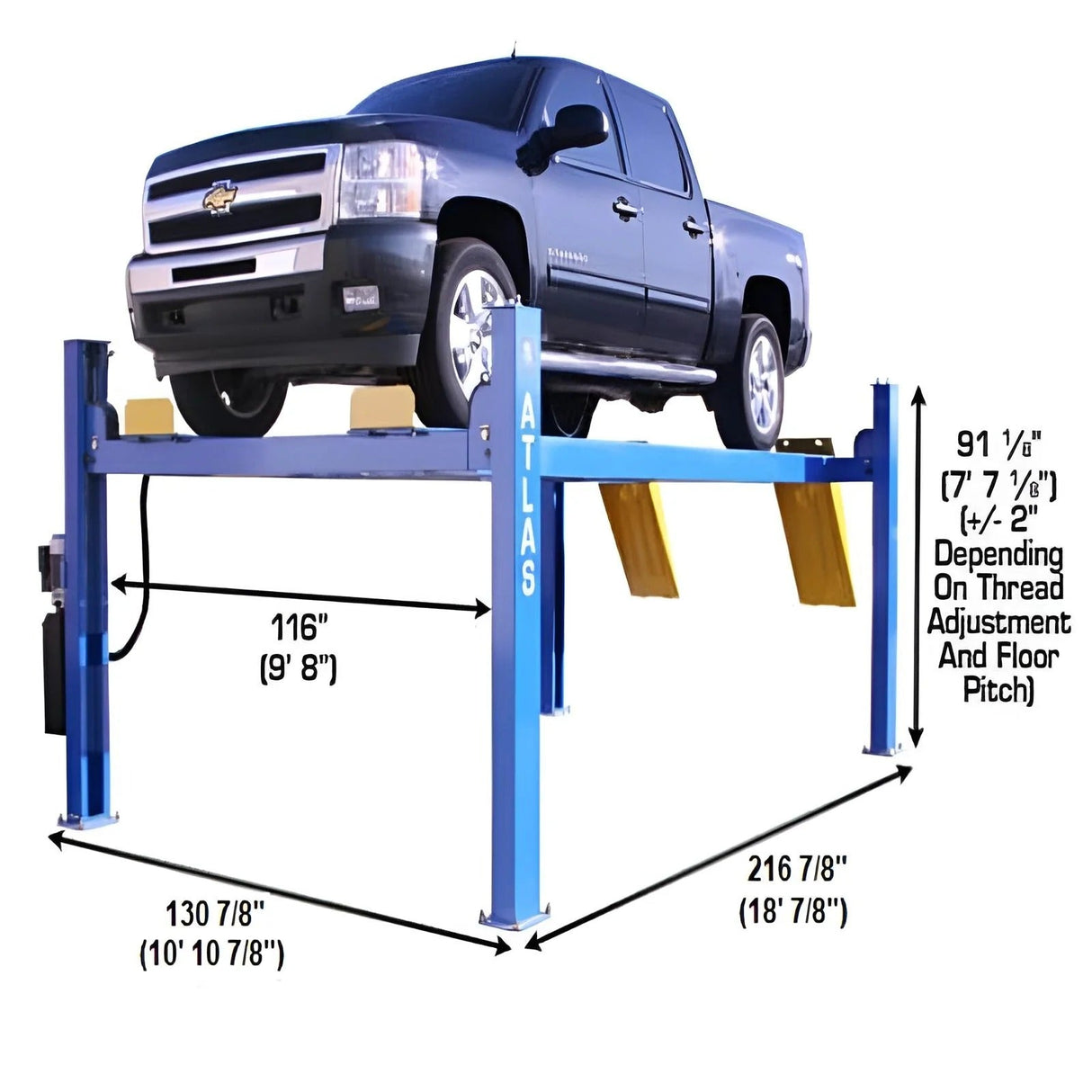

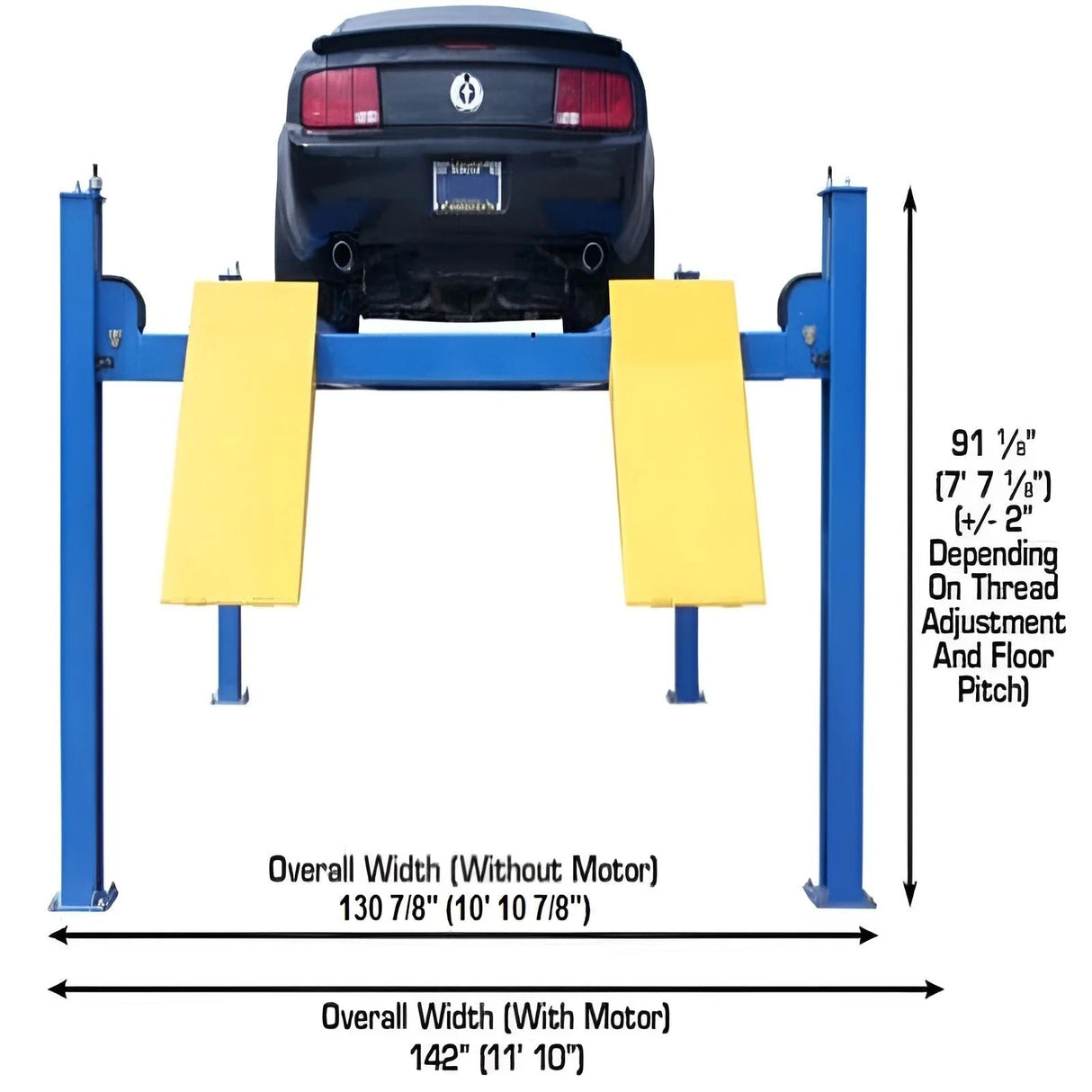

| Overall Width Of Columns (Without Motor) | 130 7/8" (10' 10 7/8") |
| Overall Width Of Columns (With Motor) | 138 7/8" (11' 6 7/8") |
| Overall Length With Approach Ramp | 255" (21' 3") |
| Length Between Columns | 197 1/4" (16' 5 1/4") |
| Runway Length | 208 5/8" (17' 4 5/8") |
| Runway Width | 20" |
| Thickness Of Runway | 8 3/4" |

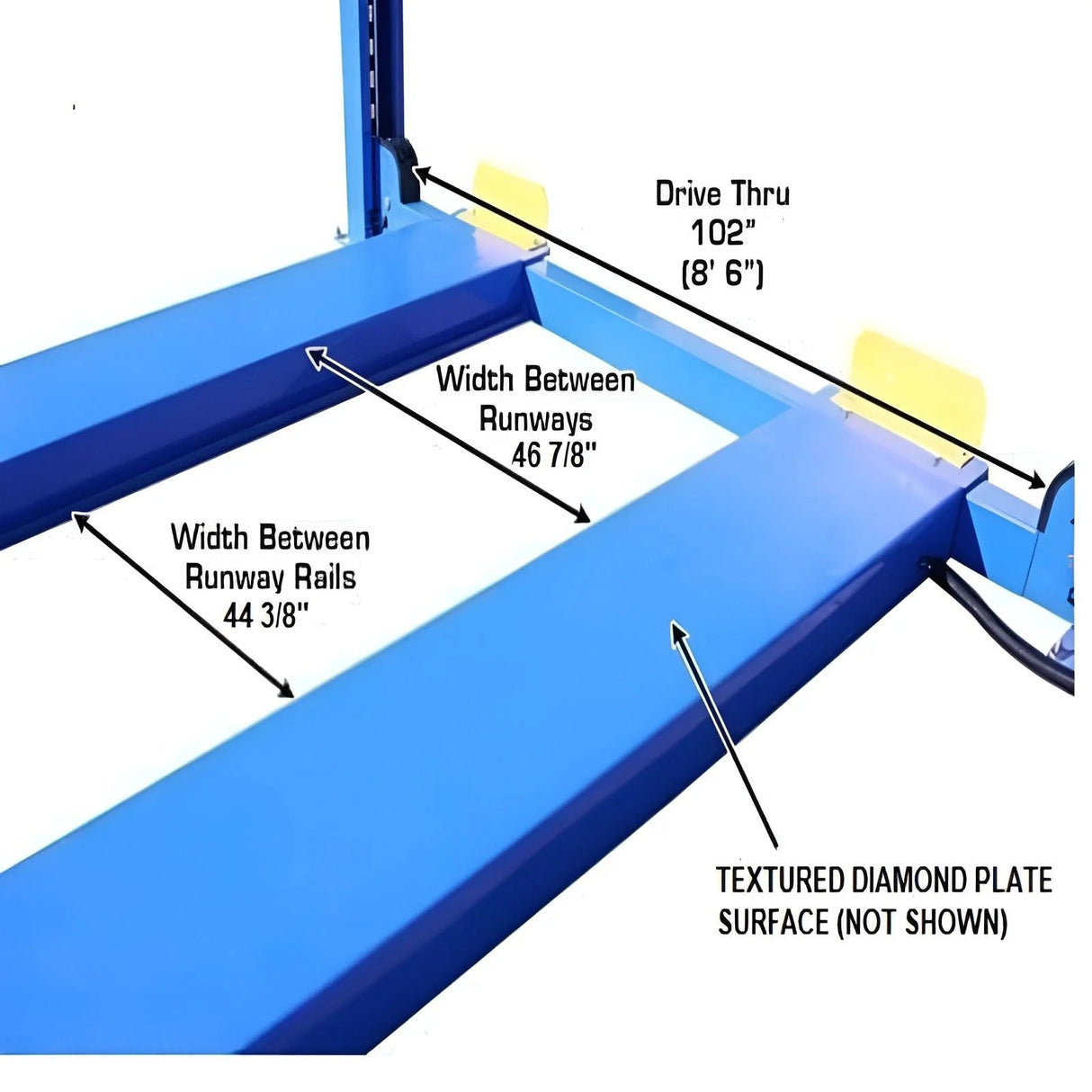

| Width Between Runways | 46 7/8" (w/ Rail 44 3/8") |
| Outside Runway To Outside Runway | 86 7/8" (7' 2 7/8") |

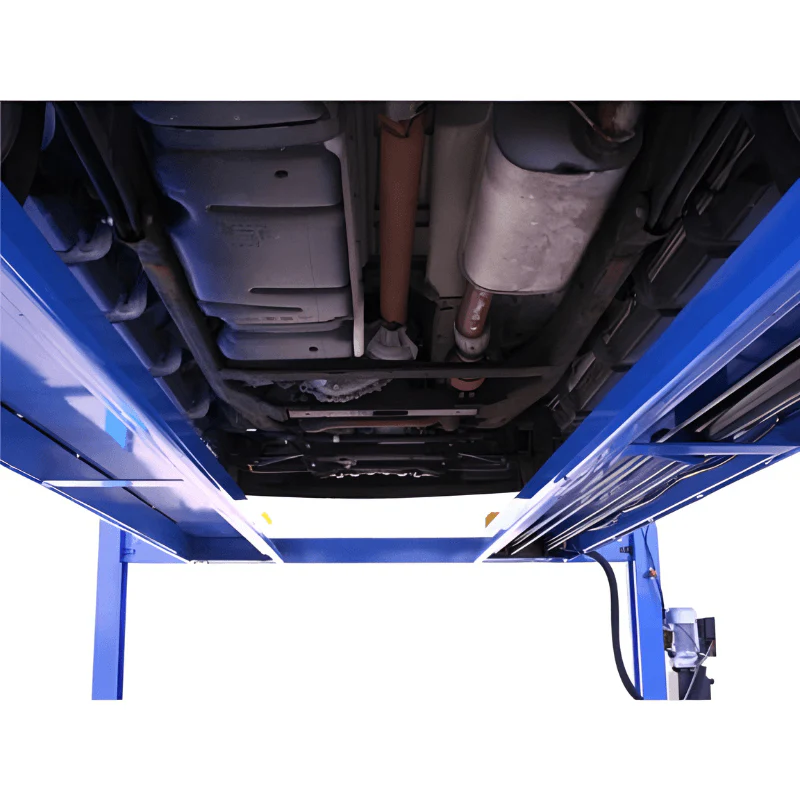

| Clearance Under Runways | 71 1/4" (5' 11 1/4") |
| Clearance Between Columns | 116" (9' 8") |
| Height Of Columns | 91 1/8" (7' 7 1/8") |
| Maximum Wheel Base | 197" (16' 5") |
| Drive Thru | 102 1/8" (8' 6 1/8") |
| Air Requirement | 85–115 PSI (External Air Supply Required) |

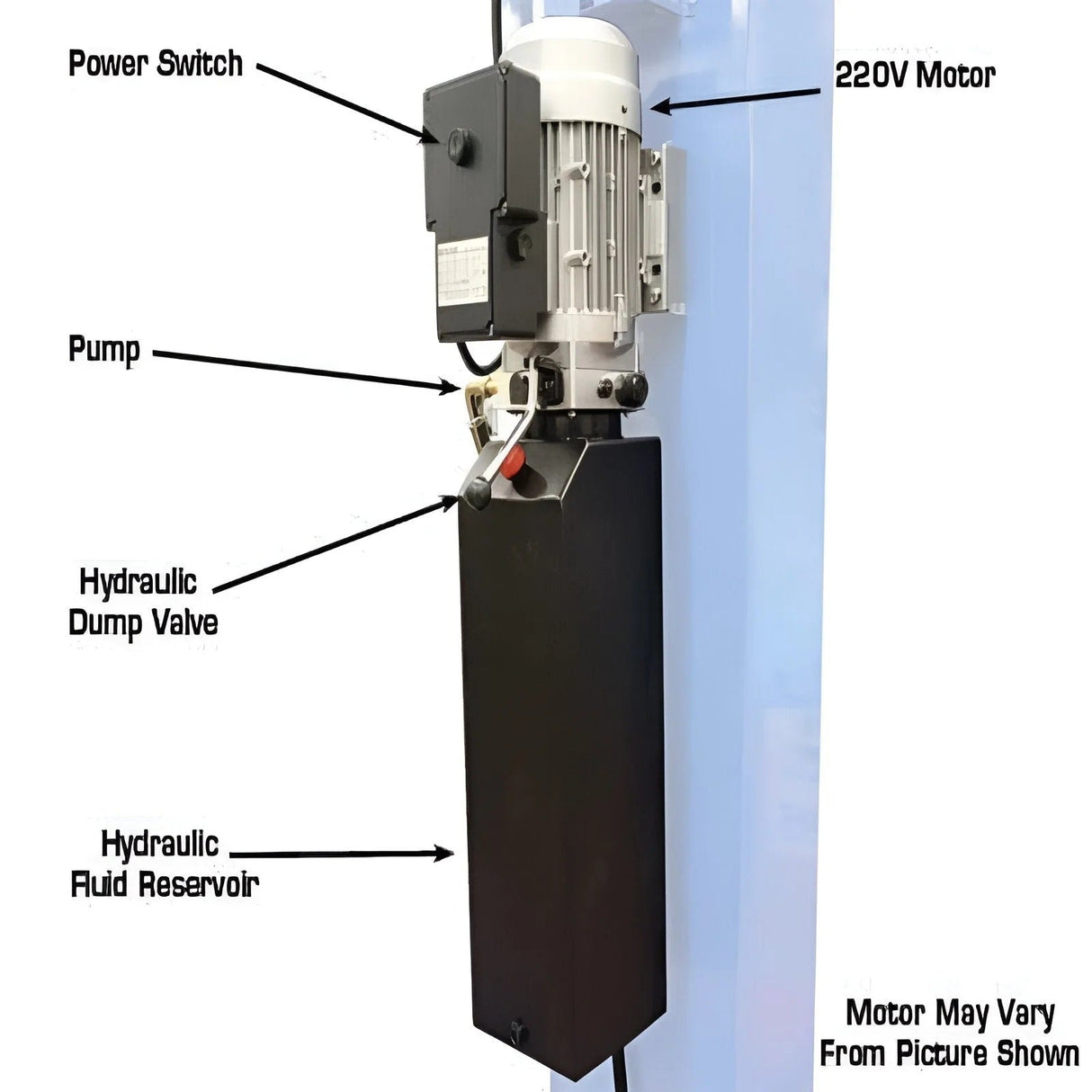

| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

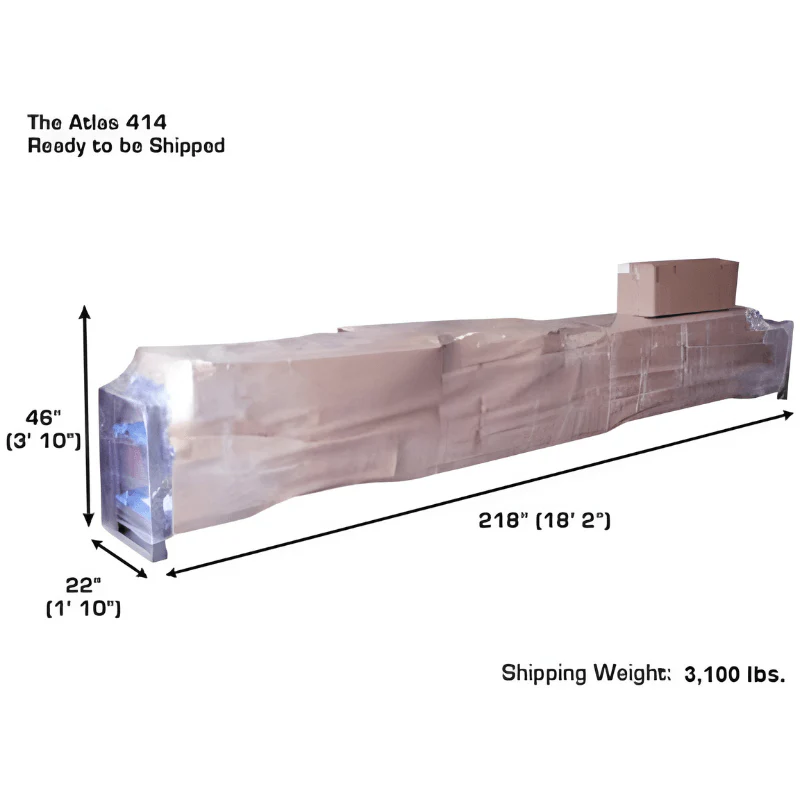

| Shipping Weight | 3,100 lbs. |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |
Atlas RJ8000 Specifications
| Specifications | Details |
|---|---|
| Maximum Capacity | 8,000 lb. |
| Maximum Width | 66 1/2" (5' 6 1/2") |
| Minimum Width | 40" (3' 4") |
| Distance Between Runway Capability | 34 1/2" – 55" |
| Maximum Lifting Height (With Adapters) | 30" |
| Air Requirement | 70–115 PSI (External Air Supply Required – Not Included) |
| Shipping Weight | 390 lbs. |
| Adapter Heights | 2 Each: 2", 3" |
| Arm Hole/Adapter Peg Size | 1.5" |
