Atlas 9KBP 9,000lb 2 Post Lift w/ Lawn Mower Adapter

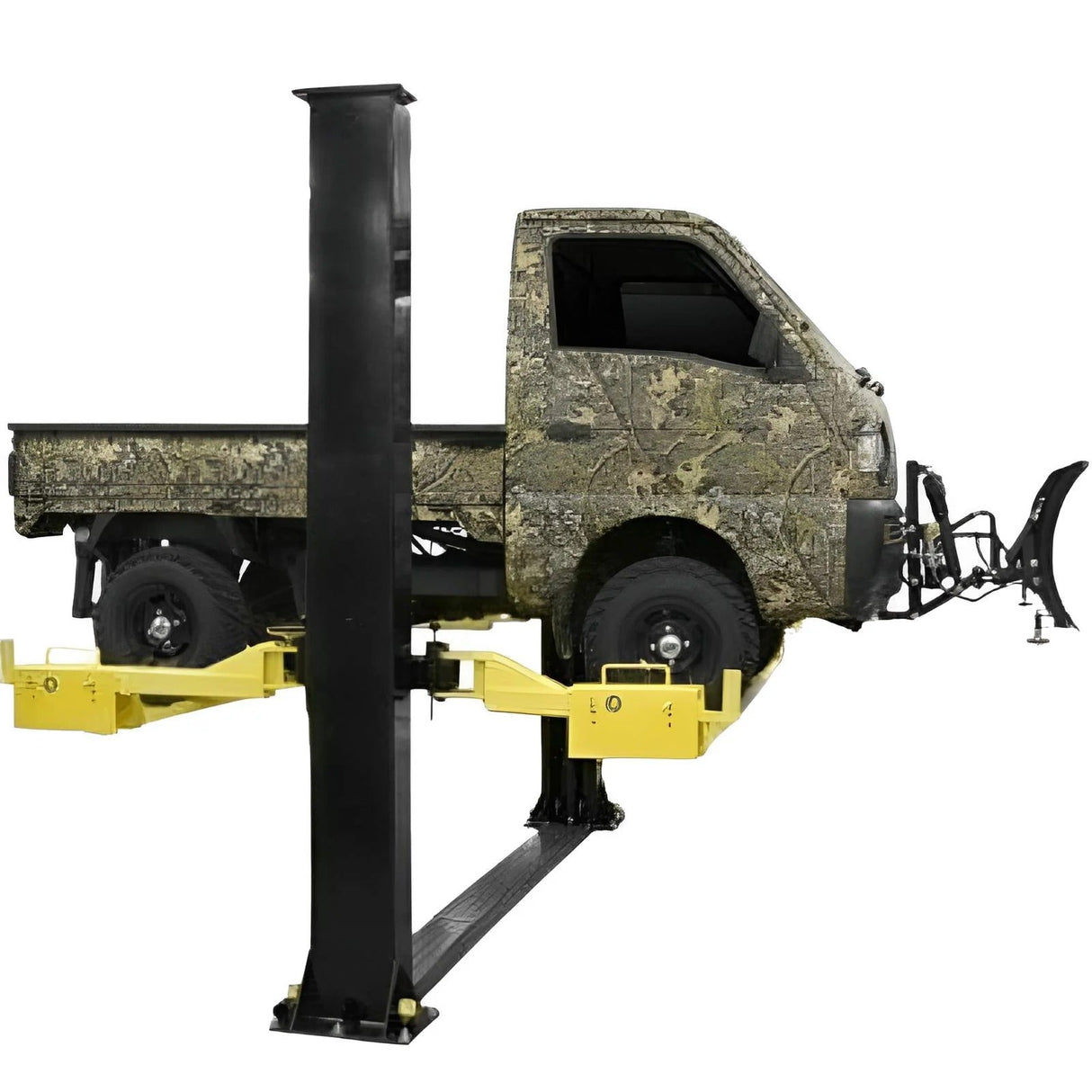

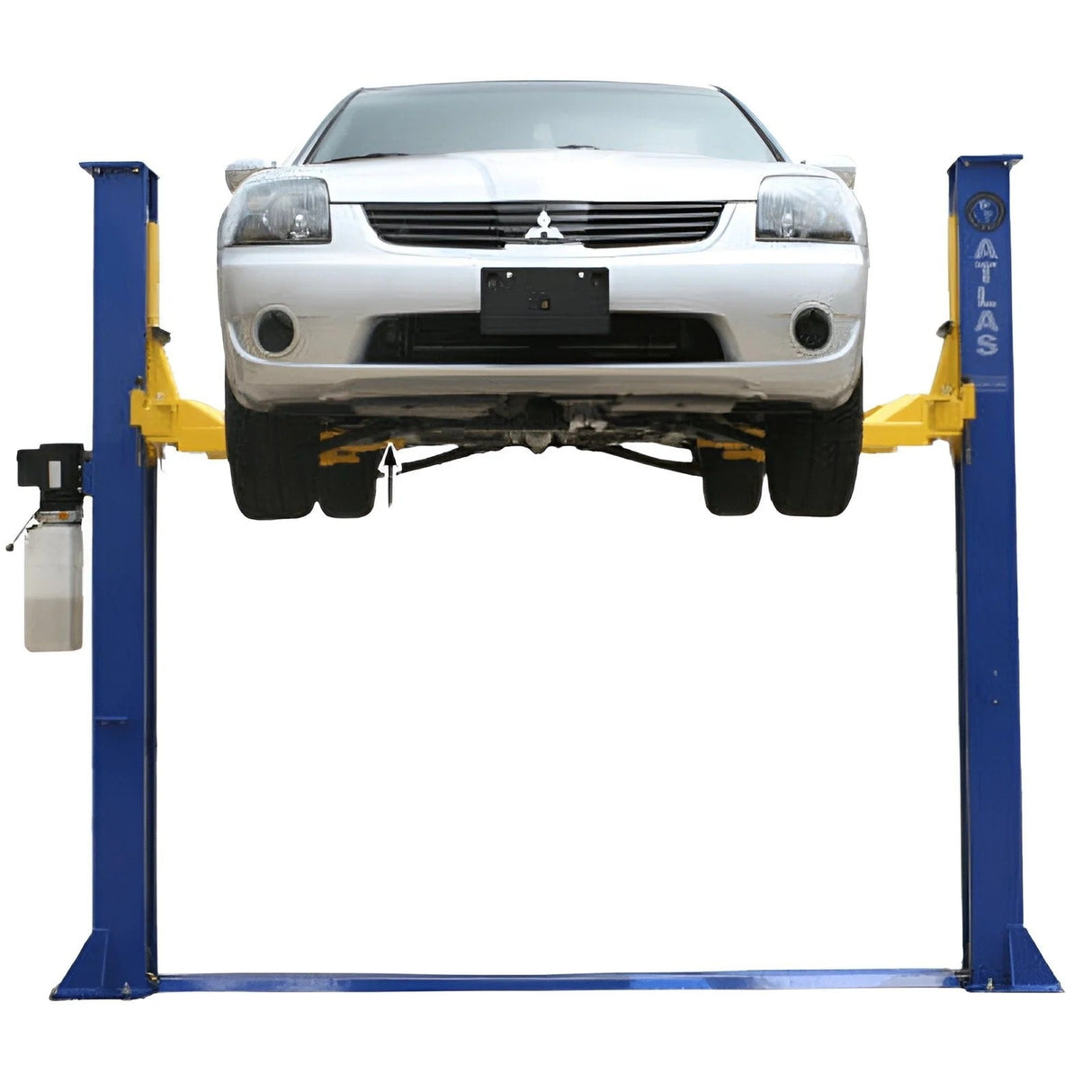

The Atlas 9KBPX is a baseplate-style 2-post lift designed for garages with limited ceiling height. With a 9,000 lb capacity and open-top design, it fits comfortably in lower-clearance spaces while still providing the strength needed for cars, SUVs, and light-duty trucks.

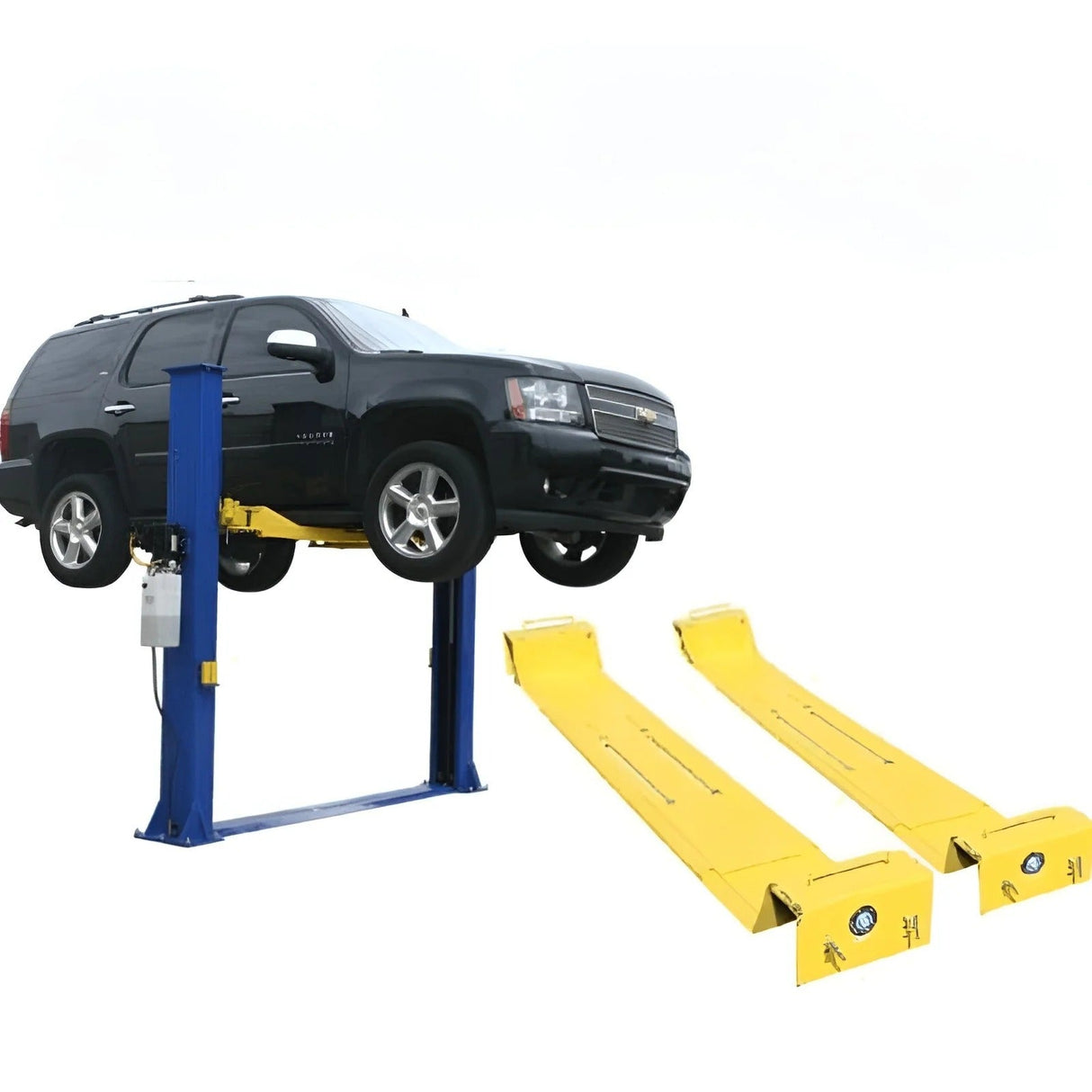

This combo includes the Lawn Mower Adapter (LMA), allowing you to lift ATVs, UTVs, and lawn equipment in addition to standard vehicles.
Reliable Lifting with Built-In Safety
Dual hydraulic cylinders and a chain-over roller system provide smooth lifting performance. A secondary lock system automatically engages if slack is detected, adding an extra layer of safety.

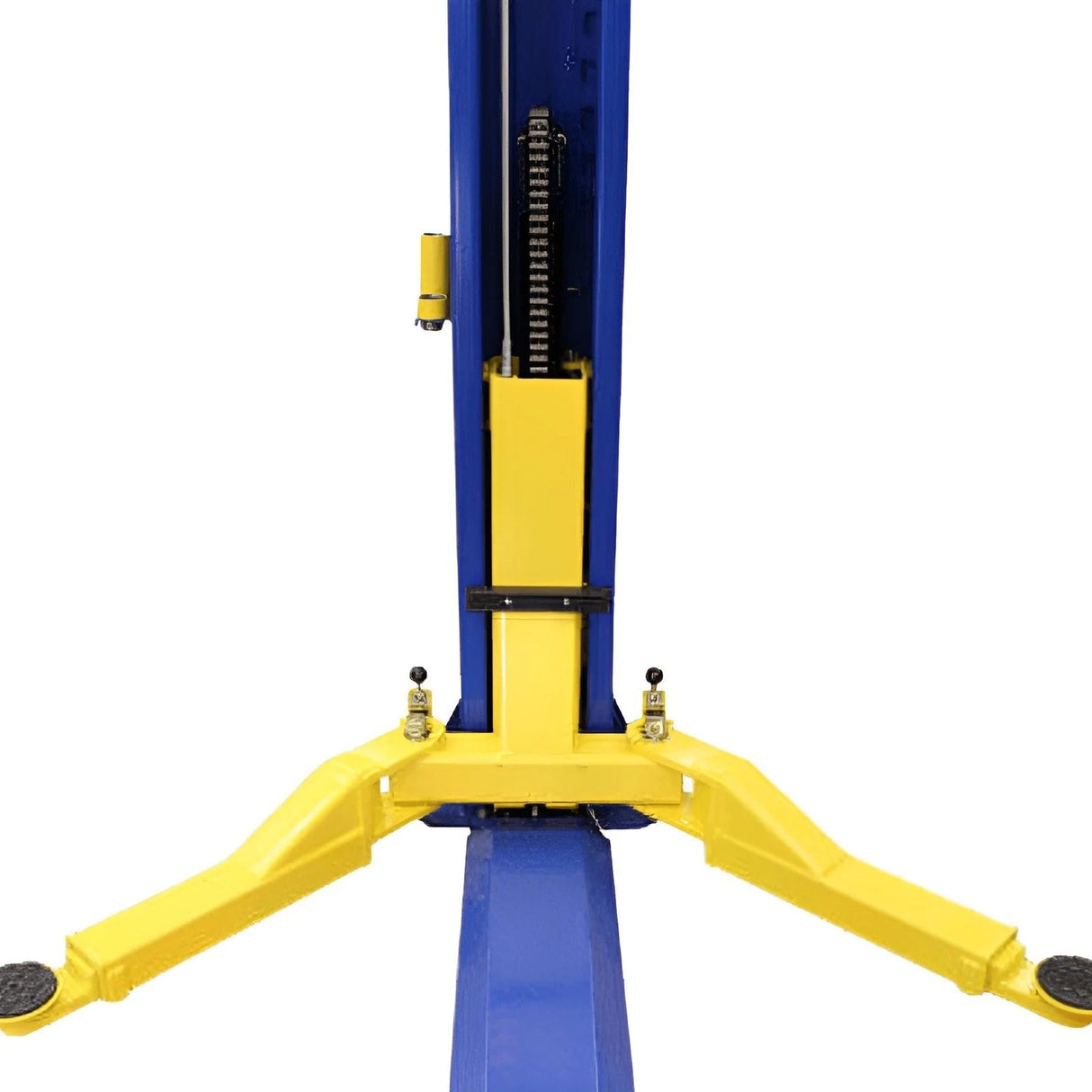

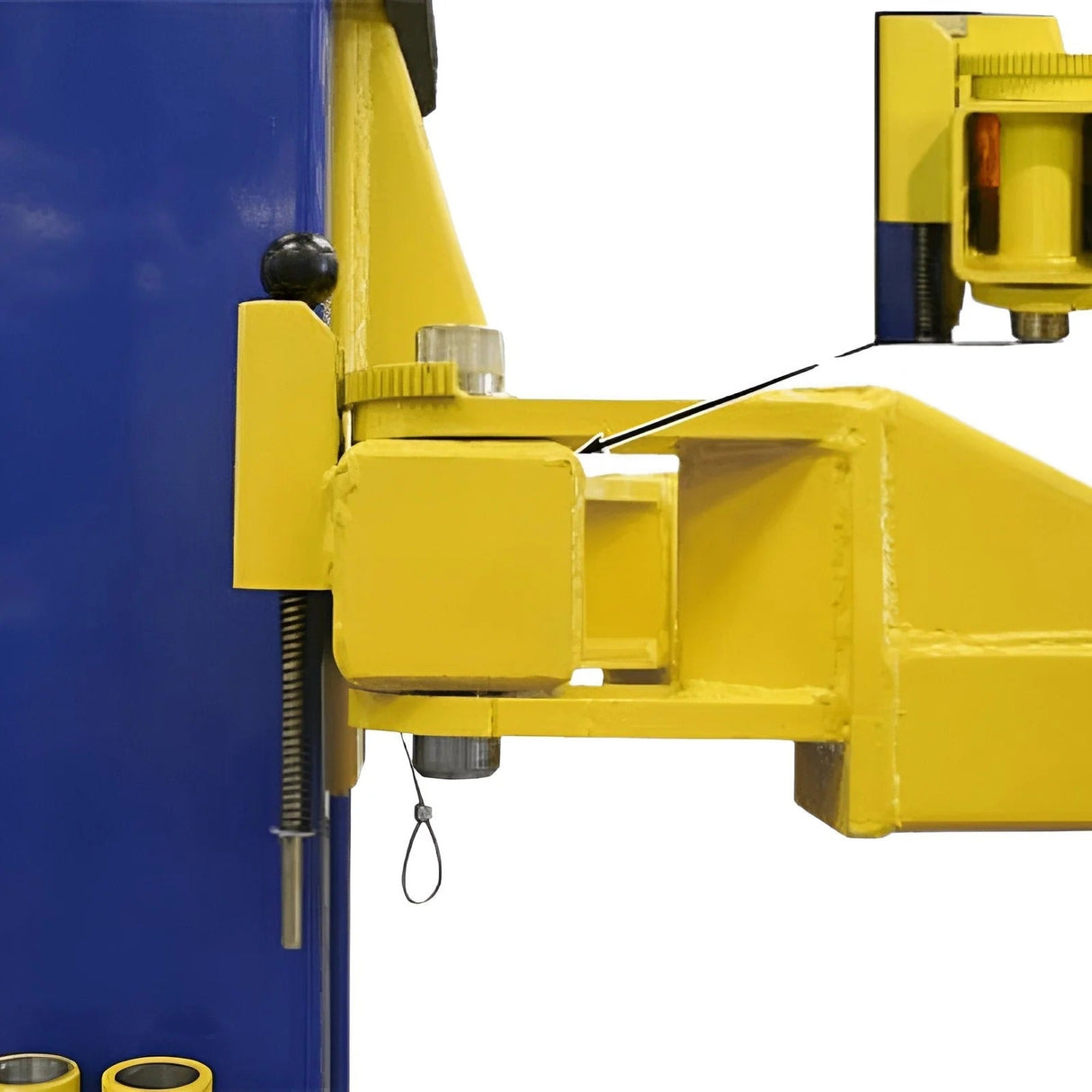

Symmetric arms, automatic arm restraints, and a dual-point lock release system help ensure proper positioning and controlled operation.
Versatility with Lawn Mower Adapter

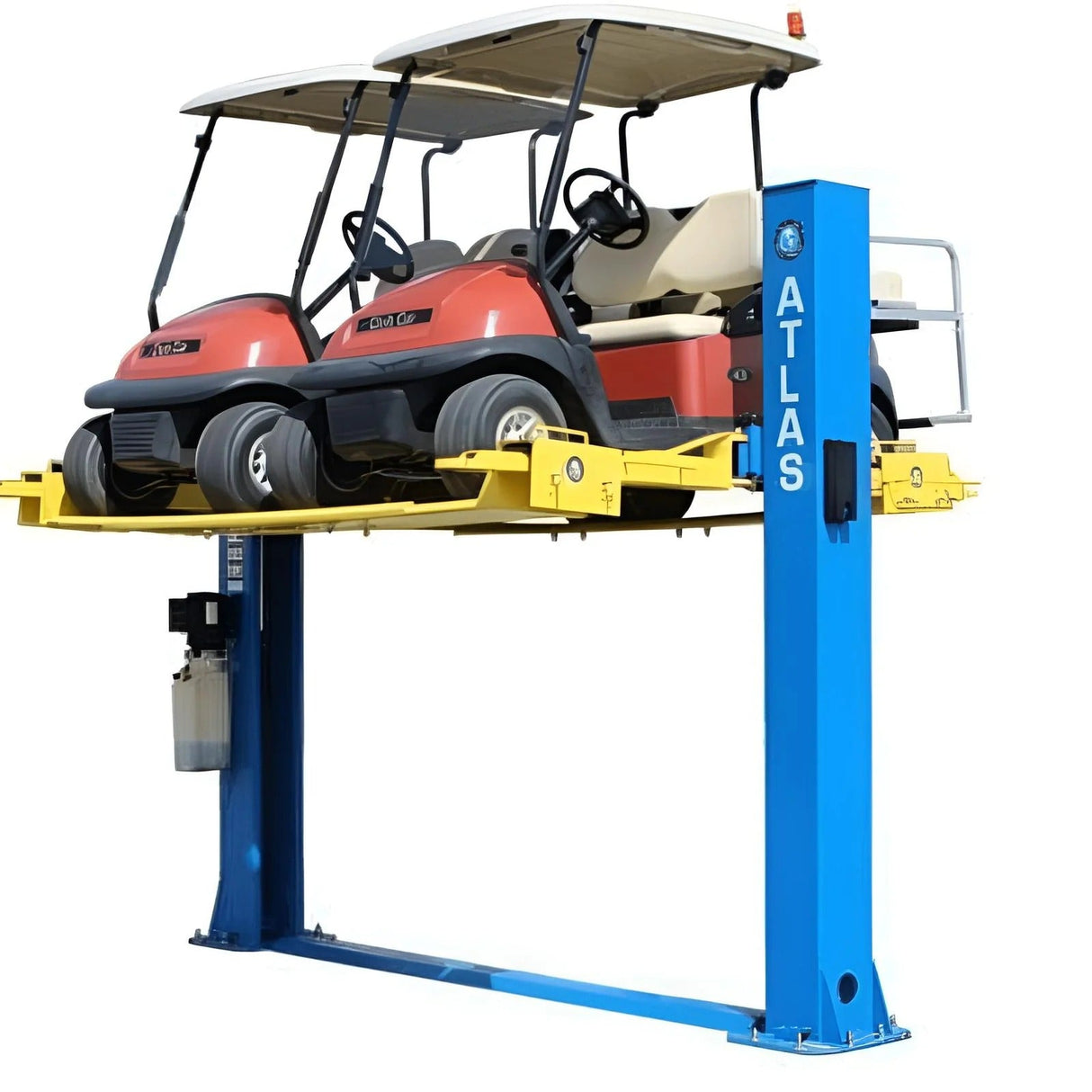

The included LMA is adjustable to fit a variety of equipment sizes and wheelbases. It can be positioned along the lift arms depending on the load, making it ideal for multi-use garages.
Key Features
- 9,000 lb lifting capacity
- Baseplate design for low ceiling applications
- Open-top configuration
- Dual hydraulic chain-drive cylinders
- Secondary lock system
- Symmetric arms

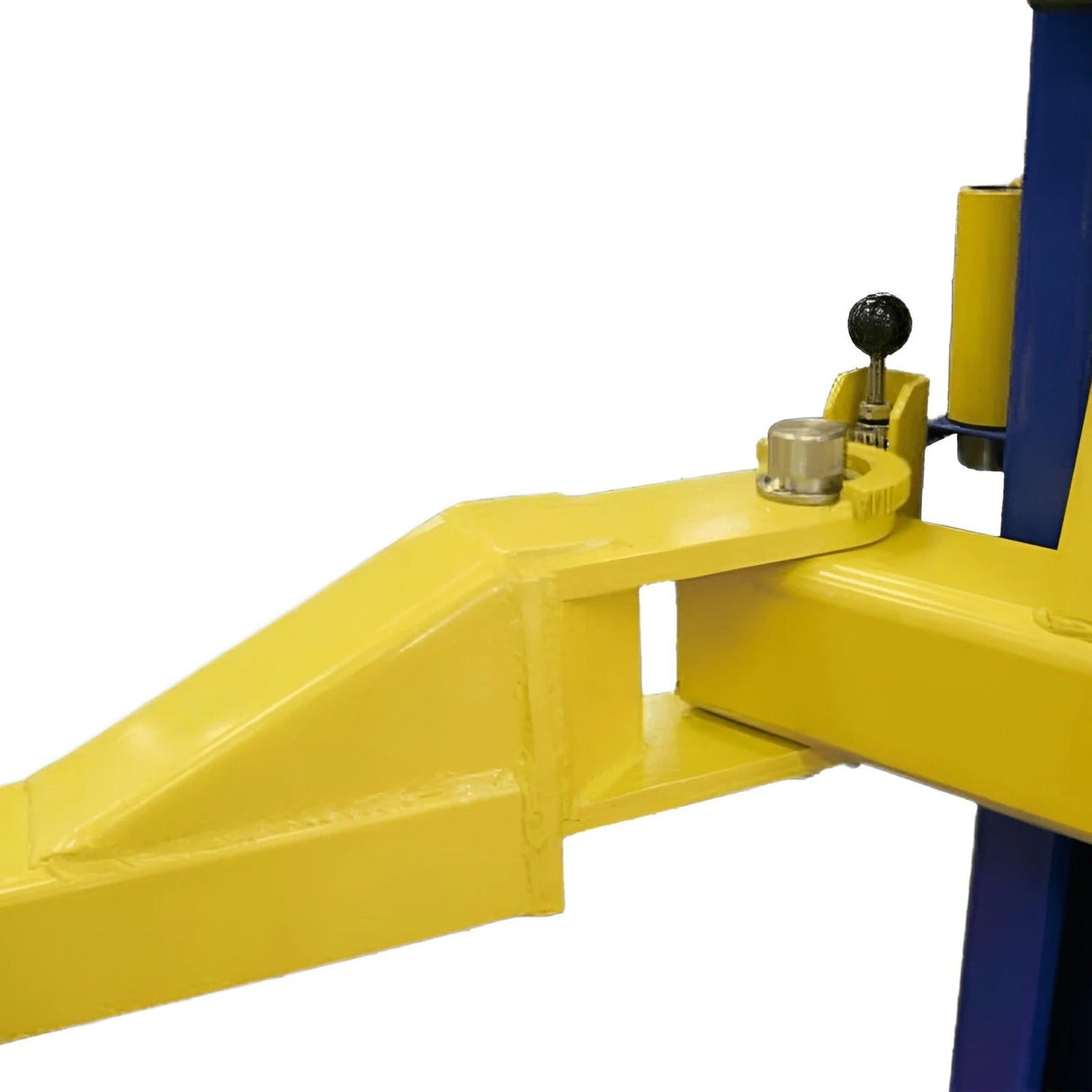

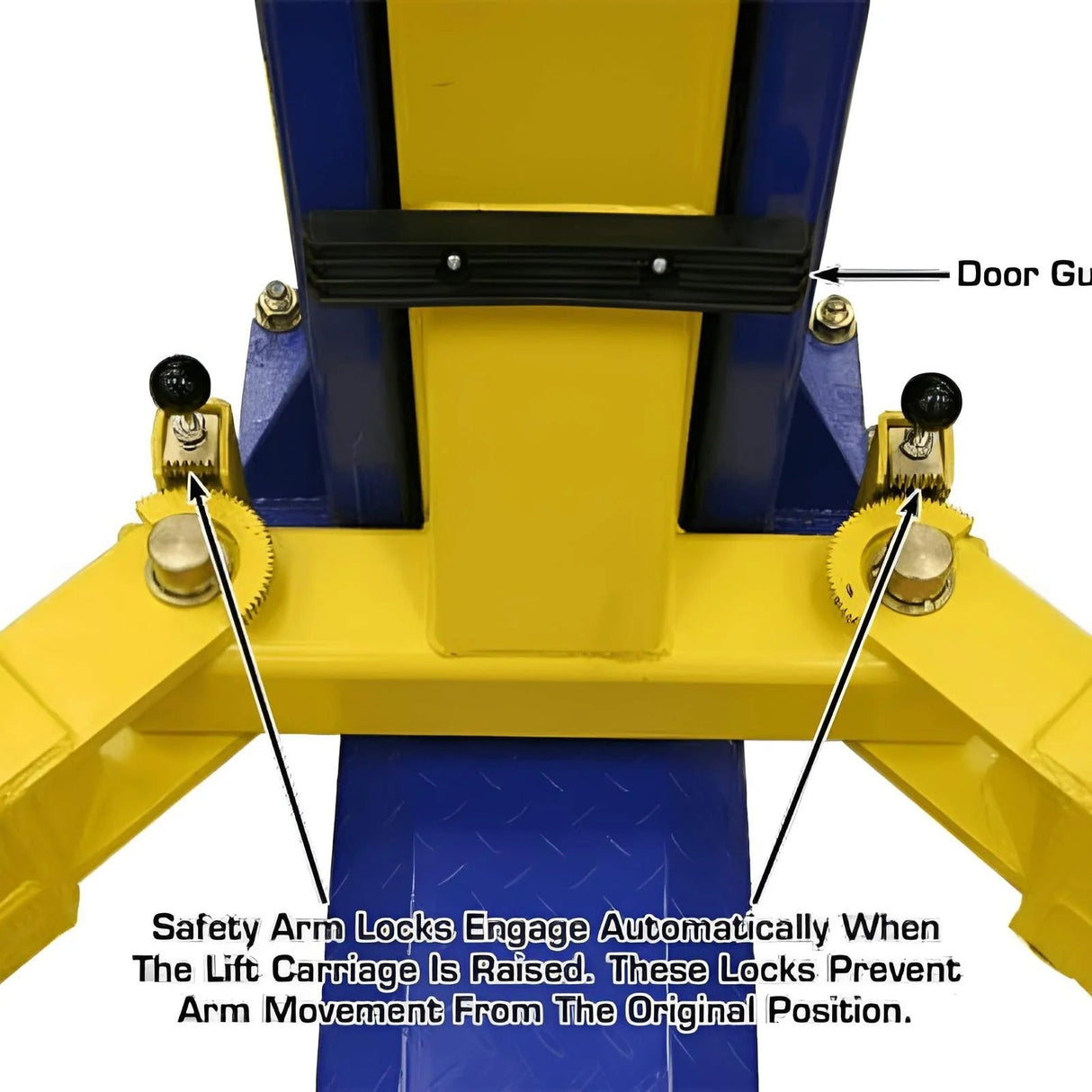

- Automatic arm restraints
- Dual-point lock release
- Includes 8-piece truck adapter set
- Mounting hardware included
- Includes Lawn Mower Adapter (LMA)
Atlas 9KBPX Baseplate Lift
| Specifications | Details |
|---|---|
| Capacity | 9,000 lb |
| Overall Height | 111 1/2" (9' 3 1/2") |
| Overall Width | 134 1/2" (11' 2 1/2") |
| Outside Column Width | 124 7/8" (10' 4 7/8") |
| Inside Column Width | 110" (9' 2") |
| Drive-Thru Width | 101" (8' 5") |
| Max Lift Height | 74 1/2" (without adapters), 81" (with adapters) |
| Minimum Arm Height | 4" |

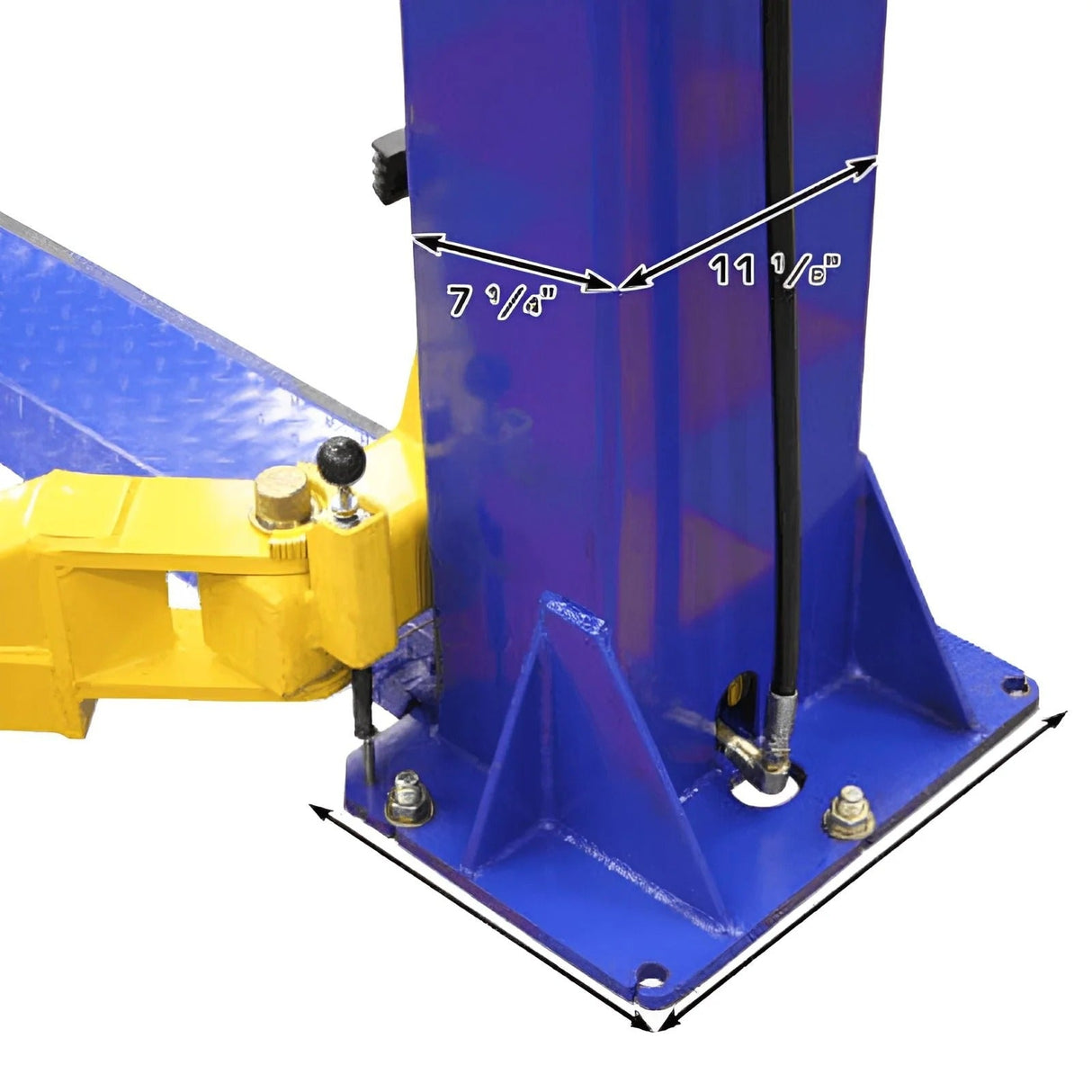

| Column Size | 7 1/4" x 11" |
| Column Steel Thickness | 5 mm |
| Base Dimensions | 14 1/4" x 18 1/4" |

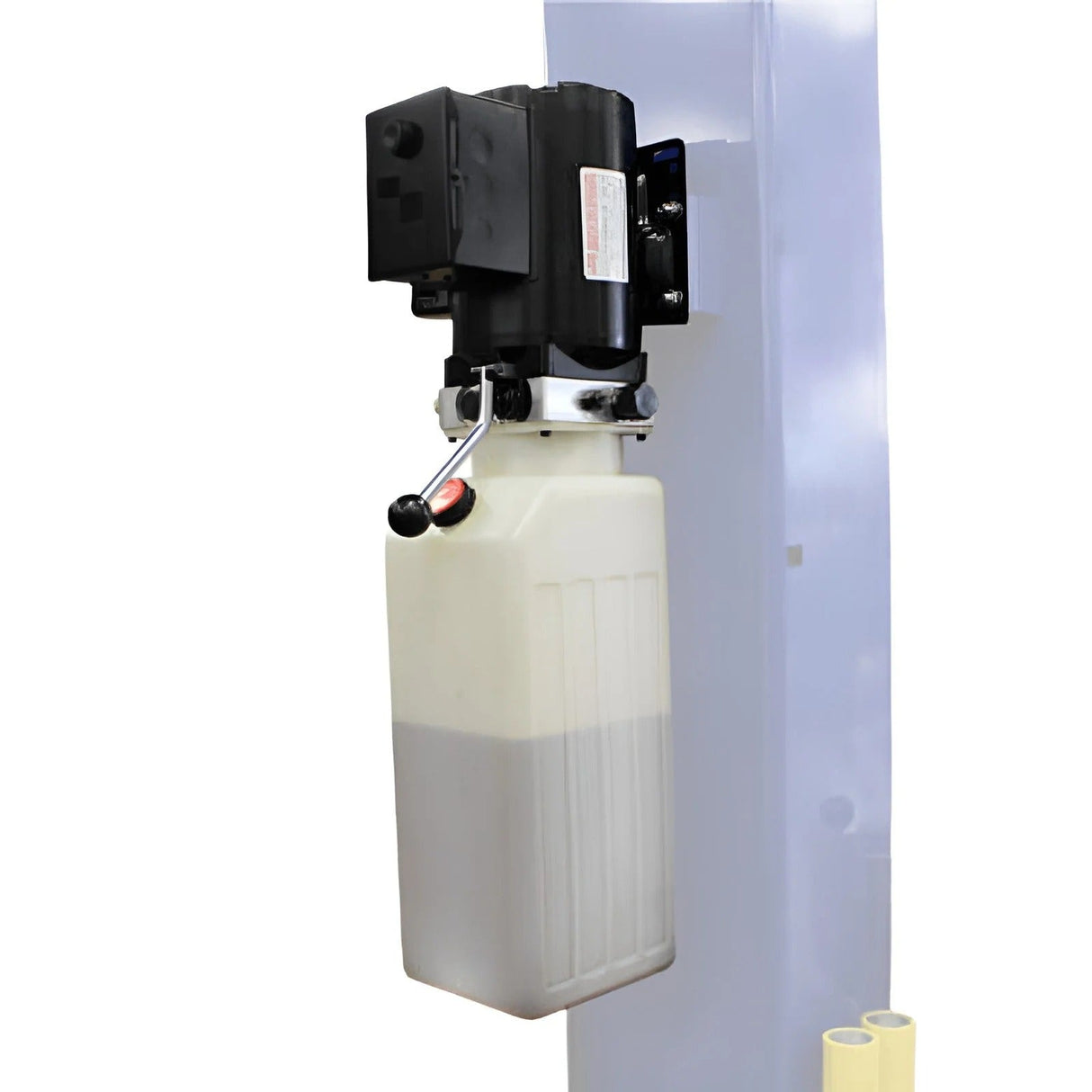

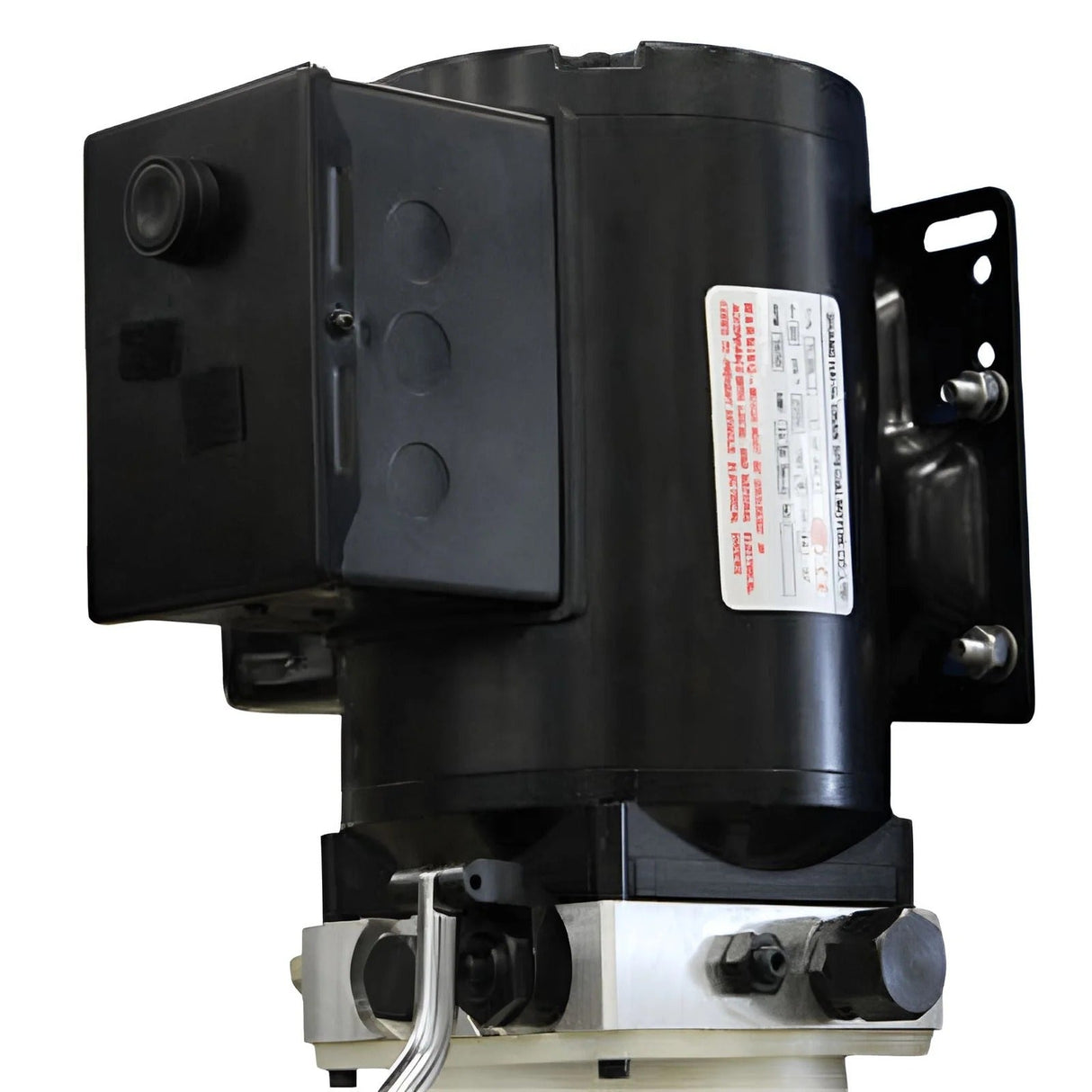

| Motor / Electrical | 220V single-phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Adapter Heights | 1.5", 5" |
| Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" thickness, 3,000 PSI |
| Shipping Weight | 1,400 lbs |

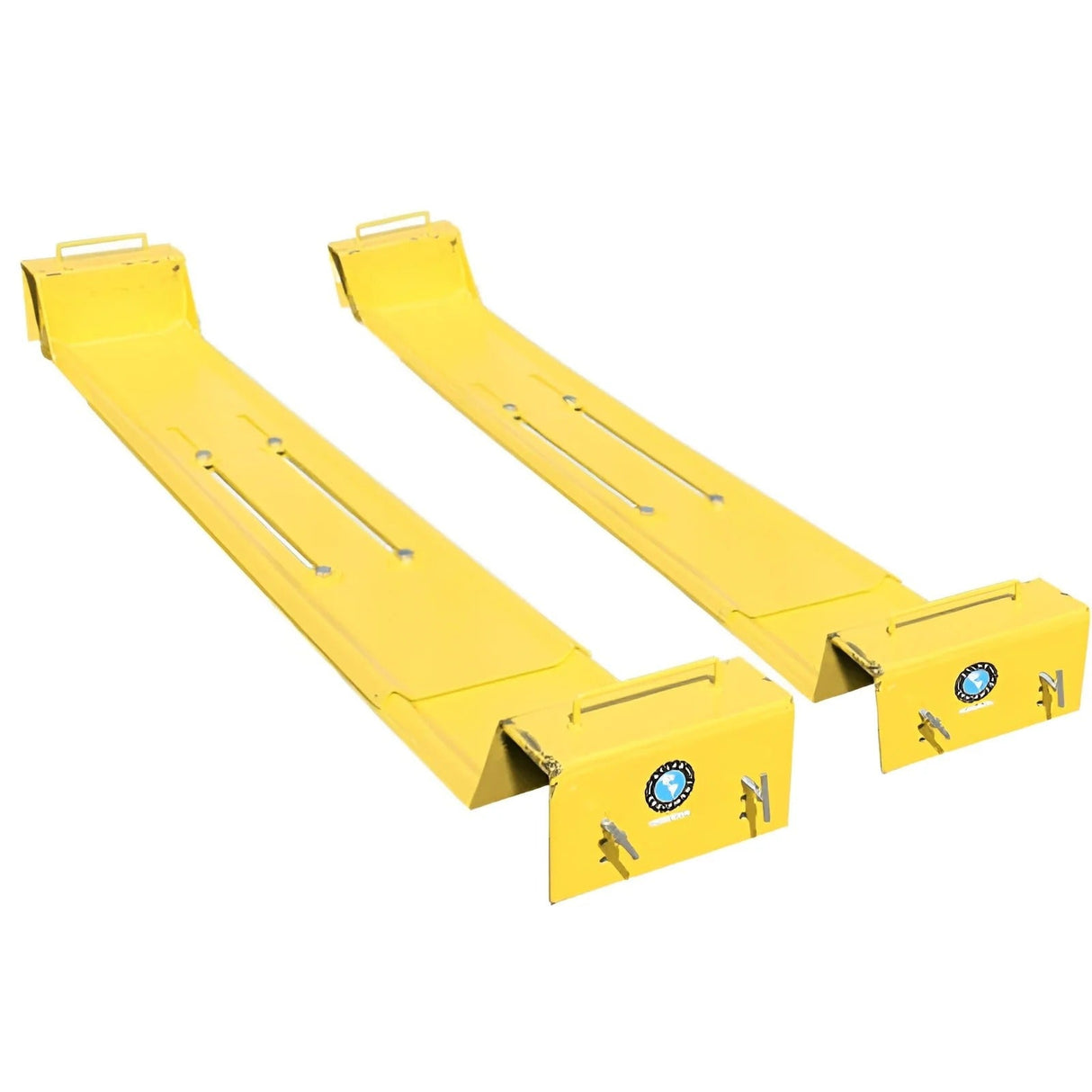

Lawn Mower Adapter (LMA)
| Specifications | Details |
|---|---|
| LMA Capacity | Up to 5,000 lb (varies by setup) |
| Adjustable Width | Up to 8' 11" |
| Wheelbase Range | 32" to 90" |
| Wheel Well Width | 12" |
| Steel Thickness | 1/4" (2 gauge) |
| LMA Shipping Weight | 600 lbs |
