Atlas 9OHSC 9,000 lb Overhead 2-Post Lift

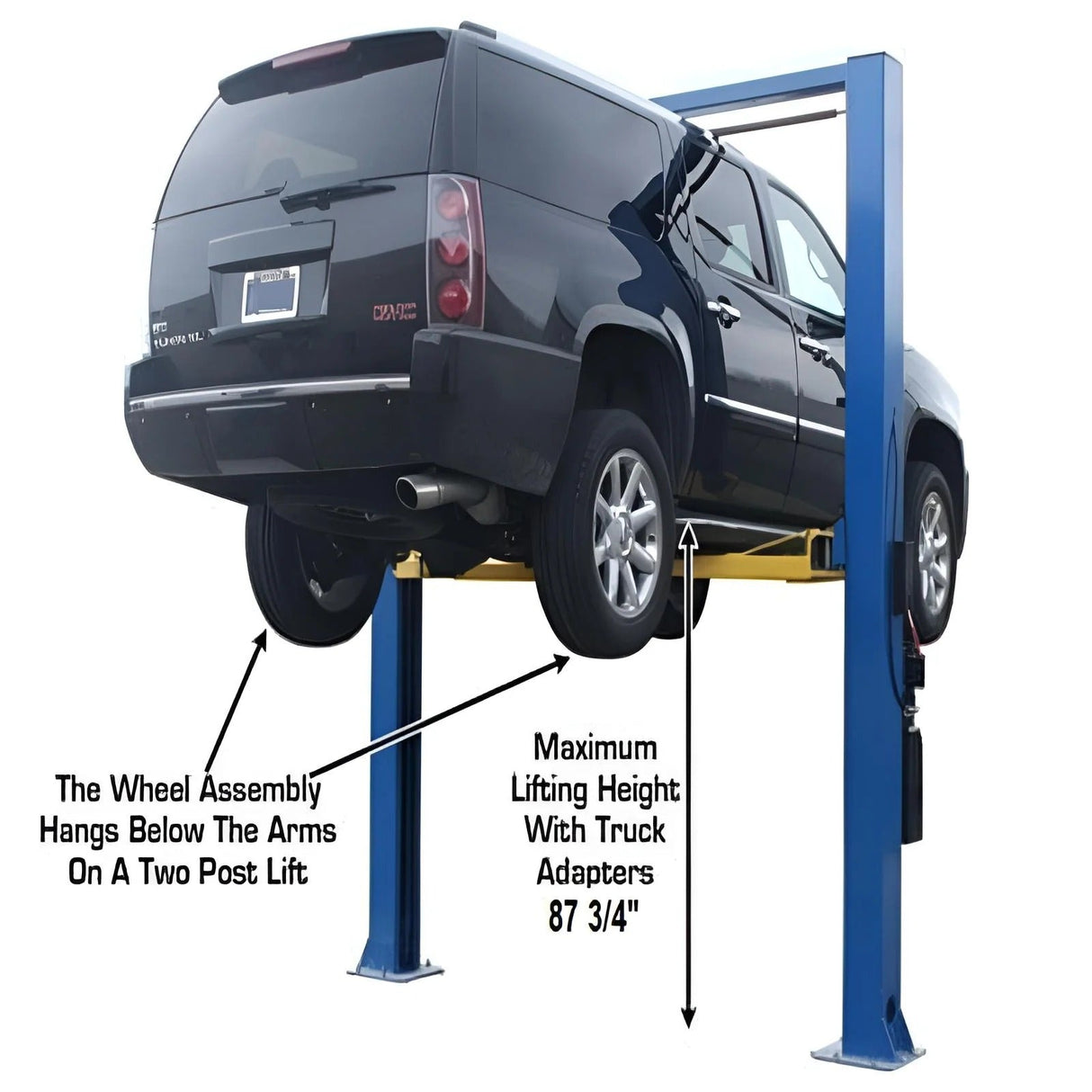

The Atlas 9OHSC is a heavy-duty overhead 2-post lift designed for both small commercial repair facilities and home garages seeking reliable performance and strong value. With a true 9,000 lb lifting capacity, it is capable of servicing a wide range of vehicles, from compact cars to larger SUVs.

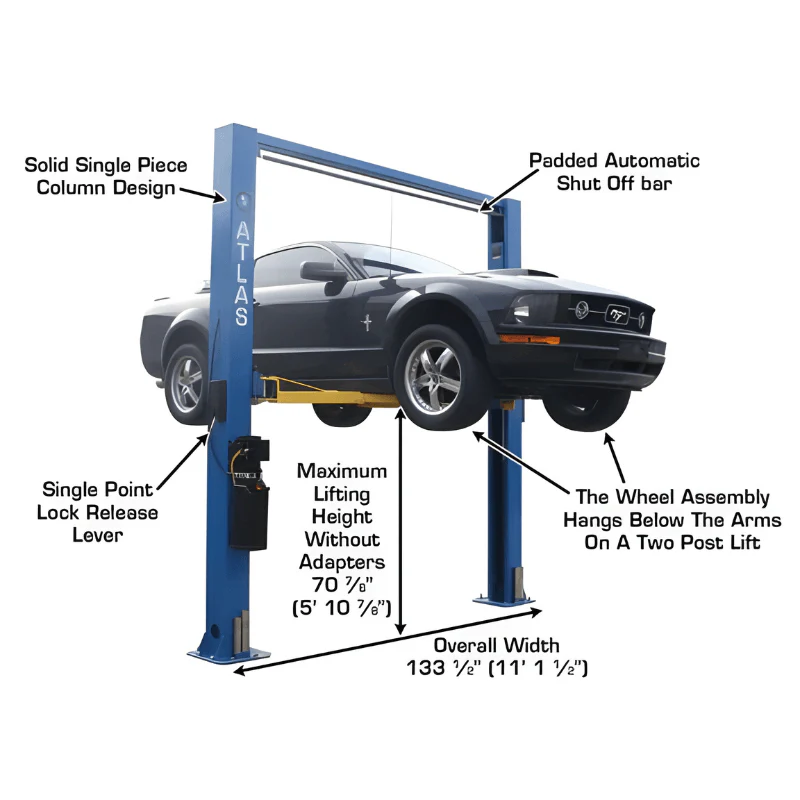

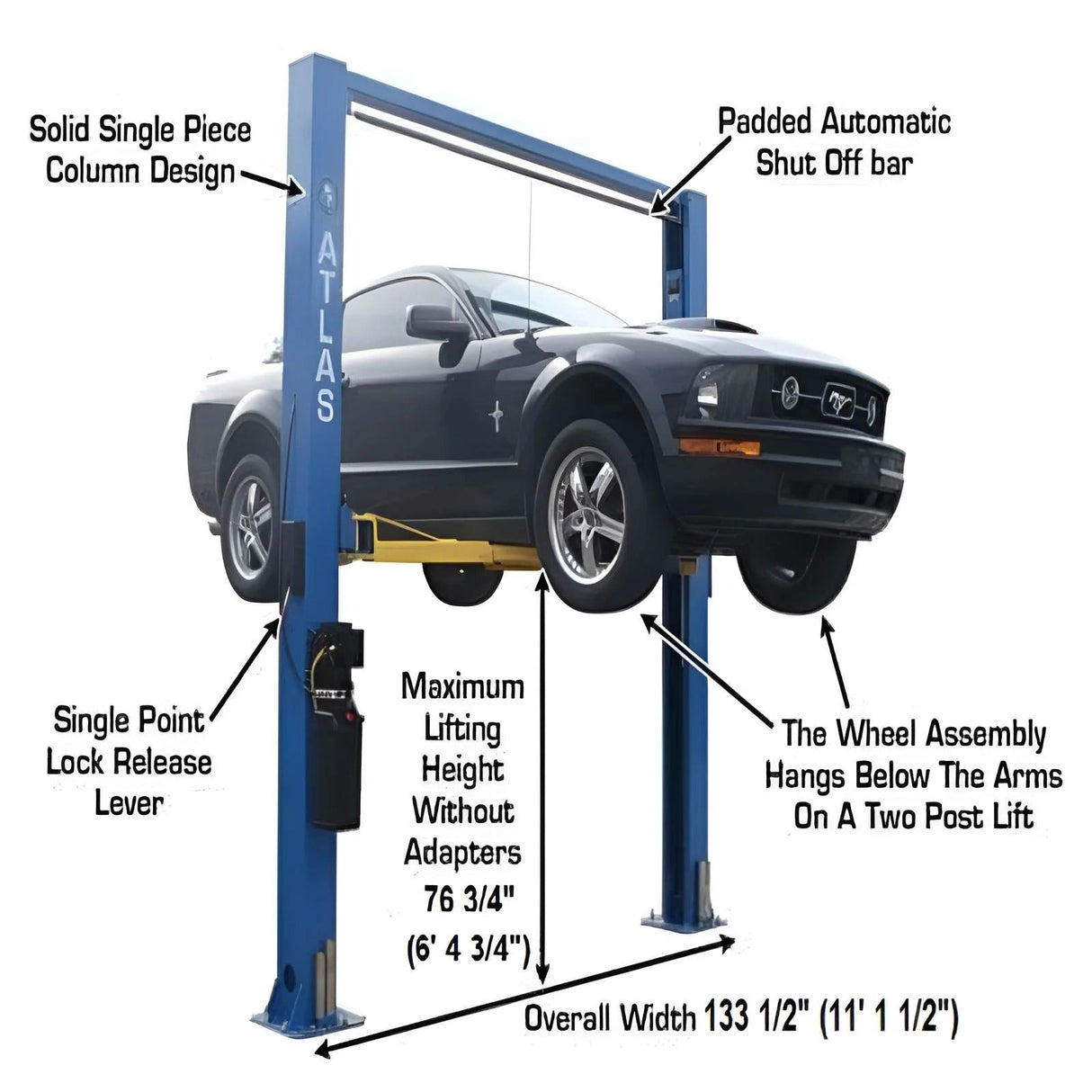

Featuring an overhead, open-floor design, this lift provides a clean working area without floor obstructions. It is built with a single-piece column structure and extended carriages, increasing overall strength and durability while supporting consistent long-term performance.

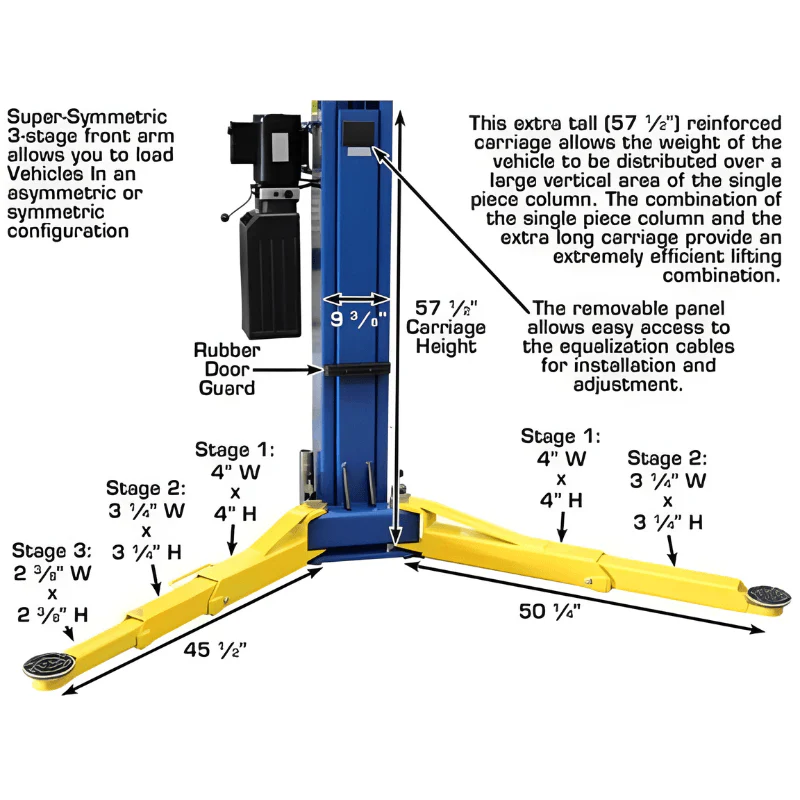

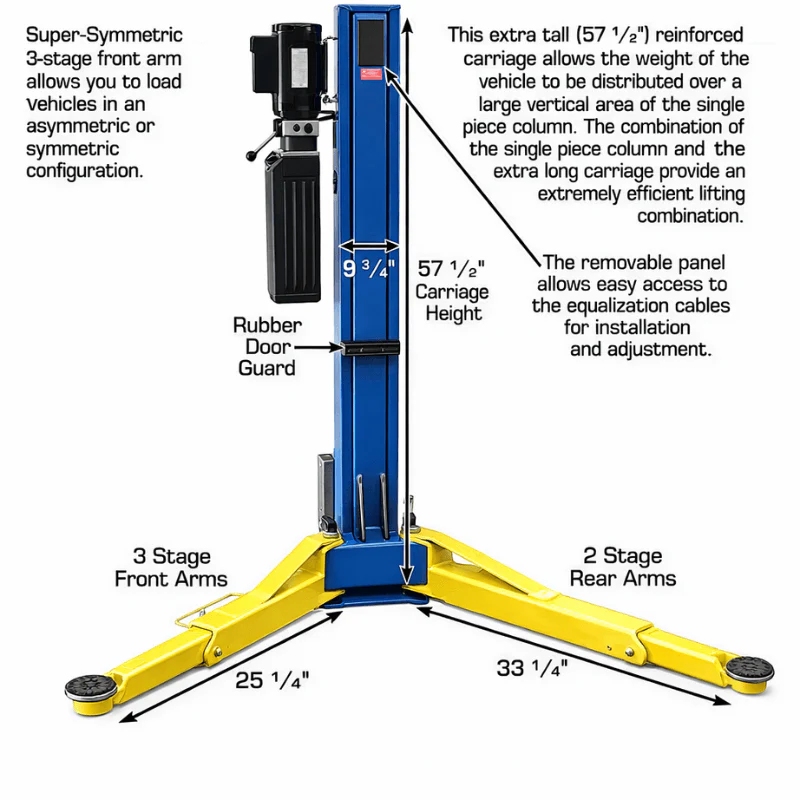

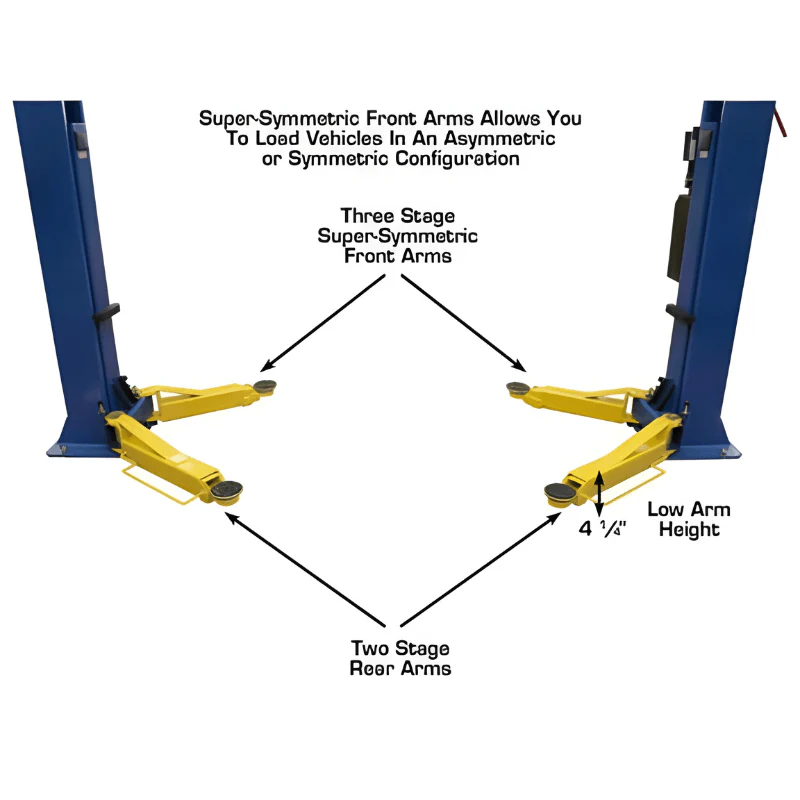

The lift is equipped with 3-stage front arms and 2-stage rear arms, allowing flexible positioning for different vehicle sizes and improving accessibility during service. Automatic arm restraints help keep vehicles securely in place, while the single-point lock release simplifies operation.

Dual hydraulic chain-drive cylinders provide smooth and reliable lifting performance. Rubber guards on the carriages help protect vehicle doors during use, and a free 12-piece truck adapter set expands the lift’s capability for handling a variety of vehicles.

The one-piece column design requires sufficient ceiling height for installation, making it important to ensure proper clearance during setup.

Features and Benefits

• 9,000 lb capacity
• Overhead open-floor design
• Single-piece column construction

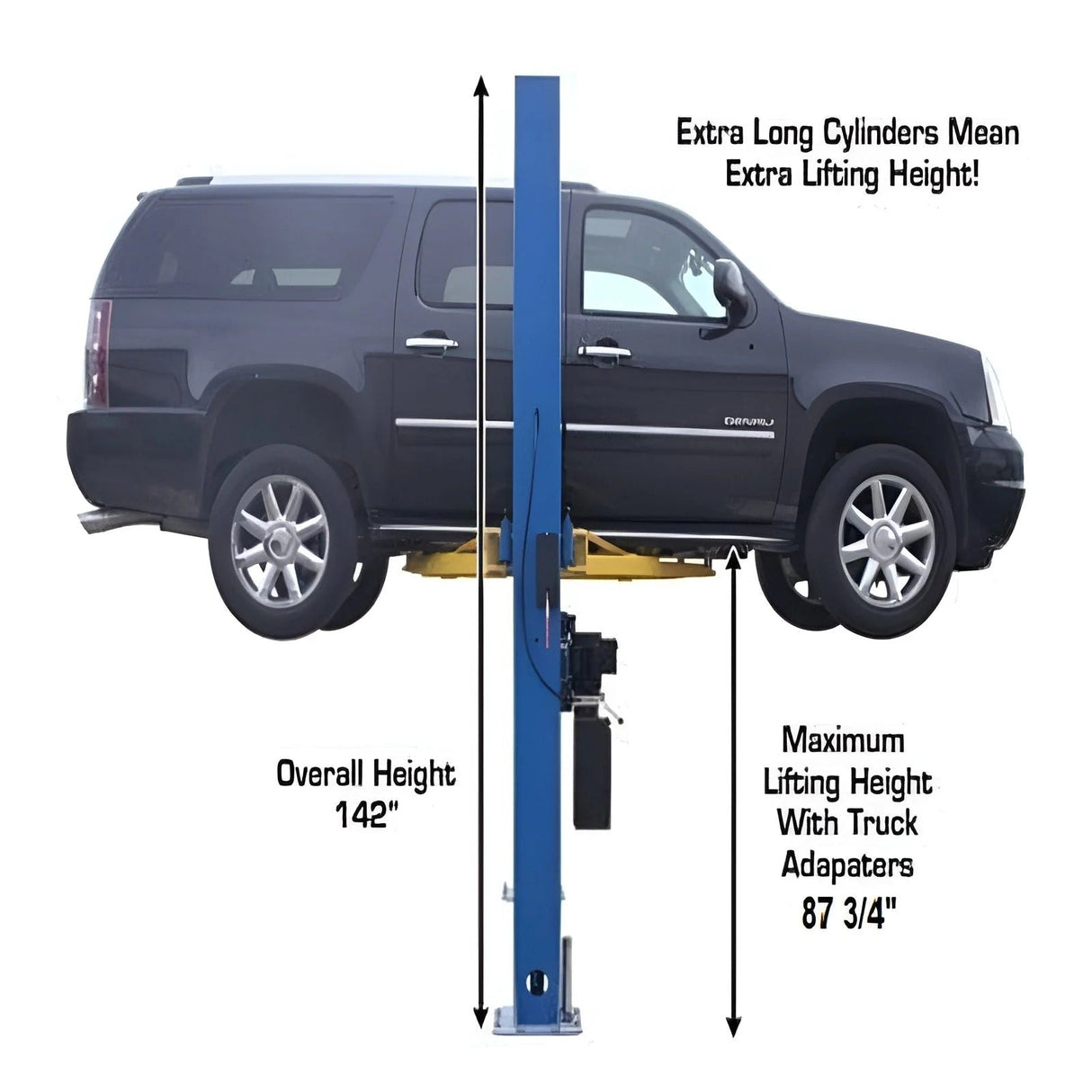

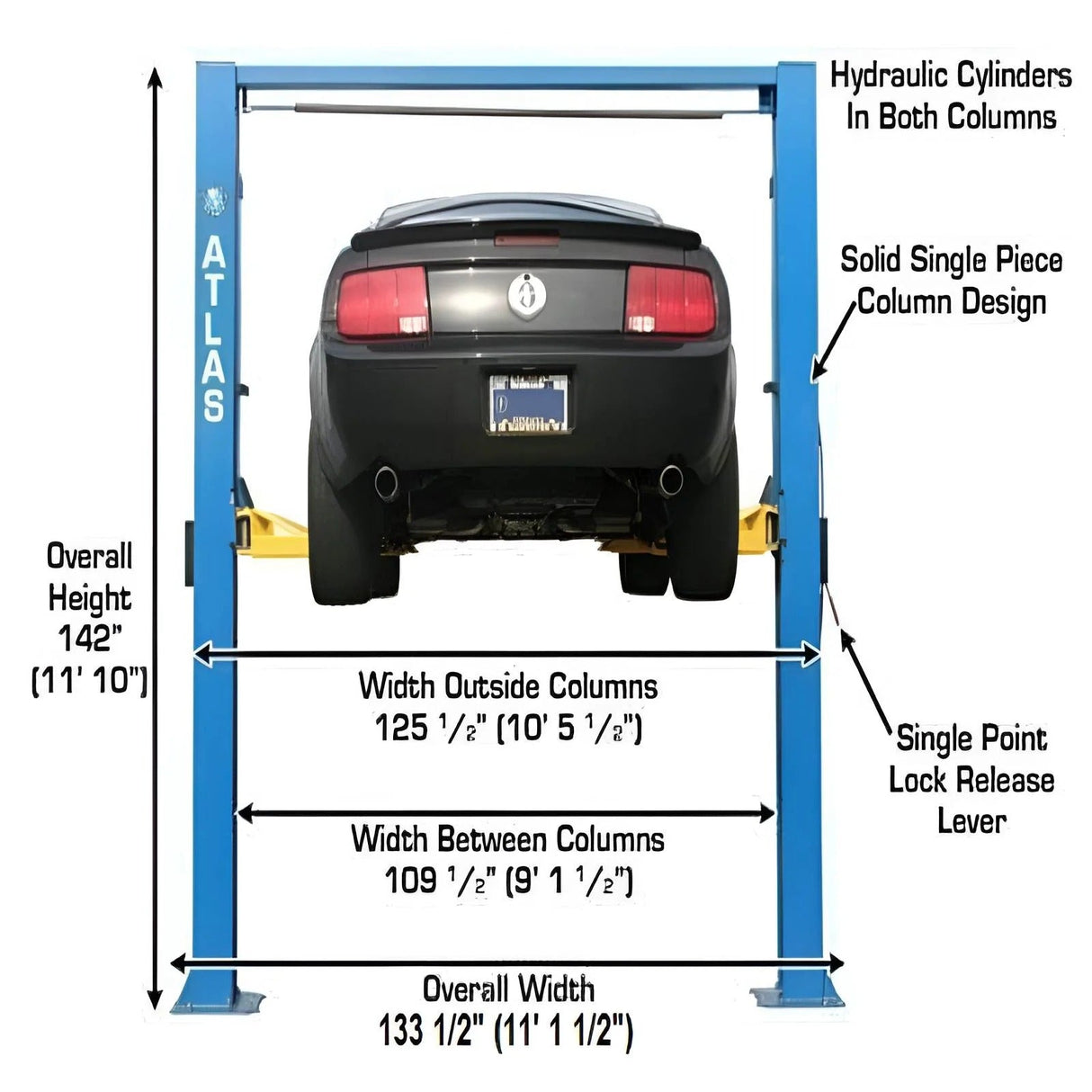

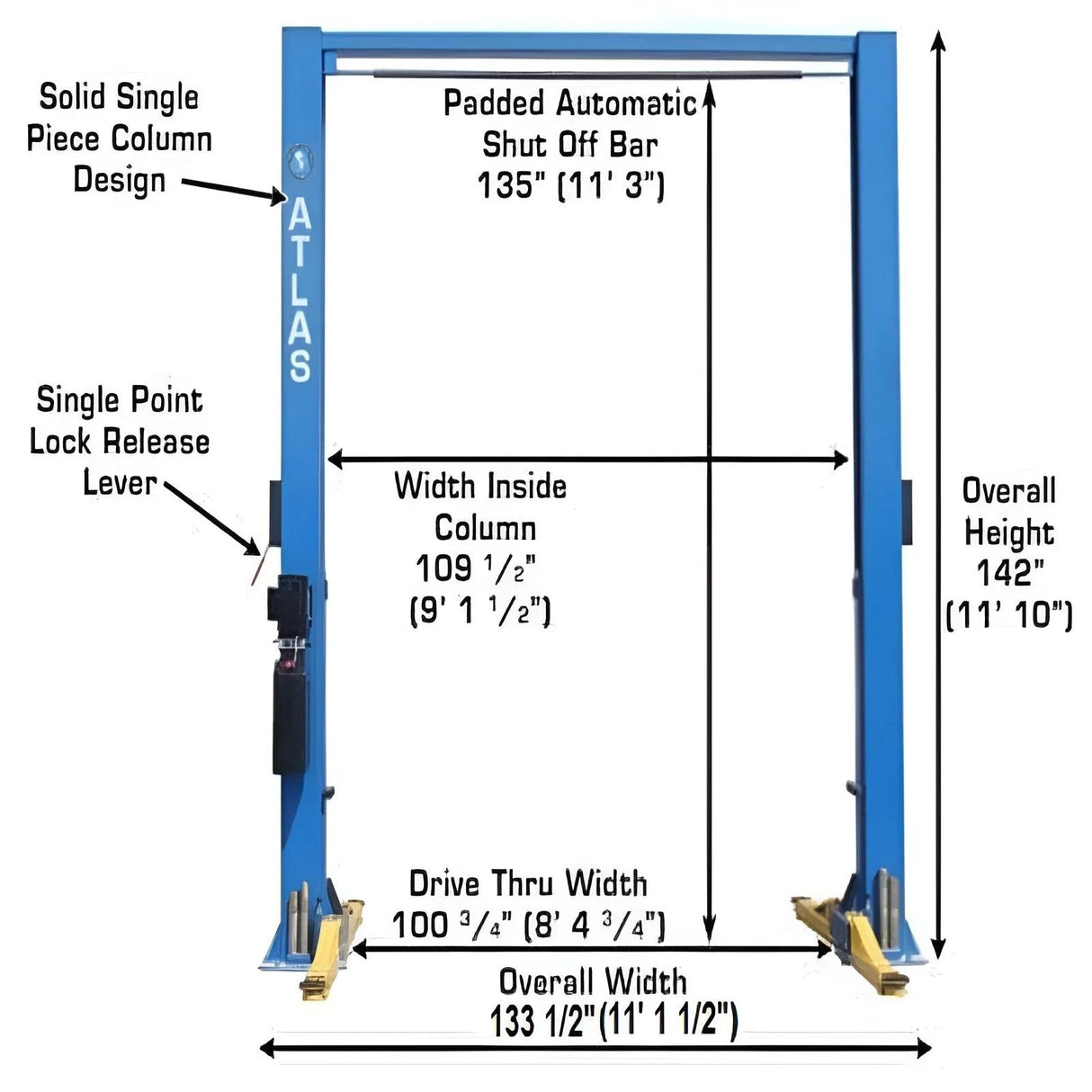

• Overall height: 142" (11’ 10")
• 3-stage front arms and 2-stage rear arms

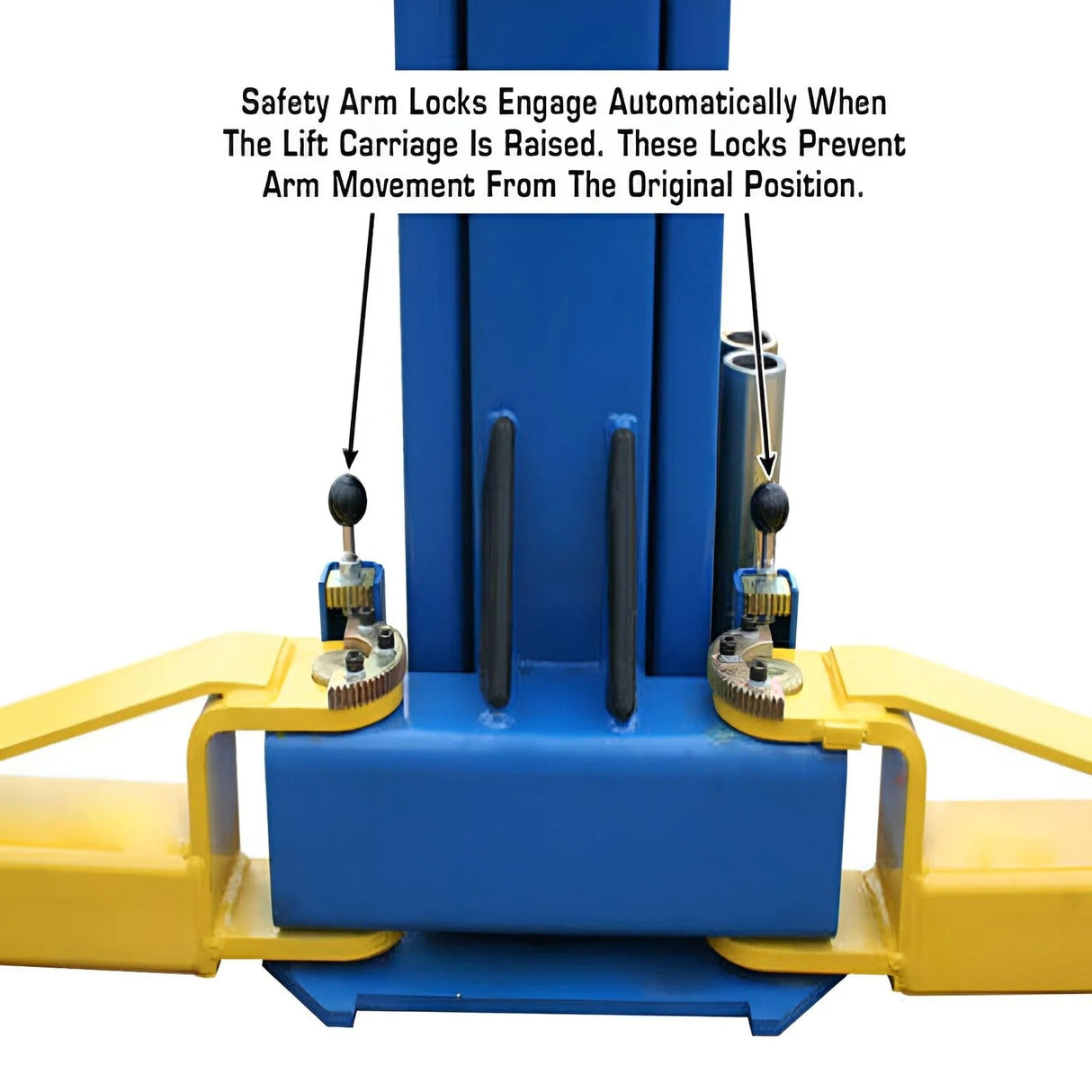

• Automatic arm restraints

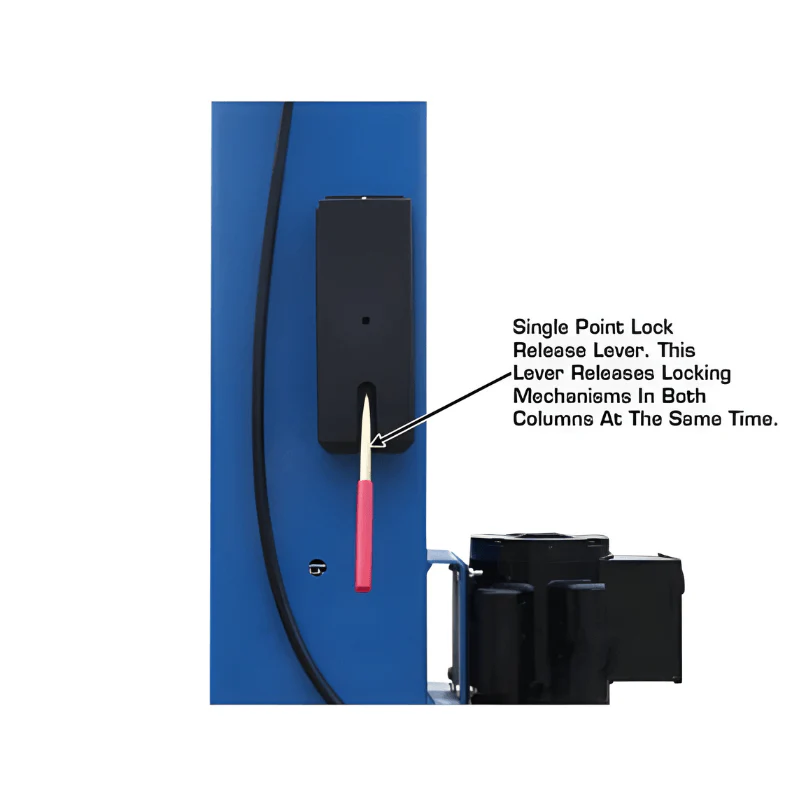

• Single-point lock release
• Rubber guards on carriages

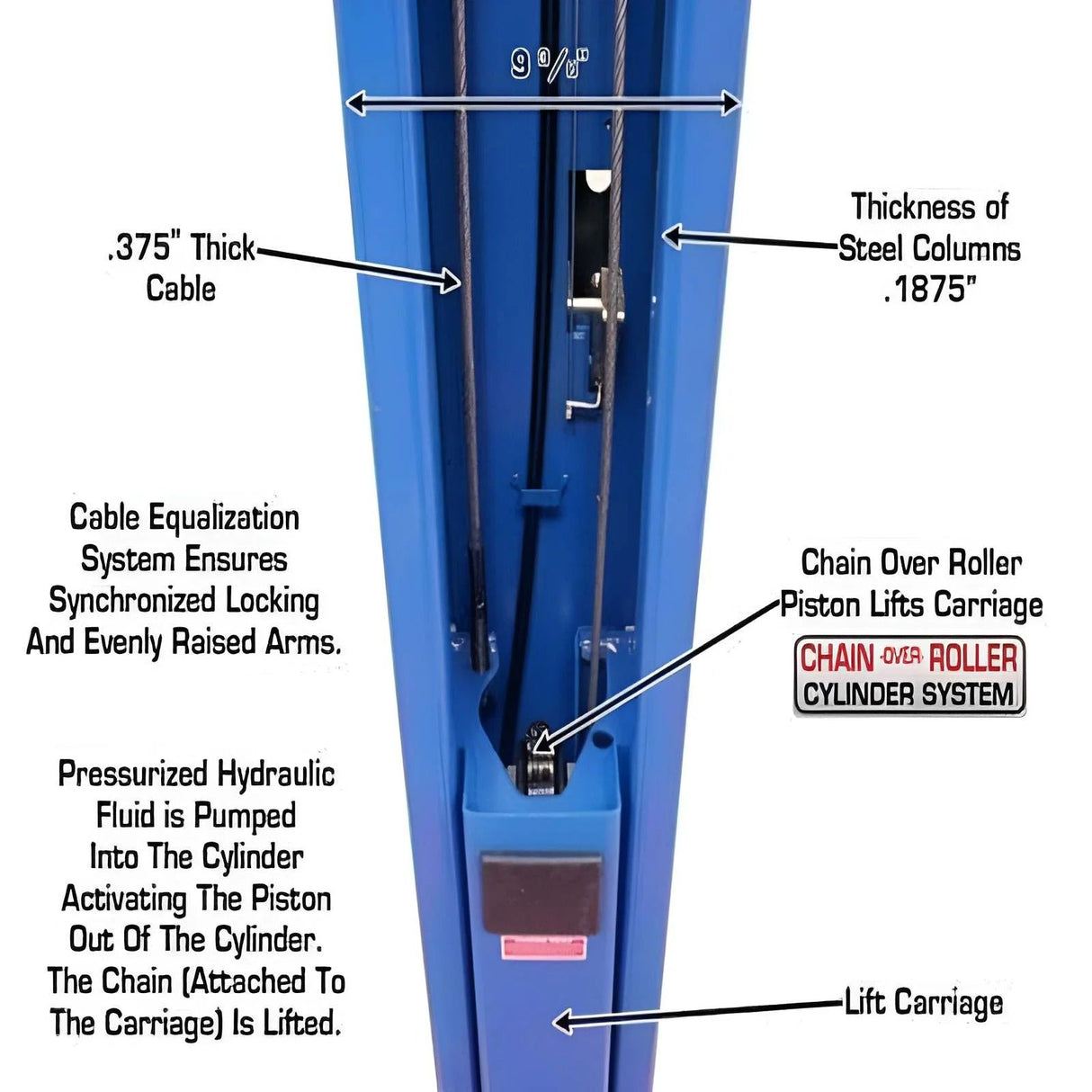

• Dual hydraulic chain-drive cylinders

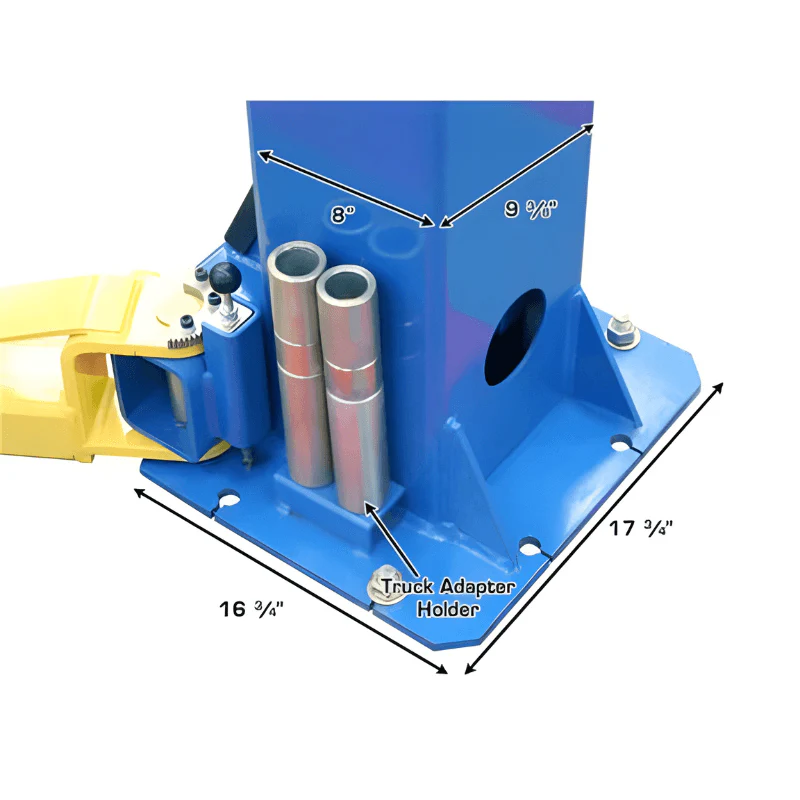

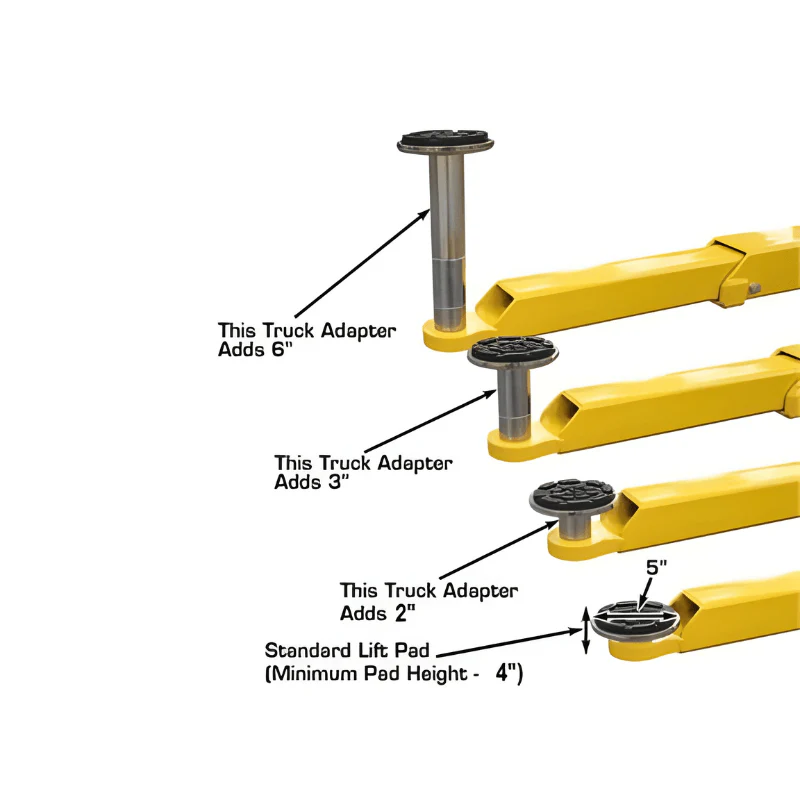

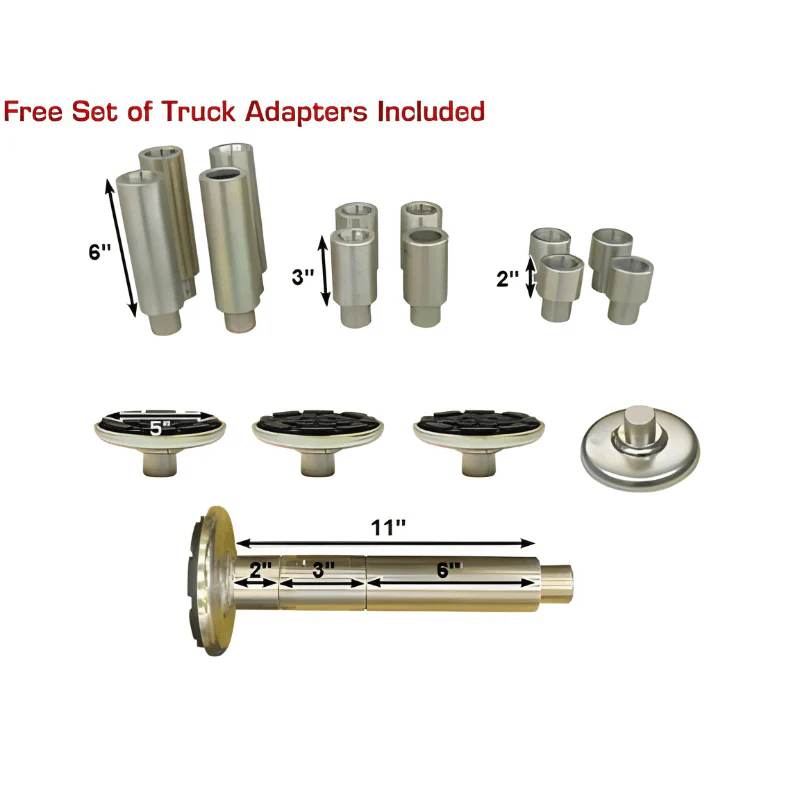

• Free 12-piece truck adapter set included

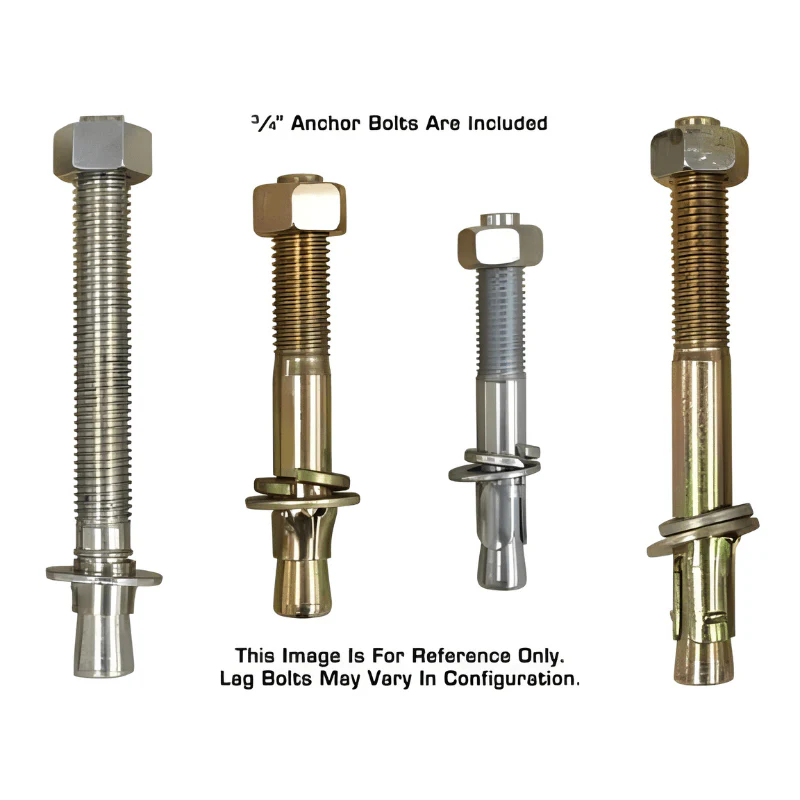

• Mounting hardware included
• 5-year structural warranty, 2-year hydraulic warranty (parts only)

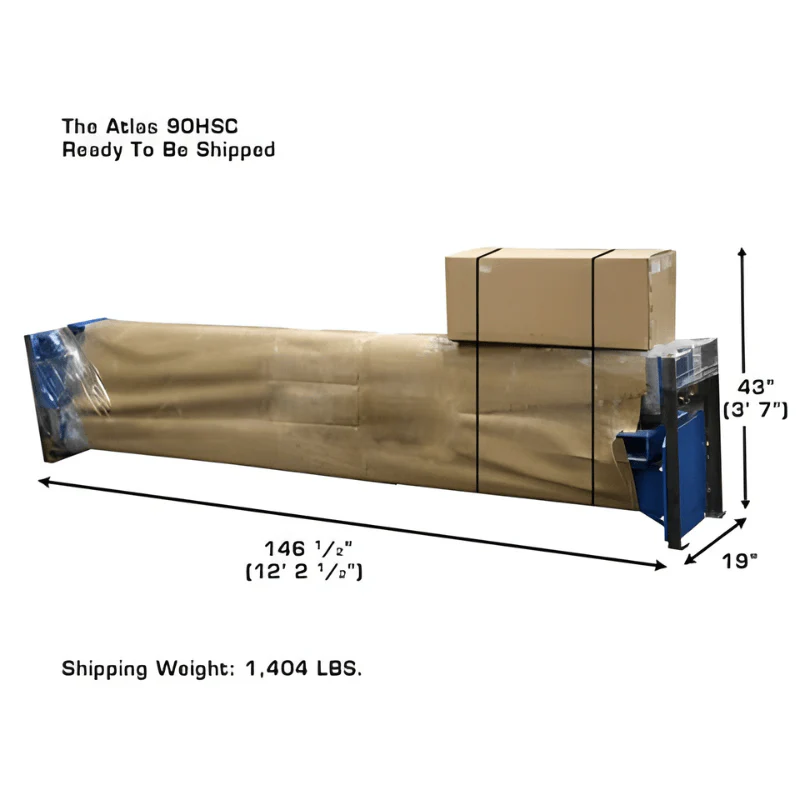

• Shipping weight: 1,430 lbs

Documents

• Product Manual
