Atlas APEX8 ALI Certified 8,000 lb 4-Post Lift with Dual RJ35 Sliding Bridge Jacks Combo
Atlas APEX8 ALI Certified 8,000 lb 4-Post Lift with Dual RJ35 Sliding Bridge Jacks Combo is backordered and will ship as soon as it is back in stock.
Your payment information is encrypted and never stored
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Atlas APEX8 ALI Certified 8,000 lb 4-Post Lift with Dual RJ35 Slidi...

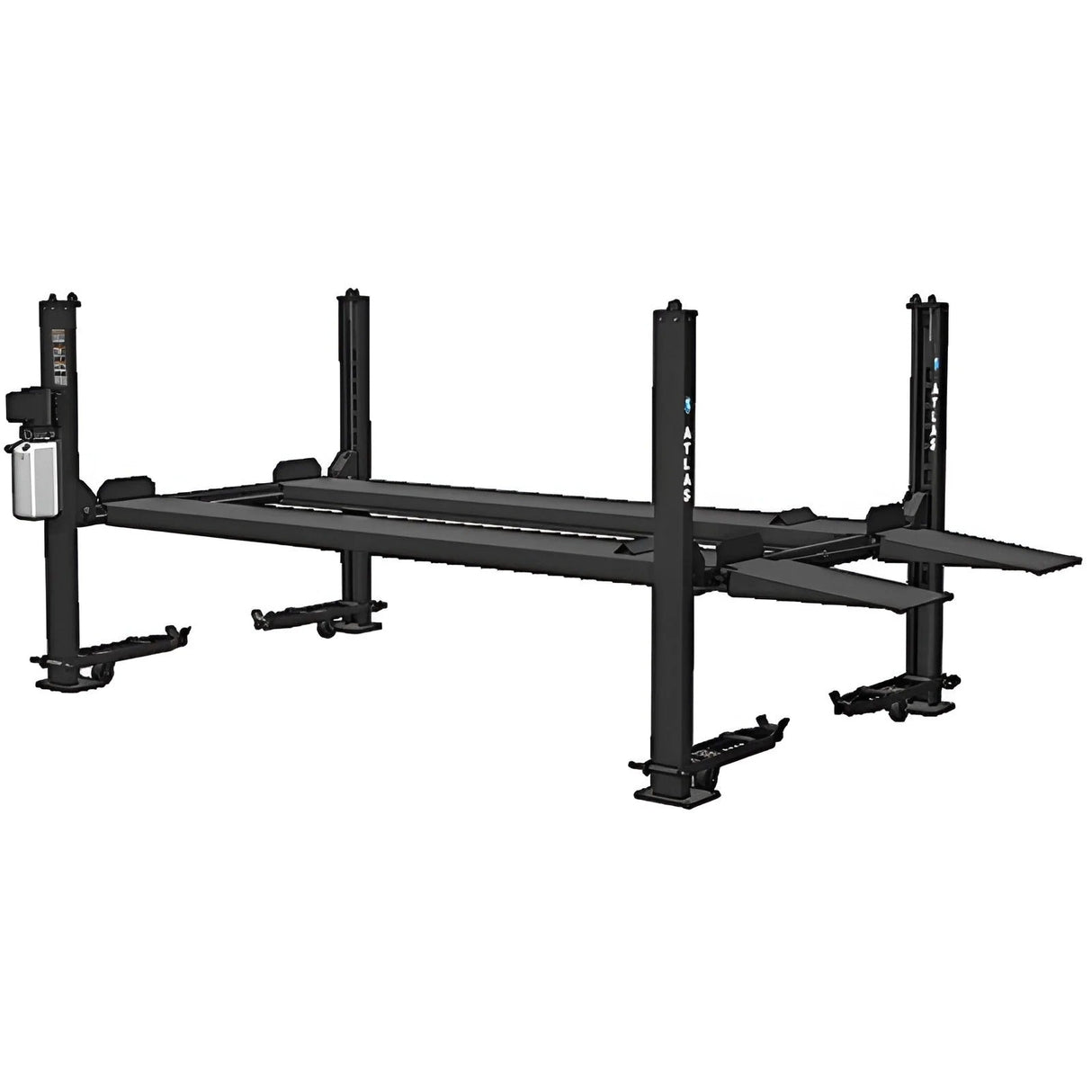

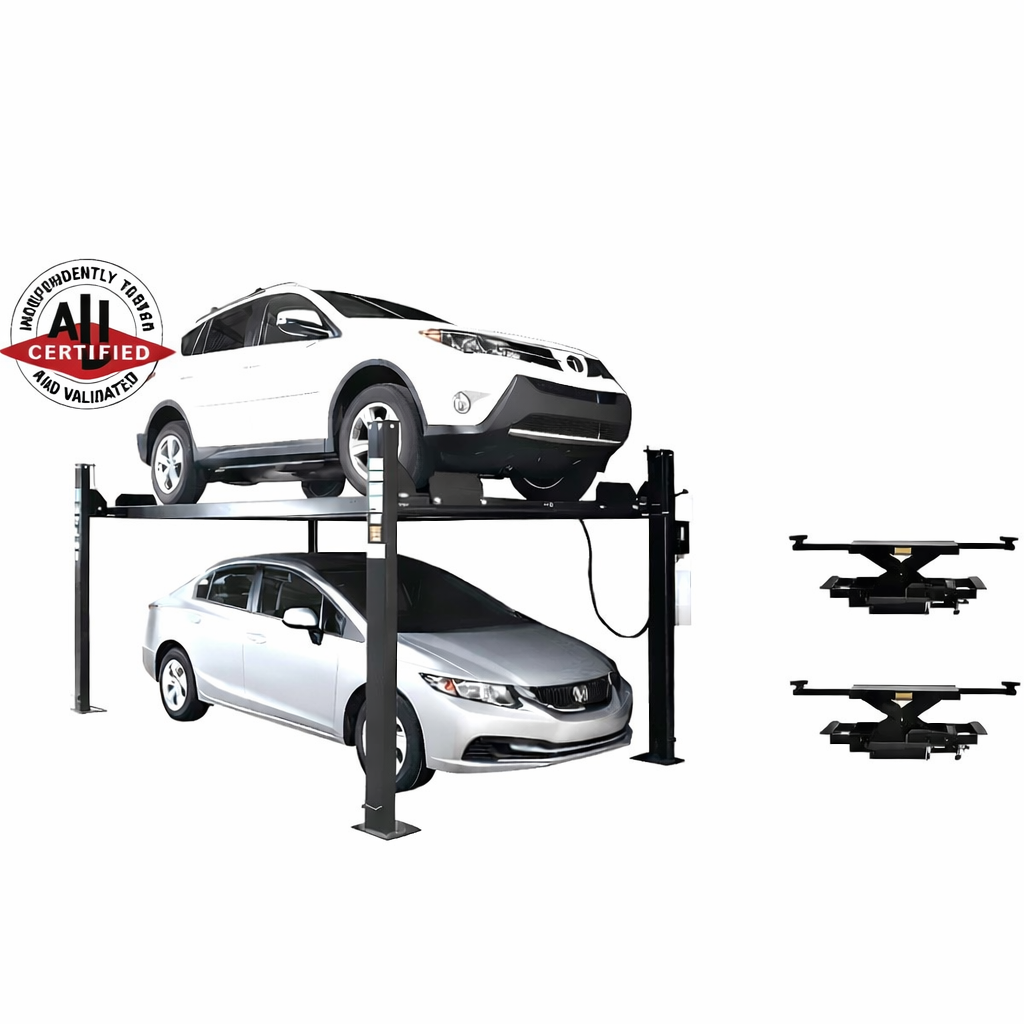

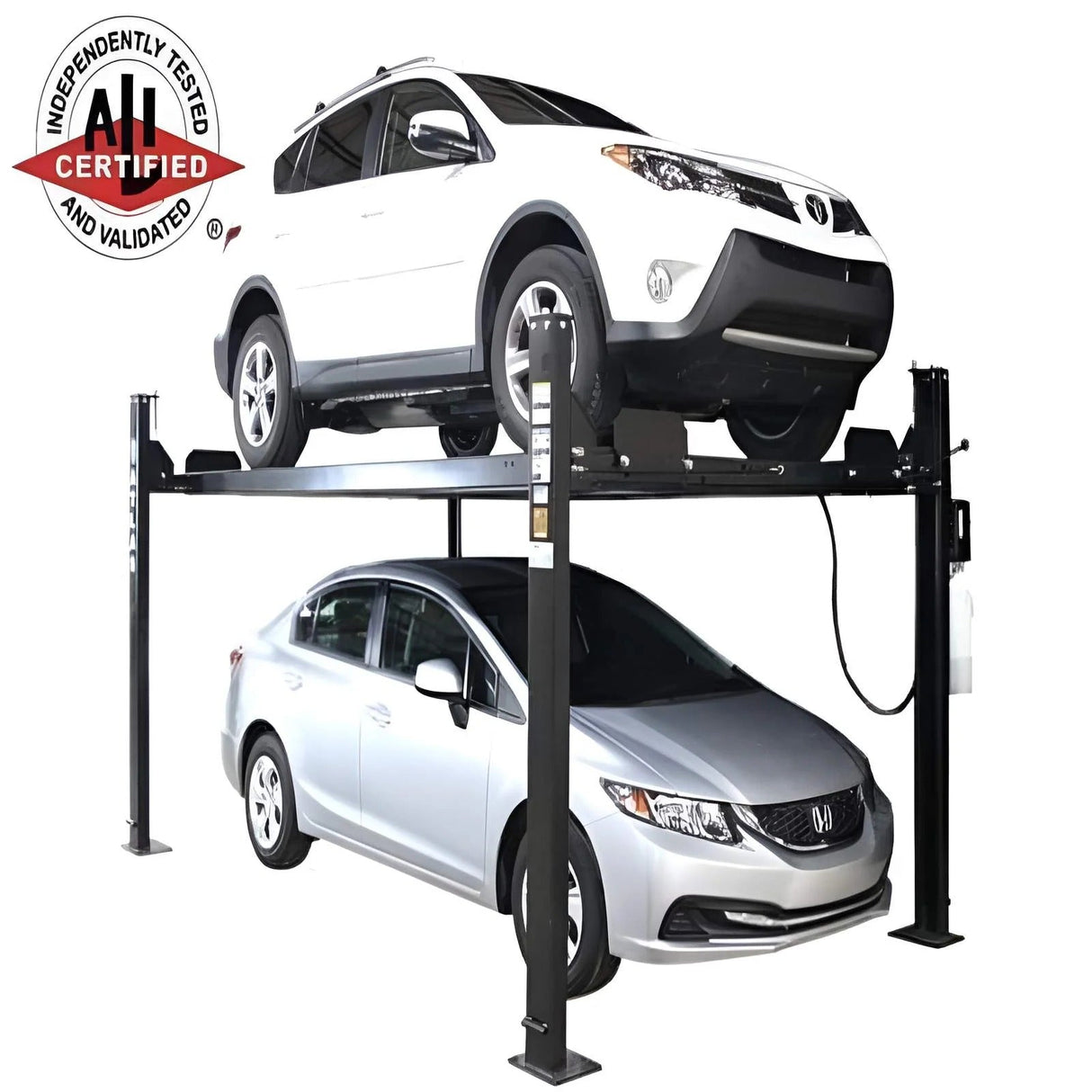

The Atlas APEX8 combo package is a space-saving 4-post lift solution designed for homeowners and restoration shops that need reliable vehicle storage with added service capability. As an ALI Certified version of the popular Garage PRO8000, the APEX8 meets recognized safety standards while maintaining a user-friendly design ideal for lower-cycle use. This package includes two RJ35 sliding bridge jacks, allowing users to lift vehicles off the runways for tire, brake, and suspension work. With included accessories and a portable caster kit, this lift provides both storage efficiency and maintenance functionality in one complete system.
Key Features & Benefits
- 8,000 lb lifting capacity for cars and light trucks
- ALI Certified lift for verified safety standards
- Includes two RJ35 sliding bridge jacks for wheel service
- Ideal for vehicle storage and hobbyist use

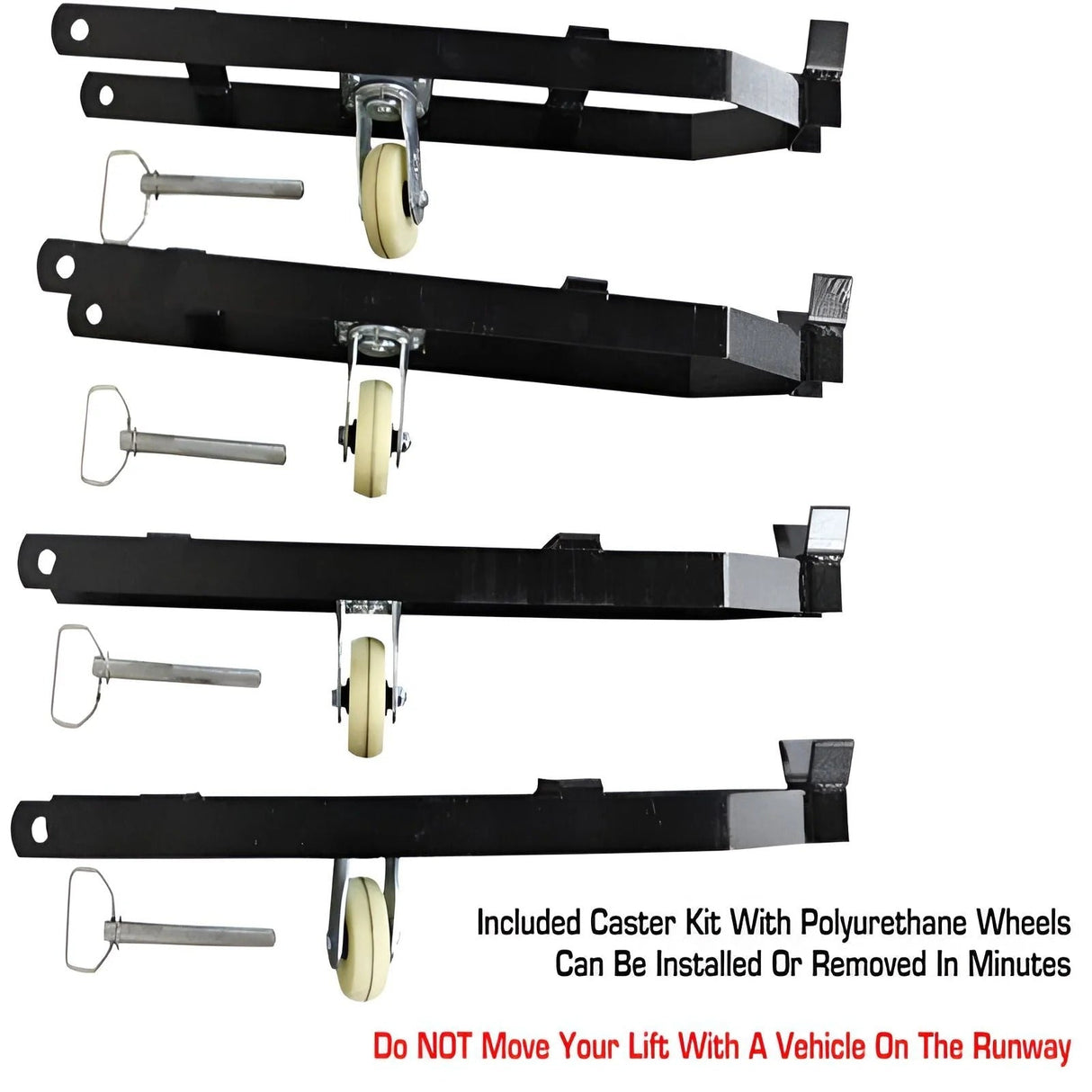

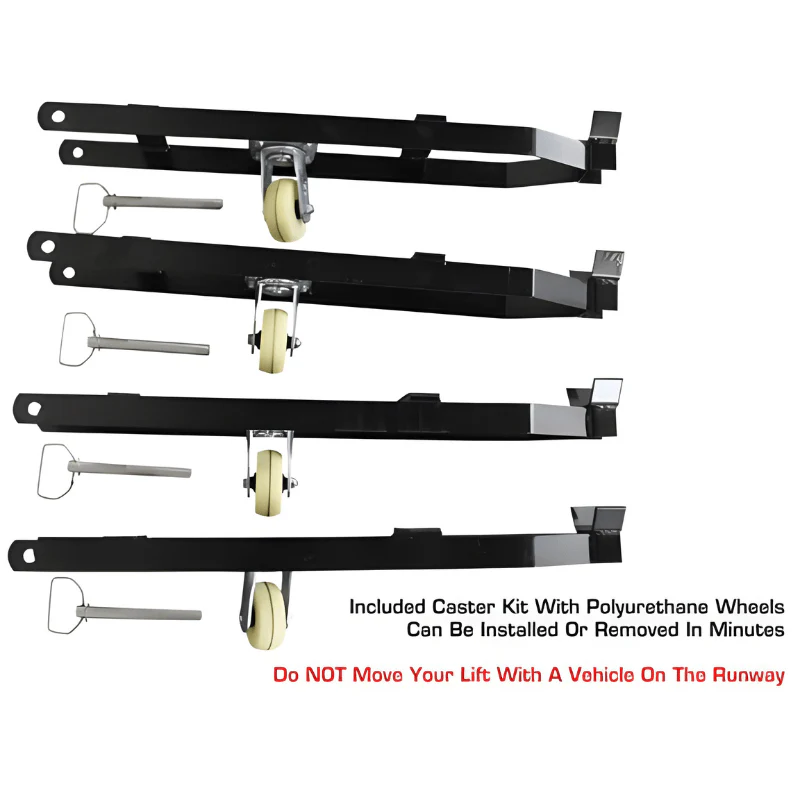

- Portable design with caster kit and polyurethane wheels included

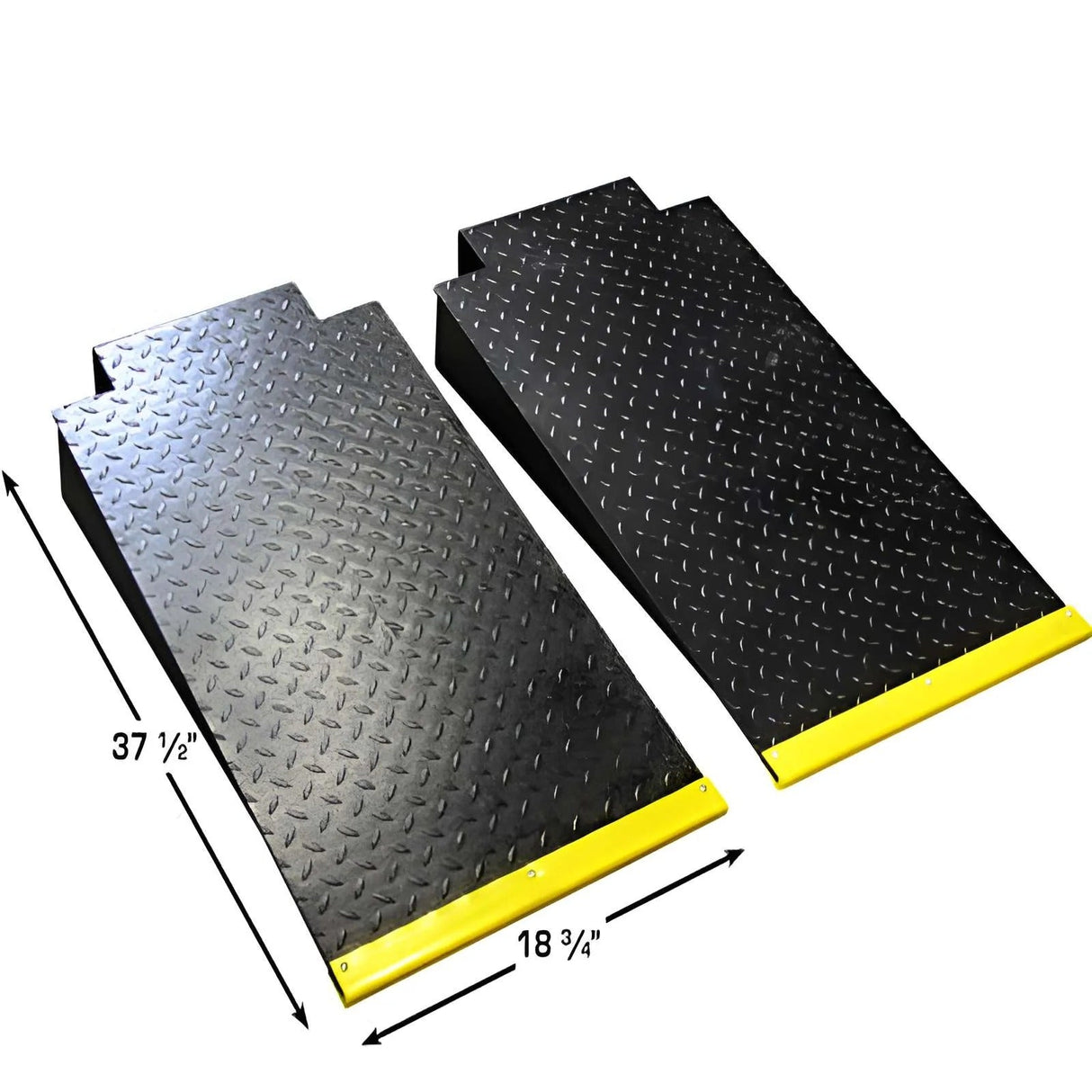

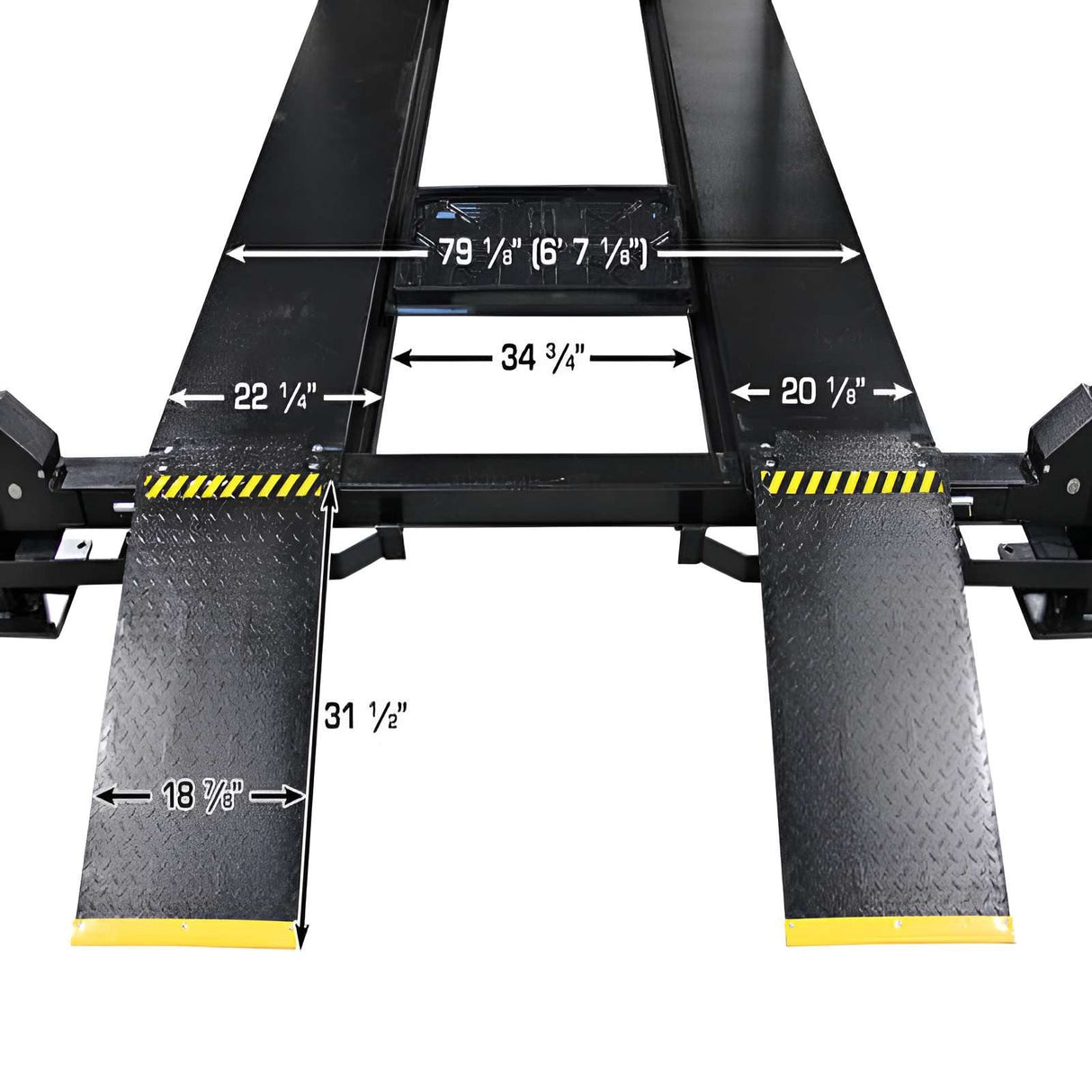

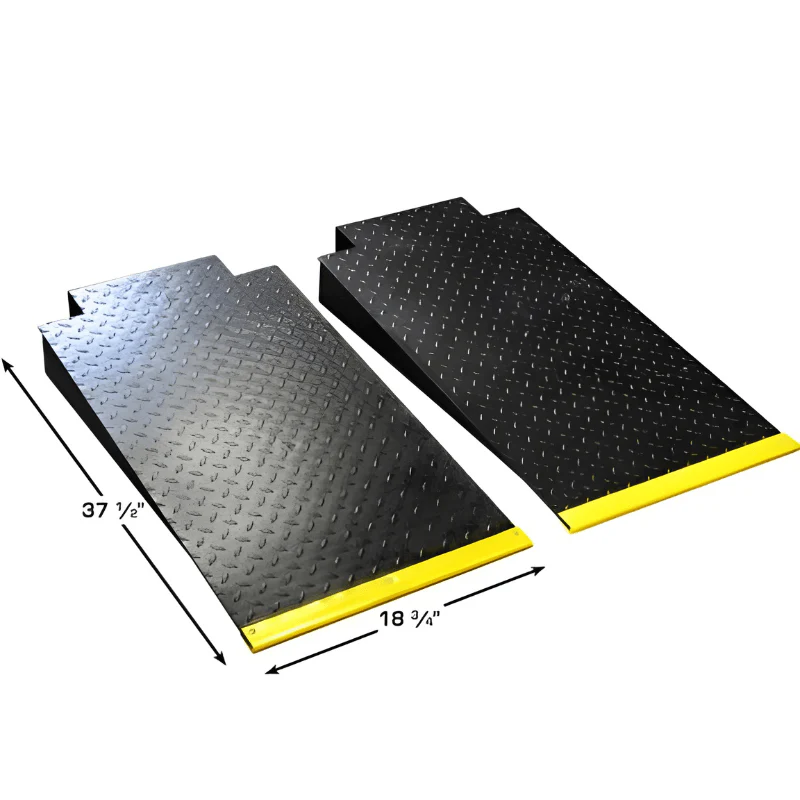

- Steel approach ramps included for easy loading
- Steel jack tray included for added versatility
- Drip trays included to protect stored vehicles

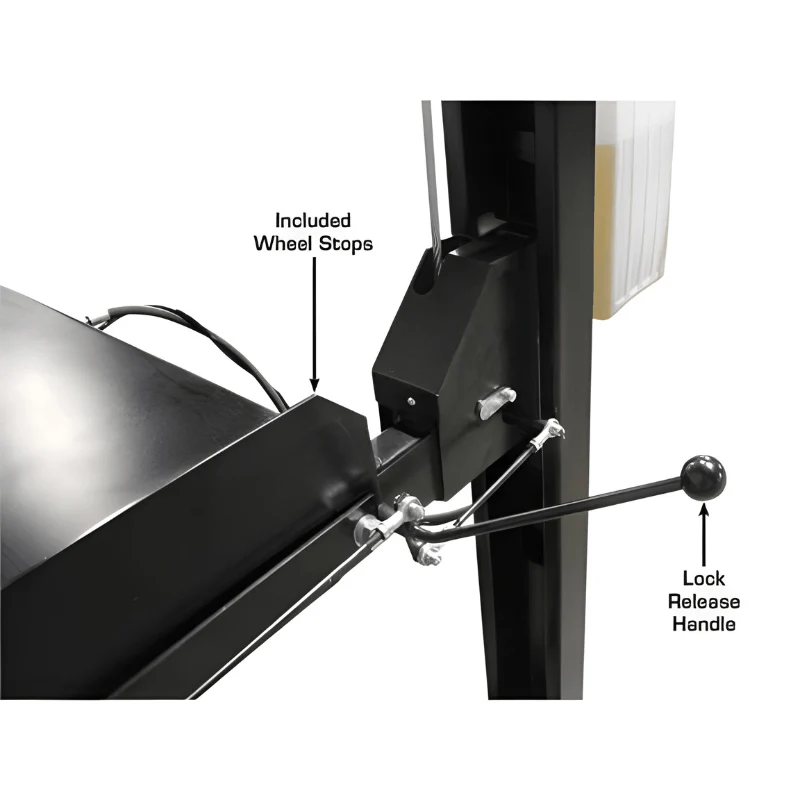

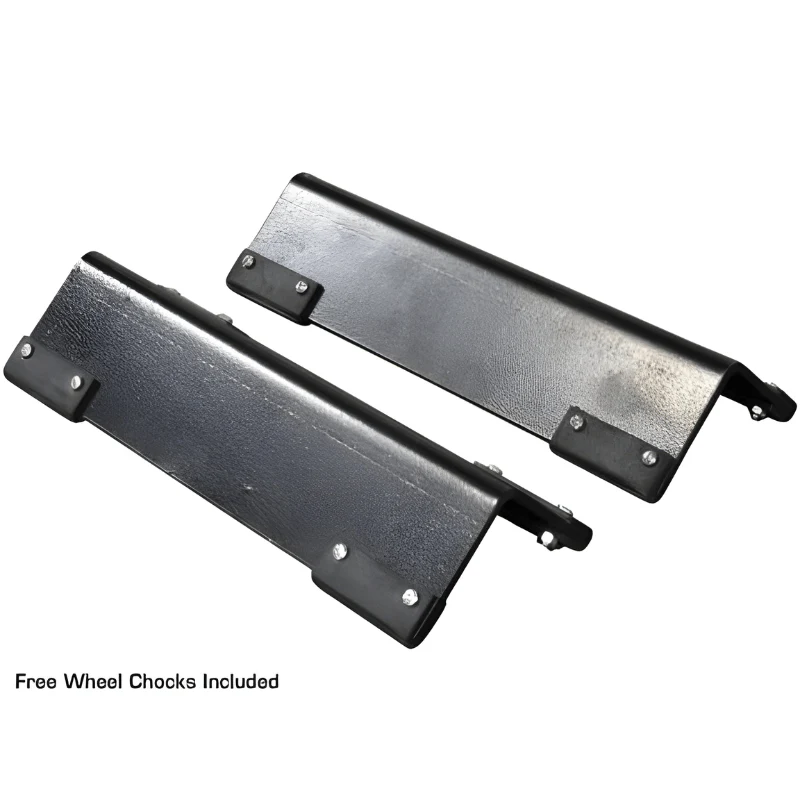

- Wheel stops and wheel chocks included for safety

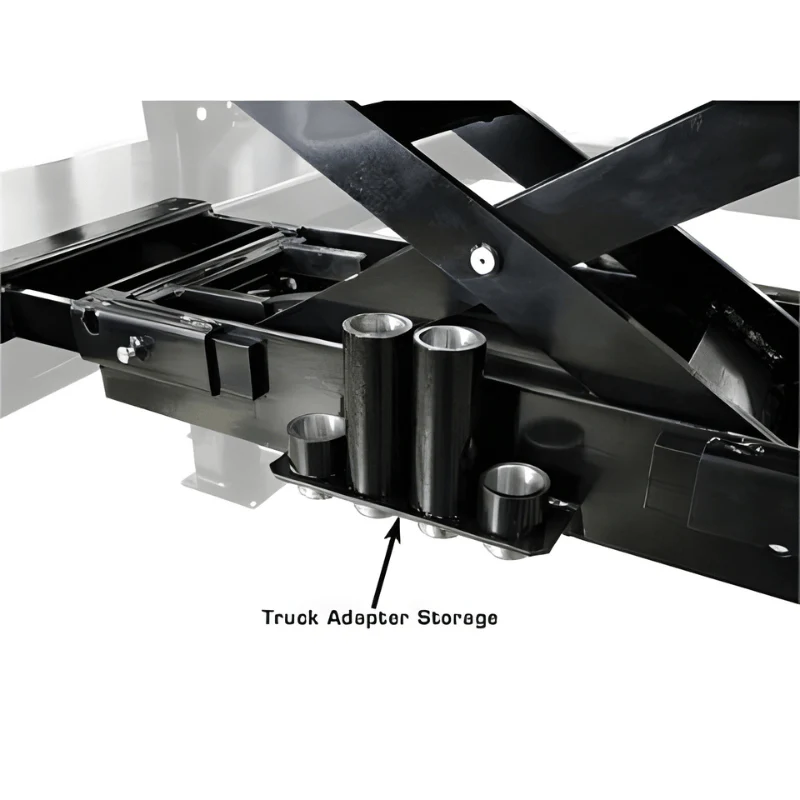

- Truck adapter sets included for each bridge jack
- Designed for home garages and restoration shops

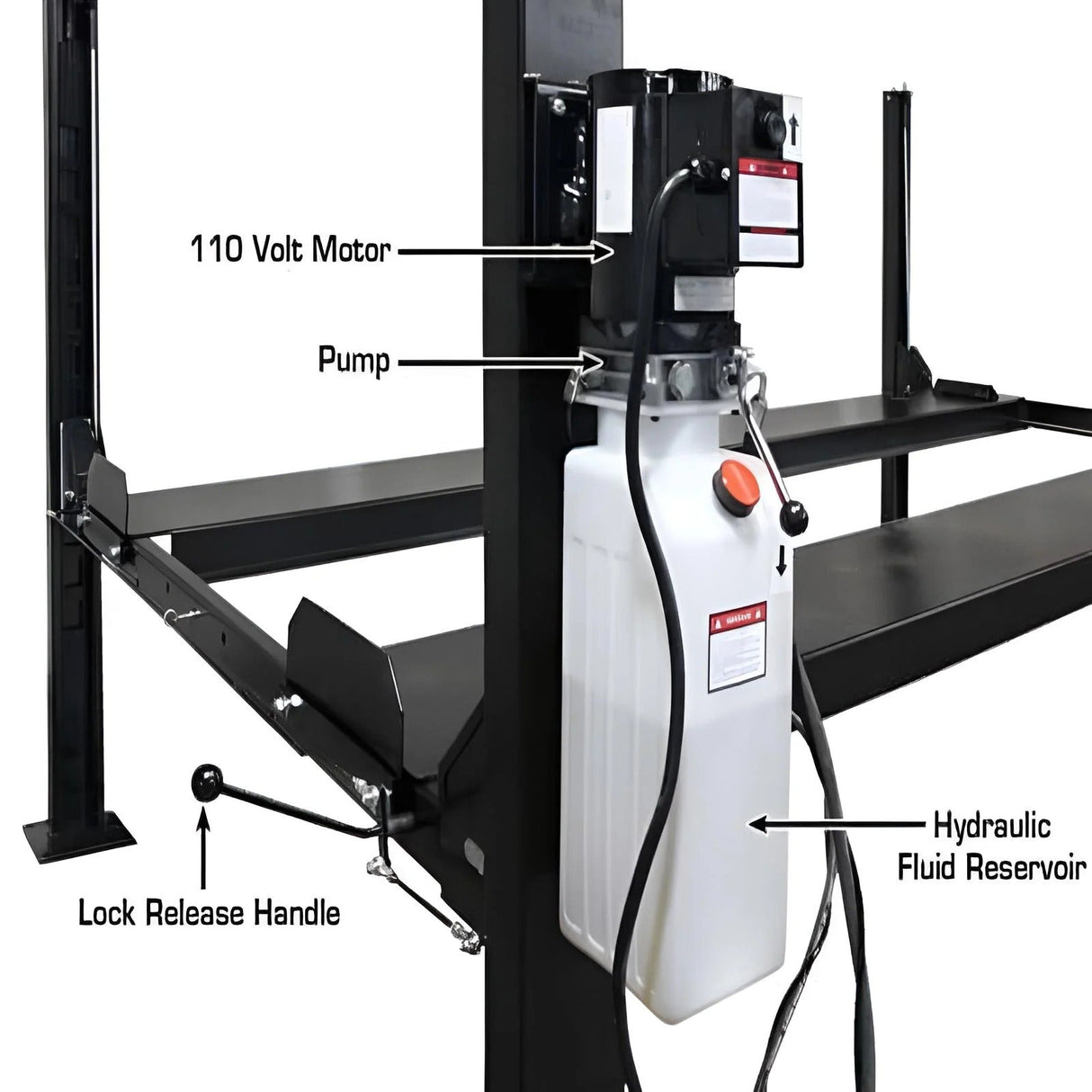

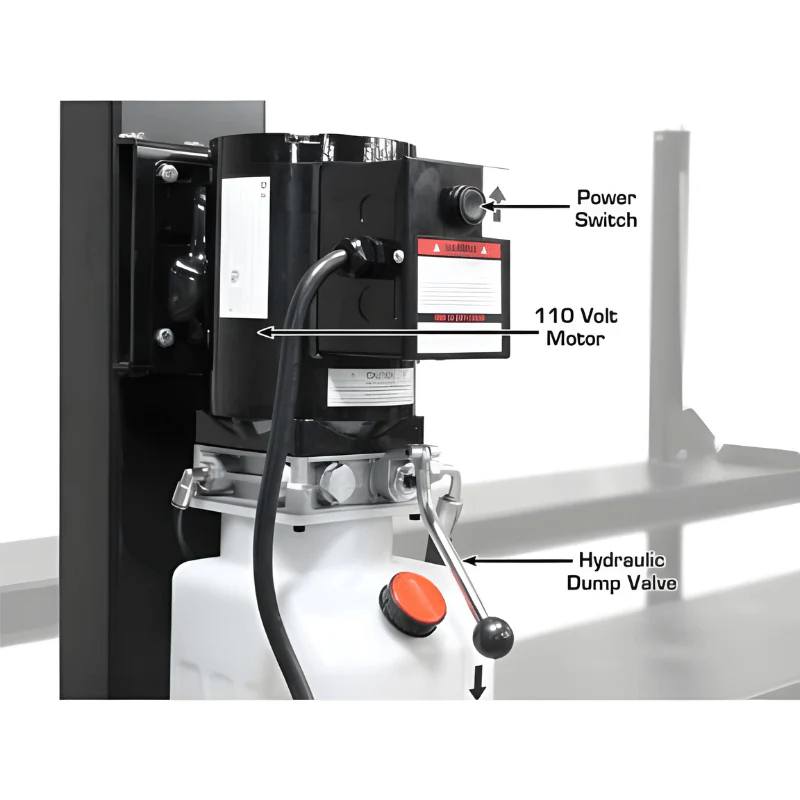

- 110V operation (30 amp breaker required)
- Freight prepaid for this package
Performance & Design Highlights
The APEX8 is engineered for users who want to maximize garage space by stacking vehicles while still having the ability to perform light service work. Its ALI certification provides added confidence in safety and build quality. The included RJ35 bridge jacks expand functionality by allowing wheels to be lifted off the runways, making it easier to perform maintenance tasks. While ideal for storage and occasional service, this lift is not intended for high-cycle commercial use. The portable caster system allows repositioning within the garage, and the durable construction ensures long-term reliability.
Atlas APEX8

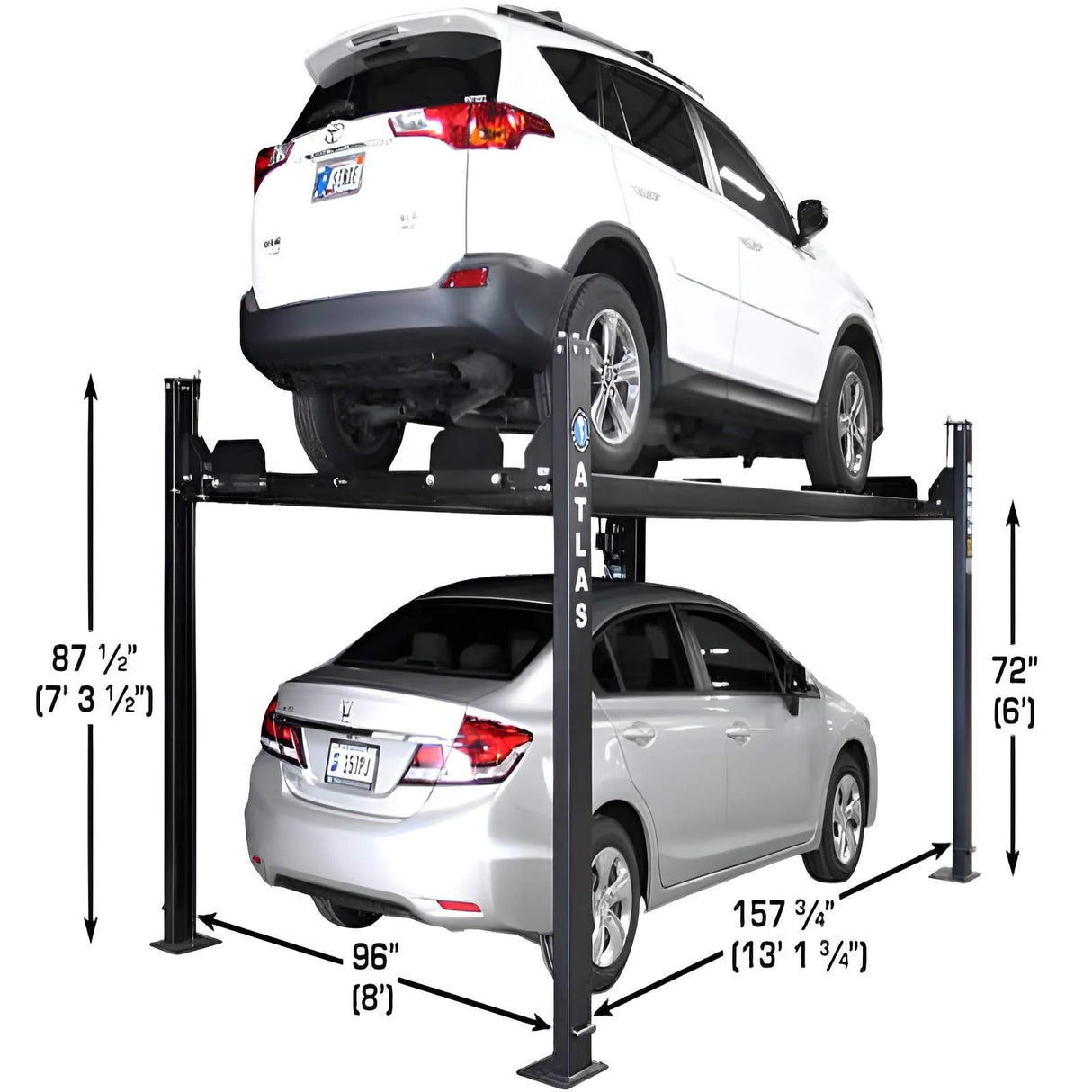

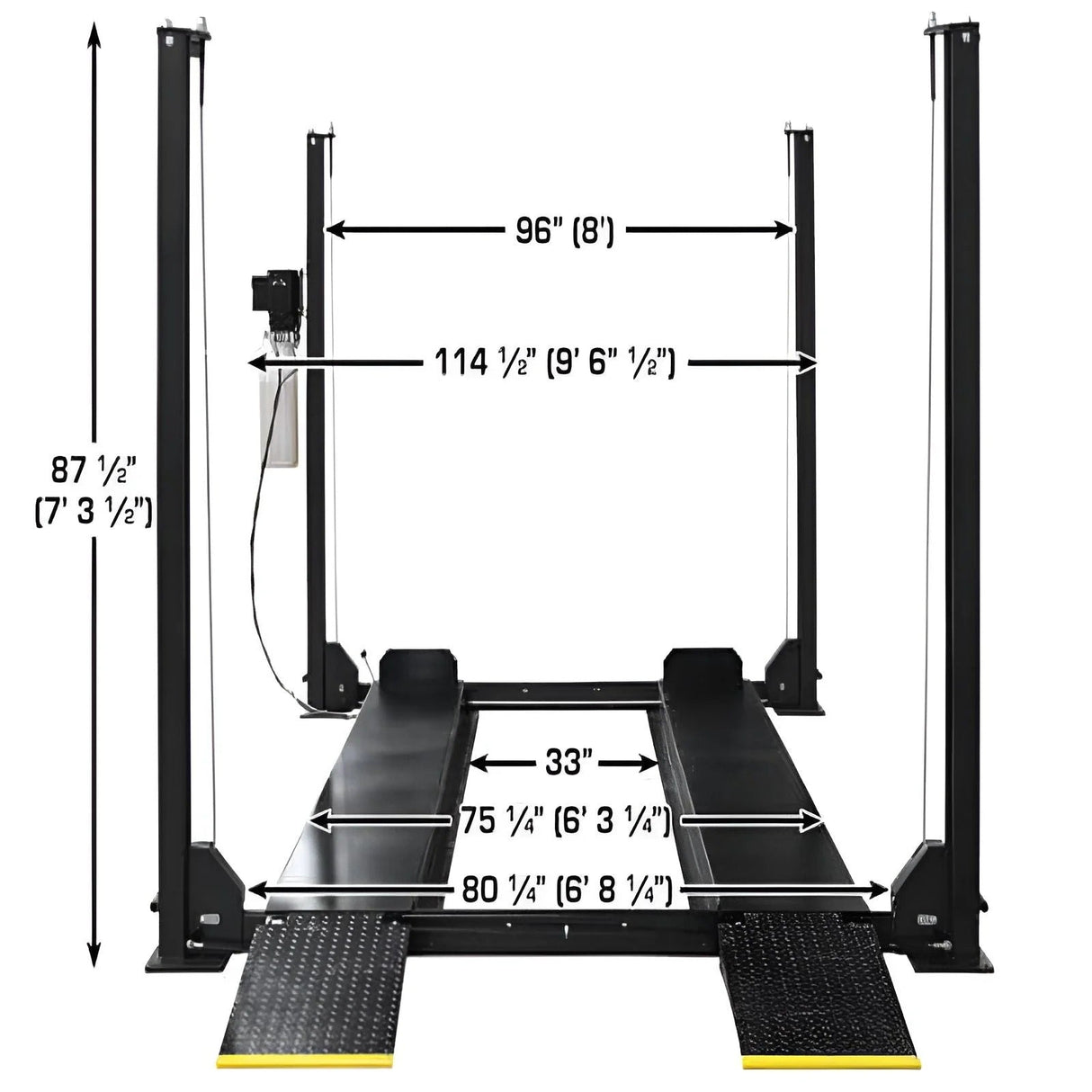

| Specifications | Details |
|---|---|
| Capacity | 8,000 lbs. |
| Lifting Height (Top of Runway) | 72" |

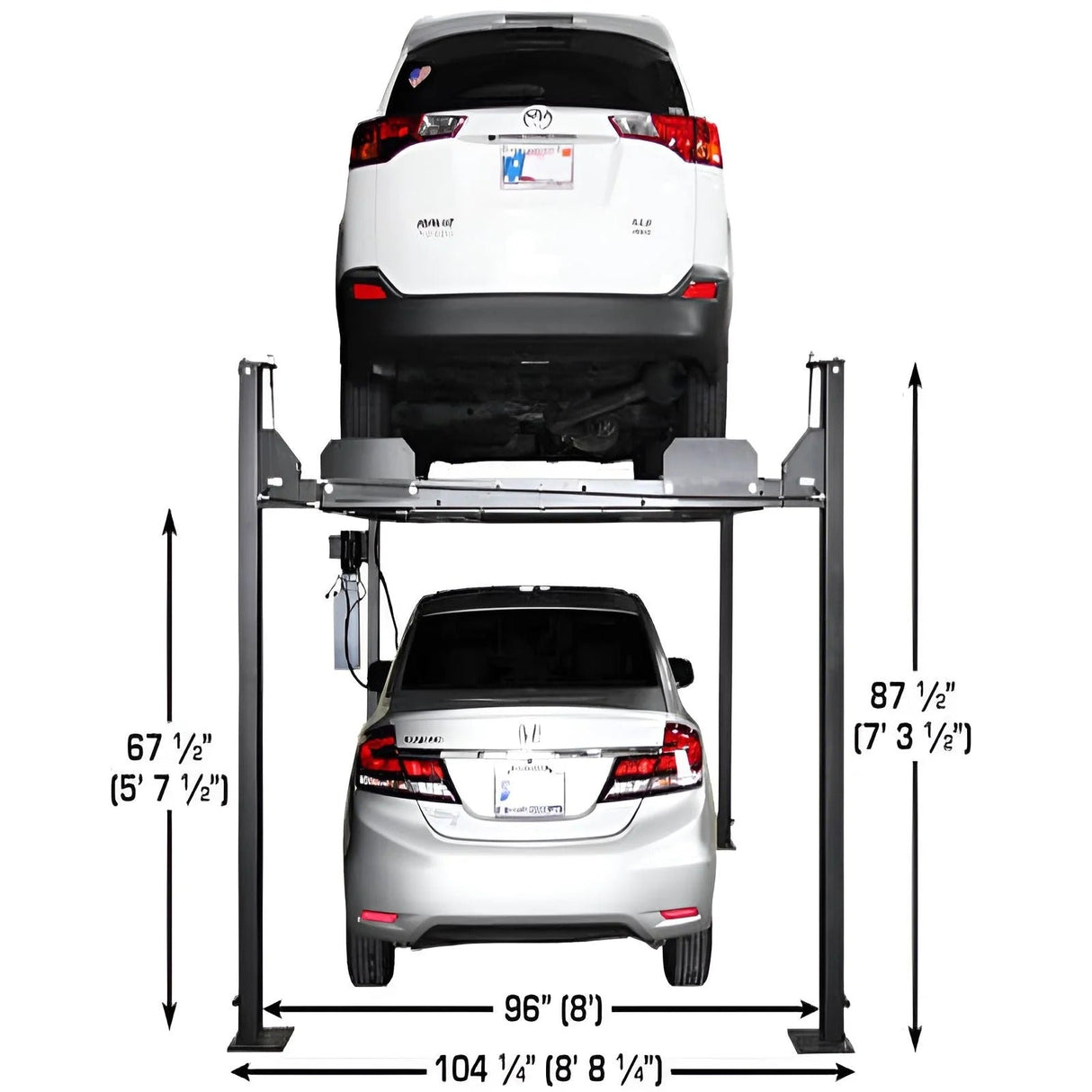

| Clearance Under Runways | 67" |
| Column Height | 85" |
| Overall Width | 104" (114" with motor) |
| Overall Length (With Ramps) | 207 5/8" |

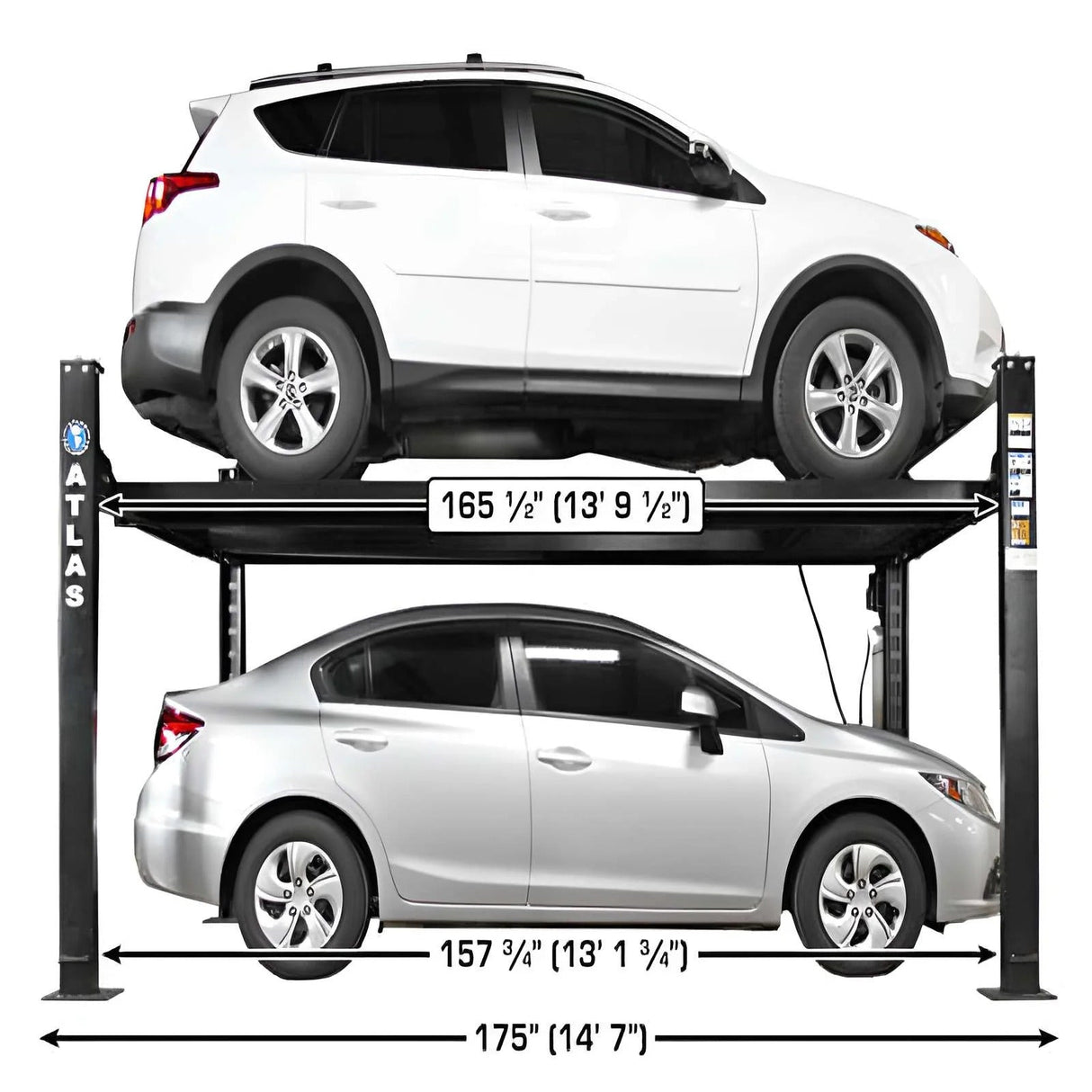

| Runway Length | 169 1/2" |

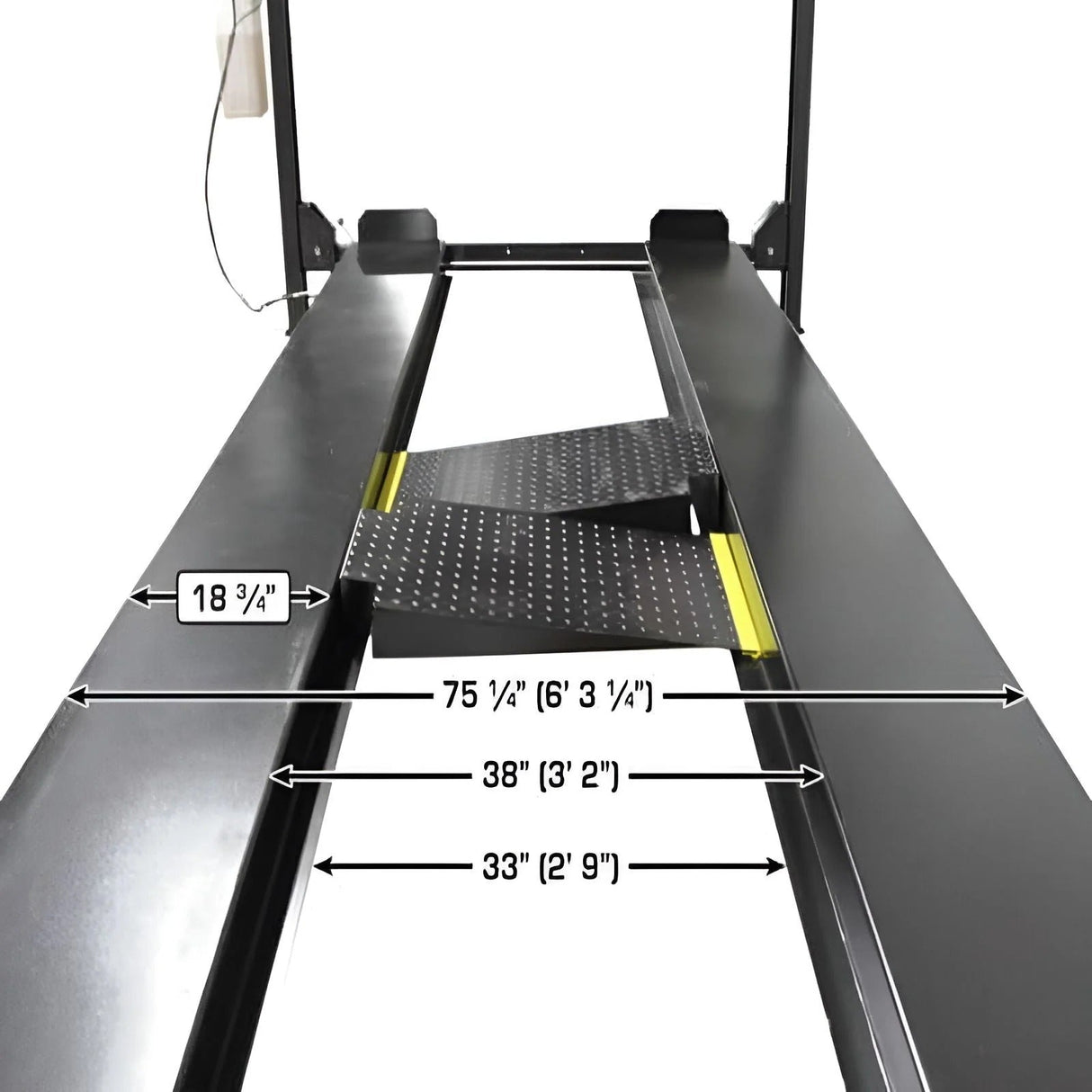

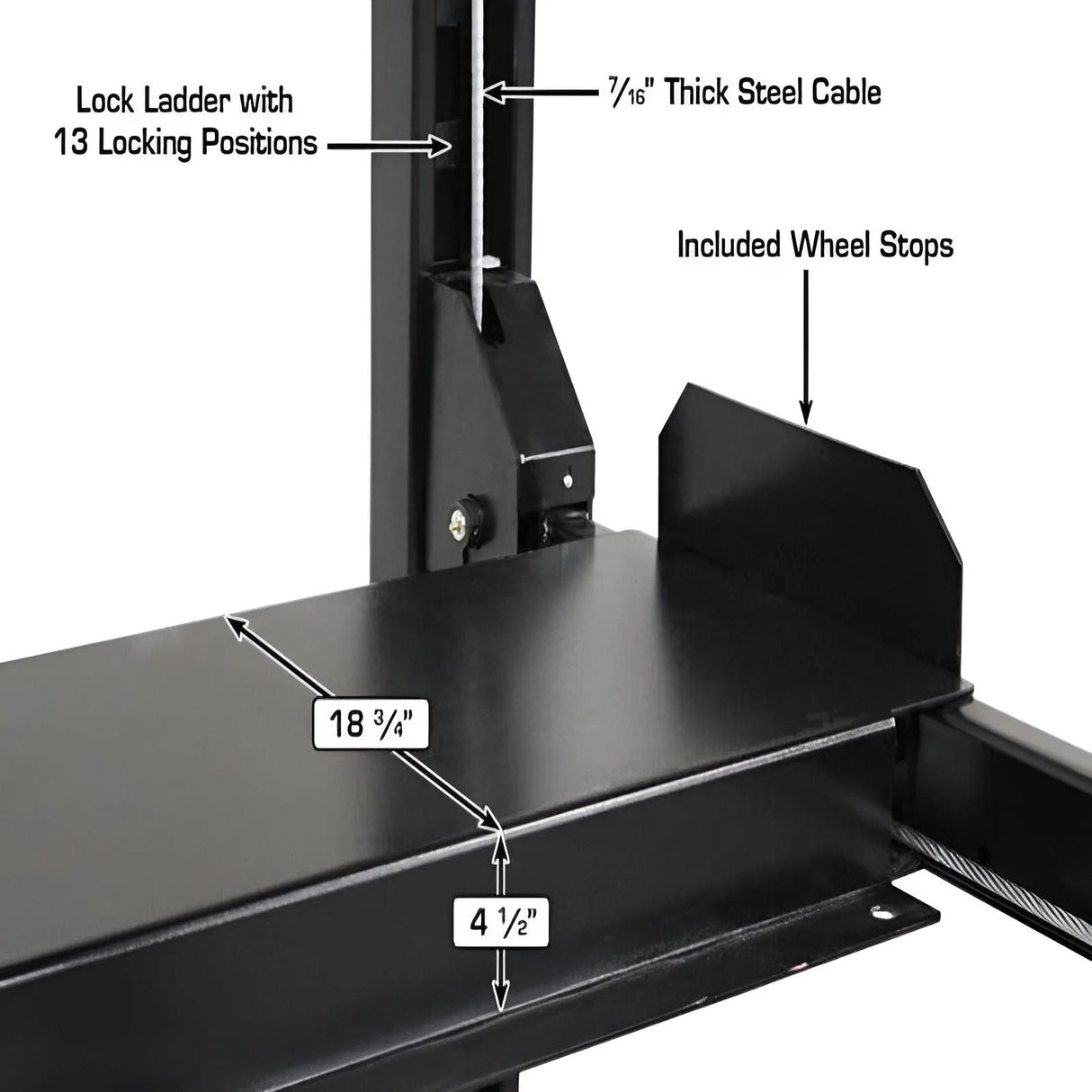

| Runway Width | 18 1/2" |
| Runway Thickness | 4 1/3" |
| Width Between Runways | 38" (33" with rails) |
| Outside Runway Width | 75 1/4" |
| Clearance Between Columns | 94" |

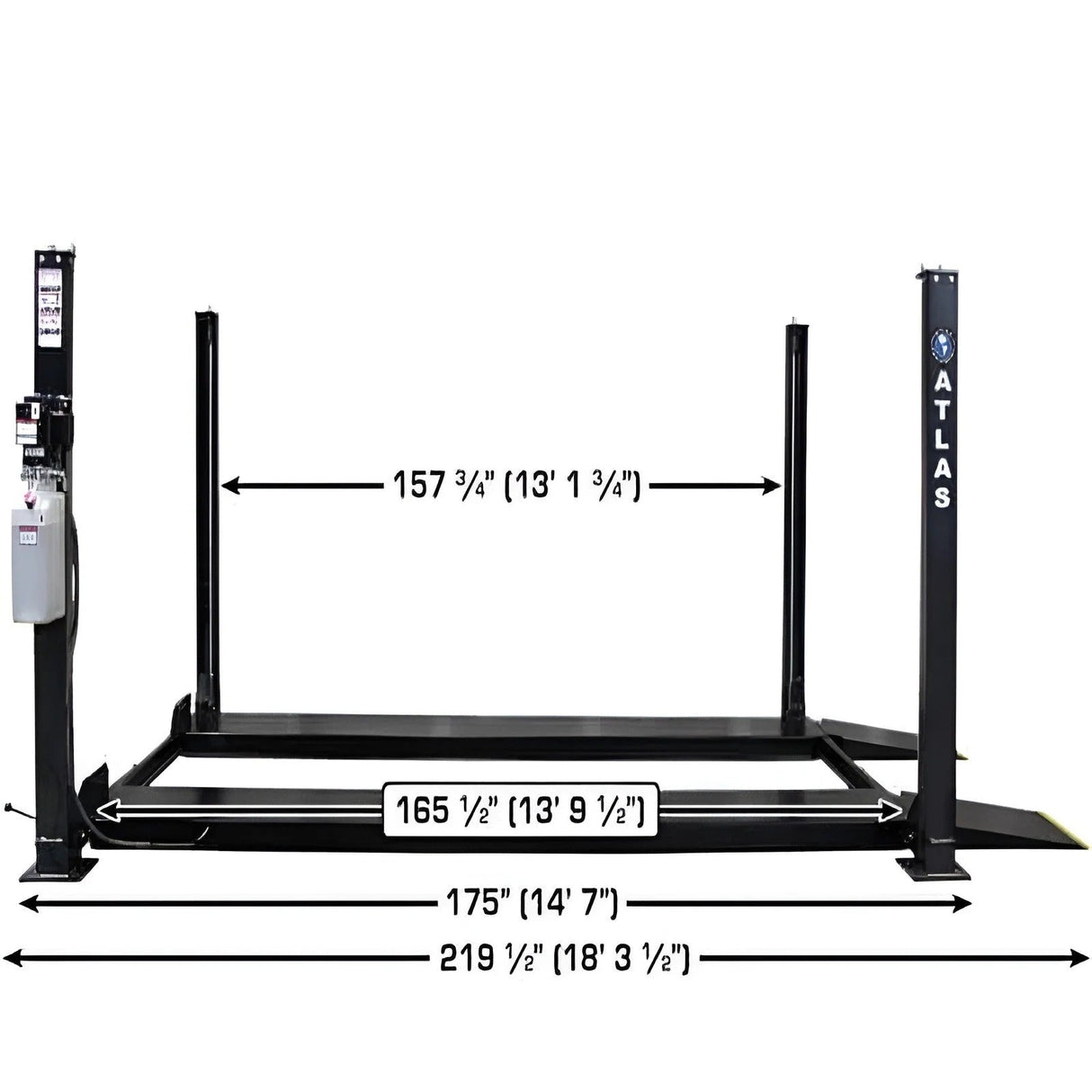

| Length Between Columns | 157 1/3" |
| Drive-Thru Width | 80 1/4" |
| Power Requirement | 110V / 30 Amp |
| Oil Requirement | 3–5 Gallons (AW32 or AW46) |

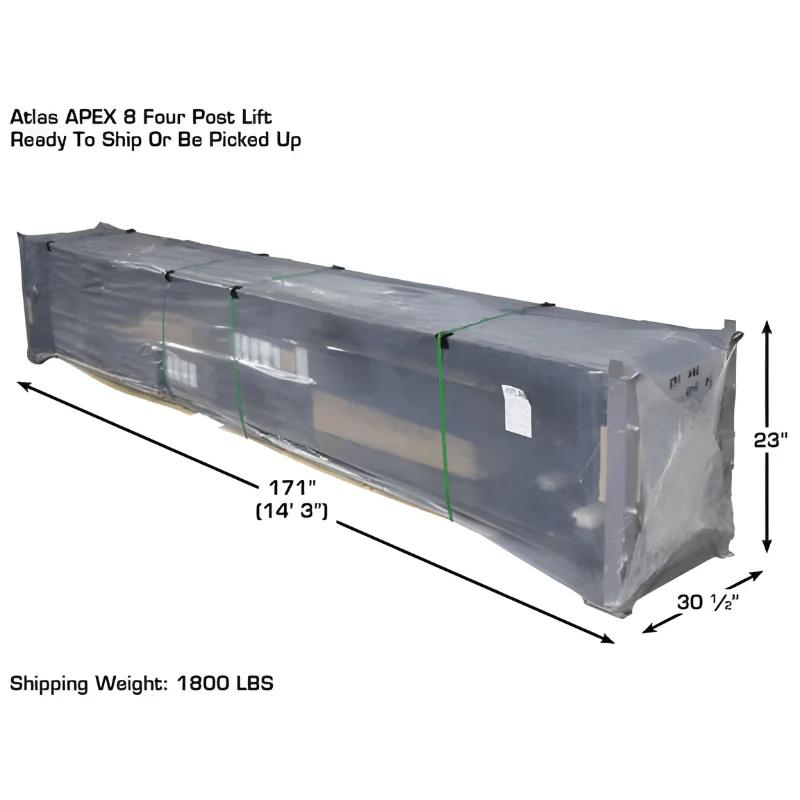

| Shipping Weight | 2,000 lbs. |

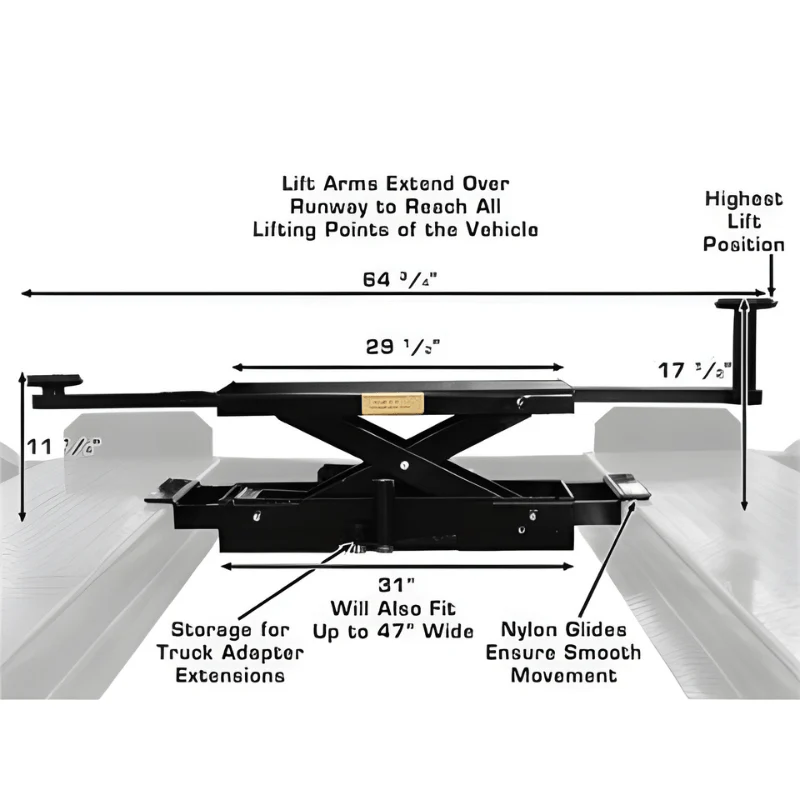

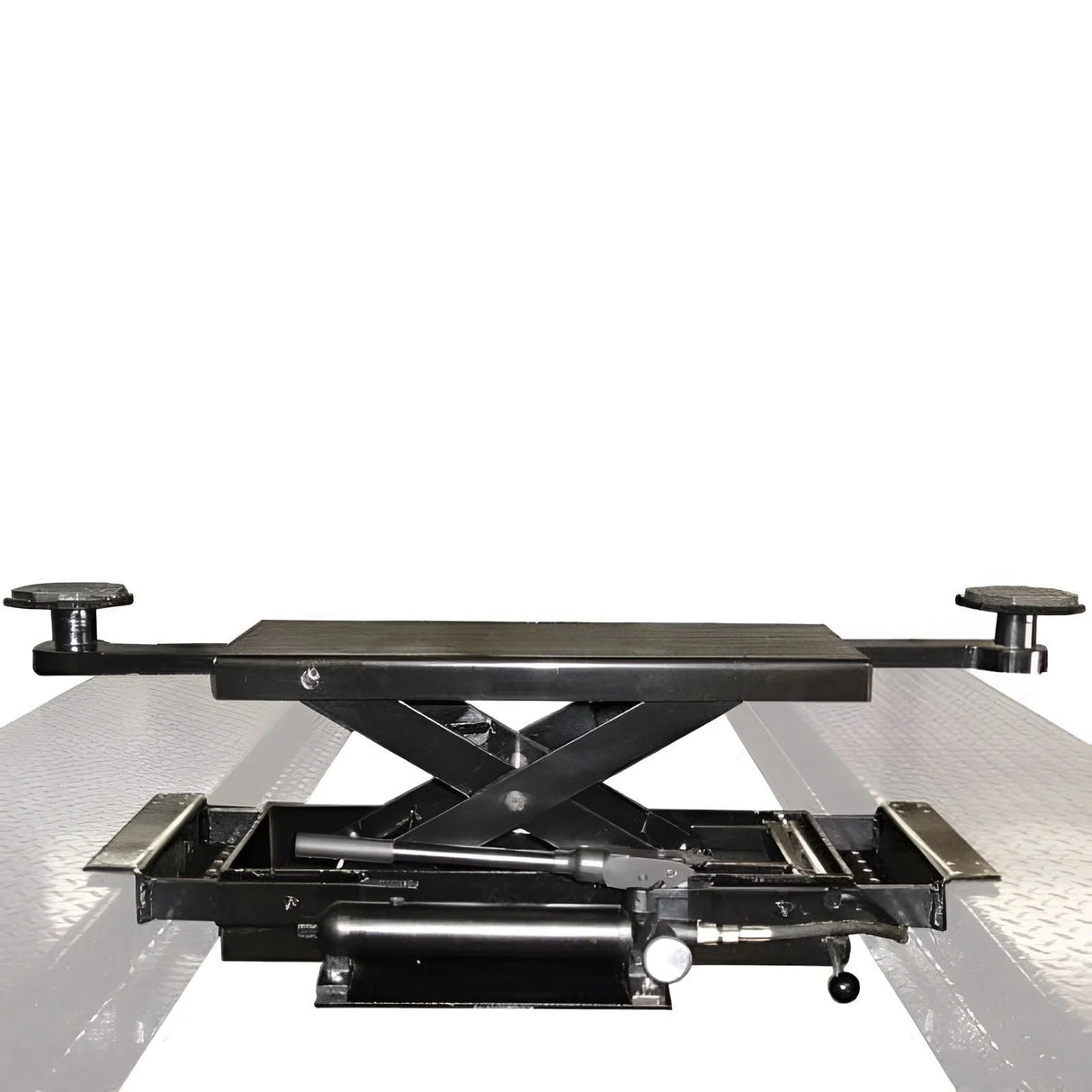

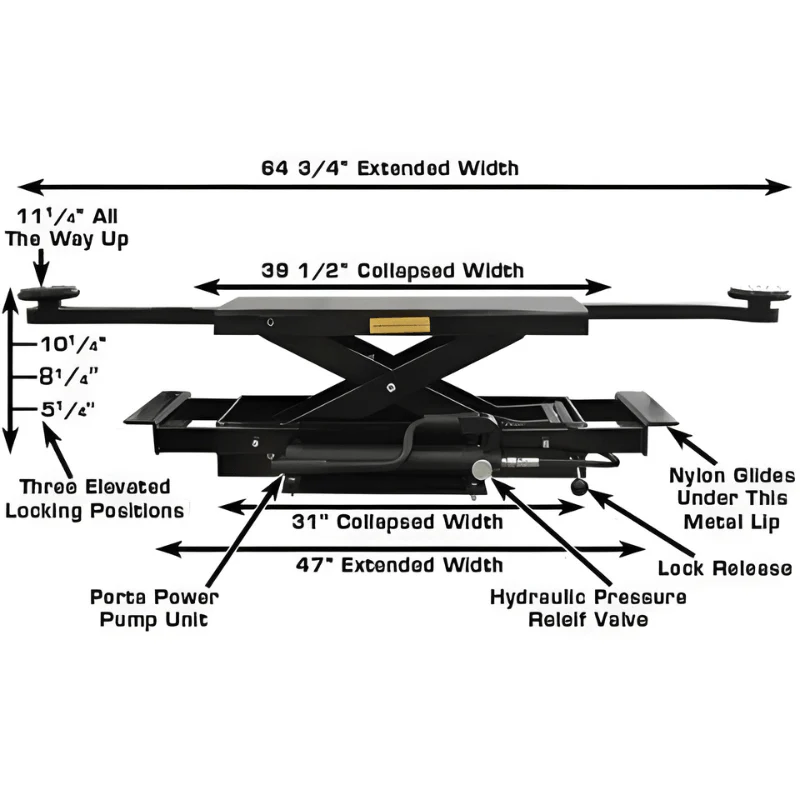

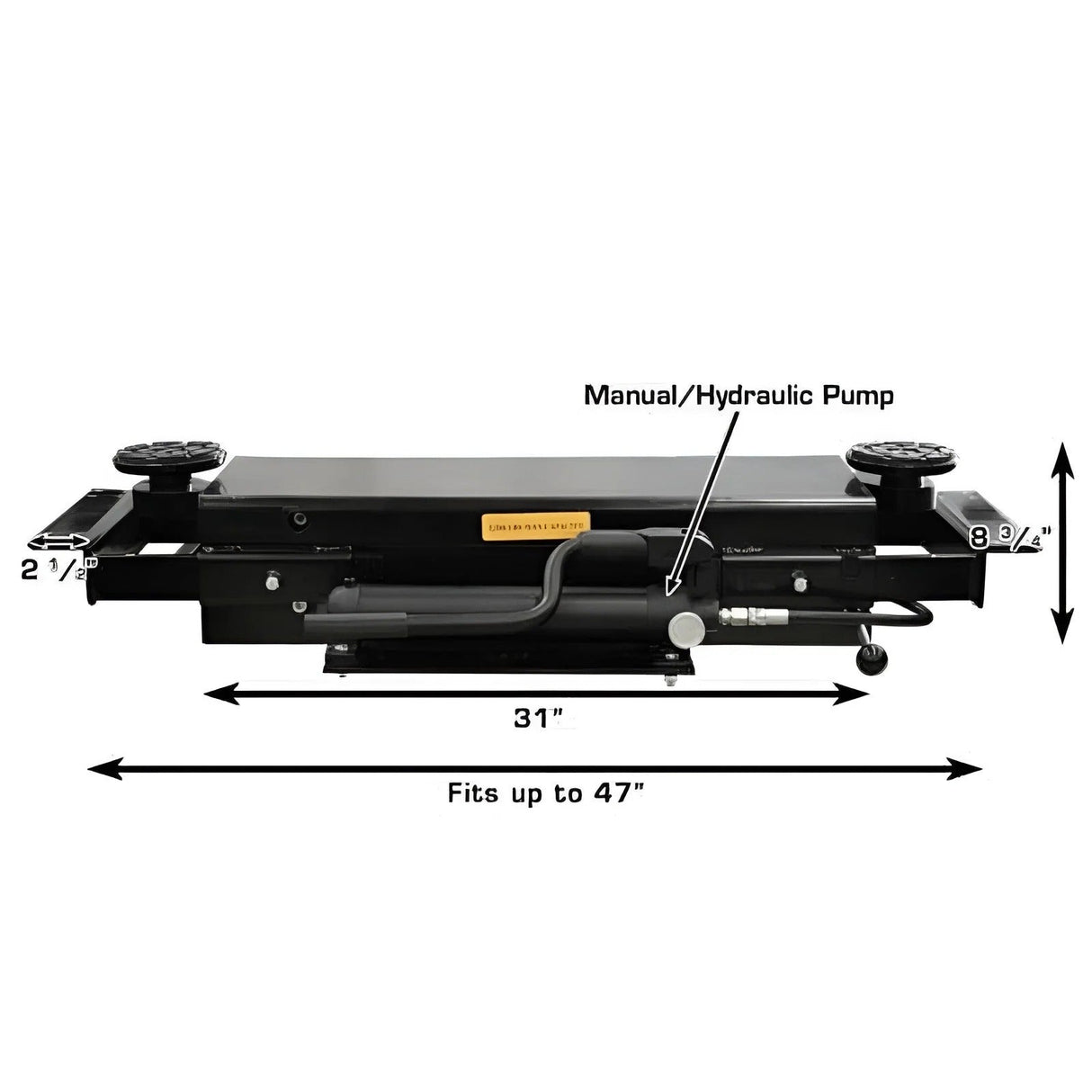

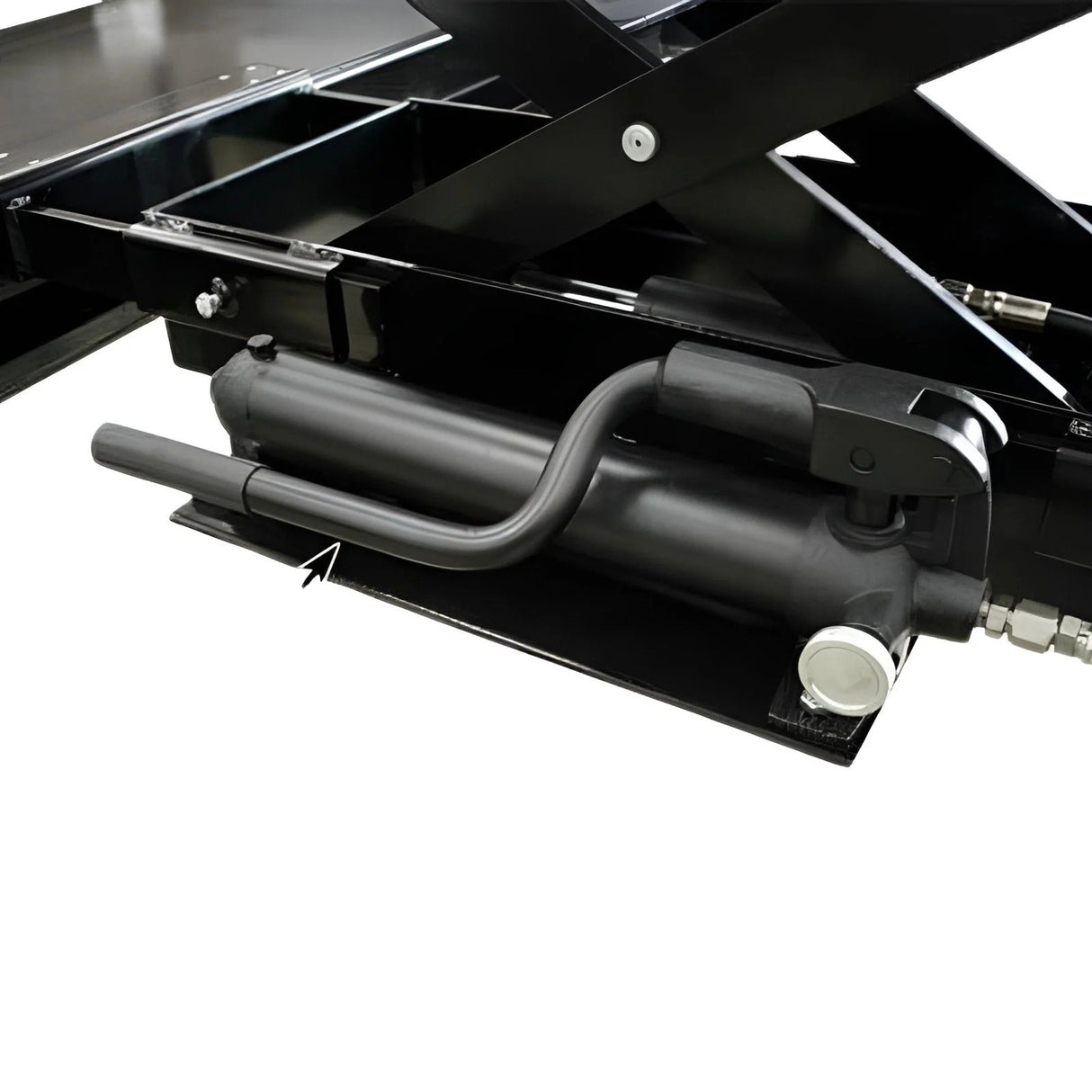

Atlas RJ35 Sliding Bridge Jack
| Specifications | Details |
|---|---|
| Capacity | 3,500 lbs. (each) |
| Extension Width Range | 20 1/2" – 47" |
| Arm Width Range | 39 1/2" – 64 3/4" |
| Min Pad Height | 3 1/2" |
| Lift Pad Height | 1 3/8" |

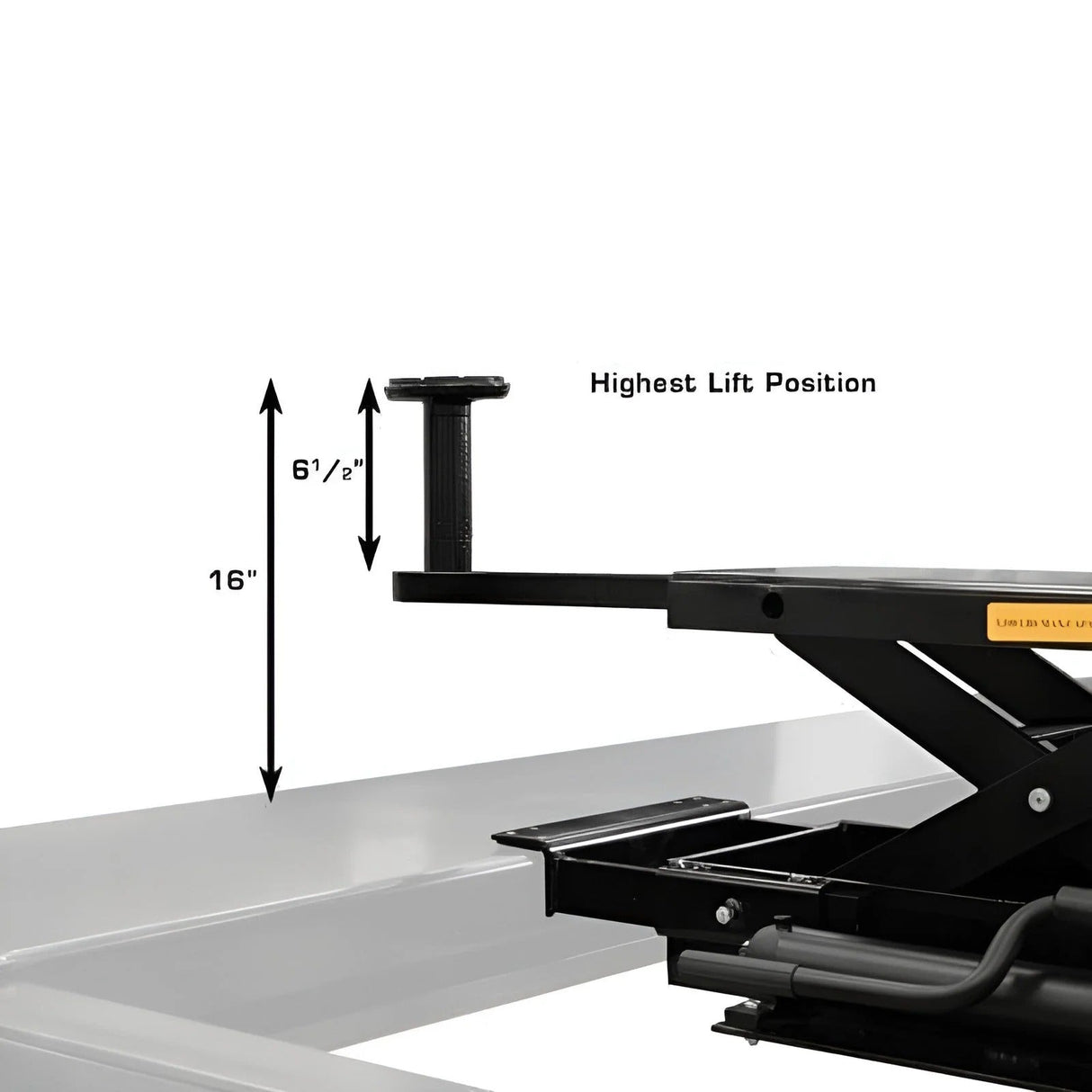

| Max Lift Height (No Adapter) | 11" |
| Max Lift Height (With Adapters) | 17 1/4" |

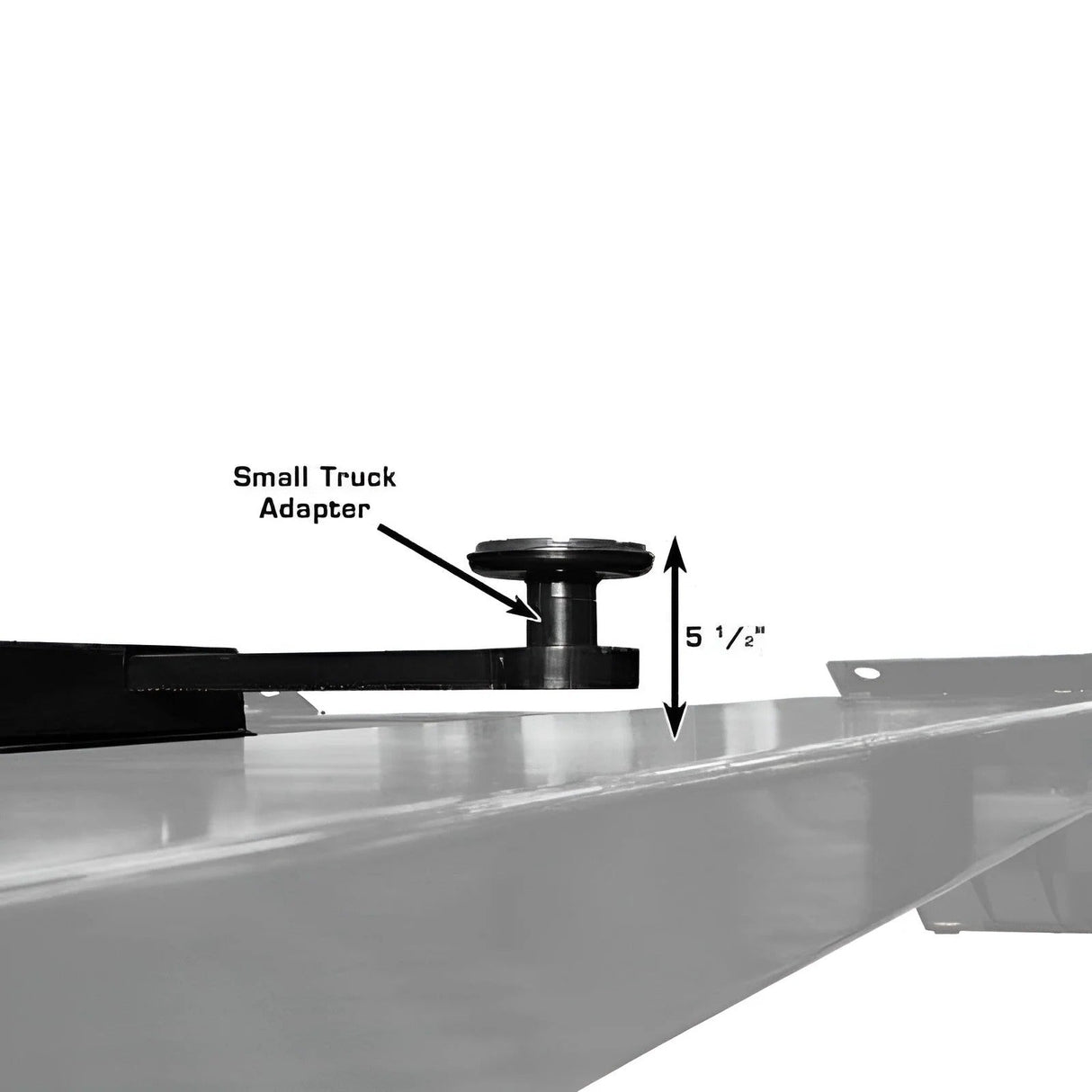

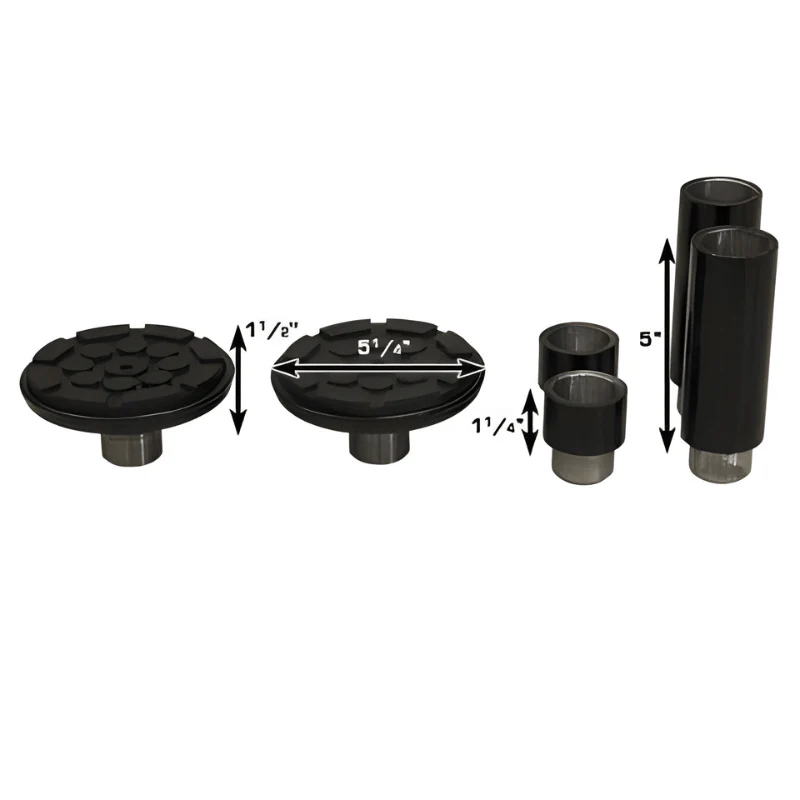

| Adapter Heights | 1 1/2" and 5" |
| Adapter Peg Size | 1 1/2" |

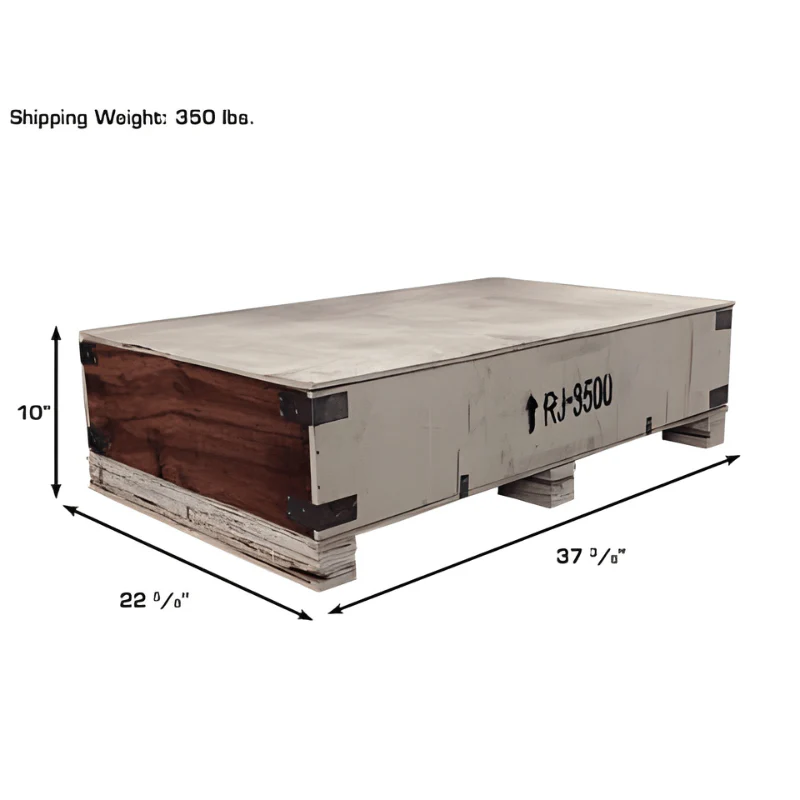

| Shipping Weight | 350 lbs. per jack |
