Atlas APEX9 ALI Certified 9,000 lb 4-Post Car Lift with RJ6 Rolling...

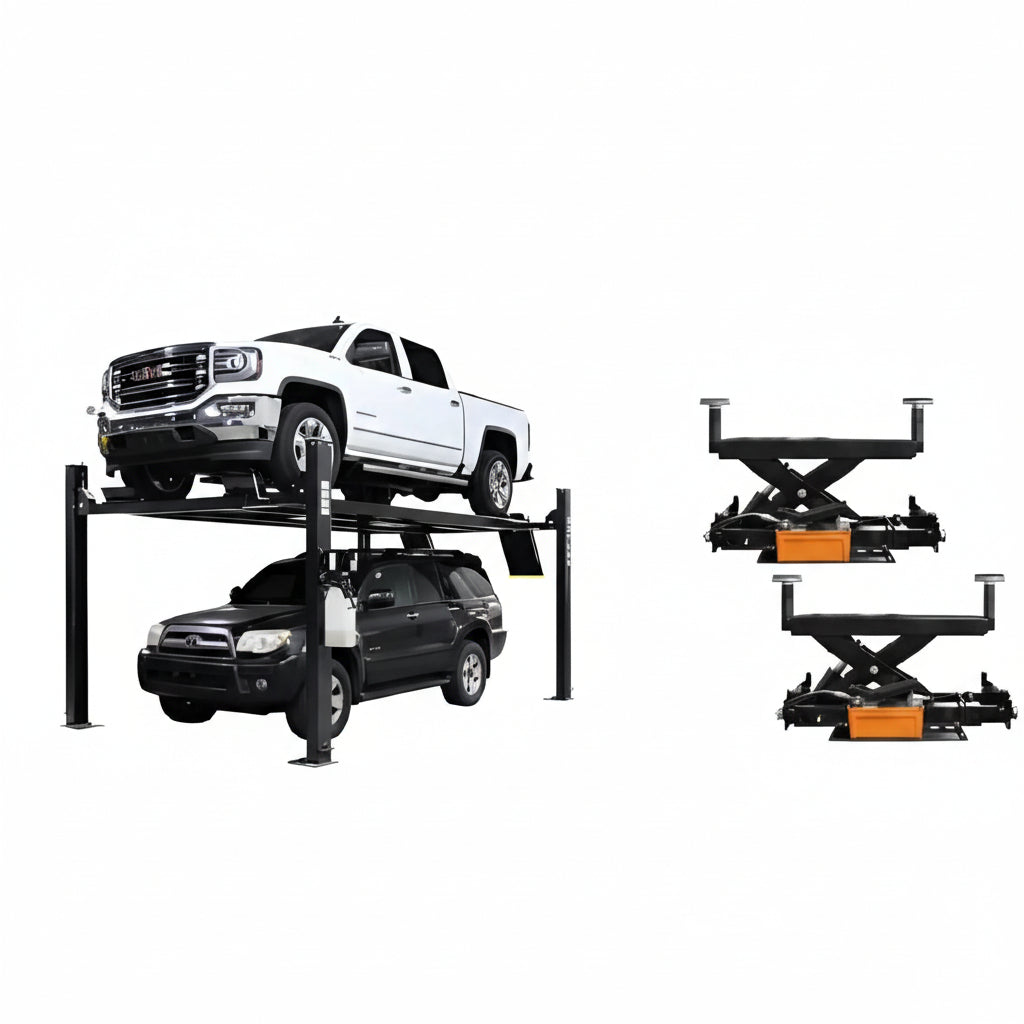

The Atlas APEX9 + RJ6 Combo is a versatile, ALI-certified 4-post lift package designed for both hobbyists and commercial shops. With a true 9,000 lb capacity, extra-long runways, and included rolling jacks, this setup is ideal for vehicle storage, maintenance, and wheel service.

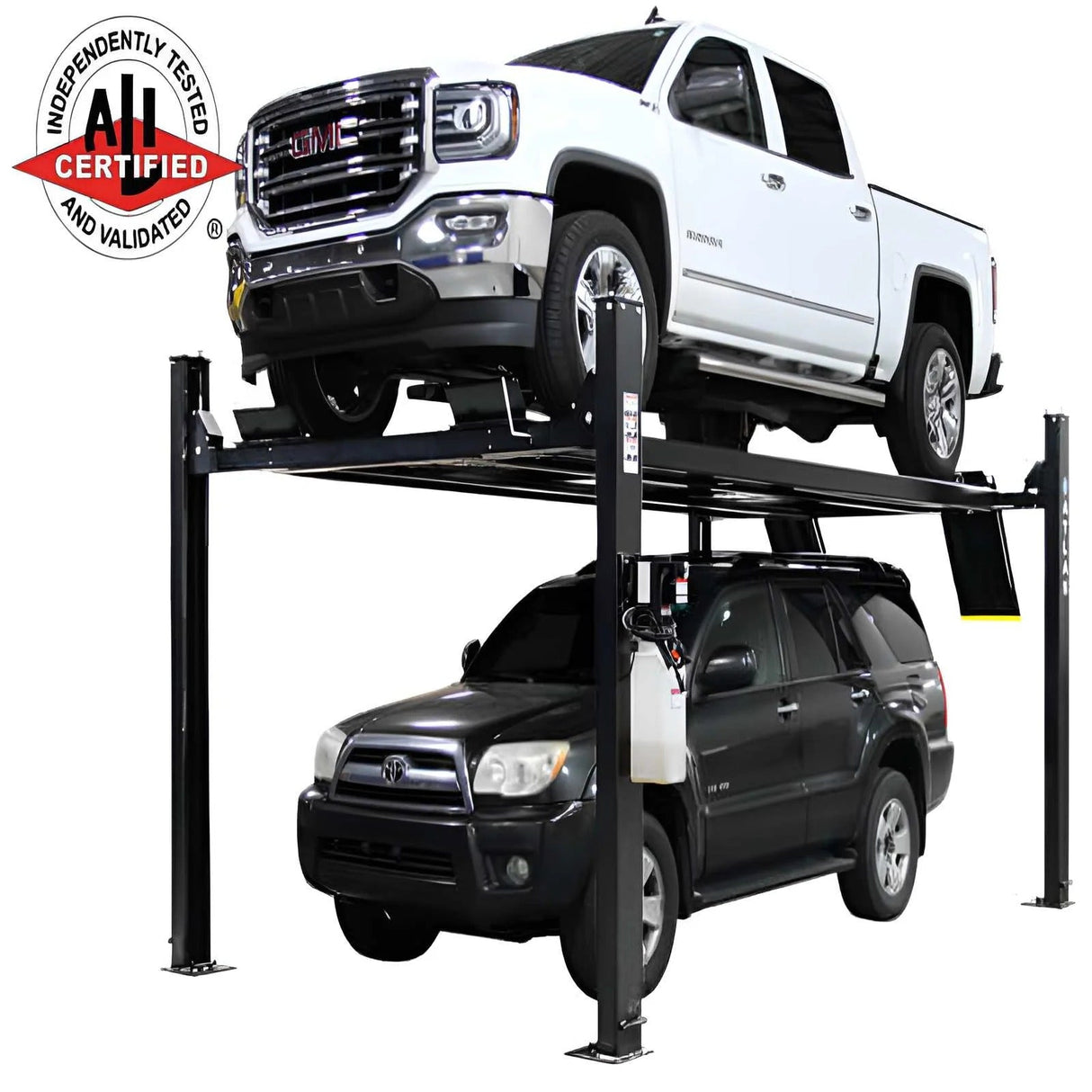

The APEX9 lift stands out with its extra width and length, allowing it to handle everything from compact cars to long wheelbase trucks and dually vehicles. Its elevated lifting height also makes it perfect for stacking vehicles, maximizing garage space.
The included RJ6 rolling bridge jacks allow you to lift vehicles off the runways, giving full access for tire, brake, and suspension work—turning this into a complete service solution.
Features and Benefits
- Combo includes APEX9 4-post lift + two RJ6 rolling jacks
- ALI certified for safety and reliability
- 9,000 lb true lifting capacity
- Heavy-duty design for hobbyist and commercial use
- Extra long runways for extended wheelbase vehicles
- Extra wide design accommodates dually trucks

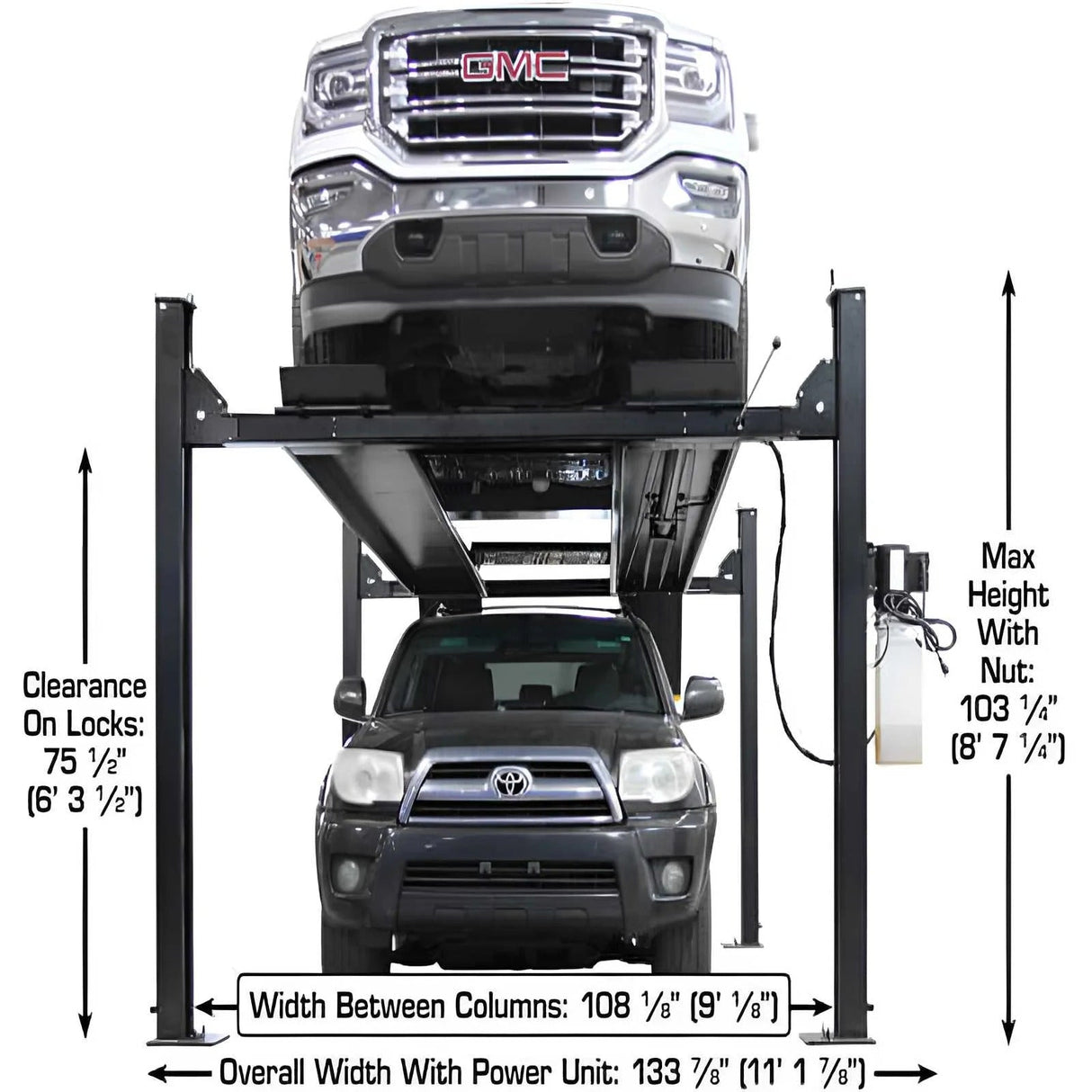

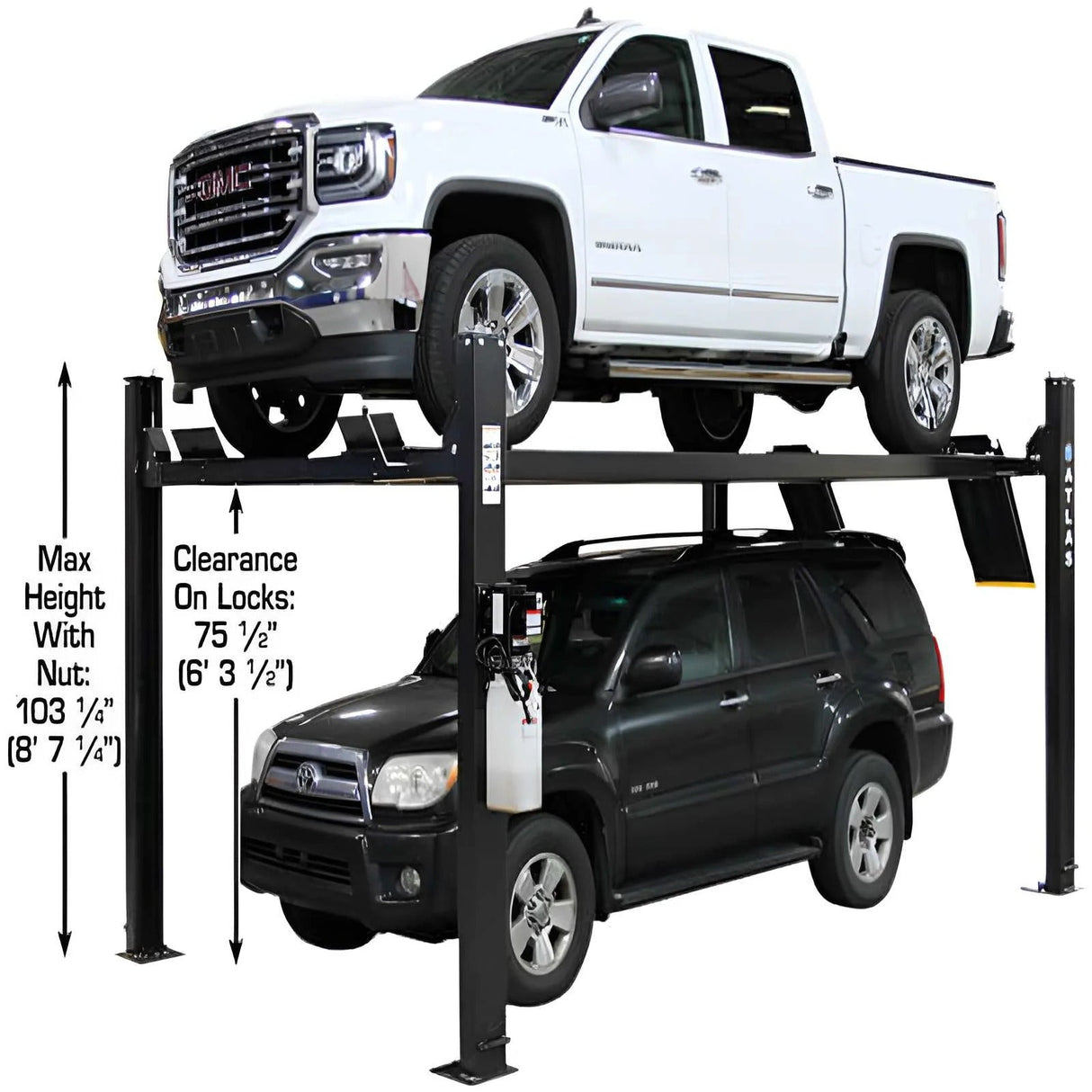

- Increased lift height for vehicle storage
- Steel approach ramps included
- Steel jack tray included
- 4 plastic drip trays included

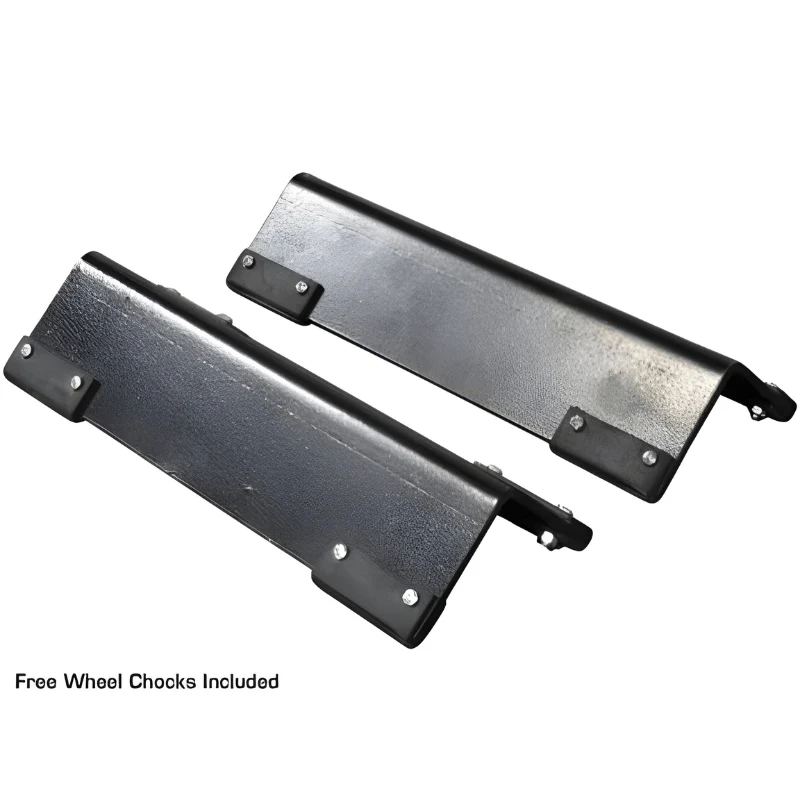

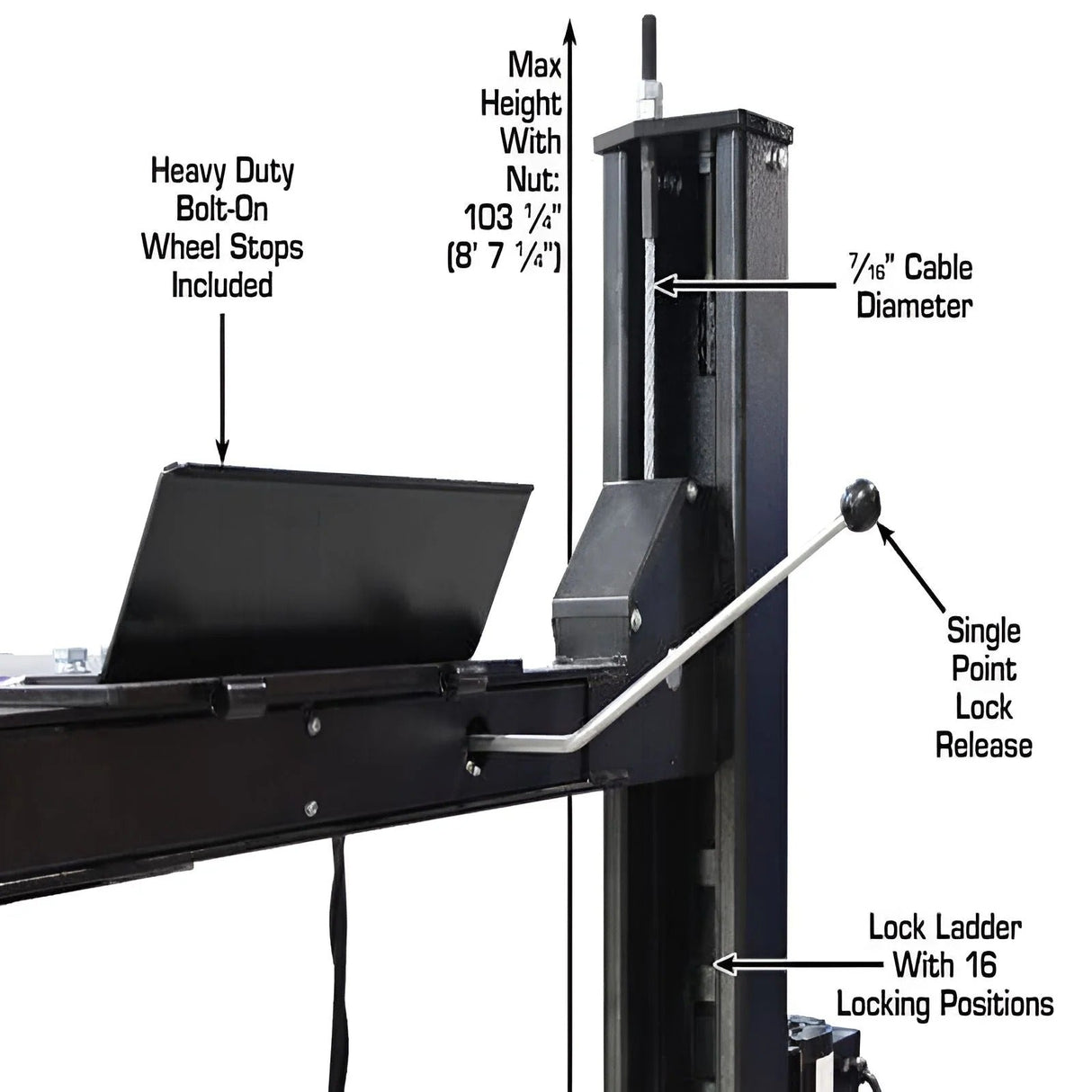

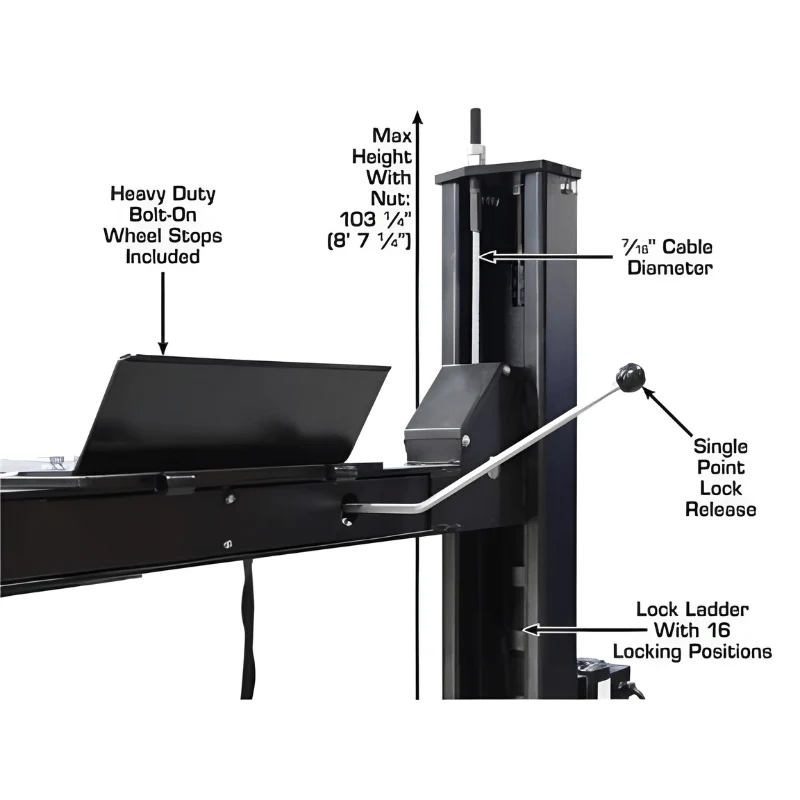

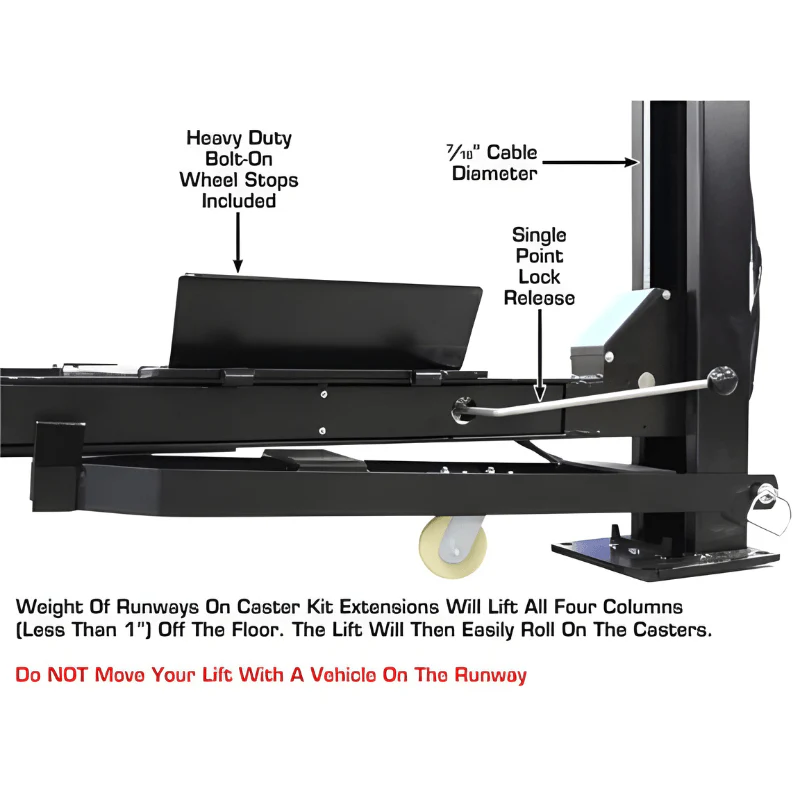

- Wheel stops and wheel chocks included

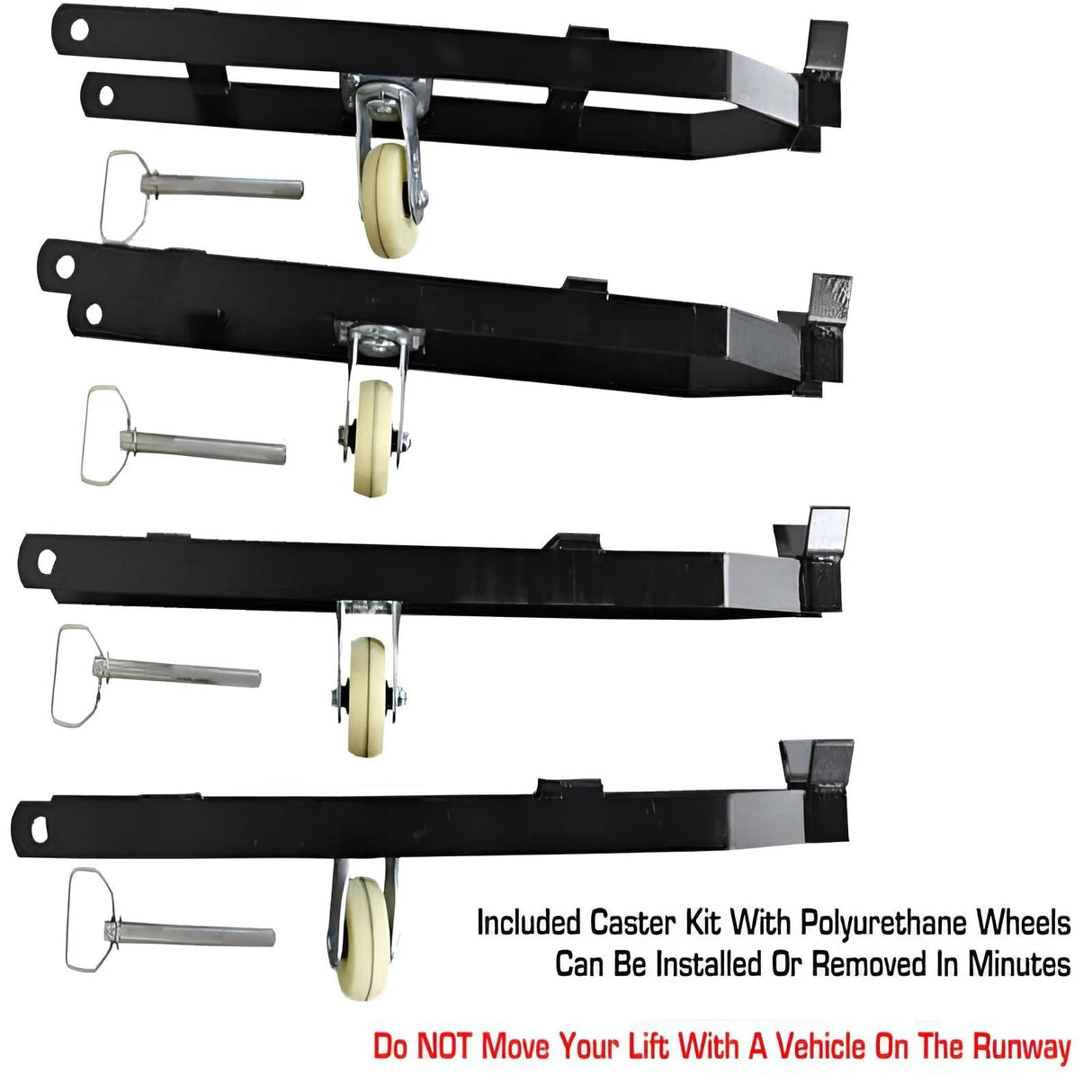

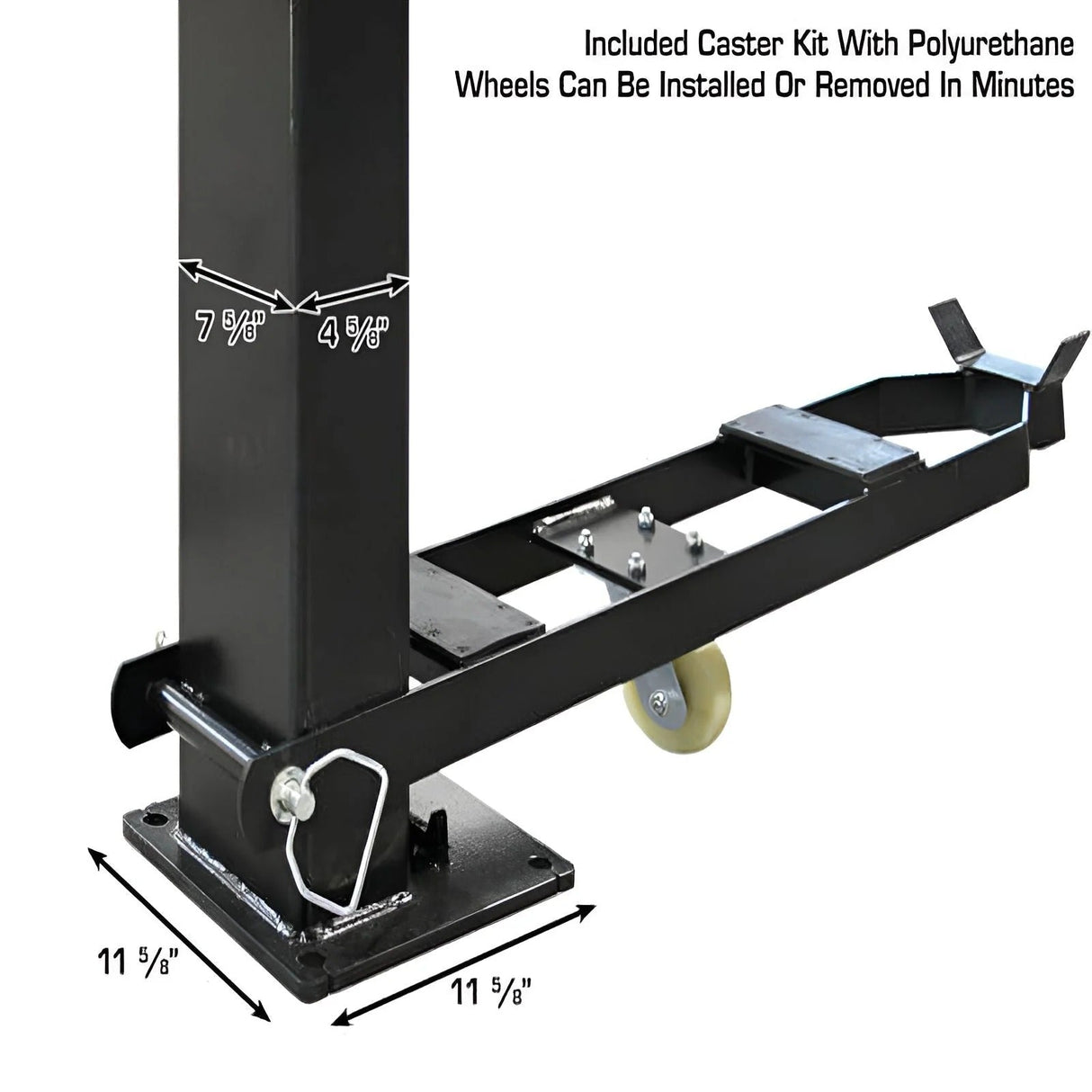

- Optional caster kit for portability (sold separately)
- Rolling jacks are air-over-hydraulic operated
- Truck adapter sets included for each jack
- Ideal for storage, maintenance, and service work
- Freight prepaid
Atlas APEX9
| Specifications | Details |
|---|---|
| Capacity | 9,000 lbs. |

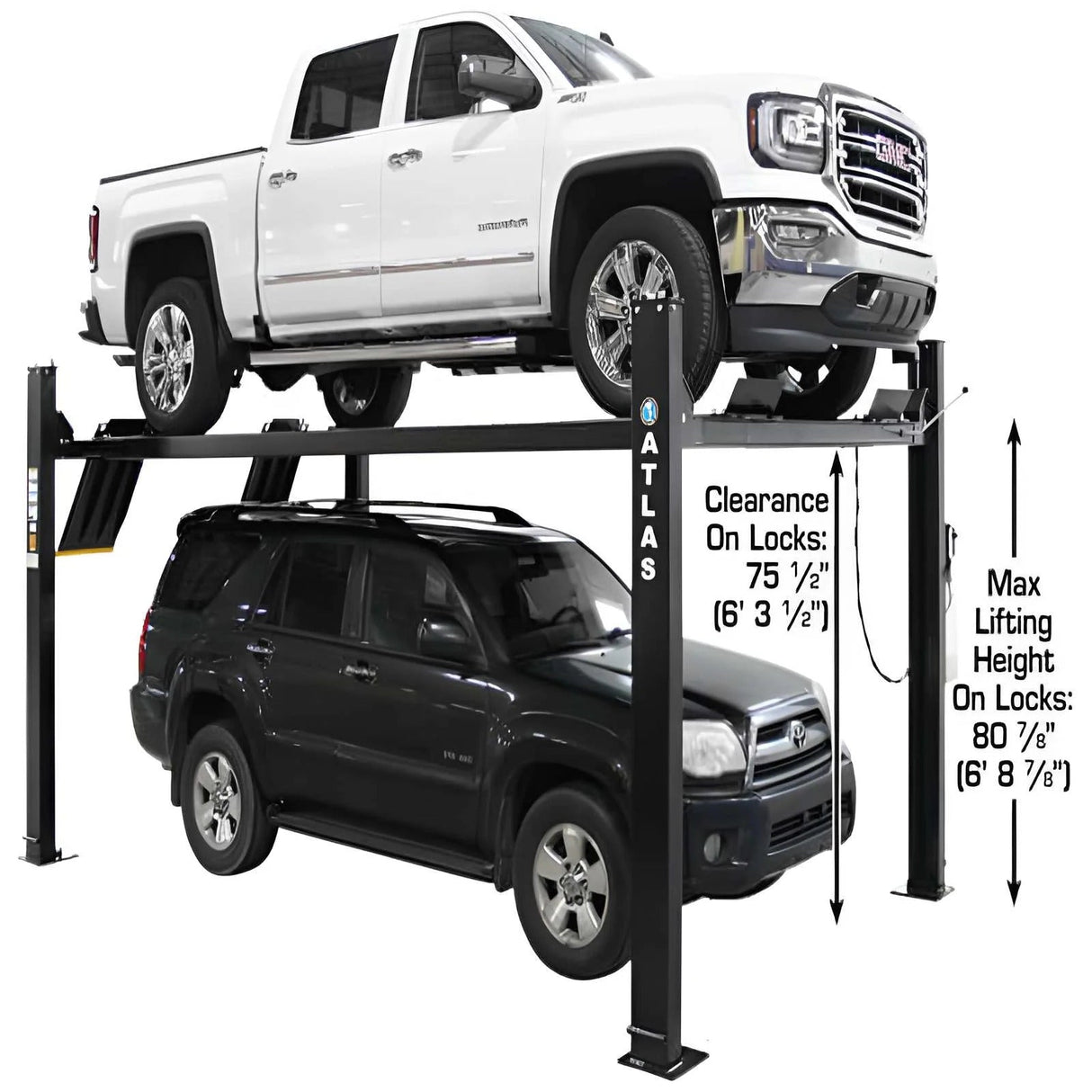

| Lifting Height, Top of Runway | 86" (7' 2") |
| Clearance Under Runways | 81 1/4" (6' 9 1/4") |
| Height of Columns | 99" (8' 3") |

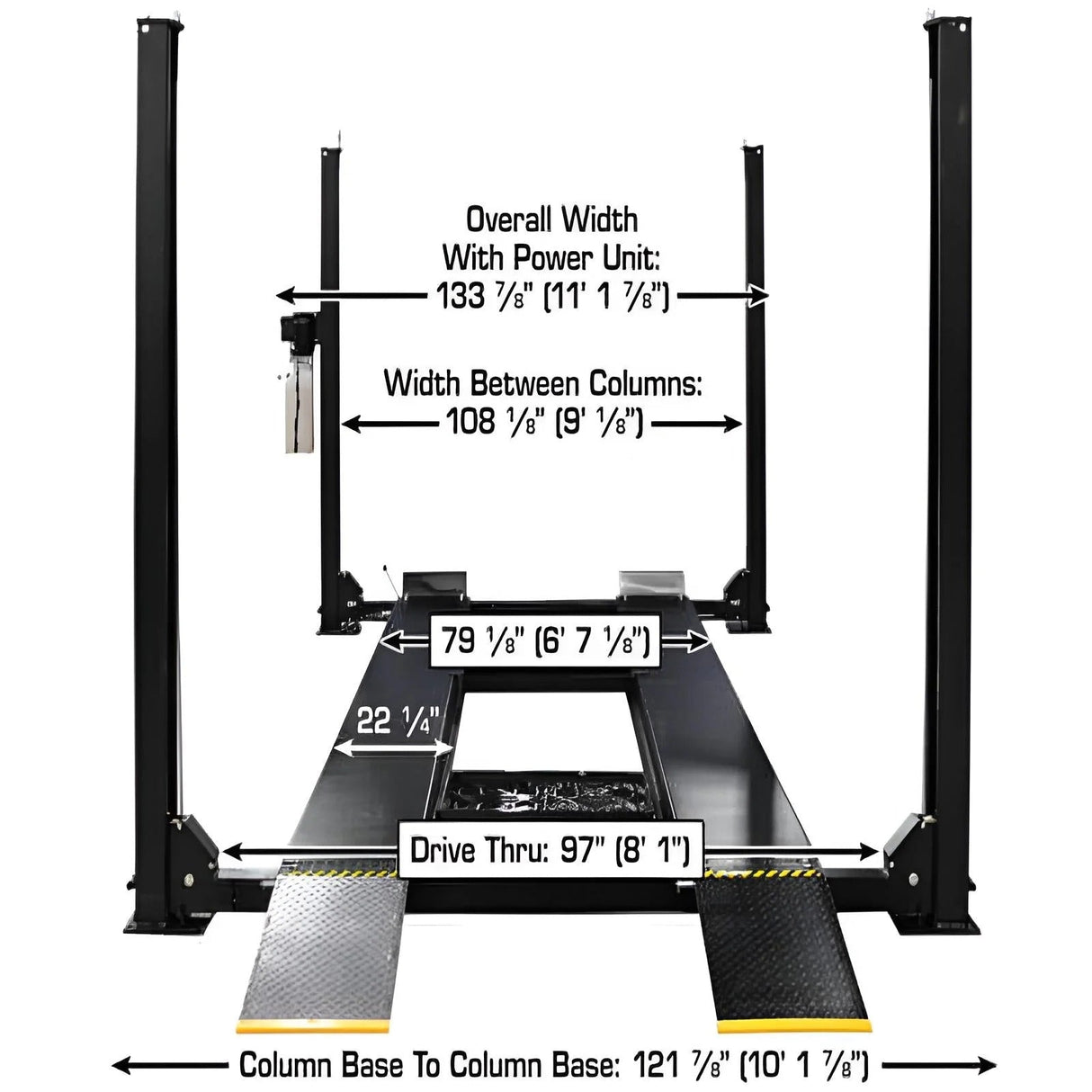

| Overall Width | 121 7/8" (10' 1 7/8") / w/ Motor 133 7/8" (11' 1 7/8") |
| Overall Length w/ Ramps | 227 1/2" (18' 11 1/2") |
| Runway Length | 196 1/2" (16' 4 1/2") |

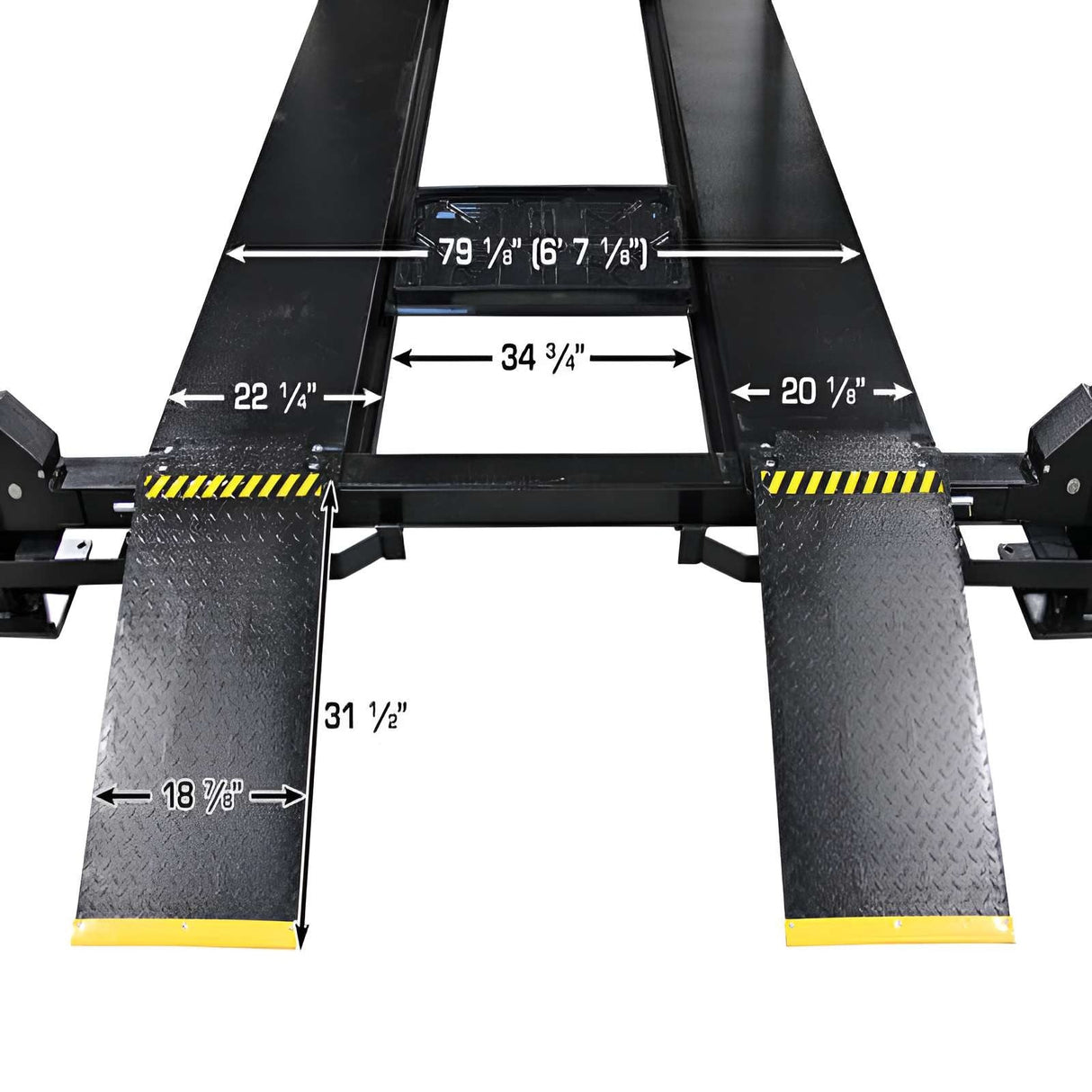

| Runway Width | 20 1/8" |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 38 7/8" / w/ Rail 34 3/4" |
| Outside Runway to Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 108 1/8" (9' 1/8") |

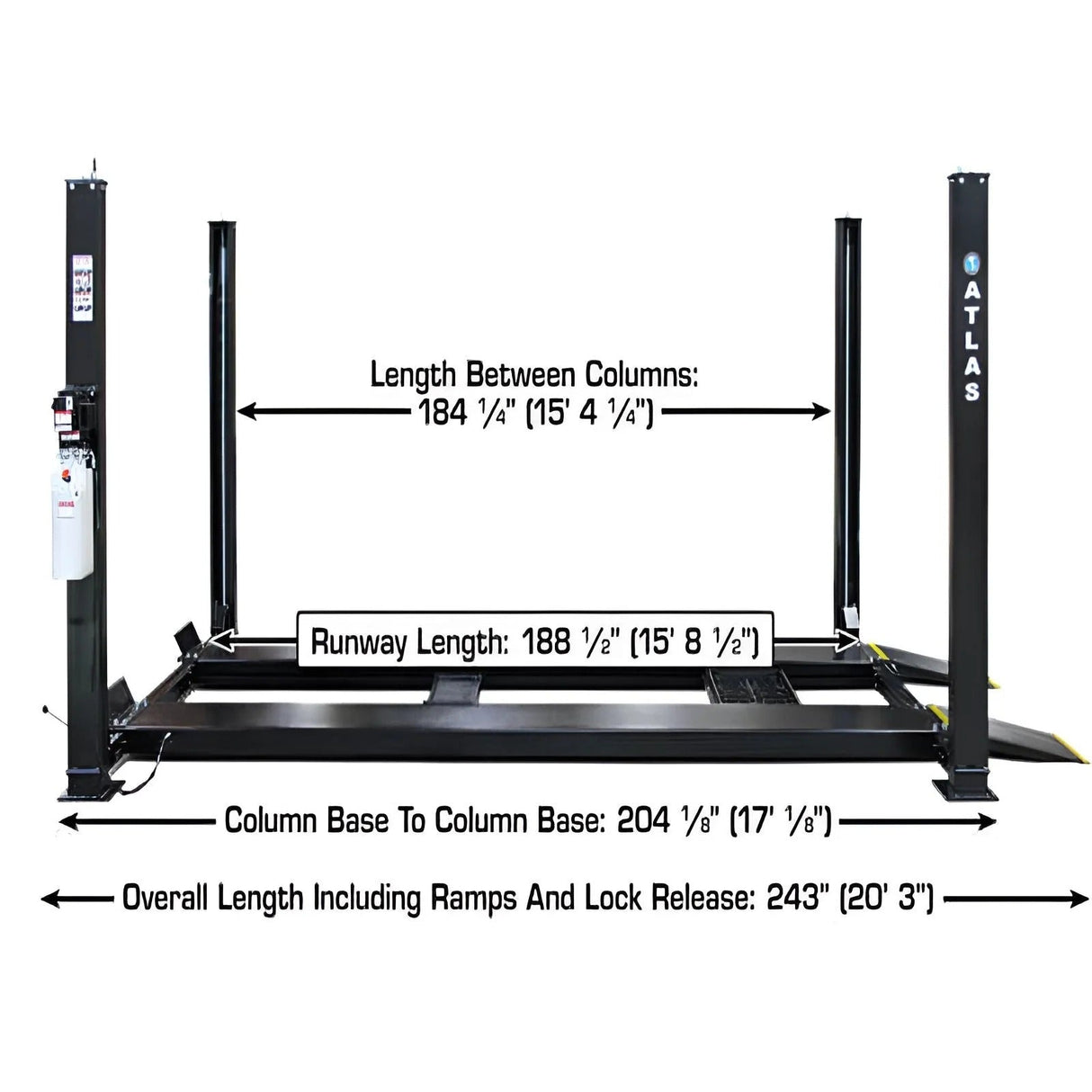

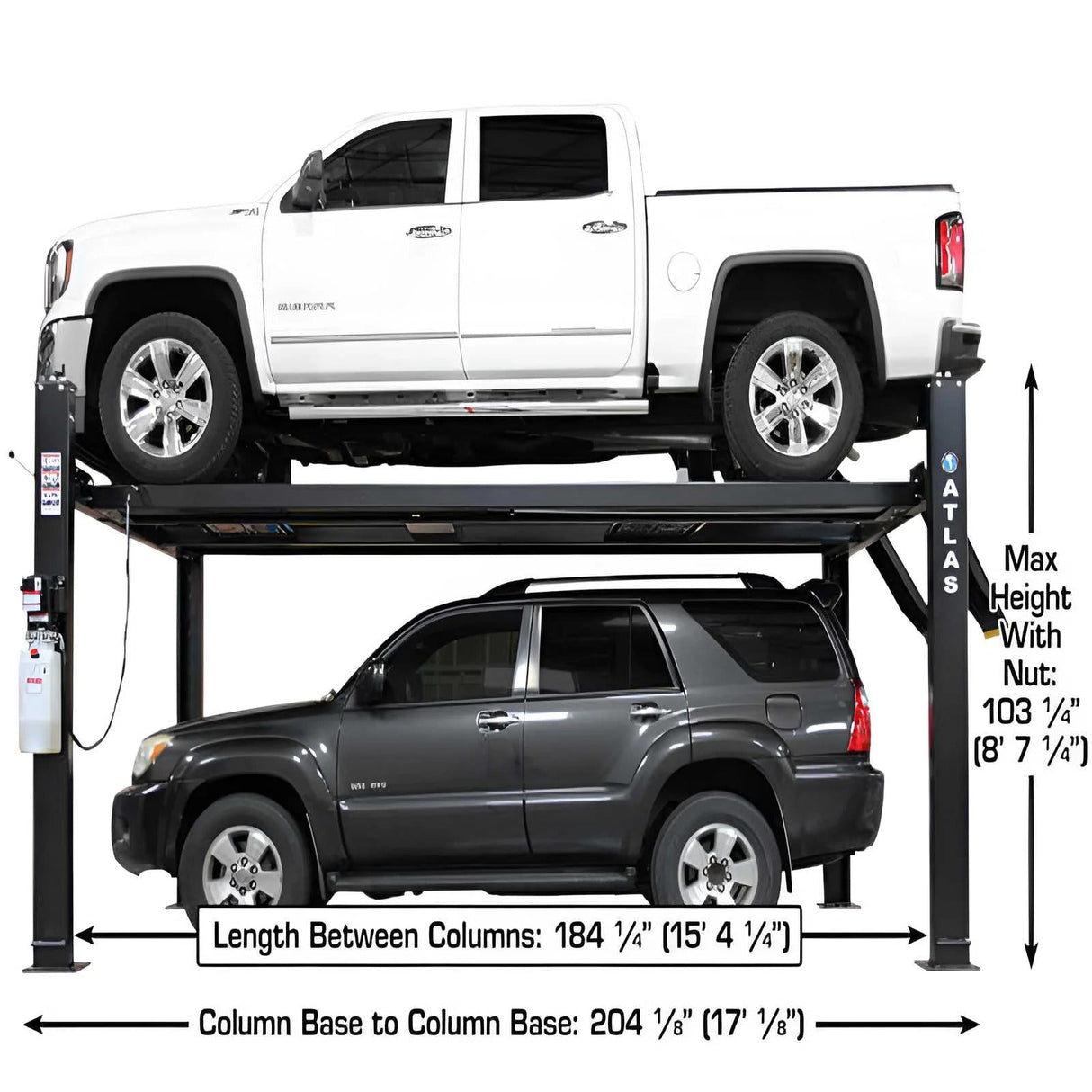

| Length Between Columns | 184 1/4" (15' 4 1/4") |
| Drive Thru | 98 5/8" (8' 2 5/8") |

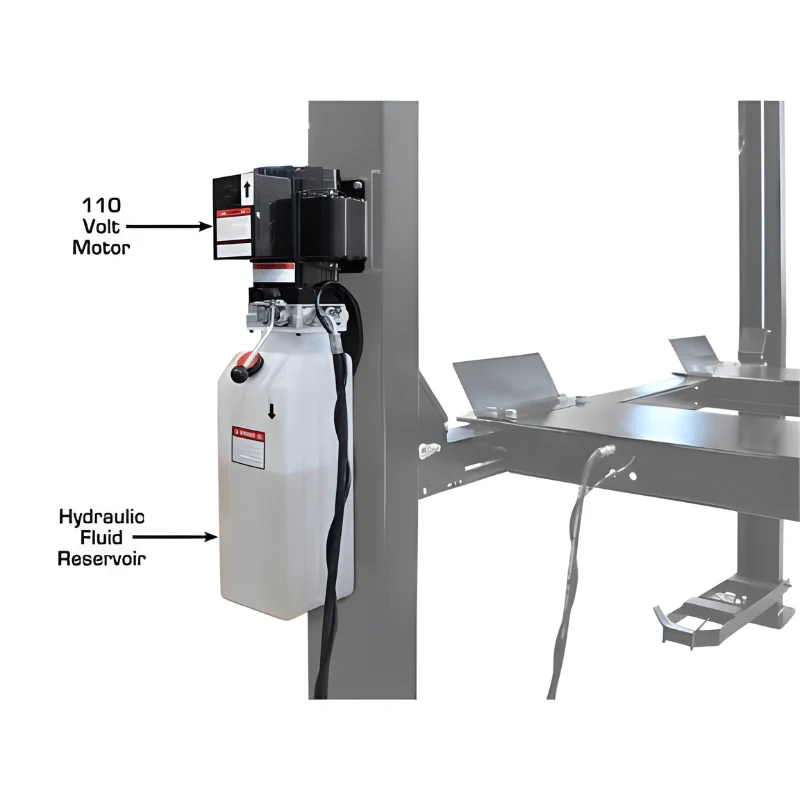

| Motor/Electrical Requirement | 110V, 30 Amp Breaker Required |
| Oil Requirement | 3–5 Gallons AW32 or AW46 (Not Included) |

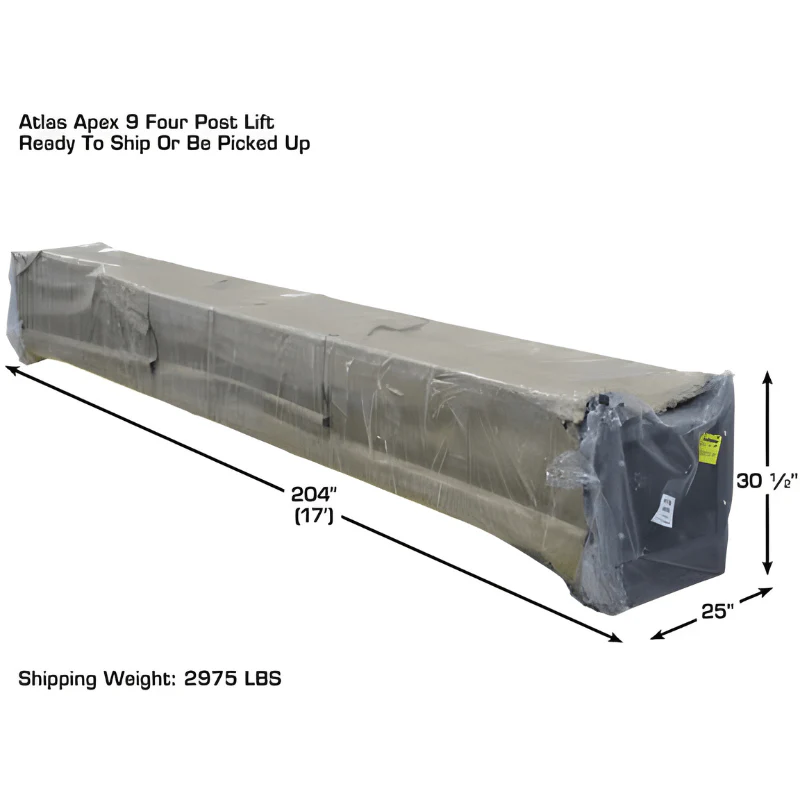

| Shipping Weight | 2,975 lbs. |

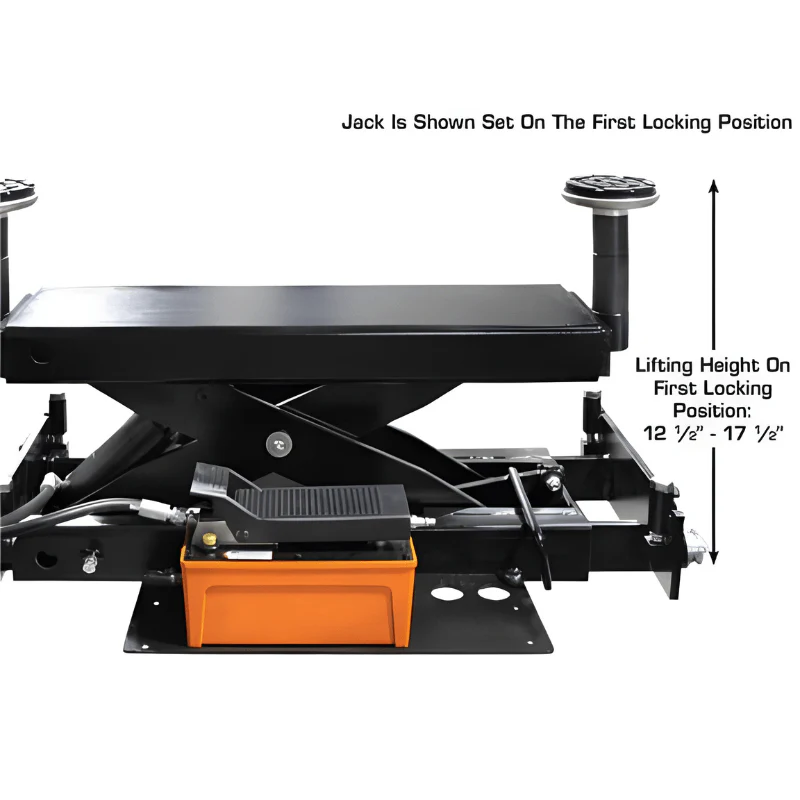

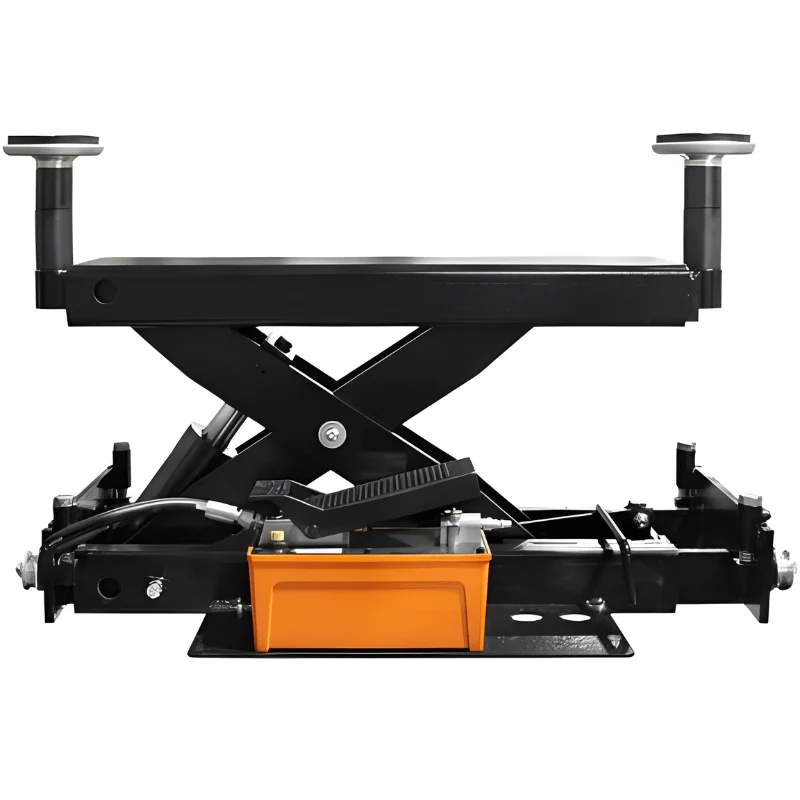

Atlas RJ6BK
| Specifications | Details |
|---|---|
| Capacity | 6,000 lbs. |

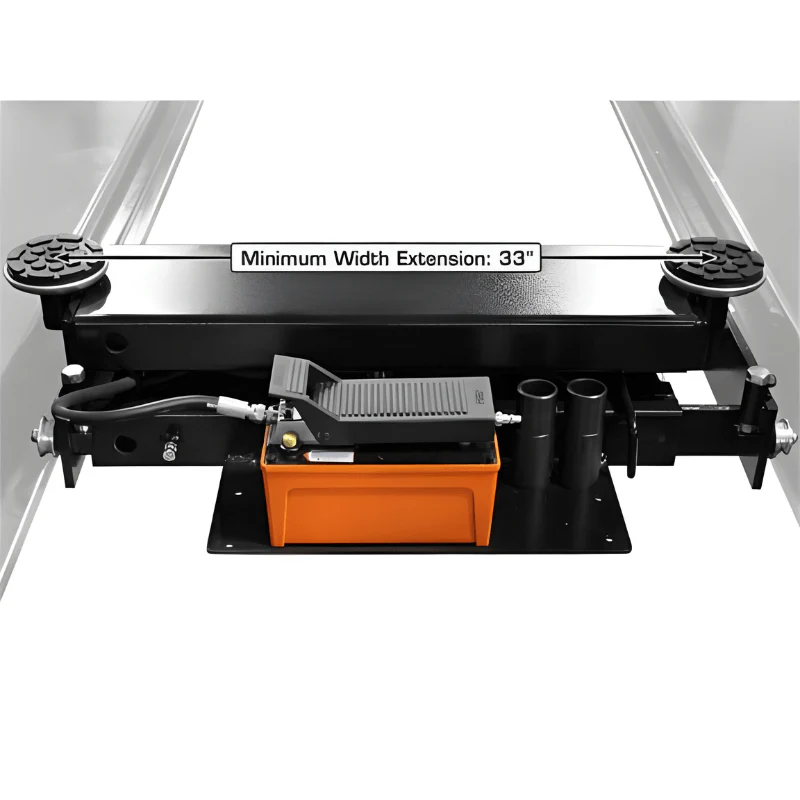

| Minimum Width | 35" |
| Maximum Width | 55" |
| Distance Between Runway Capability | 32" – 52" |
| Minimum Lifting Height | 8 1/4" |

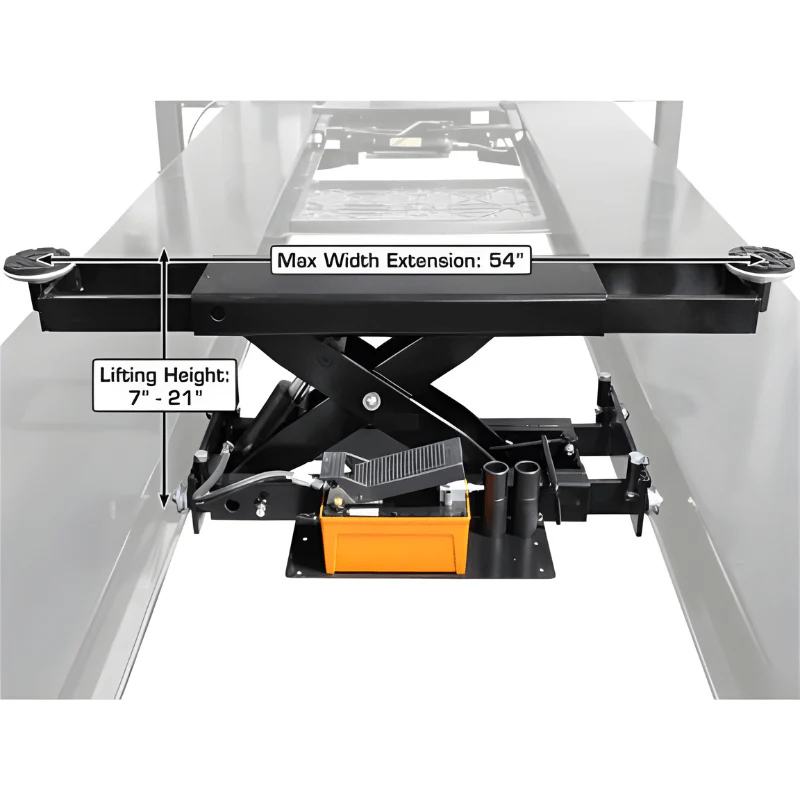

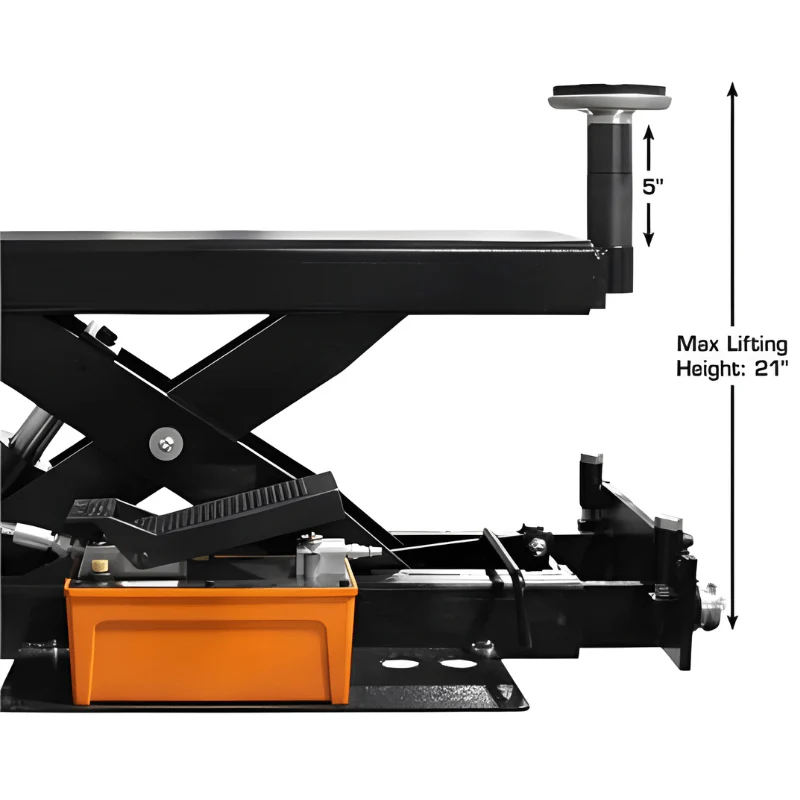

| Maximum Lifting Height (w/ Adapters) | 21" |
| Air Requirement | 70–115 PSI |

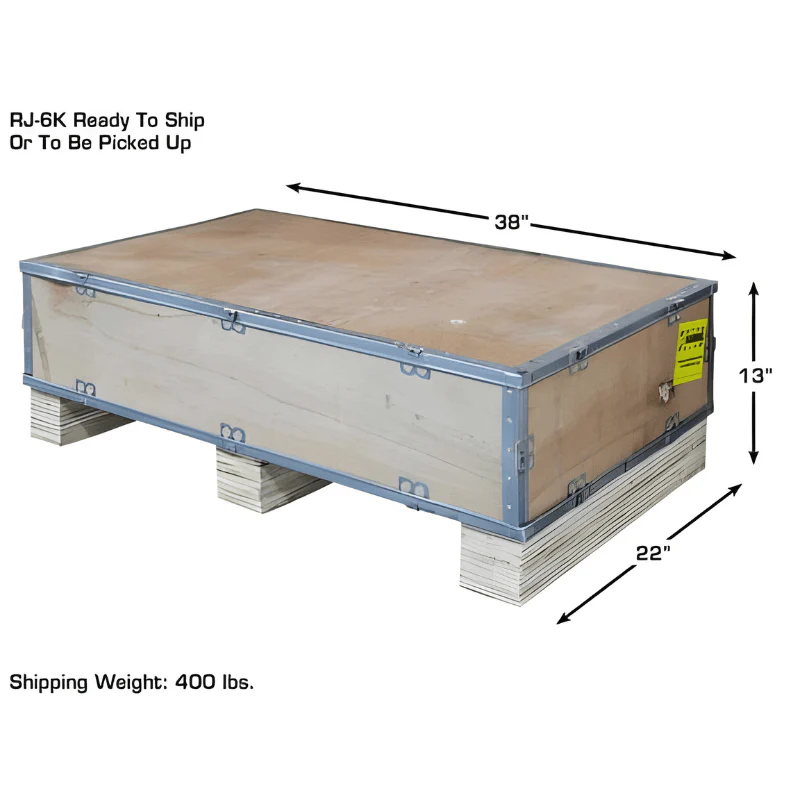

| Shipping Weight | 350 lbs. |

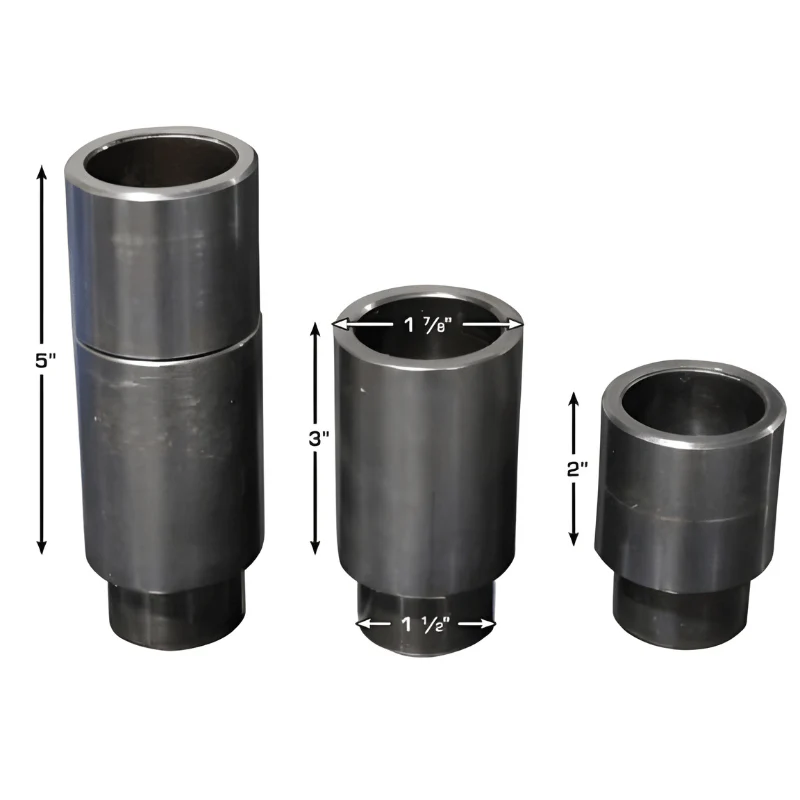

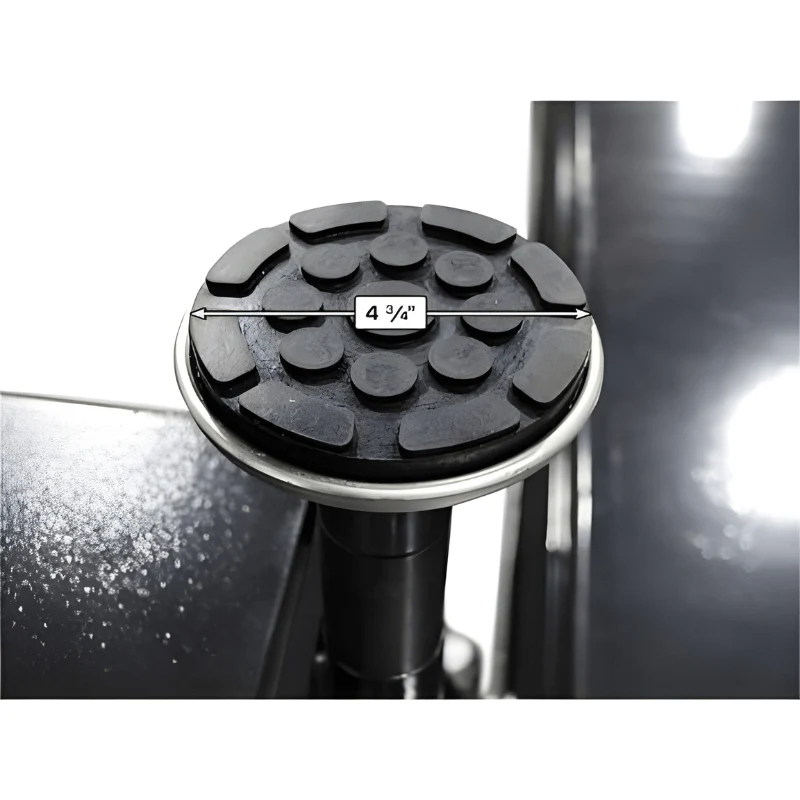

| Adapter Heights | 2 Each: 2", 3" |
| Arm Hole/Adapter Peg Size | 1 1/2" |
