Atlas Garage PRO8000 8,000 lb 4-Post Lift

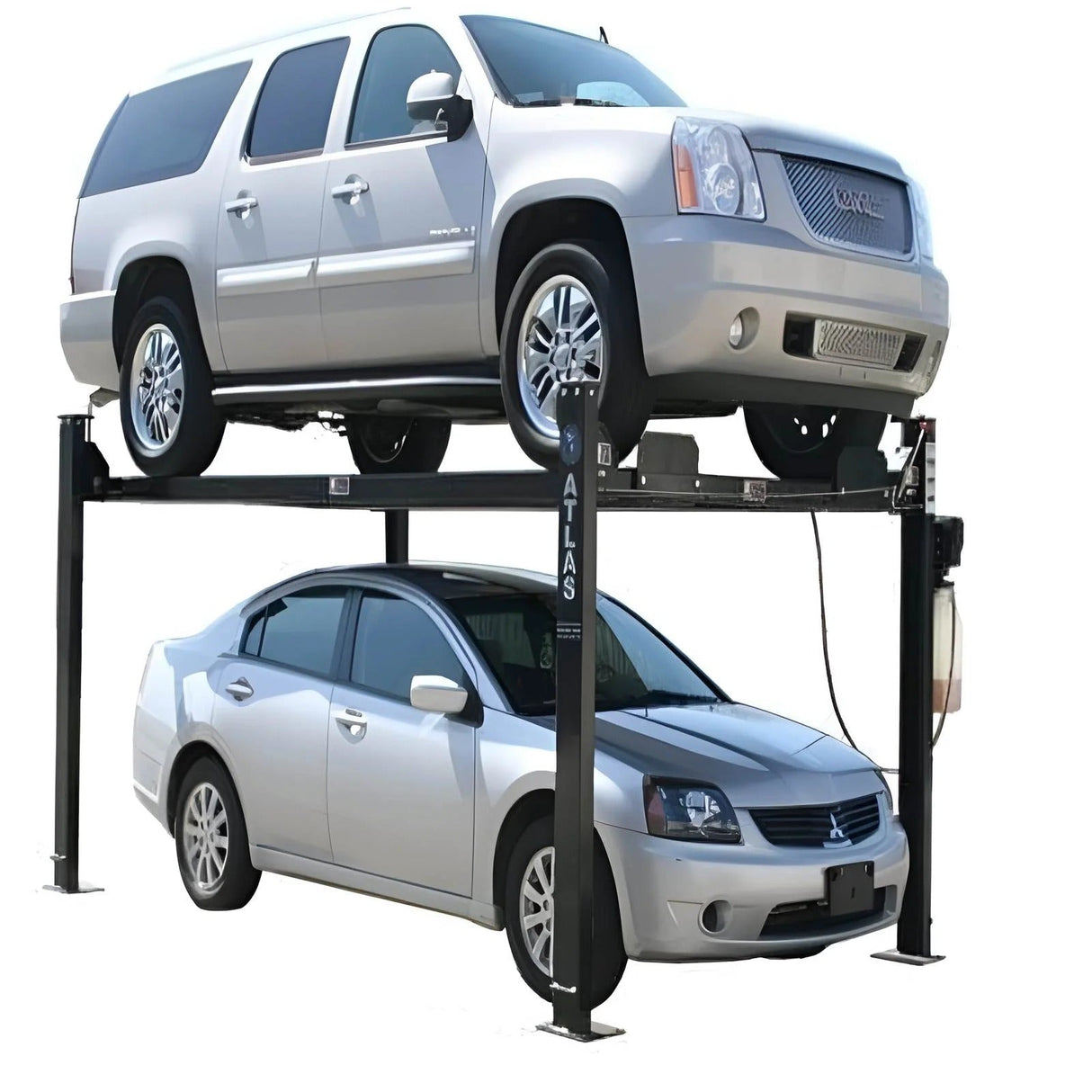

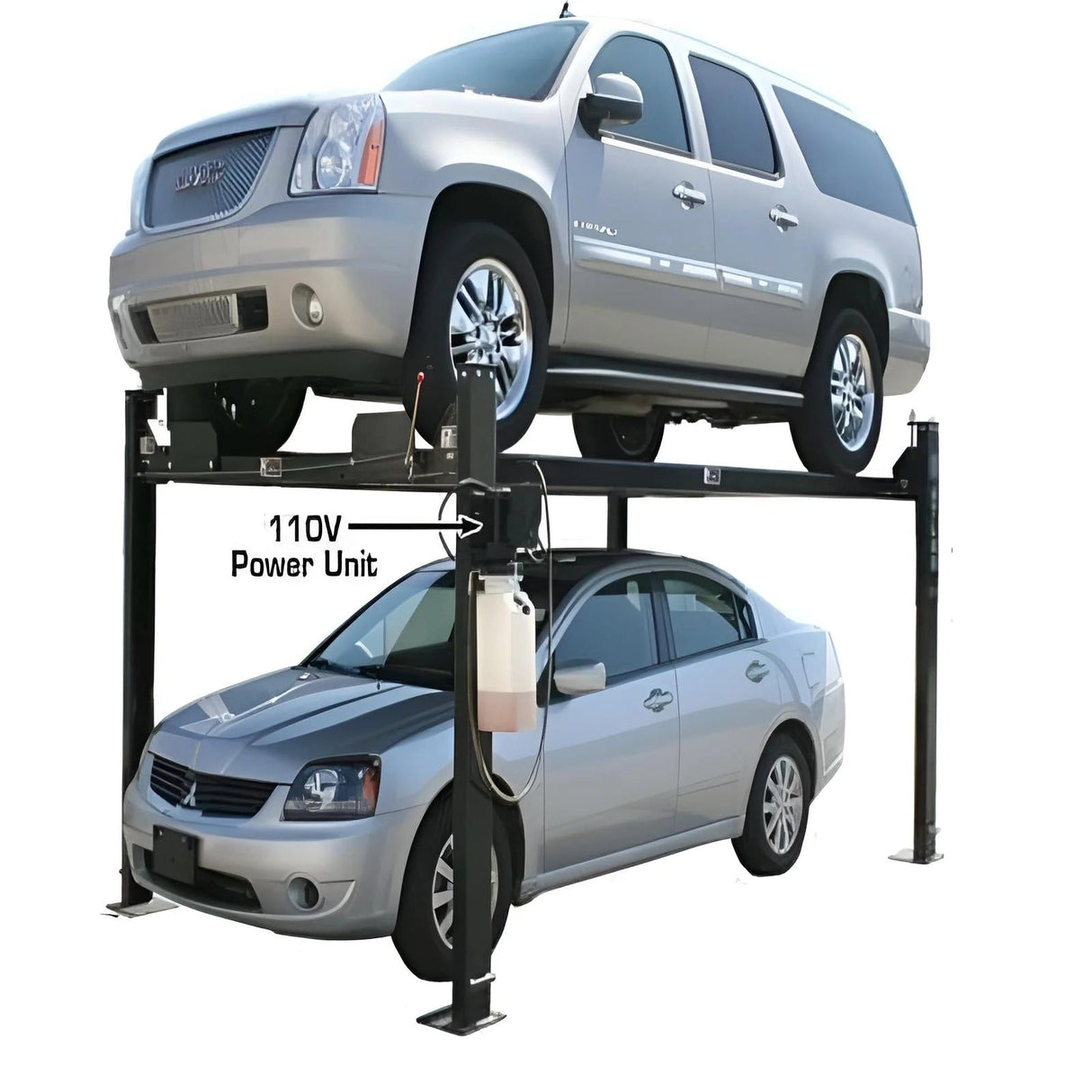

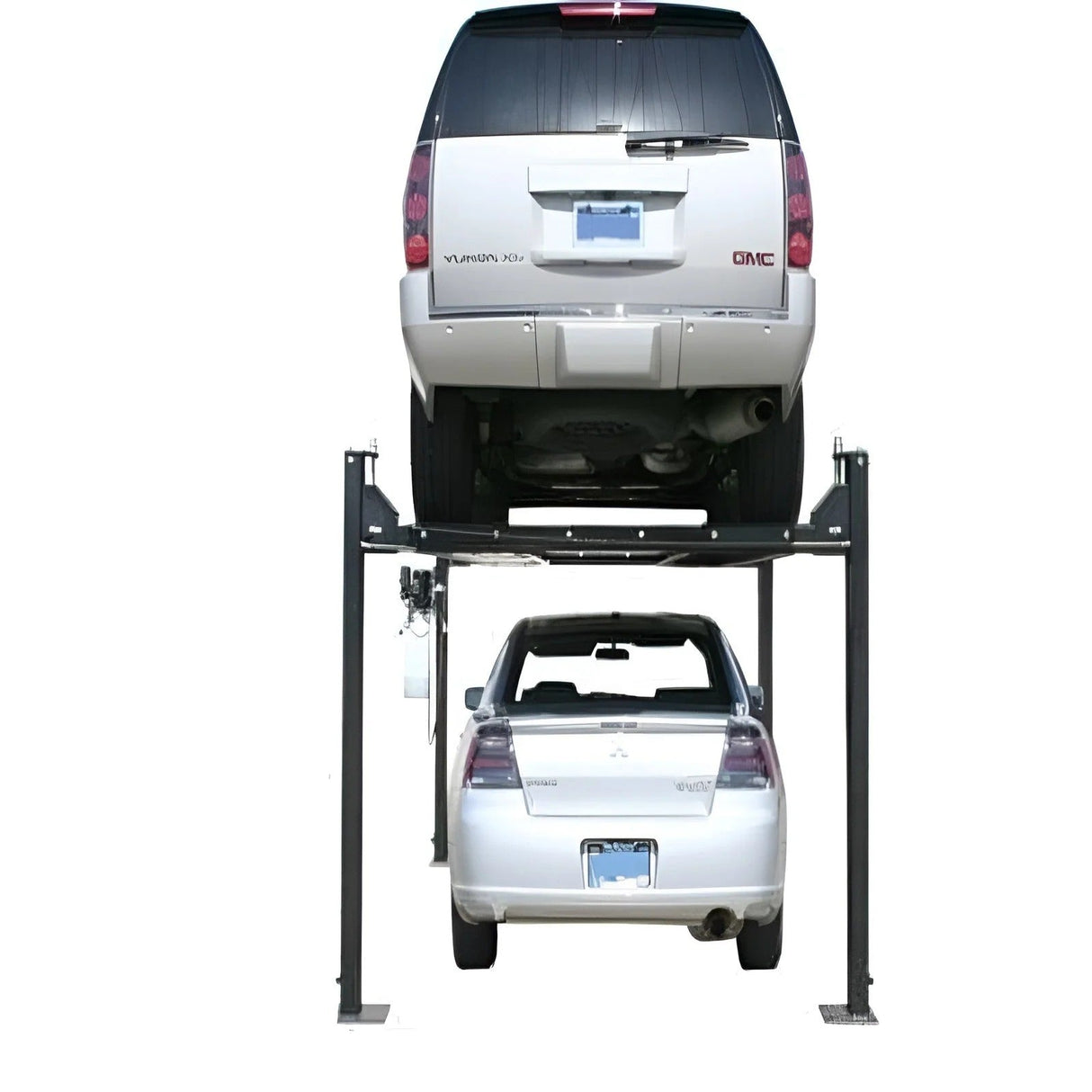

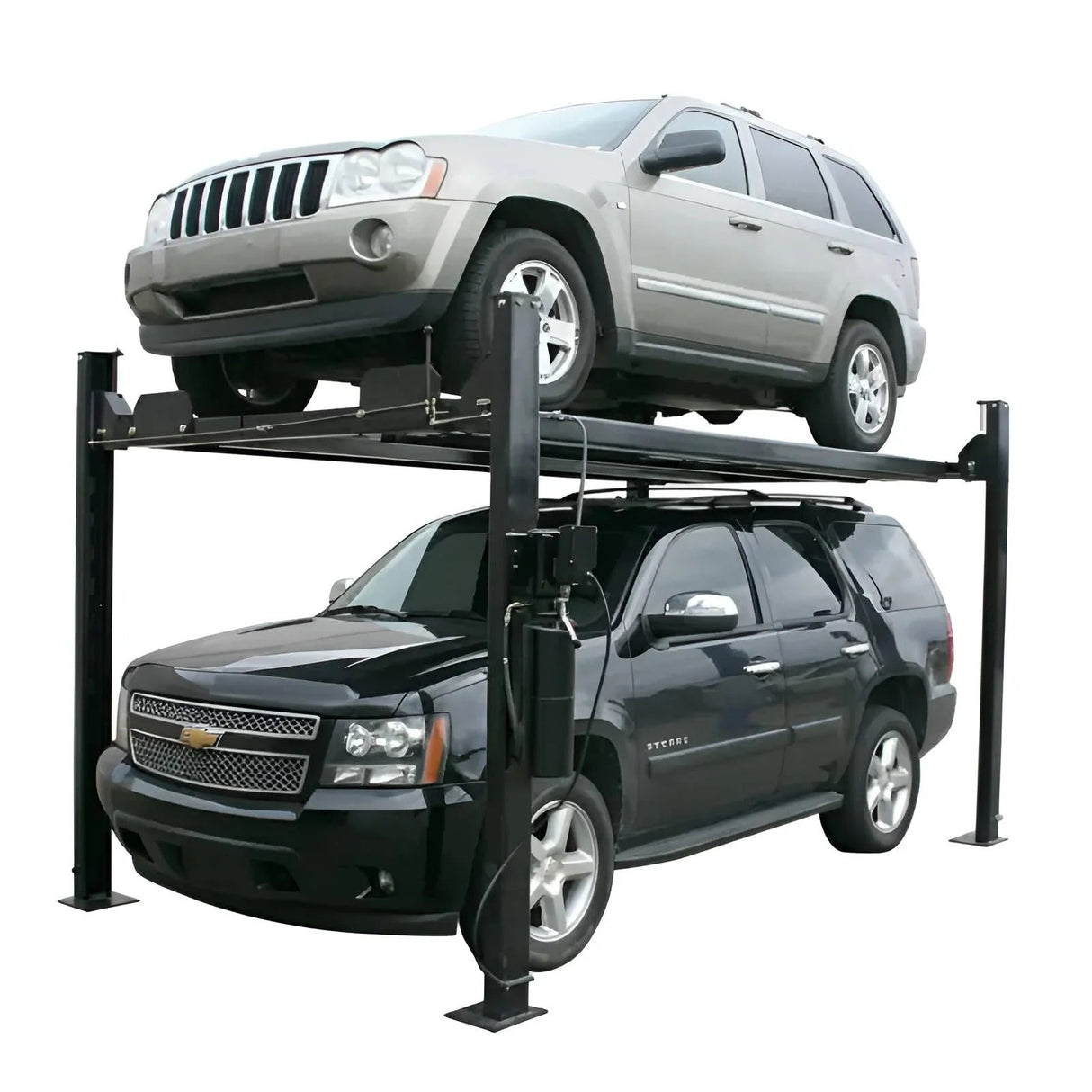

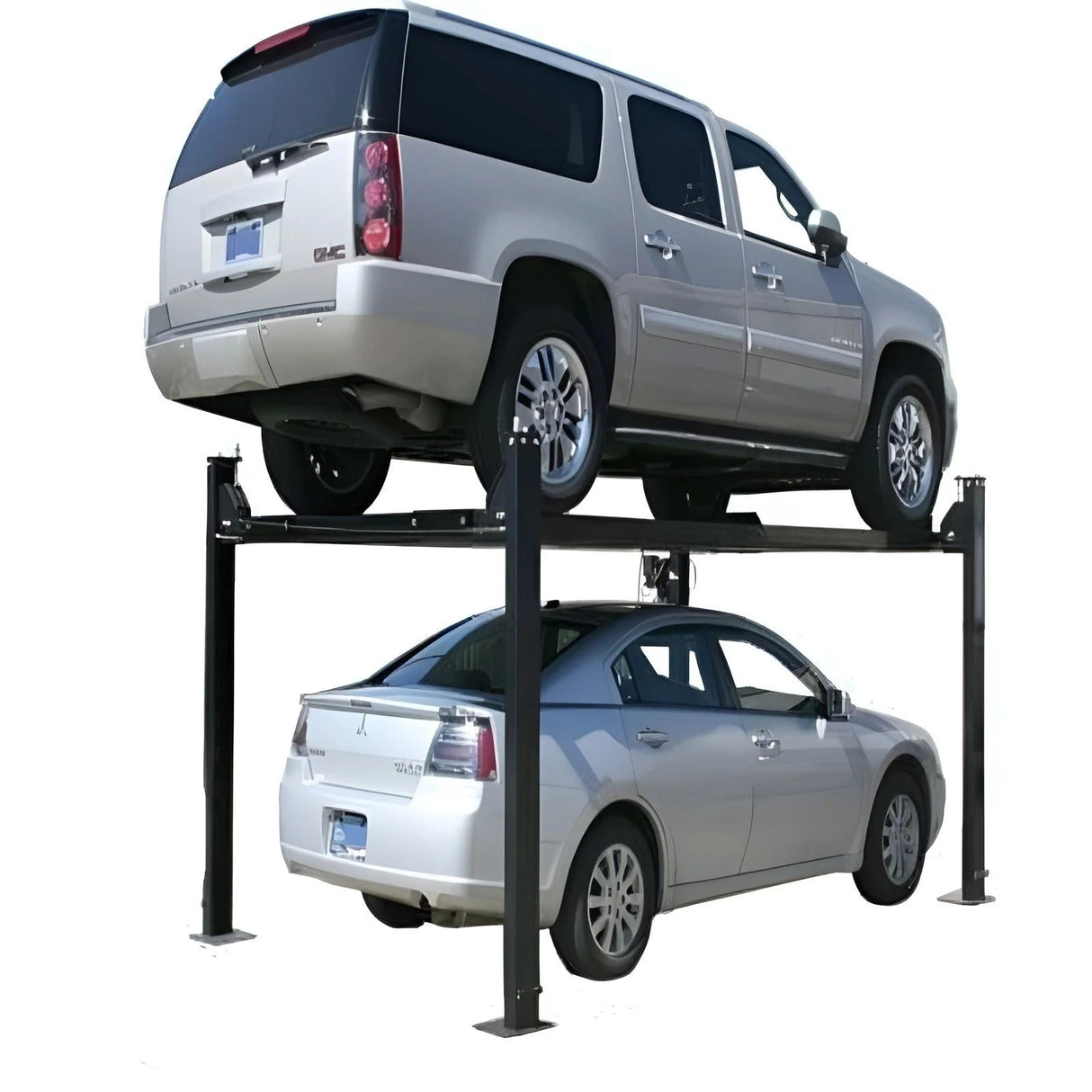

The Atlas Garage PRO8000 is one of the most popular 4-post lifts designed for home garages and restoration shops that need efficient vehicle storage and light service capability. With an 8,000 lb lifting capacity, it allows users to maximize space by stacking vehicles, making it ideal for those with limited garage space.

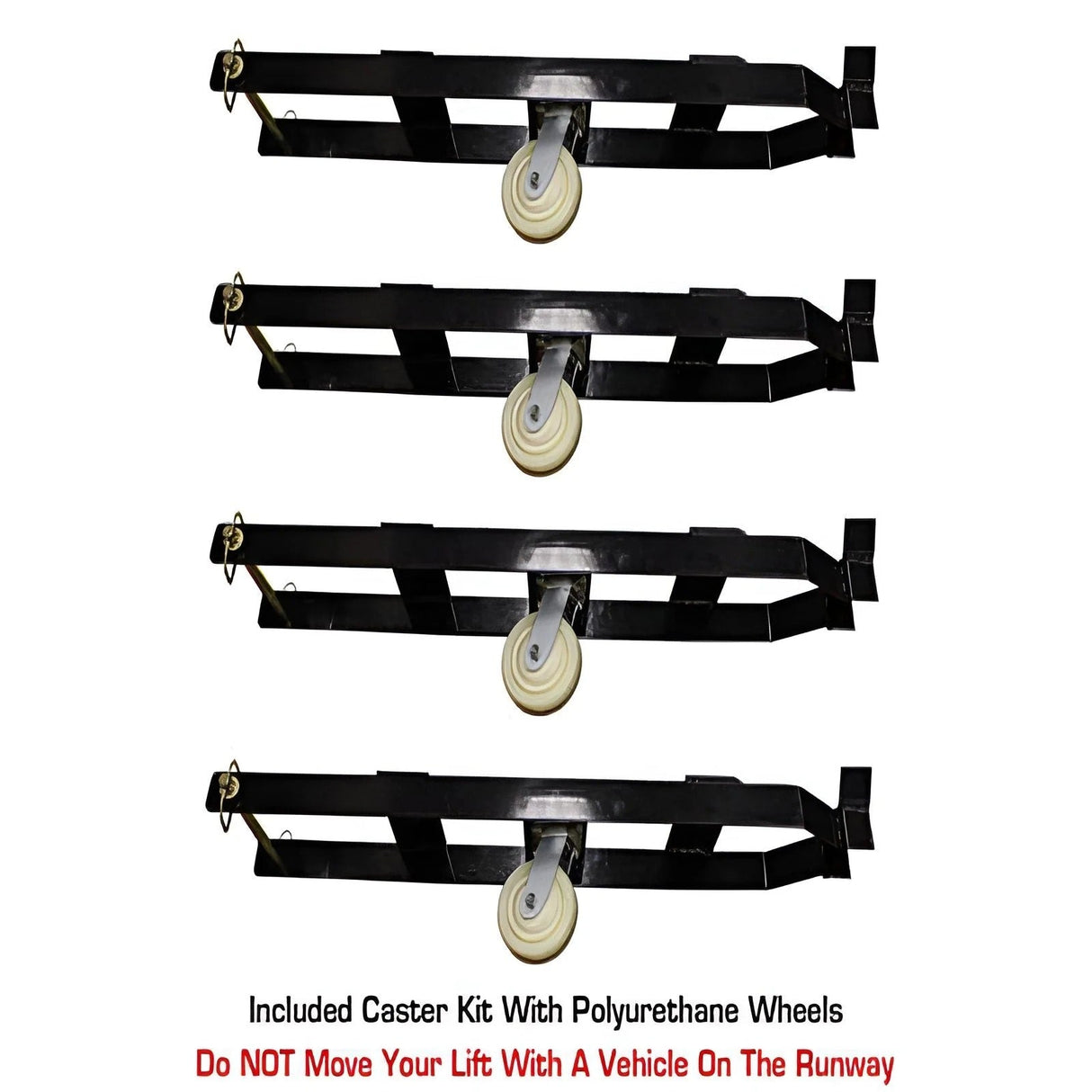

This lift features a free-standing, portable design and includes a caster kit with polyurethane wheels, allowing it to be easily repositioned within a garage or moved between work areas. The system is designed for convenience and flexibility, making it a strong choice for hobbyists and personal use.
Built with diamond-plated runways for added durability and traction, the PRO8000 also includes a lock ladder system and double lock safety mechanism to ensure secure operation. The single-point lock release simplifies lowering the lift, improving ease of use.
Additional accessories such as steel approach ramps, a steel jack tray, plastic drip trays, wheel stops, and rubber wheel chocks are included, making this a complete solution for both storage and maintenance needs.
This lift is specifically designed for residential and light-use environments and is not intended for high-cycle commercial shop use.
Features and Benefits
- 8,000 lb capacity
- Free-standing portable design
- Diamond-plated runways

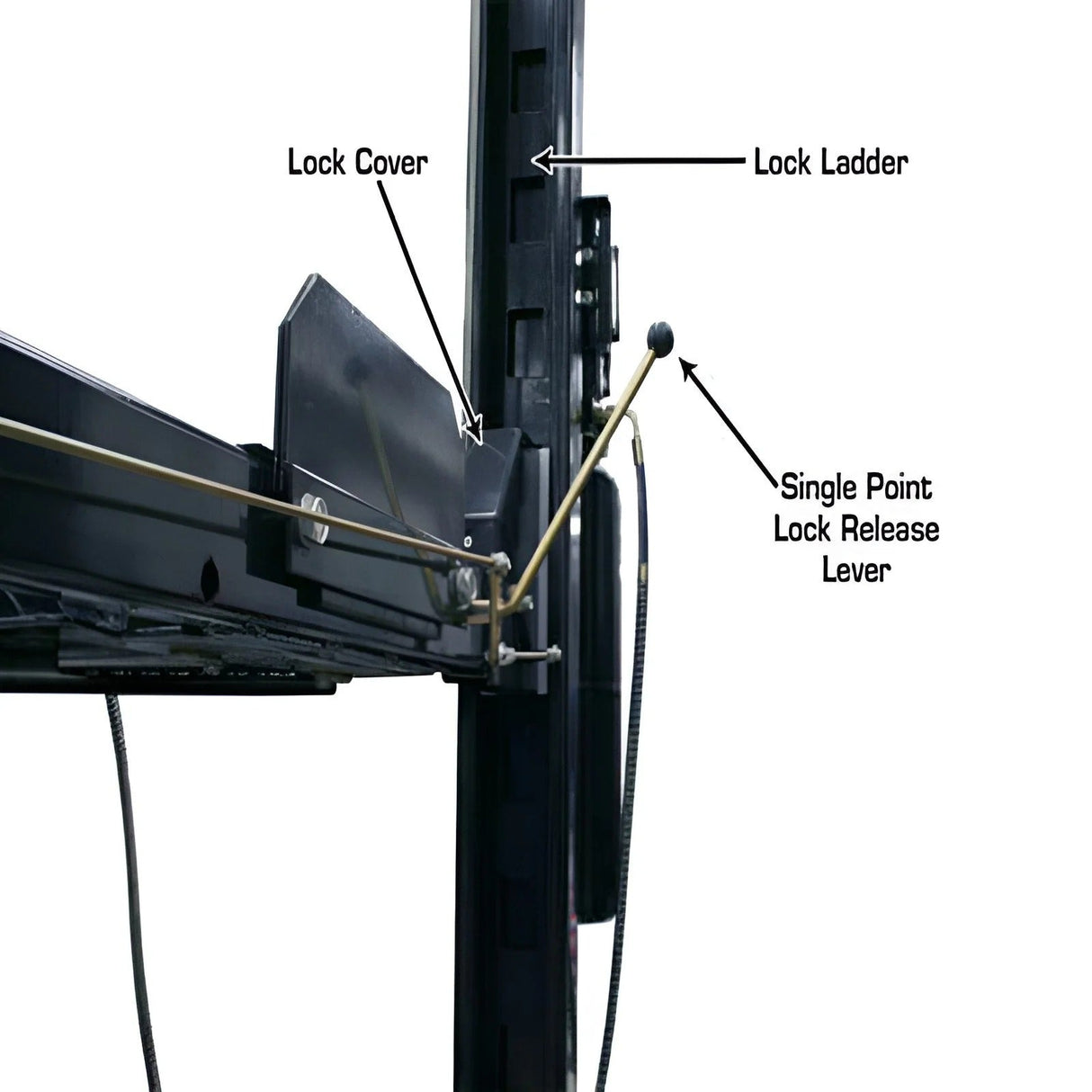

- Single-point lock release

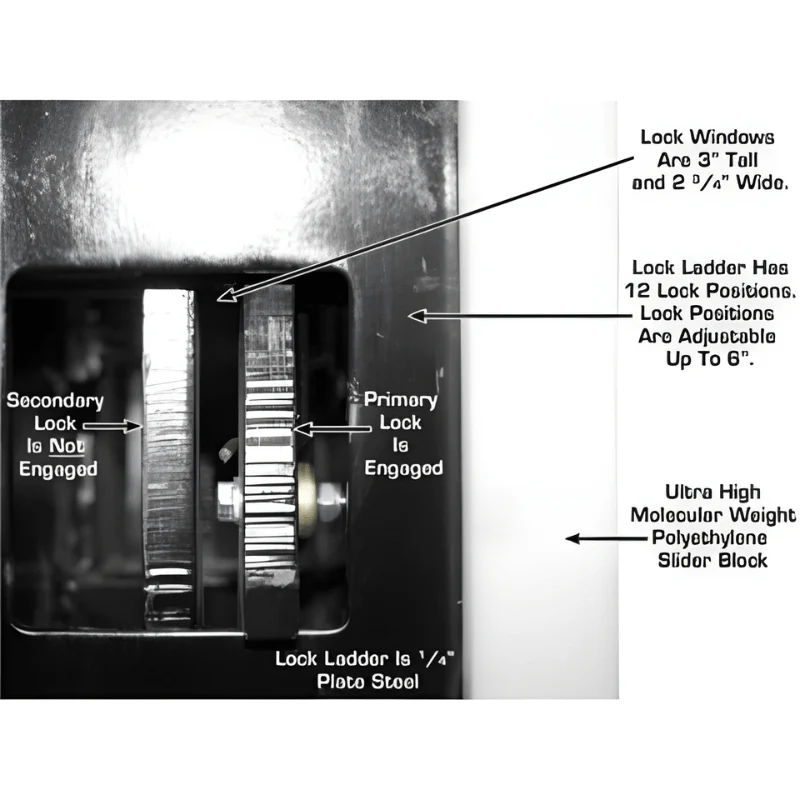

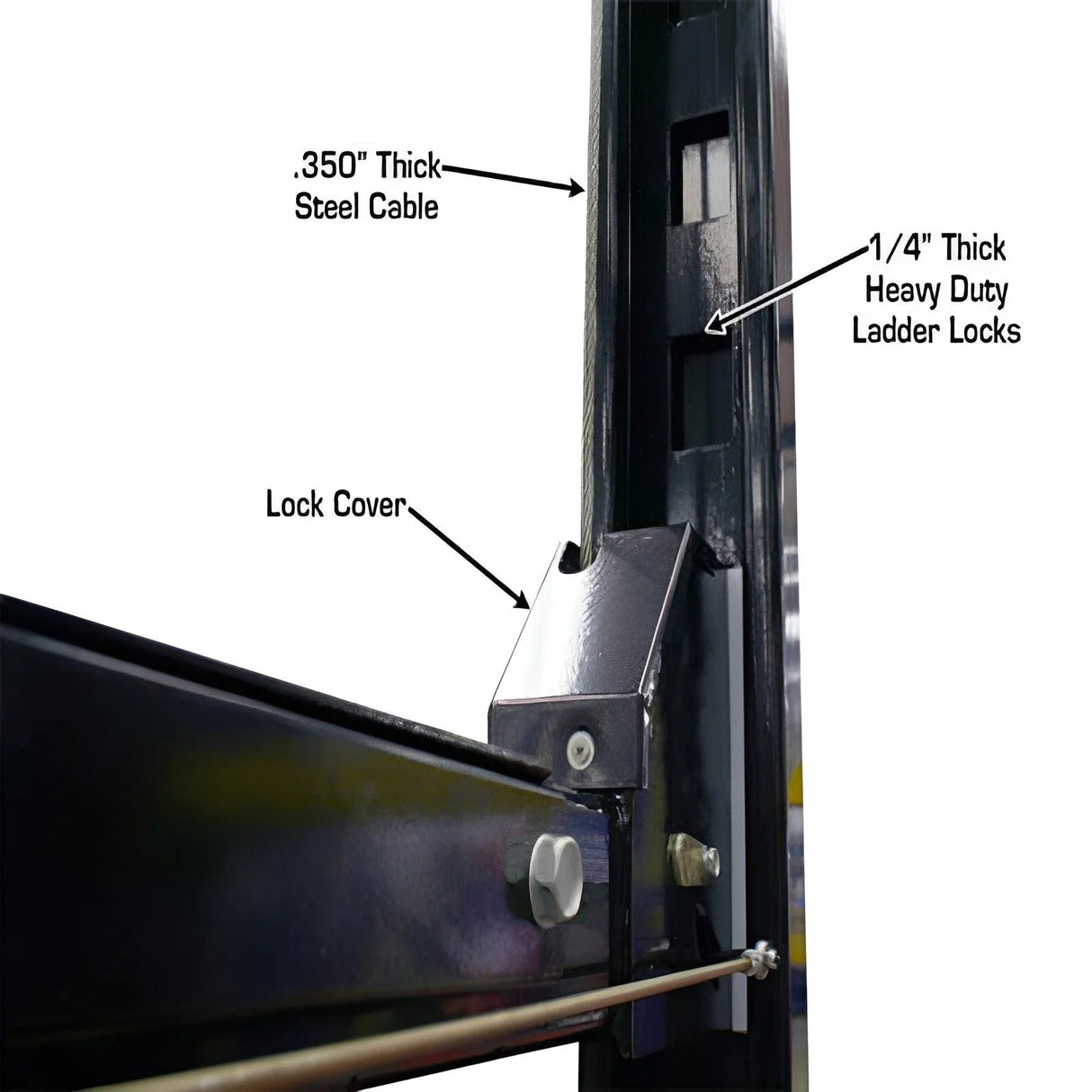

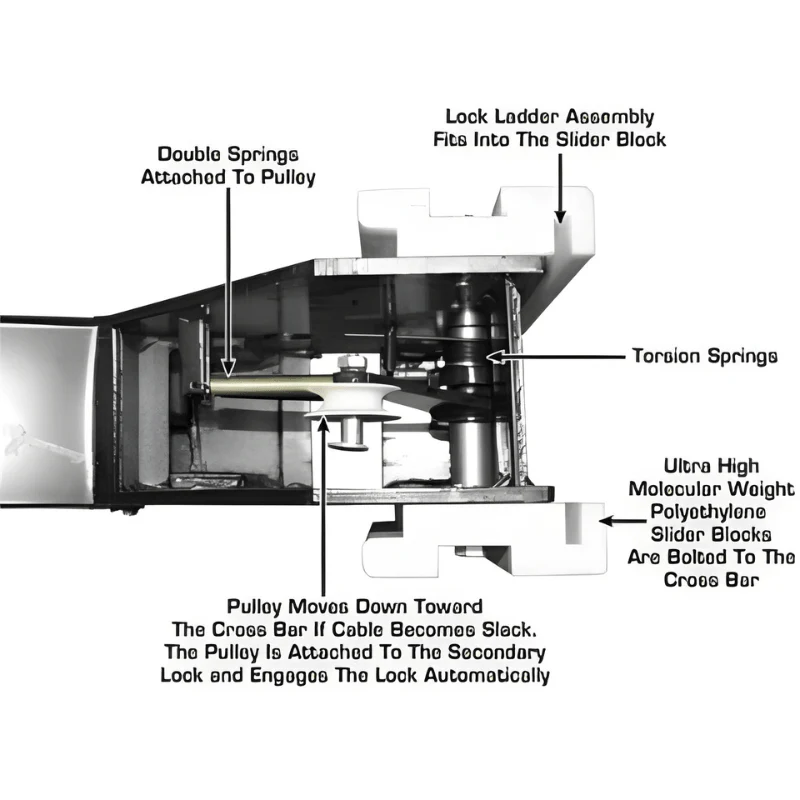

- Lock ladder design

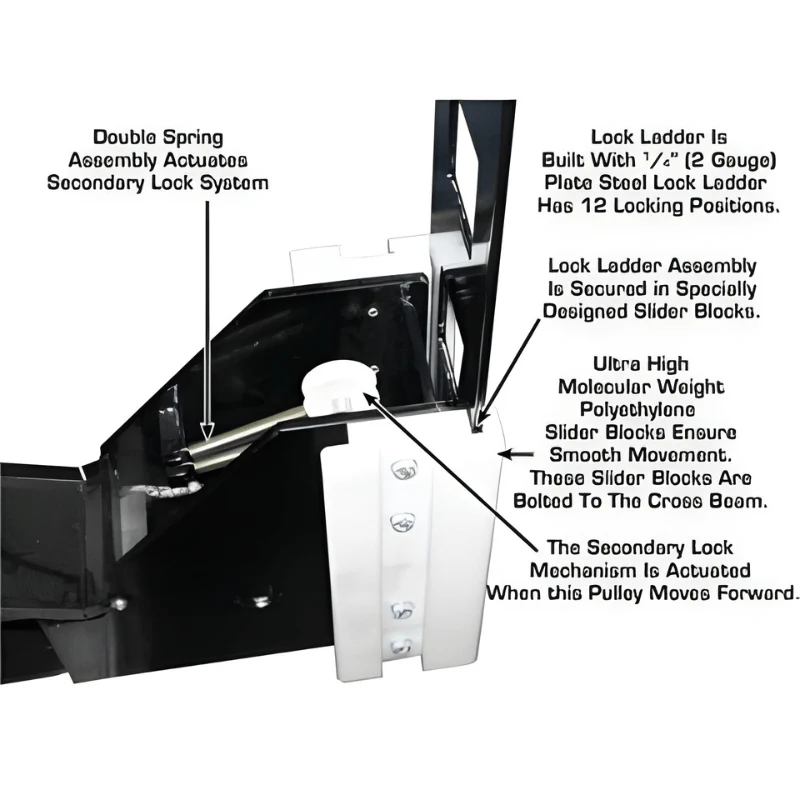

- Double lock safety system
- Caster kit with polyurethane wheels included

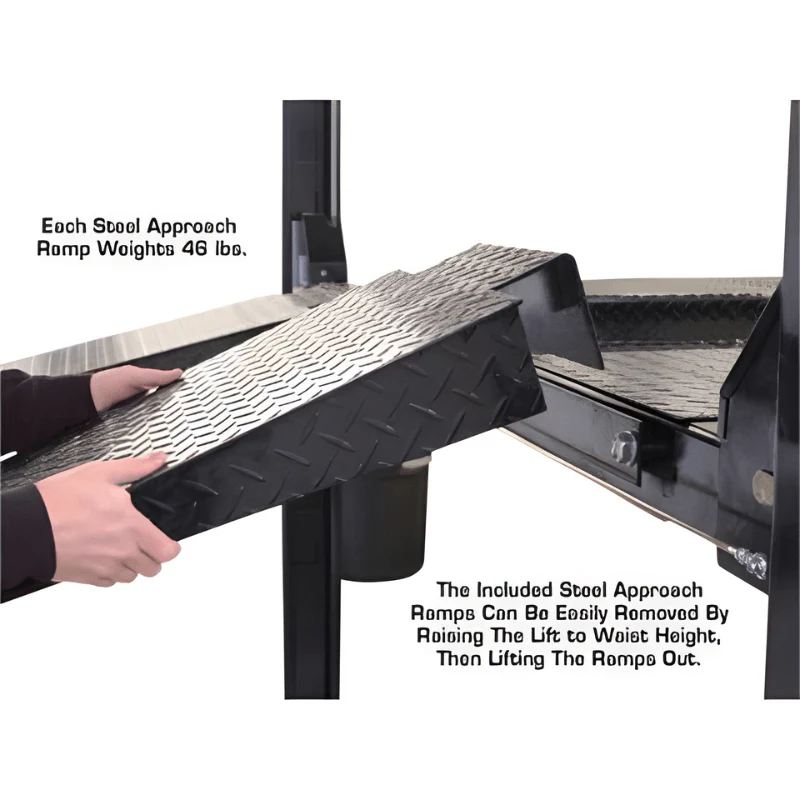

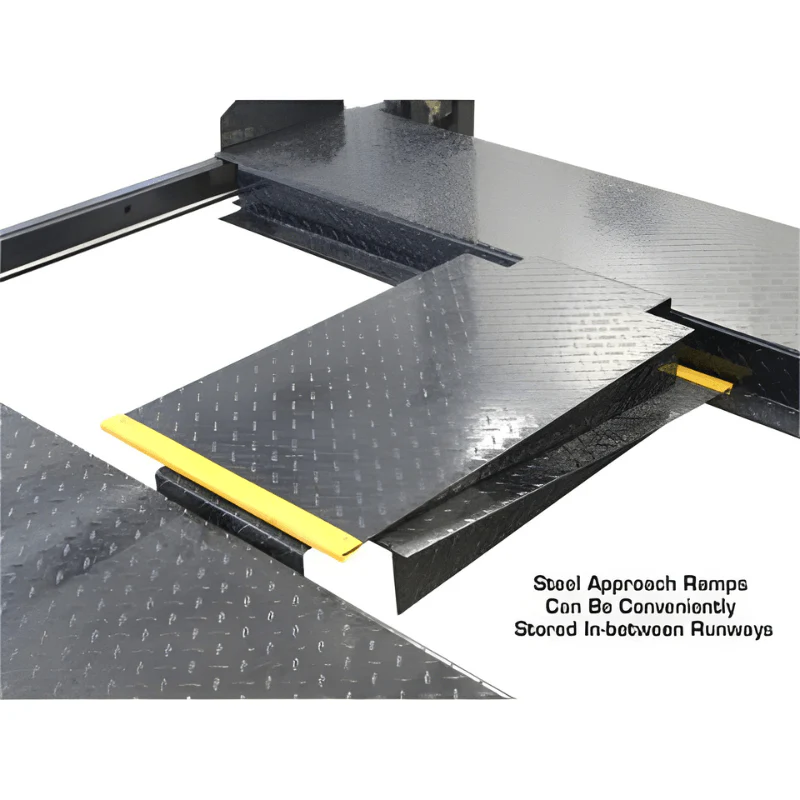

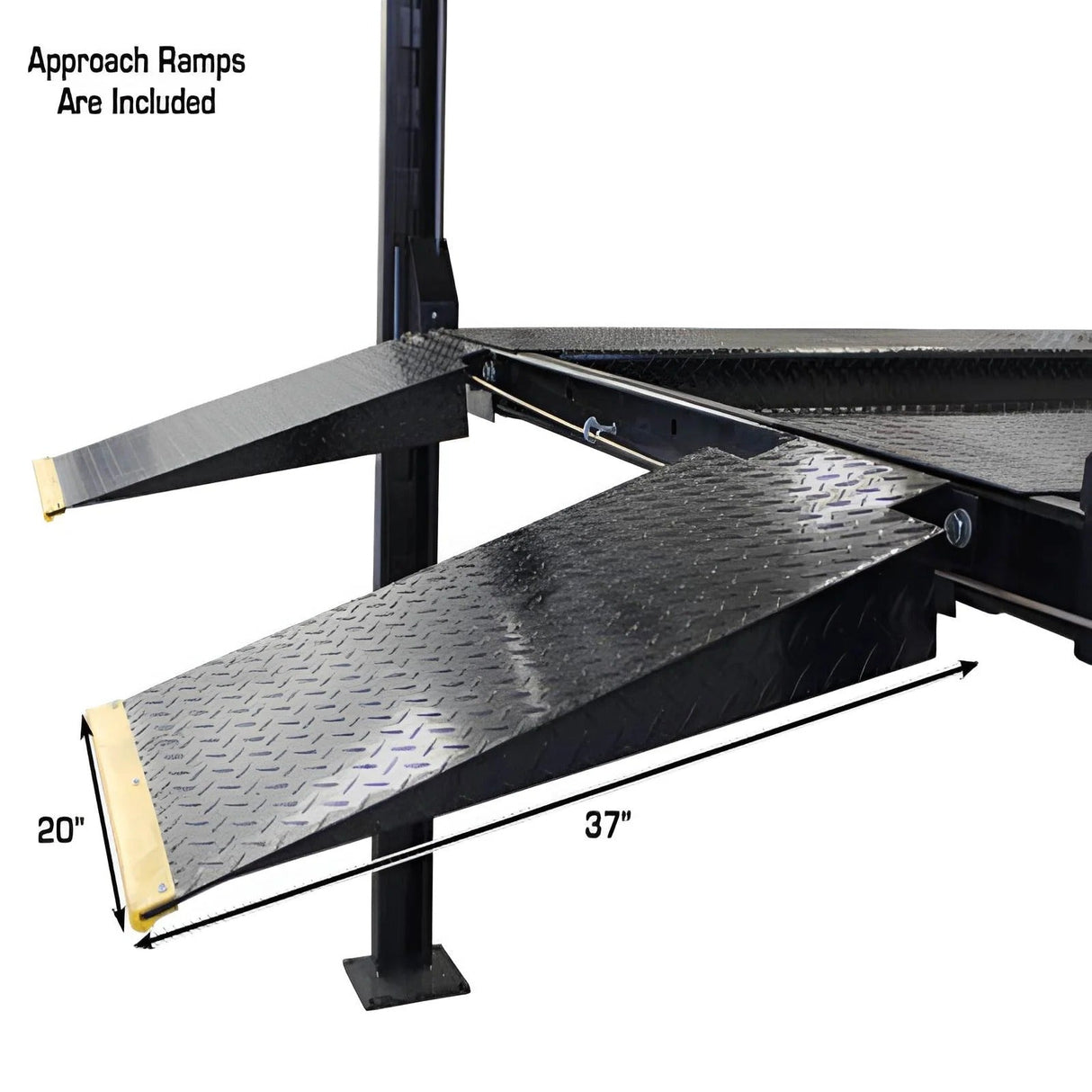

- Steel approach ramps included

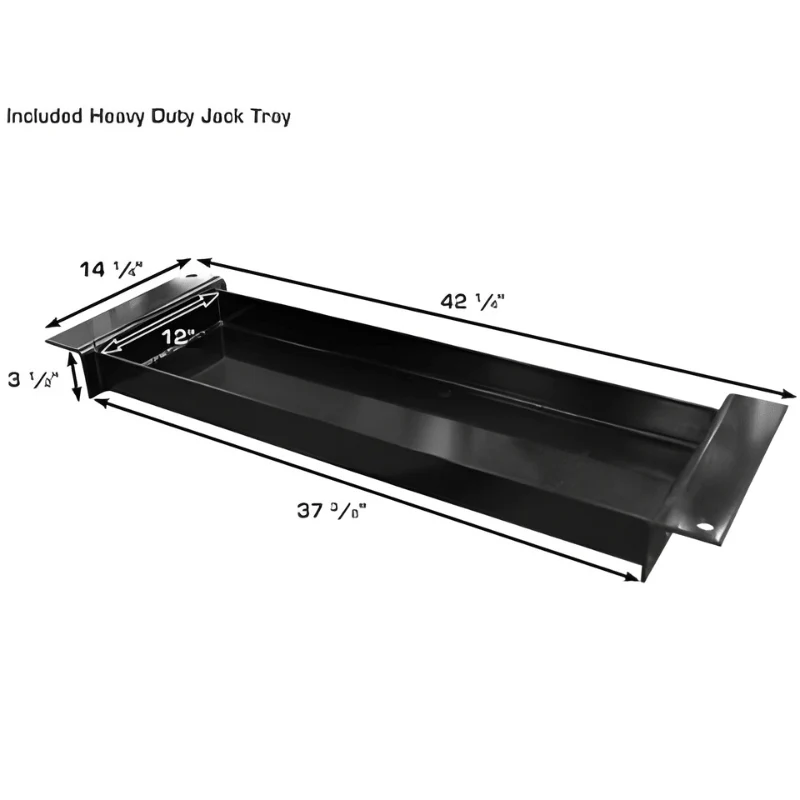

- Steel jack tray included

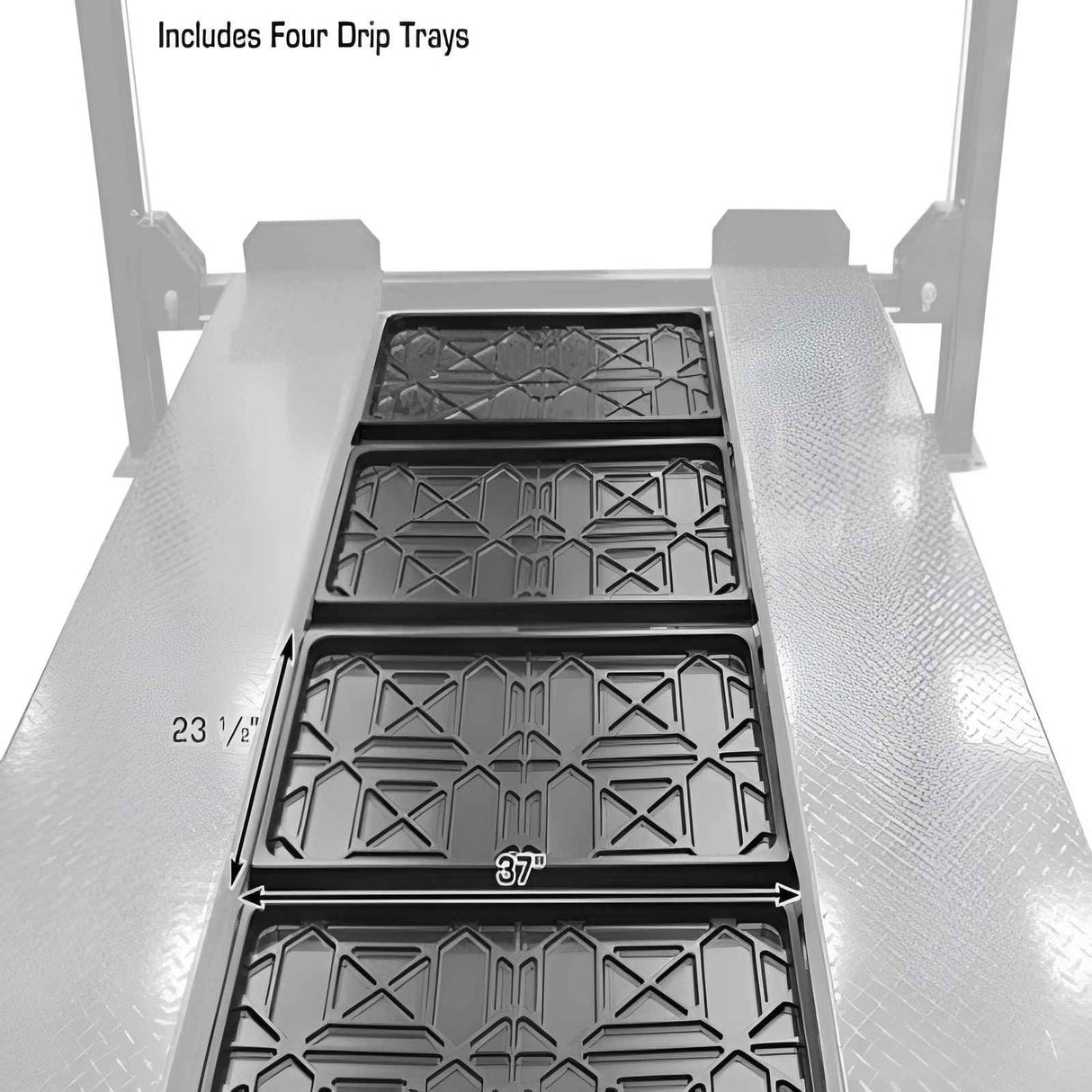

- 4 plastic drip trays included
- 4 wheel stops included

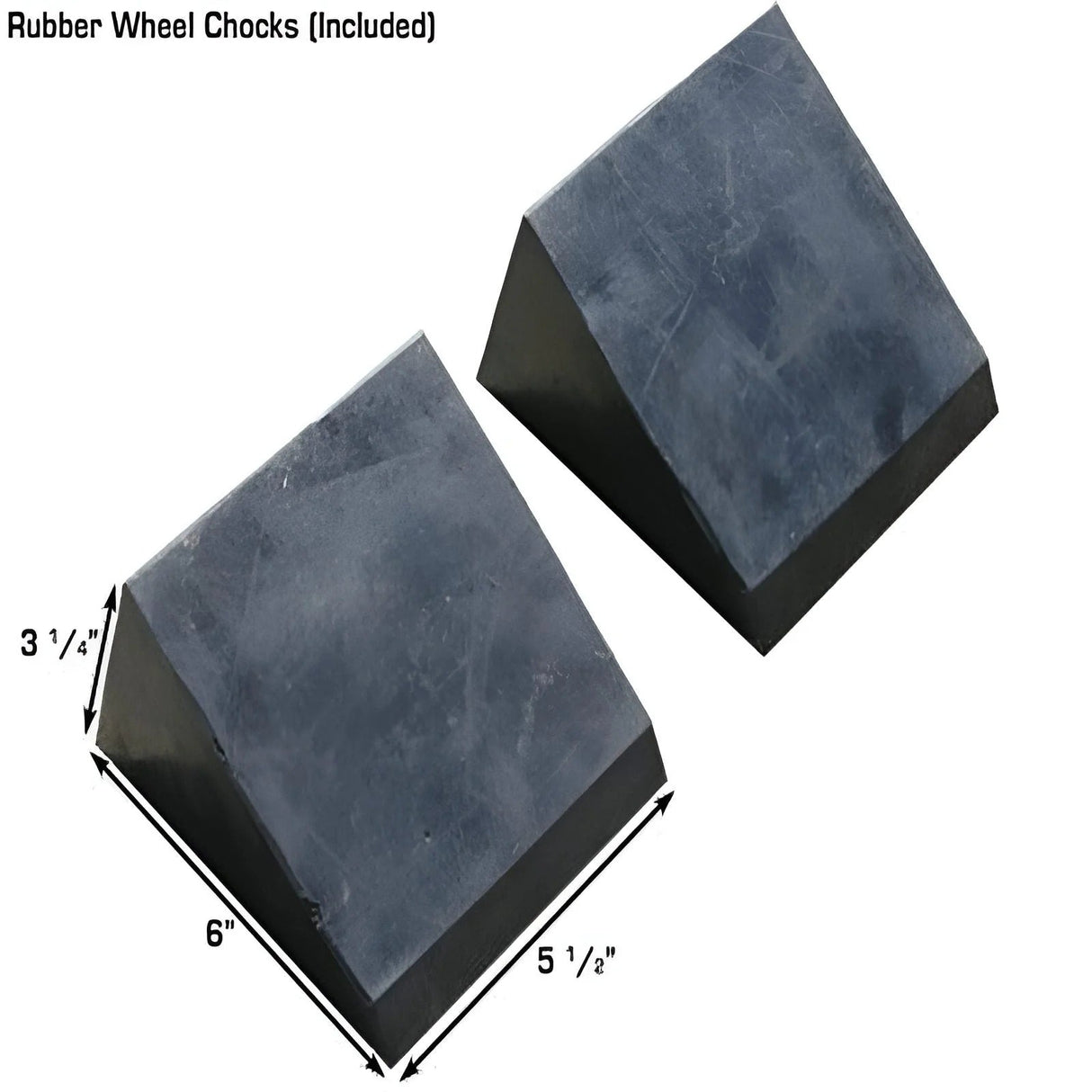

- 2 rubber wheel chocks included
- Suitable for vehicle storage and light service work

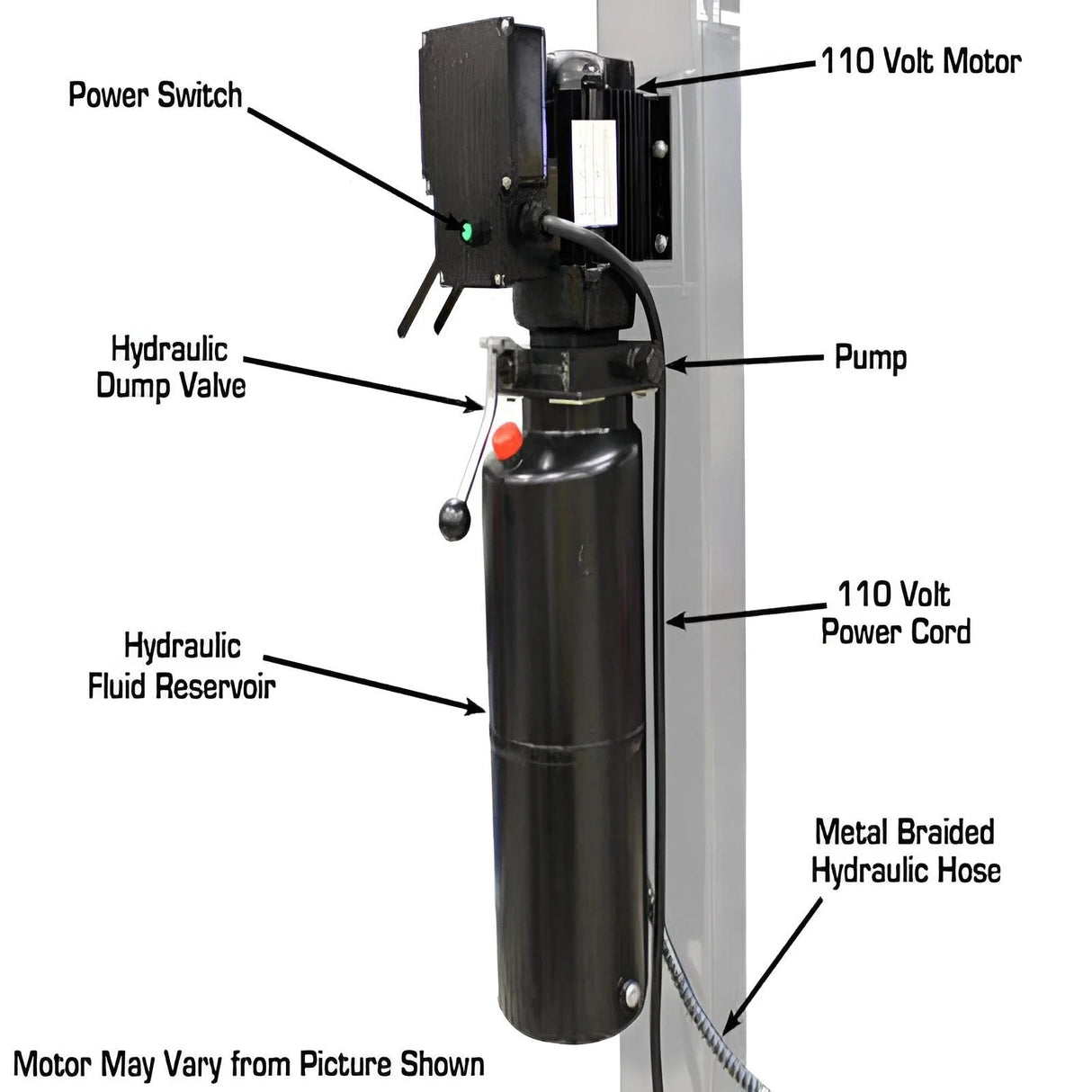

- 110V electric operation (30 amp breaker required)
- 2-year structural warranty, 1-year hydraulic warranty (parts only)

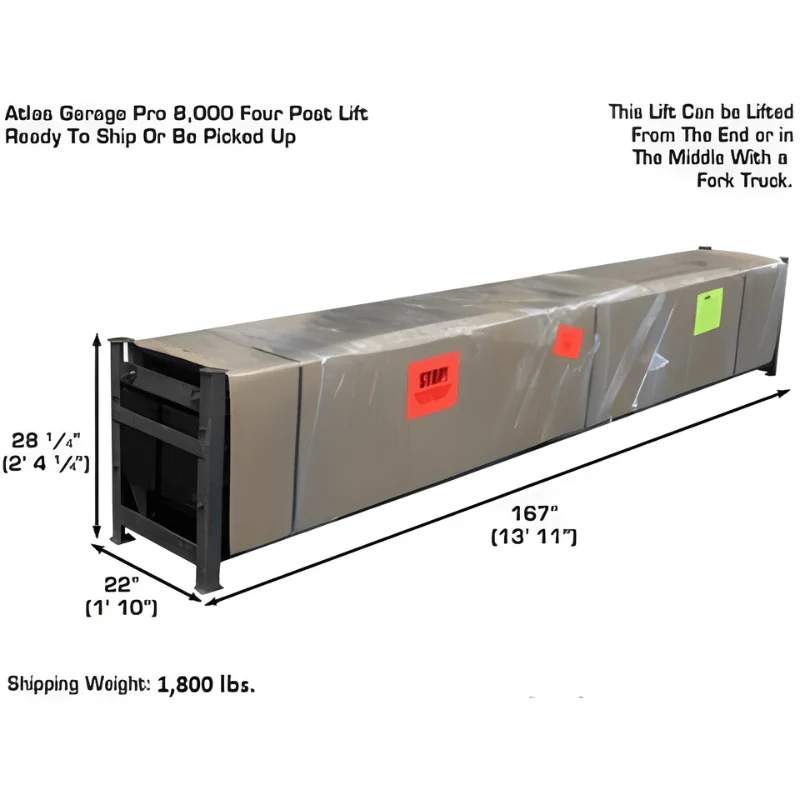

- Shipping weight: 1,800 lbs
| Specifications | Details |
|---|---|
| Capacity | 8,000 lb |
| Lifting Height To Top Of Runway | 72" (6’) |
| Clearance Under Runways | 67" (5’ 7") |

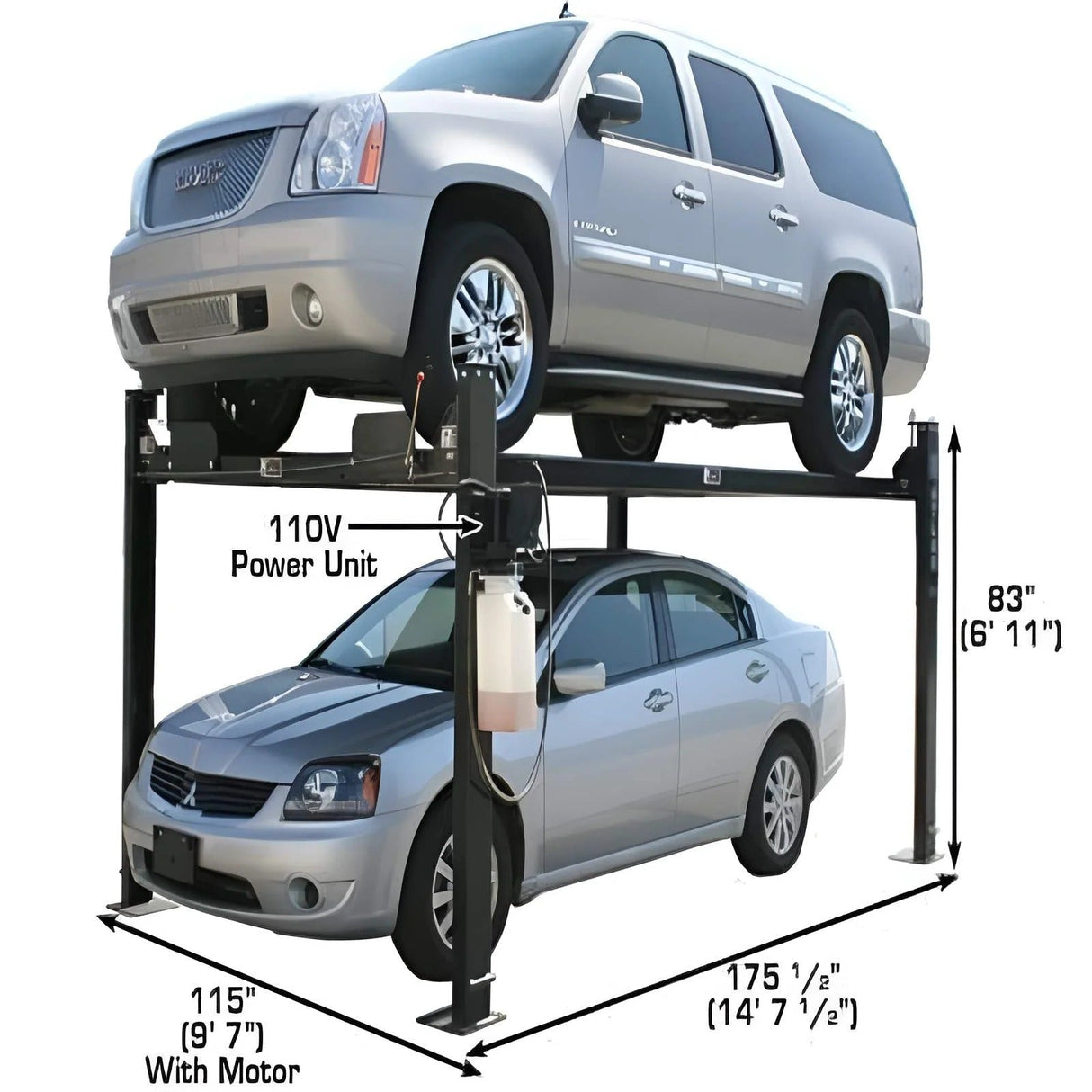

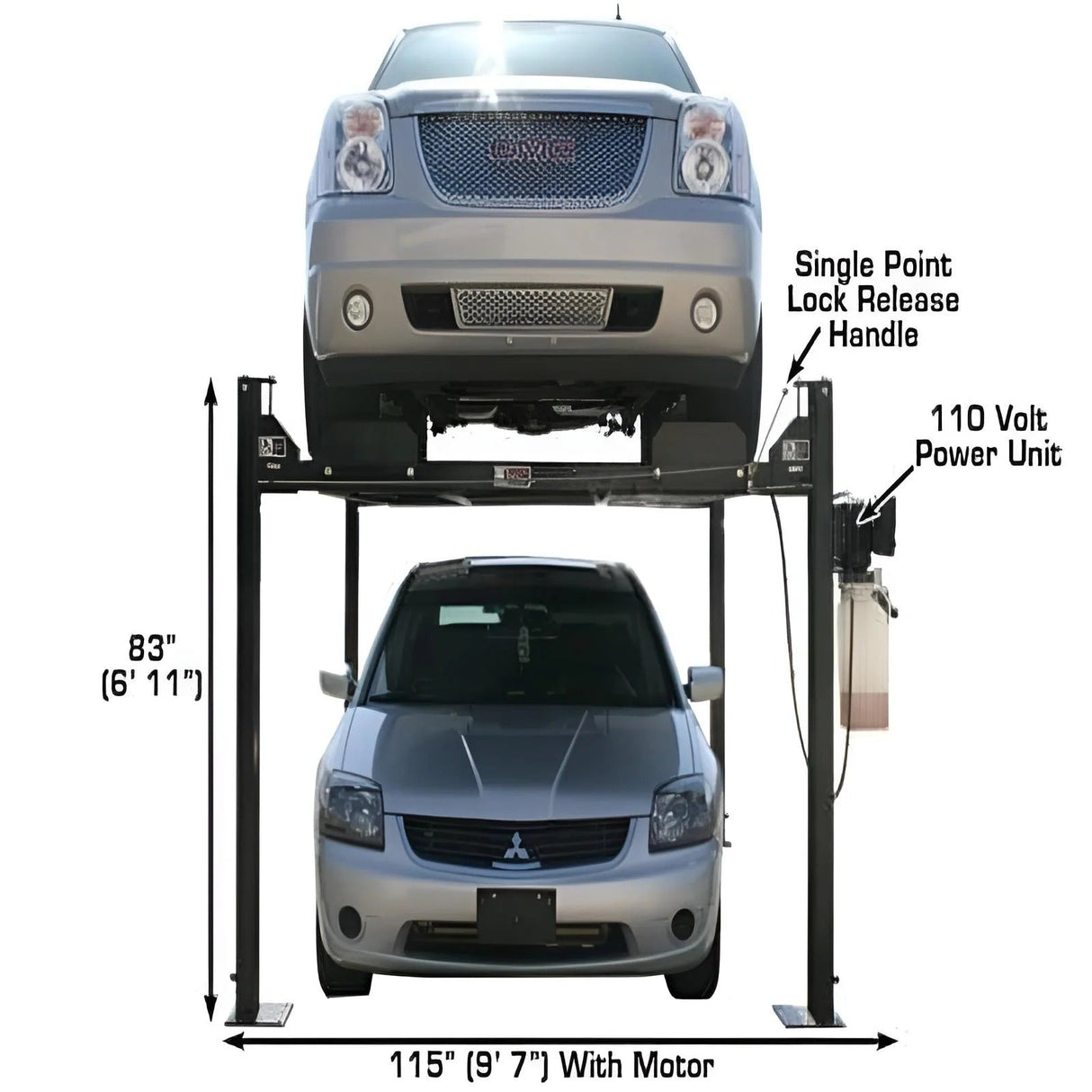

| Height Of Columns | 83" (6’ 11") |
| Overall Width (Without Motor) | 104 1/2" (8’ 8 1/2") |
| Overall Width (With Motor) | 115" (9’ 7") |

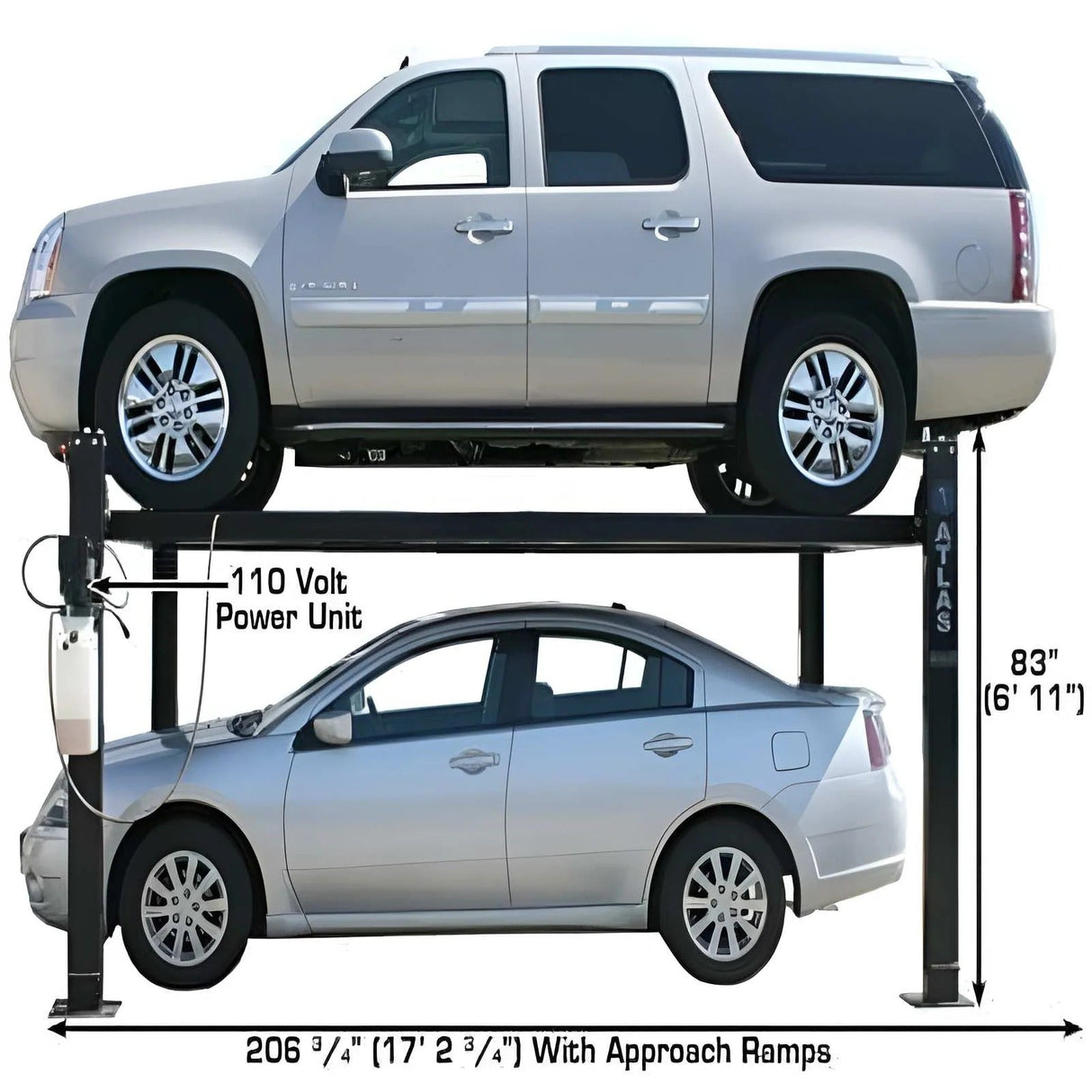

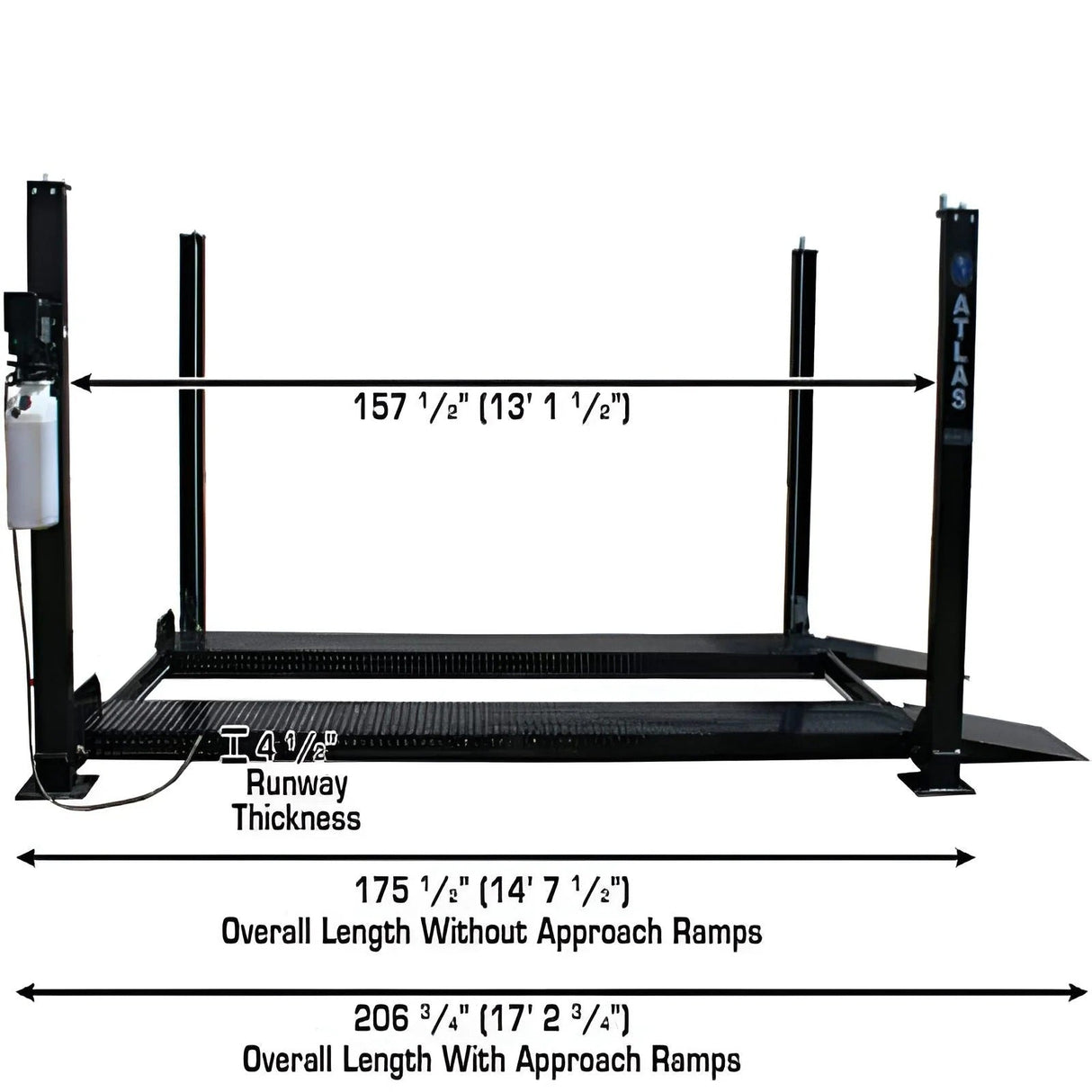

| Overall Length With Approach Ramp | 206 3/4" (17’ 2 3/4") |
| Approach Ramp | 37" (3’ 1") |

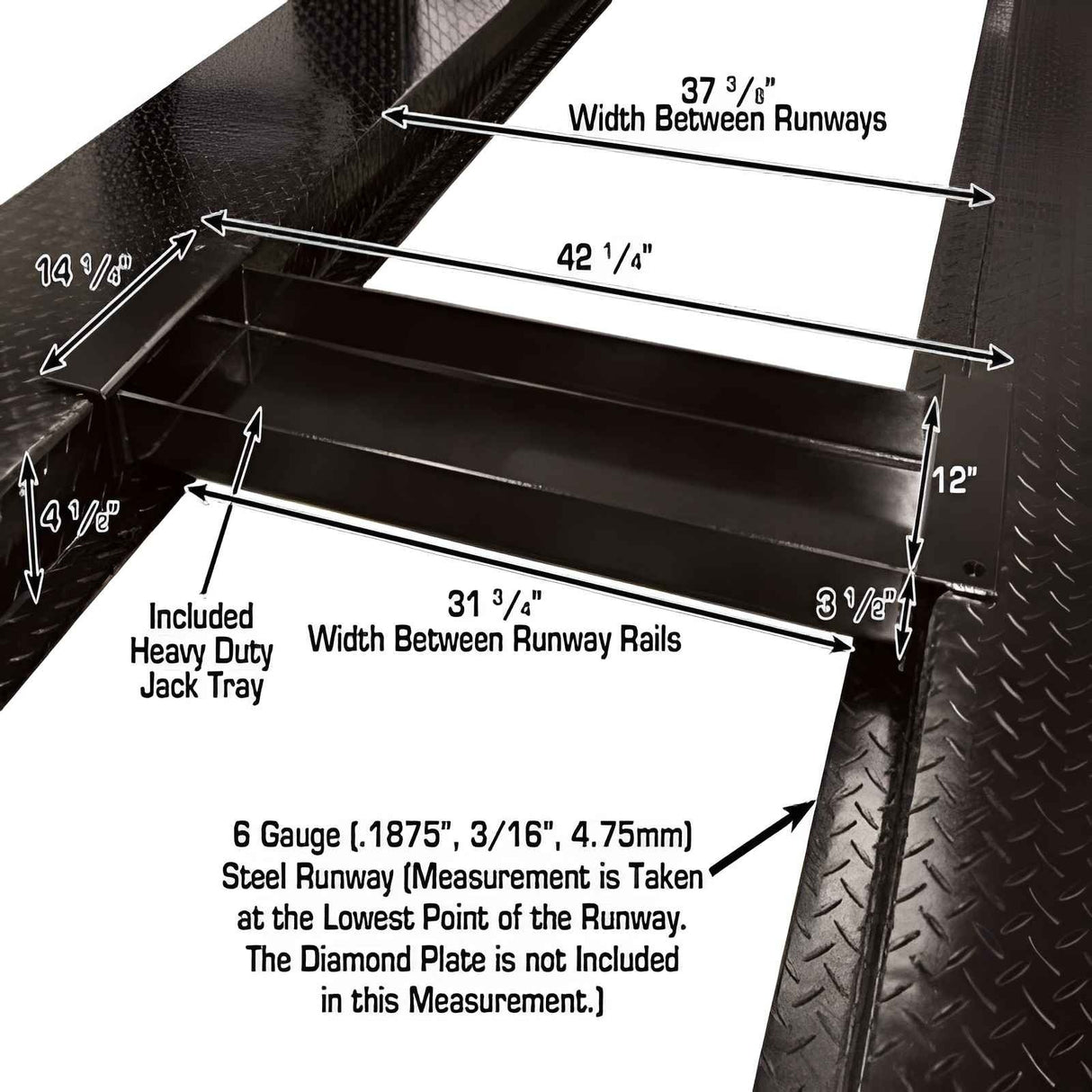

| Runway Width | 21 1/2" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length | 165 3/4" (13’ 9 3/4") |
| Runway Thickness | 4 1/2" |
| Width Between Runways | 37" (3’ 1") |
| Width Between Runway Rails | 31 1/2" (2’ 7 1/2") |
| Outside Runway To Outside Runway | 74 5/8" (6’ 2 5/8") |

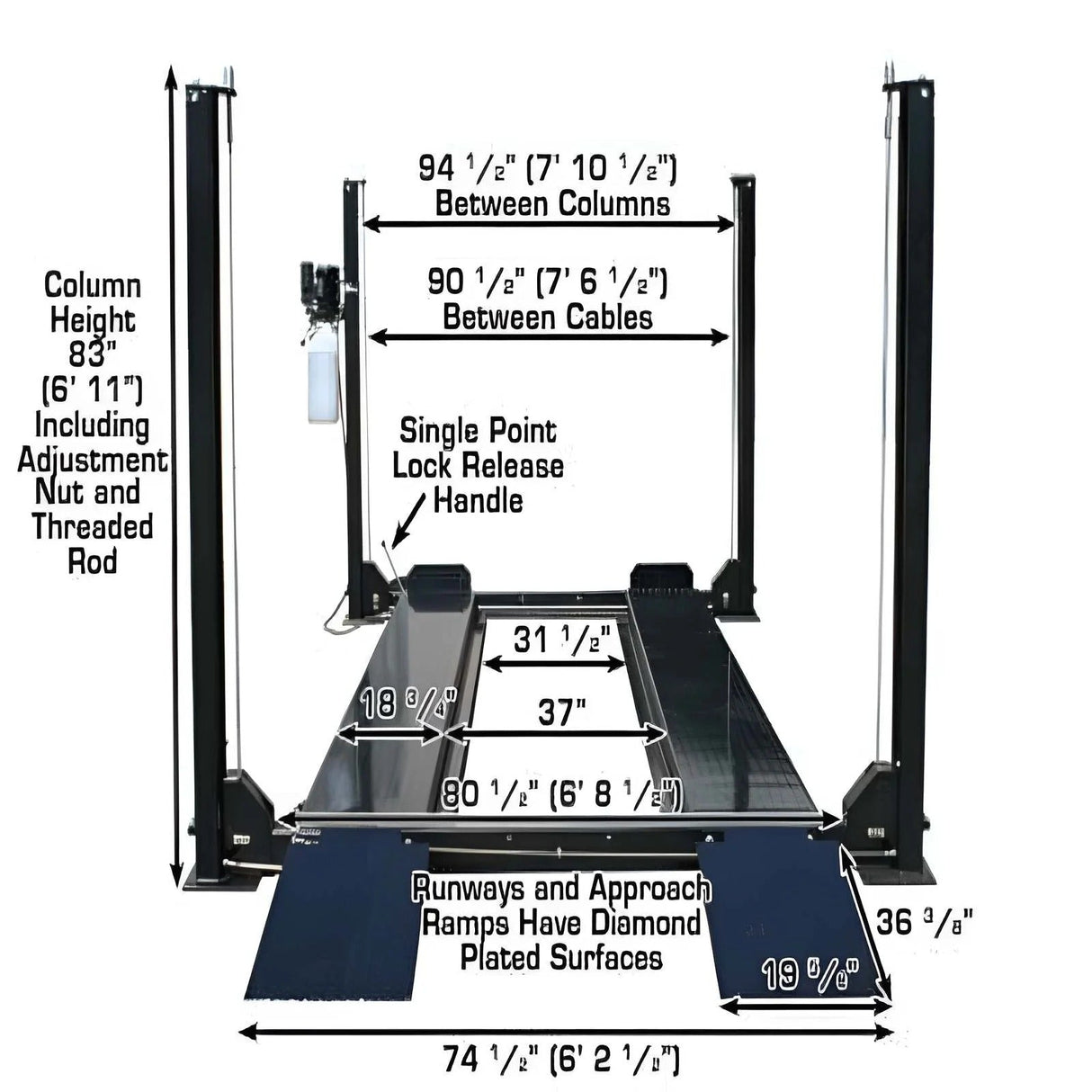

| Clearance Between Columns | 94 1/2" (7’ 10 1/2") |
| Length Between Columns | 157 1/2" (13’ 1 1/2") |

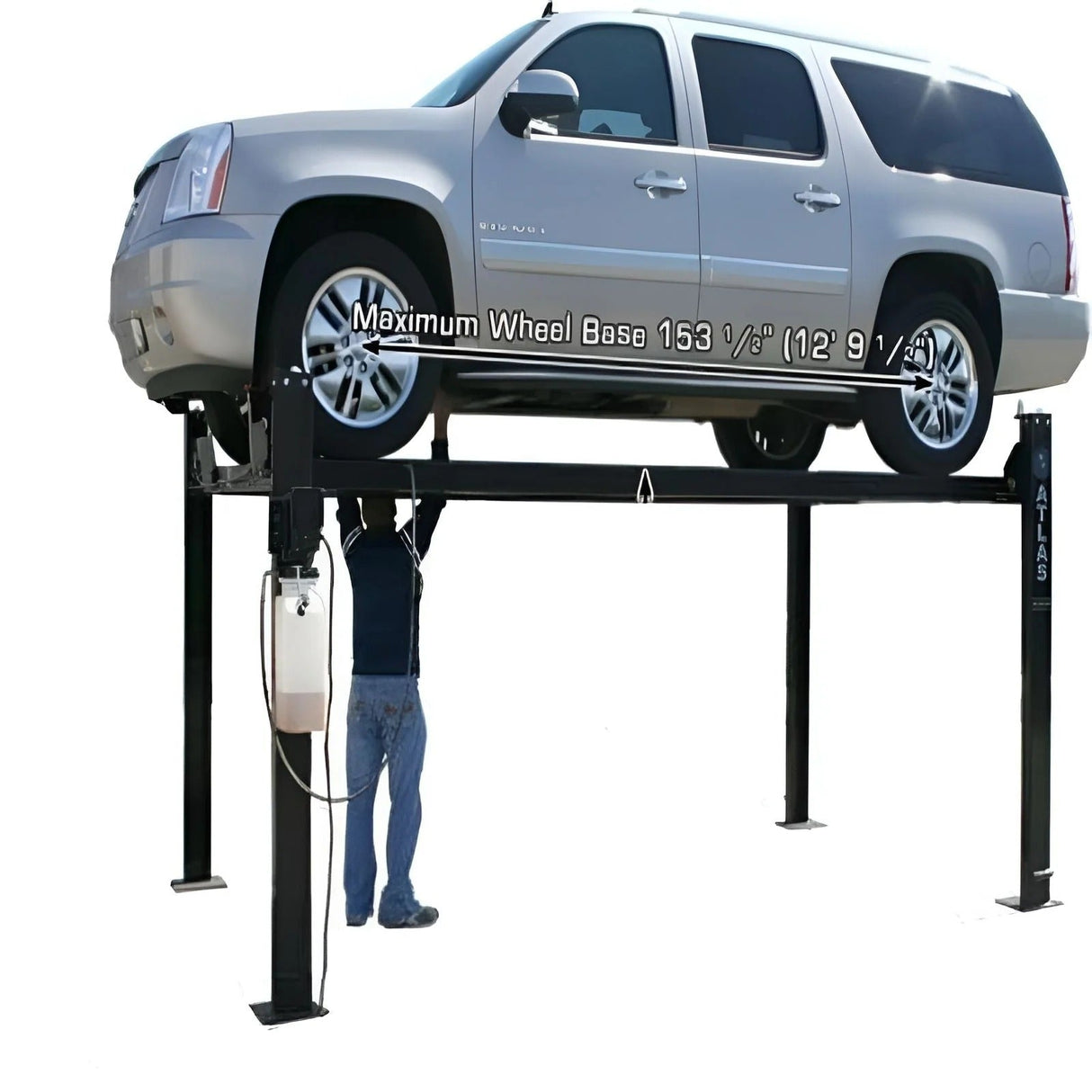

| Maximum Wheel Base | 153 1/2" (12’ 9 1/2") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 80 1/2" (6’ 8 1/2") |
| Motor / Electrical Requirement | 110V — 30 amp breaker required |
| Shipping Weight | 1,800 lb |
