The Atlas PRO9000 4-post lift with RJ35 sliding bridge jacks is a versatile, heavy-duty solution designed for both vehicle storage and full-service capability. This combo package includes the PRO9000 lift along with two RJ35 sliding jacks, allowing you to lift vehicles and raise the wheels for brake, suspension, and tire work—all in one setup.
Built as part of the Garage Pro series, this lift offers a balance of strength, portability, and flexibility, making it ideal for home garages, enthusiasts, and light-duty commercial applications.
Built for Storage & Service Flexibility
The PRO9000 features an extra-long, extra-wide, and tall design, making it capable of handling longer wheelbase vehicles and even wider trucks like diesel duallys. Its extended runways provide more flexibility than many lifts in its class, while the increased height allows you to park one vehicle on the lift and another underneath.
With the included caster kit and polyurethane wheels, the lift can be moved as needed, making it one of the most flexible 4-post lift options available.
Key Features & Benefits

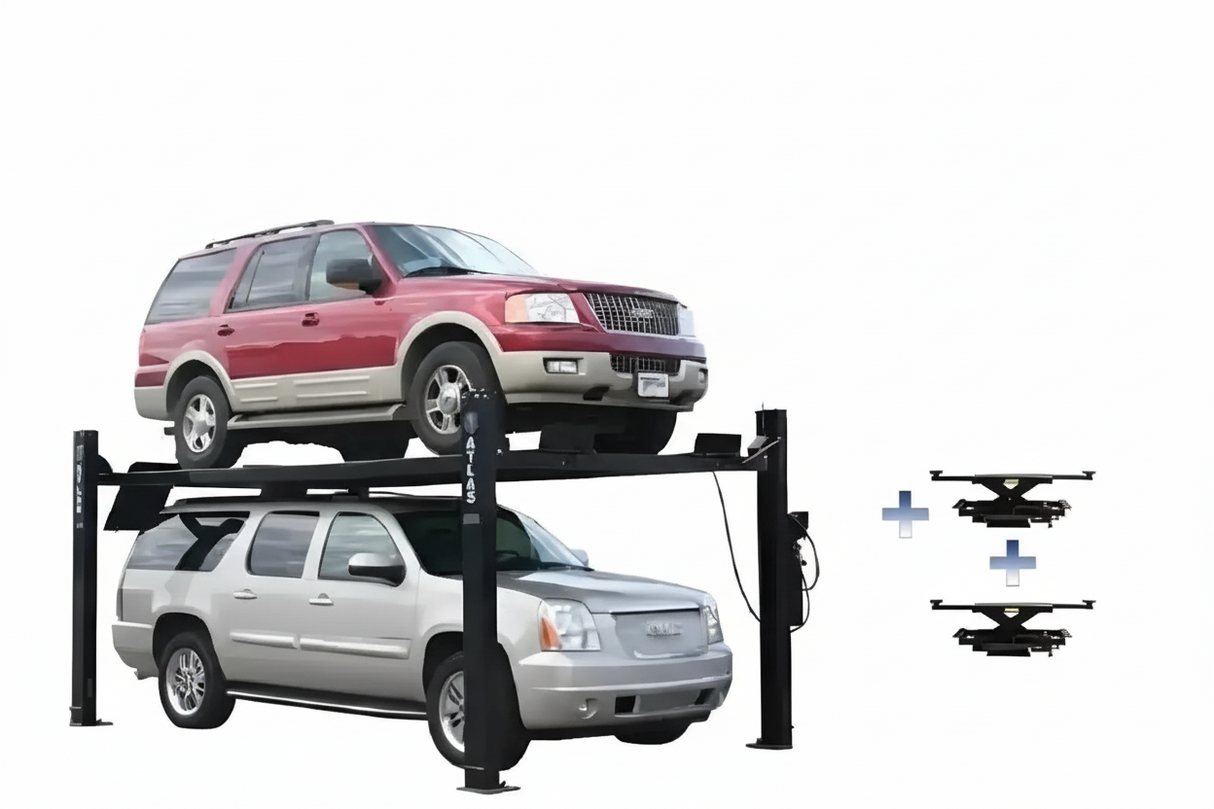

- Combo Package: Includes PRO9000 lift and two RJ35 sliding bridge jacks
- 9,000 lb Capacity for cars, trucks, and SUVs
- Extra Long Runways for longer wheelbase vehicles

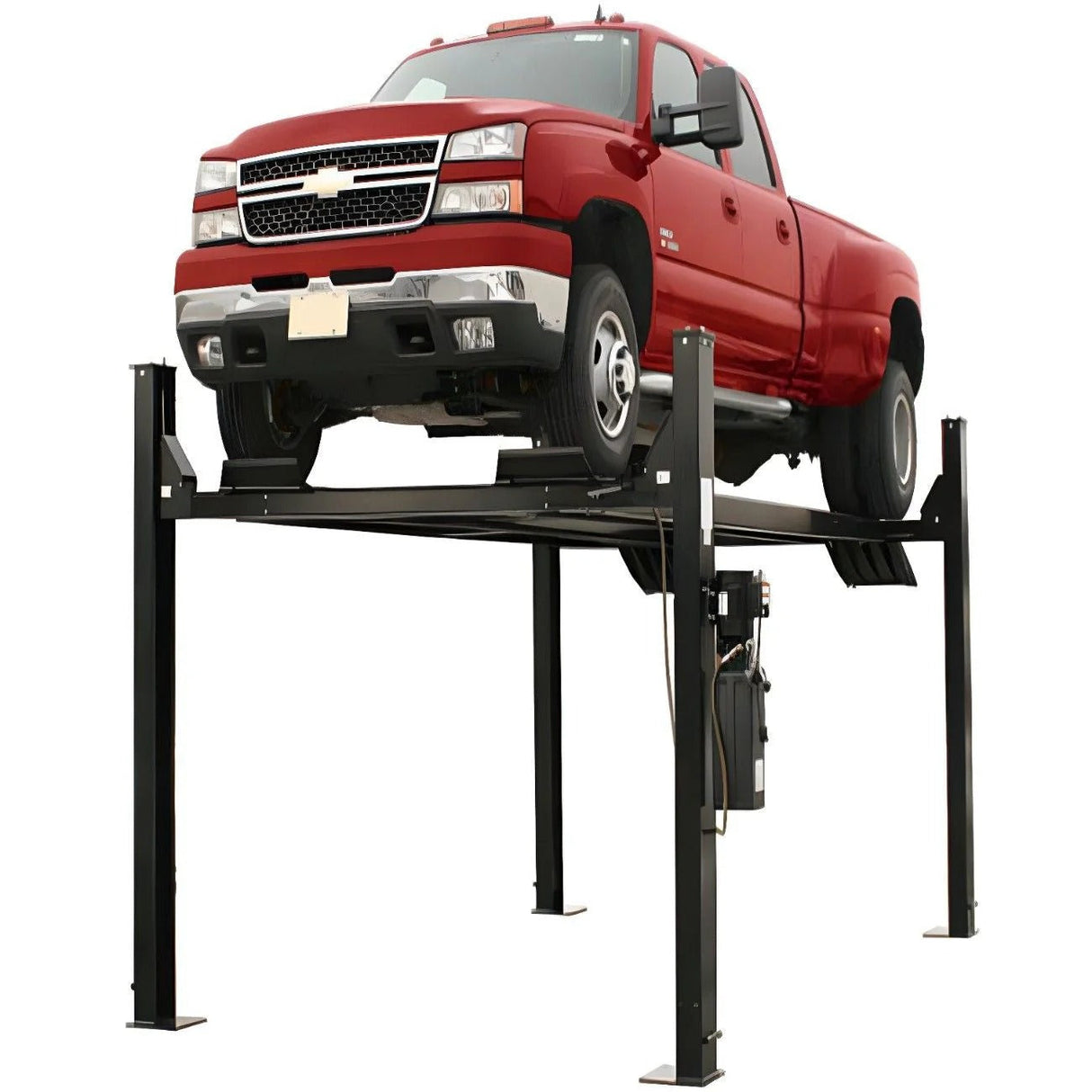

- Extra Wide Design for larger vehicles including dually trucks
- Portable Design with caster kit and polyurethane wheels
- Steel Approach Ramps Included

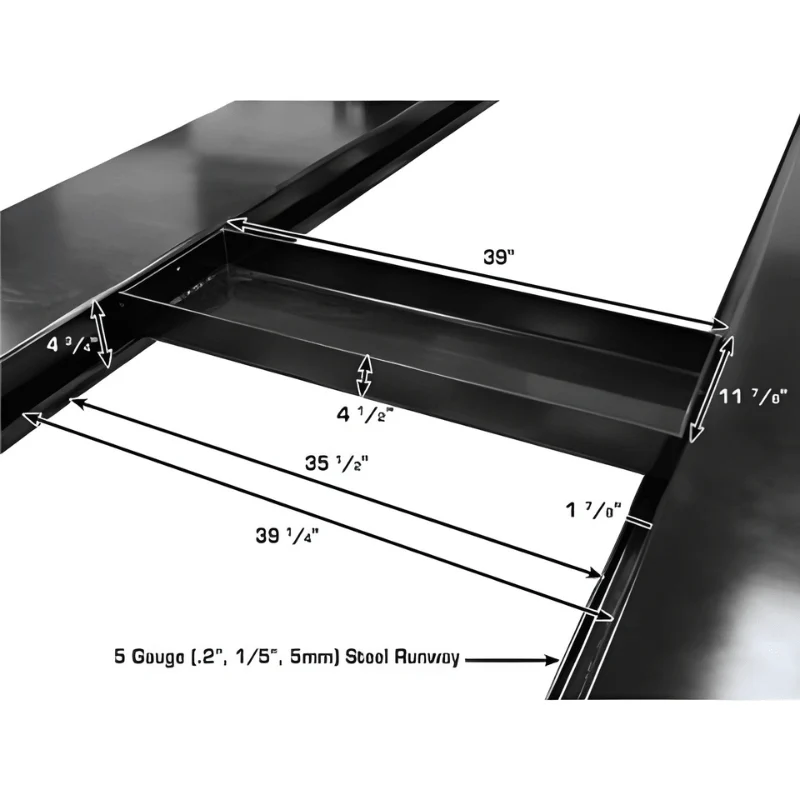

- Steel Jack Tray Included
- Four Plastic Drip Trays Included

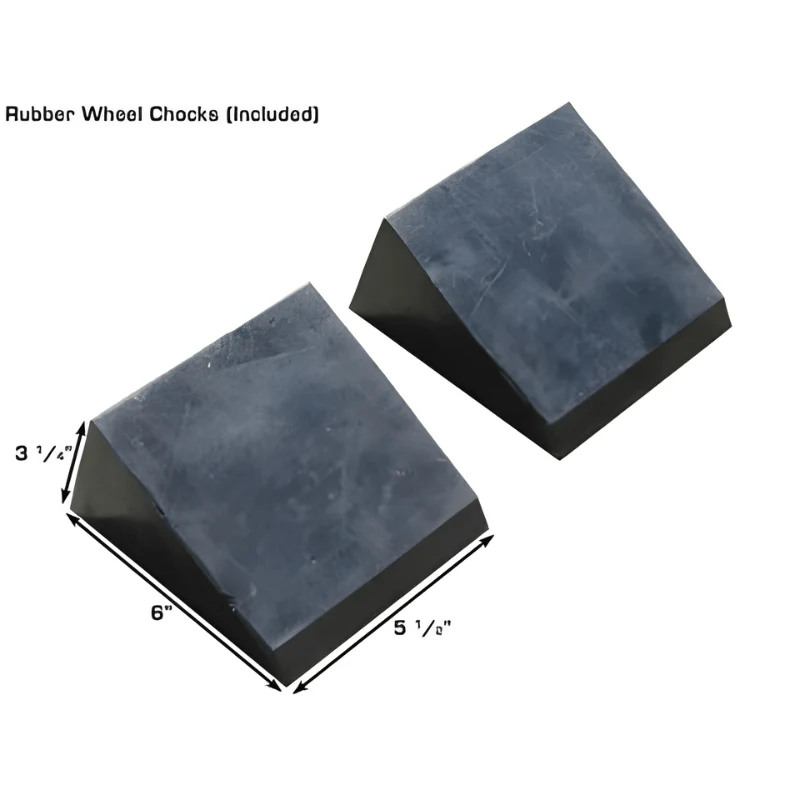

- Wheel Stops and Rubber Wheel Chocks Included

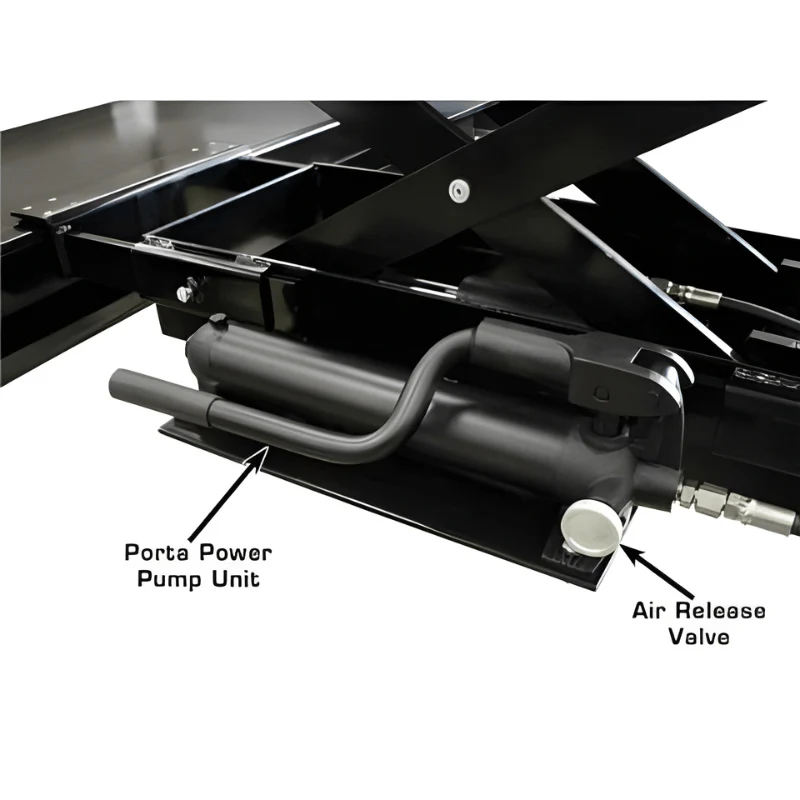

- Sliding Jacks for wheel service (air-over-hydraulic operation)

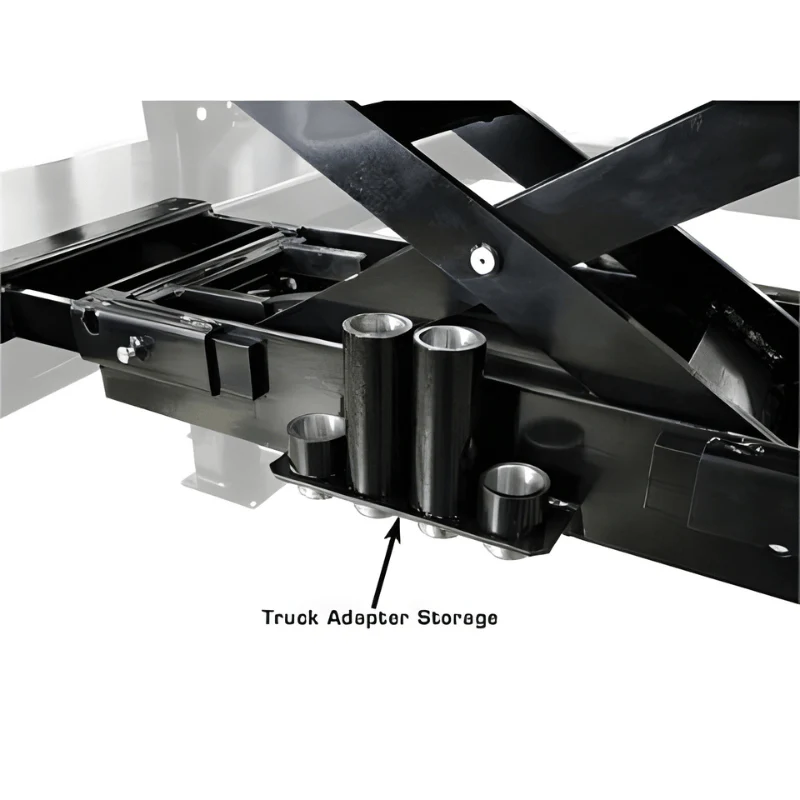

- Truck Adapter Set included for each jack
Ideal for Home & Light Commercial Use
This combo is perfect for garage owners who want both parking and service functionality in one system. Whether you're storing vehicles or performing maintenance, the included sliding jacks turn this lift into a complete workstation.
Reliable Performance You Can Count On
The Atlas PRO9000 is built to deliver consistent performance with features typically found on higher-end systems. Combined with the RJ35 sliding jacks, this setup offers a practical, all-in-one solution for both storage and service needs.

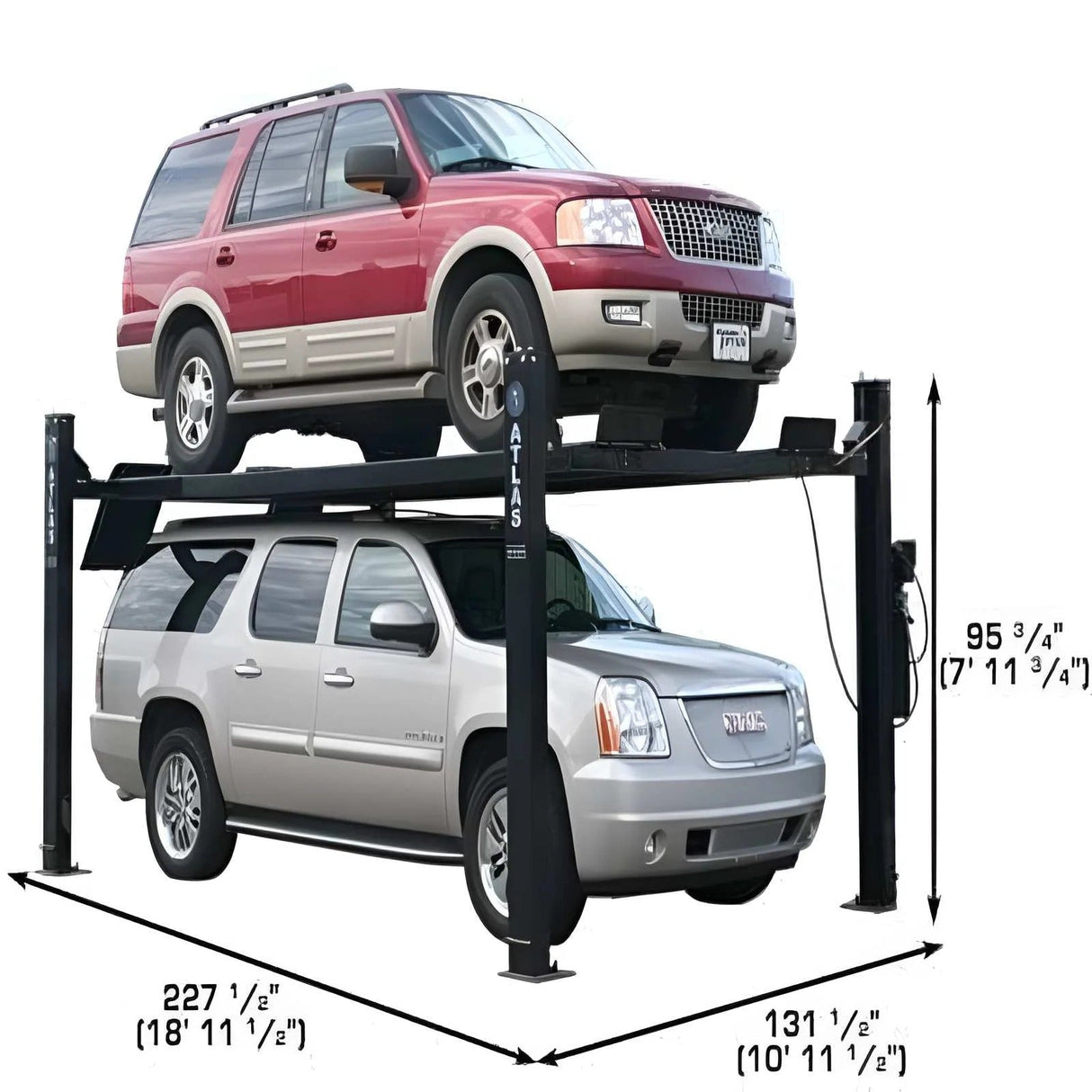

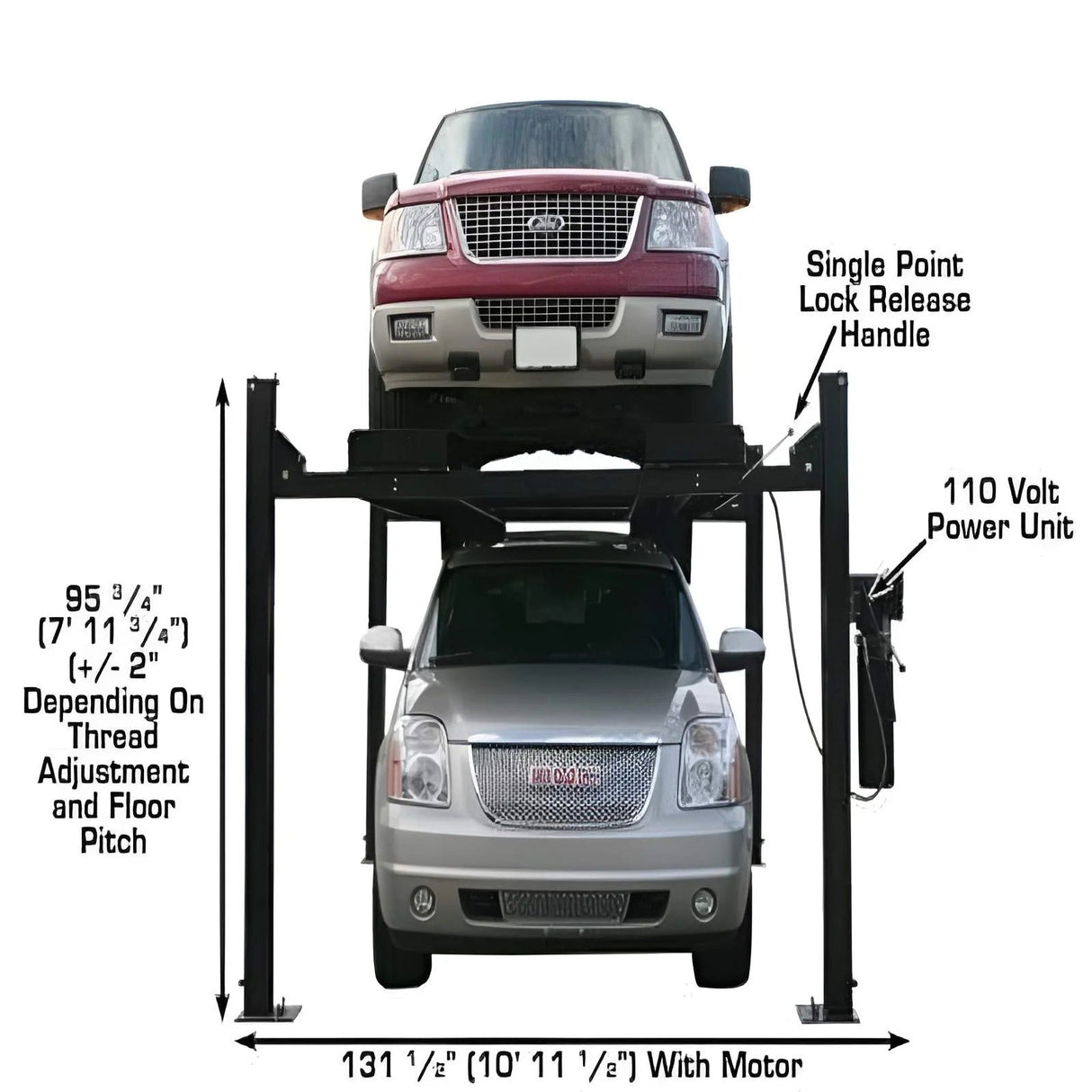

| Specifications | Details |
|---|---|
| Capacity | 9,000 lb. |

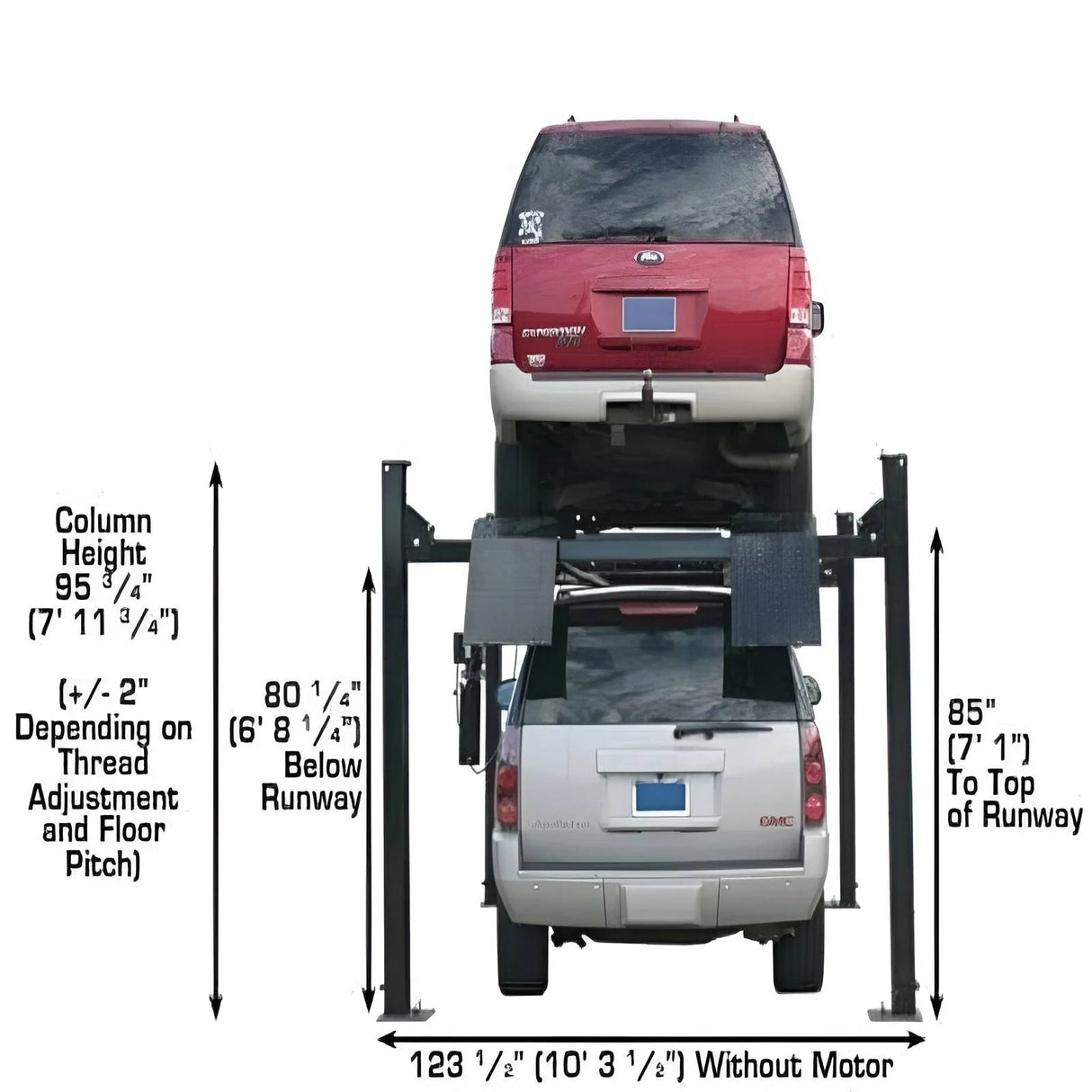

| Lifting Height To Top Of Runway | 85" (7' 1") |
| Clearance Under Runways | 80 1/4" (6' 8 1/4") |

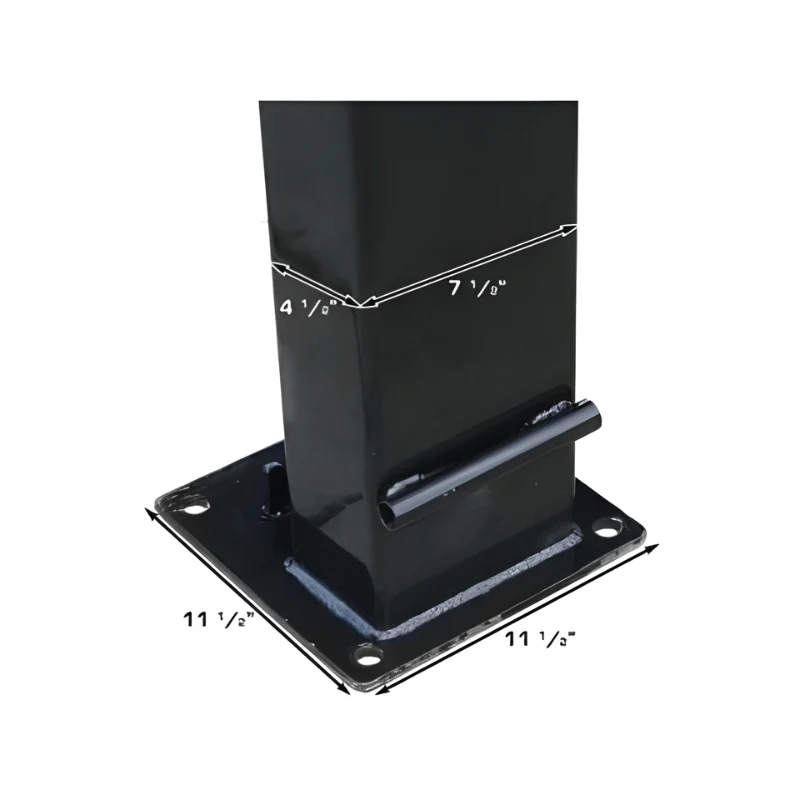

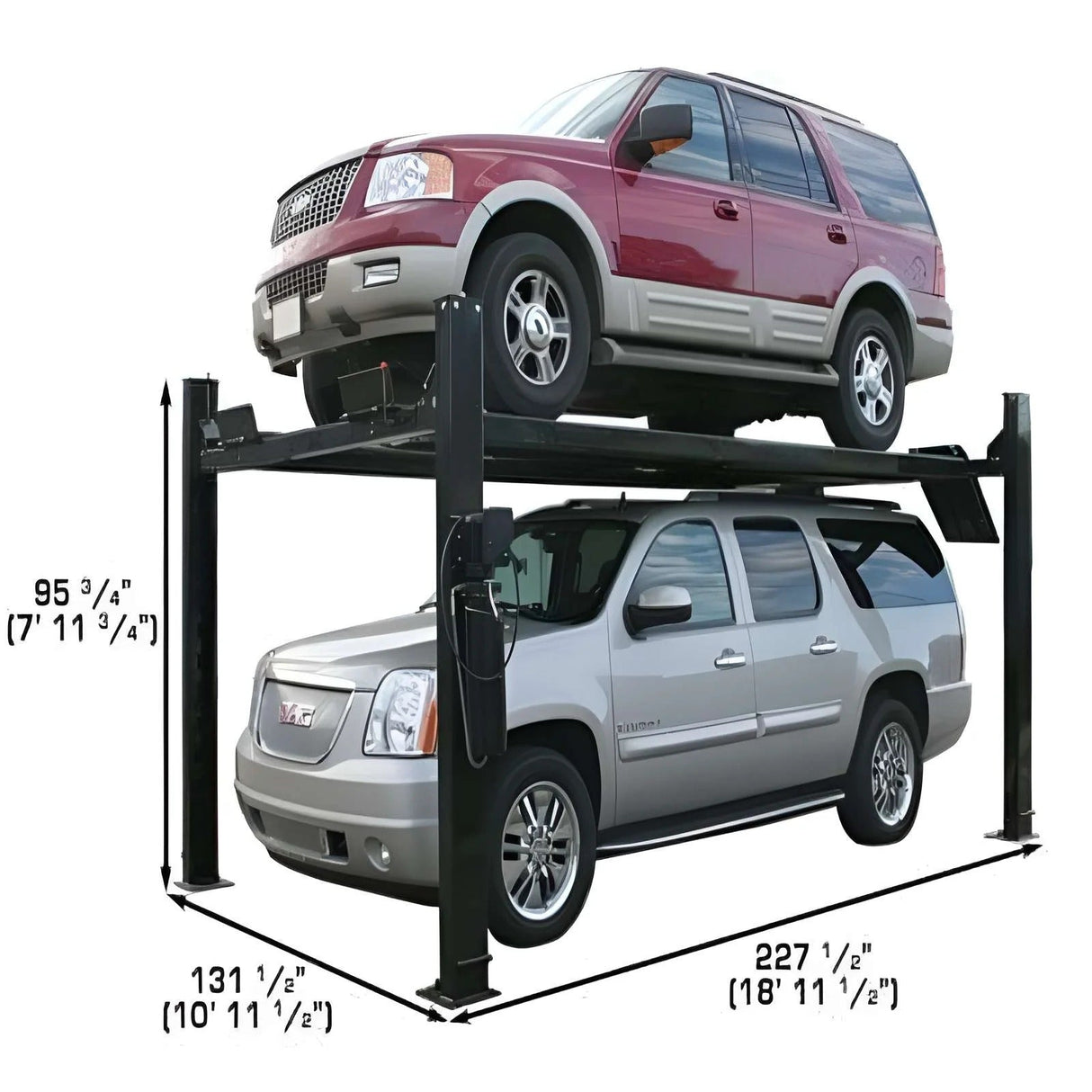

| Height Of Columns | 95 3/4" (7' 11 3/4") |
| Overall Width (Without Motor) | 123 1/2" (10' 3 1/2") |
| Overall Width (With Motor) | 131 1/2" (10' 11 1/2") |

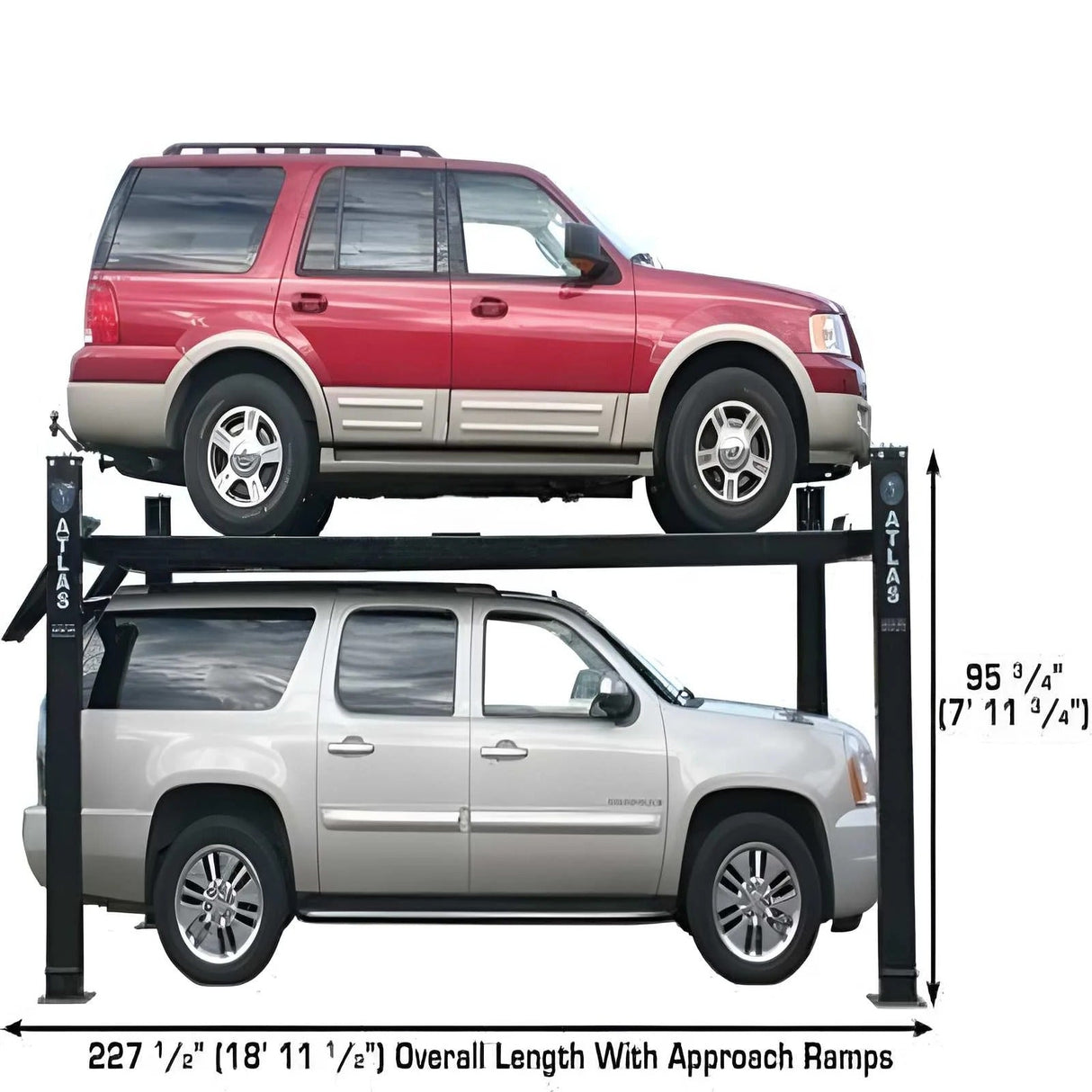

| Overall Length With Approach Ramp | 227 1/2" (18' 11 1/2") |
| Approach Ramp | 31" (2' 7") |
| Runway Width | 21 1/4" (w/ Rails) or 20" (Driving Surface) |
| Runway Length | 199 1/2" (16' 7 1/2") |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 39 3/4" (3' 3 3/4") |
| Width Between Runway Rails | 35 1/2" (2' 11 1/2") |
| Outside Runway To Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 110 1/2" (9' 2 1/2") |
| Length Between Columns | 184 1/2" (15' 4 1/2") |
| Maximum Wheel Base | 187" (15' 7") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 97 1/4" (8' 1 1/4") |
| Motor/Electrical Requirement | 110V, 30 AMP Breaker Required |

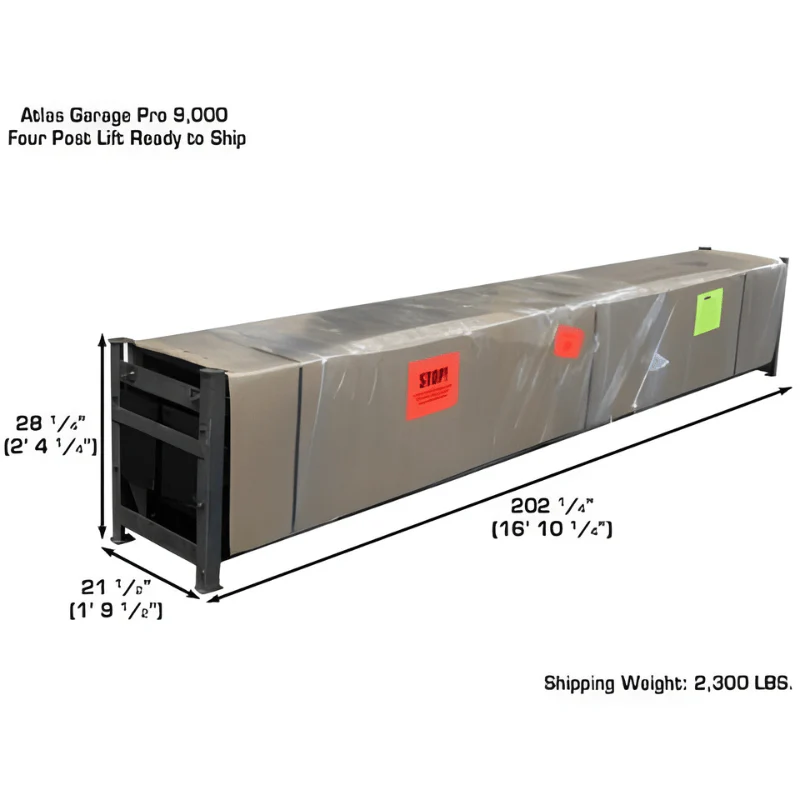

| Shipping Weight | 2,300 lbs. |

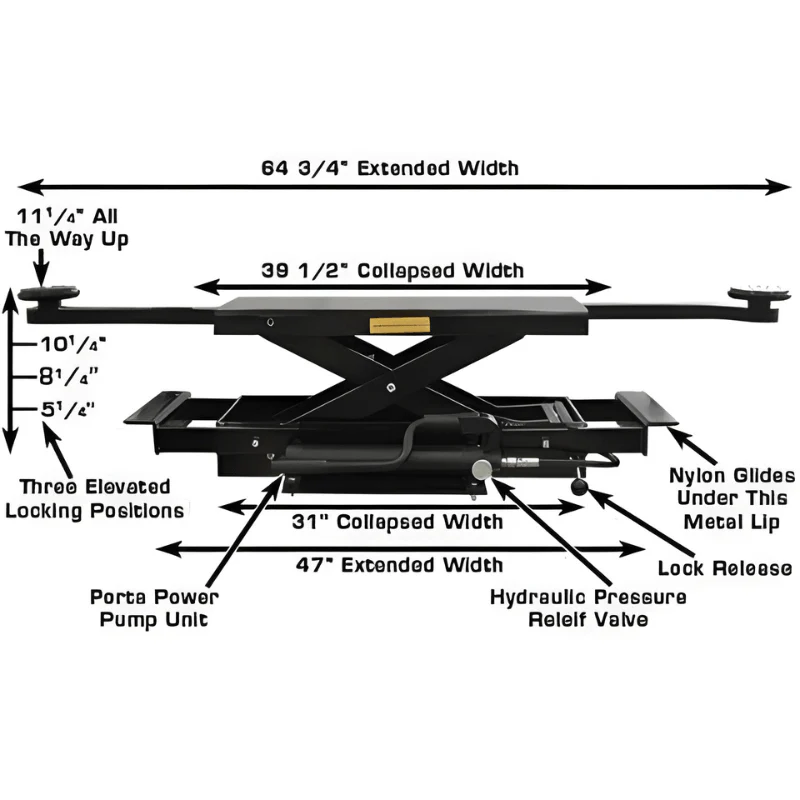

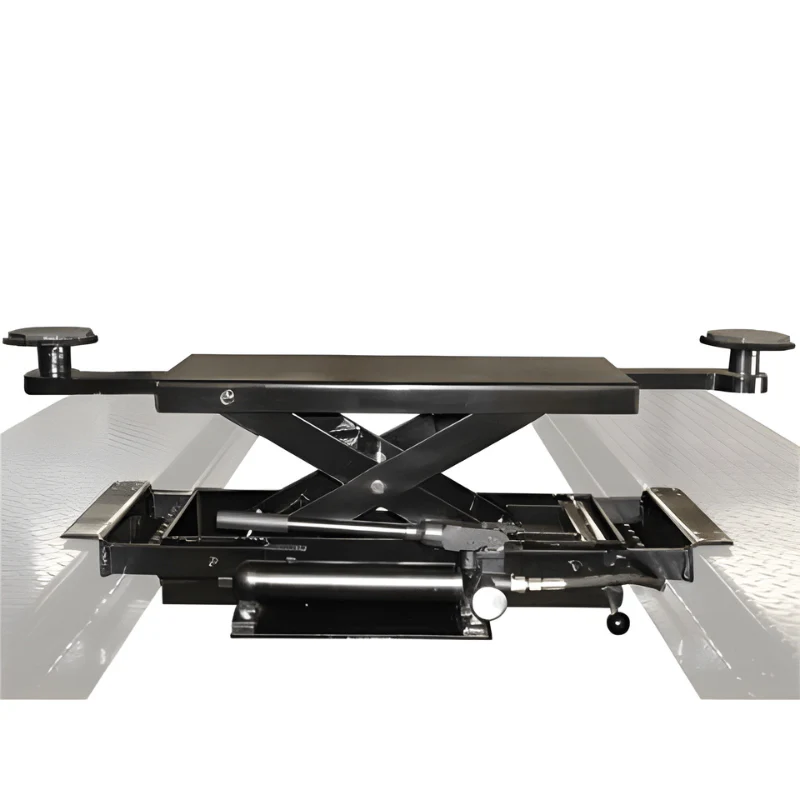

RJ35 Sliding Jack Specifications
| Specifications | Details |
|---|---|
| Capacity | 3,500 lbs. |

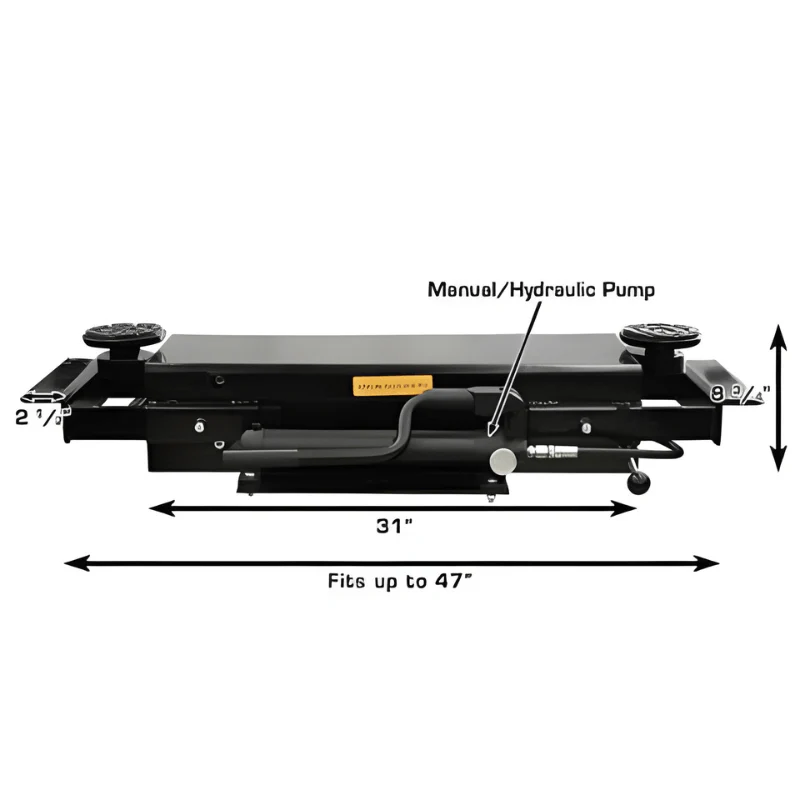

| Lower Extension Width (Between Runway) | 20 1/2" to 47" |

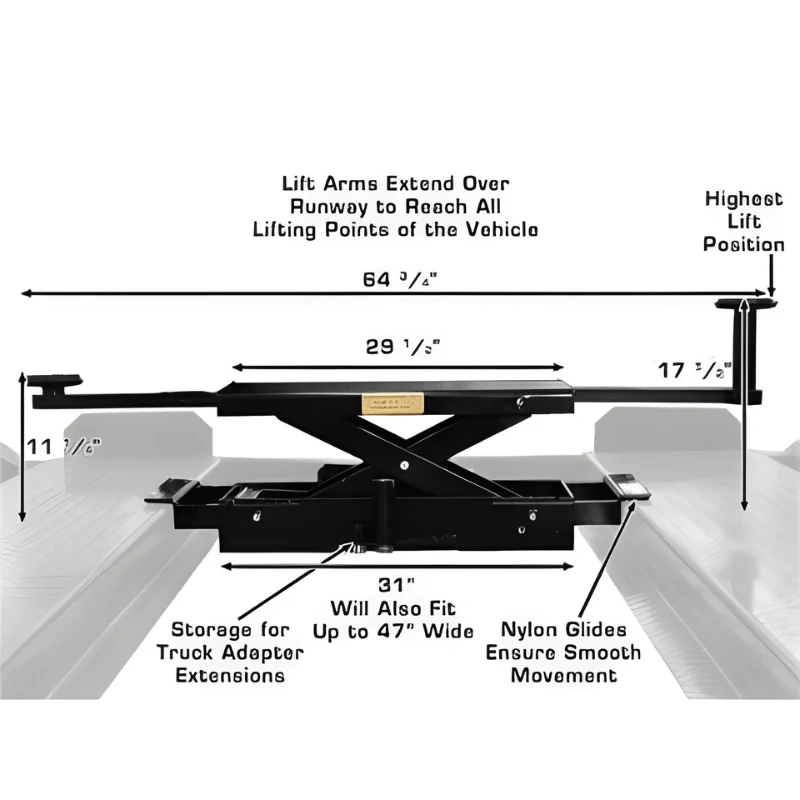

| Top Width (Arms Retracted & Extended) | 39 1/2" to 64 3/4" |
| Min. Pad Height Above Runway | 3 1/2" (May vary by lift) |
| Lift Pad Height Above Arm | 1 3/8" |
| Max Height Raised w/o Adapter | 11" |
| Max Height Raised w/ Adapters | 17 1/4" |
| Shipping Weight | 350 lbs. |

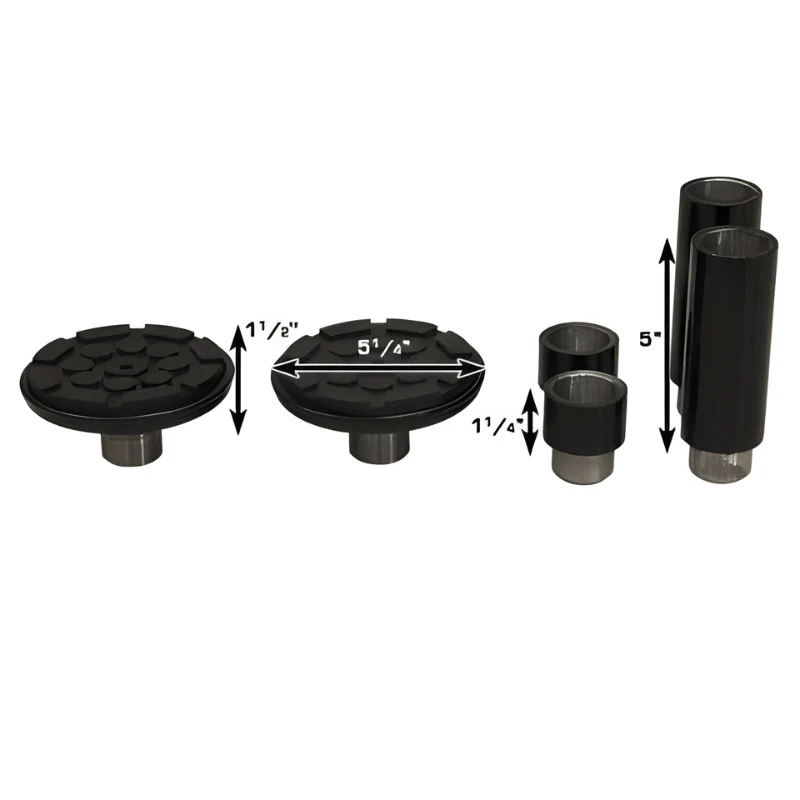

| Adapter Heights | 2 Each: 1 1/2", 5" |
| Arm Hole/Adapter Peg Size | 1 1/2" |
