Atlas PV10PX 10,000 lb Overhead 2-Post Lift

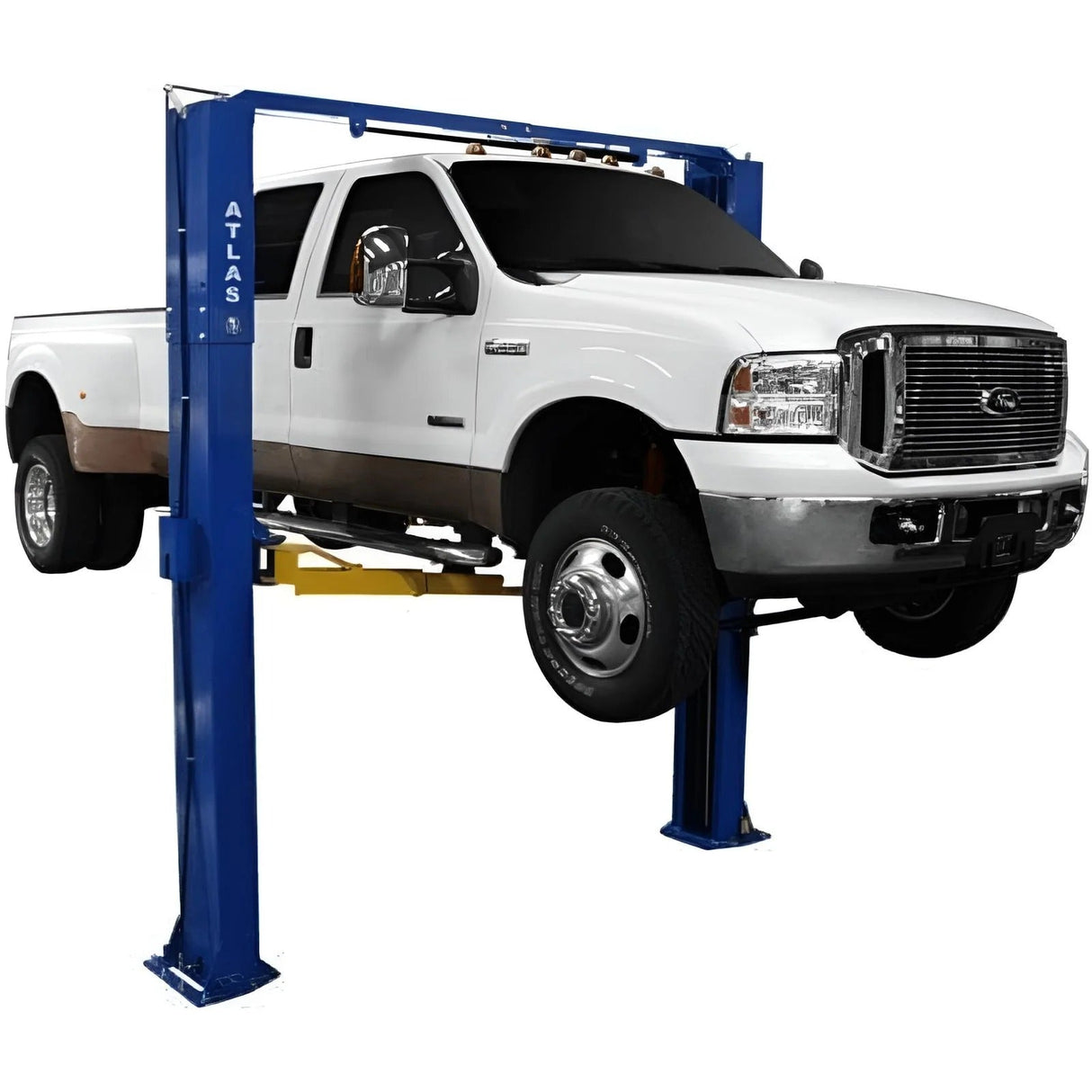

The Atlas PV10PX 2-post lift is a commercial-grade solution designed for both professional automotive shops and serious home garage setups. Built for durability and long-term use, this lift delivers reliable performance for servicing a wide range of vehicles, from compact cars to one-ton diesel dually trucks.
With a 10,000 lb lifting capacity, the PV10PX offers strong and stable lifting capability. It features adjustable height options of 11’ 11 1/8" or 12’ 3", allowing flexibility based on your workspace. The lift is equipped with both asymmetric and symmetric arm configurations, giving operators more versatility when positioning different vehicle types.
Designed with safety and convenience in mind, this lift includes automatic arm restraints, a padded shut-off bar to help protect vehicles from overhead contact, and padded carriages to reduce the risk of damage when opening doors. A single-point lock release system simplifies operation, while direct-drive cylinders provide smooth and efficient lifting performance.
Constructed with a heavy-duty frame and finished with a durable powder coat, the PV10PX is built to withstand demanding shop environments. It also includes a free 12-piece truck adapter set, along with mounting hardware for installation.
The PV series has been widely recognized for its durability and value, with thousands of units in operation. The PV10PX continues that reputation with updated improvements, making it a dependable option for both commercial use and high-end personal garages.
Features and Benefits
- 10,000 lb capacity
- Commercial-grade construction
- Adjustable height: 11’ 11 1/8" or 12’ 3"

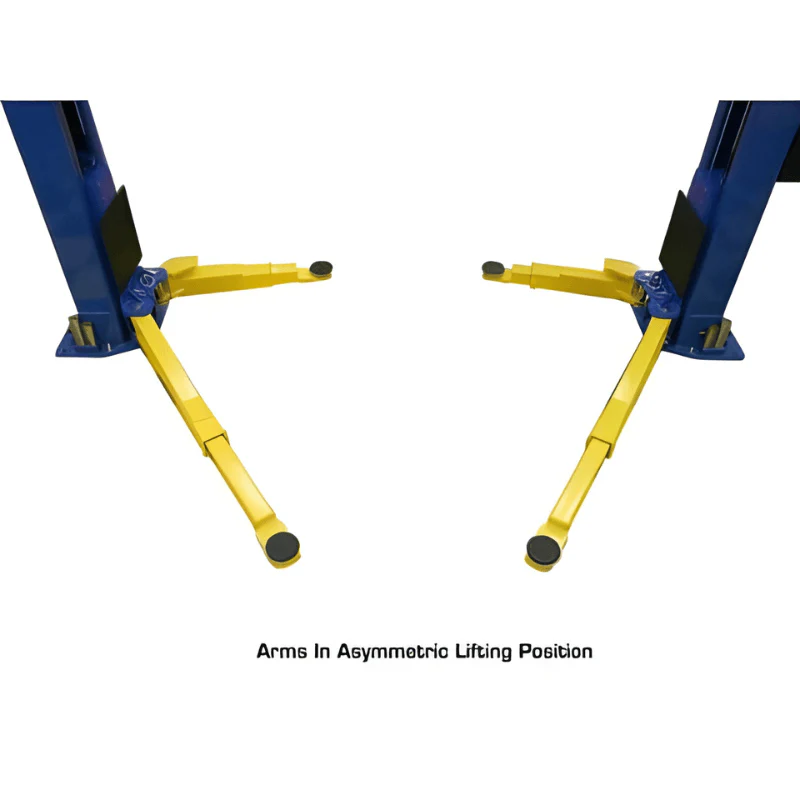

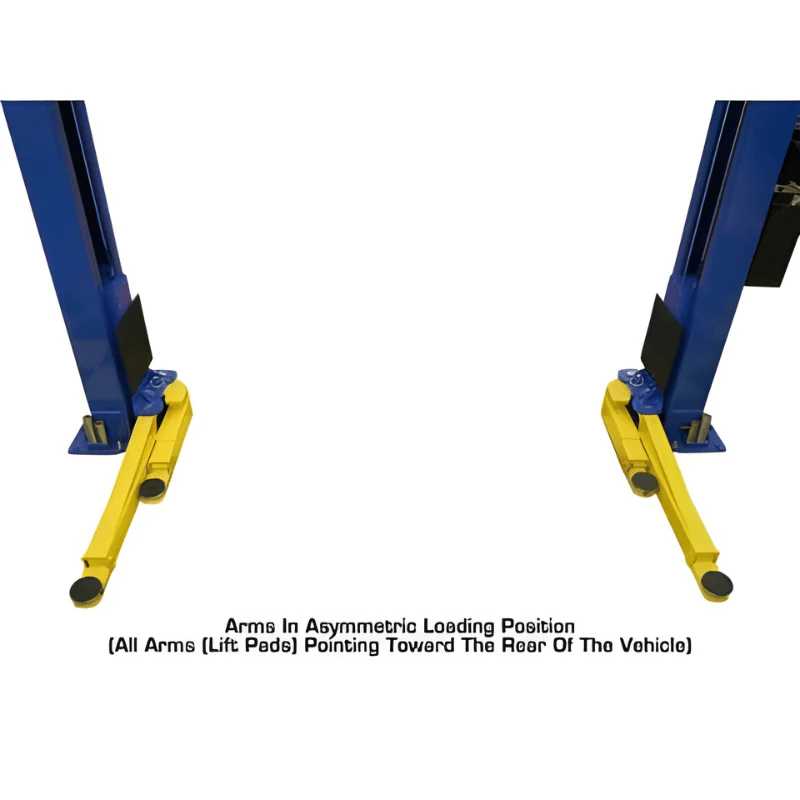

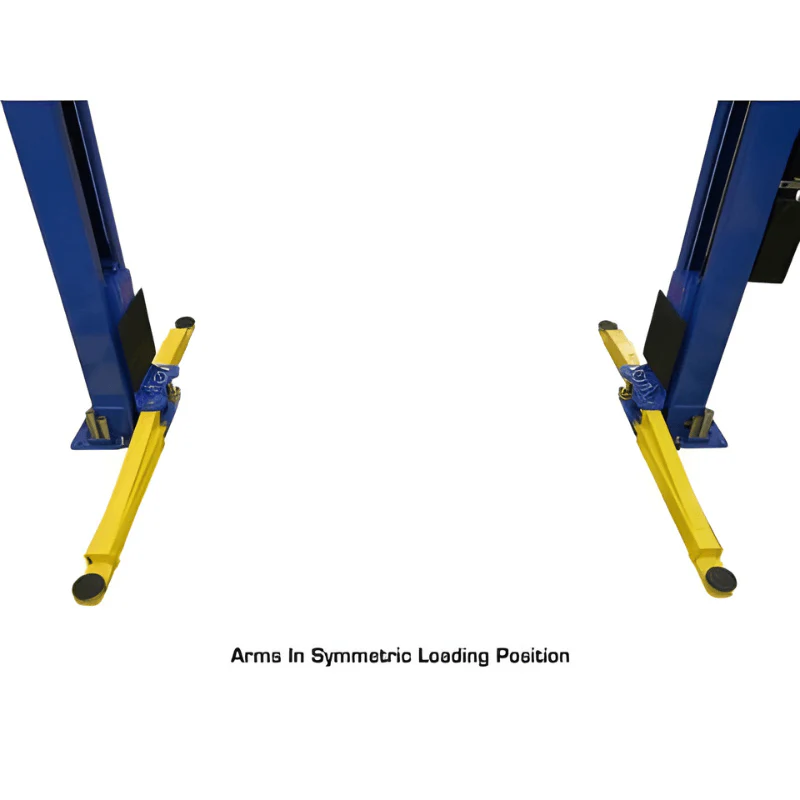

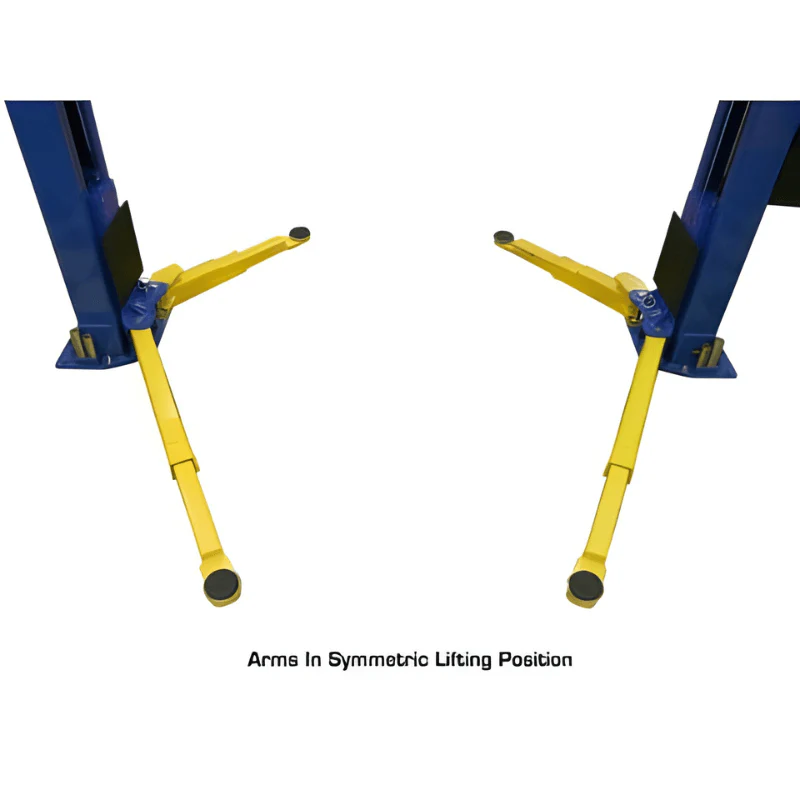

- Asymmetric and symmetric arm configuration

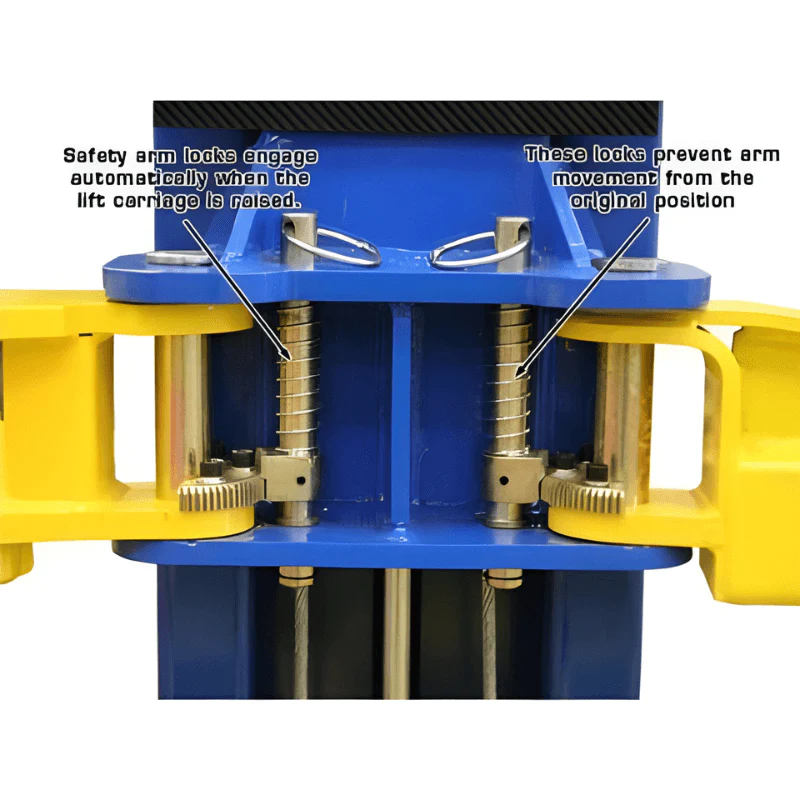

- Automatic arm restraints

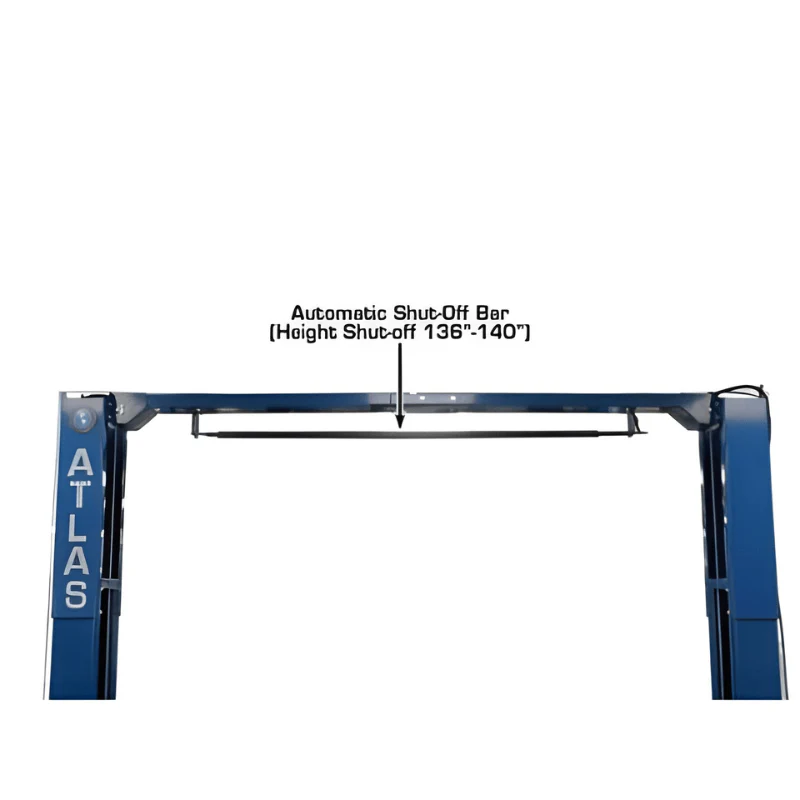

- Padded shut-off bar
- Padded carriages

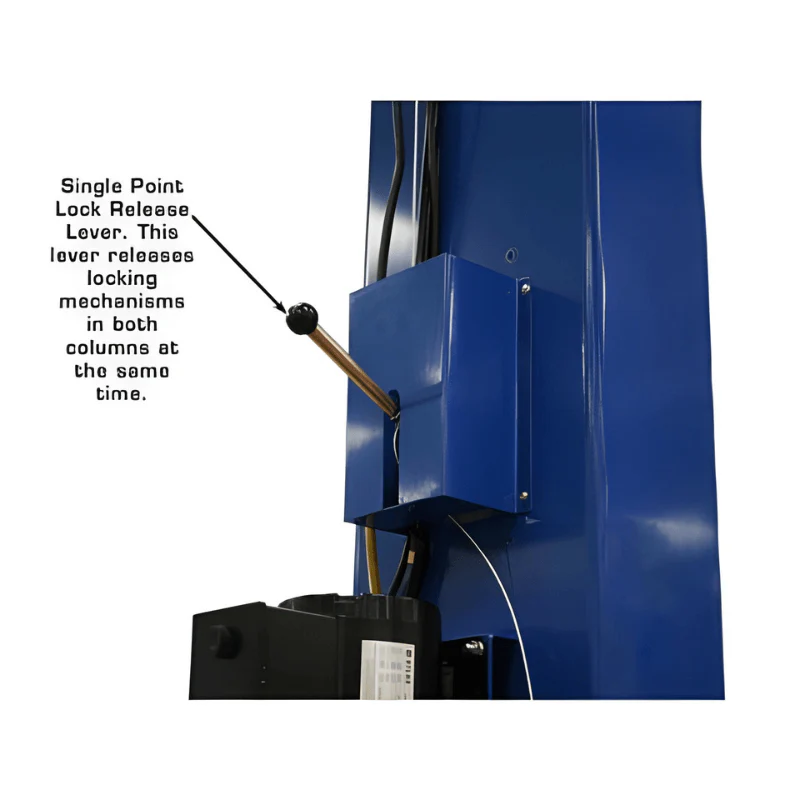

- Single-point lock release

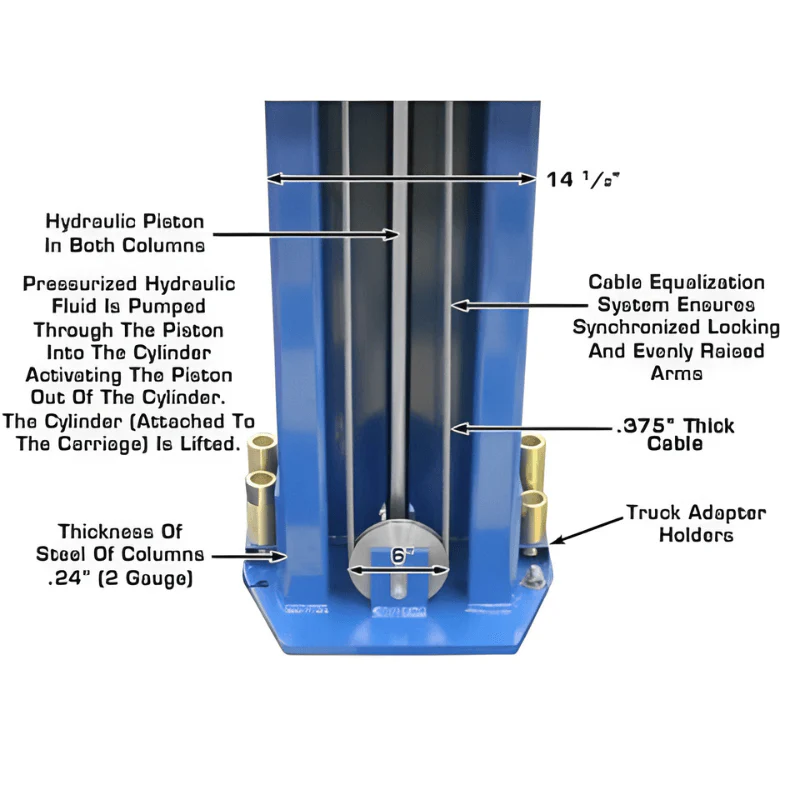

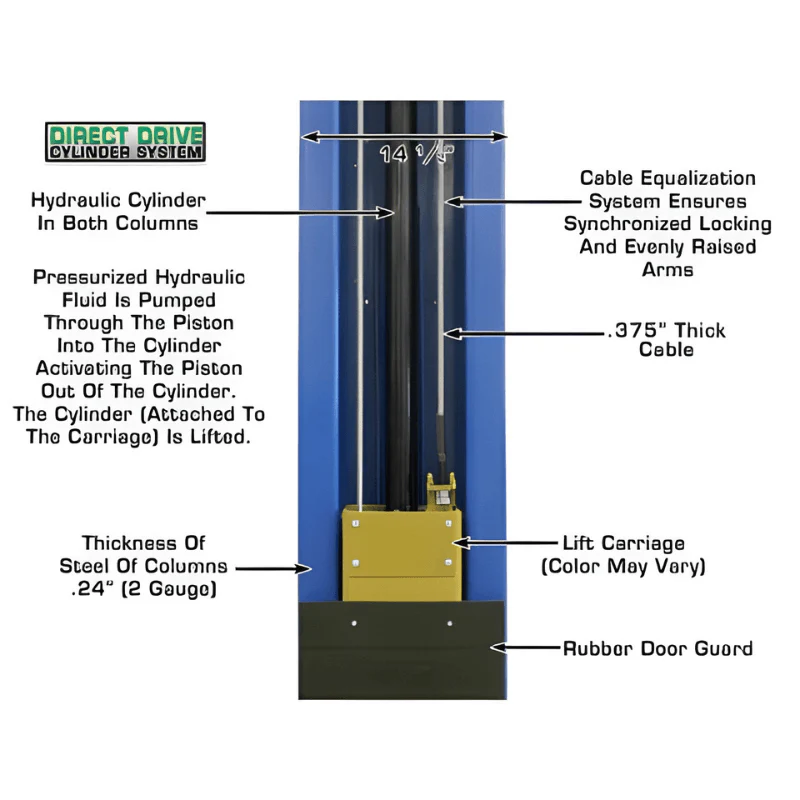

- Direct-drive cylinders
- Powder coat finish

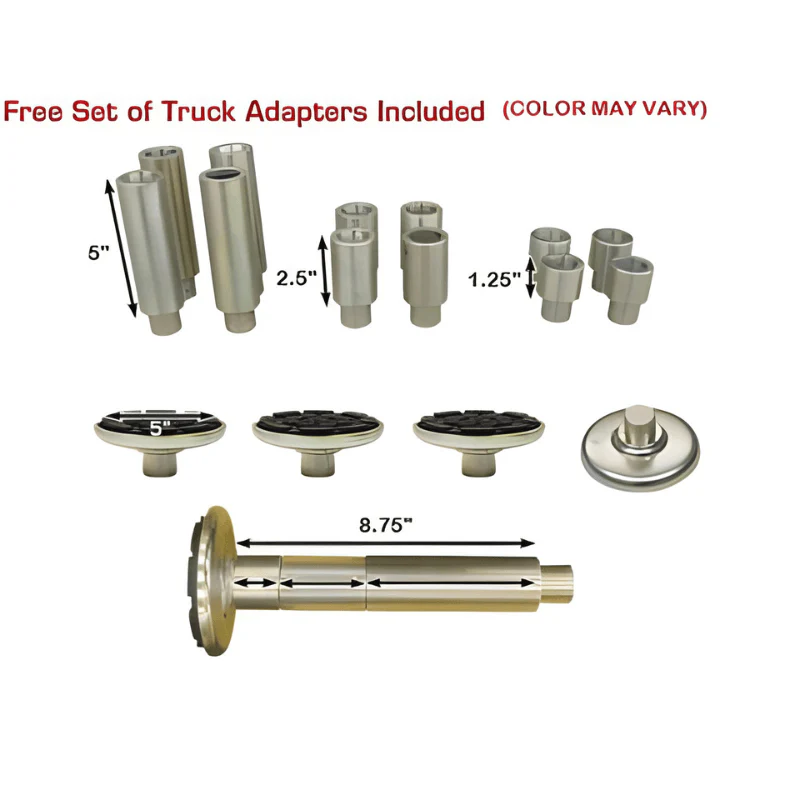

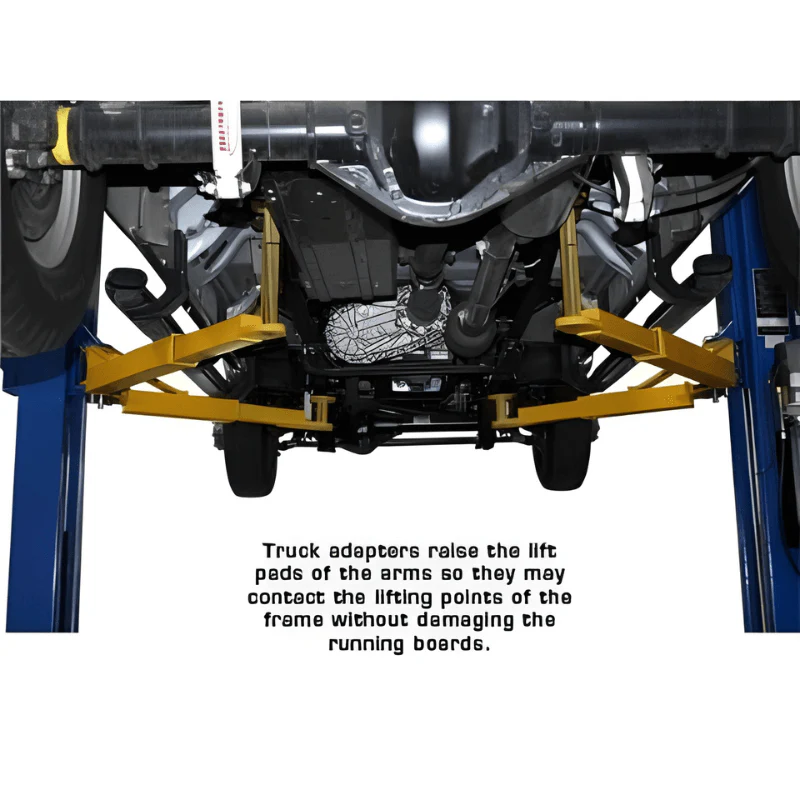

- Free 12-piece truck adapter set
- Mounting hardware included
- 5-year structural warranty, 2-year hydraulic warranty (parts only)
| Specifications | Details |
|---|---|
| Capacity | 10,000 lb |
| Overall Height | 143 1/8" (11’ 11 1/8") or 147" (12’ 3") |
| Overall Width w/ Motor | 145" (12’ 1") |
| Outside Column to Outside Column | 125 1/2" (10’ 5 1/2") |
| Inside Column | 110 1/8" (9’ 2 1/8") |
| Column Size | 7 1/2" x 14 1/2" |

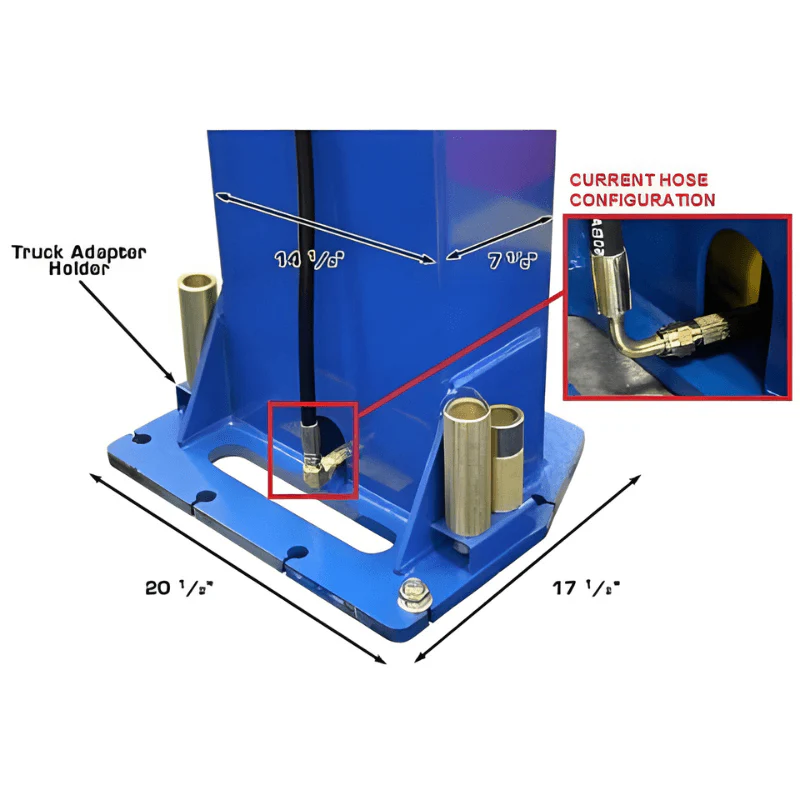

| Base of Lift | 17 1/2" x 20 1/2" |
| Maximum Lift Height (Without Adapters) | 72 1/2" |

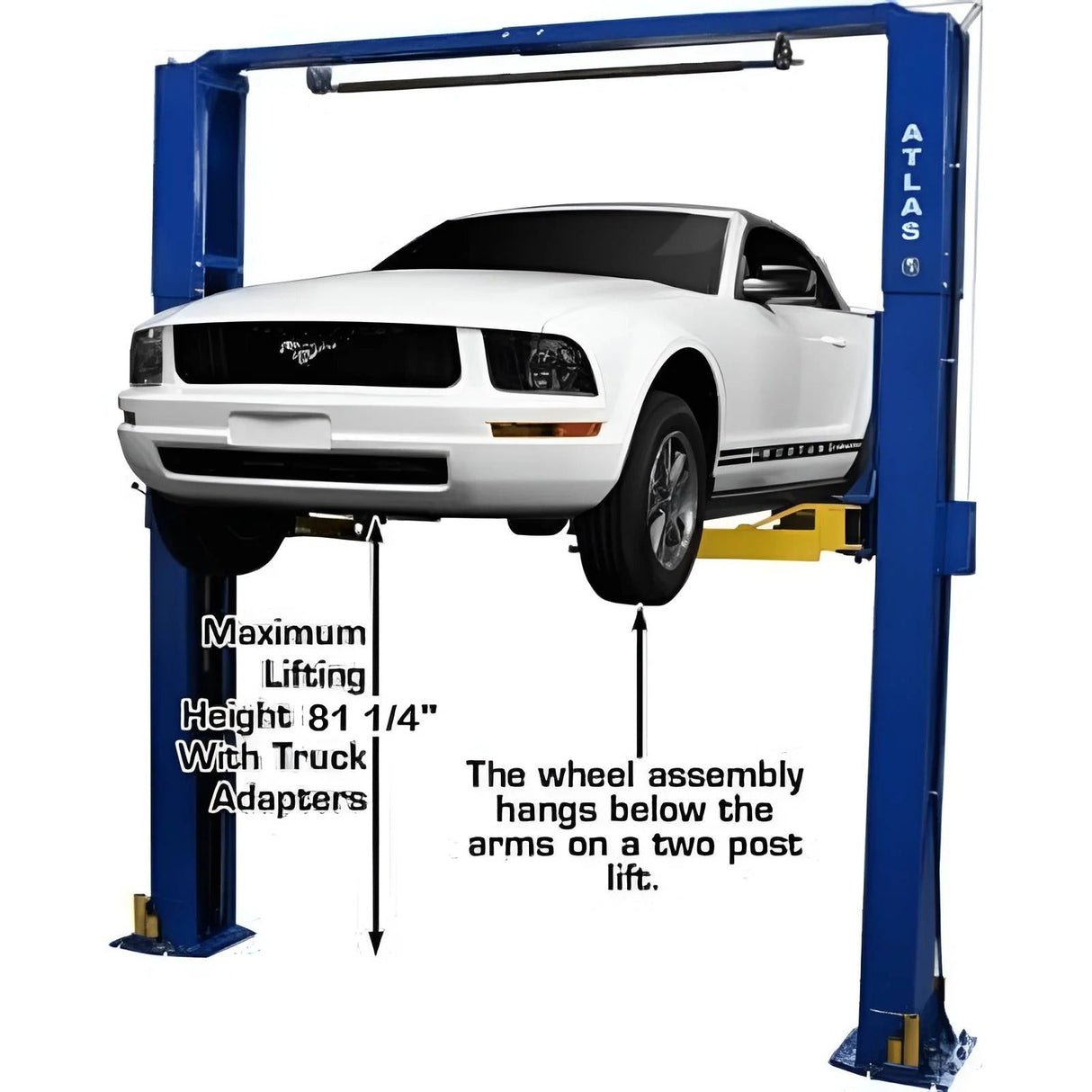

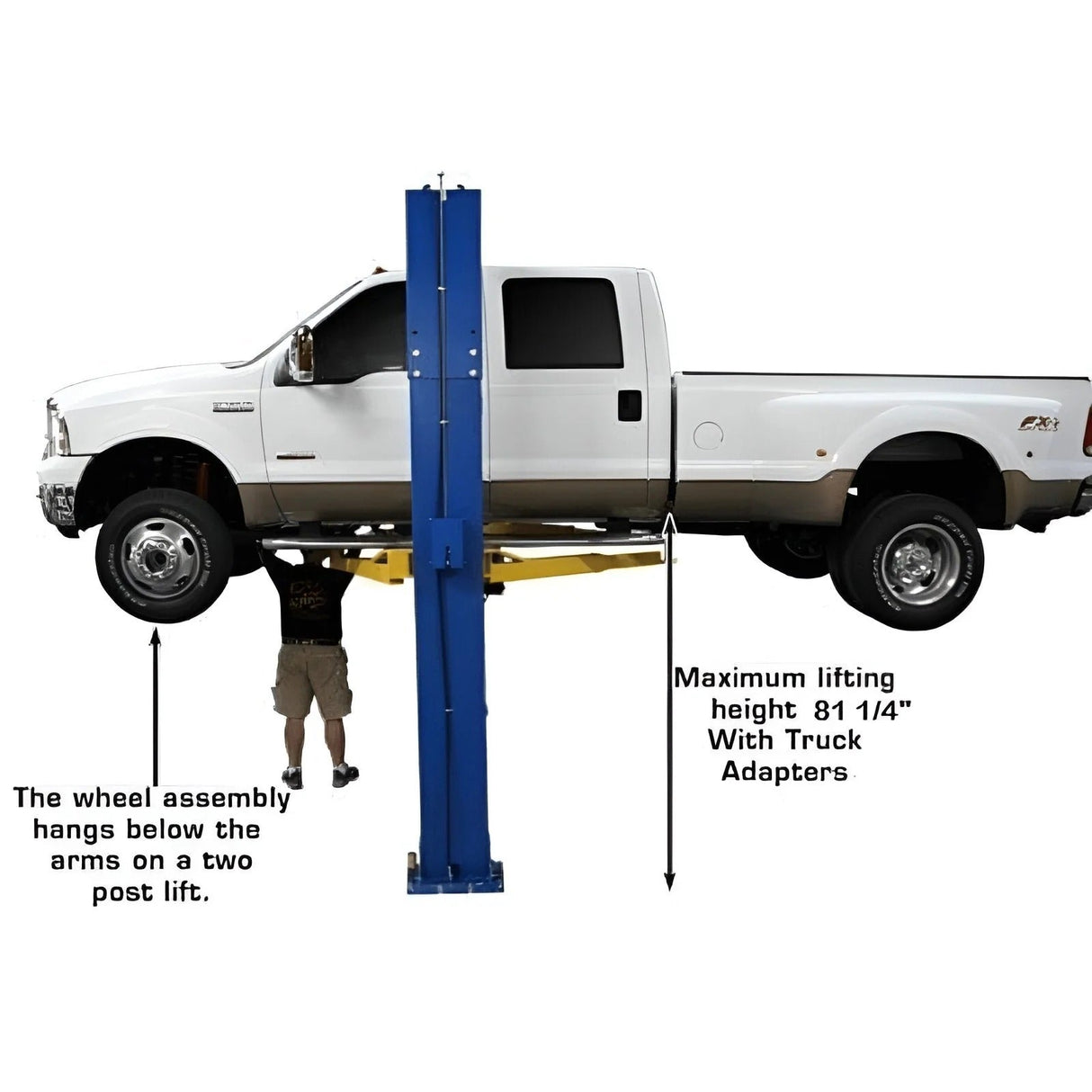

| Maximum Lift Height (With Adapters) | 81 1/4" |
| Minimum Arm Height | 4 1/2" |
| Drive Thru (Symmetric) | 96 1/4" (8’ 1/4") |
| Drive Thru (Asymmetric) | 90 1/4" (7’ 6 1/4") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |
| Adapter Heights | 4 Each: 1.25", 2.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI rating |

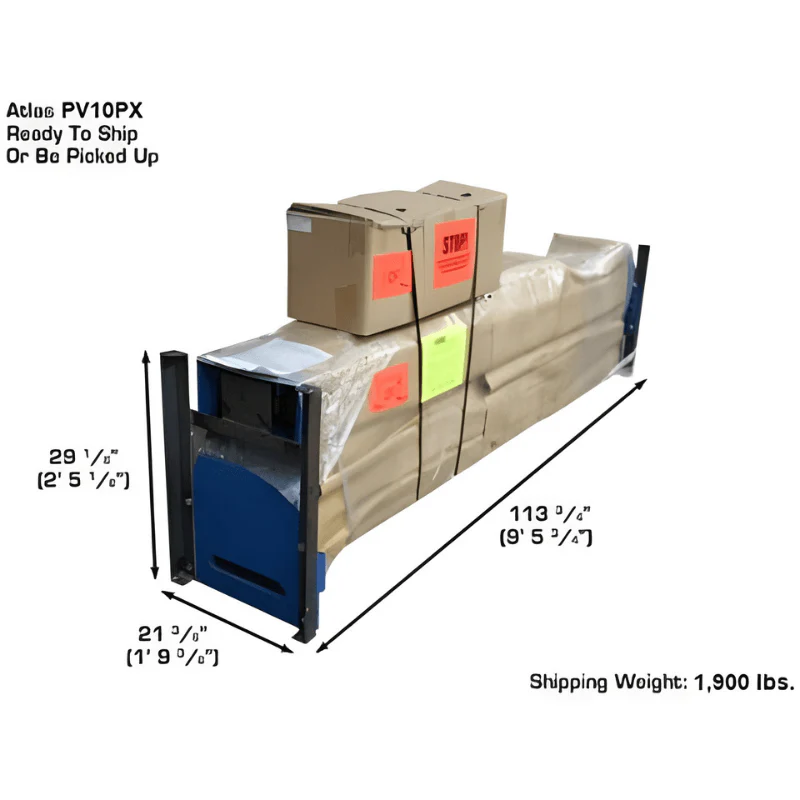

| Shipping Weight | 1,875 lbs |
