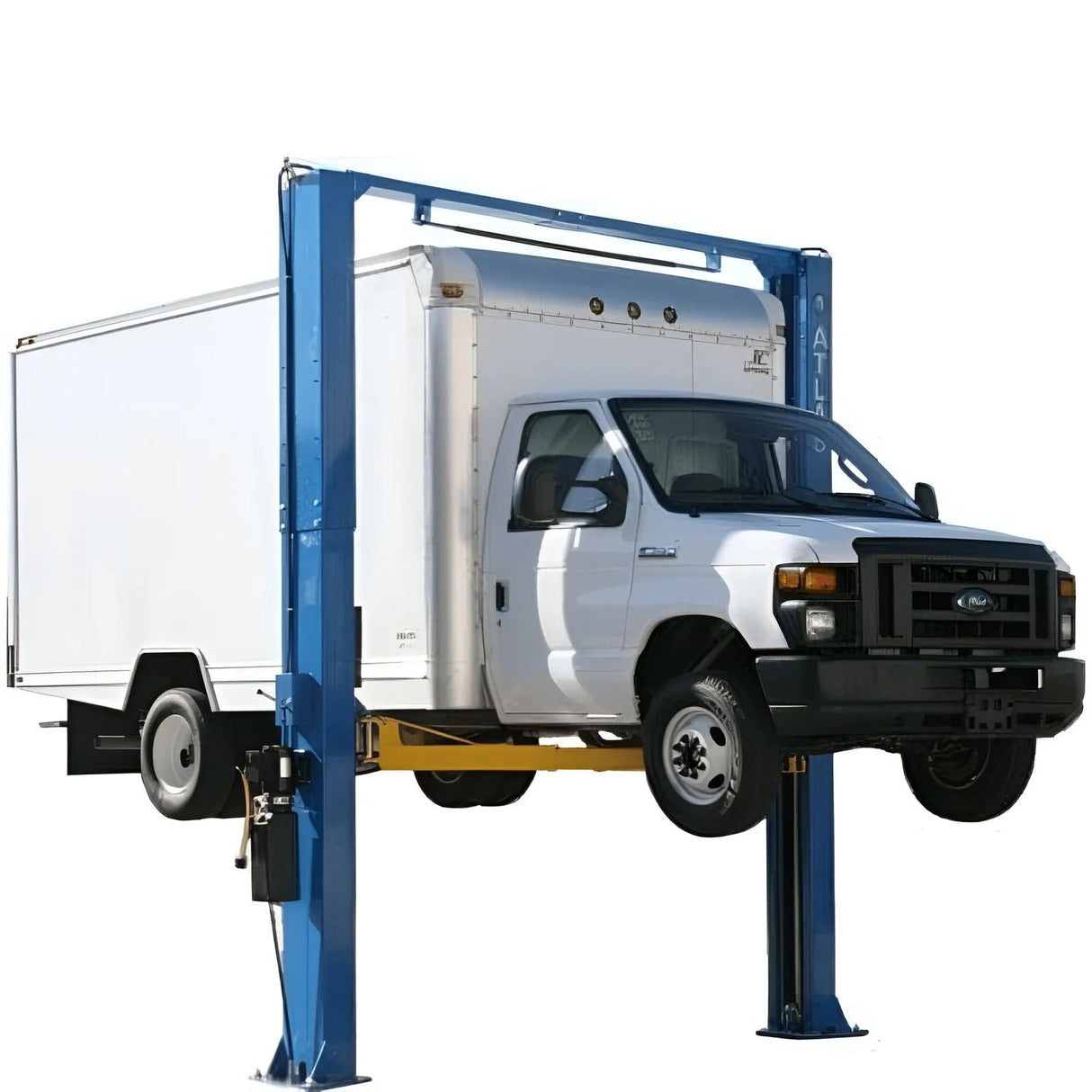

The Atlas PV15PX is a commercial-grade 2-post lift designed for lifting everything from passenger vehicles to heavy-duty trucks and service vans. With a 15,000 lb capacity, extra-wide column spacing, and extended height options, this lift delivers the strength and clearance needed for demanding shop environments.
Built for durability and long-term reliability, the PV15PX is part of Atlas’s proven PV series—trusted by professionals for consistent performance and rugged construction.
With nearly 123 inches between columns and over 109 inches of drive-thru clearance, this lift easily accommodates wide vehicles and trucks with extended mirrors. The longer symmetric arms and included height adapters make it ideal for lifting long wheelbase vehicles and trucks with running boards.
Features and Benefits
- 15,000 lb lifting capacity for heavy-duty applications

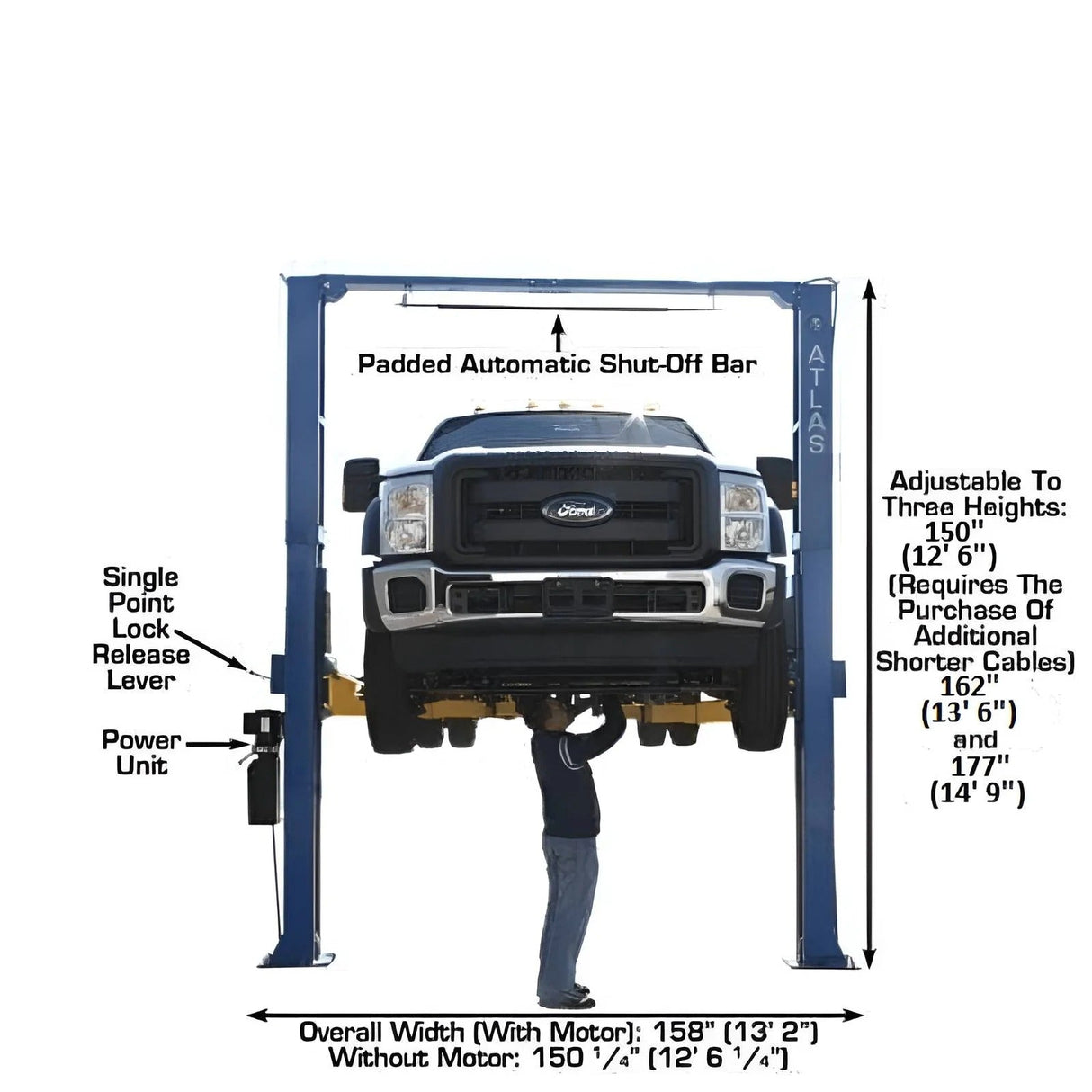

- Extra tall and wide design for maximum clearance

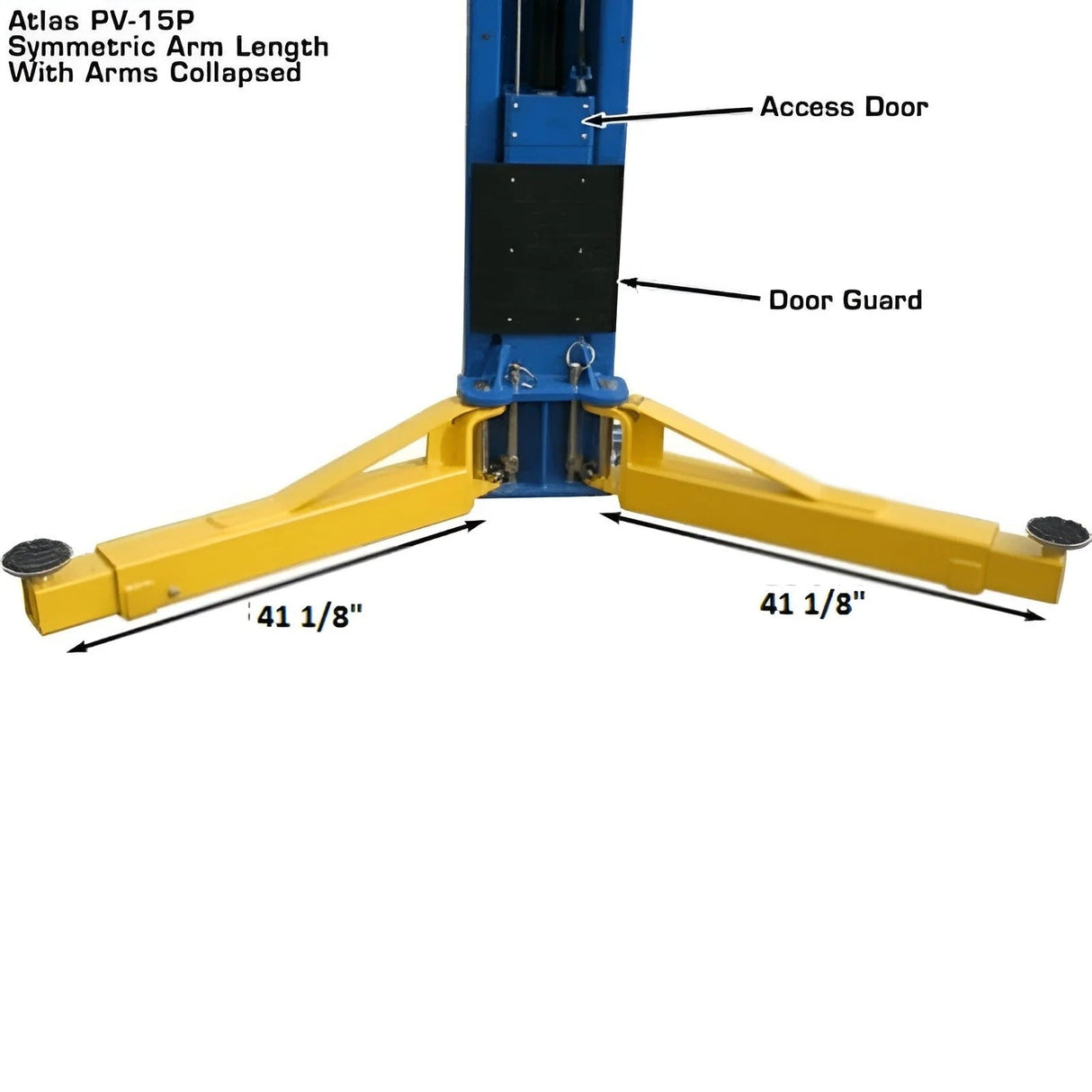

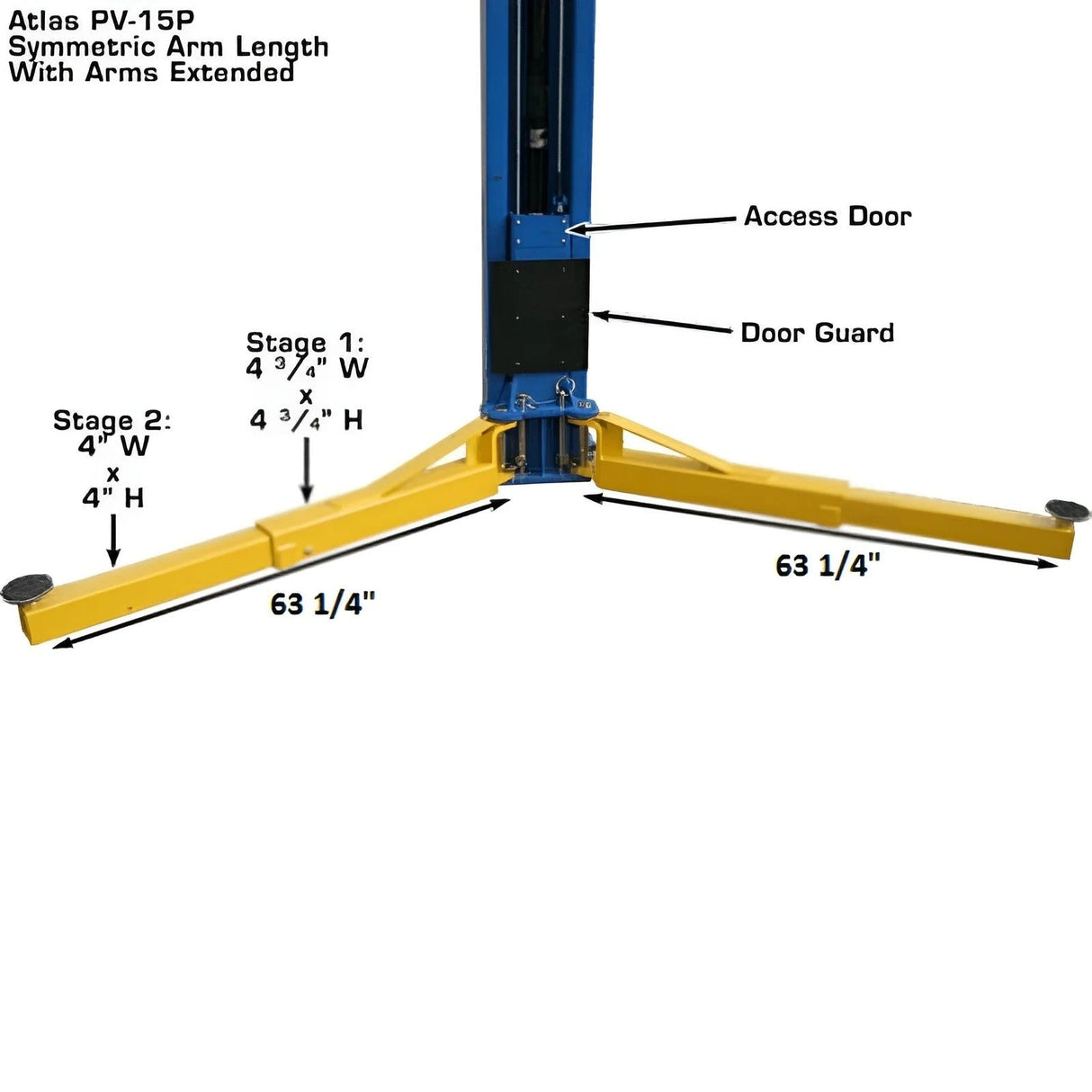

- Symmetric arm configuration for balanced lifting

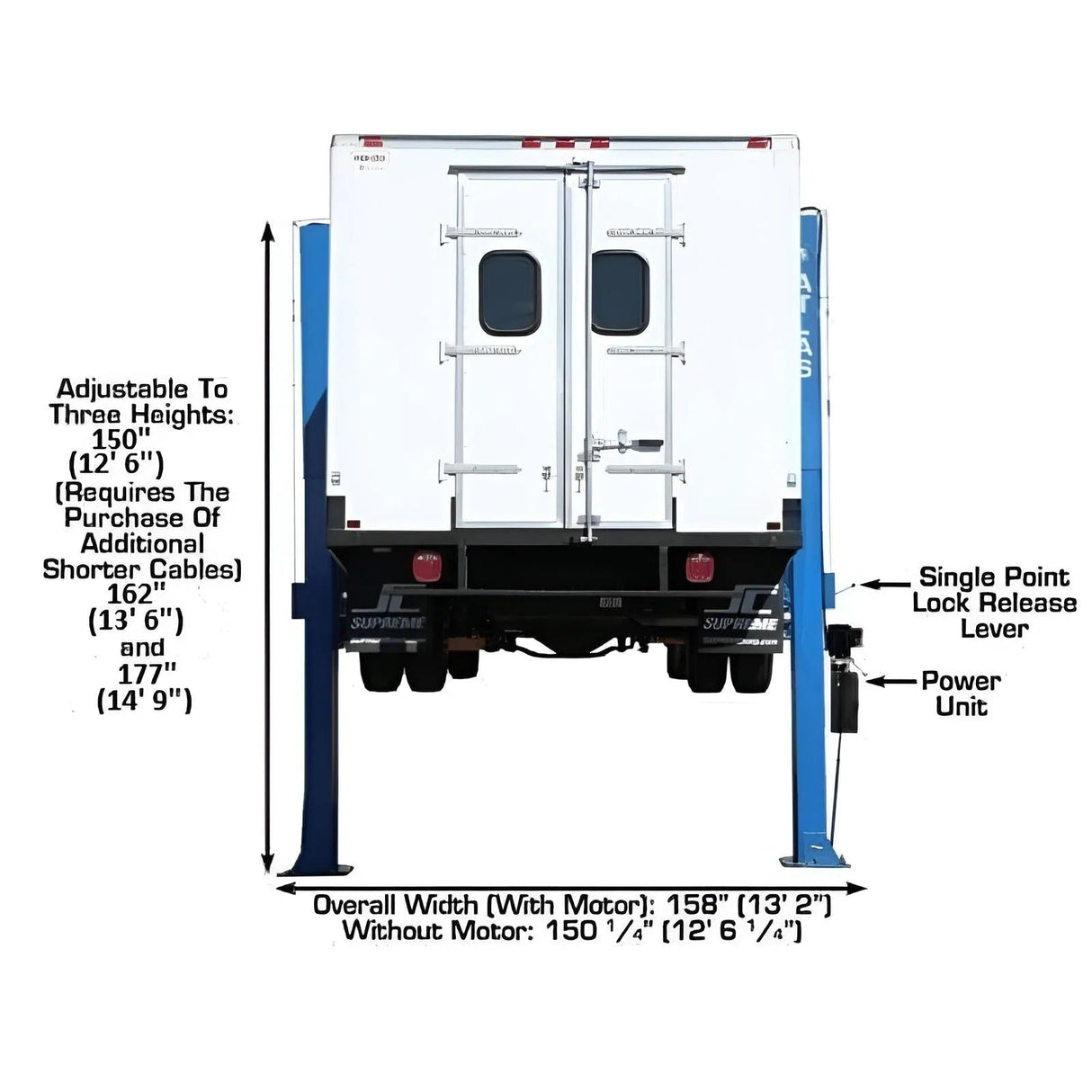

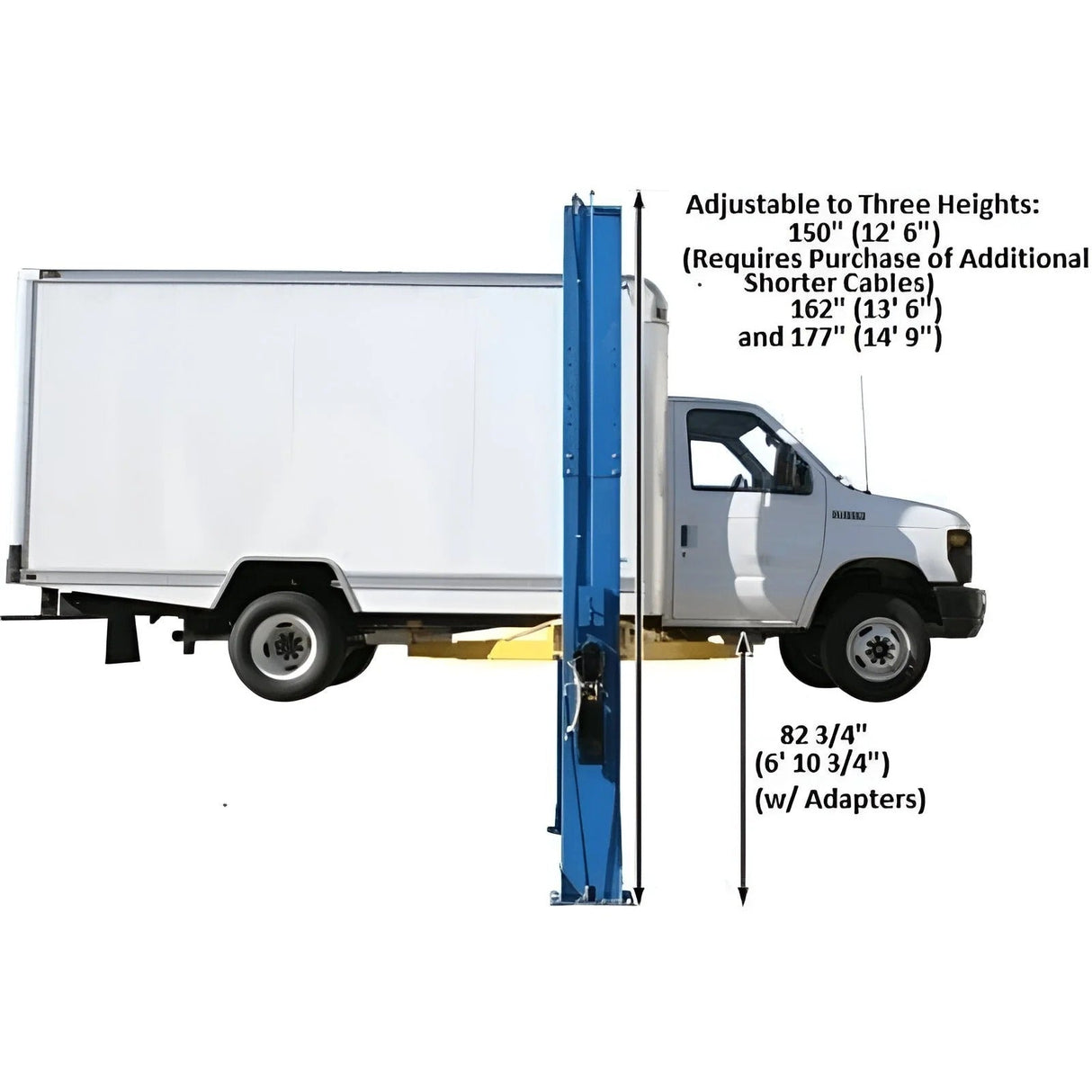

- Adjustable height: 165" or 177"
- Optional low height: 150" (requires additional cables)

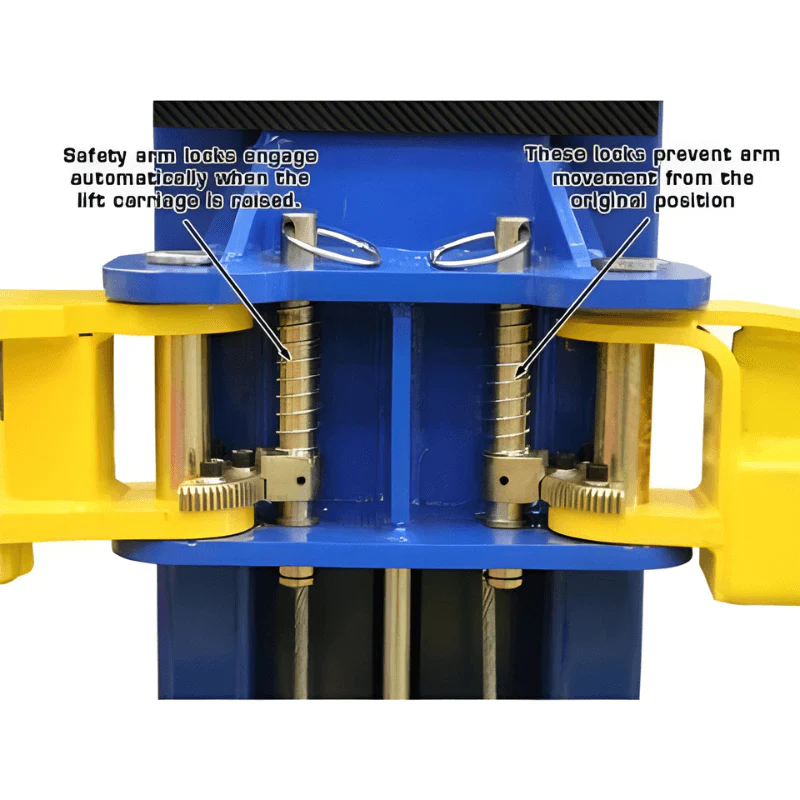

- Automatic arm restraints for added safety

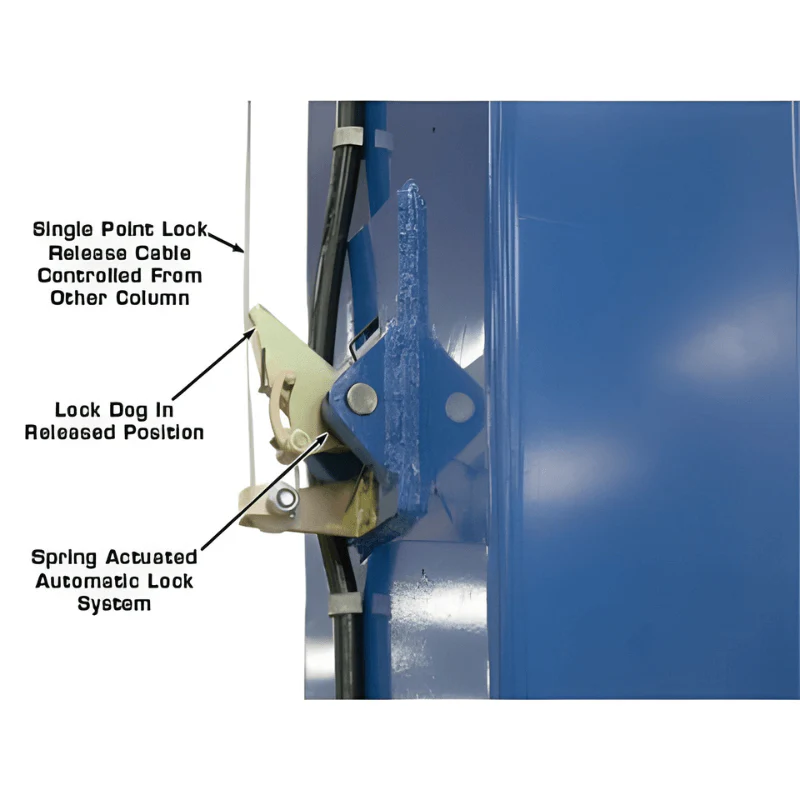

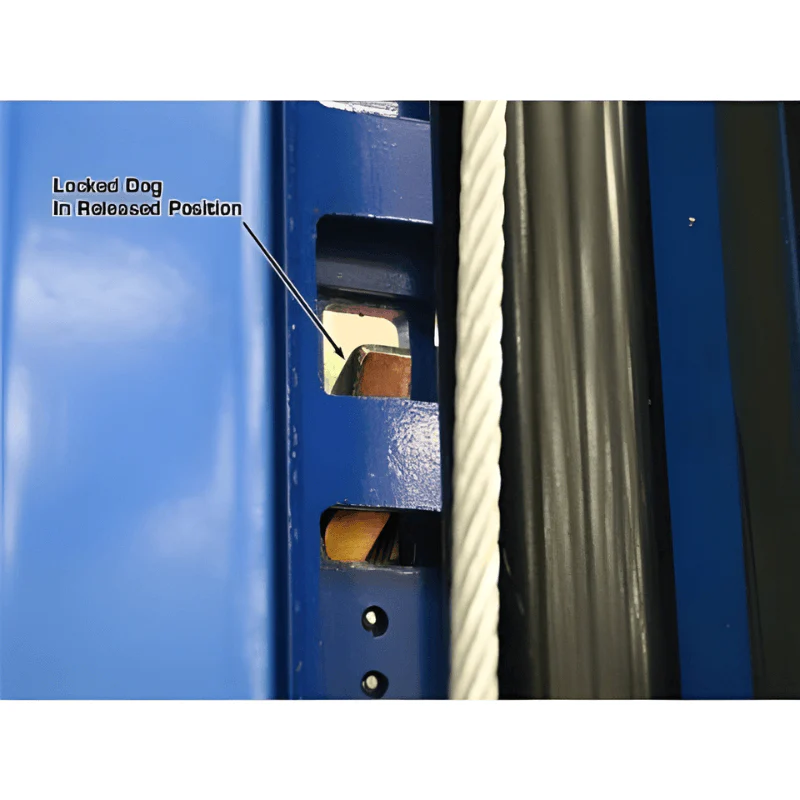

- Single-point lock release system

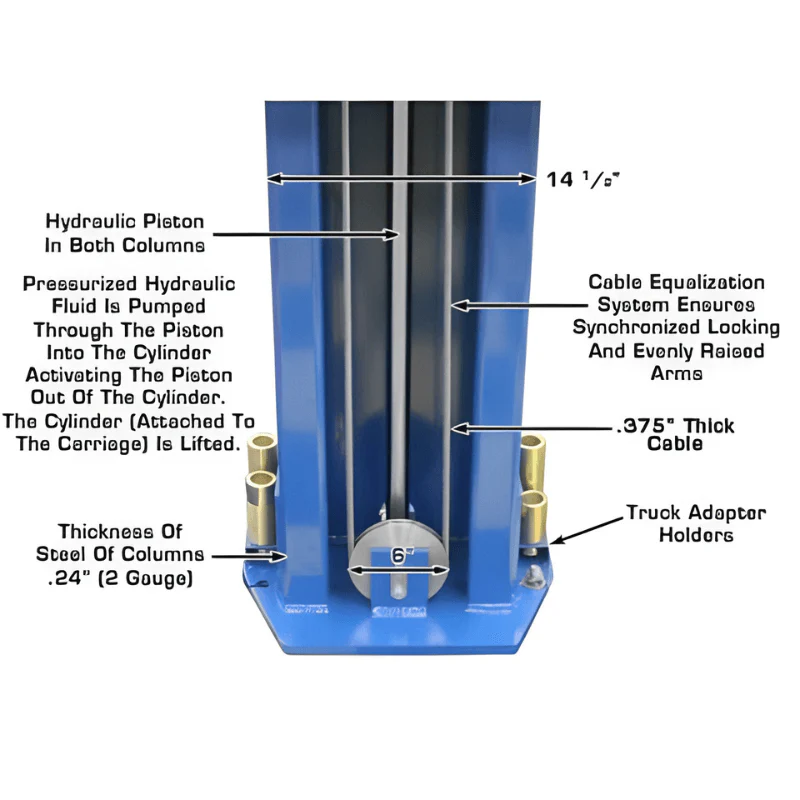

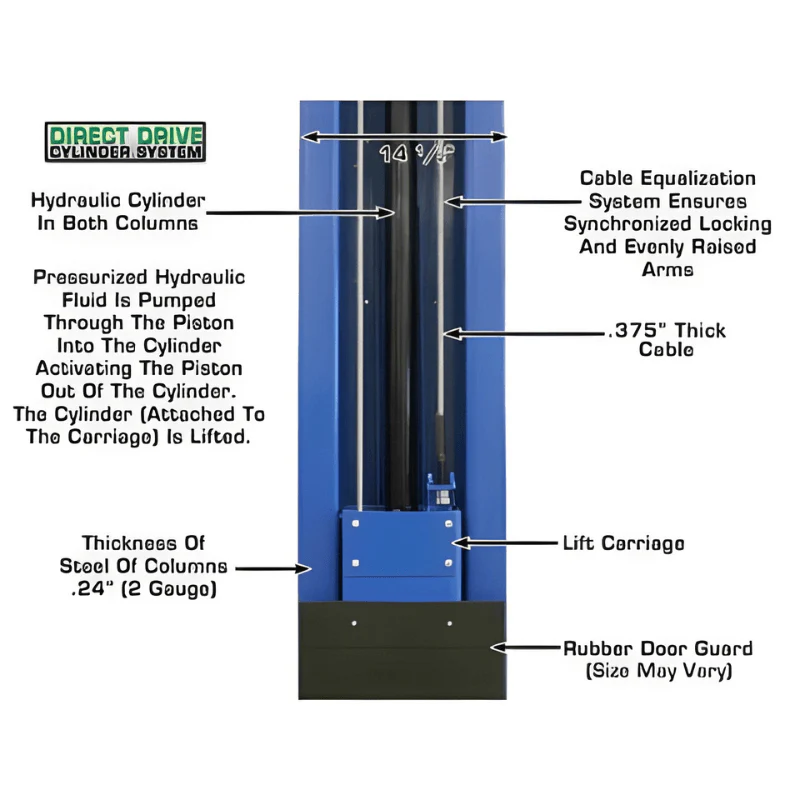

- Direct-drive hydraulic cylinders
- Overhead shut-off bar with protective padding
- Carriage-mounted door guards
- Durable powder-coated finish

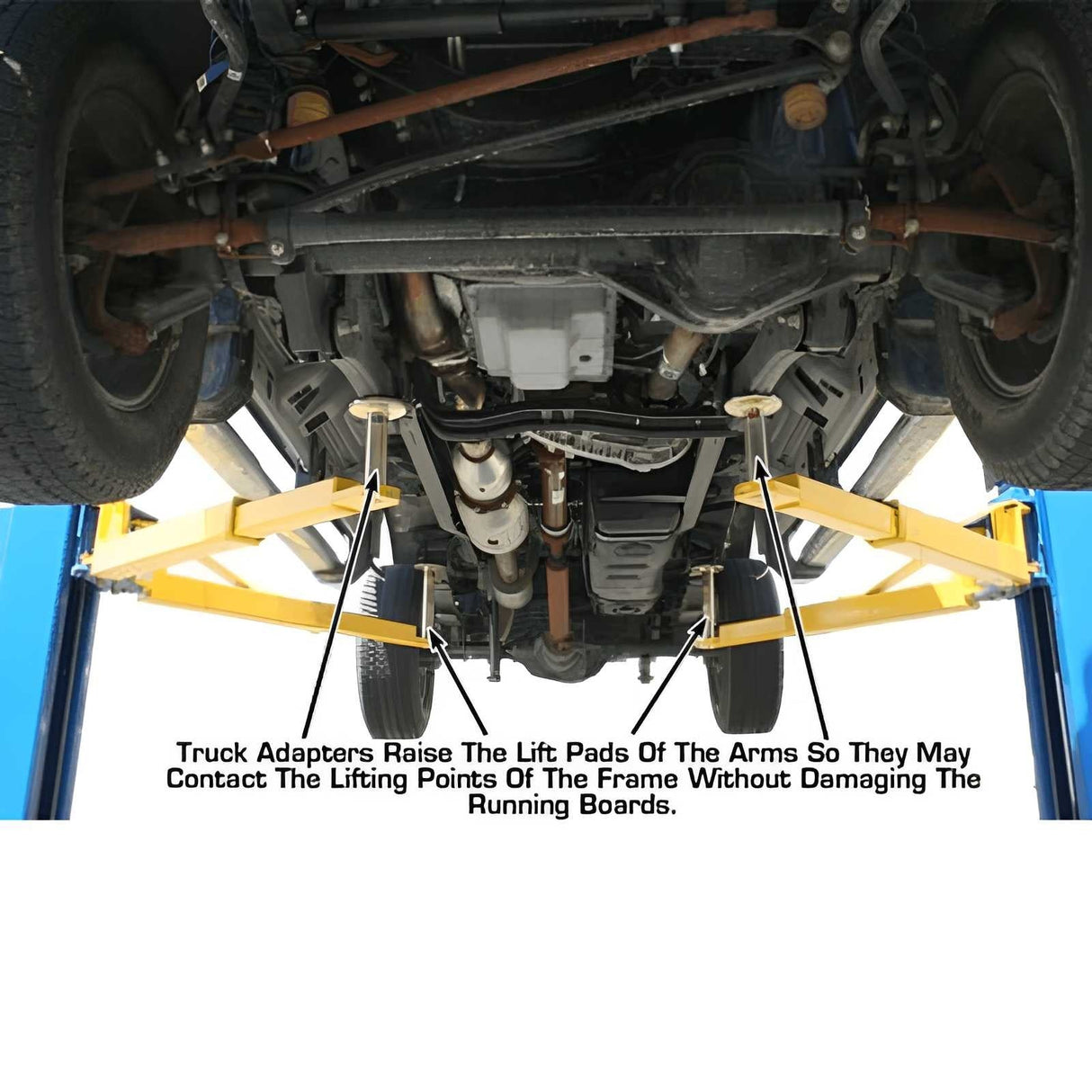

- Includes 12-piece truck adapter set

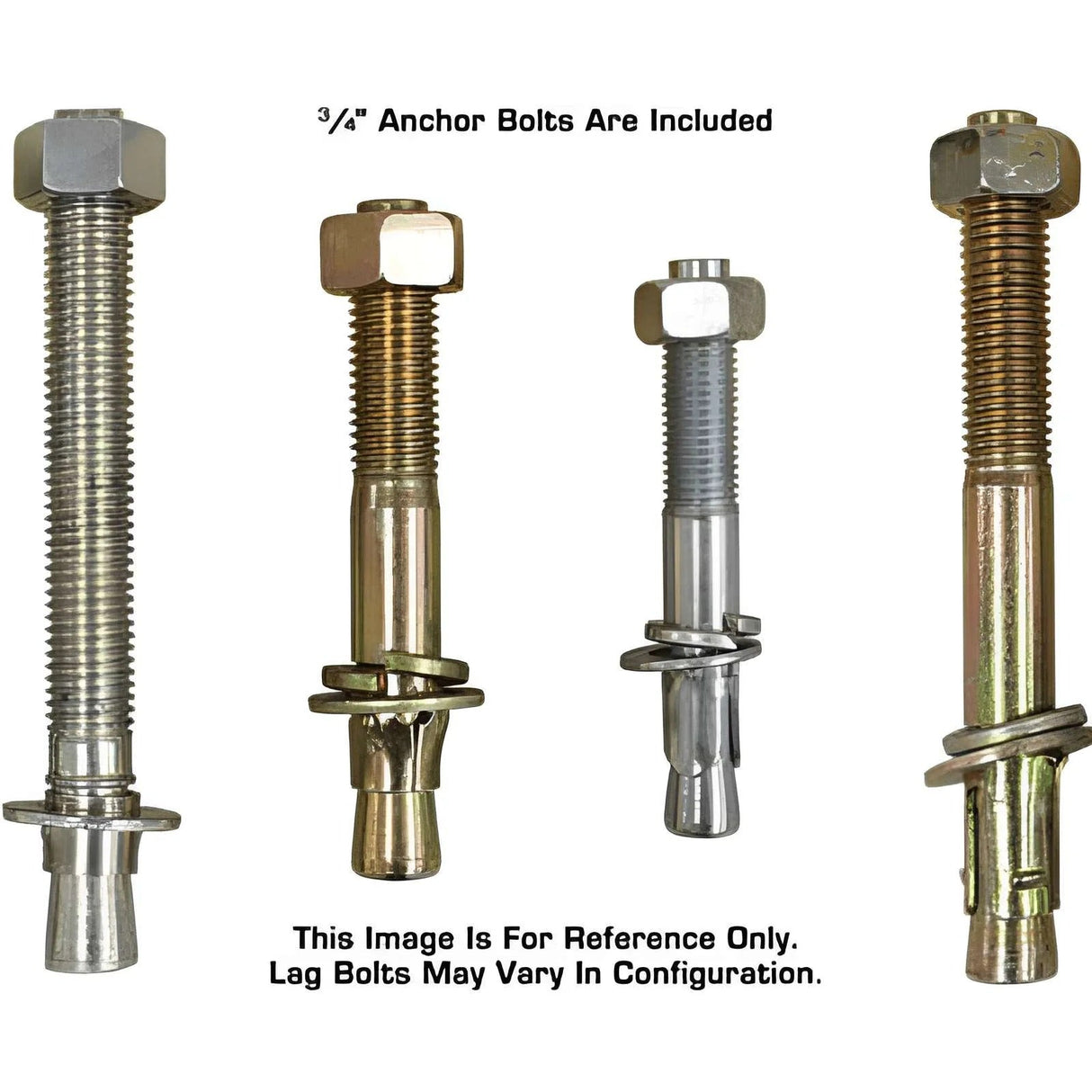

- Mounting hardware included
| Specifications | Details |
|---|---|
| Capacity | 15,000 lb |

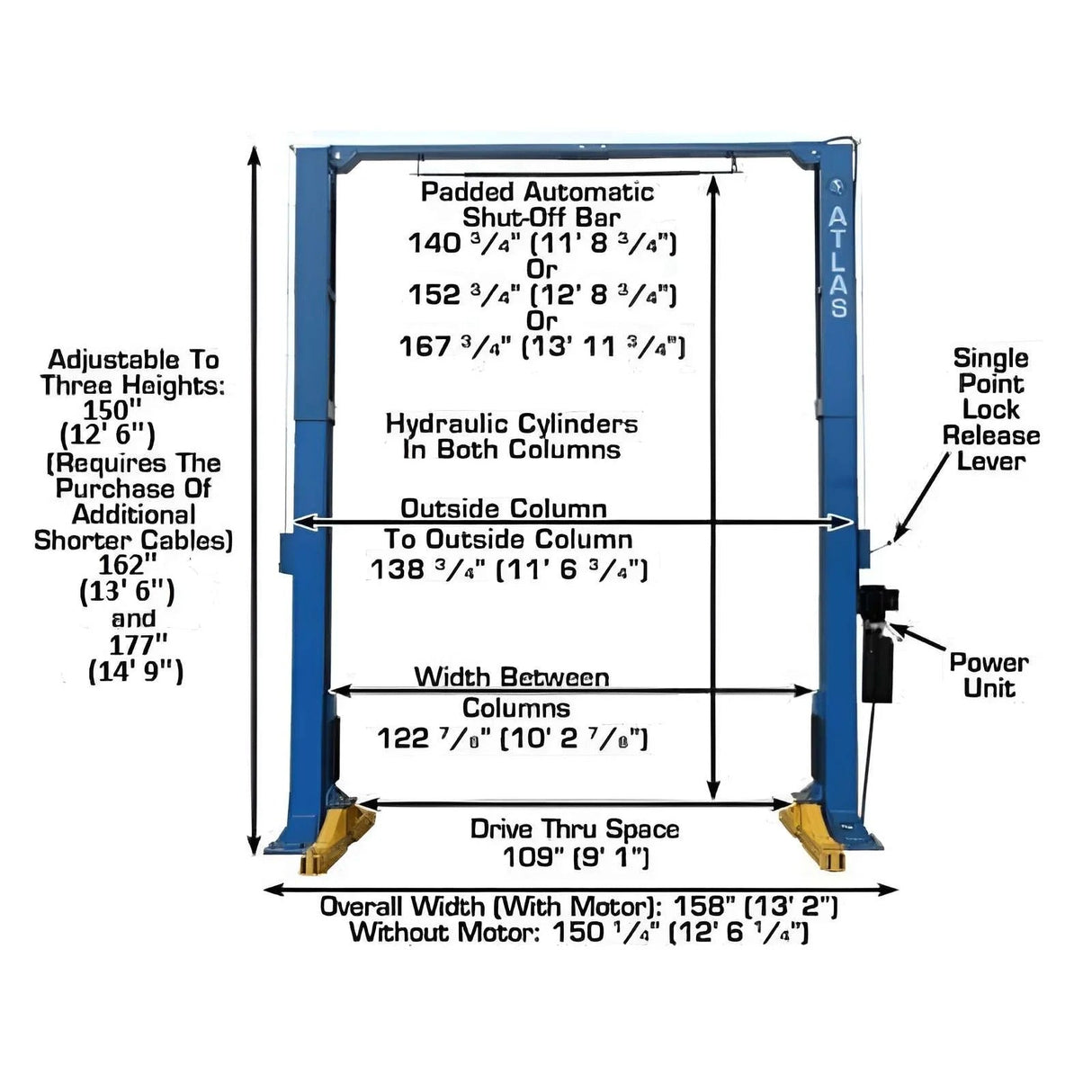

| Overall Height | 165" (13’ 9") or 177" (14’ 9") |
| Special Low Height* | 150" (12’ 6") |
| Overall Floor Width | 150 3/4" (12’ 6 3/4") |
| Outside Column to Outside Column | 139 1/8" (11’ 7 1/8") |
| Inside Column | 123 1/2" (10’ 3 1/2") |

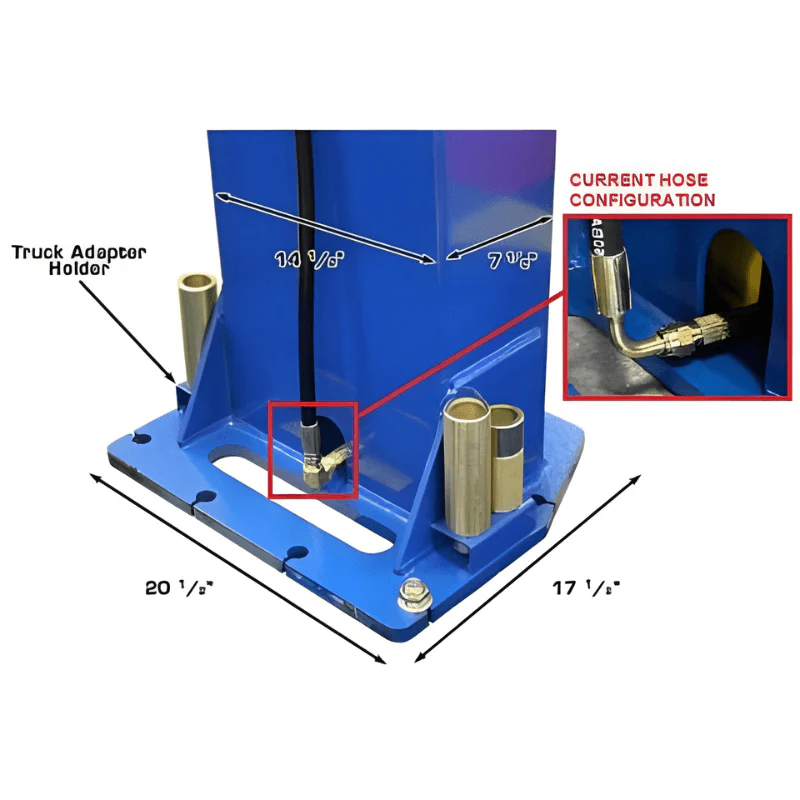

| Column Size | 7 1/2" x 14 1/2" |
| Base of Lift | 17 1/2" x 20 1/2" |
| Maximum Lift Height (Without Adapters) | 72 1/4" |

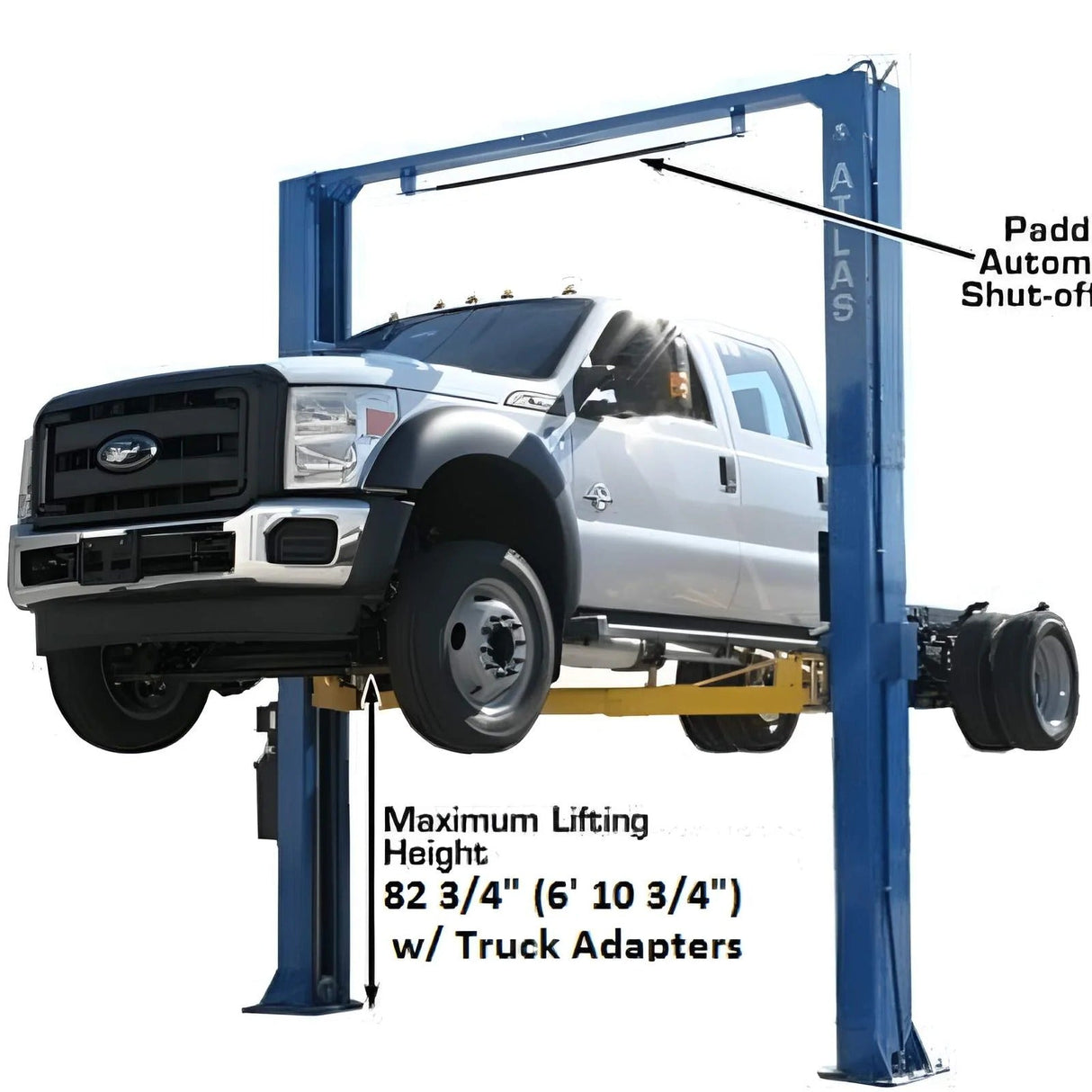

| Maximum Lift Height (With Adapters) | 81" |
| Minimum Pad Height | 7 1/4" |
| Drive Thru | 109 1/2" (9’ 1 1/2") |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |
| Adapter Heights | 4 Each: 1.25", 2.5", 5" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI rating |

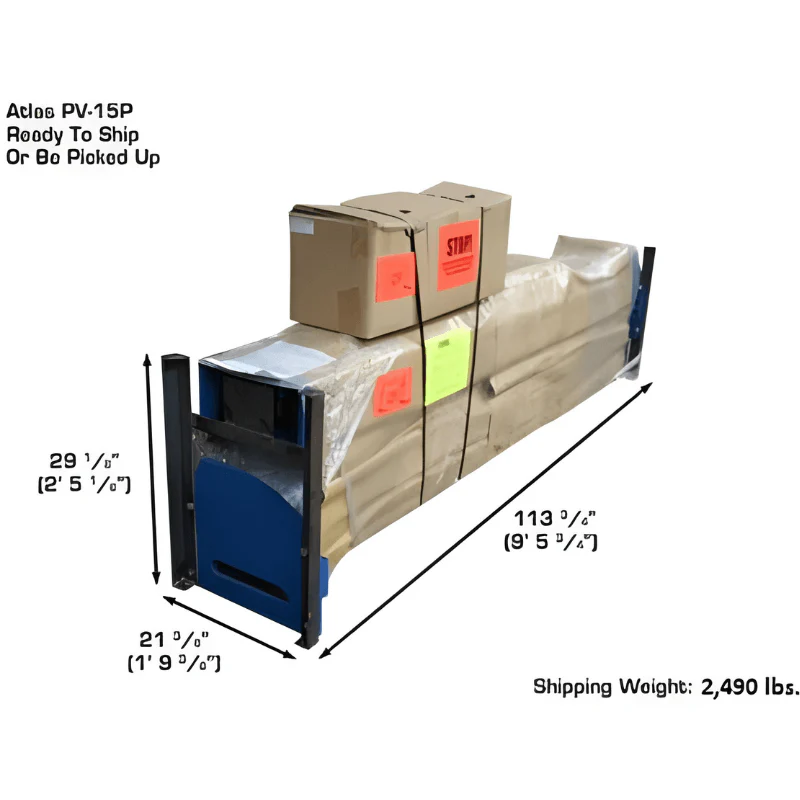

| Shipping Weight | 2,490 lbs |
* Special Low Height requires purchase of extra cables (sold separately).
