Atlas PVL10 ALI Certified 10,000 lb Overhead 2-Post Lift

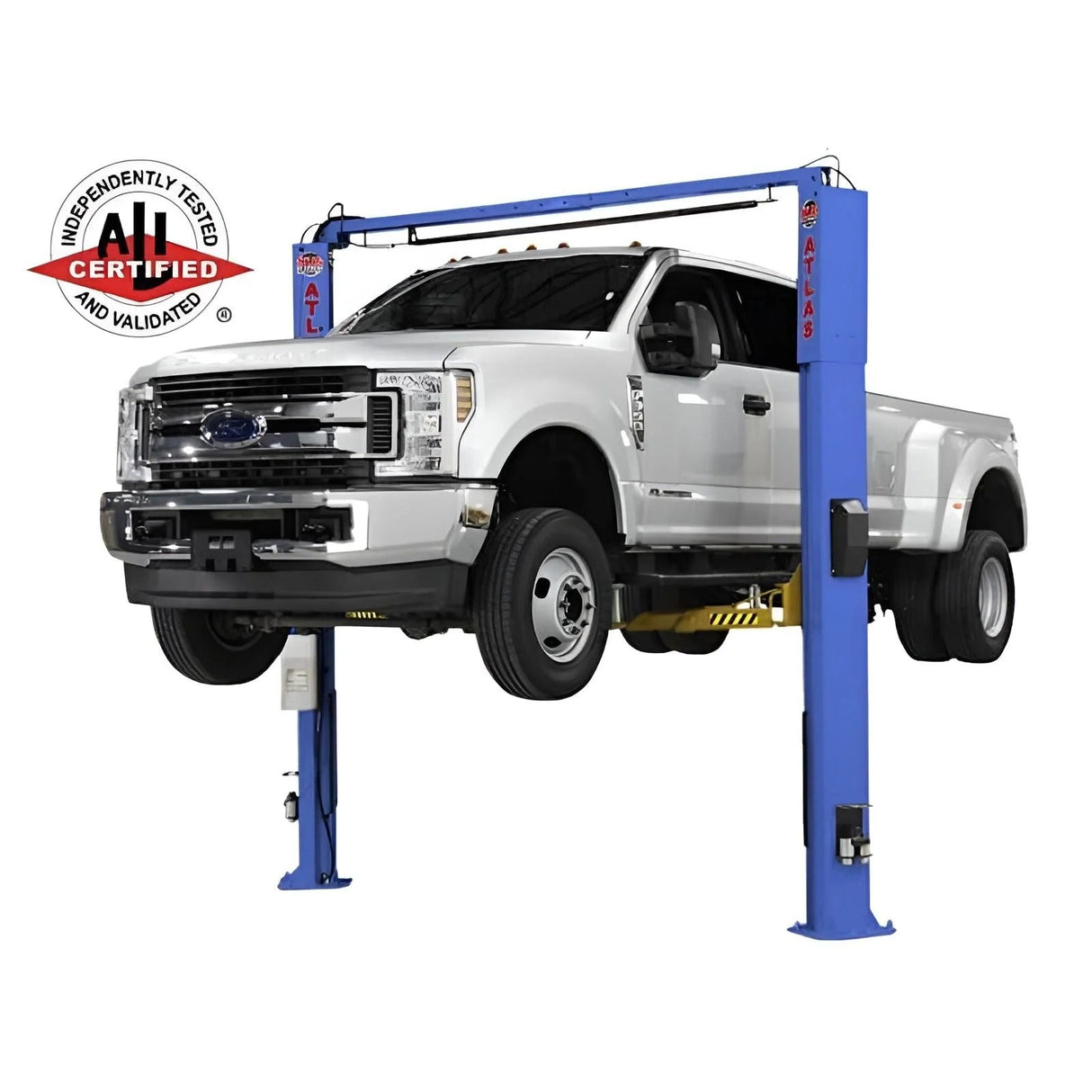

The Atlas Platinum PVL10 is a commercial-grade, ALI-certified 2-post lift engineered for professional shops that demand durability, flexibility, and proven performance. With a 10,000 lb lifting capacity, it is designed to handle everything from passenger vehicles to full-size trucks and SUVs.

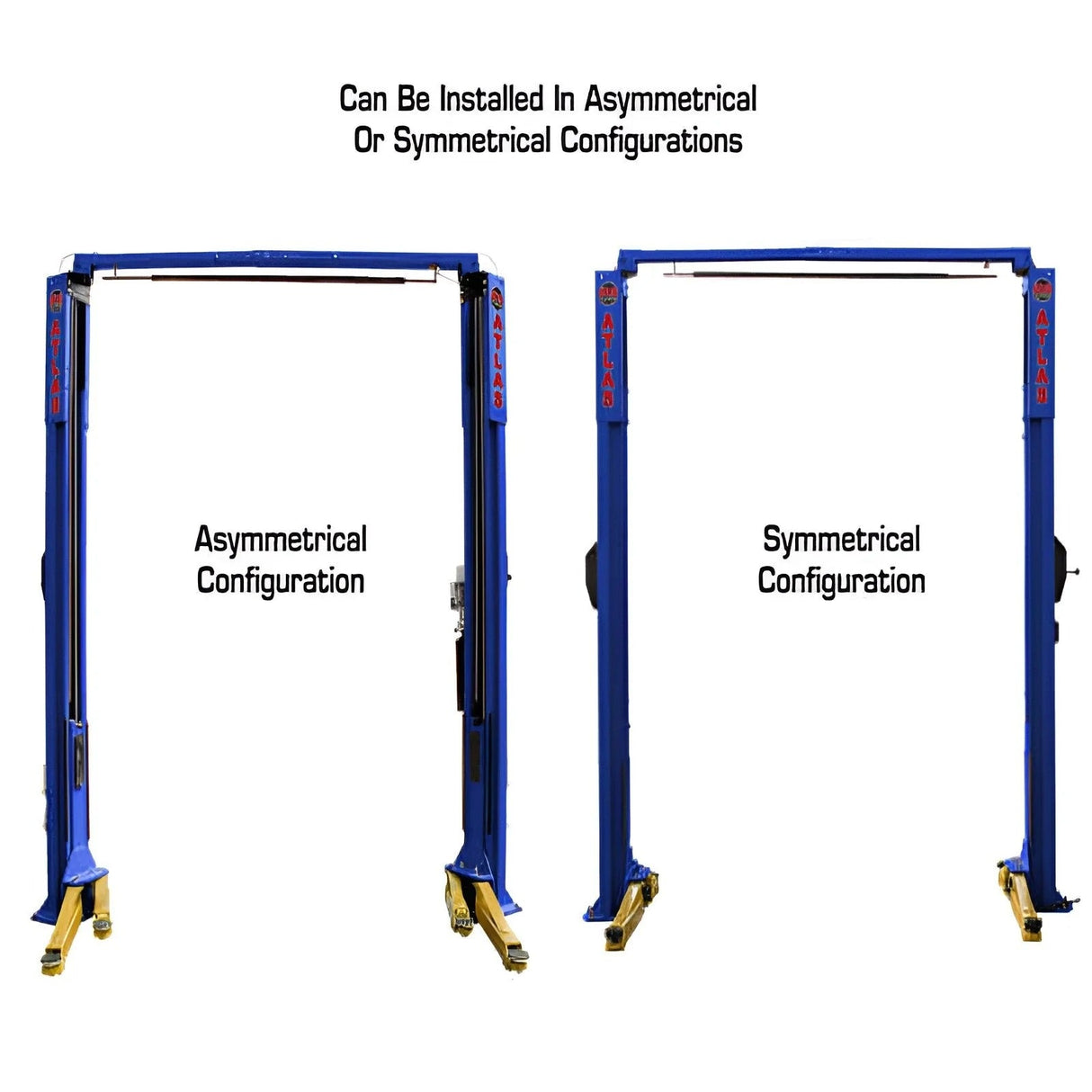

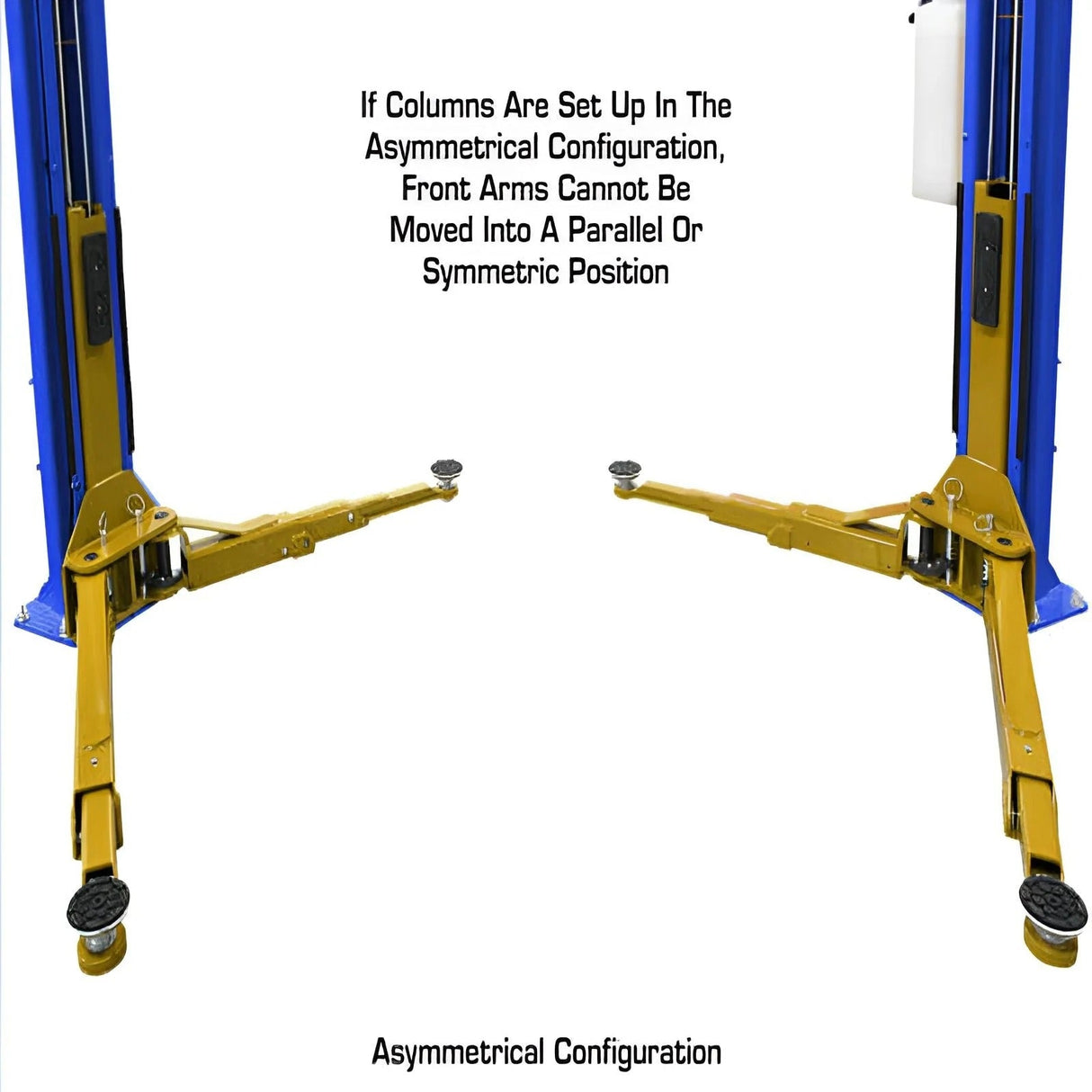

This lift features a reinforced column design with patented Double “S” bends, significantly increasing column strength and long-term structural integrity. It can be installed in either symmetric or asymmetric configurations, allowing operators to optimize for wider vehicles or easier vehicle entry and exit.

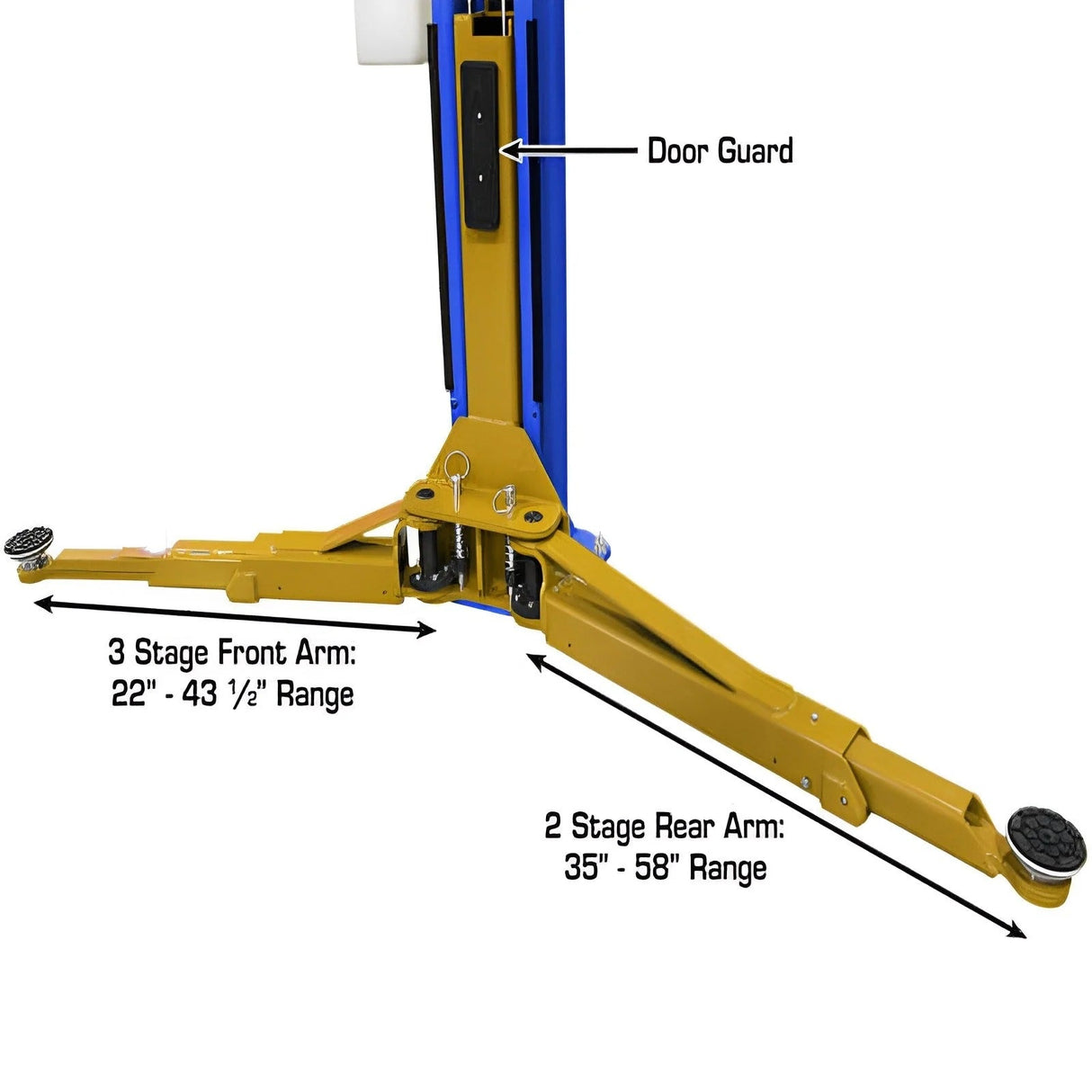

Equipped with 3-stage front arms and 2-stage rear arms, the PVL10 provides excellent reach and adaptability across a wide range of vehicle lifting points. Padded carriages and rubber guards help protect vehicles during operation, while double screw-up adapters and an included truck adapter set expand lifting versatility.

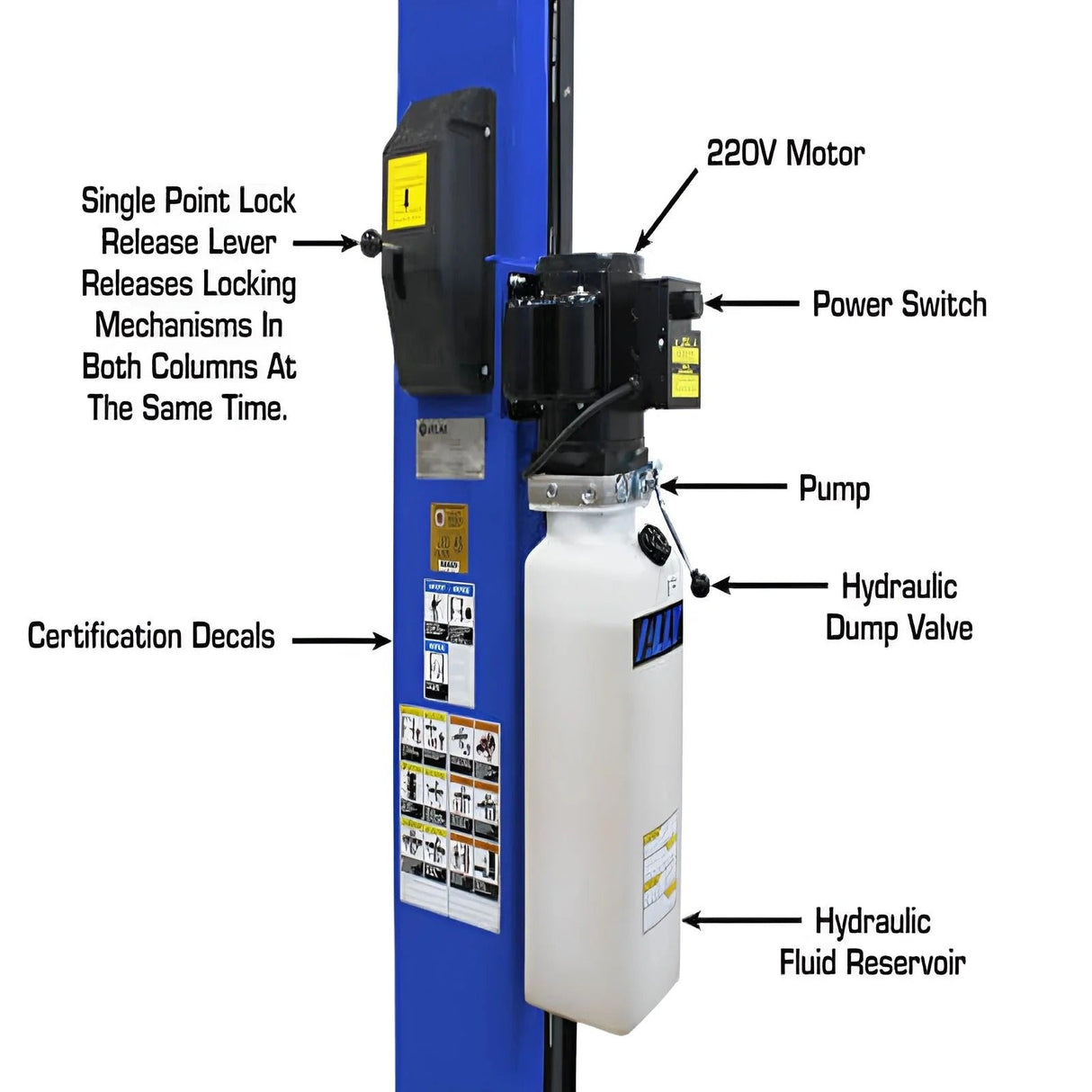

The lift is powered by a premium ALLY power unit, certified for electrical compliance in the United States and Canada. Its enhanced internal components reduce heat buildup and maintain consistent torque throughout the lifting process, ensuring reliable performance under heavy use.
Designed for safety and ease of use, the PVL10 includes a single-point lock release system and durable locking mechanisms. It also offers a special low-height configuration option (with additional cables) for installations with limited ceiling clearance.
Features and Benefits
- ALI certified lift
- 10,000 lb capacity
- Commercial-grade construction
- Double “S” column design for increased strength
- Can be installed symmetric or asymmetric

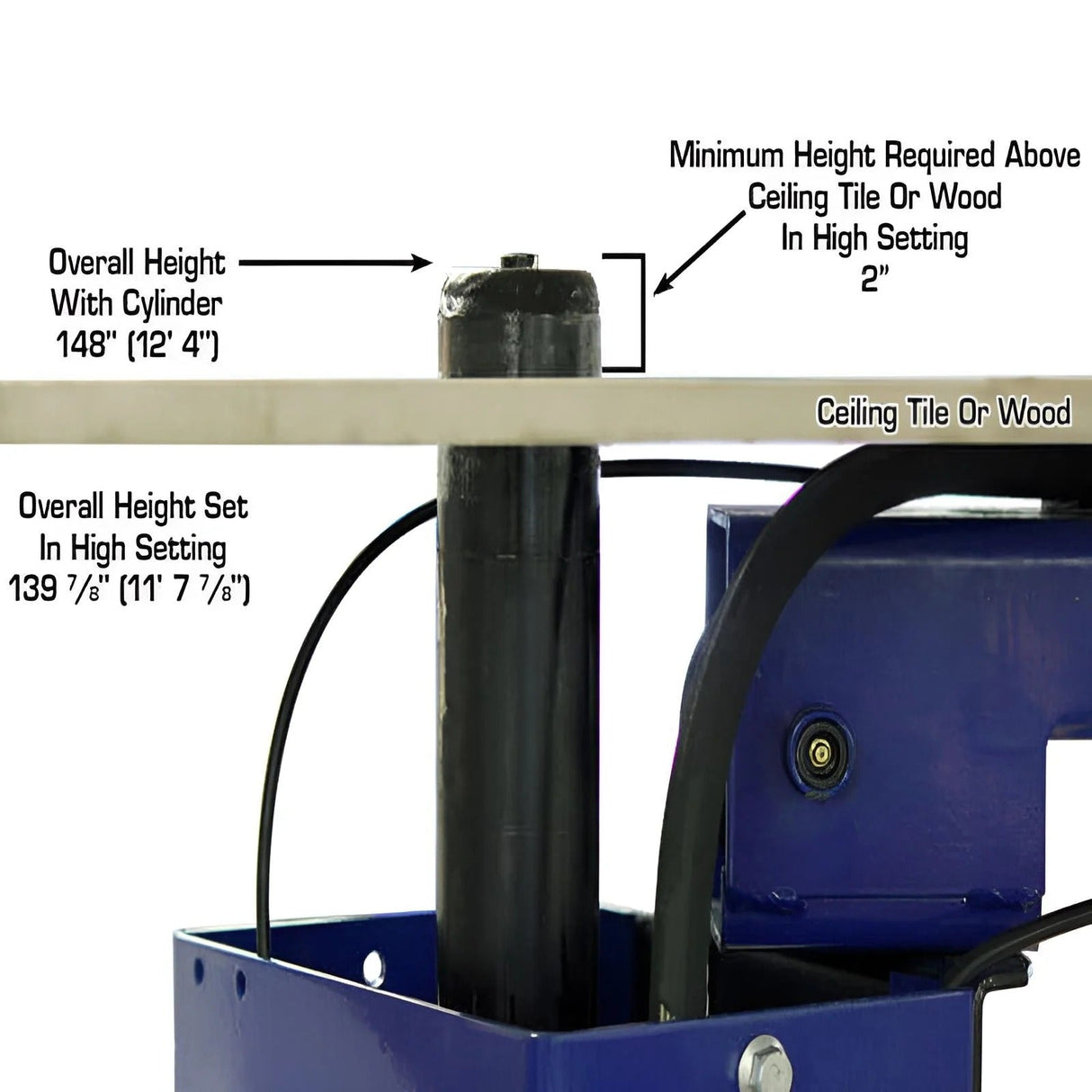

- Overall height: 139 7/8" (low height option available with extra cables)
- Padded carriages for vehicle protection

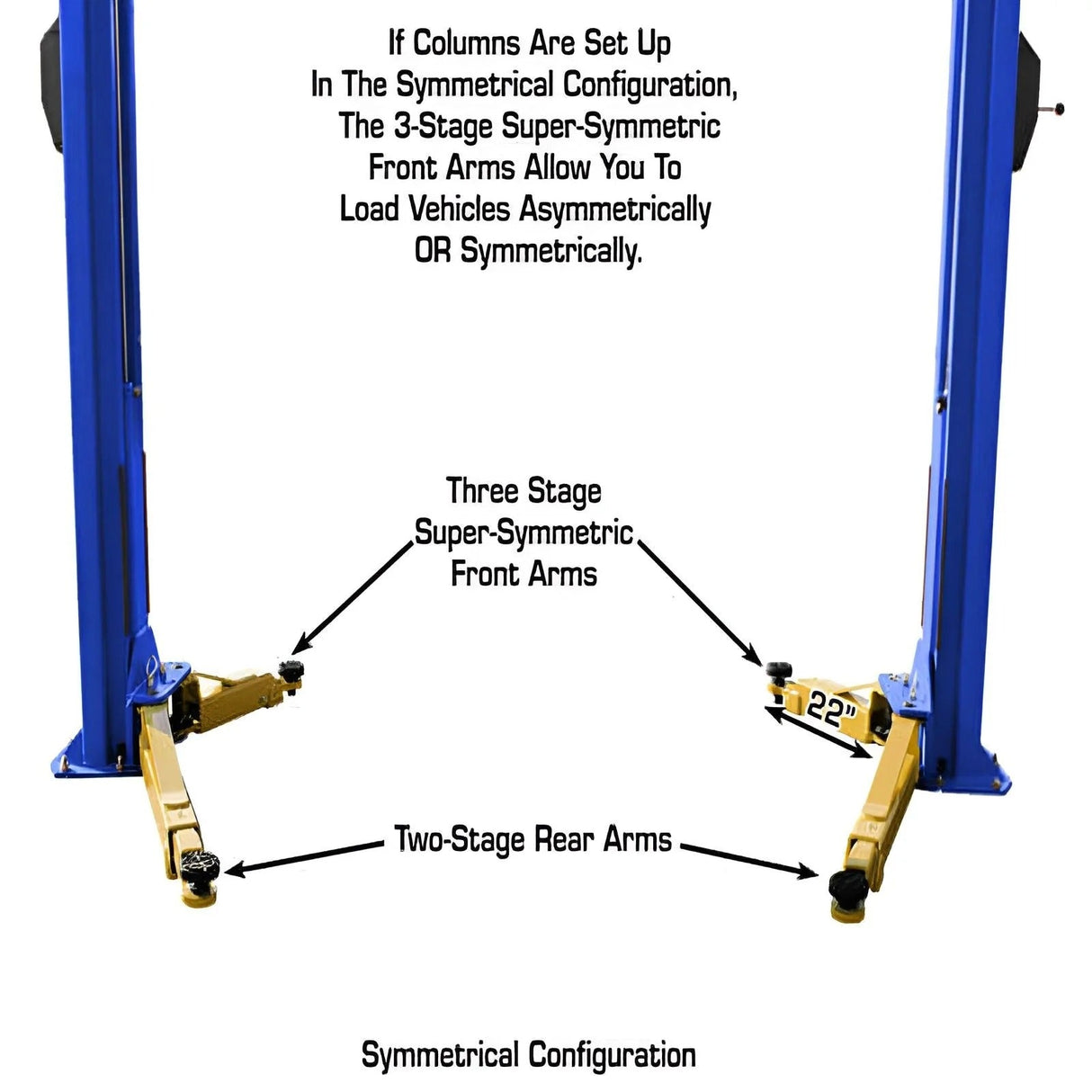

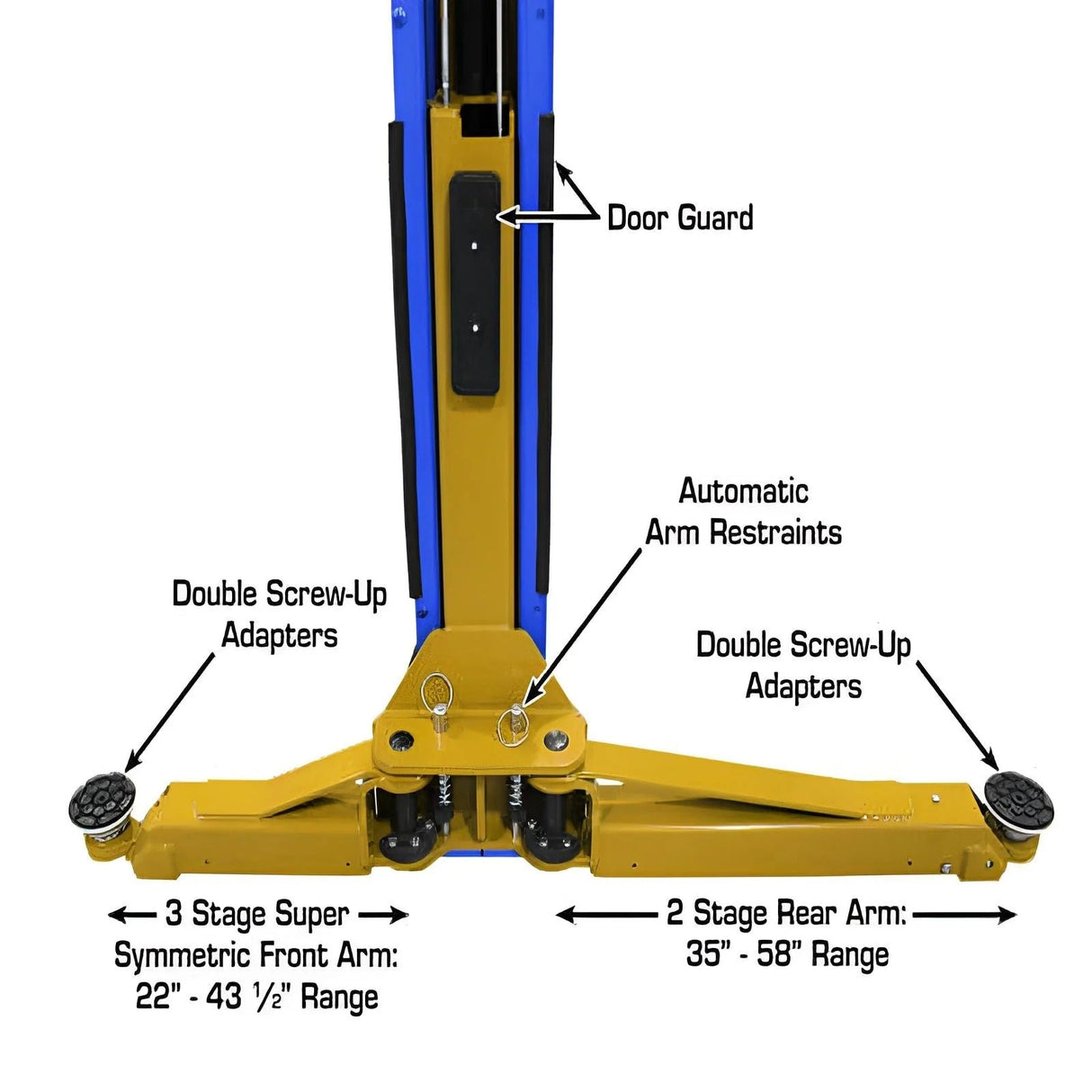

- 3-stage front arms and 2-stage rear arms
- Single-point lock release
- Powder coat finish

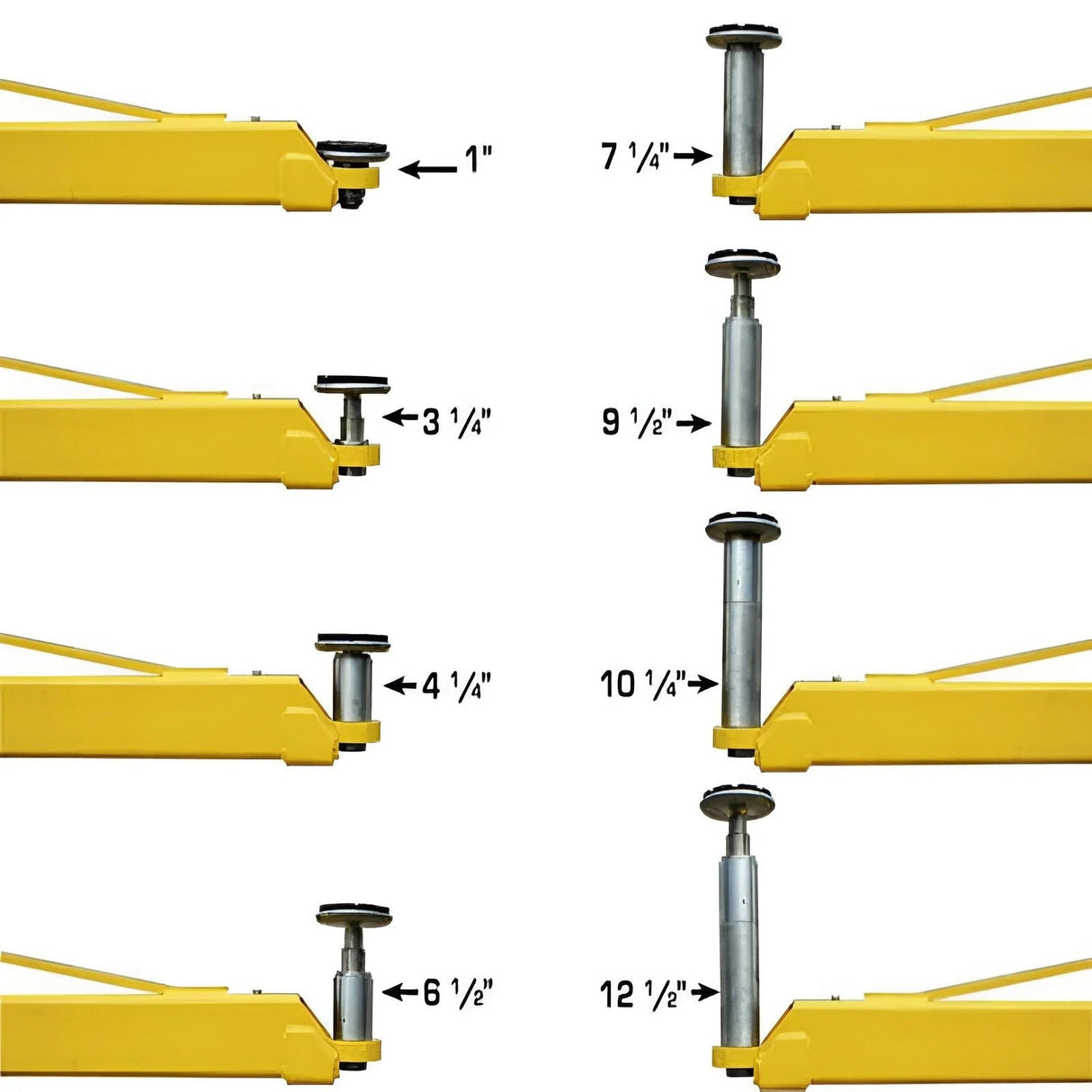

- Includes double screw-up adapters

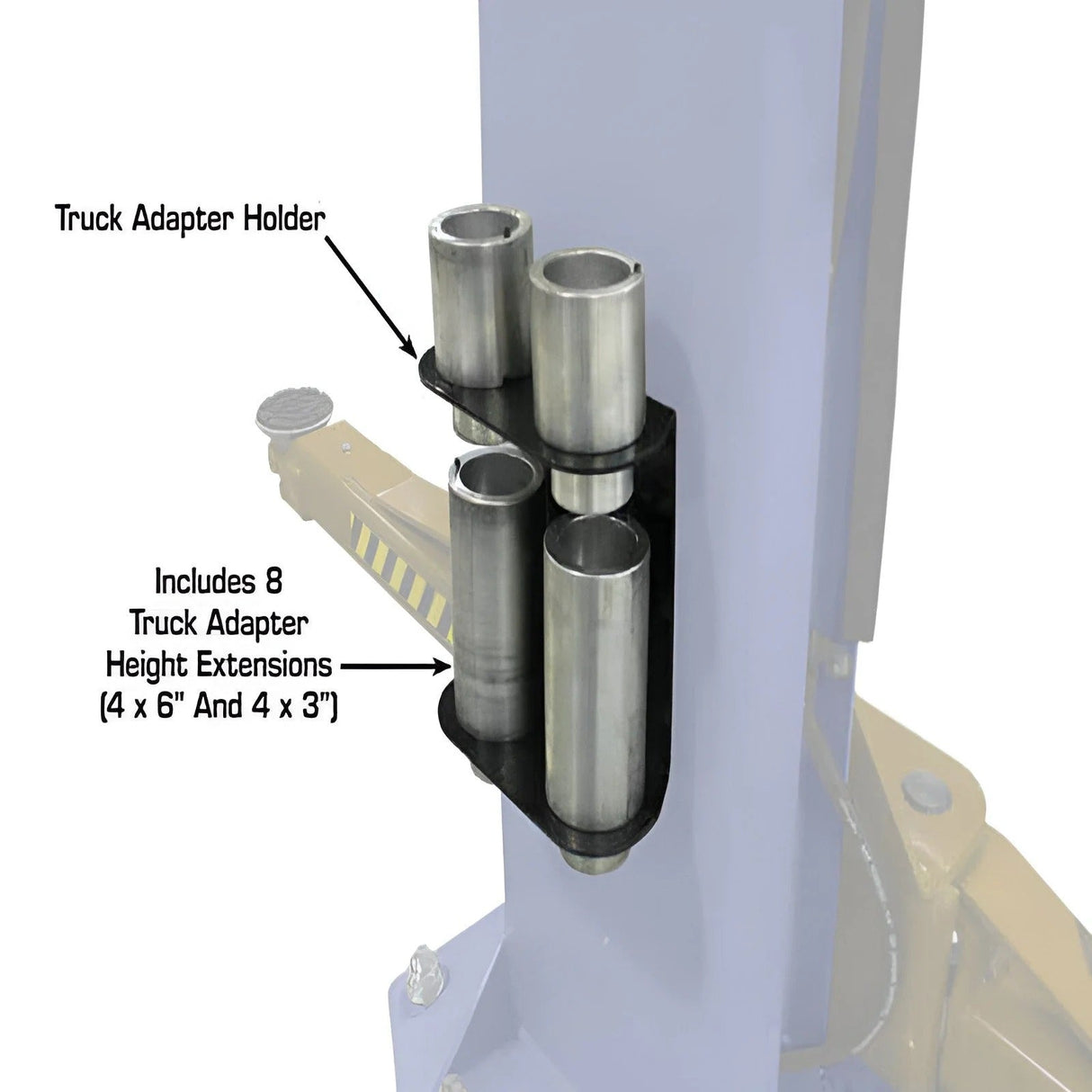

- Free 8-piece truck adapter set included
- Premium ALLY power unit (MET Laboratories certified)
- Mounting hardware included
- 5-year structural, 2-year hydraulic, 2-year power unit warranty
- Shipping weight: 1,850 lbs
| Specifications | Details |
|---|---|
| Capacity | 10,000 lb |

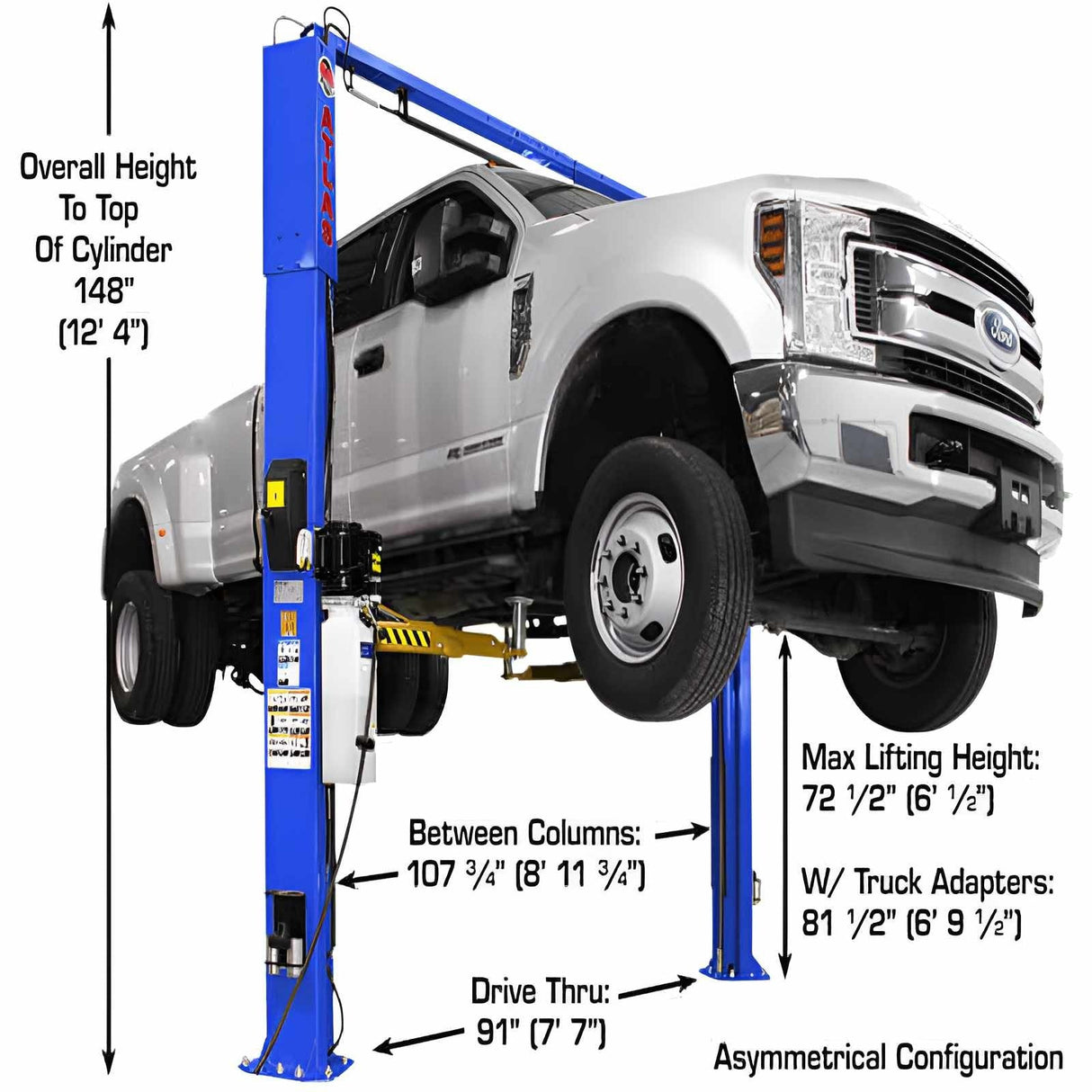

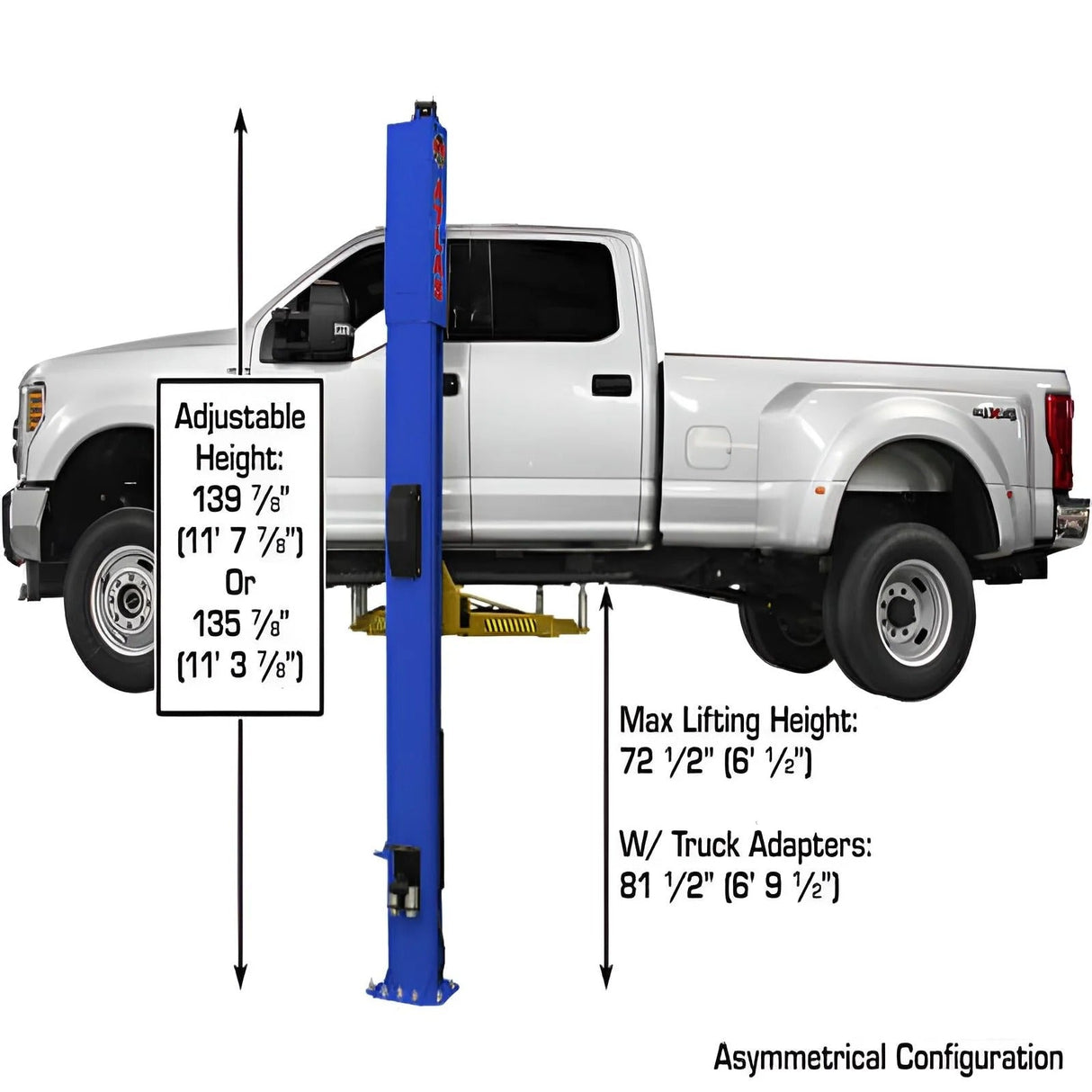

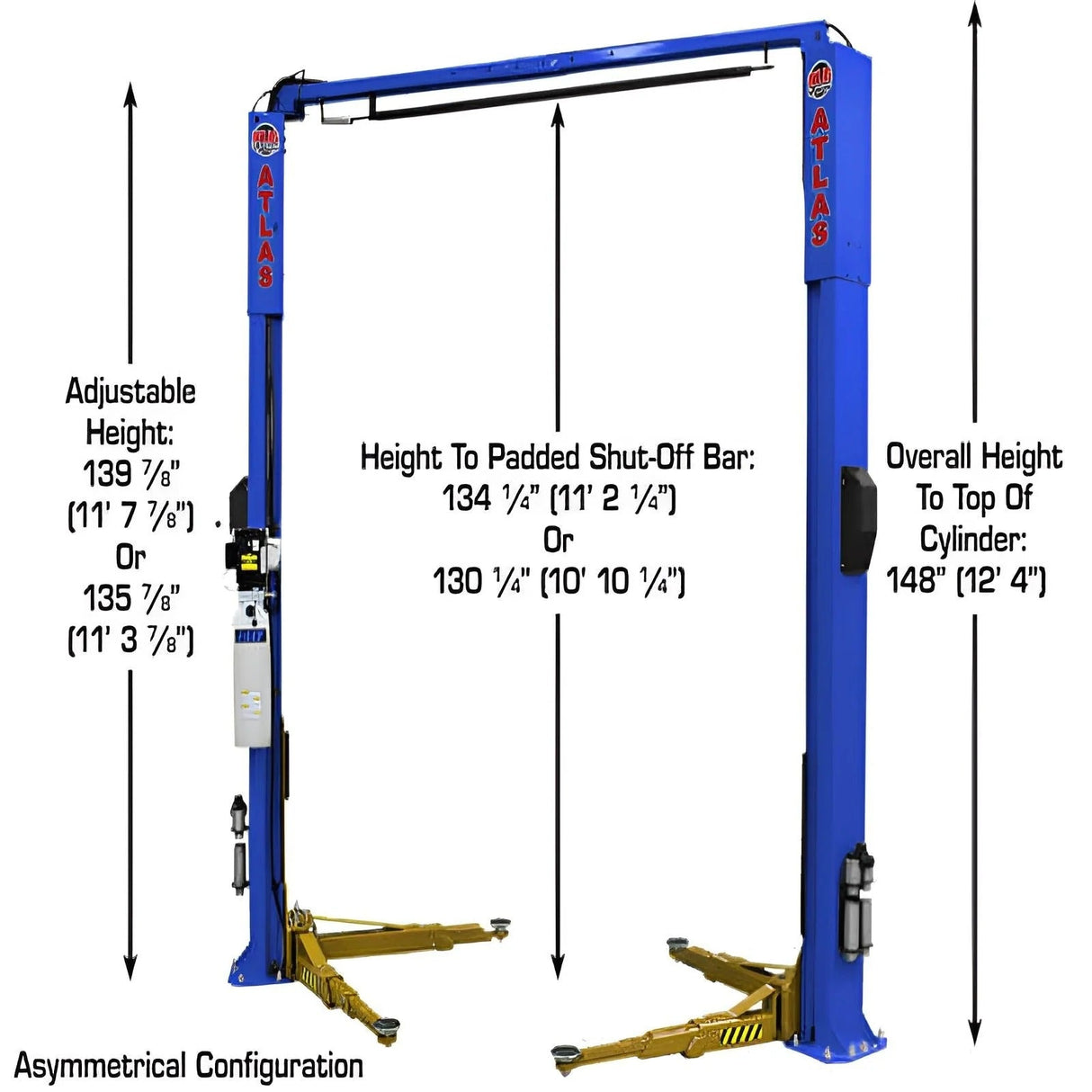

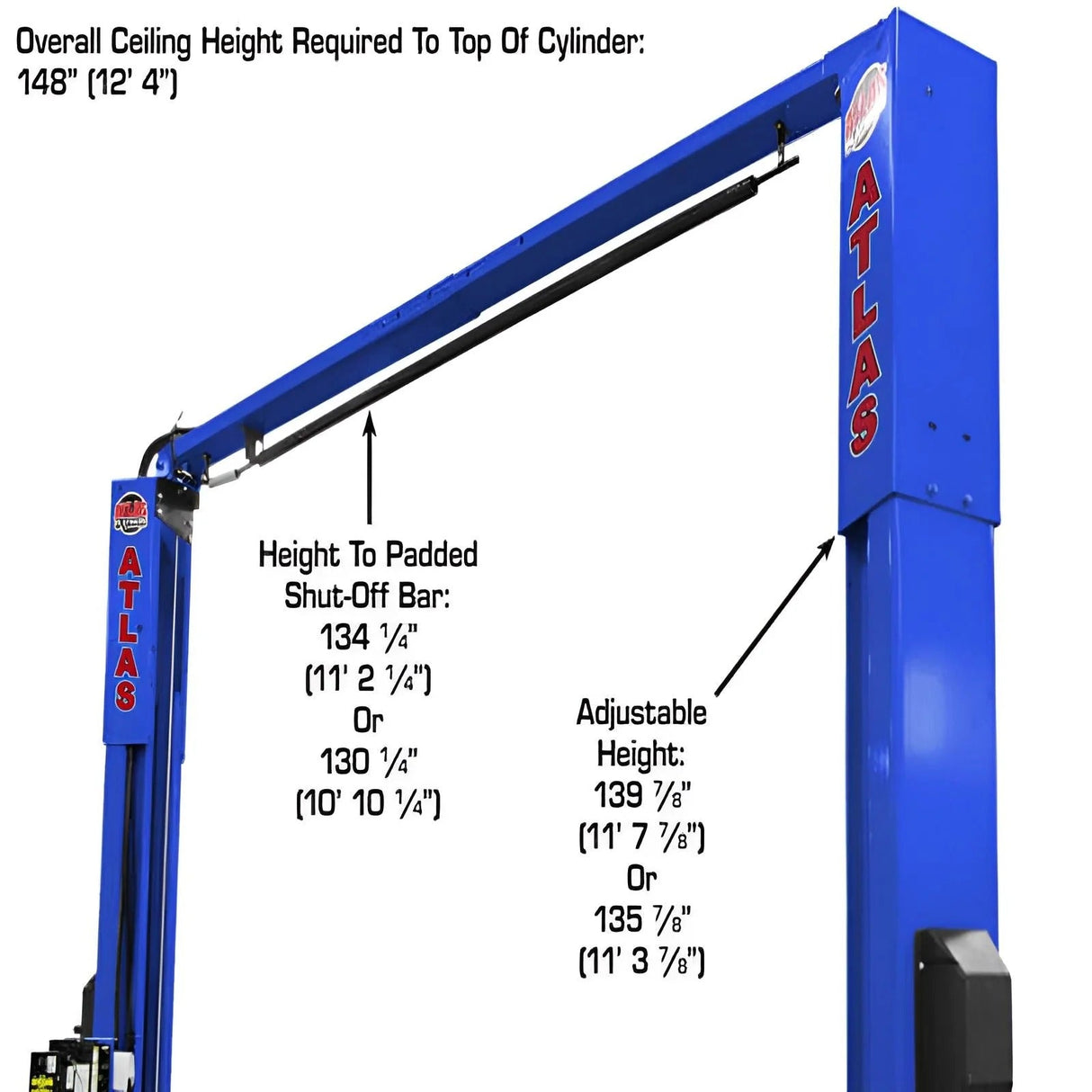

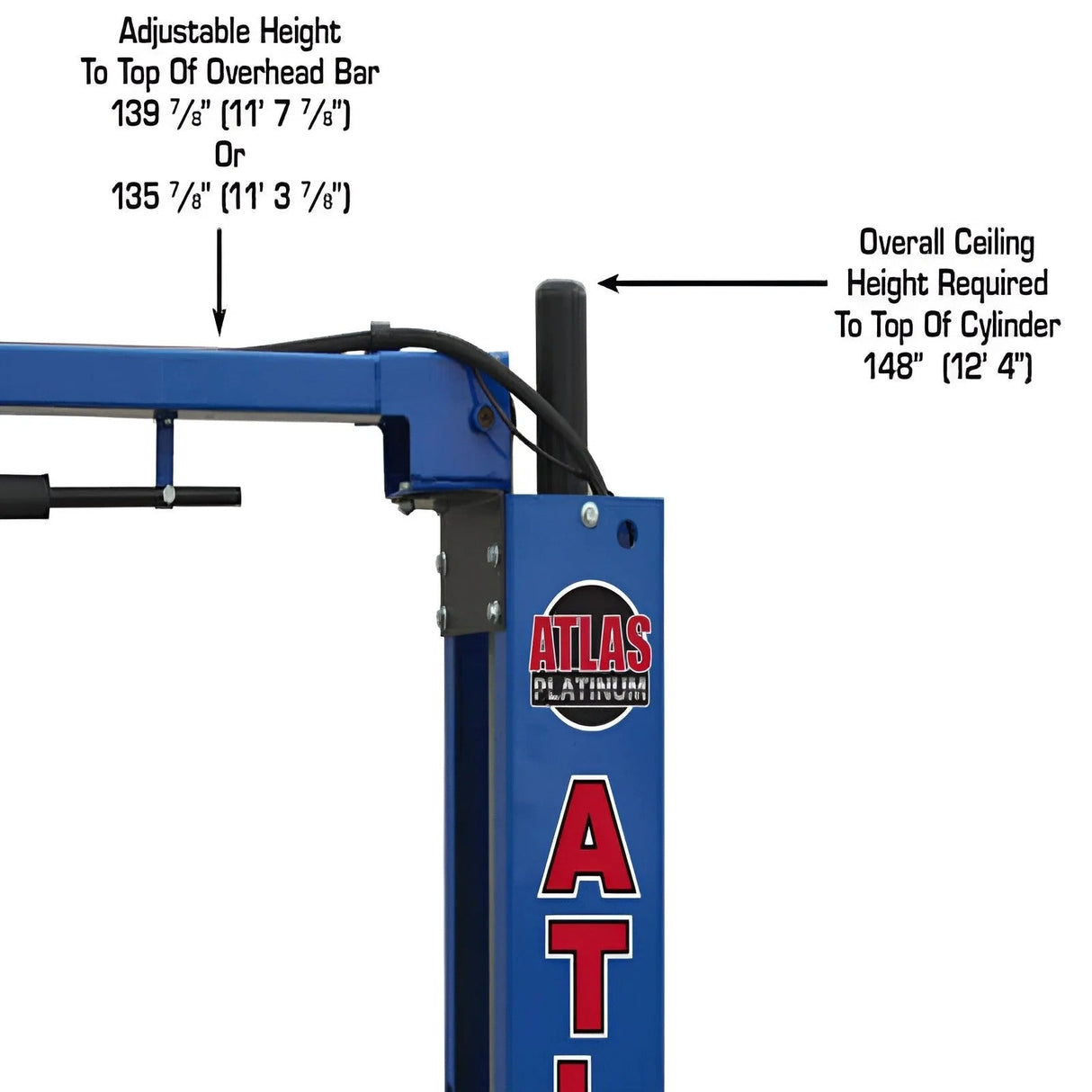

| Overall Height | 139 7/8" (11’ 7 7/8") — cylinders extend to 12’ 4" |

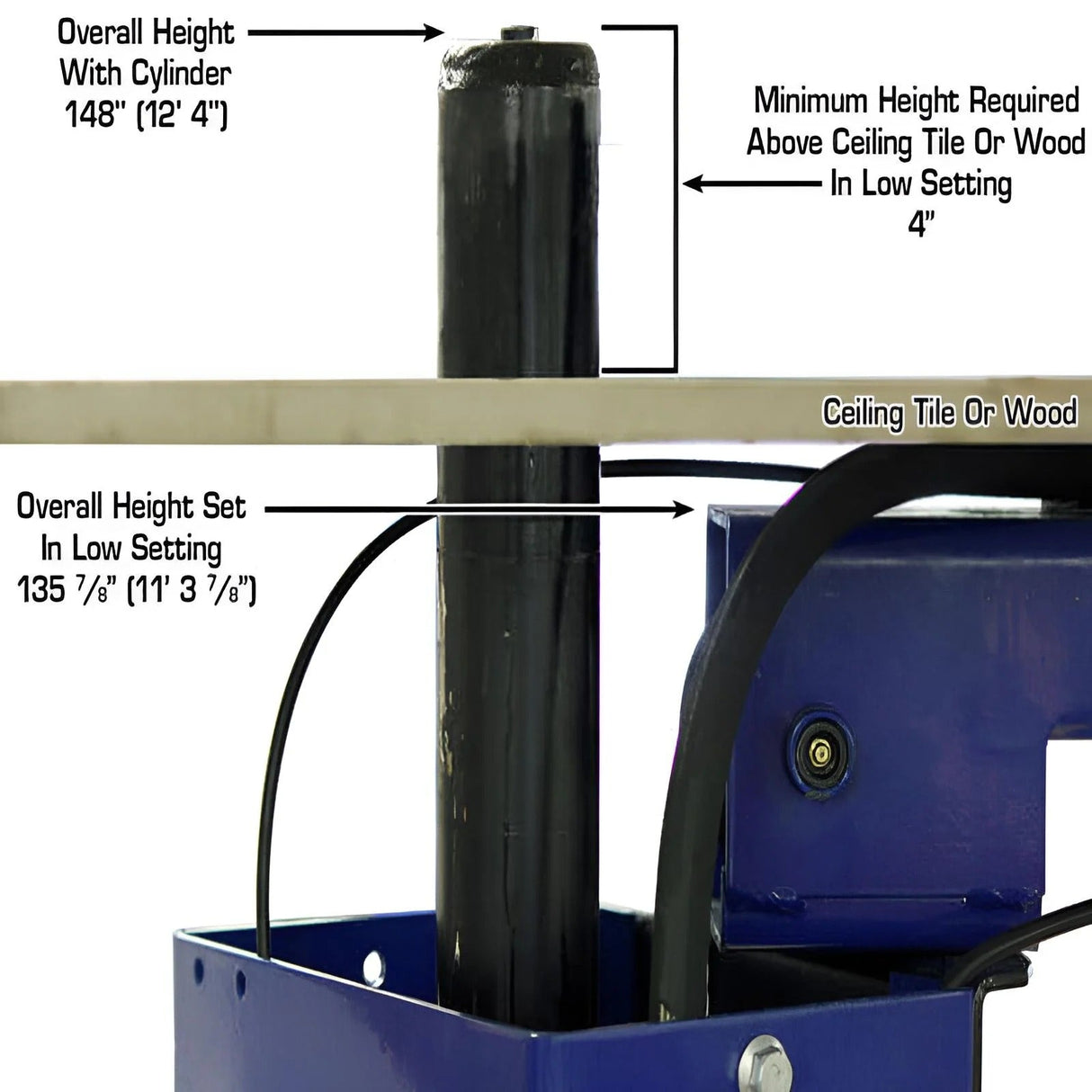

| Special Low Height* | 135 7/8" (11’ 3 7/8") — cylinders extend to 12’ 4" |

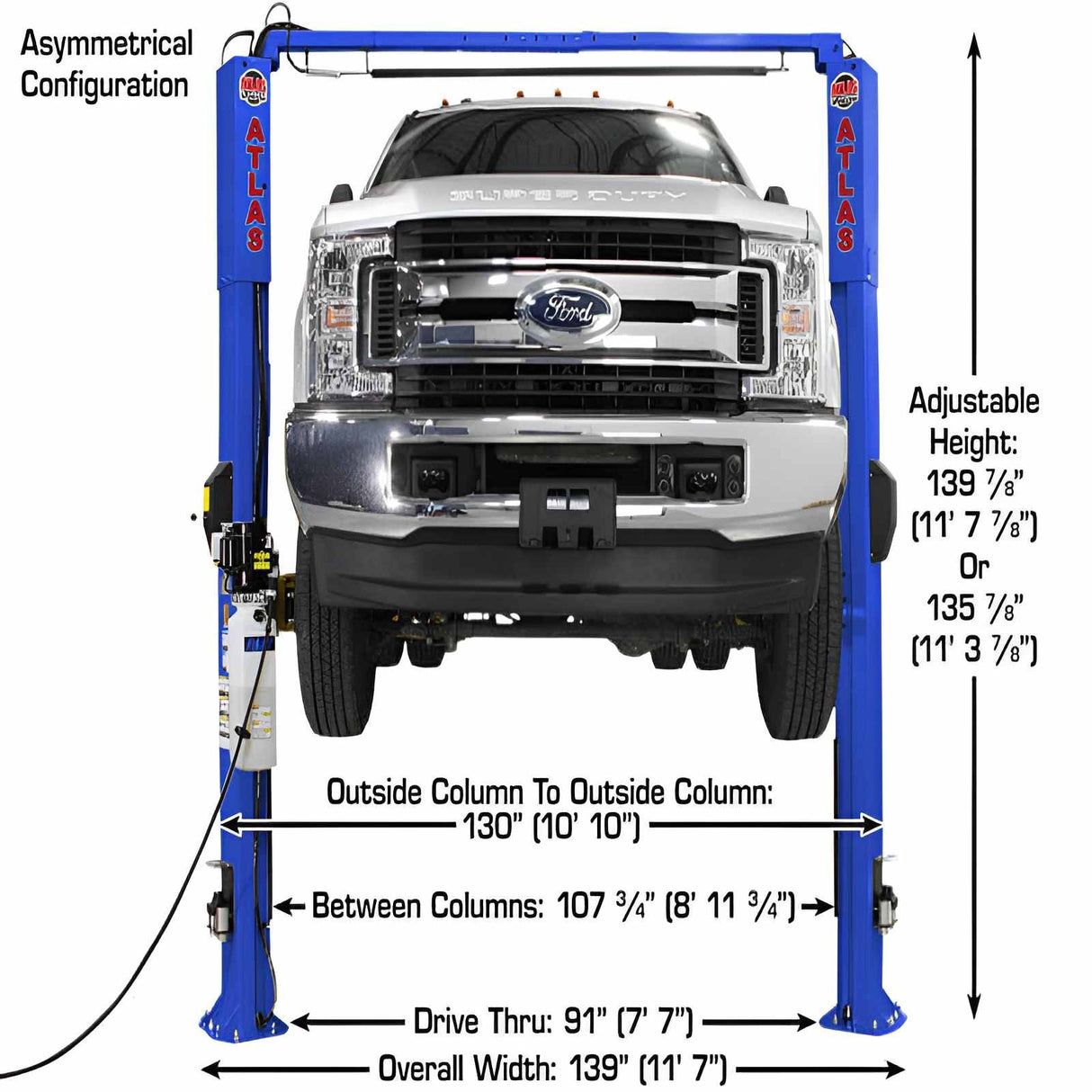

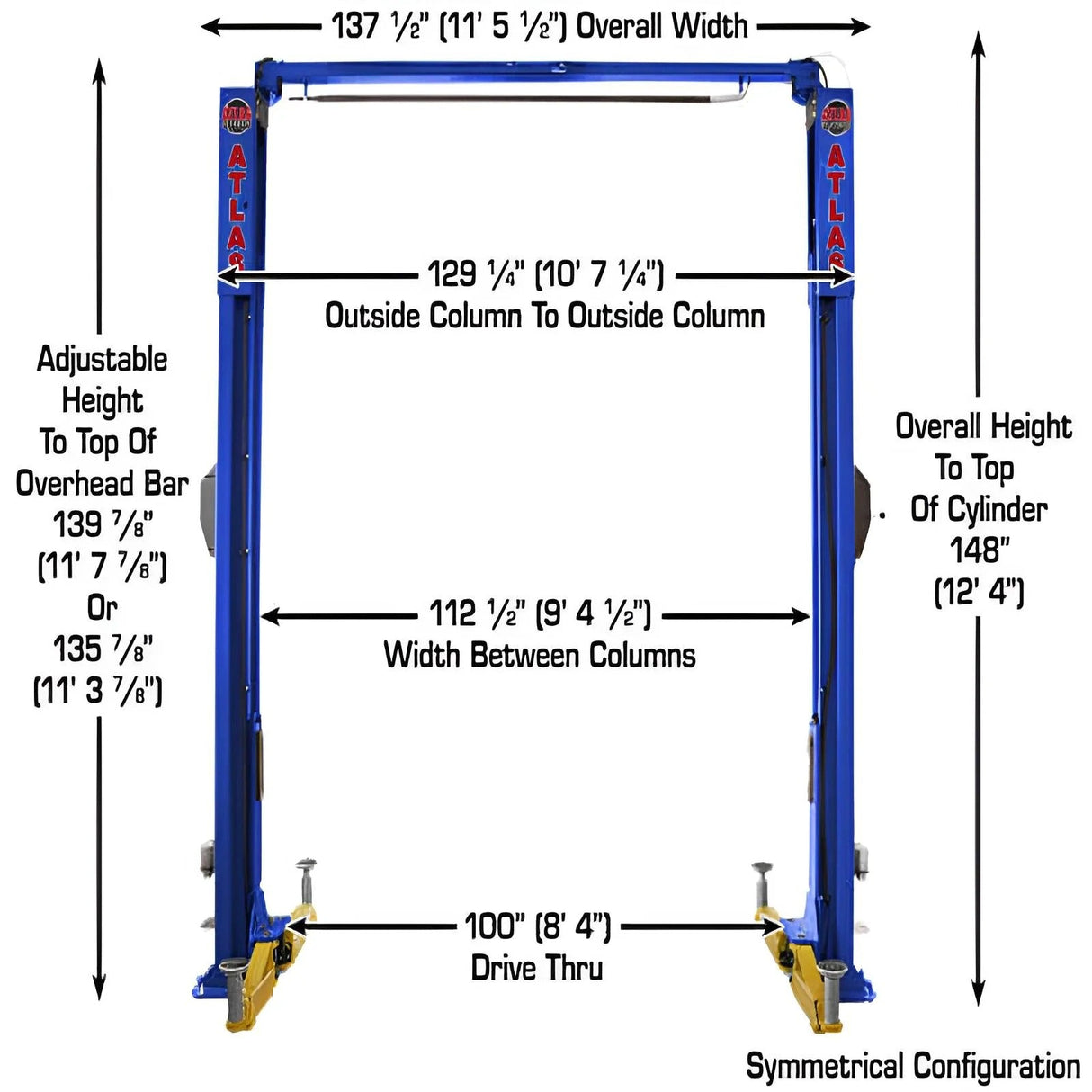

| Overall Width | 139" (11’ 7") Asymmetric / 137 1/2" (11’ 5 1/2") Symmetric |
| Outside Column to Outside Column | 130" (10’ 10") Asymmetric / 129 1/4" (10’ 9 1/4") Symmetric |
| Inside Column | 107 3/4" (8’ 11 3/4") Asymmetric / 112 1/2" (9’ 4 1/2") Symmetric |
| Column Size | 7" x 10 1/4" |
| Base of Lift | 15" x 18" |
| Maximum Lift Height (Without Adapters) | 72 1/2" |
| Maximum Lift Height (With Adapters) | 81 1/2" |
| Minimum Arm Height | 4" |
| Drive Thru | 91" Asymmetric / 99 1/2" Symmetric |
| Motor / Electrical Requirement | 220V single phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |
| Adapter Heights | 4 Each: 3", 6" |
| Arm Hole / Adapter Peg Size | 2" |
| Concrete Requirement | Minimum 4" thick, 3,000 PSI rating |
| Shipping Weight | 1,850 lbs |
* Special Low Height requires purchase of extra cables (sold separately).
