Atlas Platinum PVL14 ALI Certified 14000 lb 4-Post Lift Combo with ...
Built for Full-Service Commercial Performance

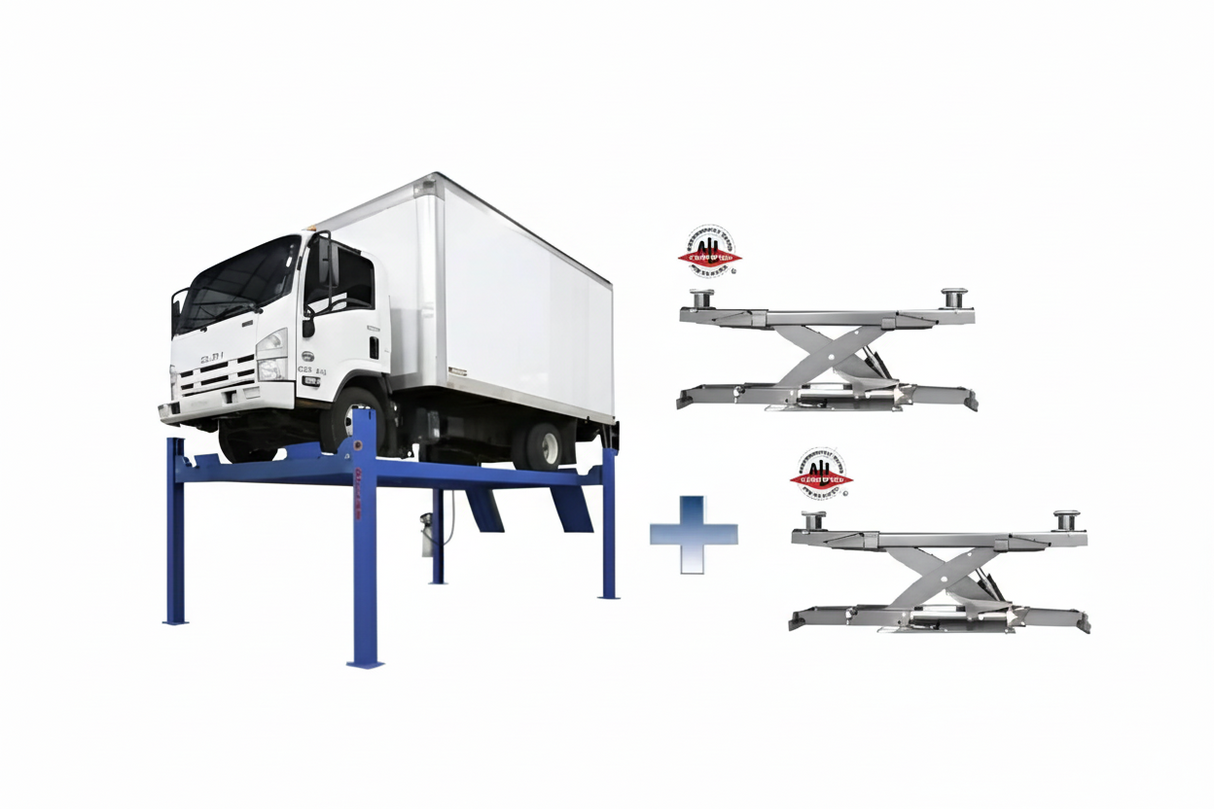

The Atlas Platinum PVL14 Combo is a heavy-duty, commercial-grade 4-post lift package designed for shops that need maximum capability in a single workstation. This system combines a 14,000 lb ALI Certified lift with two RJ7000 rolling bridge jacks, allowing you to perform everything from standard lifting to full wheel-free service.
Complete Wheel-Free Service Capability
With dual RJ7000 air/hydraulic rolling jacks included, this combo allows you to lift vehicles off the runways for brake, suspension, and tire work. This eliminates the need for multiple lifts and increases shop efficiency by keeping all work in one place.
Key Features & Benefits
- 14,000 lb capacity for cars, trucks, and commercial vehicles

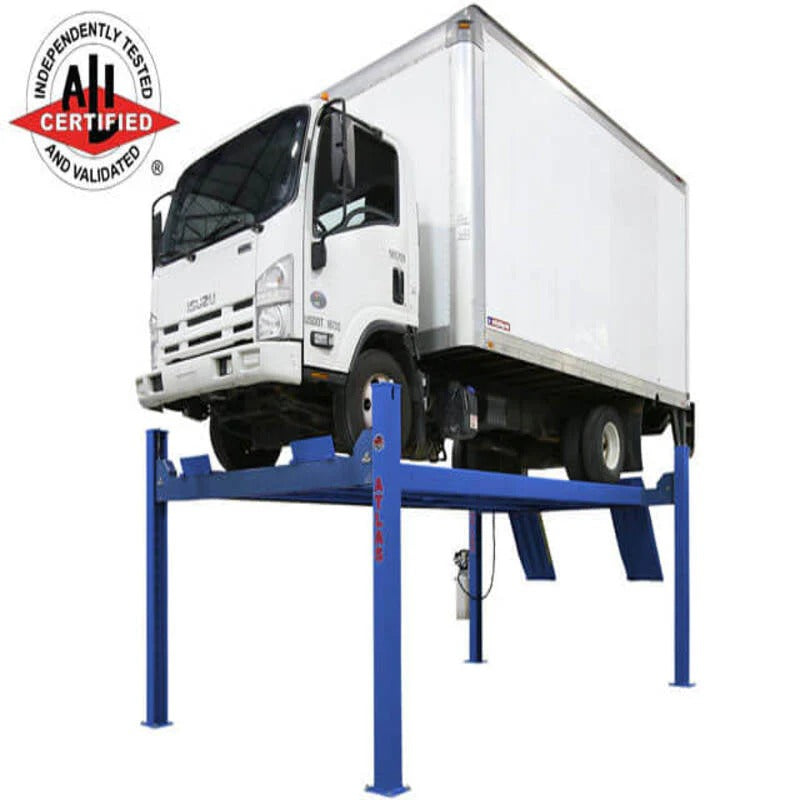

- ALI Certified lift for safety and compliance
- Complete combo includes lift + two RJ7000 rolling jacks
- Heavy-duty commercial-grade construction
- Extra tall, extra wide, and extra long design

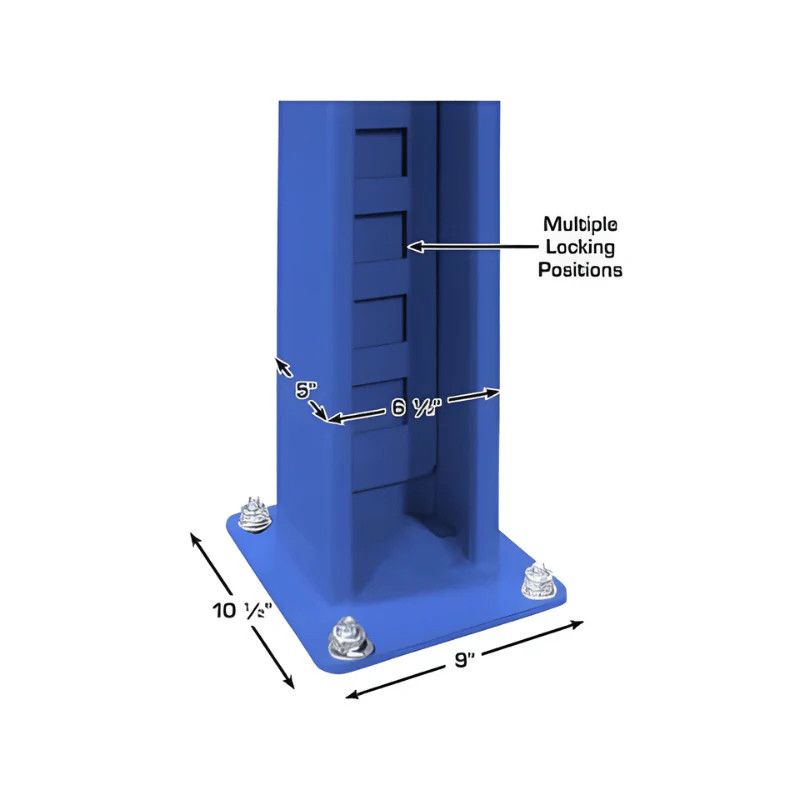

- Air-operated single-point lock release (external air required)
- High-strength cable lifting system with hydraulic operation
- Steel approach ramps included

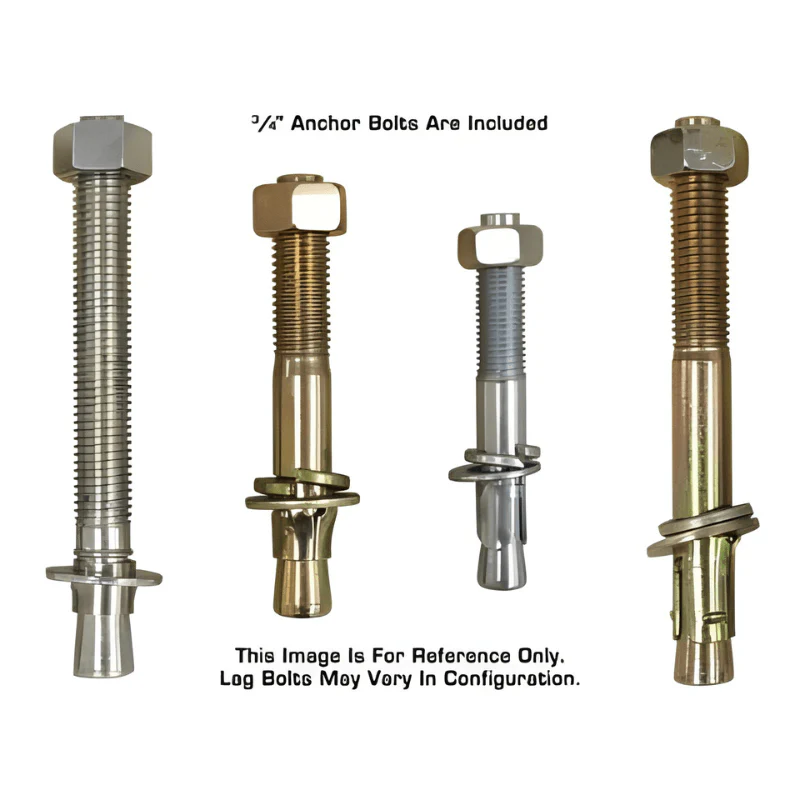

- Mounting hardware included

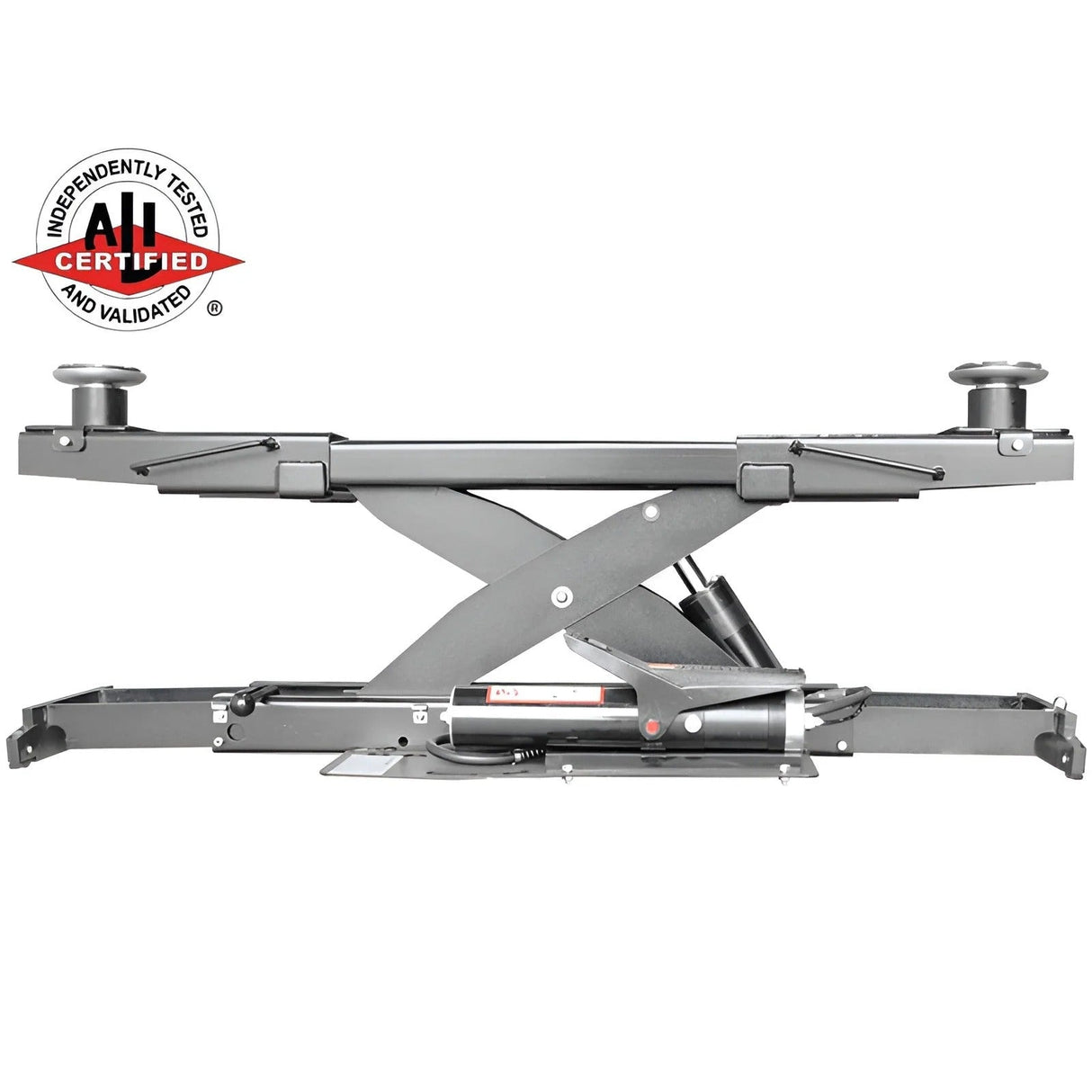

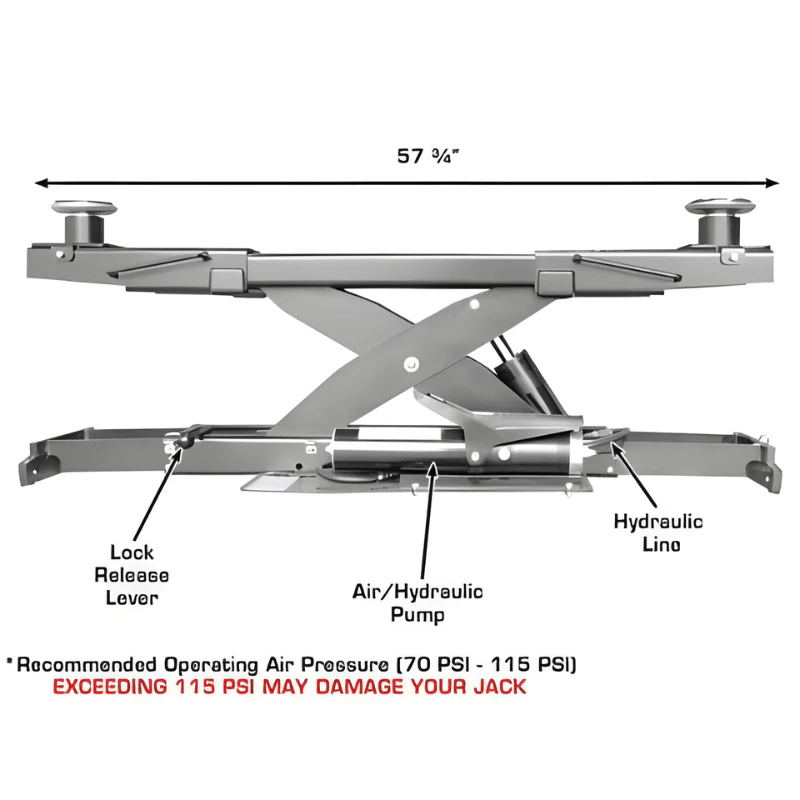

- Rolling jacks are air-over-hydraulic operated
- Includes truck adapter sets for each jack
- Freight Prepaid (FPD)
Designed for Versatility
The PVL14 is built to handle a wide range of vehicles, from standard passenger cars to larger trucks and light commercial vehicles. Its extended dimensions provide the space needed for longer wheelbases and wider vehicles.
Advanced Lifting System

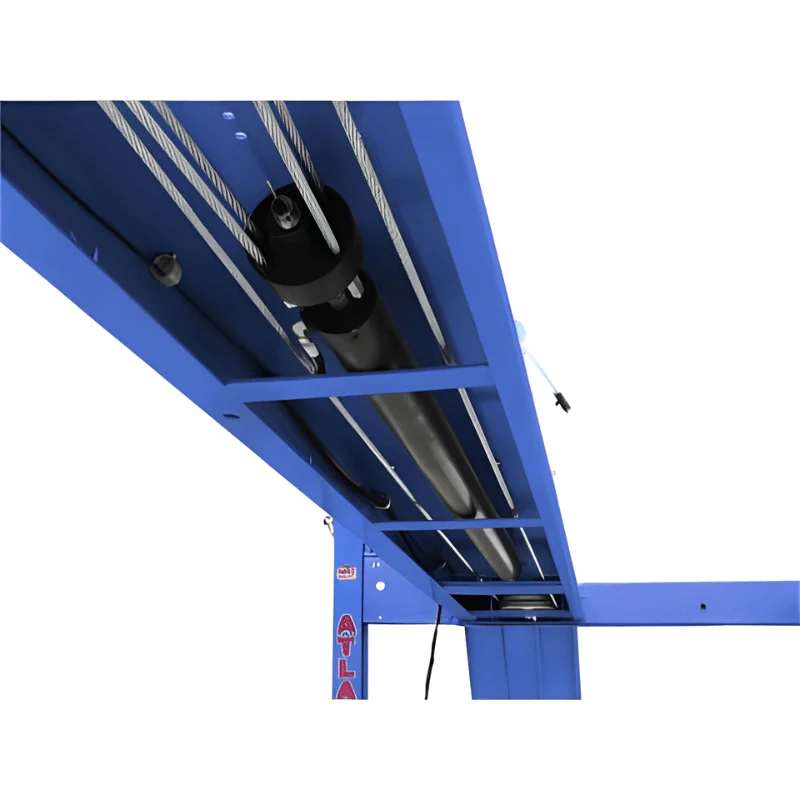

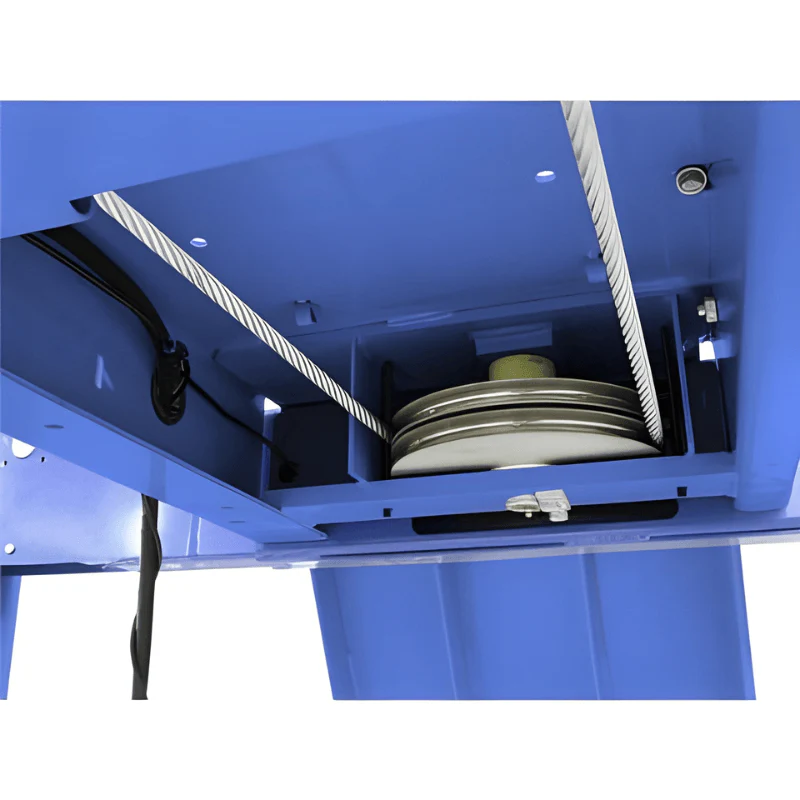

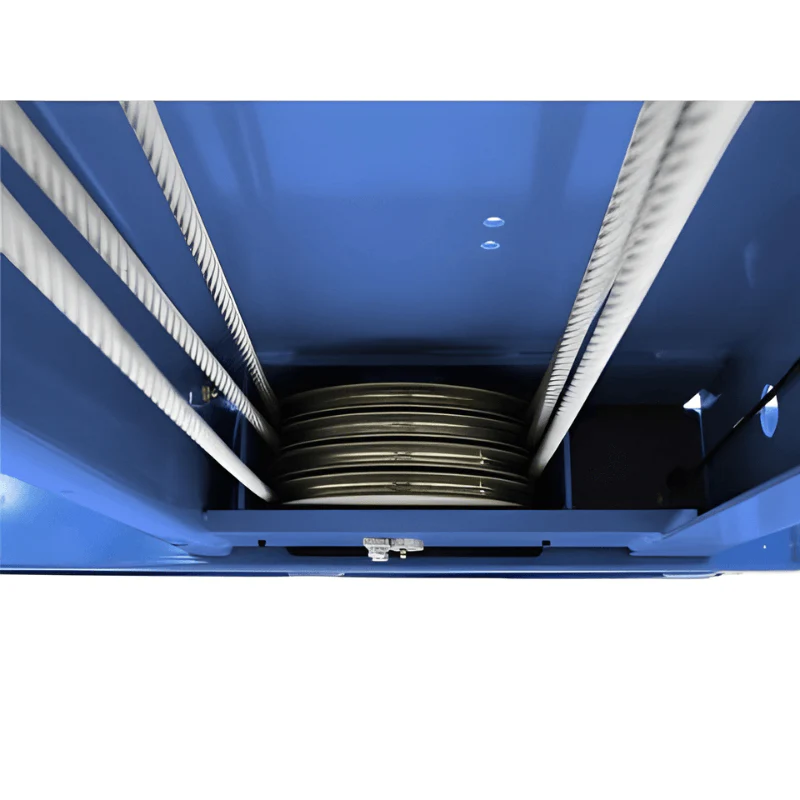

This lift uses a high-strength cable system paired with an oversized hydraulic cylinder located under the runway. This design improves leveling and reduces exposure compared to traditional chain-driven systems.
Premium Power Unit Performance

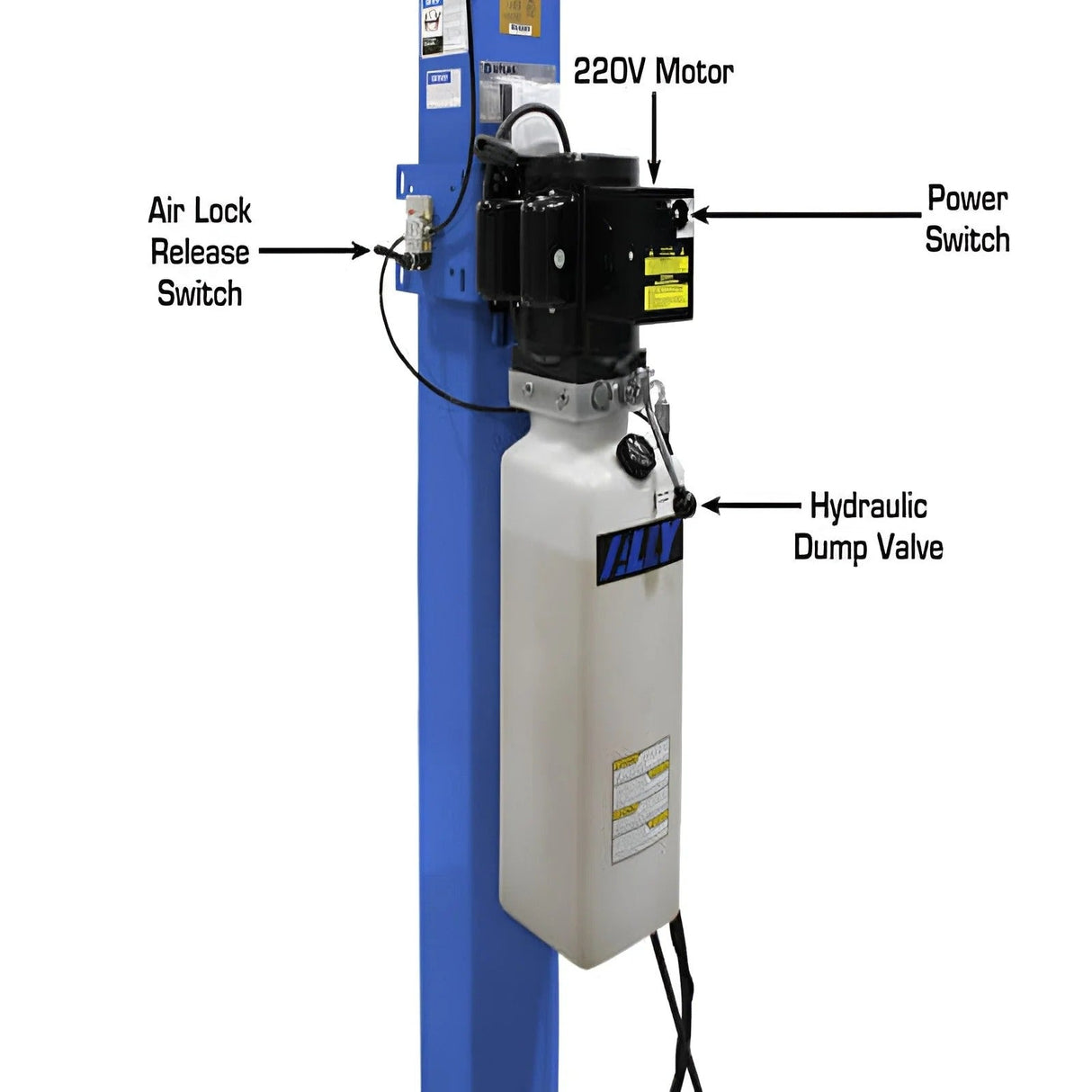

Equipped with an ALLY Hydraulic power unit, the system delivers consistent lifting power with reduced heat buildup. Certified for electrical compliance, this unit is built for long-term durability and dependable operation.
Ideal for Professional Shops
This combo is perfect for automotive repair shops, alignment centers, and fleet service facilities that need a reliable, all-in-one lifting and service solution.
Maximize Efficiency & Capability
The Atlas Platinum PVL14 Combo transforms your workspace into a full-service station, allowing you to perform more jobs in less time while maintaining precision, safety, and reliability.

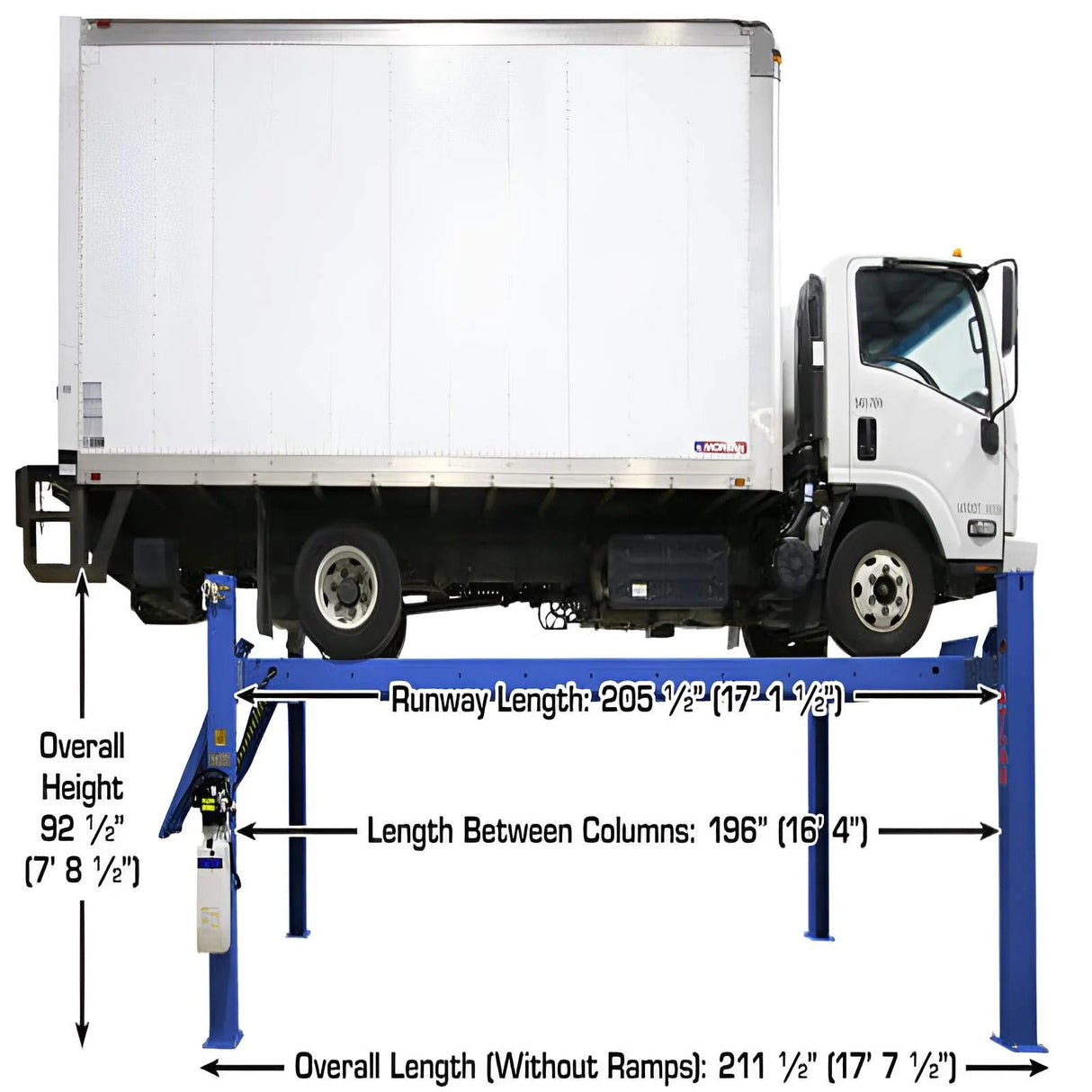

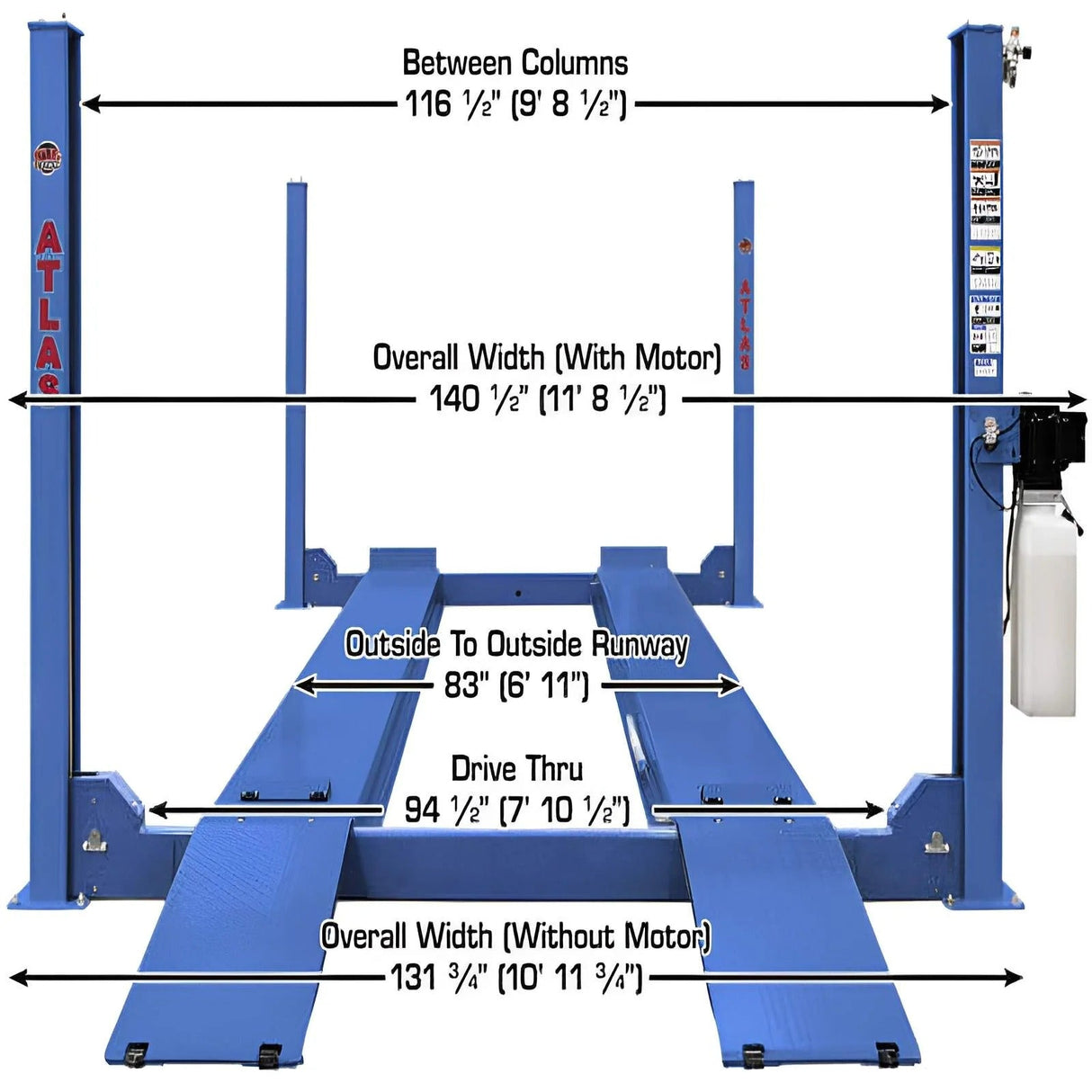

Atlas Platinum PVL14
| Specifications | Details |
|---|---|
| Capacity | 14,000 lb. |

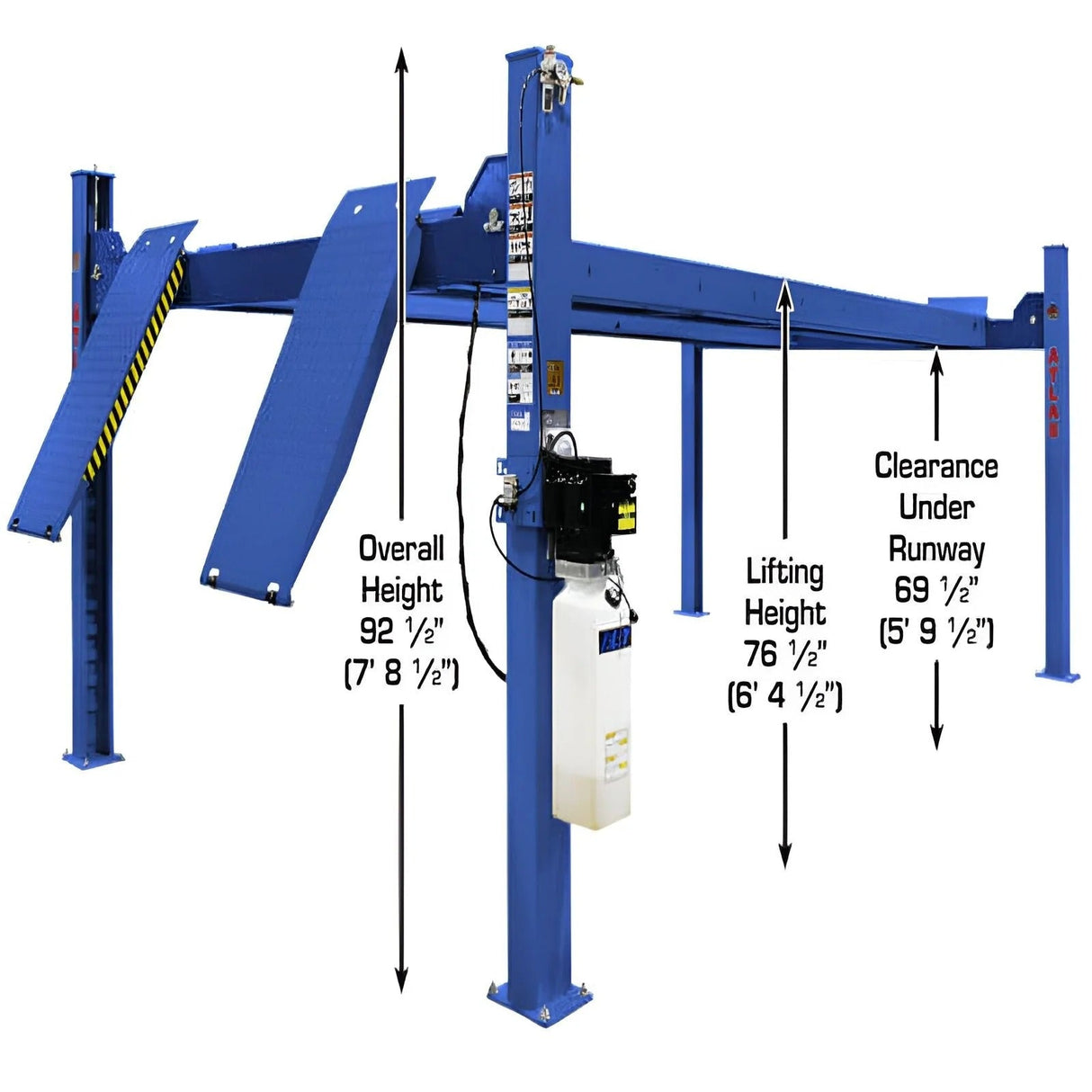

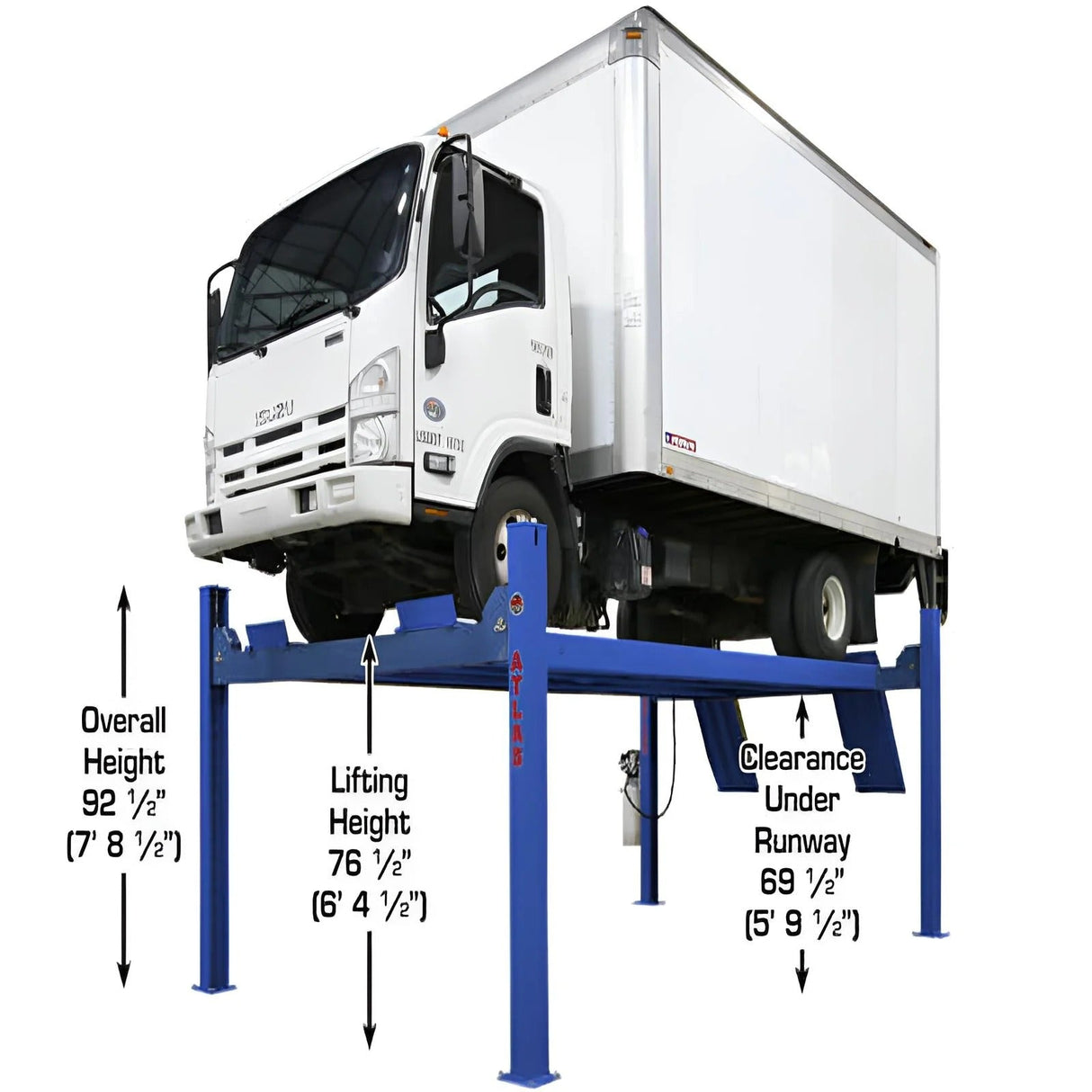

| Lifting Height | 80" (6' 8") |

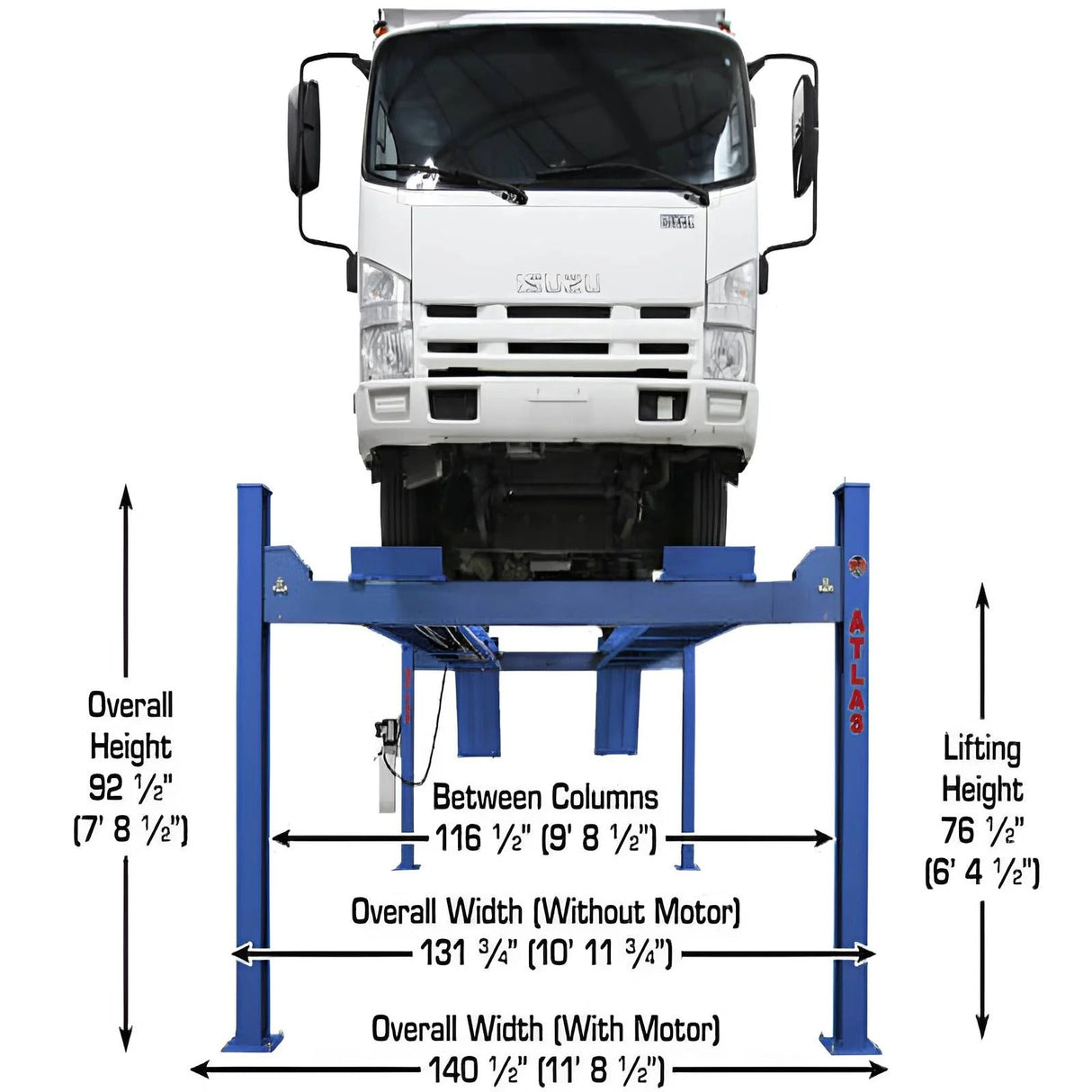

| Overall Width of Columns (Without Motor) | 130 7/8" (10' 10 7/8") |
| Overall Width of Columns (With Motor) | 138 7/8" (11' 6 7/8") |
| Overall Length With Approach Ramp | 255" (21' 3") |
| Length Between Columns | 197 1/4" (16' 5 1/4") |
| Runway Length | 208 5/8" (17' 4 5/8") |
| Runway Width | 20" |
| Thickness of Runway | 8 3/4" |
| Width Between Runways | 46 7/8" (w/ Rail: 44 3/8") |
| Outside Runway to Outside Runway | 86 7/8" (7' 2 7/8") |
| Clearance Under Runways | 71 1/4" (5' 11 1/4") |
| Clearance Between Columns | 116" (9' 8") |
| Height of Columns | 91 1/8" (7' 7 1/8") |
| Maximum Wheel Base | 197" (16' 5") |
| Drive Thru | 102 1/8" (8' 6 1/8") |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 3,100 lbs. |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |

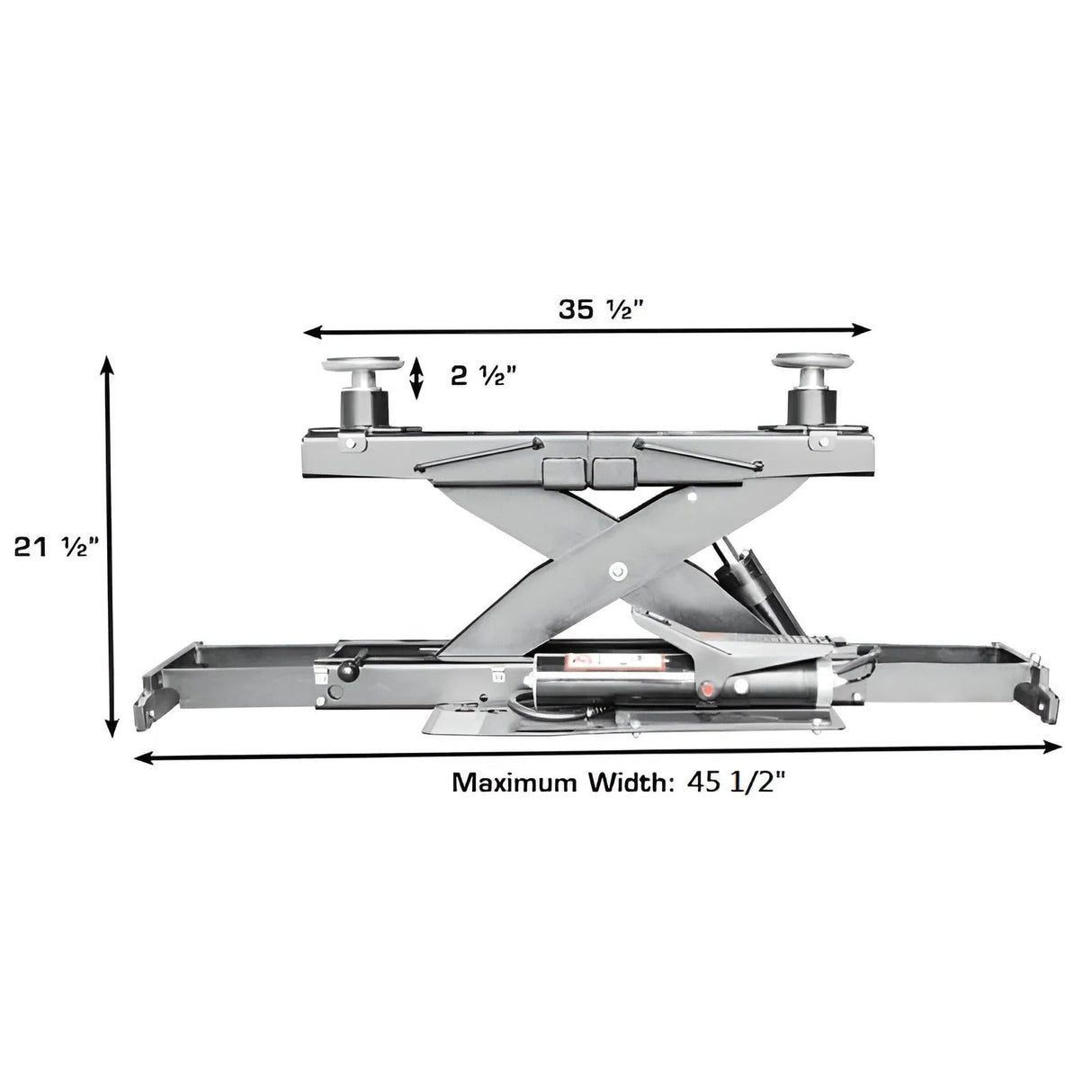

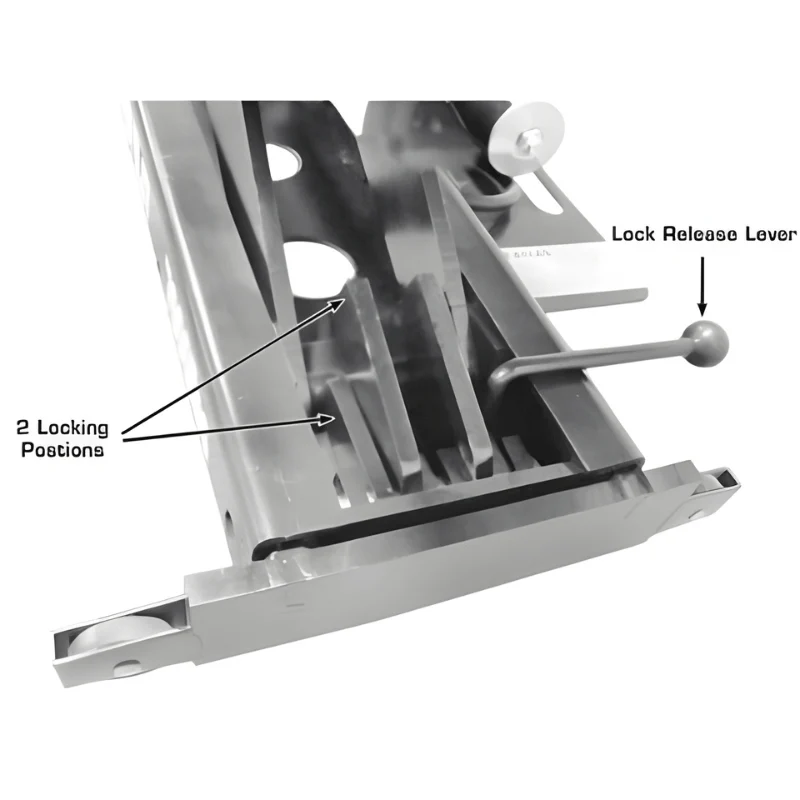

Atlas Platinum RJ7000
| Specifications | Details |
|---|---|
| Minimum Width | 36" |
| Maximum Width | 45 1/2" |
| Distance Between Runway Capability | 36" – 45" |

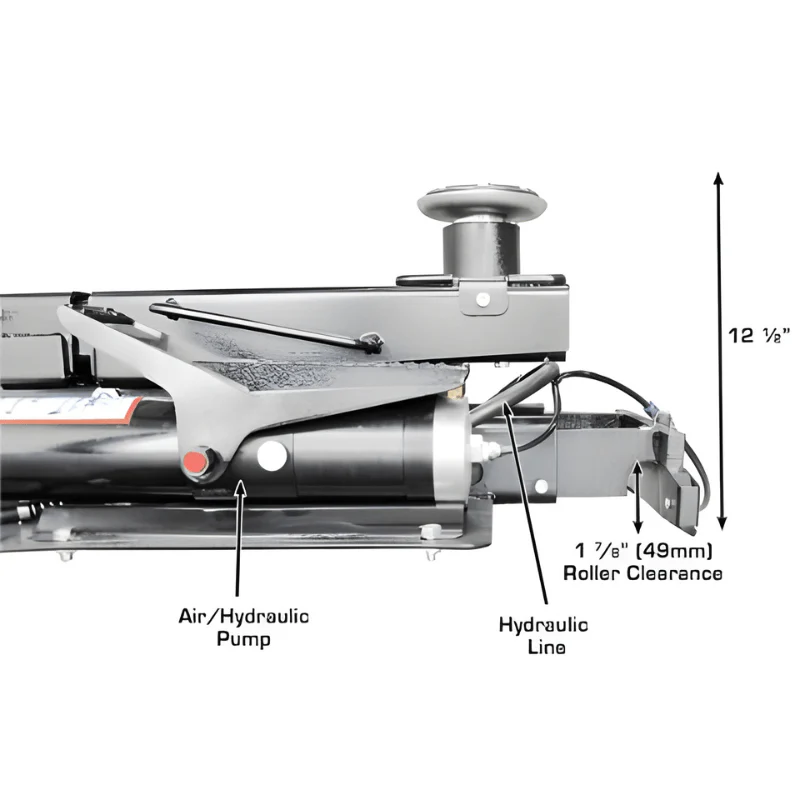

| Minimum Lifting Height | 12 1/2" |

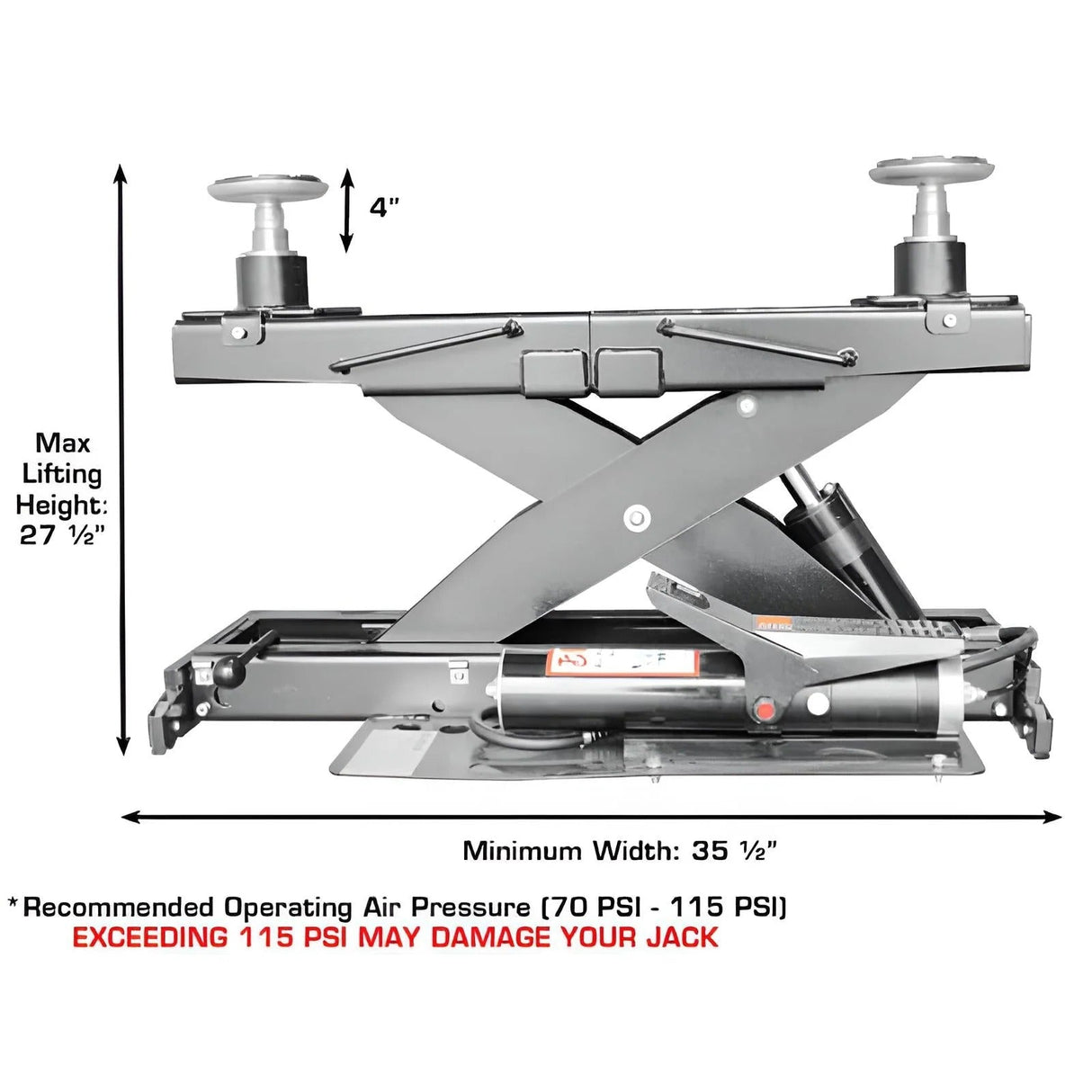

| Maximum Lifting Height (w/ Adapters) | 27 1/2" |
| Double Screw-Up Adapter Pad | 1 1/2" – 4" |
| Air Requirement | 70–115 PSI |
| Shipping Weight | 390 lbs. |
