Atlas PVL14 Platinum ALI Certified 14,000 lb 4-Post Lift with RJ7 Rolling Jacks Combo
Atlas PVL14 Platinum ALI Certified 14,000 lb 4-Post Lift with RJ7 Rolling Jacks Combo is backordered and will ship as soon as it is back in stock.
Your payment information is encrypted and never stored
We're Here When You Need Us
We're Available When You Need Us. Give Us A Call or Email.
Atlas PVL14 Platinum ALI Certified 14,000 lb 4-Post Lift with RJ7 R...

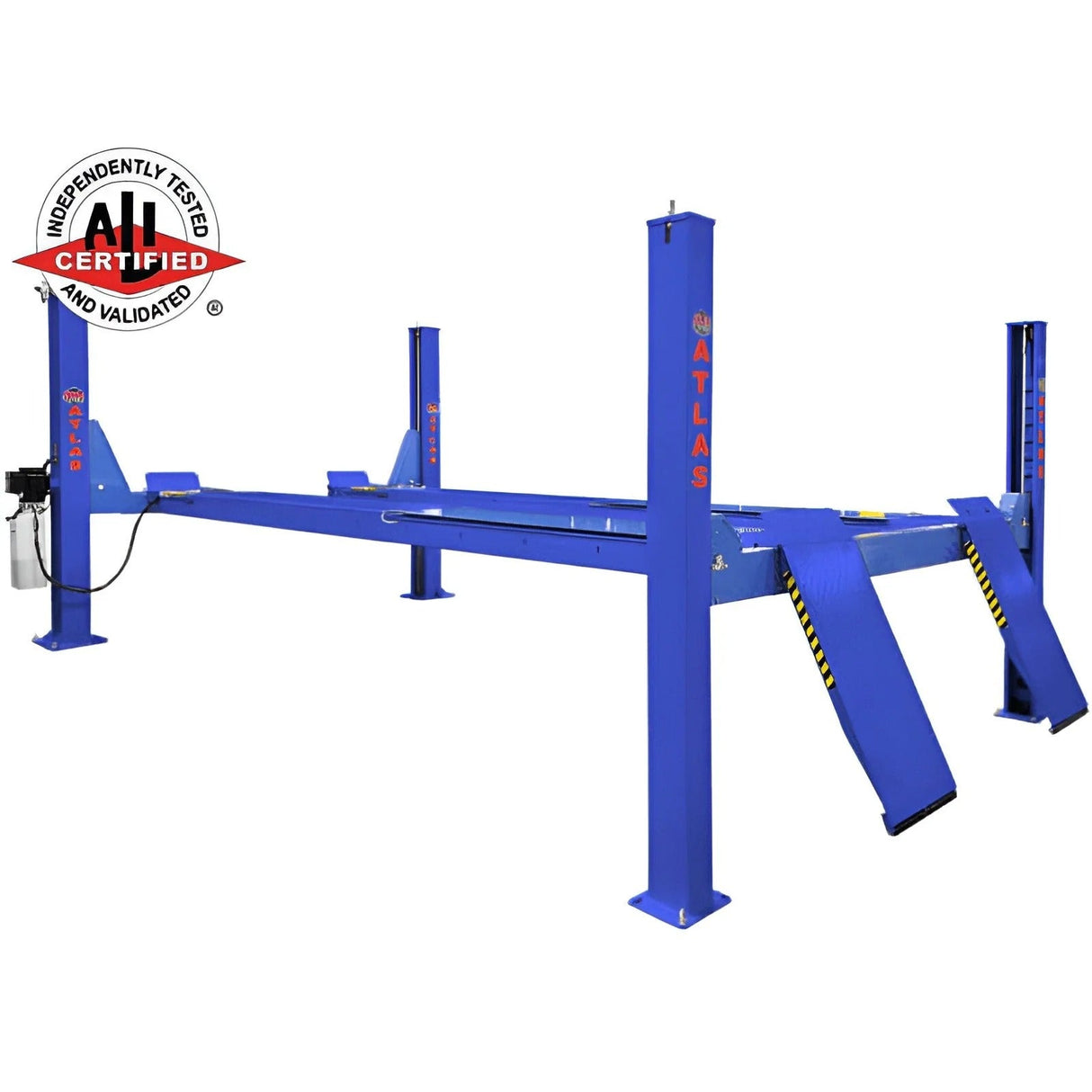

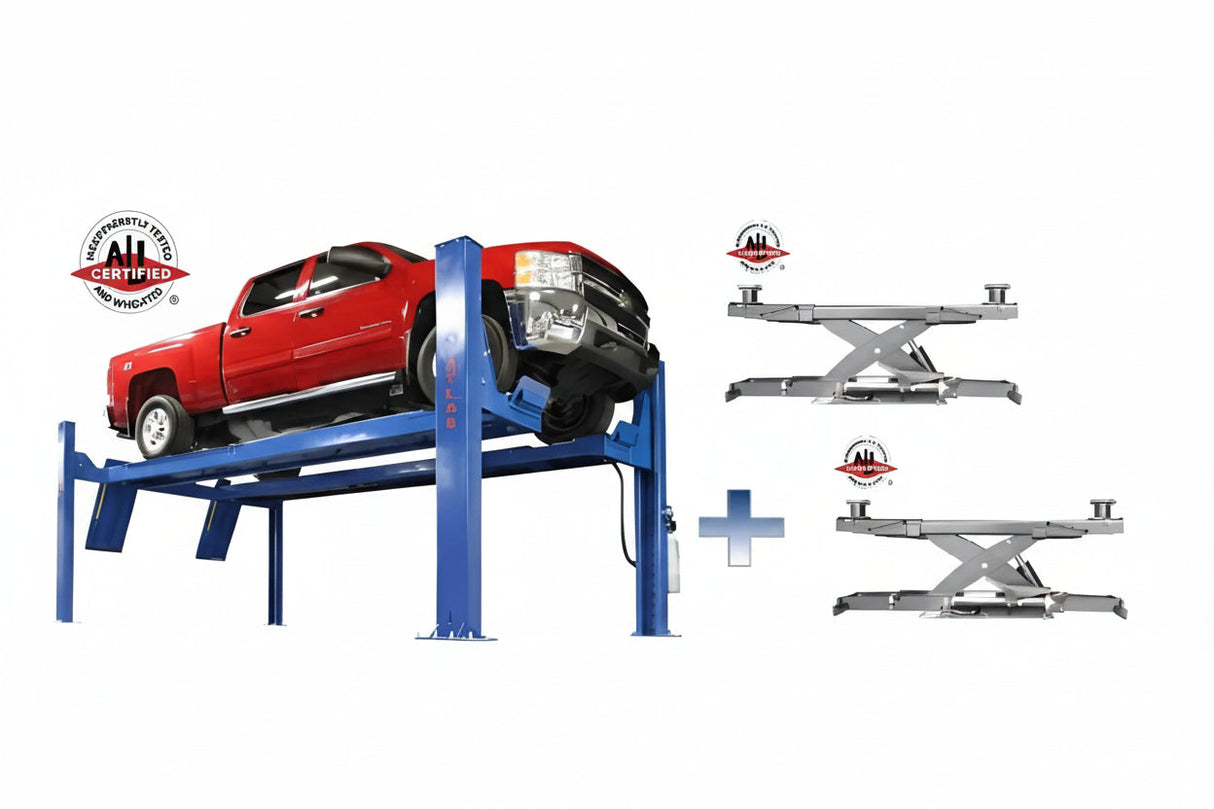

The Atlas Platinum PVL14OF-EXT + RJ7000 Combo is a commercial-grade, ALI-certified alignment lift package designed for high-volume professional shops. This setup combines a heavy-duty open-front 4-post alignment lift with two rolling bridge jacks, giving you full capability for alignments, tire service, and general repairs.

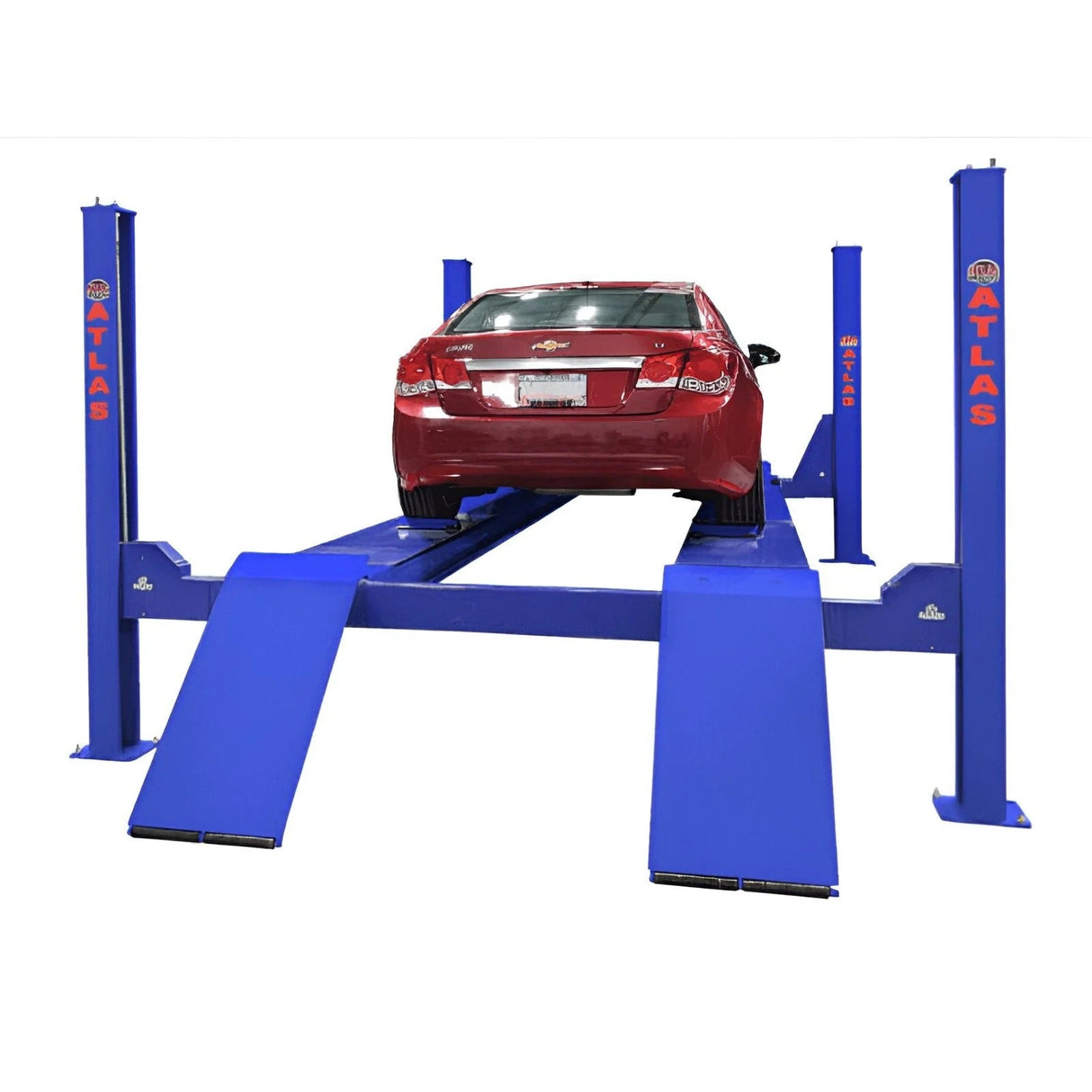

The open-front design provides improved access to the underside of vehicles, making it ideal for alignment work. With extra-long runways and a wide stance, this lift easily accommodates cars, trucks, vans, and commercial vehicles.

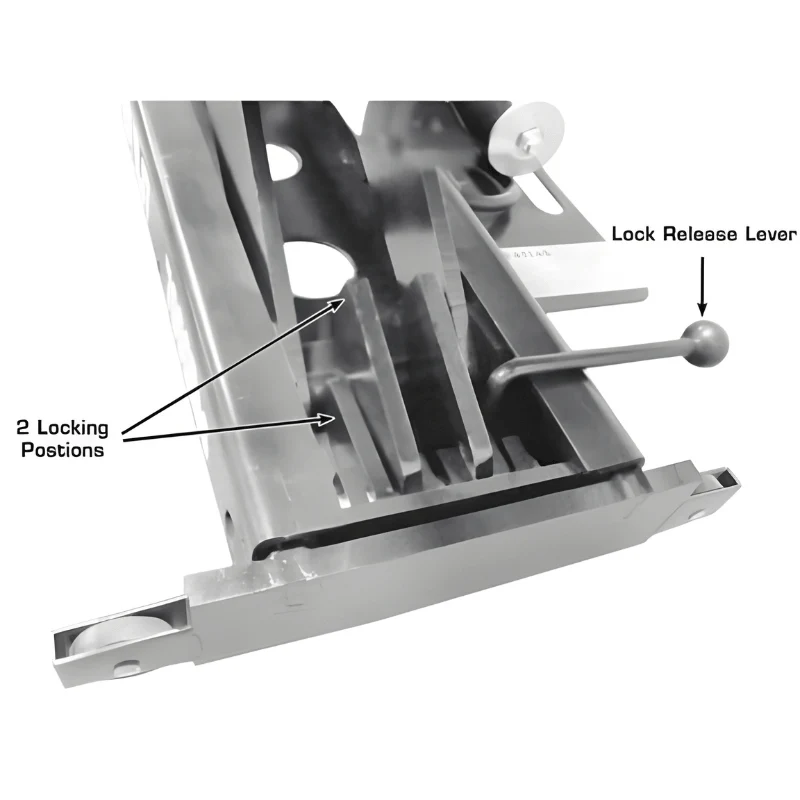

The included RJ7000 rolling jacks allow you to lift vehicles off the runways for wheel, brake, and suspension service—turning this into a complete service solution.
Features and Benefits
- Combo includes PVL14OF-EXT alignment lift + two RJ7000 rolling jacks
- ALI certified for safety and reliability
- Heavy-duty commercial-grade construction
- Open-front design for better undercar access
- Extra tall, wide, and extended length for larger vehicles

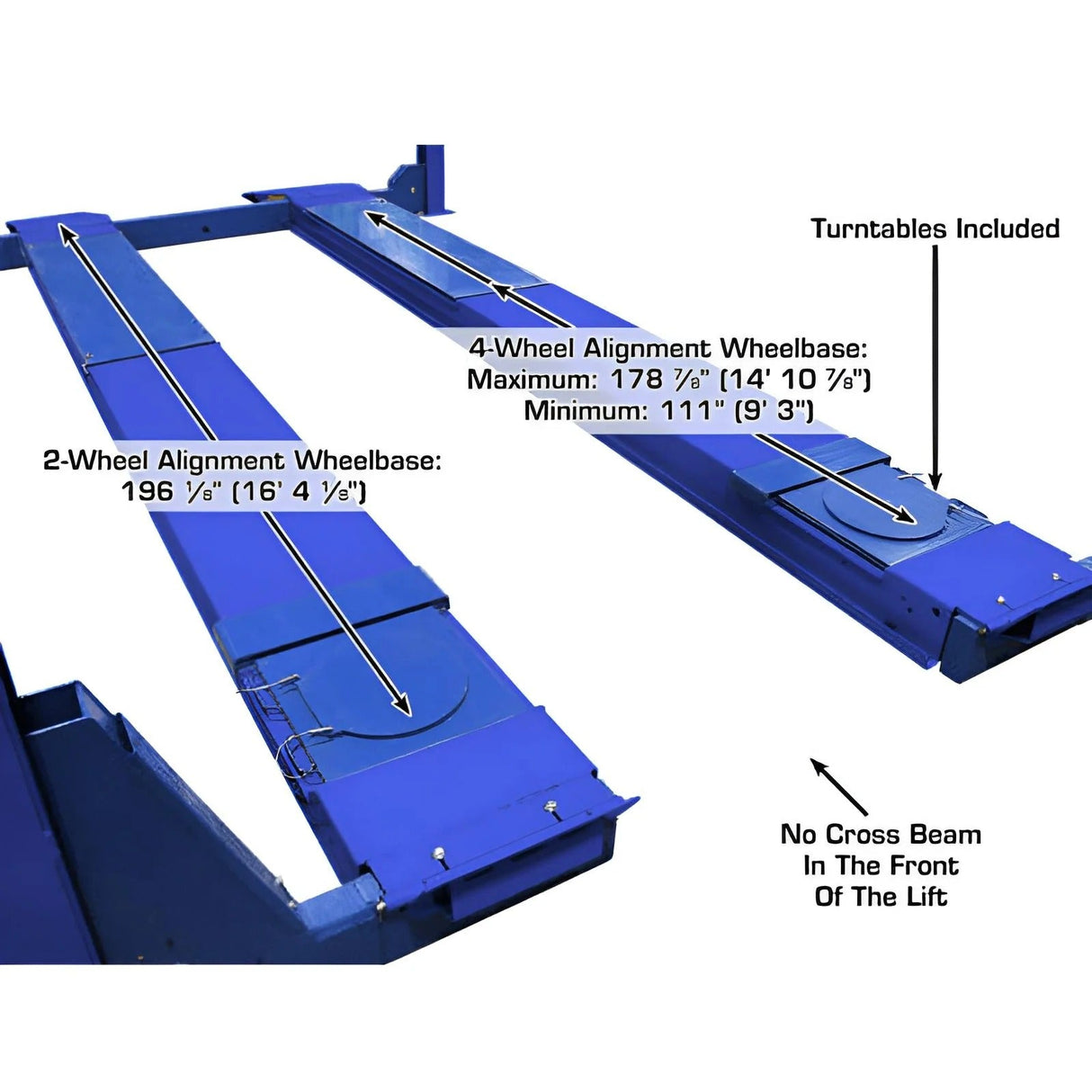

- Built-in slip plates for alignment work

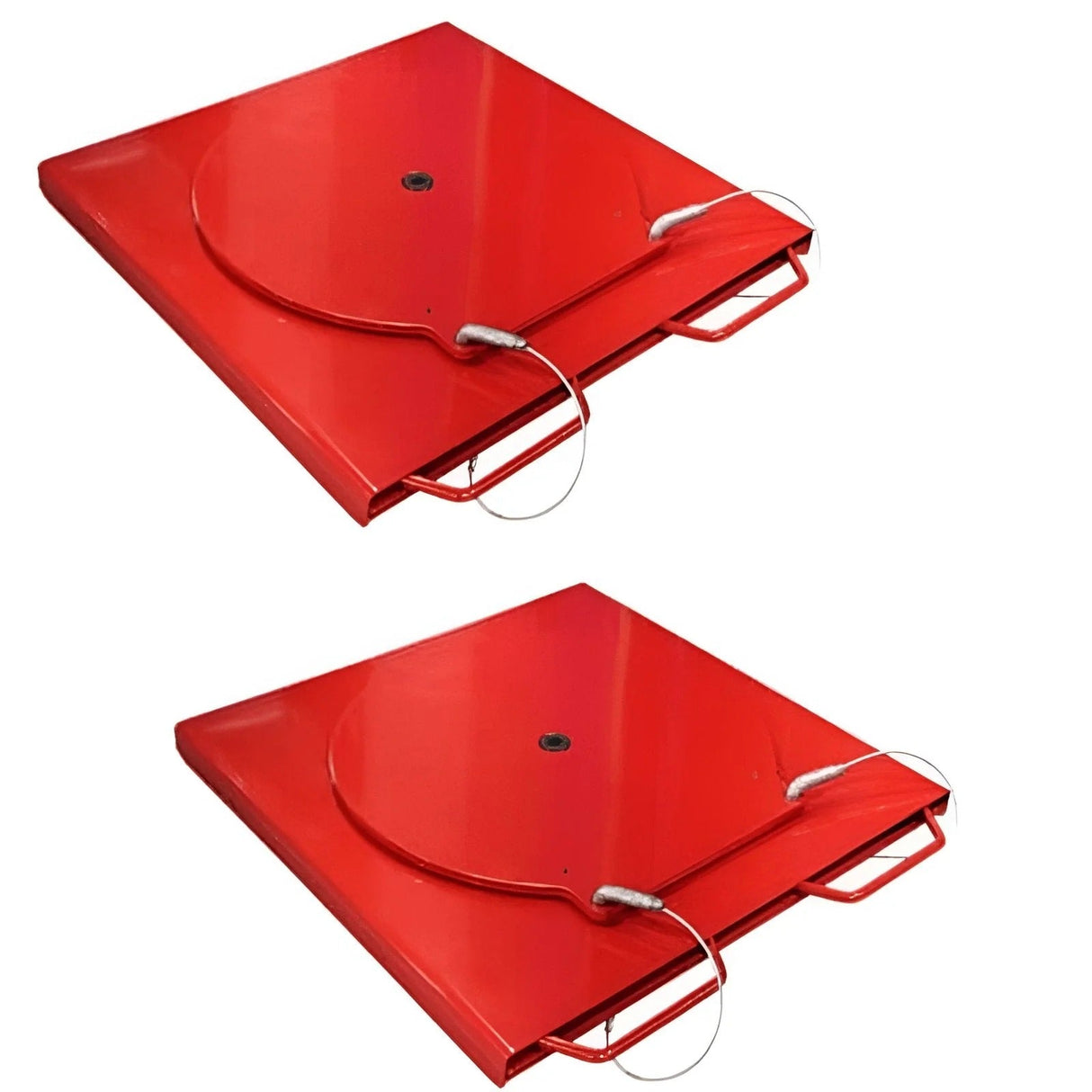

- Alignment turntables included

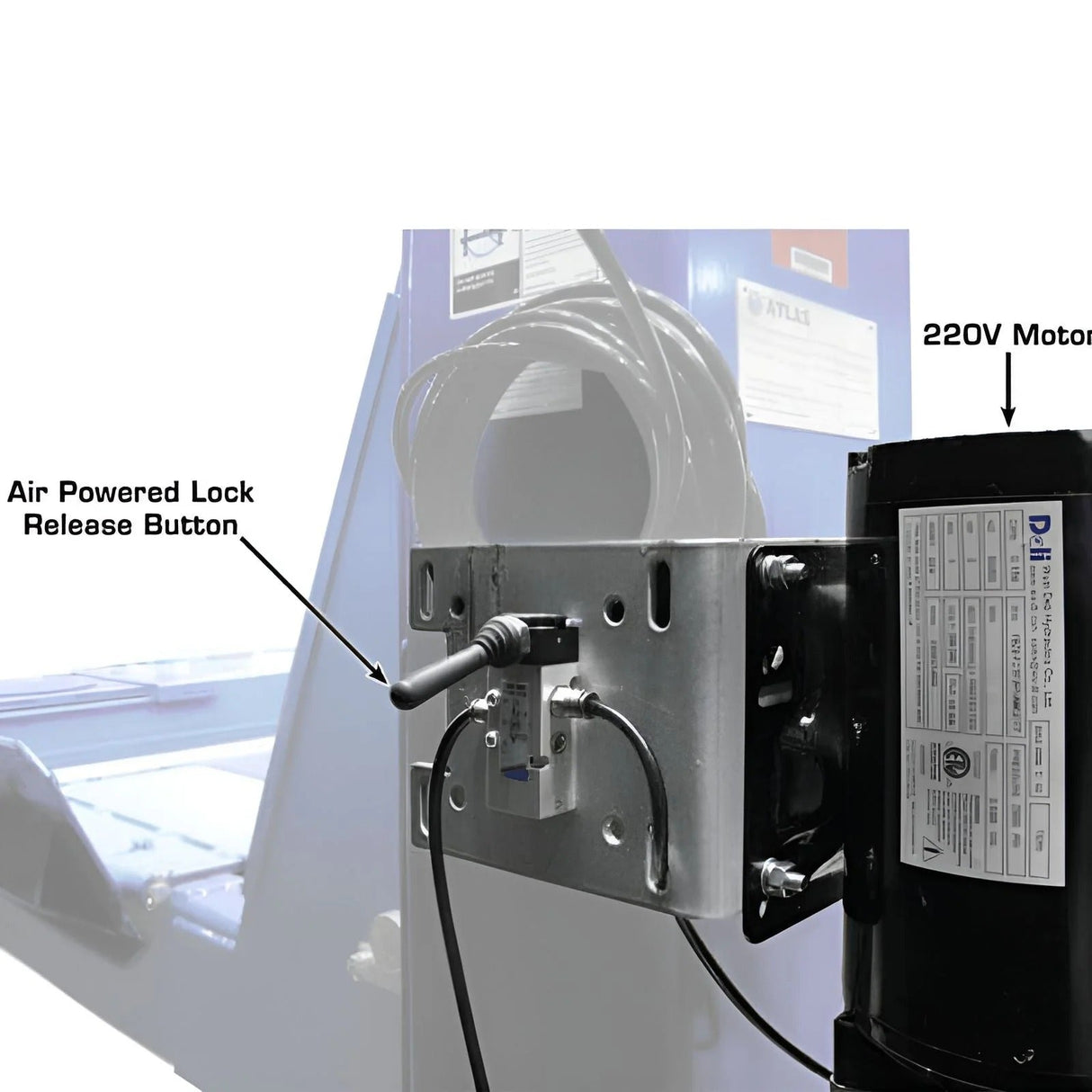

- Air-operated single-point lock release (external air required)

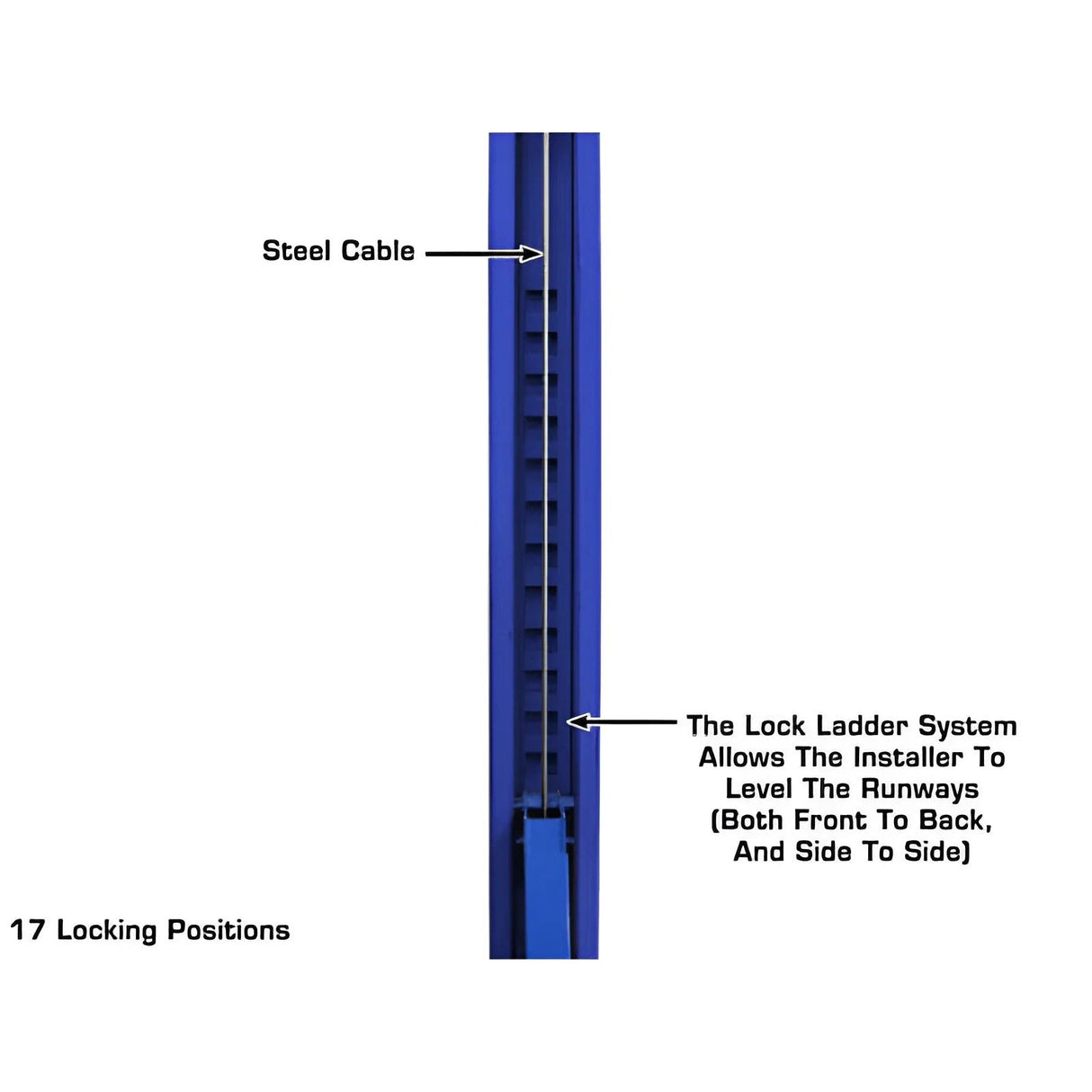

- High-strength cable lifting system with concealed hydraulic cylinder
- Steel approach ramps included

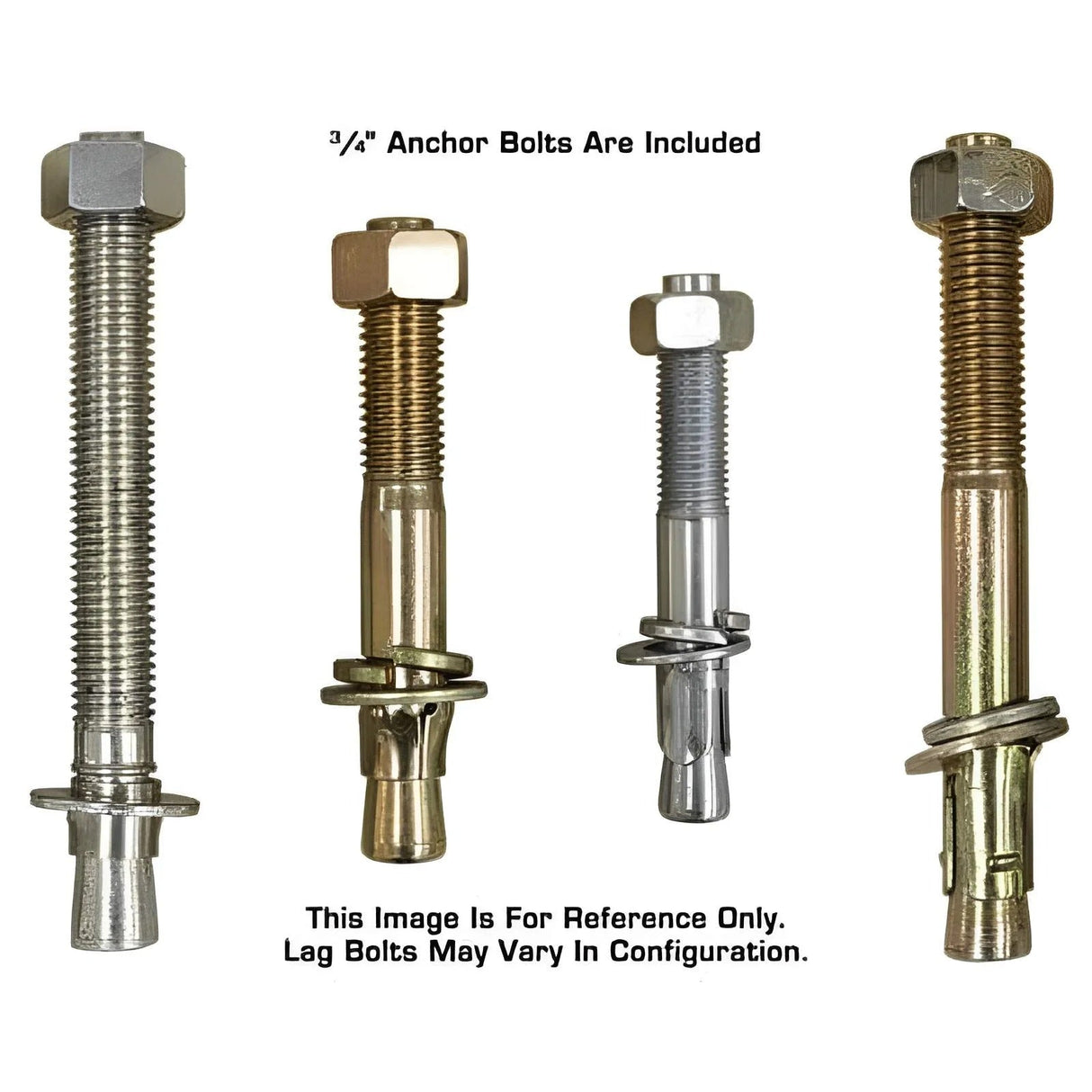

- Mounting hardware included

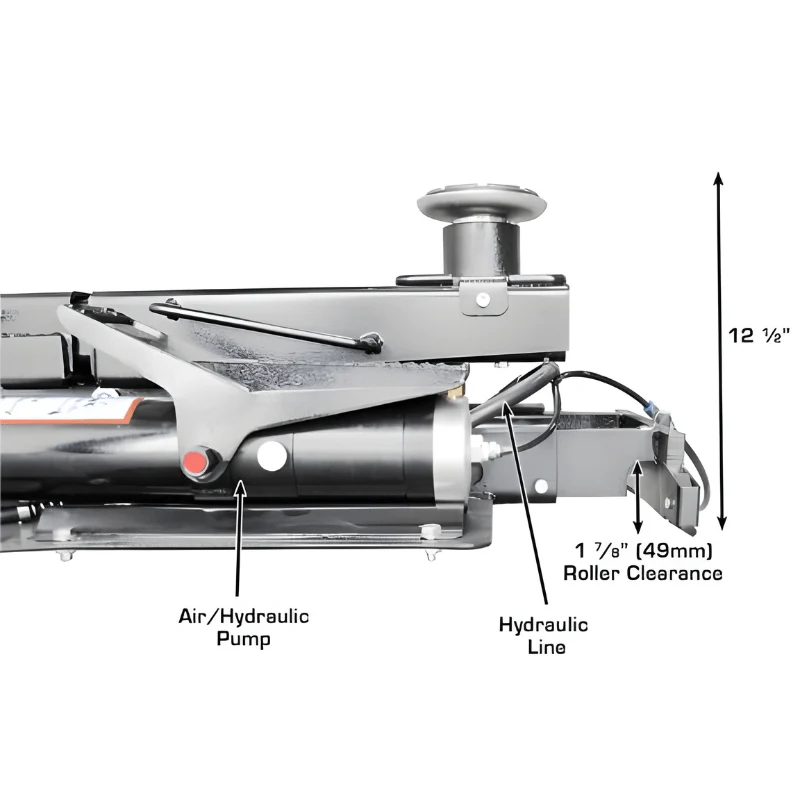

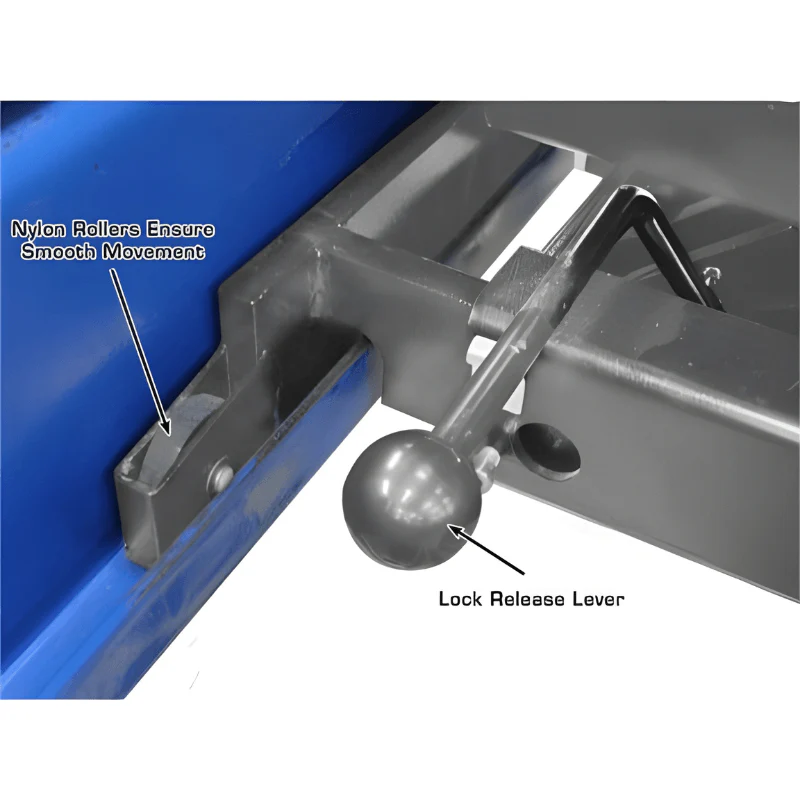

- Rolling jacks are air-over-hydraulic operated
- Truck adapter set included for each jack

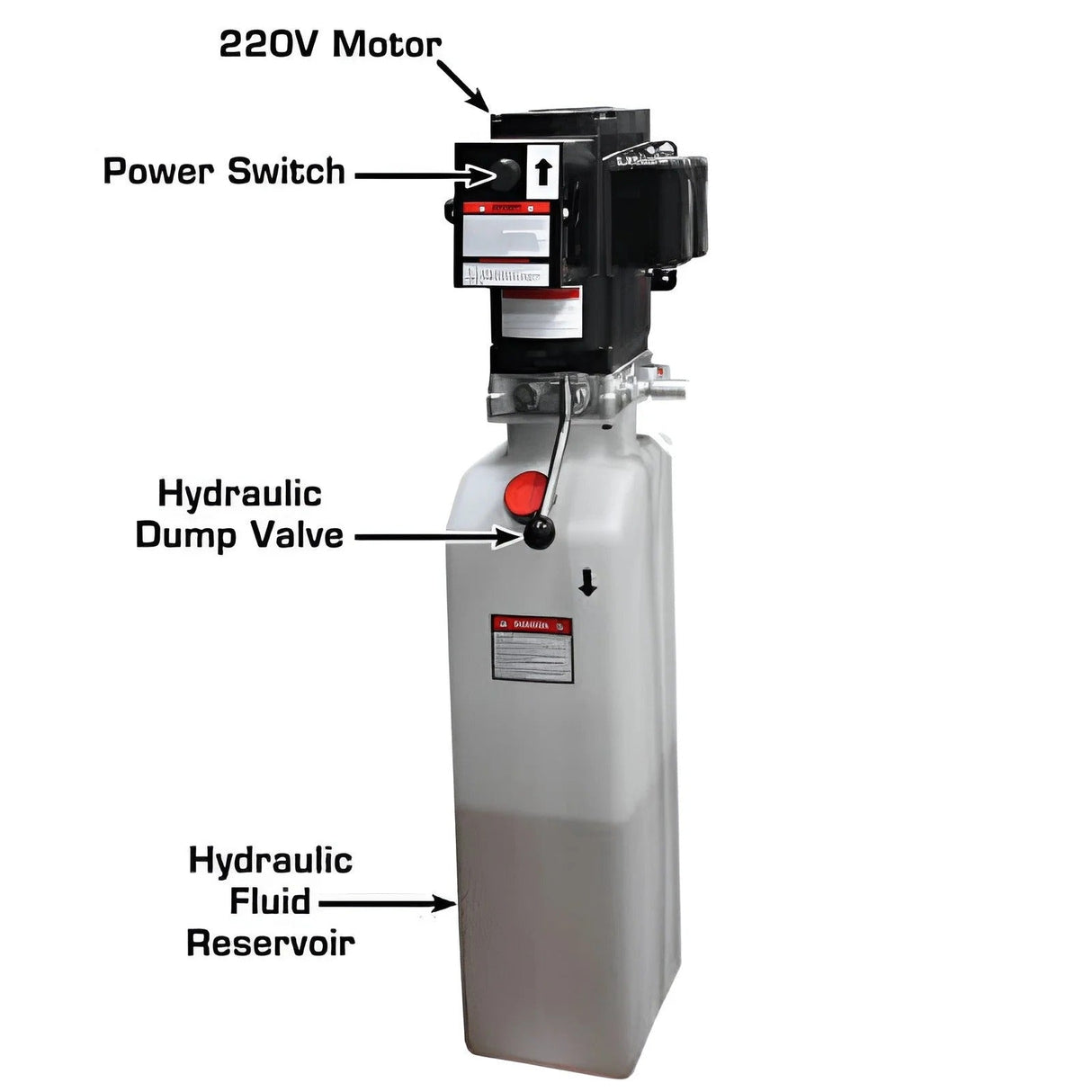

- Powered by premium ALLY hydraulic power unit
- Freight prepaid

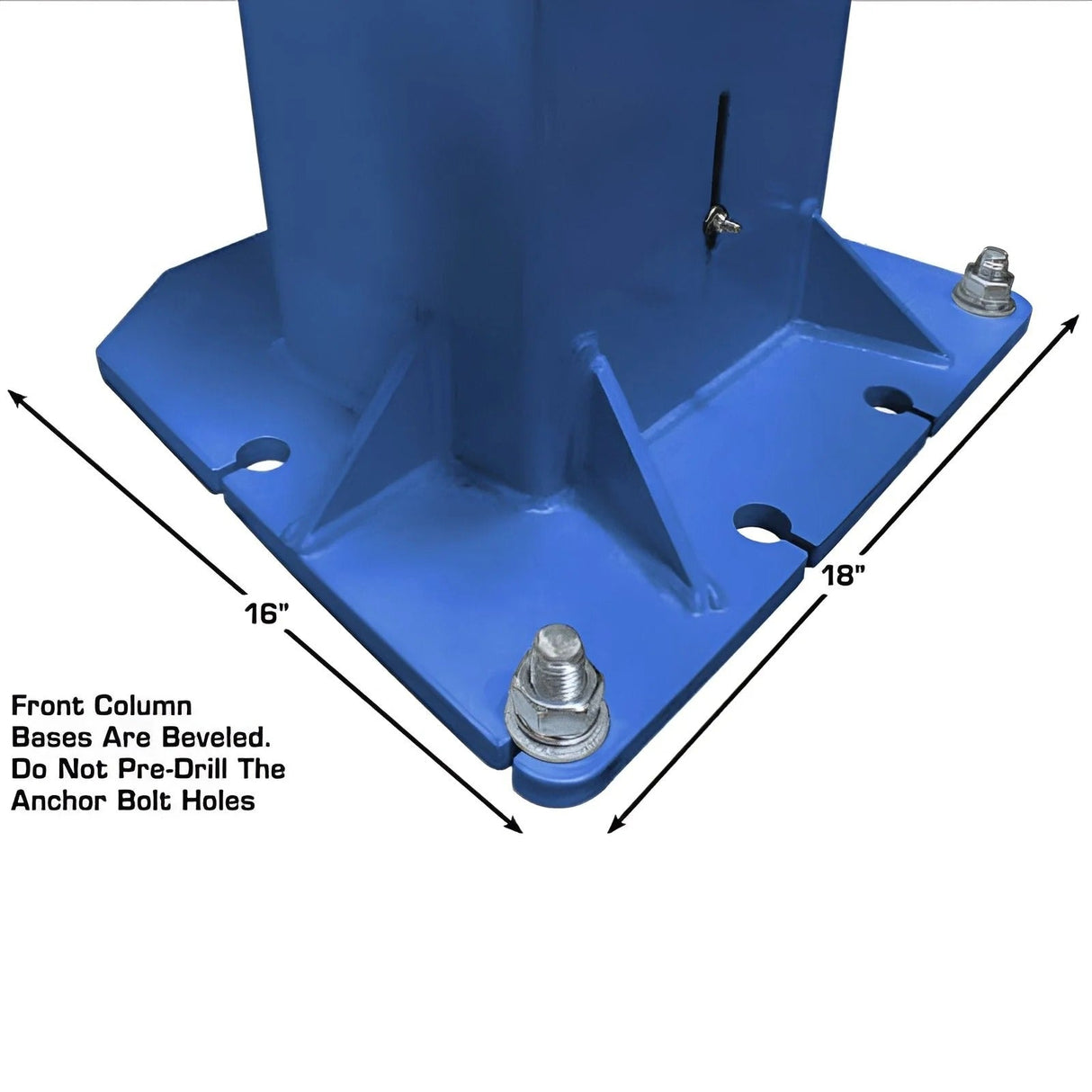

- Requires minimum 6" concrete at 3,000 PSI

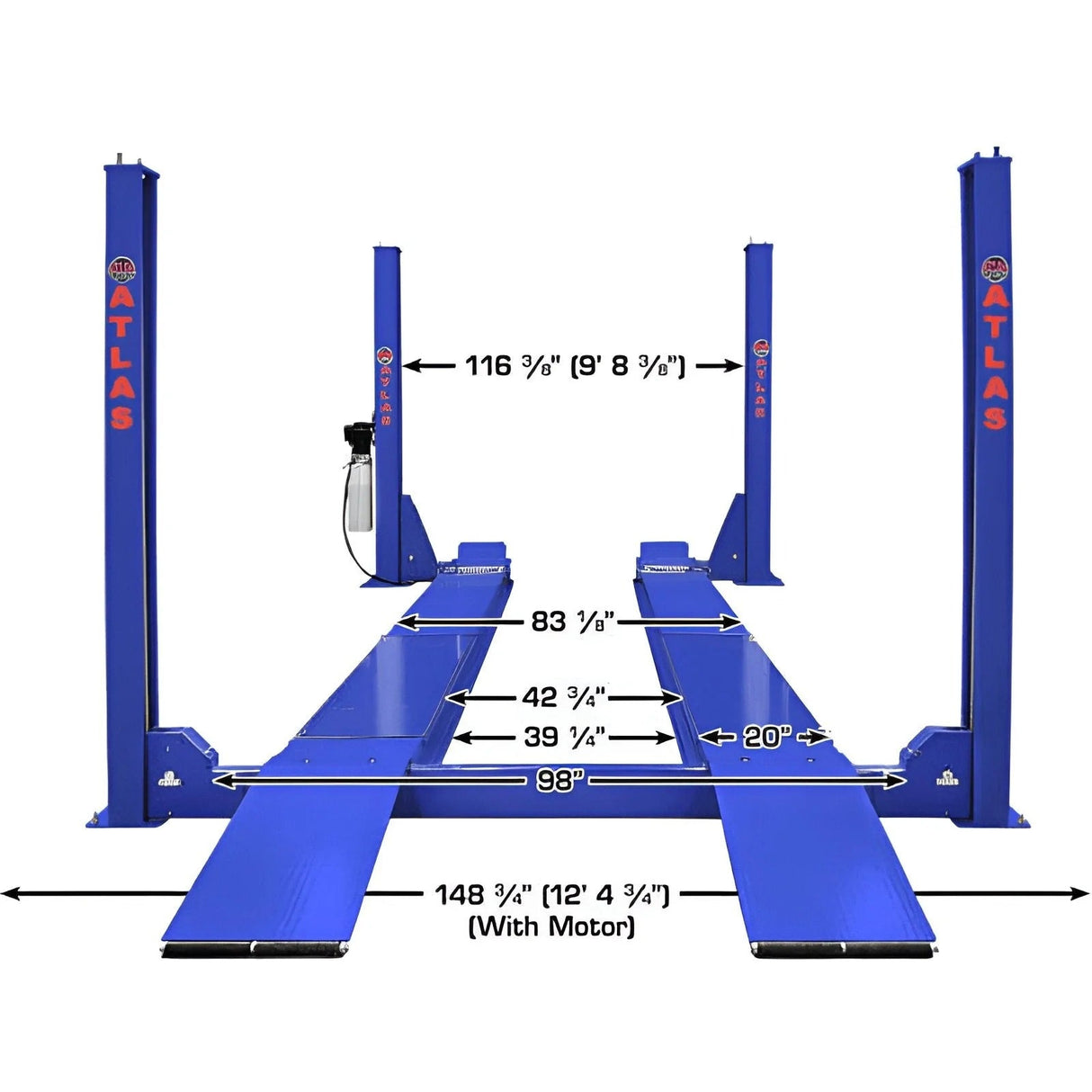

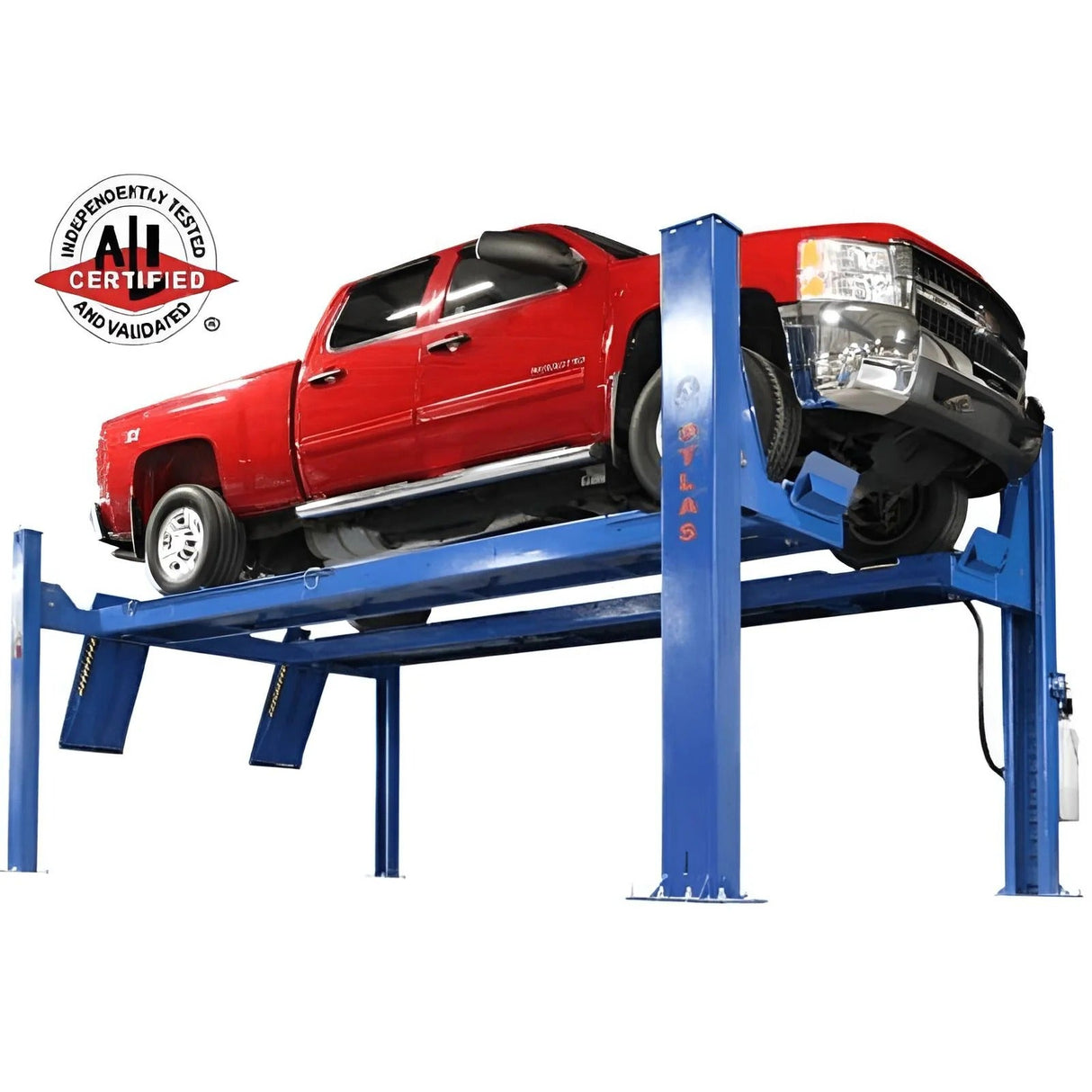

Atlas PVL14OF-EXT
| Specifications | Details |
|---|---|
| Capacity | 14,000 lb. |
| Lifting Height | 80" (6' 8") |
| Overall Width of Columns (Without Motor) | 130 7/8" (10' 10 7/8") |
| Overall Width of Columns (With Motor) | 138 7/8" (11' 6 7/8") |
| Overall Length With Approach Ramp | 255" (21' 3") |
| Length Between Columns | 197 1/4" (16' 5 1/4") |
| Runway Length | 208 5/8" (17' 4 5/8") |

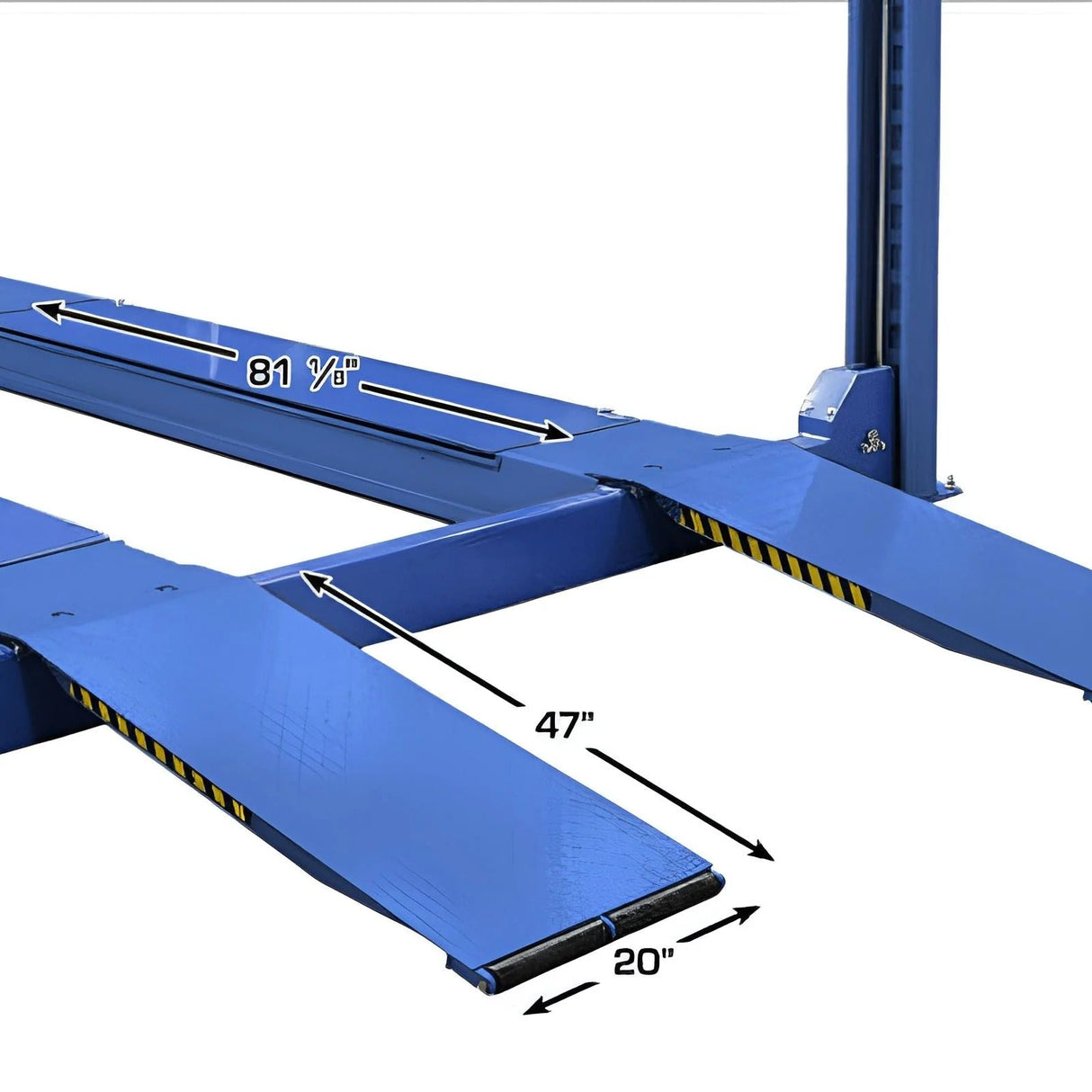

| Runway Width | 20" |
| Thickness of Runway | 8 3/4" |
| Width Between Runways | 46 7/8" (w/ Rail 44 3/8") |
| Outside Runway to Outside Runway | 86 7/8" (7' 2 7/8") |

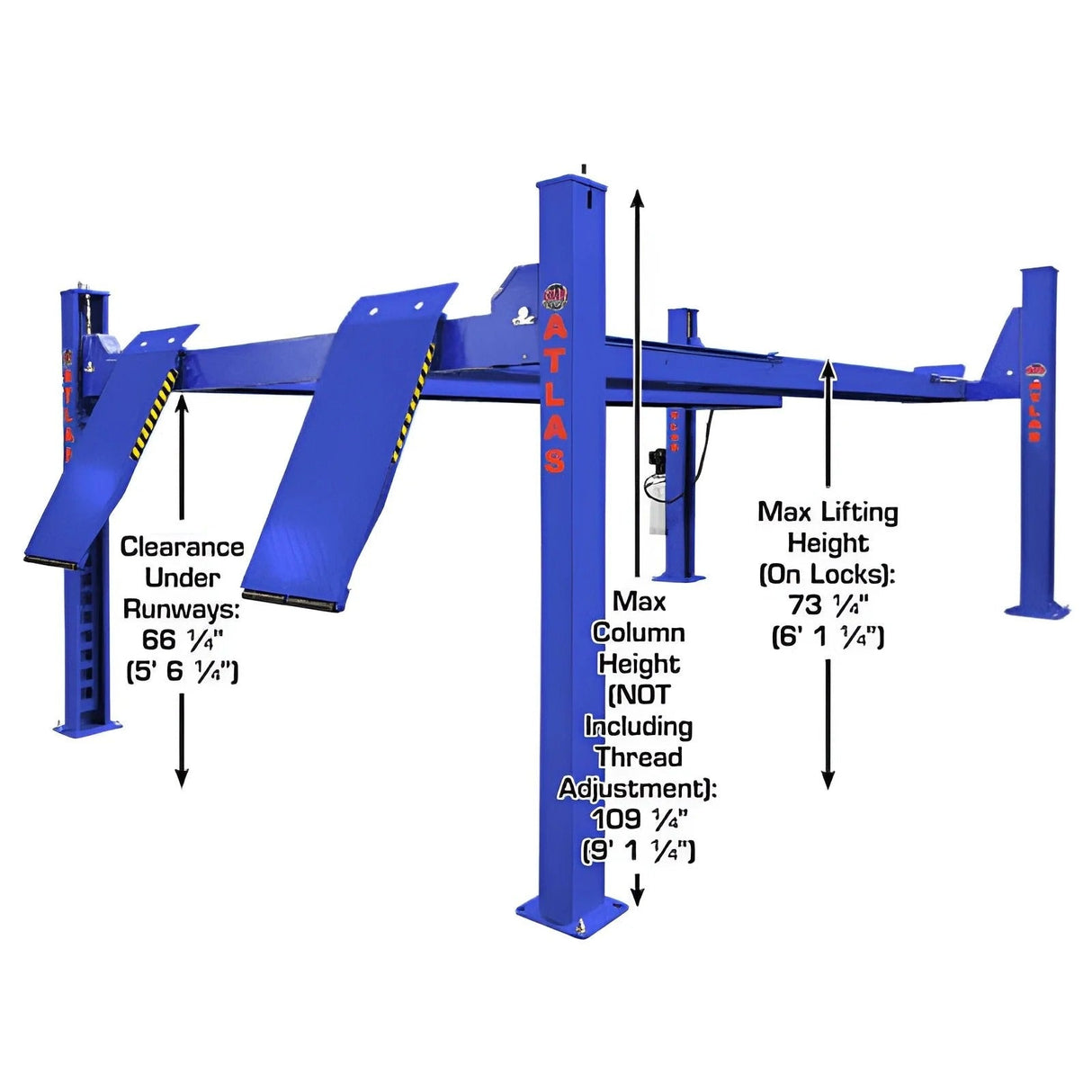

| Clearance Under Runways | 71 1/4" (5' 11 1/4") |
| Clearance Between Columns | 116" (9' 8") |
| Height of Columns | 91 1/8" (7' 7 1/8") |
| Maximum Wheel Base | 197" (16' 5") |
| Drive Thru | 102 1/8" (8' 6 1/8") |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 3,100 lbs. |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |

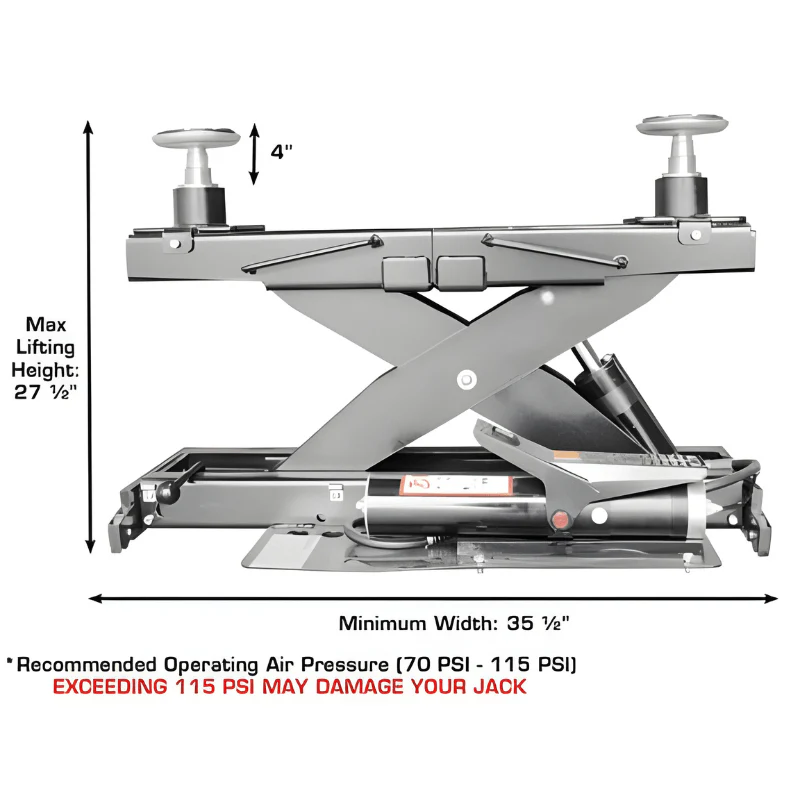

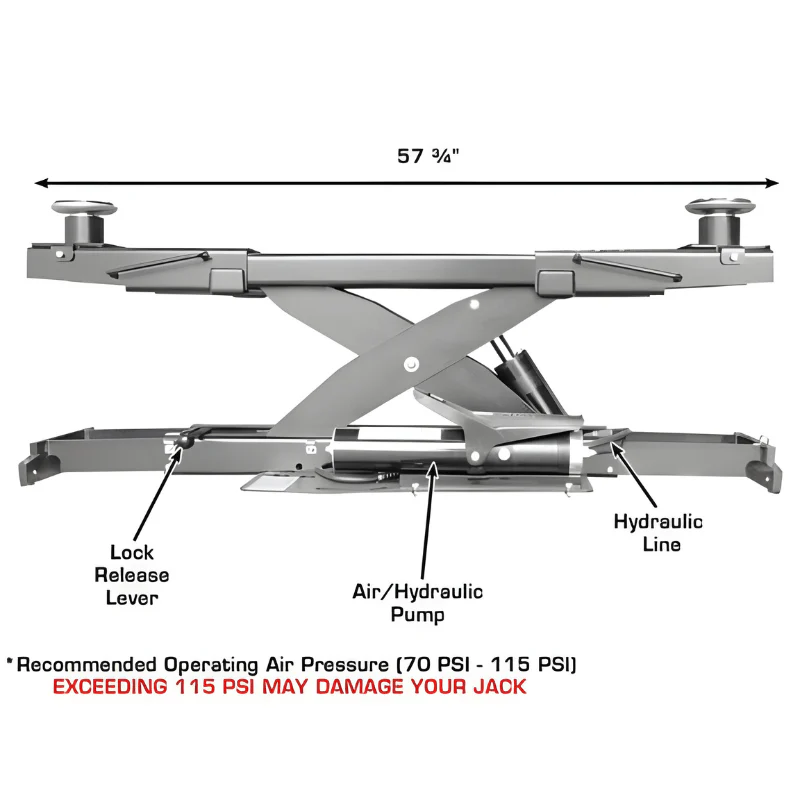

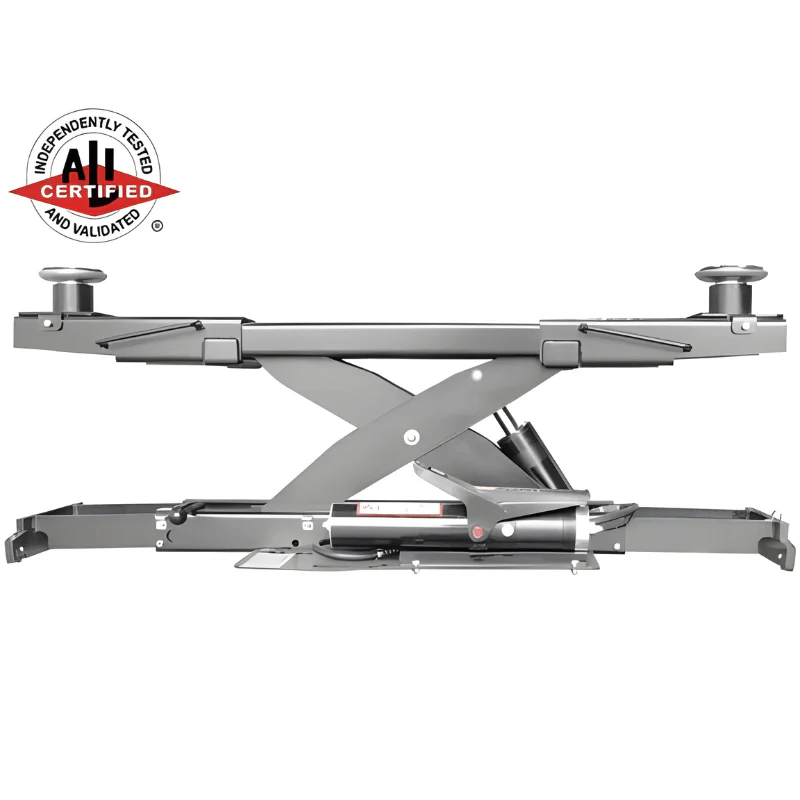

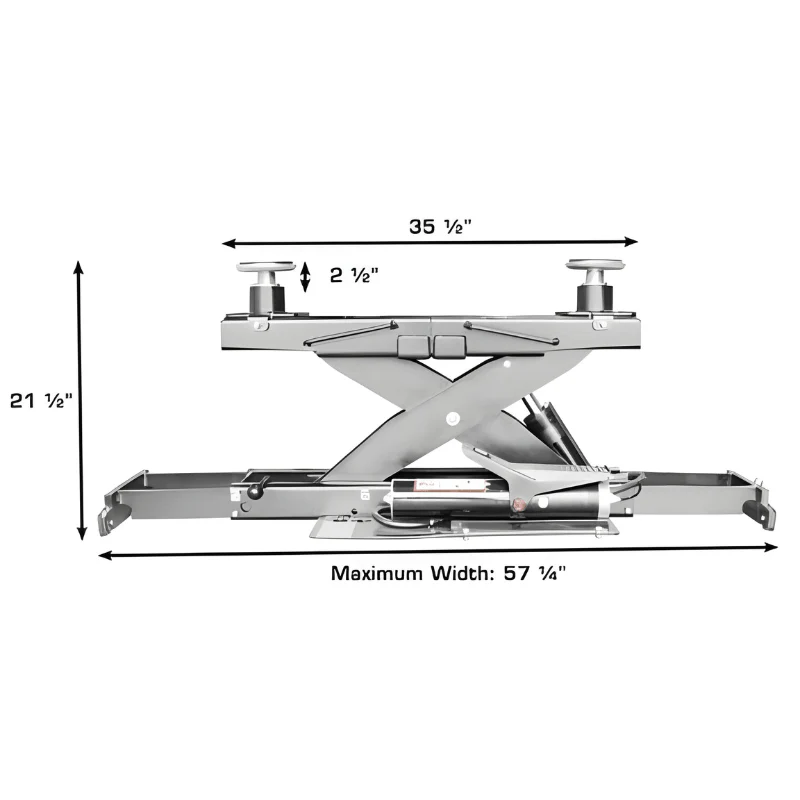

Atlas Platinum RJ7000
| Specifications | Details |
|---|---|
| Minimum Width | 36" |
| Maximum Width | 45 1/2" |
| Distance Between Runway Capability | 36" – 45" |
| Minimum Lifting Height | 12 1/2" |
| Maximum Lifting Height (w/ Adapters) | 27 1/2" |
| Double Screw-Up Adapter Pad | 1 1/2" – 4" |
| Air Requirement | 70–115 PSI |

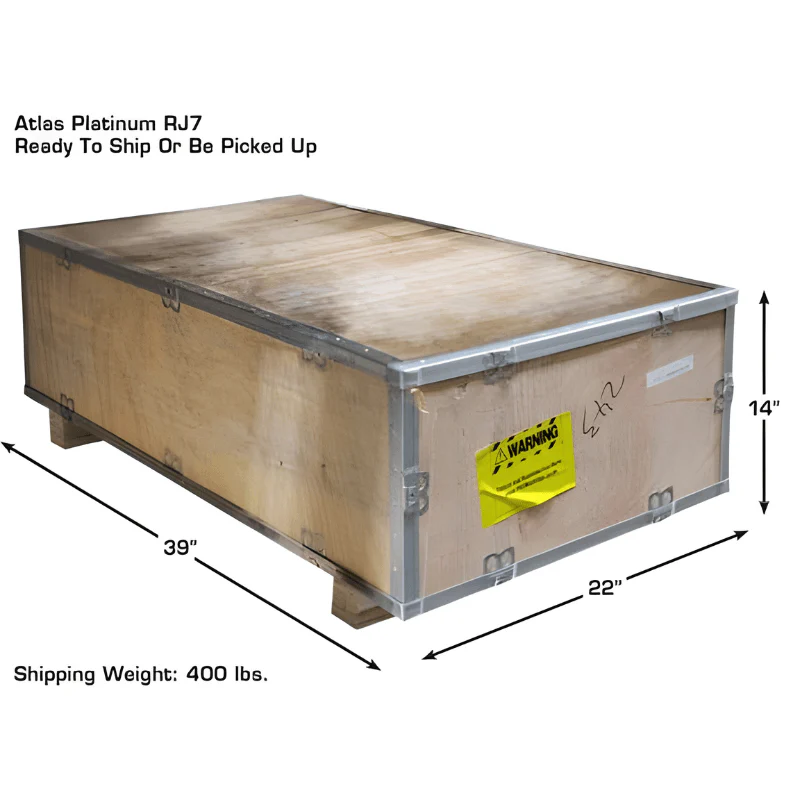

| Shipping Weight | 390 lbs. |
