Built for Heavy-Duty Lifting Applications
The Atlas Platinum PVL15 is a commercial-grade 2-post lift engineered for shops that work with larger, heavier vehicles. With a 15,000 lb capacity and ALI certification, this lift is designed to safely handle long wheelbase trucks, service vehicles, and heavy-duty applications.
Extra Tall Design with Expansion Capability

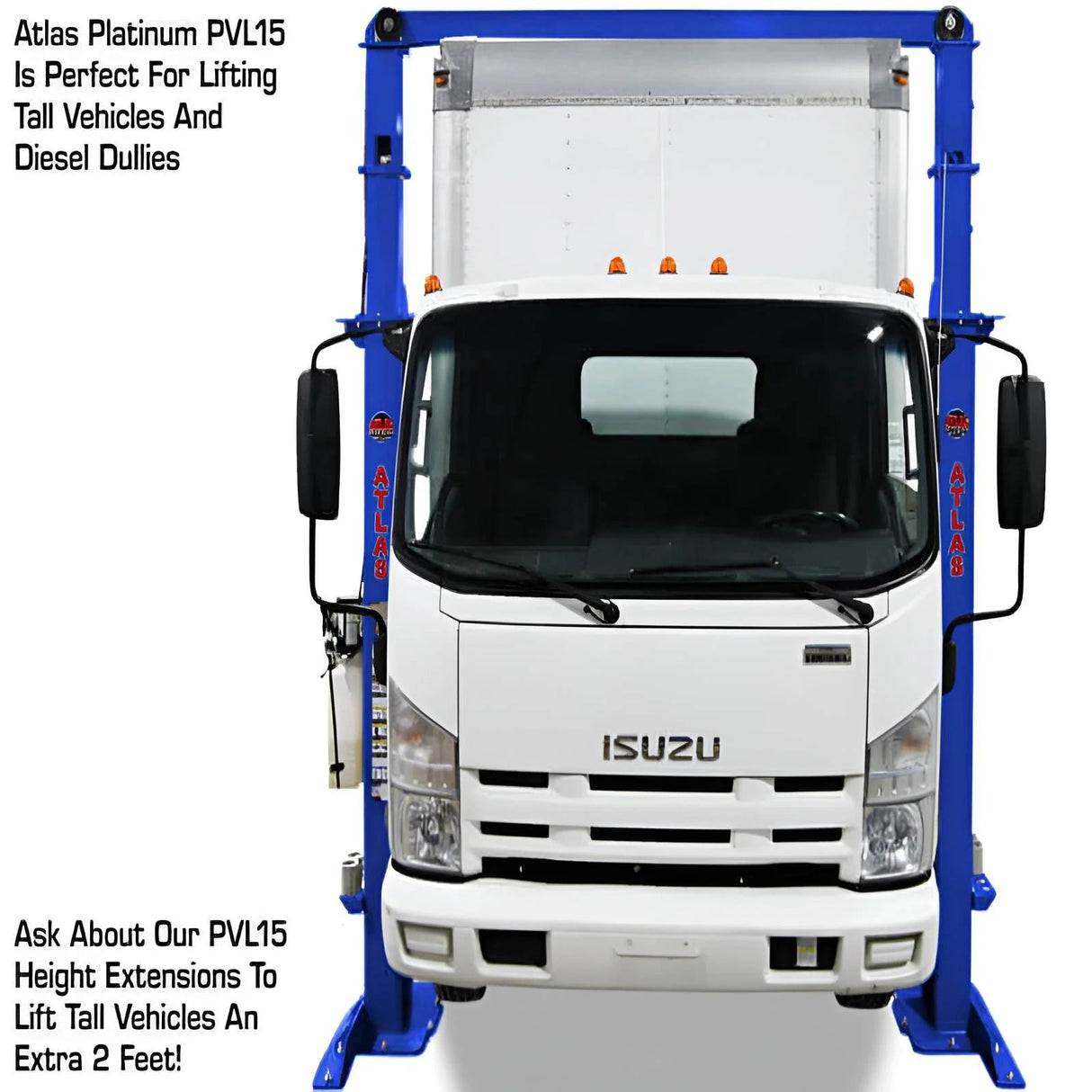

With an overall height of over 14 feet and an included 2-foot extension kit, the PVL15 is built to accommodate taller vehicles and demanding shop environments. Its extra-wide and extra-tall configuration provides the clearance needed for larger vehicles and improved working space.
Key Features & Benefits
- 15,000 lb capacity for trucks, vans, and commercial vehicles
- ALI Certified for safety and compliance
- Extra tall and extra wide heavy-duty design
- Includes 2-foot height extension kit

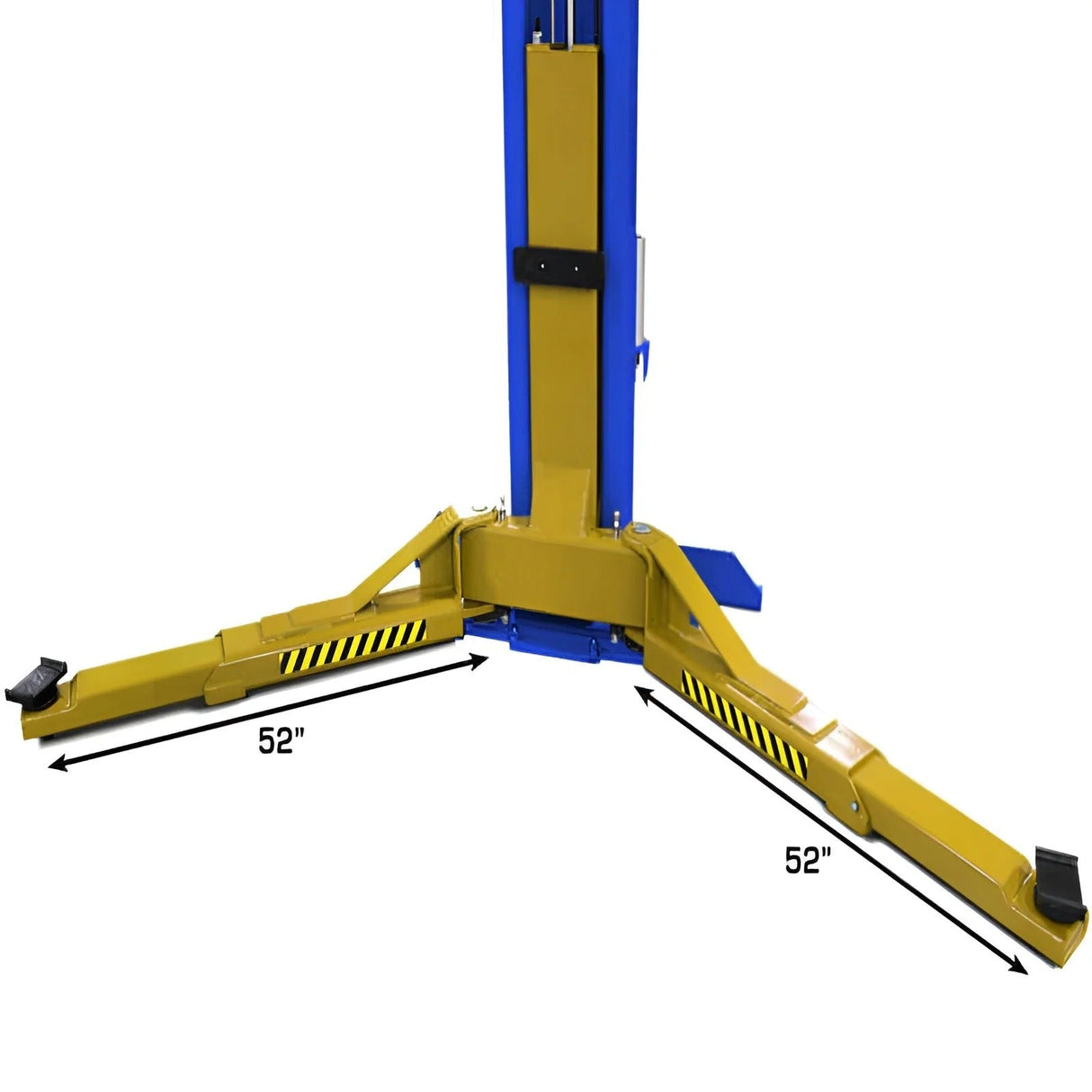

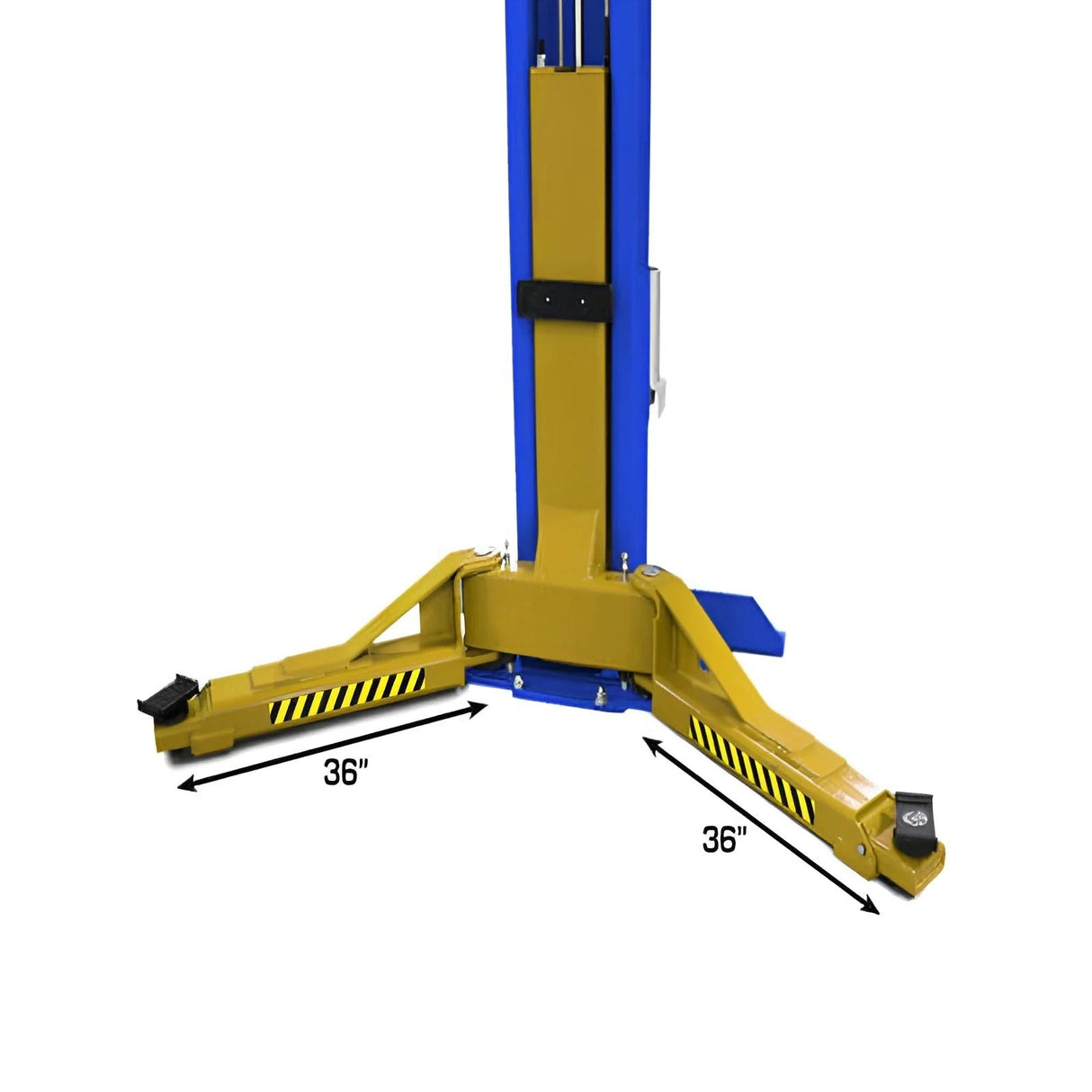

- Symmetric arm configuration for balanced lifting
- Professional-grade arm lock restraint system

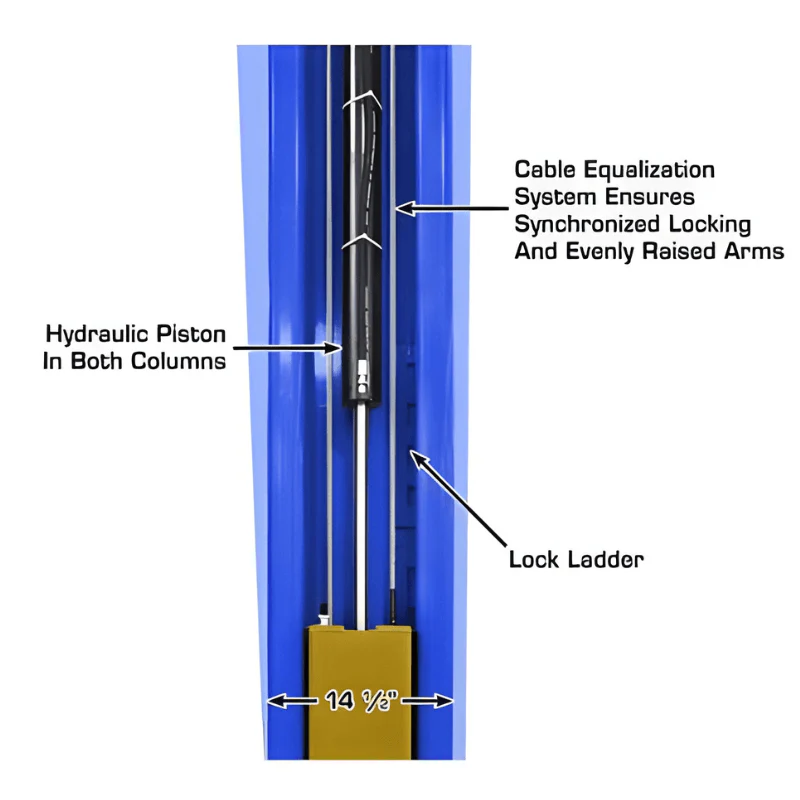

- Dual direct-drive hydraulic cylinders for reliable lifting
- Heavy-duty 3/8" equalization cables
- Padded carriages to help protect vehicles

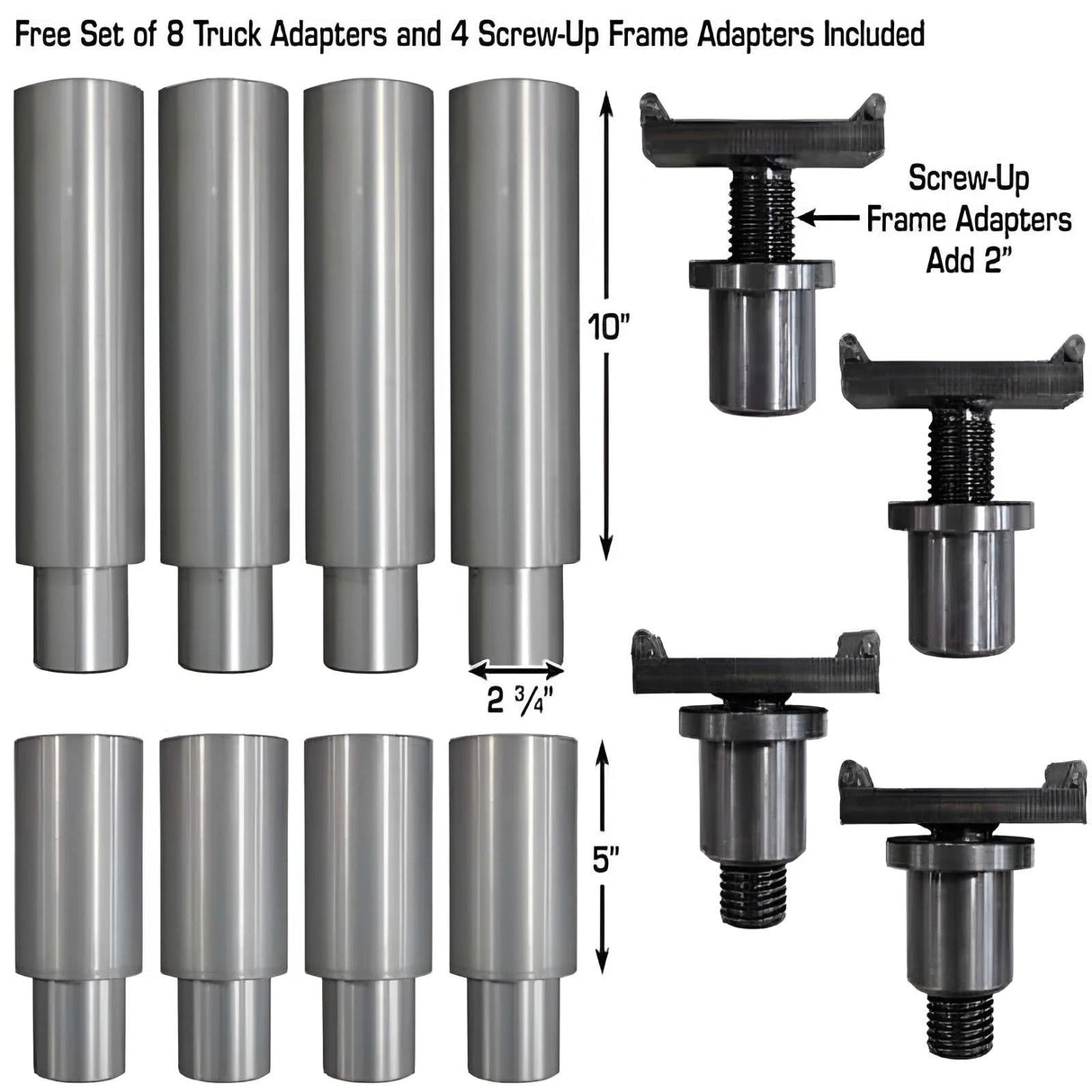

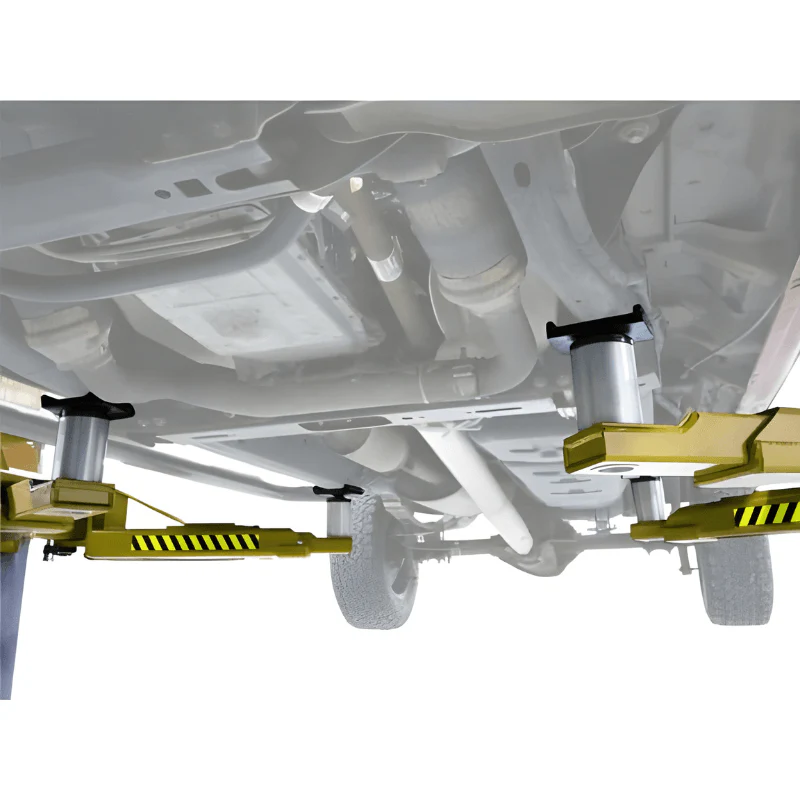

- Includes 8-piece truck adapter set and 4 screw-up frame adapters

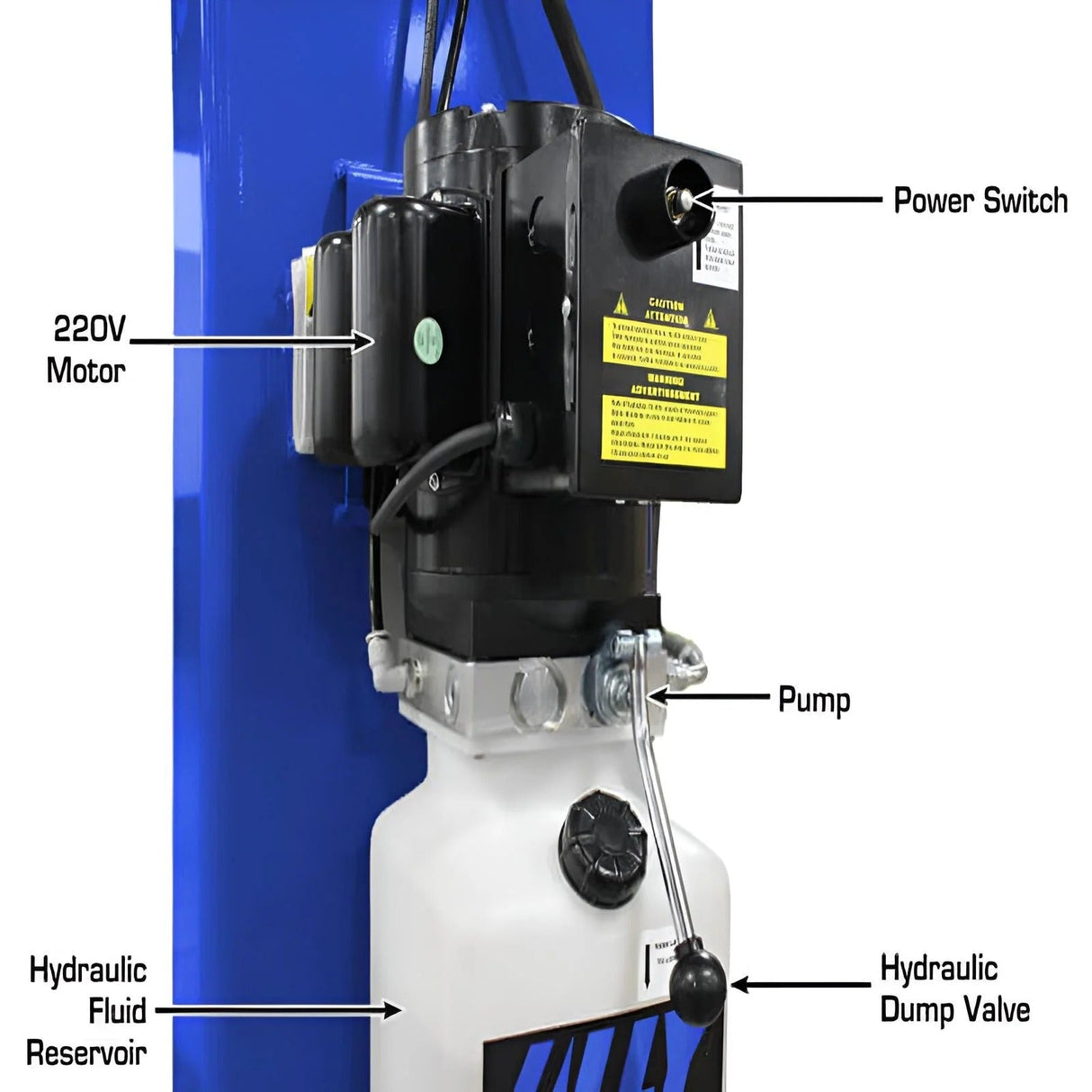

- Premium ALLY hydraulic power unit included
- Mounting hardware included
- Freight Prepaid (FPD)
Designed for Larger Vehicles

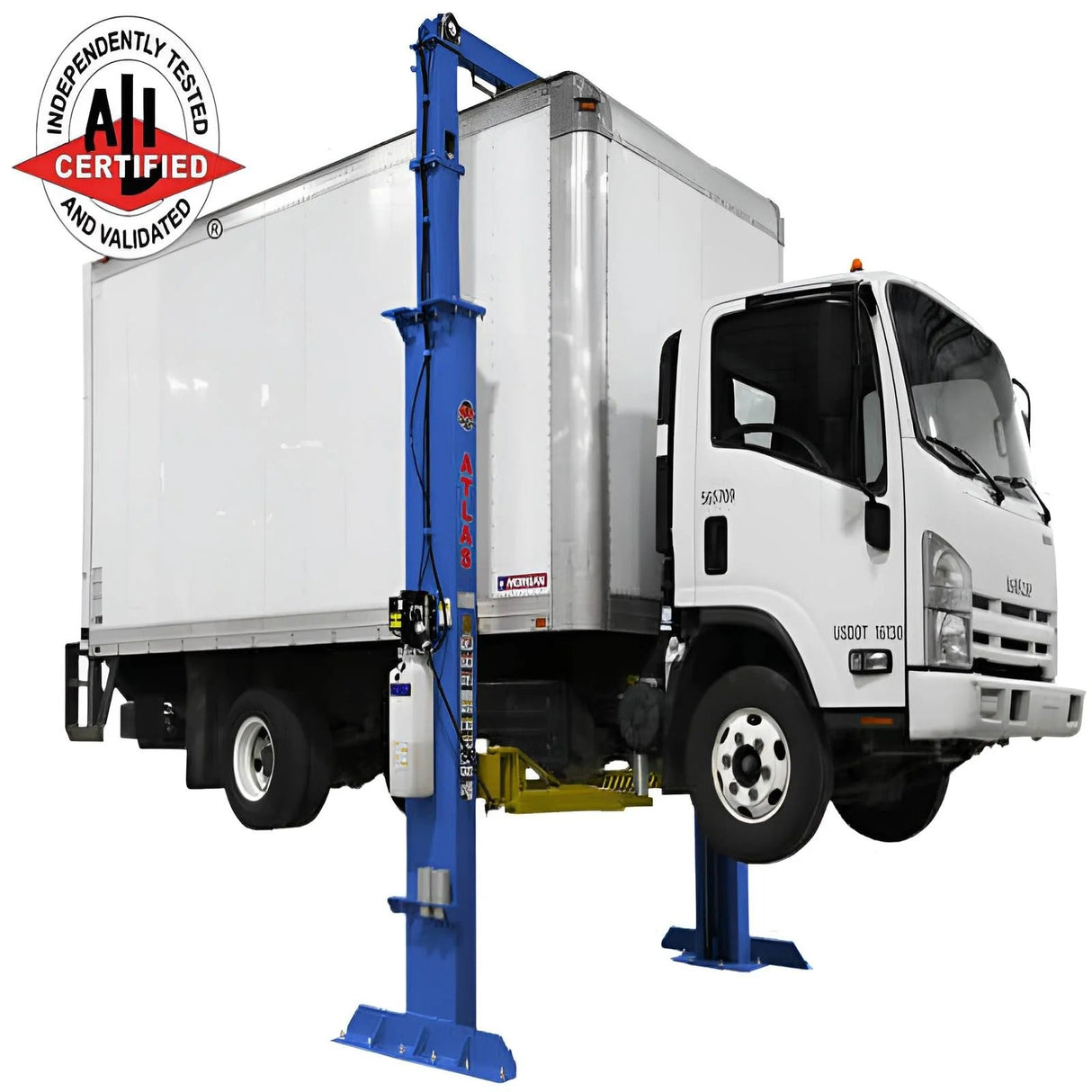

The PVL15 is specifically built to accommodate long wheelbase trucks and service vehicles, making it ideal for commercial shops that require higher lifting capacity and additional overhead clearance.
Premium Power & Performance
Equipped with a high-quality ALLY hydraulic power unit, this lift delivers consistent performance with reduced heat buildup and long-term durability. Certified for electrical compliance, it ensures reliable operation in demanding environments.
Ideal for Commercial Shops
This lift is perfect for automotive repair facilities, fleet maintenance shops, and service centers that regularly work with heavier vehicles and need dependable, high-capacity lifting equipment.
Built for Strength & Longevity
With reinforced components, advanced engineering, and a focus on durability, the Atlas Platinum PVL15 is built to provide years of reliable service in high-demand shop environments.
| Specifications | Details |
|---|---|
| Capacity | 15,000 lb. |
| Overall Height | 198 1/2" (16' 6 1/2") |
| Overall Floor Width | 148" (12' 4") |
| Outside Column to Outside Column | 135" (11' 3") |

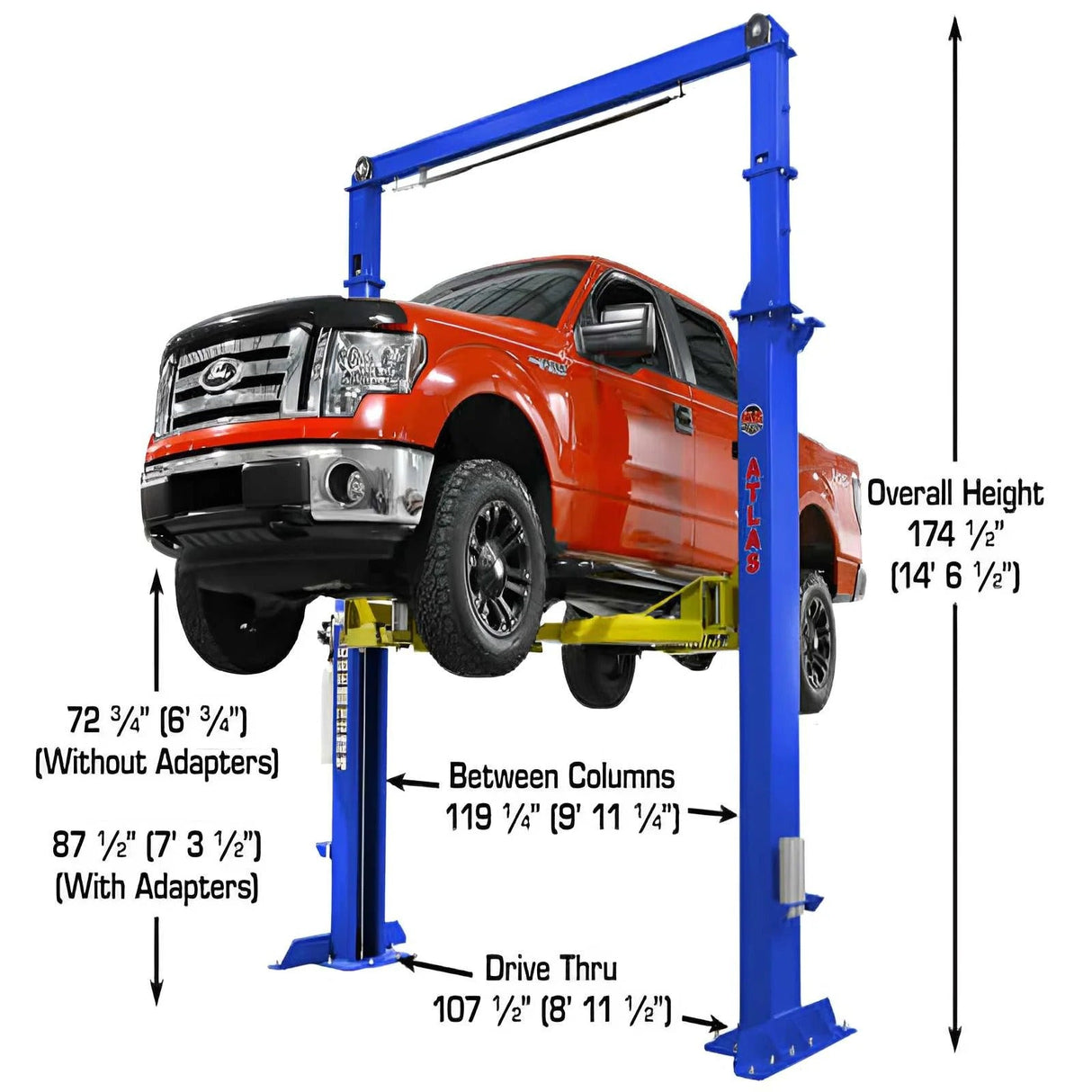

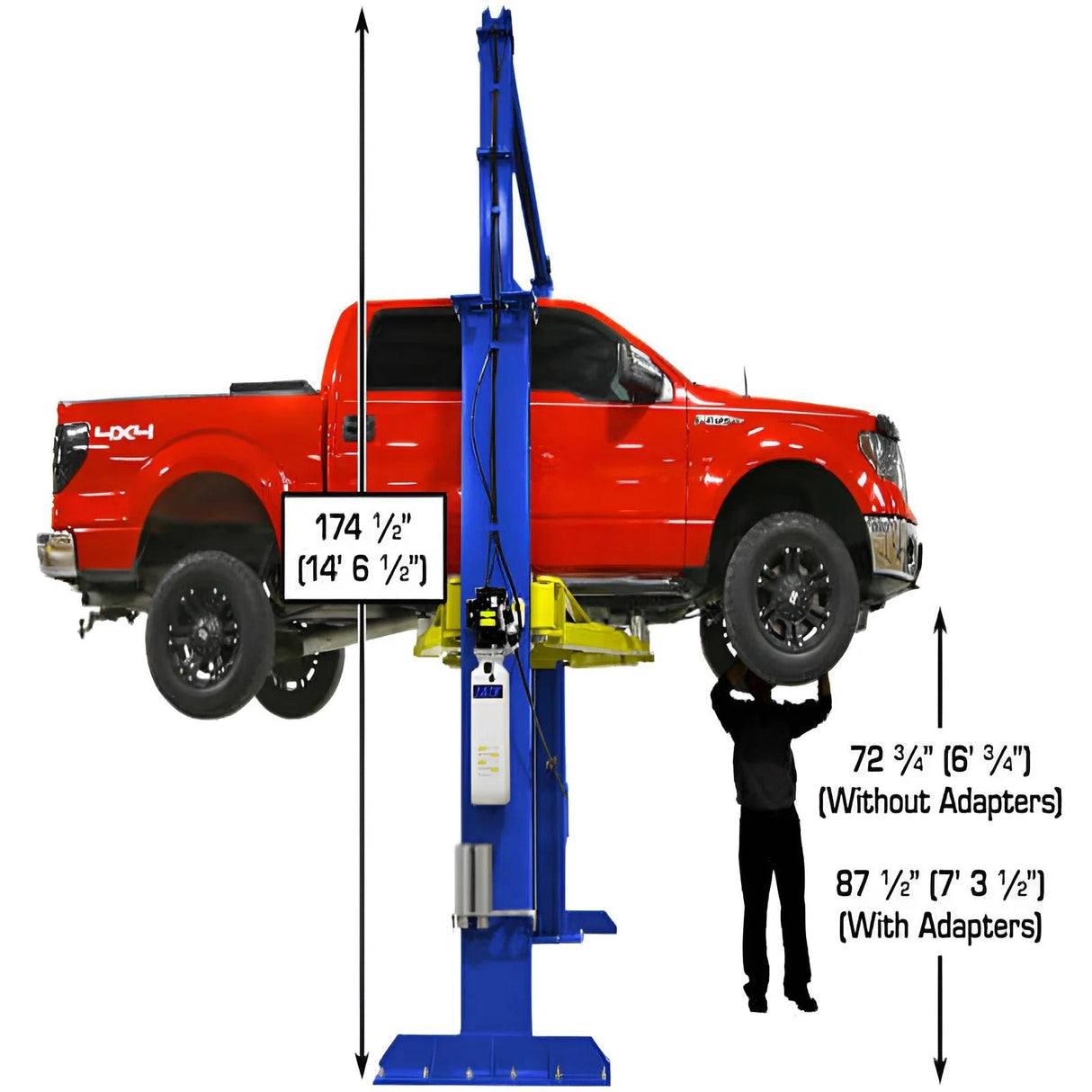

| Maximum Lift Height (Without Adapters) | 72 3/4" |
| Maximum Lift Height (With Adapters) | 87 1/2" |
| Minimum Arm Height | 6" |
| Inside Column | 119 1/4" (9' 11 1/4") |
| Drive Thru | 107 1/2" (8' 11 1/2") |
| Column Size | 8" x 14 1/2" |
| Column Thickness of Steel | 8mm |

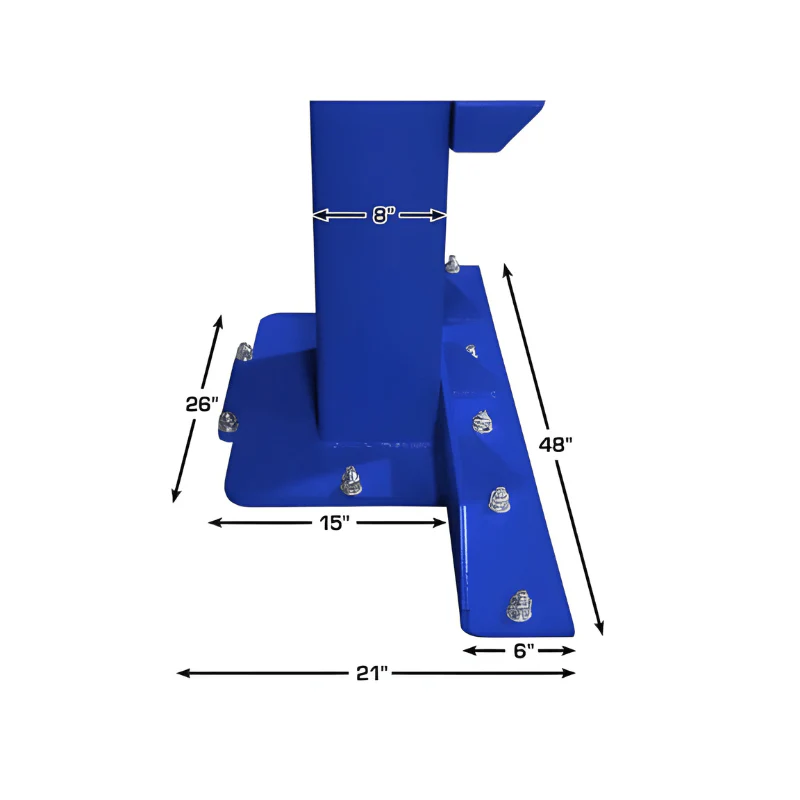

| Base of Lift | 21" x 48" |
| Motor/Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |

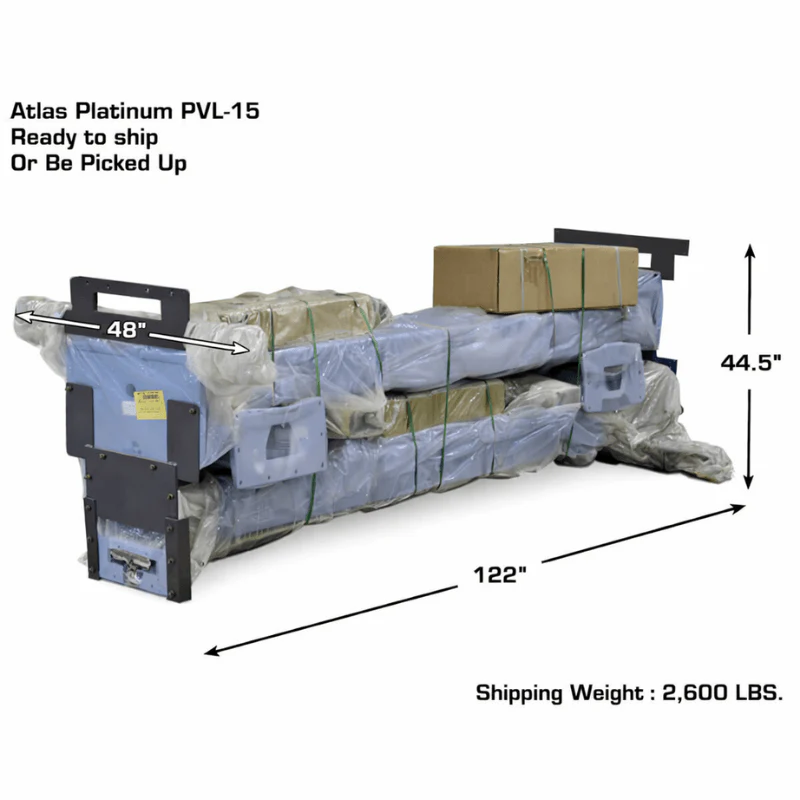

| Shipping Weight | 2,750 lbs. |

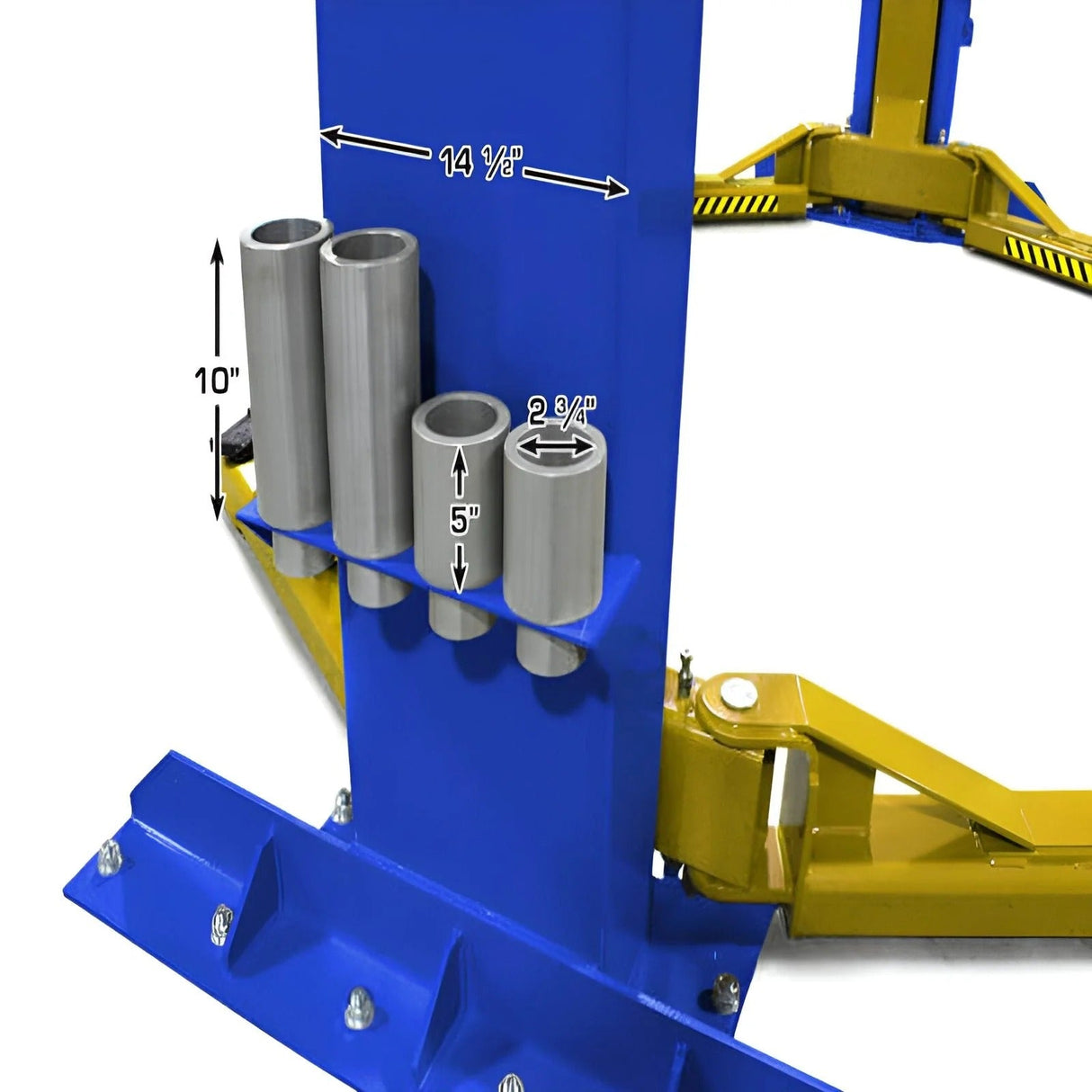

| Adapter Heights | 4 Each: 5", 10" |
| Arm Hole/Adapter Peg Size | 2.75" |
| Concrete Requirement | Minimum 6" concrete with 3,000 PSI rating |
