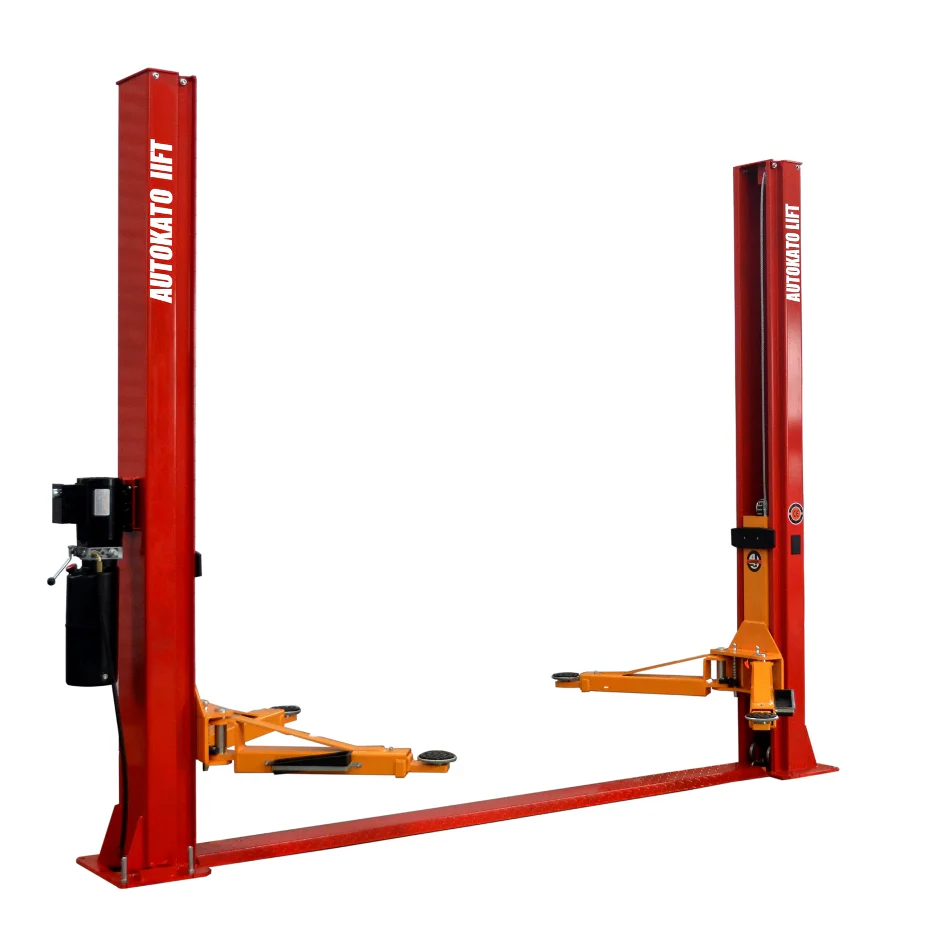

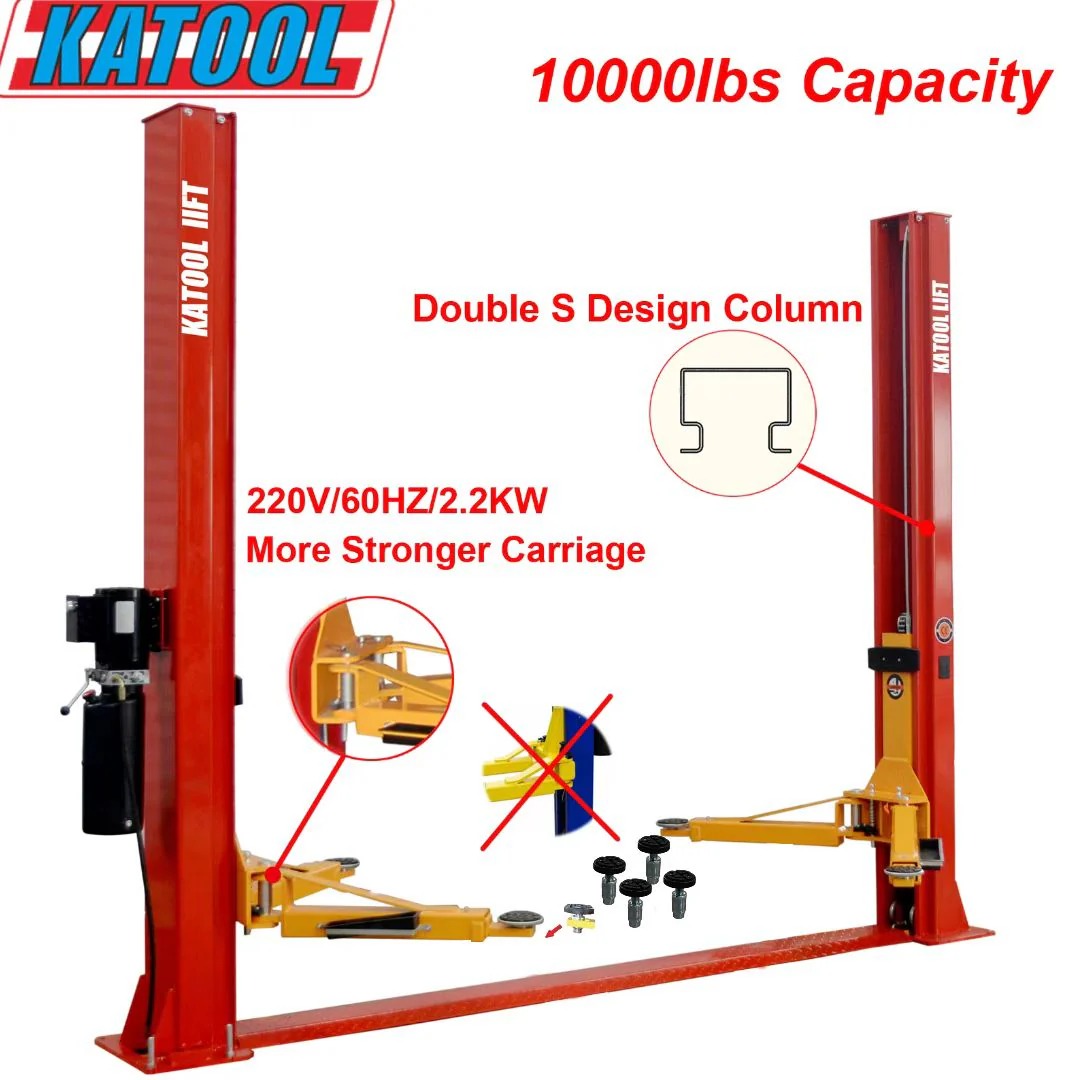

Katool KT-H100 10,000 lb Symmetric 2-Post Car Lift

The Katool KT-H100 Two-Post Vehicle Lift is a heavy-duty, professional-grade lifting solution built for automotive repair shops, performance garages, and serious home workshops. With a 10,000 lb lifting capacity, this lift is designed to safely handle a wide range of vehicles including cars, SUVs, and light-duty trucks while delivering consistent, balanced lifting performance.

Engineered with a symmetric arm configuration and base plate design, the KT-H100 provides stable vehicle positioning and is ideal for shops with lower ceiling heights. The dual hydraulic chain-drive cylinder system ensures smooth and synchronized lifting, while an integrated dual-cable balancing system keeps both carriages moving evenly to prevent vehicle tilt during operation.

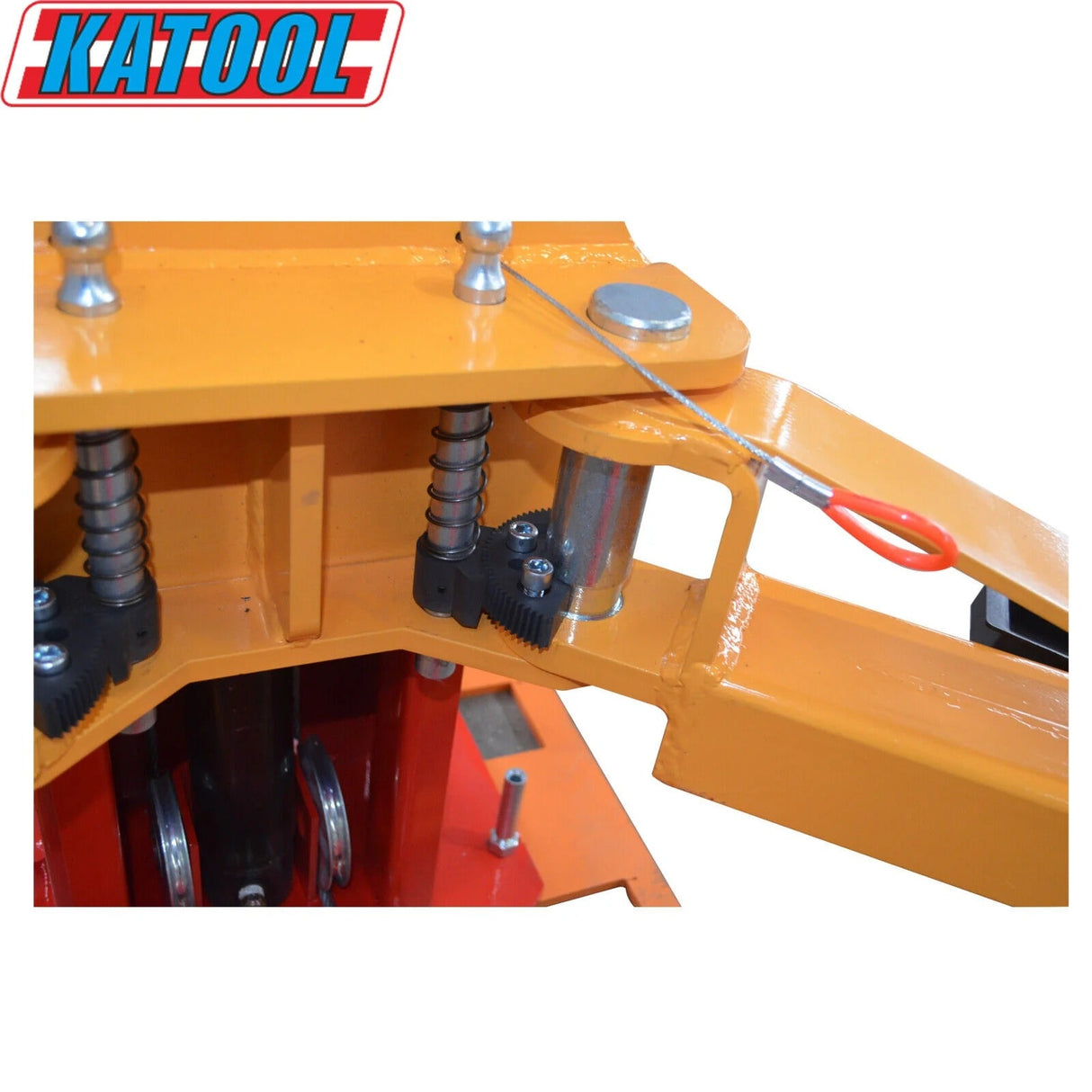

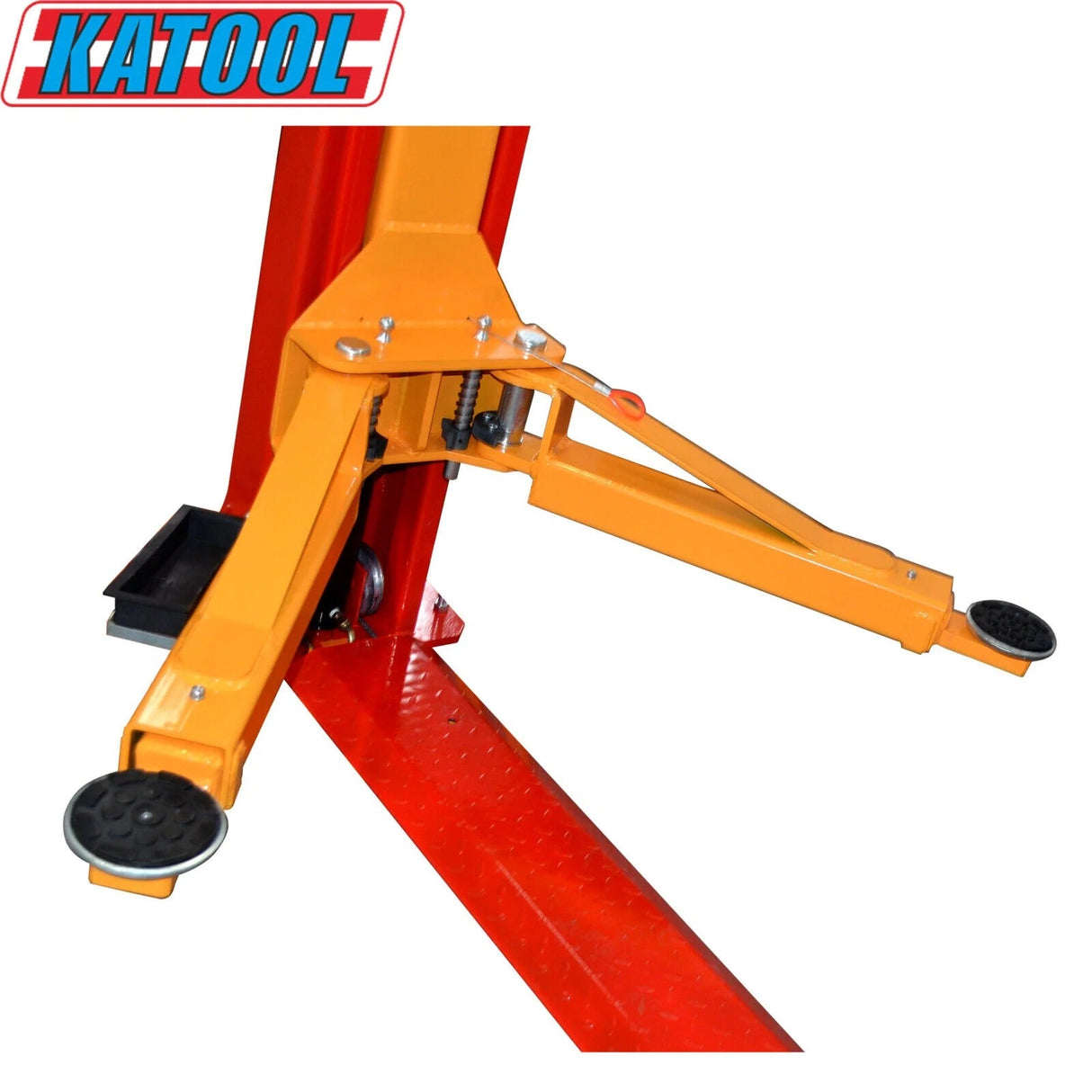

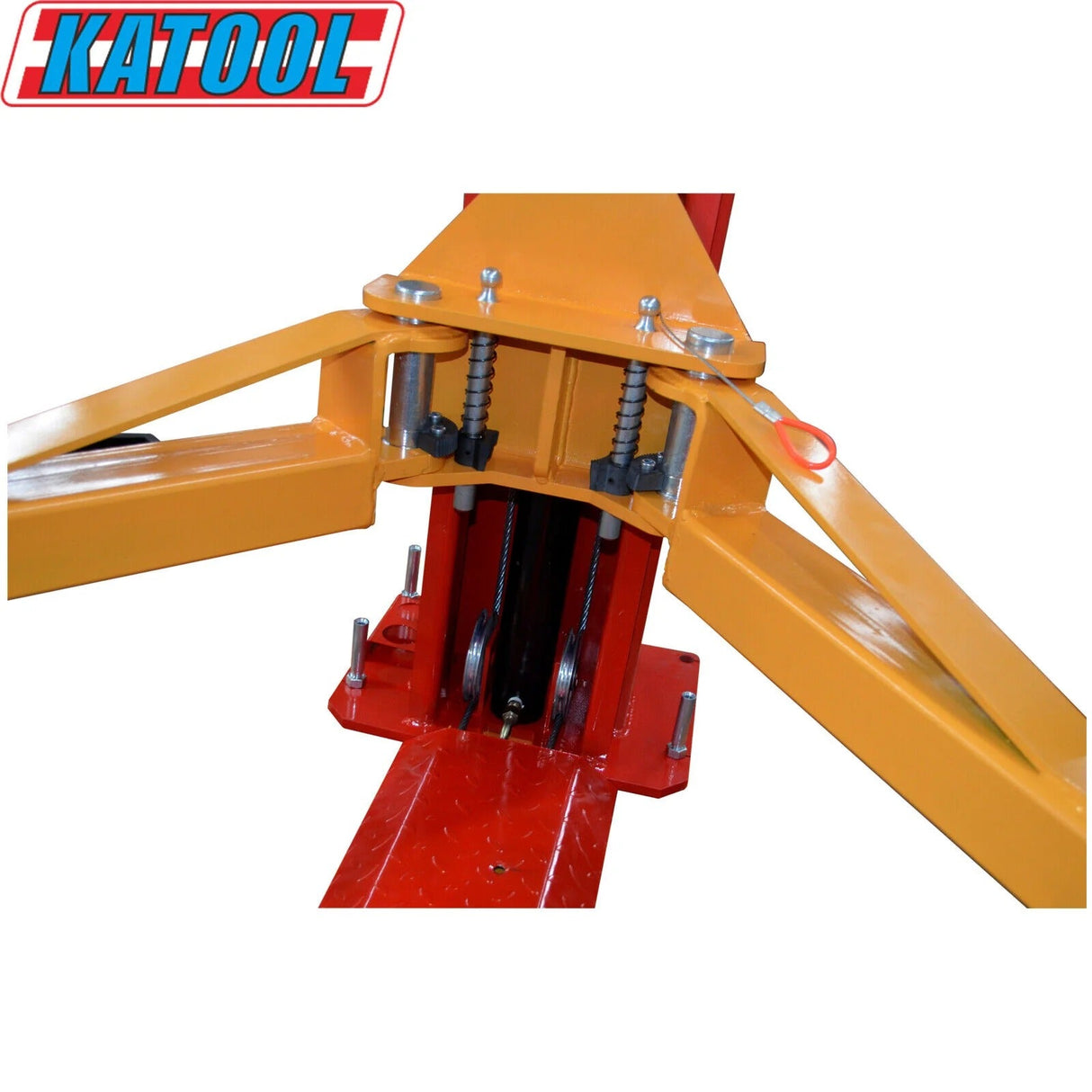

Built with safety in mind, the lift features a dual-side manual safety release system and an automatic mechanical locking mechanism that engages during operation to secure the vehicle at working height. Rubber door protection pads help prevent accidental damage, while adjustable two-stage arms and screw-type lifting pads allow precise positioning across various vehicle lift points.

Additional features such as extension adapters (+30 mm and +120 mm), integrated guardrails, and a tool storage box enhance usability and convenience in busy shop environments. Designed to meet CE certification standards and tested to 115% dynamic and 150% static load capacity, the KT-H100 delivers dependable performance for daily use.

Key Features & Benefits

• 10,000 lb Lifting Capacity – Supports cars, SUVs, and light trucks
• Symmetric Arm Design – Balanced lifting geometry for easy positioning
• Base Plate Configuration – Ideal for shops with limited ceiling height
• Dual Hydraulic Chain-Drive Cylinders – Smooth, stable lifting performance
• Synchronized Cable System – Keeps lift level and prevents vehicle tilting
• Dual-Side Manual Safety Release – Convenient lowering from either column
• Automatic Mechanical Safety Locks – Secures vehicle during operation
• Extension Adapters Included – +30 mm and +120 mm for added compatibility
• Rubber Door Protection Pads – Helps prevent vehicle damage
• Integrated Guardrails & Tool Box – Added safety and workspace convenience
• High-Quality Hydraulic System – Reliable daily performance
• CE Certified Construction – Tested to 115% dynamic and 150% static load capacity

⚠️ Failure to install on properly rated concrete can result in equipment failure, serious injury, or property damage. Always verify slab strength before installation.

Documents

• Manual
